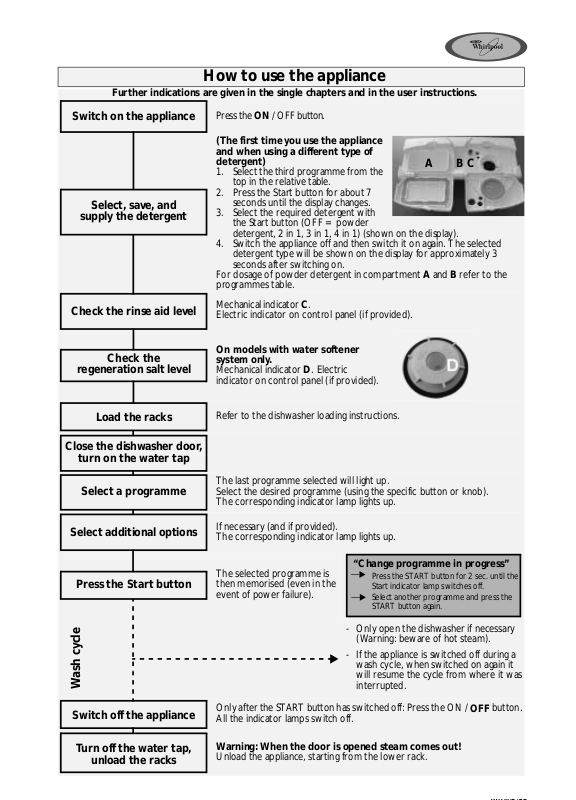

How to use the appliance
ABC
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
Select, save, and
supply the detergent
Check the rinse aid level
Check the
regeneration salt level
Load the racks
Press the ON / OFF button.
(The first time you use the appliance
and when using a different type of
detergent)
1. Select the third programme from the
top in the relative table.
2. Press the Start button for about 7
seconds until the display changes.
3. Select the required detergent with
the Start button (OFF = powder
detergent, 2 in 1, 3 in 1, 4 in 1) (shown on the display).
4. Switch the appliance off and then switch it on again. The selected
detergent type will be shown on the display for approximately 3
seconds after switching on.
For dosage of powder detergent in compartment A and B refer to the
programmes table.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Close the dishwasher door,
turn on the water tap
Select a programme
Select additional options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
If necessary (and if provided).
The corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON /
All the indicator lamps switch off.
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme in progress”
Press the START button for 2 sec. until the
Start indicator lamp switches off.
Select another programme and press the
START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
OFF
button.
Page 2
Dishwasher loading instructions and racks provided
depending on the model
Upper rack:
Crockery holder (A):
Depending on the position, for long-handles utensils,
cups and plates.
Glass holder (B):
Long-stemmed glasses.
Long-handled utensils (e.g. carving forks, knives)
must be arranged with the sharp end facing in
towards the appliance.
Half Load:
Load the upper rack (see description of Options). Place
the cutlery basket (C), if provided, in the upper rack.
Rack height adjustment (also when loaded):
Pull the
Lower adjustment:
Upper adjustment:
The rack must be level on both sides.
Removing the top rack to provide clearance for
large items of crockery in the bottom rack:
Open the rack guide retainers (E) on the right and left
and remove the top rack.
When the upper rack is in place the retainers must
always be closed.
(D) outwards and lower
the rack.
Pull the
(D) upwards until the rack
clicks into place (factory
setting).
rack handles
two
rack handles
two
B
A
C
D
D
Retainer
open
E
Retainer
closed
E
Lower rack:
Depending on the model
with fixed or tilting plate
holders (F).
Half Load:
Load the lower rack (see
description of Options).
Greater washing power,
particularly for plates and
saucepans.
Cutlery basket (G):
Grid (H) to keep items separate.
Sharp knives and forks that might cause injury
must be placed in the cutlery basket with the
sharp end facing downwards.
H
G
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for
washing in a dishwasher, for example wooden items, aluminium, tin, hand-decorated crockery
(unglazed), silver cutlery.
F
C
F
Page 3
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see
also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working
If crockery is not
perfectly dry
If crockery is not
perfectly clean
Sandy or grainy
residues
Colour of plastic parts
faded
• No water supply. • Open the tap.
• The appliance does not load sufficient
water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. •Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
• The water jet does not reach the
crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice, ... • Depending on the material, if necessary use a
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the safety circuit breaker.
• Arrange crockery so that items do not touch each
other. Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
•Removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• Not removable • Insufficient water softening, calcium
Opaque glasses/ glasses
deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if necessary add salt *.
not sparkling
Rust on cutlery
Identifying appliance
faults
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water
supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault
• The appliance type and model
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
• Not made of stainless steel. •Use suitable cutlery.
• The START indicator lamp flashes.
• Indicator F... (if provided).
• Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary, clean the filters *). Start the programme
again. Press the ST ART button for 2 seconds, until the
START indicator lamp switches off . Select a new
programme and press the Start button again.
Page 4
Before using the dishwasher, read the user instructions!
ADG 8370

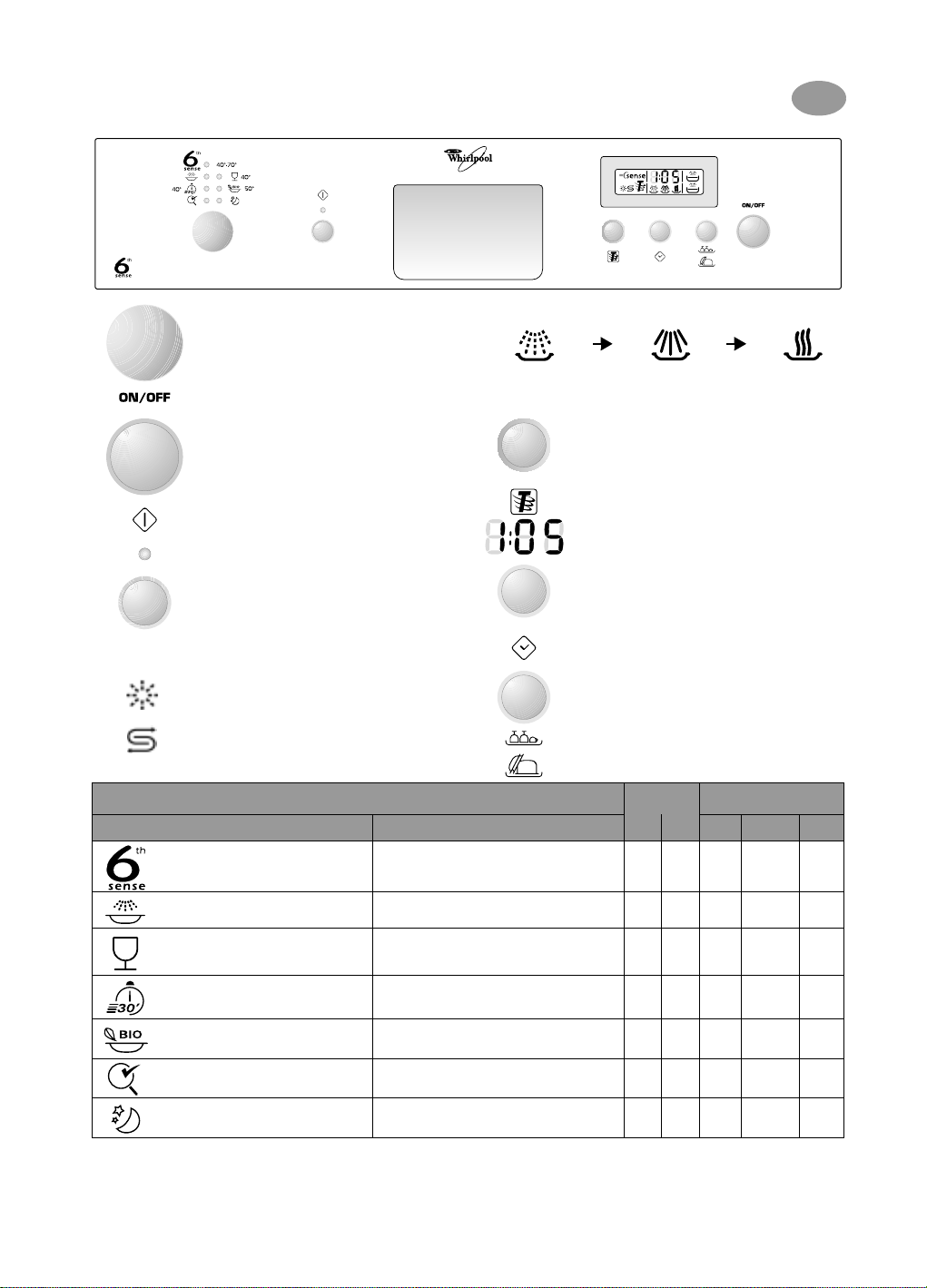

Indicators
Programmes Loading instructions A B
Quick Reference Guide
Programme selection button
On / Off button
Start button
Switches “on” when the dishwasher is operating. Flashes when a
fault occurs. Switches off at the end of the programme.
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before starting a
wash programme.
Programme chart
Wash cycle
Pre-Rinse Washing Drying
Options
3)
Tur bo cl ean
A higher spray pressure offers better cleaning, in particular
with very dirty dishes.
Time and failure display
Indicates in hours the time remaining until the start of the
wash cycle. Switches off when the programme starts and
indicates the time remaining in hours and minutes.
“F....” Identification of faults for service technician
“Delayed start” button
The wash cycle can be programmed to start after 1 - 24
hours. With each successive touch of the button, the delayed
start indicator increases by 1 hour, and after 24 returns to
00. Then press the Start button. The dishwasher will start at
the set time.
“Half load - Multizone” button
Load the upper or lower rack only.
This function can be used with any programme.
Press once = upper rack (the indication lamp/symbol comes on)
Press twice = lower rack (the indication lamp/symbol comes on)
Press 3 times = Off (half load function deactivated).
When washing without the top rack, press the “Half Load”
button twice, or “Lower rack wash” (the corresponding
LED/symbol comes on).
6)
Detergent
2)
Consumption
Litres kWh Minutes
GB
3)
Sensor max
6)
40-70°C
Pre-Rinse cold
Glass 40°C
Rapid 30 min
1) 6) 7)
Bio
Antibacterial
6)
4) 5) 6)
Overnight 55°C
1) Reference programme for energy label EN 50242;
2) Refer to “User instructions”;
3) The data relevant to programmes are values obtained in the laboratory in
conformity with Standard EN 50242. In practical use there may be time
variations or leaps depending on different loads, function options, water
temperatures or hardness and different power supply voltages.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “nk_custom [email protected]”.
Whirlpool is a registered trademark of Whirlpool USA
Lightly, normally or heavily soiled crockery,
including pots and pans.
Crockery to be washed later.
Light soiling, for example glasses and cups.
Lightly soiled crockery with no dried-on food.
40°C
Normally soiled crockery.
50°C
Normally or heavily soiled crockery, with additional
antibacterial action.
Normally soiled crockery, gentle and quiet
programme thanks to the low spray pressure
(39dbA).
4) The bacteria removal efficiency has been tested by the Institut Pasteur de Lille
5) Programme interruption (e.g. the door being opened) may compromise the
6) These programmes can be used with the “Turbo clean” option.
7) Energy saving programme with prolonged drying cycle.
(France), based on the NF EN 13697 standard of November 2001;
result of the antibacterial rinse;
(We reserve the right to make technical modifications)
X X 7-17 0.99-1.58 65-170
- - 4.0 0.03 14
X - 10.0 0.85 100
X - 10.0 0.65 30
X X 13.0 1.05 195
X X 13.0 1.50 115
X X 13.0 1.20 290
5019 396 01507
