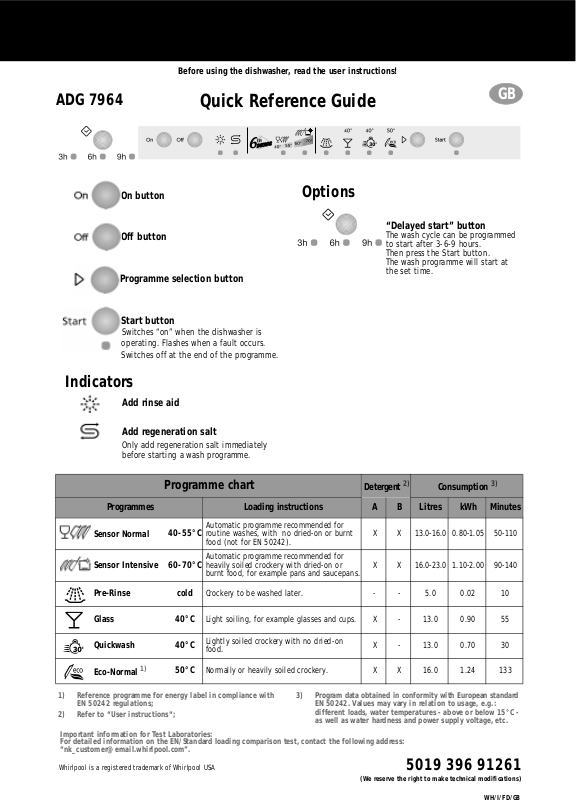

Whirlpool ADG 7964 Quick Reference Guide

Before using the dishwasher, read the user instructions!

ADG 7964	Quick Reference Guide			GB

On button

Options

“Delayed start” button

Off button

Programme selection button

The wash cycle can be programmed to start after 3-6-9 hours.

Then press the Start button.

The wash programme will start at the set time.

Start button

Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Indicators

Add rinse aid

Add regeneration salt

Only add regeneration salt immediately before starting a wash programme.

		Programme chart		Detergent 2)		Consumption 3)
	Programmes		Loading instructions	A	B	Litres	kWh	Minutes
	Sensor Normal	40-55°C	Automatic programme recommended for	X	X	13.0-16.0	0.80-1.05	50-110
			routine washes, with no dried-on or burnt
			food (not for EN 50242).
	Sensor Intensive	60-70°C	Automatic programme recommended for	X	X	16.0-23.0	1.10-2.00	90-140
			heavily soiled crockery with dried-on or
			burnt food, for example pans and saucepans.
	Pre-Rinse	cold	Crockery to be washed later.	-	-	5.0	0.02	10
	Glass	40°C	Light soiling, for example glasses and cups.	X	-	13.0	0.90	55
	Quickwash	40°C	Lightly soiled crockery with no dried-on	X	-	13.0	0.70	30
			food.
	Eco-Normal 1)	50°C	Normally or heavily soiled crockery.	X	X	16.0	1.24	133

1)Reference programme for energy label in compliance with EN 50242 regulations;

2)Refer to “User instructions“;

3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.

Important information for Test Laboratories:

For detailed information on the EN/Standard loading comparison test, contact the following address: “[e-mail]”.

Whirlpool is a registered trademark of Whirlpool USA	5019 396 91261
	(We reserve the right to make technical modifications)

WH/I/FD/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Open the door, switch on the appliance

How to fill the detergent dispenser

Check the rinse aid level

Check the regeneration salt level

Load the racks

Select a programme

Select options

Press the Start button

Turn on the water tap close the dishwasher door

Wash cycle

Switch off the appliance

Turn off the water tap, unload the racks

Press the ON button.
Large compartment A:			C
With each wash cycle.	A	B
Small compartment B:
For programmes with pre-wash only.

Mechanical indicator lamp C.

Electric indicator on control panel (if provided).

On models with water softener system only.

Mechanical indicator lamp D. Electric indicator on control panel (if provided).

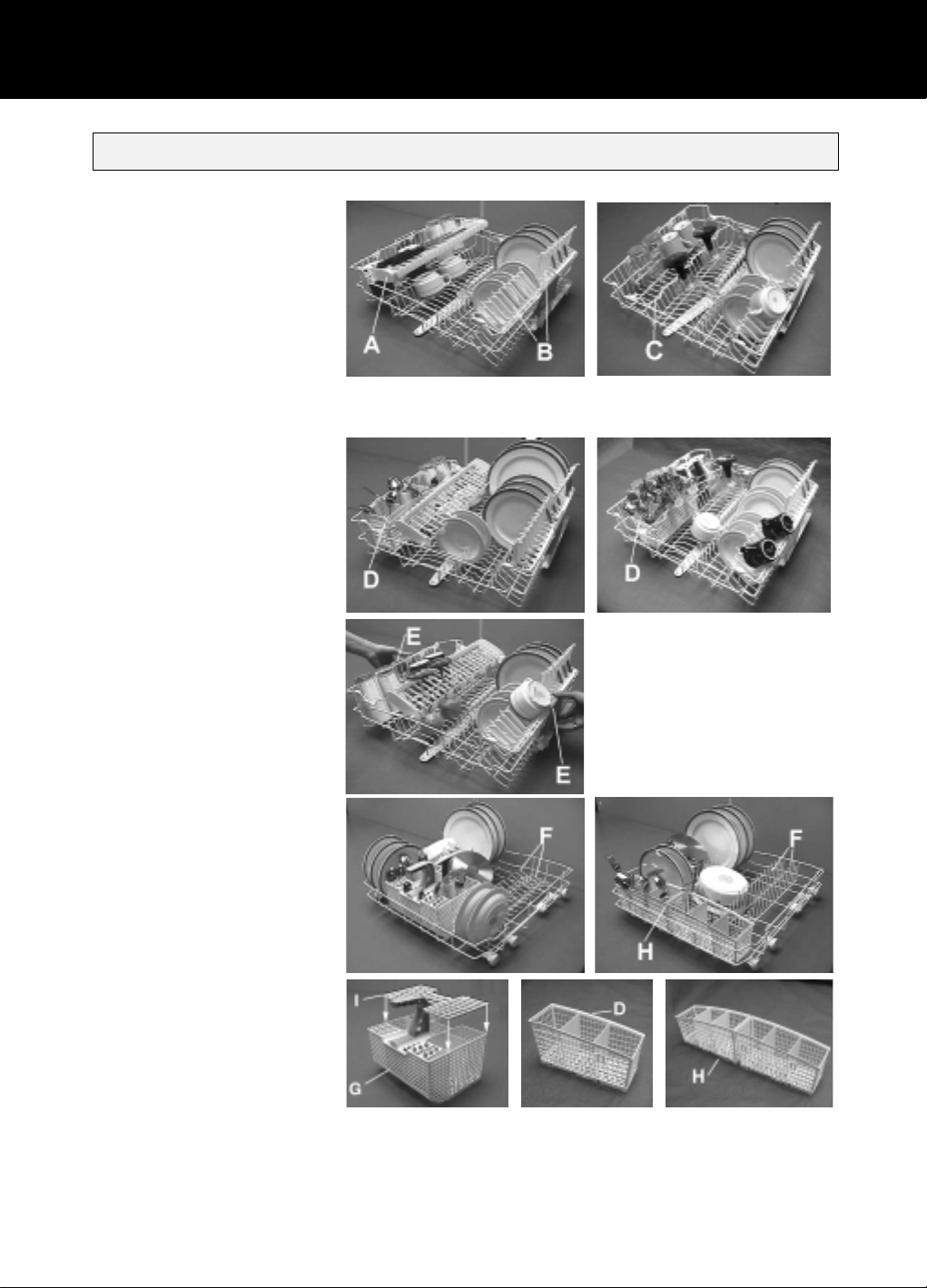

Refer to the dishwasher loading instructions.

The last programme selected will light up.

Press the button until the desired programme lights up.

If necessary (and if provided)

the corresponding indicator lamp lights up.

The selected programme is then memorised (even in the event of power failure).

“Change programme”

Press the START button for 2 sec. until the Start indicator lamp switches off;

Select another programme and press the START button again.

-Only open the dishwasher if necessary (Warning: beware of hot steam).

-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.

At the end of the programme an acoustic signal will sound.

Only after the START button has switched off: press the OFF button. All the indicator lamps switch off.

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

WH/II/FD/GB
