Before using the dishwasher, read the user instructions!

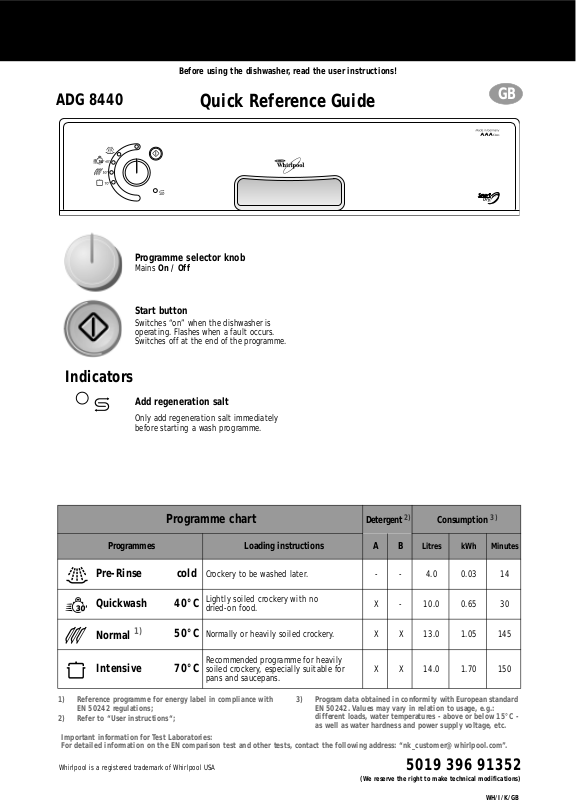

ADG 8440 |
Quick Reference Guide |
GB |
|
Programme selector knob
Mains On / Off
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
Indicators
Add regeneration salt
Only add regeneration salt immediately before starting a wash programme.
|
Programme chart |
Detergent 2) |
Consumption 3) |
||||
|
|
|
|
|
|
|
|
Programmes |
|
Loading instructions |
A |
B |
Litres |
kWh |
Minutes |
|
|
|
|
|
|
|
|
Pre-Rinse |
cold |
Crockery to be washed later. |
- |
- |
4.0 |
0.03 |
14 |
|
|
|
|
|
|
|
|
Quickwash |
40°C |
Lightly soiled crockery with no |
X |
- |
10.0 |
0.65 |
30 |
|
|
dried-on food. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Normal 1) |
50°C |
Normally or heavily soiled crockery. |
X |
X |
13.0 |
1.05 |
145 |
|
|
|
|
|
|
|
|
Intensive |
70°C |
Recommended programme for heavily |
|
|
|
|
|
soiled crockery, especially suitable for |
X |
X |
14.0 |
1.70 |
150 |
||
|
|
pans and saucepans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions“;
3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 91352 |
|
(We reserve the right to make technical modifications) |
WH/I/K/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent dispenser
Check the rinse aid level
Check the regeneration salt level
Load the racks
Close the dishwasher door, turn on the water tap
Select a programme
Select options
Press the Start button
Automatic start by turning the programme selector knob (in case of retractable knob, first press the knob to access it).
Large compartment A: |
|
|
|
|
|
|
With each wash cycle. |
|
|
A |
B C |
||
Small compartment B: |
|
|
|
|
|
|
For programmes with pre-wash only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Mechanical indicator C. |
|
|
|
|
||
Electric indicator on control panel (if provided). |
|
|
|
|
||
On models with water softener |
|
|
|
|
|
|
|
|
|
|
|
||
system only. |
|
|
|
|
|
|
Mechanical indicator D. Electric |
|
|
|
|
|
|
indicator on control panel (if provided). |
|
|
|
|
|
|
|
|
|
|
|
|
|
Refer to the dishwasher loading instructions. |
|
|
|
|
||
Select the desired programme.
The corresponding indicator lamp comes on.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is |
“Change programme” |
|
|
Press the START button for 2 sec. until |
|
|
||
then memorised (even in the |
|
the Start indicator lamp switches off; |
event of power failure). |
|
Select another programme and |
|
|
|
|
|
press the START button again. |
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
-Only open the dishwasher if necessary (Warning: beware of hot steam).
- If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
Only after the START button has switched off: Access the knob (in case of retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
WH/II/K/GB
