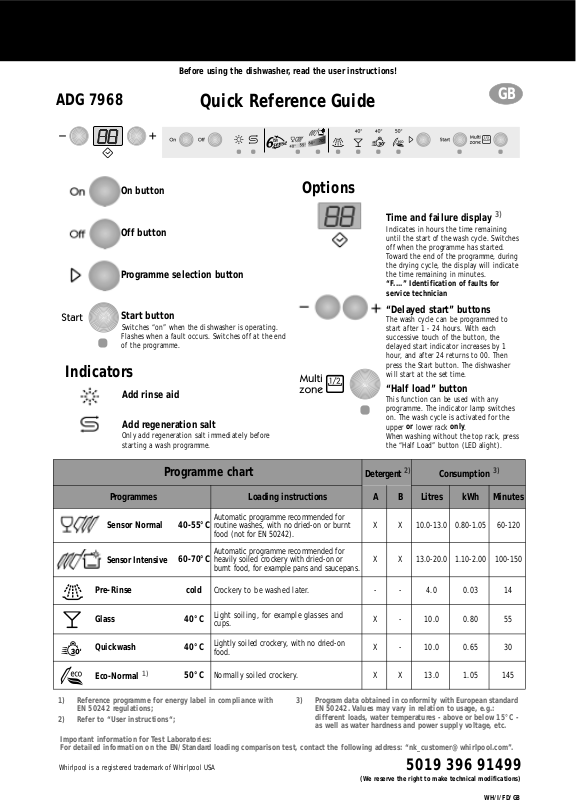

Whirlpool ADG 7968 Quick Reference Guide

Download

Page 1

Before using the dishwasher, read the user instructions!

ADG 7968

Indicators

Quick Reference Guide

On button

Off button

Programme selection button

Start button

Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches o ff at th e end of the programme.

Add rinse aid

Add regeneration salt

Only add regeneration salt immediately before starting a wash programme.

Options

Time and failure display

Indicates in hours the time remaining until the start of the wash cycle . Switches off when the programme has started. Toward the end of the programme, during the drying cycle, the display will indicate the time remaining in minutes.

“F....” Identification of faults for

service technician

“Delayed start” buttons

The wash cycle can be programmed to start after 1 - 24 hours. With each successive touch of the button, the delayed start indicator increases by 1 hour, and after 24 returns to 00. Then press the Start button. The dishwasher will start at the set time.

“Half load” button

This function can be used with any programme. The indicator lamp switches on. The wash cycle is activated for the

upper

lower rack When washing without the top r ack, press the “Half Load” button (LED alight).

only

Programme chart

Detergent

Consumption

Programmes Loading instructions A B Litres kWh Minutes

Automatic programme recommended for

Sensor Normal 40-55°C

Sensor Intensive

60-70°C

Pre-Rinse cold

Glass 40°C

Quickwash 40°C

Eco-Normal

1) Reference programme f or energy label in compliance with EN 50242 regulations;

2) Refer to “User instructions“;

Important information for Test Laboratories: For detailed information on the EN/Standard loading comparison test, contact the following address: “[email protected]”.

Whirlpool is a registered trademark of Whirlpool USA

routine wash es , wi th no dri ed -on or burn t food (not for EN 50242).

Automatic programme recommended for heavily soiled crockery with dried-on or burnt food, f or example pans an d s aucepans.

Crockery to be washed later. - - 4.0 0.03 14

Light soiling, for example glasses and cups.

Lightly soiled crockery , with no d ri ed-on food.

Normally soiled crockery. X X 13.0 1.05 145

50°C

3) Program data obtained in conformity with European st andar d EN 50242. Values may vary in relation to usage, e.g.: different loads, water te mperatures - above or belo w 15 °C as well as water hardness and power supply voltage, etc.

X X 10.0-13.0 0.80-1.05 60-120

X X 13.0-20.0 1.10-2.00 100-150

X - 10.0 0.80 55

X - 10.0 0.65 30

5019 396 91499

(We reserve the right to make technical modifications)

WH/I/FD/GB

Page 2

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Open the door,

switch on the appliance

How to fill the

detergent dispenser

Check the rinse aid level

Check the regeneration

salt level

Load the racks

Select a programme

Select options

Press the ON button.

Large compartment A: With each wash cycle. Small compartment B: For programmes with pre-wash only.

Mechanical indicator C. Electric indicator on control panel (if provided).

On models with water softener system only .

Mechanical indi cator D. Electri c indi cator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up. Press the button until the desired programme lights up.

If necessary (and if provided) the corresponding indicator lamp lights up.

ABC

Press the Start button

Turn on the water tap

close the dishwasher door

Wa sh cycle

Switch off the appliance

Turn off the water tap,

unload the racks

The selected progr amme is then memorised (even in th e event of power fai lur e).

At the end of the progr amme an acoustic sign al will sound. Only after the ST ART button has switched o ff: press th e OFF button. All the indi cator lamps switch off.

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

“Change progra mme”

Press the START button for 2 sec. until the Start indicator lamp switches off; Select another programme and press

the START button again.

- Only open the dishwasher if necessary (Warning: beware of hot steam).

- If the appliance is switched o ff d urin g a wash cycle, when switched on again it will resume the cycle from where it was interrupted.

WH/II/FD/GB

Page 3

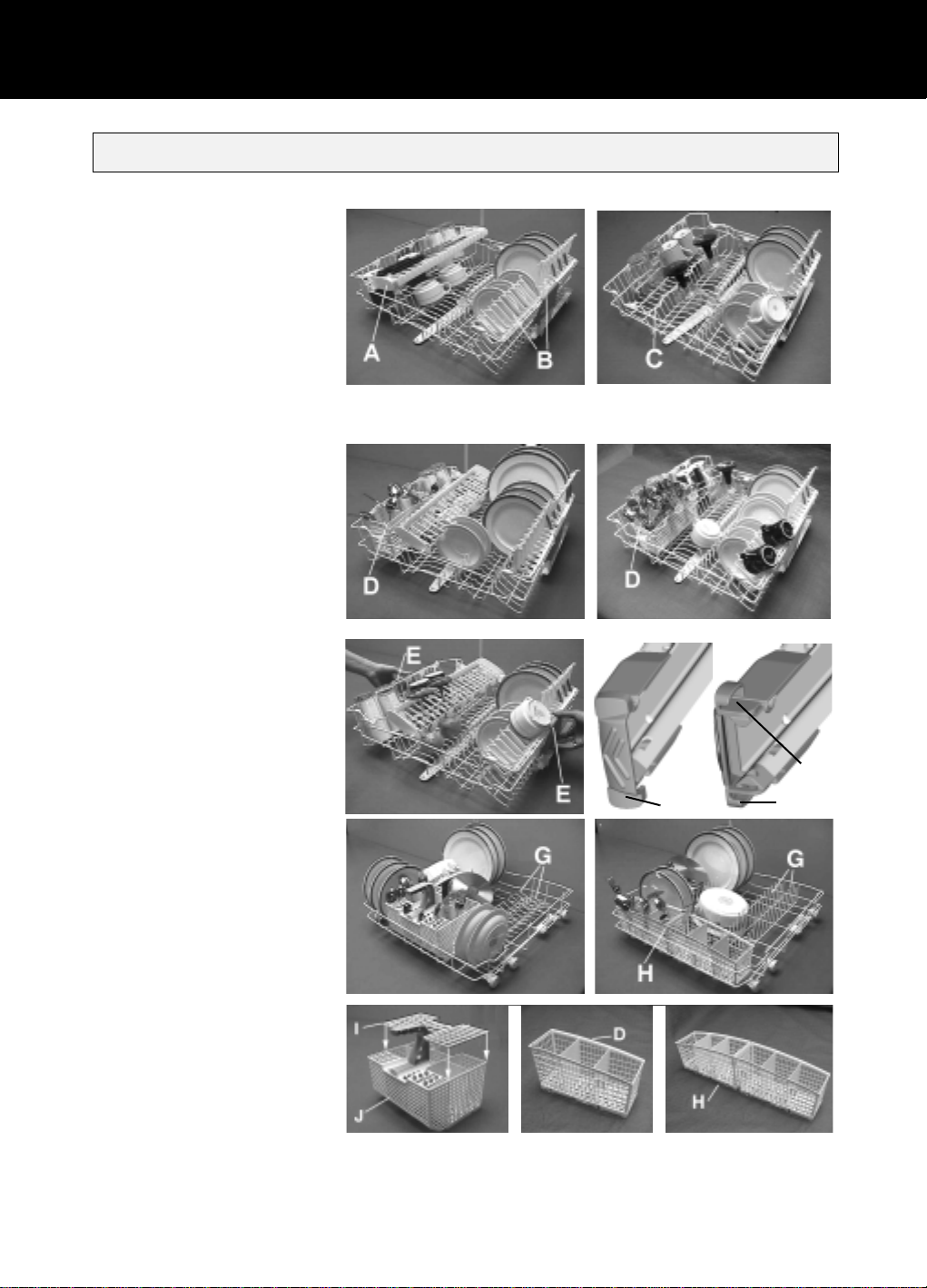

Dishwasher loading instructions and racks provided

Upper rack:

Multi-purpose support (A):

Depending on the position, f or lon ghandles utensils, cups and glasses . M ay be used in three different position s.

Crockery holders (B):

Depending on the positi on, for ex ample plates, cups and long-stemm ed gl asses .

Revolving glass support (C):

Depending on the positi on, for ex ample small or long-stemmed glasses .

Long-handled utensils (e.g. carving forks, knives) must be arranged with the sharp end facing in towards the appliance

Half Load:

Load the upper rack Place the cutlery basket (D) in the

upper rack.

only

Rack height adjustment (also when loaded):

Lower adjustment:

•

two

rack handles outwards (E)

and lower the rack.

Upper adjustment:

• handles (E) upwards until the rack clicks into place (Factory setting).

The rack must be level on both sides.

Removing the top rack to provide clearance for large items of crockery in the bottom rack:

Open the rack guide r etainers (F) on the right and left an d r em ove th e t op r ack. When the upper rack is in place the retainers must always be closed.

pull out the

two

pull the

depending on the model

Retainer

closed

Retainer

open

Lower rack:

Depending on the m odel with fix ed or tilting plate holders (G).

Half Load:

Load the lower rack Greater washing power, particularly

for plates and saucepans.

Cutlery basket (J) or (H):

Some models are provid ed with a grid (I) that can be fitted onto the cutlery basket to keep items separated. Cutlery basket (D), if provided, for appliances with half load only.

Sharp knives and forks that might cause injury must be placed in the cutlery basket with the sharp end facing downwards.

Only use dishwasher-proof crockery and dishes . Do not use the appliance f or items not suitable for w ashing in a dishwasher , for example wooden items , aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery . Spare parts which are sold separately:

Multi-purpose support (A) - N. AMH 369 series.

Revolving glass support (C) - N. WGH 1000 series.

only

Page 4

What to do if...

If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see also the corresponding chapter in the user instructions).

Problem Cause Remedy

The appliance is not

• No water supply. • Open the tap.

working

If crockery is not

• The appliance does not load sufficient water.

• There is a power failure. • Insert the plug into the mains socket.

• Starting the selected programme. • The programme can be set to “0” to start.

• Insufficient rinse aid. • Increase dosage *.

• Clean the water supply tap filter.

• Ensure there are no kinks in the water hose.

• Press the Start button.

• Close the door.

• Check the domestic circuit fuse.

perfectly dry

• Residual water in cavities. • Load crockery at an angle.

If crockery is not perfectly clean

Sandy or grainy residues

Colour of plastic parts faded

• The water jet does not reach the crockery.

• Insufficient detergent. • Follow recommended detergent dosage.

• Unsuitable programme. • Select a more intense wash cycle.

• Spray arms blocked. • The spray arms must be able to turn freely.

• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.

• Incorrect detergent/detergent too old. • Use a good quality detergent.

• Clogged filters. • Check filters regularly/if necessary clean *.

• Filters incorrectly assembled. • Insert the filter correctly *.

• Tomato/carrot juice,... • Depending on the material, if necessary use a

• Arrange crockery so that items do not touch each other. Load crockery upside down.

detergent with a greater whitening power.

Deposits on crockery

• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.

• Streaks on glasses. • Reduce the rinse aid dosage *.

• Layer of salt on crockery/glasses. • Close the salt container lid properly *.

• not removable • Insuffi cient water softening, calcium deposits.

• Change water hardness setting, if necessary add salt *.

Opaque glasses/

• Cannot be washed in the dishwasher. • Use suitable glasses.

glasses not sparkling Rust on cutlery Identifying appliance

faults

If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water supply tap, then call our After-Sales Service (see guarantee).

Before contacting our After-Sales Service, take note of the following:

• The nature of the fault.

• The appliance type and model.

• The service code (the number indicated on the adhesive rating plate) inside the door on the right-hand side.

• Not made of stainless steel. • Use suitable cutlery.

• The START indicator lamp flashes.

• Indicator F... (if provided).

• Ensure the filter assembly is not clogged and that there is no interruption to the water supply (if necessary, clean the filters *). Start the programme again. Press the START button for 2 seconds, until the START in dicator lamp switches off. Select a new programme and press the Start button again.

WH/IV/GB
