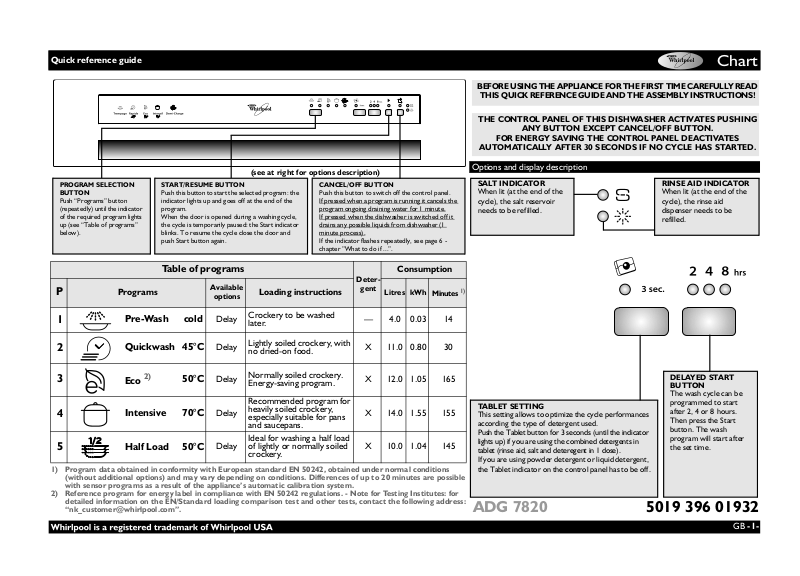

ADG 7820 WH
Quick reference guide
Chart
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ
THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!
(see at right for options description)
PROGRAM SELECTION
BUTTON
Push “Programs” button
(repeatedly) until the indicator
of the required program lights
up (see “Table of programs”
below).
P
1
2
3
4
5
1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions
(without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible
with sensor programs as a result of the appliance’s automatic calibration system.
2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for
detailed information on the EN/Standard loading comparison test and other tests, contact the following address:
“nk_customer@whirlpool.com”.
Programs
Pre-Wash cold
Quickwash 45°C
Eco
Intensive 70°C
Half Load 50°C
START/RESUME BUTTON
Push this button to start the selected program: the
indicator lights up and goes off at the end of the
program.
When the door is opened during a washing cycle,
the cycle is temporarily paused: the Start indicator
blinks. To resume the cycle close the door and
push Start button again.
Table of programs
Available
options
Crockery to be washed
Delay
later.
Lightly soiled crockery, with
Delay
no dried-on food.
2)
50°C
Normally soiled crockery.
Delay
Energy-saving program.
Recommended program for
heavily soiled crockery,
Delay
especially suitable for pans
and saucepans.
Ideal for washing a half load
of lightly or normally soiled
Delay
crockery.
CANCEL/OFF BUTTON
Push this button to switch off the control panel.
If pressed when a program is running it cancels the
program ongoing draining water for 1 minute.
If pressed when the dishwasher is switched off it
drains any possible liquids from dishwasher (1
minute process).
If the indicator flashes repeatedly, see page 6 chapter ”What to do if ...”.
Loading instructions
Deter-
gent
Litres kWh
— 4.0 0.03 14
X 11.0 0.80 30
X 12.0 1.05 165
X 14.0 1.55 155
X 10.0 1.04 145
Consumption
Minutes
THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING
ANY BUTTON EXCEPT CANCEL/OFF BUTTON.
FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES
AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.
Options and display description
SALT INDICATOR
When lit (at the end of the
cycle), the salt reservoir
needs to be refilled.
1)
TABLET SETTING
This setting allows to optimize the cycle performances
according the type of detergent used.
Push the Tablet button for 3 seconds (until the indicator
lights up) if you are using the combined detergents in
tablet (rinse aid, salt and deteregent in 1 dose).
If you are using powder detergent or liquid detergent,
the Tablet indicator on the control panel has to be off.
RINSE AID INDICATOR
When lit (at the end of the
cycle), the rinse aid
dispenser needs to be
refilled.
DELAYED START
BUTTON
The wash cycle can be
programmed to start
after 2, 4 or 8 hours.
Then press the Start
button. The wash
program will start after
the set time.
5019 396 01932ADG 7820
GB
-1-
How to set water hardness in order to always assure the best cleaning results
First time use
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
Water hardness should be set only
before the first wash or if water
hardness has been changed
Water hardness level is factory
set for medium-hard water
(level 4).
Even if you use tablets which
include salt functionality, you
must still add regeneration salt
since such detergents are not
effective enough at softening
hard water.
At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).
Filling the salt reservoir -
1
The salt level indicator lamp may remain lit
at the end of several wash cycles. If the
water hardness level falls within category
(soft), no salt is required.
Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Visual indicator
(depending
on the model).
Unscrew cap.
-Press and hold together Programs and CANCEL/Off buttons for minimum 3 seconds.
- Programs LEDs will indicate the water hardness setting.
-Press the
- Wait 30 seconds (control panel switches off) or press
1.
Programs
Ask your water supply company what the
water hardness is...
French
degrees °fH
0 - 9 Soft 1
10 - 18 Medium 2
19 - 27 Average 3
28 - 37 Medium-hard 4
38 - 50 Hard 5
51 - 63 Very hard 6
64 - 90 Extremely hard 7
Fill the salt reservoir with water
before the first wash only.
(depending on the model)
Salt indicator on the control panel Salt indicator on the salt reservoir cap
button to increase setting (when the level reaches 7, the next key press will set the level back to 1.
START/Resume
2.
...enter this value on your
dishwasher
Water hardness
level
The indicator lamp lights up when SALT
NEEDS TO BE ADDED.
3 first PROGRAM LEDs
lit on the panel
(see table of programs)
P1 P2 P3
Add salt (never add detergent!)
min. 0.8 kg / max. 1 kg
button to save setting.
(rinse aid and salt)
green: OK.
Suggestions for detergent use
Gel or Powder
go to step 1
(see “Daily
check”)
if water is
HARD extra salt
needs to be added
(go to step 1,
“Daily check”)
Daily check
Screw on the cap.
Salt residual
around the cap
need to be
removed. Some
salt reservoir have
a level indicator
integrated in the
cap (see below
how to check).
clear: NEEDS TO
Ta bl e ts
BE ADDED
GB
-2-
Adding rinse aid
(not necessary when you use tablets). How to adjust the rinse aid dosage regulator
Daily check
Visual
2
Check the rinse aid indicator to check the level
into the dispenser.
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the
appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty
drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with
rinse aid incorporated tend to form excess suds.
Adding detergent -
(press the dedicated button).
Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations
Open the cover A
3
indicator
If required,
open the
cover B
(press the
dedicated
button).
Add rinse aid
to the max.
line ~150 ml
(depending on the model)
Rinse aid indicator on the control panel Rinse aid indicator on the dispenser
The indicator lamp lights up when RINSE AID NEEDS
TO BE ADDED.
Insert detergent: Tablet / powder / liquid into the big chamber
Only fill the
detergent dispenser
prior to starting a
wash program.
The rinse aid dosage can be
adjusted to the detergent used.
The lower the setting, the less
rinse aid is dispensed (factory
setting: position 4).
Press the button to open the
cover B. Using a coin or similar
object, turn the arrow to the
desired setting. After adjusting
the rinse aid setting, shut the
cover again.
dark: OK. clear: NEEDS TO BE ADDED
Shut the cover
by pressing dedicated ribs.
Use only one tablet per one cycle, only
placed in detergent dispenser.
All types of tablets can be used, but for
2 in 1 type adding of salt is mandatory.
Daily use
GB
-3-
