Before using the dishwasher, read the user instructions!
ADG 7551

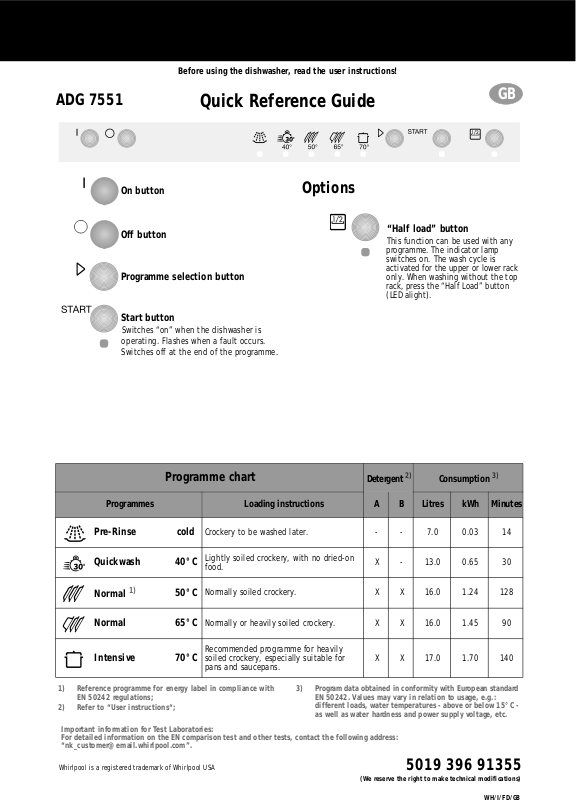

Quick Reference Guide
On button
Off button
Programme selection button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
GB
Options
“Half load” button
This function can be used with any
programme. The indicator lamp
switches on. The wash cycle is
activated for the upper or lower rack
only. When washing without the top
rack, press the “Half Load” button
(LED alight).
Programme chart
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold
Quickwash 40°C
Normal
1)
Normal 65°C
Intensive 70°C
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address:
“[email protected]”.
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later. - - 7.0 0.03 14
Lightly soiled crockery, with no dried-on
food.
Normally soiled crockery. X X 16.0 1.24 128
50°C
Normally or heavily soiled crockery. X X 16.0 1.45 90
Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans.
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or bel ow 15°C as well as water hardness and power supply voltage, etc.
Detergent
X - 13.0 0.65 30
X X 17.0 1.70 140
(We reserve the right to make technical modifications)
2)
Consumption
3)
5019 396 91355
WH/I/FD/GB
Page 2
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door,
switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Select options
Press the ON button.
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator D. Electric indicator
on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the button until the desired programme lights up.
If necessary (and if provided)
the corresponding indicator lamp lights up.
ABC
Press the Start button
Turn on the water tap
close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
The selected programme is then
memorised (even in the event
of power failure).
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the OFF button.
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
Page 3
WH/III2/GB

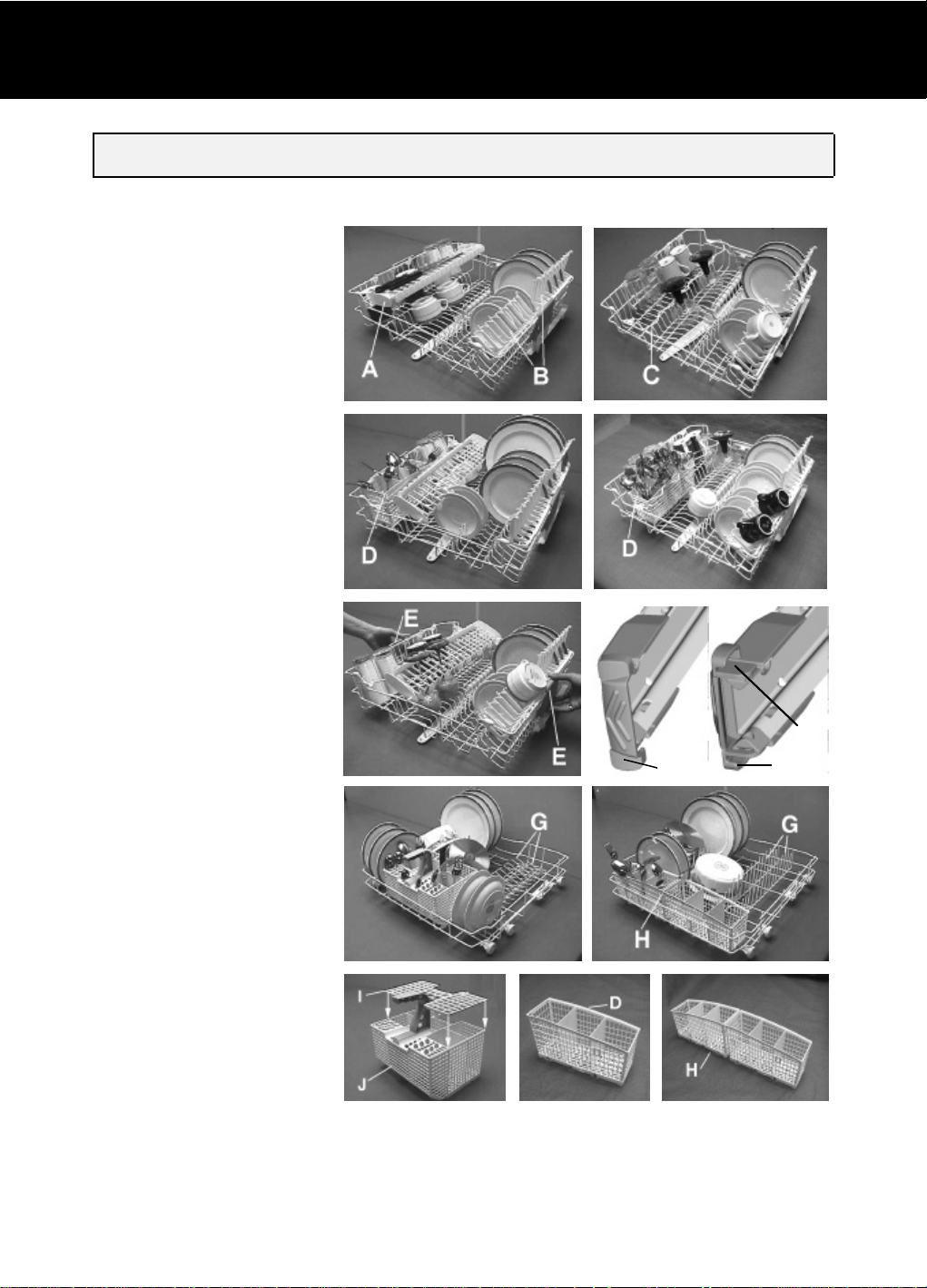

Dishwasher loading instructions and racks provided
F
F
Upper rack: depending on the model
Multi-purpose support (A):
Depending on the position, for longhandles utensils, cups and glasses. May
be used in three different positions.
Crockery holders (B):
Depending on the position, for example
plates, cups and long-stemmed glasses.
Revolving glass support (C):
Depending on the position, for example
small or long-stemmed glasses.
Half Load:
Load the upper rack only.
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment
(also when loaded):
• Lower adjustment: pull out the
two rack handles outwards (E)
and lower the rack.
• Upper adjustment: pull the two
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guide retainers (F) on
the right and left and remove the top
rack.
When the upper rack is in place the
retainers must always be closed.
1)
2)
Retainer
closed
Retainer
open
Lower rack:
Depending on the model with fixed or
tilting plate holders (G).
Half Load:
Load the lower rack only.
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models are provided with a grid
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D) for appliances with
half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the handles
positioned upwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369 series.
2)
Revolving glass support (C) - N. WGH 1000 series.
Page 4
What to do if...
If a fault occurs, before contacting our After-Sales Service, m ak e the fo ll owing che c ks to tr y and re me dy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
• No water supply. • Open the tap.
working
If crockery is not
• The appliance does not load
sufficient water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. • Increase dosage *.
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
perfectly dry
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean
Sandy or grainy residues
Colour of plastic parts
faded
• The water jet does not reach
the crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice,... • Depending on the material, if necessary use a
• Arrange crockery so that items do not touch each
other.
Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
Opaque glasses/ glasses
calcium deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if necessary add
salt *.
not sparkling
Rust on cutlery
Identifying appliance
faults
• Not made of stainless steel. • Use suitable cutlery.
• The START indicator lamp flashes. • Ensure that the filter assembly is not clogged and
if necessary clean it *.
Start the programme again. Press the Start button for
2 seconds, until the Start indicator lamp switches
off. Select a new programme and press the Start
button again.
• Indicator F... (if provided). • Call the After-Sales Service.
If after carrying out the above checks the malfunction persists or ap pears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating
plate) inside the door on the right-hand side.
WH/IV/GB
