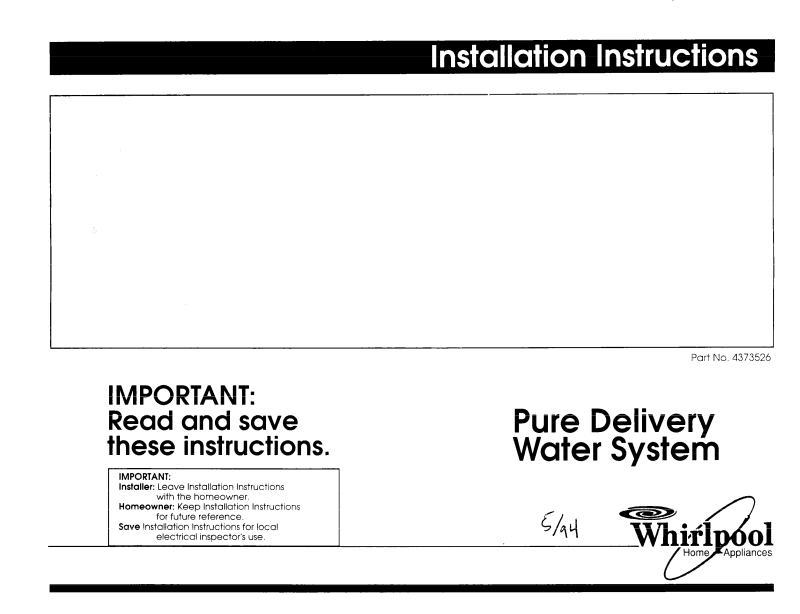

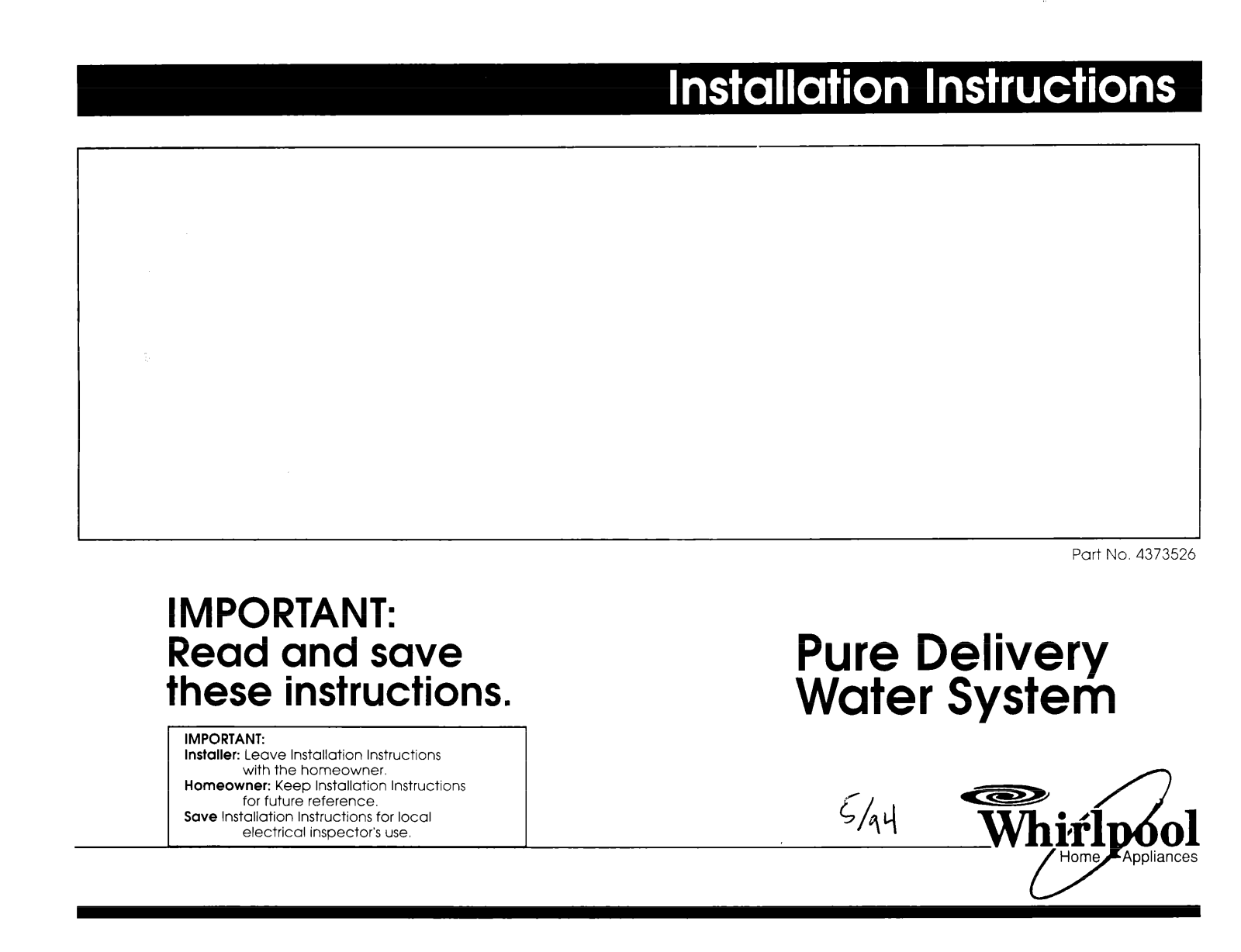

IMPORTANT:
Part No. 4373526
Read and save
these instructions.
IMPORTANT:
Installer: Leave Installation Instructions
with the homeowner.
Homeowner: Keep Installation Instructions
for future reference.
Save Installation Instructions for local
electrical inspector’s use,
Pure Delivery
Water Systerh

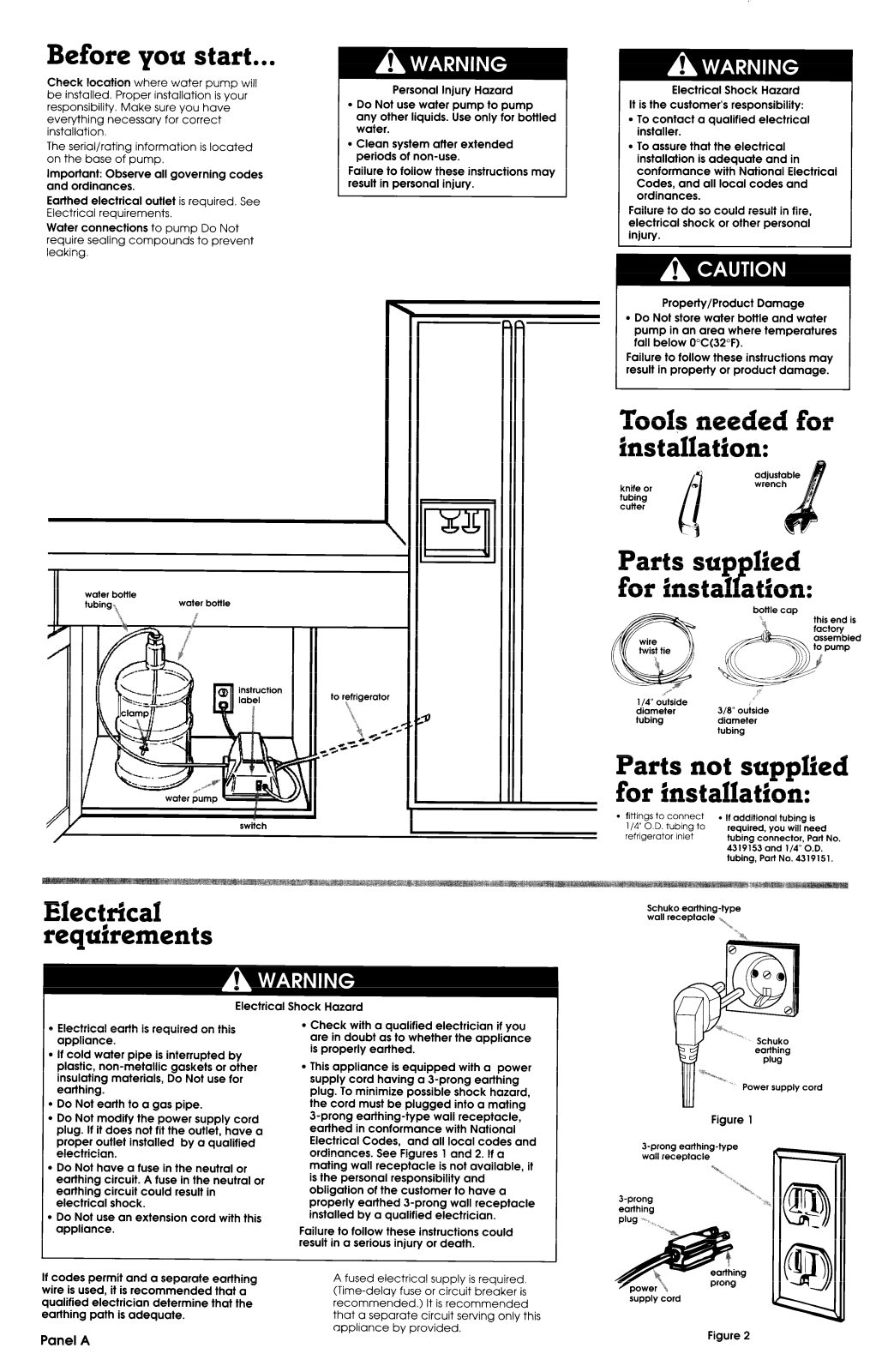

Before you start...
Check location where water pump will
be installed. Proper installation is your
responsibility. Make sure you have
everything necessary for correct
installation,
The serial/rating information is located
on the base of pump.
Important: Observe all governing codes
and ordinances.
Earthed electrical outlet is required. See
Electrical requirements,
Water connections to pump Do Not
require sealing compounds to prevent
leaking.
Personal Injury Hazard
l
Do Not use water pump to pump
any other liquids. Use only for bottled
water.
. Clean system after extended
periods of non-use.
Failure to follow these instructions may
result in personal injury.
Electrical Shock Hazard
It is the customer’s responsibility:
l
To contact a qualified electrical
installer.
l
To assure that the electrical
installation is adequate and in
conformance with National Electrical
Codes, and all local codes and
ordinances.
Failure to do so could result in fire,
electrical shock or other personal
injury.
Property/Product Damage
l
Do Not store water bottle and water
pump in an area where temperatures
fall below O°C(320F).
Failure to follow these instructions may
result in property or product damage.
water bottle
tubing%
water bottle
to rffrigerator
“$
“,
a
-.z#
Tools needed for
installation:
knife or
tubing
cutter
6
.
a
Parts sup lied
for hstal
l/4” outside
diameter
P
t.
tubing
P atgon:
bottle cap
4.
“83
3/S” outside
diameter
tubing
this end is
Electrical requirements
.
Electrical earth is required on this
appliance.
.
If cold water pipe is interrupted by
plastic, non-metallic gaskets or other
insulating materials, Do Not use for
earthing.
. Do Not earth to a gas pipe.
l
Do Not modify the power supply cord
plug. If it does not fit the outlet, have a
proper outlet installed by a qualified
electrician.
l
Do Not have a fuse in the neutral or
earthing circuit. A fuse in the neutral or
earthing circuit could result in
electrical shock.
l
Do Not use an extension cord with this
appliance.
I
switch
Electrical Shock Hazard
l
Check with a qualified electrician if you
are in doubt as to whether the appliance
is properly earthed.
l
This appliance is equipped with a power
supply cord having a 3-prong earthing
plug. To minimize possible shock hazard,
the cord must be plugged into a mating
3-prong earthing-type wall receptacle,
earthed in conformance with National
Electrical Codes, and all local codes and
ordinances. See Figures 1 and 2. If a
mating wall receptacle is not available, it
is the personal responsibility and
obligation of the customer to have a
properly earthed 3-prong wall receptacle
installed by a qualified electrician.
Failure to follow these instructions could
result in a serious injury or death.
Parts not supplied
for installatiron:
l
fittings to connect
l/4” 0. D. tubing to
refrigerator inlet
Schuko earthing-type
wall receptacle
uu
3-prong earthing-type
wall receptacle
3-prong
earthing
l
If additional tubing is
required, you will need
tubing connector, Pat-l No.
4319153 and l/4” O.D.
tubing, Part No. 4319151.
t%
““a,
Schuko
earthing
plug
Ngliqdg
*’ ” Power supply cord
Figure
\
1
-%
If codes permit and a separate earthing
wire is used, it is recommended that a
qualified electrician determine that the
earthing path is adequate.
Panel A
A fused electrical supply is required.
(Time-delay fuse or circuit breaker is
recommended.) It is recommended
that a separate circuit serving only this
appliance by provided.
supply cord
Figure 2
