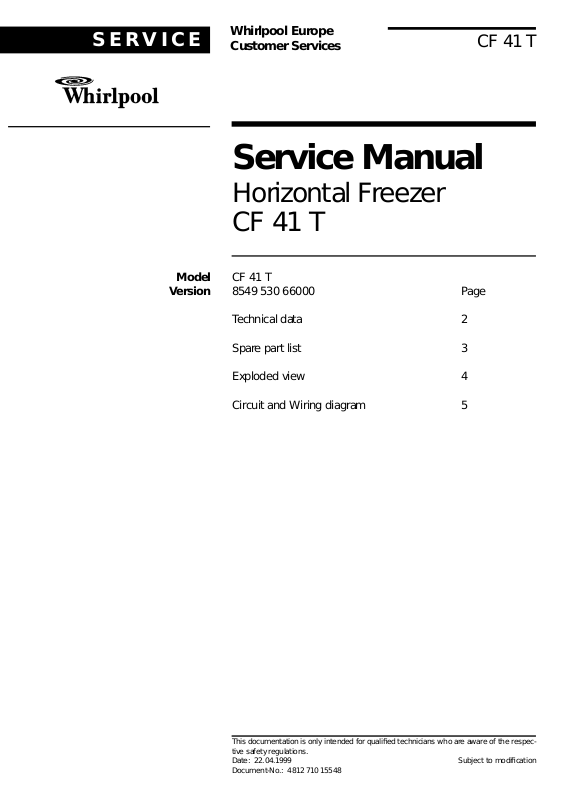

SERVICE
Model CF 41 T
Version 8549 530 66000 Page
Whirlpool Europe
Customer Services
Service Manual
Horizontal Freezer
CF 41 T
CF 41 T
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 22.04.1999 Subject to modification
Document-No.: 4812 710 15548
Page 2
22.04.1999 / Page 2 CF 41 T Whirlpool Europe
Doc. No: 4812 710 15548 8549 530 66000 Customer Service
Technical data
Dimensions
Height 88.4 cm
Width 112 cm
Depth 64.2 cm
Capacity
gross 390 l
Electrical connection
Voltage 110 - 127 V
Frequency 50 - 60 Hz
Compressor
SERVICE
Type B 1116 Z
Capacity (CECOMAF) 136 W
Refrigerant
Type R 134 a
Quantity 145 g
Thermostat switching value
Switch on temperature min. - 14 ˚C
Switch on temperature max. - 23.5 ˚C
Switch off temperature min. - 20 ˚C
Switch off temperature max. - 29.5 ˚C
Page 3
SERVICE
Spare part list
Model CF 41 T
Service No. 854953066000
Version 854953066000
Pos. No. 12NC Code Description
012 0 4819 528 78036 Foot
040 0 4819 417 19607 Hinge
040 7 4819 462 58187 Cover,hinge
040 8 4819 462 58354 Cover,hinge
070 7 4819 458 58384 Grid,air
101 0 4819 442 69253 Door,freezer
111 0 4819 498 78464 Handle,door
111 1 4819 462 88135 Handle,cover
130 2 4819 417 38118 Lock
130 3 4819 401 18332 Hook
130 4 4819 532 58291 Washer
130 5 4819 462 58402 Cover ,lock
130 6 4819 404 79522 Support
191 4 4819 468 18201 Gasket
204 3 4819 442 78468 Separator
Whirlpool Europe CF41T 22.04.1999 / Page 3
Customer Service 8549 530 66000 Doc. No: 4812 710 15548
241 0 4819 458 68203 Basket
252 0 4819 464 18155 Casing
301 0 4819 459 48702 Control cover
321 0 4819 381 18108 Lens red
321 1 4819 381 18246 Lens
335 0 4819 411 28789 Knob thermostat
350 0 4819 134 48511 Pilot lamp
402 0 4819 360 38628 Compressor B1116Z
442 0 4819 361 78222 Motor,fan 115v
442 1 4819 404 79496 Bracket
443 0 4819 515 38001 Fan wheel
491 0 4819 462 79046 Lid f. connection block
561 0 4812 280 68316 Monoblock AD41FR4
561 2 4819 290 68198 Connectionblock
566 2 4819 271 28766 Thermostat A 1082 R4523
614 0 4819 280 68211 Relay 115 V
740 0 4819 511 48648 Condenser
740 4 4819 404 79545 Holder
764 0 4819 480 28144 Dryer
781 0 4819 462 88134 Panel f.drain
934 2 4819 492 68431 Spring
Page 4
22.04.1999 / Page 4 CF 41 T Whirlpool Europe
Doc. No: 4812 710 15548 8549 530 66000 Customer Service

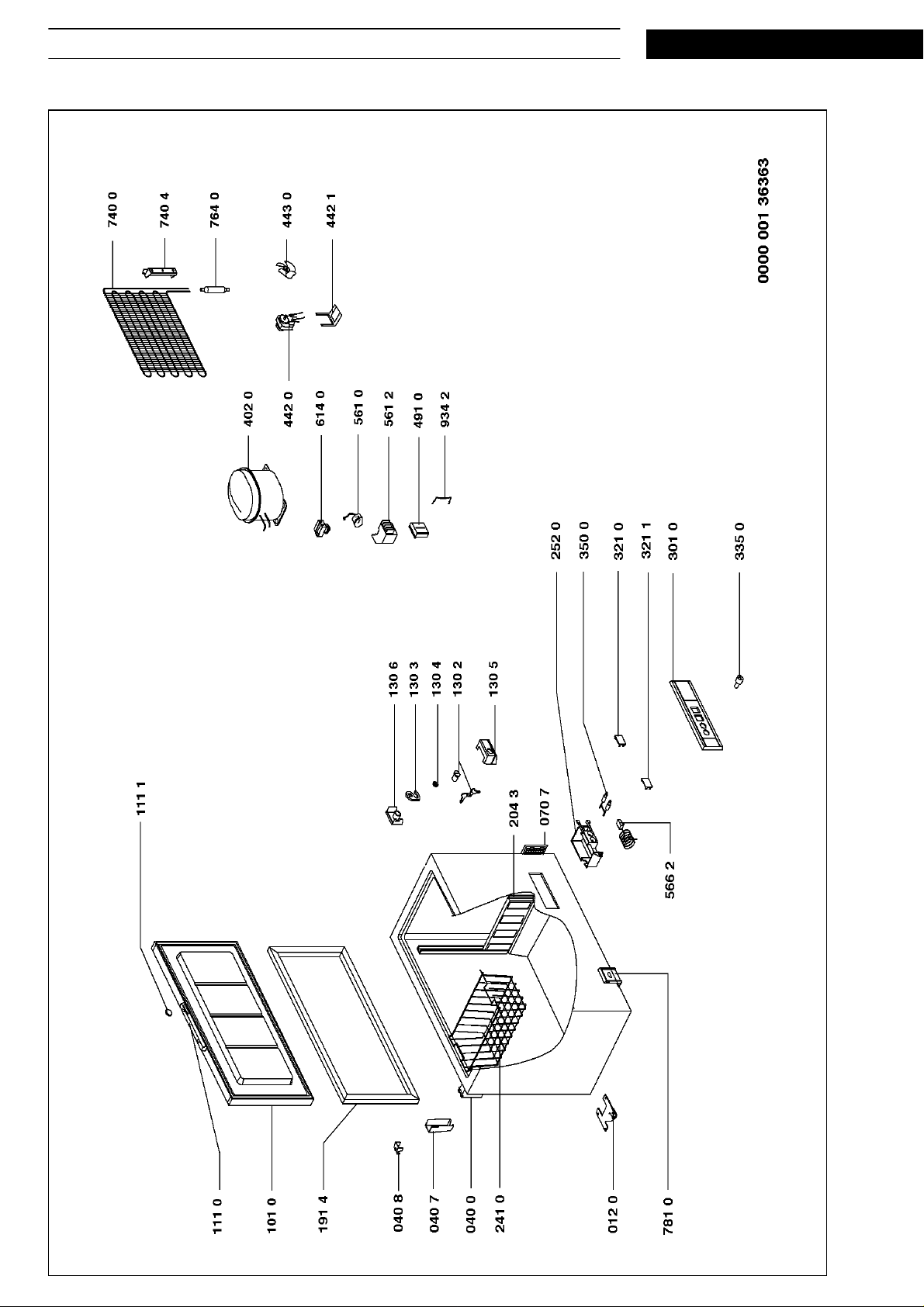

Exploded view
SERVICE
Page 5
SERVICE
Whirlpool Europe CF 41 T 22.04.1999 / Page 5
Customer Service 8549 530 66000 Doc. No: 4812 710 15548

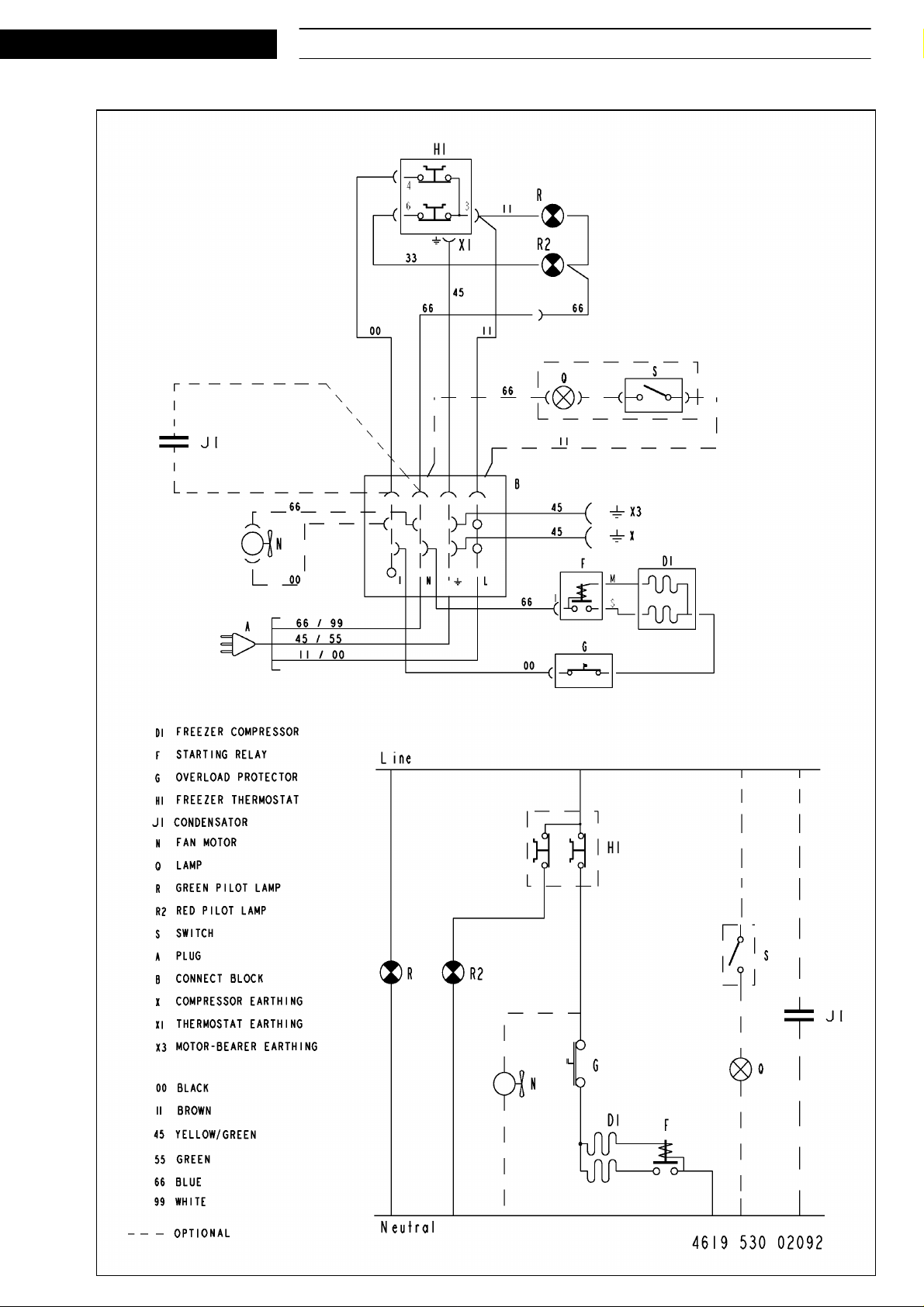

Circuit and Wiring diagram
