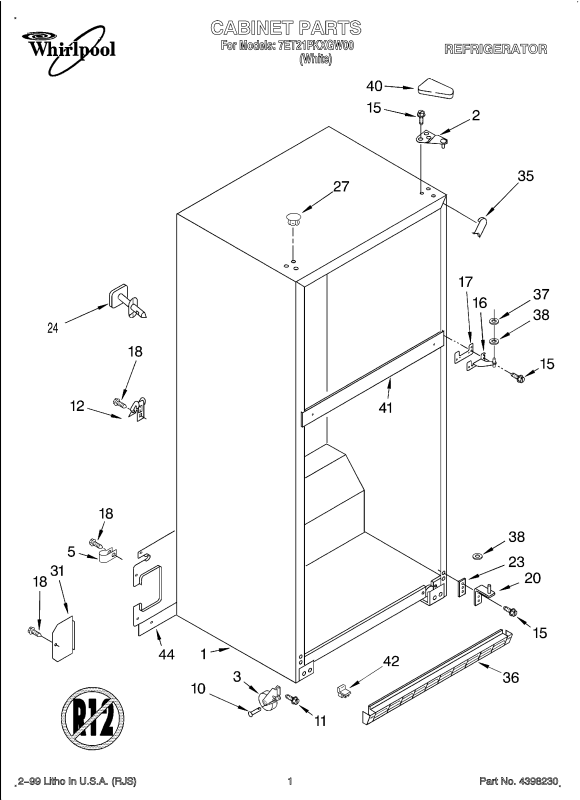

1 Cabinet (Not A Serviceable Part)
2 2189410 Hinge (Top)
3 2166108 Roller-Front (2)
5 489385 Clamp, Tube (Water Supply Line)
10 2179826 Rivet
11 2174650 Screw
12 549193 Clamp-Cord
15 489497 Screw
16 2183972 Hinge, Center
17 2183854 Shim, Hinge Center
18 489464 Screw
20 2189194 Hinge Butt
23 2172743 Shim, Bottom Hinge
24 Fitting, Water Tube (Not Serviced)
27 2201012 Hole Plug (6)
31 2166251 Cover, Valve
35 2201014 Corner Filler (2)
36 2183991 Grille
37 489341 Washer
38 487576 Washer
40 2160403 Cover-Hinge
41 Rail, Center (Not Serviced)
42 2166156 Corner Filler, Grille
44 2189060 Cover, Unit
Page 3
Page 4
1 2183920 Refrigerator Door (Includes #9 & #22)
2 2193553W Handle, Trim
5 2193351W Handle Center
6 489357 Screw
8 487909 Screw
9 Door Gasket, Magnetic
2159061 Mist Beige
13 2175383 Nameplate
16 2195378 Trim, Door Shelf
17 489028 Screw
19 2182489 Freezer Door (Includes #22 & #23)
20 2189000 Hole Plug
21 2159304 Shelf, Flip-Up
22 2183003 Thimble
23 Door Gasket, Magnetic
2159060 Mist Beige
25 2195395 Bin, Door Shelf
26 2189202 Bracket, Door Stop (2)
27 488921 Screw
28 844478 Hole Plug
29 2156007 Plug-Trim
30 2156006 Plug-Trim
31 2177130 Compartment Door
33 2193350W Handle, F.C.
37 2195947 Trim-Door (2)
41 2195916 Endcap (4)
42 2195948 Trim, Door
100 2199047 FeaturePak (Includes 16, 25, 29, 30, 31, 37, 41, 42) Also See
Shelf Parts Page.
Page 5
Page 6

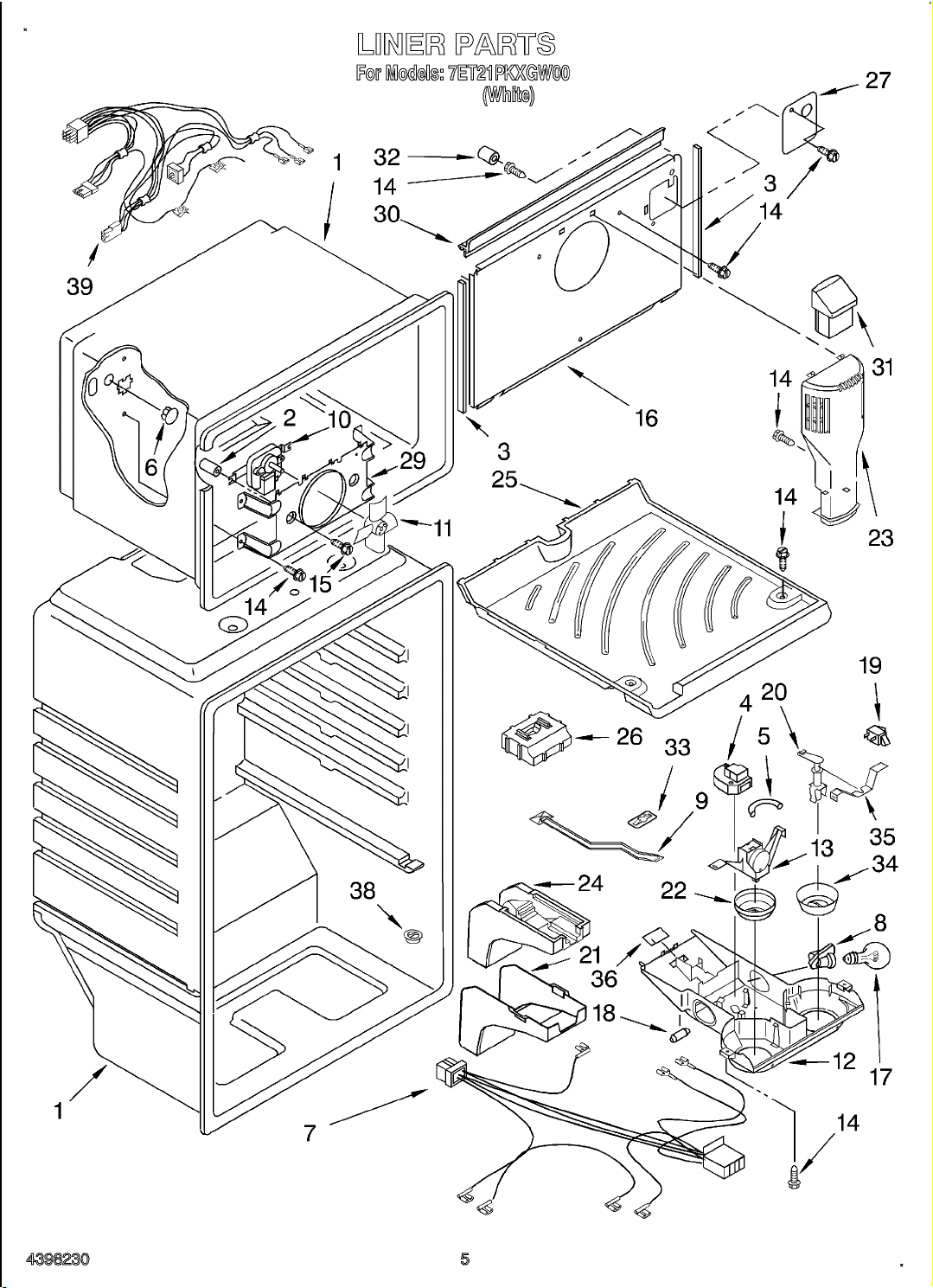

1 Liner (Not A Serviceable Part)
2 531933 Grommet (2)
3 2184634 Gasket, Evaporator Cover (Side)
4 2193084 Timer, Defrost
5 549512 Thermostat Tube Barrier
6 941839 Hole Plug
7 2193493 Wire Assy. Control Box
8 2162085 Socket, Light (2)
9 2179858 Damper, Air
10 2183448 Fan Motor
11 2163777 Fan Blade
12 2179790 Control Box
13 2197536 Thermostat Assy. (Includes Items 5, 18 & 36)
14 489478 Screw
15 489412 Screw
16 2189823 Cover-Evaporator
17 527949 Light Bulb (2)
18 2163802 Weight, Thermal
19 1118894 Switch, Rocker Arm
20 2179859 Post, Damper
21 2176281 Cover, Air Diffuser
22 2193455 Knob, Thermostat
23 2182340 Air Tower
24 2176280 Air Diffuser, Bottom
25 2184617 Freezer Floor
26 2179877 Air Diffuser, Top
27 2190688 Cover, Hole
29 2198901 Bracket, Fan Motor
30 2184635 Gasket, Evaporator Cover (Top)
31 2174629 Air Return & Foil Assembly
32 487996 Cap
33 2176341 Clip, Defrost Timer
34 2176297 Knob, Damper
35 2163810 Bracket, Damper Knob
36 2172532 Seal, Rear Thermostat
38 2171931 Valve, Release
39 2195656 Wire Assembly, Freezer Compartment
Page 7
Page 8

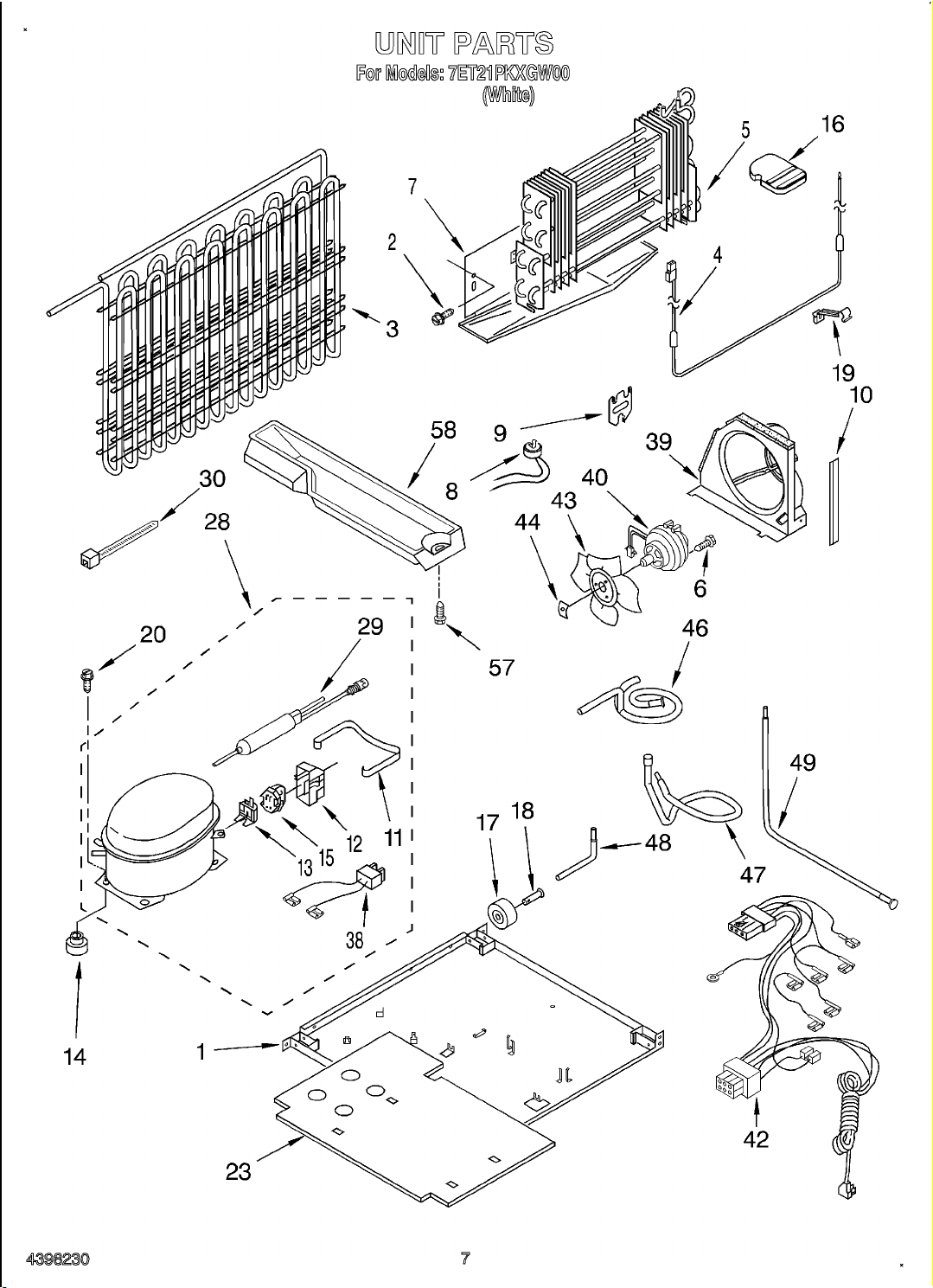

1 2195272 Plate, Unit Mounting
2 489478 Screw
3 2195400 Condenser
4 2166124 Heater, Defrost
5 2195390 Evaporator Assy.
6 489499 Screw
7 2172620 Drain Pan
8 2182380 Defrost Bi-Metal
9 2176301 Bracket, Heater
10 2163780 Extension, Air Baffle
11 943322 Cover, Strap
12 1105055 Cover
13 Overload
2154759 Service (Includes Relay)
2183409 Production (Includes Relay)
14 Grommet (4)
2183042 Production
1100826 Service
15 Relay (See Overload)
16 2189906 Support Block
17 836054 Roller (2)
18 981126 Rivet
19 2182338 Clip, Heater
20 489473 Screw
23 2198740 Cover, Unit
28 2183439 Compressor (Includes Items 12, 13, 15, 29, 32, 38 & 56) (Also
Order)
482801 Installation Kit &
876765 Tube Kit
29 2174865 Drier
30 2155774 Clamp
38 2172890 Wire Assembly
39 2198921 Air Baffle
40 2183437 Motor, Condenser
42 2189997 Wire Assy. Unit
43 2190685 Fan Blade
44 486692 Nut
46 2184451 Tube, Discharge
47 2189173 Tube, Suction
48 2154109 Tube, Process
49 2174670 Tube, Condenser To Heat Loop
57 489462 Screw
58 2176276 Tray, Evaporator
Following Parts Not Illustrated and Optional Parts Not Included
978025 Valve, Access (1/4")
978026 Valve, Access (5/16")
978027 Valve, Access (3/8")
978028 Valve, Access (1/2")
978029 Valve, Access (5/8")
978030 Valve, Access (3/4")
876764 Valve, Access (3/16")
482278 Start Kit
REFRIGERANT CHARGE 4.0 Ozs. (R134A)
Page 9
Page 10

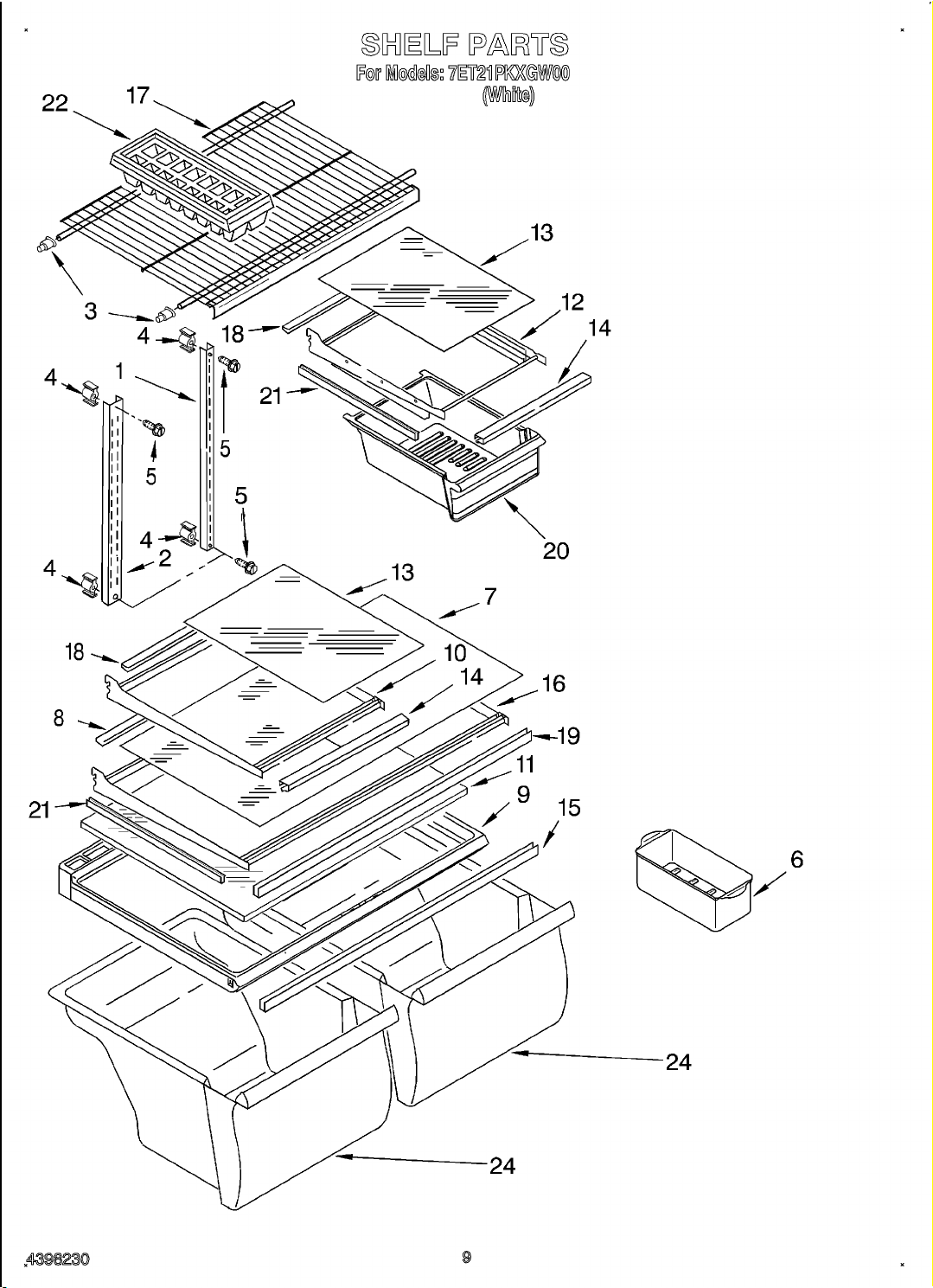

1 2163756 Shelf, Ladder (2)
2 2163826 Shelf, Ladder Center
3 2163762 Cup, Shelf Mtg.
4 2189314 Screw Support
5 489415 Screw
6 2182730 Egg Bin
7 2199192 Glass, Full Shelf
8 2199185 Trim, Shelf Rear
9 2195344 Crisper Cover
10 2163860 Shelf, Cantilever
11 2176225 Insert, Crisper Cover
12 2176306 Pan, Shelf Cantilever
13 2199191 Glass, Shelf
14 2199178 Trim, Shelf Front
15 2163832 Crisper Support
16 2199195 Shelf, Full Cantilever
17 2184667 Shelf, Freezer
18 2199183 Trim, Shelf Rear
19 2199180 Trim, Shelf Front
20 2195403 Pan, Meat
21 2199188 Trim, Shelf Side
22 841180 Ice Tray (2)
24 2190601 Crisper Pan
100 2199047 FeaturePak (Includes 6, 10, 12 13, 14, 18, 19, 20, 21, 23, 25)
Also See Door Page.
Parts Not Illustrated and Optional Parts (Not Included)
Miscellaneous
978941 Insulation, Fiberglass (63-1/2" x 35-1/2" x 2-5/8")
212643 Sealer, Gum (4 Feet)
479502 Tape, Vinyl (3/4" x 108")
876305 Kit, Insulation (14 Pcs. 3" x 24" x 48")
876370 Kit, Insulation (2 Pcs. 3" x 24 " x 48")
876029 Kit, Foam Slab (30" x 32-1/2" x 1-1/2")
505587 Sealer, Mastic (1 Qt.)
511873 Touch-Up, White Porcelain (2 Oz.)
542638 Grease, Silicone (1/2 Oz.)
542639 Cement, Alumilastic (1-1/4 Oz.)
606755 Bag, Insulation (36-5/8" x 46")
799833 Kit, Evaporator Repair (Aluminum Epoxy)
799832 Kit, Porcelain Repair (White)
503695 Cork Sealer (1/4 Pound)
2172516 Door Reversal Instructions
Customer Touch-Up Material
350942 *Primer, White (13 Oz. Spray Can)
350939 *Enamel, Black (13 Oz. Spray Can)
350930 *Enamel, White (13 Oz. Spray Can)
350956 *Enamel, Almond (13 Oz. Spray Can)
72017 Brush Touch-Up Kit (White)
72032 Brush Touch-Up Kit (Black)
72107 Brush Touch-Up Kit (Almond)
Refinishing Material
799344 Enamel, White (1 Qt. Uncut)
978883 Enamel, Almond (1 Qt. Uncut)
Page 11
833938 Kit, Terminal Connector
*Caution: The Spray Paint Is Not To Be Used Where The Paint May Make Contact
With The Door Gaskets
LITERATURE PARTS
LIT2195481 Service & Wiring Sheet
LIT2200755 Energy Label
LIT2200595 Use & Care Guide
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
LIT677969 Do-It-Yourself Manual Ref./Fzr.
LIT677971 Do-It-Yourself Manual, Icemaker
FIELD INSTALLABLE ICE MAKER ECKMF94
TORX SCREW WRENCH
1117510 Torx Key
