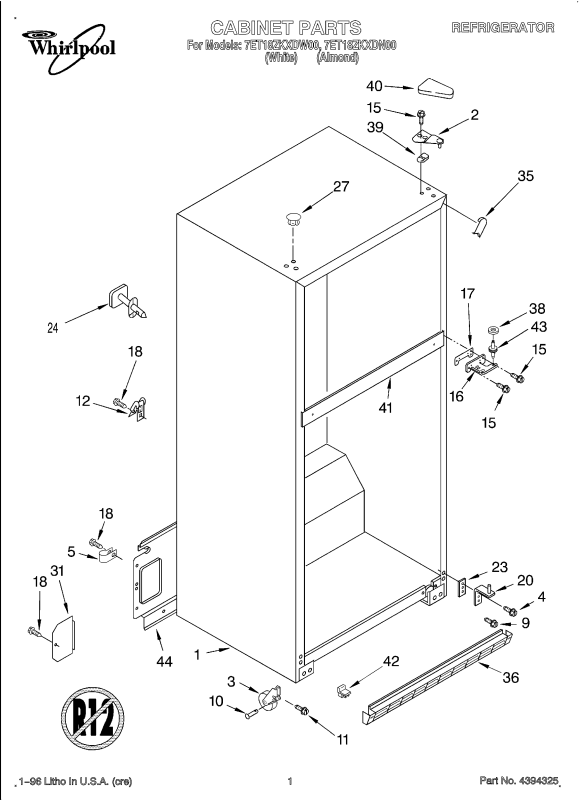

1 Cabinet (Not A Serviceable Part)
2 2157591 Hinge (Top)
3 2166108 Roller-Front (2)
4 489459 Screw
5 489385 Clamp, Tube (Water Supply Line)
9 489436 Screw
10 2179826 Rivet
11 2174650 Screw
12 549193 Clamp-Cord
15 489423 Screw
16 2183064 Hinge, Center
17 2163757 Shim, Hinge Center
18 489463 Screw
20 2179829 Hinge Butt
23 2172745 Shim, Bottom Hinge
24 Fitting, Water Tube (NOT SERVICED)
27 Hole Plug (12)
2151652 White
2151653 Almond
31 2166251 Cover, Valve
35 Corner Filler (2)
2163733 White
2166187 Almond
36 Grille
2182429 White
2182430 Almond
38 487576 Washer
39 1123517 Shim
40 Cover-Hinge
2160403 White
2160404 Almond
41 Rail, Center (NOT SERVICED)
42 Corner Filler, Grille
2166156 White
2166204 Almond
43 2183063 Pin, Hinge
44 2183158 Cover, Unit
Page 3
Page 4
1 Freezer Door (Includes #8)
2182487 White
2182491 Almond
4 2159367 Bracket, Door Stop
5 488921 Screw,8x1/2
6 2183003 Thimble
7 Hole Plug
844478 White
989196 Almond
8 2159327 Door Gasket, Magnetic
10 Handle End, Top
9791776 White
9791777 Almond
11 Handle End
9791771 White
9791772 Almond
12 Handle, Center
2171043 White
2171044 Almond
13 943187 Shim, Handle
14 943188 Spacer, Handle Door Panel
16 489006 Screw,8x5/8
17 2171037 Trim, Door Shelf (2)
18 Nameplate
2162781 White Model
2162782 Almond Model
22 2156002 EndCap, Trim (4)
Page 5
Page 6

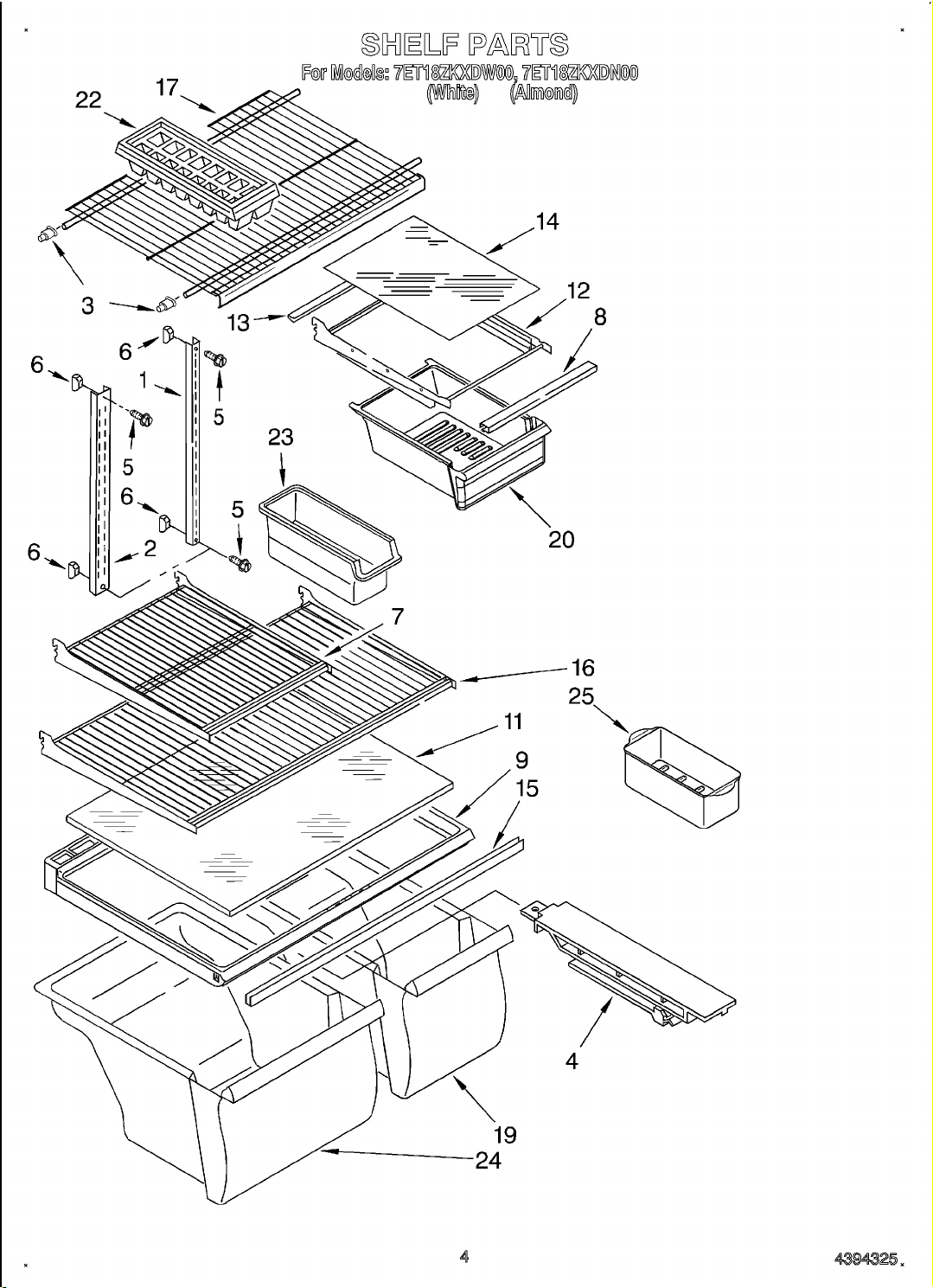

1 2172637 Shelf, Ladder (2)
2 2172638 Shelf, Ladder Center
3 2163762 Cup, Shelf Mtg.
4 2163835 Track, Crisper
5 489415 Screw
6 520965 Screw Support
7 2163853 Shelf, Cantilever
8 2176262 Trim, Shelf
9 2190580 Crisper Cover
11 2174665 Glass, Crisper Cover
12 2176305 Pan Shelf, Cantilever
13 2163882 Retainer, Glass
14 2166216 Glass, Meat Cover
15 2172541 Crisper Support
16 2163856 Shelf, Full Cantilever
17 2176275 Shelf, Freezer
19 2190528 Pan, Crisper
20 2190682 Pan, Meat
22 841180 Ice Tray
23 1116917 Container
24 2190529 Crisper Pan
25 2166748 Egg Bin
Page 7
Page 8

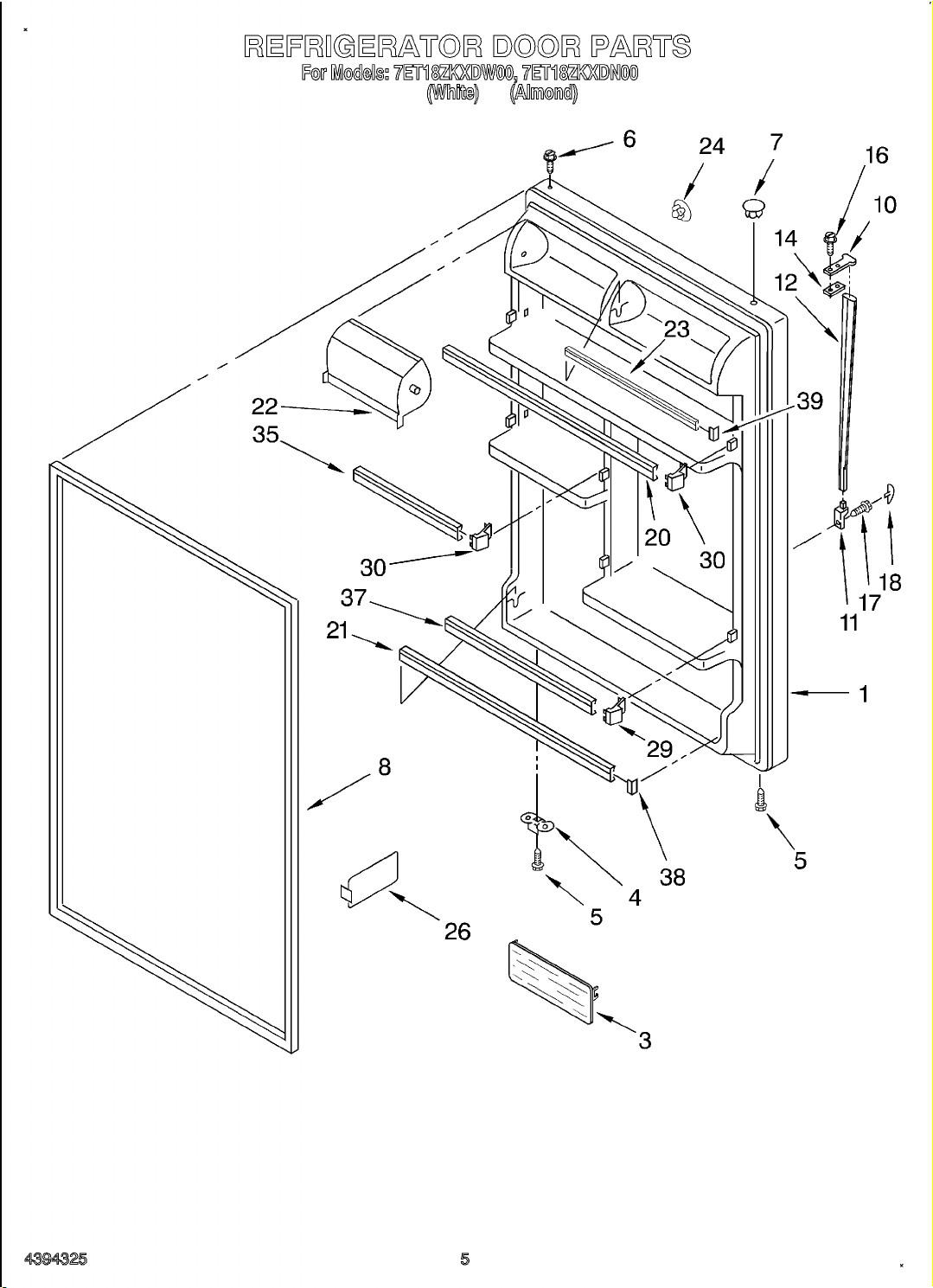

1 Refrigerator Door (Includes #8)
2171029 White
2171030 Almond
3 2159303 Shelf, Flip-Up
4 944035 Bracket, Door Stop
5 488921 Screw,8x1/2
6 2183003 Thimble
7 Hole Plug
844478 White
989196 Almond
8 2159057 Door Gasket, Magnetic
10 Handle End
9791771 White
9791772 Almond
11 Handle End, Side
2183141 White
2183142 Almond
12 Handle, Center
2148035 White
2148036 Almond
14 943188 Spacer, Handle Door
16 489006 Screw,8x5/8
17 487909 Screw,8x1/2
18 Screw Cover
9791769 White
9791770 Almond
20 2171038 Trim, Door Shelf
21 2184570 Trim, Door Shelf
22 2171036 Door Compartment
23 2171040 Trim-Door Shelf
24 Hole Plug, Handle
1122653 White
1122654 Almond
26 2160050 Divider, Door Shelf
29 2156001 Endcap, Trim (2)
30 2156000 Endcap, Trim (4)
35 2171039 Trim, Door Shelf
37 2171041 Trim-Door Shelf
38 2156006 Plug-Trim (2)
39 2156007 Plug-Trim (2)
Page 9
Page 10

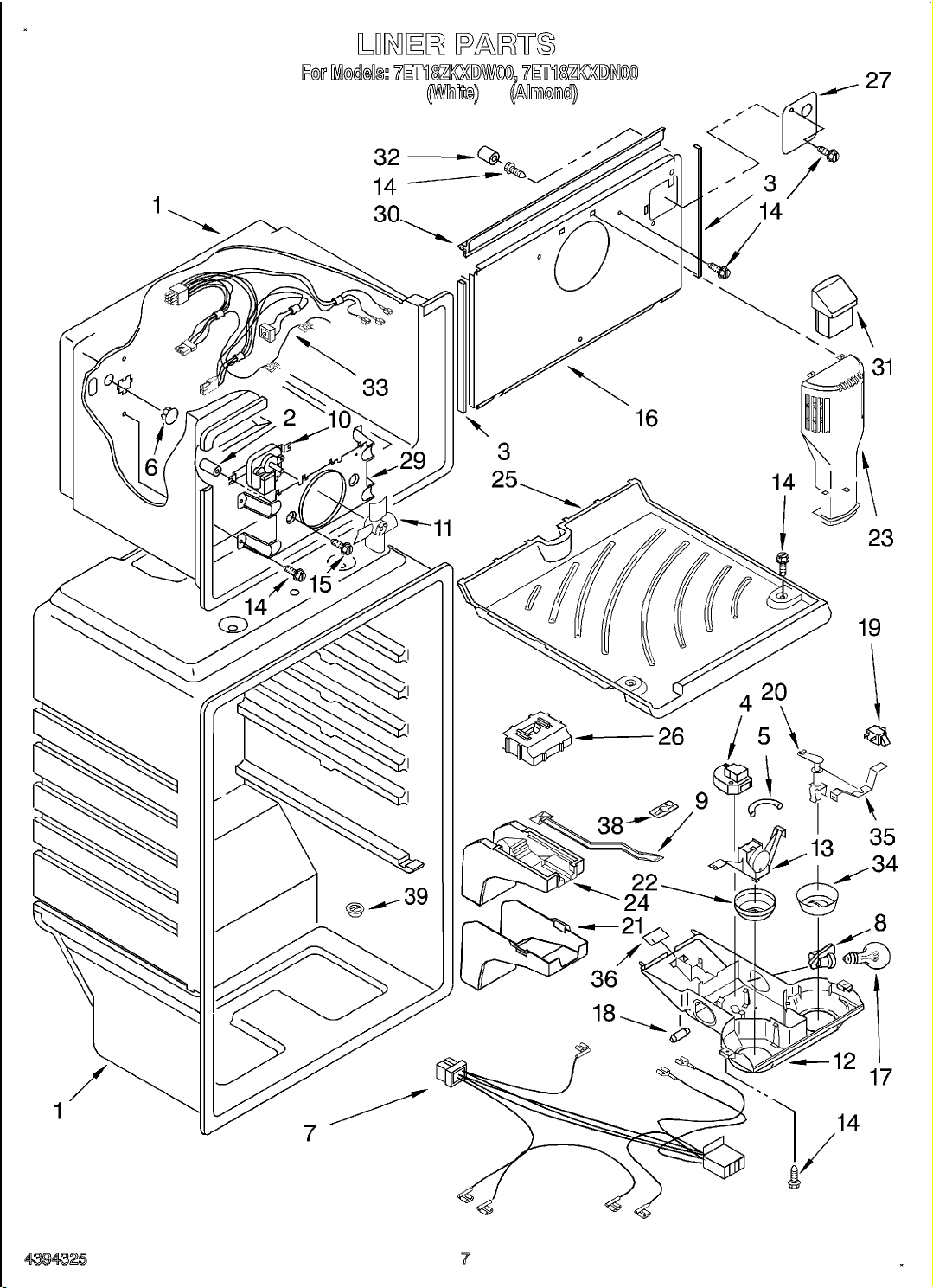

1 Liner (Not A Serviceable Part)
2 531933 Grommet (2)
3 2166181 Gasket, Evaporator Cover (Side)
4 2183400 Timer, Defrost
5 549512 Thermostat Tube Barrier
6 941839 Hole Plug
7 2172542 Wire Assy. Control Box
8 2162085 Socket, Light (2)
9 2179858 Damper, Air
10 2176298 Fan Motor
11 2163777 Fan Blade
12 2179790 Control Box
13 2193210 Thermostat Assy. (Includes Items 5, 18, & 36)
14 489438 Screw
15 489412 Screw
16 2183154 Cover-Evaporator
17 946059 Light Bulb (2)
18 2163802 Weight, Thermal
19 1118894 Rocker Arm Switch
20 2179859 Post, Damper
21 2176281 Cover, Air Diffuser
22 2176296 Knob, Thermostat
23 2182340 Air Tower
24 2176280 Air Diffuser, Bottom
25 2172565 Freezer Floor
26 2179877 Air Diffuser, Top
27 2183038 Cover, Hole
29 2163827 Bracket, Fan Motor
30 2166178 Gasket, Evaporator Cover (Top)
31 2174629 Air Return & Foil Assembly
32 487996 Cap
33 2174610 Wire Assembly, Freezer Compartment
34 2176297 Knob, Damper
35 2163810 Bracket, Damper Knob
36 2172532 Seal, Rear Thermostat
38 2176341 Clip, Defrost Timer
39 2171846 Valve, Release
Page 11
Page 12

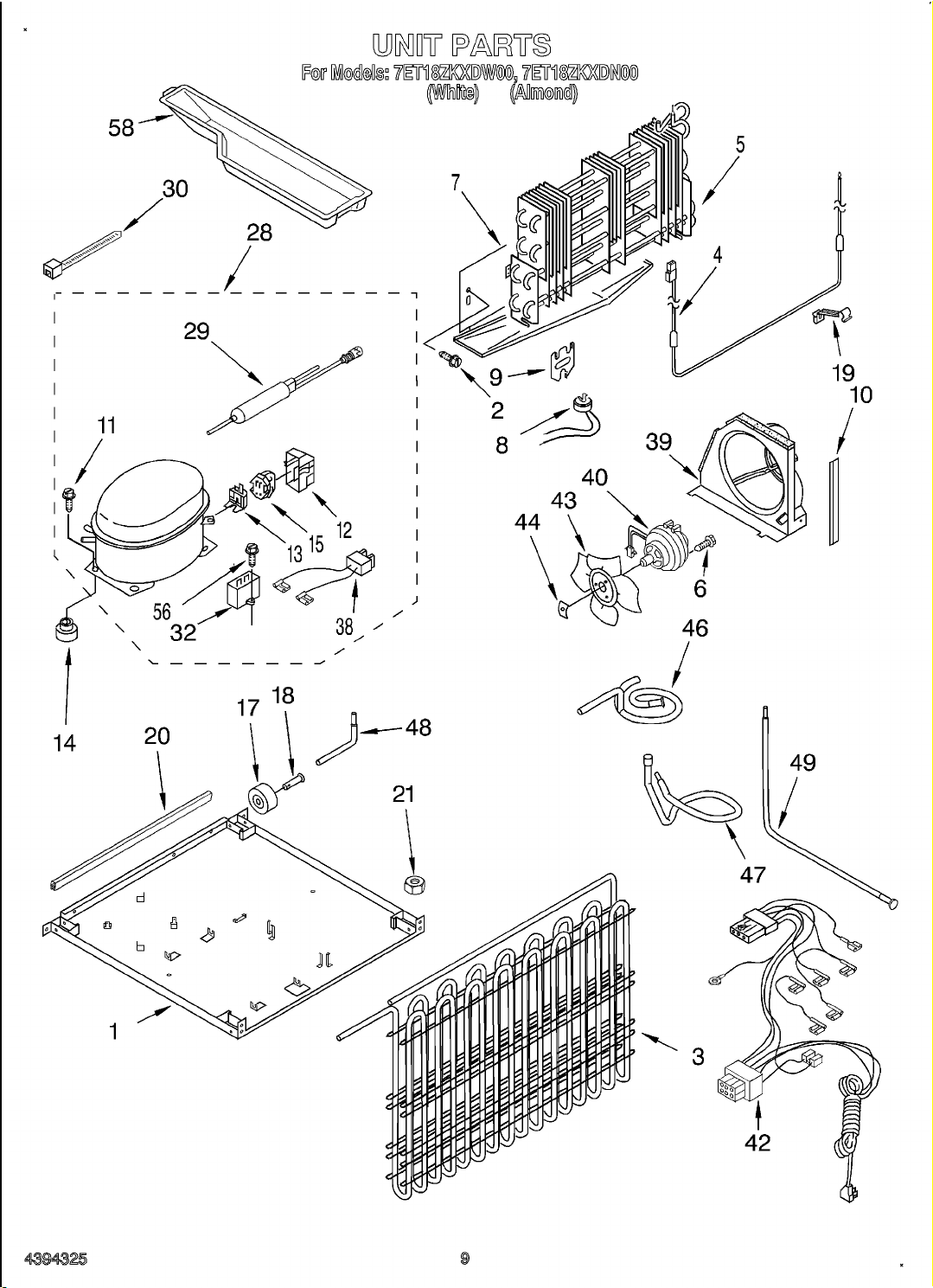

1 2182437 Plate, Unit Mounting
2 489242 Screw
3 2179882 Condenser
4 2176300 Heater, Defrost
5 2176337 Evaporator Assy.
6 489414 Screw
7 2172619 Drain Pan
8 2182380 Defrost Bi-Metal
9 2176301 Bracket, Heater
10 2163780 Extension, Air Baffle
11 489473 Screw
12 2162358 Cover
13 2154759 Overload (Includes Relay)
14 Grommet (4)
2183042 4roduction
1100826 Service
15 Relay (See Overload)
17 2163782 Roller (2)
18 981126 Rivet
19 2182338 Clip, Heater
20 2183183 Protector
21 Nut (Not Serviced)
28 2169441 Compressor (Includes Items 12, 13, 15, 29, 32, 38 & 56) (Also
Order
482801 Installation Kit
876765 Tube Kit
29 2174865 Drier
30 2155774 Clamp
32 2169137 Capacitor (Service Only)
38 2172890 Wire Assembly
39 2182395 Air Baffle
40 2176336 Motor, Condenser
42 2184586 Wire Assy. Unit
43 851732 Fan Blade
44 486692 Nut
46 2179856 Tube, Discharge
47 2179854 Tube, Suction
48 2154109 Tube, Process
49 2174670 Tube, Condenser To Heat Loop
56 487240 Screw
58 2163795 Evap. Tray
Following Parts Not Illustrated and Optional Parts Not Included
978025 Valve, Access (1/4")
978026 Valve, Access (5/16")
978027 Valve, Access (3/8")
978028 Valve, Access (1/2")
978029 Valve, Access (5/8")
978030 Valve, Access (3/4")
876764 Valve, Access (3/16")
482278 Start Kit
REFRIGERANT CHARGE 4.0 Ozs. (R134A)
Parts Not Illustrated and Optional Parts (Not Included)
Miscellaneous
Page 13
978941 Insulation, Fiberglass (63-1/2" x 35-1/2" x 2-5/8")
212643 Sealer, Gum (4 Feet)
479502 Tape, Vinyl (3/4" x 108")
876305 Kit, Insulation (14 Pcs. 3" x 24" x 48")
876370 Kit, Insulation (2 Pcs. 3" x 24 " x 48")
876029 Kit, Foam Slab (30" x 32-1/2" x 1-1/2")
505587 Sealer, Mastic (1 Qt.)
511873 Touch-Up, White Porcelain (2 Oz.)
542638 Grease, Silicone (1/2 Oz.)
542639 Cement, Alumilastic (1-1/4 Oz.)
606755 Bag, Insulation (36-5/8" x 46")
799833 Kit, Evaporator Repair (Aluminum Epoxy)
799832 Kit, Porcelain Repair (White)
503695 Cork Sealer (1/4 Pound)
2172516 Door Reversal Instructions
Customer Touch-Up Material
350942 *Primer, White (13 Oz. Spray Can)
350939 *Enamel, Black (13 Oz. Spray Can)
350930 *Enamel, White (13 Oz. Spray Can)
350956 *Enamel, Almond (13 Oz. Spray Can)
72017 Brush Touch-Up Kit (White)
72032 Brush Touch-Up Kit (Black)
72107 Brush Touch-Up Kit (Almond)
Refinishing Material
799344 Enamel, White (1 Qt. Uncut)
978883 Enamel, Almond (1 Qt. Uncut)
833938 Kit, Terminal Connector
Caution: The Spray Paint Is Not To Be Used Where The Paint May Make Contact With
The Door Gaskets
LITERATURE PARTS
LIT2172667 Service & Wiring Sheet
LIT2182565 Energy Label
LIT2193016 Use & Care Guide
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
LIT677969 Do-It-Yourself Manual Ref./Fzr.
LIT677971 Do-It-Yourself Manual, Icemaker
FIELD INSTALLABLE ICE MAKER ECKMF94
TORX SCREW WRENCH
1117510 Torx Key
