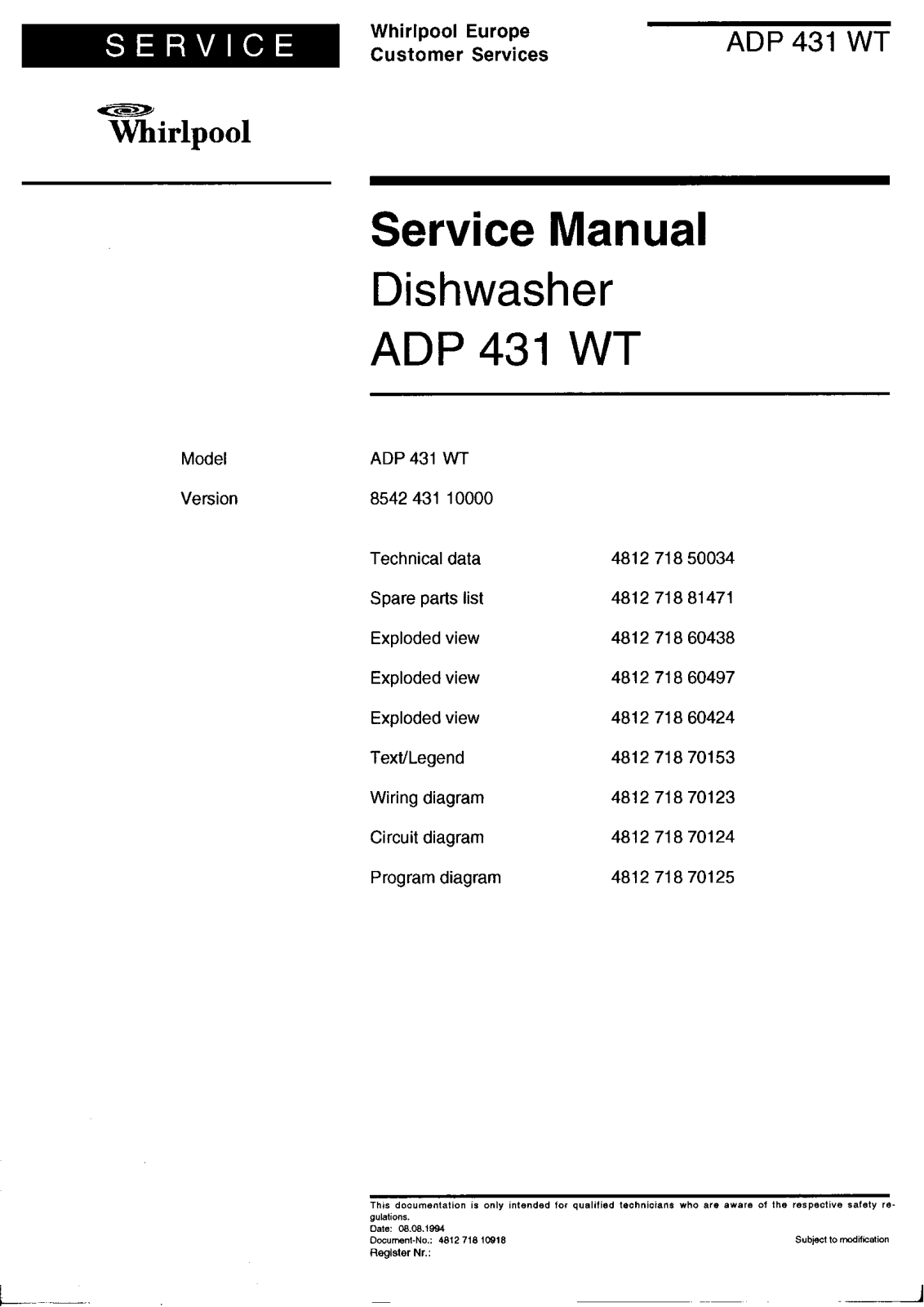

[~ .-1 LYJ ra1

~ ~ aJ ~,~ ~ Customer Services

= Whirlpool Euro~e AD P 431 WT

Whirlpool

Service Manual

Dishwasher

ADP 431 WT

Model ADP 431 WT

Version 8542431 10000

Technical data 481271850034

Spare parts list 481271881471

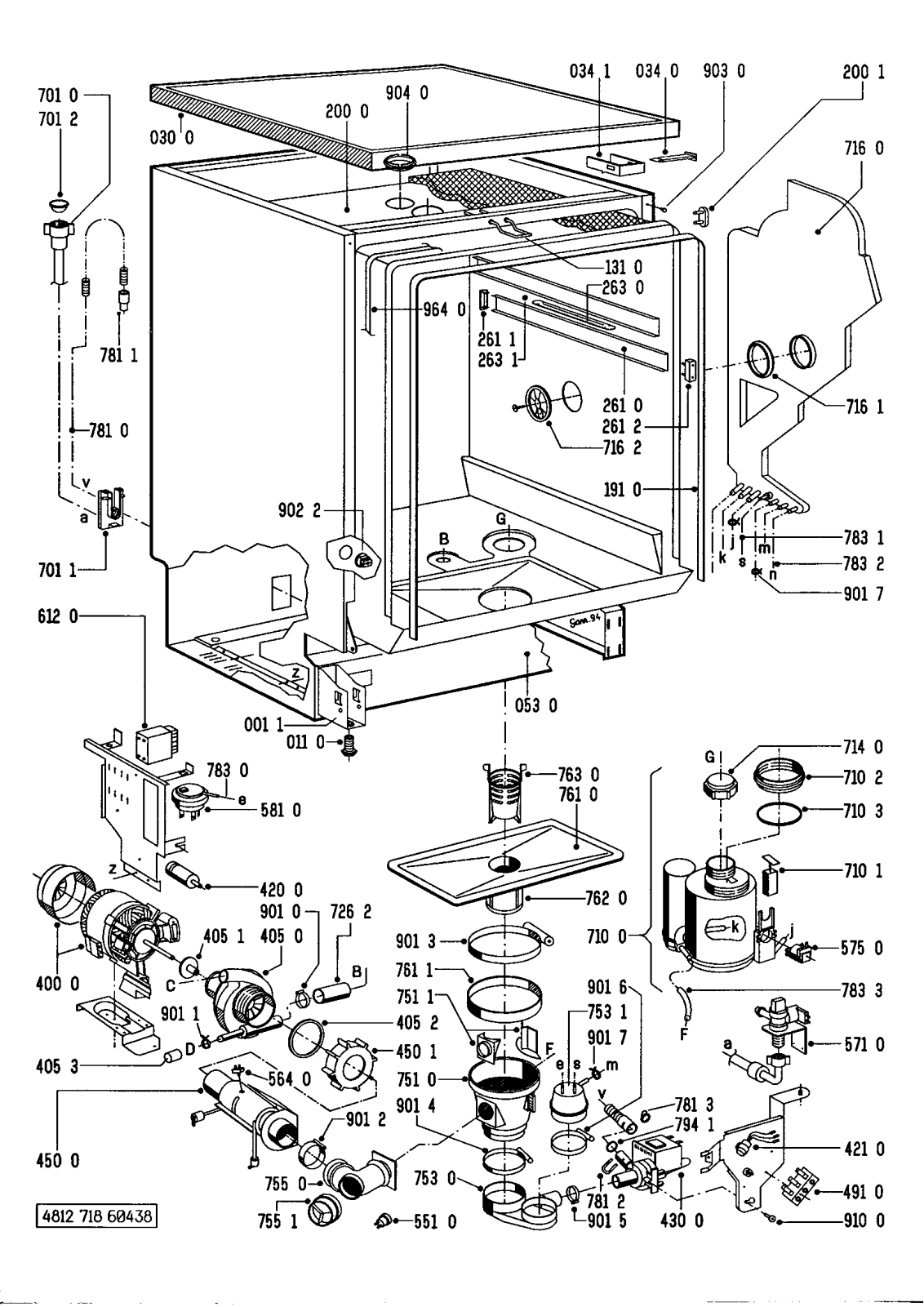

Exploded view 4812 718 60438

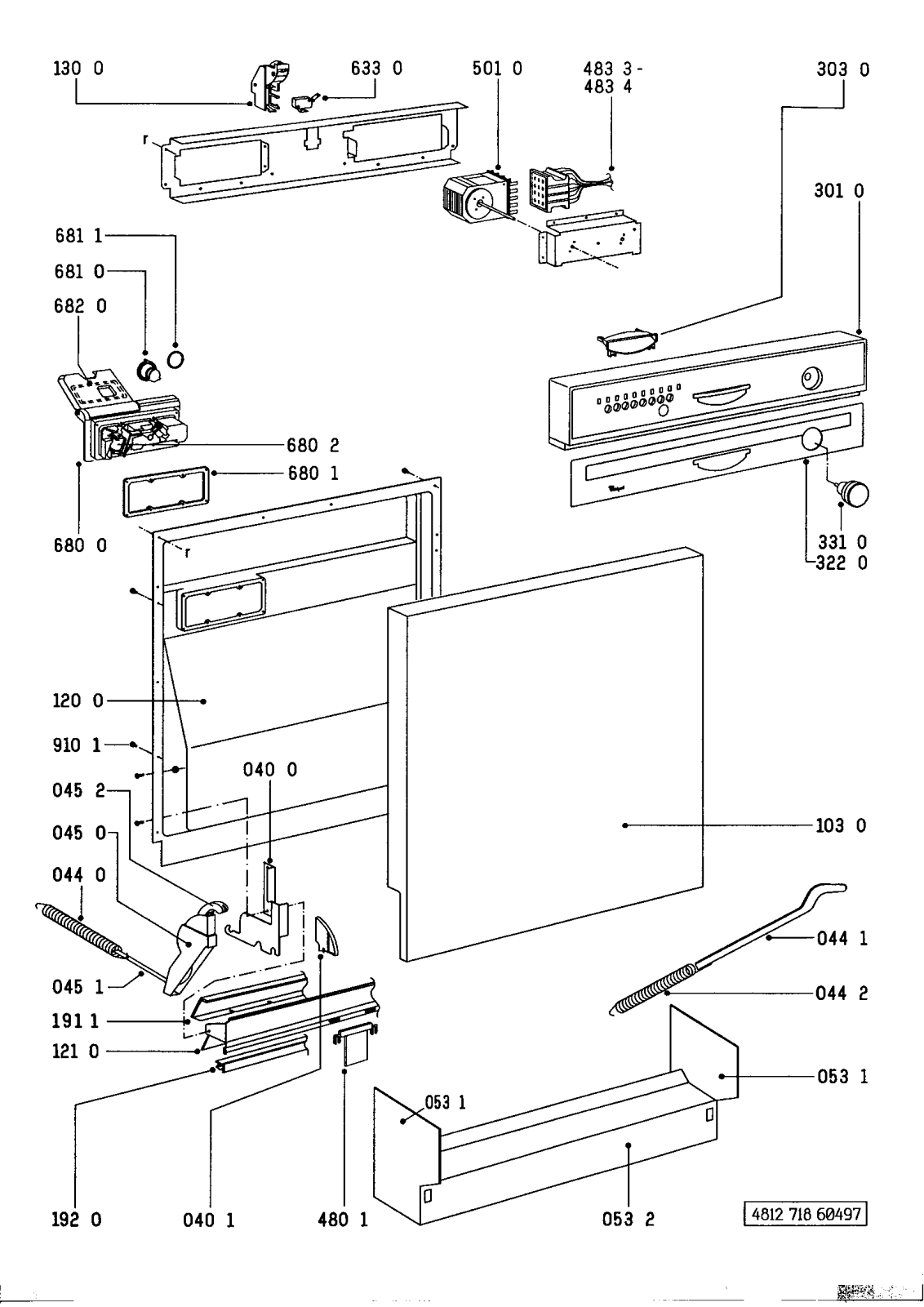

Exploded view 481271860497

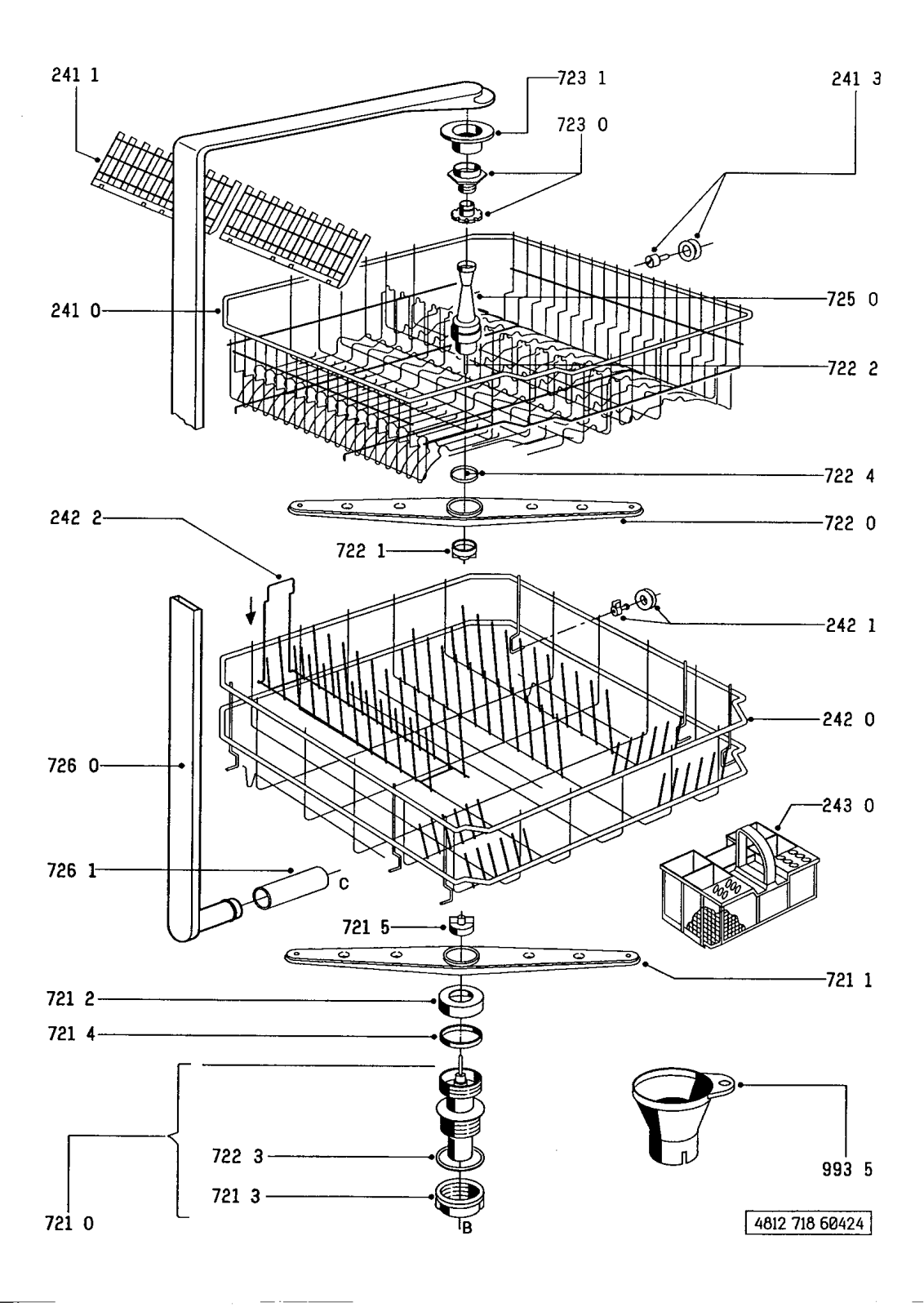

Exploded view 481271860424

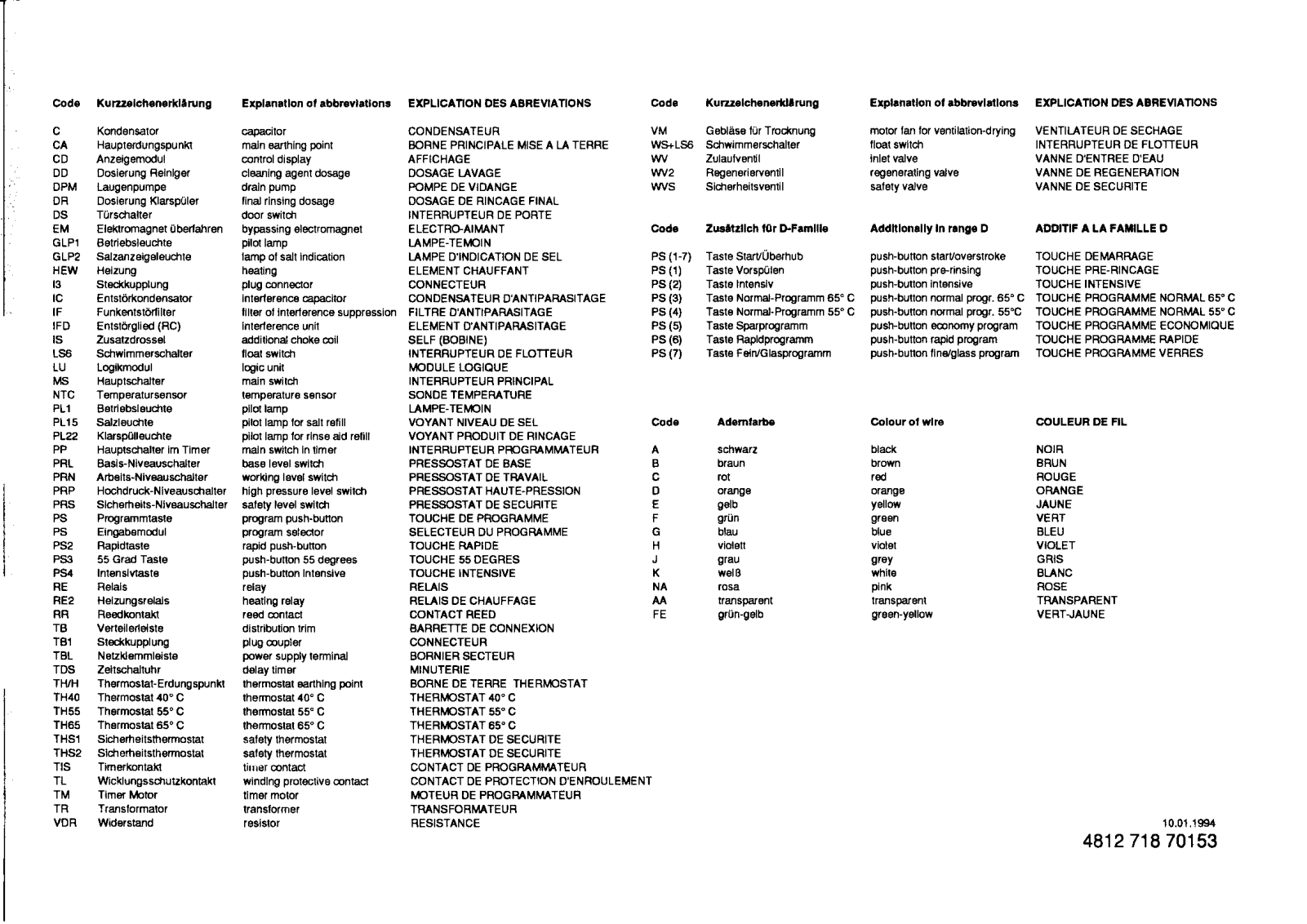

Text/legend 481271870153

Wiring diagram 481271870123

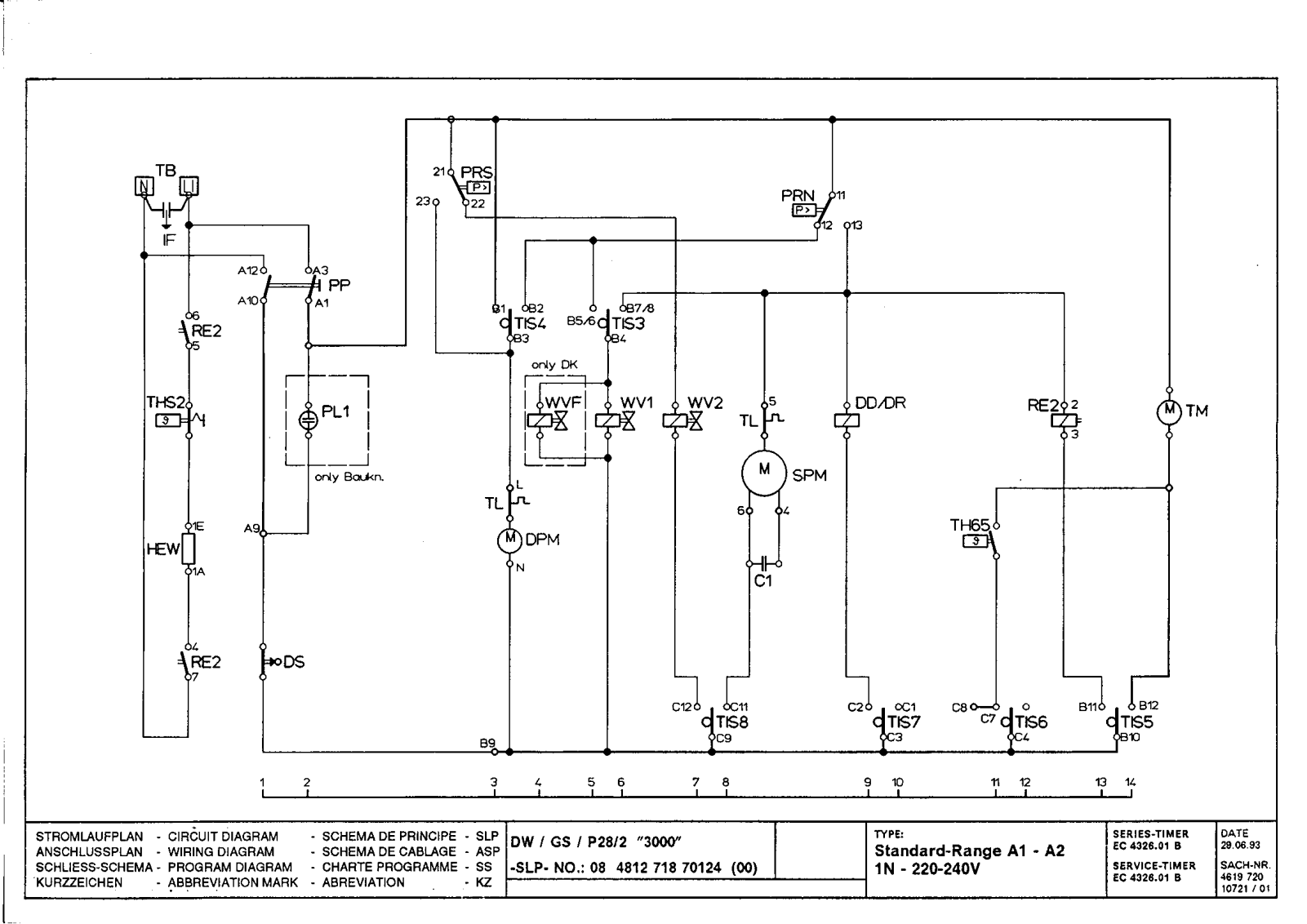

Circuit diagram 481271870124

Program diagram 481271870125

This documentation is only intended lor qualilied technicians who are aware 01 the respective salety re-

9ulations. Date: 08.08.1994 Document-No.: 481271810918 Subject to modilM:ation

Reglsler Nr.:

~--~ ~ j

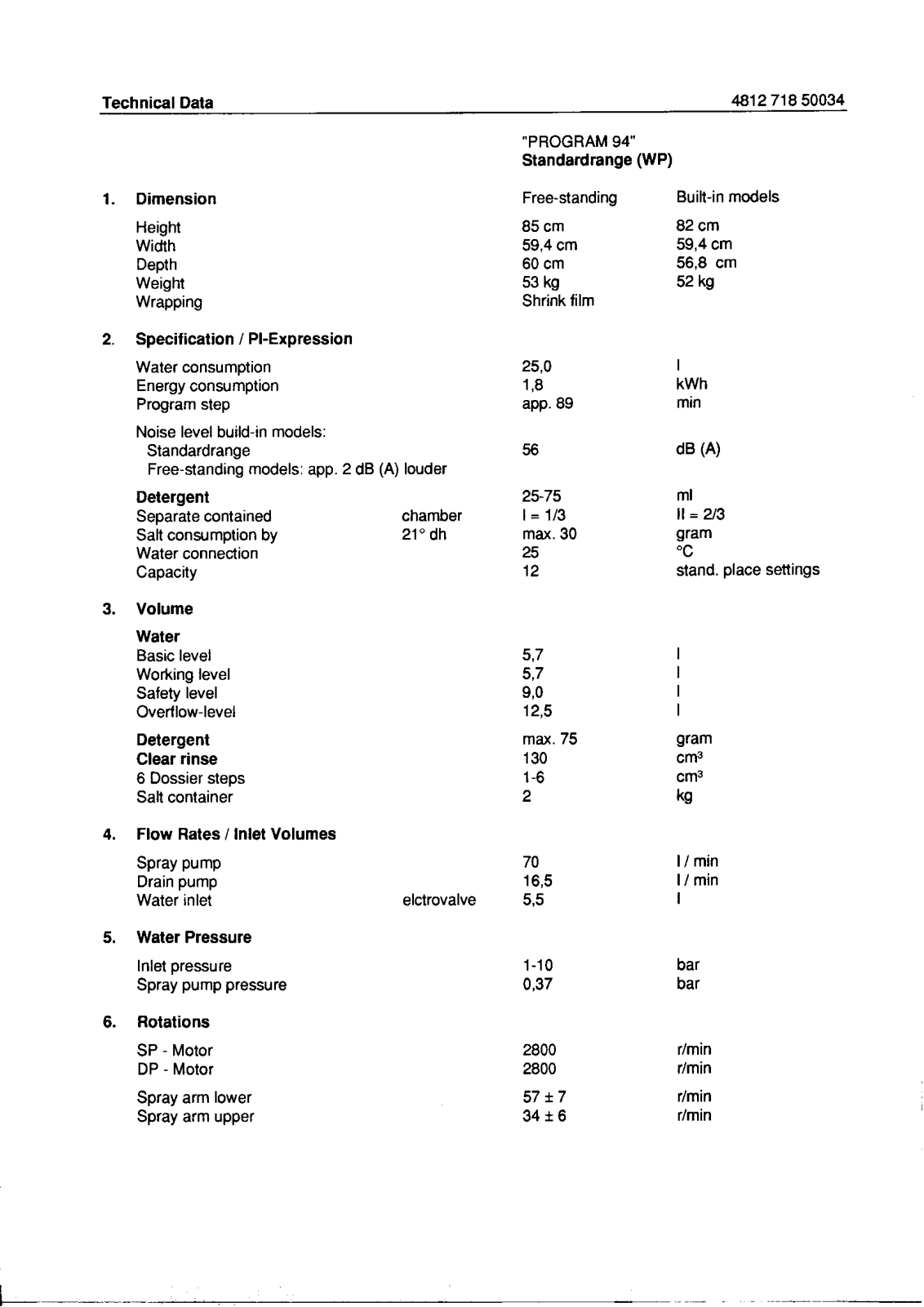

Technical Data 4812 718 50034

"PROGRAM 94" Standard range (WP)

1. Dimension Free-standing Built-in models Height 85 cm 82 cm

Width 59,4 cm 59,4 cm Depth 60 cm 56,8 cm

Weight 53 kg 52 kg

Wrapping Shrink film

2. Specification 1 PI-Expression

Water consumption 25,0 I

Energy consumption 1,8 kWh

Program step app. 89 min Noise level build-in models:

Standard range 56 dB (A) Free-standing models: app. 2 dB (A) louder

Detergent 25-75 ml

Separate contained chamber I = 1/3 II = 2/3

galt consumption by 210 dh max.30 gram

Water connection 25 °C

Capacity 12 stand. place settings

3. Volume

Water

Basic level 5,7 I

Working level 5,7 I

Safety level 9,0 I

Overflow-level 12,5 I

Detergent max. 75 gram

Clear rinse 130 cm3 6 Dossier steps 1-6 cm3

Salt container 2 kg

4. Flow Rates Ilnlet Volumes Spray pu mp 70 I1 min

Drain pump 16,5 11 min

Water inlet elctrovalve 5,5 I

5. Water Pressure

Inlet pressure 1-10 bar

Spray pump pressure 0,37 bar

6. Rotations

SP -Motor 2800 r/min DP -Motor 2800 r/min

Spray arm lower 57 :t 7 r/min i Spray arm upper 34 :t 6 r/min i

-".o/,'~" ,

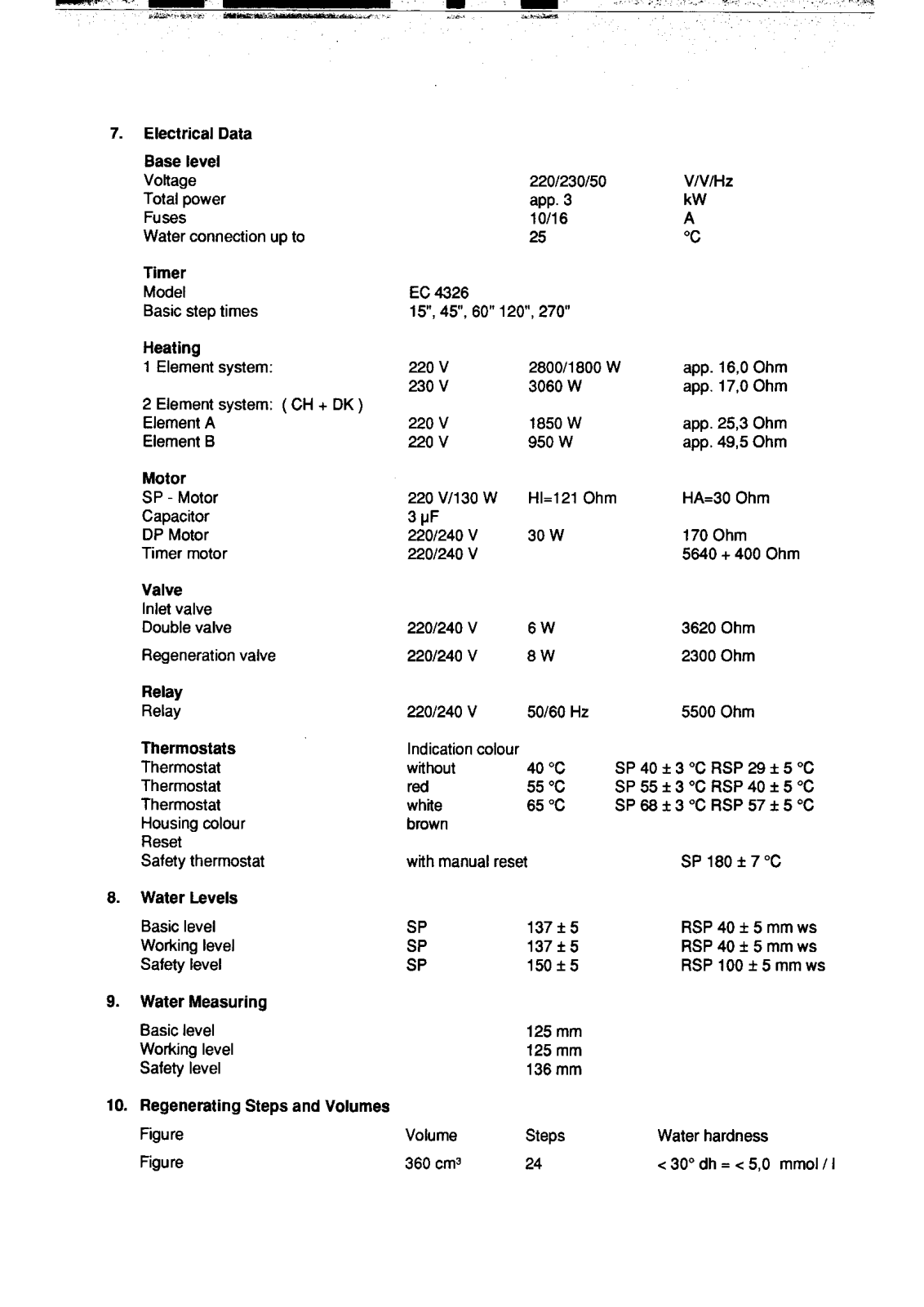

7 .Electrical Data

Base level Voltage 220/230/50 VIV/Hz

Total power app. 3 kW

Fuses 10/16 A

Water connection up to 25 °C

Timer

Model EC 4326 Basic step times 15",45",60" 120", 270"

Heating

1 Element system: 220 V 2800/1800 W app. 16,0 Ohm

2 Element system: (CH + DK)

Element A 220 V 1850 W app. 25,3 Ohm Element B 220 V 950 W app. 49,5 Ohm

230 V 3060 W app. 17,0 Ohm

Motor

SP -Motor 220 V/130 W HI=121 Ohm HA=30 Ohm Capacitor 3 IJF

DP Motor 220/240 V 30 W 170 Ohm Timer motor 220/240 V 5640 + 400 Ohm

Valve

Inlet valve

Double valve 220/240 V 6 W 3620 Ohm Regeneration valve 220/240 V 8 W 2300 Ohm

Relay Relay 220/240 V 50/60 Hz 5500 Ohm

Thermostats Indication colour

Thermostat without 40 °C SP 40 :t 3 °C RSP 29 :t 5 °C

Thermostat red 55 °C SP 55 :t 3 °C RSP 40 :t 5 °C Thermostat white 65 °C SP 68 :t 3 °C RSP 57 :t 5 °C Housing colour brown

Reset

Safety thermostat with manual reset SP 180 :t 7 °C

8. Water Levels Basic level SP 137 :t 5 RSP 40 :t 5 mm ws

Working level SP 137 :t 5 RSP 40 :t 5 mm ws Safety level SP 150 :t 5 RSP 100 :t 5 mm ws

9. Water Measuring Basic level 125 mm

Working level 125 mm

Safety level 136 mm

10. Regenerating Steps and Volumes Figure Volume Steps Water hardness

Figure 360 cm3 24 < 30° dh = < 5,0 mmol/ I

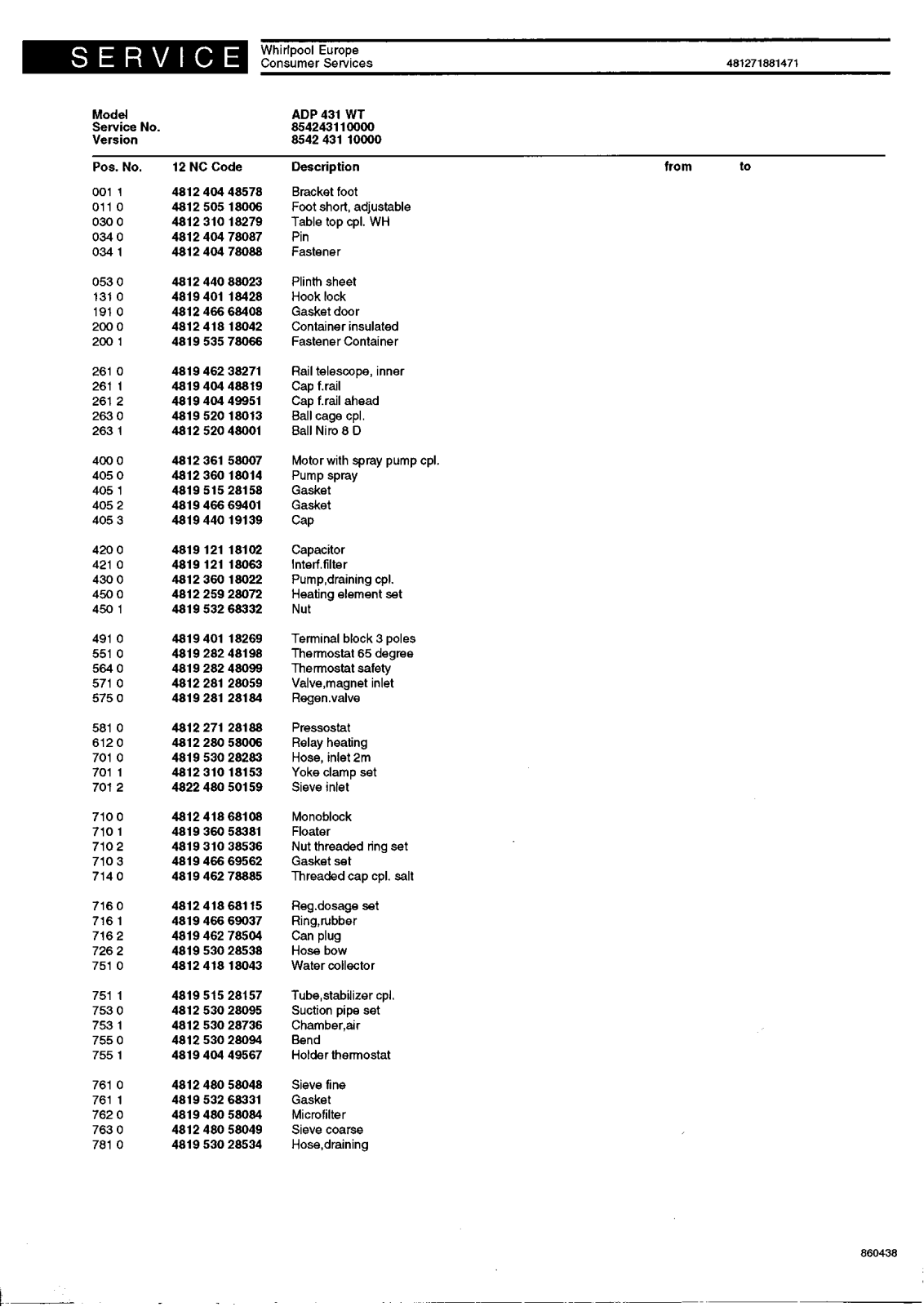

r~ ~ !.l ~.J ~ = Whirlpool Europe

~ ~ :.1 ~'j ~ Consumer Services 481271881471

Model ADP 431 WT Service No. 854243110000 Version 8542 431 10000

Pos. No. 12 NC Code Description trom to

001 1 4812404 48578 Bracket foot 011 0 4812 505 18006 Foot short, adjustable

0300 481231018279 Table top cpl. WH 0340 4812404 78087 Pin 034 1 481240478088 Fastener

0530 481244088023 Plinth sheet 1310 481940118428 Hooklock

191 0 4812466 68408 Gasket door 2000 4812 418 18042 Container insulated 200 1 481953578066 Fastener Container

261 0 481946238271 Rail telescope, inner 261 1 4819404 48819 Gap f.rail 261 2 4819404 49951 Gap f.rail ahead 2630 481952018013 Ball cage cpl. 263 1 481252048001 Ball Niro 8 D

4000 481236158007 Motorwith spray pump cpl. 4050 4812360 18014 Pump spray

4051 481951528158 Gasket

4052 481946669401 Gasket 4053 481944019139 Gap

4200 4819121 18102 Capacitor 421 0 4819121 18063 Interf.filter 4300 4812360 18022 Pump,draining cpl. 4500 481225928072 Heating element set 450 1 481953268332 Nut

491 0 4819401 18269 Terminal block 3 poles 5510 481928248198 Thermostat65degree 5640 481928248099 Thermostat safety 571 0 4812281 28059 Valve,magnet inlet 5750 4819281 28184 Regen.valve

581 0 4812271 28188 Pressostat 6120 481228058006 Relay heating

701 0 481953028283 Hose, inlet 2m

701 1 481231018153 Yoke clamp set 701 2 4822 480 50159 Sieve inlet

7100 481241868108 Monoblock 710 1 4819360 58381 Floater

7102 481931038536 Nut threaded ring set

7103 481946669562 Gasket set 7140 4819462 78885 Threaded cap cpl. galt

7160 481241868115 Reg.dosageset

716 1 481946669037 Ring,rubber 7162 481946278504 Can plug 7262 481953028538 Hose bow 7510 481241818043 Watercollector

751 1 481951528157 Tube,stabilizer cpl. 7530 4812 530 28095 Suction pipe set 753 1 4812 530 28736 Chamber,air

7550 4812 530 28094 Bend

755 1 4819404 49567 Holder thermostat

761 0 481248058048 Sieve fine

761 1 481953268331 Gasket

762 0 481948058084 Microfilter 7630 481248058049 Sieve coarse 781 0 481953028534 Hose,draining

860438

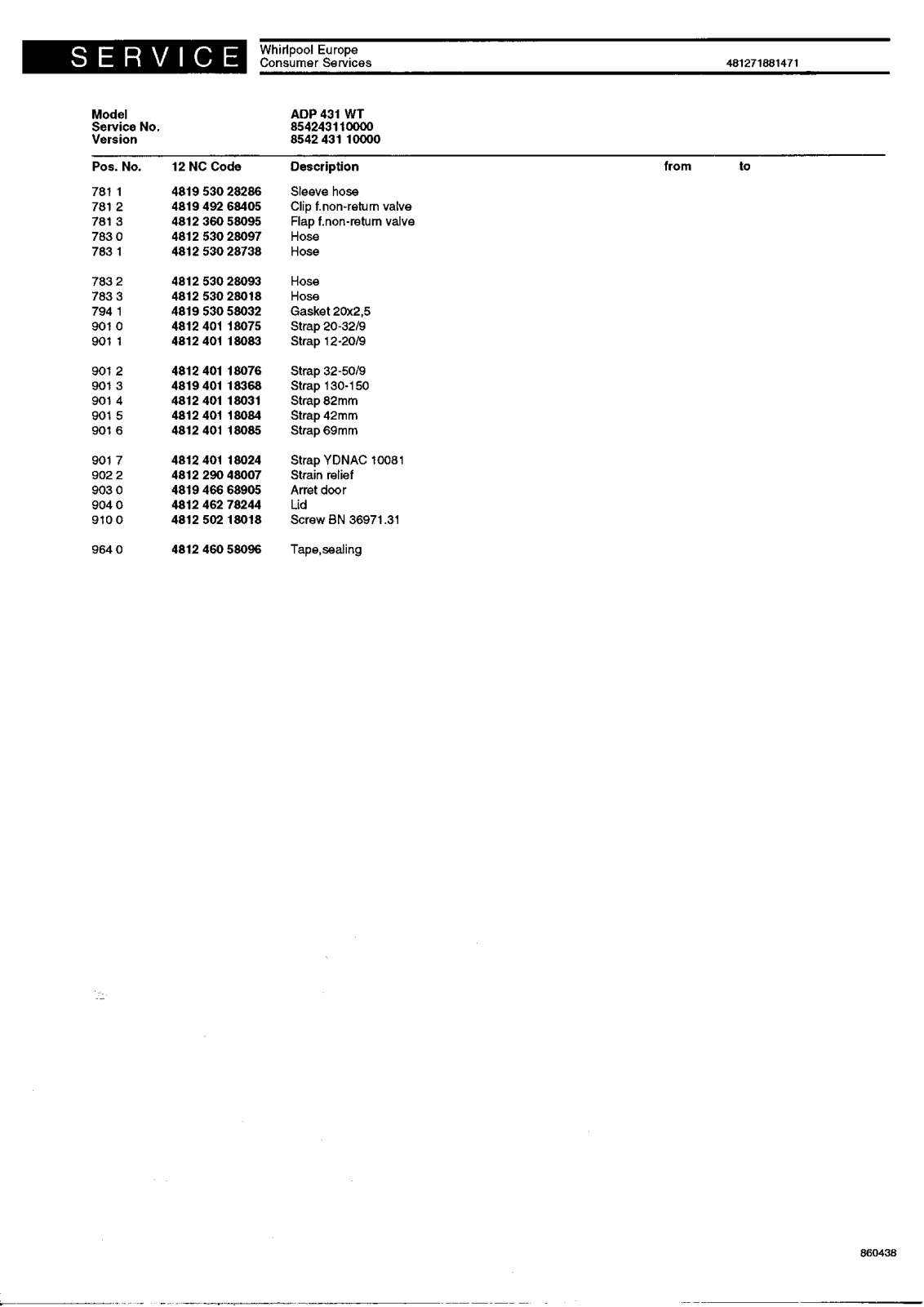

r~ .8l ~y~ 11 r8j = Whirlpool Europe

~ ~ .1 ~'.. 11 ~ Consumer Services 481271881471

Model ADP 431 WT Service No. 854243110000 Version 8542431 10000

Pos. No. 12 NC Code Description from to

781 1 481953028286 Sleeve hose 781 2 481949268405 Clip f.non-retum valve 781 3 4812360 58095 Flap f.non-retum valve

7830 481253028097 Hose

7831 481253028738 Hose

7832 481253028093 Hose

7833 481253028018 Hose

7941 481953058032 Gasket 20x2,5

901 0 4812401 18075 Strap 20-32/9 901 1 4812401 18083 Strap 12-20/9

901 2 4812401 18076 Strap 32-50/9 9013 481940118368 Strap 130-150 901 4 4812401 18031 Strap 82mm 901 5 4812401 18084 Strap 42mm 901 6 4812401 18085 Strap 69mm

901 7 481240118024 Strap YDNAC 10081 9022 4812290 48007 Strain relief 9030 4819466 68905 Arret door 9040 481246278244 Lid 9100 4812502 18018 Screw BN 36971.31

9640 481246058096 Tape,sealing

L- ~- ,, ~

860438
