My Book®

User Manual

Desktop External

WD Service and Support

Should you encounter any problem, please give us an opportunity to address it before returning this product. Most technical support questions can be answered through our knowledge base or email support service at http://support.wd.com. If the answer is not available or if you prefer,

please contact WD® at the best telephone number shown below.

Your product includes 30 days of free telephone support during the warranty period. This 30day period starts on the date of your first telephone contact with WD Technical Support. Email support is free for the entire warranty period and our extensive knowledge base is available 24/ 7. To help us keep you informed of new features and services, remember to register your product online at http://register.wd.com.

Accessing Online Support

Visit our product support website at http://support.wd.com and choose from these topics:

Downloads—Download drivers, software, and updates for your WD product.

Registration—Register your WD product to get the latest updates and special offers.

Warranty & RMA Services—Get warranty, product replacement (RMA), RMA status, and data recovery information.

Knowledge Base—Search by keyword, phrase, or answer ID.

Installation—Get online installation help for your WD product or software.

WD Community—Share your thoughts and connect with other WD users.

Contacting WD Technical Support

When contacting WD for support, have your WD product serial number, system hardware, and system software versions available.

North America



Europe (toll free)* 00800 ASK4 WDEU

English

800.ASK.4WDC

Europe

(00800 27549338)



(800.275.4932)

+31 880062100

Spanish

800.832.4778

Middle East

+31 880062100





Africa

+31 880062100

Mexico

001 8002754932

Russia

8 10 8002 335 5011

South America



Asia Pacific





Chile

1230 020 5871

Australia

1800 42 9861

/ +800 2275 4932

Colombia

009 800 83247788

China

800 820 6682



Venezuela

0800 100 2855

Hong Kong

+800 6008 6008

Peru

0800 54003

India

1800 419 5591 / 1800 200 5789

Uruguay

000 413 598 3787

Indonesia

+803 852 9439

Argentina

0800 4440839

Japan

00531 65 0442 / 0120 994 120

Brazil

0800 7704932

Korea

02 703 6550





0021 800 83247788

Malaysia

1800 88 1908

/ +800 6008 6008 (Telekom Malaysia)





New Zealand

0508 555 639

/ +800 2275 4932





Philippines

1 800 1441 0159





Singapore

1800 608 6008 / +800 6008 6008 (Singtel)





Taiwan

0800 666 290

/ +800 6008 6008 (Chunghwa)





Thailand

001 800 441 0570

* Toll free number available in the following countries: Austria, Belgium, Denmark, France, Germany, Ireland, Italy, Netherlands, Norway, Spain, Sweden, Switzerland, United Kingdom.

ii

MY BOOK

USER MANUAL

Table of Contents

WD Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

Accessing Online Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Contacting WD Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

1 About Your WD Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operating System Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Disk Drive Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Power/Activity LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

USB 3.0 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Kensington® Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Registering Your Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Handling Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2

Connecting the Drive and Getting Started . . . . . . . . . . . . . . . . . . . . . .

6



Connecting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 6



Getting Started with the WD Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 7

3

WD SmartWare Software Functional Overview . . . . . . . . . . . . . . . . . .

17



Home Tab Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18



Backup Tab Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25



Retrieve Tab Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28



Settings Tab Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30



Help Tab Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

4

Backing Up Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33



How the Backup Function Works. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33



Backing Up Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33

5

Retrieving Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41



How the Retrieve Function Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41



Retrieving Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

6

Locking and Unlocking the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46

Password Protecting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Unlocking the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Unlocking the Drive with the WD Security or WD Drive Utilities Software . . . . . . . . . . . . . . . . 48 Unlocking the Drive with the WD SmartWare Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Unlocking the Drive with the WD Drive Unlock Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

TABLE OF CONTENTS – iii

MY BOOK

USER MANUAL

Changing Your Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Turning Off the Drive Lock Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

7 Managing and Customizing the Drive . . . . . . . . . . . . . . . . . . . . . . . . . 53

Using the WD Quick View Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Opening the WD SmartWare Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Checking Drive Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Safely Disconnecting the Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Monitoring Icon Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Setting the Drive Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Registering the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Checking Drive Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Erasing the Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using the Drive Erase Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Using the WD Drive Unlock Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Restoring the WD Software and Disk Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

8 Managing and Customizing the Software . . . . . . . . . . . . . . . . . . . . . . 61

Specifying the Number of Backup Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Specifying a Different Retrieved Content Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Checking for Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Configuring a Remote Dropbox Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Uninstalling the WD Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Uninstalling on Windows XP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Uninstalling on Windows Vista or Windows 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Uninstalling on Windows 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9 Using the Drive with a Mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

65

Reformatting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

65

Restoring the WD Software and Disk Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

65

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

66

Installing, Partitioning, and Formatting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

66

Frequently Asked Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

66

A Installing the SES Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

68

Installing on Windows XP Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Installing the Driver Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Installing the Driver Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Installing on Windows Vista Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Installing the Driver Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Installing the Driver Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Installing on Windows 7 and Windows 8 Computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

TABLE OF CONTENTS – iv

MY BOOK

USER MANUAL

B Compliance and Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . 77

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

FCC Class B Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 ICES-003/NMB-003 Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 CE Compliance For Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 KC Notice (Republic of Korea only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Environmental Compliance (China). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Warranty Information (All Regions Except Australia/New Zealand) . . . . . . . . . . . . . . . . . . 78

Obtaining Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Warranty Information (Australia/New Zealand) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Obtaining Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

GNU General Public License (“GPL”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

TABLE OF CONTENTS – v

MY BOOK

USER MANUAL



About Your WD Drive

1





Secure your precious memories on My Book® desktop storage. This USB 3.0 drive is





optimized for the fastest possible data transfer rates and features complete protection



for your files. The WD SmartWarePro automatic backup software protects your



precious memories. The Acronis® True Image (ATI) WD Edition software provides



complete system backup. Password protection with hardware encryption keeps your



private stuff private.



This introductory chapter includes the following topics:



Features



Kit Contents



Optional Accessories



Operating System Compatibility



Disk Drive Format



Physical Description



Registering Your Drive



Handling Precautions



Features



Secure your precious memories on My Book desktop storage with ultra-fast USB 3.0



connectivity, WD SmartWare Pro backup software, Acronis True Image system-level



software and password protection.



Ultra-fast transfer rates—My Book desktop storage is optimized for the fastest



possible data transfer rates. Connect this drive to a SuperSpeed USB 3.0 port to access



and save files in record time.



Massive capacity—With up to 4 TB capacity, there’s plenty of room to store and protect



your precious memories and important files.



Automatic backup software—The WD SmartWare Pro automatic backup software



works quietly in the background to help protect your data using minimal PC resources.



Select automatic, continuous backup to instantly back up your files. Or select the



scheduled backup option to back up your files on your schedule and take control of your



backup.



Local and cloud backup—WD SmartWare Pro lets you choose. Back up your files to



your My Book drive or back up your files to the cloud using your Dropboxaccount. (A



Dropbox account is required for cloud backup. Cloud services can be changed,



terminated or interrupted at any time and can vary by country.)

System-level backup—Acronis True Image (ATI) WD Edition software backs up your files on a system level so that if you ever need to recover your system files, you have them close at hand:

ATI WD Edition software download: http://products.wd.com/wdacronis

ATI WD Edition user guide download: http://products.wd.com/wdacronis/um

More access—Our free Windows® 8 App makes it easy to discover, organize, and enjoy photos, videos and music libraries stored on your My Book drive using a Windows 8 computer. Go to the Windows Store for your free download.

ABOUT YOUR WD DRIVE – 1

MY BOOK

USER MANUAL

Universal connectivity—With this drive you get connectivity with the latest USB 3.0 devices as well as backward compatibility with USB 2.0 devices.

Password protection for privacy—Gain peace of mind knowing that your data is protected from unauthorized access with password protection and encryption.

WD quality inside and out—For over 20 years, millions of people worldwide have trusted their data to WD hard drives. We are successful because we understand the importance of your data and our first concern is keeping that data safe.

Important: For the latest WD product information and news, visit our website at http://www.westerndigital.com. For the latest software, firmware, and product documentation and information, go to http://support.wd.com/downloads.

For Acronis True Image (ATI) WD Edition software and user guide downloads, go to:

ATI WD Edition software download: http://products.wd.com/wdacronis

ATI WD Edition user guide download: http://products.wd.com/wdacronis/um

Kit Contents

As shown in Figure 1, your My Book drive kit includes the following:

My Book drive, with the WD SmartWare Pro, WD Drive Utilities, and WD Securitysoftware

USB 3.0 cable

AC adapter

Quick Install Guide

USB 3.0 Cable

Quick Install Guide

My Book Drive

AC Adapter

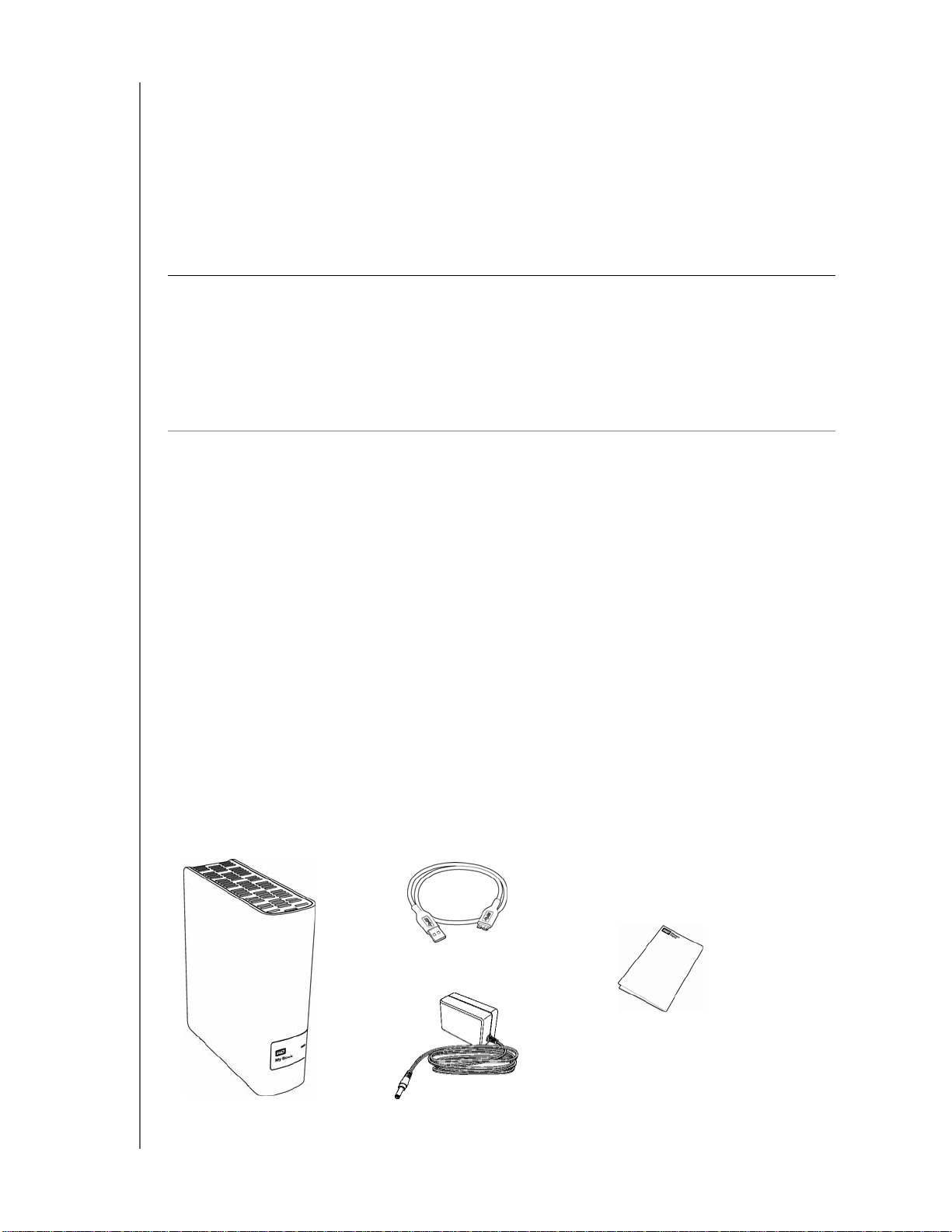

Figure 1. My Book Drive Kit Components

ABOUT YOUR WD DRIVE – 2

MY BOOK

USER MANUAL

Optional Accessories

For information about optional accessories for WD products, visit:

US

http://www.shopwd.com or http://www.wdstore.com





Canada

http://www.shopwd.ca or http://www.wdstore.ca





Europe

http://www.shopwd.eu or http://www.wdstore.eu





All others

Contact WD Technical Support in your region. For a list of Technical Support



contacts, visit http://support.wd.com and see Knowledge Base answer ID 1048.





Operating System Compatibility

Your My Book drive and the WD Drive Utilities and WD Security software are compatible with the following operating systems:

Windows

Mac OS X

Windows XP

Leopard

Windows Vista®

Snow Leopard

Windows 7

Lion

Windows 8

Mountain Lion

The WD SmartWare Pro software is compatible with the following operating systems:

Windows

Windows XP

Windows Vista

Windows 7

Windows 8

Compatibility can vary, depending on hardware configuration and operating system.

For highest performance and reliability, always install the latest updates and service pack (SP). For Windows computers, go to the Start menu and select Windows Update. For Mac computers, go to the Apple menu and select Software Update.

Disk Drive Format

Your My Book drive is formatted as a single NTFS partition for compatibility with all updated Windows operating systems. If you want to use the drive with a Mac computer, see “Reformatting the Drive” on page 65 and “Troubleshooting” on page 66.

Physical Description

As shown in Figure 2 on page 4, the My Book drive has:

A power/activity LED indicator on the front

The power connector, interface port, and a security slot on the back

ABOUT YOUR WD DRIVE – 3

MY BOOK

USER MANUAL

USB 3.0

Power/Activity LED

Security Slot

Power Connector

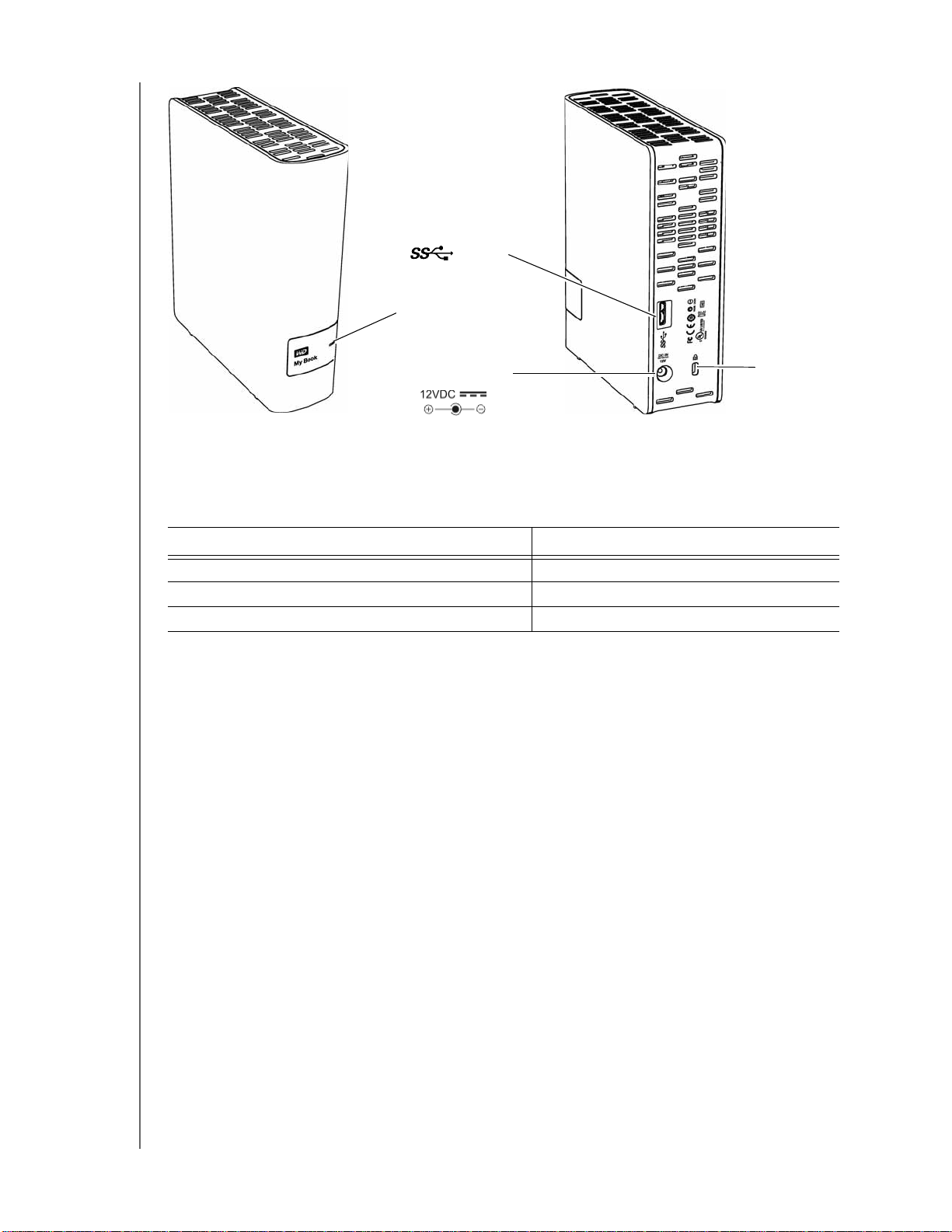

Figure 2. My Book Drive

Power/Activity LED

The power/activity LED shows the drive’s power state as follows:

LED Appearance

Power State/Activity









On steady

Idle





Fast flashing, approximately 3 times per second

Activity





Slow flashing, approximately every 2.5 seconds

System standby





USB 3.0 Interface

USB 3.0 supports data transfer rates up to 5 Gb/s. USB 3.0 is backward compatible with USB 2.0. Connection to a USB 2.0 port transfers data at the port speed—up to 480 Mb/s

Kensington® Security Slot

For drive security, the Kensington security slot accepts a standard Kensington security cable (sold separately). For more information about the Kensington security slot and available products, visit www.kensington.com.

Registering Your Drive

Always register your My Book drive to get the latest updates and special offers. You can easily register your drive using the WD Drive Utilities software, as described in “Registering the Drive” on page 55. Another way is to register online at http://register.wd.com.

ABOUT YOUR WD DRIVE – 4

MY BOOK

USER MANUAL

Handling Precautions

WD products are precision instruments and must be handled with care during unpacking and installation. Drives may be damaged by rough handling, shock, or vibration. Always observe the following precautions when unpacking and installing your external storage product:

Do not drop or jolt the drive.

Do not move the drive during activity.

Do not use this product as a portable drive.

To allow proper ventilation, do not block any of the drive enclosure’s air slots.

ABOUT YOUR WD DRIVE – 5

Wd WDBFJK0030HBK, MY Book User Manual



MY BOOK



USER MANUAL



Connecting the Drive and Getting Started

2

This chapter provides instructions for connecting the drive and installing the WD Drive



Utilities, WD Security, and WD SmartWare software on your computer. It includes the





following topics:



Connecting the Drive



Getting Started with the WD Software



Connecting the Drive



1. Depending on your region, if required, change the power adapter as follows:

Removing

Installing

Removing

Installing

2.Turn on your computer.

3.Connect the My Book drive as shown in Figure 3.

2

4

3

1

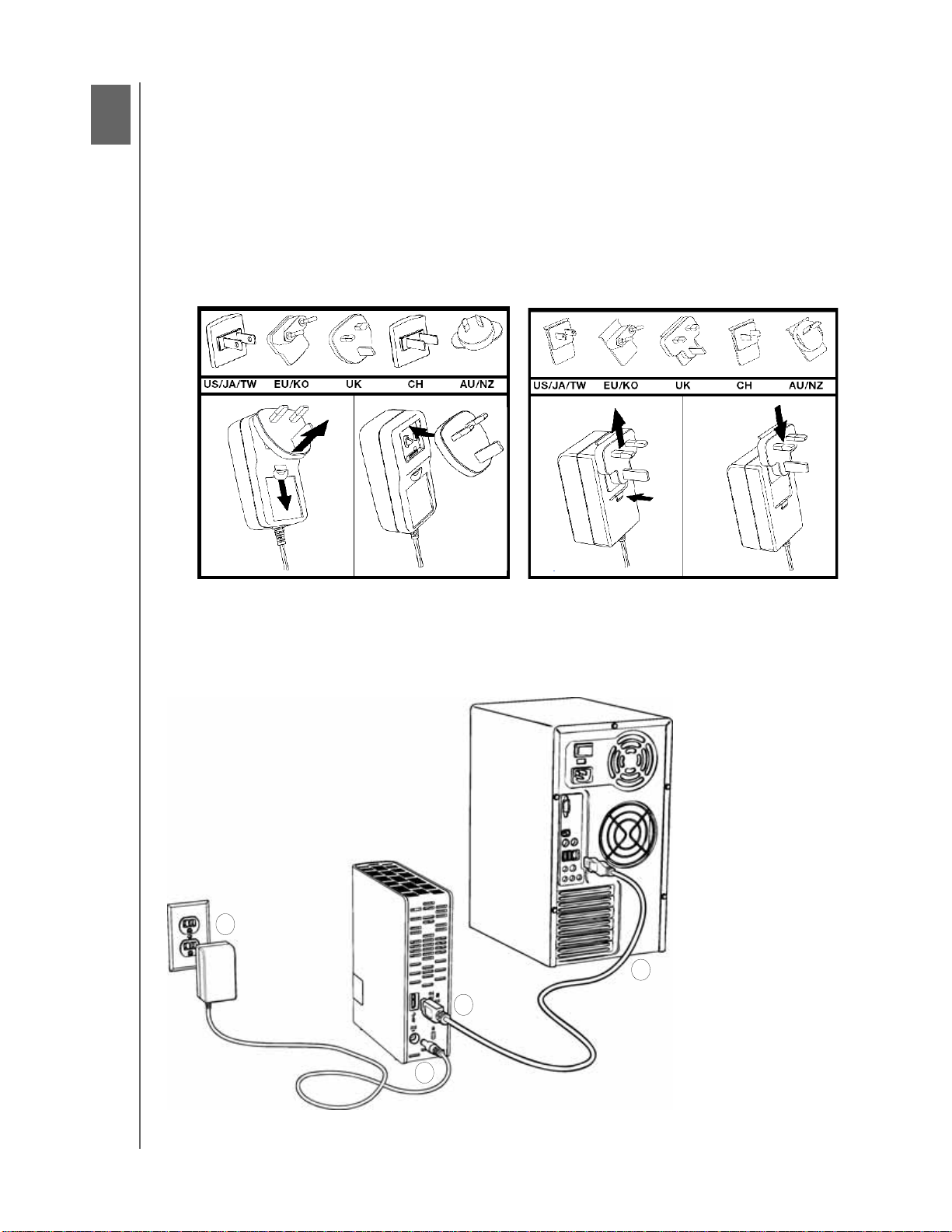

Figure 3. Connecting the My Book Drive

CONNECTING THE DRIVE AND GETTING STARTED – 6

MY BOOK

USER MANUAL

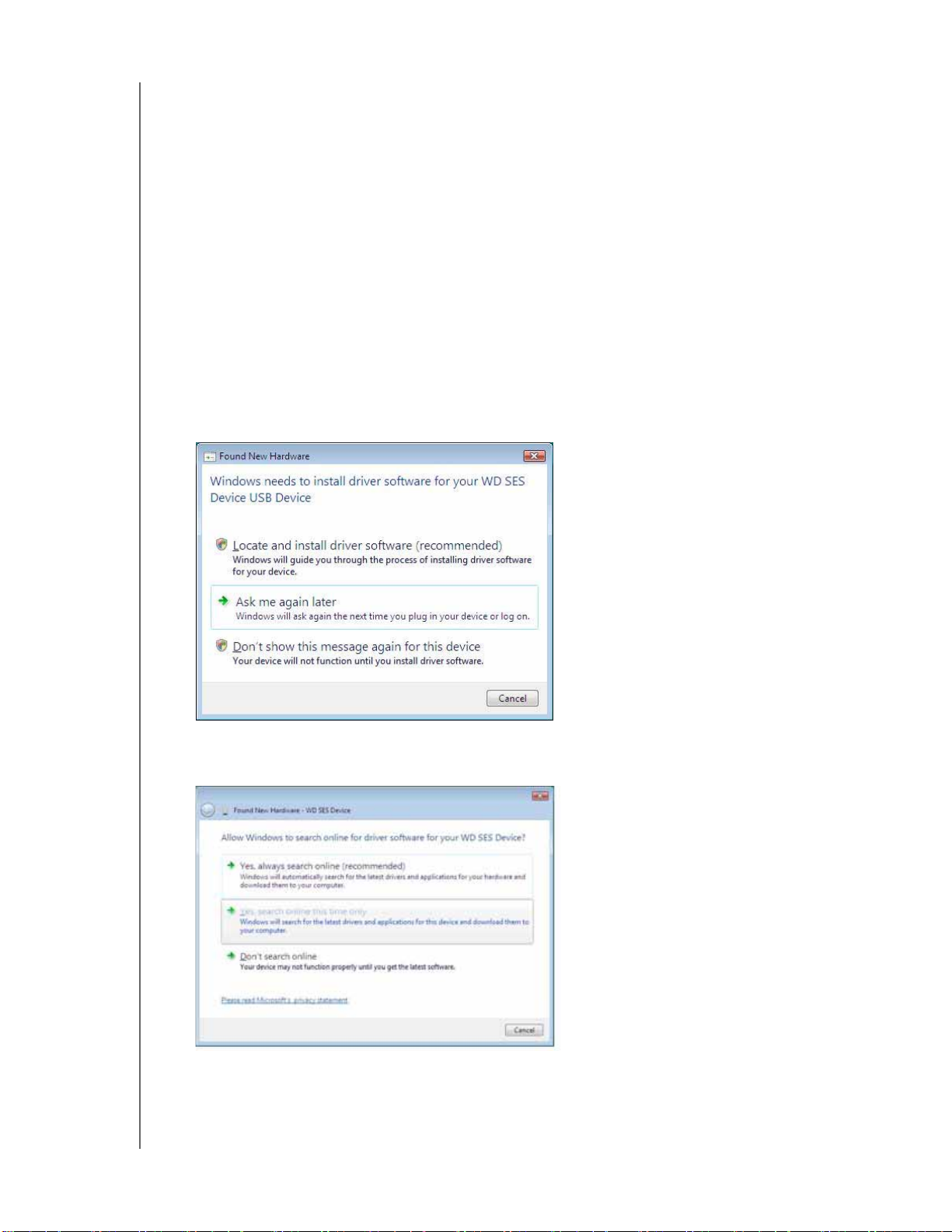

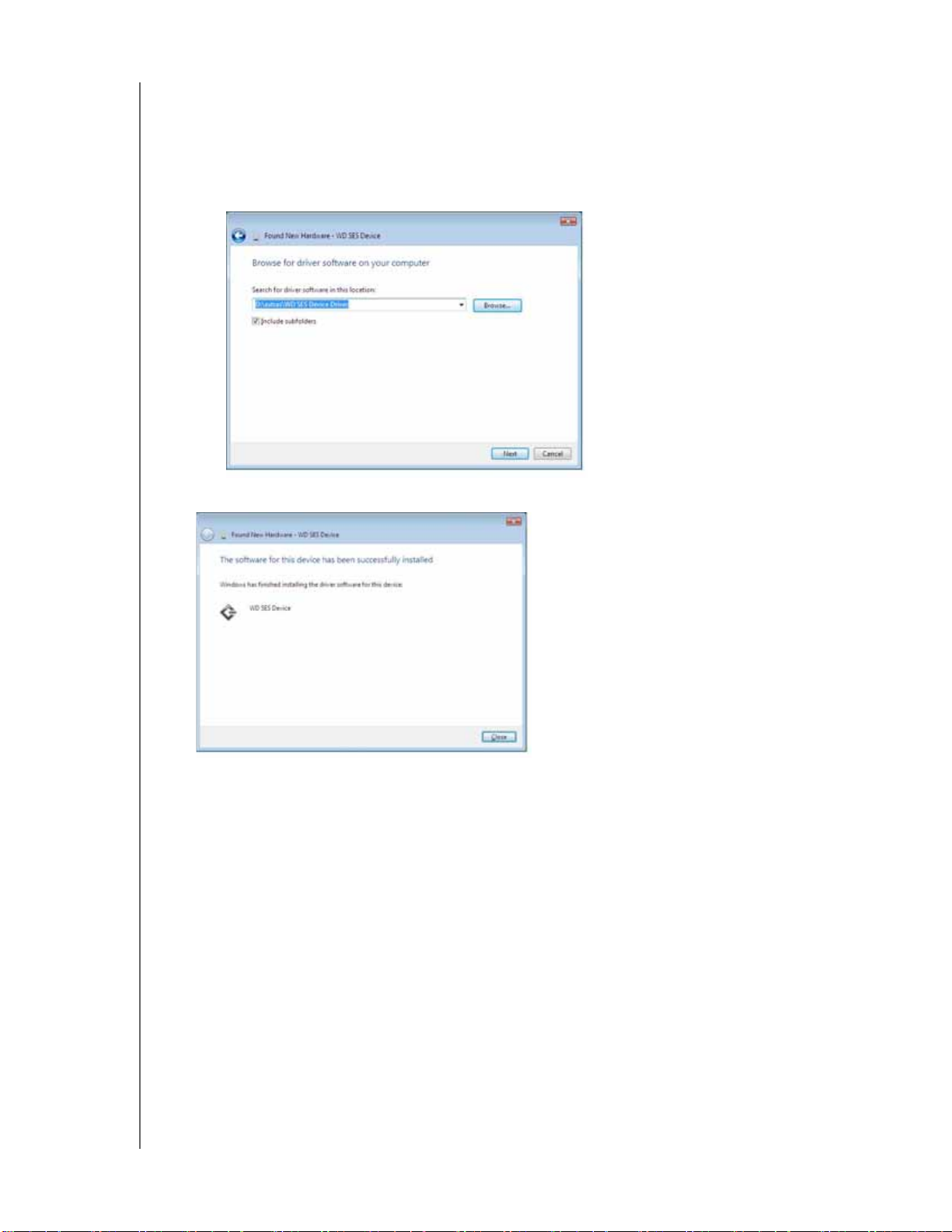

4.If a Found New Hardware screen appears, click Cancel to close it. The WD software installs the proper driver for your drive.

5.Verify that the drive appears in your computer’s file management utility listing.

Your My Book drive is now ready to use as an external storage device. You can enhance its capabilities by installing the WD software that is on the drive:

WD Drive Utilities

WD Security

WD SmartWare

Getting Started with the WD Software

1.Double-click the WD Apps Setup file that appears in the listing for the drive in your computer’s file management utility to display the WD Apps Setup Wizard:

2.Click Next to display the End User License Agreement.

3.Read the license agreement and select the I accept the terms... check box to accept the agreement and activate the Next button.

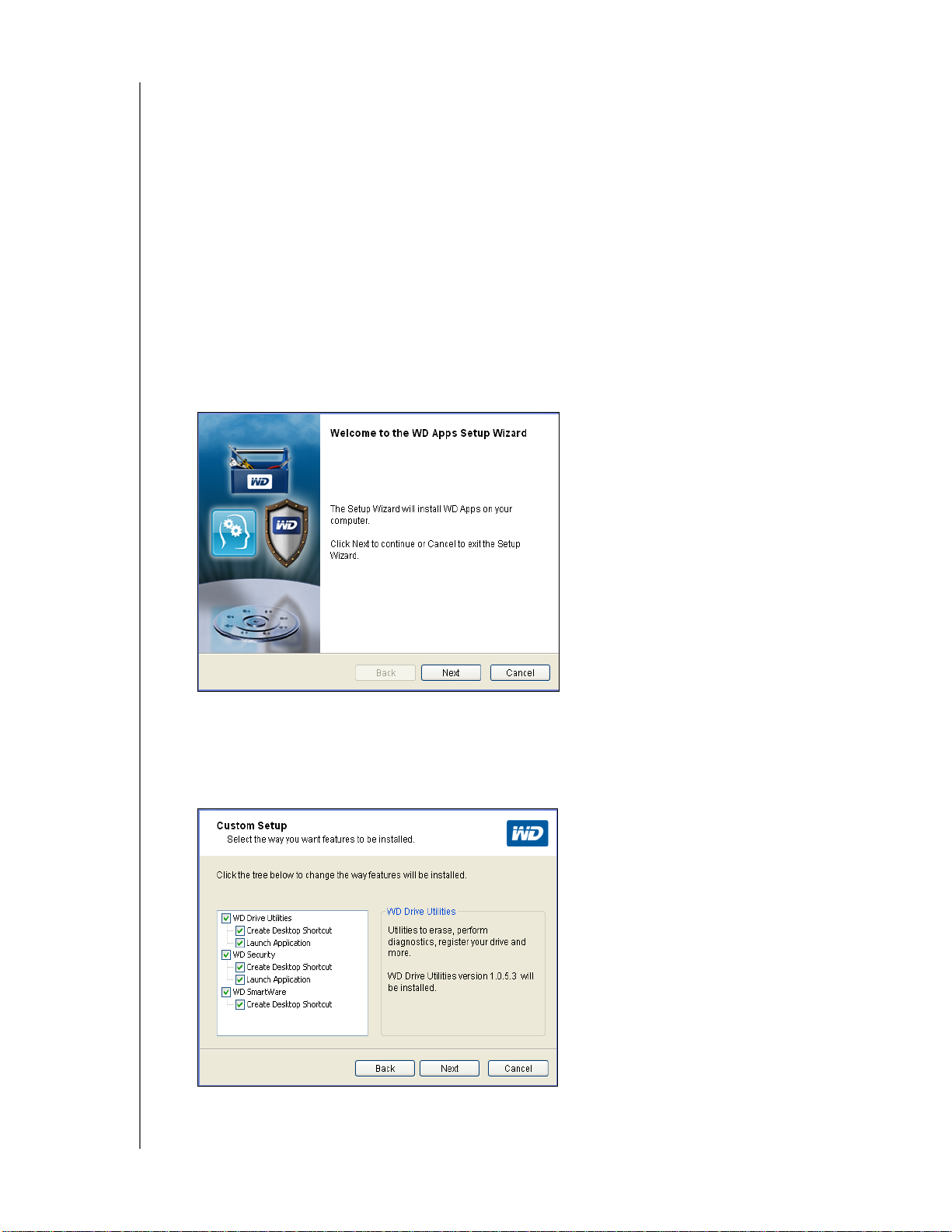

4.Click Next to display the Custom Setup dialog:

CONNECTING THE DRIVE AND GETTING STARTED – 7

MY BOOK

USER MANUAL

5.On the Custom Setup dialog:

a.Select an application name to see a brief description of the application:

WD Drive Utilities

WD Security

WD SmartWare

b.Clear the check box for any application that you do not want to install.

c.Clear the check box for any installation option that you do not want to implement:

Create Desktop Shortcut

Launch Application

d.Click Next to install the selected applications and options.

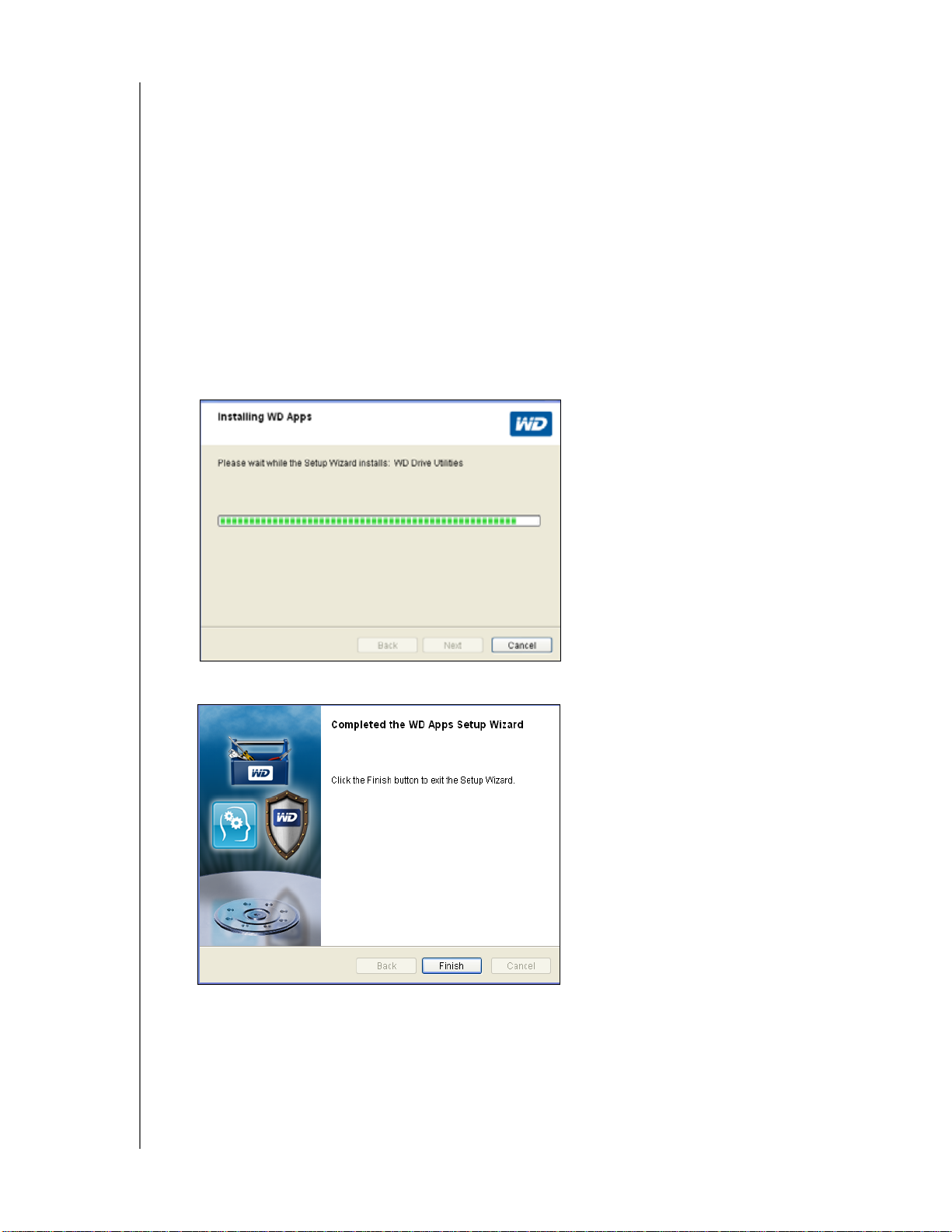

6.Wait for the installation to complete:

7. When the installation completes, click Finish to exit the WD Apps Setup Wizard:

8.Depending on your selections:

Installing the WD Drive Utilities software with the Launch Application option displays the WD Drive Utilities screen (see Figure 4 on page 9 and “Managing and Customizing the Drive” on page 53).

CONNECTING THE DRIVE AND GETTING STARTED – 8

MY BOOK

USER MANUAL

Installing the WD Security software with the Launch Application option displays the WD Security screen (see Figure 5 on page 10 and “Locking and Unlocking the Drive” on page 46).

Installing the WD SmartWare software displays the Upgrade to WD SmartWare Pro screen for activating your free software upgrade (see Figure 6 on page 10 and proceed to step 9).

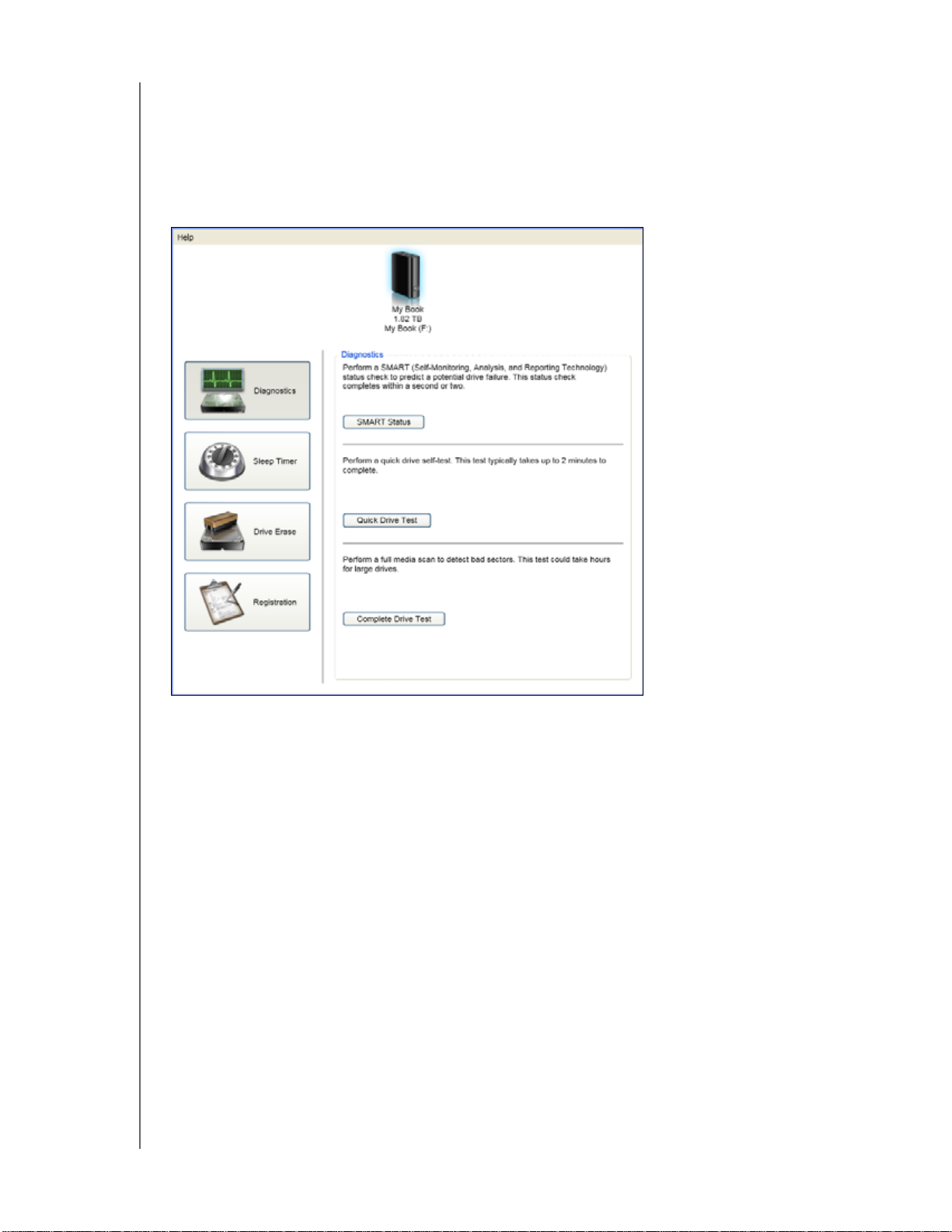

Figure 4. WD Drive Utilities Screen

CONNECTING THE DRIVE AND GETTING STARTED – 9

MY BOOK

USER MANUAL

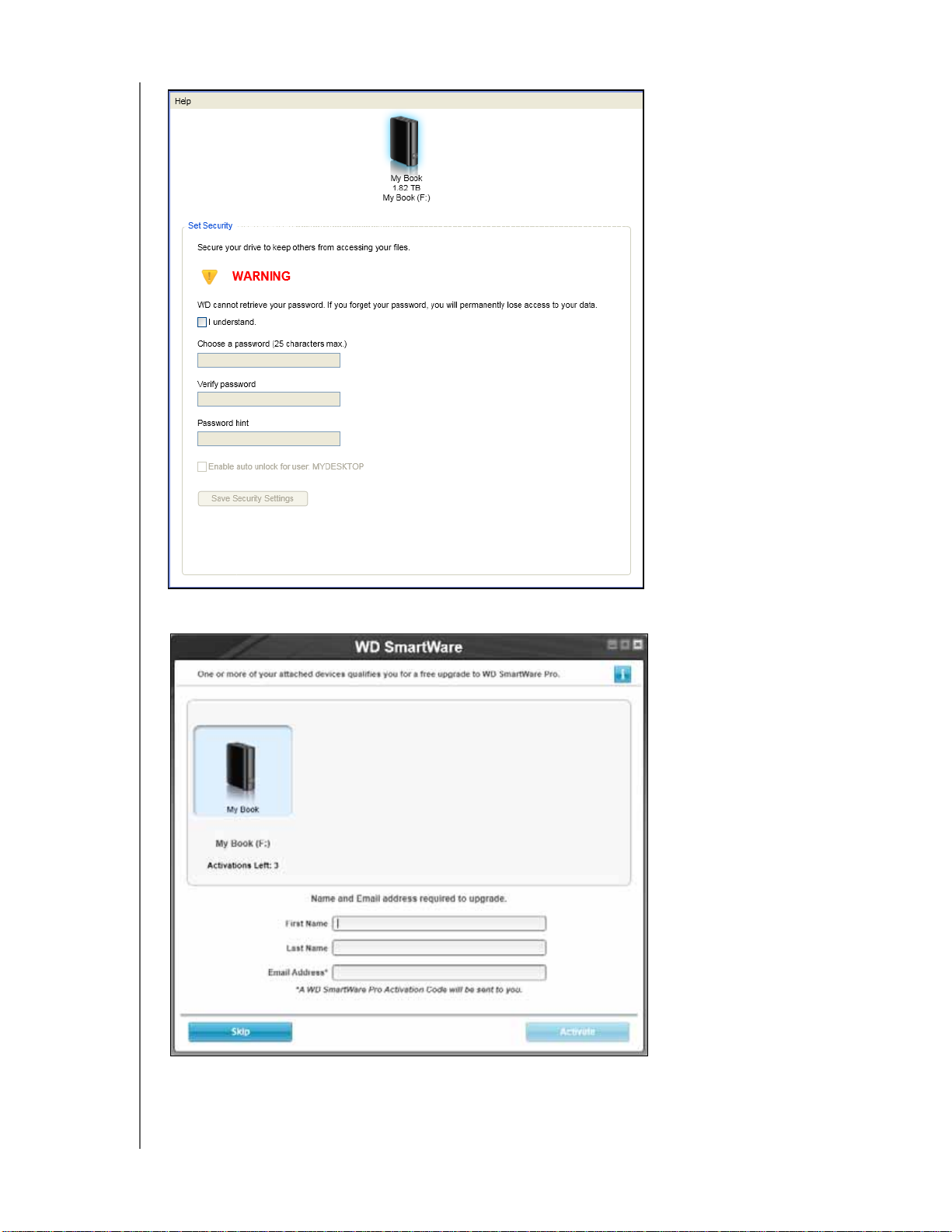

Figure 5. WD Security Screen

Figure 6. Upgrade to WD SmartWare Pro Screen

9.The WD SmartWare Pro software upgrade extends the backup function to non-WD drives, unsupported WD drives, and a remote Dropbox folder. Activating your free

CONNECTING THE DRIVE AND GETTING STARTED – 10

MY BOOK

USER MANUAL

upgrade installs the WD SmartWare Pro software on this computer and provides email delivery of an activation code that you can use to install it on two other computers.

a.Type your first name in the First Name box.

b.Type your last name in the Last Name box.

c.Type your email address in the Email Address box.

d.Click Activate to complete the upgrade and display the Activation Result message:

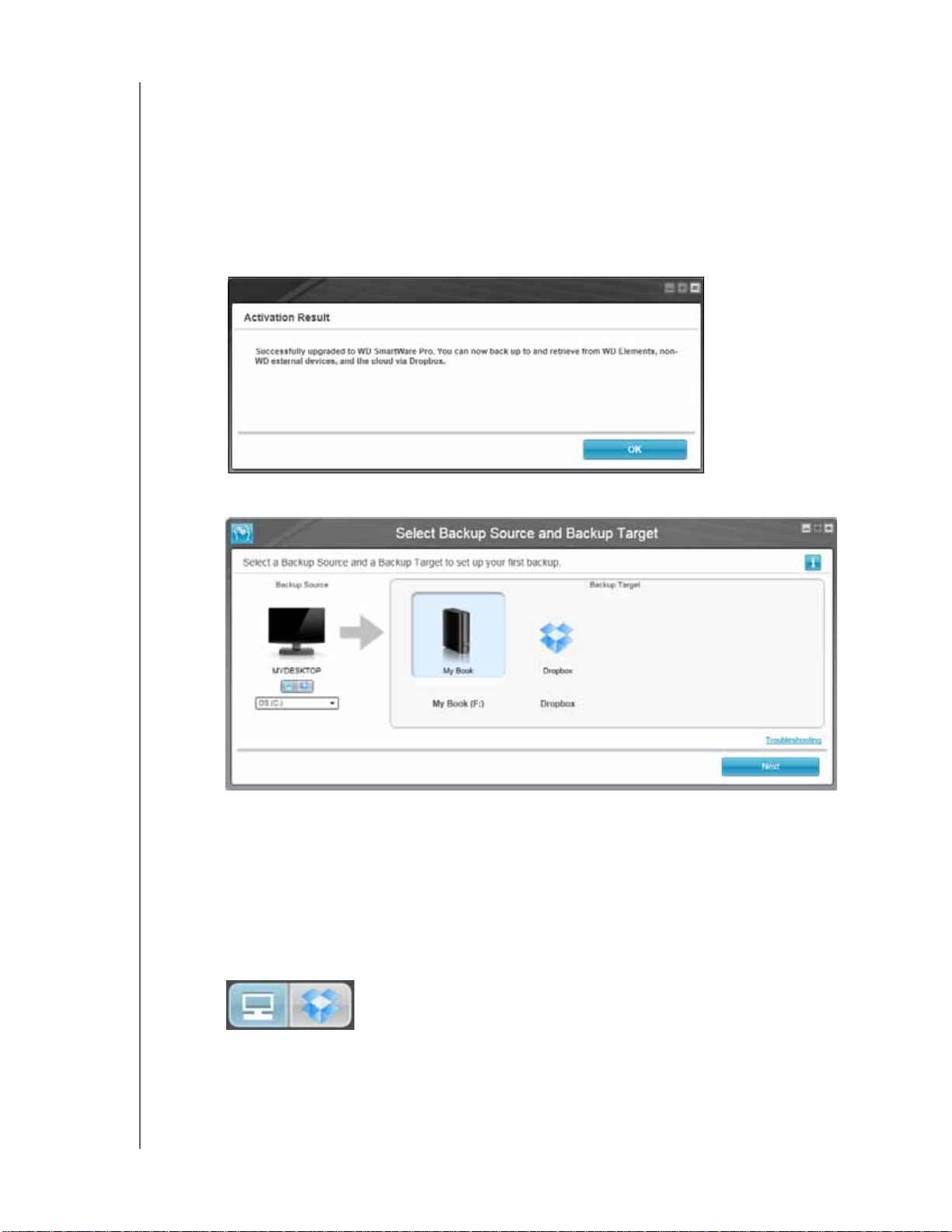

e. Click OK to display the Select Backup Source and Backup Target screen:

Note: At this point, the WD SmartWare Pro software is installed. If you want to skip the setup procedure for your initial backup for now, click the X close window icon in the upper-right corner of the Select Backup Source and Backup Target screen. Otherwise proceed to step 10.

10.In the Backup Source area of the Select Backup Source and Backup Target screen, select the device that has the files you want to back up:

a.Use the backup source selector to specify whether you want to back up files from a local hard drive or from a remote Dropbox folder:

CONNECTING THE DRIVE AND GETTING STARTED – 11

MY BOOK

USER MANUAL

By default, the computer option is selected and the computer icon signifies that the backup source device will be either an internal hard drive or drive partition, or a local direct-attached external hard drive:

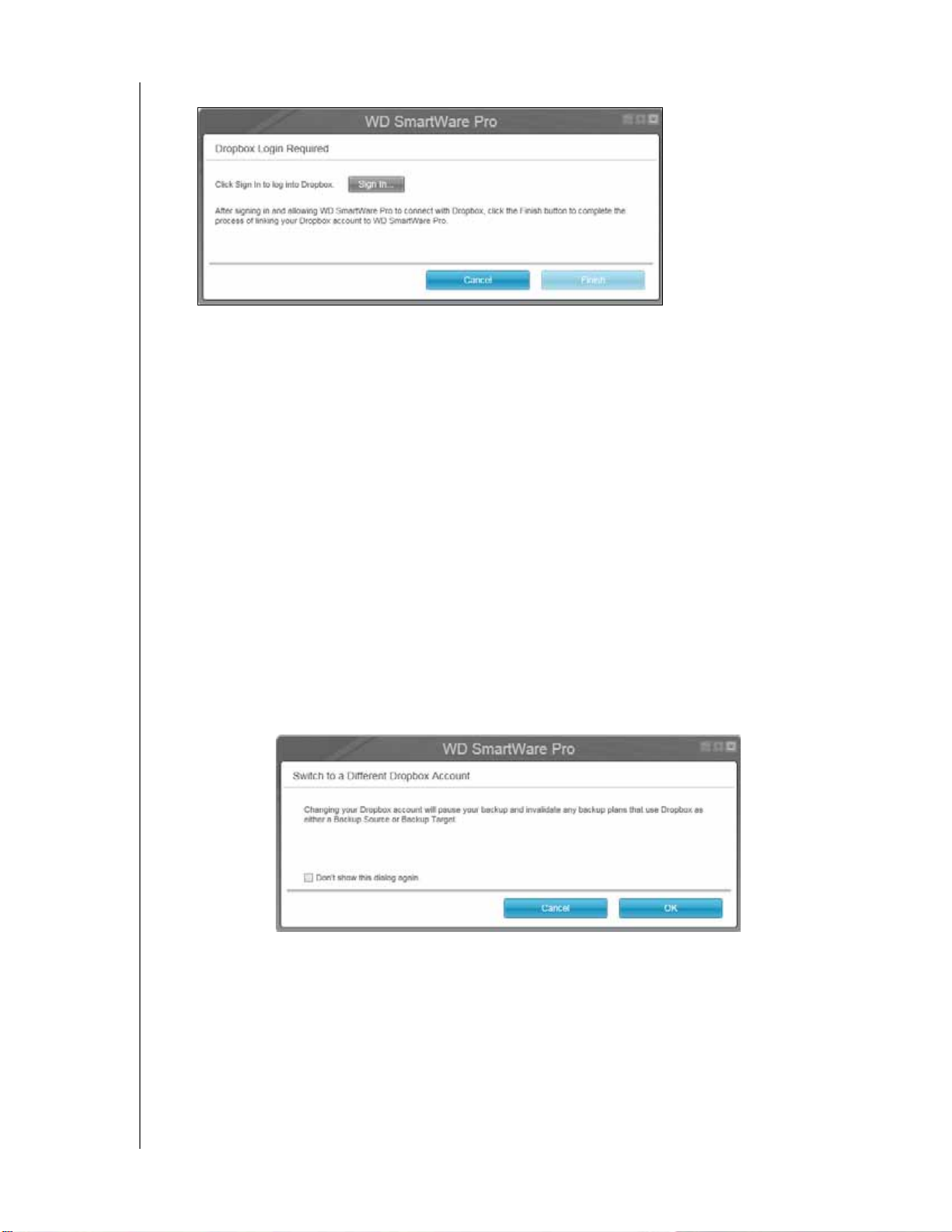

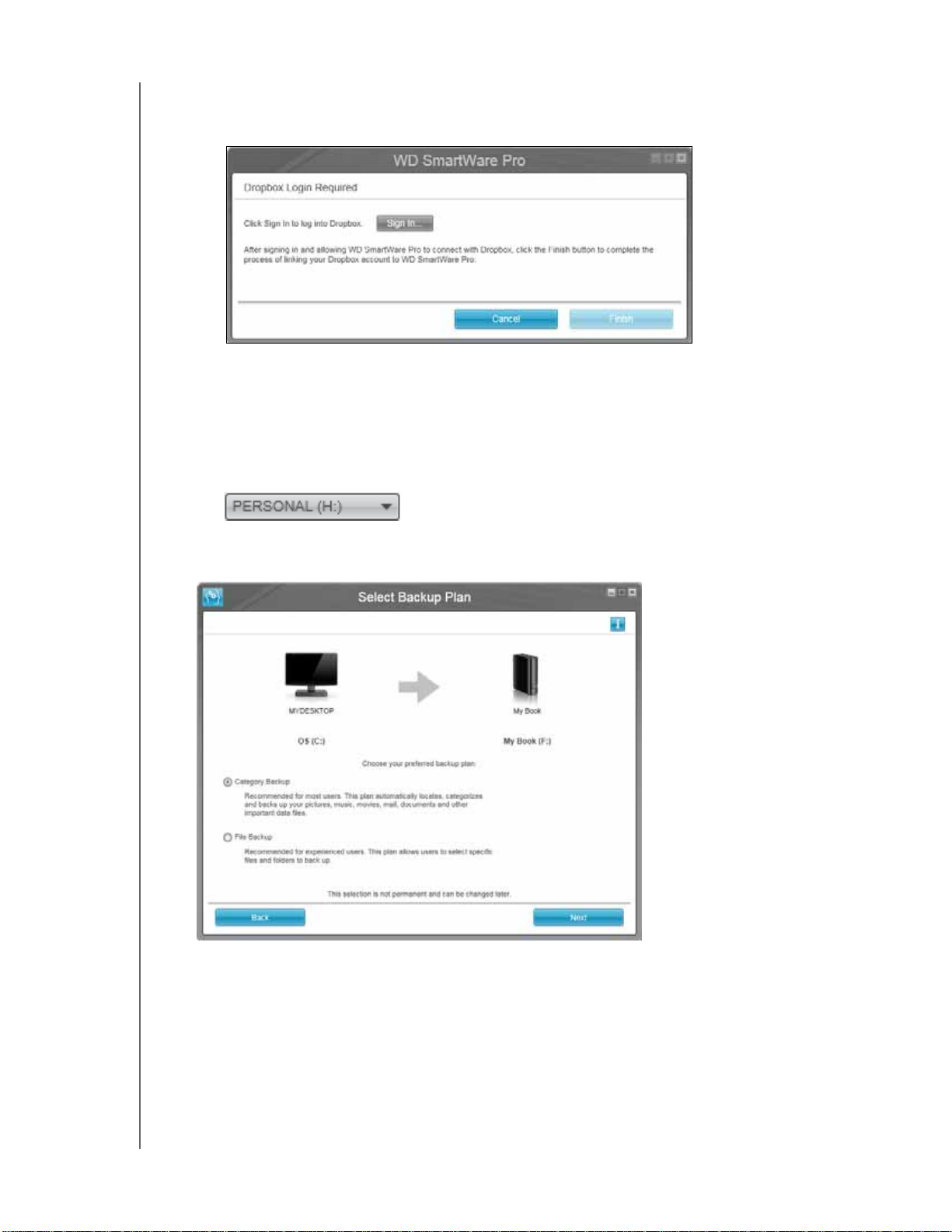

Selecting the Dropbox option displays the Dropbox Login Required dialog for configuring your Dropbox account for access by the WD SmartWare Pro software:

You must configure your Dropbox account for access by the WD SmartWare Pro software before you can use it as a backup source device. See step 4 of “Configuring a Remote Dropbox Account” on page 63.

After configuring your Dropbox account for access by the WD SmartWare Pro software, the Dropbox icon signifies that the backup source device will be your remote Dropbox folder:

b.If the selected backup source has more than one internal hard drive or drive partition, or external hard drives, use the backup source device selector to select the one that you want to back up:

11.In the Backup Target area of the Select Backup Source and Backup Target screen:

a.If you have more than one backup target device connected to your computer, select the one that you want to back up files to:

b. Verify that a light-blue highlight surrounds the selected device.

CONNECTING THE DRIVE AND GETTING STARTED – 12

MY BOOK

USER MANUAL

c.If you select Dropbox as your backup target device, use the Dropbox Login Required dialog for configuring your Dropbox account for access by the WD SmartWare Pro software:

You must configure your Dropbox account for access by the WD SmartWare Pro software before you can use it as a backup target device. See step 4 of “Configuring a Remote Dropbox Account” on page 63.

d.If the selected backup target device has more than one drive partition or network share, use the backup target device selector under the device icon to select the one that you want to use:

12.Click Next on the Select Backup Source and Backup Target screen to display the Select Backup Plan screen:

13.On the Select Backup Plan screen:

a. Select the option for the type of backup that you want to run:

Category Backup—Finds and backs up all of the files of the selected categories on the backup source device.

File Backup—Backs up files or folders that you select from a folder view of the backup source device.

CONNECTING THE DRIVE AND GETTING STARTED – 13

MY BOOK

USER MANUAL

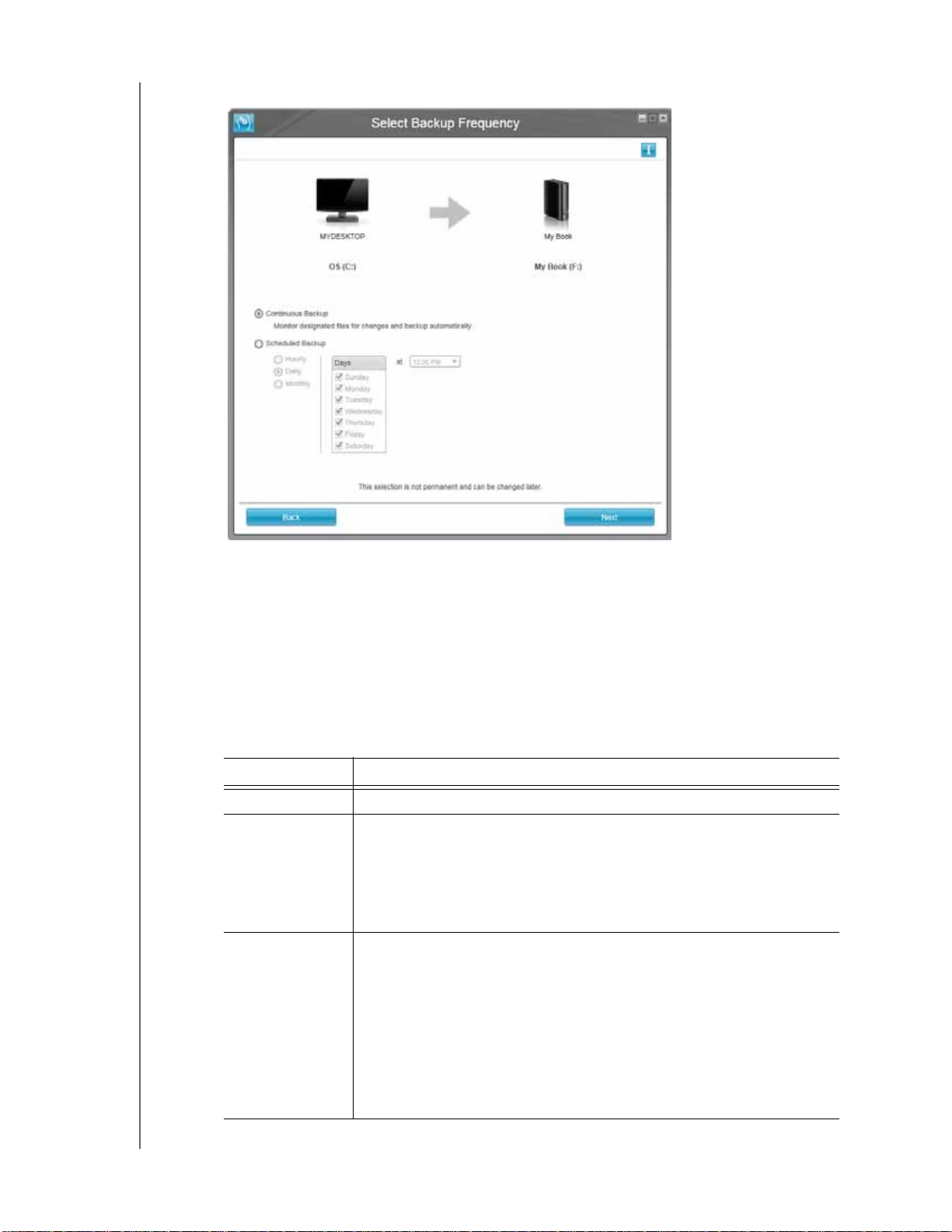

b. Click Next to display the initial Select Backup Frequency screen:

14.On the initial Select Backup Frequency screen:

a.Select the option for when you want to scan the backup source device and automatically back up any existing file that is changed or new file that is added:

Continuous Backup—Runs all the time

Scheduled Backup—Runs only on specified days at specified times

b.If you selected the Scheduled Backup option, select the Hourly, Daily, or Monthly option and use the check boxes and selection boxes to schedule your backups:

. . .Selecting

. . .Performs a backup









Hourly

Every hour, on the hour.





Daily

On the selected days of the week, at the selected time:



a.

Select or clear the Days check boxes to specify the days





of the week that you want to run your backup.



b.

Use the at selection box to specify the time of day that





you want to run your backup.





Monthly

On the selected day of the month, at the selected time:



a.

Use the Every selection box to specify which occurrence





of the day that you want to run your backup—First,





Second, Third, Fourth, or Last.



b.

Use the Day selection box to specify the day of the week





that you want to run your backup.



c.

Use the at selection box to specify time of day that you





want to run your backup.







CONNECTING THE DRIVE AND GETTING STARTED – 14

MY BOOK

USER MANUAL

c.Click Next to display the initial Backup screen. The initial Backup screen display depends on the type of backup you selected at step 13 on page 13. (See Figure 7 on page 16.)

15.On the initial Backup screen you can either:

• Run your first backup—See “Backing Up Files” on page 33 before clicking

Enable Backup.

• Click Skip Backup to skip the backup.

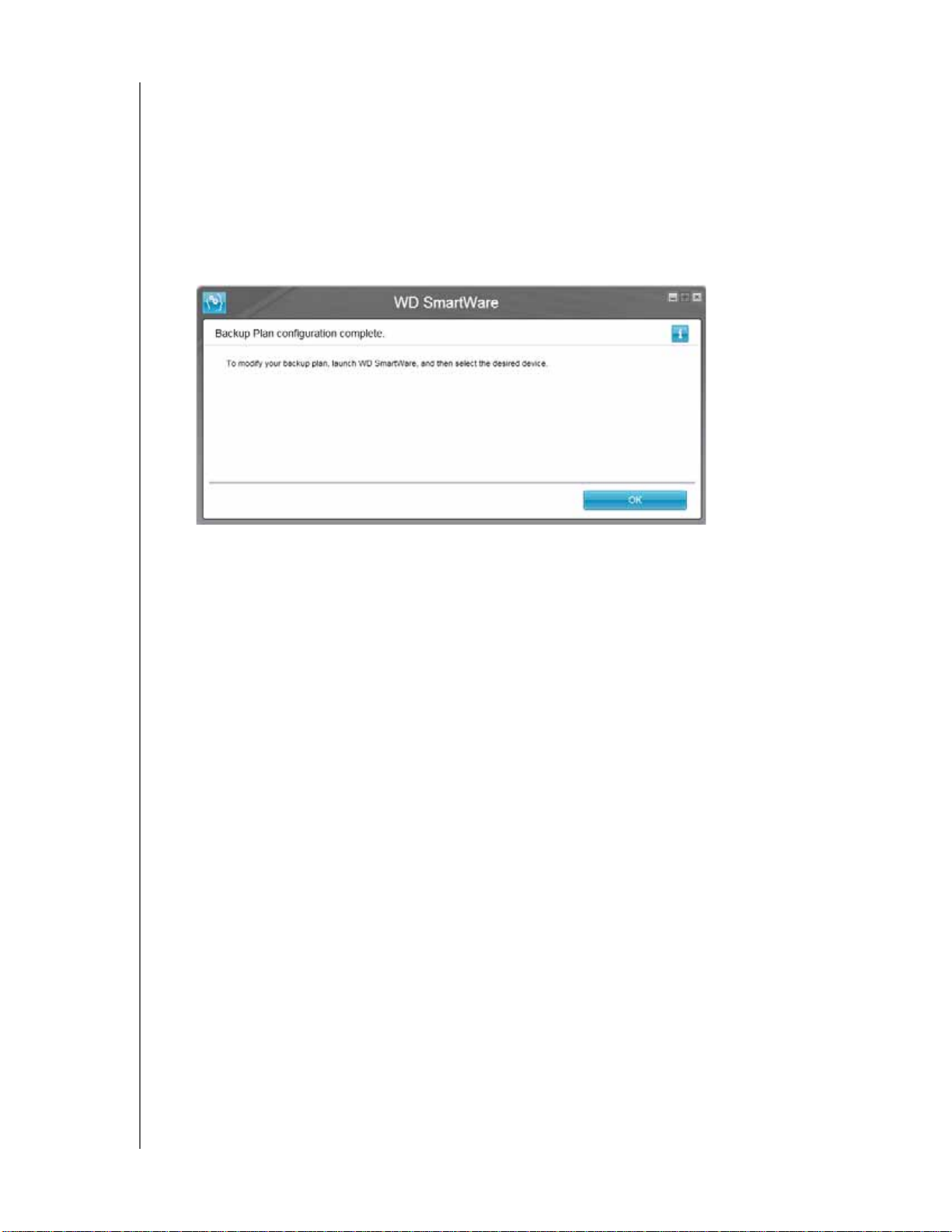

16.Click OK to close the Backup Plan configuration complete message:

CONNECTING THE DRIVE AND GETTING STARTED – 15

MY BOOK USER MANUAL

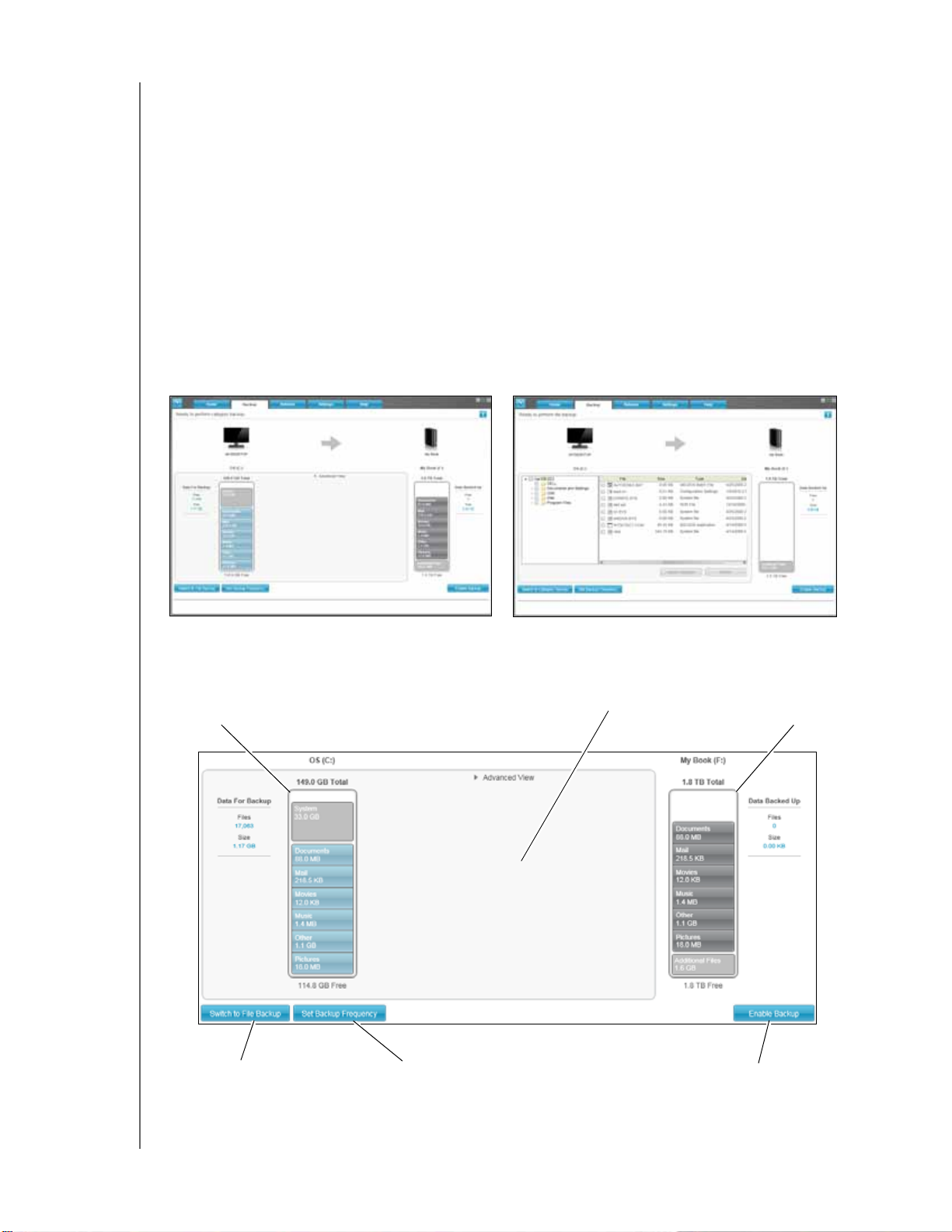

Initial Category Backup Screen

Note: The initial Backup screens only appear one time—when you install the WD SmartWare software on your computer. After that, launching the software displays the Home screen so you can choose what you want to do.

Initial File Backup Screen

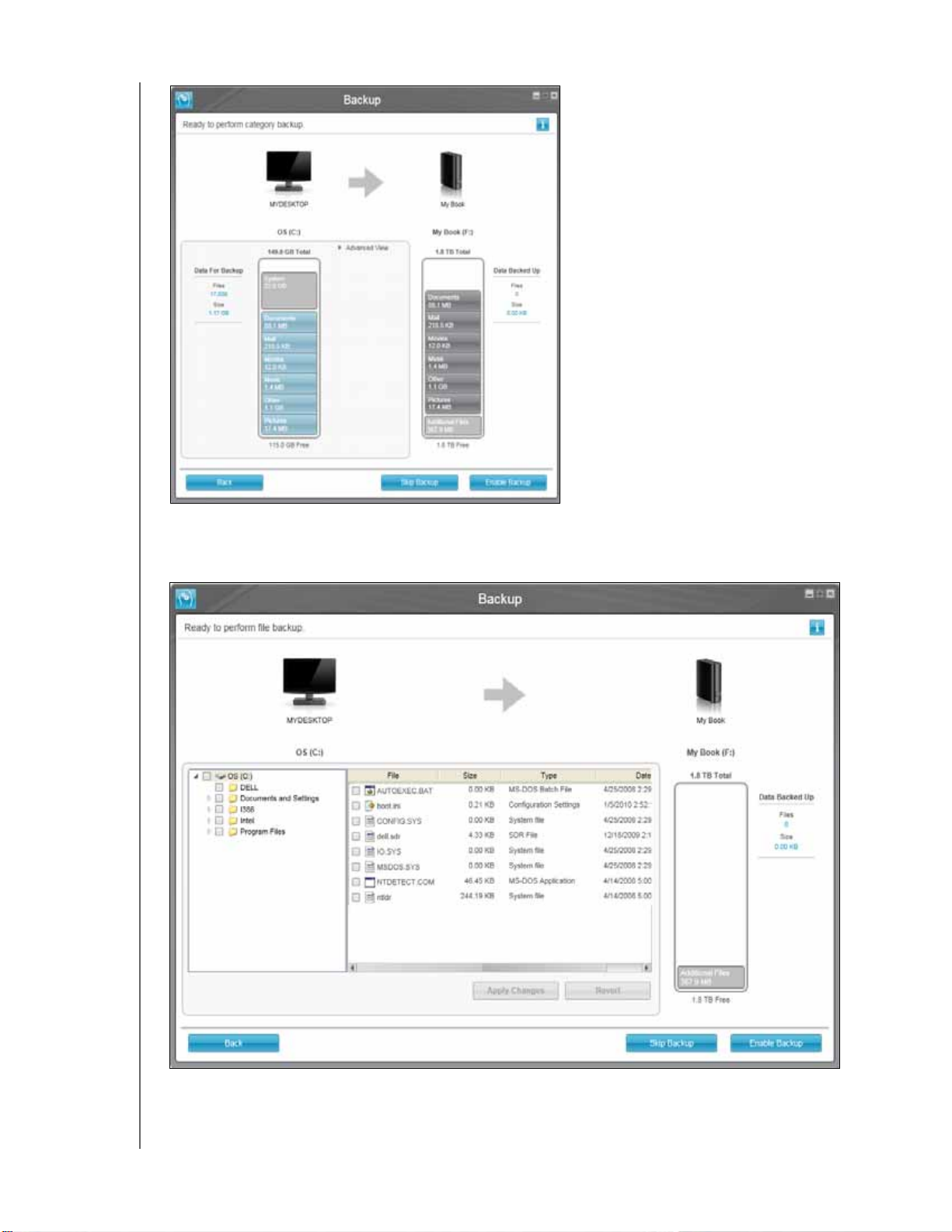

Figure 7. Initial Backup Screens

CONNECTING THE DRIVE AND GETTING STARTED – 16

MY BOOK

USER MANUAL

3





WD SmartWare Software Functional Overview















This chapter provides a brief functional overview of the WD SmartWare software. It













includes the following topics:







Home Tab Display









Backup Tab Displays









Retrieve Tab Displays









Settings Tab Display









Help Tab Display









All operational features and capabilities of the WD SmartWare software are presented in







five tab-selected screen displays where:

















The . . . tab display

Provides . . .



























Home

Device icons and content gauges showing the total capacity and









category structure of the selected backup source device and each









available backup target device.









If the selected backup source device has more than one internal









hard drive or multiple hard drive partitions, or if an available backup









target device has multiple partitions or network shares, the









WD SmartWare software displays a selector box that you can use to









specify the one you want to work with.









See “Home Tab Display” on page 18.

















Backup

One of two backup dialogs, depending on the backup mode that









you select:









• The by-category dialog provides content gauges showing the









total capacity and category structure of the selected backup









source and backup target devices.









• The by-file dialog provides a folder view of the selected backup









source device for selecting the files and folders that you want to









back up.









See “Backup Tab Displays” on page 25.

















Retrieve

Three full-screen dialogs for selecting the:









• Backed up volume that you want to retrieve files from









• Destination where you want to copy the retrieved files









• Files that you want to retrieve









See “Retrieve Tab Displays” on page 28.



















(Continued)











WD SMARTWARE SOFTWARE FUNCTIONAL OVERVIEW – 17

MY BOOK

USER MANUAL

The . . .

tab display

Provides . . .













Settings



Buttons for opening dialogs to:





• Specify the number of backup versions that you want to keep





for each file





• Specify a different destination folder for retrieved files





• Automatically check for WD SmartWare software updates





• Configure a remote Dropbox folder for access by the





WD SmartWare Pro software





See “Settings Tab Display” on page 30.







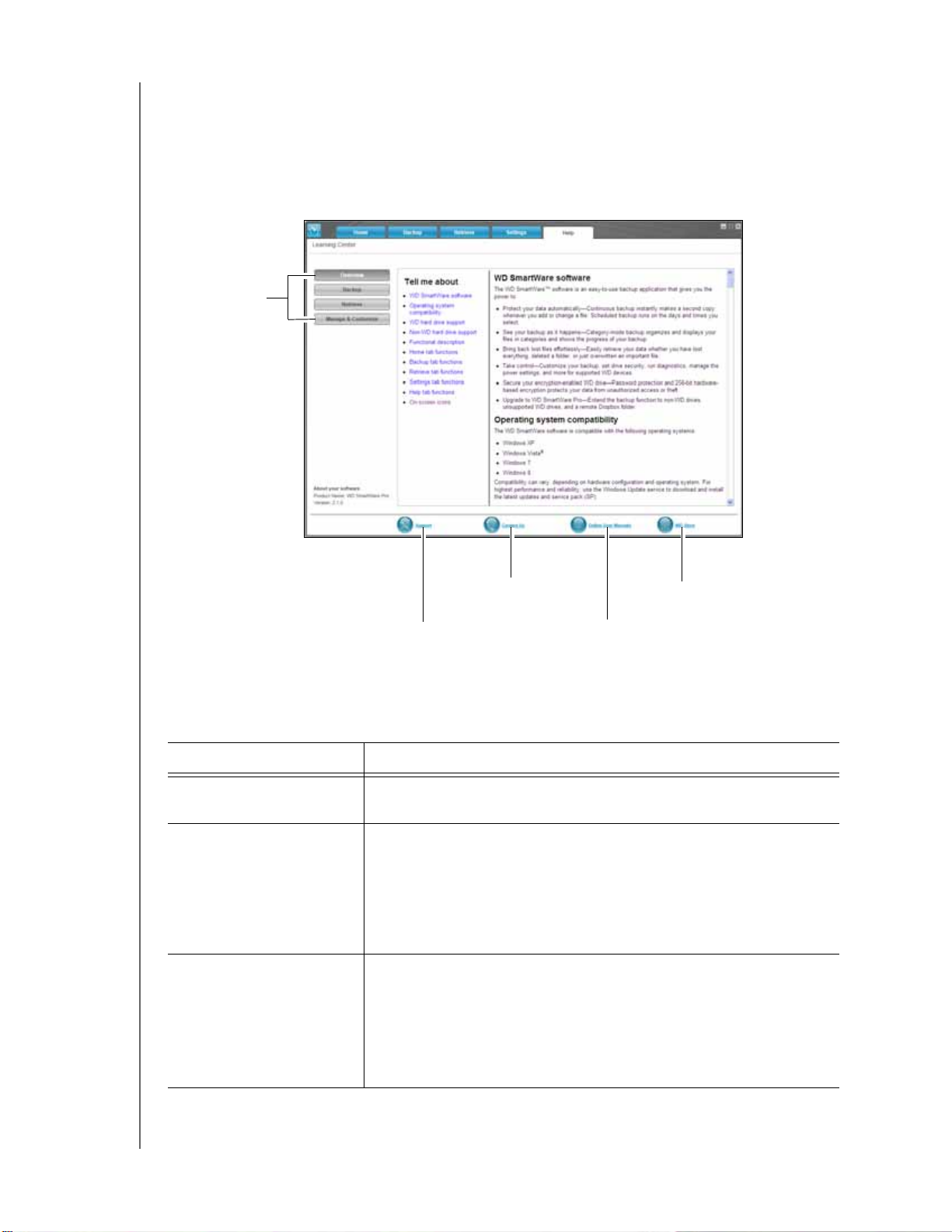

Help



Instant access to:





• Detailed information about backing up and retrieving files and





making your software setup selections





• WD Customer Support and software update services

See “Help Tab Display” on page 31.

In each display, the WD SmartWare software changes the names and graphic images to match the hardware configuration of the connected devices.

Note: In addition to the detailed Help tab information, each WD SmartWare display provides easy access to abbreviated online help to quickly guide you through your backup, retrieve, and settings tasks. Whenever you are uncertain about what to do, just click the info/online help icon in the upper-right corner of the display:

To close the info/online help screen after reading the online help, click the X icon in the upper-right corner of the help screen.

Home Tab Display

Use the Home tab display to view device content gauges and select:

The source device or drive partition that has the files you want to back up

The target device or device partition/network share that you want to back up files to or retrieve files from

See Figure 8 on page 19 and Table 1 on page 20 for a brief functional description of the Home tab display.

WD SMARTWARE SOFTWARE FUNCTIONAL OVERVIEW – 18

MY BOOK

USER MANUAL

Backup Target

Device Icons

Computer Icon

Backup Source

Selector

Backup Source

Device Selector

Backup Source

Backup Target

Content Gauge

Content Gauges

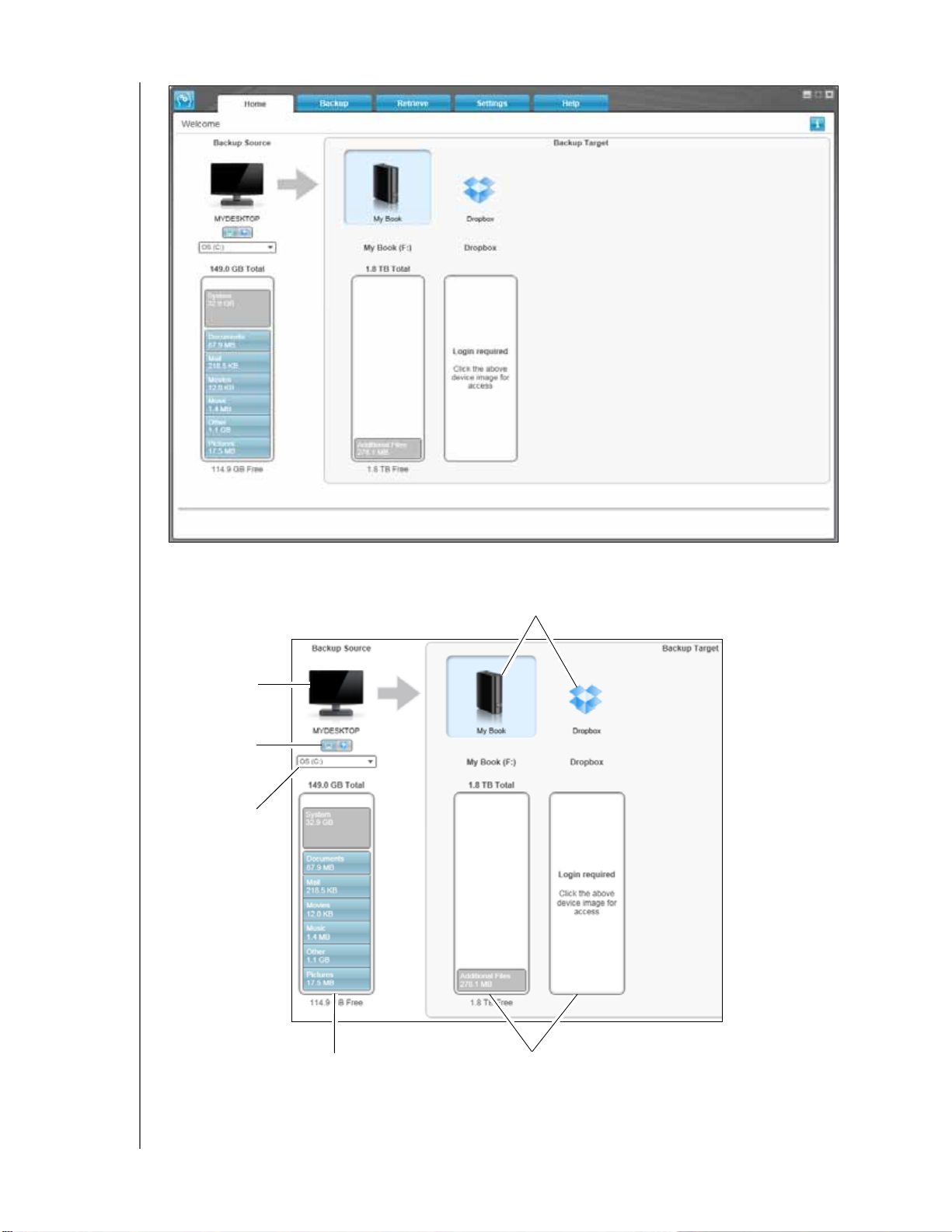

Figure 8. Home Tab Display

WD SMARTWARE SOFTWARE FUNCTIONAL OVERVIEW – 19

MY BOOK

USER MANUAL

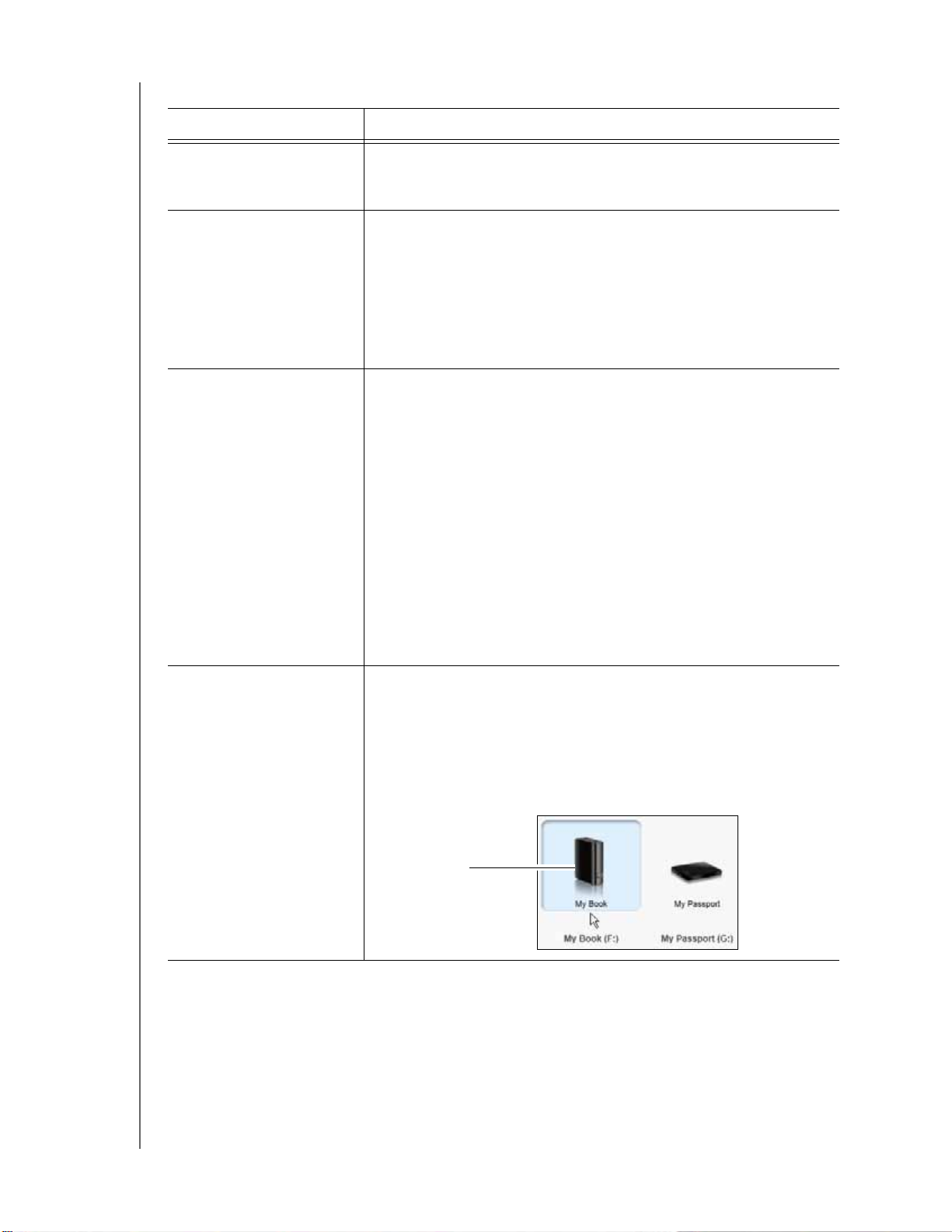

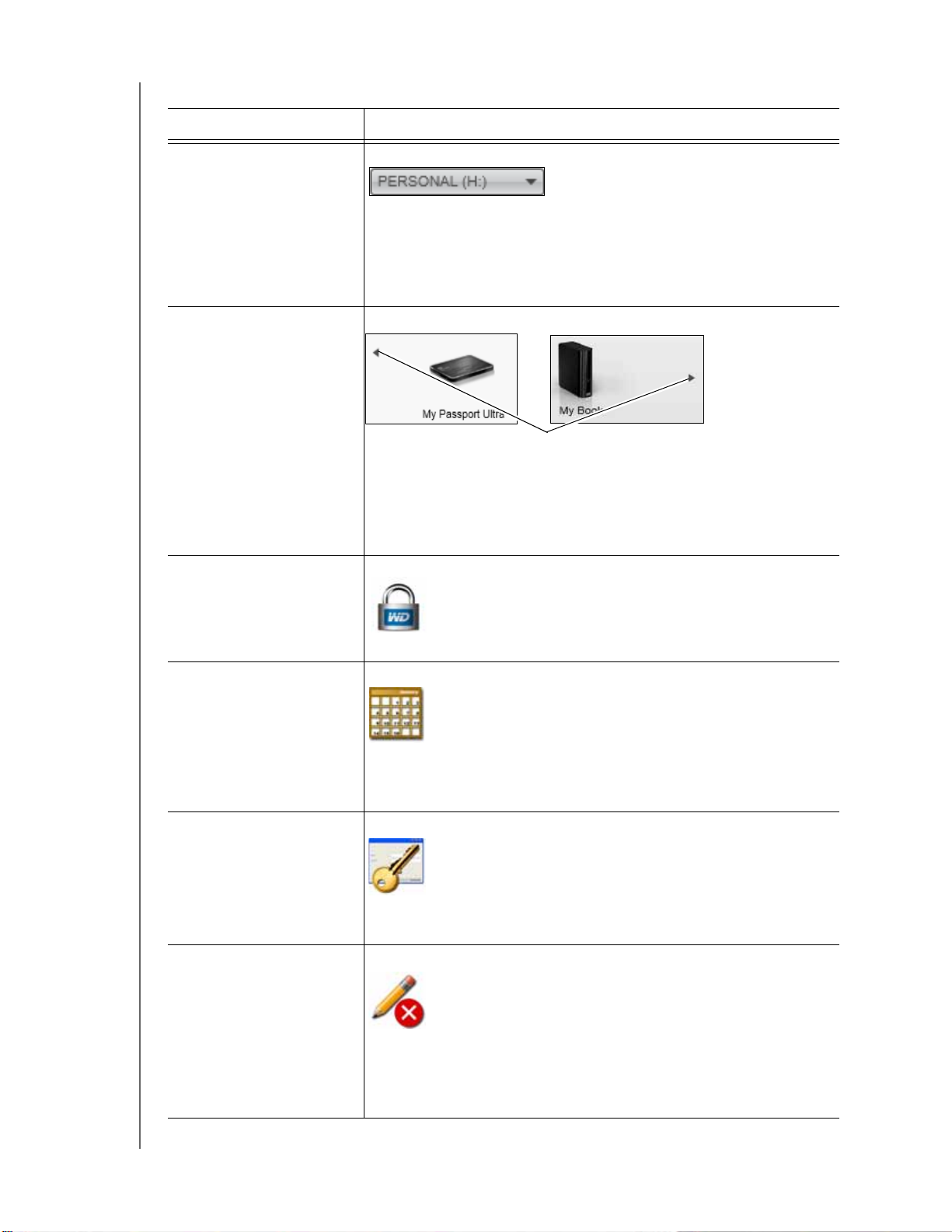

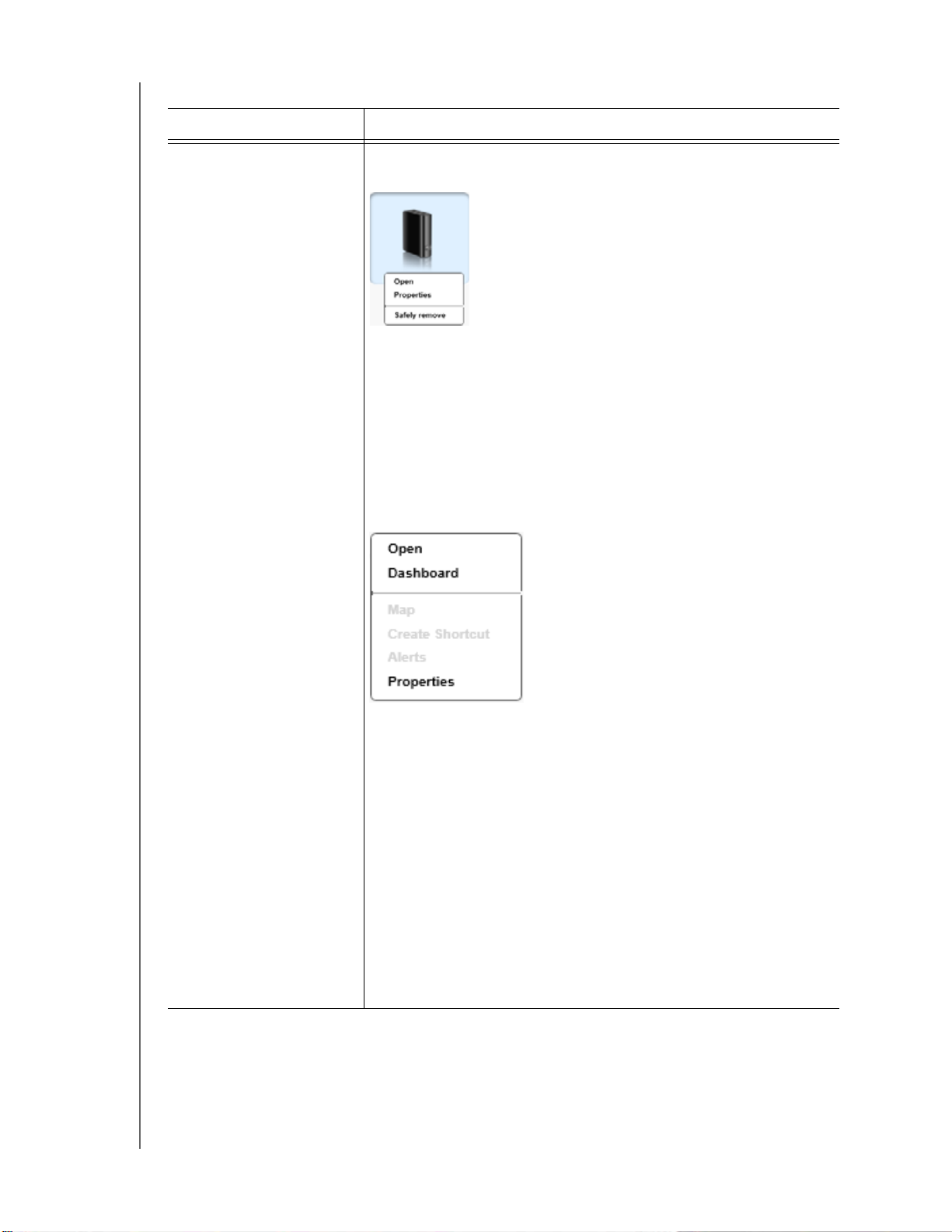

Table 1. Home Tab Functional Description

Display Component



Description





















Activation code required



Not shown in Figure 8 on page 19:

icon













Signifies that the device is either a non-WD device or an





unsupported WD device that requires a valid activation code and





upgrade to the WD SmartWare Pro software for access.











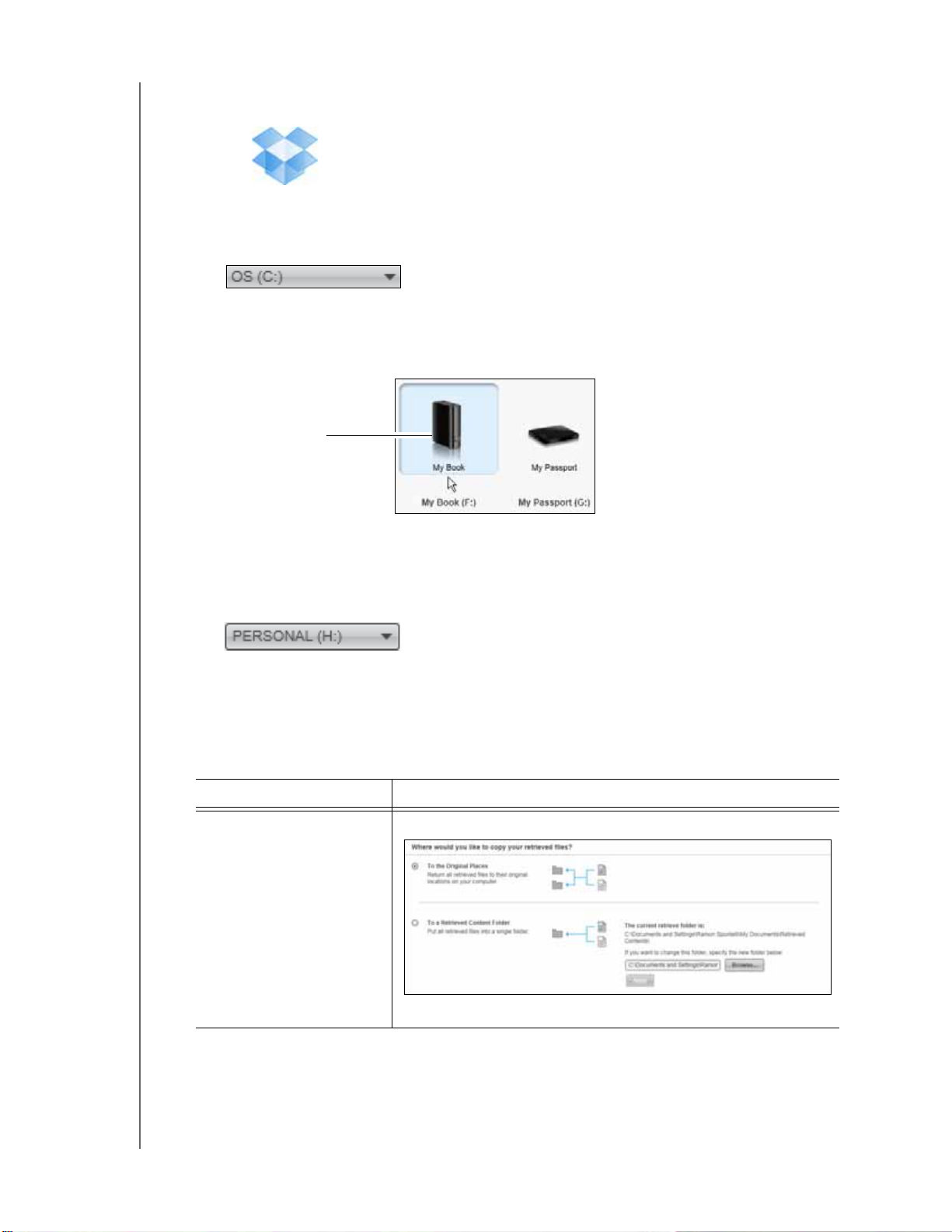

Backup source Dropbox



Not shown in Figure 8 on page 19:

icon













Signifies that you have selected the Dropbox option for backup





operations.





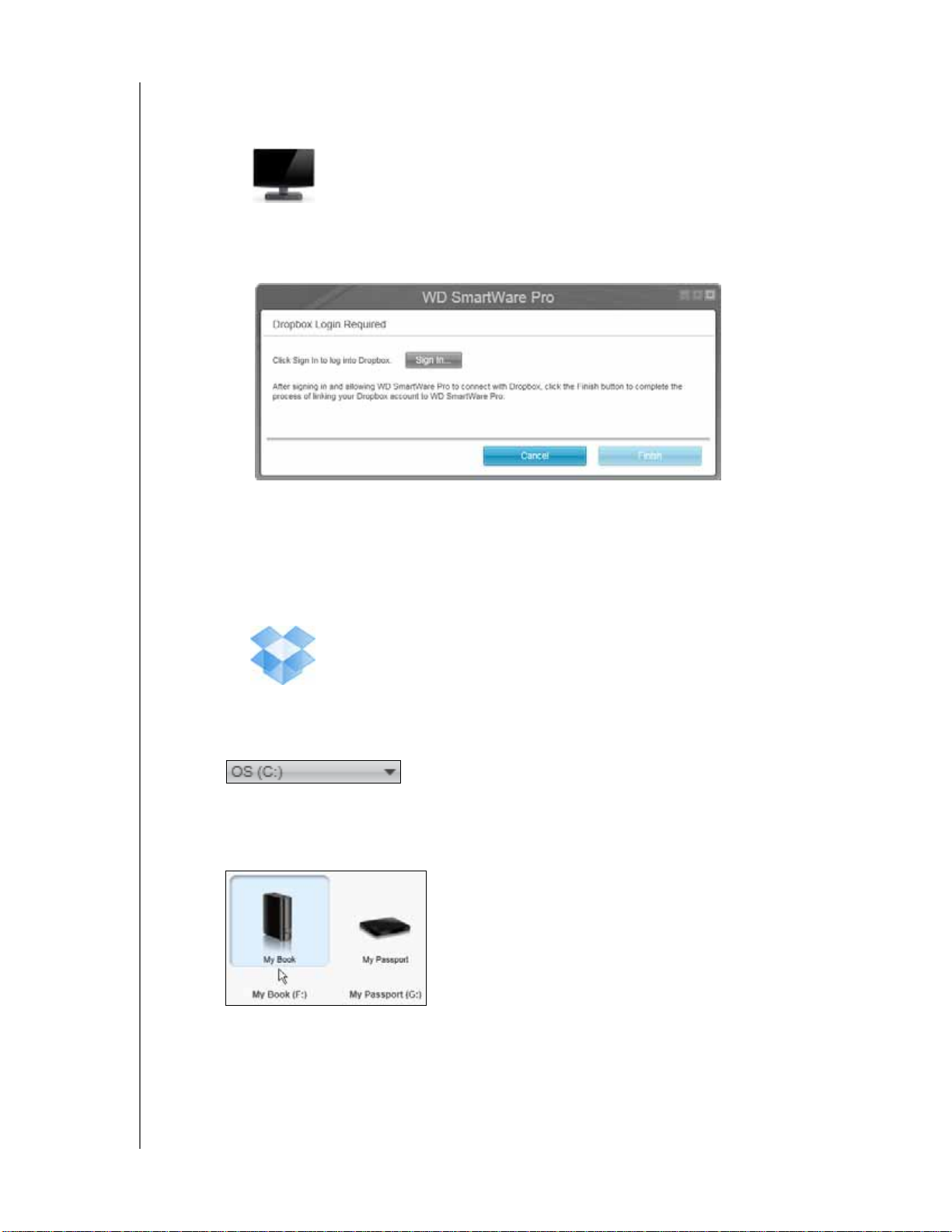

Right-clicking the icon and selecting Select Account displays the





Dropbox login required dialog for configuring your Dropbox





account for access by the WD SmartWare Pro software:































Backup source computer



Signifies that you have selected the computer option for backup

icon



operations and provides the name of the selected drive or drive





partition.





Right-clicking the icon displays a menu with the following options:





















• Open—To displays the computer’s file management utility





listing.





• Properties—To displays the Windows System Properties





dialog for the selected drive or drive partition.



















(Continued)

WD SMARTWARE SOFTWARE FUNCTIONAL OVERVIEW – 20





MY BOOK





USER MANUAL

Table 1. Home Tab Functional Description (Continued)













Display Component

Description















Backup source content

The content gauge for the selected backup source device shows



gauge

all of the files that are available for a category-type backup against



a blue background in six categories where:



This file category

Includes files with these extensions



Documents

.doc, .txt, .htm, .html, .ppt, .xls, .xml, and





other document extensions



Mail

.mail, .msg, .pst., and other mail





extensions



Music

.mp3, .wav, .wma, and other music





extensions



Movies

.avi, .mov, .mp4, and other movie





extensions



Pictures

.gif, .jpg, .png, and other picture





extensions



Other

Others that do not belong in the five main





categories



For a complete list of all included file extensions, search for answer



ID 3644 in the WD Knowledge Base at http://support.wd.com.



Note that:







• The System category, shown against a dark gray background,



includes all of your operating system files that are not available



for a category-type backup, including: system files, program



files, applications, working files like .tmp and .log files, and any



files that are stored in a Temp folder.



When you select and run a file-type backup, the name of the



System category changes to Excluded and it then includes all



of the files that were not included in your file backup.



• The Retrieved category, also shown against a dark gray



background, includes the files that you have retrieved from a



prior backup. They, too, are not available for a category-type



backup.







• The Additional Files category on the content gauge for your



backup target device shows the system files and hidden files



that your operating system put there when you installed the



device.







• Because they change so frequently, Outlook .pst files are only



backed up once every 24 hours for a continuous backup. This



exclusion does not apply to other mail application files. For a



scheduled backup, Outlook .pst files are backed up according



to the schedule.







• Hovering the pointer over a category displays the number of



files in the category.

















(Continued)

WD SMARTWARE SOFTWARE FUNCTIONAL OVERVIEW – 21











MY BOOK











USER MANUAL

Table 1. Home Tab Functional Description (Continued)















Display Component

Description



























Backup source device

When the computer option is selected, lists all of your computer’s



selector

internal hard drives, hard drive partitions, and direct-attached



drives that are available as a backup source device.















Backup source selector

Provides options for selecting the type of source device you want



to back up:



• Selecting the computer option displays your computer icon



and lists all of your computer’s internal hard drives, hard drive



partitions, and direct-attached drives in the device selector.



• Selecting the Dropbox option displays the Dropbox icon and



hides the device selector.















Backup target content

After installing the WD SmartWare software—before running your

gauge

first backup or copying any files to the device—the backup target



content gauge shows only a small number of files in the Additional



Files category. These are the system files and hidden files that your



computer’s operating system put there when you installed the



device.



After running a backup or copying files to the device, the backup



target content gauge shows:



• All of the files that have been backed up in the same categories



as the content gauge for the backup source device (see



“Backup source content gauge” on page 21)



• Any other files that you have copied or saved to the device in



the Additional Files category















Backup target device icon

Provides the name of the backup target device connected to your



computer.



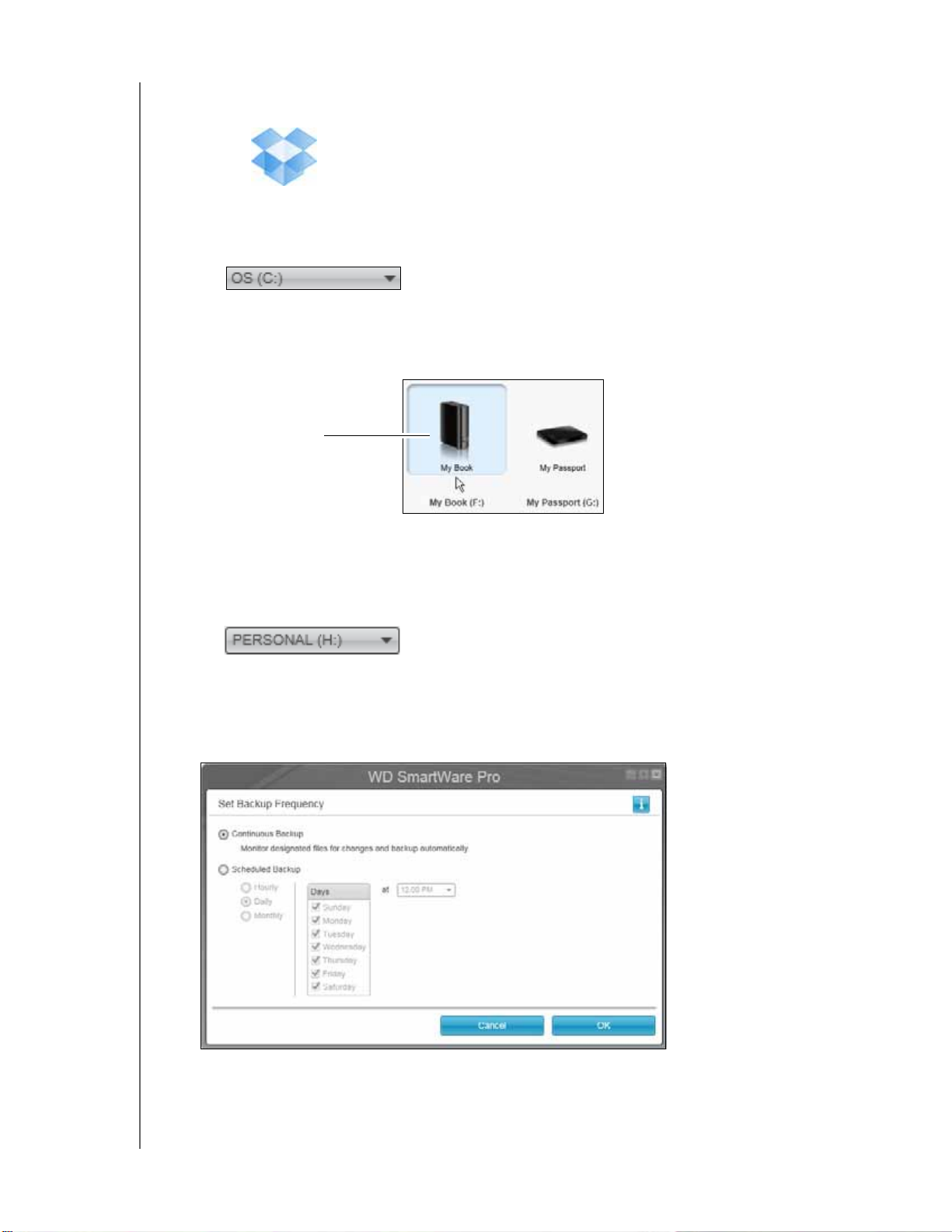

If you have more than one supported device connected to your



computer, left-click the one that you want to use for backup and



retrieve functions. The WD SmartWare software highlights your



selection with a light-blue background:



Selected Device



























































(Continued)

WD SMARTWARE SOFTWARE FUNCTIONAL OVERVIEW – 22

+ 63 hidden pages
