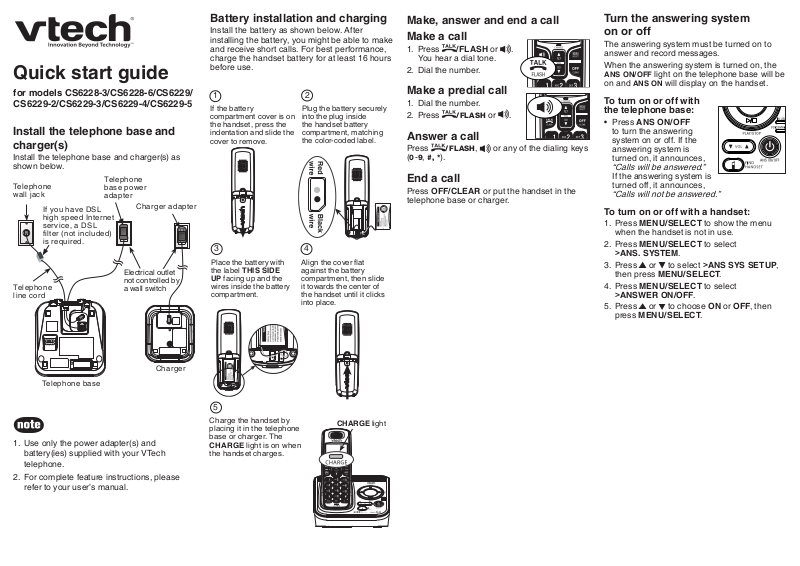

Quick start guide
for models CS6228-3/CS6228-6/CS6229/
CS6229-2/CS6229-3/CS6229-4/CS6229-5
Install the telephone base and
charger(s)
Install the telephone base and charger(s) as
shown below.
Tele ph on e
wall jack
If you have DSL
high speed In tern et
serv ice, a DSL
filter (not incl ud ed)
is re quir ed.
Tele ph on e
line cord
Tele ph on e
base power
adapter
Charger ada pter
Electrical outlet
not controlled by
a wall switch
Battery installation and charging
Install the battery as shown below. After
installing the battery, you might be able to make
and receive short calls. For best performance,
charge the handset battery for at least 16 hours
before use.
1
If the batter y
compartment cover is on
the handset, press the
indentation and slide the
cover to remove.
3
Place the battery with
the label THIS SIDE
UP
facing up and the
wires inside the batter y
compartment.
2
Plug the battery securely
into the plug inside
the handset battery
compartment, matching
the color-coded label.
4
Align the cover at
against the battery
compartment, then slide
it towards the center of
the handset until it clicks
into place.
Make, answer and end a call
Make a call
Press /FLASH or .
1.
You hear a dial tone.
Dial the number.
2.
Make a predial call
Dial the number.
1.
Press /FL ASH or .
2.
Answer a call
Press /FL ASH, or any of the dialing keys
(0-9, #, *).
End a call
Press OFF/CLEAR or put the handset in the
telephone base or charger.
Turn the answering system
on or off
The answering system must be turned on to
answer and record messages.
When the answering system is turned on, the
ANS ON/OFF light on the telephone base will be
on and ANS ON will display on the handset.
To turn on or off with
the telephone base:
Press ANS ON/OFF
•
to turn the answering
system on or off. If the
answering system is
turned on, it announces,
“Calls will be answered.”
If the answering system is
turned off, it announces,
“Calls will not be answered.”
To turn on or off with a handset:
Press MENU/SELECT to show the menu
1.
when the handset is not in use.
Press MENU/SELECT to select
2.
>
ANS. SYSTEM.
Press or to select >ANS SYS SETUP,
3.
then press MENU/SELECT.
Press MENU/SELECT to select
4.
>
ANSWER ON/OFF.
Press or to choose ON or OFF, then
5.
press MENU/SELECT.
Tele ph on e base
Use only the power adapter(s) and
1.
battery(ies) supplied with your VTech
telephone.
For complete feature instructions, please
2.
refer to your user’s manual.
Charger
5
Charge the handset by
placing it in the telephone
base or charger. The
CHARGE light is on when
the handset charges.
CHARGE light
Outgoing announcement
The telephone is preset with a greeting that
answers calls with
message after the tone.”
announcement, or replace it with your own.
Use a handset to record your own
announcement:
Press MENU/SELECT to show the menu
1.
when the handset is not in use.
Press MENU/SELECT to select
2.
>
ANS. SYSTEM.
Press or to select >ANS SYS SETUP,
3.
then press MENU/SELECT.
Press or to select >ANNOUNCEMENT,
4.
then press MENU/SELECT.
The handset announces,
5.
To record, press 7.”
The handset announces,
6.
tone. Press 5 when you are done.”
After the tone, speak towards the
7.
microphone of the handset.
Press 5 when nished.
8.
The answering system automatically plays
9.
back the newly recorded announcement.
Press 5 to stop the playback at anytime; 2
to replay the recorded announcement; or 7
to record again if desired; or 3 to delete your
own recorded announcement.
“Hello, please leave a
You can use this preset
“To play, press 2.
Press 7 to record.
“Record after the
To play messages with the
telephone base:
Press /PLAY/STOP to play messages and
stop playback.
Options during playback:
Press VOL to adjust the speaker volume.
•
Press /SKIP to skip to the next message.
•
Press /REPEAT to repeat the message
•
currently playing. Press /REPEAT twice to
listen to the previous message.
Press X/DELETE to delete the current
•
message.
IMPORTANT!
If your product is not working properly:
Refer to the Troubleshooting section of the
•
user’s manual.
Visit our website at www.vtechphones.com
•
or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or
dial 1 (800) 267-7377.
To play messages with a
handset:
Press MENU/SELECT to show the menu
1.
when the handset is not in use.
Press MENU/SELECT to select
2.
>
ANS. SYSTEM.
Press MENU/SELECT to select
3.
>
PLAY MSGS.
Options during playback:
Press VOL to adjust the speaker volume.
•
Press 6 to skip to the next message.
•
Press 4 to repeat the message currently
•
playing. Press 4 twice to listen to the
previous message.
Press 3 to delete the current message.
•
Press 5 to stop.
•
96-006923-010-100
