VOLVO MOTOR GRADERS
G970, G976
G990
MORE CARE. BUILT IN.
TRADITIONAL VALUES.
ADVANCED PERFORMANCE.
The G900 family of Motor Graders is firmly
rooted in the technologies and values of
Volvo worldwide.
More care. Built in.
Volvo Construction Equipment makes
this promise to customers everywhere:
every Volvo machine will satisfy your
highest expectations for equipment that’s
productive, operator-friendly, reliable
and easy to service. Now, traditional
Volvo values and performance extend
to three new motor graders powered
by the renowned D9B Volvo engine, all
designed, built and tested to keep that
same promise in every way.
The Volvo way
The complete family of seven G900
Motor Graders includes four Volvo
D7E- and three Volvo D9B-powered
models. These machines deliver on
the promise of “More care. Built in.”
through a combination of proven Volvo
technologies and processes:
• bottom-line productivity on the job site
• a safe and comfortable operator
environment
• long lasting reliability
• unmatched ease of serviceability with
low maintenance demands
This Volvo Motor Grader offering includes
three highly efficient and versatile
models, all using the field-proven Volvo
D9 engine. The result is a selection of
graders with outstanding power, torque
and fuel efficiency: the 41,660 lb
(18 900 kg) G970 tandem drive, the
43,650 lb (19 800 kg) G976 All Wheel
Drive (AWD) model and, at 48,720 lb
(22 100 kg), the largest machine in the
Volvo Motor Grader family: the G990
tandem drive.
Quality with confidence
No family of motor graders anywhere
has been subject to more rigorous
testing than Volvo G900 Motor Graders.
By listening to customer needs and
responding with design innovations
like the industry’s first 11-speed grader
transmission with autoshift, the Volvo
continuous improvement program
leads the G900 family to ongoing
quality leadership.
At home in the Volvo fleet
From end-to-end, from the ground up,
the G900 Motor Graders are fit and
finished to take their place in your fleet.
Design details and their renowned
Volvo Care Cab provide a familiar work
environment inside and out for owners
and operators of any Volvo machine.
Care for the environment, one of the
Volvo core values, is reflected in the
environmental performance of the G900
Motor Graders. The G900 family meets
EU Stage IIIA and US Tier 3 Emission
Regulations as well as EU noise
standards. Volvo engineering minimizes
whole body vibration to maximize
operator productivity.
For grader operators and owners
everywhere, the G900 Motor Graders
means a new standard in grading
performance and productivity.
The Volvo standard.
Volvo Motor Graders industry fi rsts
1975
• Full perimeter rear frame with
modular powertrain design
• Optional fi rst-user frame warranty
now including maintenance-free
articulation pins and bearings
1984
• Electronically controlled transmission
1991
• Duramide™, the fi rst synthetic
circle support bearing material
• Hydraulically operated, oil-bathed
multiple disc brakes standard
• Dual crossover brake circuits
1999
• “Creep Mode”, a front-wheel-only
hydrostatic drive system
• AWD with separate variable
displacement pumps
• Glare-reducing paint scheme
2002
• Tier II emission compliant
• Most powerful All Wheel Drive Grader
2006
• Tier 3 emission compliant
• 11-speed grader transmission
2
Volvo G900 Motor Graders
‡ With All Wheel Drive engaged
Model G930 G940 G946 G960 G970 G976 G990
Base operating
weight - approximate
lb
(kg)
34,830
(15 800)
36,150
(16 400)
38,140
(17 300)
38,690
(17 550)
41,660
(18 900)
43,650
(19 800)
48,720
(22 100)
Engine model/displacement D7E/7.2 L D7E/7.2 L D7E/7.2 L D7E/7.2 L D9B/9.4 L D9B/9.4 L D9B/9.4 L
‡
Low range net power hp (kW) 155 (115) 175 (130) 195
Mid range net power hp (kW) 175 (130) 195 (145) 215
High range net power hp (kW) 195 (145) 215 (160) 235
(145‡) 195 (145) 210 (156) 225‡ (168‡) 225 (168)
‡
(160‡) 215 (160) 230 (171) 245‡ (183‡) 245 (183)
‡
(175‡) 235 (175) 250 (186) 265‡ (198‡) 265 (198)
STRONGER. TOUGHER.
FINER. SMARTER.
From heavy cutting to fine finishing, G900
Motor Graders work with grader operators
to perform every task efficiently, profitably.
Power on demand
With the G900 Motor Graders, Volvo
puts the keys to new levels of profitable
grader performance in your hands. What
you’ll notice first, is the power. Dig into
the job and Volvo digs in with you. Volvo
engines are renowned for high torque at
low RPMs, producing responsive, fuelefficient performance under all operating
conditions. When you call for power to
muscle through heavy overburden or
to hold and turn loads smoothly under
power, your Volvo G900 Motor Grader
comes through without hesitation.
Then there’s the touch
Highly responsive industry-standard
controls give skilled operators the sure
feel they need to do what they do
best. Wide stance blade lift cylinders
coupled with the low angle side shift
cylinder provide the most stable grading
platform in the industry. Heavy-duty
inching clutches and a powerful twingear direct-drive circle turn system
translate responsive control into precise
earthmoving results. You get more onepass finishes with cost-saving accuracy.
Precise and predictable
Volvo’s Proportional Demand Flow (PDF)
hydraulic system, balances flow between
all grading functions for consistent and
predictable implement control. The
G900 PDF hydraulic system is ideally
suited for all leading Automatic Blade
Control systems.
Gearing up for the bottom line
Volvo HTE transmissions, including
standard 8-speed and optional 11-speed
models, translate engine output into
intelligent power for faster, simpler duty
cycles. With selectable Manual, optional
Autoshift and Travel modes, your choice
of G900 Motor Graders offers power
and speed the way you want it, when you
want it. With the Volvo Autoshift mode,
you just select your gear and go. Your
Volvo HTE transmission does the rest to
get you up to speed in your working or
travel gear ranges quickly, economically
and smoothly. Volvo shuttle shift, a
standard feature on all Volvo Grader
transmissions, allows operators to make
effortless, forward-to-reverse shifts (and
vice versa) without stopping or using
the inching pedal. In jobs that require
frequent direction changes, shuttle
shifting means faster cycle times, less
fatigue and more work done at day’s end.
4
HTE1160: the fi rst 11-speed
grader transmission
With 11 forward speeds and 6 reverse,
the optional HTE1160 from Volvo
expands the gear range of the grader
to offer more control in the low-speed
range, more effi cient travel speed
in the high range, more precision in
the working range and exceptional
fuel effi ciency for every task.
The HTE1160 comes standard with
Volvo Autoshift, combining maximum
control with ultimate simplicity of
operation.
THE RIGHT TOOLS IN
THE RIGHT HANDS.
Volvo knows that you only get the best from
your machine when you get the best from your
operator – so we made experienced operators
part of our design team!
New ideas for old hands
Any tool is only as good as the person
using it. So when Volvo designed the
G900 Motor Graders, we started with
grader operators.
Making the best, better
Of course, we began with familiar,
industry-standard grader controls that
come easily to hand. But we gave
them a more responsive feel, plus loweffort levers and low-effort pedals to
make long hours easier. We devised an
interior layout that puts all operational
controls right where you need them.
Then surrounded it with the industry’s
most spacious compartment plus a
pedestal and seat that adjust to fit the
space to the operator. We added a Volvo
Contronic Monitoring System with a
smart display console that tells operators
everything they need to know about
the machine at a glance, in multiple
languages. But we also cleared exterior
lines of sight with exceptional floor-toroof visibility through the front, down to
the moldboard and close in to the sides.
Plus an unequalled rear view. A Volvo
Care Cab, in every sense.
Accurate grading
When site specifications call for precise
grade control, the Volvo G900 comes
through. Volvo worked with the leading
manufacturers of Automatic Blade
Control systems and developed the
G900 family with the contractor in mind.
The result – optional mounting brackets,
hydraulic and electrical connections
designed exclusively for machine control
systems. Even the pedestal head has
mounting locations for grade displays. So
no matter what brand of machine control
you currently use, the G900 is ready.
Know what you’re getting into
Open the cab door to your Volvo
Motor Grader – then, with automatic
illumination set for the steps and
handholds, you step up to the industry’s
easiest entry and exit. Inflows of outside
air are easily adjusted for maximum cab
pressurization or increased re-circulation
for fast warm-ups or cool downs. With
extensive noise and vibration suppression
designed into the cab and with the quietrunning Volvo engine behind, operators
spend the day in peace and quiet.
For hard-working people
Volvo works hard to keep operators at
their best all day long. A high capacity,
12-speed fan pushes fresh, doublefiltered air throughout the cab via 10
well-placed outlets. Window options on
the front and sides open wide for natural
ventilation or to minimize glare. High
capacity air conditioning and heating
systems keep temperatures comfortable
in any season. A wide range of comfort
amenities and ergonomic design features
make G900 Motor Graders a great place
to spend the working day.
6
The Volvo Care Cab:
Standard:
• 72 dB(A) Enclosed cab
• Contronic Monitoring System
• 50,000 BTU heater with 10 outlets
• Two high capacity air fi lters
• Interior lights
• Illuminated entry
• Non-skid steps
• Cup holder and ashtray
• Coat hook
• Storage compartments
Optional:
• 30,000 BTU air conditioner
• Wide-angle wiper pattern
(for low profi le cab)
• Air suspension seat
• Opening side windows
• Opening lower front windows
• Lunch box and thermos
• Radio/CD player with four speakers
...and much more!
RELAX.
IT’S A VOLVO!
There’s a new benchmark for performance
in the grading industry, backed by Volvo.
All in the family
Built on a solid foundation of field proven
Volvo components including the D9B
engine, Volvo transmissions and the
Contronic Monitoring System. G900
Motor Graders have been engineered
with years of reliable service already
built in.
Keep on rolling
Trust Volvo G900 Motor Graders for a
long life of hard work.
The modular Volvo assembly process
and precise welding technology
ensure uniform end-to-end strength
in all structural components for lasting
durability.
With their modular powertrain design
concept, G900 Motor Graders simplify
maintenance on major components and
allow new levels of flexibility for optimal
service scheduling.
Volvo Planetary Reduction Axles with
operator-controlled hydraulic clutch
differential lock deliver power to the
ground efficiently while ensuring
dependable long-life service. In every
detail, G900 Motor Graders reflect the
Volvo commitment to lasting value.
Fade resistant, hydraulically actuated,
wet multiple disc service brakes located
at the 4 tandem drive wheels are fully
sealed and maintenance free. System
features crossover dual braking circuits
for uniform braking on both sides of the
grader. Includes reserve power assist and
operator warning system.
Day after day
At Volvo, the details make the
difference in day-to-day reliability:
extra-strength abrasion resistant
hydraulic hoses; sealed electrical
connectors; fuse panel connections kept
clean and dry inside the cab; premium
O.R.F.S. hydraulic couplings along with
smart routing of hoses and wiring resist
wear and abrasion.
An innovative tandem drive chain design,
that maintains its strength and durability
while reducing downtime, eliminates
the need for press-fit master links and
the special tools that are needed to
install them.
Exclusive Volvo Contronic Monitoring
System provides three levels of
intelligence to keep your grader
at its peak: continuous minute-byminute function monitoring; detailed
data storage for easy service and
troubleshooting; and is easily updated
by your Volvo technician. Backed by
Volvo Customer Service, G900 Motor
Graders bring together the people and
the technology for reliable everyday
performance.
Year after year
Built for work in the real world and
offering superb customer protection, the
G900 frame is available with an optional
first user lifetime warranty. This industry
exclusive warranty also includes the
maintenance-free articulation pins and
bearings for continuous peace of mind.
Ask for G900 warranty documentation.
See the details!
8
Real world fl exibility
G900 Motor Graders are purpose-built
with a true tool-carrier frame designed
to withstand the rigors of all-season
service. Field-proven through years of
grader service, the Volvo full perimeter
rear frame is designed not only to
provide effective support for all rear
and side attachments, but also permits
modular mounting of all major powertrain
components. As a result, the powertrain
is easily serviced while being well
protected from the severe load stresses
of ripping, scarifying, plowing, pushing
and snow clearing.
With attachments built and approved
by Volvo, G900 Motor Graders adapt to
year-round duties without compromising
design integrity.
MORE UPTIME.
LESS UPKEEP.
G900 Motor Graders reflect the Volvo commitment
to equipment that spends more time on the job, less
time in the shop.
Ease of service,
low maintenance demands
Start every day easy. G900 Motor
Graders carry on the Volvo approach to
maximum uptime: minimize the machine’s
need for service, then simplify the service
tasks it does require.
Sensible service design starts with easy
ground-level fueling and minimal grease
points, with no daily greasing required.
Sight glasses and level sensors
make daily checks virtually effortless.
Exclusive long-wearing Duramide™ circle
support bearings prevent metal-to-metal
contact to keep critical tolerances tight
and the circle turning smoothly.
Changing the Duramide bearings on
the moldboard slide rail is fast and easy
- simply remove 4 bolts and slide the
lower sleeve bearing out!
The G990 top and bottom moldboard
rails are shim-adjustable to maintain tight
blading tolerances.
Open for business
With an “Easy Lift” rear hood, gull-wing
side panels and removable hydraulic tank
cover, G900 Motor Graders are unrivaled
for easy routine service. The complete
rear cowling opens wide to allow quick,
thorough service checks, then back to
work quickly.
Keep it simple, smart
The hydraulic system is designed for fast
manual or pressure fills through the top
of the tank. All added fluids must pass
through a large, full flow return filter to
prevent accidental contamination in the
reservoir that could lead to down time.
Hoses are routed over the surface of the
frame for simple inspections.
The Volvo cooling module eliminates
stacked cores. Instead, multiple
cooling cores are positioned to receive
fresh, cool ambient air continuously.
A thermostatically controlled, hydraulically
driven fan maximizes available power
and fuel savings. An auto-reversing
cooling fan option allows continuous
self-cleaning to further improve cooling
performance and reduce service needs.
CareTrack:
Everything you want to know
All G900 Motor Graders can be equipped
with CareTrack, a remote monitoring
system developed by Volvo Construction
Equipment. The system collects
machine data which can be wirelessly
transferred to a computer. The machine
data displayed remotely includes:
machine position, operating hours, fuel
consumption, alarms and more*.
CareTrack makes it easier to plan for
service and reduces costly downtime.
It also helps eliminate unauthorized
usage and theft by using virtual fences
to restrict the operating area of the
machine.
*May vary by machine model and/or subscription.
10
V-ACT
The new generation of D9B engines
with Volvo Advanced Combustion
Technology (V-ACT) is tailored for grader
applications, designed to run cleanly
and effi ciently without the extra service
requirements of additional equipment or
after-treatment of exhaust gases.
ALL-PURPOSE ALL WHEEL DRIVE.
The All Wheel Drive G976 Motor Grader is
unmatched for pure versatility.
The drive to succeed
When you’re looking for excellence in
every grader task, Volvo All Wheel Drive
is the grader that gets you there.
Having a Volvo AWD is like having three
drive systems in one: a highly efficient
4-wheel tandem drive, a powerful
6-wheel drive plus the exclusive Volvo
Creep Mode, the industry’s original
hydrostatic front-wheel-only drive for
exceptional fine-grading control.
A firm footing for AWD
The Volvo AWD system is built around
two variable displacement axial piston
pumps feeding direct drive wheel motors:
no planetary gear reductions, no clutch
packs. Pump displacement is controlled
in response to the aggression switch
setting for precise wheel power control.
The system requires no flow divider valve,
providing efficient transmission of power
from the pumps to the motors with
minimal pressure drops.
Hydraulic hoses for the front wheel
drive are positioned high up, safely
out of harm’s way. AWD monitoring is
integrated with the Contronics system,
ensuring extensive safeguards for
lasting reliability.
Biggest is best
The G976 Motor Grader stands out as
the largest AWD machine in its class.
With a base weight of 43,650 lb
(19 800 kg) and its Volvo D9B engine
generating up to 277 hp (207 kW),
the G976 gives you the most of what
you’re looking for to get maximum AWD
performance.
When the going gets tough
Volvo All Wheel Drive can deliver up to
8,500 lb (3 855 kg) of additional rim
pull at the front wheels for increased
blade loads. With 16 selectable levels
of aggression, operators can match
traction to any operating conditions.
With high start-up torque capability,
Volvo AWD performance raises the bar
industry-wide for starting high blade
loads from a full stop.
Reaching a top speed up to 23.0 mph
(36,8 km/h) in 10
optional* HTE1160 transmission in AWD
mode, the G976 is today’s top-of-the-line
for optimum snow-clearing operations or
any high speed AWD application.
When fine-grading deadlines are tight,
G976 Creep Mode gets you to the finish
line first with ultimate precision and
effortless control.
th
gear with the
12
* 19.6 mph (31,4 km/h) with standard
HTE840 transmission
Ultimate precision
Proven on job sites since 1999,
Volvo Creep Mode sets today’s
benchmark for fi ne-grading control
by allowing the operator to grade
using only the hydrostatic frontwheel drive; the rear tandems roll
freely behind to minimize scuffi ng
and rework. Creep Mode is easily
selected via the transmission
controller. Operating at speeds
under 2.5 mph (4,0 km/h), the
front-wheel-only drive is controlled
simply by pressing the accelerator
pedal. Creep Mode allows extremely
smooth starts and stops, eliminating
ridges often left by the moldboard in
a conventional grader. The result is
more precise passes in less time to
complete the job.

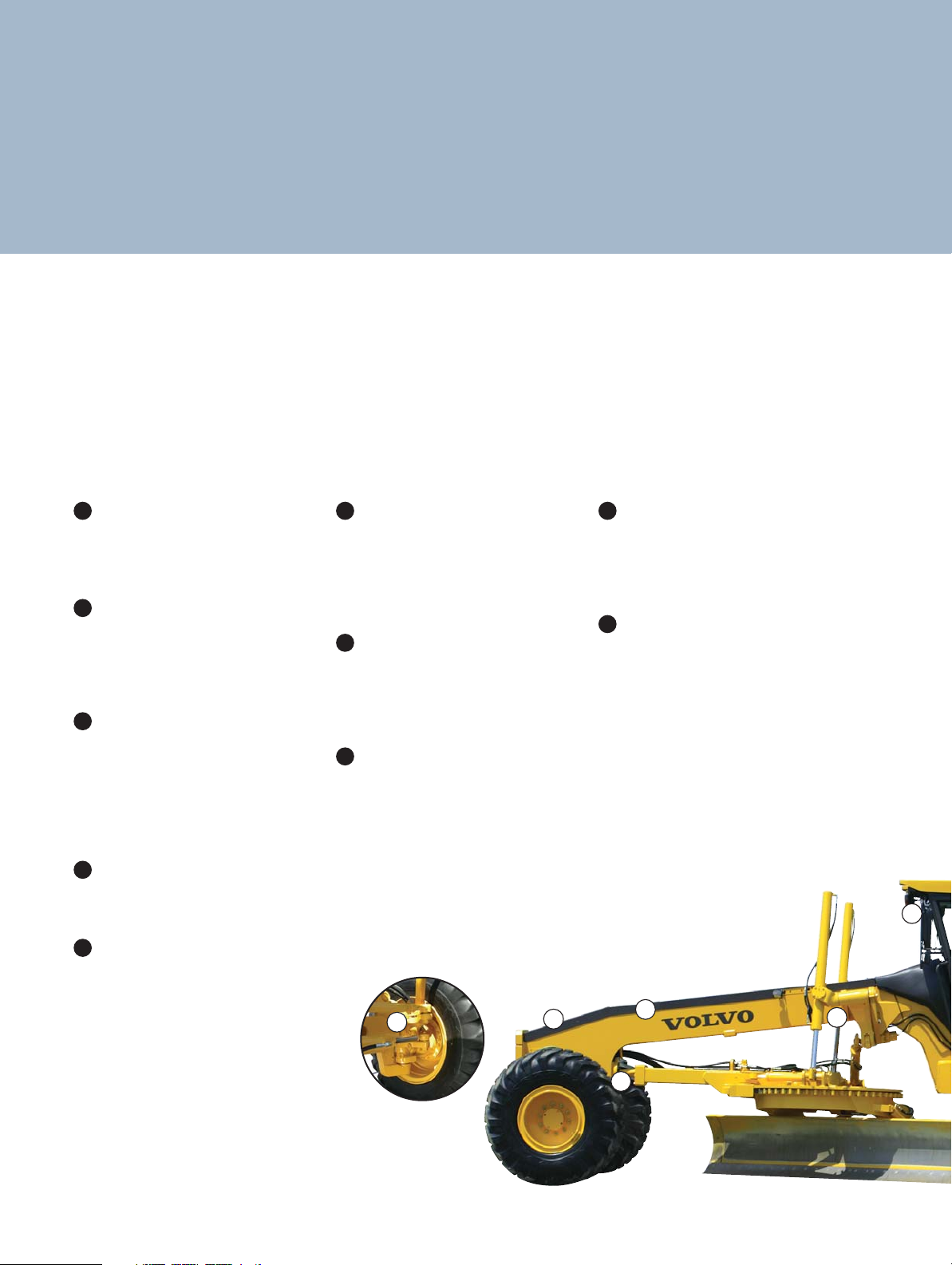

G900 MOTOR GRADERS
FROM THE GROUND UP.
“The Voice of the Customer” comes through
in every element of the G900 design, from the
manufacturing process that builds it to the styling
details that say “It’s a Volvo”.
1
Balance of power
The complete structural design of G900
Motor Graders is balanced to focus their
weight and power for optimum blade
down force and drawbar pull values.
2
Heavy-duty front axle
Purpose-built axle with high center
ground clearance; a minimum of
components ensures long life with
minimum maintenance; achieves sharp
steering angle for tight turning radius.
3
AWD
G976 models are equipped with three
easy-to-use operating modes: efficient
standard tandem drive, rugged All Wheel
Drive or Volvo Creep Mode, the original
hydrostatic front-wheel-only drive
setting the industry’s standard for
fine grading control since 1999.
4
Frame
Rugged front and rear frames, designed
for quick installation of a full range
of attachments.
5
Blade Control System
Twin-gear direct-drive circle turn system
provides maximum strength to either
hold or to turn the moldboard smoothly
while moving under full load; wide-stance
blade lift cylinders provide fine grading
stability with the full range of mobility
for any application.
6 9
Service access
“Easy Lift” rear hood opens wide for easy
cleaning access to the radiator; cover
panels for the engine, hydraulic centre
and battery pack all open up fully for
ease of service; ground-level access to
all engine service points.
7
Volvo engine
Volvo D9B Tier 3/Stage IIIA engine
with V-ACT technology matched to the
powertrain with three power levels as
standard for optimum performance and
fuel efficiency.
8
Planetary rear axle with clutched
differential lock
Volvo APR90 axles with planetary
reduction final drives reduce loading on
tandem chains for maximum service life;
purpose-built differential with hydraulic
clutch lockup ensures maximum tractive
effort at the flick of a switch.
3
1
High capacity cooling system
Hydraulically driven, variable-speed
fan draws power only when needed;
optional auto-reversing feature reduces
maintenance, improves efficiency and
reduces service needs.
10
Easy to keep
No daily greasing or weekly servicing is
required; optional 500-hour engine oil
change interval. Tandem and final drive
sight glasses make level checks fast
and easy. Large capacity hydraulic filter
extends change intervals and prevents
re-fill contamination as all top-up oils
must pass through the filter prior to
entering the hydraulic tank.
4
2
16
5
14
11
11
Contronics
Contronics display provides detailed
system status to the operator in real
time: records up to 25 points of interest
for service analysis through the exclusive
Matris system from Volvo.
12
Volvo transmission
The full power shift HTE840 and
optional HTE1160 transmissions were
developed expressly for motor graders.
Manual, optional Autoshift and Travel
modes optimize performance and fuel
economy. The Volvo exclusive shuttle
shift feature enables effortless shifts
between forward and reverse without
stopping or using the inching pedal.
13
Autoshift
Just select a target gear in the working
range and the transmission shifts
automatically through turns and grades,
as needed. Optional for HTE840
transmission, standard with HTE1160.
14
Fast refueling
Quick, convenient access for ground
level refueling; lockable panels provide
added security on the job site or in
the yard.
15
13
6
12
16
17
8
10
15
Care Cab
Ergonomic design includes loweffort, short-throw levers; adjustable
pedestal with familiar industry-standard
operating controls centered in front of
the operator. ROPS/FOPS enclosed
operator compartment lives up to every
expectation for a Volvo Care Cab with
industry-leading comfort, safety and
efficiency. Unobstructed wide-angle
views reduce operator fatigue, increase
productivity and maximize safety.
16
Rear-view visibility
Interior and exterior mirrors combine
for a clear wide-angle view to the
sides and rear of the grader. Rear
cab posts are positioned to optimize
operator visibility.
17
PDF Hydraulics
Proportional Demand Flow (PDF) is an
intelligent closed center, load-sensing
hydraulic system that delivers the exact
amount of hydraulic oil flow when and
where it is needed; variable displacement
axial piston pump provides excellent
multi-function control while conserving
fuel; minimal connections for high
reliability and low service requirements.
Volvo Circle Turn
The distinctive Volvo Circle Turn
System is a key development in
superior grader productivity. The
circle is operated by two directacting hydraulic cylinders, 90° out
of phase, acting on teeth cut on the
outside of the circle. This design
achieves far greater load handling
strength than conventional
circle-drive systems, with fewer
moving parts.

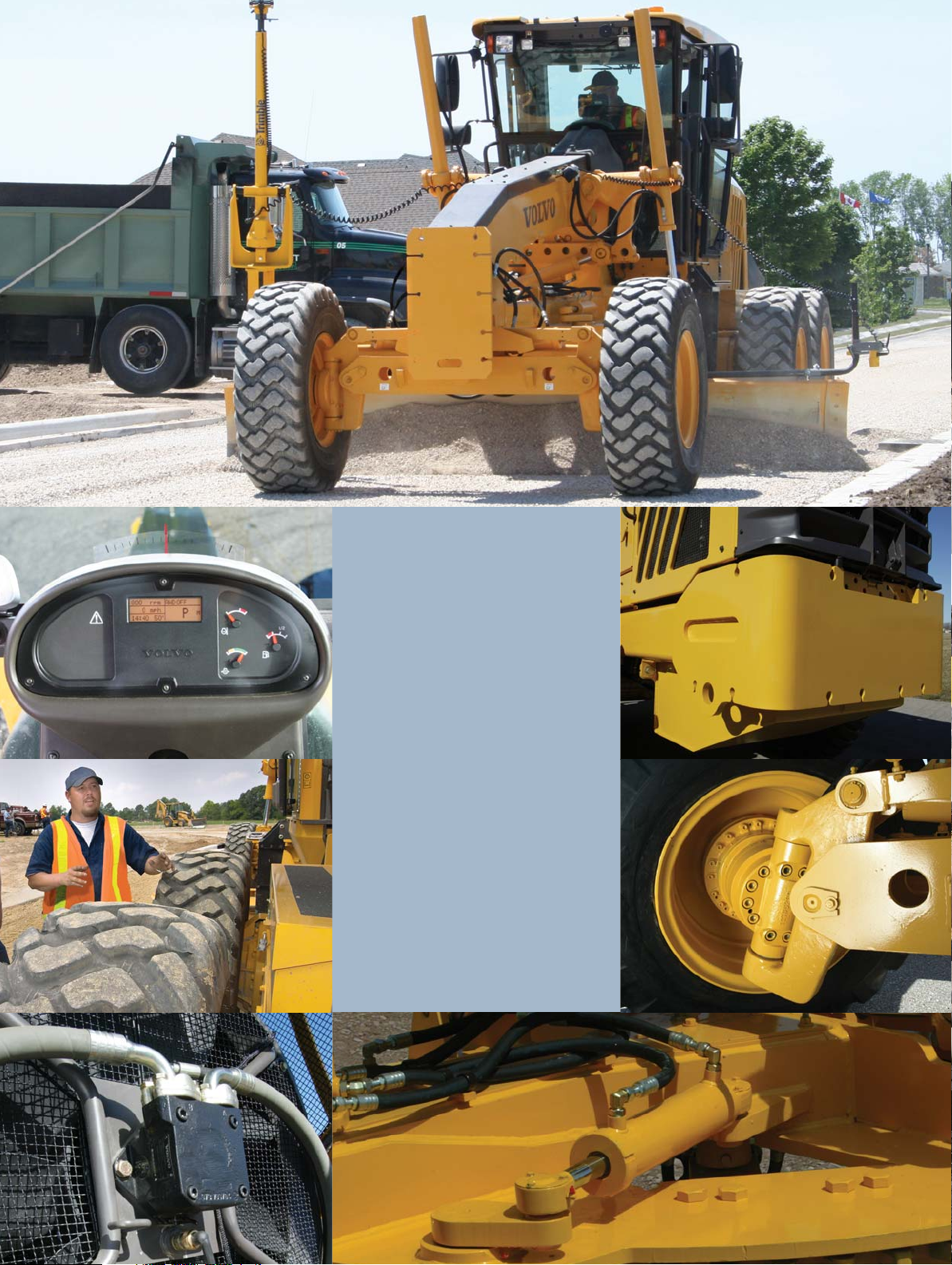

Go big with G990
The G990 Motor Grader is the
largest model in the Volvo family,
offering extra size and power. These
key features translate into maximum
strength and control for your
toughest jobs.
The G990 combines power with a
6
wide range of special features to
make light work of mining, forestry
and haul road projects, highway
construction and heavy-duty
6
7
9
snow-clearing plus the most
demanding fi ne-grade applications.
• Larger tires standard
• Taller moldboard standard
• Heavy duty circle support system
14
with Duramide
TM
• Extra length in front frame
• Long bladebase for more cutting
capability
• High blade pull
• Three engine power curves
15
SPECIFICATIONS
G970 G976 G990
Base operating weight - approximate
Weights shown include full cab with ROPS, all operating
fl uids, operator and standard equipment.
Base - Total lb (kg) 41,660 (18 900) 43,650 (19 800) 48,720 (22 100)
On front wheels lb (kg) 11,680 (5 300) 12,340 (5 600) 13,670 (6 200)
On rear wheels lb (kg) 29,980 (13 600) 31,310 (14 200) 35,050 (15 900)
Maximum combined capacity lb (kg) 50,000 (22 680) 51,500 (23 360) 60,000 (27 200)
Maximum weight - front lb (kg) 18,500 (8 390) 18,500 (8 390) 18,500 (8 390)
Maximum weight - rear lb (kg) 34,100 (15 470) 35,000 (15 880) 42,000 (19 050)
Note that adding weight and attachments to the base grader may necessitate a tire upgrade as maximum weight capacity of tire may be exceeded.
Productivity (Standard equipment)
Blade pull at base weight
(0.9 traction co-effi cient)
Blade pull at maximum base weight
(0.9 traction co-effi cient)
Blade down force capability lb (kg) 20,420 (9 253) 21,574 (9 776) 24,457 (11 058)
Blade down force is the maximum downward force which may be applied at the cutting edge.
Engine data
Model Volvo D9B Volvo D9B Volvo D9B
Type Turbocharged,
No. of cylinders In Line 6 In Line 6 In Line 6
Bore & stroke in
Displacement cu in (l) 573 (9,4) 573 (9,4) 573 (9,4)
Engine complies to EPA Tier 3, EU Stage IIIA exhaust emission standards.
Electrical system 24 volt - 80 amp
Batteries (two 12 volt) maintenance free 950 CCA
Two 12 volt 1300 CCA 231 AH batteries available optionally
lb (kg) 26,982 (12 240) 36,679 (16 635) 31,545 (14 310)
lb (kg) 30,690 (13 923) 40,000 (18 147) 37,800 (17 145)
(mm)
Aftercooled
4.76 x 5.51
(120 x 138)
(1920 watt) alternator
130 AH
Turbocharged,
Aftercooled
4.76 x 5.51
(120 x 138)
24 volt - 80 amp
(1920 watt) alternator
950 CCA
130 AH
Turbocharged,
Aftercooled
4.76 x 5.51
(120 x 138)
24 volt - 80 amp
(1920 watt) alternator
950 CCA
130 AH

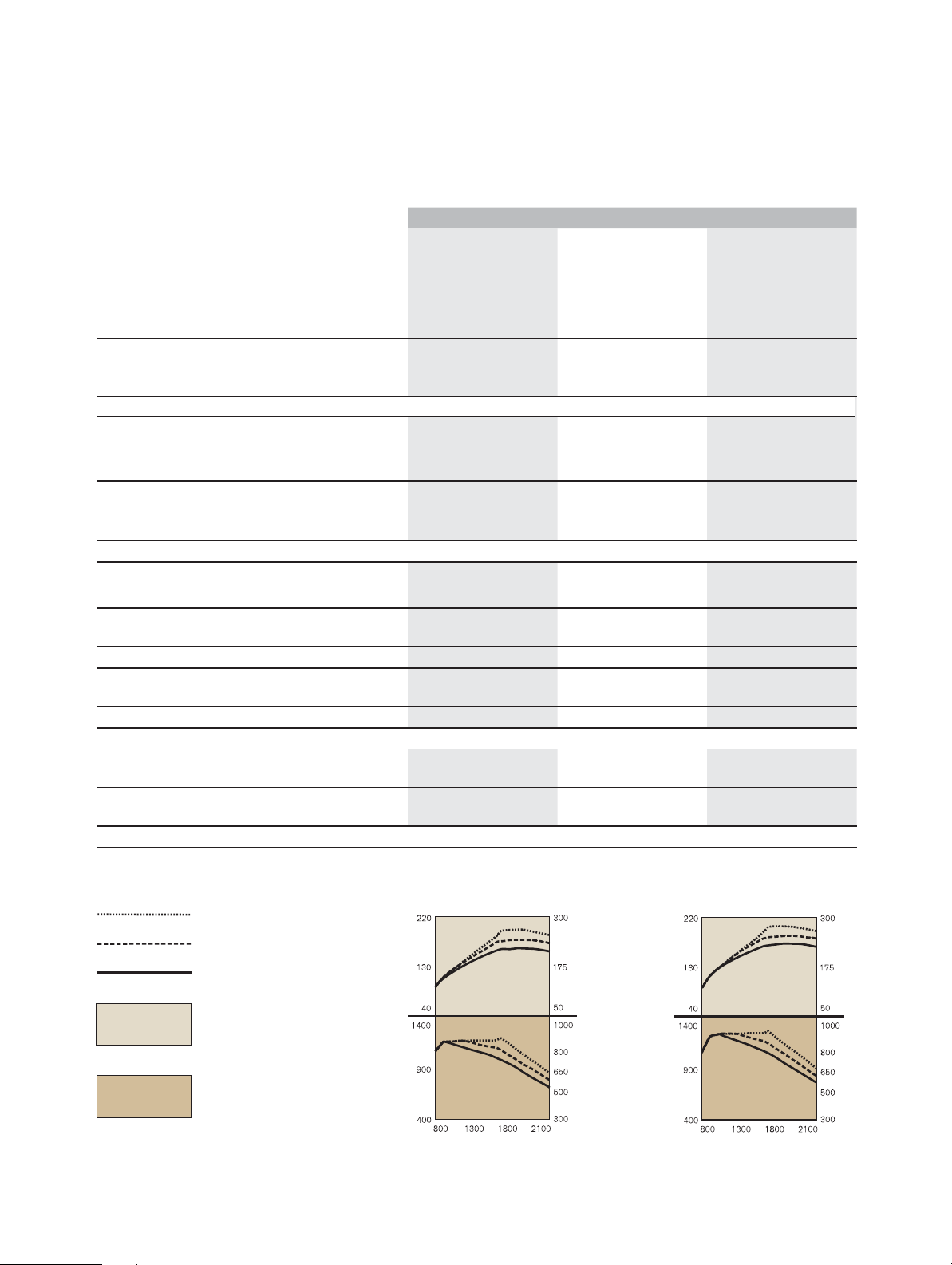

Engine performance curve
Legend
High Range
Mid Range
Low Range
Engine Power
Engine Torque
16
Net Torque (Nm) Net Power (kW)
G970/G976*
*G976 AWD off
Engine Speed (rpm)
Net Power (hp) Net Torque (lb.ft)
G976‡/G990
‡
Net Torque (Nm) Net Power (kW)
G976 AWD on
Net Power (hp) Net Torque (lb.ft)
Engine Speed (rpm)
G970 G976 AWD on G990
3 Range engine power control
G976 AWD off
Low range power
Rated net brake horsepower @ 2100 RPM
§
hp (kW) 210 (156) 225 (168) 225 (168)
Torque @1200 RPM lb.ft (N.m) 857 (1 162) 910 (1 234) 910 (1 234)
Mid range power
Rated net brake horsepower @ 2100 RPM
§
hp (kW) 230 (171) 245 (183) 245 (183)
Torque @1400 RPM lb.ft (N.m) 860 (1 165) 913 (1 237) 913 (1 237)
High range power
Rated net brake horsepower @ 2100 RPM
§
hp (kW) 250 (186) 265 (198) 265 (198)
Maximum net horsepower @ 1700 RPM hp (kW) 262 (195) 277 (207) 277 (207)
Torque @1550 RPM lb.ft (N.m) 876 (1 188) 929 (1 260) 929 (1 260)
No engine derating required up to 9,800 ft (3 000 m) altitude. Rated net horsepower SAE J1349/ISO 9249.
§
Rating is @ 2100 RPM except for EU which is rated @ 1900 RPM in low and mid ranges.
Transmission
Fully sequential, direct drive, Volvo powershift transmission. Engine cannot be started if transmission is in gear. Single lever electronic transmission controller
provides self-diagnostics and overspeed protection. Optional HTE1160 has automatic shifting and travel mode as standard equipment.
Ground speeds at 2100 RPM with 14:00 tires. G990 ground speeds with 16:00 tires.
G970 G976 G990
Transmission model HTE840 HTE1160 HTE840 HTE1160 HTE840 HTE1160
Gear
F1 mph (km/h) 2.6 (4,1) 2.0 (3,2) 2.6 (4,1) 2.0 (3,2) 2.6 (4,2) 2.1 (3,3)
F2 mph (km/h) 3.6 (5,8) 2.6 (4,2) 3.6 (5,8) 2.6 (4,2) 3.7 (5,9) 2.7 (4,3)
F3 mph (km/h) 5.1 (8,1) 3.5 (5,6) 5.1 (8,1) 3.5 (5,6) 5.2 (8,3) 3.6 (5,7)
F4 mph (km/h) 7.1 (11,3) 4.5 (7,2) 7.1 (11,3) 4.5 (7,2) 7.2 (11,6) 4.6 (7,4)
F5 mph (km/h) 10.0 (16,0) 6.0 (9,5) 10.0 (16,0) 6.0 (9,5) 10.3 (16,4) 6.1 (9,7)
F6 mph (km/h) 14.0 (22,4) 7.7 (12,3) 14.0 (22,4) 7.7 (12,3) 14.3 (22,9) 7.8 (12,6)
F7 mph (km/h) 19.6 (31,4) 10.2 (16,2) 19.6 (31,4) 10.2 (16,2) 20.1 (32,2) 10.4 (16,6)
F8 mph (km/h) 27.4 (43,8) 13.5 (21,6) 27.4 (43,8) 13.5 (21,6) 28.1 (44,9) 13.9 (22,2)
F9 mph (km/h) 17.5 (28,1) 17.5 (28,1) 18.0 (28,7)
F10 mph (km/h) 23.0 (36,8) 23.0 (36,8) 23.5 (37,7)
F11 mph (km/h) 29.8 (47,6) 29.8 (47,6) 30.5 (48,8)
R1 mph (km/h) 2.5 (4,1) 2.0 (3,2) 2.5 (4,1) 2.0 (3,2) 2.6 (4,2) 2.0 (3,2)
R2 mph (km/h) 5.0 (7,9) 3.4 (5,5) 5.0 (7,9) 3.4 (5,5) 5.1 (8,1) 3.5 (5,6)
R3 mph (km/h) 9.9 (15,8) 5.8 (9,3) 9.9 (15,8) 5.8 (9,3) 10.1 (16,1) 6.0 (9,5)
R4 mph (km/h) 19.3 (30,1) 7.7 (12,3) 19.3 (30,1) 7.7 (12,3) 19.8 (31,6) 7.9 (12,6)
R5 mph (km/h) 13.3 (21,3) 13.3 (21,3) 13.6 (21,8)
R6 mph (km/h) 22.6 (36,2) 22.6 (36,2) 23.2 (37,1)
Transmission Gear
Engine Power Range Volvo HTE840 Volvo HTE1160
Low F1, F2 R1 F1, F2, F3 R1, R2
Mid F3, F4, F5 R2, R3 F4, F5, F6, F7 R3, R4
High F6, F7, F8 R4 F8, F9, F10, F11 R5, R6
17
G970 G976 G990
Tandems
Depth in (mm) 8.9 (226,5) 8.9 (226,5) 8.9 (226,5)
Height in (mm) 24.25 (616) 24.25 (616) 24.25 (616)
Thickness
inner wall in (mm) 1 (25) 1 (25) 1 (25)
outer wall in (mm) .78 (20) .78 (20) .78 (20)
Center distance in (mm)
Drive chain pitch in (mm)
Oscillation degrees ± 15º 15º 15º
Differential / Final drive
Model
Planetary fi nal reduction with an operator controlled wet multiple disc lock/unlock differential.
Wheels & tires (Standard equipment)
Tire size 14:00 x 24, G-2 14:00 x 24, G-2 16:00 x 24, G-2
Ply rating (PR) 12 12 12
Rim size in (mm) 10 (254)
Bolt-on rims interchangeable between front and rear Yes No Yes
Front axle and articulation
Wheel lean degrees R & L
Oscillation degrees up & down
Ground clearance in (mm)
Minimum turning radius using front axle steering,
articulation, wheel lean and unlocked differential
Steering arc degrees 50º 50º 50º
Frame articulation angle degrees 21º 21º 21º
Anti-drift lock valve ensures stable operation. Articulation lock standard.
Hydrostatic power steering of front wheels incorporating two steering cylinders. Meets SAE J1511 FEB. 94, ISO 5010:1992 with optional secondary steering.
ft (mm)
61 (1 550) 61 (1 550) 66 (1 675)
2 (51) 2 (51) 2 (51)
Volvo APR90 Volvo APR90 Volvo APR90
10 (254)
One piece rim
18º 18º 18º
16º 16º 16º
23.2 (590) 23.2 (590) 24.2 (615)
25'3" (7 700) 25'1" (7 640) 26'9" (8 150)
Three piece rim
10 (254)
One piece rim
Brakes
Service Brakes: Foot operated
Fade resistant, hydraulically actuated, wet multiple disc service brakes located at the 4 tandem drive wheels are fully sealed and maintenance free.
System features crossover dual braking circuits for uniform braking on both sides of the grader. Includes reserve power assist and operator warning system
(visual and audible).
Parking Brake
Spring applied hydraulically released enclosed wet multiple disc type parking brake in fi nal drive. Effective on all 4 tandem drive wheels.
Transmission cannot be engaged with park brake on.
Braking systems comply to SAE J/EN ISO 3450:1996.
Volvo uses asbestos free brake components.
18
G970 G976 G990
Frame
Front
Minimum dimensions of box section in
(mm)
10.5 x 13.5
(267 x 340)
10.5 x 13.5
(267 x 340)
10.5 x 13.5
(267 x 340)
Plate thickness in (mm) 1 & 1.2 (25 & 30) 1 & 1.2 (25 & 30) 1.2 & 1.6 (30 & 40)
Vertical section modulus at arch cu in (cm
minimum cu in (cm
maximum cu in (cm
3
) 163 (2 671) 163 (2 671) 185 (3 032)
3
) 137.7 (2 256) 137.7 (2 256) 157.9 (2 588)
3
) 283.9 (4 652) 283.9 (4 652) 324.3 (5 626)
Rear
Minimum dimensions in
(mm)
12 x 4
(305 x 100)
12 x 4
(305 x 100)
12 x 4
(305 x 100)
Optional fi rst user lifetime warranty on frame, includes maintenance free articulation pins and bearings.
Moldboard
Standard moldboard with replaceable end bits in
(mm)
Moldboard material SAE 1050
Edge: through hardened in (mm) 6 x 5/8 (152 x 16)
1.0 x 29 x 12'
(25 x 737 x 3 658)
high carbon steel
boron steel
1.0 x 29 x 12'
(25 x 737 x 3 658)
SAE 1050
high carbon steel
6 x 5/8 (152 x 16)
boron steel
1.0 x 31 x 14'
(25 x 787 x 4 267)
SAE 1050
high carbon steel
8 x 1 (203 x 25)
boron steel
Bolt spacing in (mm) 6 (152) 6 (152) 6 (152)
Bolt size in (mm) 5/8 (16) 5/8 (16) 3/4 (19)
Slide rails supported by Duramide™ bearings Yes Yes
Slide rails supported with adjustable metallic bearings Ye s
Moldboard range: Moveable Blade Control System
(Dimensions shown with standard tires and moldboard)
Reach outside tires - articulated frame in
(mm)
Reach outside tires - straight frame in
(mm)
Moldboard slide in
(mm)
Circle side shift in
(mm)
Left/Right Left/Right Left/Right
118/117.5
(2 997/2 985)
78/77
(1 970/1 960)
26.5/26.5
(673/673)
30.5/29.5
(775/749)
118/117.5
(2 997/2 985)
78/77
(1 970/1 960)
26.5/26.5
(673/673)
30.5/29.5
(775/749)
121.5/121
(3 086/3 073)
89/89
(2 260/2 260)
26.5/26.5
(673/673)
30/29.5
(762/749)
Maximum bank sloping angle, left - right degrees 90º/90º 90º/90º 90º/90º
Moldboard ground clearance in (mm) 18.0 (460) 18.0 (460) 17.5 (450)
Moldboard cutting depth in (mm) 30.5 (775) 30.5 (775) 32.5 (825)
Moldboard tilt range degrees forward
degrees back
45º
6º
45º
46º
6º
13º
Superior moldboard mobility permits steep ditch cutting angles and back sloping outside overall machine width.
19
G970 G976 G990
Circle
Pitch diameter in (mm)
Thickness in (mm) 1.25 (32) 1.25 (32) 2.0 (51)
Adjustable guide shoes - standard / optional 3 / 5 3 / 5 5 / -
Adjustable clamp plates - standard / optional 3 / 5 3 / 5 5 / -
Upper circle wear plates - standard / optional 3 / 5 3 / 5 5 / -
Circle to drawbar support is provided by Duramide™ wear plates and bearings at the clamp and guide shoes. Duramide™ prevents metal-to-metal contact and
provides maximum service life.
Circle drive
The Volvo dual gear Circle Drive System uses direct acting hydraulic power for exceptional turning and holding capability under full load. Circle Drive System uses
two hardened drive pinions and is protected against impact damage by an overload relief valve as standard equipment.
Rotation degrees 360º 360º 360º
Drawbar
Dimensions of box section in
(mm)
Plate thickness in (mm) 1 & .75 (25 & 19) 1 & .75 (25 & 19) 1.5 & .75 (38 & 19)
Cab & controls
Low profi le cab with ROPS/FOPS
Interior height in (mm) 64 (1 620) 64 (1 620) 64 (1 620)
An optional full height cab is available with an inside height of 72.5" (1 837 mm).
All Volvo Grader cabs and canopies are designed to meet or exceed SAE J/ISO 3471-1:2004 and EN 13510:2000 ROPS requirements and SAE J/pr EN ISO
3449:2002 Level 2 FOPS requirements.
The retractable seatbelt is 3" (76 mm) wide and meets SAE J386 NOV. 97 and EN ISO 6683:1999. Industry standardized control lever arrangement.
Interior operator noise levels average 72 dB(A) per ISO 6394:1998 (enclosed cab).
64 (1 626) 64 (1 626) 64 (1 626)
6.5 x 6.5
(165 x 165)
6.5 x 6.5
(165 x 165)
6.5 x 6.5
(165 x 165)
Implement hydraulics
Circuit type: Closed center, load sense Proportional Demand Flow (PDF) Hydraulic System, with O-ring face seal hose connections.
Main implement pump type Axial piston type Axial piston type Axial piston type
Maximum pressure psi (Bar) 3,000 (207) 3,000 (207) 3,000 (207)
Output 2100 RPM gpm (lpm) 55 (208) 55 (208) 55 (208)
Stand by pressure psi (Bar) 350 (24) 350 (24) 350 (24)
Filtration
Large capacity, replaceable in-tank fi lter. Filters both system and re-fi ll oil. With low level and high temperature operator warning.
Hydraulic fan drive pump
Ty p e
Axial piston pump dedicated to the variable speed cooling fan. Reversible cooling fan optionally available.
20
G970 G976 G990
Capacities
Fuel tank U.S. Gal. (l) 132 (498) 132 (498) 132 (498)
Transmission U.S. Gal. (l) 16 (61) 16 (61) 16 (61)
Final drive U.S. Gal. (l) 6 (23) 6 (23) 6 (23)
Tandems (each) U.S. Gal. (l) 26.4 (100) 26.4 (100) 27.7 (105)
Hydraulic oil tank U.S. Gal. (l) 24 (91) 38 (144) 24 (91)
Coolant antifreeze protection to
-58º F (-50º C) approx
Engine oil U.S. Gal. (l) 10 (39,0) 10 (39,0) 10 (39,0)
Attachments
(Optional unless otherwise stated as standard equipment)
Push Block lb (kg) 1,110 (504) 1,110 (504) 1,110 (504)
Ripper includes rear frame arch support and links lb (kg) 3,200 (1 450) 3,200 (1 450) 3,200 (1 450)
Mid Mount Scarifi er lb (kg) 1,900 (850)
Front Mount Scarifi er lb (kg) 1,552 (704) 1,552 (704)
Dozer: 9' (2,7 m) lb (kg) 2,360 (1 070) 2,360 (1 070)
10' (3,0 m) lb (kg) 2,415 (1 095) 2,415 (1 095) 2,415 (1 095)
All Wheel Drive
Typical operating pressure psi (Bar)
Maximum operating pressure psi (Bar) 5,000 (345)
Minimum operating pressure psi (Bar) 500 (34)
Top speed mph (km/h) 20.4 (33)
Creep Mode speed mph (km/h) 0 - 2.5 (0 - 4)
Maximum rim pull lb (kg) 8,500 (3 855)
When equipped with the HTE840 transmission, the Volvo high torque All Wheel Drive System operates in forward gears 1-7 and reverse gears 1-4.
When equipped with the HTE1160 transmission, the Volvo high torque All Wheel Drive System operates in forward gears 1-10 and reverse gears 1-6.
In addition, the Volvo system provides the operator with the ability to fi ne grade in Creep Mode using only hydrostatic front wheel drive, between
0 - 2.5 mph (0 - 4 km/h).
U.S. Gal. (l) 12.4 (47) 12.4 (47) 12.4 (47)
2,500 (172)
Dimensions
All dimensions are approximate. A in (mm) 374 (9 500) 374 (9 500) 383 (9 730)
B in (mm) 110 (2 790) 110 (2 790) 116 (2 935)
in (mm) 257 (6 531) 257 (6 531) 263 (6 681)
C
D in (mm) 88 (2 239) 88 (2 239) 92 (2 340)
E in (mm) 109 (2 780) 109 (2 780) 110 (2 800)
in (mm) 127 (3 225) 127 (3 225) 129 (3 280)
F
F
D
E
B
C
A
Legend
A = Overall length
B = Bladebase per ISO 7134
C = Wheelbase
D = Width - Front tire
center lines
E = Width - Outside tires
F = Overall height
with Low Profi le Cab
Add 8.5" (217 mm)
for full height cab
21
STANDARD FEATURES / OPTIONAL EQUIPMENT
Model (S - Standard / O - Optional) G930 G940 G946 G960 G970 G976 G990
Powertrain
Volvo engines meets off-road Tier 3 / Stage IIIA emission criteria - 3 power curves S S S S S S S
Rear axle, operator controlled, lock/unlock differential with planetary fi nal reduction S S S S S S S
4 wheel wet disc braking system with crossover dual circuits and reserve power assist S S S S S S S
Spring applied wet multiple disc park brake with operator warning alarm and indicator S S S S S S S
Electronic hand throttle with RPM hold and resume functions S S S S S S S
Operator controlled Power/Speed engine mode S S S S S S S
Direct drive, power shift Volvo HTE840 transmission with 8 forward and 4 reverse gears S S S S S S S
Transmission guard SSSSSSS
Single transmission control lever, with electronic over speed protection, advanced memory
shift and park position lockout
Transmission Autoshift and Travel functions O O O O O O O
Direct Forward to Reverse shuttle shift capability without using the Inching pedal S S S S S S S
Volvo HTE1160 Transmission - 11 speeds forward 6 speeds reverse includes
Autoshift and travel functions
Reversible cooling fan - manual or automatic modes O O O O O O O
Automatic engine protection lowers engine torque and speed if critical conditions occur S S S S S S S
Electrical
Cab mounted headlights with dimmer switch S S S S S S S
Lights; backup, tail, stop and directional S S S S S S S
Backup alarm 112 dB(A) S S S S S S S
Moldboards work lights - 2 or 4 O O O O O O O
Rear work lights - 2 or 4 O O O O O O O
Corner cab work lights - left or right - 2 O O O O O O O
Maintenance free batteries S S S S S S S
110 amp (2460 watt) alternator O O O O O O O
24 volt to 12 volt converter - 30 or 60 amp (600 or 1440 watt) with power point O O O O O O O
Productivity
7 position Blade Control System for optimum blade mobility S S S S S S S
Twin gear direct drive circle turn system with impact protection S S S S S S S
Duramide™ wear strips prevent metal-to-metal contact for maximum service life S S S S S S S
Heavy duty circle support system O O O O O O S
Hinged cooling module fan door for easy trash clean out S S S S S S S
Ground level fueling SSSSSSS
Lockable tool box with storage space for scarifi er shanks S S S S S S S
Moldboards: 12' x 25" x 7/8" (3 658 x 635 x 22 mm) S S S S
13' x 25" x 7/8" (3 962 x 635 x 22 mm) O O O O
14' x 25" x 7/8" (4 267 x 635 x 22 mm) O O O O
12' x 29" x 1" (3 658 x 737 x 25 mm) S S
13' x 29" x 1" (3 962 x 737 x 25 mm) O O
14' x 29" x 1" (4 267 x 737 x 25 mm) OO
14' x 31" x 1" (4 267 x 787 x 25 mm) S
16' x 31" x 1" (4 877 x 787 x 25 mm) O
Moldboard extensions RIGHT or LEFT - 2' (610 mm) O O O O O O O
Moldboard edges - carbide 3/4" x 5" (19 x 127 mm) or 1" x 8" (25 x 203 mm) harden steel O O O O O O O
Brackets for Automatic Blade Control System installation O O O O O O O
Metallic lower moldboard slide bearing O O O O O O S
Tires
Consult your Volvo dealer for full offering
Tires: 14:00 X 24 - G2 S S S S S S
17:5 x 25, 12 PR, G-2 O O O O O O
16:00 X 24 OO S
20:5 X 25 OO
SSSSSSS
OOOOOOO
22
Model (S - Standard / O - Optional) G930 G940 G946 G960 G970 G976 G990
Hydraulics
Proportional Demand Flow hydraulic system with short throw, low effort control levers S S S S S S S
10 section hydraulic control valve - includes two spare sections with levers S S S S S S S
Circle turn relief located integral with main manifold S S S S S S S
Hydraulic oil level monitor via Contronics S S S S S S S
Blade Lift Float Control, independent right and left detent style O O O O O O O
Front attachment fl oat control, detent style, independent of other fl oat valves O O O O O O O
Several remote valve locations for attachments O O O O O O O
Secondary steering (power assisted) O O O O O O O
Operator Cab
Illuminated entry when cab doors are opened - enclosed cab only S S S S S S S
Adjustable steering control pedestal with tilt head for maximum operator comfort S S S S S S S
Gauges include: coolant temperature, engine oil pressure, fuel level, hourmeter,
articulation angle indicator
Multi-function Volvo Contronic Monitoring System with visual and audible warnings S S S S S S S
Deluxe, cloth covered, fully adjustable suspension seat when grader is equipped with
an enclosed cab - 3" (75 mm) retractable seatbelt
Deluxe air suspension, cloth covered, fully adjustable suspension seat -
3" (75 mm) retractable seatbelt
Left and right outside dual rear view mirrors S S S S S S S
Fold-away left and right outside dual rear view mirrors O O O O O O O
Dual interior rear view mirrors S S S S S S S
Enclosed Low Profi le Cab with ROPS and FOPS – left and right cab door with steps S S S S S S S
Enclosed High Profi le Cab with ROPS and FOPS – left and right cab door with steps O O O O O O O
Low Profi le canopy shell (SPLIT) with ROPS – left and right entry with steps O O O O
Cab heater - 50,000 BTU with cab pressurizer and replaceable fi lters, 10 outlets S S S S S S S
Air conditioner - 35,000 BTU • HFC-134a (non-CFC refrigerant) with cab heater O O O O O O O
Defroster fan with multiple outlets O O O O O O O
Radio/CD player with 4 speakers O O O O O O O
Single arm front cab wiper and washer, enclosed cab S S S S S S S
Single arm wiper and washer - rear window O O O O O O O
Single arm wiper and washer - lower windows front left & right O O O O O O O
Dual arm front windshield, increased coverage, Low Profi le Cab only O O O O O O O
Intermittent wipers on all wipers ordered O O O O O O O
Window - lower front - opening O O O O O O O
Window - left/right side - opening sliders with multiple position openings O O O O O O O
Lower cab shield, encloses bottom of cab to frame O O O O O O O
Attachments
Fenders front or rear OOOOOO
Dozer Blade: 8' (2.5 m) O O O O
9' (2.7 m) O O O O O O O
10' (3.0 m) OOO
Front Mounted Scarifi er with 5 scarifi er teeth O O O O O O
Mid Mount Scarifi er with 5 scarifi er teeth O O O O
Push Block OOOOOOO
Ripper/Scarifi er, rear with 3 ripper shanks O O O O O O O
Other
Painted high gloss Volvo yellow and grey S S S S S S S
First user lifetime frame warranty – includes articulation pins and bearings O O O O O O O
Paint - custom colors OOOOOOO
Low ambient fl uids for extreme cold conditions below -14º F (-10º C) O O O O O O O
Tool kit OOOOOOO
Sound reduction packages (Standard in EU markets) O O O O O O O
Rear licence plate bracket O O O O O O O
Air compressor - engine driven with tank O O O O O O O
Volvo CareTrack – remote monitoring system O O O O O O O
Partial listing of available options. Certain features may be standard or not available within specifi c market.
Consult your Volvo Motor Grader distributor for more information.
SSSSSSS
SSSSSSS
OOOOOOO
23
Volvo Construction Equipment is different. It’s designed, built
and supported in a different way. That difference comes from
an engineering heritage of over 170 years. A heritage of
thinking first about the people who actually use the machines.
About how to help them be safer, more comfortable, more
productive. About the environment we all share. The result
of that thinking is a growing range of machines and a global
support network dedicated to helping you do more. People
around the world are proud to use Volvo. And we’re proud
of what makes Volvo different – More care. Built in.
All products are not available in all markets. Under our policy of continuous improvement, we reserve the right to change
specifications and design without prior notice. The illustrations do not necessarily show the standard version of the machine.
Ref. No. VOE22B1002234 US/English
Printed in USA 2007.03 GRD
Volvo, Goderich
Loading...
