VOLVO S40
Owners Manual Web Edition
Page 2
Page 3
DEAR VOLVO OWNER
THANK YOU FOR CHOOSING VOLVO
We hope you will enjoy many years of driving pleasure in your Volvo.
The car has been designed for the safety and comfort of you and your
passengers. Volvo is one of the safest cars in the world. Your Volvo
has also been designed to satisfy all current safety and environmental
requirements.
In order to increase your enjoyment of the car, we recommend that
you familiarise yourself with the equipment, instructions and maintenance information contained in this owner's manual.
Page 4
Table of contents
00 Introduction
Important information................................. 8
Volvo and the environment....................... 12
00
01 Safety
Seatbelts................................................... 16
Airbag system........................................... 19
Airbags...................................................... 20

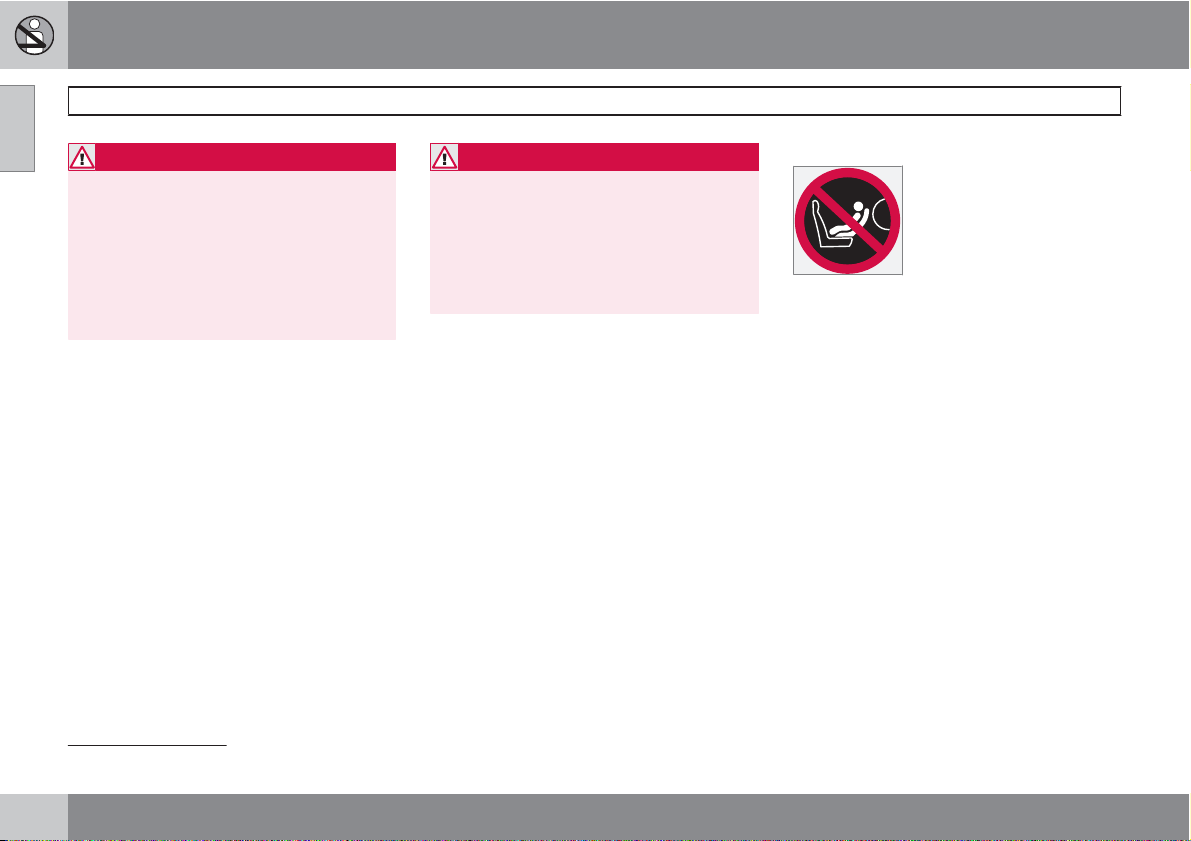

Activating/deactivating the airbag*........... 22
Side airbags (SIPS bags).......................... 24
Inflatable Curtain (IC)................................ 26
WHIPS....................................................... 27
When the systems deploy......................... 29
Crash mode.............................................. 30

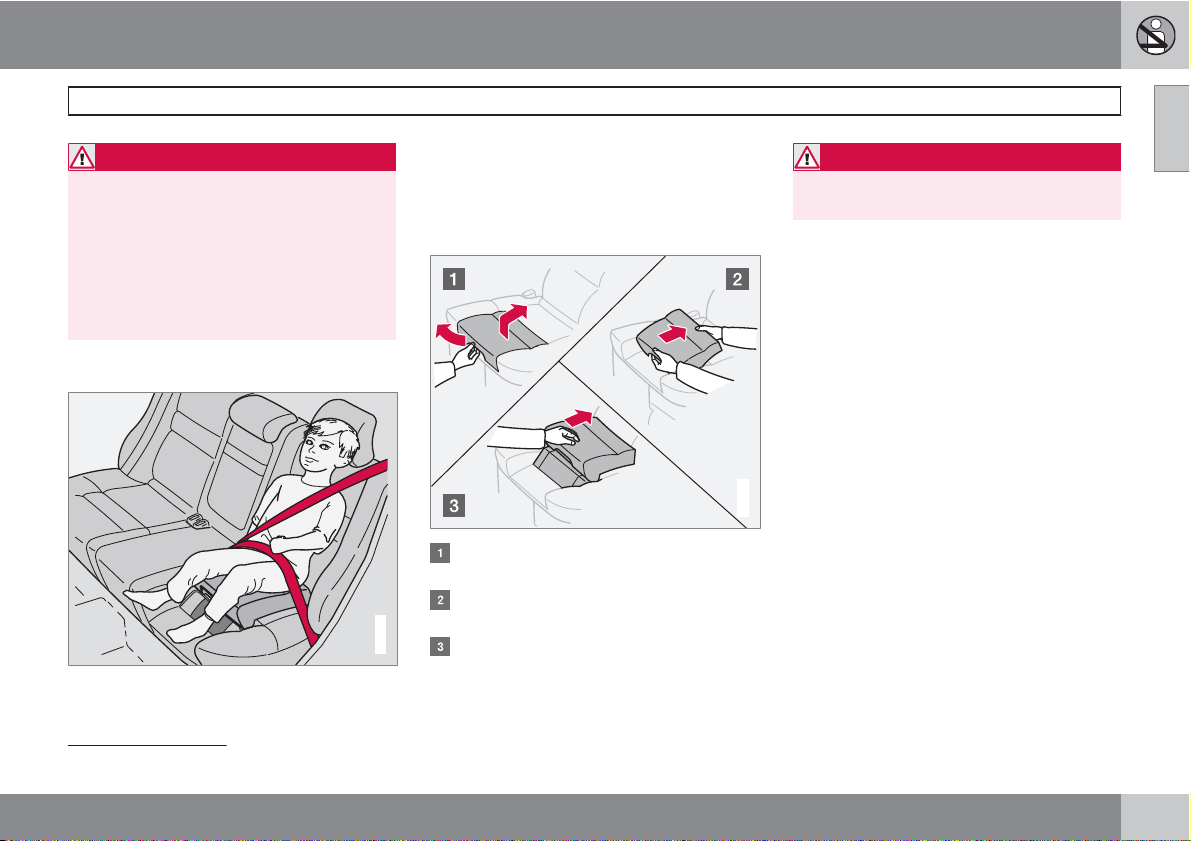

Child safety............................................... 31
01
02 Instruments and controls

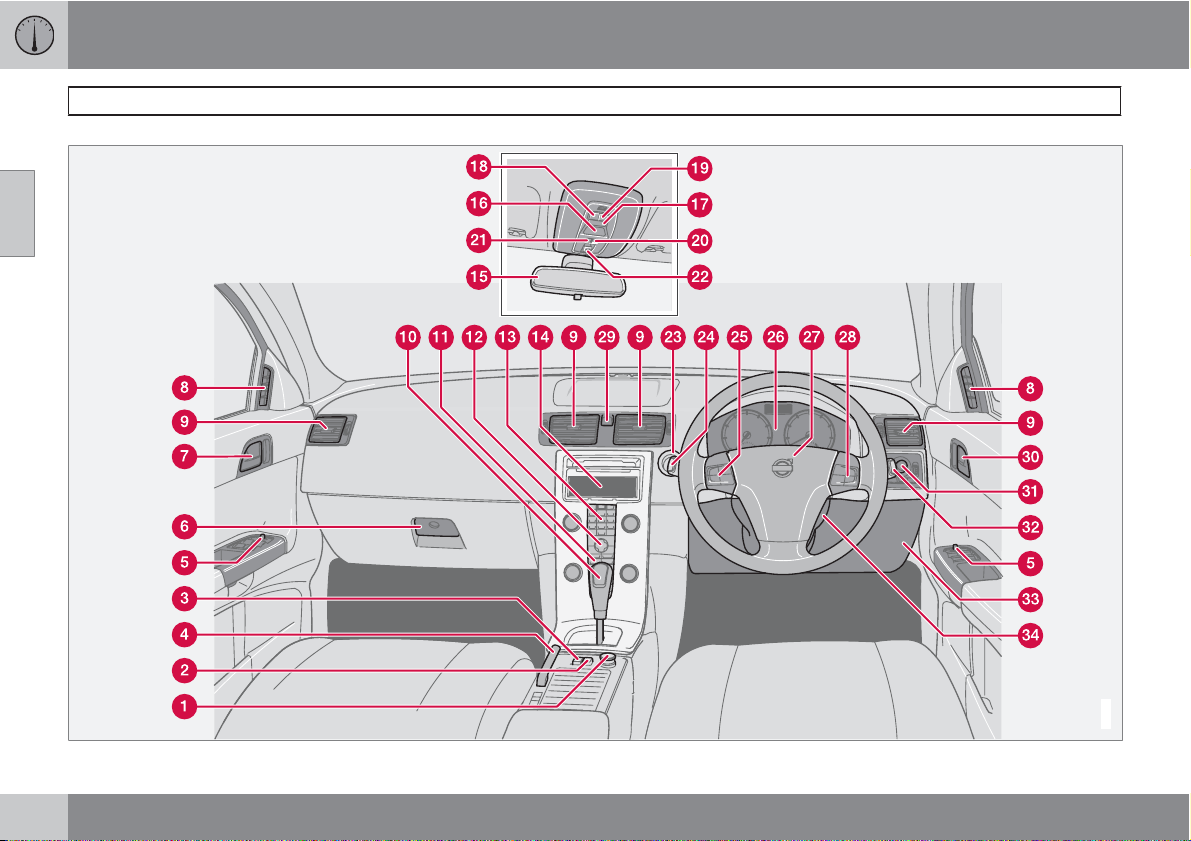

Overview, left-hand drive cars.................. 46
Overview, right-hand drive cars................ 48

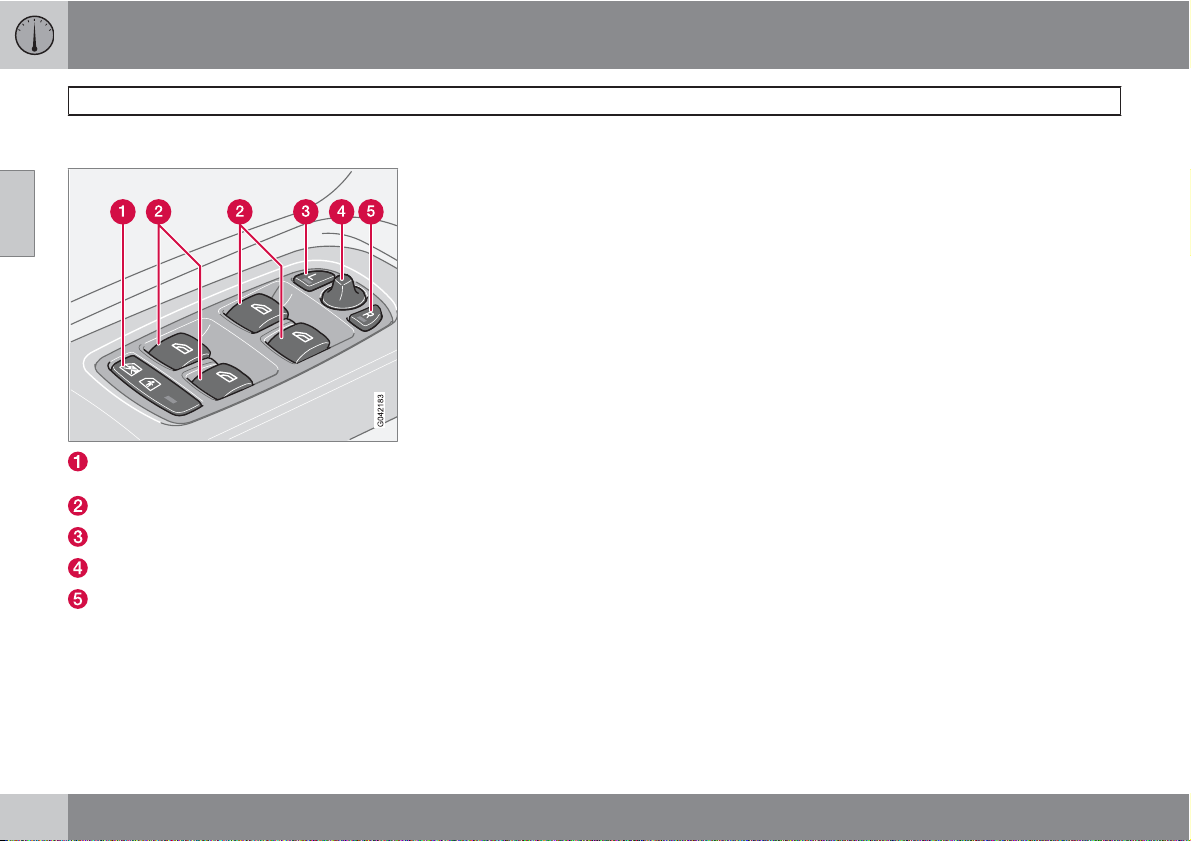

Driver's door control panel....................... 50

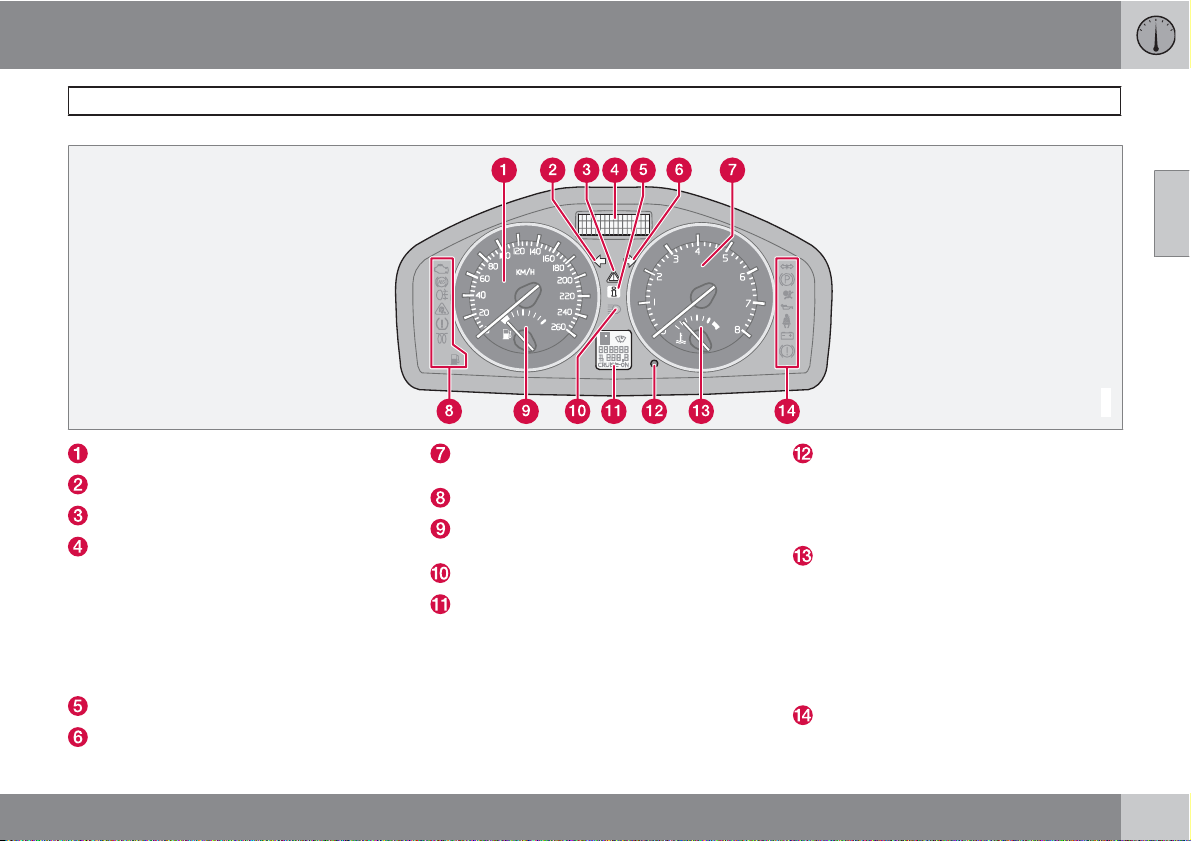

Combined instrument panel...................... 51

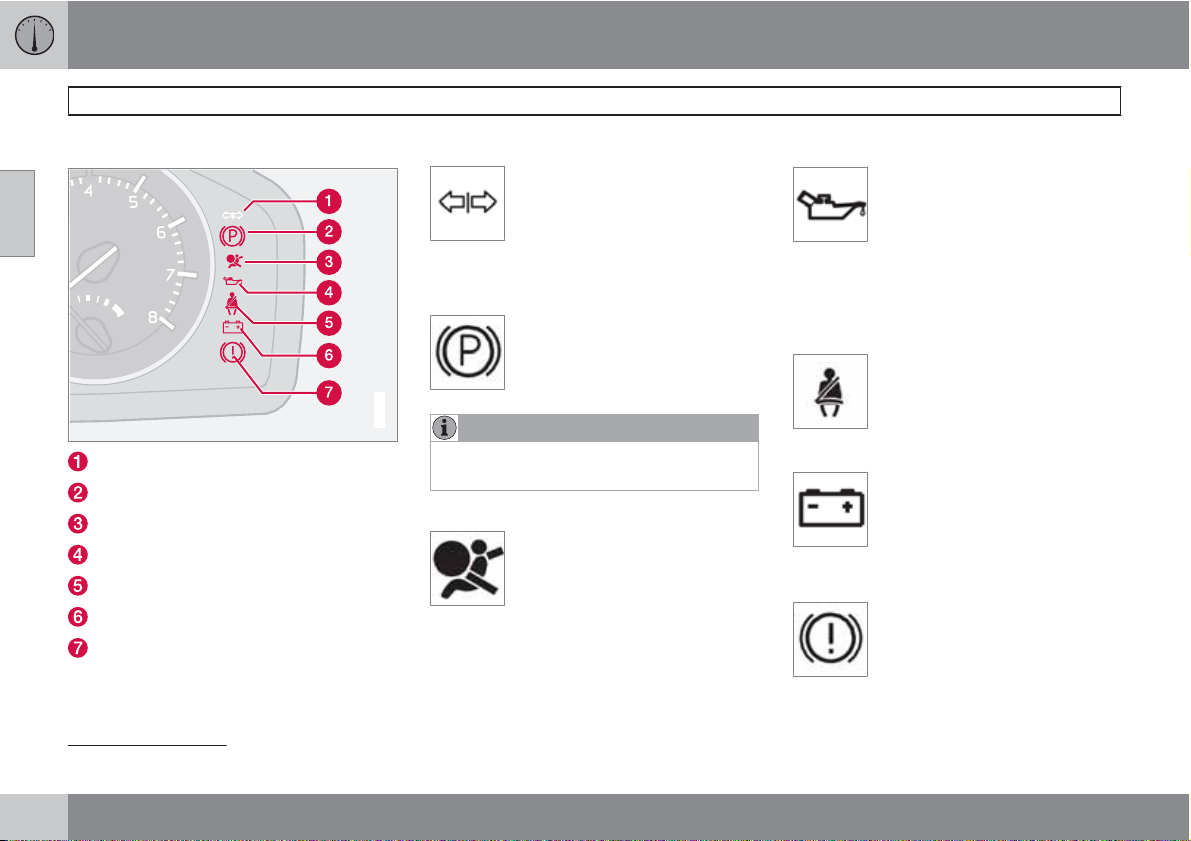

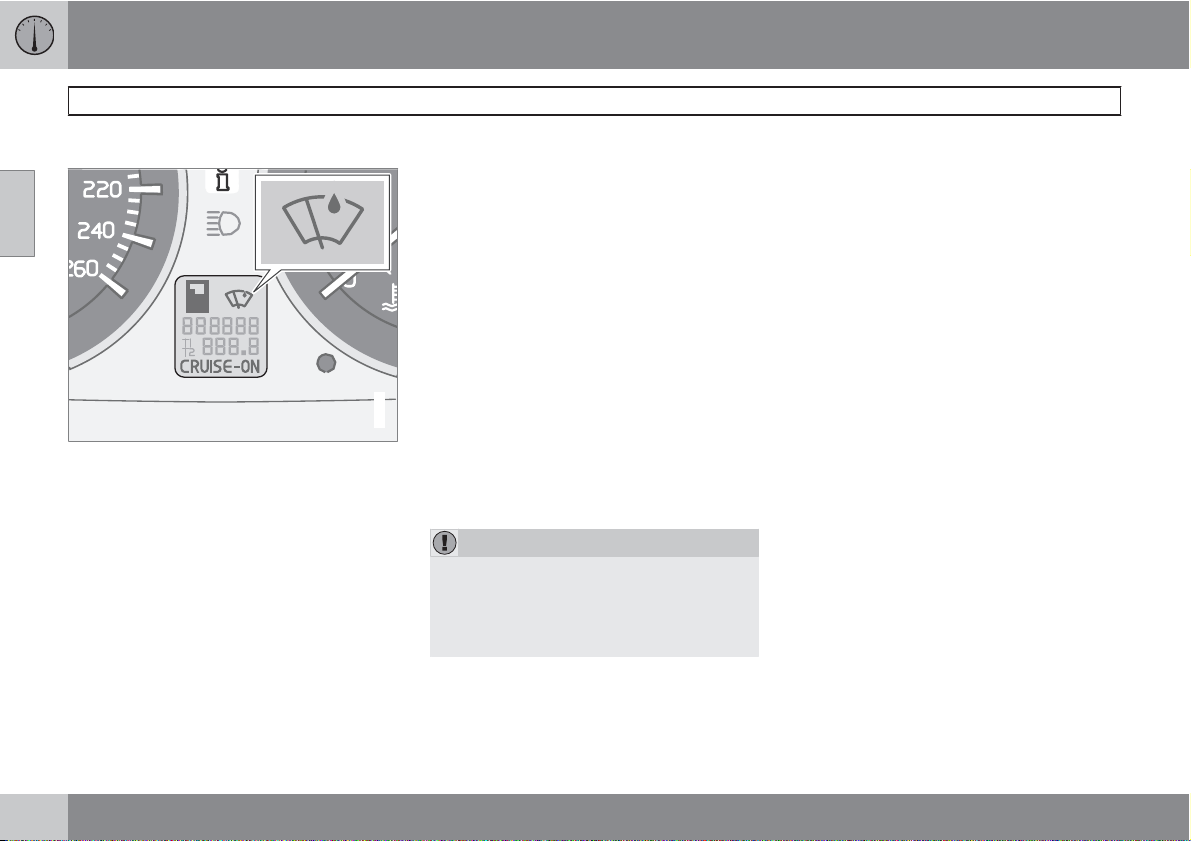

Indicator and warning symbols................. 52
Information display................................... 56
Electrical socket........................................ 58
Lighting panel........................................... 60
Left-hand stalk switch............................... 64
Right-hand stalk switch............................ 67

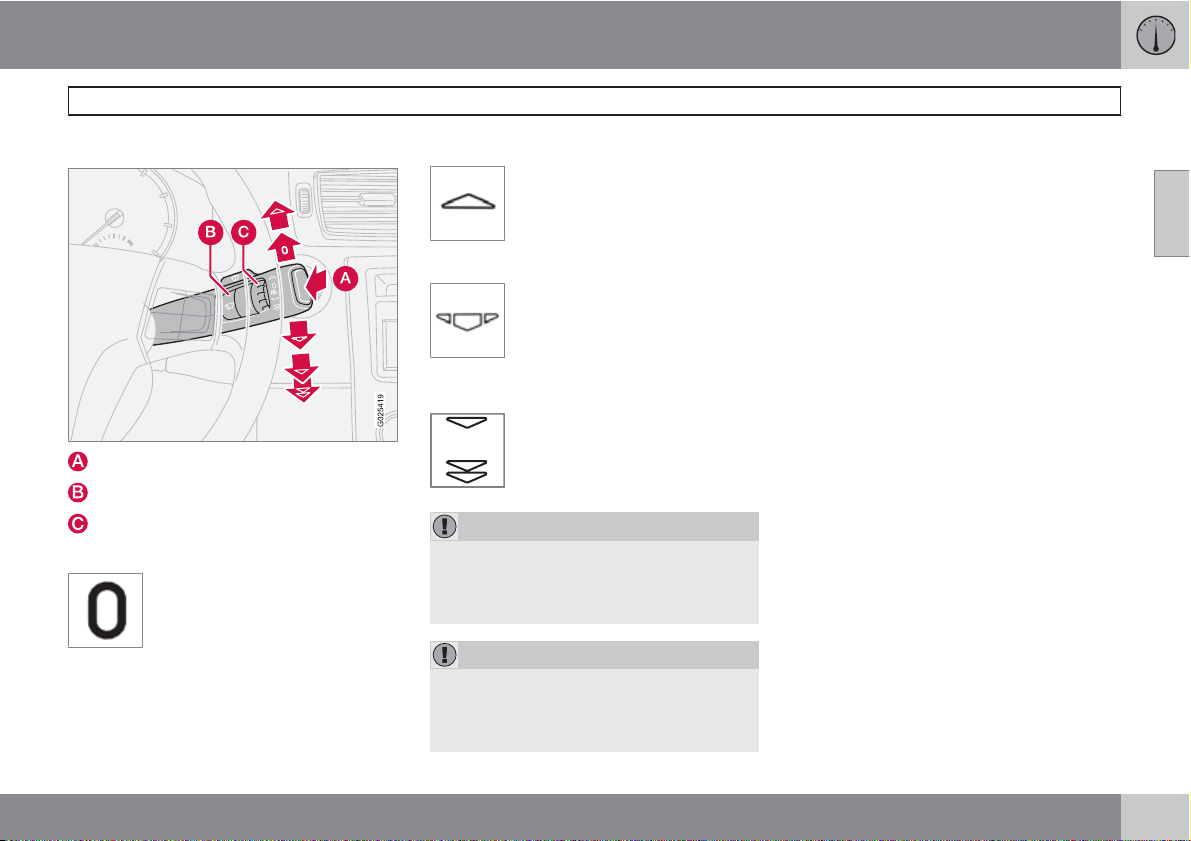

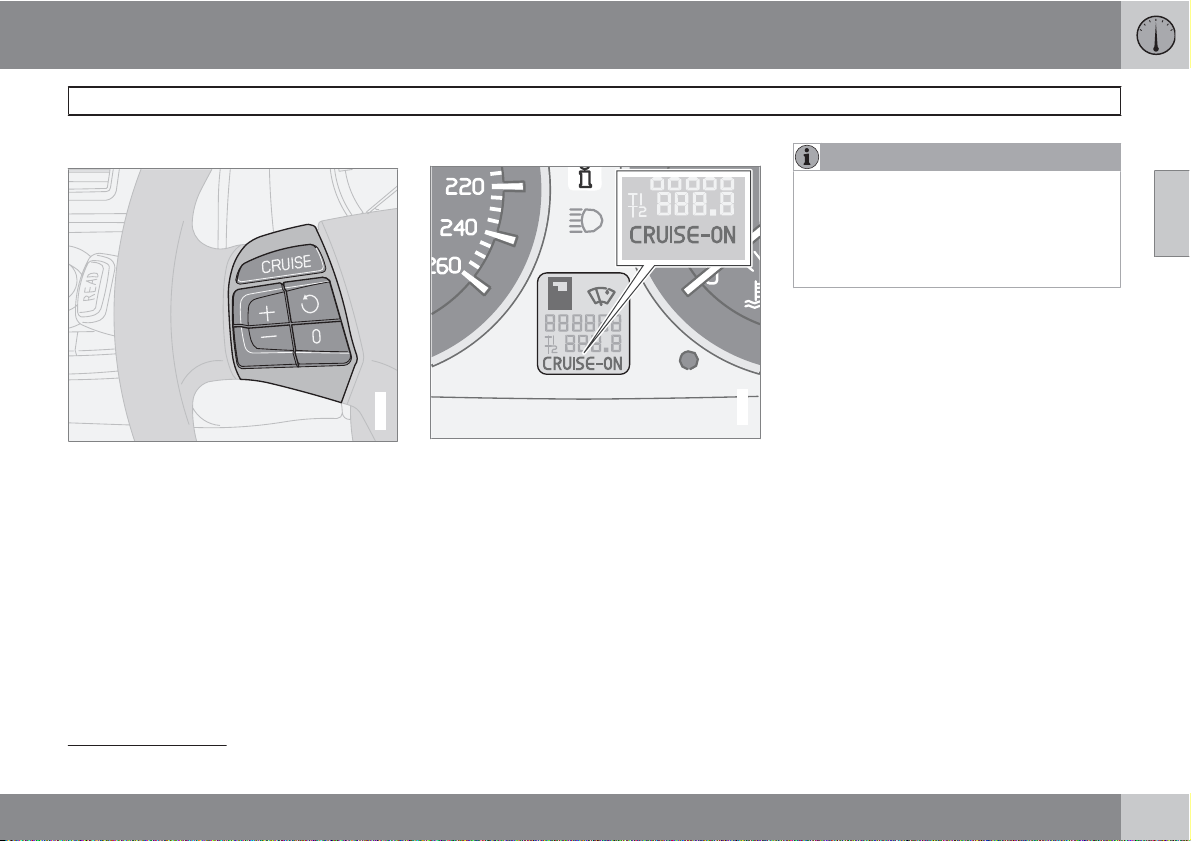

Cruise control*.......................................... 69
Keypad in the steering wheel*.................. 71
Steering wheel adjustment, hazard warn-
ing flashers................................................ 72
Parking brake............................................ 73
02

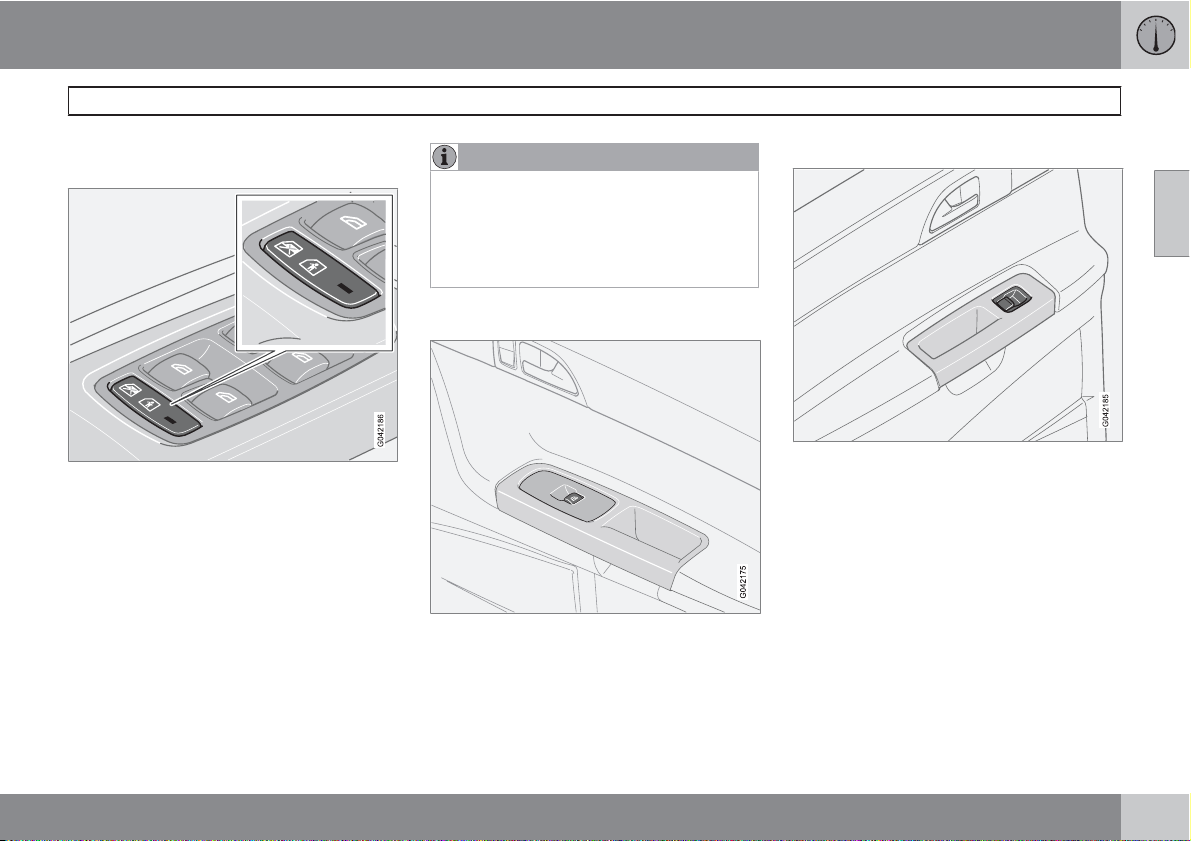

Power windows......................................... 74
Windows, rearview and door mirrors........ 76

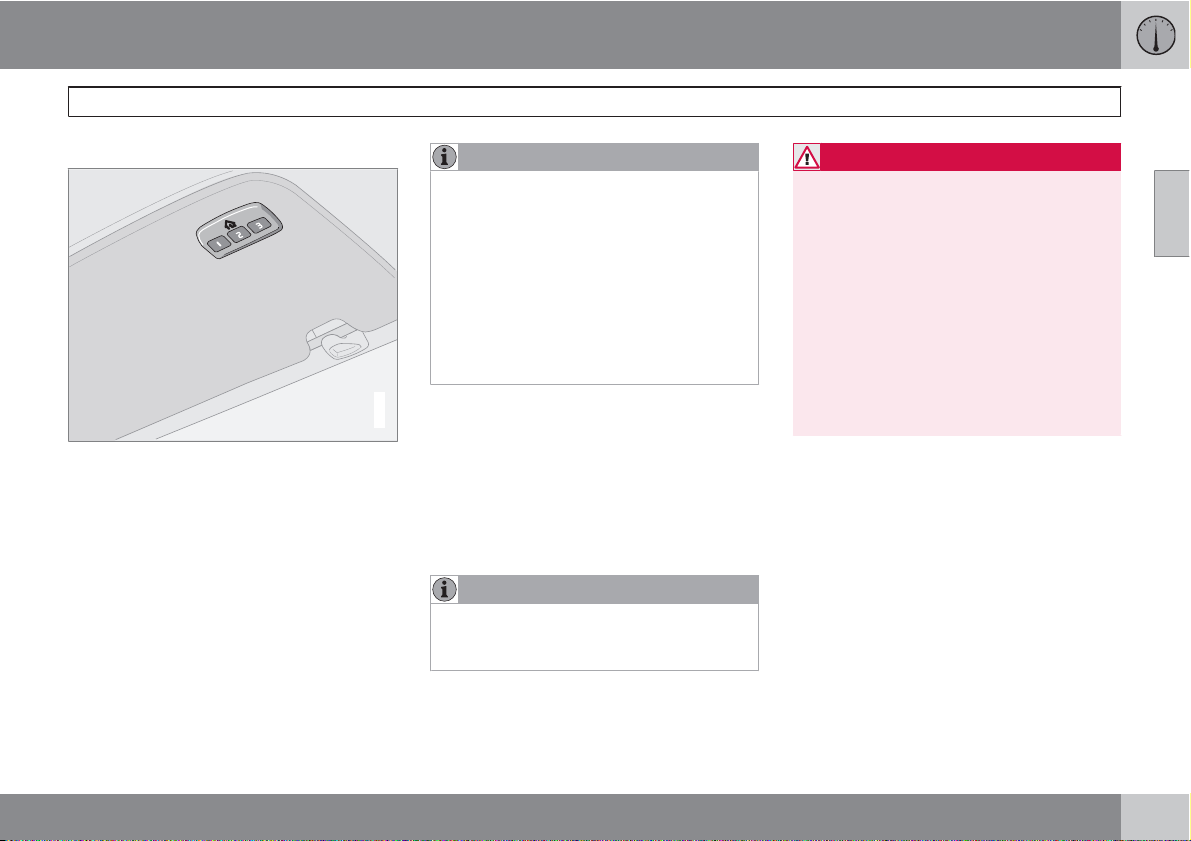

Power sunroof* ........................................ 80
Personal preferences................................ 82
HomeLink
*.............................................. 85
2
* Option/accessory, for more information, see Introduction.
Page 5
Table of contents
03 Climate control
General information on climate control..... 90
Manual climate control, AC....................... 92

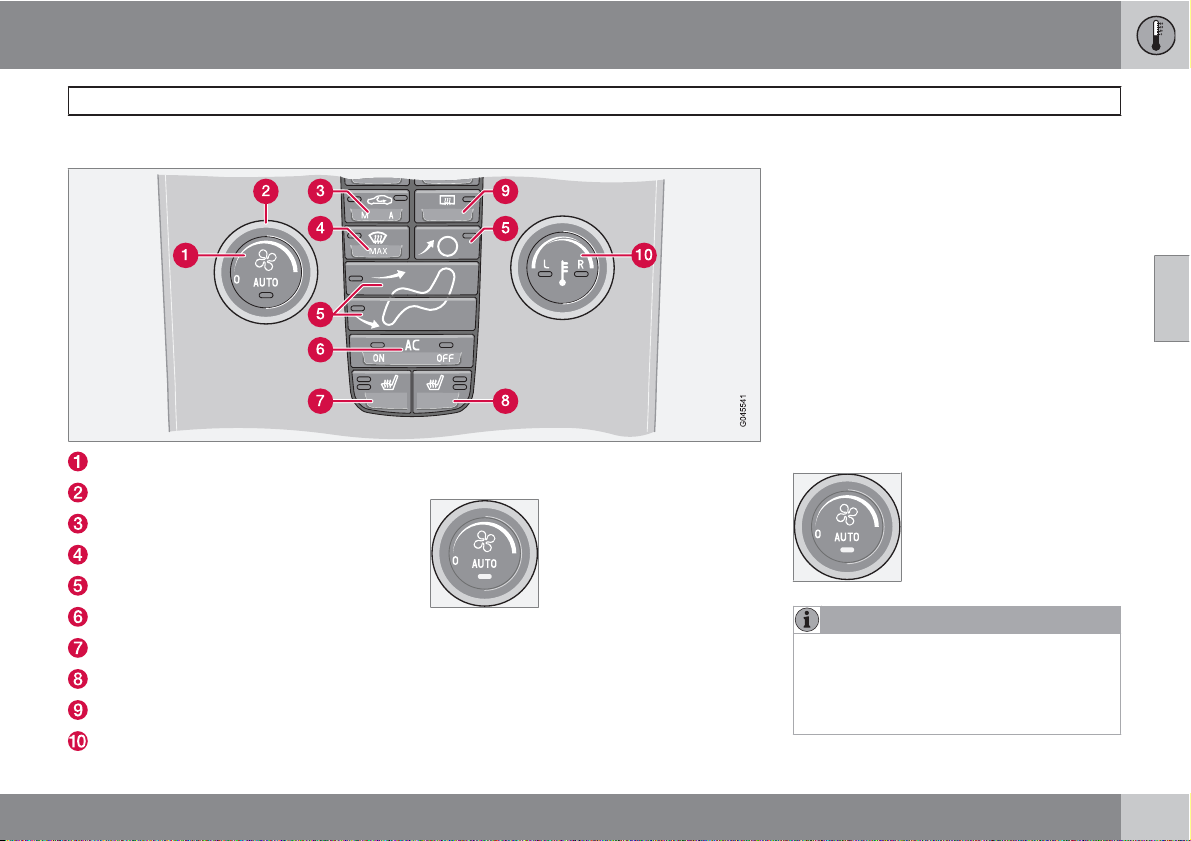

Electronic climate control, ECC*............... 95

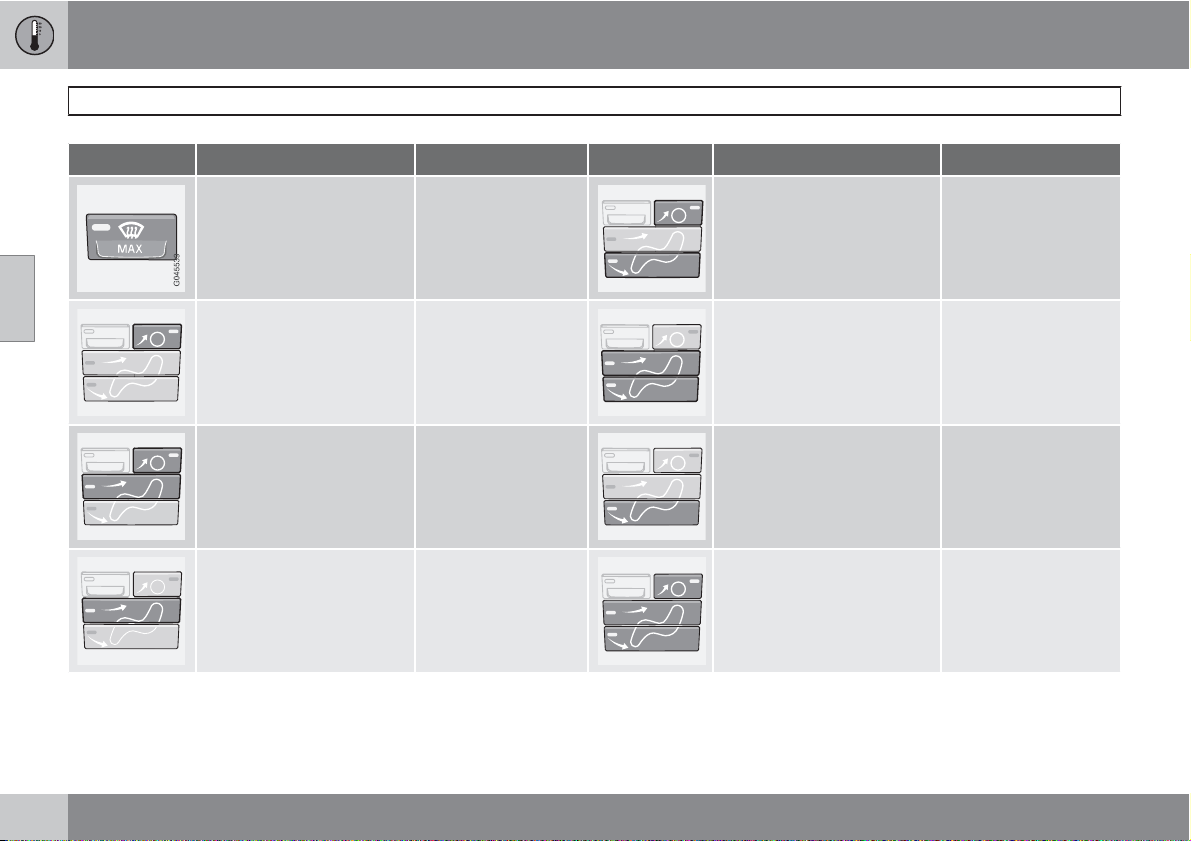

Air distribution........................................... 98
Fuel-driven engine block heater and pas-
senger compartment heater*.................... 99
Fuel-driven auxiliary heater* (diesel)....... 102
03
04 Interior
Front seats.............................................. 106
Interior lighting........................................ 108
Storage spaces in the passenger com-
partment.................................................. 110
Rear seat................................................. 114
Cargo area.............................................. 116
04
05 Locks and alarm
Remote control key with key blade......... 120
Active locks............................................. 123
Privacy locking*....................................... 124
Keyless drive*.......................................... 126
Battery in remote control key.................. 129
Locking and unlocking............................ 130
Child safety locks.................................... 133
Alarm*..................................................... 134
05
* Option/accessory, for more information, see Introduction.
3
Page 6
Table of contents
06 Starting and driving
General.................................................... 140
Refuelling................................................ 142
Alcolock*................................................. 146
Starting the engine.................................. 150
Starting the engine – Flexifuel................. 152
Keyless drive*.......................................... 154
Manual gearbox...................................... 155
Automatic gearbox.................................. 156
DRIVe Start-Stop*................................... 161
Brake system.......................................... 165
DSTC – Stability and traction control sys-
tem*......................................................... 167
Park Assist*............................................. 169
BLIS* – Blind Spot Information System. . 171
Towing and recovery.............................. 174
06
Start assistance...................................... 177
Driving with a trailer................................ 178
Towing equipment*................................. 180
Detachable towbar* ............................... 182
Loading................................................... 186
Adjusting headlamp pattern.................... 187
07 Wheels and tyres
General.................................................... 190
Tyre pressure.......................................... 194
Warning triangle* and spare wheel * ...... 195
Changing wheels.................................... 198
Emergency puncture repair*................... 200
07
08 Car care
Cleaning.................................................. 206
Touching up paintwork........................... 210
Rustproofing........................................... 211
08
4
* Option/accessory, for more information, see Introduction.
Page 7
Table of contents
09 Maintenance and service
Volvo service........................................... 214
Self-maintenance.................................... 215
Bonnet and engine compartment........... 216
Oils and fluids......................................... 218
Wiper blades........................................... 224
Battery..................................................... 225
Replacing bulbs...................................... 229
Fuses...................................................... 235
09
10 Infotainment system
General.................................................... 246
Audio functions....................................... 248
Radio functions....................................... 253
CD functions........................................... 258
Menu structure – audio system.............. 261
Phone functions*..................................... 262
Menu structure – phone*......................... 269
Bluetooth handsfree*.............................. 272
10
11 Specifications
Type designation..................................... 280
Dimensions and weights......................... 282
Engine specifications.............................. 285
Engine oil................................................ 286
Fluids and lubricants............................... 288
Fuel......................................................... 291
Wheel and tyres, dimensions and pres-
sure ........................................................ 292
Electrical system..................................... 294
Type approval......................................... 296
Symbols in the display............................ 297
11
* Option/accessory, for more information, see Introduction.
5
Page 8
Table of contents
12 Alphabetical Index
Alphabetical Index.................................. 300
12
6
Page 9
Table of contents
7
Page 10
Introduction
Important information
Reading the Owner's Manual
Introduction
A good way of getting to know your new car is
to read the owner's manual, ideally before your
first journey. This will give you the opportunity
to familiarise yourself with new functions, to
see how best to handle the car in different situations, and to make the best use of all the
car's features. Please pay attention to the
safety instructions contained in the manual.
The specifications, design features and illustrations in this owner's manual are not binding.
We reserve the right to make modifications
without prior notice.
©
Volvo Car Corporation
Option
All types of option/accessory are marked with
an asterisk*.
In addition to standard equipment, this manual
also describes options (factory fitted equipment) and certain accessories (retrofitted extra
equipment).
The equipment described in the owner's manual is not available in all cars - they have different equipment depending on adaptations
for the needs of different markets and national
or local laws and regulations.
In the event of uncertainty over what is standard or an option/accessory, contact a Volvo
dealer.
Special texts
WARNING
Warning texts advise of a risk of personal
injury.
IMPORTANT
Important texts advise of a risk of material
damage.
NOTE
NOTE texts give advice or tips that facilitate
the use of features and functions for example.
Footnote
There is footnote information in the owner's
manual that is located at the bottom of the
page. This information is an addition to the text
that it refers to via a number. If the footnote
refers to text in a table then letters are used
instead of numbers for referral.
Message texts
There are displays in the car that show text
messages. These text messages are high-
lighted in the owner's manual by means of the
text being slightly larger and printed in grey.
Examples of this are in menu texts and message texts on the information display (e.g.
AUDIO SETTINGS).
Decals
The car contains different types of decal which
are designed to convey important information
in a simple and clear manner. The decals in the
car have the following descending degree of
importance for the warning/information.
Warning for personal injury
G031590
Black ISO symbols on yellow warning field,
white text/image on black message field. Used
to indicate the presence of danger which, if the
8
* Option/accessory, for more information, see Introduction.
Page 11
Introduction
Important information
warning is ignored, may result in serious personal injury or fatality.
Risk of property damage
White ISO symbols and white text/image on
black or blue warning field and message field.
Used to indicate the presence of danger which,
if the warning is ignored, may result in damage
to property.
Information
White ISO symbols and white text/image on
G031592
black message field.
NOTE
The labels shown in the owner's manual are
not provided as exact reproductions of
those in the car. The purpose is to show
their approximate appearance and location
in the car. The information that applies to
your car in particular is available on the label
in question in your car.
Procedure lists
Procedures where action must be taken in a
certain sequence are numbered in the owner's
manual.
When there is a series of illustrations for
step-by-step instructions each step is
numbered in the same way as the corresponding illustration.
There are numbered lists with letters adjacent to the series of illustrations where the
order of the instructions is not significant.
Arrows appear numbered and unnum-
G031593
bered and are used to illustrate a movement.
If there is no series of illustrations for step-bystep instructions then the different steps are
numbered with normal numbers.
Position lists
Red circles containing a number are used
in overview images where different components are pointed out. The number
recurs in the position list featured in connection with the illustration that describes
the item.
Bulleted lists
A bulleted list is used when there is a list of
points in the owner's manual.
Example:
9
Page 12
Introduction
Important information
Coolant
•
Engine oil
•
To be continued
``` This symbol is located furthest down to the
right when a section continues on the following
page.
Recording data
Your vehicle contains a number of computers
whose function is to continuously check and
monitor the vehicle's operation and functionality. Some of the computers can record information during normal driving if they detect an
error. In addition, information is recorded in the
event of a crash or incident. Parts of the recorded information are required so that technicians can diagnose and rectify faults in the
vehicle during servicing and maintenance and
so that Volvo can fulfil legal requirements and
other regulations. In addition to this, the information is used for research purposes by Volvo
in order to continually develop quality and
safety, as the information can contribute to a
better understanding of the factors that cause
accidents and injuries. The information
includes details of the status and functionality
of various systems and modules in the vehicle
with regard to engine, throttle, steering and
brake systems, amongst other things. This
information may include details regarding the
way the driver drives the vehicle, such as vehicle speed, brake and accelerator pedal use,
steering wheel movement and whether or not
the driver and passengers have used their
seatbelts. For the reasons given this information may be stored in the vehicle's computers
for a certain length of time, but also as a result
of a collision or incident. This information may
be stored by Volvo as long as it can help to
further develop and further enhance safety and
quality and as long as there are legal requirements and other regulations that Volvo needs
to consider.
Volvo will not contribute to the above-described information being disclosed to third parties
without the vehicle owner's consent. However,
due to national legislation and regulations
Volvo may be required to disclose such information to authorities such as police authorities,
or others who may assert a legal right to have
access to it.
To be able to read and interpret the information
recorded by the computers in the vehicle
requires special technical equipment that
Volvo, and workshops that have entered into
agreements with Volvo, have access to. Volvo
is responsible that the information, which is
transferred to Volvo during servicing and maintenance, is stored and handled in a secure
manner and that the handling complies with
applicable legal requirements. For further information - contact a Volvo dealer.
Accessories and extra equipment
The incorrect connection and installation of
accessories can negatively affect the car's
electrical system. Certain accessories only
function when their associated software is
installed in the car's computer system. We
therefore recommend that you always contact
an authorised Volvo workshop before installing
accessories which are connected to or affect
the electrical system.
Change of ownership for cars with
Volvo On Call *
Volvo On Call is a supplemental service that
consists of safety, security and comfort services. If the car has Volvo On Call and there is a
change of owner, it is very important that these
services are discontinued so that the former
owner cannot access the services in the car.
Contact the call centre by pressing the ON
CALL button in the car or contact an authorised Volvo workshop. See also "Changing the
security code" in the owner's manual for Volvo
On Call.
10
* Option/accessory, for more information, see Introduction.
Page 13
Information on the Internet
At www.volvocars.com there is further information concerning your car.
Introduction
Important information
11
Page 14
Introduction
Volvo and the environment
Volvo Cars' environmental philosophy
G000000
Environmental care is one of Volvo Car Corporation's core values which influence all operations. We also believe that our customers share
our consideration for the environment.
Your Volvo complies with strict international
environmental standards and is also manufactured in one of the cleanest and most resourceefficient plants in the world. Volvo Car Corporation has global ISO certification, which
includes the environmental standard ISO
14001 covering all factories and several of our
other units. We also set requirements for our
partners so that they work systematically with
environmental issues.
12
* Option/accessory, for more information, see Introduction.
Fuel consumption
Volvo cars have competitive fuel consumption
in each of their respective classes. Lower fuel
consumption generally results in lower emission of the greenhouse gas, carbon dioxide.
It is possible for the driver to influence fuel consumption. For more information read under the
heading, Reducing environmental impact.
Efficient emission control
Your Volvo is manufactured following the concept "Clean inside and out" – a concept that
encompasses a clean interior environment as
well as highly efficient emission control. In
many cases the exhaust emissions are well
below the applicable standards.
Clean air in the passenger compartment
A passenger compartment filter prevents dust
and pollen from entering the passenger compartment via the air intake.
A sophisticated air quality system, IAQS* (Interior Air Quality System) ensures that the incoming air is cleaner than the air in the traffic outside.
The system consists of an electronic sensor
and a carbon filter. The incoming air is monitored continuously and if there is an increase in
Page 15
Introduction
Volvo and the environment
the level of certain unhealthy gases such as
carbon monoxide then the air intake is closed.
Such a situation may arise in heavy traffic,
queues and tunnels for example.
The entry of nitrous oxides, ground-level ozone
and hydrocarbons is prevented by the carbon
filter.
Interior
The interior of a Volvo is designed to be pleasant and comfortable, even for people with
contact allergies and for asthma sufferers.
Extreme attention has been given to choosing
environmentally-compatible materials.
Volvo workshops and the environment
Regular maintenance creates the conditions
for a long service life and low fuel consumption
for your car. In this way you contribute to a
cleaner environment. When Volvo's workshops
are entrusted with the service and maintenance of your car it becomes part of our system. We make clear demands regarding the
way in which our workshops are designed in
order to prevent spills and discharges into the
environment. Our workshop staff have the
knowledge and the tools required to guarantee
good environmental care.
Reducing environmental impact
You can easily help reduce environmental
impact - here are a few tips:
Avoid letting the engine idle - switch off the
•
engine when stationary for longer periods.
Pay attention to local regulations.
Drive economically - think ahead.
•
Perform service and maintenance in
•
accordance with the owner's manual's
instructions - follow the Service and Warranty Booklet's recommended intervals.
If the car is equipped with an engine block
•
heater*, use it before starting from cold - it
improves starting capacity and reduces
wear in cold weather and the engine reaches normal operating temperature more
quickly, which lowers consumption and
reduces emissions.
High speed increases consumption con-
•
siderably due to increased wind resistance
- a doubling of speed increases wind resistance 4 times.
Always dispose of environmentally hazar-
•
dous waste, such as batteries and oils, in
an environmentally safe manner. Consult a
workshop in the event of uncertainty about
how this type of waste should be discarded
- an authorised Volvo workshop is recommended.
Following this advice can save money, the
planet's resources are saved, and the car's
durability is extended. For more information
and further advice, see the pages 140 and
291.
Recycling
As a part of Volvo's environmental work, it is
important that the car is recycled in an environmentally sound manner. Almost all of the
car can be recycled. The last owner of the car
is therefore requested to contact a dealer for
referral to a certified/approved recycling
facility.
The owner's manual and the
environment
The Forest Stewardship Council symbol
shows that the paper pulp in this publication
comes from FSC
controlled sources.
certified forests or other
* Option/accessory, for more information, see Introduction.
13
Page 16
Seatbelts................................................................................................. 16
Airbag system......................................................................................... 19
Airbags.................................................................................................... 20
Activating/deactivating the airbag*......................................................... 22
Side airbags (SIPS bags)........................................................................ 24
Inflatable Curtain (IC).............................................................................. 26
WHIPS..................................................................................................... 27
When the systems deploy....................................................................... 29
Crash mode............................................................................................ 30
Child safety............................................................................................. 31
14
* Option/accessory, for more information, see Introduction.
Page 17
SAFETY
Page 18
01 Safety
01
Seatbelts
General information
Tensioning the hip strap. The belt must be positioned low down.
Heavy braking can have serious consequences
if the seatbelts are not used. Ensure that all
passengers use their seatbelts. It is important
that the seatbelt lies against the body so it can
provide maximum protection. Do not lean the
backrest too far back. The seatbelt is designed
to protect in a normal seating position.
Putting on a seatbelt
– Pull the seatbelt out slowly and secure it by
pressing the buckle into the lock. A loud
"click" indicates that the seatbelt has
locked.
Releasing the seatbelt
– Press the red lock button and then let the
seatbelt retract. If the seatbelt does not
retract fully, feed the seatbelt in by hand so
that it does not hang loose.
The seatbelt locks and cannot be withdrawn:
if it is pulled out too quickly
•
during braking and acceleration
•
if the car leans heavily.
•
Keep in mind the following
G020104
prevent the seatbelt from fitting properly
ensure that the seatbelt is not twisted or
•
caught on anything
the hip strap must be positioned low down
•
(not over the abdomen)
tension the hip strap over the lap by pulling
•
the diagonal shoulder belt as illustrated.
do not use clips or anything else that can
•
WARNING
The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this
may diminish the protection provided by the
airbag in the event of a collision.
WARNING
Each seatbelt is designed for only one person.
WARNING
Never modify or repair the seatbelt yourself.
Volvo recommends that you contact an
authorised Volvo workshop. If the seatbelt
has been subjected to a major load, such as
in conjunction with a collision, the entire
seatbelt must be replaced. Some of the
seatbelt's protective properties may have
been lost even if the seatbelt does not
appear damaged. The seatbelt must also be
replaced if it shows signs of wear or damage. The new seatbelt must be typeapproved and designed for installation at
the same location as the replaced seatbelt.
16
Page 19
01 Safety
Seatbelts and pregnancy
The seatbelt should always be worn during
pregnancy. But it is crucial that it be worn in the
correct way. The diagonal section of the seatbelt should wrap over the shoulder then be
routed between the breasts and to the side of
the abdomen.
The lap section of the seatbelt should lay flat
over the thighs and as low as possible under
the abdomen. – It must never be allowed to ride
upward. Remove the slack from the seatbelt
and ensure that it fits as close to the body as
possible. In addition, check that there are no
twists in the seatbelt.
As a pregnancy progresses, pregnant drivers
should adjust their seats and steering wheel
such that they can easily maintain control of the
vehicle as they drive (which means that they
must be able to easily operate the foot pedals
and steering wheel). They should strive to position the seat with as large a distance as possible between their abdomen and the steering
wheel.
Seatbelt reminder
G020105
Unbelted occupants will be reminded to fasten
their seatbelts by means of an audio and visual
reminder. The audio reminder is speed
dependent, and in some cases time dependent. The visual reminder is located in the roof
console and the combined instrument panel.
Child seats are not covered by the seatbelt
reminder system.
Rear seat
The seatbelt reminder in the rear seat has two
subfunctions:
Provides information on which seatbelts
•
are being used in the rear seat. A message
appears in the information display when
the seatbelts are in use, or if one of the rear
doors has been opened. The message is
cleared automatically after driving for
approximately 30 seconds or after pressing the indicator stalk's READ button.
Provides a warning if one of the rear seat-
•
belts is unfastened during a journey. This
warning takes the form of a message on
the information display along with the
audio/visual signal. The warning ceases
when the seatbelt is re-fastened or when
acknowledged manually by pressing the
READ button.
The message on the information display show-
G018084
ing which seatbelts are in use is always available. Press the READ button to see stored
messages.
Certain markets
An audio signal and indicator lamp remind the
driver if not wearing a seatbelt to use one. At
low speed, the audio reminder will sound for
the first 6 seconds.
Seatbelts
01
``
17
Page 20
01 Safety
01
Seatbelts
Seatbelt tensioner
The front seatbelts and the two for the outer
rear seats are equipped with seatbelt tensioners. A mechanism in the seatbelt tensioner
tightens the seatbelt in the event of a sufficiently violent collision. The seatbelt then provides more effective restraint for occupants.
WARNING
Never insert the tongue of the passenger's
seatbelt into the buckle on the driver's side.
Always insert the tongue of the seatbelt into
the buckle on the correct side. Do not make
any damages on seatbelts nor insert any
foreign objects into a buckle. The seatbelts
and buckles would then possibly not function as intended in the event of a collision.
There is a risk of serous injury.
18
Page 21
01 Safety

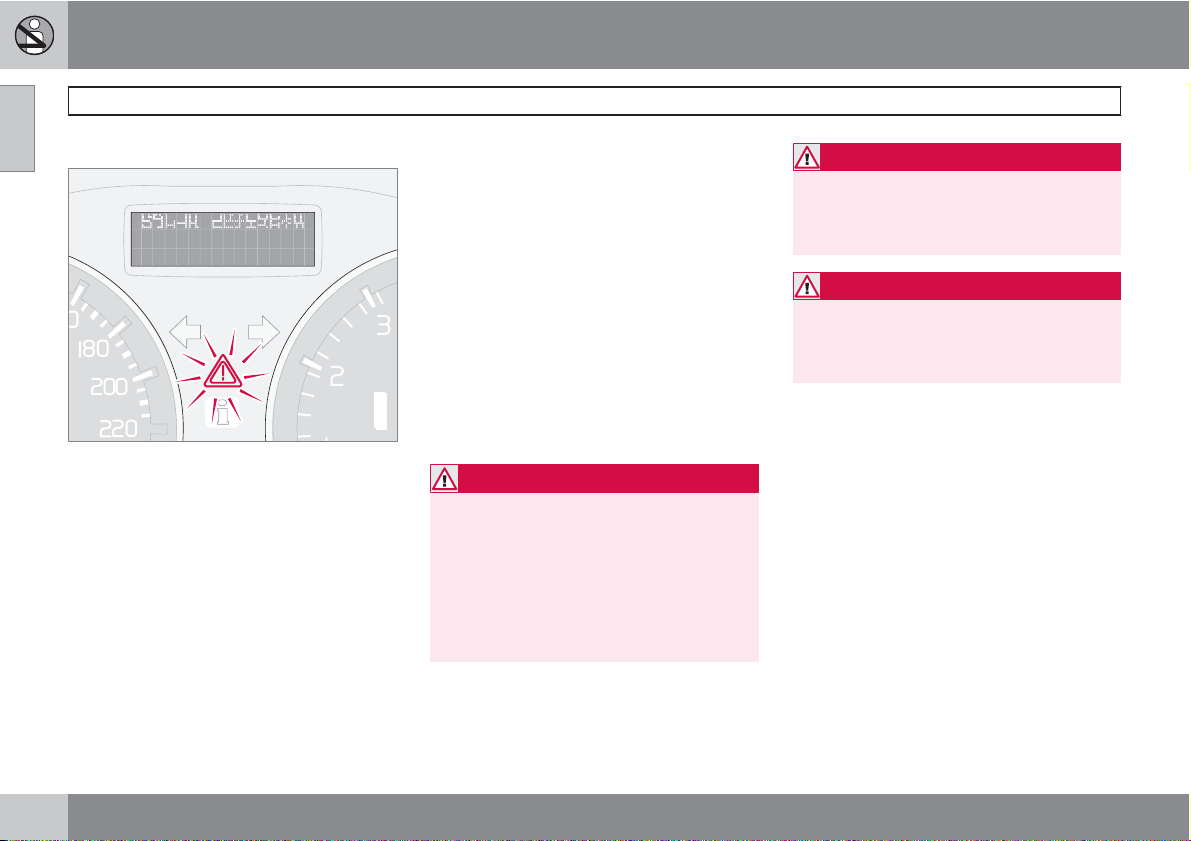

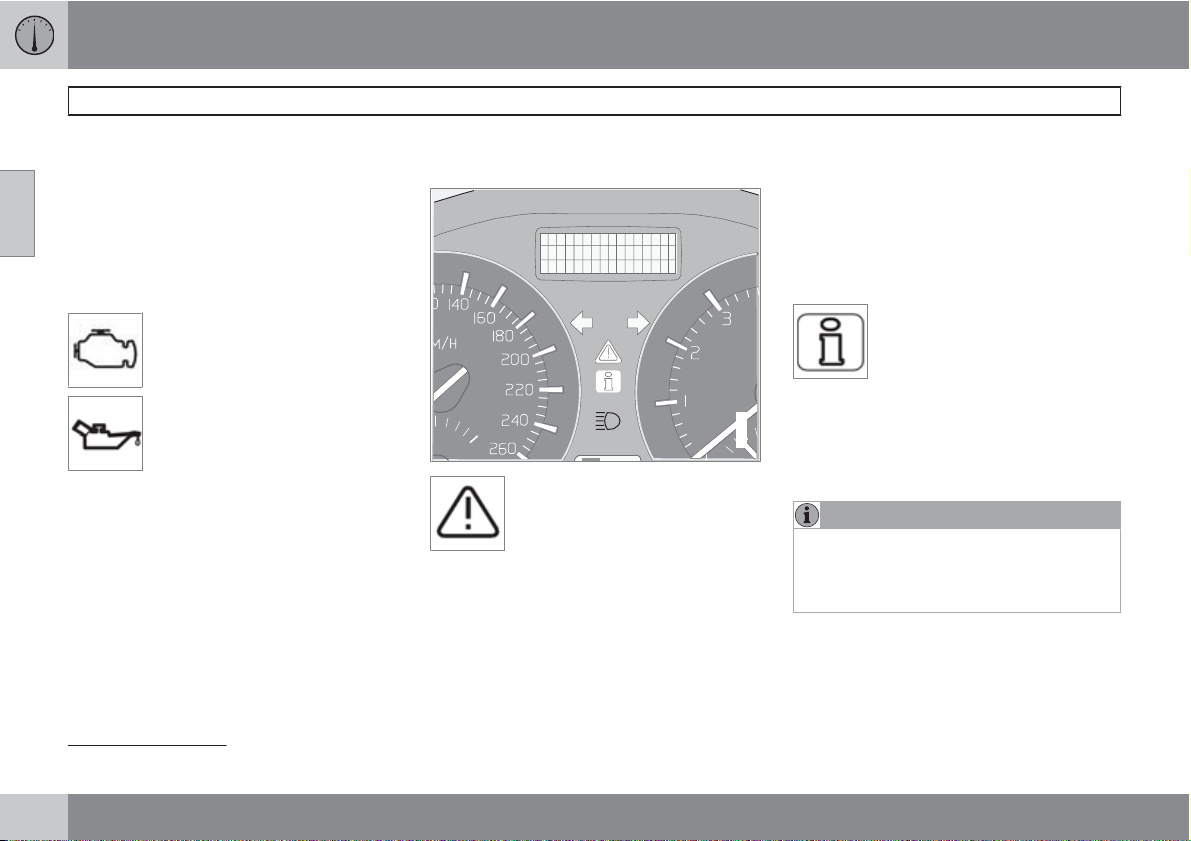

Warning symbol on the combined
instrument panel
The warning symbol in the combined instrument panel illuminates when the remote control key is turned to key position I, II or III. The
symbol goes out after approx. 6 seconds provided the airbag system is fault-free.
As well as the warning symbol, a
message may appear on the display in appropriate cases. If the
warning symbol malfunctions, the
warning triangle illuminates and
the message
SERVICE REQUIRED
AIRBAG SERVICE URGENT
appears in the display. Volvo recommends that you contact an authorised
Volvo workshop immediately.
SRS AIRBAG
or SRS
WARNING
If the warning symbol for the airbag system
remains illuminated or illuminates while driving, it means that the airbag system does
not have full functionality. The symbol indicates a fault in the seatbelt tensioner system, SIPS, SRS or the IC system. Volvo recommends that you contact an authorised
Volvo workshop immediately.
Airbag system
01
19
Page 22
01 Safety
01
Airbags
Airbag system
SRS system, left-hand drive
The system consists of airbags and sensors. A
sufficiently violent collision trips the sensors
and the airbag(s) are inflated with hot gas. To
cushion the impact, the airbag deflates when
compressed. When this occurs, smoke
escapes into the car. This is completely normal. The entire process, including inflation and
deflation of the airbag, takes place within
tenths of a second.
WARNING
Volvo recommends that you contact an
authorised Volvo workshop for repair.
Defective work in the airbag system could
cause malfunction and result in serious personal injury.
G020111
SRS system, right-hand drive
NOTE
The sensors react differently depending on
the course of the collision and whether or
not the seatbelts on the driver's side and
passenger side are used.
It is therefore possible that only one (or
none) of the airbags may inflate in a collision. The airbag system senses the force of
the collision on the car and adapts accordingly so that one or more airbags is
deployed.
The capacities of the airbags are also adapted to the collision force to which they are
subjected.
G020110
20
Page 23
01 Safety
Location of the passenger airbag in left-hand drive
and right-hand drive cars.
WARNING
Do not put objects in front of or above the
instrument panel where the passenger airbag is located.
Airbag on the driver's side
The car has an airbag to supplement the protection afforded by the seatbelt on the driver's
side. It is folded up into the centre of the steering wheel. The steering wheel is marked SRS
AIRBAG.
WARNING
The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this
may diminish the protection provided by the
airbag in the event of a collision.
G020113
Passenger airbag
The car has an airbag to supplement the protection afforded by the seatbelt on the passenger side. It is folded up into a compartment
above the glovebox. The cover panel is marked
SRS AIRBAG.
WARNING
To minimise the risk of injury if the airbag
deploys, passengers must sit as upright as
possible with their feet on the floor and back
against the backrest. Seatbelts must be
secured.
Airbags
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
is activated.
Never allow anybody to stand or sit in front
of the front passenger seat. Children under
140 cm must never sit in the front passenger
seat if the airbag is activated.
Failure to follow the advice given above can
endanger life.
1
01
1
For information on activated/deactivated airbag, see page 22.
21
Page 24
01 Safety
01
Activating/deactivating the airbag*
Key switch off - PACOS*
General information
The airbag for the front passenger seat can be
deactivated if the car is equipped with a switch,
PACOS (Passenger Airbag Cut Off Switch). For
information on how to activate/deactivate, see
under the heading Activating/deactivating.
Key switch off/switch
The switch for the passenger airbag (PACOS)
is located on the passenger end of the instrument panel and is accessible when the passenger door is open, (see under the heading
below, Activating/deactivating).
Check that the switch is in the required position. Volvo recommends that the key blade is
used to change position.
For information on the key blade, see
page 121.
WARNING
Failure to follow the advice given above can
endanger life.
WARNING
If the car is equipped with a front passenger
airbag, but does not have a switch (PACOS),
then the airbag will always be activated.
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
is activated and the symbol
console is illuminated. Failure to follow this
advice could endanger the life of the child.
in the roof
WARNING
Do not allow anyone to sit in the front passenger seat if the text message in the roof
console indicates that the airbag is deactivated, and if the warning symbol for the airbag system is also displayed on the combined instrument panel. This indicates that
there has been a severe malfunction. Volvo
recommends that you visit an authorised
Volvo workshop as soon as possible.
Activating/deactivating
Switch location
The airbag is activated. With the switch in
this position, children taller than 140 cm
can sit in the front passenger seat, but
never children in a child seat or on a
booster cushion.
The airbag is deactivated. With the switch
in this position, children in a child seat or
on a booster cushion can sit in the front
passenger seat, but never persons taller
than 140 cm.
22
* Option/accessory, for more information, see Introduction.
Page 25
01 Safety
WARNING
Activated airbag (passenger seat):
Never place a child in a child seat or on a
booster cushion on the front passenger seat
when the airbag is activated. This applies to
everyone shorter than 140 cm.
Deactivated airbag (passenger seat):
No one taller than 140 cm should ever sit in
the front passenger seat when the airbag is
deactivated.
Failure to follow the advice given above can
endanger life.
Messages
2
A text message and a symbol in the roof console indicate that the airbag for the front passenger seat is deactivated (see preceding illustration).
Indicator showing that the passenger airbag is
activated.
A warning symbol in the roof console indicates
that the airbag for the front passenger seat is
activated (see preceding illustration).
Activating/deactivating the airbag*
NOTE
When the remote control key is turned to
key position II or III the warning symbol for
the airbag is displayed on the combined
instrument panel for approx. 6 seconds, see
page 19.
Following which, the indicator in the roof
console is illuminated showing the correct
status for the front passenger seat airbag.
For more information about the different key
positions, see page 150.
G018083
01
Indicator showing that the passenger airbag is
deactivated.
G018082
* Option/accessory, for more information, see Introduction.
23
Page 26
01 Safety
01
Side airbags (SIPS bags)
Side airbag
Side airbag locations.
In a side impact collision a large proportion of
the collision force is transferred by the SIPS
(Side Impact Protection System) to beams, pillars, the floor, the roof and other structural
parts of the body. The side airbags at the driver's and front passenger seats protect the
chest area and are an important part of the
SIPS. The side airbags are located in the front
seat backrests.
WARNING
Volvo recommends that repairs are only
•
carried out by an authorised Volvo
workshop. Defective work in the SIPSbag system could cause malfunction
and result in serious personal injury.
Do not place any objects in the area
•
between the outside of the seat and the
door panel, since this area is required
by the side airbag.
Volvo recommends the use only of car
•
seat covers approved by Volvo. Other
seat covers may impede the operation
G020118
of the side airbags.
Side airbags are a supplement the seat-
•
belts. Always use a seatbelt.
Child seats and side airbags
The protection provided by the car to children
seated in a child seat or on a booster cushion
is not diminished by the side airbag.
A child seat or booster cushion can be placed
on the front passenger seat provided that the
car does not have an activated
bag.
1
Location
Driver's seat, left-hand drive.
passenger air-
1
For information on activated/deactivated airbag (SRS), see page 22.
24
Page 27
01 Safety
Front passenger seat, left-hand drive.
The SIPS bag system consists of side airbags
and sensors. A sufficiently violent collision trips
the sensors and the side airbags are inflated.
The airbag inflates between the occupant and
the door panel and thereby cushions the initial
impact. The airbag deflates when compressed
by the collision. The side airbag is normally only
deployed on the side of the collision.
Side airbags (SIPS bags)
01
25
Page 28
01 Safety
01
Inflatable Curtain (IC)
Properties
The inflatable curtain IC (Inflatable Curtain) is a
part of SIPS and the airbags. It is fitted in the
headlining along both sides of the roof and
protects the car's occupants sitting in the outer
seats. A sufficiently violent collision trips the
sensors and the inflatable curtain is inflated.
The inflatable curtain helps to prevent the
driver and passengers from striking their heads
on the inside of the car during a collision.
WARNING
Never hang or attach heavy items onto the
handles in the roof. The hook is only
designed for light clothing (not for solid
objects such as umbrellas for example).
Do not screw or install anything onto the
car's headlining, door pillars or side panels.
This could compromise the intended protection. Volvo recommends that you only
ever use Volvo genuine parts that are
approved for placement in these areas.
G015265
WARNING
Do not load the car higher than 50 mm under
the top edge of the side windows. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.
WARNING
The inflatable curtain is a supplement to the
seatbelts.
Always use a seatbelt.
26
Page 29
01 Safety
Protection against whiplash injury – WHIPS
The whiplash protection system (WHIPS) consists of energy absorbing backrests and specially designed head restraints for the front
seats. The system is actuated by a rear-end
collision, where the angle and speed of the collision, and the nature of the colliding vehicle all
have an influence.
WARNING
The WHIPS system is a supplement to the
seatbelts. Always use a seatbelt.
Properties of the seat
When the WHIPS system is deployed, the front
seat backrests are lowered backward to alter
the seating position of the driver and front seat
passenger. This reduces the risk of whiplash
injury.
WARNING
Never modify or repair the seat or WHIPS
system yourself. Volvo recommends that
you contact an authorised Volvo workshop.
G020347
WHIPS system and child seats/booster
cushions
The protection provided by the car to children
seated in a child seat or on a booster cushion
is not diminished by the WHIPS system.
Correct seating position
For the best possible protection, the driver and
front seat passenger should sit in the centre of
the seat with as little space as possible
between the head and the head restraint.
WHIPS
01
27
Page 30
01 Safety
01
WHIPS
Do not obstruct the WHIPS system
Do not leave any objects on the floor behind the
driver's seat/passenger seat that may prevent the
WHIPS system from functioning.
WARNING
Do not squeeze rigid objects between the
rear seat cushion and the front seat backrest. Make sure you do not to obstruct the
function of the WHIPS system.
G020125
Do not place objects in the rear seat that may prevent the WHIPS system from functioning.
WARNING
If a rear seat backrest is folded down, the
corresponding front seat must be moved
forward so that it does not touch the folded
backrest.
WARNING
If a seat has been subjected to extreme
forces, such as due to a rear-end collision,
the WHIPS system must be checked. Volvo
recommends that it is checked by an
authorised Volvo workshop.
Part of the WHIPS system's protective
capacity may have been lost even if the
seats appear to be undamaged.
Volvo recommends that you contact an
authorised Volvo workshop to have the system checked even after a minor rear-end
collision.
G020126
28
Page 31
01 Safety
When the systems deploy
Activating the systems
System Triggered
Seatbelt tensioner, front seat In a frontal collision and/or side-impact accident and/or rear-end collision
Seatbelt tensioner, outside rear seat In a frontal collision
Airbags
Side airbags (SIPS)
Inflatable Curtain IC
Whiplash protection WHIPS In a rear-end collision
A
The bodywork of the car could be greatly deformed in a collision without airbag deployment. A number of factors such as the rigidity and weight of the object hit, the speed of the car, the angle of
the collision etc. affects how the different safety systems of the car are activated.
If the airbags have been deployed, the following is recommended:
Recovering the car. Volvo recommends
•
that you have it conveyed to an authorised
Volvo workshop. Do not drive with
deployed airbags.
Volvo recommends that you engage an
•
authorised Volvo workshop to handle the
replacement of components in the car's
safety systems.
Always contact a doctor.
•
The airbag, SIPS, IC and belt tensioner systems are deployed only once during a collision
The airbag system's control module is
located in the centre console. If the centre
console is drenched with water or other liquid, disconnect the battery cables. Do not
attempt to start the car since the airbags
may deploy. Recovering the car. Volvo recommends that you have it conveyed to an
authorised Volvo workshop.
In a frontal collision
In a side-impact accident
In a side-impact accident
NOTE
WARNING
A
A
A
WARNING
Never drive with deployed airbags. They
can make steering difficult. Other safety
systems may also be damaged. The smoke
and dust created when the airbags are
deployed can cause skin and eye irritation/
injury after intensive exposure. In case of
irritation, wash with cold water. The rapid
deployment sequence and airbag fabric
may cause friction and skin burns.
01
29
Page 32
01 Safety
01
Crash mode
Driving after a collision
If the car is involved in a collision, the text
CRASH MODE SEE MANUAL may appear on
the information display. This means that the car
has reduced functionality. Crash mode is a
protective state that is enforced when the collision may have damaged any of the car's vital
functions, such as the fuel lines, sensors for
one of the safety systems, or the brake system.
Attempting to start the car
First, check that no fuel is leaking from the car.
There must be no smell of fuel either.
If everything seems normal and you have
checked for indications of fuel leakage, you
may attempt to start the car.
Firstly, remove the remote control key and then
reinsert it. The car's electronics will then try to
reset themselves to normal mode. Then try to
start the car. If
MANUAL
car must not be driven or towed. Even if the car
appears to be driveable, hidden damage may
make the car impossible to control once moving.
CRASH MODE SEE
is still shown on the display then the
Moving the car
If NORMAL MODE is shown after CRASH
MODE SEE MANUAL
can be moved carefully out of a dangerous
position. Do not move the car further than nec-
G029042
essary.
has been reset, the car
WARNING
Never attempt to repair your car or reset the
electronics yourself if the car has been in
crash mode. This could result in personal
injury or the car not functioning as normal.
Volvo recommends that you always engage
an authorised Volvo workshop to check and
restore the car to
CRASH MODE SEE MANUAL has been
displayed.
NORMAL MODE after
WARNING
Never, under any circumstances, attempt to
restart the car if it smells of fuel when the
CRASH MODE SEE MANUAL message is
displayed. Leave the car at once.
WARNING
If the car is in crash mode it must not be
towed. It must be transported from its location. Volvo recommends that you have it
conveyed to an authorised Volvo workshop.
30
Page 33
01 Safety
Children should sit comfortably and
safely
Volvo recommends that children travel in rearfacing child seats until as late an age as possible, at least until 3-4 years of age, and then
front-facing booster cushions/child seats until
up to 10 years of age.
The position of a child in the car and the choice
of equipment are dictated by the child's weight
and size, for more information, see page 33.
NOTE
Regulations regarding the placement of
children in cars vary from country to country. Check what does apply.
Children of all ages and sizes must always sit
correctly secured in the car. Never allow a child
to sit on the knee of a passenger.
Volvo has child safety equipment (child seats,
booster cushions & attachment devices) which
is designed for your particular car. Using Volvo's child safety equipment provides you with
optimum conditions for your child to travel
safely in the car. Furthermore, the child safety
equipment fits and is easy to use.
NOTE
In the event of questions when fitting child
safety products, contact the manufacturer
for clearer instructions.
Child seats
Child seats and airbags are not compatible.
NOTE
When using child safety products it is
important to read the installation instructions included with the product.
Child safety
Do not attach the straps for the child seat to
the horizontal adjustment bar, springs, rails or
beams under the seat. Sharp edges can damage the straps.
Look in the installation instructions for the child
seat for the correct fitting.

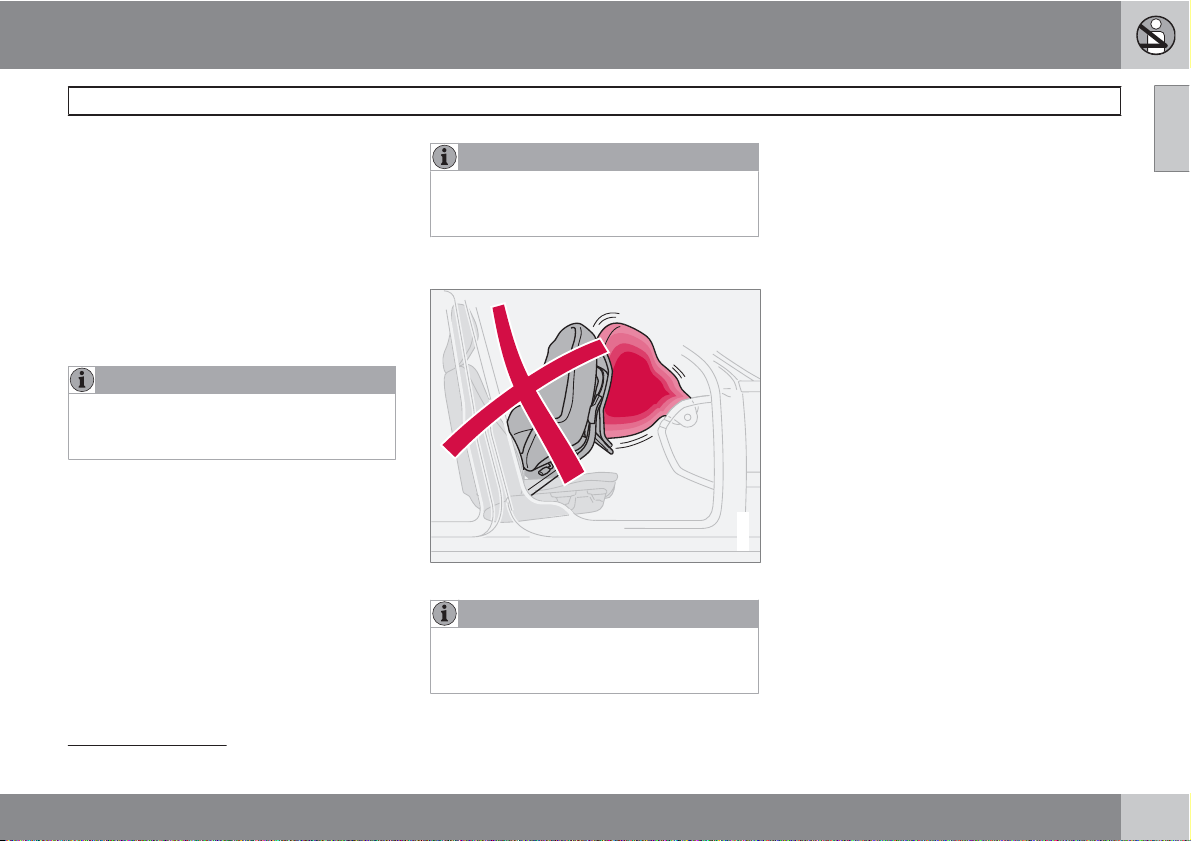

Location of child seats
You may place:
a child seat/booster cushion on the front
•
passenger seat, provided the passenger
airbag is not activated
one or more child seats/booster cushions
•
in the rear seat.
Always fit child seats/booster cushions in the
rear seat if the passenger airbag is activated. A
child in the front passenger seat could suffer
serious injury if the airbag deploys.
G020128
1
.
01
1
For information on activated/deactivated airbag, see page 22.
31
Page 34
01 Safety
01
Child safety
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
is activated
No one shorter than 140 cm should ever sit
in the front passenger seat if the airbag is
activated.
Failure to follow the advice given above can
endanger life.
2
.
WARNING
Booster cushions/child seats with steel
braces or some other design that could rest
on the seatbelt buckle's opening button
must not be used, as they could cause the
seatbelt buckle to open accidentally.
Do not allow the upper section of the child
seat to rest against the windscreen.
Label Airbag
Label fitted on the end face of the instrument panel
on the passenger side, see the illustration on page
22.
2
For information on activating/deactivating the airbag (SRS), see page 22.
32
Page 35
01 Safety
Recommended child seats
Weight
Group 0
max. 10 kg
Group 0+
max. 13 kg
Front seat
Volvo infant seat (Volvo Infant Seat) rear-facing child seat, secured with the
car's seatbelt
Type approval: E1 04301146
(U)
Rear-facing child seat (Child Seat) - rearfacing child seat, secured with the car's
seatbelt and straps. Use a protective
cushion between the child seat and the
dashboard.
Type approval: E5 03135
(L)
Child seats which are universally
approved.
(U)
Child safety
3
A
Outer rear seat Centre rear seat
Volvo infant seat (Volvo Infant Seat) -
rear-facing child seat, secured with the
ISOFIX fixture system.
Type approval: E1 04301146
(L)
Volvo infant seat (Volvo Infant Seat) -
rear-facing child seat, secured with the
car's seatbelt
Type approval: E1 04301146
(U)
Rear-facing child seat (Child Seat) - rear-
facing child seat, secured with the car's
seatbelt, straps and support legs.
Type approval: E5 03135
(L)
Child seats which are universally
approved.
(U)
Volvo infant seat (Volvo Infant Seat) rear-facing child seat, secured with the
car's seatbelt.
Type approval: E1 03301146
(U)
Rear-facing child seat (Child Seat) - rearfacing child seat, secured with the car's
seatbelt, straps and support legs.
Type approval: E5 03135
(L)
Child seats which are universally
approved.
(U)
01
3
With regard to other child seats the car should be included in the manufacturer's enclosed list of vehicles or be universally approved in accordance with the ECE R44 legal requirement.
``
33
Page 36
01 Safety
01
Child safety
Weight
Group 1
9 – 18 kg
Front seat
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-facing child seat, secured with the car's
seatbelt and straps.
Type approval: E5 04192
(L)
Rear-facing child seat (Child Seat) - rearfacing child seat, secured with the car's
seatbelt and straps. Use a protective
cushion between the child seat and the
dashboard.
Type approval: E5 03135
(L)
Child seats which are universally
approved.
(U)
A
Outer rear seat Centre rear seat
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-fac-
ing child seat, secured with the car's
seatbelt and straps.
Type approval: E5 04192
(L)
Rear-facing child seat (Child Seat) - rear-
facing child seat, secured with the car's
seatbelt, straps and support legs.
Type approval: E5 03135
(L)
Britax Fixway – rear-facing child seat,
secured with the ISOFIX fixture system
and straps.
Type approval: E5 03171
(L)
Child seats which are universally
approved.
(U)
Rear-facing child seat (Child Seat) - rearfacing child seat, secured with the car's
seatbelt, straps and support legs.
Type approval: E5 03135
(L)
Child seats which are universally
approved.
(U)
34
Page 37
01 Safety
Weight
Group 2
15-25 kg
Front seat
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-facing child seat, secured with the car's
seatbelt and straps
Type approval: E5 04192
(L)
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - front-facing child seat, secured with the car's
seatbelt.
Type approval: E5 04191
(L)
A
Outer rear seat Centre rear seat
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-fac-
ing child seat, secured with the car's
seatbelt and straps
Type approval: E5 04192
(L)
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - front-fac-
ing child seat, secured with the car's
seatbelt.
Type approval: E5 04191
(L)
Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - front-facing child seat, secured with the car's
seatbelt.
Type approval: E5 04191
(L)
Child safety
01
``
35
Page 38
01 Safety
01
Child safety
Weight
Group 2/3
15 – 36 kg
L: Suitable for specific child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories.
U: Suitable for universally approved child seats in this weight class.
UF: Suitable for front-facing universally approved child seats in this weight class.
B: Built-in child seats approved for this weight class.
A
For information on activated/deactivated airbag, see page 22.
Front seat
Volvo booster seat with backrest (Volvo
Booster Seat with backrest).
Type approval: E1 04301169
(UF)
Booster cushion with and without backrest (Booster Cushion with and without
backrest).
Type approval: E5 03139
(UF)
A
Outer rear seat Centre rear seat
Volvo booster seat with backrest (Volvo
Booster Seat with backrest).
Type approval: E1 04301169
(UF)
Booster cushion with and without back-
rest (Booster Cushion with and without
backrest).
Type approval: E5 03139
(UF)
Integrated booster cushion (Integrated
Booster Cushion) - available as a factory
fitted option.
Type approval: E5 03168
(B)
Volvo booster seat with backrest (Volvo
Booster Seat with backrest).
Type approval: E1 04301169
(UF)
Booster cushion with and without backrest (Booster Cushion with and without
backrest).
Type approval: E5 03139
(UF)
36
Page 39
01 Safety
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
is activated
No one shorter than 140 cm should ever sit
in the front passenger seat if the airbag is
activated.
Failure to follow the advice given above can
endanger life.
4
.
Integrated booster cushions*
vide optimum safety for children. Combined
with the regular seatbelts the integrated
booster cushion is approved for children
weighing between 15 and 36 kg.
Raising the booster cushion
Pull that handle to raise the booster cushion.
Grasp the cushion with both hands and
push it backwards.
G015013
Push until it locks in place.
WARNING
The booster cushion must be in the locked
position before the child is placed there.
Check that:
the booster cushion in locked in position
•
the seatbelt is in contact with the child's
•
body and is not slack or twisted, and that
the seatbelt is positioned correctly across
the shoulder
the hip strap is low across the hips for opti-
•
mum protection
the seatbelt does not lie across the child's
•
throat or below the shoulder
Carefully adjust the position of the head
•
restraint to suit the child.
G020808
Child safety
01
Volvo’s integrated booster cushion for the
outer rear seats is specially designed to pro-
4
For information on activating/deactivating the airbag (SRS), see page 22.
* Option/accessory, for more information, see Introduction.
37
Page 40
01 Safety
01
Child safety
WARNING
Repair or replacement should only be performed by a workshop. Volvo recommends
that you contact an authorised Volvo workshop. Do not make any modifications or
additions to the booster cushion yourself.
If an integrated booster cushion has been
subjected to a major load, such as in conjunction with a collision, the entire booster
cushion must be replaced. Even if the
booster cushion appears to be undamaged,
it may not afford the same level of protection. The booster cushion must also be
replaced if it is heavily worn.

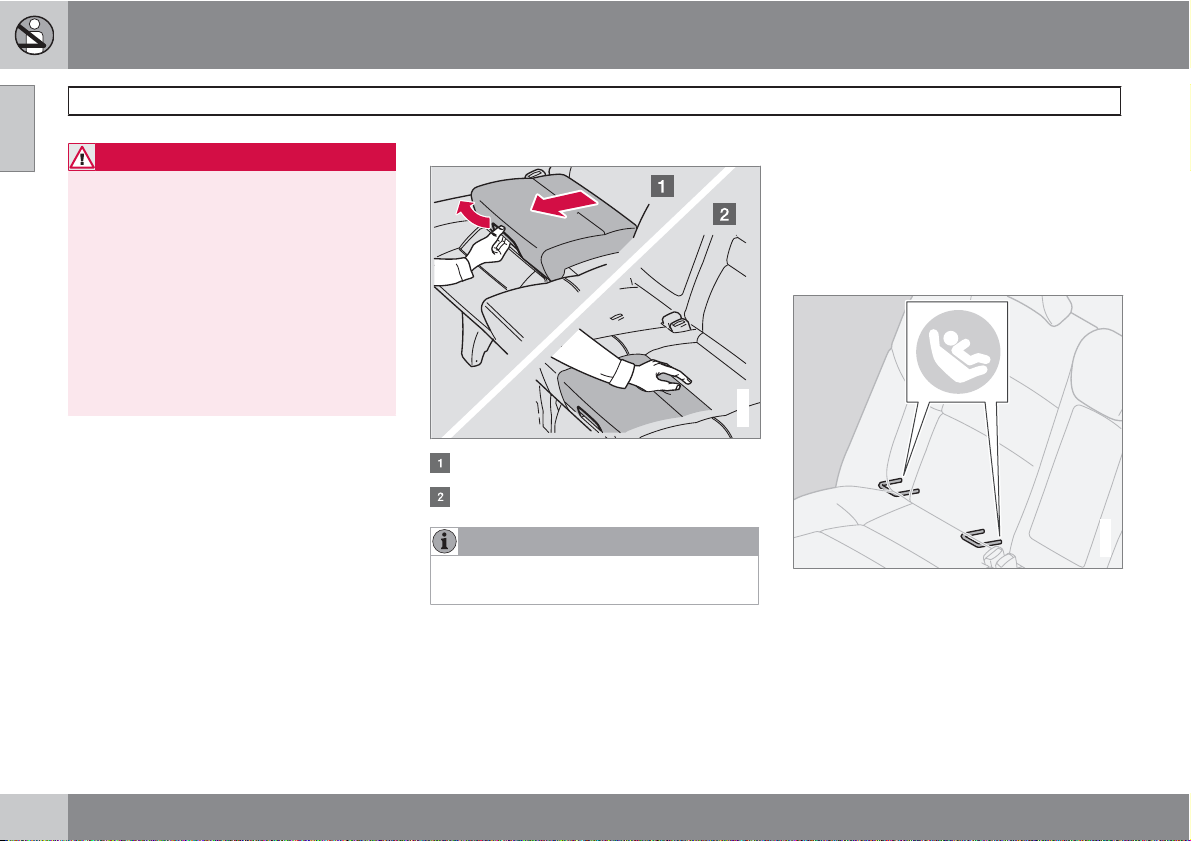

Lowering the booster cushion
Pull the handle.
Lower the seat and press until it locks.
NOTE
Remember to stow away the booster cushion before lowering the rear seat backrest.
Child safety locks, rear doors
The controls for operating the rear door power
windows and the rear door opening handles
can be blocked from opening from the inside.
For more information see page 133.
ISOFIX fixture system for child seats
G014507
G015268
Mounting points for the ISOFIX fixture system
are concealed behind the lower section of the
rear seat backrest, in the outer seats.
The location of the mounting points is indicated
by symbols in the backrest upholstery (see
illustration above).
Press the seat cushion down to access the
mounting points.
38
Page 41
01 Safety
Always follow the manufacturer's installation
instructions when connecting a child seat to
the ISOFIX mounting points.
Size classes
Child seats are in different sizes – cars are in
different sizes. This means that not all child
seats are suitable for all seats in all car models.
Consequently, there is a size classification for
child seats using the ISOFIX fixture system in
order to assist users in choosing the correct
child seat (see the following table).
Size
Description
class
A Full size, front-facing child
B Reduced size (alt. 1), front-
seat
facing child seat
Size
Description
class
B1 Reduced size (alt.2), front-
C Full size, rear-facing child
D Reduced size, rear-facing
E Rear-facing infant seat
F Transverse infant seat, left-
G Transverse infant seat, right-
facing child seat
seat
child seat
hand
hand
Child safety
WARNING
Never place a child in the passenger seat if
the car is equipped with an activated airbag.
NOTE
If an ISOFIX child seat has no size classification then the car model must be included
on the child seat's vehicle list.
NOTE
Volvo recommends that you contact an
authorised Volvo dealer for recommendations about which ISOFIX child seats Volvo
recommends.
01
39
Page 42
01 Safety
01
Child safety
Types of ISOFIX child seat
Type of child seat Weight Size class Passenger seats for ISOFIX installation of child seats
Infant seat transverse max. 10 kg F X X
Infant seat, rear-facing max. 10 kg E X OK
Infant seat, rear-facing max. 13 kg E X OK
Child seat, rear-facing 9-18 kg D X
Front seat Outer rear seat
G X X
D X
C X
C X
OK
OK
OK
OK
(IL)
(IL)
A
(IL)
A
(IL)
A
(IL)
A
(IL)
40
Page 43
01 Safety
Child safety
Type of child seat Weight Size class Passenger seats for ISOFIX installation of child seats
Front seat Outer rear seat
Front-facing child seat 9-18 kg B X
B1 X
A X
X: The ISOFIX position is not suitable for ISOFIX child seats in this weight class and/or size class.
IL: Suitable for specific ISOFIX child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories.
IUF: Suitable for front-facing ISOFIX child seats that are universally approved in this weight class.
A
In order to be able to fit the infant/child seat in the rear seat, the front passenger seat has been adjusted to a location in front of centre position.
B
Volvo recommends rear-facing child seats for this group.
OK
(IUF)
OK
(IUF)
OK
(IUF)
B
B
B
01
``
41
Page 44
01 Safety
01
Child safety

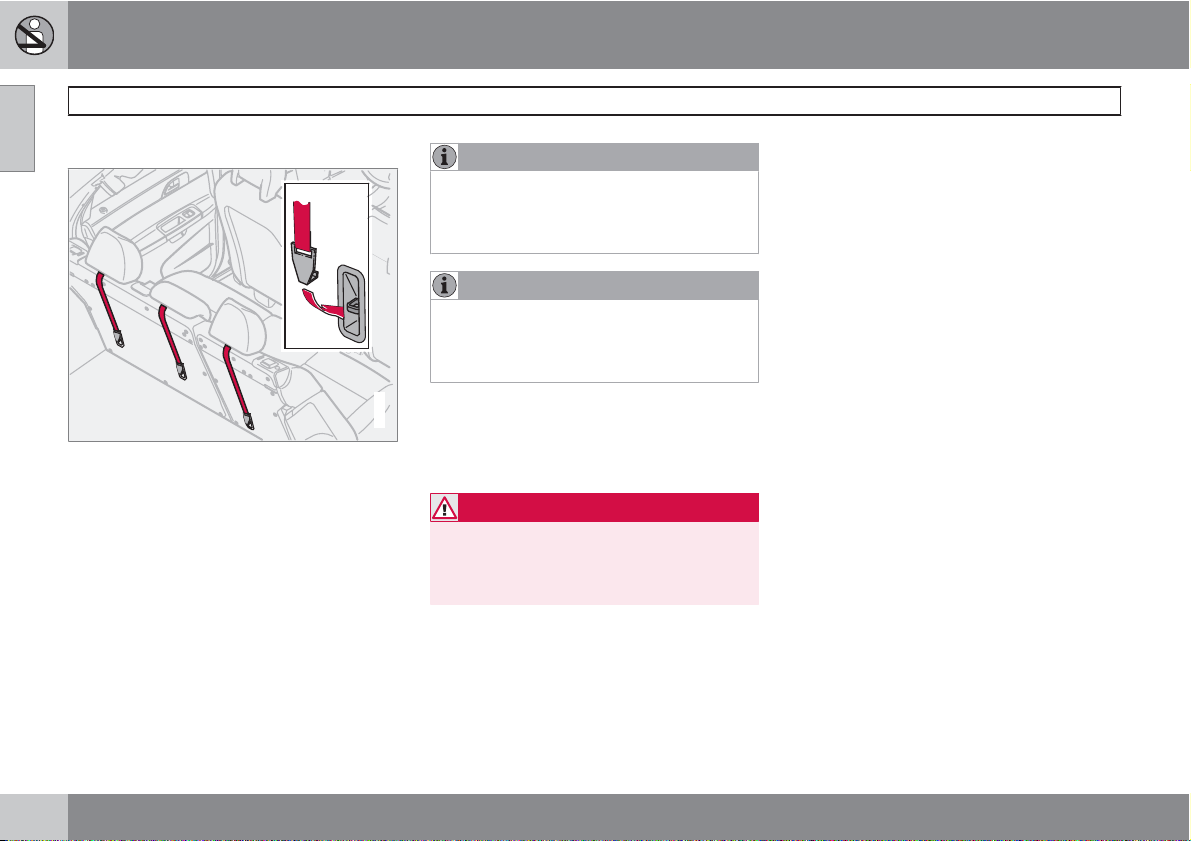

Upper mounting points for child seats
Location, upper attachment points.
The car is equipped with upper mounting
points for child seats. These mounting points
are located on the rear side of the rear seat.
The upper mounting points are primarily
intended for use with front-facing child seats.
Volvo recommends that small children should
sit in rear-facing child seats to as late an age
as possible.
The child seat's straps must be routed
between the head restraint and the backrest.
NOTE
For cars with folding head restraints on the
outside seats the head restraints should be
folded to facilitate the installation of this
type of child seat.
NOTE
For cars equipped with a cargo area cover
over the cargo area, this must be removed
before a child seat can be fitted in the
mounting points.
For detailed information on how to secure the
G029703
child seat in the upper mounting points, refer
to the instructions from the child seat manufacturer.
WARNING
The child seat's straps must always be
drawn through the hole in the head restraint
leg before they are tensioned at the attachment point.
42
Page 45
01 Safety
01
43
Page 46
Overview, left-hand drive cars................................................................ 46
Overview, right-hand drive cars.............................................................. 48
Driver's door control panel..................................................................... 50
Combined instrument panel.................................................................... 51
Indicator and warning symbols............................................................... 52
Information display.................................................................................. 56
Electrical socket...................................................................................... 58
Lighting panel.......................................................................................... 60
Left-hand stalk switch............................................................................. 64
Right-hand stalk switch.......................................................................... 67
Cruise control*........................................................................................ 69
Keypad in the steering wheel*................................................................ 71
Steering wheel adjustment, hazard warning flashers............................. 72
Parking brake.......................................................................................... 73
Power windows....................................................................................... 74
Windows, rearview and door mirrors...................................................... 76
Power sunroof* ...................................................................................... 80
Personal preferences.............................................................................. 82
HomeLink
*............................................................................................ 85
44
* Option/accessory, for more information, see Introduction.
Page 47
INSTRUMENTS AND CONTROLS
Page 48
02
02 Instruments and controls

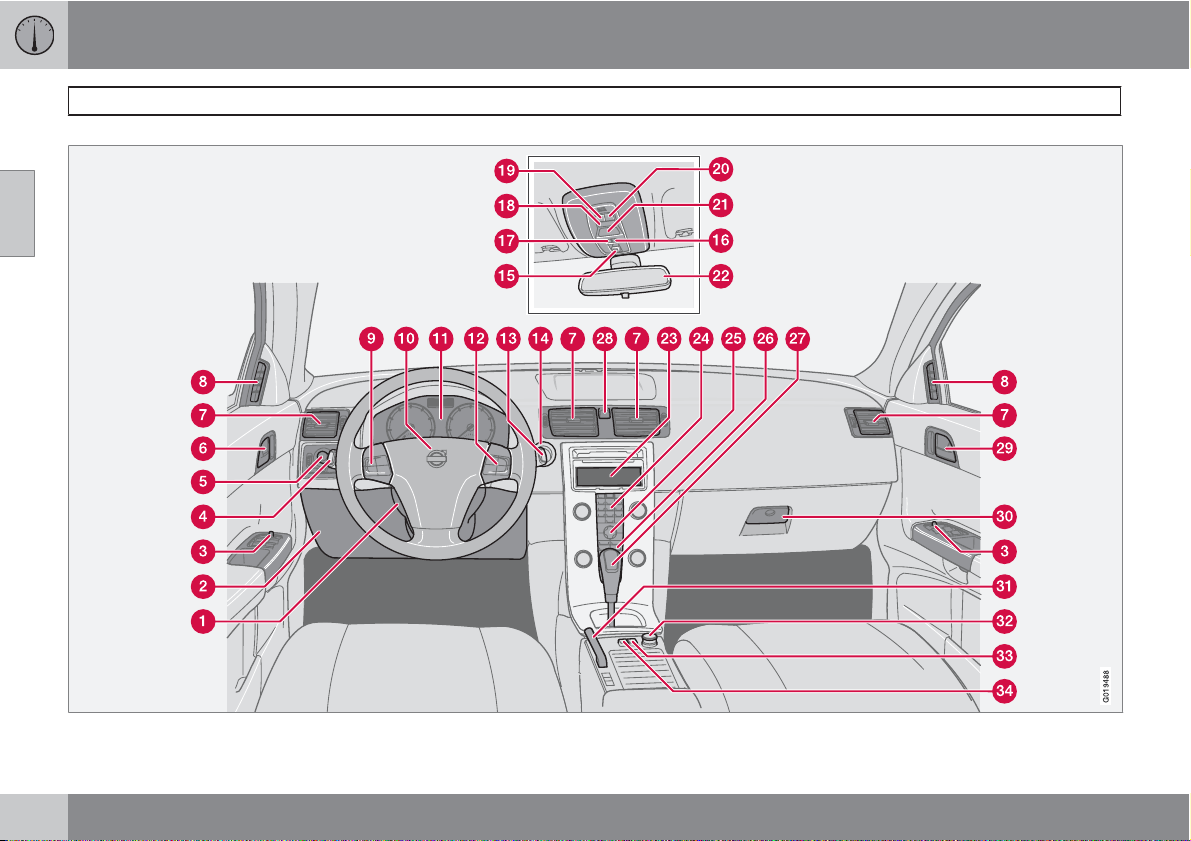

Overview, left-hand drive cars
46
Page 49
02 Instruments and controls
Overview, left-hand drive cars
Steering wheel adjustment
Bonnet release
Control panel
Direction indicators, main beam, trip computer
Lighting, fuel filler flap opener
Door handle, lock button.

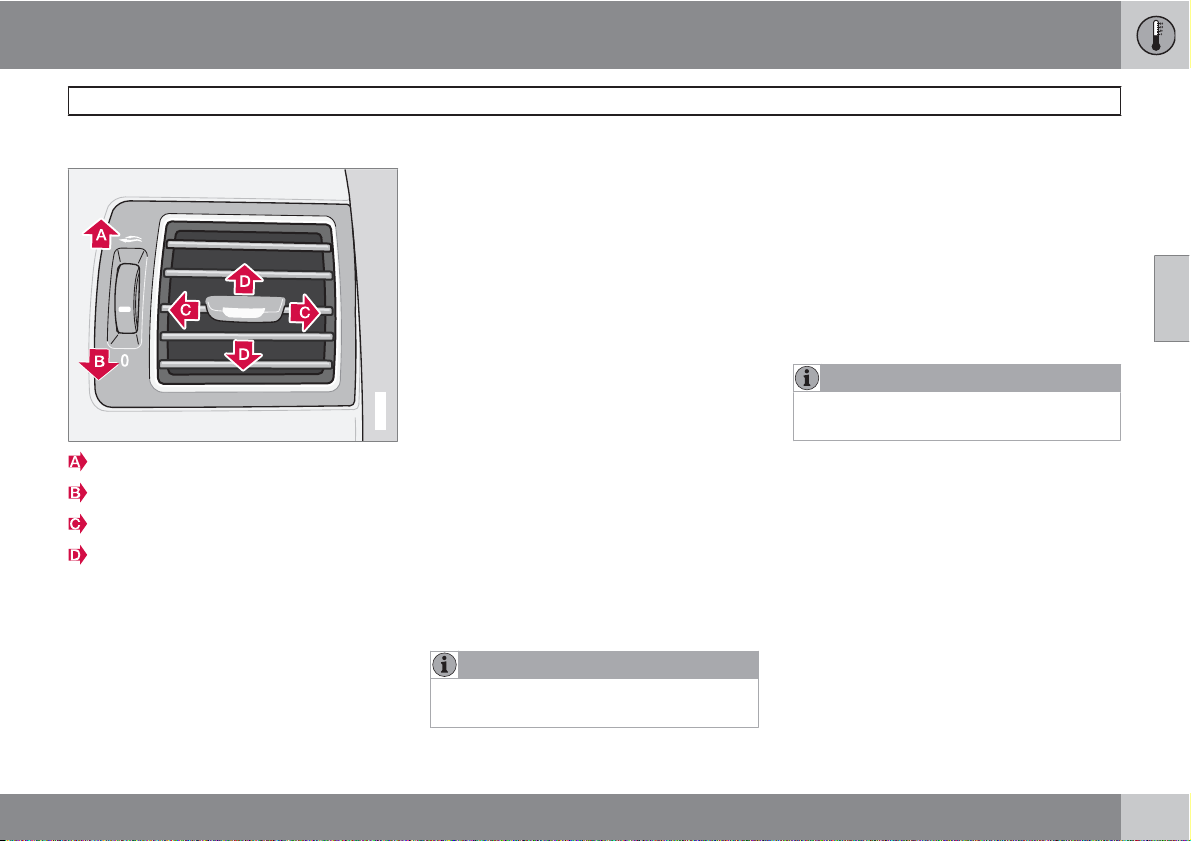

Air vents in dashboard
Air vent for side window
Cruise control
Horn, airbag
Combined instrument panel
Keypad for infotainment system
Windscreen wipers and washer, headlamp
washers
Ignition switch

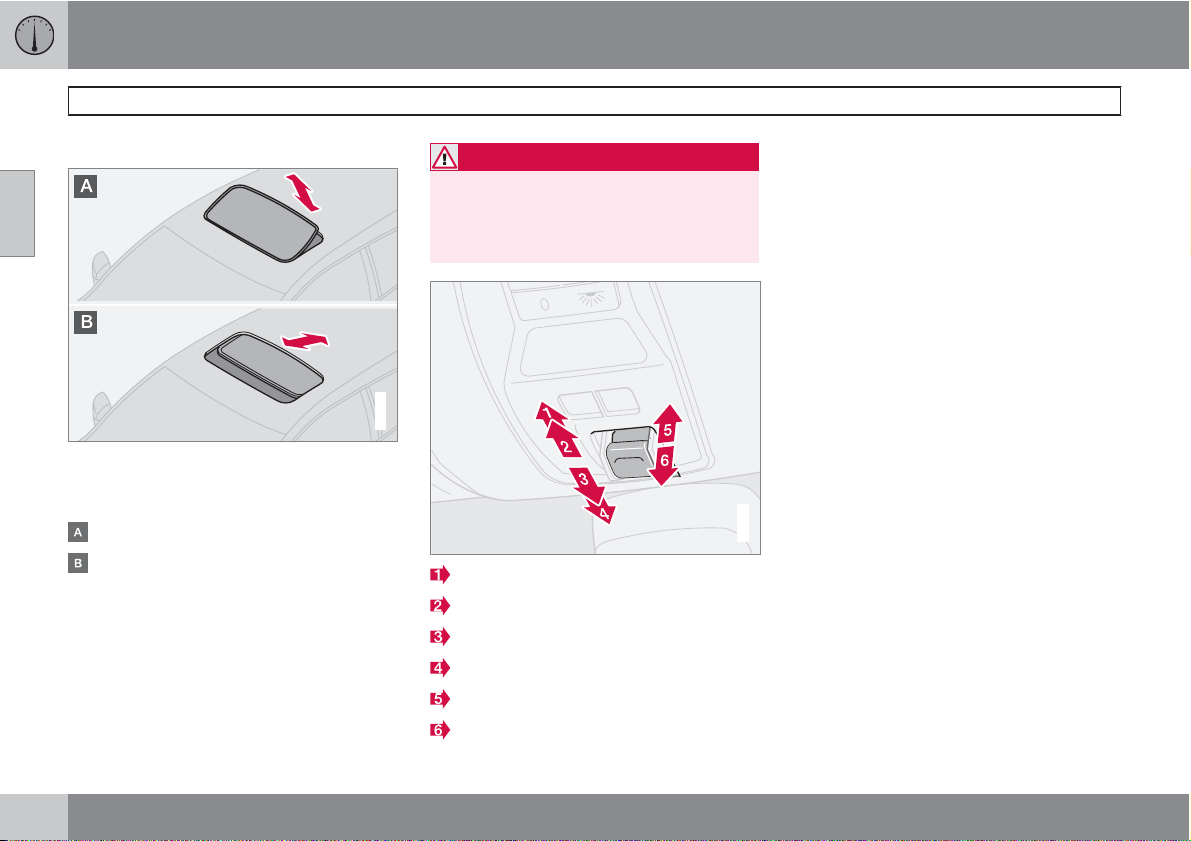

Sunroof controls
No function
No function
Switch for interior lighting
Reading lamp, left-hand side
Reading lamp, right-hand side
Seatbelt reminder and passenger seat airbag indicator
Interior rearview mirror
Display for climate control and infotainment system
Infotainment system
Controls for climate control, infotainment
system and personal preferences
Climate control
Gear lever
Hazard warning flashers
Door handle
Glovebox
Parking brake
Electrical socket/cigarette lighter
Blind Spot Information System, BLIS
Switch, optional equipment
02
47
Page 50
02
02 Instruments and controls
Overview, right-hand drive cars
48
G028204
Page 51
02 Instruments and controls
Overview, right-hand drive cars
Electrical socket, cigarette lighter
Blind Spot Information System, BLIS
Switch, optional equipment
Parking brake
Control panel
Glovebox
Door handle
Air vent for side window
Air vents in dashboard
Gear lever
Climate control
Controls for climate control, infotainment
system and personal preferences
Infotainment system
Display for climate control and infotainment system
Interior rearview mirror
Seatbelt reminder and passenger seat airbag indicator
Switch for interior lighting
Reading lamp, left-hand side
Reading lamp, right-hand side
No function
No function
Sunroof controls
Ignition switch
Windscreen wipers and washers, headlamp washers
Cruise control
Combined instrument panel
Horn, airbag
Keypad for infotainment system
Hazard warning flashers
Door handle, lock button
Lighting, fuel filler flap opener
Direction indicators, main beam, trip computer
Bonnet release
Steering wheel adjustment
02
49
Page 52
02 Instruments and controls
Driver's door control panel
Driver's door control panel
02
Disengaging the rear power windows.
Electric child safety lock*
Power windows
Door mirror, left-hand side
Door mirrors, setting
Door mirror, right-hand side
50
* Option/accessory, for more information, see Introduction.
Page 53
02 Instruments and controls
Combined instrument panel
02
G029046
Speedometer.
Direction indicators, left.
Warning symbol.
Information display – Shows information or
warning messages, outside temperature
and clock. When the outside temperature
is between +2 °C to -5 °C a snowflake illuminates on the display. This warns of icy
roads. The outside temperature gauge
may show a slightly high reading after the
car has been stationary.
Information symbol.
Direction indicator, right.
Tachometer – Indicates engine speed in
thousands of revolutions per minute (rpm).
Indicator and warning symbols.
Fuel gauge, see also trip computer, pag
e 65.
Main beam indicator.
Display – Display for automatic gear position, rain sensor, odometer, trip meter and
cruise control.
Also shows gear shift indicator (GSI) and
gear positions in the D2 and DRIVe model,
see page 155.
Button for trip meter – Used to measure
short distances. Short presses on the button switches between the two trip meters
T1 and T2. A long press (more than 2 sec-
onds) resets an active trip meter to zero.
Temperature gauge - Used for the engine
cooling system. A message will appear on
the display if the temperature becomes too
high and the gauge goes into the red zone.
Bear in mind that extra lights placed in front
of the air intake, for example, reduce the
cooling capacity at high outside temperatures and high engine loads.
Indicator and warning symbols.
51
Page 54
02 Instruments and controls
Indicator and warning symbols
Functionality check, symbols
All indicator and warning symbols1 illuminate
02
when the remote control key is turned to position II before starting. This is to check that the
symbols are working. When the engine starts,
all the symbols should go out except the parking brake symbol, which only goes out when
the brake is disengaged.
If the engine does not start within
five seconds, all symbols extinguish except the symbols for a
fault in the car's emissions system
and for low oil pressure. Certain
symbols may have no function,
depending on the car's specifications.
Symbols in the centre of the instrument
panel
The red warning symbol illumi-
nates when a fault has been indi-
cated which could affect the safety
and/or driveability of the car. An
explanatory text is shown on the
information display at the same time. The symbol remains visible until the fault has been rectified but the text message can be cleared with
the READ button, see page 56. The warning
symbol can also illuminate in conjunction with
other symbols.
When the symbol illuminates:
1. Stop in a safe manner. Do not drive the car
further.
2. Read the information on the information
display. Implement the action in accordance with the message in the display. Clear
the message using READ.
The yellow information symbol illuminates and a text appears on the
information display. The message
text is cleared using the READ but-
automatically after a period of time (time
depending on which function is indicated).
G030755
The yellow information symbol can also illuminate in conjunction with other symbols.
ton, see page 56, or disappears
NOTE
When a service message is shown, the symbol and message are cleared using the
READ button, or disappear automatically
after a time.
1
For certain engine variants, the symbol for low oil pressure is not used. Warnings are given via display text, see page 56.
52
Page 55
02 Instruments and controls
Indicator and warning symbols

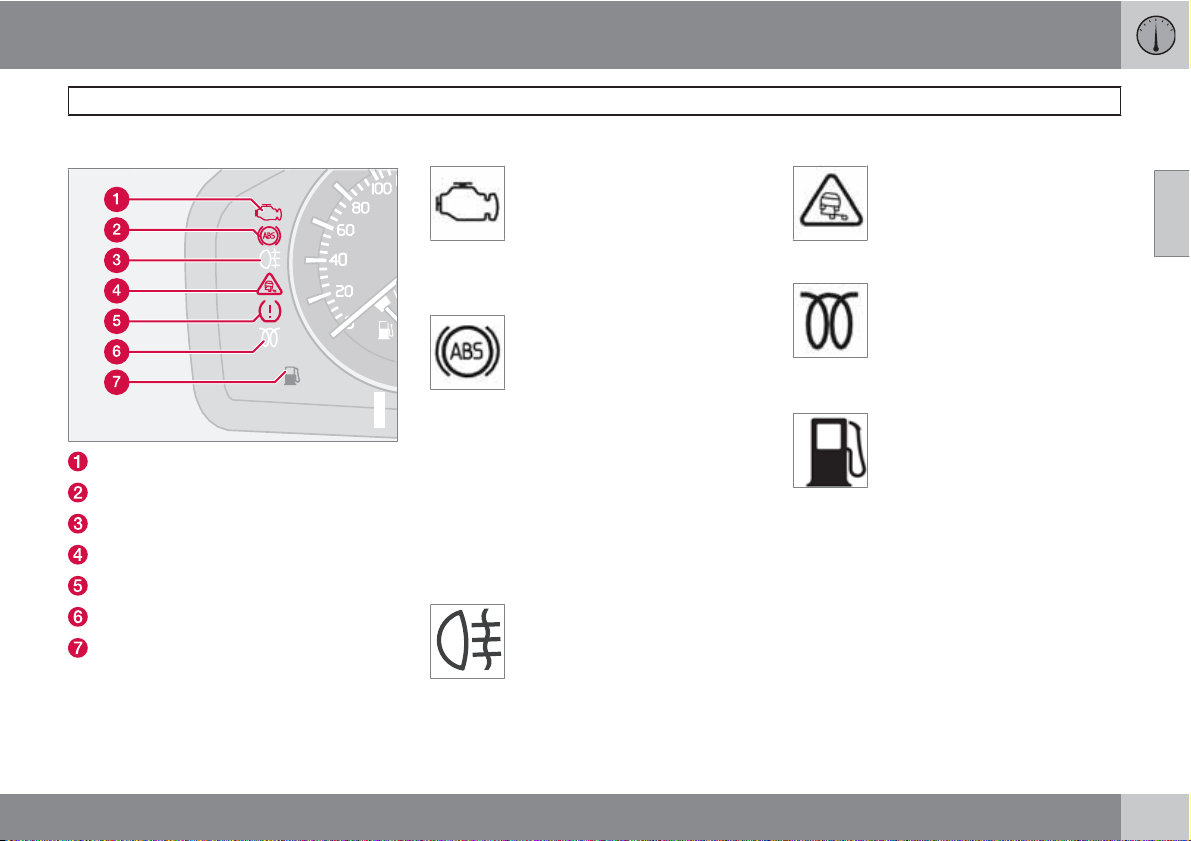

Indicator symbols – left-hand side
Fault in car's emissions system
ABS fault
Rear fog lamp
Stability system DSTC
No function
Engine preheater (diesel)
Low level in fuel tank
Emissions system
If the symbol illuminates then it
may be due to a fault in the car's
emissions system. Volvo recommends that you seek assistance
shop for inspection.
from an authorised Volvo work-
ABS fault
If this symbol illuminates then the
system is not working. The car's
regular brake system continues to
work, but without the ABS function.
G029048
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
3. Drive to a workshop to have the ABS system checked if the symbol remains lit.
Volvo recommends that you seek assistance from an authorised Volvo workshop.
Rear fog lamp
This symbol is lit when the rear fog
lamp is on.
Stability system DSTC*
For information on the system's
functions and symbols, see
page 167.
Engine preheater (diesel)
This symbol illuminates during
engine preheating. Preheating
occurs when the temperature is
below -2 °C. The car can be started
once the symbol goes out.
Low level in fuel tank
When the symbol illuminates the
level in the fuel tank is low, refuel
as soon as possible.
02
* Option/accessory, for more information, see Introduction.
``
53
Page 56
02 Instruments and controls
Indicator and warning symbols
Indicator symbols – right-hand side
02
Indicator symbol for trailer
Parking brake applied
Airbags – SRS
Low oil pressure
Seatbelt reminder
Alternator not charging
Fault in brake system
Indicator symbol for trailer
This symbol flashes when the
direction indicators are used and
the trailer is connected. If the symbol does not flash then one of the
faulty.
lamps on the trailer or the car is

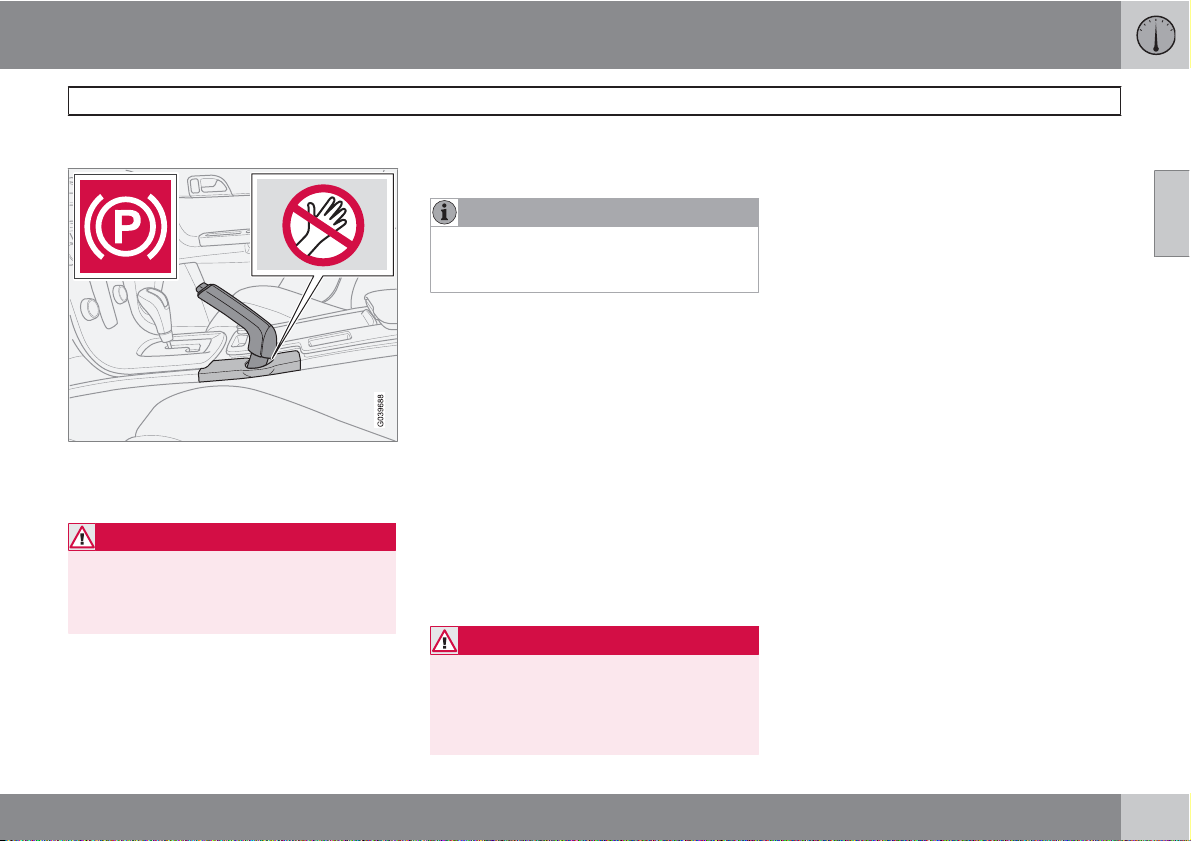

Parking brake applied
The symbol illuminates when the
parking brake is applied. Always
pull the parking brake lever to the
end position.
G029049
NOTE
The symbol illuminates irrespective of how
hard the parking brake is applied.
Airbags – SRS
If this symbol remains illuminated
or illuminates while driving, it
means a fault has been detected in
the seatbelt buckle, SRS, SIPS or
drive directly to an authorised Volvo workshop
for inspection.
IC system. Volvo recommends that
Low oil pressure
symbol illuminates and the oil level is normal
Volvo recommends that you contact an authorised Volvo workshop.
2
If this symbol illuminates during
driving then the engine's oil pressure is too low. Stop the engine
immediately and check the engine
oil level, top up if necessary. If the
Seatbelt reminder
This symbol illuminates if someone
in a front seat has not put on their
seatbelt or if someone in a rear
seat has taken off their seatbelt.
Alternator not charging
If this symbol illuminates while
driving, a fault has occurred in the
electrical system. Volvo recommends that you visit an authorised
Volvo workshop.
Fault in brake system
If this symbol illuminates, the brake
fluid level may be too low.
2
For certain engine variants, the symbol for low oil pressure is not used. Warnings are given via display text, see page 56.
54
Page 57
02 Instruments and controls
Indicator and warning symbols
– Stop the car in a safe place and check the
level in the brake fluid reservoir, see
page 222. If the reservoir level is below
MIN then the car should not be driven further. Volvo recommends that the car is
transported to an authorised Volvo workshop to have the brake system checked.

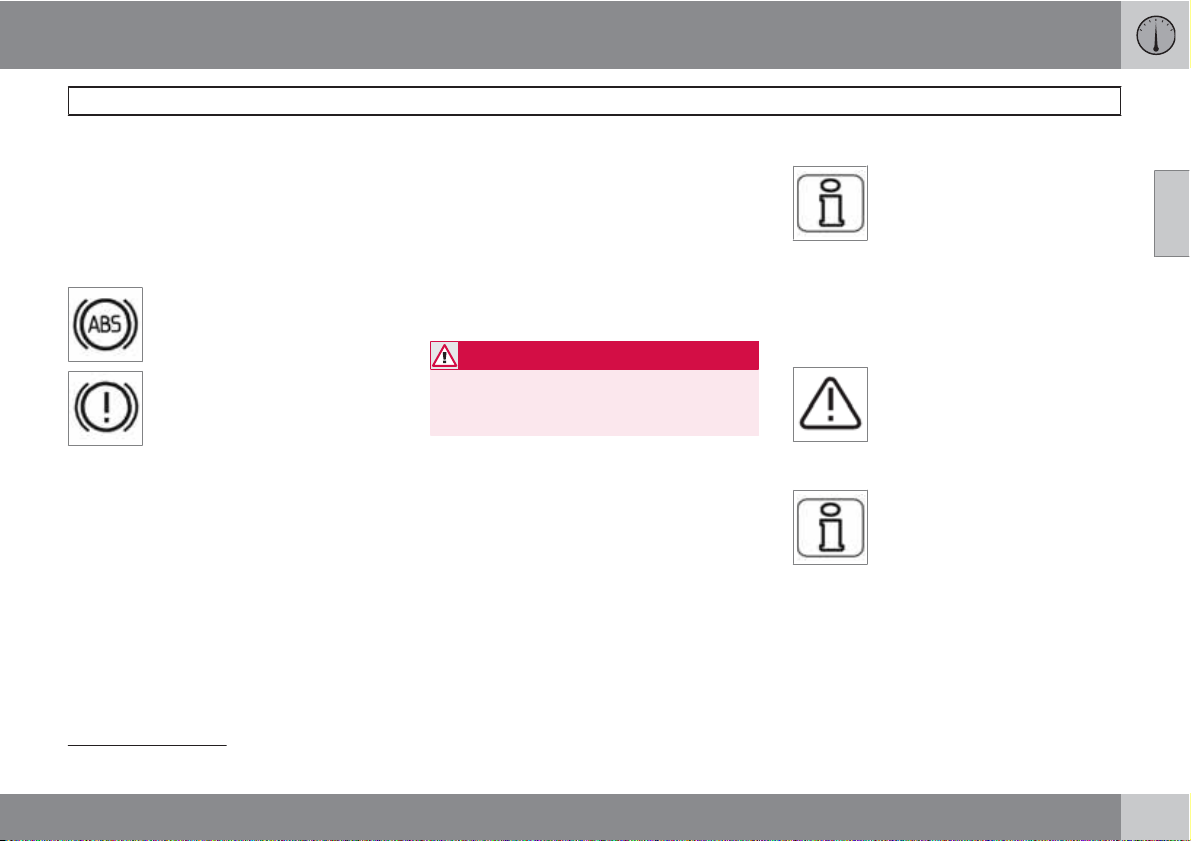

If the BRAKE and ABS symbols
illuminate at the same time, there
may be a fault in the brake force
distribution system.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
3. If both symbols extinguish, continue driving.
4. If the symbols remain illuminated, check
the level in the brake fluid reservoir, see
page 222.
5. If the brake fluid level is normal but the
symbols are still illuminated, the car can be
driven, with great care, to a workshop to
have the brake system checked. Volvo recommends that you seek assistance from
an authorised Volvo workshop.
6.
If the level in the reservoir is below MIN
then the car should not be driven any further. Have the car transported to a workshop to have the brake system checked.
Volvo recommends that you seek assistance from an authorised Volvo workshop.
WARNING
If the BRAKE and ABS symbols are lit at the
same time, there is a risk that the rear end
will skid during heavy braking.
Reminder – doors not closed
If one of the doors, the bonnet3 or the boot lid
is not properly closed, the driver will be
reminded of this.
Low speed
If the car moves at a speed less
than 5 km/h, the information symbol illuminates and
DOOR OPEN
DOOR OPEN
DOOR OPEN
REAR DOOR OPEN
Stop the car safely as soon as possible and
close the door or bonnet.
, BONNET OPEN or RIGHT
is shown on the display.
DRIVER
, PASSENGER
,LEFT REAR
High speed
If the car is moving faster than
10 km/h, the symbol illuminates
and one of the texts indicated in
the preceding paragraph appears
on the display.
Boot lid reminder
If the boot lid is open, this informa-
tion symbol will illuminate and
BOOT LID OPEN will appear on
the display.
02
3
Only cars with alarm.
55
Page 58
02 Instruments and controls

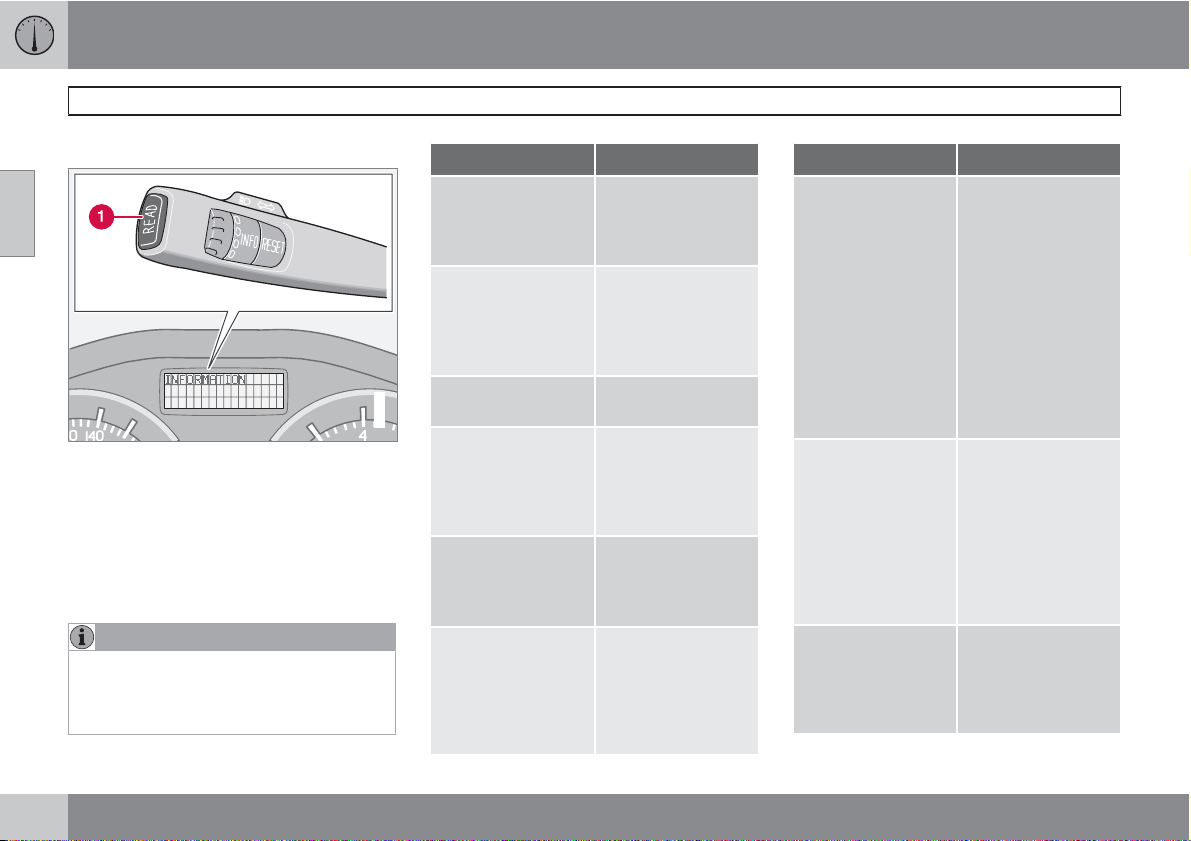

Information display
Messages
02

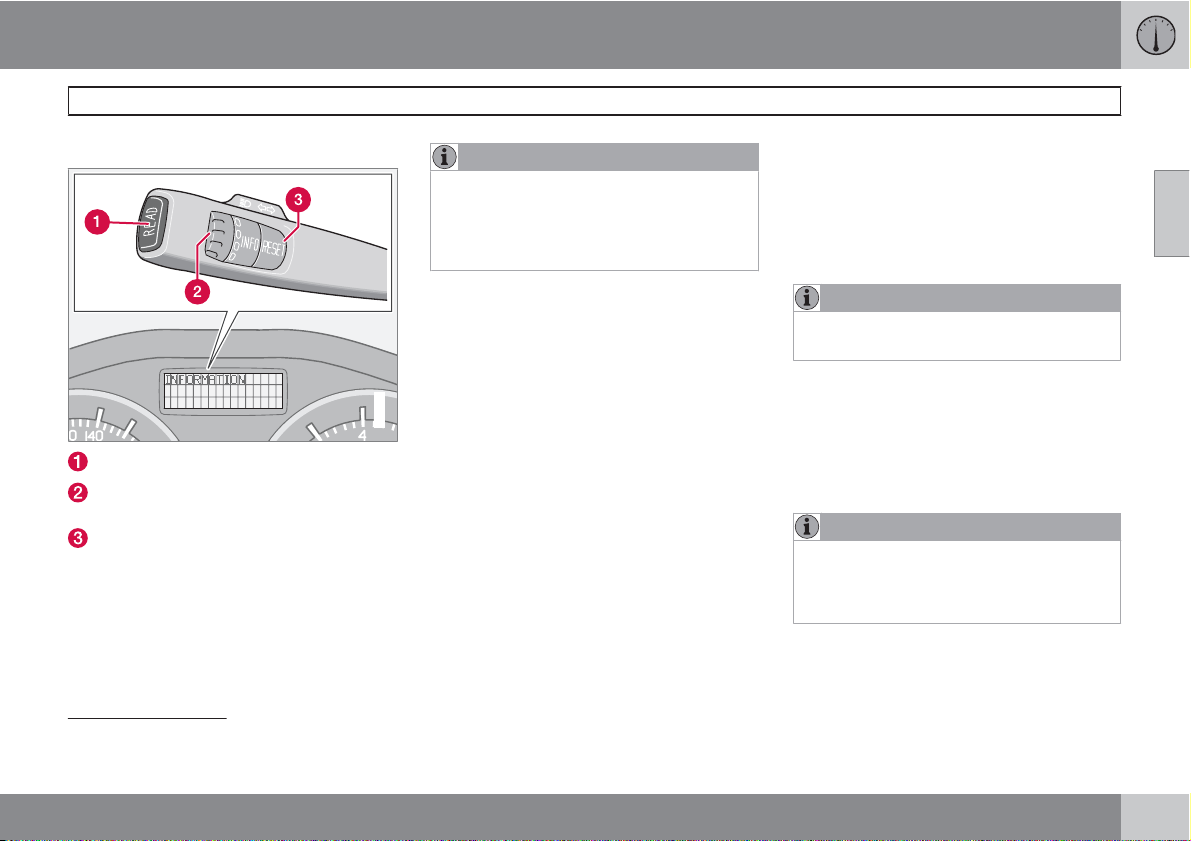

When a warning or indicator symbol illuminates
the information display shows a supplementary message.
–
Press the READ button (1).
Switch between messages with the READ button. Fault messages are stored in the memory
until the fault is rectified.
NOTE
If a warning message appears while you are
using the trip computer, the message must
be read (press READ) before the previous
activity can be resumed.
Message Specification
STOP SAFELY
SERVICE
URGENT
SEE MANUAL
G029050
SERVICE
REQUIRED
HIGH ENGINE
TEMP STOP
ENGINE
BOOK TIME FOR
SERVICE
A
A
A
A
Stop the car in a safe
manner and turn off
the engine. Serious
risk of damage.
Volvo recommends
that an authorised
Volvo workshop
checks the car
immediately.
Read the Owner's
Manual.
Volvo recommends
that an authorised
Volvo workshop
checks the car as
soon as possible.
Stop the car in a safe
manner and turn off
the engine. Serious
risk of damage.
Time to book regular
service. Volvo recommends that an
authorised Volvo
workshop carries
out the service.
Message Specification
TIME FOR REGULAR SERVICE
SERVICE OVERDUE
TRANSMISSION
OIL CHANGE NEEDED
Time for regular
service. Volvo recommends that an
authorised Volvo
workshop carries
out the service. The
timing is determined
by the number of kilometres driven,
number of months
since the last service, engine running
time and oil grade.
If the service intervals are not followed
then the warranty
does not cover any
damaged parts.
Volvo recommends
that an authorised
Volvo workshop carries out the service.
Volvo recommends
that an authorised
Volvo workshop
checks the car as
soon as possible.
56
Page 59
02 Instruments and controls
Information display
Message Specification
REMINDER
CHECK OIL LEVEL
SOOT FILTER
FULL SEE OWNER
MANUAL
DSTC SPIN CONTROL OFF
Check the oil level.
The message is
shown every 10
000 km (certain
engine variants). For
information on
checking the oil
level, see page 218.
Diesel particle filter
requires regeneration, see page 144.
The function of the
stability and traction
control system is
reduced, see
page 168 for more
variants.
Message Specification
TRANSMISSION
PERFORMANCE
LOW
The gearbox cannot
handle full capacity.
Drive carefully until
the message clears,
see page 159.
If shown repeatedly
then Volvo recommends that an
authorised Volvo
workshop is contacted.
Message Specification
TRANSMISSION
OIL TEMP HIGH
TRANSM OIL
TEMP STOP
SAFELY
A
Part of message, shown together with information on where
the problem has arisen.
B
For more messages concerning automatic transmission, see
page 159.
Drive more smoothly
or stop the car in a
safe manner. Disengage the gear and
run the engine at
idling speed until the
message clears. For
more information,
see page 159.
Critical fault. Stop
the car immediately
in a safe manner.
Volvo recommends
that an authorised
Volvo workshop is
contacted.
B
02
57
Page 60
02 Instruments and controls

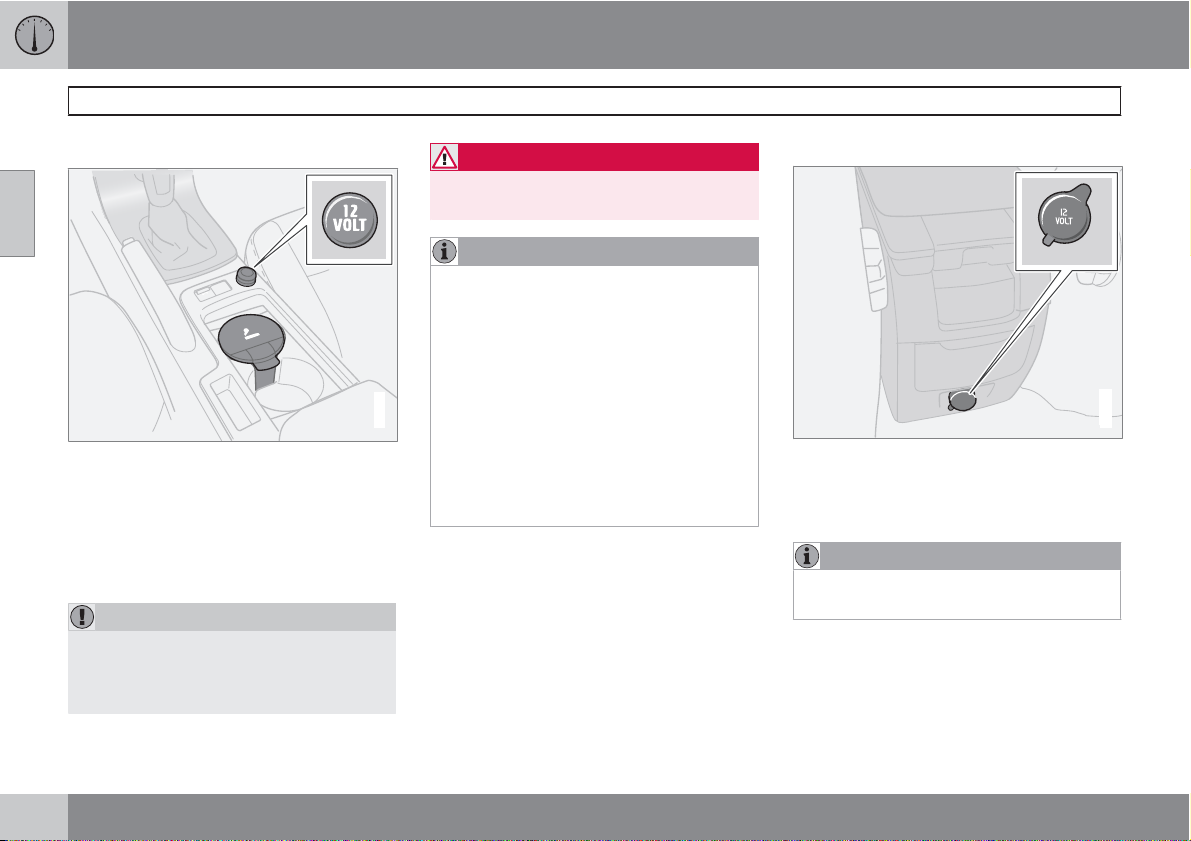

Electrical socket
12 V electrical socket
02
Electrical socket and cigarette lighter.
The electrical socket can be used for various
accessories designed for 12 V, e.g. TV screens,
music players and mobile phones. For the
socket to supply current, the remote control
key must be in at least position I, see
page 150.
IMPORTANT
Max. socket is 10 A (120 W) if one socket is
used at a time. If both sockets are used
simultaneously, 7.5 A (90 W) per socket is
applicable.
WARNING
Always leave the plug in the socket when
the socket is not in use.
NOTE
Optional equipment and accessories - e.g.
TV screens, music players and mobile
phones - which are connected to one of the
passenger compartment's 12V electrical
sockets, could be activated by the climate
control system, even when the remote control key has been removed or when the car
is locked, for example, when the parking
heater is activated at a preset time.
G019621
For this reason remove the plugs from the
electrical sockets for optional equipment or
accessories when not in use because the
battery could be drained in the event of such
an occurrence!
Cigarette lighter*
Activate the lighter by pushing in the button.
The button pops out when the lighter is hot. Pull
out the lighter and light a cigarette on the
heated coils.
Electrical socket in the rear seat
G029082
Electrical socket in the rear seat.
The electrical socket in the rear seat can be
used for various accessories, see "12 V electrical socket" above.
NOTE
Cigarette lighter does not work in this
socket.
The electrical socket is designed for 12 V. For
the socket to supply current, the remote control key must be in at least position I, see
page 150.
58
* Option/accessory, for more information, see Introduction.
Page 61
WARNING
Always leave the plug in the socket when
the socket is not in use.
02 Instruments and controls
Electrical socket
02
59
Page 62
02 Instruments and controls
Lighting panel
02

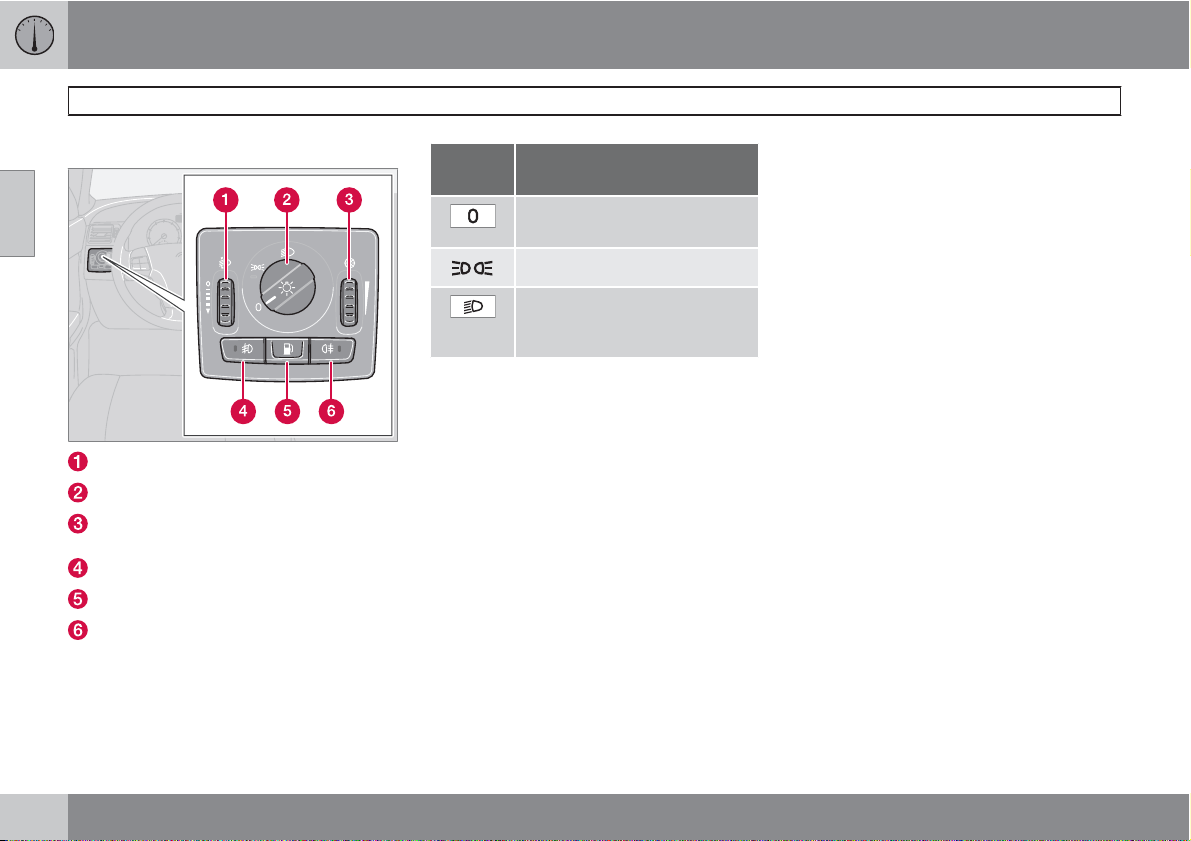

General
Thumbwheel for headlamp levelling
Light switches
Thumbwheel for adjusting display and
instrument lighting
Front fog lamps*
Opening the fuel filler flap
Rear fog lamp
Posi-
Specification
tion
Automatic/deactivated dipped
beam. Only main beam flash.
Position/parking lamps
Automatic dipped beam. Main
beam and main beam flash
work in this position.
Headlamp levelling
The load in the car changes the vertical align-
G020139
ment of the headlamp beam, which could dazzle oncoming motorists. Avoid this by adjusting
the height of the beam.
1.
Turn the remote control key to position II.
2. Turn the headlamp control (2) to one of the
end positions.
3. Roll the control (1) up or down respectively
to raise or lower beam alignment.
Cars with active Xenon headlamps - ABL* have
automatic headlamp levelling, so there is no
control (1).
Position/parking lamps
Position/parking lamps can be switched on
irrespective of remote control key position.
– Turn the headlamp control (2) to the centre
position.
When the remote control key is in position II the
position/parking lamps and number plate lighting are always on.
Headlamps
Automatic dipped beam*
Dipped beam comes on automatically when
the remote control key is turned to position II,
except when the headlamp control (2) is in the
centre position. If necessary, the automatic
dipped beam can be deactivated. Volvo recommends that this is performed by an authorised Volvo workshop.
Automatic dipped beam, main beam
1.
Turn the remote control key to position II.
2. Dipped beam is activated by means of
turning the headlamp control (2) clockwise
to the end position.
3. Main beam is activated by means of moving the left-hand stalk switch towards the
steering wheel to the end position and
releasing it, see page 64.
60
* Option/accessory, for more information, see Introduction.
Page 63
02 Instruments and controls
Lighting panel
The lamps are switched off automatically when
the remote control key is turned to position I or
0.
Instrument lighting
The instrument lighting is switched on when
the remote control key is in position II and the
headlamp control (2) is in one of the end positions. The lighting is automatically dimmed
during the day and can be controlled manually
at night.
– Roll the control up or down (3) for brighter
or dimmer lighting.
Enhanced display lighting
To facilitate reading the odometer, trip meter,
clock and outside temperature gauge, these
illuminate when the car is unlocked and when
the remote control key is removed from the
ignition switch. The displays extinguish when
the car is locked.
Fog lamps
NOTE
Regulations for use of fog lamps vary from
country to country.
Front fog lamps*
The front fog lamps can be switched on along
with the headlamps or the position lamps/parking lamps.
– Press the button (4).
The light in the button (4) illuminates when the
front fog lamps are switched on.
Rear fog lamp
The rear fog lamp can only be switched on with
the headlamps or the front fog lamps.
– Press the button (6).
The rear fog lamp indicator symbol on the combined instrument panel and the light in the button (6) illuminate when the rear fog lamp is
switched on.
Fuel filler flap
Press button (5) to open the fuel filler flap when
the car is unlocked, see page 130.

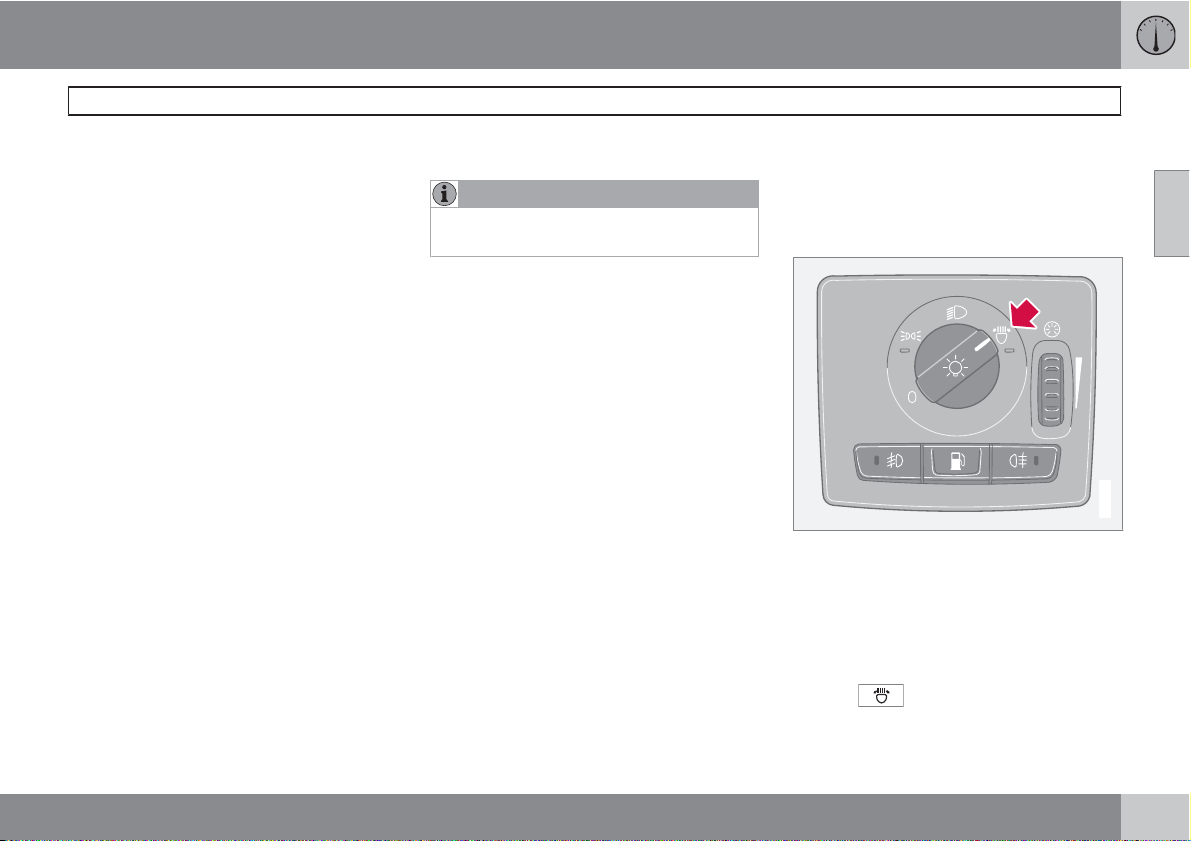

Active Xenon headlamps*
Lighting panel, for active Xenon headlamps
If the car is equipped with active Xenon headlamps (Active Bending Lights, ABL) the light
from the headlamps follows the steering wheel
movement in order to provide maximum lighting in bends and junctions and so provide
increased safety.
The LED
is activated. The LED flashes and an error message is shown on the information display in the
illuminates when the function
02
G026507
* Option/accessory, for more information, see Introduction.
61
Page 64
02 Instruments and controls
Lighting panel
event of a malfunction. The function is only
active in twilight or darkness and only when the
02
car is moving.
The function can be deactivated/activated with
the headlamp control.

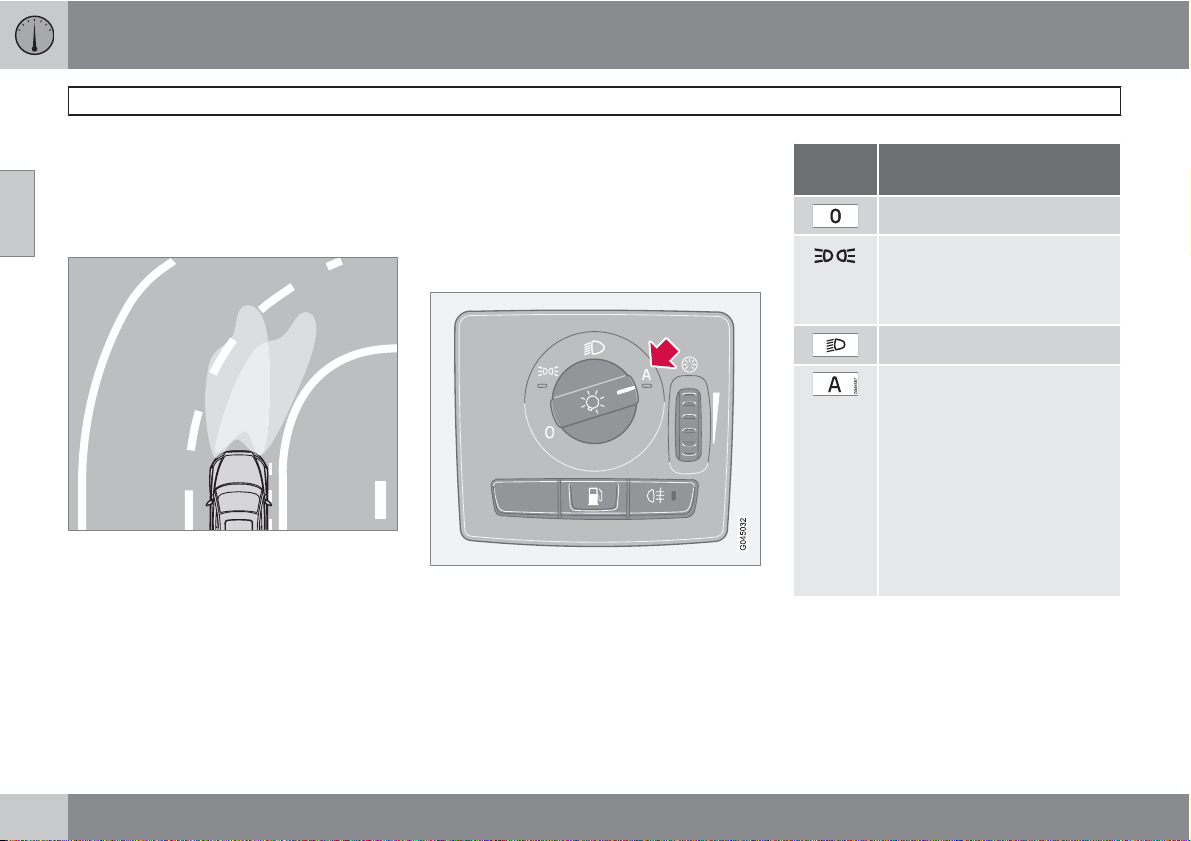

Headlamp pattern with function deactivated (left)
and activated (right) respectively.
Daytime running lights - DRL*
To save fuel, daytime running lights (Daytime
Running Light) can be selected during the day
instead of the more energy-intensive dipped
beam. The daytime running lights mounted in
the spoiler use bright, low-energy diode technology.
G020789
Position A automatically gives DRL daytime running lights during the day.
Posi-
Specification
tion
Daytime running lights
Daytime running lights when the
car is being driven. Automatic
switching to parking lights when
the car is parked.
Headlamps and position lamps
Daytime running lights during
daytime driving. Automatic
switching to headlamps and
position lamps in poor light conditions and when windscreen
wipers or rear fog lamps are
activated.
If the car is equipped with active
Xenon headlamps (Active
Bending Lights, ABL) then this
function is also activated.
With the light switch in position A, the daytime
running lights are activated automatically during the day. This is regulated by a light sensor
which switches from daytime running lights to
dipped beam off the main headlamps at dusk
or when the daylight becomes too weak.
62
* Option/accessory, for more information, see Introduction.
Page 65
NOTE
To achieve minimal energy consumption,
the rear lights are also switched off when
switching automatically from dipped beam
to DRLs.
WARNING
This system help to save energy - it cannot
determine in all situations when daylight is
too weak or sufficiently strong, e.g. in mist
and rain.
The driver is always responsible for ensuring
that the car is driven with its lights in a correct state and in accordance with applicable
traffic regulations.
Brake light
The brake light automatically comes on during
braking. For information on the Emergency
brake lights and automatic hazard warning
flashers, see page 166.
02 Instruments and controls
Lighting panel
02
63
Page 66
02 Instruments and controls

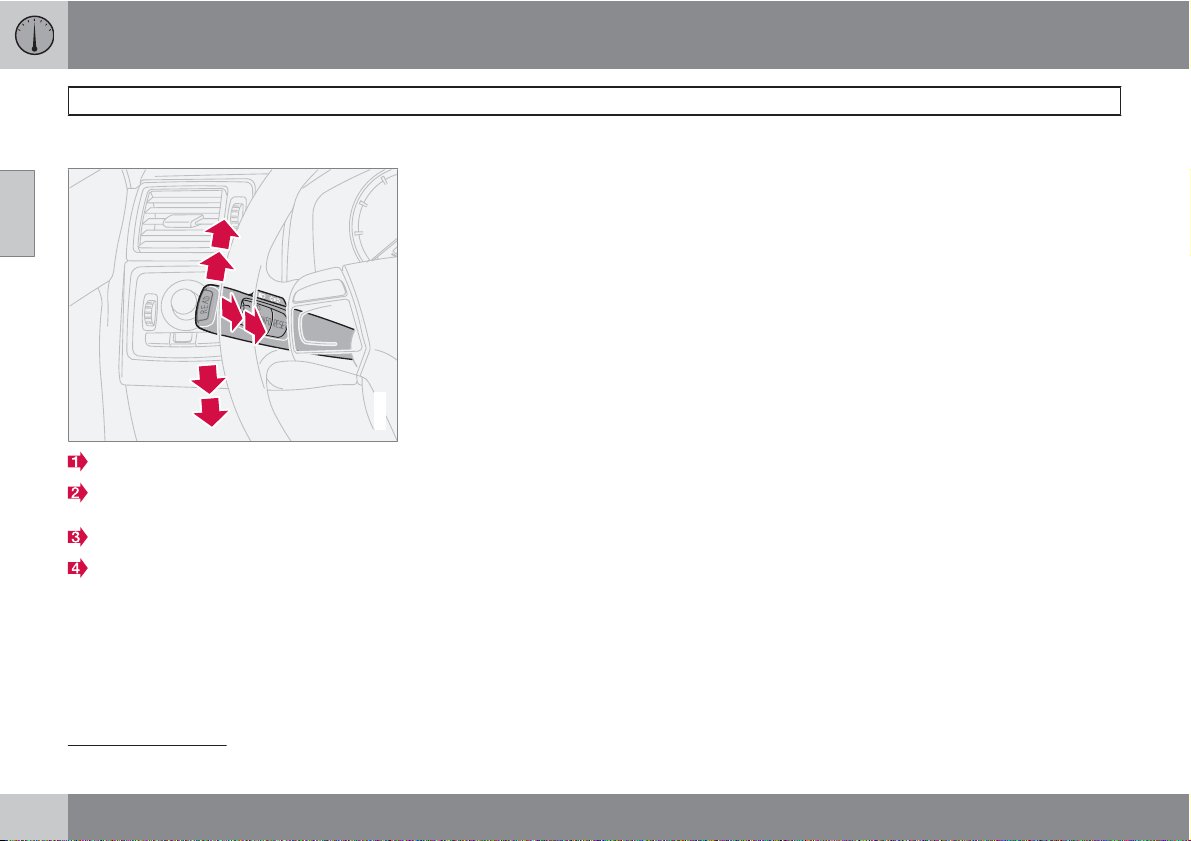

Left-hand stalk switch
Stalk switch positions
02
Direction indicators - short flash sequence
Direction indicators - continuous flash
sequence
Main beam flash
Home safe lighting and switching between
main and dipped beam.
Direction indicators
Short flash sequence
– Move the stalk switch up or down to
2
1
position (1) and release.
> The direction indicators flash 3 times
and the stalk switch returns to its original position.
3
4
Continuous flash sequence
– Move the stalk switch up or down to
end position (2).
1
2
G026380
> The stalk switch remains in its end posi-
tion and is moved back manually, or
automatically by steering wheel movement.
Main beam flash
– Move the stalk switch gently towards the
steering wheel to position (3).
> Main beam comes on until the stalk
Switching between main and dipped
beam
– Move the stalk switch to the end position
(4) and release.
The remote control key must be in position II
and the headlamp control in end position, see
page 60, for main beam to be switched on.
Home safe lighting
Some of the exterior lighting can be kept
switched on to work as home safe lighting after
the car has been locked. The standard delay is
1
30
seconds, but can be changed to 60 or 90
seconds, see page 83.
1. Remove the remote control key from the
ignition switch.
2. Move the stalk switch towards the steering
wheel to position (3) and release.
3. Get out of the car and lock the door.
switch is released.
Main beam flash only works when the remote
control key is inserted into the ignition switch.
64
1
Factory settings.
Page 67
02 Instruments and controls
Left-hand stalk switch
Trip computer*
NOTE
If a warning message interrupts while you
are using the trip computer, this message
must be acknowledged. Acknowledge by
pressing the READ button and revert to the
trip computer function.
Functions
The trip computer displays the following information:
--- KM/H AVERAGE SPEED
•
--.- KM/L INSTANTANEOUS
•
--.- L/100 KM AVERAGE
•
G029052
READ - confirms
Thumbwheel2 – browse between menus
and options in the trip computer list.
RESET2 - resets
Controls
To scroll through trip computer information
turn the thumbwheel either up or down in
steps. The menus are in an infinite loop.
2
No function in cars without trip computer, fuel-driven parking heater as well as stability and traction control system.
3
Certain markets.
4
Only applies to diesel cars with particle filter.
--- KILOMETRES TO EMPTY TANK
•
DSTC ON *, see page 167
•
--- MPH ACTUAL SPEED
•
3
AVERAGE SPEED
Average speed is calculated from the latest
reset, which is performed with the RESET button.
INSTANTANEOUS
Current fuel consumption is calculated every
second. The information on the display is
updated every couple of seconds. When the
car is stationary, "
--.-" appears on the display.
During the period for regeneration
sumption may increase, see page 144.
4
fuel con-
AVERAGE
Average fuel consumption is calculated from
the latest reset, which is performed with the
RESET button.
NOTE
There may be a slight error in the reading if
a fuel-driven heater is used.
KILOMETRES TO EMPTY TANK
The range to empty is calculated based on the
average fuel consumption over the last 30 km.
No guaranteed range remains when the display
--- KILOMETRES TO EMPTY TANK
shows "
". Refuel as soon as possible.
NOTE
There may be a slight error in the reading if
fuel consumption is changed due to a
change in driving style or if a fuel-driven
heater is used for example.
MPH ACTUAL SPEED
Current speed is displayed in mph.
3
02
* Option/accessory, for more information, see Introduction.
65
Page 68
02
02 Instruments and controls
Left-hand stalk switch
Resetting
1.
2.
3.
--- KM/H AVERAGE SPEED or
Select
--.- L/100 KM AVERAGE
Reset with one press of the RESET button.
One long press of the RESET button (at
least 5 seconds) resets both average
speed and average consumption simultaneously.
66
Page 69
02 Instruments and controls
Right-hand stalk switch
Windscreen wipers
Windscreen and headlamp washers
Rain sensor - On/Off
Thumbwheel
Windscreen wipers off
The windscreen wipers are off
when the stalk switch is in position
0.
Single sweep
Raise the stalk switch to make a
single sweep.
Intermittent wiping
You can adjust and set a suitable
speed for intermittent wiping. Turn
the thumbwheel (C) up for a shorter
interval between sweeps. Turn it
down to increase the delay.
Continuous wiping
The wipers sweep at normal
speed.
The wipers sweep at high speed.
IMPORTANT
Before activating the wipers during winter
ensure that the wiper blades are not frozen
in, and that any snow or ice on the windscreen is scraped away.
IMPORTANT
Use plenty of washer fluid when the wipers
are cleaning the windscreen. The windscreen must be wet when the windscreen
wipers are operating.
Windscreen/headlamp washer
Move the stalk switch toward the steering
wheel to start the windscreen and headlamp
washers. The wipers will make several more
sweeps once the stalk switch is released.
High-pressure headlamp washing*
High-pressure headlamp washing consumes a
large quantity of washer fluid. To save fluid, the
headlamps are washed as follows:
Dipped beam selected with the switch on lighting panel:
The headlamps are washed the first time the
windscreen is washed. Within the next ten
minutes, they are washed every fifth wash
cycle of the windscreen. In the event of a longer
interval the headlamps are washed each time.
Parking/position lamps selected with the
switch on the lighting panel:
Active Xenon headlamps are only washed
•
every fifth wash cycle irrespective of the
time that elapses.
Halogen headlamps are not washed.
•
The switch on the lighting panel is in position
0:
Active Xenon headlamps are only washed
•
every fifth wash cycle irrespective of the
time that elapses.
Halogen headlamps are not washed.
•
02
* Option/accessory, for more information, see Introduction.
67
Page 70
02 Instruments and controls
Right-hand stalk switch
Rain sensor*
02
The rain sensor automatically activates the
windscreen wipers based on how much water
it detects on the windscreen. The sensitivity of
the rain sensor can be adjusted using the
thumbwheel (C), see page 67.
Turn the thumbwheel upwards for higher sensitivity and downwards for lower sensitivity, (an
extra sweep is made when the thumbwheel is
turned upwards).
On/Off
When activating the rain sensor, the remote
control key must be in position I or II and the
windscreen wiper stalk switch must be in position 0 (not activated).
Activating the rain sensor:
– Press the button (B), see page 67. A display
symbol shows that the rain sensor is
active.
To turn the rain sensor off, either:
1. Press button (B)
2. Press the stalk switch downward to
another wiper program. If the stalk switch
is raised, the rain sensor will remain active,
the wipers make an extra sweep and then
return to rain sensor mode when the stalk
is released to position 0 (not activated), see
G029053
page 67.
The rain sensor is automatically deactivated
when the remote control key is removed from
the ignition switch or five minutes after the ignition is switched off.
IMPORTANT
At an automatic car wash: Deactivate the
rain sensor by pressing the button (B) while
the remote control key is in position I or II.
Otherwise, the windscreen wipers could
start swiping and become damaged.
Thumbwheel
Use the thumbwheel to adjust the frequency of
wiper sweeps when intermittent wiping is
selected, or the sensitivity to rain when the rain
sensor is selected.
68
* Option/accessory, for more information, see Introduction.
Page 71
02 Instruments and controls
Cruise control*
Activating
The controls for cruise control are to the left of
the steering wheel.
Setting the desired speed:
1.
Press the CRUISE button.
shown on the combined instrument panel.
2.
Touch + or – to lock the vehicle speed.
CRUISE-ON appears in the combined
instrument panel.
Cruise control cannot be engaged at speeds
below 30 km/h or above 200 km/h.
CRUISE is
Increasing or decreasing speed
G020141
– Increase or decrease the speed by press-
ing and holding + or –. The speed of the car
when the button is released is set as the
new speed.
A brief press (less than half a second) on + or
– changes the speed by 1 km/h or 1 mph
NOTE
A temporary increase in speed (less than
one minute) using the accelerator, such as
while overtaking, does not affect the cruise
control setting. When you release the accelerator, the car will return to the programmed
speed.
02
Temporary disengagement
–
Press 0 to disengage the cruise control
temporarily.
combined instrument panel. The speed set
G029054
1
.
earlier is stored in the memory.
The cruise control is also temporarily disengaged when:
the brake pedal or clutch pedal is
•
depressed
speed falls below 25-30 km/h1 when trav-
•
elling uphill
the gear selector is moved to position N
•
wheel spin or wheel lock-up occurs
•
a temporary increase in speed lasts longer
•
than one minute.
CRUISE will be shown on the
1
Depending on engine type.
* Option/accessory, for more information, see Introduction.
69
Page 72
02 Instruments and controls
Cruise control*
Return to the set speed
02
Disengaging
–
Press CRUISE to disengage the cruise
control.
bined instrument panel.
– Press this button to resume the
previously set speed.
appears on the combined
ON
instrument panel.
CRUISE ON clears on the com-
CRUISE
70
* Option/accessory, for more information, see Introduction.
Page 73
02 Instruments and controls

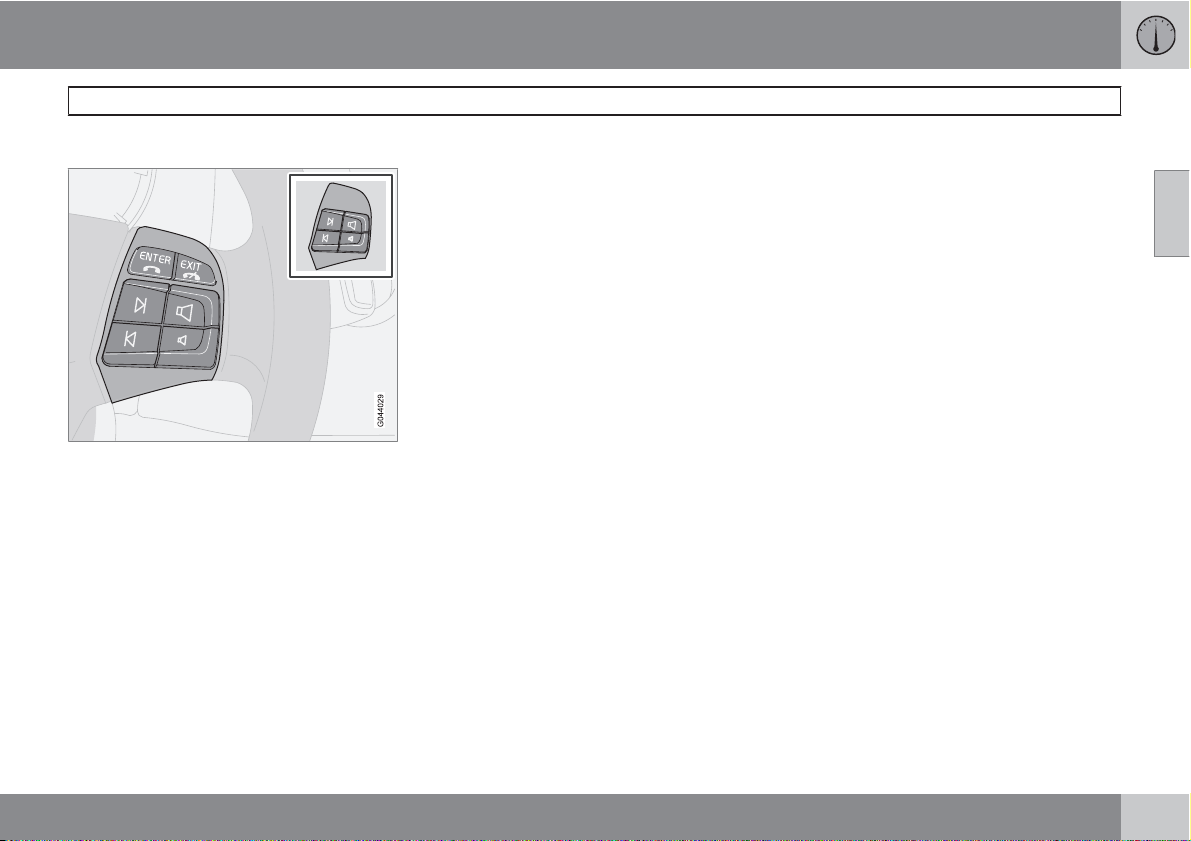

Keypad in the steering wheel*
Button functions
The keypad is available in two versions depending
on the equipment in the car.
The four buttons at the bottom of the steering
wheel keypad control the radio and the phone.
The function of a button depends on which
system is active. The steering wheel keypad
can be used to scroll between preset stations,
change CD tracks and adjust the volume.
– Press and hold one of the arrow keys to
fast forward/reverse or search for the next
station.
The phone must be active to make settings in
the phone system. Activate the phone function
with the PHONE button in the centre console
in order to enable control of the phone system
with the arrow keys.
To return to Audio only, press EXIT.. To return
to the phone menu, press EXIT once again.
With the ENTER button you can select, activate and deactivate options in menus. The button can also be used to access the folder structure and start the playback of audio files if a
disc with audio files is inserted in the CD player/
CD changer*. For more information, see
page 258.
02
* Option/accessory, for more information, see Introduction.
71
Page 74
02 Instruments and controls

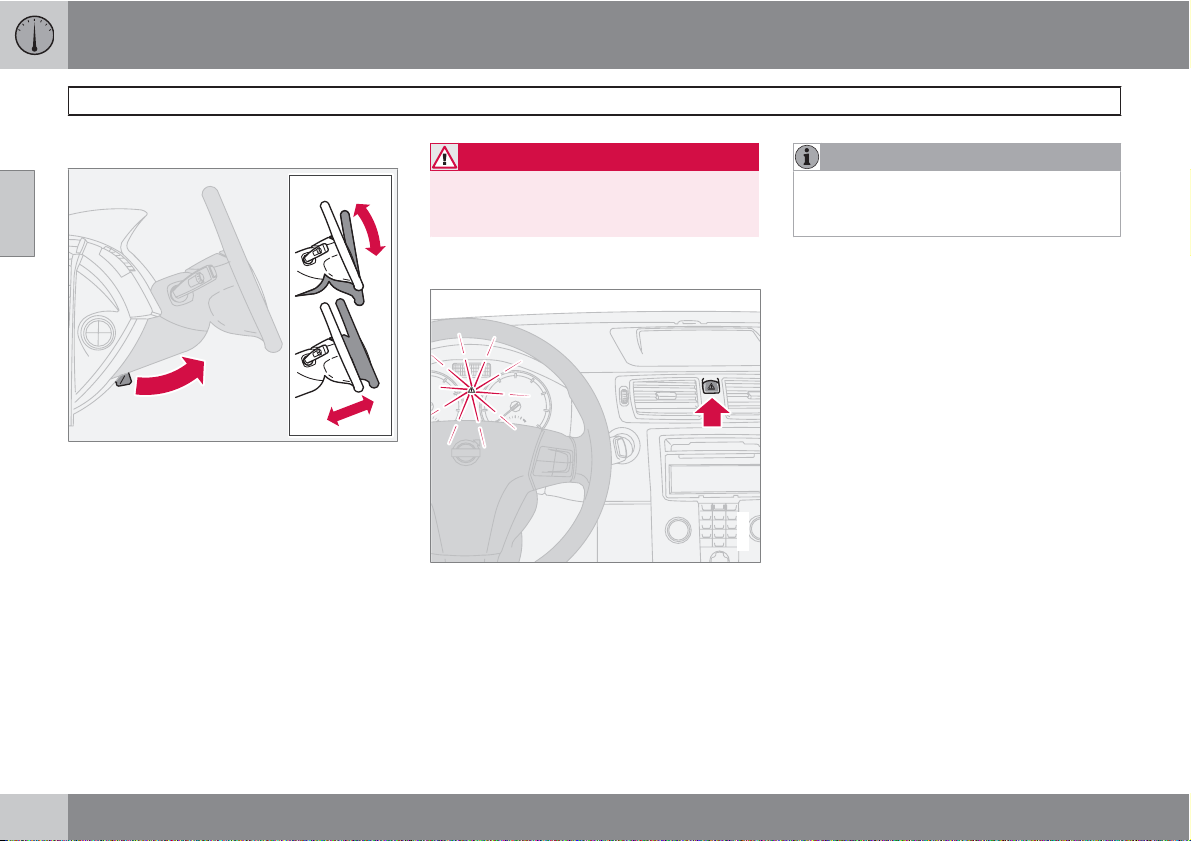

Steering wheel adjustment, hazard warning flashers
Steering wheel adjustment
02
The steering wheel can be adjusted for both
height and reach.
1. Pull the lever towards you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you best.
3. Push back the lever to fix the steering
wheel in place. If the lever is stiff, press the
steering wheel lightly at the same time as
you push the lever back.
WARNING
Adjust the steering wheel before driving off,
never while driving. Before driving, check
that the steering wheel is fixed in position.
Hazard warning flashers
G020143
Use the hazard warning flashers (all direction
indicators flash) when the car is stopped where
it could be a traffic hazard or obstruction. Press
the button to activate the function.
A sufficiently violent collision or heavy braking
activates the hazard warning flashers automatically, see page 166. The function can be
deactivated with the button.
NOTE
Regulations regarding the use of hazard
warning flashers vary from country to country.
G020144
72
Page 75
02 Instruments and controls
Parking brake
General
Instrument panel warning symbol and warning
label for risk of crushing.
The lever is located between the front seats.
WARNING
Make sure that children, other passengers
or objects are not in danger of becoming
trapped in any way when the parking brake
is applied or released by the driver.
Applying the parking brake
1. Press the foot brake pedal down firmly.
2. Pull the lever firmly.
> The instrument panel's warning symbol
is illuminated.
NOTE
The warning lamp symbol in the combined
instrument panel illuminates irrespective of
how hard the parking brake is applied.
3. Release the foot brake pedal and make
sure that the car is at a standstill position.
4. If the vehicle moves then the parking brake
lever must be pulled up a little bit further.
When parking the vehicle, always engage
•
1st gear (for manual gearbox) or put the
gear selector in position P (for automatic
gearbox).
Parking on a hill
If the car is parked facing uphill:
Turn the wheels away from the kerb.
•
If the car is parked facing downhill:
Turn the wheels towards the kerb.
•
WARNING
Get into the habit of always applying the
parking brake when parking on a slope leaving the car in gear, or in P if it has automatic transmission, is not sufficient to hold
the car in all situation.
Disengaging the parking brake
1. Press the foot brake pedal down firmly.
2. Pull the parking brake lever up slightly,
press the button, lower the parking brake
lever and release the button.
> The instrument panel's warning symbol
is switched off.
02
73
Page 76
02 Instruments and controls
Power windows
Operation
The power windows are operated using the
02
controls in the doors. The key position must be
I or II for the power windows to operate.
The windows continue to work for a limited
amount of time when the car is stopped and
after the remote control key is removed, provided none of the doors is opened. Operate the
windows with caution.
To open a window:
– Depress the front of the control.
To close a window:
– Raise the front of the control.
NOTE
One way to reduce the pulsating wind noise
when the rear windows are open is to also
open the front windows slightly.
Remote control and lock buttons
To operate the power windows with lock buttons and remote control, see pages 120 and
130.
WARNING
Make sure that children and other passengers cannot be trapped in any way when
closing the windows. Pay close attention if
the rear door windows are controlled from
the driver's door or if the windows are
closed with the remote control.
Driver's door

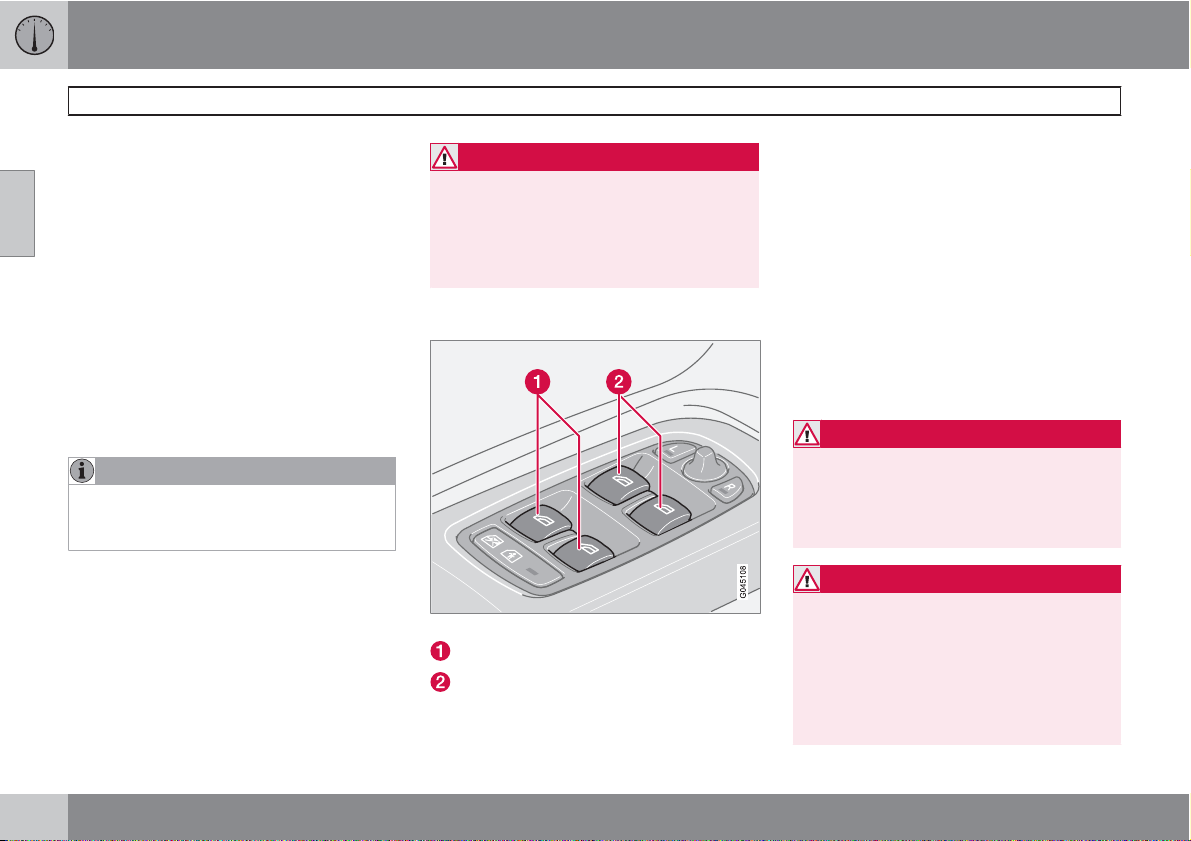

Controls, power windows.
Rear window controls
Front window controls
The driver can operate all of the power windows from the driver's seat.
The windows can be opened and closed in two
ways:
Manual operation
Depress one of the controls (1) or (2) gently or
raise it gently. The power window opens or
closes as long as the switch is actuated.
Automatic operation
Fully depress one of the controls (2) or raise it,
then release. The side window will then open
or close automatically. If the window is
obstructed by an object, the movement will
stop.
WARNING
The function that interrupts the movement
of the windows in the event of them being
blocked works with both automatic and
manual closing, although not with pinch
protection deployed.
WARNING
If there are children in the car:
Remember to switch off the supply to the
power windows by removing the remote
control key if the driver leaves the car.
Make sure that children and other passengers cannot be trapped in any way when
closing the windows.
74
Page 77
02 Instruments and controls
Power windows
Blocking power windows in the rear
doors
Blocking rear power windows and electric child
safety locks*.
The light in the switch is lit
The rear door windows can only be operated
from the driver's door.
The light in the switch is extinguished
The rear door windows can be operated both
with the control on each rear door and with the
controls on the driver's door.
NOTE
If the car has electric child safety locks on
the rear doors, the light indicates that these
are also activated. The doors then cannot
be opened from the inside. A text message
is shown on the display when the electric
child safety locks are activated.
Front passenger seat
Front passenger seat.
The control in the front passenger door operates that window only.
Rear power windows
02
The rear door windows can be operated with
the control on each door or with the switch on
the driver's door. If the light in the switch for
blocking the rear power windows (located in
the control panel in the driver's door) is lit, the
rear door windows can only be operated from
the driver's door. The windows in the rear
doors are operated in the same way as the
windows in the front doors.
75
Page 78
02 Instruments and controls
Windows, rearview and door mirrors

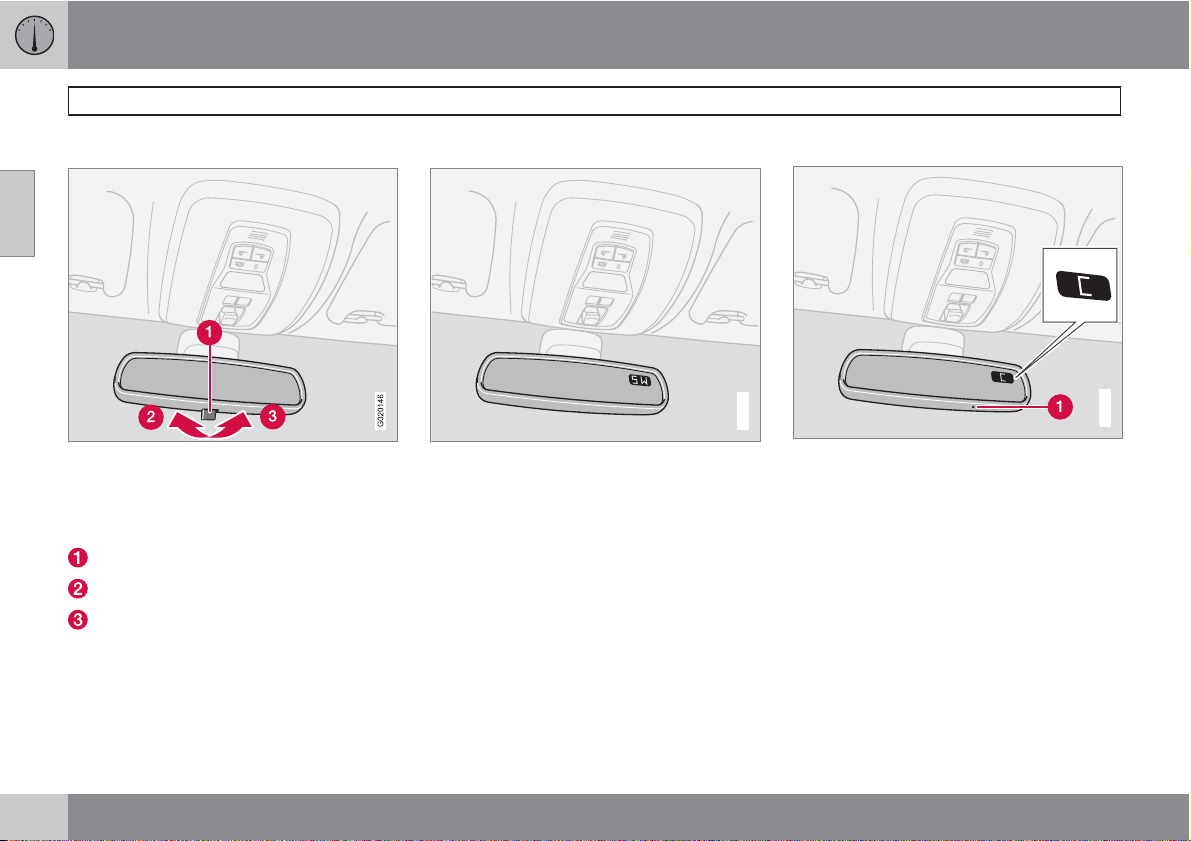

Interior rearview mirror
02
Bright light from behind could be reflected in
the rearview mirror and dazzle the driver. Use
dimming when disturbed by light from behind.
Dipping
Control for dimming
Normal position
Dimmed position.
Automatic dimming*
Bright light from behind is automatically
dimmed by the rearview mirror. The control (1)
is not available in mirrors with automatic dimming.
Interior rearview mirror with compass*
The upper right-hand corner of the rearview
mirror has an integrated display that shows the
compass direction in which the front of the car
is pointing. Eight different directions are shown
with English abbreviations:
E (east), SE (south east), S (south), SW
east),
(south west), W (west) and NW (north west).
N (north), NE (north
Calibrating the compass
G031043
The earth is divided into 15 magnetic zones.
The compass is set for the geographical area
to which the car was delivered. The compass
should be calibrated if the car is moved across
several magnetic zones.
1. Stop the car in a wide open area with the
engine running at idling speed.
2. Press and hold button (1) for at least 6 seconds. Following which, the character
shown (the button is concealed so use a
paper clip for example to press it in).
3. Press and hold button (1) for at least 3 seconds. The number for the current magnetic
zone is displayed.
G031045
C is
76
* Option/accessory, for more information, see Introduction.
Page 79
02 Instruments and controls
Windows, rearview and door mirrors
4. Press the button (1) repeatedly until the
number for the required magnetic zone (
15
) is shown, refer to the map of magnetic
1–
zones for the compass.
5. Wait until the display returns to showing
the character
C.
6. Following which, press and hold the button
in for 9 seconds and select
drive cars and
R for right-hand drive.
L for left-hand
7. Drive slowly in a circle with a maximum
speed of 10 km/h until a compass direction
is shown on the display, which indicates
that the calibration is complete.

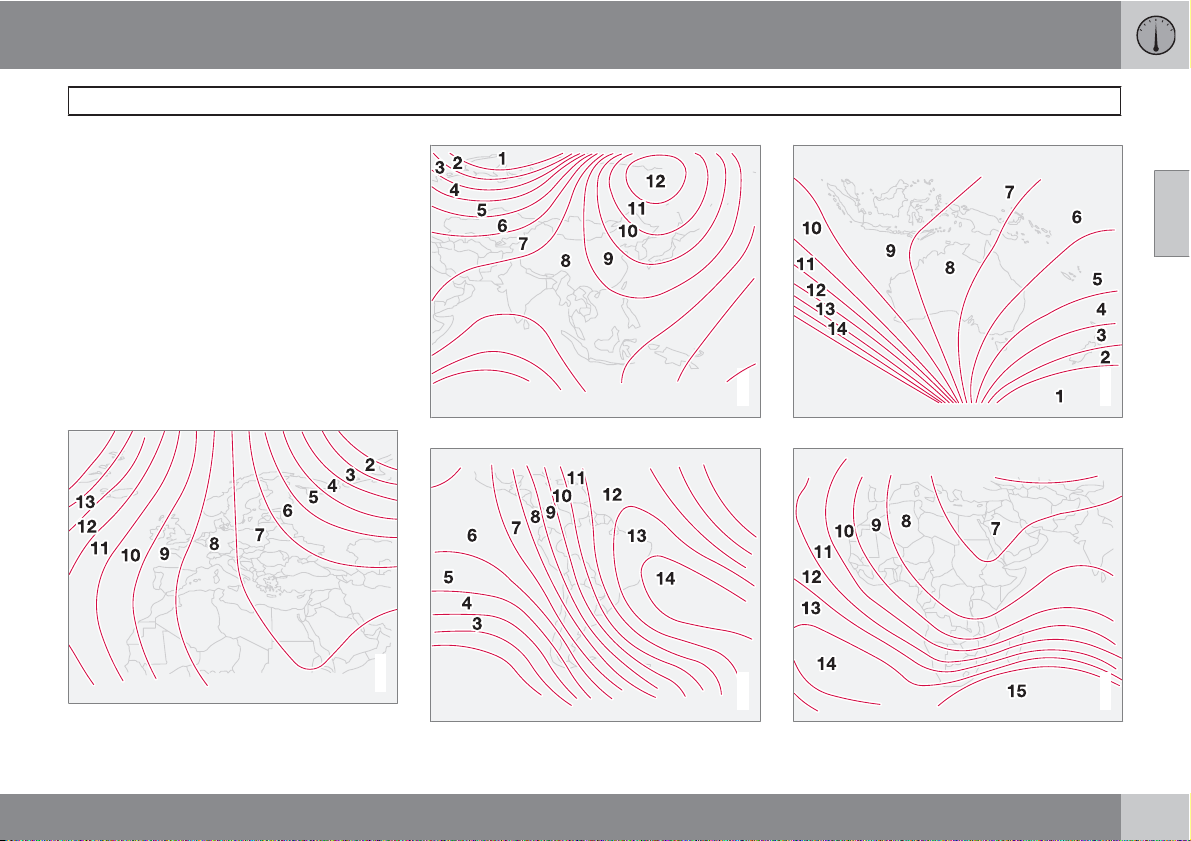

Magnetic zones, Europe.
Magnetic zones, Asia.
G020150
Magnetic zones, South America.
G020151
Magnetic zones, Australia.
G020152
Magnetic zones, Africa.
02
G020153
G020154
``
77
Page 80
02 Instruments and controls
Windows, rearview and door mirrors

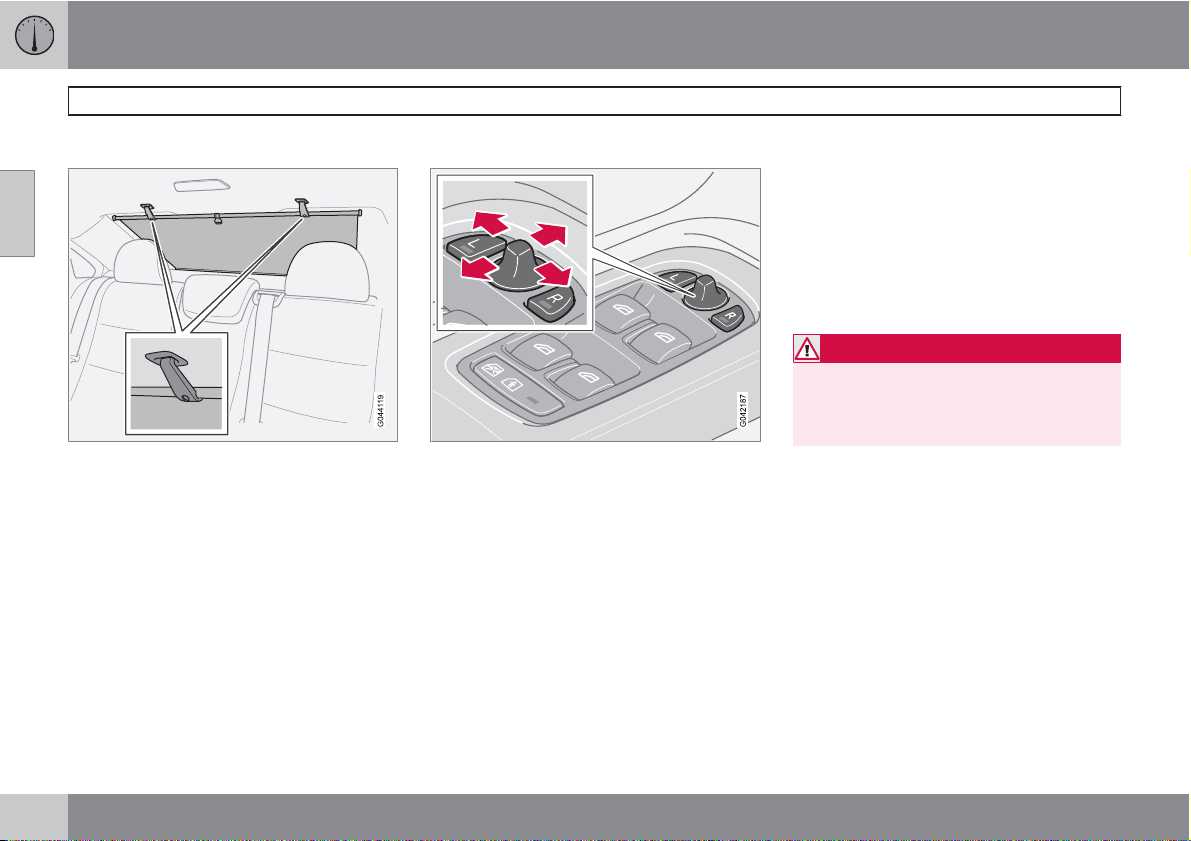

Sun blind*
02
There is a sun blind built into the rear parcel
shelf.
– Pull up the sun blind and hook it into the
roof clip using the two hooks for the blind.
> The spring force in the blind keeps the
hooks in position.
When the sun blind is not in use - unhook it,
hold onto the handle and allow the blind to roll
up slowly.
Door mirrors
The controls for adjusting the two door mirrors
are at the front of the driver's door armrest. The
rearview mirrors can be operated in key position I and II.
1.
Press the L button for the left-hand door
mirror or the R button for the right-hand
door mirror. The light on the button illuminates.
2. Adjust the position with the joystick in the
centre.
3.
Press the L or R button again. The light
goes out.
Retractable power door mirrors*
The mirrors can be retracted for parking/driving
in narrow spaces. This can be carried out in key
position I and II.
Retracting the mirrors
1.
Press the L and R button at the same time.
2. Release the buttons. The mirrors automatically stop in the fully retracted position.
WARNING
The door mirror on the driver's side is the
wide-angled type to provide optimal vision.
Objects may appear further away than they
actually are.
Folding out the mirrors
1.
Press the L and R button at the same time.
2. Release the buttons. The mirrors automatically stop in the fully extended position.
Automatic retracting/extending
When the car is locked/unlocked with the
remote control or using the Keyless-system,
see page 126, the door mirrors are automatically retracted/extended.
78
* Option/accessory, for more information, see Introduction.
Page 81
02 Instruments and controls
Windows, rearview and door mirrors
NOTE
The door mirrors will not be extended automatically during unlocking if they were
retracted using the controls in the door.
If the car is locked with the remote control
and is then started, the door mirrors will still
be extended.
The function can be activated/deactivated
under Car settings…
locking, see page 83 for a description of the
menu system.
Mirror fold on
Resetting to neutral
Mirrors that have been moved out of position
by an external force must be reset to the neutral
position for electric retracting and extending to
work.
1.
Use the L and R buttons to retract the mirrors.
2.
Extend the mirrors again with the L and R
button. The mirrors are now reset to the
neutral.
Home safe and approach lighting
The light* on the door mirrors illuminates when
the approach lighting or home safe lighting is
activated.
Blind Spot Information System, BLIS*
BLIS is an information system that under certain conditions can help to draw the driver's
attention to vehicles moving in the same direction in the so-called "blind spot", see
page 171.
Water and dirt-repellent coating*
The front side windows are treated
with a coating which improves the view
in poor weather conditions. For information on
maintenance, see page 207.
IMPORTANT
Do not use a metal ice scraper to remove ice
from the windows. The water and dirt-repellent coating could be damaged.
02
* Option/accessory, for more information, see Introduction.
79
Page 82
02 Instruments and controls
Power sunroof*
Open positions
02
The sunroof controls are located in the roof
panel. The sunroof can be opened in two positions:
Ventilation position, up at the rear edge
Sliding position, backwards/forwards
The remote control key must be in position I or
II.
WARNING
If there are children in the car:
Switch off the supply to the power sunroof
by removing the remote control key if the
driver leaves the car.
G007503
Opening, automatic
Opening, manual
Closing, manual
Closing, automatic
Opening, ventilation position
Closing, ventilation position
Ventilation position
Open:
– Press the rear edge of the control (5)
upward.
Close:
– Pull the rear edge of the control (6) down-
ward.
From ventilation position to fully open sunroof:
– Pull the control rearward to the end posi-
tion (1) and release.
Sliding position
Automatic operation
– Pull the control past the point of resistance
(2) to the rear end position (1) or past the
point of resistance (3) to the forward end
position (4) and release. The sunroof
G029222
opens/closes completely.
Manual operation
Open:
– Pull the control rearward to the point of
resistance (2). The sunroof moves to maximum open position as long as the button
is kept depressed.
Close:
– Press the control forward to the point of
resistance (3). The sunroof moves to
80
* Option/accessory, for more information, see Introduction.
Page 83

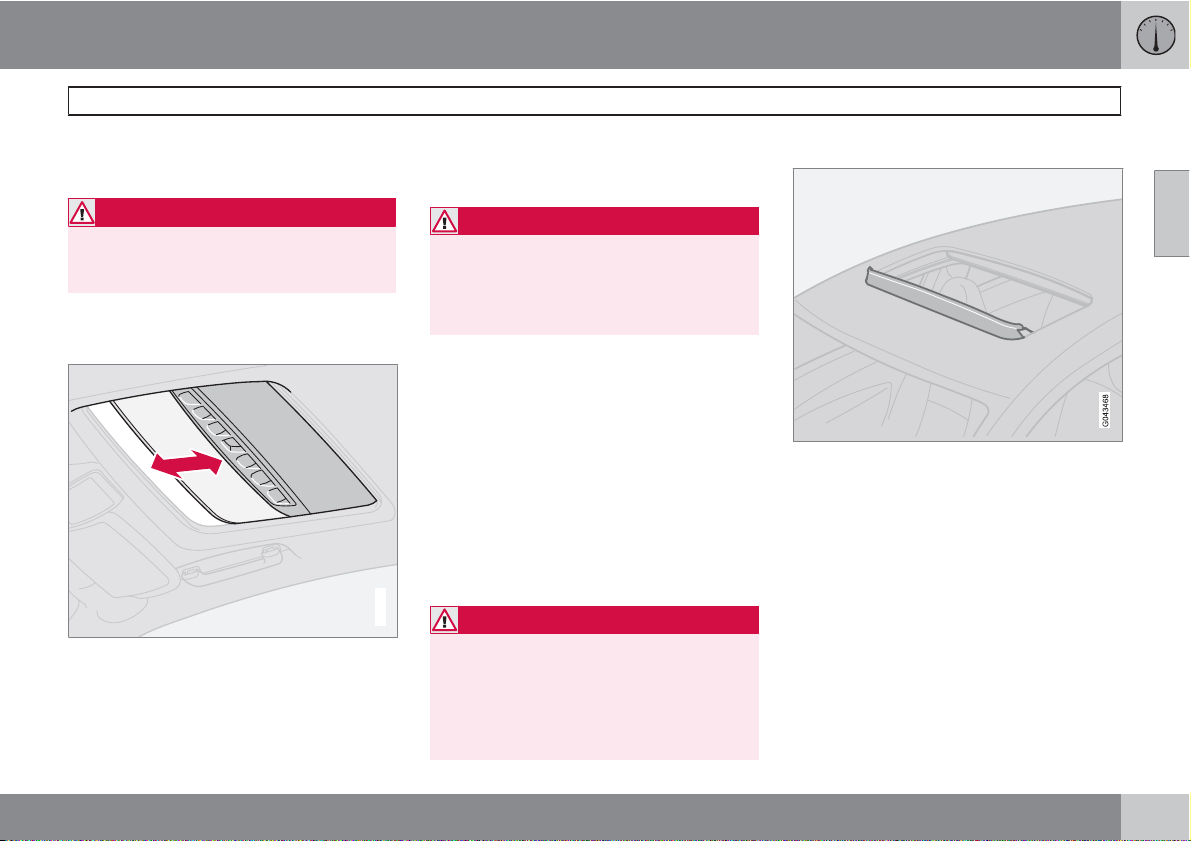

02 Instruments and controls
Power sunroof*
closed position as long as the button is
kept depressed.
WARNING
The sunroof's pinch-protection function
only operates during automatic closing, not
manual closing.
Closing with remote control or lock
button
– One long press on the lock button closes
the sunroof and all the windows. The doors
and the boot lid are locked.
If you need to interrupt closing:
– Press the lock button again.
WARNING
Make sure that children or other passengers
are not in danger of becoming trapped in
any way when closing the sunroof with the
remote control. Always operate the sunroof
with caution.
Sunscreen
The sunroof features a manual, sliding interior
sunscreen. The sunscreen slides back automatically when the sunroof is opened. Grip the
handle and slide the screen forward to close it.
Pinch protection
The sunroof's pinch protection function is activated if the hatch is blocked by an object. If
blocked, the sunroof will stop and automatically open to the previous position.
G020157
WARNING
The sunroof's pinch protection function only
operates during automatic closing, not during manual closing.
Make sure that nobody is in danger of
becoming trapped in any way when closing
the sunroof.
Wind deflector
02
The sunroof has a wind deflector that is folded
up when the sunroof is in the open position.
* Option/accessory, for more information, see Introduction.
81
Page 84
02 Instruments and controls
Personal preferences
Possible settings
Personal preferences can be set for some of
02
the car's functions. This applies to locks, climate control and audio functions. For audio
functions, see page 248.
Control panel
Control panel.
Display
MENU
EXIT
ENTER
Navigation
Use
The settings are shown on the display (A).
Open the menu to enter settings:
1.
Press MENU (B).
2.
Scroll, for example, to
the navigation button (E).
3.
Press ENTER (D).
4. Select an alternative with the navigation
button (E).
5.
Press ENTER to activate the selection.
Activated function is shown in the display
. Deactivated function is shown in
with
the display with
Close the menu:
–
Press EXIT (C) for approximately one second.
Car settings… with
.
Clock, adjustment
The hour and minute are each adjusted separately.
1. Use the numbers on the keypad or "arrow
up" or "arrow down" on the navigation button (E).
2. Select the number for adjustment using
"arrow right" or "arrow left" on the navigation button.
3.
Press ENTER to start the clock.
NOTE
If the car has a 12-hour clock then AM/PM
is selected using "arrow up" or "arrow
down" after the final minute number has
been adjusted.
Climate settings
Automatic blower adjust
The fan speed can be set to AUTO mode in
cars equipped with ECC:
–
Select from
Low, Normal and High.
Recirculation timer
When the timer is active, the air recirculates for
3-12 minutes, depending on the outside air
temperature.
82
Page 85
02 Instruments and controls
Personal preferences
– Select On/Off depending on whether or not
you wish the recirculation timer to be
active.
Reset all
Resets the climate function options to the factory settings.
Car settings
Retract mirrors when locking*
When the car is locked/unlocked with the
remote control the door mirrors can be retracted/extended automatically. The On/Off option
is available.
Reduced guard*
The deadlocks function can be temporarily
deactivated and the alarm level reduced if
someone wishes to remain in the car and the
doors have to be locked from the outside. The
Activate once and Ask on exit options are
available, see pages 131 and 135.
Unlock confirm. light
The hazard warning flashers can provide feedback when the car is unlocked with the remote
control. The On/Off option is available.
Lock confirm. light
The hazard warning flashers can provide feedback when the car is locked with the remote
control. The On/Off option is available.
Doors – auto lock
When the speed of the car exceeds 7 km/h the
doors and boot lid can be locked automatically.
The On/Off option is available. Pulling the door
handle twice unlocks and opens the doors
from the inside.
Doors unlock
There are two alternatives for unlocking:
All doors – one press of the remote control
•
unlocks all doors and the boot lid.
Driver door, then all – one press of the
•
remote control unlocks the driver's door. A
second press then unlocks the passenger
door and the boot lid.
Keyless entry*
All doors - all doors are unlocked simul-
•
taneously.
Doors on same side – front and rear
•
doors on the same side are unlocked
simultaneously.
Both front doors – both front doors are
•
unlocked simultaneously.
Any door – any door or the boot lid can be
•
unlocked separately.
Simultaneous closing/opening of all
windows
This function can be selected for the lock button on the remote control and the front doors'
central locking button, as well as the outside
door handle button on cars with the keyless
system:
Auto. close all windows - all windows
•
and the sunroof are closed simultaneously
with one long press on the lock button.
This function can be selected for the unlock
button on the remote control and the front
doors' central locking button:
Auto. open all windows – all windows are
•
opened simultaneously with one long
press on the unlock button.
Approach lighting
Select the time the car's lights should remain
switched on when the approach lighting button
is pressed - see page 120.
The following alternatives are available:
30 seconds
•
60 seconds
•
90 seconds
•
Home safe lighting
Select the time the car's lights should remain
on when the left-hand stalk switch is pulled
back after the remote control key has been
removed - see page 64.
The following alternatives are available:
02
``
* Option/accessory, for more information, see Introduction.
83
Page 86
02
02 Instruments and controls
Personal preferences
30 seconds
•
60 seconds
•
90 seconds
•
Information
VIN number… - (Vehicle Identification
•
Number) is the car's unique identity number.
Number of keys… - The number of keys
•
registered for the car is shown.
84
Page 87
02 Instruments and controls
HomeLink
*
General
HomeLink is a programmable remote control
which can control up to three different devices
(e.g. garage door, alarm system, outdoor lighting and indoor lighting etc.) and in doing so
replace their remote controls. HomeLink
supplied built into the left-hand sun visor.
The HomeLink
panel consists of three pro-
grammable buttons and one indicator lamp.
is
NOTE
HomeLink is designed not to work if the car
is locked from the outside.
Save the original remote controls for future
programming (e.g. when switching to
another car).
Delete the button programming when the
car is to be sold.
Metallic sun visors should not be used in
cars fitted with HomeLink
. This may have
an adverse effect on its function.
Operation
G030070
When HomeLink is fully programmed it can be
used in place of the separate original remote
controls.
Depress the programmed button to activate
the garage door, alarm system etc. The indicator lamp illuminates for the time that the button is kept depressed.
NOTE
If the ignition is not activated, HomeLink
will work for 30 minutes after the driver's
door has been opened.
The original remote controls can of course be
used in parallel with HomeLink
WARNING
If HomeLink is used to operate a garage
door or gate, ensure that nobody is in the
vicinity of the door or gate while it is in
motion.
Do not use the HomeLink
remote control
for any garage door that does not have
safety stop and safety reverse. The garage
door must react immediately when it
detects that something is preventing its
movement, and stop directly and reverse. A
garage door without these characteristics
could cause personal injury. For further
information - contact the supplier via the
Internet: www.homelink.com.
02
Programming for the first time
The first step erases the memory in
HomeLink
and must not be carried out when
only one individual button is being reprogrammed.
1. Depress the two outer buttons and do not
release until the indicator lamp starts to
flash after approx. 20 seconds. The flashing indicates that HomeLink
is set in
"learn mode" and is ready to be programmed.
.
5-30 cm from HomeLink
2. Position the original remote control
. Monitor the indi-
cator lamp.
* Option/accessory, for more information, see Introduction.
85
Page 88
02 Instruments and controls
HomeLink
*
The particular distance that is required
02
between the original remote control and
HomeLink
depends on the programming
of the device in question. Perhaps several
attempts will be required at different distances. Maintain each position for approx.
15 seconds before trying a new one.
3. Depress the button for the original remote
control and the button to be programmed
on HomeLink
simultaneously. Do not
release the buttons until the indicator lamp
has changed over from slow to rapid flashing. The rapid flashing indicates successful
programming.
4. Test the programming by depressing the
programmed button on HomeLink
watching the indicator lamp:
Constant glow: The indicator lamp illu-
•
minates with a constant glow when the
button is kept depressed, this indicates
that the programming is complete. The
garage door, gate or similar should now
be activated when the programmed
HomeLink
Glow not constant: The indicator lamp
•
button is depressed.
flashes quickly for approx. 2 seconds
and then changes over to a constant
glow for approx. 3 seconds. This proc-
and
ess is repeated for approx. 20 seconds
and indicates that the device has a "rolling code". The garage door, gate or similar is not activated when the programmed HomeLink
button is
depressed. Continue the programming
in accordance with the following.
5.
Locate the "programming button
1
" on the
receiver for the garage door for example,
normally located close to the antenna's
bracket on the receiver. If you have difficulty in finding the button - consult the
supplier's manual, or contact the supplier
via the Internet: www.homelink.com.
6. Depress and release the "programming
button". The button flashes for
approx. 30 seconds and the next step must
be carried out within this period.
7. Depress the programmed button on
HomeLink
, while the "programming button" is still flashing, keep it depressed for
approx. 3 seconds and then release.
Repeat the press/hold/release sequence
up to 3 times to conclude the programming.
Programming individual buttons
To reprogram an individual button, proceed in
accordance with the following:
1. Depress the required button on
HomeLink
and do not release until step 3
has been completed.
2.
When the indicator lamp on HomeLink
starts to flash, after approx. 20 seconds,
position the original remote control
5-30 cm from HomeLink
. Monitor the indi-
cator lamp.
The particular distance that is required
between the original remote control and
HomeLink depends on the programming of
the device in question. Perhaps several
attempts will be required at different distances. Maintain each position for approx.
15 seconds before trying a new one.
3. Depress the button on the original remote
control. The indicator lamp will start to
flash. When the flashing has changed over
from a slow to a rapid flashing - release
both buttons. The rapid flashing indicates
successful programming.
4. Test the programming by depressing the
programmed button on HomeLink and
watching the indicator lamp:
1
Button designation and colour vary depending on manufacturer.
86
* Option/accessory, for more information, see Introduction.
Page 89
02 Instruments and controls
HomeLink
*
Constant glow: The indicator lamp illu-
•
minates with a constant glow when the
button is kept depressed, this indicates
that the programming is complete. The
garage door, gate or similar should now
be activated when the programmed
HomeLink
Glow not constant: The indicator lamp
•
button is depressed.
flashes quickly for approx. 2 seconds
and then changes over to a constant
glow for approx. 3 seconds. This process is repeated for approx. 20 seconds
and indicates that the device has a "rolling code". The garage door, gate or similar is not activated when the programmed HomeLink
button is
depressed. Continue the programming
in accordance with the following.
5.
Locate the "programming button
2
" on the
receiver for the garage door for example,
normally located close to the antenna's
bracket on the receiver. If you have difficulty in finding the button - consult the
supplier's manual, or contact the supplier
via the Internet: www.homelink.com.
6. Depress and release the "programming
button". The button flashes for approx. 30
seconds and the next step must be carried
out within this period.
7. Depress the programmed button on
HomeLink
, while the "programming button" is still flashing, keep it depressed for
approx. 3 seconds and then release.
Repeat the press/hold/release sequence
up to 3 times to conclude the programming.
Erasing programming
It is only possible to erase the programming for
all the buttons on HomeLink
, not for individual
buttons.
– Depress the two outer buttons and do not
release until the indicator lamp starts to
flash after approx. 20 seconds.
>
HomeLink
is now set in so-called
"learn mode" and is ready to be programmed once more, see page 85.
02
2
Button designation and colour vary depending on manufacturer.
* Option/accessory, for more information, see Introduction.
87
Page 90
General information on climate control................................................... 90
Manual climate control, AC..................................................................... 92
Electronic climate control, ECC*............................................................. 95
Air distribution......................................................................................... 98
Fuel-driven engine block heater
and passenger compartment heater*..................................................... 99
Fuel-driven auxiliary heater* (diesel)..................................................... 102
88
* Option/accessory, for more information, see Introduction.
Page 91
CLIMATE CONTROL
Page 92
03 Climate control
General information on climate control
Air conditioning
The climate control system cools or heats as
well as dehumidifies the air in the passenger
compartment. The car is equipped with either
manual (AC) or electronic climate control (ECC,
Electronic Climate Control).
03
NOTE
The air conditioning system can be
switched off, but to ensure the best possible
air in the passenger compartment and prevent the windows from misting, it should
always be on.
Misting windows
Remove misting on the insides of the windows
by first using the defroster function.
To reduce the risk of misting, clean the windows with a normal window cleaning agent.
Ice and snow
Remove ice and snow from the climate control
air intake (the grille between the bonnet and the
windscreen).
Fault tracing and repair
Volvo recommends that you only entrust fault
tracing and repair of the climate control system
to an authorised Volvo workshop.
Refrigerant
The air conditioning system contains R134a
refrigerant. This refrigerant contains no chlorine, which means that it is harmless to the
ozone layer. The system must only be charged
with R134a refrigerant, see also page 288.
Volvo recommends that an authorised Volvo
workshop carries out this work.
Passenger compartment filter
All air entering the car's passenger compartment is only cleaned with one filter. This must
be replaced at regular intervals. Follow the
Volvo Service Programme for the recommended replacement intervals. If the car is
used in a severely contaminated environment,
it may be necessary to replace the filter more
often.
NOTE
There are different types of passenger compartment filter. Make sure that the correct
filter is fitted.
Display
There is a display above the climate control
panel. This displays climate control settings.
Personal preferences
You can set preferences for two climate control
functions:
Fan speed in AUTO mode (applies only to
•
cars with ECC).
Recirculation timer for passenger com-
•
partment air.
For information about these settings, see
page 82.
90
Page 93
03 Climate control
General information on climate control
Air vents in the dashboard
Open
Closed
Lateral airflow
Vertical airflow
Aim the outer vents towards the side windows
to remove misting from the front side windows.
During cold weather - Close the centre vents
for optimum comfort and best demisting.
ECC*
Actual temperature
The temperature you select corresponds to the
physical experience with reference to factors
such as air speed, humidity and solar radiation
in and around the car.
The system includes a sun sensor which
detects the side from which the sun is shining
into the passenger compartment. This means
that the temperature can differ between the
right and left-hand air vents despite the controls being set for the same temperature on
both sides.
G019942
Sensor location
The sun sensor is on the top side of the
•
dashboard.
The temperature sensor for the passenger
•
compartment is behind the climate control
panel.
The outside temperature sensor is located
•
on the door mirror.
The humidity sensor is located in the inte-
•
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and sunroof
To ensure that the air conditioning works satisfactorily, close all side windows and the sunroof (if fitted).
Acceleration
The air conditioning system switches off temporarily at full throttle. You may briefly feel a
temporary rise in temperature.
Vents in parcel shelf
NOTE
Do not cover the cargo area vents in the
parcel shelf with clothing or other objects.
Condensation
In warm weather, condensation from the air
conditioning may drip under the car. This is
normal.
03
* Option/accessory, for more information, see Introduction.
91
Page 94
03

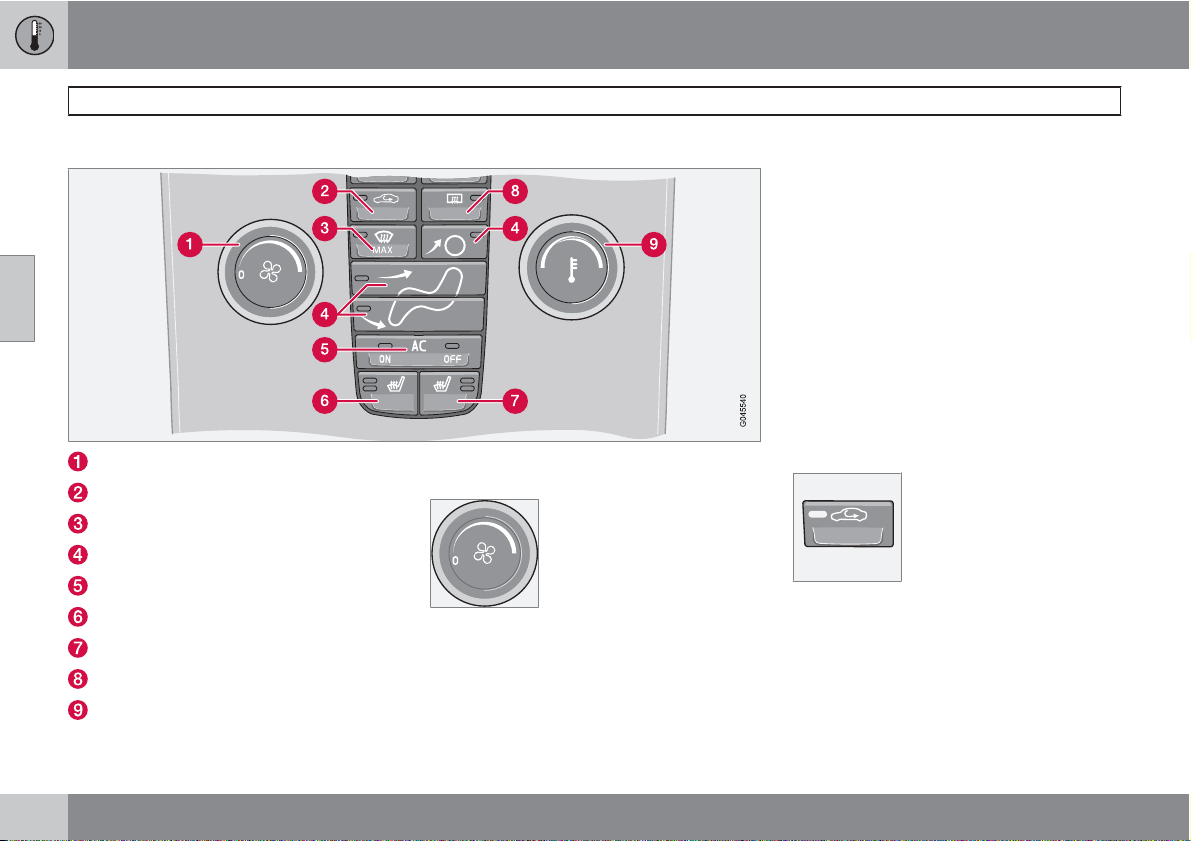

03 Climate control
Manual climate control, AC
Control panel
92
Fan
Recirculation
Defroster
Air distribution
AC ON/OFF – Air conditioning On/Off
Heated front left seat
Heated front right seat
Rear window and door mirror defrosters
Temperature
Functions
1. Fan
Increase or decrease the fan
speed by turning the knob.
If the knob is turned anticlockwise and the fan indicator in
the display goes out, the fan
switched off. The display shows the fan symbol
OFF.
and
and the air conditioning are
2. Recirculation
Recirculation can be used to
shut out bad air, exhaust
fumes, etc. from the passenger compartment. The air in
the passenger compartment
is recirculated. No outside air
is taken into the car. Recirculation (together with the air conditioning system) cools the passenger compartment more
quickly in hot weather. If the air in the car recirculates for too long then there is a risk of the
windows misting.
Page 95
03 Climate control
Manual climate control, AC
Timer
The timer function reduces the risk of icing,
misting and bad air (if recirculation is selected).
See page 82, for activating/deactivating the
function. When the Defroster (3) program is
selected, recirculation is deactivated.

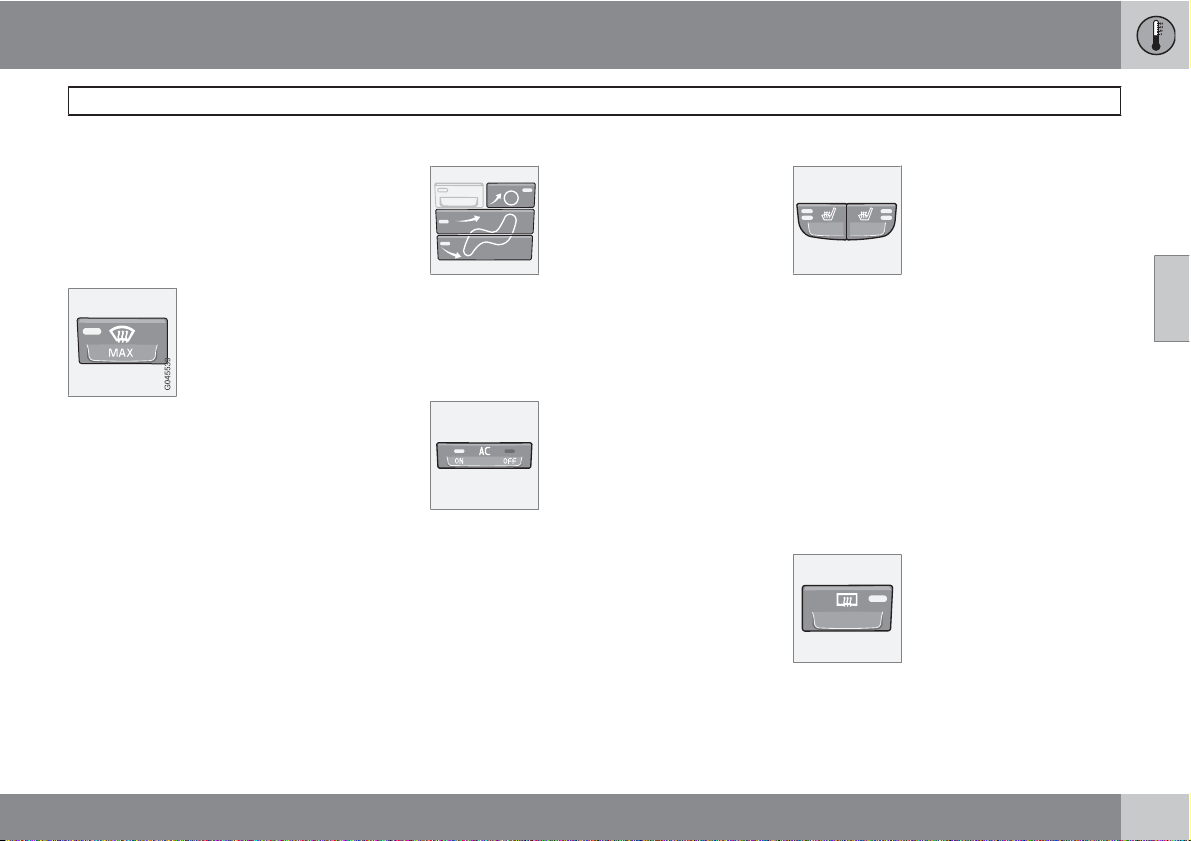

3. Defroster
Used to quickly remove misting and ice from the windscreen and side windows. Air
flows to the windows at high
fan speed. The light in the
defroster button illuminates
when the function is active.
The following also takes place when the
defroster function is activated in order to provide maximum dehumidification in the passenger compartment:
the air conditioning (AC) is automatically
•
switched on (can be switched off with the
AC button (5)
recirculation is automatically disengaged.
•
When the defroster is switched off the climate
control returns to the previous settings.
4. Air distribution
The airflow can be distributed
to the windows, dashboard
vents or floor by pressing the
air distribution buttons.
A symbol on the display
above the climate control
panel and an illuminated light in the relevant
button indicate which function has been
selected.
Refer to the table on page 98.
5. AC – On/Off (ON/OFF)
ON: The air conditioning is on.
It is controlled by the system's
AUTO function. This way,
incoming air is cooled and
dehumidified.
OFF: The air conditioning is
off.
When the defroster function is activated the air
conditioning is automatically switched on (can
be switched off with the AC button). An illuminated lamp above ON and OFF respectively in
the button shows the function selected.
6. and 7. Heated front seats*
03
Higher heat:
– Press the button once – both lights illumi-
nate.
Lower heat:
– Press the button once – one light illumi-
nates.
Heat off:
– Press the button three times – light not illu-
minated.
8. Rear window and door mirror
defrosters
Heating is used to quickly
remove misting and ice from
the rear window and door mirrors. Press the button once to
start simultaneous rear window and rearview mirror
defrosting. The function is
active if one lamp is illuminated in the button.
The function is switched off manually or automatically. Switch off manually with one press
* Option/accessory, for more information, see Introduction.
``
93
Page 96
03 Climate control
Manual climate control, AC
on the button. Automatic switching off disconnects the rear window and door mirrors after
12 – 20 minutes depending on outside temperature.
During cold weather the defrosting* also continues after 20 minutes in order to keep the rear
03
window and door mirrors free of ice and mist.
The intensity of the defrosting can be adapted
to the outside temperature. This function must
be switched off manually.
9. Temperature
Select cooling or heating for
both driver and passenger
side.
94
* Option/accessory, for more information, see Introduction.
Page 97
Control panel
03 Climate control
Electronic climate control, ECC*
03
AUTO
Fan
Recirculation/Air quality system
Defroster
Air distribution
AC ON/OFF – Air conditioning On/Off
Heated front left seat
Heated front right seat
Rear window and door mirror defrosters
Temperature selector
Functions
1. AUTO
The AUTO function automat-
ically regulates climate con-
trol and maintains the
selected temperature. The
AUTO function controls heat-
ing, air conditioning, fan
speed, recirculation, and air
distribution.
If you select one or more manual functions, the
other functions continue to be controlled automatically. All manual settings are switched off
when AUTO is switched on. The display shows
AUTO CLIMATE.
* Option/accessory, for more information, see Introduction.
2. Fan
Turn the knob to increase or
decrease fan speed. If AUTO
is selected then fan speed is
regulated automatically. The
previously set fan speed is
disengaged.
NOTE
If the knob is turned anticlockwise and the
fan indicator in the display goes out, the fan
and the air conditioning are switched off.
The display shows the fan symbol and
OFF.
95
Page 98

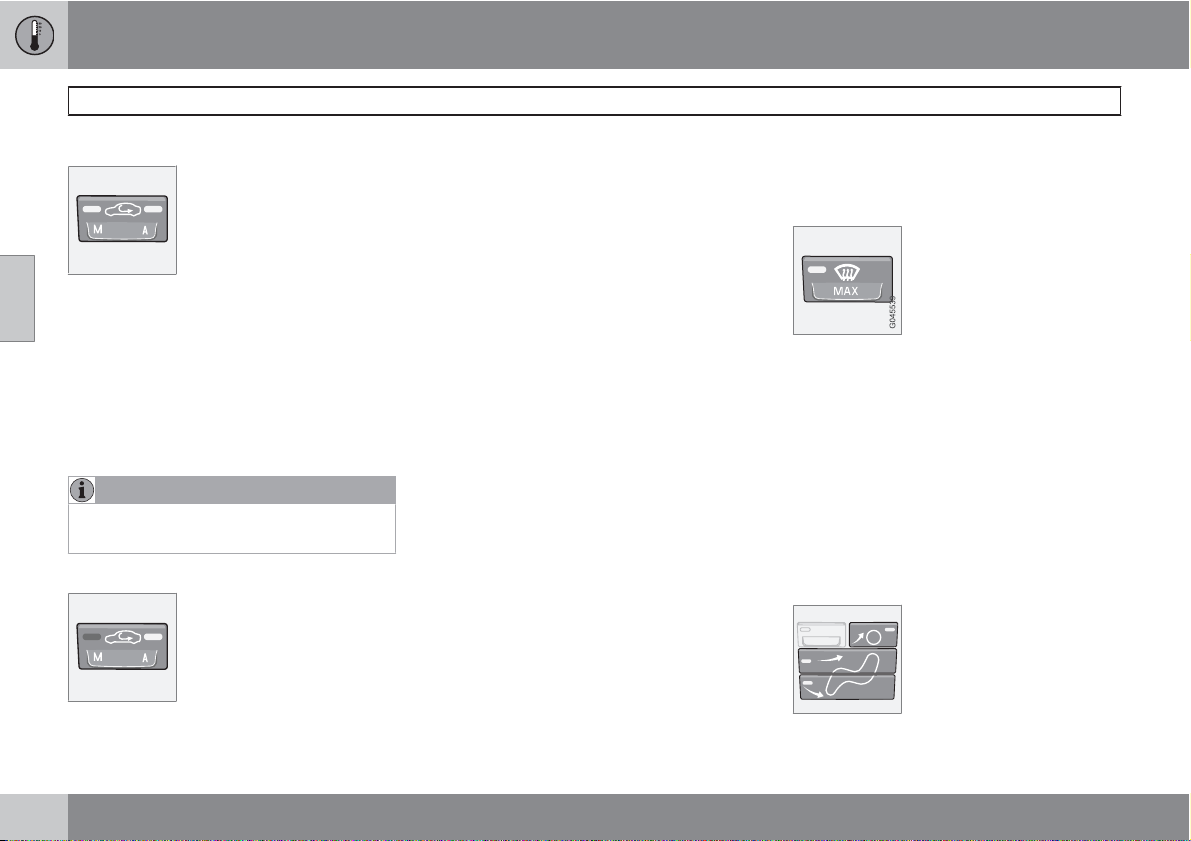

03 Climate control
Electronic climate control, ECC*
3. Recirculation
The function is selected to
shut out bad air, exhaust
gases etc. from the passenger compartment. The air in
the passenger compartment
03
this function is activated. If the air in the car
recirculates for too long, there is a risk of misting on the insides of the windows.
is recirculated, i.e. no outside
air is taken into the car when
Timer
The timer function reduces the risk of icing,
misting and bad air (if recirculation is selected).
To activate/deactivate the function see
page 82.
NOTE
When Defroster (4) is selected, recirculation
is always deactivated.
3. Air quality system*
Same button as recirculation.
The air quality system consists of a multi-filter
and a sensor. The filter separates gases and
particles to reduce the levels of odours and
pollution in the passenger compartment. When
the sensor detects polluted outside air, the air
intakes are closed and the air in the passenger
compartment is recirculated. A green light (A)
illuminates in the button when the air quality
sensor is active.
Activating the air quality sensor:
–
Press AUTO (1) to activate the air quality
sensor (normal setting).
Or:
– Switch between three functions by press-
ing repeatedly the recirculation button.
Air quality sensor engaged – the light (A)
•
illuminates.
No recirculation engaged, provided it is not
•
required for cooling in hot weather – light
not illuminated.
Recirculation engaged – the light (M) illu-
•
minates.
Keep the following in mind:
As a rule, the air quality sensor should
•
always be engaged.
Recirculation is limited in cold weather to
•
avoid misting.
The defroster functions for the front, side
•
and rear windows can be used to demist
the windows.
4. Defroster
Used to quickly remove misting and ice from the windscreen and side windows. Air
flows to the windows at high
fan speed. The light in the
defroster button illuminates
when the function is active.
The following also takes place when the
defroster function is activated in order to provide maximum dehumidification in the passenger compartment:
the air conditioning (AC) is automatically
•
switched on (can be switched off with the
AC button (6)
recirculation is automatically disengaged.
•
When the defroster is switched off the climate
control returns to the previous settings.
5. Air distribution
The airflow can be distributed
to the windows, dashboard
vents or floor by pressing the
air distribution buttons.
96
* Option/accessory, for more information, see Introduction.
Page 99

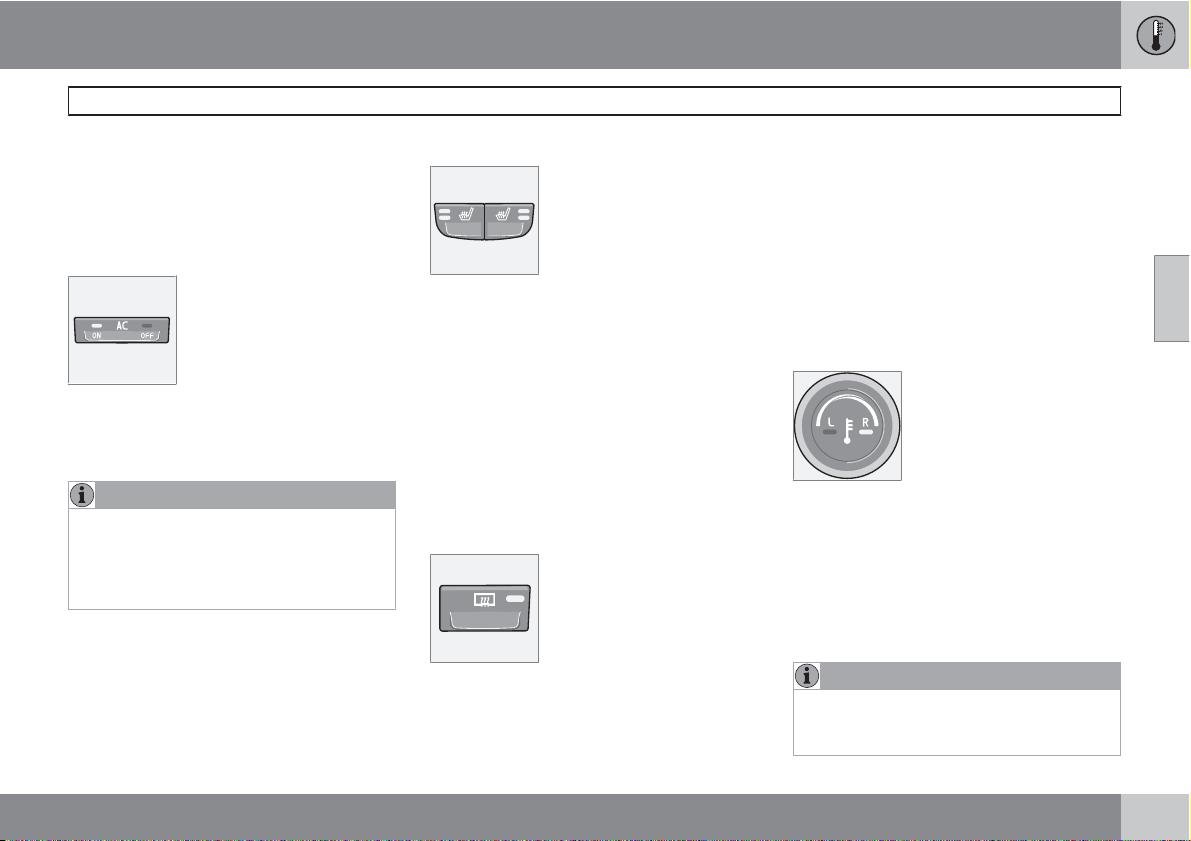

03 Climate control
Electronic climate control, ECC*
A symbol on the display above the climate control panel and an illuminated light in the relevant
button indicate which function has been
selected.
Refer to the table on page 98.
6. AC – On/Off (ON/OFF)
ON: The air conditioning is on.
It is controlled by the system's
AUTO function. This way,
incoming air is cooled and
dehumidified.
OFF: Off
When the defroster function is activated the air
conditioning is automatically switched on (can
be switched off with the AC button).
NOTE
The climate control system's demisting
function with humidity sensor is significantly
reduced with the air conditioning in deactivated mode (OFF), as well as with manually
selected air distribution and fan speed.
7 and 8. Heated front seats*
To activate front seat heating:
Higher heat:
– Press the button once – both lights illumi-
nate.
Lower heat:
– Press the button once – one light illumi-
nates.
Heat off:
– Press the button three times – light not illu-
minated.
9. Rear window and door mirror
defrosters
Heating is used to quickly
remove misting and ice from
the rear window and door mir-
rors. Press the button once to
start simultaneous rear win-
dow and rearview mirror
defrosting. The function is
active if one lamp is illuminated in the button.
The function is switched off manually or automatically. Switch off manually with one press
on the button. Automatic switching off disconnects the rear window and door mirrors after
12 – 20 minutes depending on outside temperature.
During cold weather the defrosting* also continues after 20 minutes in order to keep the rear
window and door mirrors free of ice and mist.
The intensity of the defrosting can be adapted
to the outside temperature. This function must
be switched off manually.
10. Temperature selector
The temperatures on the
driver and passenger sides
can be set independently.
Press the button once to activate one side only. Press
again to activate the other
side. Press the button a third time to activate
both sides.
The active side is indicated by the button's light
and in the display above the climate control
panel.
When the car is started, the most recent setting
is resumed.
NOTE
Heating or cooling cannot be hastened by
selecting a higher or lower temperature than
the actual desired temperature.
03
* Option/accessory, for more information, see Introduction.
97
Page 100
03
03 Climate control
Air distribution
Air distribution Use: Air distribution Use:
Air to windows. Some air
flows from the air vents. The
air is not recirculated. Air
conditioning is always
engaged.
to remove ice and
misting quickly.
Air to the floor and windows.
Some air flows from the dashboard air vents.
to ensure comfortable
conditions and good
demisting in cold or
humid weather.
98
Air to windscreen and side
windows. Some air flows
from the air vents.
Airflow to windows and from
dashboard air vents.
Airflow to the head and
chest from the dashboard
air vents.
to prevent misting
and icing in a cold and
humid climate. (Not
for low fan speed.)
to ensure good comfort in warm, dry
weather.
to ensure efficient
cooling in warm
weather.
Air to floor and from dashboard air vents.
Air to floor. Some air flows to
the dashboard air vents and
windows.
Airflow to windows, from
dashboard air vents and to
the floor.
in sunny weather with
cool outside temperatures.
to warm the feet.
to provide cooler air for
the feet or warmer air
to the upper body in
cold weather or hot,
dry weather.
