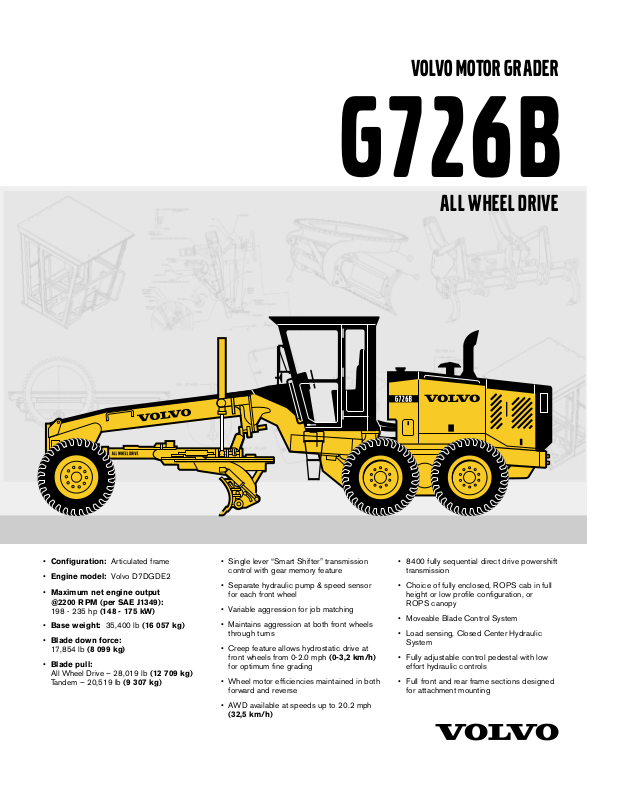

VOLVO MOTOR GRADER

G726B

ALL WHEEL DRIVE

Configuration: Articulated frame

Engine model: Volvo D7DGDE2

Maximum net engine output @2200 RPM (per SAE J1349): 198 - 235 hp (148 - 175 kW)

Base weight: 35,400 lb (16 057 kg)

Blade down force:

17,854 lb (8 099 kg)

Blade pull:

All Wheel Drive – 28,019 lb (12 709 kg) Tandem – 20,519 lb (9 307 kg)

Single lever “Smart Shifter” transmission control with gear memory feature

Separate hydraulic pump & speed sensor for each front wheel

Variable aggression for job matching

Maintains aggression at both front wheels through turns

Creep feature allows hydrostatic drive at front wheels from 0-2.0 mph (0-3,2 km/h) for optimum fine grading

Wheel motor efficiencies maintained in both forward and reverse

AWD available at speeds up to 20.2 mph

(32,5 km/h)

8400 fully sequential direct drive powershift transmission

Choice of fully enclosed, ROPS cab in full height or low profile configuration, or ROPS canopy

Moveable Blade Control System

Load sensing, Closed Center Hydraulic System

Fully adjustable control pedestal with low effort hydraulic controls

Full front and rear frame sections designed for attachment mounting

Base operating weight (Standard equipment)

Weights shown include full cab with ROPS, all operating fluids and operator.

G726B

Total . . . . . . . . . . . . . . . . . . . 35,400 lb (16 057 kg) On front wheels . . . . . . . . . . 10,266 lb (4 657 kg) On rear wheels . . . . . . . . . . . 25,134 lb (11 401 kg)

Weight adjustments for various options are listed.

Typically equipped operating weight:

includes 14' x 25" x 7/8" (4 267 x 635 x 22 mm) moldboard and scarifier.

G726B . . . . . . . . . . . . . . . . . 37,420 lb (16 973 kg)

Productivity (Standard equipment)

Maximum blade pull (no wheel slip, 0.85 traction co-efficient). . . . . . . . . . . . . . 28,019 lb (12 709 kg) Blade down force

• cutting capability

(ISO 7134) . . . . . . . . . . . . . 17,854 lb (8 099 kg)

Blade down force is the maximum downward force which may be applied at the cutting edge.

Engine data

Make/Model . . . . . . . . . . . . . . . . . . Volvo D7DGDE2 Type . . . . . . . . . 4 Cycle, Turbocharged, Aftercooled No. of cylinders . . . . . . . . . . . . . . . . . . . . . . In Line 6 Bore & stroke . . . . . 4.25" x 5.11" (108 x 130 mm) Displacement . . . . . . . . . . . . . . . . . 436 cu in (7,1 l) Maximum net engine output @ 2200 RPM

(per SAE J1349) . . . . . . 198-235 hp (148-175 kW) Rated gross brake horsepower @ 2200 RPM

• Gears forward 1, 2 and

Reverse 1. . . . . . . . . . . . . . . . . 205 hp (153 kW) Rated gross brake horsepower @ 2200 RPM

• Gears forward 3-8 and

Reverse 2-4 . . . . . . . . . . . . . . . 241 hp (180 kW) Rated net brake horsepower @ 2200 RPM

• Gears forward 1, 2 and

Reverse 1 . . . . . . . . . . . . . . . . . . 198 hp (148 kW) Torque @1100 RPM. . . . . . . . 664 lb.ft (900 N.m) Torque rise . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35%

Rated net brake horsepower @ 2200 RPM

• Gears forward 3-8 and

Reverse 2-4 . . . . . . . . . . . . . . . . 235 hp (175 kW) Torque @1400 RPM . . . . . 774 lb.ft (1 050 N.m) Torque rise . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34%

All Wheel Drive engaged

Rated gross brake horsepower @ 2200 RPM

• All gears . . . . . . . . . . . . . . . . . . . 241 hp (180 kW) Rated net brake horsepower @ 2200 RPM

• All gears . . . . . . . . . . . . . . . . . . . 235 hp (175 kW) Torque @ 1400 RPM . . . . . 774 lb.ft (1 050 N.m) Torque rise . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34%

Performance: Rated net brake horsepower SAE standard J1349/ISO 3046-2 conditions with water pump, fuel system, air cleaner, muffler, alternator, cooling fan and lubricating oil pump.











Engine performance curve















torque vs. engine speed







1200



800















1100



720

































1000



640















900



















560













(Nm)torqueGross

800

(lb.ft)torqueGross













240

































700



480

































600



400















500



320

































400



















300



160















200



































100



80

































0



0



















1000

1200

1400

1600

1800

2000

2200













Engine speed (rpm)







Engine data



Tandems

(continued)







Engine equipped with a two stage, dual element, dry type air cleaner with exhaust aspirator and service indicator. 24 volt starting and electrical system with 75 amp (1800 watt) brushless alternator with internal voltage regulator. Two heavy duty 12 volt maintenance free batteries with 660 cold cranking amps (CCA) and 160 minutes reserve capacity per battery. 950 CCA batteries available optionally. System includes battery disconnect.

Transmission

Make/Model . . . . . . . . . . . . . . . . . Volvo 8400

Fully sequential, direct drive, powershift transmission. Engine cannot be started if transmission is in gear. Single lever “Smart Shifter” electronic transmission controller provides self-diagnostics. The flywheel mounted, multi-disc master clutch is oil cooled and lubricated for long life.

Ground speeds at 2200 RPM with standard tires:

Forward





Reverse





Gears.....

mph ........

km/h

Gears.....

mph ........

km/h

1................

2.8 ...........

4,4

1................

2.8 ...........

4,4

2................

3.9 ...........

6,2







3................

5.3 ...........

8,5

2................

5.3 ...........

8,5

4................

7.5.........

11,9







5 .............

10.5.........

16,9

3 .............

10.5.........

16,9

6 .............

14.7.........

23,6







7 .............

20.4.........

32,7

4 .............

20.4.........

32,7

8 .............

28.5.........

45,7







Transmission guard is standard equipment and is hinged for easy access.

Differential / Final drive

Make/Model . . . . . . . . . . . . . . . . . Volvo SR30

Single reduction final drive with an operator controlled lock/unlock differential. Rear axles are induction hardened, supported on double row spherical roller bearings.

Oscillating tandem case has internal gusseting for maximum torsional strength. Field-proven split ring/flanged sleeve tandem mounting and 1" (25 mm) thick inner wall resists flexing from side loading during severe applications.

Depth . . . . . . . . . . . . . . . . . . . . . . 24.50" (622 mm) Width . . . . . . . . . . . . . . . . . . . . . . . 8.25" (210 mm) Thickness • inner wall . . . . . . . . . . . . 1.00" (25 mm)

• outer wall . . . . . . . . . . . . 0.75" (19 mm) Center distance. . . . . . . . . . . . . 61.50" (1 562 mm) Drive chain pitch . . . . . . . . . . . . . . . . 2.00" (51 mm) Oscillation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15º

Brakes

Service Brakes: Foot operated

Fade resistant, hydraulically actuated, oil disc service brakes located at the 4 tandem drive wheels are self-adjusting, fully sealed and maintenance free. System features crossover dual braking circuits for uniform braking on both sides of the grader. Includes reserve power assist and operator warning system (visual and audible).

Parking Brake

Spring applied hydraulic release independent, disc type parking brake on transmission output shaft and effective on all 4 tandem drive wheels. Includes visual and audible operator warning system for parking brake on, transmission in gear condition. Transmission will not engage with park brake on.

Braking systems to SAE Recommended Practice J1473 OCT. 90, and J1152 APR. 80; ISO 3450-1993-01-28. Volvo uses asbestos free brake components.

Wheels & tires (Standard equipment)

Tire size . . . . . . . . . . . . . . . . . . . . . . 14:00 x 24, G-2 Ply rating (PR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Rim size . . . . . . . . . . . . . . . . . . . . . 10.0" (254 mm)

Bolt-on rims are not interchangeable between the front wheels and the tandem wheels.

Front axle

Type: Fully welded steel truss, gusseted for torsional strength, oscillates on a single 3.5” (89 mm) diameter center pivot pin.

Wheel lean . . . . . . . . . . . . . . . . . . . . . . . . . 15º R & L Oscillation . . . . . . . . . . . . . . . . . . . 16º up and down Ground clearance. . . . . . . . . . . . . . 24.0" (610 mm)

Two 3" (76 mm) diameter wheel lean cylinders and lock valve are standard equipment.

All Wheel Drive

The Volvo high torque All Wheel Drive System incorporates two variable displacement, closed loop piston pumps. The Volvo AWD design automatically adjusts hydraulic flow and pressure to the drive system to match tandem wheel speeds in all tractive conditions. Each front wheel is independently powered by a 2 speed motor. Each motor is controlled by its own speed sensor and pump. The All Wheel Drive system is controlled by the operator through a positive On/Off switch as well as a 16 position variable aggression dial. The front wheel speed sensors will always match front wheel speed to tandem wheels speed relative to the level of aggression selected by the operator. This provides optimum job matching

All Wheel Drive

(continued)

in all tractive conditions. When AWD is selected, the engine will deliver maximum VHP horsepower regardless of the working gear being used.

Typical operating pressure . . . . 3,000 psi (206 Bar) Maximum operating pressure . . 5,000 psi (344 Bar) Minimum operating pressure . . . . . 500 psi (34 Bar) Top speed . . . . . . . . . . . . . . 20.2 mph (32.5 km/h) Creep Mode speed . . . . . . . 0-2 mph (0-3.2 km/h) Maximum rim pull . . . . . . . . . . . 7,500 lb (3 402 kg)

The Volvo high torque All Wheel Drive System operates in forward gears 1-7 and reverse gears 1-4. The operator may shift from 7th AWD into 8th and back to 7th AWD at any time for maximum high speed performance.

In addition, the Volvo system provides the operator with the ability to fine grade in Creep Mode using only hydrostatic front wheel drive.

The Volvo high torque All Wheel Drive System offers infinite speed control below 2 mph (3,2 km/h) for fine grading as well as a top speed of 20.2 mph (32,5 km/h) for snow plowing.

The AWD controller is integral with the electronic 8400 transmission controller, thereby supplying the same diagnostic features found in the Volvo 8400 transmission.

All Wheel Drive

(continued)

Volvo AWD motors maintain maximum efficiency in both forward and reverse.

Operating modes

All Wheel Drive or Tandem Drive

On-Off Selection

Creep Mode - Hydrostatic front wheel drive only for optimum control and manouverability while fine grading.

Manual Mode - Allows the operator to match front wheel agression setting to specific applications.

AWD features

Maximum startup torque

Power maintained in either direction

Smooth operation in low speeds

Maintains front wheel agression in turns

One speed sensor at each front wheel

Hydrostatic Creep Mode feature

Steering

Hydrostatic power front wheel steering incorporating two steering cylinders. Meets SAE J1511 OCT. 90 with optional secondary steering.

Minimum turning radius using front axle steering, articulation, wheel lean and unlocked differential

. . . . . . . . . . . . . . . . . . . . . . . . . . . 25'6" (7 772 mm) Steering arc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72º Frame articulation angle . . . . . . . . . . . . . . . . . . . 22º

Articulation lock standard.

Frame

Full front and rear frame sections.

Front: Fully welded box section. Dual sloped front frame provides excellent forward visibility.

Minimum dimensions of

box section . . . . . . . 10.5" x 14.0" (267 x 356 mm) Plate thickness . . . . . . . . . . . . . . . . . 0.75" (19 mm) Vertical section modulus

at arch . . . . . . . . . . . . . . . . . . 119 cu in (1 950 cm3) minimum . . . . . . . . . . . . . . . 101.5 cu in (1 663 cm3) maximum . . . . . . . . . . . . . . . . 212 cu in (3 474 cm3) Linear weight - minimum-maximum . . . . . . . . . . . . . .

107.1 - 232.5 lb/ft (159.4 - 346.0 kg/m)

Rear: Full perimeter rear frame permits modular powertrain mounting for ease of service and is ideal for attachment mounting. Optional first user lifetime warranty on frame and articulation joint.

Minimum dimensions of

rear frame . . . . . . . . . 4.0" x 10.0" (102 x 254 mm) Plate thickness . . . . . . . . . . . . . . . . . . 0.5" (13 mm)

Articulation

Twin 4.5" (114 mm) hydraulic cylinders articulate frame 22º right and left. Anti-drift lock valve ensures stable operation.

Circle

Hardened teeth, cut on the outside of the circle for maximum leverage and minimum wear.

The circle is supported at six points by three adjustable clamp plates and three adjustable guide shoes, providing optimum circle support and load distribution. DURAMIDE™ faced clamp and guide shoes prevent metal-to-metal contact and provide maximum service life.

DURAMIDE™ is a synthetic bearing material that maximizes service life and reduces circle system maintenance requirements.

Diameter . . . . . . . . . . . . . . . . . . 66.25" (1 683 mm) Thickness . . . . . . . . . . . . . . . . . . . . 1.25" (32 mm) Adjustable guide shoes. . . . . . . . . . . . . . . . . . . . . . 3 Adjustable clamp plates . . . . . . . . . . . . . . . . . . . . . 3

Circle drive

The Volvo dual cylinder Circle Drive System uses direct acting hydraulic power for exceptional turning and holding capability under full load. Circle Drive System uses hardened drive pinions and is protected against impact damage by an overload cushion valve as standard equipment.

Hydraulic drive cylinders . . . . . . . . . . . . . . . . . . . . . 2 Points of leverage . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360º

Drawbar

Fully welded box section. Narrow “T” design permits optimum visibility to the work area. Drawbar ball stud provides an adjustment to compensate for different tire sizes. Blade lift cylinder anchors are straddle mounted on drawbar to provide maximum strength and support.

Dimensions of

box section . . . . . . . . . 6.5" x 6.5" (165 x 165 mm) Plate thickness . . . . . . 1.0" & 0.75" (25 & 19 mm)

Moldboard

Standard moldboard with

replaceable end bits . . . . . . . . . . . . 12' x 25" x 7/8"

(3 658 x 635 x 22 mm)

Blade material . . . . . . . SAE 1050 high carbon steel Edge: through hardened . . . . . 6" x 5/8" boron steel

(152 x 16 mm)

Bolt spacing. . . . . . . . . . . . . . . . . . . . . 6" (152 mm)

• bolt size . . . . . . . . . . . . . . . . . . . . . . 5/8" (16 mm)

Slide rails supported by DURAMIDE™ bearings.

Blade range: Moveable Blade Control System

(Dimensions shown with standard moldboard)





LEFT

RIGHT

Reach outside tires - articulated

frame .......120.0" (3 048 mm)

.... 119.5" (3 035 mm)

Reach outside tires - straight



frame..........

79.5" (2 019 mm)

..........79" (2 007 mm)

Blade slide

...26.5" (673 mm)

..........26.5" (673 mm)

Circle side







shift ................

30.5" (775 mm)..........

29.5" (749 mm)

Maximum bank





sloping angle........................

90º...................................

90º

Blade ground clearance.....................



17.5" (445 mm)

Blade cutting depth.............................



32.0" (813 mm)

Blade tilt range............................



44º forward 6.5º back

Superior blade mobility permits steep ditch cutting angles and back sloping without putting the front tire on the slope.

Cab & controls

All controls are located in a 90° arc forward and to the right of the operator. Located forward of the operator are the engine oil pressure, coolant temperature and fuel level gauges, transmission gear indicator and a multi-function Contronic monitoring display. Located in the fully adjustable steering pedestal are the following switches: differential lock/unlock, hazard lights, combination turn signal, horn and high beam headlight. Heater and wiper/washer controls, lighting and accessory switches are grouped in the operator’s right hand console. This console also contains the ignition key and access to the circuit breaker and fuse panel. Located to the right of the operator, above the console, are the AWD On/Off switch, a 16 position variable aggression dial and the hydrostatic Creep On/Off switch. An accelerator/decelerator foot pedal and slider type hand throttle are standard equipment. Outside mounted rear view mirrors (L&R) are standard. Interior operator noise level ranges from 78 to 81 dB(A) per ISO 6394 (enclosed cab).

Cab options

High capacity heater/air conditioner c/w adjustable vents, temperature control and 3 speed fan

Fully adjustable, suspension seat

Lower opening front windows

Rear windshield wipers and washers

Lower front window wipers and washers

Modular, 24 volt radio and cassette player with remote control

Operator Convenience Package (lunch box, steel vacuum bottle and holder, ashtray)

24 volt to 12 volt convertor for electrical accessories or two way radio installations

Full height cab with ROPS Inside dimensions

Height . . . . . . . . . . . . . . . . . . . . . 74.0" (1 880 mm) Width @ controls . . . . . . . . . . . . 56.0" (1 422 mm) Depth @ controls . . . . . . . . . . . . 55.5" (1 410 mm)

An optional Low Profile Cab is available with an inside height of 62" (1 575 mm). All Volvo Grader cabs and canopies are designed to meet or exceed SAE J1040 APR. 88, ISO 3471/1-1986(E), and 86/295/EEC ROPS requirements. The seatbelt is 2" (51 mm) wide and meets SAE J386 JUNE 93; ISO 66831981(E).

Load sensing hydraulics

Closed Center Hydraulic System senses load requirements and maintains system pressure 350 psi (24 Bar) above the load pressure.

System features industry standard control arrangement complete with low effort, feathering type, short throw levers located on a fully adjustable control pedestal.

System incorporates lock valves to prevent cylinder drift under load in the following circuits: blade lift, moldboard tilt, circle shift, wheel lean and articulation.

Hydraulic system features include axial piston pump, pressure and flow compensated, variable displacement with high output for smooth multi-functioning.

Maximum pressure . . . . . . . . . . 2,700 psi (186 Bar) Output 2200 RPM. . . . 0-75 U.S. gpm (0-284 lpm) Filtration . . . . . . . . . . . . . . . . 10 micron spin-on type

Capacities

U.S.Gal. Imp.Gal. Litres

Fuel tank . . . . . . . . . . 100.0 . . . . . 83.3. . . . . 378.5 Transmission . . . . . . . . 10.0 . . . . . . 8.4 . . . . . . 38.0 Final drive. . . . . . . . . . . . 6.0 . . . . . . 5.0 . . . . . . 23.0 Tandems (each) . . . . . . 26.4 . . . . . 22.0. . . . . 100.0 Hydraulic oil tank . . . . . 35.4 . . . . . 29.5. . . . . 134.0 Coolant antifreeze protection to

-58º F (-50º C) approx . 12.4 . . . . . 10.3 . . . . . . 47.0 Engine oil . . . . . . . . . . . . 5.0 . . . . . . 4.2 . . . . . . 19.0

Attachments

“A” Frame. . . . . . . . . . . . . . . . . .

. 700 lb

(318 kg)

Snow





Hydraulic Wing





• high-bench . . . . . . . . . . . . . . .

4,800 lb

(2 177 kg)

• low bench . . . . . . . . . . . . . . .

4,000 lb (1 814 kg)

One Way Plow. . . . . . . . . . . . .

2,350 lb (1 067 kg)

“V” Snow Plow





• 9' (2 743 mm). . . . . . . . . . . .

2,500 lb

(1 134 kg)

• 10' (3 042 mm) . . . . . . . . . .

2,650 lb

(1 202 kg)

Earth





Dozer Blade





• 8' (2 438 mm). . . . . . . . . . . .

2,620 lb

(1 188 kg)

• 9' (2 743 mm). . . . . . . . . . . .

2,870 lb

(1 302 kg)

•10' (3 048 mm) . . . . . . . . . . .

3,120 lb

(1 415 kg)

Front Mounted Scarifier . . . . . .

1,780 lb

(807 kg)

Mid-mount Scarifier . . . . . . . . .

1,725 lb

(782 kg)

Push Block . . . . . . . . . . . . . . . .

1,050 lb

(476 kg)

Ripper/Scarifier, rear . . . . . . . .

2,880 lb

(1 306 kg)

Windrow Eliminator . . . . . . . . .

1,300 lb

(590 kg)

Dimensions





A Overall length . . . . . . . . 29'11" (9 119 mm)

B

Overall width . . . . . . . . . . 8'4" (2 540 mm)

D

Wheelbase . . . . . . . . . . . 20'0" (6 096 mm)

C

Overall height . . . . . . . . . 11'2" (3 404 mm)

E

Bladebase



• with Low



• ISO 7134. . . . . . . . . . . . 8'6" (2 591 mm)



Profile Cab . . . . . . . . . . . 10'2" (3 099 mm)





F Tread width. . . . . . . . . . . 6'10" (2 083 mm)





C







O







V







E







R







A







L







L







H







E







I







G







H







T







E - BLADEBASE





D - WHEELBASE



F - TREAD WIDTH



A - OVERALL LENGTH



B - OVERALL WIDTH

Volvo “High Torque” All Wheel Drive with hydrostatic Creep feature

Operator controlled, lock/unlock differential final drive

4 wheel, crossover, dual braking system with reserve power assist

Park brake with operator warning alarm and indicator

Fully sequential, direct drive, powershift 8400 transmission, with transmission guard

13.5" (343 mm) diameter, 4 plate, full oil master clutch

Moveable Blade Control System for optimum blade mobility

Full front and rear frame sections designed to withstand shock loading of rear attachments

Circle drive counter-balance valve protects circle drive against impact damage

STANDARD FEATURES

Hardened circle teeth cut on outside of circle for maximum turning power

Hardened circle drive pinions for maximum wear resistance

Isolation mounted cab, transmission and engine for reduced noise and vibration

Adjustable steering control pedestal with tilt head for maximum operator comfort

Gauges include: coolant temperature, engine oil pressure, fuel, hourmeter, dash mounted air cleaner service indicator, articulation angle indicator, multi-function Contronic Monitoring System with visual and audible warnings

Load sensing, Closed Center Hydraulic System with short throw, low effort control levers. Hydraulically operated blade lift, circle turn, moldboard slide and tilt, circle shift and wheel lean functions.

Feathering type controls for precise blade adjustments



lb

kg

Accumulators - blade lift (2). . . . . . . . . .

. 122

55

Air conditioner - 29,000 BTU





• HFC-134a (non-CFC refrigerant) . . . .

. 130

59

Brush guards . . . . . . . . . . . . . . . . . . . . .

. . 40

18

Cab





• canopy shell with ROPS - deduct . . .

(625)

(284)

• FOPS protection for ROPS cabs . . . .

. 220

100

• Low Profile Cab





with ROPS - deduct . . . . . . . . . . . . . .

(270)

(122)

Cab heater - 49,000 BTU • with cab





pressurizer and replaceable filter . . . . .

. . 60

27

Defroster fans . . . . . . . . . . . . . . . . . . . . .

. . . 3

1

Engine block heater . . . . . . . . . . . . . . . .

. . . 3

1

Engine precleaner - Turbo II . . . . . . . . . .

. . . 6

3

First user lifetime frame warranty . . . . . .

. . . 0

0

Float control - right and left detent style





independent, electric . . . . . . . . . . . . . .

. . 15

7

Hydraulic manifold cover . . . . . . . . . . . .

. . 10

4

Hydraulic tank heater . . . . . . . . . . . . . . .

. . . 3

1

24 volt radio/cassette player . . . . . . . . .

. . . 6

3

Lights





• Beacon (amber or blue) . . . . . . . . . . . .

. . 10

4

• Clearance lights front & rear . . . . . . . .

. . . 2

1

OPTIONAL EQUIPMENT



lb

kg

• Front mounted plow lights - 2





• high mount. . . . . . . . . . . . . . . . . . . . .

120

54

• low mount . . . . . . . . . . . . . . . . . . . . .

100

45

• Headlights with dimmer switch . . . . . . .

. . 0

0

• Moldboards lights - 2 . . . . . . . . . . . . . . .

. . 2

1

• Rear flood lights - 2 . . . . . . . . . . . . . . . .

. . 2

1

• Snow wing lights - 2 . . . . . . . . . . . . . . .

. . 2

1

Fenders





• Front . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 80

36

• Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . .

400

182

Moldboards





• 14' x 25" x 7/8"





(4 267 x 635 x 22 mm) . . . . . . . . . . . .

240

109

Moldboard extensions





R or L - 2' (610 mm). . . . . . . . . . . . . . .

190

86

Moldboard edges - carbide 3/4" x 5"





(19 x 127 mm) . . . . . . . . . . . . . . . . . . .

. . . -

-

100 amp alternator . . . . . . . . . . . . . . . . . .

. . 0

0

Operator convenience package





• lunch box, steel vacuum bottle





and holder, ashtray . . . . . . . . . . . . . . . . .

. 10

5

Paint - custom colors. . . . . . . . . . . . . . . . .

. . -

-

Polar protection . . . . . . . . . . . . . . . . . . . .

. . 0

0

Suspension seat

100 U.S. gallon (378.5 l) fuel tank capacity Dual leaning wheel cylinders

DURAMIDE™ wear strips on circle clamp plates and guide shoes prevent metal-to-metal contact for maximum service life

Hinged radiator guard for easy trash clean out Backup lights

Backup alarm with automatic volume levels Painted high gloss Volvo yellow and gray

Lockable tool box with storage space for scarifier shanks

Engine side panels complete with locks Left and right outside rear view mirrors Interior rear view mirror

Exhaust aspirated air cleaner Front cab wiper and washer



lb

kg

Reflectors - rear/side . . . . . . . . . . . . . . . .

. . . -

-

Remote lube manifold for articulation





cylinders . . . . . . . . . . . . . . . . . . . . . . . . .

. . 0

0

Remote valve for attachments





• 3 or 5 bank - remote mount. . . . . . . . . .

. 85

39

Sideshift accumulator. . . . . . . . . . . . . . . .

. 50

23

Rim locks included with 3 piece rims. . . .

. . 0

0

Secondary steering (power assisted) . . . .

95

43

Tie down brackets . . . . . . . . . . . . . . . . . .

100

45

Tires





• 17.5 x 25, 12 PR, G-2,





14" (356 mm) rims. . . . . . . . . . . . . . .

375

170

Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . -

-

Transmission sump heater . . . . . . . . . . . . .

. . -

-

Tropical protection . . . . . . . . . . . . . . . . . . .

. . -

-

Vandalism protection . . . . . . . . . . . . . . . . .

. 8

4

Wheel weights for rear





wheels only - each . . . . . . . . . . . . . . . .

250

113

Window - opening - lower front. . . . . . . . .

. . -

-

Window - opening sliders - left/right. . . . .

. . -

-

Wiper and washer - rear . . . . . . . . . . . . . .

. . -

-

Wiper and washer - lower front. . . . . . . . .

. . -

-

Your safety and the safety of those around you depends on using care and judgement when operating and servicing your grader. Do not operate the grader until you read and understand the warnings and instructions in the operator’s manual. Volvo Motor Graders Limited is an ISO 9001 and 14001 registered company. www.volvo.com

Under our policy of continuous product development and improvement, we reserve the right to change specifications and design without prior notice. The illustrations do not necessarily show the standard version of the machine.

Consult your Volvo dealer for recommended option and attachment selection.

Ref. No. 21 4 434 1005

English

Printed in Canada 2002.08-2.5

GRD

Volvo, Goderich
