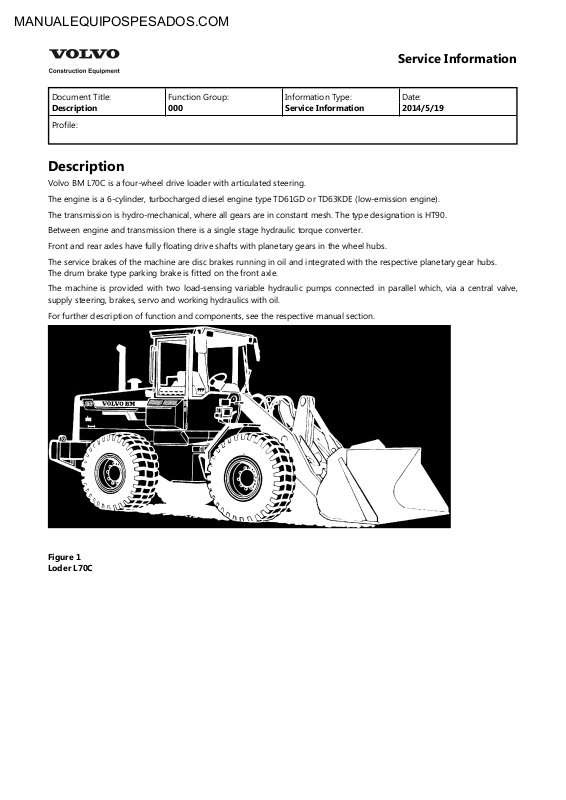

Volvo BM L70C is a four-wheel drive loader with articulated steering.

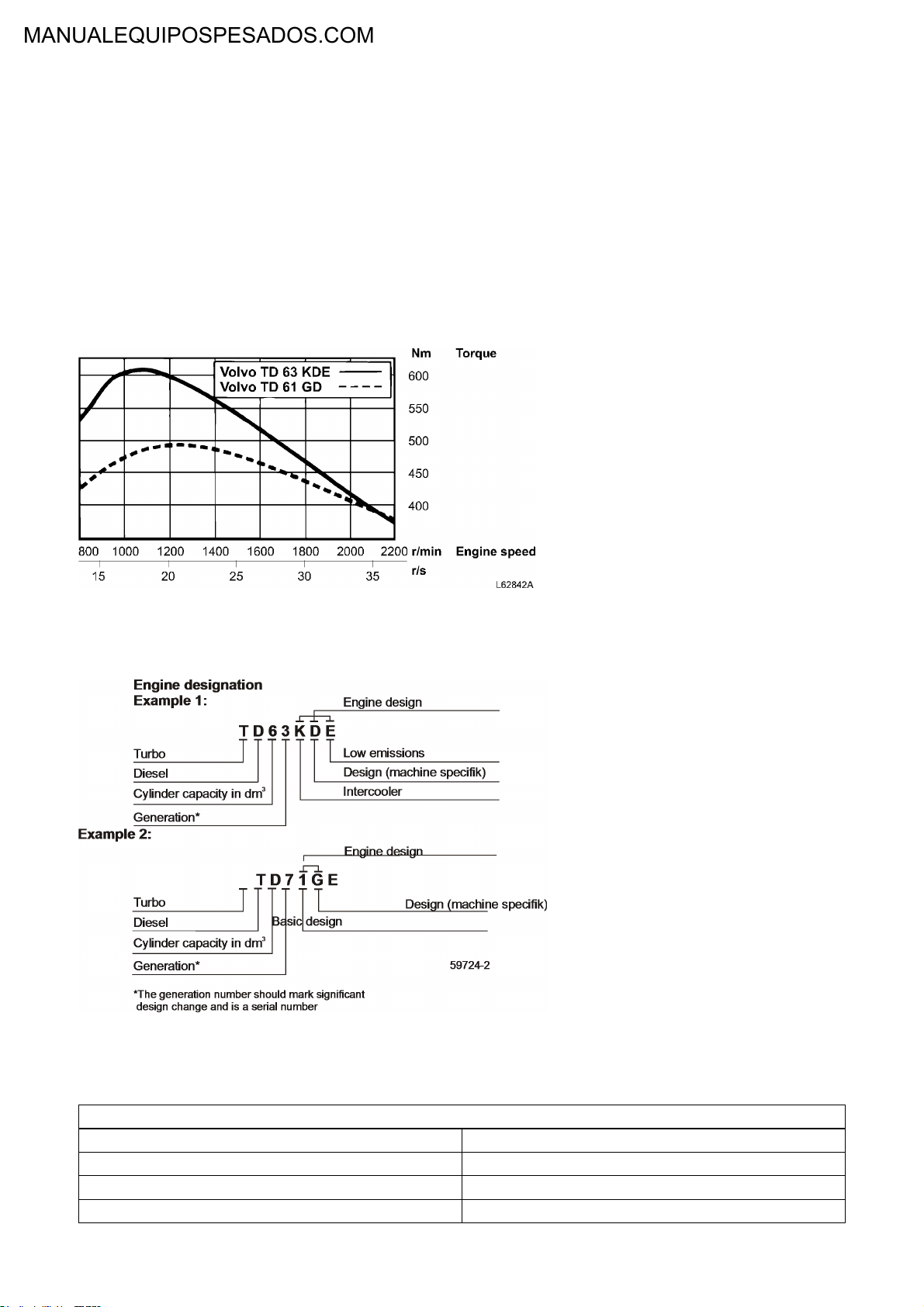

The engine is a 6-cylinder, turbocharged diesel engine type TD61GD or TD63KDE (low-emission engine).
The transmission is hydro-mechanical, where all gears are in constant mesh. The type designation is HT90.
Between engine and transmission there is a single stage hydraulic torque converter.
Front and rear axles have fully floating drive shafts with planetary gears in the wheel hubs.
The service brakes of the machine are disc brakes running in oil and integrated with the respective planetary gear hubs. The drum brake type parking brake is fitted on the front axle.
The machine is provided with two load-sensing variable hydraulic pumps connected in parallel which, via a central valve, supply steering, brakes, servo and working hydraulics with oil.
For further description of function and components, see the respective manual section.
Figure 1
Loder L70C
MANUALEQUIPOSPESADOS.COM
|
|
|
|
Service Information |
|
|
|
|
|
|
|
Document Title: |
Function Group: |
Information Type: |
|
Date: |
|
Product |
Identification |
000 |
Service Information |
|
2014/5/19 |
Plates |
|
|
|
|
|
|
|
|
|
|
|
Profile: |
|
|
|
|
|
|
|
|
|
|
|

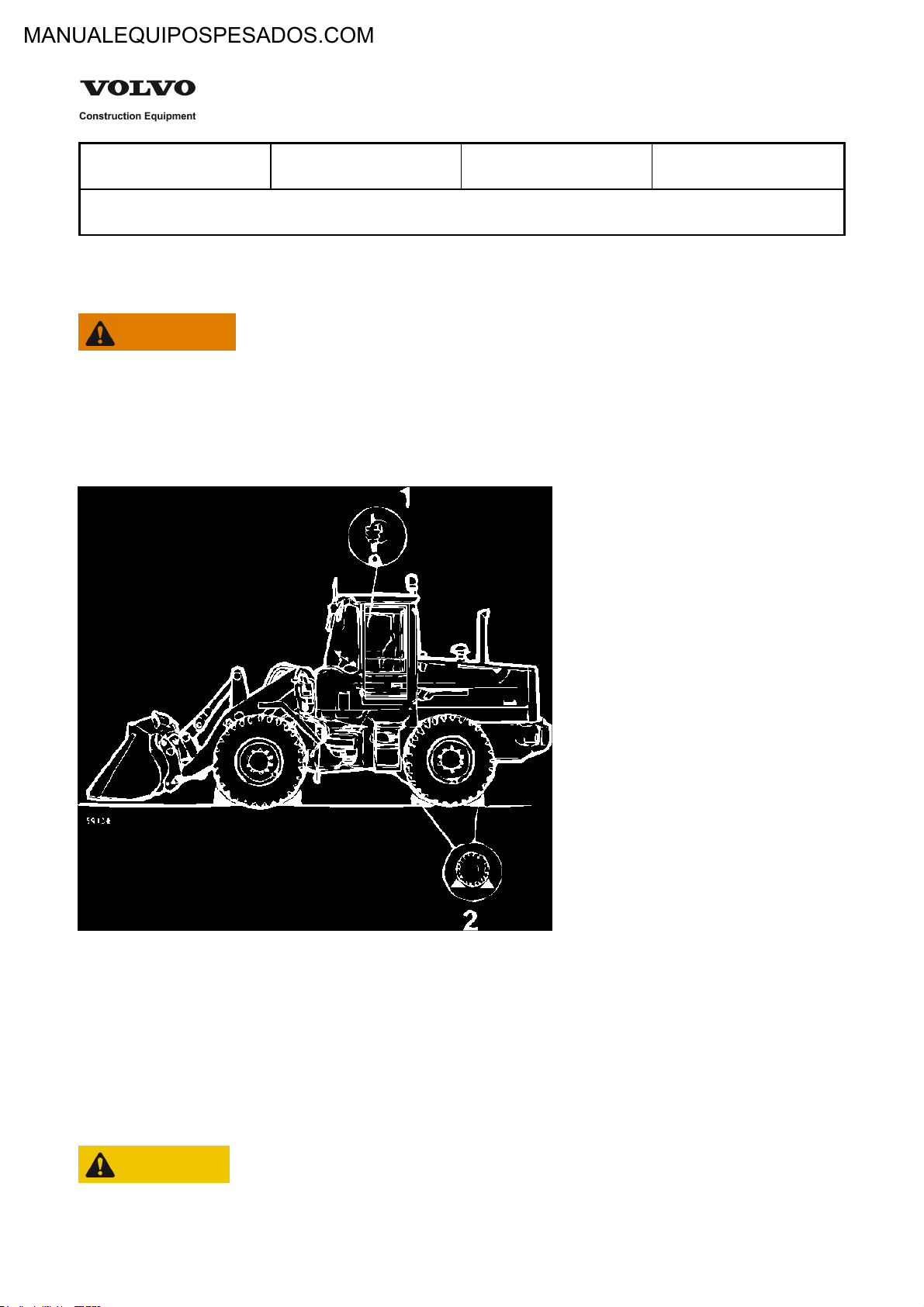

Product Identification Plates

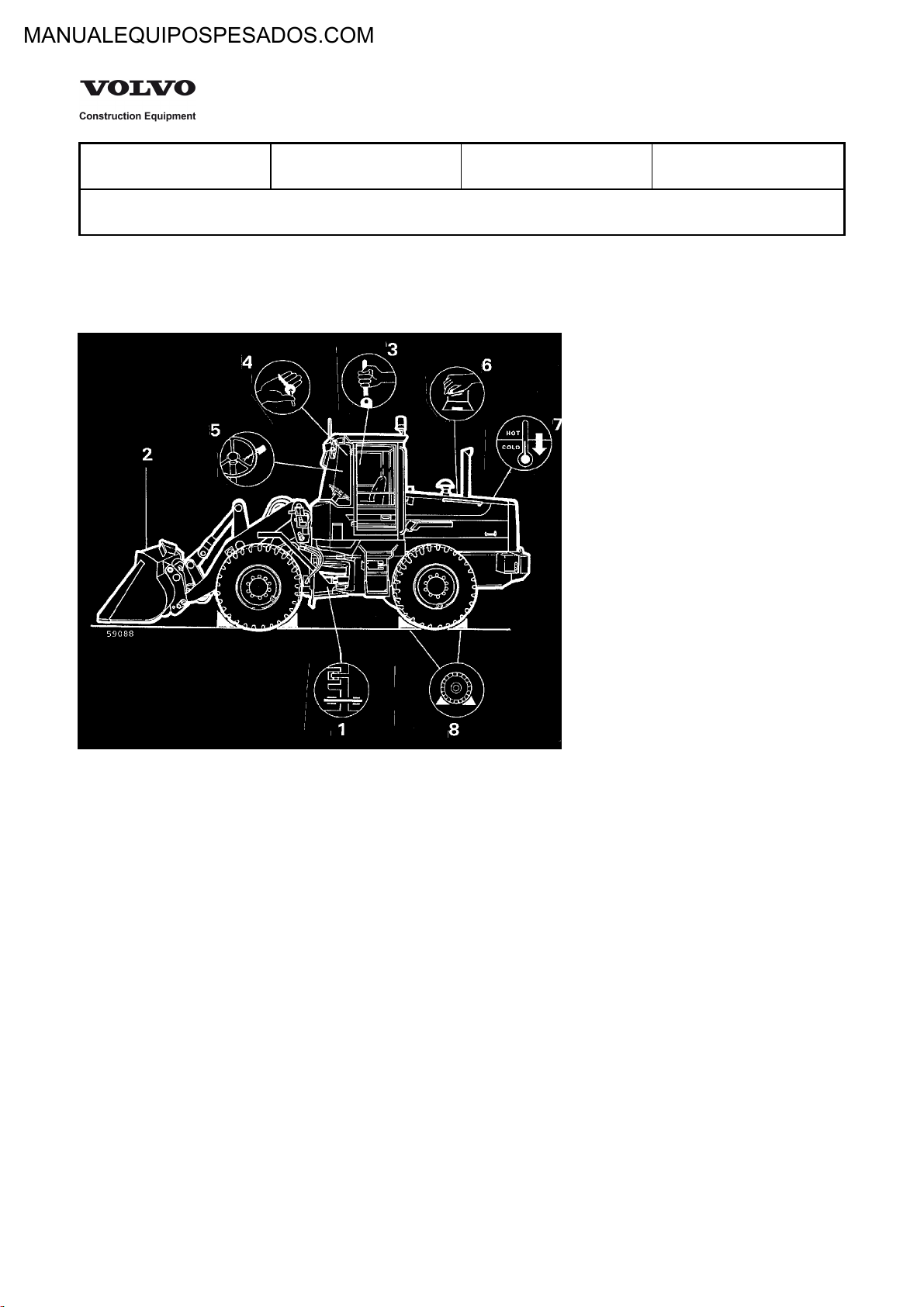

From the picture and the text below it can be seen which product identification plates should be found on the machine. When ordering spare parts and when making enquires per telephone or correspondence, the model designation and Product Identification Number, (PIN) should be stated.
When applicable the data on the additional plate, "INCL. PARTS." should be stated.
Figure 1
Product Identification Plates
1 |
Product plate with Product Identification Number, PIN for |
|
the complete machine shows model designation, engine |
|
manufacturer and serial number. The plate is fitted on the |
|
left side of the front frame. Model designation and serial |
|
number are also visibly stamped on the right side of the |
|
front frame. |
|
|
2 |
The front drive axle product and serial numbers are |
|
positioned on the axle housing. |
|
|
3 |
The transmission product and serial numbers are positioned |
|
on the front part of the transmission. |
|
|
4 |
The rear drive axle product and serial numbers are |
|
positioned on the axle housing. |
|
|
5 |
The engine type designation, part and serial numbers are |
|
stamped on the right side of the cylinder block near the |
|
upper edge. |
|
|
6 |
The cab type, type approval and serial number are |
|
positioned by the right roof member inside the cab. |
|
|
7 |
The lifting frame product and serial numbers are positioned |
|
on the outside of the left lifting arm. |
|
|
MANUALEQUIPOSPESADOS.COM
8 |
The attachment bracket* type and serial numbers are |
|
positioned on the right side. |
|
|
*Optional equipment |
|
|
|
MANUALEQUIPOSPESADOS.COM
|
|
|
Service Information |
|
|
|
|
|
|
Document Title: |
Function Group: |
Information Type: |
|
Date: |
Time Guide |
070 |
Service Information |
|
2014/5/19 |
|
|
|
|
|
Profile: |
|
|
|
|
|
|
|
|
|
Time Guide
Regarding: L70C
16 Lubricants, fuels and other liquids
Op.no. |
Time (h) |
Operation |
|
|
|
16206 |
1 |
Engine, changing oil and filter |
|
|
|
16234 |
1,75 |
Hydraulic oil tank, changing oil and |
|
|
filter excl. cleaning tank |
|
|
|
16236 |
2,5 |
Hydraulic oil tank, changing oil and |
|
|
filter incl.cleaning tank |
|
|
|
16238 |
1,5 |
Transmission, changing oil and filter |
|
|
and cleaning suction strainer |
|
|
|
16259 |
2 |
Axles, changing oil |
|
|
|
17 General |
|
|
|
|
|
17101 |
0,5 |
Arrival inspection, according to |
|
|
programme |
|
|
|
17102 |
1,5 |
Delivery inspection, according to |
|
|
programme |
|
|
|
17202 |
3 |
Warranty inspection 100 hours, |
|
|
according to service programme |
|
|
|
17204 |
7 |
Warranty inspection 1000 hours, |
|
|
according to service programme |
|
|
|
17307 |
1,5 |
Maintenance service, every 250 hours |
|
|
|
17310 |
3 |
Maintenance service, every 500 hours |
|
|
|
17312 |
5 |
Maintenance service, every 1000 hours |
|
|
|
17314 |
8 |
Maintenance service, every 2000 hours |
|
|
|
21 Engine, general |
|
|
|
|
|
21002 |
1,5 |
Compression test, engine at operating |
|
|
temperature |
|
|
|
21070 |
6,5 |
Engine, removing |
|
|
|
21071 |
40 |
Engine removed, general overhaul |
|
|
|
21072 |
6,5 |
Engine, fitting |
|
|
|
21102 |
6 |
Cylinder head, replacing gasket |
|
|
|
21168 |
3 |
Cylinder heads all removed, |
|
|
decarbonizing and grinding in valves |
|
|
|
21171 |
0,75 |
Cylinder head removed, pressure |
|
|
testing each |
|
|
|
21211 |
0,5 |
Cylinder, cylinder heads removed, |
|
|
measuring wear in all cylinders |
|
|
|
21310 |
10 |
Cylinder liner and piston, replacing one |
|
|
|
MANUALEQUIPOSPESADOS.COM
21318 |
18 |
Cylinder liners and pistons, replacing all |
|
|
|
21412 |
1 |
Valves, adjusting |
|
|
|
21436 |
0,5 |
Valve covers all, fitting new gasket |
|
|
|
21502 |
5 |
Timing gear cover, fitting new gasket in |
|
|
machine |
|
|
|
21530 |
7 |
Timing gear, replacing in machine |
|
|
|
21532 |
8 |
Timing gear case, fitting new gasket in |
|
|
machine |
|
|
|
21614 |
2,5 |
Crankshaft, replacing front oil seal |
|
|
|
22 Lubrication and oil system |
|
|
|
|
|
22106 |
0,25 |
Oil pressure relief valve, replacing |
|
|
|
22306 |
1 |
Oil cooler, replacing |
|
|
|
23 Fuel system, general |
|
|
|
|
|
23301 |
0,5 |
Fuel system, bleeding |
|
|
|
23314 |
0,5 |
Fuel filters all, replacing |
|
|
|
23315 |
0,25 |
Fuel filter extra, replacing |
|
|
|
23410 |
3 |
Fuel tank, replacing |
|
|
|
23601 |
0,5 |
Idling speed, checking and adjusting |
|
|
|
23602 |
0,5 |
Stall speed, checking |
|
|
|
23630 |
1,25 |
Injection timing, checking and adjusting |
|
|
|
23644 |
1,5 |
Injection timing, checking |
|
|
|
23673 |
3 |
Injection pump, replacing incl setting |
|
|
injection timing |
|
|
|
23702 |
1,5 |
Injectors, replacing all |
|
|
|
23707 |
0,25 |
Overflow valve, replacing |
|
|
|
23716 |
1 |
Injectors, replacing copper sleeve in |
|
|
machine |
|
|
|
23718 |
0,5 |
Delivery pipe, replacing one |
|
|
|
23720 |
0,25 |
Pressure equalizer, replacing |
|
|
|
23780 |
2 |
Injectors removed, reconditioning all |
|
|
|
25 Inlet and exhaust systems |
|
|
|
|
|
25102 |
1 |
Induction manifold, replacing gasket |
|
|
|
25104 |
1,5 |
Exhaust manifold, replacing gasket |
|
|
|
25220 |
1 |
Silencer, replacing |
|
|
|
25221 |
0,5 |
Exhaust pipe, flexible tube, replacing |
|
|
|
25571 |
1 |
Turbo charger, replacing |
|
|
|
25573 |
2 |
Turbo charger removed, reconditioning |
|
|
|
25602 |
0,5 |
Air cleaner, checking prssure drop |
|
|
indicator |
|
|
|
25606 |
0,75 |
Pre-heating coil, replacing |
|
|
|
26 Cooling system |
|
|
|
|
|
26104 |
1 |
Coolant, changing |
|
|
|
26108 |
2,5 |
Radiator, replacing |
|
|
|
26112 |
1 |
Radiator hose upper, replacing |
|
|
|
MANUALEQUIPOSPESADOS.COM
26114 |
1 |
Radiator hoses lower, replacing |
|
|
|
26116 |
2 |
Radiator hoses all, replacing |
|
|
|
26202 |
2 |
Coolant pump, replacing |
|
|
|
26271 |
1,5 |
Coolant pump removed, reconditioning |
|
|
|
26298 |
0,75 |
Thermostat, replacing |
|
|
|
26322 |
1 |
Fan belt and/or alternator-, compressor |
|
|
belt, replacing all belts |
|
|
|
27 Engine control |
|
|
|
|
|
27322 |
0,5 |
Stop cable control, replacing |
|
|
|
27323 |
0,5 |
Electrical engine shut down, check and |
|
|
adjusting |
|
|
|
31 Battery and mounting parts |
|
|
|
|
|
31102 |
1 |
Batteries, replacing |
|
|
|
31103 |
0,5 |
Main switch, replacing |
|
|
|
31106 |
0,5 |
Earth lead to battery, replacing |
|
|
|
31108 |
1 |
Starter motor lead to battery, replacing |
|
|
|
32 Alternator and charge regulator |
|
|
|
|
|
32102 |
1 |
Alternator, replacing incl function check |
|
|
(no measuring instrument) |
|
|
|
32125 |
0,5 |
Alternator, replacing carbon brush kit in |
|
|
machine |
|
|
|
32205 |
0,5 |
Charging regulator, replacing |
|
|
|
33 Starting system, general |
|
|
|
|
|
33118 |
0,75 |
Starter motor, replacing |
|
|
|
33401 |
0,5 |
Starter lock, replacing |
|
|
|
35 Lighting |
|
|
|
|
|
35224 |
0,5 |
Head lamp assy, replacing one incl |
|
|
adjusting |
|
|
|
35316 |
0,5 |
Rear lamp, replacing one |
|
|
|
35318 |
0,25 |
Rear lamp, replacing glass or bulb |
|
|
|
35656 |
0,5 |
Work lighting, replacing one head lamp |
|
|
assy |
|
|
|
35657 |
0,5 |
Work lighting, replacing one insert |
|
|
|
36 Other electrical equipment, general |
|
|
|
|
|
36102 |
0,5 |
Flasher unit, replacing relay |
|
|
|
36110 |
0,75 |
Flasher switch, replacing |
|
|
|
36117 |
0,5 |
Flasher lamp, replacing glass or bulb |
|
|
|
36202 |
0,25 |
Horn, replacing |
|
|
|
36203 |
0,5 |
Reverse alarm, replacing |
|
|
|
36216 |
0,75 |
Horn switch, replacing |
|
|
|
36301 |
0,5 |
Windscreen wiper rear, replacing motor |
|
|
|
MANUALEQUIPOSPESADOS.COM
36302 |
0,75 |
Windscreen wiper front, replacing |
|
|
motor |
|
|
|
36303 |
0,75 |
Windscreen wiper, replacing switch |
|
|
|
36304 |
0,25 |
Windscreen flusher pump, replacing |
|
|
|
36404 |
0,25 |
Switch, replacing |
|
|
|
36408 |
0,25 |
Brake light switch, replacing |
|
|
|
36720 |
0,5 |
ECU, replacing |
|
|
|
36721 |
0,5 |
CU 8, replacing |
|
|
|
38 Instruments, sender units, warning systems |
|
|
|
|
|
38603 |
0,5 |
Transmission oil pressure sensor, |
|
|
replacing |
|
|
|
38604 |
0,5 |
Transmission temperature sensor, |
|
|
replacing |
|
|
|
38605 |
0,5 |
Transmission, revolution sensor, |
|
|
replacing |
|
|
|
38606 |
0,5 |
Engine temperature sensor, replacing |
|
|
|
38607 |
0,5 |
Engine oil pressure sensor, replacing |
|
|
|
38611 |
0,75 |
Fuel level sender, replacing |
|
|
|
38704 |
0,5 |
Transmission temperature gauge, |
|
|
replacing |
|
|
|
38705 |
0,5 |
Information display, replacing |
|
|
|
38706 |
0,5 |
Engine temperature gauge, replacing |
|
|
|
38711 |
0,5 |
Fuel level gauge, replacing |
|
|
|
38720 |
0,5 |
Tachometer, replacing |
|
|
|
42 Transmission, general |
|
|
|
|
|
42102 |
0,75 |
Hydraulic transmission, check oil |
|
|
pressure |
|
|
|
42106 |
2 |
Oil cooler, replacing |
|
|
|
42147 |
0,75 |
Gear selector, replacing |
|
|
|
42148 |
1 |
Gear selector valve, replacing one |
|
|
solenoid |
|
|
|
42152 |
1 |
Seal for front output shaft, replacing |
|
|
|
42154 |
1 |
Seal for rear output shaft, replacing |
|
|
|
42170 |
6 |
Transmission, removing |
|
|
|
42171 |
40 |
Transmission removed, reconditioning |
|
|
|
42172 |
8 |
Transmission, fitting |
|
|
|
45 Propeller shaft incl. bearings and mounting |
|
|
|
|
|
45102 |
1,5 |
Support or intermediate bearing, |
|
|
replacing |
|
|
|
45104 |
1 |
Propeller shaft, rear, replacing |
|
|
|
45107 |
1 |
Propeller shaft, in frame joint, replacing |
|
|
|
45113 |
1 |
Propeller shaft, removed reconditioning |
|
|
|
46 Drive axles, general |
|
|
|
|
|
461 |
Null |
Front axle |
|
|
|
46101 |
3,5 |
Axle, replacing |
|
|
|
MANUALEQUIPOSPESADOS.COM
46103 |
0,5 |
Axle, fitting |
|
|
|
46105 |
1,5 |
Drive shaft, replacing one side |
|
|
|
46113 |
15 |
Centre gear, axle removed, |
|
|
reconditioning |
|
|
|
46114 |
1,75 |
Pinion front, fitting new gasket |
|
|
|
46140 |
1 |
Hub retainer, replacing |
|
|
|
46141 |
4,5 |
Hub retainer removed, reconditioning |
|
|
|
46142 |
3,5 |
Hub retainer, reconditioning one side |
|
|
|
46143 |
2,5 |
Hub, replacing seal |
|
|
|
46152 |
0,25 |
Differential lock front, repacking excl |
|
|
adjusting |
|
|
|
46153 |
0,75 |
Differential lock, adjusting engagement |
|
|
|
463 |
Null |
Rear axle |
|
|
|
46301 |
5 |
Axle, replacing |
|
|
|
46305 |
1,5 |
Drive shaft, replacing one side |
|
|
|
46313 |
15 |
Centre gear, axle removed, |
|
|
reconditioning |
|
|
|
46314 |
1,5 |
Pinion rear, fitting new gasket |
|
|
|
46340 |
1 |
Hub retainer, replacing |
|
|
|
46341 |
4,5 |
Hub retainer removed, reconditioning |
|
|
|
46343 |
2,5 |
Hub, replacing seal |
|
|
|
51 Wheel brake, all |
|
|
|
|
|
516 |
Null |
Front axle |
|
|
|
51601 |
0,5 |
Brake linings, checking wear |
|
|
|
51604 |
3 |
Brake discs, replacing on both sides |
|
|
|
51650 |
1,5 |
Brake piston, replacing seals |
|
|
|
517 |
Null |
Rear axle |
|
|
|
51701 |
0,5 |
Brake linings, checking wear |
|
|
|
51704 |
3 |
Brake disc, replacing both sides |
|
|
|
51750 |
1,5 |
Brake piston, replacing seals |
|
|
|
52 Hydraulic brake system |
|
|
|
|
|
52001 |
0,5 |
Brake system, checking function, |
|
|
hydraulic |
|
|
|
52002 |
0,5 |
Brake system, checking function, |
|
|
retardation |
|
|
|
52004 |
0,5 |
Brake system, adjusting unloading |
|
|
pressure |
|
|
|
52005 |
0,5 |
Brake system, check and adjusting |
|
|
pressure in circuit |
|
|
|
52037 |
1 |
Brake system, bleeding |
|
|
|
52508 |
1,75 |
Foot brake valve, replacing |
|
|
|
52509 |
1,25 |
Foot brake valve removed, |
|
|
reconditioning |
|
|
|
55 Parking brake incl.control system |
|
|
55002 |
0,5 |
Parking brake, adjusting |
|
|
|
MANUALEQUIPOSPESADOS.COM
64 Steering |
|
|
|
|
|
64121 |
1,5 |
Adjustable steering column, replacing |
|
|
|
64515 |
0,5 |
Steering system, checking and |
|
|
adjusting standby pressure |
|
|
|
64528 |
0,5 |
Steering system, checking and |
|
|
adjusting working pressure |
|
|
|
64560 |
2 |
Steering cylinder, repacking in machine |
|
|
|
64577 |
1,5 |
Steering cylinder removed, |
|
|
reconditioning incl replacing bearings |
|
|
|
64581 |
1,75 |
Steering valve removed, reconditioning |
|
|
|
64582 |
2 |
Steering valve, replacing |
|
|
|
64793 |
1 |
Auxiliary steering, replacing hydraulic |
|
|
pump |
|
|
|
74 Frame joint, general |
|
|
|
|
|
74105 |
0,5 |
Frame joint, checking clearance |
|
|
|
74136 |
12 |
Frame joint, replacing bearings |
|
|
|
75 Axle suspension, general |
|
|
|
|
|
75501 |
1 |
Axle suspension, measuring axial and |
|
|
radial clearanse |
|
|
|
75502 |
1 |
Axle suspension, adjusting axial |
|
|
clearance |
|
|
|
77 Wheel, Tyre, Hub, Crawler/Track |
|
|
|
|
|
77101 |
0,5 |
Wheel, removing and fitting |
|
|
|
81 Cab, general |
|
|
|
|
|
81815 |
1 |
Cab suspension, rubber element |
|
|
replacing |
|
|
|
83 Doors and Covers |
|
|
|
|
|
83104 |
1,75 |
Door, replacing |
|
|
|
83106 |
0,5 |
Door lock, replacing |
|
|
|
83114 |
0,5 |
Door, replacing sealing strip |
|
|
|
84 Outside trim parts, Glass, Sealing, Mouldings |
|
|
|
|
|
84302 |
6 |
Windscreen, replacing |
|
|
|
84312 |
1 |
Rear window, replacing |
|
|
|
84313 |
1 |
Side windov, replacing |
|
|
|
84348 |
1 |
Door window, replacing |
|
|
|
87 Air Conditioning unit |
|
|
|
|
|
87304 |
1 |
Radiator, replacing |
|
|
|
87306 |
1 |
Fan motor, replacing |
|
|
|
87308 |
0,75 |
Heat control valve, replacing |
|
|
|
87309 |
0,75 |
Heat control, replacing |
|
|
|
MANUALEQUIPOSPESADOS.COM
87402 |
|
1 |
Refrigerant, draining |
|
|
|
|
87403 |
|
1 |
Cooling unit, performance test |
|
|
|
|
87405 |
|
1,75 |
Refrigerant, filling excl vacuum |
|
|
|
pumping |
|
|
|
|
87406 |
|
4 |
Compressor, replacing incl draining and |
|
|
|
filling |
|
|
|
|
87407 |
|
1 |
V-belt, replacing |
|
|
|
|
87410 |
|
3,5 |
Condenser, replacing incl draining and |
|
|
|
filling |
|
|
|
|
87411 |
|
3 |
Receiver, replacing incl draining and |
|
|
|
filling |
|
|
|
|
87412 |
|
4 |
Evaporator, replacing incl draining and |
|
|
|
filling |
|
|
|
|
87413 |
|
3,5 |
Expansion valve, replacing incl draining |
|
|
|
and filling |
|
|
|
|
87414 |
|
1 |
Thermostat, replacing |
|
|
|
|
87415 |
|
1 |
Compressor, replacing shaft seal |
|
|
|
(compressor removed) |
|
|
|
|
87416 |
|
1 |
Compressor, replacing magnetic clutch |
|
|
|
(compressor removed) |
|
|
|
|
87417 |
|
1,75 |
Compressor, replacing magnetic clutch |
|
|
|
in machine |
|
|
|
|
87419 |
|
0,5 |
Compressor, replacing valve plate |
|
|
|
(compressor removed) |
|
|
|
|
91 Working hydraulic and servo system |
|
|
|
|
|
|
|
91001 |
|
2 |
Central valve, replacing |
|
|
|
|
91105 |
|
3 |
Hydraulic tank, replacing inlet hose for |
|
|
|
pump |
|
|
|
|
91111 |
|
1 |
Oil cooler, replacing |
|
|
|
|
91138 |
|
5 |
Hydraulic oil tank, replacing |
|
|
|
|
91209 |
|
1 |
Shock valve, tilt function, checking and |
|
|
|
adjusting |
|
|
|
|
91211 |
|
1 |
Shock valve lift function, adjusting |
|
|
|
|
91261 |
|
2 |
Control valve, repacking slide in |
|
|
|
machine |
|
|
|
|
91303 |
|
0,25 |
Oil pump, checking and adjusting |
|
|
|
standby pressure |
|
|
|
|
91304 |
|
0,5 |
Oil pump, checking and adjusting |
|
|
|
working pressure |
|
|
|
|
91310 |
|
3 |
Oil pump, replacing |
|
|
|
|
91311 |
|
3 |
Oil pump removed, reconditioning |
|
|
|
|
91454 |
|
0,5 |
Servo valve, adjusting control |
|
|
|
|
91455 |
|
0,5 |
Servo pressure, checking and adjusting |
|
|
|
|
91458 |
|
3 |
Servo valve, replacing |
|
|
|
|
91463 |
|
0,5 |
Servo pressure, checking by spool valve |
|
|
|
in control valve |
|
|
|
|
91601 |
|
0,5 |
Boom suspension system, checking |
|
|
|
function |
|
|
|
|
91602 |
|
0,75 |
Accumulator, check and adjusting |
|
|
|
|
91604 |
|
1,5 |
Boom suspension system, checking |
|
|
|
closing pressure |
|
|
|
|
MANUALEQUIPOSPESADOS.COM
91605 |
1 |
Boom suspension system, checking |
|
|
opening pressure |
|
|
|
94 Unit for load handling |
|
|
|
|
|
94502 |
1 |
Lift frame, replacing bearing in lower |
|
|
bucketor implement attachment |
|
|
|
94503 |
0,5 |
Implement attachment, measuring |
|
|
clearence of lower bearing |
|
|
|
94504 |
2 |
Lift cylinder, replacing |
|
|
|
94505 |
3 |
Lift cylinder, repacking in machine |
|
|
|
94506 |
2 |
Lift cylinder removed, repacking |
|
|
|
94507 |
0,75 |
Tilt cylinder removed, replacing |
|
|
bearings "E-F" |
|
|
|
94508 |
2 |
Tilt cylinder, replacing |
|
|
|
94509 |
2 |
Tilt cylinder, repacking in machine |
|
|
|
94510 |
1,5 |
Tilt cylinder removed, repacking |
|
|
|
94511 |
1 |
Implemental attachment, replacing |
|
|
hydraulic cylinder |
|
|
|
94512 |
1 |
Lift cylinder removed, replacing |
|
|
bearings "C-P" |
|
|
|
94516 |
4 |
Lift frame, replacing bearing in upper |
|
|
mounting "O" |
|
|
|
94545 |
1 |
Implemental attachment/bucket |
|
|
attachment, replacing bushes "A" |
|
|
|
94554 |
0,75 |
Implement attachment, replacing |
|
|
|
94556 |
1 |
Implement attachment, repacking |
|
|
removed hydraulic cylinder |
|
|
|
94562 |
1 |
T-link upper, replacing "HIJ" |
|
|
|
94563 |
0,75 |
T-link upper removed, replacing |
|
|
bearings "HIJ" |
|
|
|
94564 |
1,5 |
T-link, lower, replacing "IB" |
|
|
|
94565 |
1 |
T-link lower removed, replacing bearing |
|
|
"IB" |
|
|
|
94566 |
1 |
Tilt link, replacing "GH" |
|
|
|
94567 |
0,75 |
Tilt link removed, replacing bearings |
|
|
"GH" |
|
|
|
94568 |
3 |
Tilt arm, replacing bearing "GDF" |
|
|
|
94569 |
2 |
Tilt arm, replacing "GDF" |
|
|
|
94570 |
0,75 |
Tilt arm removed, replacing bearing |
|
|
"GDF" |
|
|
|
MANUALEQUIPOSPESADOS.COM
|
|
|
Service Information |
|
|
|
|
|
|
Document Title: |
Function Group: |
Information Type: |
|
Date: |
E-tool |
080 |
Service Information |
|
2014/5/19 |
|
|
|
|
|
Profile: |
|
|
|
|
|
|
|
|
|
E-tool
Drawings of tool (E-tool ) which can be made in your own workshop
The measurements on the drawings are given in mm, unless otherwise stated (1 mm = 0.0397 in)
E 616 Trolley
Figure 1
A.Castor, 4 pcs
E1351 Spanner
Figure 2
Blank standard open end spanner
E1370 Support
MANUALEQUIPOSPESADOS.COM
Figure 3
A |
Is marked: Max. load 2.5 tonnes E1370 and the |
|
|
manufacturer's name. |
|
|
|
|
1 |
13701 |
Material, plate SIS 2172 |
|
|
|
2 |
13702 |
Material, plate SIS 2172 |
|
|
|
3 |
Bolt M8x20 |
|
|
|
|
4 |
Pipe, DIN 2391 - Pcs 35 ø100X5.0 L= 2250 |
|
|
|
|
5 |
13705 |
Material, SIS 2172 |
|
|
|
6 |
13706 |
Material, SIS 2172 |
|
|
|
7 |
13707 |
Material, SIS 2172 |
|
|
|
8 |
Material, SIS 2172 |
|
|
|
|
9 |
Material, SIS 2172 L=1866 |
|
|
|
|
E 13701 Support
MANUALEQUIPOSPESADOS.COM
Figure 4
E 13702 Support
MANUALEQUIPOSPESADOS.COM
Figure 5
A.Edge to be chamfered
E 13705 Support
MANUALEQUIPOSPESADOS.COM
Figure 6
E 13706 Support
MANUALEQUIPOSPESADOS.COM
Figure 7
E 13707 Support
MANUALEQUIPOSPESADOS.COM
Figure 8
Material: Plåt SIS 2172
E 1687
MANUALEQUIPOSPESADOS.COM
Figure 9
Material: SIS 2172–03
E 1752 Lifting yoke
Figure 10
Loading...
