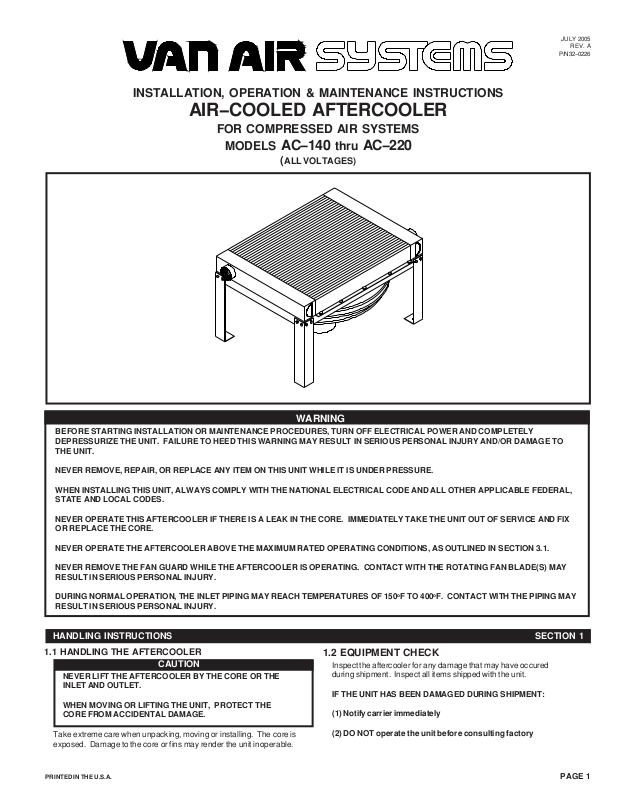

INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS

AIR-COOLED AFTERCOOLER

FOR COMPRESSED AIR SYSTEMS

MODELS AC-140 thru AC-220

(ALL VOLTAGES)

JULY 2005

REV. A

P/N 32-0226

WARNING

BEFORE STARTING INSTALLATION OR MAINTENANCE PROCEDURES, TURN OFF ELECTRICAL POWER AND COMPLETELY DEPRESSURIZE THE UNIT. FAILURE TO HEED THIS WARNING MAY RESULT IN SERIOUS PERSONAL INJURY AND/OR DAMAGE TO THE UNIT.

NEVER REMOVE, REPAIR, OR REPLACE ANY ITEM ON THIS UNIT WHILE IT IS UNDER PRESSURE.

WHEN INSTALLING THIS UNIT, ALWAYS COMPLY WITH THE NATIONAL ELECTRICAL CODE AND ALL OTHER APPLICABLE FEDERAL, STATE AND LOCAL CODES.

NEVER OPERATE THIS AFTERCOOLER IF THERE IS A LEAK IN THE CORE. IMMEDIATELY TAKE THE UNIT OUT OF SERVICE AND FIX OR REPLACE THE CORE.

NEVER OPERATE THE AFTERCOOLER ABOVE THE MAXIMUM RATED OPERATING CONDITIONS, AS OUTLINED IN SECTION 3.1.

NEVER REMOVE THE FAN GUARD WHILE THE AFTERCOOLER IS OPERATING. CONTACT WITH THE ROTATING FAN BLADE(S) MAY RESULT IN SERIOUS PERSONAL INJURY.

DURING NORMAL OPERATION, THE INLET PIPING MAY REACH TEMPERATURES OF 150oF TO 400oF. CONTACT WITH THE PIPING MAY RESULT IN SERIOUS PERSONAL INJURY.

HANDLING INSTRUCTIONS SECTION 1

1.1 HANDLING THE AFTERCOOLER

CAUTION

NEVER LIFT THE AFTERCOOLER BY THE CORE OR THE INLET AND OUTLET.

WHEN MOVING OR LIFTING THE UNIT, PROTECT THE CORE FROM ACCIDENTAL DAMAGE.

1.2 EQUIPMENT CHECK

Inspect the aftercooler for any damage that may have occured during shipment. Inspect all items shipped with the unit.

IF THE UNIT HAS BEEN DAMAGED DURING SHIPMENT:

(1) Notify carrier immediately

Take extreme care when unpacking, moving or installing. The core is exposed. Damage to the core or fins may render the unit inoperable.

PRINTED IN THE U.S.A. PAGE 1

(2) DO NOT operate the unit before consulting factory

ASSEMBLY, LEG INSTALLATION SECTION 2

2.1 INSTALLING THE LEGS

This unit was shipped without the legs installed. The legs should be installed before placing the aftercooler in the piping system. Carefully lift and support the unit several feet from the floor.

Position the legs against the unit and fasten them in place using the fasteners provided. Make sure the fasteners are tightened in place.

FIGURE 1 LEG INSTALLATION DETAIL

SPECIFICATIONS AND DIMENSIONS SECTION 3

3.1 SPECIFICATIONS

WEIGHT

AC-140 ........ 120 LBS AC-190 ........... 600 LBS

AC-150 ........ 170 LBS AC-200 ........... 625 LBS

AC-160 ........ 330 LBS AC-210 ........... 645 LBS

AC-170 ........ 450 LBS AC-220 ........... 750 LBS

AC-180 ........ 515 LBS

DIMENSIONS .............. See Section 3.2

INLET/OUTLET CONNECTIONS

AC-140 ............ 2" NPT (F) AC-190 ............... 4" NPT (F)

AC-150 ............ 2" NPT (F) AC-200 ............... 4" NPT (F)

AC-160 ............ 3" NPT (F) AC-210 ............... 4" NPT (F)

AC-170 ............ 3" NPT (F) AC-220 .............. 4" NPT (F)

AC-180 ............ 3" NPT (F)

MAXIMUM WORKING PRESSURE

ALL MODELS .................. 250 PSIG

MAXIMUM WORKING TEMPERATURE

ALL MODELS .................. 350OF

MATERIALS OF CONSTRUCTION

CABINET ......................... Steel with baked enamel finish

FAN GUARD ................... Steelwith baked enamel finish

FAN ................................. Polypropylene blades with aluminum hub

CORE .............................. Aluminum

MOTOR ........................... TEFC

MOTOR SPECIFICATIONS AND DATA

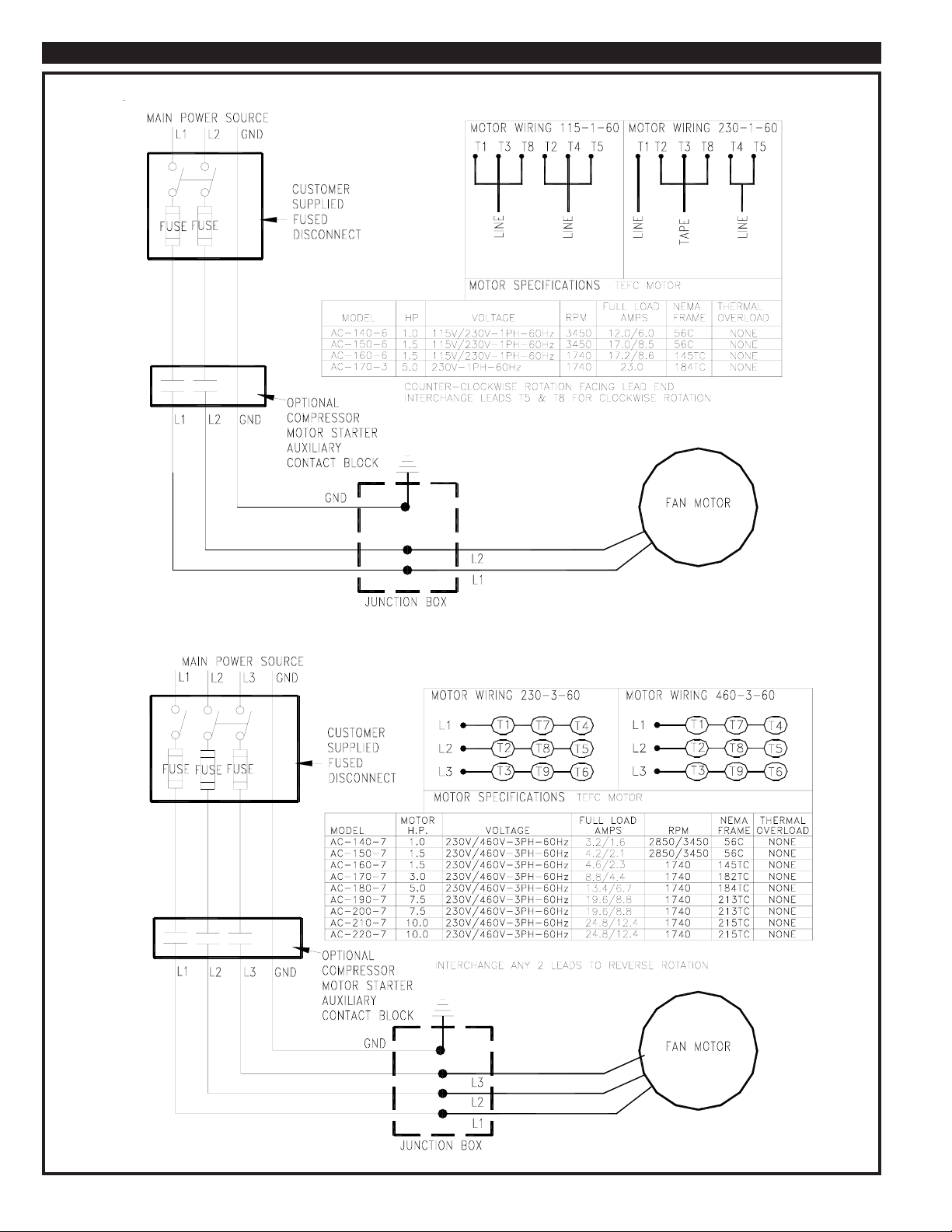

See Wiring Diagram, Figure 5 on page 6.

MAXIMUM CAPACITY (SCFM)

Rated capacities are based on the following conditions: Inlet and approach temperature at inlet pressures 80 to 125 PSIG.

FAN DATA (AMBIENT AIR FLOW)

AC-140-6 ......................... 2200 SCFM

AC-140-7 ......................... 230V, 1825 SCFM 460V, 2200 SCFM

AC-150-6 ......................... 3600 SCFM

AC-150-7 ......................... 230V, 3025 SCFM 460V, 3600 SCFM

AC-160-6 ......................... 4700 SCFM

AC-160-7 ......................... 4700 SCFM

AC-170-6 ......................... 7000 SCFM

AC-170-7 ......................... 7000 SCFM

AC-180-7 ......................... 9700 SCFM

AC-190-7 ......................... 11000 SCFM

AC-200-7 ......................... 14000 SCFM

AC-210-7 ......................... 17500 SCFM

AC-220-7 ......................... 17500 SCFM

ELECTRICAL REQUIREMENTS

AC-140-6 thru AC-160-6 ...... 115/230-1-60

AC-170-3 ............................... 230-1-60

AC-140-7 thru AC-220-7 ...... 230/460-3-60

Approach Temperature: The number of degrees above the temperature of the cooling medium (in this case ambient air) to which the aftercooler reduces the compressed air. A higher approach does not mean better performance.

INLET TEMP.

APPROACH TEMP.

150OF 200OF 350OF250OF 300OF

MODEL

AC-140

AC-150

AC-160

AC-170

AC-180

AC-190

AC-200

AC-210

AC-220

MAXIMUM PRESSURE DROP LESS THAN 3 PSI.

PAGE 2 PRINTED IN THE U.S.A.

210

355

480

600

790

980

1220

1450

1680

384

650

871

1090

1440

1790

2220

2650

3064

520

890

1178

1475

1950

2420

3000

3580

4140

605

1025

1360

1710

2260

2800

3470

4120

4800

175

308

415

520

710

870

1090

1295

1530

375

560

754

950

1290

1580

1980

2360

2785

430

760

1020

1290

1720

2140

2680

3200

3760

500

880

1180

1460

1950

2460

3100

3710

4320

160

290

390

490

660

820

1035

1243

1460

300

545

712

900

1200

1490

1880

2260

2660

400

725

950

1200

1600

2000

2500

3000

3500

464

840

1100

1380

1860

2300

2870

3450

4015

135

245

320

405

530

660

784

985

1150

250

450

588

735

965

1210

1426

1794

2090

340

605

785

980

1290

1595

1980

2360

2760

396

701

910

1130

1480

1840

2270

2715

3200

125

225

280

355

460

572

705

840

950

235

410

520

650

840

1040

1290

1530

1740

305

540

690

865

1135

1400

1725

2040

2350

355

625

780

990

1300

1610

1980

2350

2700

SPECIFICATIONS AND DIMENSIONS SECTION 3

3.2 DIMENSIONS AND COMPONENT LOCATIONS

MODEL

AC-140

AC-150

AC-160

AC-170

AC-180

AC-190

AC-200

AC-210

AC-220

22.68"

30.56"

37.24"

41.19"

51.04"

49.07"

51.04"

34.20"

36.01"

17.96"

22.37"

26.78"

34.89"

37.88"

43.70"

52.52"

56.30"

32.35"

33.25"

1.77"

1.85"

2.76"

6.00"

8.00"

4.92"

9.34"

13.76"

17.86"

20.86"

26.68"

35.50"

39.28"

18.01"

22.76"

25.07"

25.95"

27.57"

28.01"

29.17"

18.68"

26.56"

33.24"

37.19"

47.04"

45.07"

47.04"

13.96'

18.37"

22.78"

30.89"

33.88"

39.70"

48.52"

52.30"

25.98"

33.86"

40.54"

44.49"

54.34"

52.37"

54.34"

19.42"

23.84"

28.25"

36.36"

39.35"

45.18"

54.00"

57.78"

P IN/OUT

2" NPT

3" NPT

4" NPT

INSTALLATION SECTION 4

4.1 LOCATION

CAUTION

DO NOT LOCATE THIS AFTERCOOLER WHERE PERSONNEL MAY CONTACT THE INLET PIPING UNLESS THE UNIT IS PROTECTED BY WARNING SIGNS AND/OR A BARRIER. DURING NORMAL OPERATION, THE INLET PIPING MAY BECOME EXTREMELY HOT (150OF TO 400OF). CONTACT MAY RESULT IN SERIOUS PERSONAL INJURY.

DO NOT INSTALL THIS UNIT IN AN ENVIRONMENT OF CORROSIVE GASES OR CHEMICALS. MAKE SURE THAT THE MATERIALS USED IN THIS UNIT (listed on the previous page) ARE COMPATIBLE WITH THE ATMOSPHERIC CONDITIONS.

The aftercooler should be located far enough away from the compressor so that there are no vibrations transmitted from the compressor. A

FLEXIBLE HOSE MUST BE INSTALLED IN THE PIPING TO VALIDATE THE WARRANTY AND TO PREVENT DAMAGE TO THE AFTERCOOLER FROM VIBRATION IN THE PIPING! REFERENCE

Section 4.3 for instructions.

PRINTED IN THE U.S.A. PAGE 3

The location should be level and capable of supporting the aftercooler and all components and piping to be installed. The aftercooler must be level to allow proper drainage of fluids from the outlet manifold.

The aftercooler must be installed at least 1 foot from walls or obstructions. It is important for the unit to have an adequate air supply for cooling at all times. If more than one unit is to be installed in the same area, allow at least 1 foot between them.

This unit can be installed indoors or outdoors. If the unit is to be installed outdoors or in an area where ambient temperatures can fall below 35oF, precautions must be made to prevent freeze-up and damage to the unit. The drain lines and separator must be heat traced and/or insulated and the unit should be protected from the wind. REFERENCE Section 4.5 for details.

4.2 MOUNTING THE UNIT

After selecting the proper location as outlined above, the aftercooler should be mounted to the installation surface. Mounting holes are provided on the leg support braces. Reference Section 3.2 for mounting hole locations and dimensions. Use hardware (not supplied) sized for the mounting holes.

+ 5 hidden pages
