OWNER’S MANUAL

Outdoor Patio Heater

Model No. GWU501E

DANGER

CARBON MONOXIDE HAZARD

• This appliance can produce carbon monoxide which has no odor.

• Using it in an enclosed space can kill you.

• Never use this appliance in an enclosed space such as a camper, tent, car or home.

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

Improper installation, adjustment,

alteration, service or maintenance can cause injury or property damage.

Read the installation, operation, and

maintenance instructions thoroughly before installing or servicing this equipment.

Failure to follow these instructions could

result in fire or explosion, which could cause property damage, personal injury, or death.

Table of Contents

Important Safeguards ........................................... Page 2

Exploded View & Hardware........................................... 3

Assembly Instructions............................................... 4

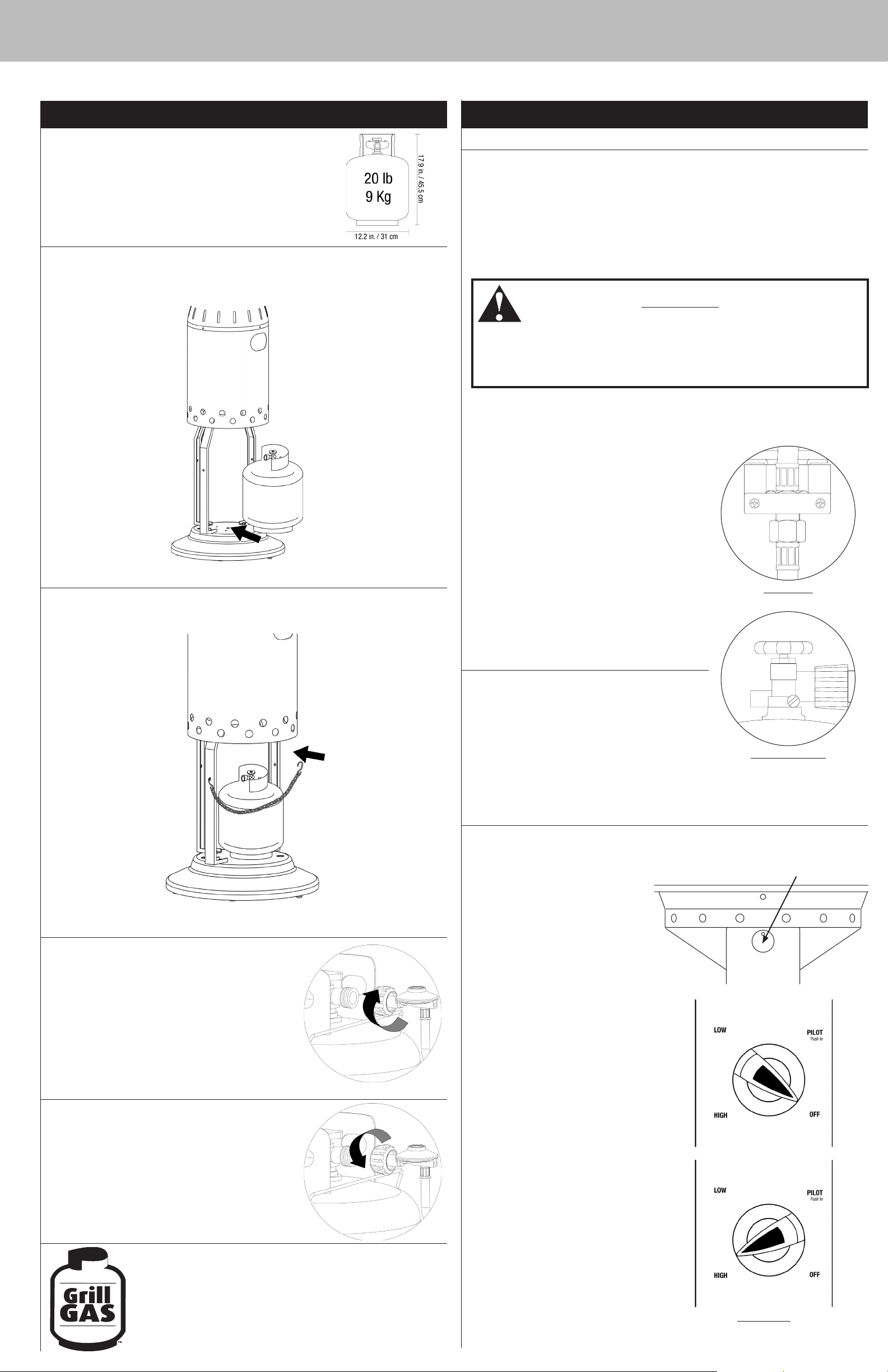

Installling LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Insert LP Gas Tank Secure LP Gas Tank Connect LP Gas Tank Disconnect LP Gas Tank

Operating Instructions............................................... 7

Checking for Leaks Before Lighting Lighting When heater is ON Re-Lighting Shutdown

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning Surfaces Maintenance Storage

Product Registration ................................................ 9

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Speciﬁcations.................................................... 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Optional Accessories............................................... 10

The use and installation of this product must conform to local codes. In absence of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, CAN/CGA-B149.1, Natural Gas and

Propane Installation Code.

....................................................... 8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

....................................................... 8

............................................... 7

.............................................. 7

............................................. 7

........................................... 7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

............................................... 8

.................................................... 8

............................................... 8

................................................... 8

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

California Proposition 65: Chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm are created by the combustion of propane.

Manufactured in China for: Blue Rhino Global Sourcing, LLC Winston-Salem, NC 27105 USA

1.800.762.1142, www.bluerhino.com

DANGERS and WARNINGS: FOR YOUR SAFETY

Outdoor Patio Heater Model No. GWU501E Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

WARNING

FOR YOUR SAFETY

If you smell gas -

1. Shut off gas to appliance.

2. Extinguish any open flame.

3. If odor continues, immediately call your gas supplier or your fire department.

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion

causing damage to property.

WARNING:

This heater is for outdoor use only, and shall not be used in a building,

garage, or any other enclosed area.

Always maintain at least 36” clearance (top), and 24” clearance (side)

from combustible materials.

This heater is for use with liquid propane (LP) gas only. The conversion

to or attempted use of natural gas in this LP gas heater is dangerous and will void your warranty.

LP gas Characteristics:

a. LP gas is flammable and hazardous if handled improperly. Become

aware of the characteristics before using any LP gas product.

b. LP gas is explosive under pressure, heavier than air, and settles and

pools in low areas.

c. LP gas in its natural state has no odor. For your safety, an odorant is

added that smells like rotten cabbage.

d. Contact with LP gas can cause freeze burns to skin.

LP gas tank needed to operate. Only tanks marked “propane” may be

used.

The LP gas supply tank must be constructed and marked in accordance

with the Specifications for LP gas Cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-

B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods; and Commission.

LP gas tank must be arranged for vapor withdrawal. The LP gas tank must have a listed overfilling prevention device (OPD). Only use 20-pound cylinders equipped with a cylinder connection device

compatible with the connection for outdoor cooking appliances. The LP gas tank must have a tank collar to protect the tank valve. Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous and should be

checked by your LP gas supplier prior to use. The LP gas tank should not be dropped or handled roughly. Tanks must be stored outdoors out of the reach of children and must

not be stored in a building, garage, or any other enclosed area. Your

tank must never be stored where temperatures can reach over 125°F. Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause

the gas pressure to increase, which may open the relief valve and allow

gas to escape. Do not store a spare LP gas tank under or near this appliance. Never fill the tank beyond 80 percent full. Never attempt to attach this heater to the self-contained LP gas system

of a camper trailer, motor home, or house. The use of alcohol, or prescription or non-prescription drugs may

impair the consumer’s ability to properly assemble or safely operate the

appliance. Your heater has been checked at all factory connections for leaks.

Recheck all connections, as movement in shipping can loosen

connections. Check for leaks even if your unit was assembled for you by someone

else. Do not operate if gas leak is present. Gas leaks may cause a fire or

explosion. You must follow all leak-checking procedures before operating. To

prevent fire or explosion hazard when testing for a leak:

a. Always perform leak test before lighting the heater and each time the

tank is connected for use.

b. No smoking. Do not use or permit sources of ignition in the area

while conducting a leak test. c. Conduct the leak test outdoors in a well-ventilated area. d. Do not use matches, lighters, or a flame to check for leaks. e. Do not use heater until any and all leaks are corrected.

If you are unable to stop a leak, disconnect the LP gas supply. Call a

gas appliance serviceman or your local LP gas supplier.

Do not store or use gasoline or other flammable liquids or vapors within

25 feet (7.62 m) of this appliance.

Do not use in an explosive atmosphere. Keep heater area clear and free

from combustible materials, gasoline and other flammable vapors and liquids.

Keep all combustible items and surfaces away from the heater at all

times. DO NOT use this heater or any gas product under any overhead or near any unprotected combustible constructions.

Combustion of propane creates carbon monoxide, which, when used in

enclosed areas, can kill you.

It is essential to keep the heater’s valve compartment, burners, and

circulating air passages clean. Inspect heater before each use.

1. Do not store spare LP cylinder within 10 feet (3.05 m) of this appliance.

2. Do not store or use gasoline or other flammable vapors and liquids within 25 feet (7.62 m) of this or any other appliance.

3. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

Installation and repair should be done by a qualified service person. Do not alter heater in any manner. Do not use the heater unless it is COMPLETELY assembled and all parts

are securely fastened and tightened.

This heater should be thoroughly inspected before each use. Clean and

inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to the appliance being put into operation.

Use only the regulator and hose assembly provided. The replacement

regulator and hose assembly shall be that specified by the manufacturer.

Inspect heater before each use. If a damaged part is detected, do not

operate until an original equipment replacement part has been properly installed.

Use only Blue Rhino Global Sourcing, LLC. factory authorized parts. The

use of any part that is not factory authorized can be dangerous. This will also void your warranty. Contact 1.800.762.1142.

Dome and burner are extremely hot to the touch during operation. Never

touch the dome or burner while the heater is operating. Wait for unit to cool down (approximately 45 minutes) after use.

During operation, do not touch burner assembly. The surface of heater’s

emitter can reach temperatures approaching 1600ºF. Do not install or use in or on boats or recreational vehicles. Do not use heater in winds that exceed 10 m.p.h.. Unit will operate at reduced efficiency below 40ºF (5ºC). Do not leave a lit heater unattended, especially keep children and pets

away from heater at all times. Always use extreme caution when near heater. Alert both children and

adults to the hazards of high temperatures, especially to avoid burns or

clothing catching fire. Do not attempt to move heater when in use. Allow the heater to cool

before moving or storing. Storage of heater indoors is permissible only if the tank is disconnected,

removed from the heater and properly stored outdoors. Do not attempt to disconnect the gas regulator from the tank or any gas

fitting while the heater is in use. Always place your heater on a hard, level surface. Use extreme caution on wooden decks. Move gas hoses as far away as possible from hot surfaces. Keep all electrical cords away from a hot heater. Do not use heater for indoor cooking or heating. TOXIC fumes can

accumulate and cause asphyxiation. Keep sprinklers and other water sources away from burner and

controls. Do not hang clothing or other flammable materials either on or near

heater. Always allow heater to cool before attempting service. Any guard or other protective device removed for servicing the heater

must be replaced prior to operating the heater. Certain materials or items, when stored under heater, will be subjected

to radiant heat and could be seriously damaged. After a period of storage and/or non-use, check for leaks, burner

obstructions and inspect for any abrasion, wear, cuts to the hose. If at any time you are unable to light burner and smell gas, wait 5

minutes to allow gas to dissipate before attempting to light heater. Failure to not wait 5 minutes to allow the gas to clear if the heater does

not light, may result in an explosive flame-up. Be careful when attempting to manually ignite this heater. Holding in

the control knob for more than 10 seconds before igniting the gas will

cause a ball of flame upon ignition. Avoid inhaling fumes emitted from the heater’s first use. Smoke and

odor from the burning of oils used in manufacturing will appear. Both

smoke and odor will dissipate after approximately 30 minutes. The

heater should NOT produce thick black smoke. If heater is not in use, the gas must be turned off at the supply tank. Do not use this appliance without reading “Operating Instructions” in

this manual. Please use protective gloves when assembling this product. Do not force parts together as this can result in personal injury or

damage to the product. Deaths, serious injury or damage to property may occur if the above is

not followed exactly.

WARNING

FOR YOUR SAFETY

page no.

7/16"

Exploded ViewParts List

Finial

Dome Cap

Dome Plate

Dome Panel (3)

Dome Rib (3)

Dome Rib Connector* (3)

Bottom Plate

Emitter Top*

Emitter*

Burner*

Pilot Heat Shield*

Pilot Assembly*

Burner Orifice*

Electronic Igniter*

Igniter Button*

Control Knob*

56-01-103

56-01-104

56-01-105

56-01-106

56-01-109

56-01-459

56-01-110

56-01-399

56-01-118

56-01-334

56-01-151

56-01-127

56-01-131

56-01-142

56-01-188

56-01-156

Access Panel*

Valve*

Valve Bracket*

Tip Switch*

Valve Housing*

Gas Line*

Pole

Shroud

Platform

Gas Line Clip

Leg (3)

Tank Retention Chain

Regulator/Hose Assembly

Base

Weight Plate

Wheel Hole Plug (2)*

* Pre Assembled

56-01-140

56-01-144

56-01-148

56-01-019

56-01-144

56-01-351

56-05-013

56-05-014

56-05-012

56-01-213

56-01-193

56-01-186

56-01-355

56-05-010

56-01-470

56-01-402

Hardware

A B C D E F G H

J K

Screw

Bolt

Nut

Washer

5/32” - 32 x 8 Stainless Steel Round Head

3/16” - 24 x 15 Black Zinc Plated Philips Head

1/4” - 20 x 16 Stainless Steel Philips Head

1/4” - 20 x 20 Nickel Plated Hex Head

3/8” - 16 x 35 Stainless Steel Hex Head

3/8” - 16 x 95 Zinc Plated Hex Head

1/4” - 20 Nickel Plated Hex

1/4” - 20 Stainless Steel Hex

3/8” - 16 Stainless Steel Hex

3/8” - 16 Nickel Plated Hex

ø6 Nickel Plated

3 pcs

2 pcs

4 pcs

12 pcs

1 pc

12 pcs

3 pcs

1 pc

6 pcs

AA Battery

Tools Required for Assembly (Not Included)

7/16” Wrench

9/16” Wrench

3/4” Wrench

7/16” Socket and Socket Wrench

1 pc

Lock Washer

ø6 Nickel Plated

ø10 Nickel Plated

12 pcs

1 pc

#2 Phillips Head Screwdriver

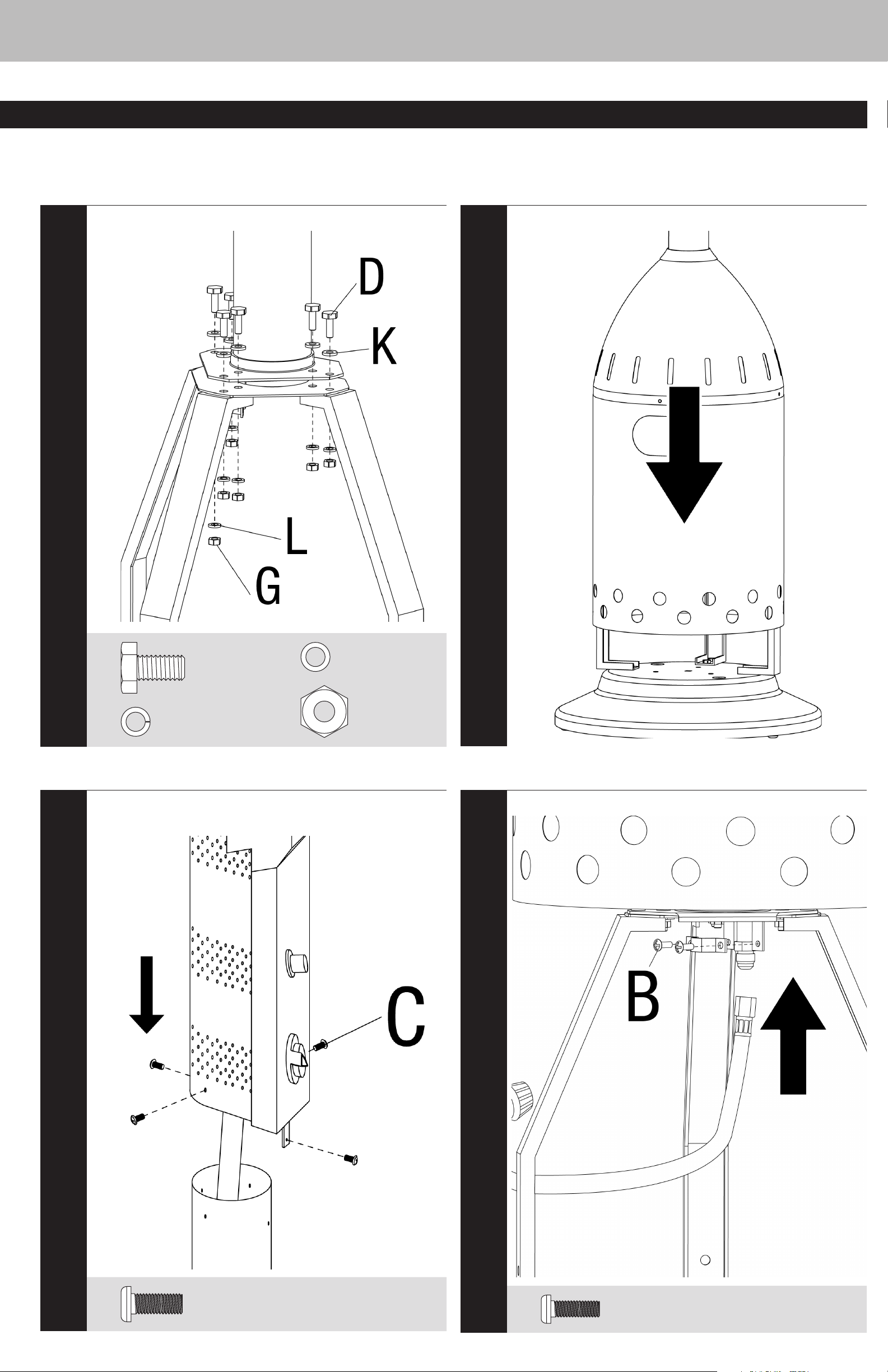

Assembly Instructions

Outdoor Patio Heater Model No. GWU501E Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

To complete assembly you will need:

• (1) Leak Detection Solution (Instructions on how to make solution are included in step Operations Section)

• (1) Precision Filled LP Gas Grill Tank with Acme Type 1 external threaded valve connection (4-5 gallon size)

Note: You must follow all steps to properly assemble heater.

Remove Base

Note: Retain these nuts as you will use them in another step.

Typical assembly: approximately 1 (one) hour.

Attach Legs

Attach Wheight Plate

x 3

x 6

x 1

+ 8 hidden pages
