OWNER’S MANUAL

Outdoor Fireplace

Model No. WAD1009SP

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1.Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2.Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3.Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

Made from 70% Bagasse

(Environmentally Friendly Sugar

Cane Pulp By-product)

Table of Contents



Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 2

Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . 3

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 4

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Tending the Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Extinguishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Inspecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 5

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6

Save these instructions for future reference. If you are assembling this unit for

someone else, give this manual to him or her to read and save for future reference.

Manufactured in China for:

Blue Rhino Global Sourcing, Inc. Winston-Salem, NC USA 1.800.762.1142, www.bluerhino.com

© Blue Rhino Global Sourcing, Inc. All Rights Reserved.



UniFlame® is a Registered Trademark of Blue Rhino Global Sourcing, Inc. All Rights Reserved.

WAD1009SP-OM-102 E

Outdoor Fireplace Model No. WAD1009SP

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

WARNING:

This appliance is for outdoor use only, and shall NOT be used in a building, garage, or any other enclosed area.

Do NOT use this outdoor fireplace for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.

This outdoor fireplace is NOT for commercial use.

This outdoor fireplace is NOT to be operated by children.

This outdoor fireplace is NOT to be used in or on boats or recreational vehicles.

Always use in accordance with all applicable local, state and national codes. Contact your local fire department for details on outdoor burning.

When using this outdoor fireplace, exercise the same precautions you would with any open fire.

The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate this outdoor fireplace.

Do NOT use this outdoor fireplace without reading the entire “Owner’s Manual”.

This outdoor fireplace is for use with dry, seasoned hardwood. It will burn hotter, more completely and create less smoke.

Do NOT burn charcoal briquets, lump charcoal, manufactured logs, driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure treated wood. Avoid using softwoods such as pine or cedar that can throw sparks.

Do NOT alter this outdoor fireplace in any manner. Any altering will void your warranty.

Do NOT use this outdoor fireplace until it is COMPLETELY assembled and all parts are securely fastened and tightened.

Do NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

Do NOT store or use gasoline or other flammable vapors or liquids within 25 feet (7.62 m) in the vicinity of this or any other appliance.

Do NOT store or use an LP gas cylinder within 10 feet (3.05 m) of this outdoor fireplace while it is in operation.

Do NOT use this outdoor fireplace near automobiles, trucks, vans or recreational vehicles.

Do NOT use in an explosive atmosphere. Keep outdoor fireplace area clear and free from combustible materials, gasoline and other flammable liquids.

Do NOT use this outdoor fireplace under any overhead or near any unprotected combustible constructions. Avoid using near or under overhanging trees and shrubs.

Always use this outdoor fireplace on a hard, level non-combustible surface such a concrete, rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. Do NOT use on wooden decks.

Always empty this outdoor fireplace before each use.

Do NOT wear flammable or loose clothing when operating this outdoor fireplace.

Do NOT use in windy conditions.

Do NOT use this outdoor fireplace unless spark guards are securely in place.

Do NOT use gasoline, kerosene, diesel fuel, lighter fluid or alcohol to light or relight fires.

Keep all electrical cords away from a hot fireplace.

All surfaces of this outdoor fireplace are hot when in operation. To avoid burns, do NOT touch fireplace until it has completely cooled (about 45 minutes) unless you are wearing protective gear (Potholders, gloves, BBQ mittens, hot pads & etc.). Never touch ashes or coals to see if they are hot.

Do NOT leave a lit outdoor fireplace unattended, especially around children and pets.

Do NOT attempt to move or store this outdoor fireplace until all ashes and coals are completely extinguished.

Do NOT remove ashes or coals until they are completely and fully extinguished and the outdoor fireplace has completely cooled (about 45 minutes).

Use heat-resistant gloves or hot pads when contacting handles. Use long, sturdy fireplace tools when adding or moving logs.

Do NOT place wood directly into bottom of the outdoor fireplace. Place wood only on the wood grid.

Do NOT overload the fireplace. Do not add additional firewood until the fire burns down. NOTICE: If any portion of the bowl, lid or spark guards of this outdoor fireplace are glowing red it is overloaded.

Do NOT lean over this outdoor fireplace when lighting or when in use.

Do NOT place a hot spark guard or hot fireplace tools onto combustible surfaces such as grass, wooden deck or furniture.

Avoid breathing smoke from the fire and avoid getting it into your eyes.

This outdoor fireplace should be thoroughly inspected and cleaned on a regular basis.

After a period of storage and/or non-use, check for signs of damage and creosote build-up. Do NOT operate until necessary repairs and/or cleanup are executed.

Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The use of any part that is NOT factory authorized can be dangerous and will void your warranty.

Please use protective gloves when assembling this product.

Do not force parts together as this can result in personal injury or damage to the product.

Deaths, serious injury or damage to property may occur if the above is not followed exactly.



page no.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

3







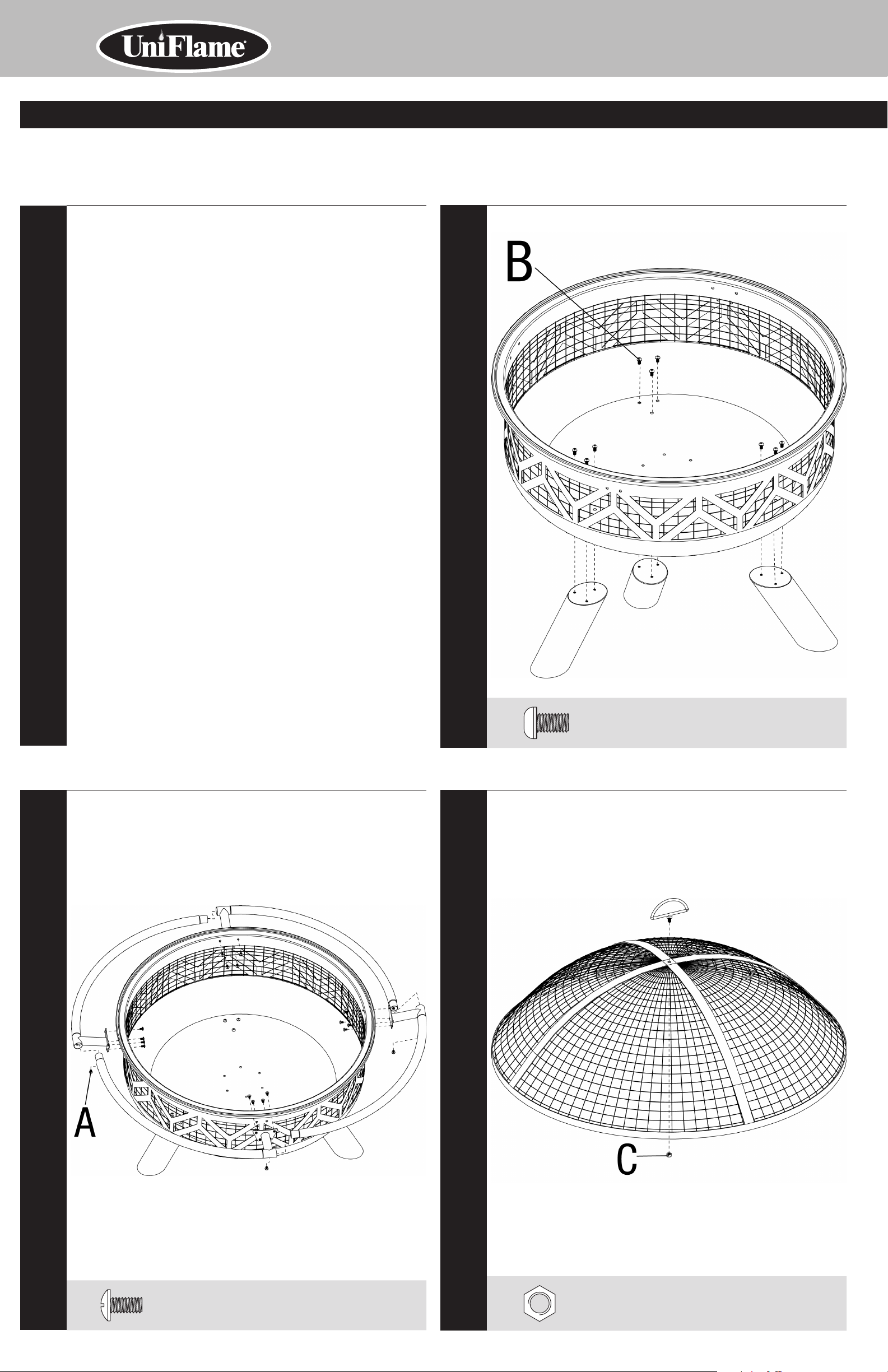

Parts List





Exploded View

1

Handle

55-05-530

1















2

Spark Guard

58-10-067















3

Wood Grate

55-05-532















4

Base Ring (4)

55-05-533

2











5

Bowl

58-10-068















6

Leg (3)

55-05-535

























3

4

4

5

4

4



6

Hardware

A

Screw

M5x10 Nickel Plated

20 pcs















B

Bolt

M6x10 Nickel Plated Column Hex Head

9 pcs















C

Nut

M6 Nickel Plated

1 pcs















Tools Required for Assembly (Included)

Allen Wrench 1 pc

Tools Required for Assembly (Not Included)

#2 Phillips Head Screwdriver

1 pc
