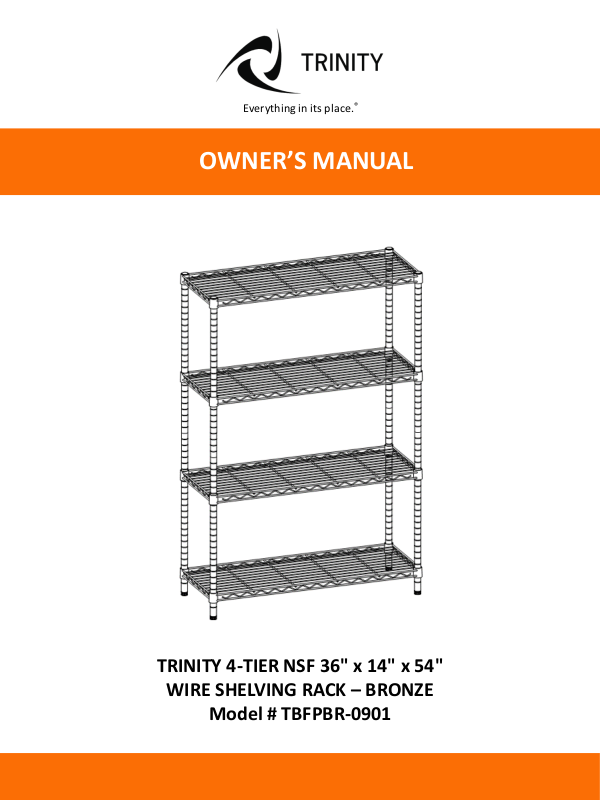

OWNER’S MANUAL

TRINITY 4-TIER NSF 36" x 14" x 54"

WIRE SHELVING RACK – BRONZE

Model # TBFPBR-0901

Everything in its place.

Your TRINITY 4-Tier Bronze Shelving Rack should include the following parts. Please inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at www.trinityii.com (Help & More, Contact Us).

You will need no additional tools for assembly.

PARTS LIST

SHELF (4)

SLIP SLEEVE

(32) + (2) extra

Please inspect box contents to ensure you have received all components.

Note: The black circular plastic tops in between the Shelves are used only for packaging purposes. They

are NOT NEEDED. Please discard.

TOP POLE (4)

End Cap (4) and

Pole Connector (4)

are pre-installed

BOTTOM POLE (4)

Threaded Insert (4) and

Feet Leveler (4) are pre-installed

ASSEMBLY INSTRUCTIONS

STEP 1: SLIP SLEEVES

STEP 2: INSTALLING BOTTOM SHELF

* For safety and stability, the lowest SHELF (C) should be lower than the 3rdnotch from the bottom. ** Note: There will be a very small gap in-between the SLIP SLEEVES (D)—this is normal.

A (4) D (8)

C (1)

Place SHELF (C) on its side and slide the (4) BOTTOM POLES (A) through the holes in the SHELF (C). Make sure that the SHELF (C) corner cylinders are positioned over the SLIP SLEEVES (D).

Stand the unit upright.

*Note: The level side of the SHELF (C) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.)

**Use a rubber mallet, if needed, to secure the SHELF (C).

For easiest assembly, do not attach the TOP (B) and

BOTTOM (A) POLES until instructed. Once connected, these will be the posts for the rack.

Note that each POLE (A+B) has slight horizontal line

indentations at 1” intervals. Each SLIP SLEEVE (D) has

raised horizontal lines inside designed to lock them in place on the POLE (A+B).

On the BOTTOM POLE (A), place 1 pair of SLIP SLEEVES (D) at the desired level. Please make sure the arrow faces up

and that the word “TOP” is right side up. Do this for each

BOTTOM POLE (A) and make sure that the heights are identical for BOTTOM POLE (A).

Slide the pair of SLIP SLEEVES (D) until you hear a click to confirm the pair is locked onto the BOTTOM POLE (A). DO NOT place more than one pair on each POLE (A) at a time.

ASSEMBLY INSTRUCTIONS

STEP 4: INSTALLING TOP POLES

Screw the TOP POLE (B) into the BOTTOM POLE (A). The tops of these poles are indicated by the BLACK END CAP.

B (4)

STEP 3: INSTALLING SHELVES

On POLE (A), place 1 pair of SLIP SLEEVES (E) at the desired distance between SHELVES (C). Please make sure the arrow

faces up and that the word “TOP” is right side up. Do this for

each POLE (A), and make sure that the heights are identical for each POLE (A).

Lower SHELF (C) over the BOTTOM POLES (A) so that the corner cylinders of the SHELF (C) are positioned over the SLIP SLEEVES (D).

Repeat Step 3 to install other SHELVES (C) as desired.

**Use a rubber mallet, if needed, to secure the SHELVES (C).

D (8) C (1)

ASSEMBLY INSTRUCTIONS

The Feet Levelers are already screwed into the BOTTOM POLES (A) and you can adjust as needed to ensure your Shelving Rack is level.

STEP 6: FEET LEVELERS

STEP 5: INSTALLING SHELVES

D (16) C (2)

On POLE (A+B), place 1 pair of SLIP SLEEVES (D) at the desired distance between SHELVES (C). Please make sure the arrow

faces up and that the word “TOP” is right side up. Do this for

each POLE (A+B), and make sure that the heights are

identical for each POLE (A+B).

Lower SHELF (C) over the TOP POLES (B) so that the corner cylinders of the SHELF (C) are positioned over the SLIP SLEEVES (D).

Repeat Step 5 to install other SHELVES (C) as desired.

**Use a rubber mallet, if needed, to secure the shelves.

TRINITY Customer Service provides the following replacement parts:

SERVICE PARTS LIST – TBFPBR-0901

Part Number Description Part Number Description

1) XBK-01-012-2543 Slip Sleeve 5) XBK-98-003-2538 Feet Leveler

2) PBR-04-006-3600 Top Pole 6) XBK-23-004-2517 Endcap

3) ZSV-01-013-2523 Pole Connector 7) PBR-03-007-3614 Shelf

4) PBR-04-008-3600 Bottom Pole

WARNINGS

1. Read and understand all instructions. Failure to follow all instructions may result in injury

and/or damage.

2. The warnings, cautions, and instructions discussed in this manual cannot cover all

possible conditions or situations that may occur. The user must always be aware of their

environment and ensure that they use the product in a safe and responsible manner.

3. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product.

4. Check for damaged parts. Before using this product, carefully check that all parts are in

good condition, and that the product will operate properly and perform its intended function. Check for damaged parts and any other conditions that may affect the operation of this product. Replace damaged or worn parts, and never use this product with a damaged part.

5. Do NOT overload the product.

CARE AND MAINTENANCE

• Avoid harsh, abrasive cleaners, and other corrosive chemicals

• This item is not certified for outdoor use

Weight capacity per Shelf

350 lb (evenly distributed)

Total weight capacity of Shelving Rack

1400 lb (evenly distributed)

Thank you for purchasing a TRINITY 4-Tier NSF Bronze Shelving Rack. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. Include a copy of your original receipt with your submission.

First Name: Last Name: Address:

City: State: Zip Code:

Email Address: Phone: Product Model #: TBFPBR-0901 Purchase Date: / / Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important) Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth Internet Store Display Other

Marital Status: Single Married Household Income: Below $50,000 $50,000-$150,000 $150,000+ Education: High School College Graduate School Primary Residence: Own Rent Comments/Suggestions:

PRODUCT REGISTRATION

1 YEAR LIMITED WARRANTY

TRINITY 4-Tier NSF Bronze Shelving Rack

Model # TBFPBR-0901

Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of

TRINITY 4-Tier NSF Bronze Shelving Rack (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s obligation

under this warranty shall be limited to repair or replacement of, or adequate compensation for the Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.

This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising

from any of the following: negligent use or misuse of the Product, use contrary to this User’s Manual, or

alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product.

Except as set forth herein, there are no warranties on this Product either express or implied, and Trinity

disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding on Trinity.

If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service tollfree at (800) 985-5506, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased, the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must accompany your service request.

LIMITATION OF REMEDIES AND LIABILITY

Trinity shall not be liable for any incidental, consequential, special, or punitive damages for breach of any express or implied warranty on its Product. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose on this Product shall be limited to the duration of the above warranty. Neither Trinity nor anyone else who has been involved in the creation, production, delivery or sale of the Product shall be liable for any damages of any type, including but not limited to any lost profits, lost savings, loss of anticipated benefits, or any other incidental, consequential, special, or punitive damages which arise out of the purchase, use, or inability to use the Product, whether arising out of contract, negligence, strict tort, or any other legal theory on which a claim is based. Recovery of any kind against Trinity shall not be greater in amount than the purchase price of the Product. Without limiting the

foregoing, Purchaser assumes all risk and liability for loss, damage or injury to Purchaser and Purchaser’s

property and to others and their property arising out of the use, misuse, or inability to use this Product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific legal rights, and you may have other rights which vary from state to state.

TRINITY Customer Service

TEL: 800.985.5506

FAX: 310.347.4134

EMAIL: customerservice@trinityii.com

Monday through Friday

8:00 AM – 5:00 PM (PST)

www.trinityii.com

QUESTIONS? NEED PARTS?

WE ARE HERE TO HELP!

Please feel free to contact us. There are no questions too small, or

any problems too big. We’re committed to providing our customers

with the highest level of service.
