Page 1
© 2020 TRINITY - 800.985.5506
1

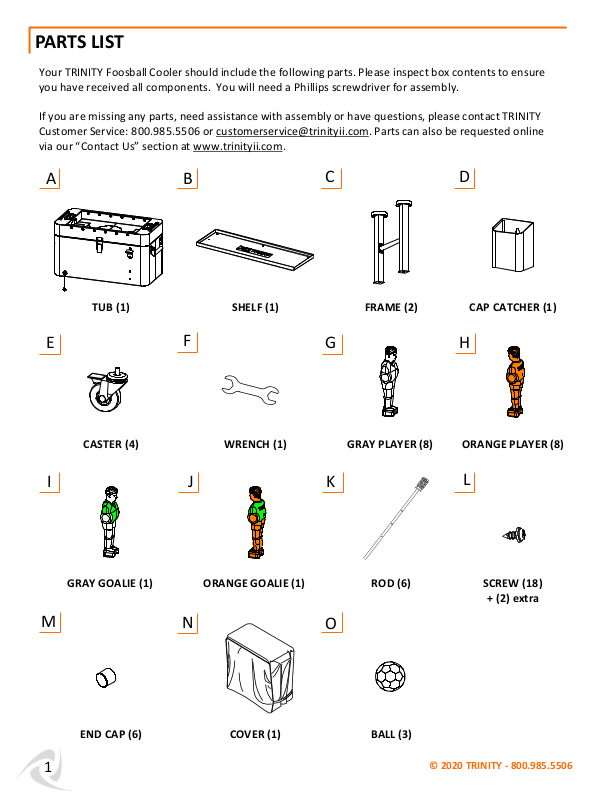

Your TRINITY Foosball Cooler should include the following parts. Please inspect box contents to ensure
you have received all components. You will need a Phillips screwdriver for assembly.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online
via our “Contact Us” section at www.trinityii.com.

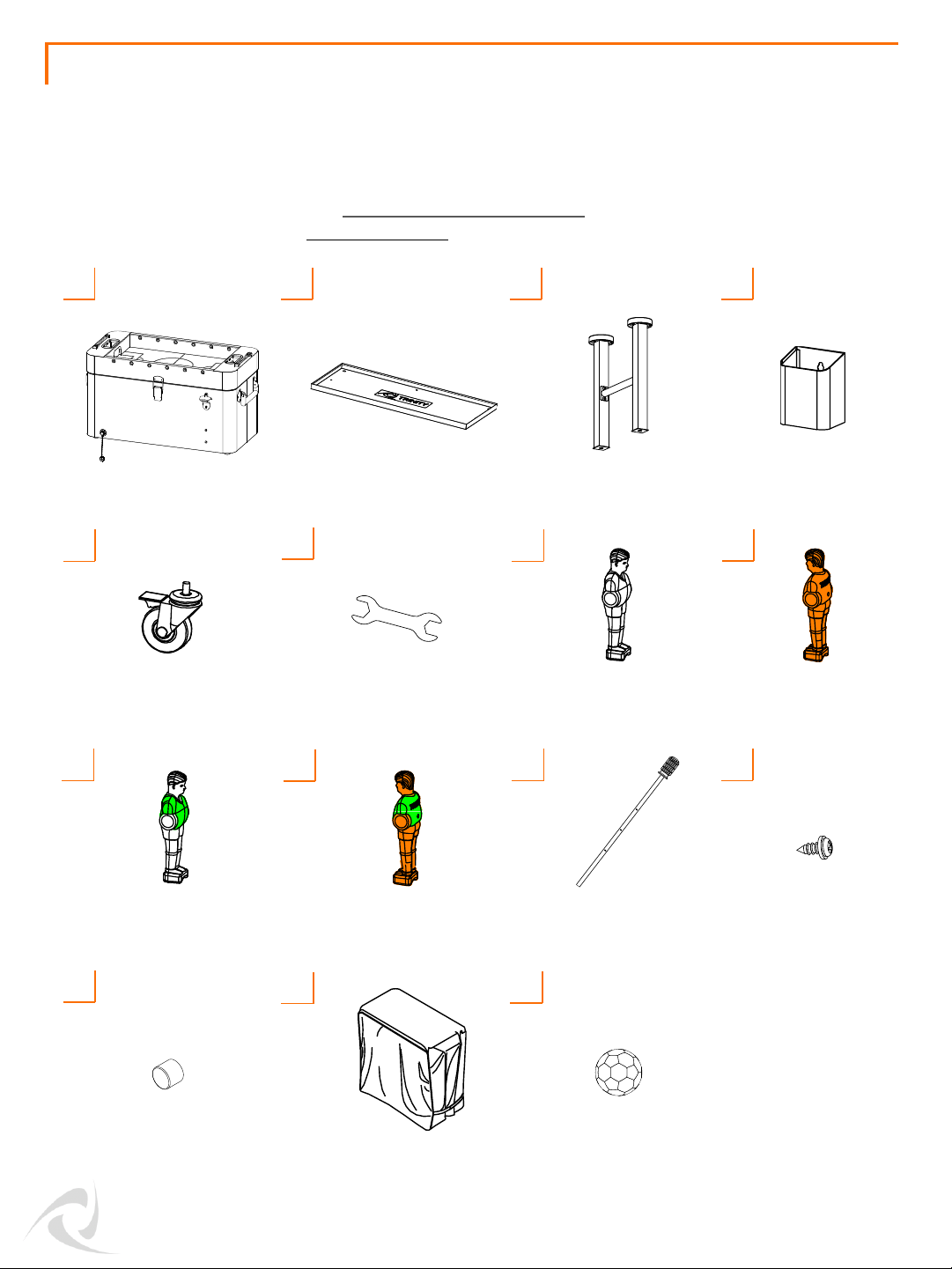

PARTS LIST
TUB (1)
A
SHELF (1)
B
C
FRAME (2)
D
E
F
G
CAP CATCHER (1)
H
CASTER (4) WRENCH (1) GRAY PLAYER (8)
I
J K
ROD (6) SCREW (18)
+ (2) extra
END CAP (6) COVER (1)
L
BALL (3)
M
N
O
ORANGE PLAYER (8)
GRAY GOALIE (1) ORANGE GOALIE (1)
Page 2
© 2020 TRINITY - 800.985.5506
2
ASSEMBLY INSTRUCTIONS

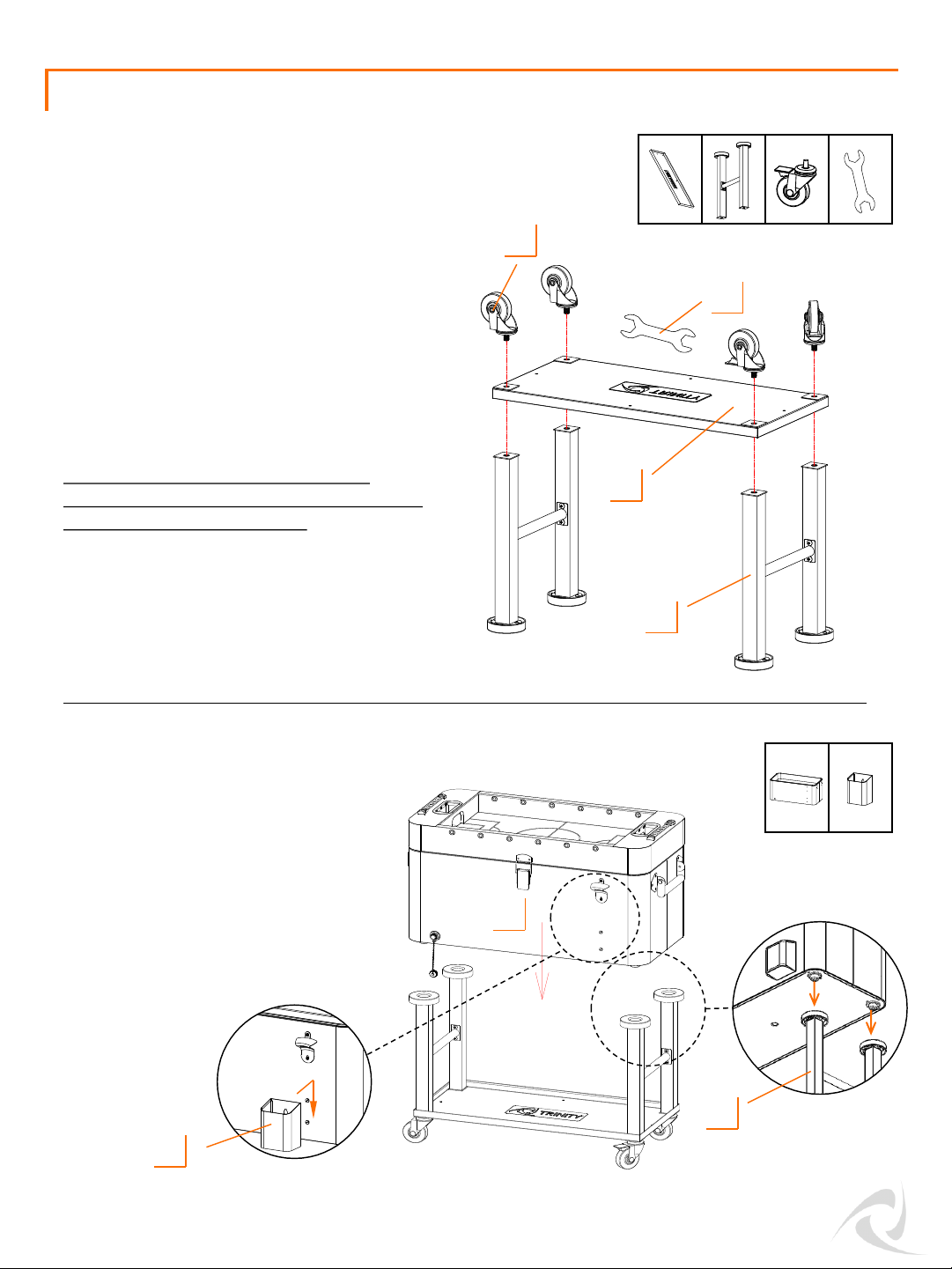

Place FRAMES (C) upside down so that black
circular receivers are on floor and
approximately SHELF (B) width apart.
Align holes in SHELF (B) with bottom of FRAME
(C), making sure that SHELF Lip is facing
downwards.
Screw CASTERS (E) into bottom of FRAMES (C),
securing SHELF (B) in-between. Tighten all
CASTERS (E) with provided WRENCH (F).
Use provided caster wrench to tighten
completely. Failure to do as instructed could
result in caster stem breaking.
STEP 1
STEP 2
C (2)
E (4)
B
E
F (1)
B (1)
F
C
Carefully turn cart right side up. Set
TUB (A) on top of Cart. Make sure
Tub Feet sit securely inside
receivers on top of FRAME (C).
Attach CAP CATCHER (D) to TUB (A)
by sliding it downward, over metal
notches.
A (1)
A
C
D
D (1)
Page 3
© 2020 TRINITY - 800.985.5506
ASSEMBLY INSTRUCTIONS

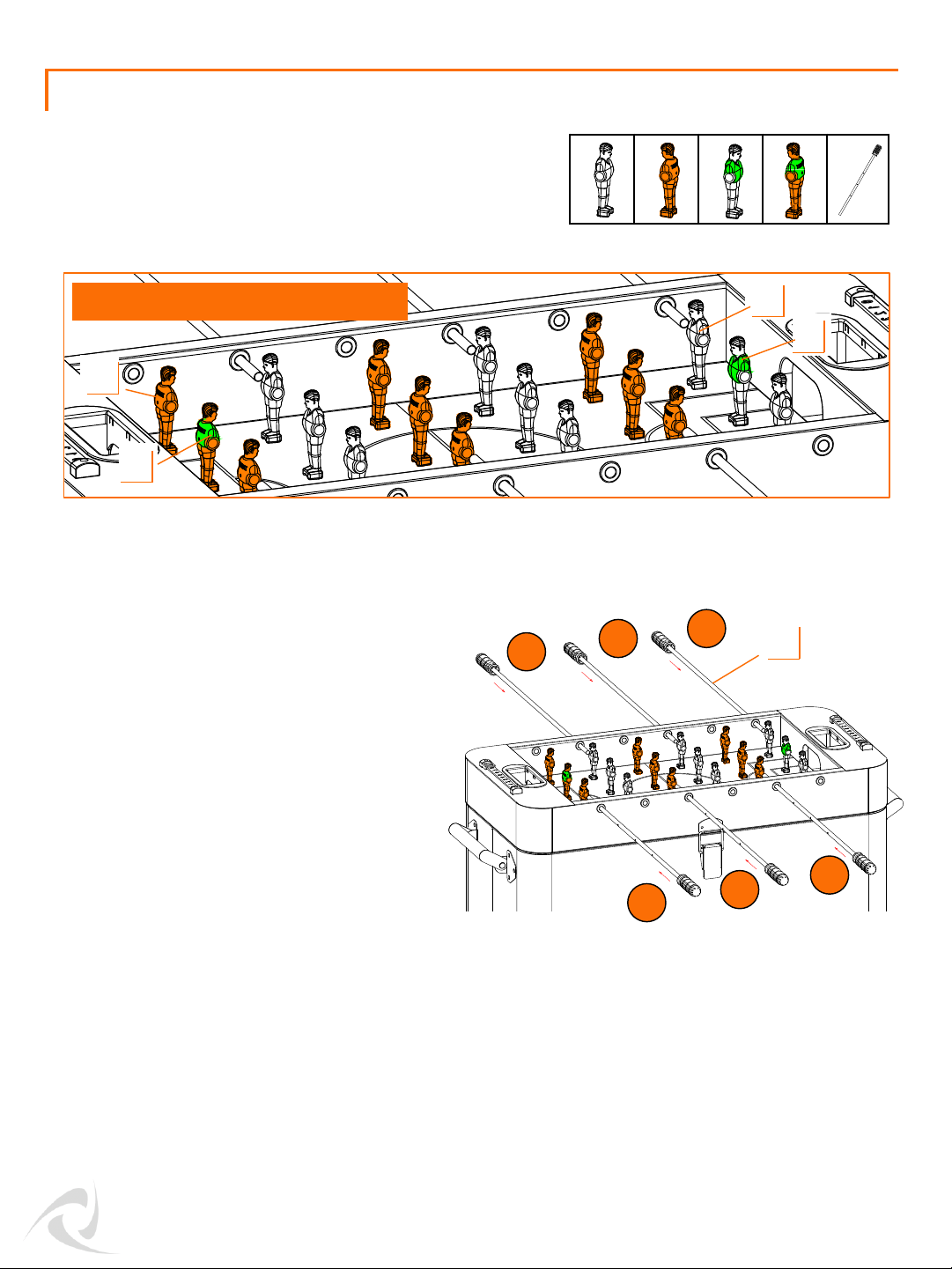

STEP 3
Take 1stROD (K) and insert it through hole on
side of playing field closest to goal. Then in
sequence place a GRAY PLAYER (G), GRAY
GOALIE (I), and another GRAY PLAYER (G),
onto ROD (K). Ensure players and goalie are
facing same direction away from their own
goal. Insert ROD (K) through hole on
opposite side.
Staying on the same side of field, take 2
nd
ROD (K) and skip over one hole, insert it
through next hole. Then place three GRAY
PLAYERS (G) onto ROD (K). Insert ROD (K)
through corresponding hole on the opposite
side.
Take 3rdROD (K) and repeat for remaining
three GRAY PLAYERS (G) same as 2ndROD (K).
Now, move to opposite side of field and
repeat for 4th, 5th, 6thROD (K) placing
ORANGE PLAYERS (H) and ORANGE GOALIE
(J).
Once all players are placed on rods, check to
ensure all players and goalies are in correct
position and orientation.
G (8)
K (6)
H (8)
I (1)
J (1)
1
2
3
4
5
6
G
I
H
J
Player position and orientation
K
3
Identify correct players and goalies and
ensure they are in correct position and
orientation.
Page 4
© 2020 TRINITY - 800.985.5506
4
ASSEMBLY INSTRUCTIONS

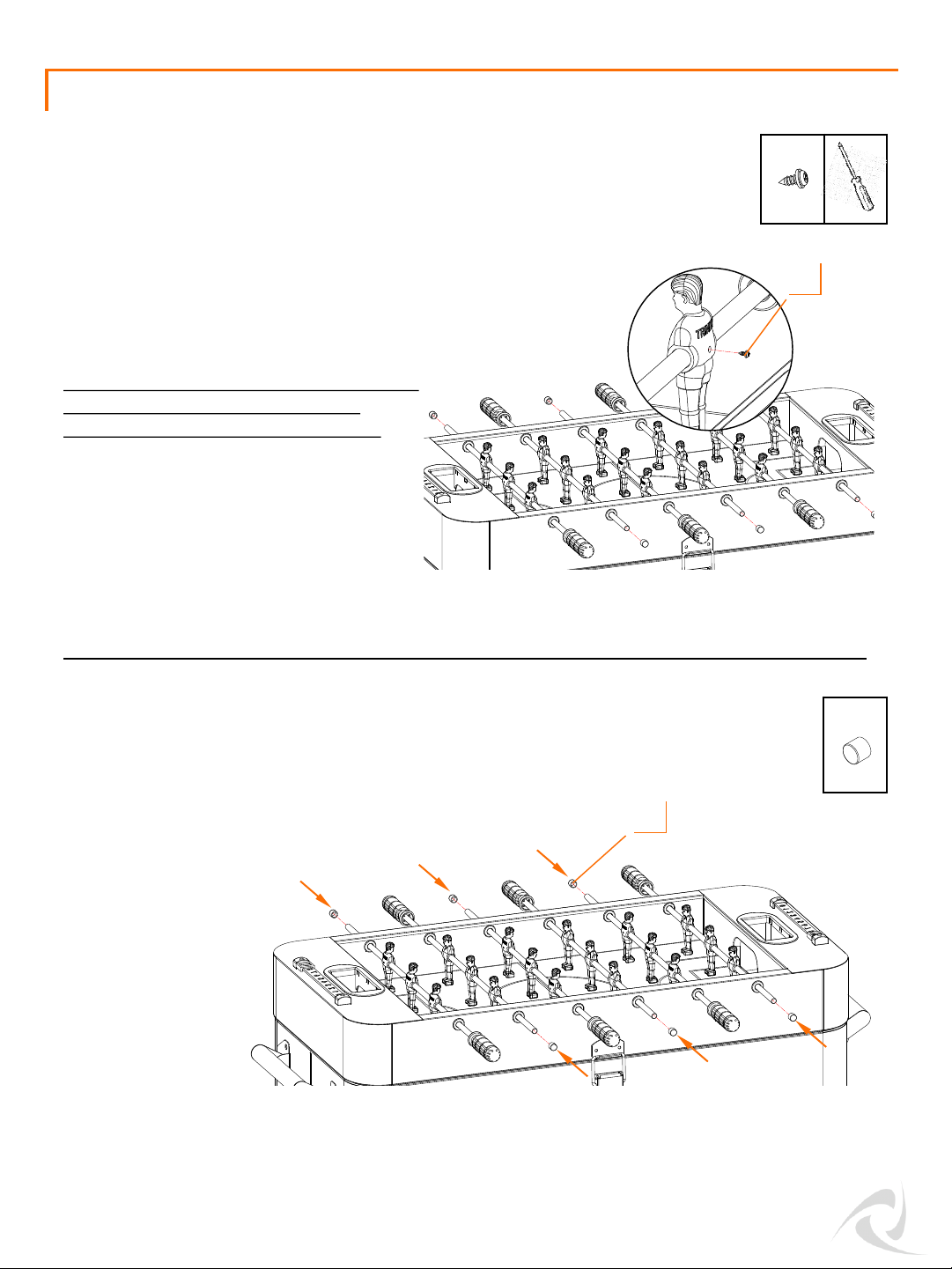

STEP 4
Slide each player or goalie until hole on back
of player or goalie align with hole on ROD (K).
Insert a SCREW (L) through back of each
player or goalie and fasten tightly to ROD (K)
with a Phillips screwdriver. Only tighten until
SCREW (L) seat flush with player or goalie’s
back.
Do NOT use an electric screwdriver to fasten
the screw. Do NOT over tighten with
screwdriver. You might strip the screw.
L (18)
L
STEP 5
Attach END CAP (M) to each ROD (K) by
pushing it on securely.
M (6)
M
Phillips
Page 5
© 2020 TRINITY - 800.985.5506
5
ASSEMBLY INSTRUCTIONS
N (1)
Touch fastener straps

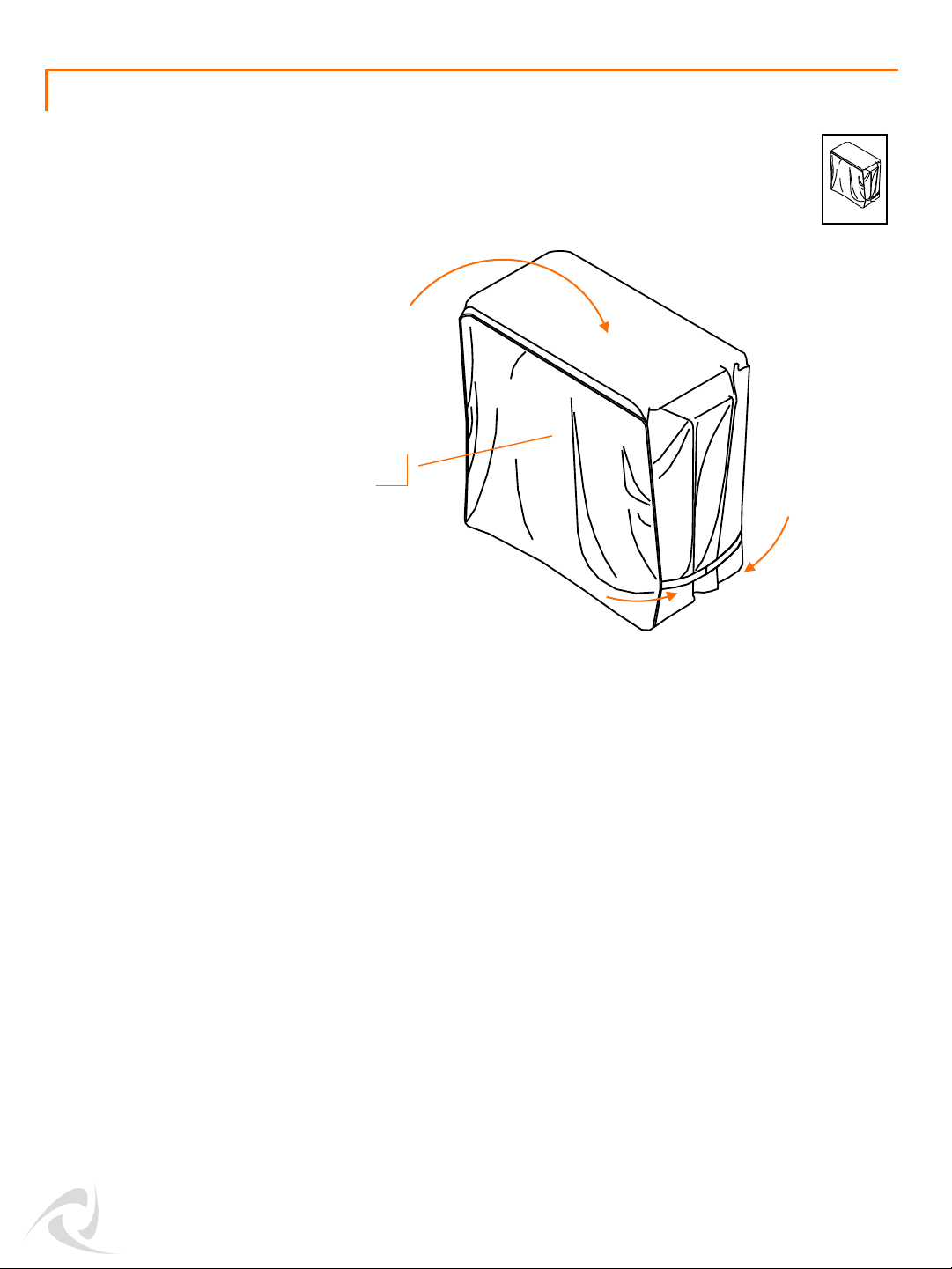

STEP 6
Unfold COVER (N) and put it onto
assembled cooler. Pull touch fastener straps
to secure COVER (N).
N
Page 6

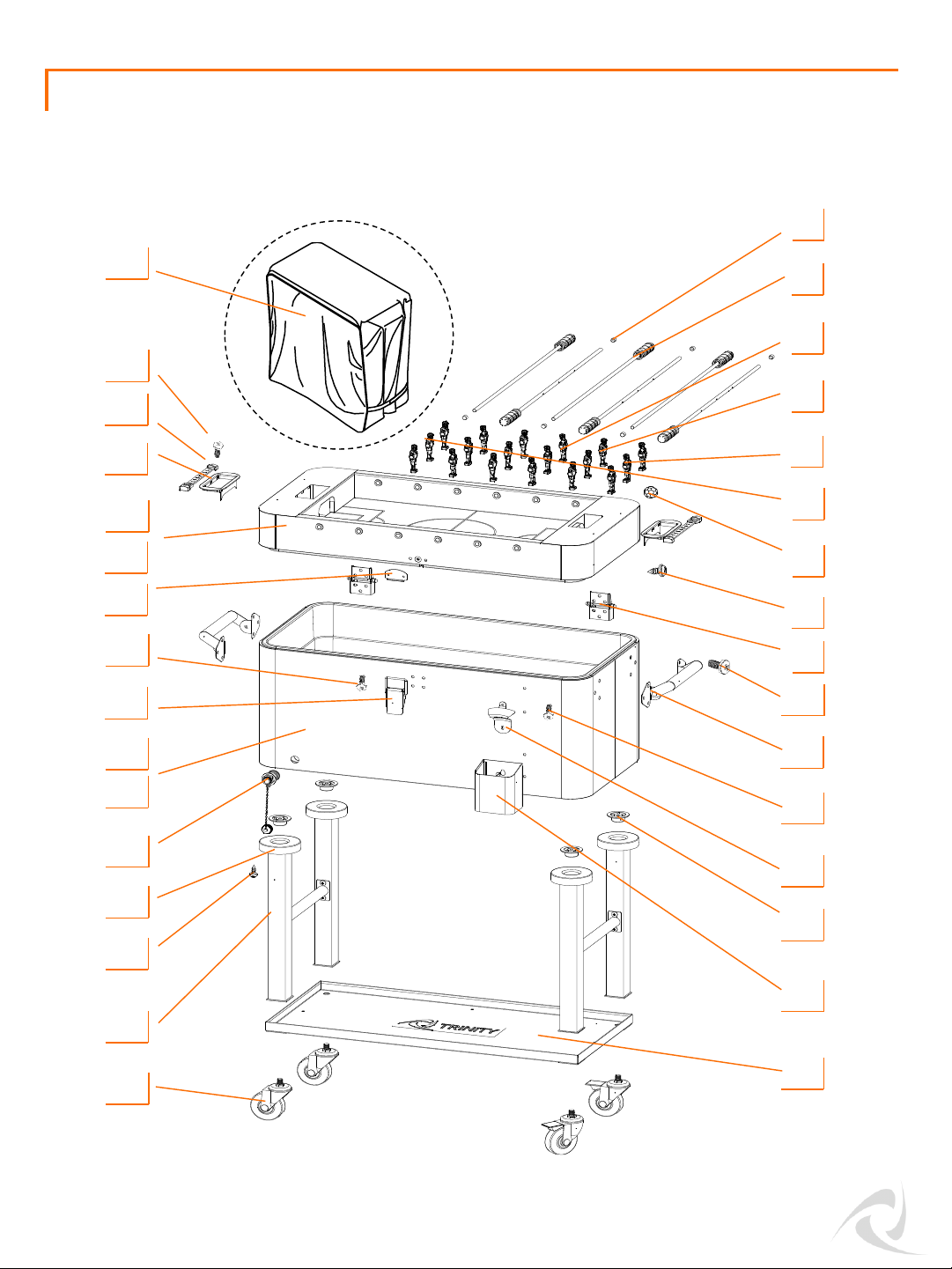

SERVICE PARTS LIST – TXKPGN-0809 / TXKPGR-0809
© 2020 TRINITY - 800.985.5506
TRINITY Customer Service provides the following replacement parts:
7
26
2
3
23
20
19
1
18
4
22
5
6
17
8
30
21
24
9
25
27
28
29
6
31
32
10
11
12
13
14
15
16
Page 7
© 2020 TRINITY - 800.985.5506
7
SERVICE PARTS LIST – TXKPGN-0809 / TXKPGR-0809
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) XBK-23-011-0001 End Cap 17) ZSV-99-012-3010 Caster
2) XSV-13-016-2400 Rod 18) PGR-14-015-1517 Frame
3) XOR-02-048-0001 Orange Player 19) XSV-01-033-0415 Receiver Screw
4) XGR-02-048-0001 Gray Player 20) XBK-02-019-0001 Plastic Receiver
5) XOR-02-049-0001 Orange Goalie 21) CGL-02-003-0001 Drain Plug
6) XGR-02-049-0001 Gray Goalie 22) PGN-18-025-3115 Cooler Tub (Green)
7) XWH-02-050-0001 Ball 23) PGR-18-025-3115 Cooler Tub (Gray)
8) XSV-01-036-0310 Screw 24) XST-11-007-0002 Buckle
9) XST-09-016-0001 Hinge 25) XSV-01-010-0410 Buckle/Latch Screw
10) XSV-01-010-0615 Large Screw 26) XST-11-007-0001 Latch
11) XSV-05-023-0675 Folding Handle 27) PGN-17-011-3115 Foosball Lid (Green)
12) XSV-01-010-0416 Small Screw 28) PGR-17-011-3115 Foosball Lid (Gray)
13) XST-02-004-0001 Bottle Opener 29) XBK-02-051-0001 Bezel
14) XBK-98-009-4818 Tub Foot 30) XBK-02-052-0001 Score Strip
15) XST-02-005-0002 Cap Catcher 31) ZBK-01-003-0416 Score Strip Screw
16) PGR-03-028-2913 Shelf 32) UBK-24-001-3524 Cover
