PARTS LIST

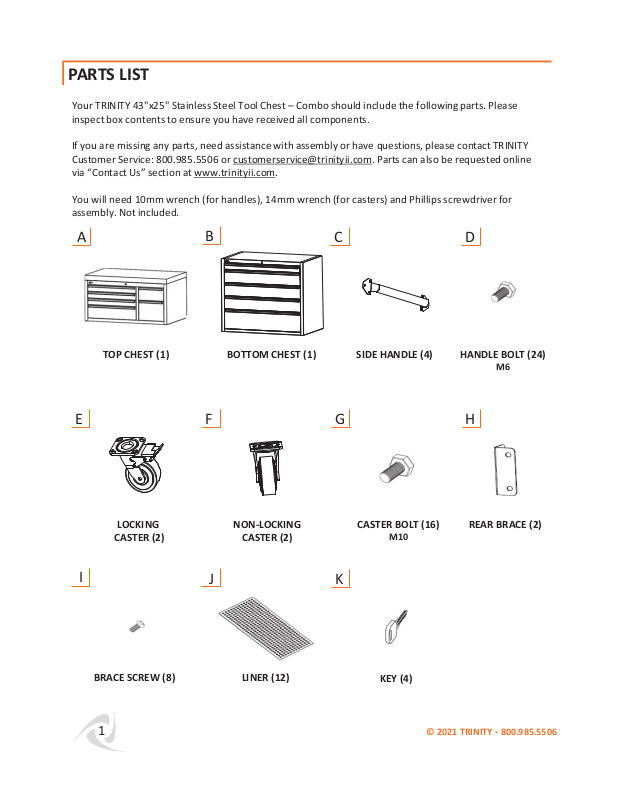

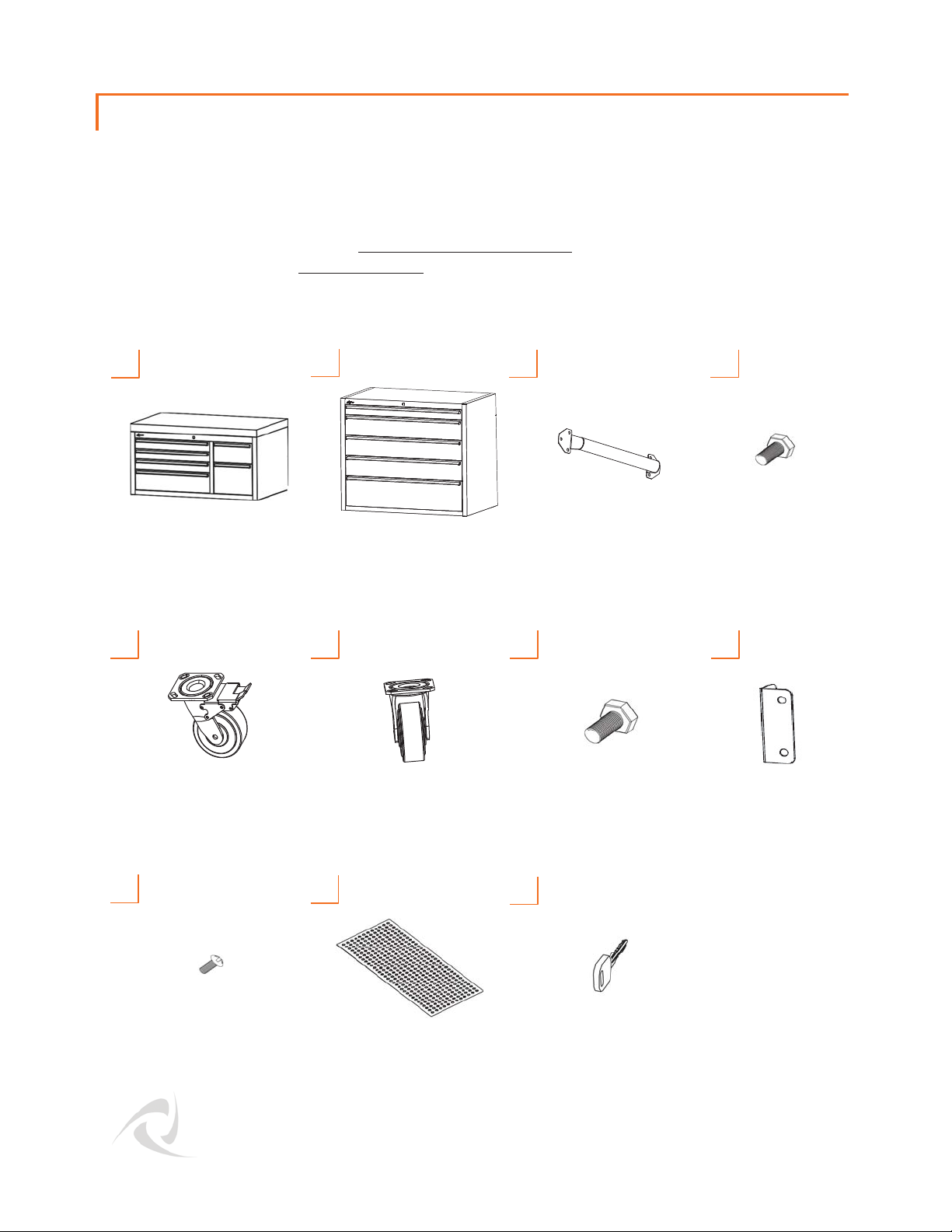

Your TRINITY 43"x25" Stainless Steel Tool Chest – Combo should include the following parts. Please
inspect box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online
via “Contact Us” section at www.trinityii.com.
You will need 10mm wrench (for handles), 14mm wrench (for casters) and Phillips screwdriver for
assembly. Not included.
A
TOP CHEST (1)
E
LOCKING
CASTER (2)
B
BOTTOM CHEST (1)
F
NON-LOCKING
CASTER (2)
C D
SIDE HANDLE (4)
G
CASTER BOLT (16)
M10
HANDLE BOLT (24)
H
M6
REAR BRACE (2)
I
BRACE SCREW (8)
1
J K
LINER (12)
KEY (4)
© 2021 TRINITY - 800.985.5506
Page 2
ASSEMBLY INSTRUCTIONS
STEP 1
Location of parts:
1) 2 KEYS (K) are hooked to key leash mounted
inside TOP LEFT drawer of TOP CHEST (A)
2) 2 KEYS (K) are hooked to key leash mounted
inside TOP drawer of BOTTOM CHEST (B).
3) 2 SIDE HANDLES (C) / 12 HANDLE BOLTS (D)
and 7 LINERS (J) for TOP CHEST (A) are inside
TOP lid.
4) 2 SIDE HANDLES (C) / 12 HANDLE BOLTS (D) /
4 CASTERS (E/F) / 16 CASTER BOLTS (G) / 2
REAR BRACES (H) / 8 BRACE SCREWS (I) and 5
LINERS (J) for BOTTOM CHEST (B) are inside
BOTTOM drawer.
STEP 2
3
1
2
4

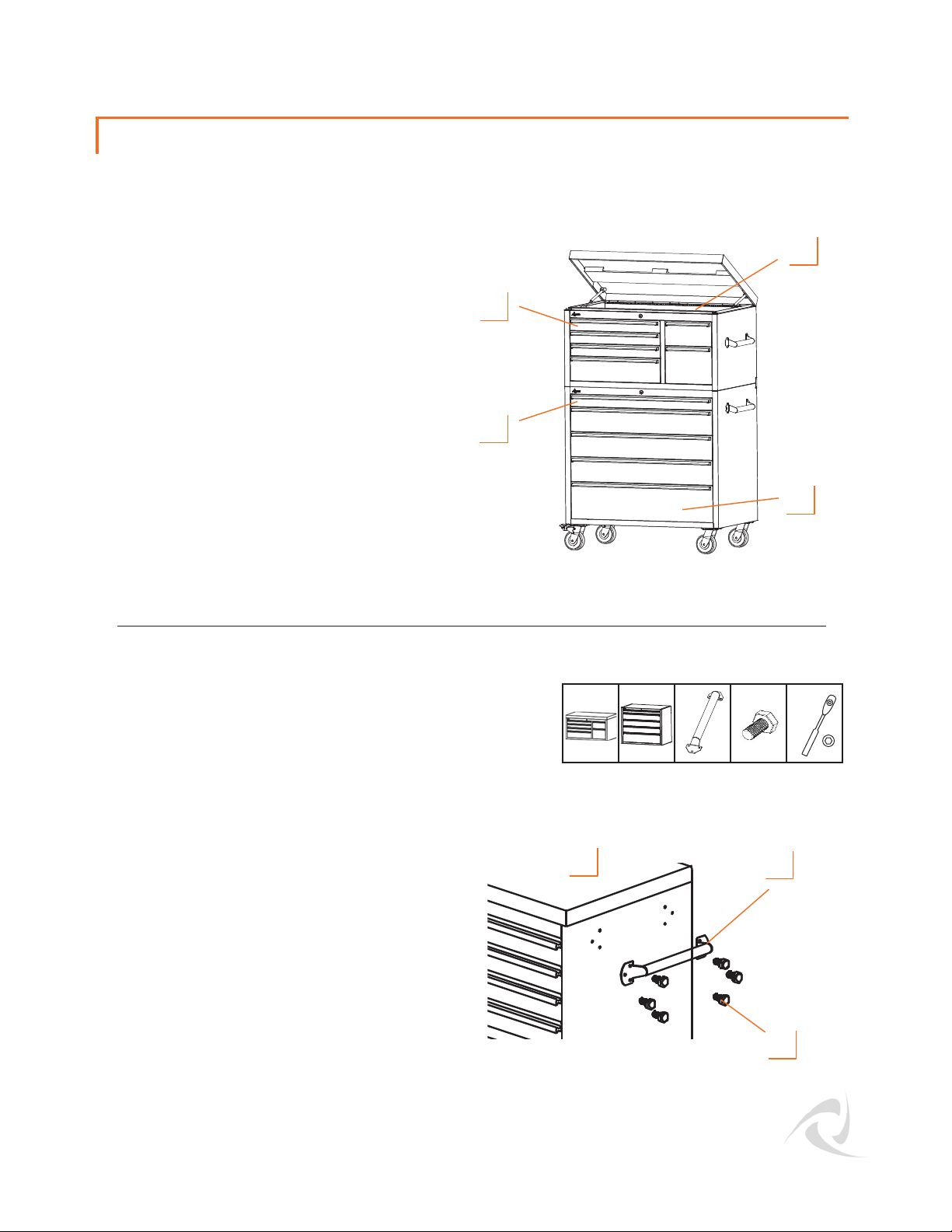

Position SIDE HANDLE (C) over pre-installed nuts
on side of TOP CHEST (A). Insert HANDLE BOLTS
(D) through holes on SIDE HANDLE (C). Use a
10mm socket wrench to fully tighten HANDLE
BOLTS (D) to TOP CHEST (A).
Repeat to install all remaining SIDE HANDLES (C).
Be sure to assemble SIDE HANDLES (C) on both
TOP CHEST (A) and BOTTOM CHEST (B) to make it
easier to move your Tool Chest.
© 2021 TRINITY - 800.985.5506
A
B (1)
10mmA (1) C (4) D (24)
C
D
2
Page 3
ASSEMBLY INSTRUCTIONS
STEP 3

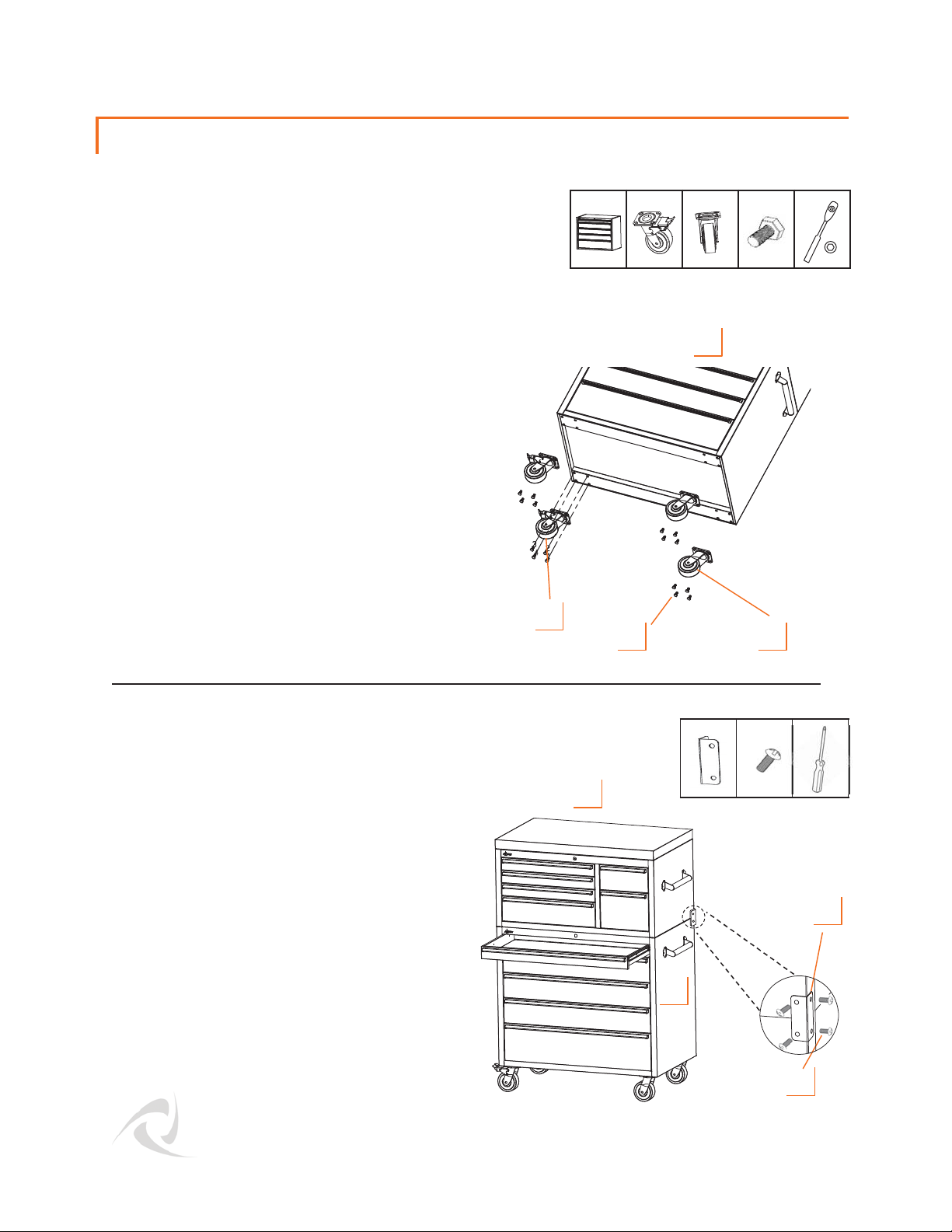

Carefully lay BOTTOM CHEST (B) on its backside.
Two people are needed. Do NOT attempt this alone.
Position LOCKING CASTERS (E) on side of BOTTOM
CHEST (B) of your choice and align holes to preinstalled nuts on underside of BOTTOM CHEST (B).
Use a 14mm socket wrench to fully tighten CASTER
BOLTS (G) to BOTTOM CHEST (B).
Repeat to install NON-LOCKING CASTERS (F).
Notes:
* Make sure to install both LOCKING CASTERS (E) on
same side of tool chest.
** For ease of use, place LOCKING CASTERS (E) on
side you will regularly push or pull.
*** If you plan to push tool chest against a wall,
place LOCKING CASTERS (E) on front long side for
ease of access.
E
B (1)
E (2)
F (2)
B
G (16)
FG
14mm
STEP 4
With two people, stand BOTTOM CHEST (B) back
up, carefully place TOP CHEST (A) on top of
BOTTOM CHEST (B). Be sure to assemble REAR
BRACES (H) to secure TOP CHEST (A) to BOTTOM
CHEST (B).
Position REAR BRACE (H) over pre-installed nuts
at back edge where two CHESTS (A+B) adjoin.
Insert BRACE SCREWS (I) to holes on REAR
BRACE (H) and tighten securely.
Repeat to install second REAR BRACE (H).
3
A
H (2)
I (8)
Phillips
H
B
I
© 2021 TRINITY - 800.985.5506
Page 4
ASSEMBLY INSTRUCTIONS
STEP 5

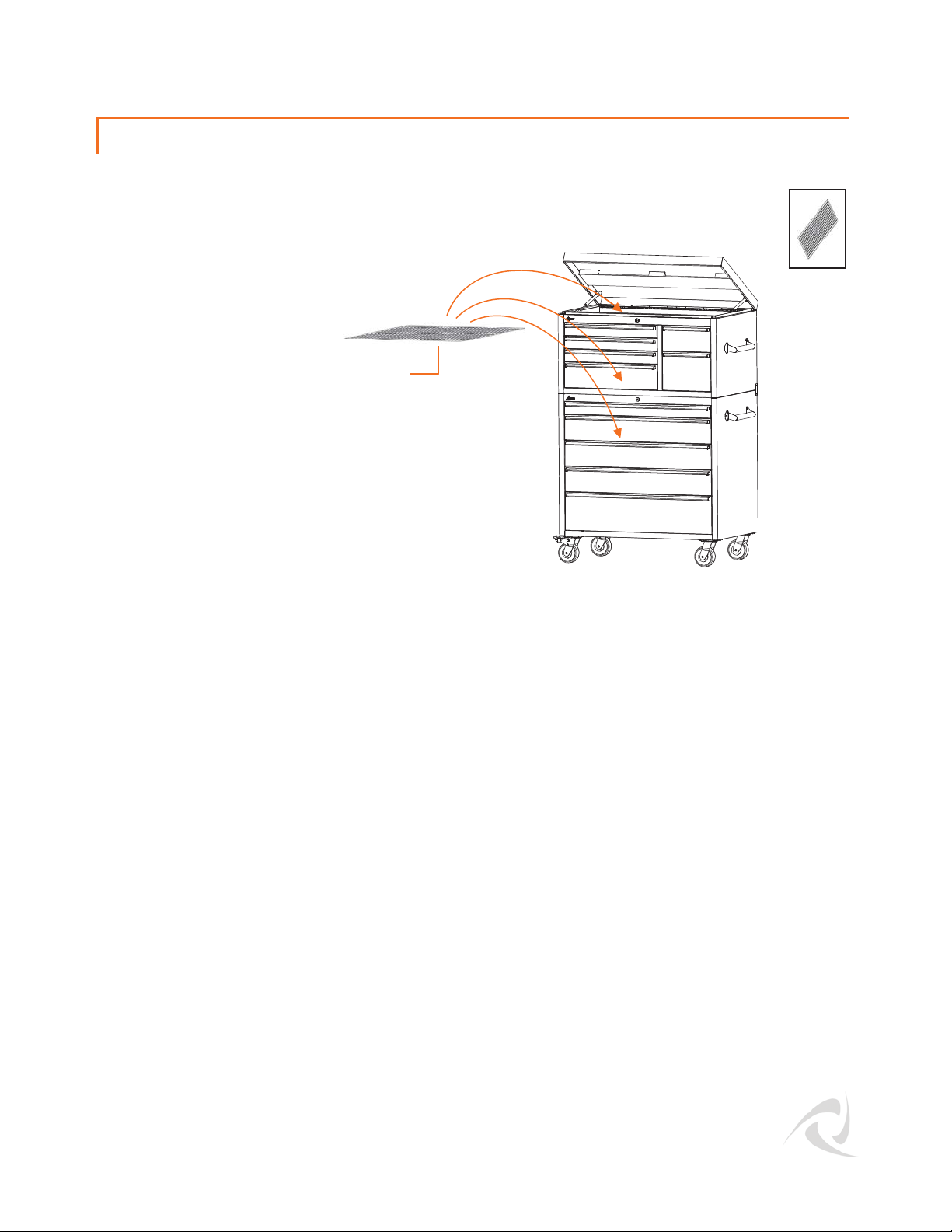

Place LINERS (J) inside top compartment and
inside each drawer.
J (12)
J
© 2021 TRINITY - 800.985.5506
4
Page 5
USAGE INSTRUCTIONS
DRAWER REMOVAL

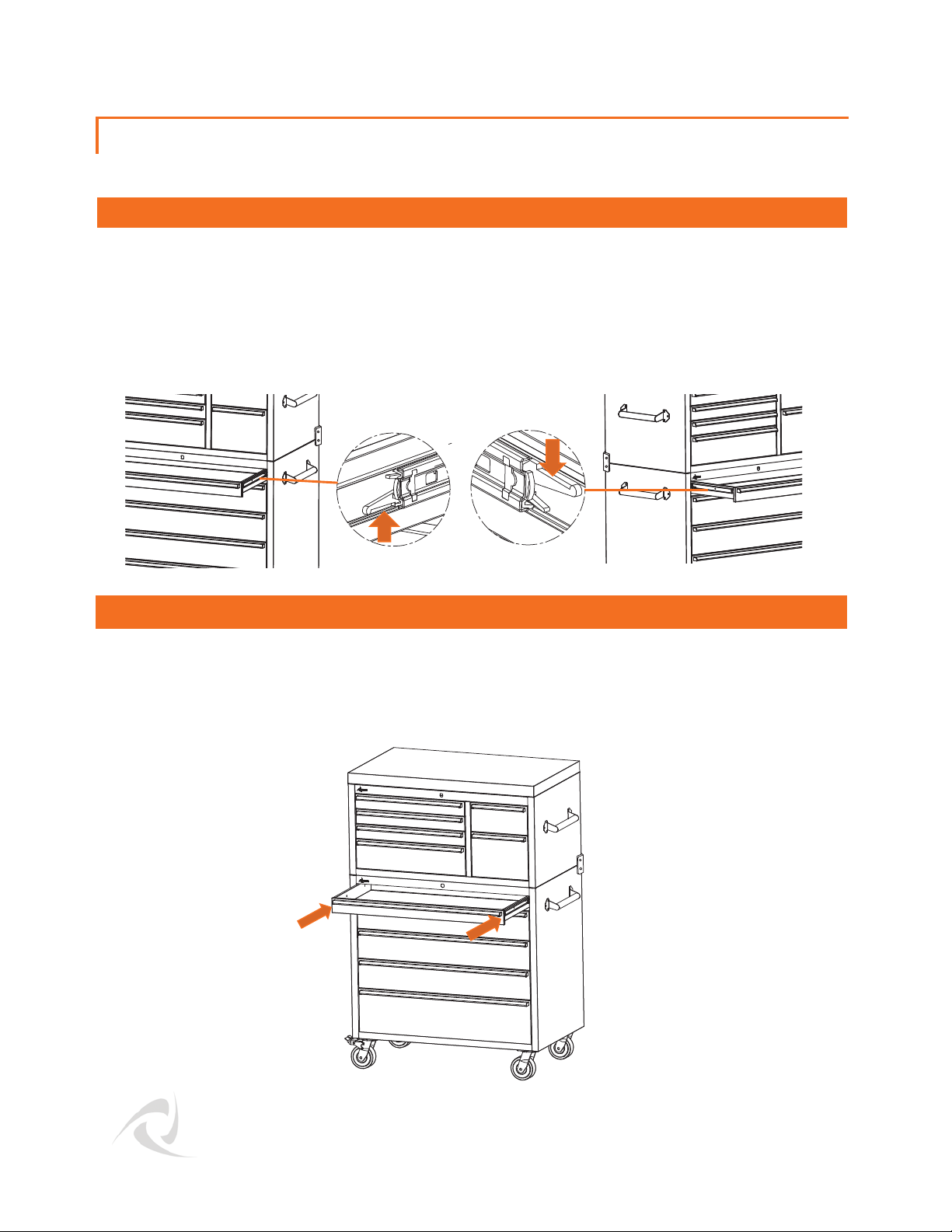

Pull drawer out so that it is almost fully extended. On RIGHT-hand side, pull black release lever UP. On
LEFT-hand side, push black release lever DOWN. While holding levers as instructed, pull drawer
forward until released from slides attached to tool chest (“Tool Chest Slides”).
Note: Slides attached to drawer (“Drawer Slides”) are an integral part of drawer and must be removed
along with drawer itself.
DRAWER REPLACEMENT
To replace drawer, pull slides out completely. Insert brackets on each side of Drawer Slides into
corresponding slots on Tool Chest Slides, making sure they are properly positioned. Once brackets are
inserted into slots, completely close drawer to set all slides in their proper positions.
5
© 2021 TRINITY - 800.985.5506
Page 6
0001

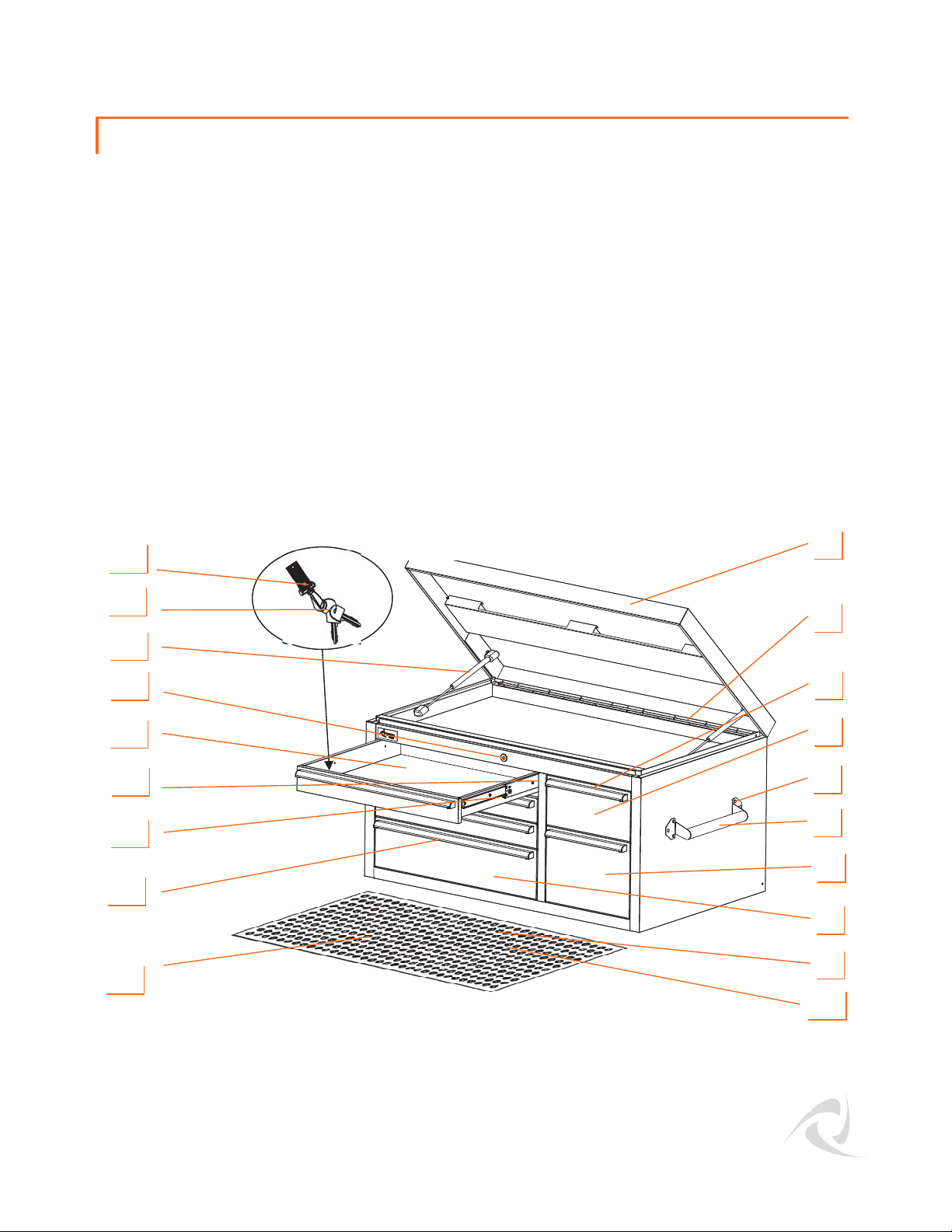

SERVICE PARTS LIST – TLS-0408: TOP CHEST
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) XBS-17-003-4325 Top Lid 11) XBK-22-001-4122 Top Liner
2) XST-09-017-
3) AMA-05-019-1400 14” Drawer Handle 13) ZSV-12-001-2000 Slide (drawer side)
4) XBS-07-014-1506 15” Small Drawer 14) ZSV-12-015-2000 Slide (tool chest side)
5) ZSV-01-001-0612 Handle Bolt 15) XBS-07-014-2203 22” Small Drawer
6) XSV-05-001-1100 Side Handle 16) CSV-11-001-0XXX Lock
7) XBS-07-014-1509 15” Large Drawer 17) PBK-09-002-0002 Gas Lift
8) XBS-07-014-2206 22” Large Drawer 18) XBK-10-001-0XXX Key
9) XBK-22-001-2015 15” Drawer Liner 19) XBK-02-047-0001 Key leash
10) XBK-22-001-2022 22” Drawer Liner
Top Lid Hinge 12) AMA-05-019-2100 21” Drawer handle
19
18
17
16
1
2
3
15
14
13
12
11
NOTE: Replacement keys may be ordered using the code shown on the face of lock. Top and
Bottom Chests may have different key codes.
© 2021 TRINITY - 800.985.5506
4
5
6
7
8
9
10
6
