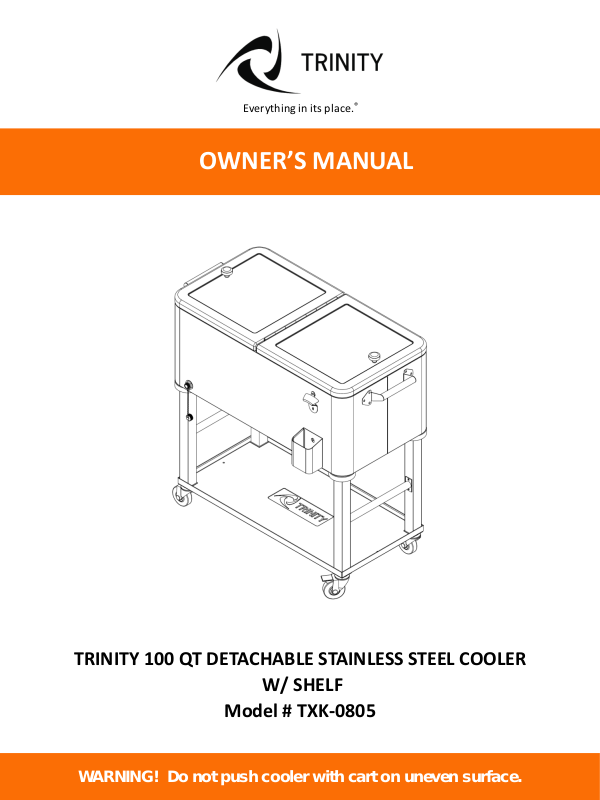

OWNER’S MANUAL

TRINITY 100 QT DETACHABLE STAINLESS STEEL COOLER

W/ SHELF

Model # TXK-0805

WARNING! Do not push cooler with cart on uneven surface.

Everything in its place.

OWNER’S MANUAL

Page 2

Your TRINITY Stainless Steel Cooler should include the following parts. Please inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online via our “Contact Us” section at www.trinityii.com.

You will need a Phillips screwdriver for assembly.

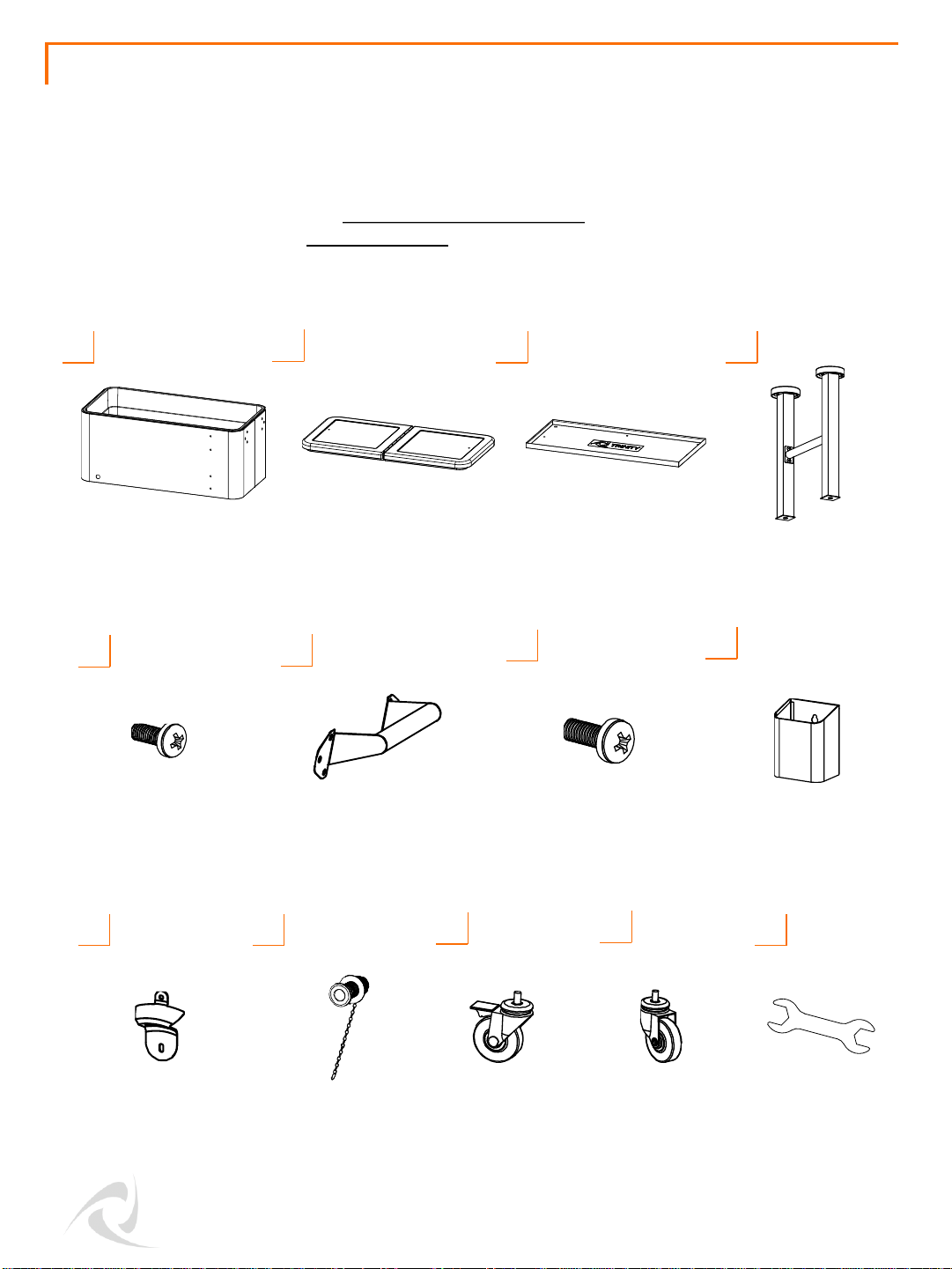

PARTS LIST

TUB (1)

SHELF (1)

FRAME (2)

SMALL

SCREW (2)

HANDLE (2)

LARGE

SCREW (12)

CAP CATCHER (1)

BOTTLE

OPENER (1)

I J

DRAIN PLUG (1)

LOCKING

CASTER (2)

NON-LOCKING

CASTER (2)

WRENCH (1)

LID (1)

(Knobs screwed to

the underside)

Page 3

ASSEMBLY INSTRUCTIONS

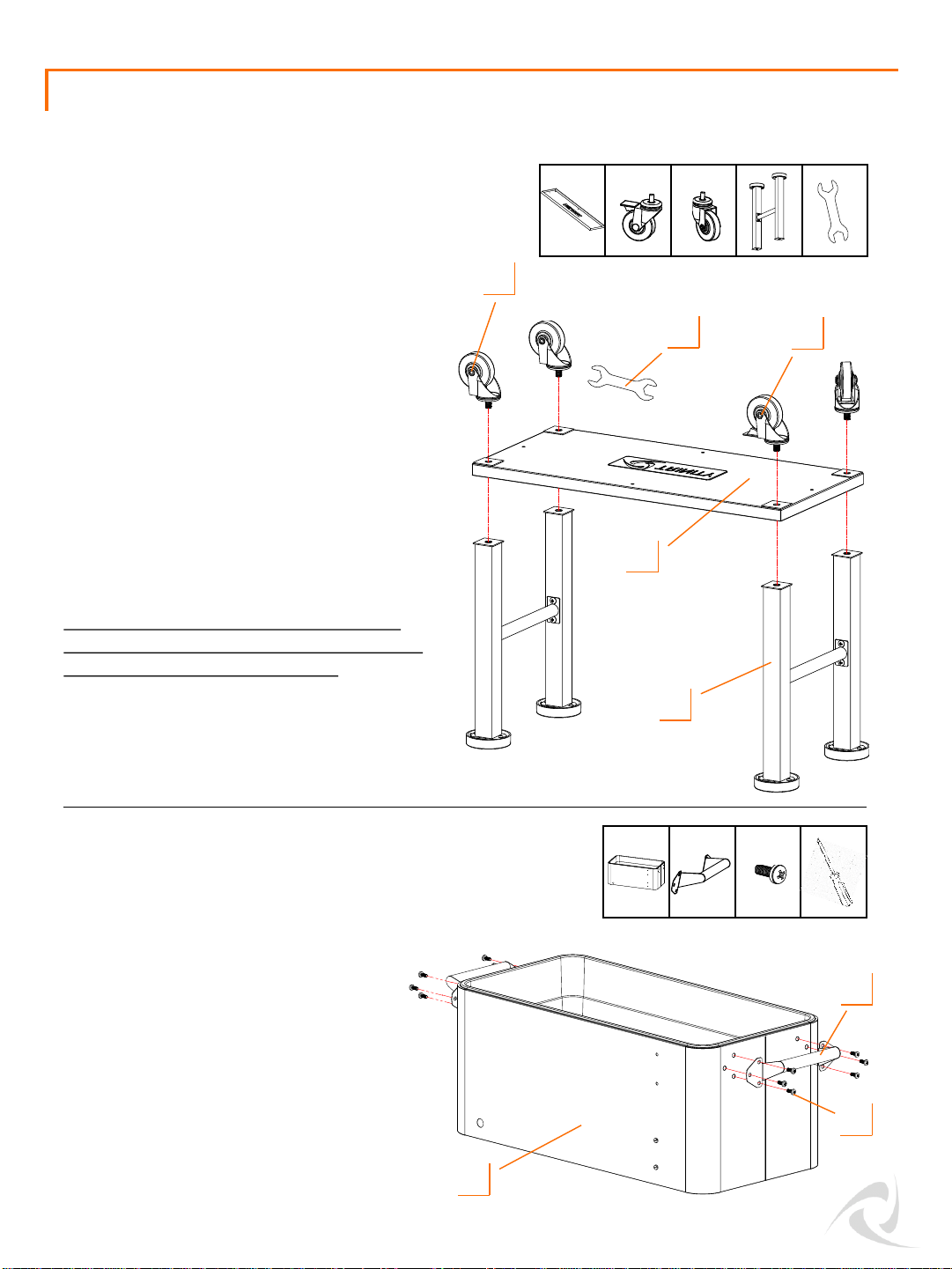

Align the HANDLES (F) on each side of the

TUB (A). Attach HANDLES (F) with the LARGE

SCREWS (G. Make sure to tighten securely.

The HANDLES (F) can be attached either angled up or down based on your preference.

STEP 1

STEP 2

K (2) L (2)

D (2)

M (1)

C (1)

F (2) G (12)

A (1)

Phillips

Place FRAMES (D) upside down so that the black circular receivers are on the floor and

approximately SHELF (C) width apart.

Align the holes in the SHELF (C) with the bottom of the FRAME (D), making sure that the Shelf Lip is facing downwards.

Screw the LOCKING CASTERS (K) into the bottom of FRAMES (D), securing the SHELF (C) inbetween. Please make sure the LOCKING CASTERS (K) are installed on the same side.

Screw the NON-LOCKING CASTERS (L) into the bottom of the FRAME (D), securing the SHELF (C) in-between. Tighten all CASTERS (K, L) with the provided WRENCH (M).

Use the provided caster wrench to tighten completely. Failure to do as instructed could result in the caster stem breaking.

Page 4

ASSEMBLY INSTRUCTIONS

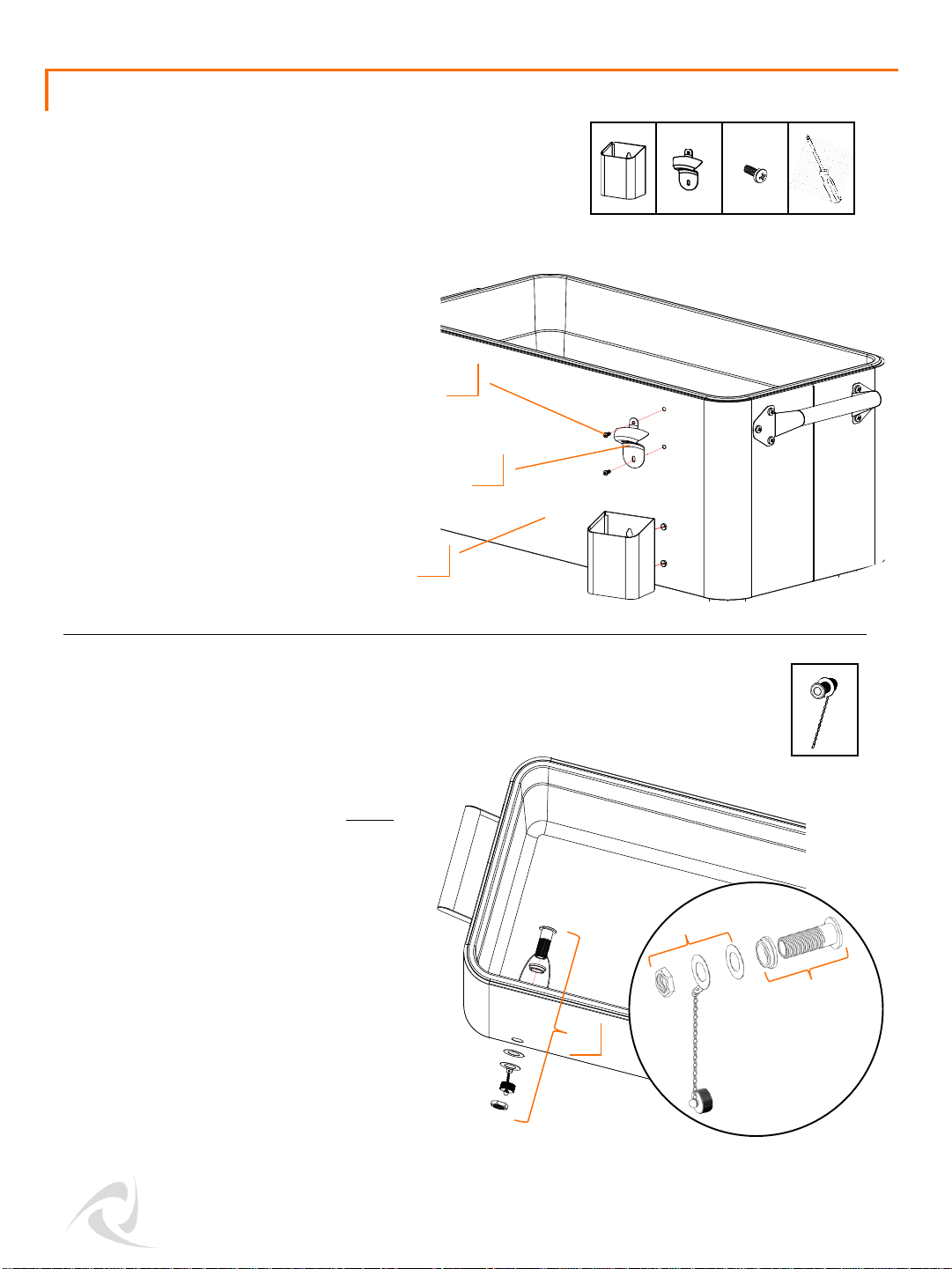

Unscrew the DRAIN PLUG (J) assembly. Insert the DRAIN PLUG (J) through the

opening in the TUB (A) from the inside.

Make sure the rubber seal is on the inside of the TUB (A).

From the outside, slide the Washer on first, then the second Washer with Chain, and then screw on the Nut. Be sure not to overtighten. Once the DRAIN PLUG (J) is in place, screw on the Cap.

Attach the CAP CATCHER (H) to the TUB (A) by sliding it downward, over the metal notch. Attach the BOTTLE OPENER (I) to the TUB (A) using SMALL SCREWS (E).

STEP 3

STEP 4

Phillips

I (1) E (2)

H (1)

Inside the tub

Outside the tub

J (1)

Page 5

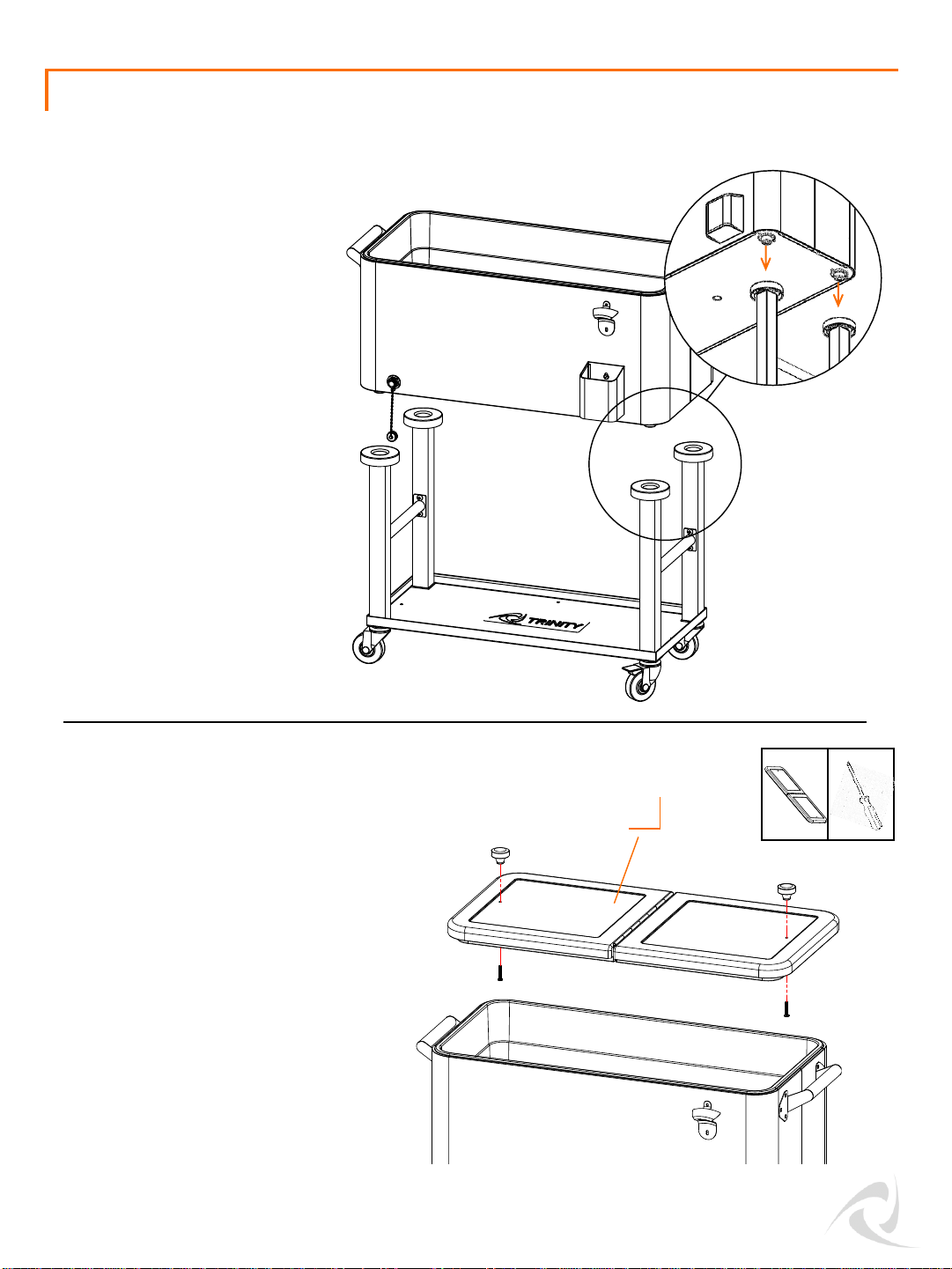

Unscrew the Cooler Lid Knobs from underneath the LID (B). Re-screw the (2)

Lid Knobs to the top of the LID (B) with the

same (2) Screws.

Set LID (B) on top of TUB (A).

Clean the inside of the Cooler thoroughly before use.

Carefully turn Cart right-side up. Set TUB (A) on top of the Cart. Make sure the Tub Feet sit securely inside the Receivers found at the top of the FRAME (D).

STEP 5

STEP 6

ASSEMBLY INSTRUCTIONS

B (1)

Phillips

Page 6

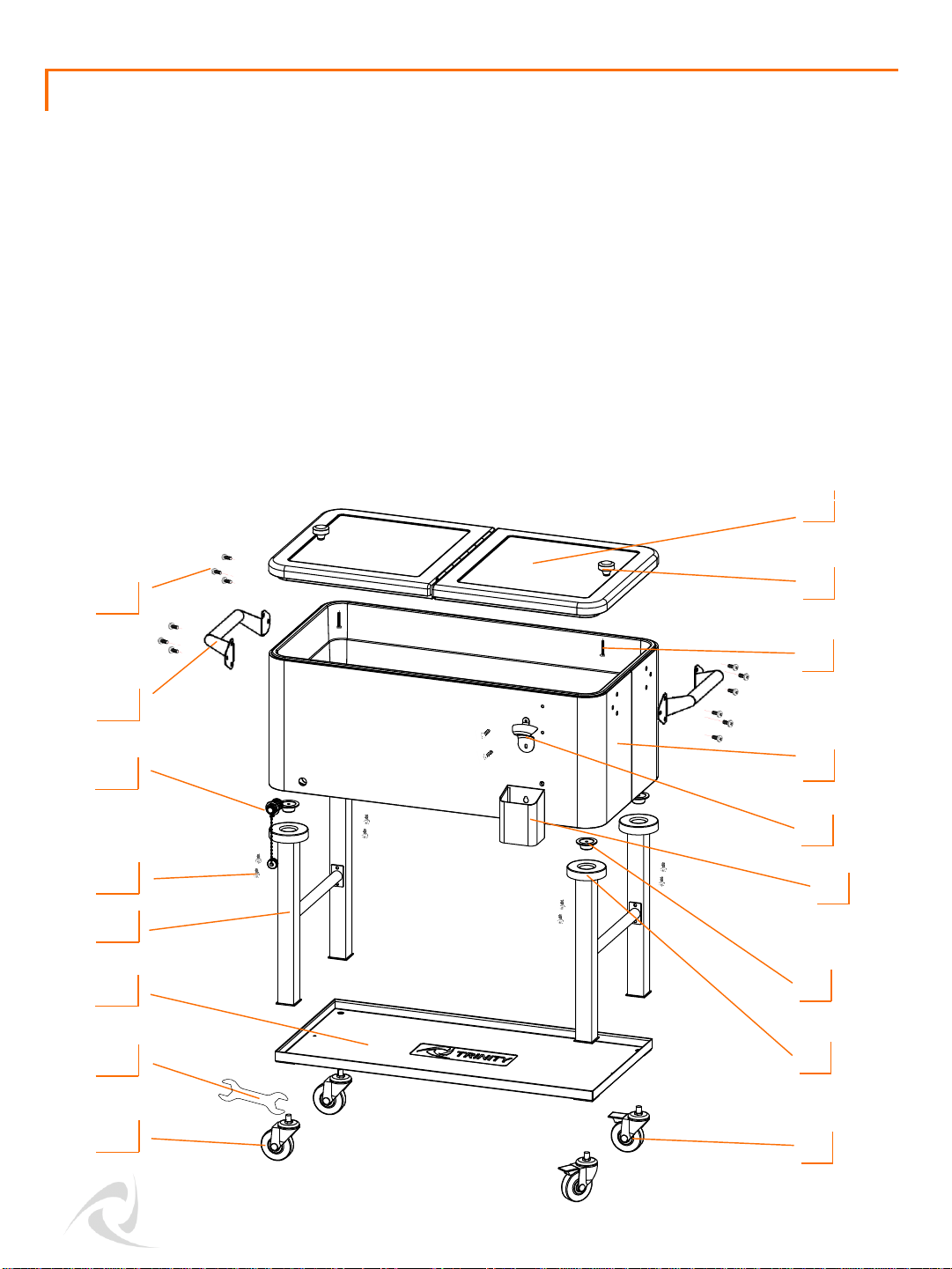

SERVICE PARTS LIST – TXK-0805

TRINITY Customer Service provides the following replacement parts:

14 13

Part Number Description Part Number Description

1) PBR-17-002-3317 Cooler Lid 10) ZSV-99-011-3010 Non-Locking Caster

2) AMA-05-005-0150 Lid Knob 11) XXX-97-002-0001 Wrench

3) XSV-01-010-0530 Knob Screw 12) PBR-03-028-3116 Shelf

4) XST-18-015-3317 Cooler Tub 13) PBR-14-015-1717 Frame

5) XST-02-004-0001 Bottle Opener 14) XSV-01-010-0416 Small Screw

6) XST-02-005-0002 Cap Catcher 15) CGL-02-003-0001 Drain Plug

7) XBK-98-009-4818 Tub Foot 16) XSV-05-001-0675 Handle

8) XBK-02-019-0001 Plastic Receiver 17) XSV-01-010-0615 Large Screw

9) ZSV-99-012-3010 Locking Caster

Page 7

WARNINGS

1. Read and understand all instructions. Failure to follow all instructions may result in injury

and/or damage.

2. The warnings, cautions, and instructions discussed in this manual cannot cover all

possible conditions or situations that may occur. The user must always be aware of their

environment and ensure that they use the product in a safe and responsible manner.

3. Use the provided caster wrench to tighten completely. Failure to do as instructed could

result in the caster stem breaking thereby causing the cooler to collapse.

4. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product.

5. Check for damaged parts. Before using this product, carefully check that all parts are in

good condition, and that the product will operate properly and perform its intended

function. Check for damaged parts and any other conditions that may affect the operation of this product. Replace damaged or worn parts, and never use this product with a damaged part.

6. Do NOT let children climb or play in the tub.

7. Do NOT overload the product.

8. Lock the casters when leaving cooler in stationary position.

CARE AND MAINTENANCE

• Avoid harsh, abrasive cleaners, and other corrosive chemicals.

• Do not use scouring pad for cleaning.

• Keep dry and avoid damp environments.

• Use a quality stainless steel cleaner and follow instructions that come with the cleaner.

Wipe ALONG the grain (NOT against).

• Cooler should not be left out unprotected in the elements. A protective Cooler Cover

(UBK-24-001-3519) is available as an accessory through www.trinityii.com.

Volume Capacity 25 gallons / 100 qt

Weight capacity per shelf 50 lb

Total weight capacity 250 lb

Page 8

Page 9

Thank you for purchasing a TRINITY Stainless Steel Cooler. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to [email protected]. Include a copy of your original receipt with your submission.

First Name: Last Name: Address: City: State: Zip Code: Email Address: Phone: Product Model #: TXK-0805 Purchase Date: / / Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important) Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth Internet Store Display Other

Marital Status: Single Married

Household Income: Below $50,000 $50,000-$150,000 $150,000+ Education: High School College Graduate School Primary Residence: Own Rent Comments/Suggestions:

PRODUCT REGISTRATION

Page 10

Page 11

1 YEAR LIMITED WARRANTY

TRINITY Stainless Steel Cooler

Model # TXK-0805

Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY Stainless Steel Cooler (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s obligation under this warranty

shall be limited to repair or replacement of, or adequate compensation for the Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.

This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising

from any of the following: negligent use or misuse of the Product, use contrary to this User’s Manual, or

alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by

the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty.

Except as set forth herein, and to the extent of applicable there are no warranties on this Product either express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding on Trinity.

If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service toll-

free at (800) 985-5506, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased, the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must accompany your service request.

LIMITATION OF REMEDIES AND LIABILITY

Trinity (and its employees, officers, members, managers, affiliates an assigns) shall not be liable for any incidental, consequential, special, indirect, remote, special or punitive damages for breach of any warranty, express or implied, including, but not limited to, lost profits, lost savings, loss of anticipated benefits and

attorneys’ fees, which arise out of the purchase, use or inability to use the Product, whether arising out of

contract, negligence, strict tort, product liability, or any other legal theory on which a claim is based. As noted above, to the extent damages are allowed by our express warranty or by applicable law, those damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser

assumes all risk and liability for loss, damage or injury to Purchaser and Purchaser’s property and to others

and their property arising out of the use, misuse, or inability to use this Product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific legal rights, and you may have other rights which vary from state to state.

Page 12

TRINITY Customer Service

TEL: 800.985.5506

FAX: 310.347.4134

EMAIL: [email protected]

Monday through Friday

8:00 AM – 5:00 PM (PST)

www.trinityii.com

QUESTIONS? NEED PARTS?

WE ARE HERE TO HELP!

Please feel free to contact us. There are no questions too small, or

any problems too big. We’re committed to providing our customers

with the highest level of service.
