TP-Link TL-SG3210XHP-M2, TL-SG3428X, TL-SG3428XMP Product Overview

L2+ 10-Gigabit Managed Switch Datasheet

MODELS: TL-SG3210XHP-M2/TL-SG3428X/TL-SG3428XMP

The TP-Link Solution

One-Step Solution
Professional. Reliable. Secure.

Overview

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like
static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit
ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room
for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB)
and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS)

attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced trac management capabilities to move your

data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use

web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and conguration with

less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for
enterprise, campus and ISP networks.

Omada Solution

Software Dened Networking (SDN) with Cloud Access

Omada Software Dened Networking (SDN) platform integrates network devices, including access points,

switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable
network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal

for use in hospitality, education, retail, oces, and more.

Hassle-Free Centralized Cloud Management

100% centralized cloud management of the whole network from dierent sites——all controlled from a single

interface anywhere, anytime.

1

Zero-Touch Provisioning for Ecient Deplyment

Omada zero-touch provisioning allows remotely deployment and conguration of multi-site networks, so there's
no need to send out an engineer for on-site conguration. The Omada Cloud ensures ecient deployment with

lower costs.

1. Zero-Touch Provisioning is supported when using Omada Cloud-Based Controller

AI-Driven Technology for Stronger Performance and Easy Network Maintenance

Assign Different Management Roles

user privilege assignment is available to increase management efficiency and security. Multi-person

Multi­management, multi-level permissions, and the ability to add admins as needed, enable exible network

operation and maintenance.

Easy and Intelligent Network Monitoring

The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and

trac distribution; receive network condition logs, abnormal event warnings, and notications; or even track key

data for better business results. Network topology helps IP admins quickly see and troubleshoot connection at
a glance.

Comprehensive Protection for the Whole Network

Multiple Factors Guarantee Higher Reliability

Higher reliability of cloud service is guaranteed with 99.99% SLA availability, 24/7 automated fault detection,
geographically isolated backup servers, and reliable product quality. Your network functions even if

management trac is interrupted.

Reliable Connections Even with High-Density Clients

Equipped with enterprise chipsets, dedicated antennas, advanced RF functions, auto channel selection,
and power adjustment, Omada Wi-Fi 6 and Wi-Fi 5 APs have high concurrency capacities for remarkable
performance in high-density environments.

Switch Product Features

Networking Security

The L2+ managed switches provide IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect

against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks

more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive

network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and

even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS/TACACS+

server to require some authentication information before access to the network is allowed.

Advanced QoS features

To integrate voice, data and video service on one trac based on a variety of means including IP or MAC address, TCP or

UDP port number, etc. to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice

VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant L2+ features

The L2+ managed switches support a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/

MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced

features for network maintenance. Such as Loopback Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping

ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling

& ltering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, L2+ managed

switches support L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal

routing through the switch and helps network trac for more ecient use.

ISP Features

The L2+ managed switches support a bundle of ISP features such as 802.3ah OAM, DDM, sFlow, QinQ, L2PT PPPoE ID

Insertion, IGMP authentication etc. 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improve monitor

and troubleshoot Ethernet networks, help facilitate network management. DDM(Digital Diagnostic Monitoring) function

helps view the status of SFP modules inserting to the Switch and to congure alarm settings, warning settings, temperature

threshold settings, voltage threshold settings, bias current threshold settings, TX power threshold settings, and Rx power

threshold settings.

Enterprise Level Management Features

TP-Link’s new L2+ managed switches are easy to use and manage. It supports various user-friendly standard management

features, such as intuitive web-based Graphical User Interface (GUI), industry-standard Command Line Interface (CLI),

SNMP (v1/v2c/v3), and RMON. This allows the switch to provide valuable status information and send reports on abnormal

events. It also supports Dual Image and Dual Conguration to provide improved reliability and network uptime.

IPv6 Support

The L2+ managed switches support various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL,

DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which

guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

Specications

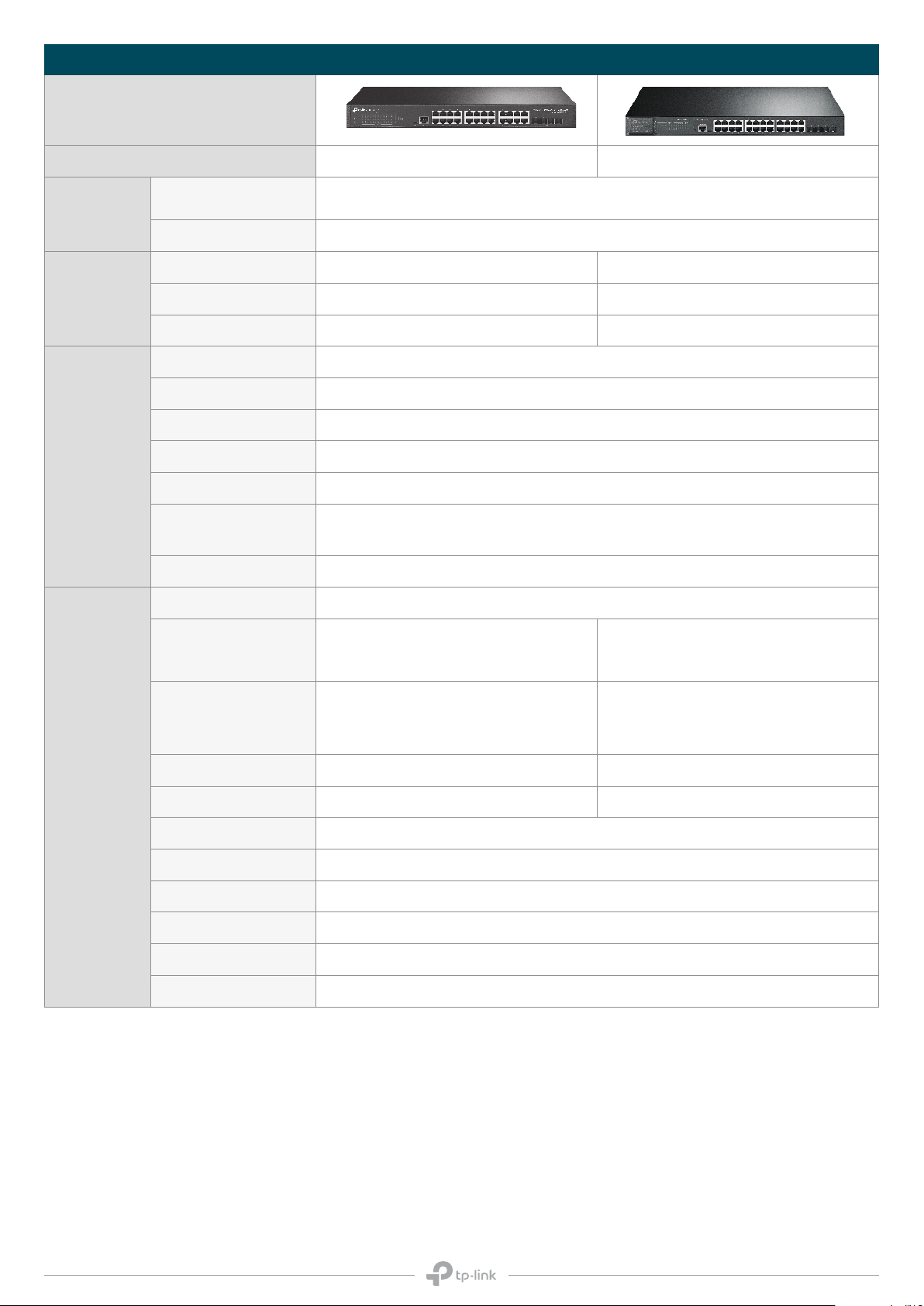

Hardware Features & Performance

Product Picture

Model TL-SG3210XHP-M2

General

PoE

Performance

Interface

Console 1 RJ45 Console Port, 1 Micro-USB Console Port

PoE Standard 802.3af/at

PoE Ports 8, up to 30 W

PoE Power Budget 240 W

Switching Capacity 80 Gbps

Packet Forwarding Rate 59.52 Mpps

MAC Address Table 16K

Packet Buer 12 Mbit

Number of IP Interfaces 16

Number of Static

Routers

Jumbo Frame 9 KB

Power Supply 100-240 V AC~50/60 Hz

Max Power

Consumption

8 100/1000Mbps/2.5Gbps RJ45 Ports
2 10GE SFP+ Slots

48 (IPv4, IPv6)

17.24 W (110V/60Hz) (no PD connected)

291.49 W (110V/60Hz) (with 240 W PD connected)

Physical &

Environmet

Max Heat Dissipation

Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Fan Quantity 2

Installation Rack Mountable

Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)

Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)

Operation Humidity 10% to 90% RH, non-condensing

Storage Humidity 5% to 90% RH, non-condensing

Certication CE, FCC, RoHS

58.82 BTU/h (110 V/60 Hz) (no PD connected)

994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected)

Hardware Features & Performance

Product Picture

Model TL-SG3428X TL-SG3428XMP

General

PoE

Performance

Interface

Console 1 RJ45 Console Port, 1 Micro-USB Console Port

PoE Standard - 802.3af/at

PoE Ports - 24, up to 30W

PoE Power Budget - 384 W

Switching Capacity 128 Gbps

Packet Forwarding Rate 95.23 Mpps

MAC Address Table 16K

Packet Buer 12 Mbit

Number of IP Interfaces 16

Number of Static

Routers

Jumbo Frame 9 KB

Power Supply 100-240 V AC~50/60 Hz

Max Power

Consumption

Max Heat Dissipation 80.52 BTU/h (110 V/60 Hz)

24 10/100/1000Mbps RJ45 Ports
4 10GE SFP+ Slots

48 (IPv4, IPv6)

23.6 W (110V/60Hz)

34.4 W (110V/60Hz) ( no PD connected)

465.8 W (110V/60Hz) ( with 384 W PD
connected)

117.38 BTU/h (110 V/60 Hz) (no PD
connected)

1589.31 BTU/h (110 V/60 Hz) (with 384 W
PD connected)

Physical &

Environmet

Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Fan Quantity Fanless 2

Installation Rack Mountable

Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)

Operation Humidity 10% to 90% RH, non-condensing

Storage Humidity 5% to 90% RH, non-condensing

Certication CE, FCC, RoHS

Software Features

Model TL-SG3210XHP-M2/TL-SG3428X/TL-SG3428XMP

SDN Support

L3 Features

L2 Features

• Support Omada Hardware Controller (OC200/
OC300), Software Controller, Cloud-Based
Controller

• Automatic Device Discovery

• Batch Conguration

• Batch Firmware Upgrading

• 16 IPv4/IPv6 Interfaces

• Static Routing

- 48 static routes

• Static ARP

- 128 static entries

• 512 ARP Entries

• Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports
per group

• Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter, BPDU
Protect, Root Protect, Loop Protect

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unied Conguration

• Reboot Schedule

• ZTP (Zero-Touch Provisioning)*

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay

- DHCP interface relay

- DHCP VLAN relay

• DHCP L2 Relay

• Loopback Detection

- Port based

- VLAN based

• Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Tx/Rx/Both

L2 Multicast

VLAN

QoS

• Supports 1000 (IPv4, IPv6) IGMP groups

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- IGMP Authentication

• IGMP Authentication

• MVR

• VLAN Group

- Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 30 Entries

• Protocol VLAN: Protocol Template 16, Protocol

VLAN 16

• 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

• Bandwidth Control

- Port/Flow based Rating Limiting

• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Cong

- Limited IP Multicast

• Multicast Filtering: 256 proles and 16 entries
per prole

• Private VLAN

• GVRP

• VLAN VPN (QinQ)

- Port-Based QinQ

- Selective QinQ

• Voice VLAN

• Smoother Performance

• Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

* Zero-Touch Provisioning is supported when using Omada Cloud-Based Controller

Software Features

Model TL-SG3210XHP-M2/TL-SG3428X/TL-SG3428XMP

ACL

Security

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

-Source IP

- Destination IP

- Fragment

- IP Protocol

- TCP Flag

• IP-MAC-Port Binding

-512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

-512 Entries

- DHCPv6 Snooping

- ND Detection

- IPv6 Source Guard: 100 Entries

• DoS Defend

• Static/Dynamic Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio/pps control mode

- TCP/UDP Port

- DSCP/IP TOS

- User Priority

• Combined ACL

• IPv6 ACL

• Policy

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

• ACL apply to Port/VLAN

• Time-based ACL

• 802.1X

- Port base authentication

- Mac base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Support RADIUS authentication and

accountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with

SSLv3/TLS 1.2

• Secure Command Line Interface (CLI)

management with SSHv1/SSHv2

• IP/Port/MAC based access control

ISP Features

Management

IPv6 Support

• 802.3ah Ethernet Link OAM

• L2PT (Layer 2 Protocol Tunneling)

• PPPoE ID Insertion

• Web-based GUI

• Command Line Interface (CLI) through
consoleport, telnet

• SNMPv1/v2c/v3

- Trap/Inform

- RMON (1, 2, 3, 9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP)
version 6

• TCPv6/UDPv6

• Device Link Detect Protocol (DLDP)

• sFlow

• DDM

• DHCP Auto Install

• Dual Image, Dual Conguration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

Software Features

Model TL-SG3210XHP-M2/TL-SG3428X/TL-SG3428XMP

MIBs

• MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• RADIUS Accounting Client MIB (RFC2620)

• RADIUS Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link Private MIB

Ordering Information

Host Switch

Model Description

TL-SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

SFP/SFP+ Modules

Model Description

TL-SM311LS Gigabit SFP module, Single-mode, LC interface, Up to 20km distance

TL-SM311LM Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance

TL-SM321A Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km

TL-SM321A-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km

TL-SM321B Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km

TL-SM321B-2 Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km

TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver, single-mode, LC connector, 1310nm, 10 km

TL-SM5110-SR 10GBase-SR SFP+ LC Transceiver, multi-mode, LC connector, 850nm, 300 m

MC Series Media Converter

Model Description

MC210CS Gigabit Single-Mode Media Converter, up to 20 km, chassis mountable

MC200CM Gigabit multi-mode SC SFP Transceiver, up to 550 m, chassis mountable

MC200L Gigabit SFP slot supporting mini-GBIC modules, chassis mountable

TL-MC1400 14-slot power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable

SFP/SFP+ Modules

Model Description

TL-FC111A-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable

TL-FC111B-20 100Mbps Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm,chassis mountable

TL-FC311A-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable

TL-FC311B-2 Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable

TL-FC311A-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable

TL-FC311B-20 Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable

TL-FC1400 14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable

Some models featured in this guide may be unavailable in your country or region. Visit TP-Link website for local sales information: www.
tp-link.com.
PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client
limitations and environmental factors.

Specications are subject to change without notice. All the brands and product names are trademarks or registered trademarks of their

respective holders. © 2020 TP-Link
