Easy Smart Configuration Utility
User Guide
This format indicates important information that helps you make better use of your
Chapter 1 About this Guide
This User Guide contains information for setup and guidance of the Easy Smart Configuration
Utility. Please read this guide carefully before operation.
1.1 Intended Readers
This Guide is intended for network managers familiar with IT concepts and network terminologies.
1.2 Conventions
In this Guide the following conventions are used:
Menu Name→Submenu Name indicates the menu structure. System→System
Info→System Summary means the System Summary page under the System Info menu
option located under the System menu.
Bold font indicates a button, a toolbar icon, menu or menu item.
Symbols in this guide：
Symbol Description
Note:
Tips:
Ignoring this type of note might result in a malfunction or damage to the device.
device.
1.3 Overview of This Guide
Chapter Introduction
Chapter 1 About This Guide Introduces the guide structure and conventions.
Chapter 2 Getting Started Introduces the installation and uninstallation of the utility, and
the overview of its interface.
1
Easy Smart Configuration Utility
User Guide
then display an alert or further block the
Chapter Introduction
Chapter 3 System This module is used to configure system properties of the
switch. Here mainly introduces:
System Info: View device information and define the device
description.
IP Setting: Get and modify the network parameters of the
switch.
User Account: Modify the username and password for
users to login the Web management page.
Backup and Restore: Save the current configuration file to
your computer or download a backup configuration file to
your switch.
System Reboot: Reboot your switch.
System Reset: Reset the switch to the default.
Firmware Upgrade: Update the firmware of the switch.
Chapter 4 Switching
This module is used to configure the basic functions of the
switch.
Port Setting: Configure and view the basic parameters of
each port, including the port status, speed, duplex mode
and flow control.
IGMP Snooping: Enable IGMP snooping feature and view
the current IGMP Group information.
Port Trunk: Configure and view the information of the trunk
group of the switch.
Chapter 5 Monitoring This module is used to monitor the traffic information of the
switch, and provide the convenient method to locate and solve
the network problem.
Port Statistics: View the statistic information of each port.
Port Mirror: Monitor and mirror network traffic by forwarding
copies of incoming and outgoing packets from one/multiple
ports (mirrored port) to a specific port (mirroring port).
Cable Test: Diagnose the connection status of the cable
connected to the switch and the distance to the problem
location.
Loop Prevention: Detect loops using loopback detection
packets, and
corresponding port.
2
Easy Smart Configuration Utility
User Guide
onfigure and view the storm control
Chapter Introduction
Chapter 6 VLAN This module is used to configure VLANs to control broadcast
in LANs. Here mainly introduces:
MTU VLAN: Set the MTU VLAN mode.
Port Based VLAN: Set the Port-Based VLAN mode
802.1Q VLAN: Set the 802.1Q Tag VLAN mode.
802.1Q PVID Setting: Configure 802.1Q PVID value.
Chapter 7 QoS This module is used to configure QoS function to provide
different quality of service for various network applications and
requirements. Here mainly introduces:
QoS Basic: Configure and view the basic parameters of
QoS.
Bandwidth Control: Configure and view the bandwidth
control function information.
Storm Control: C
function information.
Chapter 8 Help Lists the help and version information of the utility.
Return to CONTENTS
3
Easy Smart Configuration Utility
User Guide
Chapter 2 Getting Started
2.1 Introduction
Easy Smart Configuration Utility is the management software for the TP-LINK Easy Smart
Switches. The utility allows operators to centrally manage entire networks of the Easy Smart
Switches, which include TL-SG105E/TL-SG108E/TL-SG108PE/TL-SG1016DE/TL-SG1024DE.
Among of them, TL-SG105E V1.0 and TL-SG108E V1.0 can only be configured with Easy Smart
Configuration Utility while TL-SG105E V2.0/TL-SG108E V2.0/TL-SG108PE/TL-SG1016DE/
TL-SG1024DE can also be managed on their Web-Management page. Throughout this guide, we
will take TL-SG108E V2.0 for example.
2.2 Install the Easy Smart Configuration Utility
If an earlier version of the utility is present on your computer, please install this version to replace
the older version.
1. Insert the provided resource CD that came with your switch into your computer that you want
to use to manage your switches.
The resource CD home screen displays.
4
Easy Smart Configuration Utility
User Guide
You can read the Easy Smart Configuration Utility User Guide by clicking Documentation in
the upper right corner of the above screen and view all the files on the resource CD by
clicking Browse CD.
If the home screen does not display, browse the files on the CD and double-click
AutoRun.exe. You can also directly read the User Guide and double-click the icon
in the Utility folder to install the utility with the same steps from the following step 2 to
step 3.
2. Click the Install Easy Smart Configuration Utility link on the resource CD home screen.
a. The InstallShield Wizard prepares the setup shown as the following screen. Please wait
for a moment.
Figure 2-1 Preparing to Install
b. Then the following screen will appear. Click Next to continue. If you want to stop the
installation, click Cancel.
5
Easy Smart Configuration Utility
User Guide
Figure 2-2 Welcome to the InstallShield Wizard
c. Choose the destination location for the installation files and click Next to continue.
Figure 2-3 Choose Destination Location
By default, the installation files are saved in the Program Files folder of system disk. Click the
Change button to modify the destination location properly to your need.
d. Now the wizard is ready to begin the installation. Click Install to begin the installation on
the following screen.
6
Easy Smart Configuration Utility
User Guide
Figure 2-4 Ready to Install the Program
7
Easy Smart Configuration Utility
User Guide
e. The InstallShield Wizard is installing Easy Smart Configuration Utility shown as the
following screen. Please wait for a while.
Figure 2-5 Setup Status
f. Click Finish to complete the installation on the following screen.
Figure 2-6 InstallShield Wizard Complete
3. The installation process creates a TP-LINK subdirectory under the \Program Files directory
on your computer, copies the utility program into the \Program Files\TP-LINK\Easy Smart
Configuration Utility directory, and places a utility icon
8
on the computer desktop.
Easy Smart Configuration Utility
User Guide
2.3 Switch Discovery
When the utility is launched, it immediately searches the network for TP-LINK Easy Smart
Switches.
The discovered switches are listed as below.
Figure 2-7 Main Page
Click Help in the left bottom to access the TP-LINK support website for more help.
Note:
The maximum number of the discovered switches is 30.
2.4 Switch Settings
You can select a switch and click to configure or display its status.
Figure 2-8 Discovered Switch
9
Easy Smart Configuration Utility
User Guide
The setting figure will be shown as below:
Figure 2-9 Switch Setting
You can configure the switch’s Device Description, DHCP Setting, IP Address, Subnet Mask and
Default Gateway on this page. The login User Name and Password are required to complete the
configuration. By default, they are both admin.
When the switch IP Address is not in the same subnet with host IP Address, it can be discovered
by the utility, but you cannot login the utility management page. Therefore, it needs to set the
switch IP Address in the same subnet with host IP Address, which allows you to login the utility
management page and configure the switch.
Clicking Apply can only make the new configurations effective before the switch is rebooted. If
you want to keep the configurations effective even the switch is rebooted, please select the
checkbox behind Save Config.
2.5 Refresh
Click Refresh in Figure 2-7 to restart the switch discovering process.
10
Easy Smart Configuration Utility
User Guide
2.6 Utility Features Overview
You can select a switch and click or double click its corresponding entry to log on to the
switch for further configuration. Please ensure that host IP address and switch IP address must be
in the same subnet.
Figure 2-10 Discovered Switch
Enter the User Name and Password to login the configuration interface. They are both admin by
default. You can select Remember Me to remember the User Name and Password.
Figure 2-11 Login
11
Easy Smart Configuration Utility
User Guide
The configuration figure is shown as blow:
Figure 2-12 Switch Configuration
Device description field shows the device model number of the switch that you are managing.
Click the icon to save the current configurations.
Click the icon
Note:
The switch you log on to should be in the same subnet with your computer.
to return to the discovering page.
2.7 Uninstall the Utility
If you want to remove the Easy Smart Configuration Utility, please take the following steps:
1. On the Windows taskbar, click the Start button, point to All ProgramsTP-LINK Easy
Smart Configuration Utility, and then click Uninstall Easy Smart Configuration Utility,
shown as the following figure.
12
Easy Smart Configuration Utility
User Guide
Figure 2-13 Preparing Setup
2. Then the following screen will appear. If you want to stop the remove process, click Cancel.
Figure 2-14 Preparing Setup
3. On the continued screen, click Yes to remove the utility from your PC.
Figure 2-15 Uninstall the Utility
13
Easy Smart Configuration Utility
User Guide
4. Click Finish to complete.
Figure 2-16 Uninstall Complete
Return to CONTENTS
14
Easy Smart Configuration Utility
User Guide
ault system
Chapter 3 System
The System module is mainly for system configuration of the switch, including seven submenus:
System Info, IP Setting, User Account, Backup and Restore, System Reboot, System Reset
and Firmware Upgrade.
3.1 System Info
On this page you can view the system information and define the device description.
Choose the menu System→System Info to load the following page.
Figure 3-1 System Information
System Info
Device Description:
MAC Address: Displays the MAC address of the switch.
IP Address:
Subnet Mask: Displays the subnet mask of the switch.
Default Gateway: Displays the default gateway of the switch.
Firmware Version:
Hardware Version:
Device Description: Give a description to the device for identification.
Displays the device model number.
Displays the system IP address of the switch. The def
IP is 192.168.0.1 and you can change it appropriate to your needs.
Displays the installed software version number.
Displays the installed device hardware version number.
15
Easy Smart Configuration Utility
User Guide
is enabled, the
default gateway
of the switch. The default system IP is
By default, the switch uses
3.2 IP Setting
Each device in the network possesses a unique IP address. You can login the IP Setting page to
operate the switch using this IP address. The switch supports the DHCP mode to obtain an IP
address from the DHCP server.
On this page you can get and modify the network parameters of the switch.
Choose the menu System→IP Setting to load the following page.

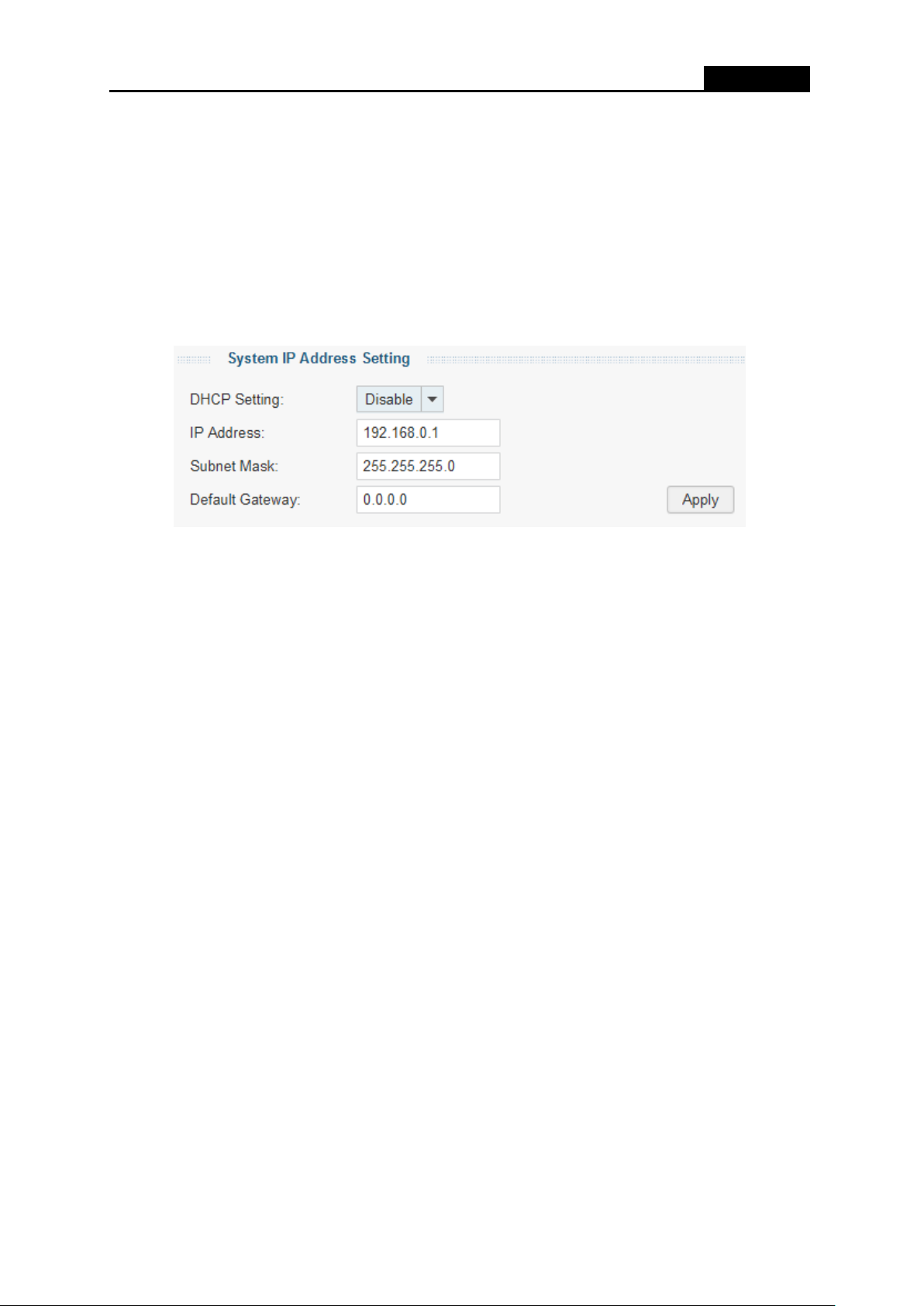

Figure 3-2 System IP Address Setting
The following entries are displayed on this screen:
System IP Address Setting
DHCP Setting:
IP Address:
Subnet Mask:
Default Gateway:
Enable or disable the DHCP function. If DHCP setting
switch will obtain the IP address, subnet Mask and
from the DHCP Server automatically; otherwise, these three items
should be configured manually. By default, it is disabled.
Enter the system IP
192.168.0.1 and you can change it appropriate to your needs.
Enter the subnet mask of the switch.
255.255.255.0 as the subnet mask.
Enter the default gateway of the switch.
3.3 User Account
On this page you can modify the administrator’s username and password in order to refuse illegal
users.
Choose the menu System→User Account to load the following page.
16
Easy Smart Configuration Utility
User Guide
Figure 3-3 System User Setting
The following entries are displayed on this screen:
System User Setting
User Name:
Old Password:
Password:
Confirm Password:
Create a name for administrator’s login.
Type in the old password.
Type in a new password for administrator’s login.
Retype the new password.
Note:
1. The length of user name and password should not be more than 16 characters using digits,
letters and underlines only.
2. The default username/password is admin/admin.
3.4 Backup and Restore
On this page you can download the current configuration and save it as a file to your computer, or
upload a backup configuration file to restore your switch to this previous configuration.
Choose the menu System→Backup and Restore to load the following page.
Figure 3-4 System Config Backup
17
Easy Smart Configuration Utility
User Guide
button to save the current configuration
ted to take this
the backup configuration
. It will take effect
The following entries are displayed on this screen:
System Config Backup
Backup Config:
Click the Backup Config
as a file to your computer. You are sugges
measure before upgrading.
System Config Restore
Restore Config:
Click the Choose File button to select
file, and then click the Restore Config button
after the switch automatically reboots.
Note:
1. It will take a few minutes to backup the configuration. Please wait without any operation.
2. It will take a few minutes to restore the configuration. Please wait without any operation.
3. To avoid any damage, please don’t power down the switch while being restored.
4. After being restored, the current settings of the switch will be lost. Wrong uploaded
configuration file may cause the switch unmanaged.
3.5 System Reboot
On this page you can reboot the switch and return to the login page. Please save the current
configuration before rebooting to avoid losing the configuration unsaved.
Choose the menu System→System Reboot to load the following page.
Figure 3-5 System Reboot
Note:
To avoid damage, please don't turn off the device while rebooting.
3.6 System Reset
On this page you can reset the switch to the default. All the settings will be cleared after the switch
is reset.
18
Easy Smart Configuration Utility
User Guide
Choose the menu System→System Reset to load the following page.
Figure 3-6 System Reset
Note:
After the system is reset, the switch will be reset to the default and all the settings will be cleared.
3.7 Firmware Upgrade
The switch system can be upgraded via this management page. To upgrade the system is to get
more functions and better performance. Go to http://www.tp-link.com
firmware.
Choose the menu System→Firmware Upgrade to load the following page.

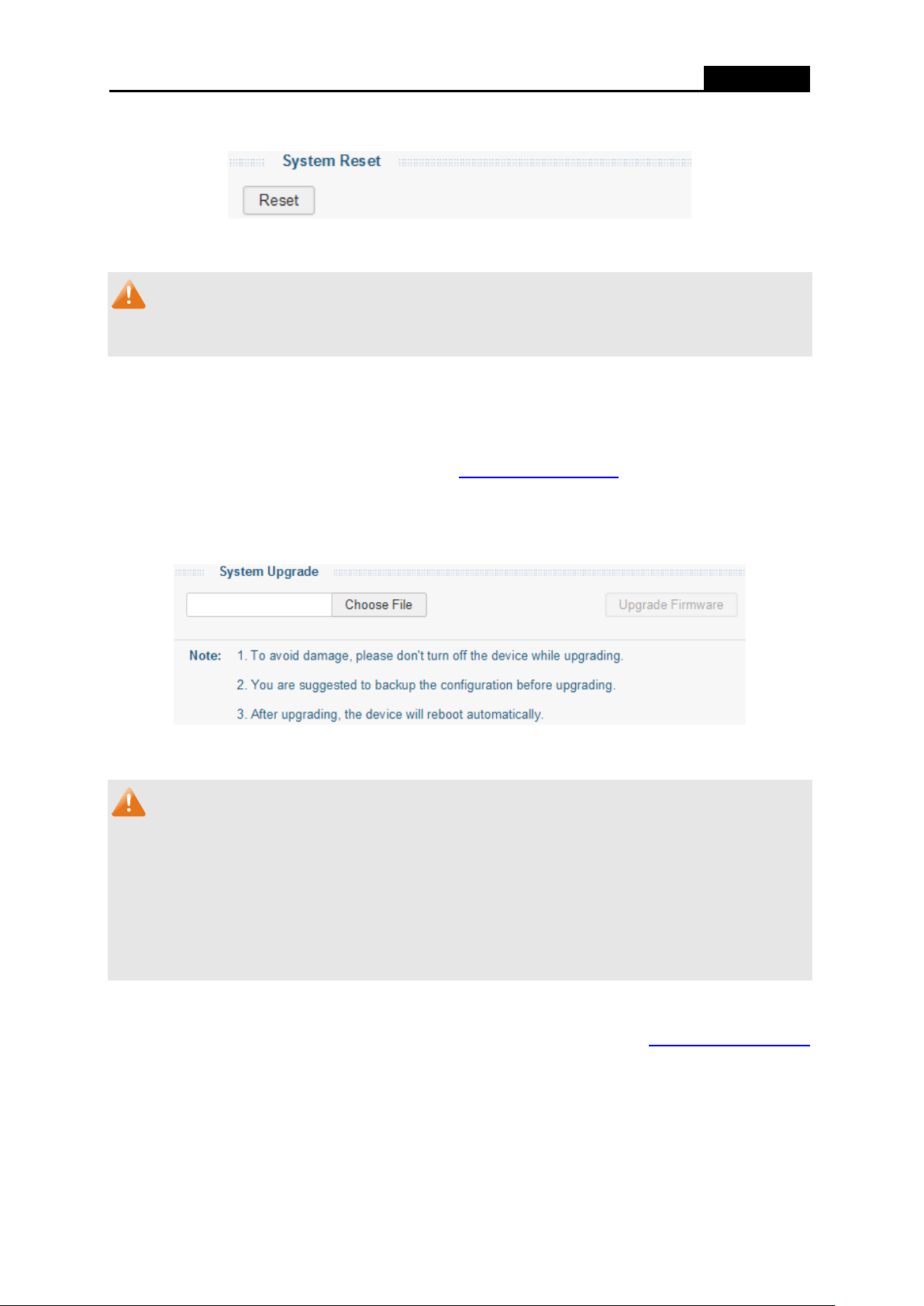

Figure 3-7 System Upgrade
Note:
1. Don’t interrupt the upgrade.
2. Please select the proper software version matching with your hardware to upgrade.
3. To avoid damage, please don't turn off the device while upgrading.
to download the updated
4. After upgrading, the device will reboot automatically.
5. You are suggested to backup the configuration before upgrading.
19
Return to CONTENTS
Easy Smart Configuration Utility
User Guide
Select:
Por
Status:
Allows you to Enable/Disable the port. When Enable is
Chapter 4 Switching
Switching module is used to configure the basic functions of the switch, including three submenus:
Port Setting, IGMP Snooping and Port Trunk.
4.1 Port Setting
On this page, you can configure the basic parameters for the ports. When the port is disabled, the
packets on the port will be discarded. Disabling the port which is vacant for a long time can reduce
the power consumption effectively. And you can enable the port when it is in need.
The parameters will affect the working mode of the port, please set the parameters appropriate to
your needs.
Choose the menu Switching→Port Setting to load the following page.

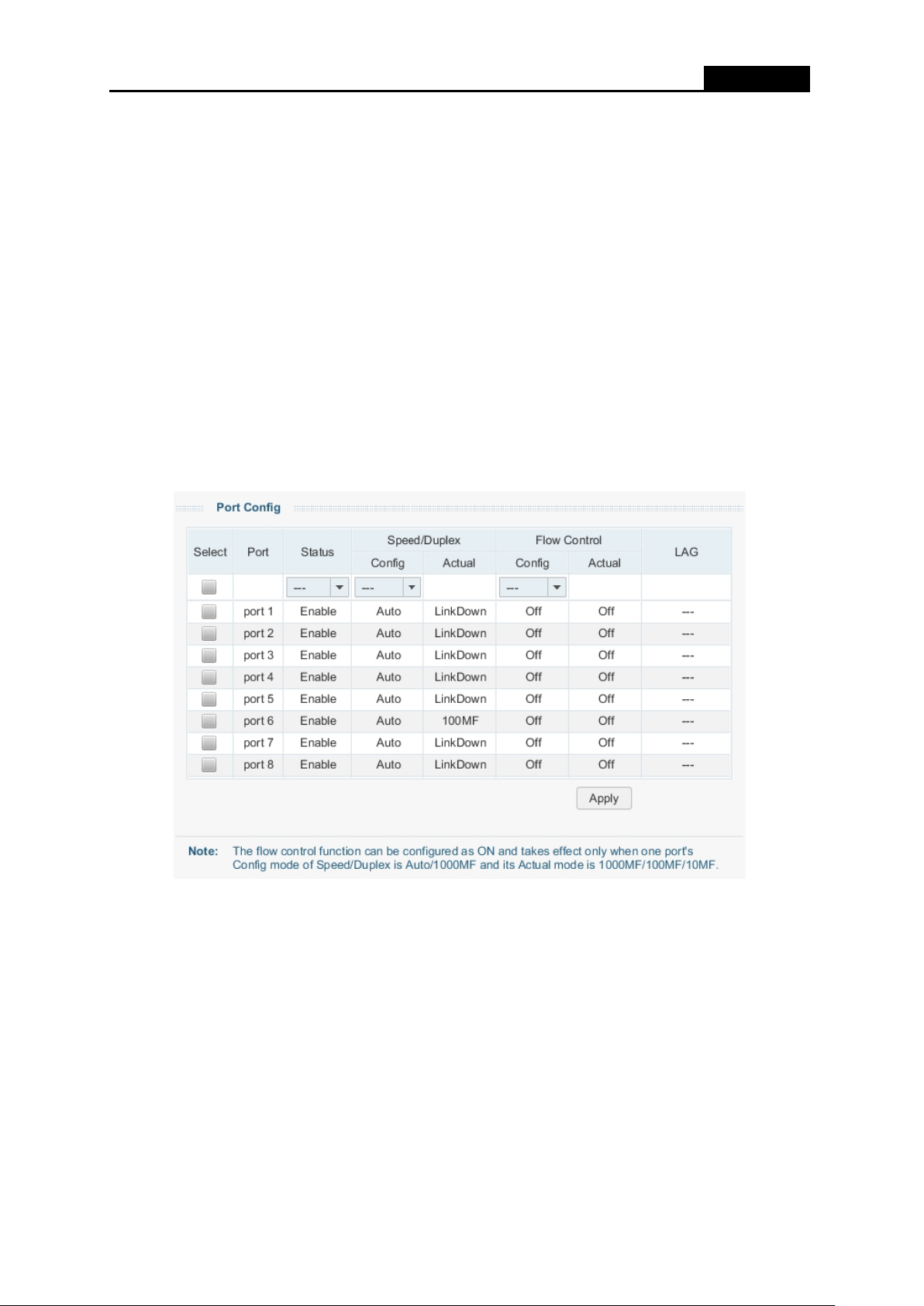

Figure 4-1 Port Config
The following entries are displayed on this screen:
Port Config
t:
20
Select the desired port for configuration. It is multi-optional.
Displays the port number.
selected, the port can forward the packets normally.
Easy Smart Configuration Utility
User Guide
Speed and Duplex:
Select the Speed and Duplex mode for the port. The
hould be in the same Speed
and Duplex mode with the switch. When “Auto” is selected, the
Speed and Duplex mode will be determined by
Flow Control:
able the Flow Control
feature. When Flow Control is enabled, the switch can
synchronize the speed with its peer to avoid the packet loss
Displays the state of the Flow Control function of the
LAG:
Config:
device connected to the switch s
auto-negotiation.
Actual: Displays the actual working state of the port.
Config: Select On/Off to Enable/Dis
caused by congestion.
Actual:
port. It is off by default.
Displays the LAG number which the port belongs to.
Note:
1. The switch can not be managed through the disabled port. Please enable the port which is
used to manage the switch.
2. The parameters of the port members in a LAG should be set as the same.
4.2 IGMP Snooping
Internet Group Management Protocol (IGMP) snooping is a multicast control mechanism, which
can be used on the switch for dynamic registration of the multicast group.
IGMP Snooping allows the switch to recognize the IGMP messages transmitted between network
stations or devices and an IGMP host. When receiving IGMP report message from the IGMP host,
the switch will add the port to the multicast address table; when listening to IGMP leave message
from the IGMP host, the switch will remove the port from the multicast address table. By
managing and controlling the multicast address table, the broadcasting of multicast traffic can be
effectively prevented in the network.
On this page you can enable IGMP snooping feature and view the current IGMP Group
information.
21
Easy Smart Configuration Utility
User Guide
Report Message
Enable or disable Report Message Suppression function globally.If
this function is enabled,the first Report Message from the listener
will forward to the router ports while the subsequent Report
f the packet does
ll port
should be divided to the same
Choose the menu Switching→IGMP Snooping to load the following page.

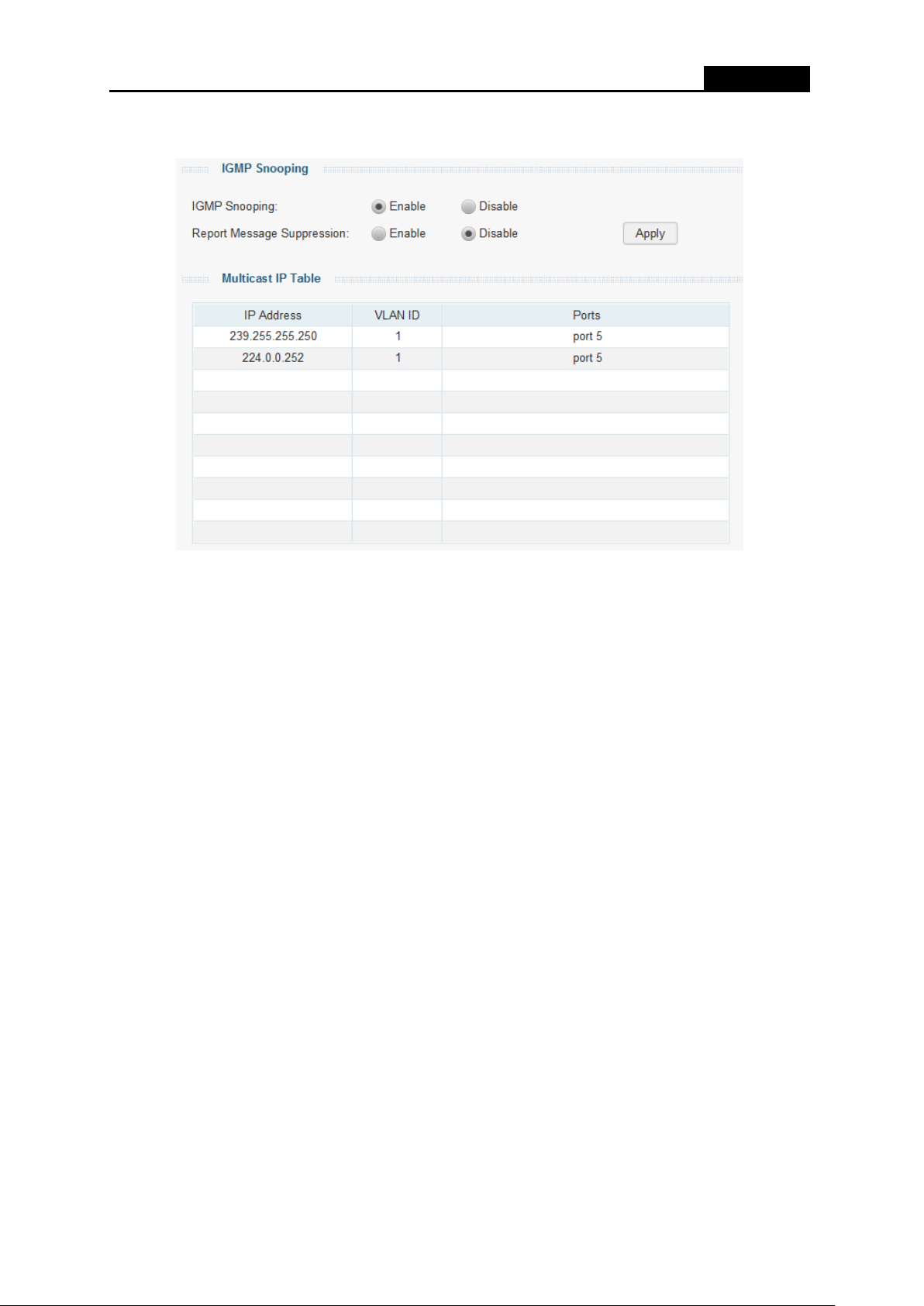

Figure 4-2 IGMP Snooping
The following entries are displayed on this screen:
IGMP Snooping
IGMP Snooping: Enable or disable IGMP snooping function globally on the switch.
Suppression
Message will be suppressed to reduce the IGMP packets.
Multicast IP Table
IP Address:
VLAN ID:
Displays the multicast IP address.
Displays the VLAN ID of the multicast group. I
not carry VLAN ID, then here displays the PVID of the port. A
members of a multicast group
VLAN, and have the same PVID.
Ports:
Displays the forwarding port list of the multicast group.
4.3 Port Trunk
Port trunk is used to combine a number of ports together to make a single high-bandwidth data
path, which can highly extend the bandwidth. The bandwidth of the trunk is the sum of bandwidth
of its member ports.
22
Easy Smart Configuration Utility
User Guide
from the
There are some rules on using trunk:
For the member ports in a trunk group, their configuration of Port setting (Speed and
Duplex, Flow Control), QoS must be the same.
For the newly joined member ports in a trunk group, their default setting of Port setting
(Speed and Duplex, Flow Control), QoS will be configured the same as that of the first
member port in the trunk group.
The trunk member ports cannot be set as mirroring port.
Before setting the trunk, its member ports should be divided to the same VLAN, and have the
same PVID and drop the untagged packet rule. Change of the trunk setting will not affect the
VLAN setting.
If the port trunk is needed, you are suggested to configure the port trunk function here before
configuring the other functions for the member ports.
On this page, you can configure and view the information of the trunk group of the switch.
Choose the menu Switching→Port Trunk to load the following page.
Figure 4-3 Trunk Config
Here you can configure and view the port parameters.
Trunk Config
Trunk ID: Select an identified number for the trunk group
drop-down list.
23
Easy Smart Configuration Utility
User Guide
.
ports of
Select:
Trunk ID
Ports
S
Delete
Port: Select the port as the trunk group member. It is multi-optional
Available ports of trunk1 are port1-port4, and available
trunk2 are port5-port8. Clearing all the ports of the trunk group
will delete this trunk group.
Trunk Table
:
:
Select the desired Trunk. It is multi-optional.
Displays the Trunk number here.
Displays the Trunk member ports.
electAll: Select all the Trunks.
: Delete the selected Trunk.
Return to CONTENTS
24
Easy Smart Configuration Utility
User Guide
plays the number of good packets transmitted on the port. The
d on the port. The
Chapter 5 Monitoring
Monitoring module monitors the traffic information of the switch, and provides the convenient
method to locate and solve the network problem, includes four submenus: Port Statistics, Port
Mirror, Cable Test and Loop Prevention.
5.1 Port Statistics
On this page you can view the statistic information of each port, which facilitates you to monitor
the traffic and locate faults promptly.
Choose the menu Monitoring→Port Statistics to load the following page.
Figure 5-1 Port Statistics
The following entries are displayed on this screen:
Port Statistics
Port: Displays the port number of the switch.
Status: Displays whether the port is enabled or disabled.
Link Status: Displays the link state of the port.
TxGoodPkt:
TxBadPkt: Displays the number of error packets transmitted on the port.
RxGoodPkt:
RxBadPkt: Displays the number of error packets received on the port.
Dis
error packets are not counted in.
Displays the number of good packets receive
error packets are not counted in.
25
Easy Smart Configuration Utility
User Guide
the incoming packets received by the mirrored port will
the outgoing packets sent by the mirrored port will be
all the incoming and outgoing packets of the mirrored port
mirrored
, with only one port as mirrored port, it
selected as mirrored ports, it only supports the ingress monitoring.
5.2 Port Mirror
Port mirror function is to monitor and mirror network traffic by forwarding copies of incoming and
outgoing packets from one/multiple ports (mirrored port) to a specific port (mirroring port). Usually,
the mirroring port is connected to a data diagnosis device, which is used to analyze the mirrored
packets for monitoring and troubleshooting the network.
Choose the menu Monitoring→Port Mirror to load the following page.
Figure 5-2 Port Mirror
The following entries are displayed on this screen:
Port Mirror
Port Mirror Status: Enable or disable the port mirror feature of the specified port.
Mirroring Port: Select a port from the drop-down list as the mirroring port.
Mirrored Port
Mirrored Mode: Select a mode as the mirrored mode.
Ingress:
be copied to the mirroring port.
Egress:
copied to the mirroring port.
Both:
will be copied to the mirroring port.
Mirrored Ports: Click the port icon to select the corresponding port as
port to monitor the traffic.
For TL-SG108E V1.0
supports ingress and egress monitoring; when two or more ports is
Note:
1. The trunk member can not be selected as the mirroring port or mirrored port.
2. A port cannot be set as the mirrored port and the mirroring port simultaneously.
3. The port mirror function can span the multiple VLANs.
26
Easy Smart Configuration Utility
User Guide
connection status of the cable connected to the port.
,
5.3 Cable Test
This switch provides cable test to diagnose the connection status of the cable connected to the
switch and the distance to the problem location, which facilitates you to locate and diagnose the
trouble spot of the network.
Choose the menu Monitoring→Cable Test to load the following page.
Figure 5-3 Cable Test
The following entries are displayed on this screen:
Cable Test
Port: Displays the port number of the switch.
Test Result:
Displays the
The test results of the cable include “Open”, “Short”, ”Open Short”
“Normal” and “Crosstalk”.
Cable Fault
Displays the error length (in meters) of the cable.
Distance(m):
Test: Click Test to diagnose the cable connected to this port.
Test ALL: Click Test All to carry on the cable test on all ports.
Note:
The test result is just for your reference.
27
Easy Smart Configuration Utility
User Guide
Prevention
5.4 Loop Prevention
With loop prevention feature enabled, the switch can detect loops using loop detection packets.
When a loop is detected, the switch will block the corresponding port automatically.
Choose the menu Monitoring→Loop Prevention to load the following page.
Figure 5-4 Loop Prevention Setting
The following entries are displayed on this screen:
Loop Prevention Setting
Loop
Status:
Allows you to enable or disable loop prevention function globally.
Return to CONTENTS
28
Easy Smart Configuration Utility
User Guide
Chapter 6 VLAN
The traditional Ethernet is a data network communication technology based on CSMA/CD (Carrier
Sense Multiple Access/Collision Detect) via shared communication medium. Through the
traditional Ethernet, the overfull hosts in LAN will result in serious collision, flooding broadcasts,
poor performance or even breakdown of the Internet. Though connecting the LANs through
switches can avoid the serious collision, the flooding broadcasts cannot be prevented, which will
occupy plenty of bandwidth resources, causing potential serious security problems.
A Virtual Local Area Network (VLAN) is a network topology configured according to a logical
scheme rather than the physical layout. The VLAN technology is developed for switches to control
broadcast in LANs. By creating VLANs in a physical LAN, you can divide the LAN into multiple
logical LANs, each of which has a broadcast domain of its own. Hosts in the same VLAN
communicate with one another as if they are in a LAN. However, hosts in different VLANs cannot
communicate with one another directly. Therefore, broadcast packets are limited in a VLAN.
Hosts in the same VLAN communicate with one another via Ethernet whereas hosts in different
VLANs communicate with one another through the Internet devices such as router, the Lay3
switch, etc. The following figure illustrates a VLAN implementation.
Figure 6-1 VLAN Implementation
Compared with the traditional Ethernet, VLAN enjoys the following advantages.
(1) Broadcasts are confined to VLANs. This decreases bandwidth utilization and improves
network performance.
(2) Network security is improved. VLANs cannot communicate with one another directly. That
is, a host in a VLAN cannot access resources in another VLAN directly, unless routers or
Layer 3 switches are used.
29
Easy Smart Configuration Utility
User Guide
(3) Network configuration workload for the host is reduced. VLAN can be used to group
specific hosts. When the physical position of a host changes within the range of the VLAN,
you do not need to change its network configuration.
There are 3 types of VLAN modes supported in the switch:
1. MTU VLAN
MTU VLAN (Multi-Tenant Unit VLAN) defines an uplink port which will build up several VLANs
with each of the other ports. Each VLAN contains two ports, the uplink port and one of the other
ports in the switch, so the uplink port can communicate with any other port but other ports cannot
communicate with each other.
2. Port Based VLAN
VLANs are divided based on ports. By default, the Port Based VLAN is enabled.
3. 802.1Q VLAN
The IEEE 802.1Q protocol defines a new format of the frame; it adds a Tag header in the original
Ethernet frame, as follows:
Figure 6-2 IEEE 802.1Q Frame
VLAN tags in the packets are necessary for the switch to identify packets of different VLANs. The
switch works at the data link layer in OSI model and it can identify the data link layer
encapsulation of the packet only, so you can add the VLAN tag field into the data link layer
encapsulation for identification.
IEEE 802.1Q Tag VLAN is divided by VLAN ID (VID). On receiving a frame, the switch checks the
VID in the Tag header of the frame to decide which VLAN it belongs to. If the receiving frame
doesn’t contain the Tag header, the switch will assign a Tag to the frame, using the PVID of the
port as its VID.
In this User Guide, the tagged packet refers to the packet with VLAN tag whereas the untagged
packet refers to the packet without VLAN tag.
30
Easy Smart Configuration Utility
User Guide
The VLAN module is mainly for VLAN configuration, including four submenus: MTU VLAN, Port
Based VLAN, 802.1Q VLAN and 802.1Q PVID Setting.
6.1 MTU VLAN
On this page you can choose to enable MTU VLAN mode and configure VLANs.
Choose the menu VLAN→MTU VLAN to load the following page.
Figure 6-3 MTU VLAN Configuration
The following entries are displayed on this screen:
MTU VLAN Setting
MTU VLAN Status: Enable/Disable the MTU VLAN function globally.
Uplink Port:
Select the uplink port from the drop-down list.
6.2 Port Based VLAN
On this page you can configure Port Based VLAN feature and view the related settings.
31
Easy Smart Configuration Utility
User Guide
Port Based VLAN
. It is
it indicates the port belongs
Choose the menu VLAN→Port Based VLAN to load the following page.
Figure 6-4 Port Based VLAN Configuration
To ensure the normal communication of the factory switch, the default VLAN of all ports is set to
VLAN1. VLAN 1 cannot be deleted.
The following entries are displayed on this screen:
Global Config
Enable or disable Port Based VLAN mode.
Configuration:
Port Based VLAN Setting
VLAN ID:
Ports:
Select the ID number of VLAN from the drop-down list.
Click the port icon to select the port of the VLAN
multi-optional. If this field is selected,
to the current VLAN.
VLAN:
Port List:
Delete VLAN:
32
Displays the ID number of VLAN.
Displays the port members in the VLAN.
Click Delete to delete the corresponding VLAN.
Easy Smart Configuration Utility
User Guide
：
Note:
A VLAN cannot be the subset or superset of other VLANs.
6.3 802.1Q VLAN
On this page you can configure 802.1Q VLAN feature and view the related settings.
Choose the menu VLAN→802.1Q VLAN to load the following page.

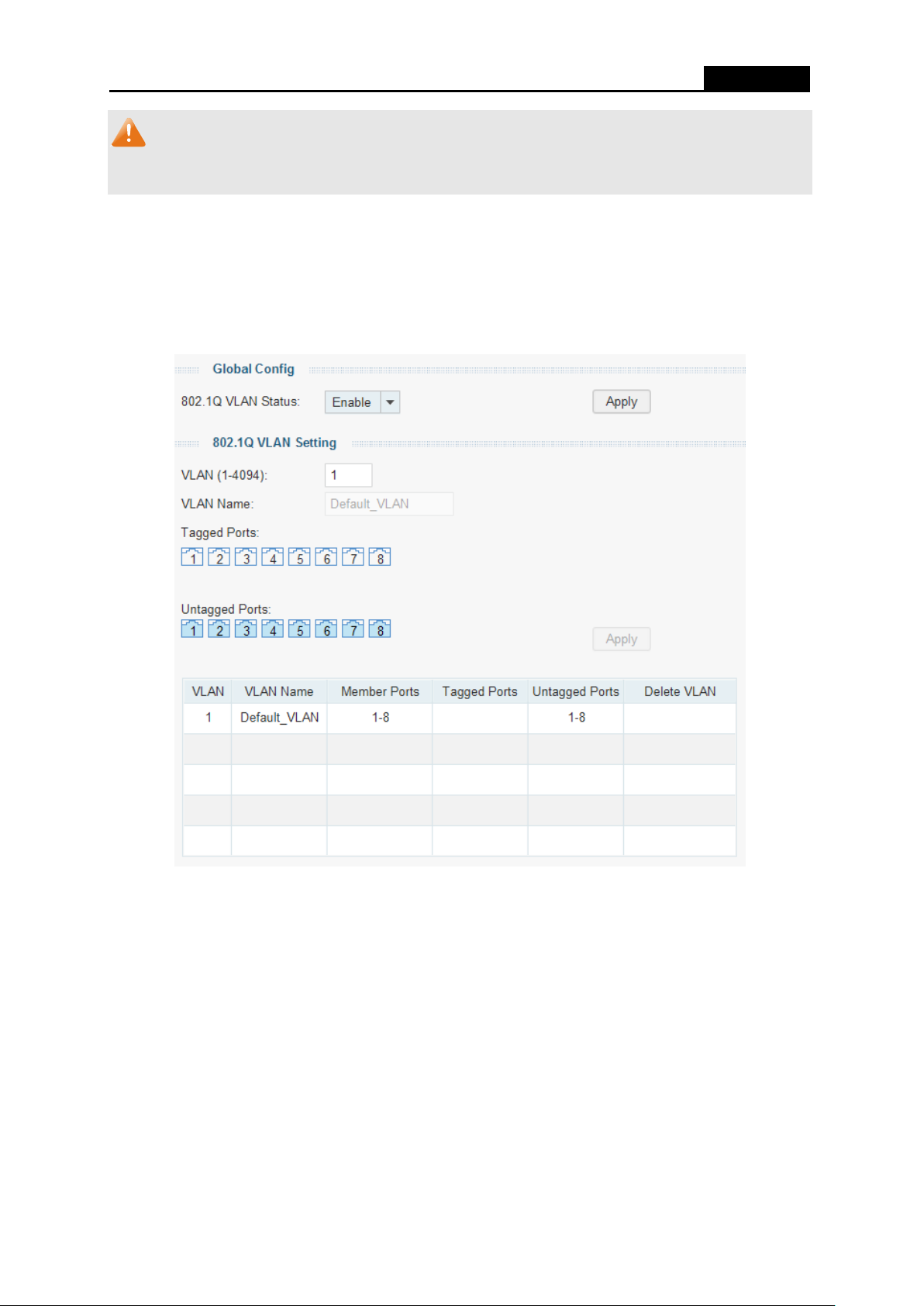

Figure 6-5 802.1Q VLAN Configuration
To ensure the normal communication of the factory switch, the default VLAN of all ports is set to be
VLAN1. VLAN 1 cannot be modified or deleted.
The following entries are displayed on this screen:
Global Config
802.1Q VLAN Status
802.1Q VLAN Setting
VLAN ID：
Enable or disable 802.1Q VLAN mode.
Enter the ID number of VLAN. It ranges from 2 to 4094.
33
Easy Smart Configuration Utility
User Guide
：
ffic on
this port as untagged. The switch drops the tag header before
to configure the egress rule of the traffic on
this port as tagged. The switch adds the tag header before
：
：
：
VLAN Name：
Untagged Ports
Tagged Ports：
VLAN ID：
VLAN Name
Member Ports
Tagged Ports
Untagged Ports:
Give a name to the VLAN for identification.
Click the port icon to configure the egress rule of the tra
sending the packet.
Click the port icon
sending the packet.
Displays the ID number of VLAN.
Displays the user-defined name of VLAN.
Displays the port members in the VLAN.
Displays the tagged port members in the VLAN.
Displays the untagged port members in the VLAN.
Delete VLAN:
Click Delete to delete the corresponding VLAN.
6.4 802.1Q PVID Setting
PVID (Port Vlan ID) is the default VID of the port. When the switch receives an un-VLAN-tagged
packet, it will add a VLAN tag to the packet according to the PVID of its received port and forward
the packet.
When creating VLANs, the PVID of each port, indicating the default VLAN to which the port
belongs, is an important parameter with the following two purposes:
(1) When the switch receives an un-VLAN-tagged packet, it will add a VLAN tag to the packet
according to the PVID of its received port
(2) PVID determines the default broadcast domain of the port, i.e. when the port receives UL
packets or broadcast packets, the port will broadcast the packets in its default VLAN.
On this page you can configure PVID of the specified port. By default, the PVID of all ports is 1.
Choose the menu VLAN→802.1Q VLAN PVID Setting to load the following page.
34
Easy Smart Configuration Utility
User Guide
the received untagged packet, the switch will automatically uses

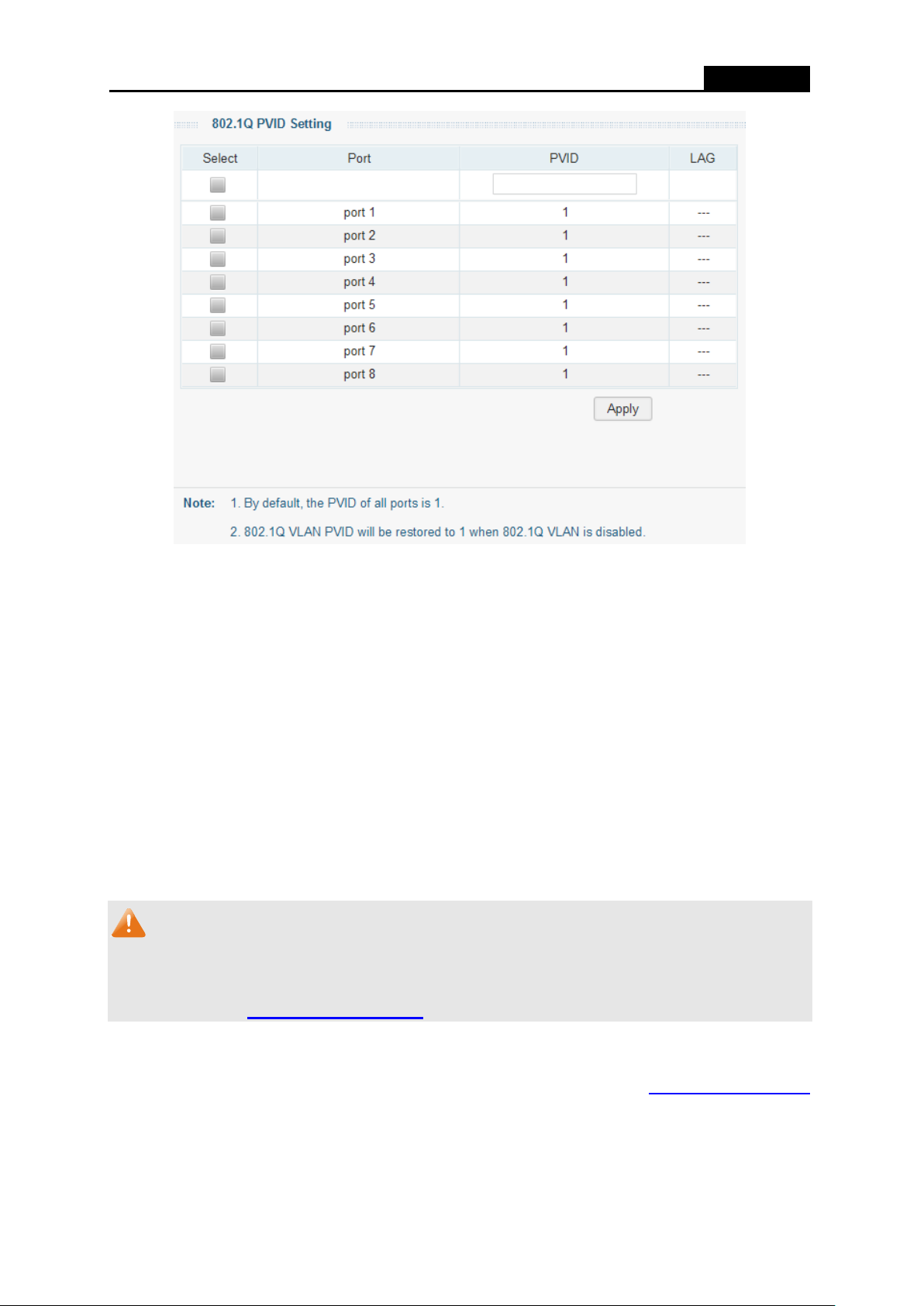

Figure 6-6 802.1Q VLAN PVID Setting
The following entries are displayed on this screen:
802.1Q VLAN PVID Setting
Select:
Port:
PVID:
LAG:
Note:
1. 802.1Q VLAN should be enabled before setting PVID.
2. You can go to Switching→Port Trunk page to configure the LAG status of the port.
Select the desired port for configuration. It is multi-optional.
Displays the port number.
Enter a PVID number for the port. When adding the tag header to
this PVID value as the VLAN ID of the added tag.
Displays the LAG to which the port belongs.
35
Return to CONTENTS
Easy Smart Configuration Utility
User Guide
Chapter 7 QoS
QoS (Quality of Service) functions to provide different quality of service for various network
applications and requirements and optimize the bandwidth resource distribution so as to provide a
network service experience of a better quality.
QoS
This switch classifies the ingress packets, maps the packets to four different priority queues and
then forwards the packets according to WRR scheduling algorithms to implement QoS function.
Figure 7-1 QoS Function
Traffic classification: Identifies packets conforming to certain characters according to certain
rules.
Map: This switch supports four priority queues. The priority queues are labeled as 1(Lowest),
2(Normal), 3(Medium) and 4(Highest), among them the bigger the value, the higher the
priority. The ingress packets are mapped to four different priority queues based on the QoS
modes. This switch implements three priority modes based on port, on 802.1P and on DSCP.
Queue scheduling algorithm: When the network is congested, the problem that many packets
compete for resources must be solved, usually in the way of queue scheduling. In all QoS
modes, this switch adopts WRR scheduling algorithm. In WRR scheduling algorithm, packets
in all the queues are sent in order based on the weight value for each queue and every queue
can be assured of a certain service time. The weight value indicates the occupied proportion
of the resource.
QoS Mode
This switch implements three priority modes based on port, on 802.1P and on DSCP. By default, the
priority mode based on port is enabled and the other two modes are optional.
36
Easy Smart Configuration Utility
User Guide
1. Port Based
When port-base QoS mode is enabled, the user can manually map the ingress packets of the port
to four different priority queues. After that, the switch will preferentially send packets in the queue
with higher priority, and only when the queue with higher priority is empty, packets in the queue
with lower priority are sent.
2. 802.1P Based
Figure 7-2 802.1Q Frame
As shown in the figure above, each 802.1Q Tag has a Pri field, comprising 3 bits. The 3-bit priority
field is 802.1p priority in the range of 0 to 7. The 802.1p priority value determines how the switch
maps the ingress packets to the priority queues. The mapping relationship between eight 802.1p
priority value and priority queues is shown as follows:
Priority 1 and 2 are assigned to the 1 (Lowest) priority queue.
Priority 0 and 3 are assigned to the 2 (Normal) priority queue.
Priority 4 and 5 are assigned to the 3 (Medium) priority queue.
Priority 6 and 7 are assigned to the 4 (Highest) priority queue.
When 802.1P QoS mode is enabled, the switch will automatically map the ingress packets to
priority queues based on the 802.1p priority and the above mapping relationship. After that,
packets in all the queues are sent in order based on the weight value for each queue. The switch
implements four scheduling queues, TC1, TC2, TC3 and TC4. TC1 has the lowest priority while
TC4 has the highest priority. The weight value ratio of TC1, TC2, TC3 and TC4 is 1:2:4:8. As for
the untagged packets, the switch will forward it according to the default priority mode.
3. DSCP based
Figure 7-3 IP datagram
As shown in the figure above, the ToS (Type of Service) in an IP header contains 8 bits. The first
three bits indicate IP precedence in the range of 0 to 7. RFC2474 re-defines the ToS field in the IP
packet header, which is called the DS field. The first six bits (bit 0-bit 5) of the DS field indicate
37
Easy Smart Configuration Utility
User Guide
DSCP priority in the range of 0 to 63. The last 2 bits (bit 6 and bit 7) are reserved. The mapping
relationship between sixty-four DSCP priority value and priority queues is shown as follows:
Priority 0 to 15 are assigned to the 1 (Lowest) priority queue.
Priority 16 to 31 are assigned to the 2 (Normal) priority queue.
Priority 32 to 47 are assigned to the 3 (Medium) priority queue.
Priority 48 to 63 are assigned to the 4 (Highest) priority queue.
When DSCP QoS mode is enabled, the switch will automatically map the ingress packets to
priority queues based on the DSCP precedence and the above mapping relationship. After that,
packets in all the queues are sent in order based on the weight value for each queue. The switch
implements four scheduling queues, TC1, TC2, TC3 and TC4. TC1 has the lowest priority while
TC4 has the highest priority. The weight value ratio of TC1, TC2, TC3 and TC4 is 1:2:4:8. As for
the untagged packets, the switch will forward it according to the default priority mode.
The QoS module is mainly for priority configuration and traffic control, including three submenus:
QoS Basic, Bandwidth Control and Storm Control.
7.1 QoS Basic
This switch classifies the ingress packets, maps the packets to different priority queues and then
forwards the packets to implement QoS function.
This switch implements three priority modes based on port, on 802.1P or on DSCP. The port-based
QoS mode supports four priority queues. The port priority queues are labeled as 1, 2, 3, and 4.
On this page you can configure and view QoS mode and the port-based priority setting.
Choose the menu QoS→QoS Basic to load the following page.
38
Easy Smart Configuration Utility
User Guide
based on
and
based on the
Figure 7-4 QoS Basic
The following entries are displayed on this screen:
Global Config
QoS Mode:
Select the desired QoS mode.
• Port Based:
ingress port.
• 802.1P Based: The switch classifies the ingress packets
and maps the packets to different priority queues
the 802.1p priority field in the 802.1Q tag.
• DSCP Based: The switch classifies the ingress packets
maps the packets to different priority queues
DSCP priority field in the IP ToS field.
Port Based Priority Setting
Select:
Port:
Select the desired port for configuration. It is multi-optional.
Displays the port number.
The packets are mapped to 4 priority levels based on
39
Easy Smart Configuration Utility
User Guide
are mapped
among them the bigger
Priority Queue:
LAG:
Specify the priority queue the packets from the port
to. The priorities are labeled as 1~4 and
the value, the higher the priority.
Displays the LAG number which the port belongs to.
7.2 Bandwidth Control
Bandwidth control functions to control the ingress/egress traffic rate on each port via configuring
the available bandwidth of each port. In this way, the network bandwidth can be reasonably
distributed and utilized.
On this page you can configure and view the bandwidth control function information.
Choose the menu QoS→Bandwidth Control to load the following page.
Figure 7-5 Bandwidth Control Setting
The following entries are displayed on this screen:
Bandwidth Control
Select:
Port:
40
Select the desired port for Rate configuration. It is multi-optional.
Displays the port number of the switch.
Easy Smart Configuration Utility
User Guide
You
select "Manual" to set
Ingress rate, the system will automatically select integral multiple
of 64Kbps that closest to the rate you entered as the real Ingress
You can
select "Manual" to set
Egress rate, the system will automatically select integral multiple
the real Egress
Ingress Rate (bps):
Egress Rate(bps):
LAG:
Note:
When egress bandwidth control feature is enabled for one or more ports, you are suggested to
disable the flow control on each port to ensure the switch works normally.
Configure the bandwidth for receiving packets on the port.
can select a rate from the dropdown list or
rate.
Configure the bandwidth for sending packets on the port.
select a rate from the dropdown list or
of 64Kbps that closest to the rate you entered as
rate.
Displays the LAG number which the port belongs to.
7.3 Storm Control
Storm Control function allows the switch to filter broadcast, multicast and UL frame in the network.
If the transmission rate of the three kind packets exceeds the set bandwidth, the packets will be
automatically discarded to avoid network broadcast storm.
On this page you can configure and view the storm control function information.
41
Easy Smart Configuration Utility
User Guide
ration. It is
on the port.
Choose the menu QoS→Storm Control to load the following page.
Figure 7-6 Storm Control Setting
The following entries are displayed on this screen:
Storm Control Config
Select:
Port:
Bc Limit:
Mc Limit:
UL Limit:
Rate (Kbps):
LAG:
Select the desired port for Storm Control configu
multi-optional.
Displays the port number of the switch.
Enable/Disable broadcast control feature for the port.
Enable/Disable multicast control feature for the port.
Enable/Disable UL-Frame control feature for the port.
Select the bandwidth for receiving the specified packet
The packet traffic exceeding the bandwidth will be discarded.
Displays the LAG number which the port belongs to.
42
Return to CONTENTS
Easy Smart Configuration Utility
User Guide
Chapter 8 Help
This page contains two submenus: Help and About.
8.1 Help
Choose the menu Help→Help to load the following page.
Figure 8-1 Help
Click Online Help to access the TP-LINK support website and the online user guide for the Easy
Smart Configuration Utility (the latest copy of this manual).
8.2 About
To view the utility software version, choose the menu Help→About.
Figure 8-2 Software Version
43
Return to CONTENTS
Loading...
