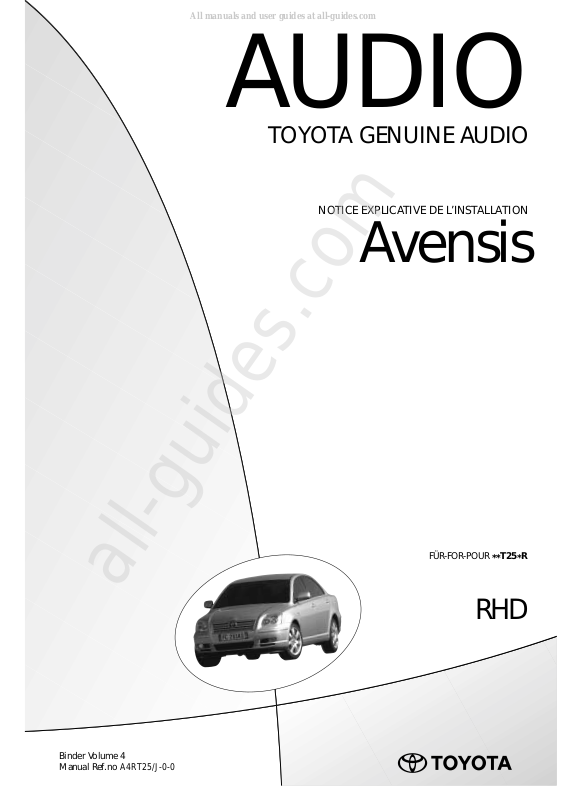

Toyota Avensis RHD User Manual
AUDIO
TOYOTA GENUINE AUDIO
NOTICE EXPLICATIVE DE L’INSTALLATION
Avensis
RHD
FÜR-FOR-POUR **T25*R
Binder Volume 4
Manual Ref.no A4RT25/J-0-0
All manuals and user guides at all-guides.com
all-guides.com
Avensis (T25) TOYOTA GENUINE AUDIO
Avensis (RHD) - 3
10-02
1. Application Chart ............................................................................................................................................................................ 4
2. System Layout .............................................................................................................................................................................. 5
3. In-dash 6 CD-Changer Installation ................................................................................................................................................. 6
4. Hide-away 6 CD-changer installation.............................................................................................................................................. 15
1. TABLE OF CONTENTS
All manuals and user guides at all-guides.com
+ ADD-ON UNIT
(
S
)
Hide Awa
y
CD-Chan
g
er TM0461
(
08601-00911
)
Navi
g
ation S
y
stem TNS200
(
08545-00802
)
(
ONLY PORT FIT
)
1
Radio/Cassette/CD (Lo) (only) MOP-unit or
-
W53900 (08600-05821)
-
2
Radio/Cassette/CD (Hi) (only) MOP-unit or
-
W53901 (08600-05822)
-
3
Radio/Cassette/CD (Lo) + Hide Away CD-Changer MOP-unit or
(2) Wire (08695-00370)
W53900 (08600-05821)
(2) Wire (08695-00370)
4
Radio/Cassette/CD (Lo) + In-Dash CD-Changer MOP-unit or
(1) Wire (08695-00370) + F/K (08695-05801)
W53900 (08600-05821)
(1) Wire (08695-00370) + F/K (08695-05801)
5
Radio/Cassette/CD (Lo) + Navigation (TBT) MOP-unit or
(3) Wire (08695-00370) + F/K (PZ425-T0330-60)
W53900 (08600-05821)
(3) Wire (08695-00370) + F/K (PZ425-T0330-60)
6
Radio/Cassette/CD (Lo) + Hide Away CD-Changer + Navigation (TBT) MOP-unit or
(2) (3) Wire (08695-00370) + F/K (PZ425-T0330-60)
W53900 (08600-05821)
(2) (3) Wire (08695-00370) + F/K (PZ425-T0330-60)
7
Radio/Cassette/CD (Lo) + In-Dash CD-Changer + Navigation (TBT) MOP-Unit or
(1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ425-T0330-60)
W53900 (08600-05821)
(1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ425-T0330-60)
8
Radio/Cassette/CD (Hi) + Hide Away CD-Changer MOP-unit or
(2) Wire (08695-00370)
W53901 (08600-05822)
(2) Wire (08695-00370)
9
Radio/Cassette/CD (Hi) + In-Dash CD-Changer MOP-Unit or
(1) Wire (08695-00370) + F/K (08695-05801)
W53901 (08600-05822)
(1) Wire (08695-00370) + F/K (08695-05801)
10
Radio/Cassette/CD (Hi) + Navigation (TBT) MOP-unit or
(3) Wire (08695-00370) + F/K (PZ425-T0330-60)
W53901 (08600-05822)
(3) Wire (08695-00370) + F/K (PZ425-T0330-60)
11
Radio/Cassette/CD (Hi) + Hide Away CD-Changer + Navigation (TBT) MOP-Unit or
(2) (3) Wire (08695-00370) + F/K (PZ425-T0330-60)
W53901
(
08600-05822
)
(
2
)
(
3
)
Wire
(
08695-00370
)
+ F/K
(
PZ425-T0330-60
)
12
Radio/Cassette/CD (Hi) + In-Dash CD-Changer + Navigation (TBT) MOP-Unit or
(1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ425-T0330-60)
W53901 (08600-05822)
(1) (3) Wire (08695-00370) + F/K (08695-05801) + F/K (PZ425-T0330-60)
Unique Design Audio
HEAD UNITCOMBINATION REQUIRED ADDITIONAL PARTS
In-Dash CD-Chan
g
er TM0561
(
08601-00907
)
AUDIO & NAVIGATION APPLICATION CHART
TMME-CA Division Dev. Dept. II - December 12th, 2002
Avensis **T25*R
(RHD)
p. 1/1
MOP: Factory installed option
(1): Glove box application (2): Located under the RH-seat (3): Located under the LH-seat. For required additional parts see the NAVI installation instructions.
All manuals and user guides at all-guides.com
Avensis (T25) TOYOTA GENUINE AUDIO
Avensis (RHD) - 5
10-02
NOTE:
The installation position of the hide-away 6 CD-changer in under the driver seat.
12
THE HIDE-AWAY 6 CD-CHANGER
2. SYSTEM LAYOUT
12
All manuals and user guides at all-guides.com
Avensis (T25) TOYOTA GENUINE AUDIO
Avensis (RHD) - 6
10-02
Fig. 1
Fig. 2
1. Remove the shift knob and shift
cover using a nylon pry tool.
: Clip (4x)
: Nail (4x)
2
1
3. Attach the protection tape .
4
Fig. 3
2. Remove the panel .
: Clip (5x)
3
3
4
4
3. IN-DASH 6 CD-CHANGER INSTALLATION
1
2
1
2
4
3
5
6
All manuals and user guides at all-guides.com
Avensis (T25) TOYOTA GENUINE AUDIO
Avensis (RHD) - 7
10-02
4. Remove the audio unit .
: Bolt (4x)
101
5
Fig. 4
6.
a) Remove the switch .
b) Remove the bulb .
c) Remove the connector by moving it
upward.
27
20
26
Fig. 5
Fig. 6
5. Remove the glove compartment .
a) Remove the hooks .
: Hook (2x)
b) Remove the stoppers by pulling
them inside.
28
104
104
6
6
104
104
26
27
28
28
101
101
5
20
All manuals and user guides at all-guides.com
all-guides.com
Avensis (T25) TOYOTA GENUINE AUDIO
Avensis (RHD) - 8
10-02
Fig. 7
Fig. 8
Approxim
ately 1
7. Cut the tape into 10 equal pieces.
5
8. Relocate the vehicle connector
position from location “A” to location“B”
and attach the connector to the har-
ness using tape and a wire tie .
: Wire tie (1x)
20
20
5
28
28
“A”
“B”
282828
5205
Harness
