Features
➤
Sequential fast charge and con
ditioning of two NiCd or NiMH
nickel cadmium or nickel-metal
hydride battery packs
➤
Hysteretic PWM switch-mode
current regulation or gated con
trol of an external regulator
➤
Easily integrated into systems
or used as a stand-alone charger
➤
Pre-charge qualification of tem
perature and voltage
➤
Direct LED outputs display
battery and charge status
➤ Fast-charge termination by
∆
temperature/∆ time, -∆V, maximum voltage, maximum temperature, and maximum time
➤ Optional top-off and pulse-
trickle charging
General Description
The bq2005 Fast-Charge IC provides
comprehensive fast charge control
functions together with high-speed
switching power control circuitry on a
monolithic CMOS device for sequential
charge management in dual battery
pack applications.
Integration of closed-loop current
control circuitry allows the bq2005
to be the basis of a cost-effective so
lution for stand-alone and systemintegrated chargers for batteries of
one or more cells.
Switch-activated discharge-beforecharge allows bq2005-based chargers
to support battery conditioning and
capacity determination.
High-efficiency power conversion is
accomplished using the bq2005 as a
hysteretic PWM controller for
switch-mode regulation of the charging current. The bq2005 may alterna-
tively be used to gate an externally
regulated charging current.
Fast charge may begin on application
of the charging supply, replacement
of the battery, or switch depression.
For safety, fast charge is inhibited
unless/until the battery tempera
-
ture and voltage are within config
-
ured limits.
Temperature, voltage, and time are
monitored throughout fast charge.
Fast charge is terminated by any of
the following:
n
Rate of temperature rise
(∆T/∆t)
n
Negative delta voltage (-∆V)
n
Maximum voltage
n
Maximum temperature
n
Maximum time
After fast charge, optional top-off
and pulsed current maintenance
phases are available.
1
Fast-Charge IC
for Dual-Battery Packs
bq2005
Pin Connections
Pin Names
SLUS079–JUNE 1999 F
DCMDADischarge command input,
battery A
DVEN -∆V enable
TM
1
Timer mode select 1
TM
2
Timer mode select 2
TCO Temperature cut-off
TS
A
, Temperature sense input,
TS
B
battery A/B
BAT
A
, Battery voltage input,
BAT
B
battery A/B
SNSA, Sense resistor input ,
SNSB battery A/B
1
PN200501.eps

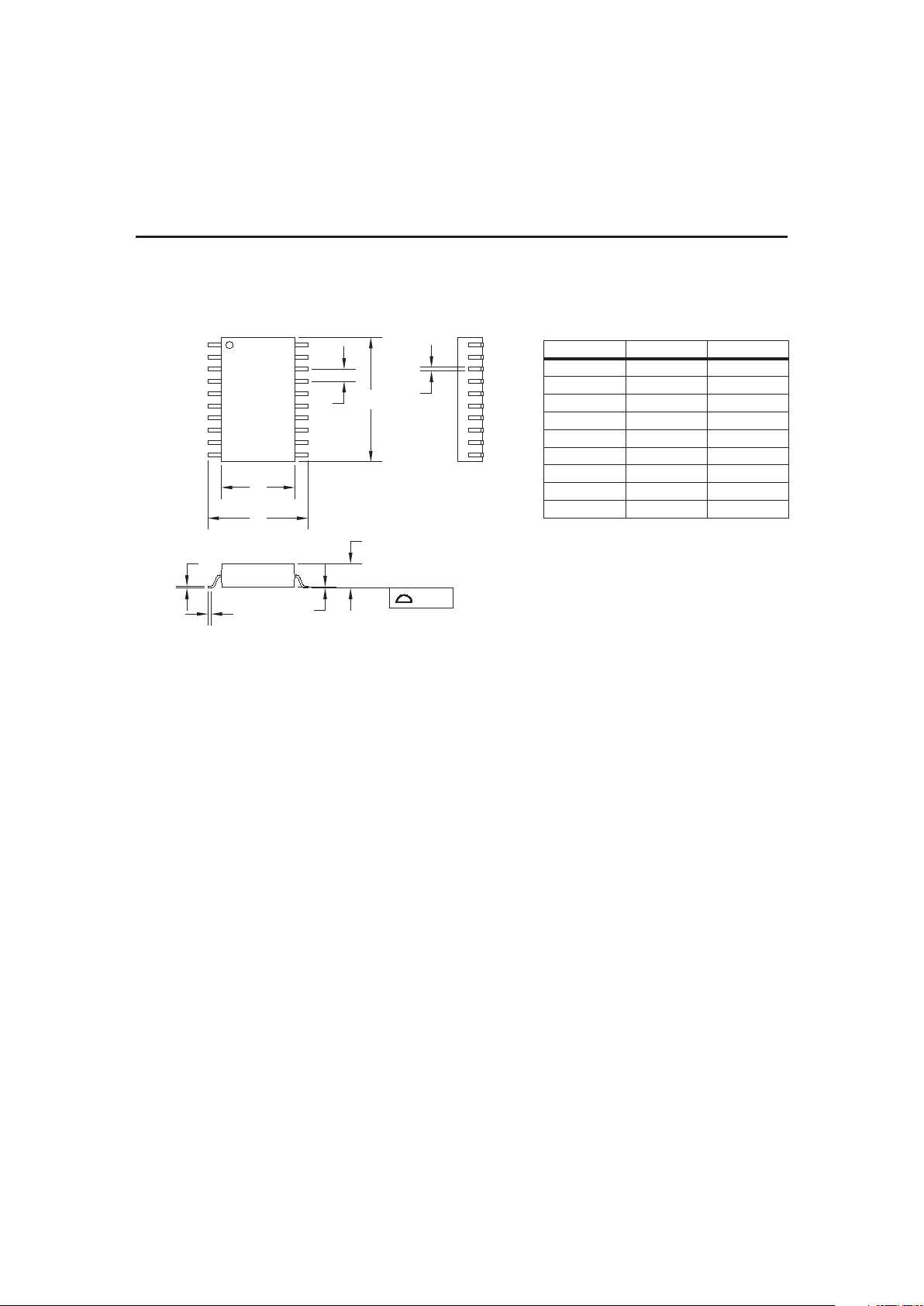

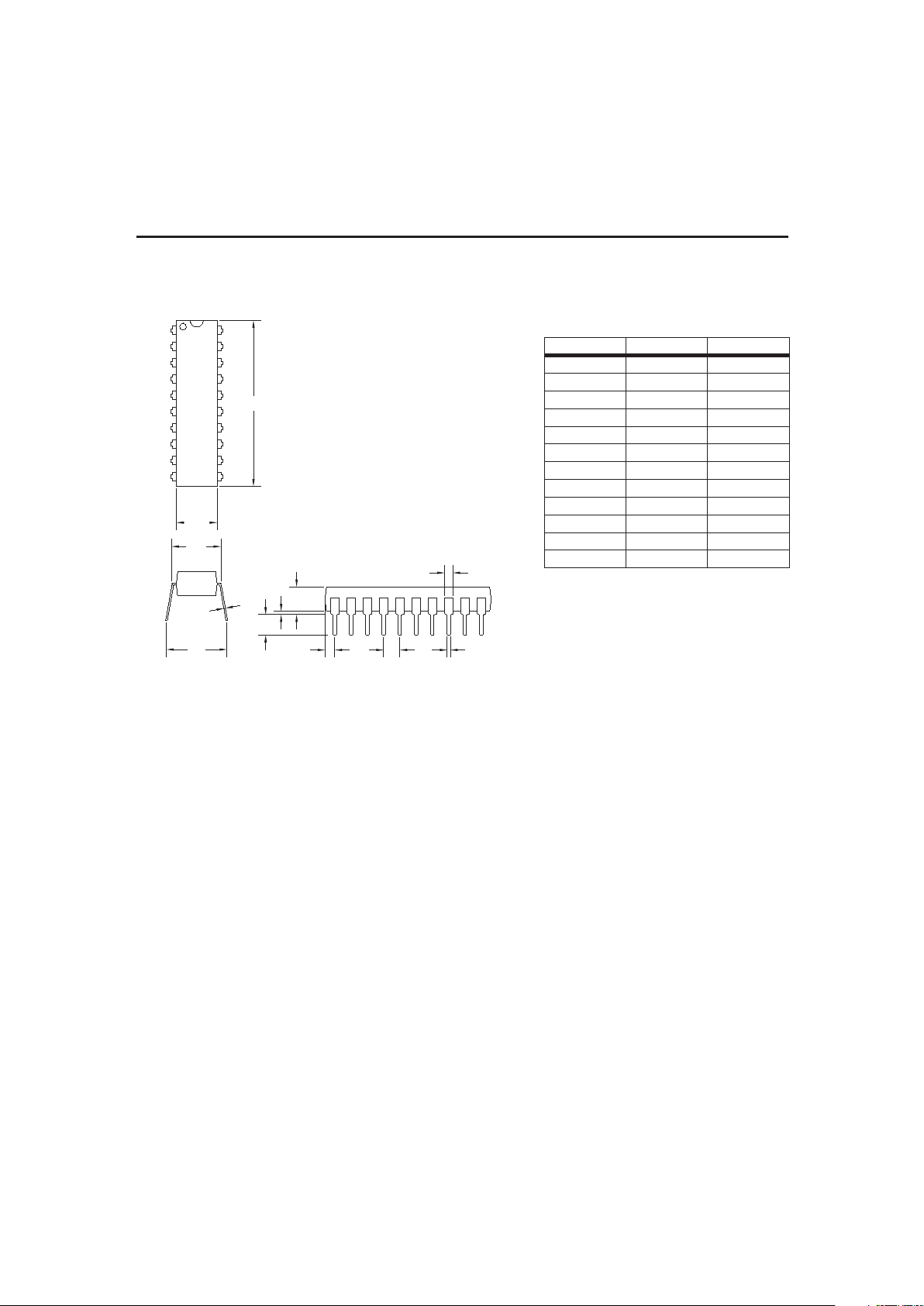

20-Pin DIP or SOIC
2
3
4
5
6
7
8
20
19
18
17
16
15
14
13
9
10
12
11
DCMD
A
DVEN
TM
1
TM
2
TCO
TS
A
TS
B
BAT
A
BAT
B
SNS
A
FCC
B
CH
B
MOD
B
MOD
A
V
CC
V
SS
FCC
A
CH
A
DIS
A
SNS
B
DIS
A
Discharge control output,
battery A
CH
A
, Charge status output,
CH
B
battery A/B
FCC
A
, Fast charge complete output,
FCC
B
battery A/B
V
SS
System ground
V
CC
5.0V±10% power
MOD
A
, Charge current control
MOD
B
output, battery A/B
Pin Descriptions
DCMD
A
Discharge-before-charge control input,
battery A
DCMD
A
controls the discharge-before-charge
function of the bq2005. A negative-going
pulse on DCMD
A
initiates a discharge to
EDV followed by a charge if conditions allow.
By tying DCMD
A
to ground, automatic
discharge-before-charge is enabled on every
new charge cycle start.
DVEN
-∆V enable input
This input enales/disables -∆V charge termina
tion. If DVEN is high, the -∆V test is enabled.
If DVEN is low, -∆V test is disabled. The state
of DVEN may be changed at any time.
TM
1
–
TM
2
Timer mode inputs
TM
1
and TM2are three-state inputs that con
figure the fast charge safety timer, -∆V holdoff time, and that enhance/disable top-off.
See Table 2.
TCO
Temperature cutoff threshold input
Input to set maximum allowable battery
temperature. If the potential between TS
A
and SNSAor TSB and SNSBis less than the
voltage at the TCO input, then fast charge or
top-off charge is terminated for the corresponding battery pack.
TS
A
,
TS
B
Temperature sense inputs
Input, referenced to SNS
A
or SNSB,respec
tively, for an external thermistor monitoring
battery temperature.
BAT
A
,
BAT
B
Voltage inputs
The battery voltage sense input, referenced to
SNS
A,B
, respectively. This is created by a
high-impedance resistor divider network con
nected between the positive and the negative
terminals of the battery.
SNS
A
,
SNS
B
Charging current sense inputs,
SNS
A,B
controls the switching of MOD
A,B
based on the voltage across an external
sense resistor in the current path of the bat
tery. SNS is the reference potential for the
TS and BAT pins. If SNS is connected to
V
SS
, MOD switches high at the beginning of
charge and low at the end of charge.
DIS
A
Discharge control output
Push-pull output used to control an external
transistor to discharge battery A before
charging.
CH
A
,
CH
B
Charge status outputs
Push-pull outputs indicating charging status
for batteries A and B, respectively. See Fig
-
ure 1 and Table 2.
FCC
A
,
FCC
B
Fast charge complete outputs
Open-drain outputs indicating fast charge
complete for batteries A and B, respectively.
See Figure 1 and Table 2.
MOD
A
,
MOD
B
Charge current control outputs
MOD
A,B
is a push-pull output that is used to
control the charging current to the battery.
MOD
A,B
switches high to enable charging
current to flow and low to inhibit charging
current flow to batteries A and B,
respectively.
V
CC
VCCsupply input
5.0 V, ±10% power input.
Vss
Ground
2
bq2005
Functional Description
Figure 3 shows a block diagram and Figure 4 shows a
state diagram of the bq2005.
Battery Voltage and Temperature
Measurements
Battery voltage and temperature are monitored for maxi
-
mum allowable values. The voltage presented on the bat
-
tery sense input, BAT
A,B
, must be divided down to be
-
tween 0.95 ∗ V
CC
and 0.475 ∗ VCCfor proper operation. A
resistor-divider ratio of:
RB1
RB2N2.375
=−1
is recommended to maintain the battery voltage within
the valid range, where N is the number of cells, RB1 is
the resistor connected to the positive battery terminal,
and RB2 is the resistor connected to the negative bat
-
tery terminal. See Figure 1.
Note: This resistor-divider network input impedance to
end-to-end should be at least 200kΩ and less than 1MΩ.
A ground-referenced negative temperature coefficient thermistor placed in proximity to the battery may be used as a
low-cost temperature-to-voltage transducer. The temperature sense voltage input at TS
A,B
is developed using a
resistor-thermistor network between V
CC
and VSS. See
Figure 1. Both the BAT
A,B
and TS
A,B
inputs are refer-
enced to SNS
A,B
, so the signals used inside the IC are:
V
BAT(A,B)-VSNS(A,B)=VCELL(A,B)
and
V
TS(A,B)-VSNS(A,B)=VTEMP(A,B)
Discharge-Before-Charge
The DCMDAinput is used to command dischargebefore-charge via the DIS
A
output. Once activated,
DIS
A
becomes active (high) until V
CELL
falls below V
EDV
where:
V
EDV
= 0.475 ∗ VCC± 30mV
at which time DIS
A
goes low and a new fast charge cycle
begins.
The DCMD
A
input is internally pulled up to VCC(its in
active state). Leaving the input unconnected, therefore,
results in disabling discharge-before-charge. A negative
going pulse on DCMD
A
initiates discharge-before-charge
at any time regardless of the current state of the
bq2005. If DCMD
A
is tied to VSS, discharge-beforecharge will be the first step in all newly started charge
cycles.
Starting A Charge Cycle
A new charge cycle is started by (see Figure 2):
1. V
CC
rising above 4.5V
2. V
CELL
falling through the maximum cell voltage,
V
MCV
where:
V
MCV
= 0.95 ∗ VCC± 30mV
If DCMD
A
is tied low, a discharge-before-charge will be
executed as the first step of the new charge cycle. Otherwise, pre-charge qualification testing will be the first
step.
The battery must be within the configured temperature
and voltage limits before fast charging begins.
3
bq2005
Fg2005-1.eps
N
T
C
bq2005
V
CC
PACK +
PACK -
TS
A,B
SNS
A,B
RT1
RT2
RB2
RB1
bq2005
Negative Temperature
Coefficient Thermister
PACK+
PACK-
BAT
A,B
SNS
A,B
Figure 1. Voltage and Temperature Monitoring
The valid battery voltage range is V
EDV<VBAT<VMCV.
The valid temperature range is V
HTF<VTEMP<VLTF
,
where:
V
LTF
= 0.4 ∗ VCC± 30mV
V
HTF
= [(1/4 ∗ V
LTF
) + (3/4 ∗ V
TCO
)] ± 30mV
V
TCO
is the voltage presented at the TCO input pin, and is
configured by the user with a resistor divider between V
CC
and ground. The allowed range is 0.2 to 0.4 ∗ VCC.
If the temperature of the battery is out of range, or the
voltage is too low, the chip enters the charge pending
state and waits for both conditions to fall within their al
-
lowed limits. The MOD
A,B
output is modulated to pro
vide the configured trickle charge rate in the charge
pending state. There is no time limit on the charge
pending state; the charger remains in this state as long
as the voltage or temperature conditons are outside of
the allowed limits. If the voltage is too high, the chip
goes to the battery absent state and waits until a new
charge cycle is started.
Fast charge continues until termination by one or more
of the five possible termination conditions:
n
Delta temperature/delta time (∆T/∆t)
n
Negative delta voltage (-∆V)
n
Maximum voltage
n
Maximum temperature
n
Maximum time
4
bq2005
Fast Charging
Top-Off
(Optional)
T200501.eps
Dis-
charge
(Optional
Battery A)
Charge
Pending*
(Pulse-Trickle)
DIS
A
MOD
A,B
MOD
A,B
Discharge-Before-Charge started
or
Battery discharged to 0.475 * V
CC.
Battery outside
temperature/voltage limits.
Battery within temperature/voltage limits.
Pulse-Trickle
Switch-mode
Configuration
External
Regulation
CH
A,B
Status Output
FCC
A,B
Status Output
4s
4s
34s
34s
260 s
Note*
260 s
Note*
*See Table 3 for pulse-trickle period.
Figure 2. Charge Cycle Phases
-∆V Termination
If the DVEN input is high, the bq2005 samples the voltage at the BAT pin once every 34s. If V
CELL
is lower
than any previously measured value by 12mV ±4mV,
fast charge is terminated. The -∆V test is valid in the
range V
MCV
- (0.2 ∗ VCC)<V
CELL<VMCV
.
Voltage Sampling
Each sample is an average of 16 voltage measurements
taken 57µs apart. The resulting sample period
(18.18ms) filters out harmonics around 55Hz. This technique minimizes the effect of any AC line ripple that
may feed through the power supply from either 50Hz or
60Hz AC sources. Tolerance on all timing is ±16%.
Voltage Termination Hold-off
A hold-off period occurs at the start of fast charging.
During the hold-off period, -∆V termination is disabled.
This avoids premature termination on the voltage spikes
sometimes produced by older batteries when fast-charge
current is first applied. ∆T/∆t, maximum voltage and
maximum temperature terminations are not affected by
the hold-off period.
∆T/∆t Termination
The bq2005 samples at the voltage at the TS pin every
34s, and compares it to the value measured two samples
earlier. If V
TEMP
has fallen 16mV ±4mV or more, fast
charge is terminated. The ∆T/∆t termination test is
valid only when V
TCO<VTEMP<VLTF
.
Temperature Sampling
Each sample is an average of 16 voltage measurements
taken 57µs apart. The resulting sample period
(18.18ms) filters out harmonics around 55Hz. This technique minimizes the effect of any AC line ripple that
may feed through the power supply from either 50Hz or
60Hz AC sources. Tolerance on all timing is ±16%.
Maximum Voltage, Temperature, and Time
Anytime V
CELL
rises above V
MCV,
CHG goes high (the LED
goes off) immediately. If the bq2005 is not in the voltage
hold-off period, fast charging also ceases immediately. If
V
CELL
then falls back below V
MCV
before t
MCV
=1s
(maximum), the chip transitions to the Charge Complete
state (maximum voltage termination). If V
CELL
remains
above V
MCV
at the expiration of t
MCV,
the bq2005 transi
tions to the Battery Absent state (battery removal). See
Figure 4.
Maximum temperature termination occurs anytime the
voltage on the TS pin falls below the temperature cut-off
threshold V
TCO.
Charge will also be terminated if V
TEMP
rises above the minimum temperature fault threshold,
V
LTF,
after fast charge begins.
Maximum charge time is configured using the TM pin.
Time settings are available for corresponding charge
rates of C/4, C/2, 1C, and 2C. Maximum time-out termi
nation is enforced on the fast-charge phase, then reset,
and enforced again on the top-off phase, if selected.
There is no time limit on the trickle-charge phase.
Top-off Charge
An optional top-off charge phase may be selected to
follow fast charge termination for the C/2 through 4C
rates. This phase may be necessary on NiMH or other
5
Corresponding
Fast-Charge Rate TM1 TM2
Typical Fast-Charge
and Top-Off
Time Limits
Typical -∆V/MCV
Hold-Off
Time (seconds)
Top-Off
Rate
C/4 Low Low 360 137 Disabled
C/2 Float Low 180 820 Disabled
1C High Low 90 410 Disabled
2C Low Float 45 200 Disabled
4C Float Float 23 100 Disabled
C/2 High Float 180 820 C/16
1C Low High 90 410 C/8
2C Float High 45 200 C/4
4C High High 23 100 C/2
Note: Typical conditions = 25°C, VCC= 5.0V.
Table 1. Fast Charge Safety Time/Hold-Off/Top-Off Table
bq2005
battery chemistries that have a tendency to terminate
charge prior to reaching full capacity. With top-off en
abled, charging continues at a reduced rate after
fast-charge termination for a period of time selected
by the TM
1
and TM2input pins. (See Table 2.) During
top-off, the CC pin is modulated at a duty cycle of 4s
active for every 30s inactive. This modulation results
in an average rate 1/8th that of the fast charge rate.
Maximum voltage, time, and temperature are the only
termination methods enabled during top-off.
Pulse-Trickle Charge
Pulse-trickle charging follows the fast charge and op
tional top-off charge phases to compensate for selfdischarge of the battery while it is idle in the charger.
The configured pulse-trickle rate is also applied in the
charge pending state to raise the voltage of an overdischarged battery up to the minimum required before
fast charge can begin.
In the pulse-trickle mode, MOD is active for 260µsofa
period specified by the settings of TM1 and TM2. See Ta
ble 1. The resulting trickle-charge rate is C/64 when
top-off is enabled and C/32 when top-off is disabled. Both
pulse trickle and top-off may be disabled by tying TM1
and TM2 to V
SS
.
Charge Status Indication
Charge status is indicated by the CHG output. The
state of the CHG output in the various charge cycle
phases is shown in Figure 4 and illustrated in Figure 2.
Temperature status is indicated by the TEMP output.
TEMP is in the high state whenever V
TEMP
is within the
temperature window defined by the V
LTF
and V
HTF
tem
perature limits, and is low when the battery tempera
ture is outside these limits.
In all cases, if V
CELL
exceeds the voltage at the MCV
pin, both CHG and TEMP outputs are held high regard
less of other conditions. CHG and TEMP may both be used
to directly drive an LED.
Pack Sequencing
If both batteries A and B are present when a new charge
cycle is started, the charge cycle starts on battery B and
B remains the active channel until fast charge termina
tion. Then battery A will be fast charged, followed by a
top-off phase on B (if selected), a top-off phase on A (if
selected), and then maintenance charging on both. If
only battery A is present, the charge cycle begins on A
and continues until fast charge termination even if a
battery is inserted in channel B in the meantime. A
new battery insertion in channel B while A is in the
top-off phase terminates top-off on A and begins a new
charge cycle on B. If A is configured for or commanded
to discharge-before-charge, the discharge may take
place while channel B is the active charging channel.
When the discharge is complete, if B is still the active
channel battery A enters the Charge Pending state until
A becomes the active channel.
Charge Current Control
The bq2005 controls charge current through the MOD
A,B
out
-
put pin. The current control circuitry is designed to sup
-
port implementation of a constant-current switching regu
-
lator or to gate an externally regulated current source.
When used in switch mode configuration, the nominal
regulated current is:
I
REG
= 0.225V/R
SNS
Charge current is monitored at the SNS
A,B
input by the
voltage drop across a sense resistor, R
SNS
, between the
low side of the battery pack and ground. R
SNS
is sized to
provide the desired fast charge current.
If the voltage at the SNS
A,B
pin is less than V
SNSLO
, the
MOD
A,B
output is switched high to pass charge current to
the battery.
When the SNS
A,B
voltage is greater than V
SNSHI
, the
MOD
A,B
output is switched low—shutting off charging
current to the battery.
V
SNSLO
= 0.04 ∗ VCC± 25mV
V
SNSHI
= 0.05 ∗ VCC± 25mV
When used to gate an externally regulated current
source, the SNS
A,B
pin is connected to VSS, and no sense
resisitor is required.
6
bq2005
7
bq2005
OSC
TIM
ING
CO
NTROL
DISPLAY
CONTROL
LTF
CHECK
TCO
CHECK
DISCHARGE
CO
NTRO
L
M
O
D
CONTROL
EDV
CHECK
M
CV
CHECK
CHARG
E CONTROL STATE
M
ACHINE
A/D
-
-
DVEN
DCM
D
A
TM1
TM2
DIS
A
M
OD
A
TS
A
BAT
A
SNS
A
TCO
V
CC
V
SS
V
TS
- V
SNS
V
BAT
- V
SNS
MO
D
B
FCC
A
CH
A
FCC
B
CH
B
LTF
CHECK
TCO
CHECK
EDV
CHECK
M
CV
CHECK
-
-
TS
B
BAT
B
SNS
B
A/D
BD2005
Figure 3. Block Diagram
8
Battery
Temperature?
V
HTF
<
V
TEMP
< V
LTF
Trickle
CHG = 1/8s
flash
FCC = high
Fast
CHG = low
FCC = high
Charge
Pending
Battery Voltage?
V
EDV
< V
CELL
< V
MCV
and
V
HTF
< V
TEMP
< V
LTF
V
EDV
< V
CELL
< V
MCV
Top-off
CHG = high
FCC = low
V
TEMP
> V
LTF
or
V
TEMP
< V
HTF
V
TEMP
< V
TCO
or Maximum
Time Out
V
CELL
> V
MCV
V
CELL
< V
ED
V
- V or T/ t or
V
TEMP
< V
TCO
or
Maximum Time Out
Battery
Absent
Discharge
CH
A
= 1/8s
flash
FCC
A
= high
Top-off
selected?
Yes
No
Charge
Complete
Trickle
CHG = high
FCC = high
V
CELL
> V
MCV
V
CELL
<
V
MC
V
t >
t
MC
V
V
CELL
> V
MCV
V
CELL
>
V
MCV
V
CELL
>
V
MCV
V
CELL
<
V
EDV
V
CELL
>
V
MCV
Trickle
CHG = high
FCC = low
New Charge Cycle
Started by either one of:
rising to valid level
Battery replacement
(V
CELL
falling through V
MCV
)
DCMDA tied to
ground?
(channel A only)
No or
Yes
Rising edge
on DCMD
A
channel B
Trickle
CHG = high
FCC = high
V
CC
SD2005
Figure 4. State Diagram
bq2005
9
Absolute Maximum Ratings
Symbol Parameter Minimum Maximum Unit Notes
V
CC
VCCrelative to V
SS
-0.3 +7.0 V
V
T
DC voltage applied on any pin ex
-
cluding V
CC
relative to V
SS
-0.3 +7.0 V
T
OPR
Operating ambient temperature -20 +70 °C Commercial
T
STG
Storage temperature -55 +125 °C
T
SOLDER
Soldering temperature - +260 °C 10 sec max.
T
BIAS
Temperature under bias -40 +85 °C
Note: Permanent device damage may occur if Absolute Maximum Ratings are exceeded. Functional opera
-
tion should be limited to the Recommended DC Operating Conditions detailed in this data sheet. Expo
-
sure to conditions beyond the operational limits for extended periods of time may affect device reliability.
DC Thresholds (T
A=TOPR;VCC
±
10%)
Symbol Parameter Rating Tolerance Unit Notes
V
SNSHI
High threshold at SNS
A,B
resulting in MOD
A,B
= Low
0.05*V
CC
±
0.025
V
V
SNSLO
Low threshold at SNS
A,B
re
-
sulting in MOD
A,B
= High
0.04*V
CC
±
0.010
V
V
LTF
Low-temperature fault
0.4*V
CC
±
0.030
V
V
TEMP
≥
V
LTF
inhibits/
terminates charge
V
HTF
High-temperature fault
(1/4*V
LTF
) + (3/4*V
TCO
)
±
0.030
V
V
TEMP
≤
V
HTF
inhibits
charge
V
EDV
End-of-discharge voltage
0.475*V
CC
±
0.030
V
V
CELL<VEDV
inhibits
fast charge
V
MCV
Maximum cell voltage
0.95*V
CC
±
0.030
V
V
CELL>VMCV
inhibits/
terminates charge
V
THERM
TS input change for ∆T/∆t
detection
16
±4
mV
-∆V
BAT input change for -∆V
detection
12
±4
mV
bq2005
10
Recommended DC Operating Conditions (T
A
= 0 to +70°C)
Symbol Parameter Minimum Typical Maximum Unit Notes
V
CC
Supply voltage 4.5 5.0 5.5 V
V
CELL
BAT voltage potential 0 - V
CC
VV
BAT
- V
SNS
V
BAT
Battery input 0 - V
CC
V
V
TEMP
TS voltage potential 0 - V
CC
VVTS- V
SNS
V
TS
Thermistor input 0 - V
CC
V
V
TCO
Temperature cutoff 0.2*V
CC
- 0.4*V
CC
V
V
IH
Logic input high 2.0 - - V DCMDA, DVEN
Logic input high V
CC
- 0.3 - - V TM1,TM
2
V
IL
Logic input low - - 0.8 V DCMDA, DVEN
Logic input low - - 0.3 V TM
1
,TM
2
V
OH
Logic output high VCC- 0.5 - - V DISA, MOD
A,B,IOH
≤
-5mA
V
OL
Logic output low - - 0.5 V
DIS
A
, FCC
A,B
,CH
A,B
, MOD
A,B
,
I
OL
≤
5mA
I
CC
Supply current - 1.0 3.0 mA Outputs unloaded
I
OH
DISA, MOD
A,B
source -5.0 - - mA @VOH= VCC- 0.5V
I
OL
DISA, FCC
A,B
, MOD
A,B
,
CH
A,B
sink
5.0 - - mA
@V
OL
= VSS+ 0.5V
I
L
Input leakage
--±1
µ
A DVEN, V = V
SS
to V
CC
- - -400
µ
A DCMDA, V = V
SS
I
IL
Logic input low source - - 70.0
µ
A
TM
1
,TM2,
V = V
SS
to VSS+ 0.3V
I
IH
Logic input high source -70.0 - -
µ
A
TM
1
,TM2,
V = V
CC
- 0.3V to V
CC
I
IZ
TM1,TM2tri-state open
detection
-2.0 - 2.0
µ
A
TM
1
,TM2should be left dis
connected (floating) for Z logic
input state.
I
BAT
Input current to BAT
A,B
when battery is removed
- - -20
µ
A
V
CC
= 5.0V; TA= 25°C; input
should be limited to this cur
-
rent when input exceeds V
CC
.
Note: All voltages relative to VSS, except as noted.
bq2005
11
Timing (T
A
= 0 to +70°C; V
CC
±
10%)
Symbol Parameter Minimum Typical Maximum Unit Notes
t
PW
Pulse width for DCMDA,
pulse command
1- -
µ
s
Pulse start for discharge-beforecharge
d
FCV
Time base variation -16 - 16 % VCC= 4.5V to 5.5V
t
REG
MOD output regulation
frequency
- - 300 kHz
t
MCV
Maximum voltage
termination time limit
--1s
Time limit to distinguish battery
removed from charge complete
Note: Typical is at TA= 25°C, VCC= 5.0V.
Impedance
Symbol Parameter Minimum Typical Maximum Unit
R
BATA,B
Battery A/B input impedance 50 - - M
Ω
R
TSA,B
TS
A,B
input impedance 50 - - M
Ω
R
TCO
TCO input impedance 50 - - M
Ω
R
SNSA,B
SNS
A,B
input impedance 50 - - M
Ω
bq2005
12
bq2005
PN: 20-Pin DIP
E1
E
e
L
A
A1
B1
B
GS
C
D
20-Pin PN
(DIP)
Dimension Minimum Maximum
A 0.160 0.180
A1 0.015 0.040
B 0.015 0.022
B1 0.055 0.065
C 0.008 0.013
D 1.010 1.060
E 0.300 0.325
E1 0.230 0.280
e 0.300 0.370
G 0.090 0.110
L 0.115 0.135
S 0.055 0.080
All dimensions are in inches.
13
bq2005
S: 20-Pin SOIC
e
D
B
E
H
A1
A
C
L
.004
20-Pin S(SOIC
)
Dimension Minimum Maximum
A 0.095 0.105
A1 0.004 0.012
B 0.013 0.020
C 0.008 0.013
D 0.500 0.515
E 0.290 0.305
e 0.045 0.055
H 0.395 0.415
L 0.020 0.040
All dimensions are in inches.
14
bq2005
Data Sheet Revision History
Change No. Page No. Description Nature of Change
39V
SNSLO
rating Was V
SNSHI
- (0.01 * VCC);
is 0.04 * V
CC
4 5 Corrected sample period Was: 32s;
Is: 34s
45,9
Corrected -∆V threshold
Was: 13mV
Is: 12mV
4 All Revised and expanded format of this
data sheet
Clarification
59T
OPR
Deleted industrial temperature range.
Notes: Change 3 = Sept. 1996 D changes from Nov. 1993 C.
Change 4 = Nov. 1997 E changes from Sept. 1996 D.
Change 5 = June 1999 F changes from Nov. 1997 E.
15
bq2005
Ordering Information
bq2005
Package Option:
PN = 20-pin narrow plastic DIP
S = 20-pin SOIC
Device:
bq2005 Dual-Battery Fast-Charge IC
16
IMPORTANT NOTICE
Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any
product or service without notice, and advise customers to obtain the latest version of relevant information to verify,
before placing orders, that information being relied on is current and complete. All products are sold subject to the
terms and conditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty,
patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in accor
dance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent TI deems
necessary to support this warranty. Specific testing of all parameters of each device is not necessarily performed, ex
cept those mandated by government requirements.
CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH,
PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). TI
SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR
USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF TI
PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating safeguards
must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent that
any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellec
tual property right of TI covering or relating to any combination, machine, or process in which such semiconductor
products or services might be or are used. TI’s publication of information regarding any third party’s products or ser
vices does not constitute TI’s approval, warranty or endorsement thereof.
Copyright © 1999, Texas Instruments Incorporated
Loading...
