Testo Testo 870-1 Quickstart
Selecting the colour palette
testo 870-2: function only available if the Image type infrared has been
selected.
1 - Move the Joystick (4) up/down to toggle between the colour
palettes.
Selecting the image type (infrared image, real image) (only testo 870-2)
1 - Select the Image type function. For how to do this, see Navi-
gating the menu.
The image type switches automatically from infrared image to real
image and vice versa.
2.3
- Move the Joystick (4) left/right until (upper limit value) is selected.
- Move the Joystick (4) up/down to set the value and then press OK
(4).
Manual scaling is activated. is shown at the bottom right of the
display.
Assigning the quick select button
- The quick select button (5) is a additional navigation option,
which you can use to call up functions a the touch of a button.
1 - Move the Joystick (4) right to select the Assign button function.

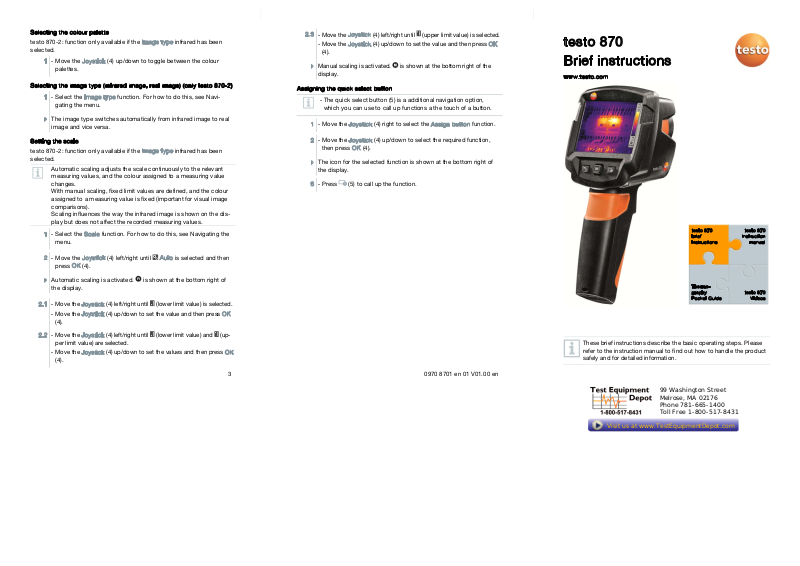

testo 870
B
rief instructions
www.testo.com
Setting the scale
testo 870-2: function only available if the Image type infrared has been
selected.
Automatic scaling adjusts the scale continuously to the relevant
measuring values, and the colour assigned to a measuring value
changes.
With manual scaling, fixed limit values are defined, and the colour
assigned to a measuring value is fixed (important for visual image
comparisons).
Scaling influences the way the infrared image is shown on the display but does not affect the recorded measuring values.
1 - Select the Scale function. For how to do this, see Navigating the
menu.
2 - Move the Joystick (4) left/right until Auto is selected and then
press OK (4).
Automatic scaling is activated. is shown at the bottom right of
the display.
2.1
- Move the Joystick (4) left/right until (lower limit value) is selected.
- Move the Joystick (4) up/down to set the value and then press OK
(4).
2.2
- Move the Joystick (4) left/right until (lower limit value) and (up-
per limit value) are selected.
- Move the J
(4).
oystick (4) up/down to set the values and then press OK
2 - Move the Joystick (4) up/down to select the required function,
then press OK (4).
The icon for the selected function is shown at the bottom right of
the display.
3
- Press (5) to call up the function.
t
testo 870
brief
nstructions
i
Thermography
ocket Guide
P
These brief instructions describe the basic operating steps. Please
refer to the instruction manual to find out how to handle the product
safely and for detailed information.
esto 870
instruction
anual
m
t
esto 870
Videos
3 0970 8701 en 01 V01.00 en
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Element Function
1 Display Shows infrared and real images, menus and
functions
2 Interface terminal Includes micro USB interface for power supply
and connection to a computer
3
- button
- Esc button
4 - OK button
- Joystick
5 Quick select button Opens the function assigned to the quick se-
6 Infrared camera lens;
protective cap
7 Digital camera (only
testo 870-2)
8 Trigger Saves the displayed image
9 Battery compartment Contains the battery
- Switch camera on and off
- Cancel action
- Open menu, select function, confirm setting
- Navigate in menu, select function, select
colour palette
lect button; the icon for the selected function
is shown at the bottom right of the display
Takes infrared images; protects the lens
Takes real images
Test Equipment Depot - 800.517.8431
99 Washington Street, Melrose, MA 02176
TestEquipmentDepot.com
Switching the camera on/off
1 - Remove the protective cap from the lens (6).
2
- Switching on: press (3).
- Switching off: press and hold down (3).
To ensure mea
zeroing approx. every 60 s. You will hear a "click", and the images
freezes briefly.
Navigating the menu
1 - Press OK (4) to open the menu.
2 - Move the Joystick (4) up/down to select a function (an orange
box appears around it).
3 - Press OK (4) to select the function.
3.1 - Move the Joystick (4) right to open the sub-menu (indicated with ►).
Saving an image
1 - Press the Trigger (8).
The infrared image is saved automatically.
Only testo 870-2: irrespective of the selected image type, an infrared image is always saved with the attached real image.
If a high
select the function SuperResolution (optional function).
@ More information can be found in the instruction manual.
Displaying and deleting images
1 - Select the Image gallery function. For how to do this, see Navi-
gating the menu.
2 - Displaying an image: move the Joystick (4) left/right/up/down to
select the image, then press OK (4).
3
- Press (5) to delete the image.
suring accuracy, the camera performs automatic
er resolution is required: In the menu under Configuration,
Setting the emission level
testo 870-2: function only available if the Image type infrared has been
selected.
The emission level describes the capability of a body to emit thermal radiation. For correct measurement results, the emission level
can be set according to the specific material.
1 - Select the Emission level function. For how to do this, see Famil-
iarising yourself with the menu.
2 - Move the Joystick (4) up/down to select the required material,
then press OK (4).
RTC (Reflected Temper
for thermal radiation through other objects. If objects with a much
higher/lower temperature are in the proximity of the object to be
measured, the irradiated temperature value must be entered. If this
is not the case, the ambient temperature can be entered.
@ More information can be found in the instruction manual and the
Pocket Guide.
Setting measurements
testo 870-2: function only available if the Image type infrared has been
selected.
1 - Open
2 - Move the Joystick (4) up/down to select the required function,
the Meas
gating the menu.
The sub-menu with the measurements opens:
• Single point measurement: the temperature measuring point
in the centre of the image is highlighted with white crosshairs
and the value is displayed. In the case of saved images, the
crosshairs can be moved using the joystick to read off the value
for other measuring points.
• Coldspot, Hotspot: the lowest or highest temperature measur-
ing point is highlighted with blue or red crosshairs and the value
is displayed.
• Measurement range: the temperature range in which measuring values are displayed (for information purposes).
then press OK (4).
ature Compensation) is a correction value
urement sub-menu. For how to do this, see Navi-
