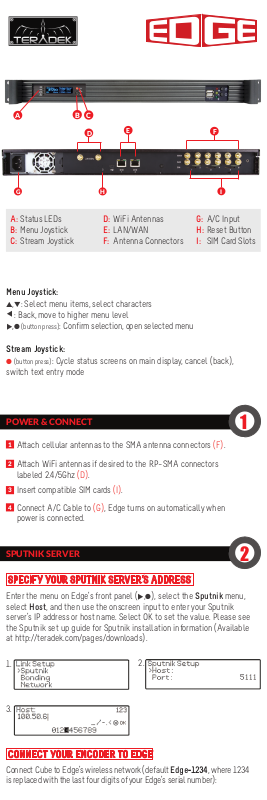

A: Status LEDs
B: Menu Joystick
C: Stream Joystick
H I
D: WiFi Antennas
E: LAN/WAN
F: Antenna Connectors
G: A/C Input
H: Reset Button
I: SIM Card Slots
Menu Joystick:
▲,▼: Select menu items, select characters
▲
: Back, move to higher menu level
,● (button press): Confirm selection, open selected menu
▲
Stream Joystick:
● (button press): Cycle status screens on main display, cancel (back),
switch text entry mode
POWER & CONNECT
1
Attach cellular antennas to the SMA antenna connectors (F).
2
Attach WiFi antennas if desired to the RP−SMA connectors
labeled 2.4/5Ghz (D).
3
Insert compatible SIM cards (I).
4
Connect A/C Cable to (G), Edge turns on automatically when
power is connected.
1
SPUTNIK SERVER
2
SPECIFY YOUR SPUTNIK SERVER’S ADDRESS
Enter the menu on Edge’s front panel ( ,●), select the Sputnik menu,
select Host, and then use the onscreen input to enter your Sputnik
server’s IP address or host name. Select OK to set the value. Please see
the Sputnik set up guide for Sputnik installation information (Available
at http://teradek.com/pages/downloads).
1.
3.
▲
2.
CONNECT YOUR ENCODER TO EDGE
Connect Cube to Edge’s wireless network (default Edge-1234, where 1234
is replaced with the last four digits of your Edge’s serial number):
1. Enter the main menu by pressing
▲
or ● (using the menu joystick).
4. From the Infrastructure menu,
choose Scan.
Select Network Setup with ▼ and
enter the menu with ▲.
5. Select Edge’s network.
2. Select Configure.
6. Choose Yes to Apply the new
3. Select Infrastructure.
Network settings.
7. Set your Cube’s Bonding mode to Edge, found in the menus under
A/V Setup > Bonding > Mode
.
CONNECT VIA ETHERNET
1. Connect Ethernet interface 1 (E) to a switch or router.
2. Edge uses DHCP by default to get an IP address. If desired, this can be
changed using the front panel. The setting is located under
Network Setup → Setup → LAN
3. Make note of Edge’s IP address located under
Network Setup → Status → LAN
4. Connect to your encoder’s web interface. See the associated guide
for more information.
5. Navigate to
Video Setup → Bonding
6. Select Manual for the connection mode and enter the IP address from
step 3 in Link/Edge Address. The Port is 5110 by default.
7. Click Apply.
.
.
. Select Link/Edge as the Bonding Mode.
CONFIGURE YOUR STREAM
TRANSPORT STREAM (LICENSE REQUIRED
)
3
Used for streaming across the Internet to a decoder.
Configure the following settings on your encoder and decoder.
The settings are available via both the web UI and Cube’s front panel.
encoder
Primary Stream
Mode: MPEG Transport Stream
Transport Stream Server: Enabled
Listening Port: 5000
edge
sputnik
Decoder Settings
Mode: MPEG Transport Stream
Protocol: TCP Pull
Host: Your Sputnik Server Address
Port: 5000
decoder
RTMP STREAMING
Used for streaming to an Internet streaming platform, CDN, or stream
server.
Settings are found on Cube’s web UI under
1. Select RTMP as the
Stream Mode
2. Enter the server URL. Depending on your destination (local server or
CDN), this will look something like rtmp://server.address:1935/live.
3. Enter the stream name. For many platforms
this is found with the server URL.
4. Click Apply.
5. Start/stop the stream by clicking the buttons on the Stream Settings
page or by pressing the Stream joystick on Cube.
6. See the reference guide for additional information.
Video Setup > Stream Settings
.
.
NEED MORE HELP?
1. Support forum: http://forum.teradek.com → Contains tips, information and all the latest
firmware & software updates.
2. Training videos: http://www.teradek.com/training TERADEK SUPPORT STAFF:
support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 9am to 6pm PST)
