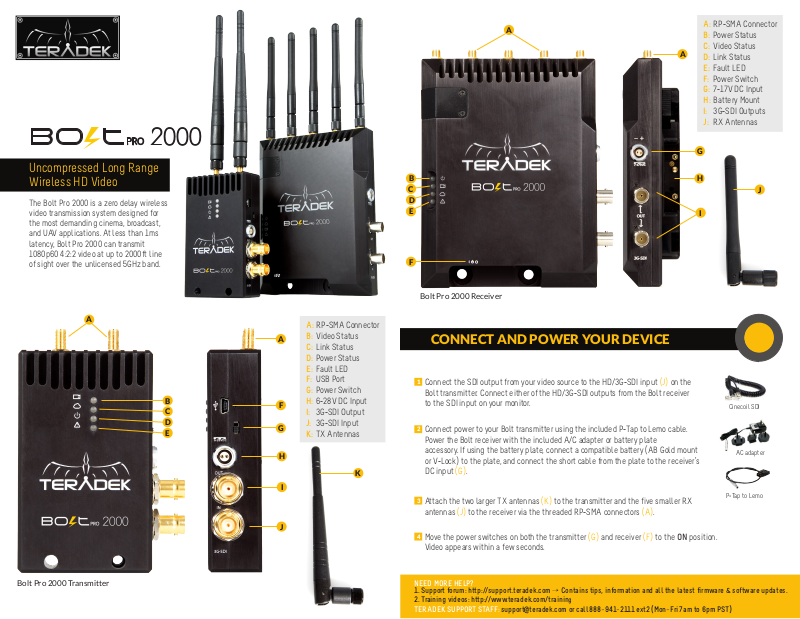

Page 1
A
A: RP-SMA Connector
B: Power Status
C: Video Status
A
D: Link Status
E: Fault LED
F: Power Switch
G: 7-17V DC Input
H: Battery Mount
I: 3G-SDI Outputs
J: RX Antennas
G
Uncompressed Long-Range
Wireless HD Video
The Bolt Pro 2000 is a zero delay wireless
video transmission system designed for
the most demanding cinema, broadcast,
and UAV applications. At less than 1ms
latency, Bolt Pro 2000 can transmit
1080p60 4:2:2 video at up to 2000ft line
of sight over the unlicensed 5GHz band.
A
HB
C
D
E
F
Bolt Pro 2000 Receiver
I
J
A: RP-SMA Connector
B: Video Status
A
C: Link Status
CONNECT AND POWER YOUR DEVICE
D: Power Status
E: Fault LED
F: USB Port
G: Power Switch
B
C
D
E
F
G
H
I
H: 6-28V DC Input
I: 3G-SDI Output
J: 3G-SDI Input
K: TX Antennas
K
1
Connect the SDI output from your video source to the HD/3G-SDI input (J) on the
Bolt transmitter. Connect either of the HD/3G-SDI outputs from the Bolt receiver
to the SDI input on your monitor.
2
Connect power to your Bolt transmitter using the included P-Tap to Lemo cable.
Power the Bolt receiver with the included A/C adapter or battery plate
accessory. If using the battery plate, connect a compatible battery (AB Gold mount
or V-Lock) to the plate, and connect the short cable from the plate to the receiver’s
DC input (G).
3
Attach the two larger TX antennas (K) to the transmitter and the five smaller RX
Cinecoil SDI
AC adapter
P-Tap to Lemo
antennas (J) to the receiver via the threaded RP-SMA connectors (A).
J
4
Move the power switches on both the transmitter (G) and receiver (F) to the ON position.
Video appears within a few seconds.
Bolt Pro 2000 Transmitter
NEED MORE HELP?
1. Support forum: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
2. Training videos: http://www.teradek.com/training
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 7am to 6pm PST)
Page 2
BEST PRACTICES
BOLT LEMO CONNECTOR / PIN−OUT
Bolt uses a 0B 302 series LEMO connector (FGG.0B.302.CLADxx).
Pin Description
1* GND
2 +DC
* Pin 1 is closest to the red dot on the LEMO connector
CUSTOM / 3RD PARTY CABLES
• Test the power cable polarity with ONLY the power cable connected to Bolt. Do not connect video cables.
• Check the power cable for shorts and proper grounding.
CAUTION:
Using a reverse polarity or improperly−constructed power cable can damage the product
and is not covered under warranty.
MOUNTING
• Mount the Bolt Pro 2000 transmitter vertically, keeping the antennas clear of any obstructions.
• Orient the transmitter and receiver antennas so they are parallel to each.
• For best results, orient the receiver antennas so each one has clear line−of−sight to the receiver.
Bolt Transmitter mounted
vertically on a camera
Bolt Receiver mounted
vertically on a monitor
DEVICE OPERATION
Best Practices
• Keep the transmitter and receiver at close range for 60 seconds after powering on the devices. This allows
them to scan for and select the best wireless channel.
• If the receiver loses signal due to interference or it exceeds the maximum range, do not power down either
device. If the devices remain powered they will reconnect more quickly.
• If either device loses power, regardless of whether or not the link was established, both must be power
cycled before the link can be restored.
• For best results when using multiple Bolt systems in the same area, place the transmitters and receivers
a few feet apart from each other.
• Operation of other wireless equipment may interfere with the BP2K; for best results, separate other
wireless transmitters and receivers as much as possible.
