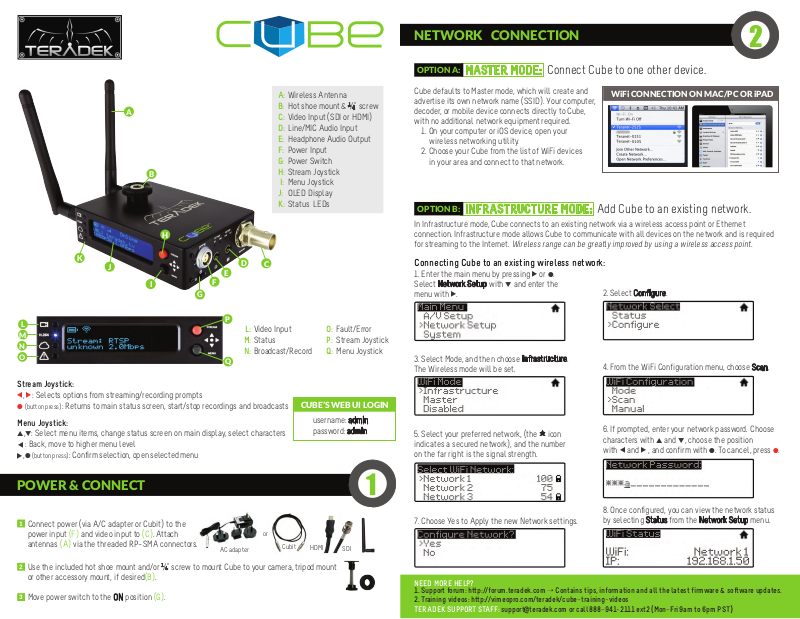

Teradek Cube 605 Quick Start Guide
NETWORK CONNECTION
2
A: Wireless Antenna
A
B: Hot shoe mount & 1/4" screw
C: Video Input (SDI or HDMI)
D: Line/MIC Audio Input
E: Headphone Audio Output
F: Power Input
G: Power Switch
B
H: Stream Joystick
I: Menu Joystick
J: OLED Display
K: Status LEDs
H
K
J
I
G
L
M
N
O
D
E
F
P
C
L: Video Input
M: Status
N: Broadcast/Record
Q
Stream Joystick:
, : Selects options from streaming/recording prompts
▲
▲
● (button press): Returns to main status screen, start/stop recordings and broadcasts
Menu Joystick:
▲,▼: Select menu items, change status screen on main display, select characters
: Back, move to higher menu level
▲
,● (button press): Confirm selection, open selected menu
▲
O: Fault/Error
P: Stream Joystick
Q: Menu Joystick
CUBE’S WEB UI LOGIN
username: admin
password: admin
OPTION A:
Cube defaults to Master mode, which will create and
advertise its own network name (SSID). Your computer,
MASTER MODE: Connect Cube to one other device.
WiFi CONNECTION ON MAC/PC OR iPAD
decoder, or mobile device connects directly to Cube,
with no additional network equipment required.
1. On your computer or iOS device, open your
wireless networking utility.
2. Choose your Cube from the list of WiFi devices
in your area and connect to that network.
OPTION B:
INFRASTRUCTURE MODE: Add Cube to an existing network.
In Infrastructure mode, Cube connects to an existing network via a wireless access point or Ethernet
connection. Infrastructure mode allows Cube to communicate with all devices on the network and is required
for streaming to the Internet.
Wireless range can be greatly improved by using a wireless access point.
Connecting Cube to an existing wireless network:
1. Enter the main menu by pressing ▲ or ●.
Select
Network Setup with ▼ and enter the
menu with
3. Select Mode, and then choose
▲
.
Infrastructure.
The Wireless mode will be set.
5. Select your preferred network, (the
indicates a secured network), and the number
icon
*
on the far right is the signal strength.
2. Select
4. From the WiFi Configuration menu, choose
6. If prompted, enter your network password. Choose
characters with
with
Configure.
Scan.
▲ and ▼, choose the position
▲
and ▲ , and confirm with ●. To cancel, press ●.
POWER & CONNECT
1
Connect power (via A/C adapter or Cubit) to the
power input (F) and video input to (C). Attach
antennas (A) via the threaded RP−SMA connectors.
2
Use the included hot shoe mount and/or
or other accessory mount, if desired(B).
3
Move power switch to the
ON position (G).
1
/4" screw to mount Cube to your camera, tripod mount
AC adapter
1
8. Once configured, you can view the network status
7. Choose Yes to Apply the new Network settings.
or
Cubit
HDMI
SDI
NEED MORE HELP?
1. Support forum: http://forum.teradek.com → Contains tips, information and all the latest firmware & software updates.
2. Training videos: http://vimeopro.com/teradek/cube−training−videos
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 9am to 6pm PST)
by selecting
Status from the Network Setup menu.
STREAM
(CUBE’S WEB UI LOGIN: username: admin password: admin)
3
OPTION A:
Configure your Cube for Internet streaming on Cube’s Stream Settings page
1. Launch Cube’s configuration page by clicking
2. If the wizard appears, click Skip the Setup Wizard, then log in to Cube’s web UI
(user:
admin
STREAM FROM CUBE TO THE INTERNET
Configure in TeraCentral.
, password:
admin
). Navigate to Video Setup → Stream Settings.
RTMP streaming:
1. Select
2. Enter the server URL. Depending on your destination
(local server or CDN), this will look something like
rtmp://server.address:1935/live. The URL varies based on your
streaming provider. Check with them or Teradek Support to get
the proper address. Often the server URL is found with FMLE
instructions or in a downloadable XML file.
3. Enter the stream name. Again this varies by platform,
but should be found with the server URL.
4. Select
If enabled, Cube will attempt to start a broadcast
whenever it powers up.
5. Click
on the Stream Settings page or by pressing the Stream joystick on Cube.
RTMP
as the Stream Mode.
enabled
or
disabled
for auto−start broadcast.
Apply. Start/stop the stream by clicking Start Broadcast
OPTION B:
1. Download TeraCentral from the iTunes App Store.
3. Open the TeraCentral app. You will see your
Cube’s stream listing.
LOCAL MONITORING WITH iOS DEVICES AND TERACENTRAL
2. Open the Wifi Settings and connect to Cube’s
network (see section 2 for more information).
4. Tap the Play button to open your video stream.
6. See the reference guide for additional information.
Livestream
Stream Mode, select
1. Under
Streaming).
2. Enter your Livestream username, password, and
channel short name. Click
Cube can contact Livestream and that your login
information is valid. NOTE: the channel short name
is case sensitive.
3. Click
Apply. Start/stop the stream by clicking Start
Broadcast on the Stream Settings page or by pressing
the Stream joystick on Cube.
Livestream (Live Internet
Verify Login to check that
OPTION C:
DECODER SETUP: Output live video to a monitor or switcher.
Selecting which stream to view:
1. Enter the menu with ●. Select Decoder Setup.
3. Choose the stream you want to view and confirm the setting when prompted.
Changing output format:
1. Enter the menu, select Output Setup.
2. Select
2. Adjust your output resolution and audio settings
in the appropriate menu.
Automatic.
