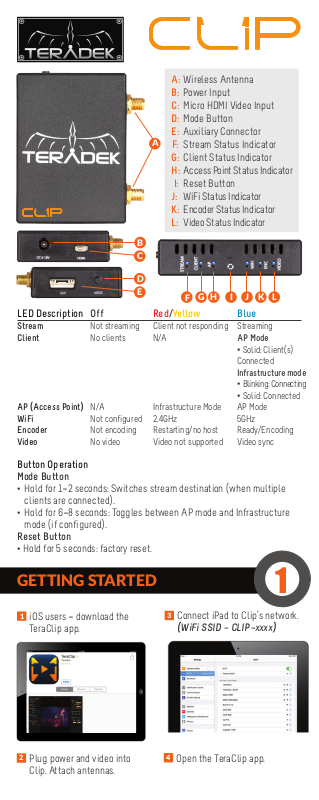

Teradek Clip User Manual
A: Wireless Antenna
B: Power Input
C: Micro HDMI Video Input
D: Mode Button
E: Auxiliary Connector
A
F: Stream Status Indicator
G: Client Status Indicator
H: Access Point Status Indicator
I: Reset Button
J: WiFi Status Indicator
K: Encoder Status Indicator
L: Video Status Indicator
B
C
D
E
G H I J K L
F
LED Description Off Red/Yellow Blue
Stream Not streaming Client not responding Streaming
Client No clients N/A AP Mode
• Solid: Client(s)
Connected
Infrastructure mode
• Blinking: Connecting
• Solid: Connected
AP (Access Point) N/A Infrastructure Mode AP Mode
WiFi Not configured 2.4GHz 5GHz
Encoder Not encoding Restarting/no host Ready/Encoding
Video No video Video not supported Video sync
Button Operation
Mode Button
• Hold for 1−2 seconds: Switches stream destination (when multiple
clients are connected).
• Hold for 6−8 seconds: Toggles between AP mode and Infrastructure
mode (if configured).
Reset Button
• Hold for 5 seconds: factory reset.
GETTING STARTED
1
iOS users − download the
TeraClip app.
2
Plug power and video into
3
Connect iPad to Clip’s network.
(WiFi SSID − CLIP−xxxx)
4
Open the TeraClip app.
1
Clip. Attach antennas.
IPAD APP
2
F
G H
A
B
C
D
E
A: Device Information
B: Video Input Status
C: Encoder Information
D: WiFi Network Information
E: Player Status
F: Browse Devices
A: Displays Clip’s device name, serial number and IP address.
B: Displays input video resolution.
C: Displays current video quality and delay.
D: Displays the SSID of connected WiFi network.
E: Displays video stream bitrate and the load on the player.
F: Browse for Clip devices.
G: Viewer Control Panel settings.
H: Launch Clip’s full configuration menu.
I: Manually change the video quality and buffer for lower delay or
smoother video.
J: Switch Feed: Requests Clip to send the video stream to your iPad.
Orientation: Flips the video 180°.
Snapshot: Saves a snapshot of the video in the device’s album.
K: Touch "start" to count from zero, or touch "set" to set the countdown
timer. Use this to keep track of flight times, shot length, battery life, etc.
G: Controls
H: Settings
I: Encoder Settings
J: Player Controls
K: Stop Watch/Timer
I
J
K
NEED MORE HELP?
1. Support forum: http://support.teradek.com → Contains tips, information
and all the latest firmware & software updates.
2. Training videos: http://www.teradek.com/training
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2
(Mon−Fri 9am to 6pm PST)
