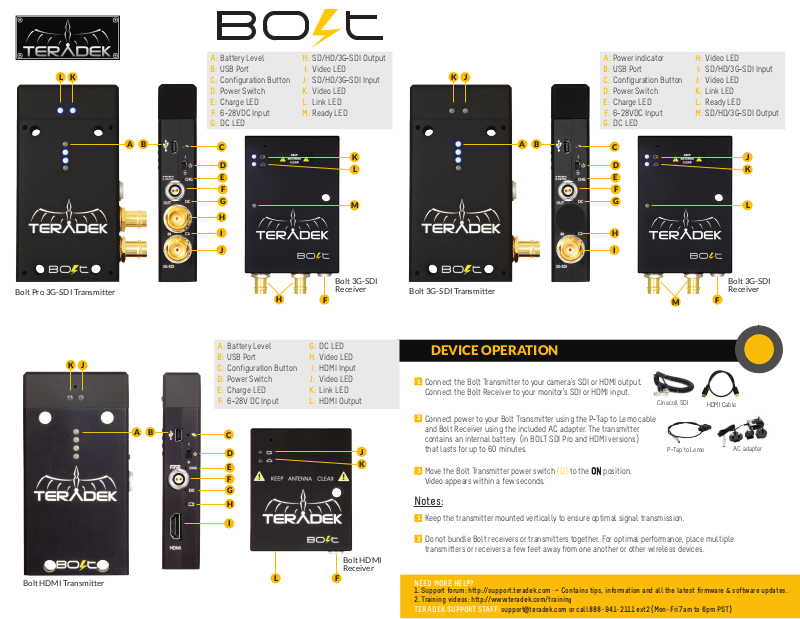

A: Battery Level
L
K
B: USB Port
C: Configuration Button
D: Power Switch
E: Charge LED
F: 6-28VDC Input
G: DC LED
H: SD/HD/3G-SDI Output
I: Video LED
J: SD/HD/3G-SDI Input
K: Video LED
L: Link LED
M: Ready LED
A: Power indicator
K
J
B: USB Port
C: Configuration Button
D: Power Switch
E: Charge LED
F: 6-28VDC Input
H: Video LED
I: SD/HD/3G-SDI Input
J: Video LED
K: Link LED
L: Ready LED
M: SD/HD/3G-SDI Output
G: DC LED
Bolt Pro 3G-SDI Transmitter
K
J
Bolt HDMI Transmitter
B
A
B
A
C
D
E
F
G
H
I
J
H
A: Battery Level
B: USB Port
C: Configuration Button
D: Power Switch
E: Charge LED
F: 6-28V DC Input
C
D
E
F
G
H
I
K
L
M
Bolt 3G-SDI
Receiver
F
G: DC LED
H: Video LED
I: HDMI Input
J: Video LED
K: Link LED
L: HDMI Output
Bolt 3G-SDI Transmitter
DEVICE OPERATION
1
Connect the Bolt Transmitter to your camera’s SDI or HDMI output.
Connect the Bolt Receiver to your monitor’s SDI or HDMI input.
2
Connect power to your Bolt Transmitter using the P-Tap to Lemo cable
and Bolt Receiver using the included AC adapter. The transmitter
contains an internal battery (in BOLT SDI Pro and HDMI versions)
J
K
that lasts for up to 60 minutes.
3
Move the Bolt Transmitter power switch (D) to the ON position.
Video appears within a few seconds.
Notes:
1
Keep the transmitter mounted vertically to ensure optimal signal transmission.
2
Do not bundle Bolt receivers or transmitters together. For optimal performance, place multiple
B
A
C
D
E
F
G
H
I
M
Cinecoil SDI
P-Tap to Lemo
HDMI Cable
J
K
L
Bolt 3G-SDI
Receiver
F
AC adapter
transmitters or receivers a few feet away from one another or other wireless devices.
Bolt HDMI
Receiver
L
F
NEED MORE HELP?
1. Support forum: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
2. Training videos: http://www.teradek.com/training
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 7am to 6pm PST)
BEST PRACTICES
BOLT LEMO CONNECTOR / PIN−OUT
Bolt uses a 0B 302 series LEMO connector (FGG.0B.302.CLADxx).
Pin Description
1* GND
2 +DC
* Pin 1 is closest to the red dot on the LEMO connector
CUSTOM / 3RD PARTY CABLES
• Check the power cable for shorts / proper grounding.
• DO NOT connect video when testing custom cables. Improper cable polarity and/or construction
may cause damage to Bolt if video is connected.
CAUTION:
Damage to the product caused by custom cables is not covered under warranty.
MOUNTING
• Mount the Bolt Transmitter vertically.
• Mount the Bolt Receiver vertically with the face oriented towards the Transmitter.
• Keep the antennas on the Bolt Transmitter and Receiver clear of obstructions.
• Velcro is not recommended for mounting either Transmitter or Receiver.
Bolt Transmitter mounted vertically on a camera
OPERATION
• For best results, allow 60 seconds after powering up the Transmitter and Receiver for them to select
the best frequency.
• For better signal quality over longer distances, maintain line−of−sight between the Transmitter
and Receiver.
Bolt Receiver mounted vertically on a monitor
ALWAYS MOUNT BOLT TRANSMITTER VERTICALLYALWAYS MOUNT BOLT TRANSMITTER VERTICALLY
