OPERATOR'S MANUAL

Model C712

Soft Serve Freezer

Original Operating Instructions

062179-M

2/03/05 (Original Publication)

Updated 8/27/14

Complete this page for quick reference when service is required:

Taylor Distributor: Address: Phone: Fax: E-mail: Service: Parts: Date of Installation:

Information found on the data label:

Model Number: Serial Number: Electrical Specs: Voltage Cycle

Phase Maximum Fuse Size: A Minimum Wire Ampacity: A

E 2005 Carrier Commercial Refrigeration, Inc.

062179-M Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties. All rights reserved.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc. 750 N. Blackhawk Blvd. Rockton, IL 61072

Table of Contents

Section 1 To th e Installer 1............................................

Installer Safety 1........................................................

Site Preparation 1.......................................................

Air Cooled Units 1.......................................................

Water Connections (Water Cooled Units Only) 2............................

Electrical Connections 2.................................................

Beater Rotation 3.......................................................

Refrigerant 3...........................................................

Section 2 To the Operator 4...........................................

Section 3 Safety 5....................................................

Section 4 Operator Parts Id entification 7...............................

Model C712 7..........................................................

Model C712 Door and Beater Assembly 9..................................

X57029-XX Pump A. - Mix Simplified 10....................................

Accessories 11..........................................................

Brushes 12..............................................................

Section 5 Important: To the Operator 13.................................

Symbol Definitions 14....................................................

Operating Screen Descriptions 15..........................................

Manager's Menu 16......................................................

Section 6 Operating Procedures 21.....................................

Freezing Cylinder Assembly 21............................................

Mix Pump Assembly 26...................................................

Sanitizing 28............................................................

Priming 30..............................................................

Manual Brush Cleaning 30................................................

Draining Product From T he Freezing Cylinder 30............................

Rinsing 31..............................................................

Hopper Cleaning 31......................................................

Table of Contents Model C712

Table of Contents - Page 2

Disassembly 32..........................................................

Brush Cleaning 33.......................................................

Section 7 Important: Operator Checklist 34..............................

During Cleaning and Sanitizing 34.........................................

Troubleshooting Bacterial Count 34........................................

Regular Maintenance Checks 34...........................................

Winter Storage 35........................................................

Section 8 Troubleshooting Guide 36....................................

Section 9 Parts Replacement Schedule 39...............................

Section 10 Limited Warranty on Equipment 40............................

Section 11 Limited Warranty on Parts 42.................................

Wiring Diagrams 45......................................................

Note: Continuing research results in stead y improvements; therefore, information in this manual is subject to change without notice.

Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be the original set of in structions.

E 2005 Carrier Commercial Refrigeration, Inc. (Original Publication)

Updated August, 2014 062179-M

Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties. All rights reserved.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc. 750 N. Blackhawk Blvd. Rockton, IL 61072

Table of Contents Model C712

Section 1 To the Installer

The following information has been included in the manual as safety and regulatory guidelines. For complete installation instructions, please see the Installation Checklist.

Installer Safety

In all areas of the world, equipment should be installed in accordance with existing local codes. Please contact your local authorities if you have any questions.

Care should be taken to ensure that all basic safety practices are followed during the installation and servicing activities related to the installation and service of Taylor equipment.

S Only authorized Taylor service personnel

should perform installation and repairs on the equipment.

S Authorized service personnel should consult

OSHA Standard 29CFRI910.147 or the applicable code of the local area for the industry standards on lockout/tagout procedures before beginning any installation or repairs.

S Authorized service personnel must ensure

that the proper PPE is available and worn when required during installation and service.

S Authorized service personnel must remove

all metal jewelry, rings, and watches before working on electrical equipment.

The main power supply(s) to the freezer must be disconnected prior to performing any repairs. Failure to follow this instruction may result in personal injury or death from electrical shock or hazardous moving parts as well as poor performance or damage to the equipment.

Note:Allrepairsmustbeperformedbyan authorized Taylor Service Technician.

cause severe injuries.

Site Preparation

Review the area the unit is to be installed in before uncrating the unit making sure that all possible hazards the user or equipment may come into have been addressed.

Air Cooled Units

The Model C712 air cooled unit requires a minimum of 3” (76 mm) of clearance on all sides. Install the deflector provided to prevent recirculation of warm air. This will allow for adequate air flow across the condenser. Failure to allow adequate clearance can reduce the refrigeration capacity of the freezer and possibly cause permanent damage to the compressor.

For Indoor Use Only: This unit is designed to operate indoors, under normal ambient temperatures of 70_-75_F(21_-24_C). The freezer has successfully performed in high ambient temperatures of 104_(40_C) at reduced capacities.

where a water jet or hose can be used. NEVER use a water jet or hose to rinse or clean the unit. Failure to follow this instruction may result in electrocution.

to avoid the hazard of tipping. Extreme care should be taken in moving this equipment for any reason. Two or more persons are required to safely move this unit. Failure to comply may result in personal injury or equipment damage.

Uncrate the unit and inspect it for damage. Report any damage to your Taylor Distributor.

This piece of equipment is made in the USA and has USA sizes of hardware. All metric conversions are approximate and vary in size.

This unit has many sharp edges that can

This unit must NOT beinstalledinanarea

This unit must be installed on a level surface

131121

Model C712 To the Installer

Water Connections

(Water Cooled Units Only)

An adequate cold water supply must be provided with a hand shut-off valve. On the underside of the base pan or on the right side, two 3/8” I.P.S. water connections for inlet and outlet are provided for easy hook-up. 1/2” inside diameter water lines should be connected to the machine. (Flexible lines are recommended, if local codes permit.) Depending on local water conditions, it may be advisable to install a water strainer to prevent foreign substances from clogging the automatic water valve. There will be only one water “in” and one water “out” connection. DO NOT install a hand shut-off valve on the water “out” line! Water should always flow in this order: first, through the automatic water valve; second, through the condenser; and third, through the outlet fitting to an opentrapdrain.

A back flow prevention device is required on the incoming water connection side.

Please refer to the applicable National, State, and local codes for determining the proper configuration.

Electrical Connections

CAUTION: THIS EQUIPMENT MUST BE PROPERLY GROUNDED! FAILURE TO DO SO CAN RESULT IN SEVERE PERSONAL INJURY FROM ELECTRICAL SHOCK!

DO NOT operate this freezer with larger fuses than specified on the unit data label. Failure to follow this instruction may result in electrocution or damage to the machine.

This unit is provided with an equipotential grounding lug that is to be properly attached to the rear of the frame by the authorized installer. The installation location is marked by the equipotential bonding symbol (5021 of IEC 60417-1) on both the removable panel and the equipments frame.

Stationary appliances which are not equipped with a power cord and a plug or another device to disconnect the appliance from the power source must have an all-pole disconnecting device with a contact gap of at least 3 mm installed in the external installation.

In the United States, this equipment is intended to be installed in accordance with the National Electrical Code (NEC), ANSI/NFPA 70-1987. The purpose of the NEC code is the practical safeguarding of persons and property from hazards arising from the use of electricity. This code contains provisions considered necessary for safety. In all other areas of the world, equipment should be installed in accordance with the existing local codes. Please contact your local authorities.

FOLLOW YOUR LOCAL ELECTRICAL CODES!

Each unit requires one power supply for each data label on the unit. Check the data label on the freezer for branch circuit overcurrent protection or fuse, circuit ampacity, and other electrical specifications. Refer to the wiring diagram provided inside the electrical box, for proper power connections.

130304

Appliances that are permanently connected to fixed wiring and for which leakage currents may exceed 10 mA, particularly when disconnected or not used for long periods, or during initial installation, shall have protective devices such as a GFI, to protect against the leakage of current, installed by the authorized personnel to the local codes.

Supply cords used with this unit shall be oil-resistant, sheathed flexible cable not lighter than ordinary polychloroprene or other equivalent synthetic elastomer-sheathed cord (Code designation 60245 IEC 57) installed with the proper cord anchorage to relieve conductors from strain, including twisting, at the terminals and protect the insulation of the conductors from abrasion.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person, in order to avoid a hazard.

Model C712To the Installer

Beater Rotation

Beater rotation must be clockwise as viewed

looking into the freezing cylinder. Note: The following procedures should be performed

by a trained service technician. To correct the rotation on a three-phase unit,

interchange any two incoming power supply lines at freezer main terminal block only.

To correct rotation on a single-phase unit, change the leads inside the beater motor. (Follow the diagram printed on the motor.)

Electrical connections are made directly to the terminal block provided in the splice box.

Use only R404A refrigerant that conforms to the AHRI standard 700 specification. The use of any other refrigerant may expose users and operators to unexpected safety hazards.

Refrigerant liquid sprayed onto the skin may cause serious damage to tissue. Keep eyes and skin protected. If refrigerant burns should occur, flush immediately with cold water. If burns are severe, apply ice packs and contact a physician immediately.

Refrigerant

In consideration of our environment, Taylor proudly uses only earth friendly HFC refrigerants. The HFC refrigerant used in this unit is R404A. This refrigerant is generally considered non-toxic and non-flammable, with an Ozone Depleting Potential (ODP) of zero (0). However, any gas under pressure is potentially hazardous and must be handled with caution.

NEVER fill any refrigerant cylinder completely with liquid. Filling the cylinder to approximately 80% will allow for normal expansion.

Taylor reminds technicians to be cautious of government laws regarding refrigerant recovery, recycling, and reclaiming systems. If you have any questions regarding these laws, please contact the factory Service Department.

WARNING: R404A refrigerant used in conjunction with polyolester oils is extremely moisture absorbent. When opening a refrigeration system, the maximum time the system is open must not exceed 15 minutes. Cap all open tubing to prevent humid air or water from being absorbed by the oil.

130923

Model C712 To the Installer

Section 2 To the Operator

Your freezer has been carefully engineered and manufactured to give you dependable operation.

This unit, when properly operated and cared for, will produce a consistent quality product. Like all mechanical products, it will require cleaning and maintenance. A minimum amount of care and attention is necessary if the operating procedures outlined in this manual are followed closely.

This Operator's Manual should be read before operating or performing any maintenance on your equipment.

Your Taylor freezer will NOT eventually compensate for and correct any errors during the set-up or filling operations. Thus, the initial assembly and priming procedures are of extreme importance. It is strongly recommended that personnel responsible for the equipment's operation, both assembly and disassembly, go through these procedures together in order to be properly trained and to make sure that no confusion exists.

In the event you should require technical assistance, please contact your local authorized Taylor Distributor.

Note: Your Taylor warranty is valid only if the parts are authorized Taylor parts, purchased from the local authorized Taylor Distributor, and only if all required service work is provided by an authorized Taylor service technician. Taylor reserves the right to deny warranty claims on units or parts if non-Taylor approved parts or incorrect refrigerant were installed in the unit, system modifications were performed beyond factory recommendations, or it is determined that the failure was caused by abuse, misuse, neglect, or failure to follow all operating instructions. For full details of your Taylor Warranty, please see the Limited Warranty section in this manual.

Note: Constant research results in steady improvements; therefore, information in this manual is subject to change without notice.

If the crossed out wheeled bin symbol is affixed to this product, it signifies that this product is compliant with the EU Directive as well as other

similar legislation in effect after August 13, 2005. Therefore, it must be collected separately after its use is completed, and cannot be disposed as unsorted municipal waste.

The user is responsible for returning the product to the appropriate collection facility, as specified by your local code.

For additional information regarding applicable local laws, please contact the municipal facility and/or local distributor.

Compressor Warranty Disclaimer

The refrigeration compressor(s) on this unit are warranted for the term stated in the Limited Warranty section in this manual. However, due to the Montreal Protocol and the U.S. Clean Air Act Amendments of 1990, many new refrigerants are being tested and developed, thus seeking their way into the service industry. Some of these new refrigerants are being advertised as drop-in replacements for numerous applications. It should be noted that in the event of ordinary service to this unit's refrigeration system, only the refrigerant

specified on the affixed data label should be used. The unauthorized use of alternate refrigerants

will void your Taylor compressor warranty. It is the unit owner's responsibility to make this fact known to any technician he employs.

It should also be noted that Taylor does not warrant the refrigerant used in its equipment. For example, if the refrigerant is lost during the course of ordinary service to this machine, Taylor has no obligation to either supply or provide its replacement either at billable or unbillable terms. Taylor does have the obligation to recommend a suitable replacement if the original refrigerant is banned, obsoleted, or no longer available during the five year warranty of the compressor.

Taylor will continue to monitor the industry and test new alternates as they are being developed. Should a new alternate prove, through our testing, that it would be accepted as a drop-in replacement, then the above disclaimer would become null and void. To find out the current status of an alternate refrigerant as it relates to your compressor warranty, call the local Taylor Distributor or the Taylor Factory. Be prepared to provide the Model/Serial Number of the unit in question.

131121

Model C712To the Operator

Section 3 Safety

We at Taylor are concerned about the safety of the operator when he or she comes in contact with the freezer and its parts. Taylor has gone to extreme efforts to design and manufacture built-in safety features to protect both you and the service technician. As an example, warning labels have been attached to the freezer to further point out safety precautions to the operator.

To Operate Safely:

IMPORTANT - Failure to adhere to the following safety precautions may result in severe personal injury or death. Failure to comply with these warnings may damage the machine and its components. Component damage will result in part replacement expense and service repair expense.

DO NOT operate the freezer without

reading this Operator Manual. Failure to follow this instruction may result in equipment damage, poor freezer performance, health hazards, or personal injury.

This appliance is to be used only by trained personnel. It is not intended for use by children or people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

S DO NOT operate the freezer unless it is

properly grounded.

S DO NOT operate the freezer with larger

fuses than specified on the freezer data label.

S All repairs must be performed by an

authorized Taylor service technician. The main power supplies to the machine must be disconnected prior to performing any repairs.

S For Cord Connected Units: Only Taylor

authorized service technicians or licensed electricians may install a plug or replacement cord on this unit.

S Stationary appliances which are not

equipped with a power cord and a plug or another device to disconnect the appliance from the power source must have an all-pole disconnecting device with a contact gap of at least 3 mm installed in the external installation.

S Appliances that are permanently connected

to fixed wiring and for which leakage currents may exceed 10 mA, particularly when disconnected or not used for long periods, or during initial installation, shall have protective devices such as a GFI, to protect against the leakage of current, installed by the authorized personnel to the local codes.

S Supply cords used with this unit shall be

oil-resistant, sheathed flexible cable not lighter than ordinary polychloroprene or other equivalent synthetic elastomersheathed cord (Code designation 60245 IEC

57) installed with the proper cord anchorage to relieve conductors from strain, including twisting, at the terminals and protect the insulation of the conductors from abrasion.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person, in order to avoid a hazard.

Failure to follow these instructions may result in electrocution. Contact your local authorized Taylor Distributor for service.

130304

Model C712 Safety

DO NOT use a water jet to clean or rinse

the freezer. Failure to follow these instructions may result in serious electrical shock.

This freezer must be placed on a level surface. Failure to comply may result in personal injury or equipment damage.

S DO NOT allow untrained personnel to

operate this machine.

S DO NOT operate the freezer unless all

service panels and access doors are restrained with screws.

S DO NOT remove any internal operating

parts (examples: freezer door, beater, scraper blades, etc.) unless all control switches are in the OFF position.

Failure to follow these instructions may result in severe personal injury to fingers or hands from hazardous moving parts.

This unit has many sharp edges that can

cause severe injuries.

S DO NOT put objects or fingers in the door

spout. This may contaminate the product and cause severe personal injury from blade contact.

S USE EXTREME CAUTION when removing

the beater asssembly. The scraper blades are very sharp.

S CAUTION-SHARP EDGES: Two people are

required to handle the cup/cone dispenser. Protective gloves must be worn and the mounting holes must NOT be used to lift or hold the dispenser. Failure to follow this instruction can result in personal injury to fingers or equipment damage.

Cleaning and sanitizing schedules are governed by your state or local regulatory agencies and must be followed accordingly. Please refer to the cleaning section of this manual for the proper procedure to clean this unit.

This machine is designed to maintain product temperature under 41°F (5°C). Any product being added to this machine must be below 41°F (5°C). Failure to follow this instruction may result in health hazards and poor freezer performance.

DO NOT obstruct air intake and discharge openings:

A minimum of 3” (76 mm) air space is required on all sides. Install the deflector provided to prevent recirculation of warm air. Failure to follow this instruction may cause poor freezer performance and damage to the machine.

For Indoor Use Only: This unit is designed to operate indoors, under normal ambient temperatures of 70_ -75_F(21_ -24_C). The freezer has successfully performed in high ambient temperatures of 104_(40_C) at reduced capacities.

DO NOT run the machine without product. Failure to follow this instruction can result in damage to the machine.

Access to the service area of the unit is restricted to persons having knowledge and practical experience with the appliance, in particular as far as safety and hygiene are concerned.

130304

NOISE LEVEL: Airborne noise emission does not exceed 78 dB(A) when measured at a distance of

1.0 meter from the surface of the machine and at a height of 1.6 meters from the floor.

Model C712Safety

Section 4 Operator Parts Identification

Model C712

Figure 1

130703

Model C712 Operator Parts Identification

C712 Exploded View Parts Identification

ITEM DESCRIPTION PART NO.

1 COVER-HOPPER *BLACK* 053809-1 2 PUMP A.-MIX SIMPLIFIED SEE PG. 10 3 PANEL-REAR 064258-SER 4 PAN-DRIP 7.875 059737 5 PANEL-SIDE*RIGHT 059907 6 PAN-DRIP 12.5 059736 7 PANEL A.-FRONT-MIDDLE X63879 8 PANEL A.-FRONT-UPPER X59836 9 STUD-NOSE CONE 055987

10 FILTER-AIR-POLY-FLO 052779-11

11 PANEL A.-FILTER-LOUVERED X59928

12 CASTER-4" SWV 3/4-10 STM 044106

ITEM DESCRIPTION PART NO.

13 SCREW-1/4-20X 3/8 RHM 011694 14 PANEL-CORNER-FRNT-R 063087 15 DEFLECTOR-BLOWER 047912 16 CASTER-4" SWV 3/4-10 STM

W/BRAKE

17 PANEL A.-FRONT LOWER X59854-SER 18 SHIELD-SPLASH-WIRE-19-3/4L 033813 19 TRAY-DRIP-19-5/8 L X 4-7/8 033812 20 PAN-DRIP 19-1/2 LONG 035034 21 PANEL-CORNER-FRNT-L 063088 22 PANEL-SIDE-LEFT 059906

046437

130703

Model C712Operator Parts Identification

Model C712 Door and Beater Assembly

Figure 2

ITEM DESCRIPTION PART NO.

1 HANDLE A.-DRAW-WELDED X56421-1 2 PLUG-PRIME TWIN 059936 3 NUT-STUD-BLACK 3.250 LONG 058765 4 NUT-STUD-BLACK 2.563 LONG 058764 5 DOOR A.-3SPT*LG BAFFLE X59921-SER 6 PIN-HANDLE-TWIN 059894 7 GASKET-DOOR HT 4"-DOUBLE 048926 8 O-RING-7/8 OD X .103 W 014402 9 VALVE A.-DRAW X59843

10 VALVE A.-DRAW CENTER X62218

11 SEAL-DRAW VALVE 034698

Model C712 Operator Parts Identification

ITEM DESCRIPTION PART NO.

12 KIT A.-BEATER-FRONT

SHOES-BRNG

13 BEATER A.-3.4QT-1 PIN X46231 14 BLADE-SCRAPER-PLASTIC 046235 15 CLIP-SCRAPER BLADE 7.00 046236 16 SHAFT-BEATER 032564 17 SEAL-DRIVE SHAFT 032560 18 O-RING-1/4 OD X .070W 50 015872 19 SCREW-ADJUSTMENT-5/16-24 056332 20 O-RING-.500 OD X .070W 024278

X50350

130703

X57029-XX Pump A. - Mix Simplified

ITEM DESCRIPTION PART NO.

1-7 PUMP ASSEMBLY - MIX

SIMPLIFIED SOFT SERVE

1 CYLINDER-PUMP-HOPPER-

SOFT SERVE 2 PIN-RETAINING X55450 3 PISTON 053526 4 O-RING 2-1/8” OD - RED 020051 5 CAP-VALVE 056874-14* 6 GASKET - SIMPLIFIED PUMP

VALVE 7 ADAPTOR - MIX INLET 054825 8 O-RING - 11/16 OD - RED 016132

X57029-14*

057943

053527

Figure 3

ITEM DESCRIPTION PART NO.

9 PIN - COTTER 044731 10 SHAFT A.-DRIVE-MIX PUMP X41947 10a CRANK-DRIVE 039235 10b SHAFT-DRIVE 041948 10c O-RING - DRIVE SHAFT 048632 10d O-RING 1-3/4 008904 11 TUBE A.-FEED-LEFT X59808 12 TUBE A.-FEED-RIGHT X59809 13

CLIP-RETAINER-MIX PUMP

14 RING-CHECK-FEED TUBE 056524 15 SLEEVE A.-MIX PUMP *HT X44761

*NOTE: THE STANDARD PUMP IS X57029-14. OVERRUN CAN BE CHANGED HIGHER OR LOWER BY SUBSTITUTING THE VALVE BODY CAP. THE HIGHER THE (-) THE HIGHER THE OVERRUN. YOUR UNIT INCLUDES 2 OPTIONAL CAPS, 056874-12 AND 056874-16.

044641

140312

Model C712Operator Parts Identification

Accessories

ITEM DESCRIPTION PART NO.

1 PAIL-10 QT. 013163 2 TOOL-O-RING REMOVAL 048260-WHT 3 TOOL-MIX PUMP SHAFT

REMOVAL

057167

Figure 4

ITEM DESCRIPTION PART NO.

4 LUBRICANT-TAYLOR 4 OZ. 047518 *5 SANITIZER-STERA SHEEN SEE NOTE ** KIT A.-TUNE-UP C712 X49463-81

*Note: A sample container of sanitizer is sent with the unit. For reorders,orderStera Sheen part no. 055492 (100 packs) or Kay-5 part no. 041082 (125 packs).

**NotShown

140804

Model C712 Operator Parts Identification

Brushes

ITEM DESCRIPTION PART NO.

1 BLACK BRISTLE BRUSH 013071 2 DOUBLE END BRUSH 013072 3 WHITE BRISTLE BRUSH

(1” x 2”)

4 BRUSH SET (3) 050103

121022

013073

Figure 5

ITEM DESCRIPTION PART NO.

5 WHITE BRISTLE BRUSH

(3” x 7”) 6 BRUSH-END-DOOR-SPOUT 039719 7 BRUSH-PUMP SPOUT 054068

023316

Model C712Operator Parts Identification

Section 5 Important: To the Operator

Figure 6

ITEM DESCRIPTION

1 POWER SWITCH 2 FLUORESCENT DISPLAY 3 KEYPADS 4 MIX OUT INDICATOR 5 STANDBY KEY 6 MIX LOW INDICATOR

Model C712 Important: To the Operator

ITEM DESCRIPTION

7 SELECT KEY 8 SERVICE MENU KEY

9 BRUSH CLEAN COUNTER 10 ARROW KEYS 11 SYRUP TOPPING HEATER KEY

130220

Symbol Definitions

=MIXPUMP

To better communicate in the International arena, symbols have replaced words on many of our operator switches, function, and fault indicators. Your Taylor equipment is designed with these International symbols.

The following chart identifies the symbol definitions.

= SELECT

=ON

=OFF

= UP ARROW

= DOWN ARROW

=AUTO

= STANDBY

Power Switch

When placed in the ON position, the power switch allows control panel operation.

Fluorescent Display

The fluorescent display is located on the front control panel. During normal operation the display is blank. The display is used to show menu options and notifies the operator if a fault is detected. On International models, the display will indicate the temperature of the mix in the hopper.

Indicator Lights

MIX LOW - When the MIX LOW symbol is

illuminated, the mix hopper has a low supply of mix and should be refilled as soon as possible.

MIX OUT - When the MIX OUT illuminated, the mix hopper has been almost completely exhausted and has an insufficient supply of mix to operate the freezer. At this time, the AUTO mode is locked out and the freezer will be placed in the STANDBY mode. To initiate the refrigeration system, add mix to the mix hopper and touch the

AUTO symbol begin operation.

. The freezer will automatically

symbol is

110204

= WASH

=MIXLOW

= MIX OUT

= MENU DISPLAY

Standby Symbol

During long “No Sale” periods, the unit can be placed into the Standby mode. This maintains product temperatures below 40°F (4.4°C) in both the hopper and the freezing cylinder, and helps prevent overbeating and product breakdown.

When STANDBY is selected, the STANDBY symbol

illuminates, indicating the Standby feature has

been activated. To resume normal operation, press the AUTO

symbol the freezing cylinder will be at serving viscosity.

. When the unit cycles off, the product in

Model C712Important: To the Operator

Reset Mechanism

The reset buttons are located in the back panel of the machine. It protects the beater motor from an overload condition. Should an overload occur, the reset mechanism will trip. To properly reset the freezer place the power switch in the OFF position. Press the reset button firmly. Turn the power switch

to the ON position. Touch the WASH symbol observe the freezer's performance.

and

WARNING: Do not use metal objects to

press the reset button. Failure to comply may

result in severe personal injury or death.

If the beater motor is turning properly, touch the WASH symbol AUTO symbol

freezer shuts down again, contact your authorized service technician.

to cancel the cycle. Touch the to resume normal operation. If the

Air/Mix Pump Reset Mechanism

This reset button protects the pump from an overload condition. Should an overload occur, the reset mechanism will trip. To reset the pump, press the reset button firmly.

WARNING: Do not use metal objects to

press the reset button. Failure to comply may

result in severe personal injury or death.

Figure 7

Operating Screen Descriptions

The fluorescent display located in the center of the control panel is normally blank during the daily operation of the machine. The display is activated when the SEL symbol or the Manager's Menu is selected. The display screen will also alert the operator of specific faults detected by the control.

Power Up

When the machine is powered the control system will initialize to perform a system check. The screen will display “INITIALIZING”. There will be four types of data the system will check: LANGUAGE, SYSTEM DATA, CONFIG DATA, and LOCKOUT DATA.

During the INITIALIZING... LANGUAGE screen, the alarm will be on. If the system detects corrupt data during INITIALIZING, the following display will alert the operator that the control settings may have been changed (See Figure 8.)

Adjustable Draw Handle

NVRAM FAULT

This unit features an adjustable draw handle to provide the best portion control, giving a better, consistent quality to your product and controlling costs. The draw handle should be adjusted to provide a flow rate of 5 to 7-1/2 oz. (142 to 213 g.) of product by weight per 10 seconds. To INCREASE the flow rate, tighten the screw. To DECREASE the flow rate, loosen the screw. (See Figure 7.)

Model C712 Important: To the Operator

See “NVRAM FAULT” for instructions if the above message appears on the screen.

RESET TO DEFAULTS

PRESS SEL KEY

Figure 8

081205

Once the system has initialized, the SAFETY TIMEOUT screen will display and the alarm will be on. (See Figure 9.)

SAFETY TIMEOUT

ANY KEY ABORTS

Figure 9

The SAFETY TIMEOUT screen will be displayed with the alarm on, for 60 seconds or until any control symbol is selected.

After the safety timeout has been completed and the power switch is OFF, the following screen is displayed. (See Figure 10.)

POWER SWITCH OFF

-=-=-=-=-=UNIT CLEANED

Brush Clean Counter

The Brush Clean Counter (item 9 on page 13) will display the number of hours since the freezer was last brush cleaned. After hour 99, it will change to a letter and a number (example: A0, A1. . B0, B1, etc.)

Manager's Menu

The Manager's Menu is used to enter the operator function displays. To access the Menu, touch the

center of the CONE symbol The arrow symbols, the SEL symbol and the CONE

symbol

will be lit when the ACCESS CODE

screen is displayed. (See Figure 12.)

on the control panel.

Figure 10

Power Switch ON

When the power switch is placed in the ON position, the control panel touch keys become operative. The fluorescent display will be either blank or indicate that the unit has been cleaned. (See Figure 11.)

UNIT CLEANED

Figure 11

Figure 12

In the Menu program, the arrow symbols and the SEL symbol will function as menu keys.

UP ARROW - increases the value above the cursor and is used to scroll upward in text displays.

DOWN ARROW - decreases the value above the cursor and is used to scroll downward in text displays.

SEL - advances the cursor position to the right and is used to select menu options.

Note: The machine will continue operation in the mode it was in when the Menu was selected. However, the control keys will not be illuminated and are non-functional when the Manager's Menu is displayed.

050722

Model C712Important: To the Operator

Entering Access Code

Menu Options

With the ACCESS CODE screen on the display use the SEL symbol to set the first code number in the cursor position. When the correct number is selected, touch the SEL symbol to move the cursor to the next number position. (See Figure 13.)

ENTER ACCESS CODE

83 0 9 __

Figure 13

Continue to enter the proper access code numbers (8309) until all four numbers are displayed, then touch the SEL symbol. The Manager's menu list will display on the screen provided the correct access code is entered.

If an incorrect number is entered for the access code, the display will exit the Menu program when the SEL symbol is selected. (See Figure 14.)

Touch the ARROW symbols to move up or down through the Menu. Select a Menu option by touching the SEL symbol. Exit the Menu program by selecting

EXIT FROM MENU or touch the CONE symbol The following menu options are listed in the

Manager's Menu.

EXIT FROM MENU

RESET DRAW COUNTER

SET CLOCK

AUTO START TIME

STANDBY MODE

MIX LEVEL AUDIBLE

F AULT DESCRIPTION

FAULT HIS TORY

SYSTEM INFORMATION

Selecting “EXIT FROM MENU” will exit the Manager's Menu and the return the control panel symbols to normal operation.

The SERVING COUNTER screen is used to check or reset the number of servings dispensed from the machine. The SERVING COUNTER will automatically reset to zero when the machine is brush cleaned. (See Figure 15.)

SERVINGS COUNTER

> Next

Figure 14

Model C712 Important: To the Operator

Figure 15

050722

Reset the SERVING COUNTER by selecting the SEL symbol to advance to the next screen. Select the UP arrow symbol to move the arrow (>) to YES and select the SEL symbol. The servings counter will reset to zero and exit back to the Manager's Menu. (See Figure 16.)

RESET DRAW COUNTER

YES

>NO

Change the time by touching the UP arrow with the cursor under the hour position. Move the cursor to the minutes by touching the SEL symbol. Once the correct minutes are entered, touch the SEL symbol to advance the cursor to the month. (See Figure 19.)

SET CLOCK 12

:01 7/15/2004

>Exit

Figure 19

Figure 16

The SET CLOCK option allows the Manager to adjust the control clock date and time. The date and time may only be changed after the freezer has been manually cleaned but before it has been placed in the AUTO or STANDBY mode. The following message will be displayed if the SET CLOCK option is selected when the machine is not in a brush clean state. (See Figure 17.)

SET CLOCK 12:01 7/15/2004

NO CHANGES ALLOWED

Press Any Key

Figure 17

To change the date or time, select the SET CLOCK option in the menu. Touch the UP arrow symbol to advance the arrow from Exit to Change, then touch the SEL symbol to select the Change option. (See Figure 18.)

Enter the correct month, day, and year. Then touch the SEL symbol to advance to the DAYLIGHT SAVING TIME screen. (See Figure 20.)

DAYLIGHT SAVING TIME

ENABLED

> Enable

Disable

Figure 20

The Daylight Saving feature when enabled, will automatically adjust the control clock for daylight saving time. To Disable the Daylight Saving Time feature, select the UP arrow to move the arrow to Disable. Then touch the SEL symbol to save the new setting.

The AUTO START TIME option allows the Manager to set the time of day at which the machine automatically enters the AUTO mode from the STANDBY mode. The machine must be in the STANDBY mode in order to AUTO start at the programmable time. The AUTO START TIME can also be Disabled and require starting the AUTO mode manually. (See Figure 21.)

SET CLOCK 12:01 7/15/2004

Change

>Exit

Figure 18

AUTO START TIME

DISABLED

Enable

> Disable

Figure 21

Model C712Important: To the Operator

Enable the AUTO START TIME by selecting the UP arrow symbol to move the arrow up to Enable. Touch the SEL symbol to advance to the next screen. (See Figure 22.)

AUTO START TIME

00:00

>Exit

Change

Figure 22

Program the AUTO START TIME by selecting the UP arrow symbol to move the arrow to Change. Touch the SEL symbol to advance to the next screen. (See Figure 23.)

AUTO START TIME

:00

Figure 23

Use the arrow symbols to program the AUTO START TIME by increasing or decreasing the hour setting above the cursor. Touch the SEL symbol to advance the cursor and program the minutes setting. Select the SEL symbol to return to the previous screen with the new time setting displayed. Select the SEL symbol to exit the screen and return to the Menu.

The STANDBY option is used to manually place either side of the machine in the Standby mode during long, no draw periods. Select the STANDBY screen from the Menu. Touch the SEL symbol to activate Standby.

Discontinue Standby operation by exiting the Manager's Menu and select the AUTO mode. (See Figure 24.)

The MIX LEVEL AUDIBLE option when enabled will alert the operator with an audible tone when there is mix low or mix out condition. The following screen is displayed upon selecting this option. (See Figure 25.)

MIX LEVEL AUDIBLE

> Enable

Disable

Figure 25

Disable the audible tone feature by selecting the UP arrow symbol to move the arrow to Disable. Select the SEL symbol to save the new setting and return to the Menu. The control panel icons for Mix Low and Mix Out will light as the mix level drops in the hopper but the audible tone will be disabled.

The FAULT DESCRIPTION display will indicate if there is a fault with the freezer. When no faults are detected the following screen will be displayed. (See Figure 26.)

FAULT DESCRIPTION NO FAULT FOUND

Figure 26

Touch the SEL symbol to display the next fault found or return to the Menu if no other faults exist. Touching the SEL symbol any time faults are displayed will clear the faults if corrected, upon returning to the Menu screen.

STANDBY MODE

> EXIT

Figure 24

Model C712 Important: To the Operator

Listed below are the variable messages which will appear, along with an explanation for the corrective action.

HPR>45F (7C) AFTER 1 HR - The mix temperature in the hopper was above 45_F(7_C) more than one hour.

NO FAULT FOUND - There was no fault found in the freezer. Nothing will appear on the screen after this variable message appears.

BEATER OVERLOAD - Place the power switch in the OFF position. Wait 5 minutes for the machine to cool. Press the beater reset button firmly. Place the power switch in the ON position and restart in AUTO.

HPCO COMPRESSOR - Place the power switch in the OFF position. Wait 5 minutes for the machine to cool. Place the power switch in the ON position and restart in AUTO.

HOPPER THERMISTOR BAD - Place the power switch in the OFF position. Call service technician.

BARREL THERMISTOR BAD - Place the power switch in the OFF position. Call service technician.

The FAULT HISTORY screen displays a history of the faults. (See Figure 27.)

FAULT HISTORY 07/27/04 12:58 < HPR THERM FAIL > EXIT

Figure 27

BRL>45F (7C) AFTER 1 HR - The mix temperature in the freezing cylinder was above 45_F(7_C) more than one hour.

HPR>59F (15C) - The mix temperature in the hopper exceeded 59_F(15_C).

BRL>59F (15C) - The mix temperature in the freezing cylinder exceeded 59_F(15_C).

Note: Refer to your local health codes regarding temperature recommendations for procedures to follow if these fault screens appear.

The SYSTEM INFORMATION is displayed on three separate screens. The first screen contains the control and software version installed in the machine. (See Figure 28.)

SOFTWARE VERSION C712 CONTROL UVC3 VERSION 1.04 > Next

Figure 28

Touch the SEL symbol to advance to the next system information screen containing the software language version. (See Figure 29.)

Use the arrow symbols to advance forward or backward to view each screen. Listed below are the variable messages that may appear.

Faults Occurring While in AUTO Mode

HPR>41F (5C) AFTER 4 HR - The mix temperature in the hopper was above 41_F(5_C) more than four hours.

BRL>41F (5C) AFTER 4 HR - The mix temperature in the freezing cylinder was above 41_F(5_C) more than four hours.

HPR>41F (5C) AFTER PF - The mix temperature in the hopper was above 41_F(5_C) more than four hours following a power failure.

BRL>41F (5C) AFTER PF - The mix temperature in the freezing cylinder was above 41_F(5_C) more than four hours following a power failure.

070322

Language V1.11 r 00 English 515

> Next

Figure 29

Touch the SEL symbol to advance to the third system information screen containing the model bill of material and machine serial number. Touching the SEL symbol again will return to the Menu list. (See Figure 30.)

B.O.M. C71233C000 S/N K0000000

> Next

Figure 30

Model C712Important: To the Operator

Section 6 Operating Procedures

The C712 machine stores mix in a hopper. It has two 3.4 quart (3.2 liter) capacity freezing cylinders with a three spout door.

We begin our instructions at the point where we enter the store in the morning and find the parts disassembled and laid out to air dry from the previous night's cleaning.

These opening procedures will show you how to assemble these parts into the freezer, sanitize them, and prime the freezer with fresh mix in preparation to serve your first portion.

If you are disassembling the machine for the first time or need information to get to this starting point in our instructions, turn to page 32, “Disassembly”, and start there.

Freezing Cylinder Assembly

Step 4

Apply an even coat of lubricant to the shaft. DO NOT lubricate the hex end. (See Figure 31.)

Figure 31

Note: To ensure the mix does not leak out of the back of the freezing cylinder, the middle section of the boot seal should be convex or extend out from the seal. If the middle section of the boot seal is concave or extending into the middle of the seal, turn the seal inside out.

Note: When lubricating parts, use an approved food grade lubricant (example: Taylor Lube).

MAKE SURE THE POWER SWITCH IS IN

THE “OFF” POSITION! Failure to follow this

instruction may result in severe personal injury from hazardous moving parts.

Step 1

Before installing the beater drive shaft, lubricate the groove on the beater drive shaft.

Step 2

Slide the beater drive shaft boot seal over the small end of the beater drive shaft and engage into the groove on the shaft.

Step 3

Heavily lubricate the inside portion of the boot seal and also lubricate the flat end of the boot seal that comes in contact with the rear shell bearing.

Step 5

Insert the beater drive shaft through the rear shell bearing in the freezing cylinder and engage the hex end firmly into the drive coupling. (See Figure 32.)

Figure 32

USE EXTREME CAUTION when handling the beater assembly. The scraper blades are very sharp and may cause injury.

Model C712 Operating Procedures

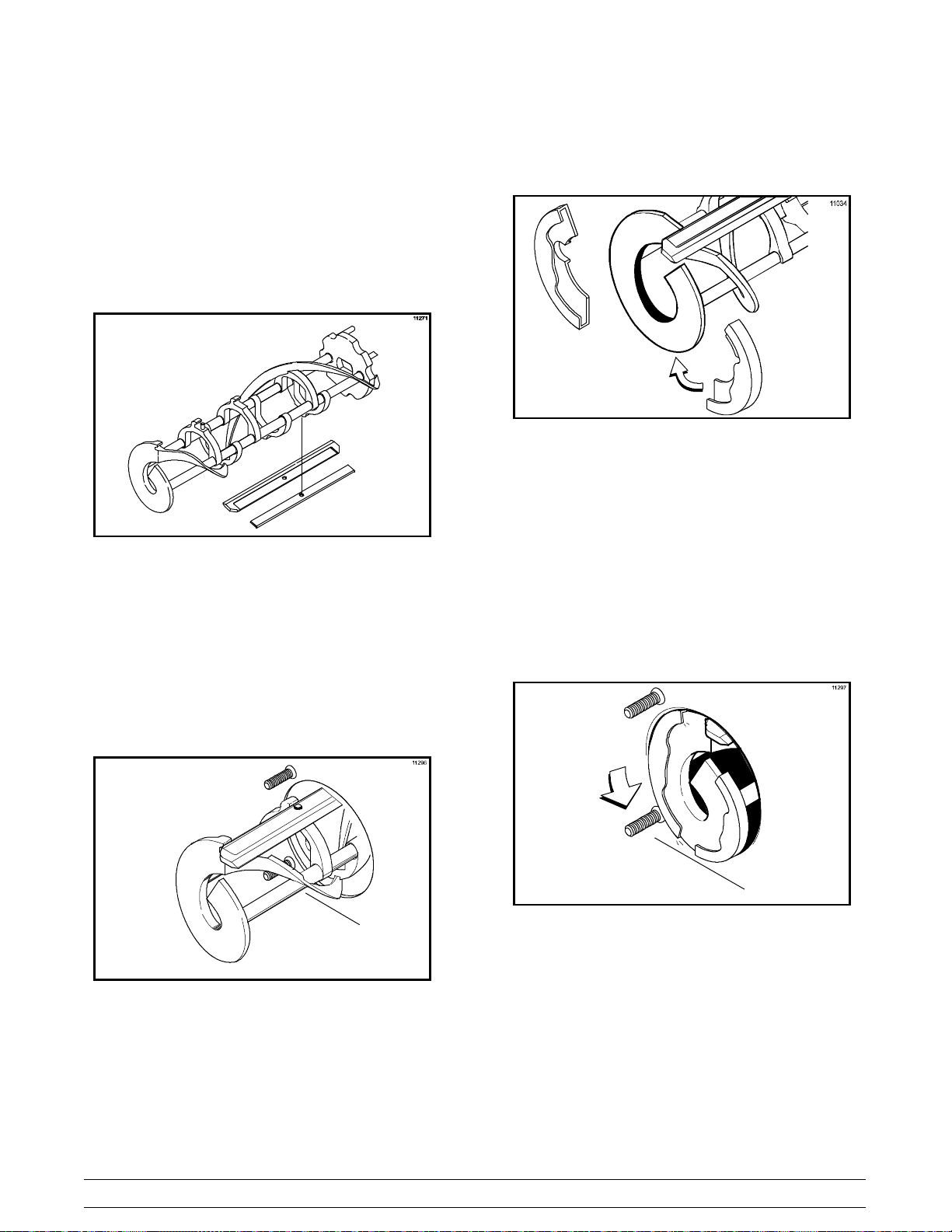

Step 6

Before installing the beater assembly, check the scraper blades for any nicks or signs of wear. If any nicks are present, or if the blades are worn, replace both blades.

If the blades are in good condition, install the scraper blade clips over the scraper blades. Place the rear scraper blade over the rear holding pin on the beater. (See Figure 33.)

Step 8

Install the beater shoes. (See Figure 35.)

Figure 35

Step 9

Slide the beater assembly the rest of the way into the freezing cylinder.

Figure 33

Note: Scraper blades should be replaced every 3 months.

Note: The hole on the scraper blade must fit securely over the pin to prevent costly damage.

Step 7

Holding the rear blade on the beater, slide it into the freezing cylinder halfway. Install the front scraper blade over the front holding pin. (See Figure 34.)

Figure 34

Make sure the beater assembly is in position over the drive shaft by turning the beater slightly until the beater is properly seated. When in position, the beater will not protrude beyond the front of the freezing cylinder. (See Figure 36.)

Figure 36

Repeat these steps for the other side of the machine.

Model C712Operating Procedures

Step 10

To assemble the freezer door, place the door gaskets into the grooves on the back of the freezer door.

Figure 37

Slide the front bearings over the baffle rods. The flanged edges should be against the door. DO NOT

lubricate the gaskets or front bearings.

Slide the two o-rings into the grooves on each prime plug. Apply an even coat of Taylor Lube to the o-rings and shafts.

Step 11

Insert the prime plugs into the holes in the top of the freezer door, and push down.

Figure 39

Step 12

To install the freezer door, insert the baffle rods through the beaters in the freezing cylinders.

Figure 40

With the door seated on the freezer studs, install the handscrews. Use the long handscrews on the top and the short handscrews on the bottom. Tighten them equally in a criss-cross pattern to insure the

Figure 38

Model C712 Operating Procedures

door is snug.

Step 13

Slide the three o-rings into the grooves of each standard draw valve. Slide the H-ring and o-ring into the grooves of the center draw valve. Lubricate the H-ring and o-rings.

Step 15

Insert the draw valves from the bottom until the slot in each draw valve comes into view.

Figure 43

Figure 41

Step 14

Lubricate the inside of the freezer door spouts, top and bottom.

Figure 42

Step 16

Position each draw handle with the adjustment screw facing down. Slide the fork of each draw handle into the slot of each draw valve, starting from the right.

Figure 44

Model C712Operating Procedures

Step 17

Slide the pivot pin through the draw handles as the handles are inserted into the draw valves.

Figure 45

Step 18

Snap the design caps over the bottom of the door spouts.

Note: This freezer features three adjustable draw handles to provide portion control, giving a better consistent quality to your product and controlling costs. The draw handle should be adjusted to provide a flow rate of 5 to 7-1/2 oz. (142 g. to 213 g.) of product by weight per 10 seconds.

To INCREASE the flow rate, tighten the screw. To DECREASE the flow rate, loosen the screw.

Figure 46

Figure 47

Step 19

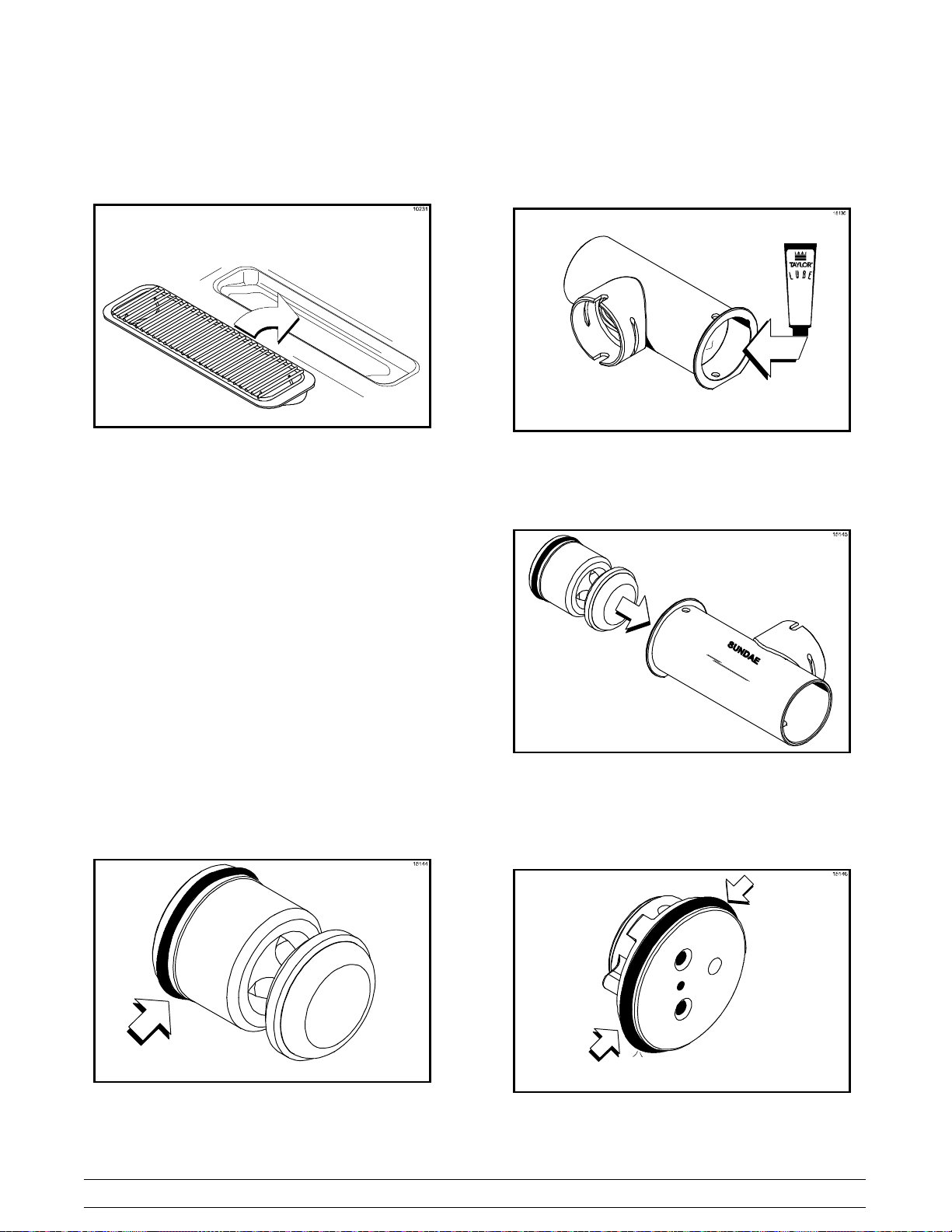

Slide the two rear drip pans into the holes in the back panel. Slide the two drip pans into the holes in the side panels. (See Figure 48.)

Figure 48

081205

Model C712 Operating Procedures

Step 20

Install the front drip tray and splash shield under the door spouts. (See Figure 49.)

Step 3

Apply a thin layer of lubricant to the inside of the pump cylinder at the retaining pin hole end. (See Figure 51.)

Figure 49

Mix Pump Assembly

Step 1

Inspect the rubber pump parts. O-rings and gasket must be in 100% good condition for the pump and entire machine to operate properly. The o-rings and gasket cannot properly serve their intended function if nicks, cuts, or holes in the material are present.

Replace any defective parts immediately and discard the old.

Step 2

Assemble the piston. Slide the red o-ring into the groove of the piston. DO NOT lubricate the o-ring. (See Figure 50.)

Figure 51

Step 4

Insert the piston into the retaining pin hole end of the pump cylinder. (See Figure 52.)

Figure 52

Step 5

Assemble the valve cap. Slide the o-ring into the groove of the valve cap. DO NOT lubricate the o-ring. (See Figure 53.)

Figure 50

Figure 53

Model C712Operating Procedures

Step 6

Slide the pump valve gasket into the holes on the cap. DO NOT lubricate the gasket. (See Figure 54.)

Figure 54

Step 7

Insert the valve body cap into the hole in the mix inlet adapter. (See Figure 55.)

The adapter must be positioned into the notch located at the end of the pump cylinder.

Step 9

Secure the pump parts in position by sliding the retaining pin through the cross holes located at one end of the pump cylinder. (See Figure 57.)

Figure 55

Step 8

Insert the mix inlet assembly into the pump cylinder. (See Figure 56.)

Figure 57

Note: The head of the retaining pin should be located at the top of the pump when installed.

Step 10

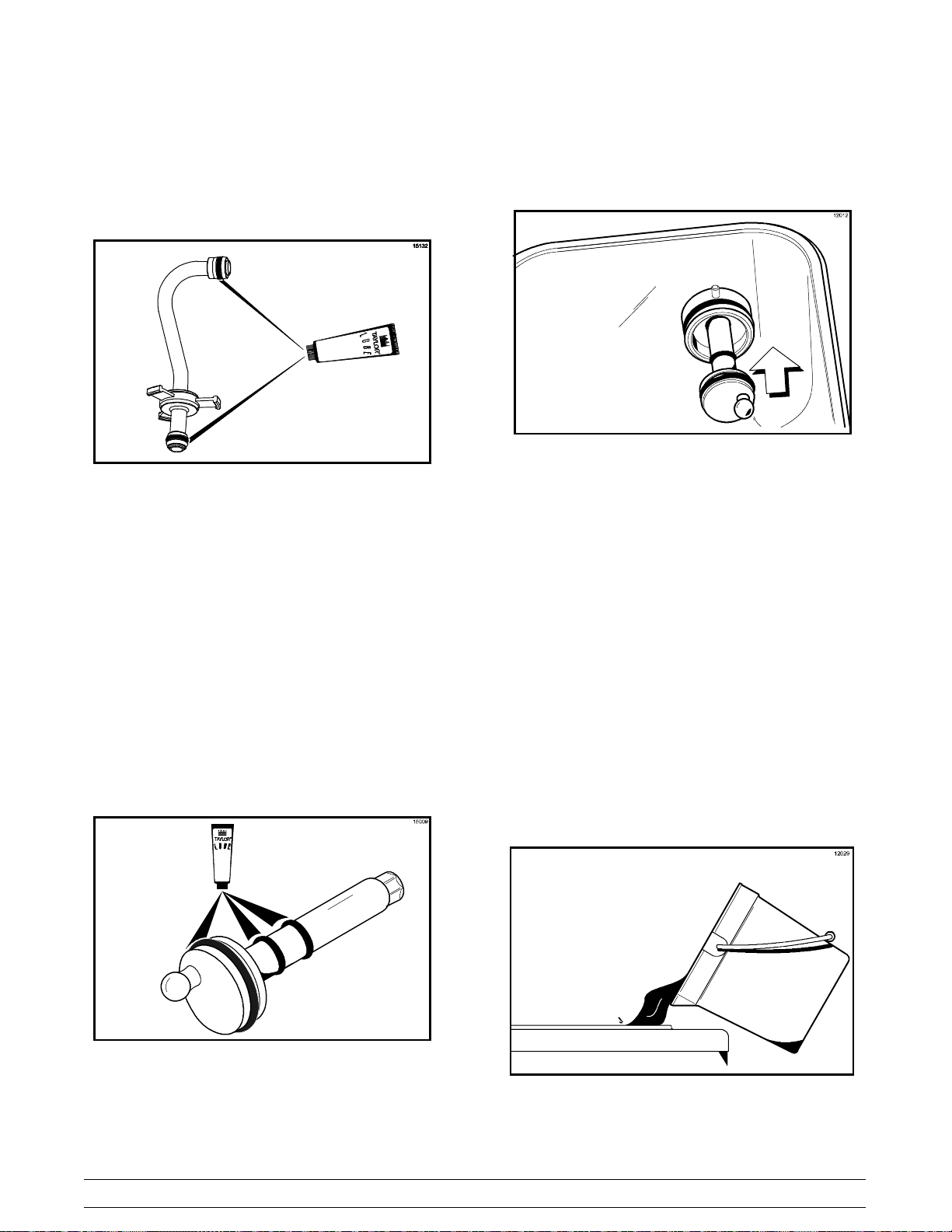

Assemble the feed tube assembly. Slide the check ring into the groove of the feed tube. (See Figure 58.)

Figure 56

Model C712 Operating Procedures

Figure 58

121022

Step 11

Install one red o-ring on each end of the mix feed tube, and thoroughly lubricate. (See Figure 59.)

Figure 59

Step 12

Lay the pump assembly, pump clip, cotter pin, and mix feed tube in the bottom of the mix hopper for sanitizing.

Step 14

Install the hex end of the drive shaft into the drive hub at the rear wall of the mix hopper. (See Figure 61.)

Figure 61

Note: For ease in installing the pump, position the ball crank of the drive shaft in the 3 o'clock position.

Repeat these steps for the other side of the machine.

Sanitizing

Step 13

Slide the large black o-ring and the two smaller black o-rings into the grooves on the drive shaft. Thoroughly lubricate the o-rings and shaft. DO NOT lubricate the hex end of the shaft. (See Figure 60.)

Figure 60

Step 1

Prepare a pail of approved 100 PPM sanitizing solution (examples: 2-1/2 gal. [9.5 liters] of Kay-5R or 2 gal. [7.6 liters] of Stera-SheenR). USE WARM WATER AND FOLLOW THE MANUFACTURER'S SPECIFICATIONS.

Step 2

Pour sanitizing solution over all the parts in the bottom of the mix hopper and allow it to flow into the freezing cylinder. (See Figure 62.)

Figure 62

080908

Model C712Operating Procedures

Note: You have just sanitized the mix hopper and

parts; therefore, be sure your hands are clean and sanitized before going on in these instructions.

Step 3

While the solution is flowing into the freezing cylinder, take particular care to brush-clean the mix level sensing probe, the mix hopper, the mix inlet hole, the air/mix pump, the pump clip, the mix feed tube, and the cotter pin.

Step 4

Install the pump assembly at the rear of the mix hopper. To position the pump on the drive hub, align the drive hole in the piston with the drive crank of the drive shaft. Secure the pump in place by slipping the pump clip over the collar of the pump, making sure the clip fits into the grooves in the collar. (See Figure 63.)

Figure 64

Step 6

Prepare another pail of approved 100 PPM sanitizing solution (examples: 2-1/2 gal. [9.5 liters] of Kay-5R or 2 gal. [7.6 liters] of Stera-SheenR). USE WARM WATER AND FOLLOW THE MANUFACTURER'S SPECIFICATIONS.

Figure 63

Step 5

Install the pump end of the mix feed

tube and secure with the cotter pin. Failure to

follow this instruction could result in sanitizer spraying on the operator. (See Figure 64.)

Step 7

Pour the sanitizing solution into the mix hopper.

Step 8

Brush the exposed sides of the hopper.

Step 9

Place the power switch in the ON position.

Step 10

Touch the WASH symbol

. This will cause the sanitizing solution in the freezing cylinder to be agitated. Wait at least 5 minutes before proceeding with these instructions.

121022

Model C712 Operating Procedures

Step 11

With an empty pail beneath the door spouts, raise the prime plug and touch the PUMP symbol

Step 12

When a steady stream of sanitizing solution is flowing from the prime plug opening in the bottom of the freezer door, open the draw valve. Momentarily open the center draw valve to sanitize the center door spout. Draw off the remaining sanitizing solution.

Note: The brush clean counter will start at this time. Step 6

Fill the hopper with fresh mix and place the mix hopper cover in position.

Repeat these steps for the other side of the machine.

Manual Brush Cleaning

Step 13

Once the sanitizer stops flowing from the door spout, touch the WASH and PUMP symbols

and close the draw valve.

Repeat these steps for the other side of the machine.

Note: Be sure your hands are clean and sanitized before going on in these instructions.

Priming

Note: Use only FRESH MIX when priming the freezer.

Step 1

Place an empty pail beneath the door spouts. With the prime plug in the UP position, pour 2-1/2 gallons (9.5 liters) of FRESH mix into the mix hopper and allow it to flow into the freezing cylinder.

Step 2

Open the draw valve to remove all sanitizing solution. When only fresh mix is flowing, close the draw valve.

Step 3

Once a steady stream of mix starts to flow from the prime plug opening in the bottom of the freezer door, push the prime plug down.

Step 4

When mix stops bubbling down into the freezing cylinder, remove the cotter pin from the outlet fitting of the mix pump. Insert the outlet end of the mix feed tube into the mix inlet hole in the mix hopper. Place the inlet end of the mix feed tube into the outlet fitting of the mix pump. Secure with cotter pin.

Step 5

Select the AUTO symbol

This Procedure Must Be Completed Every Day

ALWAYS FOLLOW LOCAL HEALTH CODES.

To disassemble the Model C712, the following items will be needed:

S Two cleaning and sanitizing pails S Sanitizer/Cleaner S Necessary brushes (provided with freezer) S Single service towels

Draining Product From The Freezing Cylinder

Step 1

With a pail beneath the door spouts, open the draw valve. Touch the WASH and PUMP symbols

IMPORTANT! DO NOT allow the pump to keep running when the draw valve is closed. Excessive pressure will build up causing product to spurt out when the draw valve is opened.

Drain the product from the freezing cylinder and the mix hopper.

Step 2

When the flow of product stops, touch the WASH and PUMP symbols

and PUMP modes. Close the draw valve and push the prime plug down.

Step 3

Remove the cotter pin, mix feed tube, pump clip and the assembled air/mix pump.

Repeat these steps for the other side of the machine.

, cancelling the WASH

140804

Model C712Operating Procedures

Rinsing

Step 1

Pour two gallons (7.6 liters) of cool, clean water into the mix hopper. With the white hopper brush, scrub the mix hopper and the mix level sensing probe. Using the double ended brush, brush clean the mix inlet hole. (See Figure 65.)

Figure 65

Step 3

When a steady stream of rinse water is flowing from the prime plug opening in the bottom of the freezer door, open the draw valve. Drain all the rinse water from the door spout. Close the draw valve and push the prime plug down.

Step 4

Touch the WASH symbol, mode.

Step 5

Repeat this procedure using clean, warm water, until the water being discharged is clear.

Repeat these steps for the other side of the machine.

cancelling the Wash

Note: Do not brush clean the mix inlet hole while the machine is in the WASH mode.

Step 2

With a pail beneath the door spouts, raise the prime plug and touch the WASH symbol

(See Figure 66.)

Figure 66

Hopper Cleaning

Step 1

Prepare a pail of approved 100 PPM cleaning solution (examples: 2-1/2 gal. [9.5 liters] of Kay-5R or 2 gal. [7.6 liters] of Stera-SheenR). USE WARM WATER AND FOLLOW THE MANUFACTURER'S SPECIFICATIONS.

Step 2

With the prime plug pushed down, pour the cleaning solution into the hopper. Allow the solution to flow into the freezing cylinder.

Step 3

Using the white hopper brush, clean the mix hopper and the mix level sensing probes. Using the double ended brush, clean the mix inlet hole. (Note: Do not brush clean the mix inlet hole while the machine is in the Wash mode.)

140804

Model C712 Operating Procedures

Step 4

Touch the WASH symbol cleaning solution in the freezing cylinder to come in contact with all areas of the freezing cylinder. Wait at least 5 minutes before proceeding with these instructions. (See Figure 67.)

Step 5

Place an empty pail beneath the door spouts.

Step 6

Raise the prime plug.

. This will cause the

Figure 67

Disassembly

MAKE SURE THE POWER SWITCH IS IN

THE “OFF” POSITION! Failure to follow this

instruction may result in severe personal injury from hazardous moving parts.

Step 1

Remove the handscrews, freezer door, beater and scraper blades, and drive shaft with drive shaft seal from the freezing cylinder.

Step 2

Remove the scraper blade clips from the scraper blades.

Step 3

Remove the drive shaft seal from each drive shaft.

Step 4

From each pump cylinder, remove the retaining pin, mix inlet adaptor, valve cap, pump gasket, and the piston. Remove the o-ring from the piston and valve cap.

Step 5

Remove the freezer door gaskets, front bearings, pivot pin, draw handles, draw valves, prime plugs, and design caps. Remove the o-rings from the draw valves.

Step 7

When a steady stream of cleaning solution is flowing from the prime plug opening in the bottom of the freezer door, open the draw valve. Draw off all the solution.

Step 8

Once the cleaning solution stops flowing from the door spout, close the draw valve and the prime plug.

Step 9

Touch the WASH symbol mode.

Repeat these steps on the other side of the machine.

, cancelling the Wash

Step 6

Remove the pump drive shafts from the drive hubs in the rear wall of the mix hoppers. (See Figure 68.)

Figure 68

Model C712Operating Procedures

Step 7

Remove the two small o-rings and one large o-ring from each pump drive shaft.

Step 8

Remove the front drip tray and splash shield.

Step 9

Remove all drip pans. Take them to the sink for cleaning. (See Figure 69.)

Step 3

Return to the freezer with a small amount of cleaning solution. Using the black brush, clean the rear shell bearing at the back of each freezing cylinder. (See Figure 70.)

Figure 70

Figure 69

Note: If the drip pans are filled with an excessive amount of mix, it is an indication that the drive shaft seal(s), or o-ring(s) should be replaced or properly lubricated.

Brush Cleaning

Step 1

Prepare a sink with an approved 100 PPM cleaning/ sanitizing solution (examples: Kay-5® or SteraSheen®). USE WARM WATER AND FOLLOW THE MANUFACTURER'S SPECIFICATIONS. Make sure all brushes provided with the freezer are available for brush cleaning.

Step 2

Thoroughly brush clean all disassembled parts in the cleaning solution, making sure all lubricant and mix film is removed. Be sure to brush all surfaces and holes, especially the holes in the pump components and the draw valve holes in the freezer door.

Step 4

Using the black brush, clean the drive hub opening in the rear wall of each mix hopper. (See Figure 71.)

Figure 71

Step 5

Wipe all exterior surfaces of the freezer with a clean, sanitized towel.

Rinse all parts with clean, warm water. Place the parts on a clean, dry surface to air dry overnight.

Model C712 Operating Procedures

Note: The brush clean counter will reset to zero at

this time.

080908

Section 7 Important: Operator Checklist

During Cleaning and Sanitizing

ALWAYS FOLLOW LOCAL HEALTH CODES.

Cleaning and sanitizing schedules are governed by federal, state, or local regulatory agencies, and must be followed accordingly. If the unit has a “Standby mode”, it must not be used in lieu of proper cleaning and sanitizing procedures and frequencies set forth by the ruling health authority. The following check points should be stressed during the cleaning and sanitizing operations.

CLEANING AND SANITIZING MUST BE

PERFORMED DAILY.

Troubleshooting Bacterial Count

j 1. Thoroughly clean and sanitize the machine

regularly, including complete disassembly and brush cleaning.

j 2. Use all brushes supplied for thorough

cleaning. The brushes are specially designed to reach all mix passageways.

j 3. Use the white bristle brush to clean the mix

inlet hole which extends from the mix hopper down to the rear of the freezing cylinder.

j 4. Use the black bristle brush to thoroughly

clean the rear shell bearing located at the rear of the freezing cylinder and the drive hub opening in the rear wall of the mix hopper. Be sure there is a generous amount of cleaning solution on the brush.

j 5. Properly prepare the cleaning and sanitizing

solutions. Read and follow the label directions carefully. Too strong of a solution may damage the parts and too weak of a solution will not do an adequate job of cleaning or sanitizing.

j 6. The temperature of mix in the mix hopper and

walk-in cooler should be below 40_F(4.4_C).

j 7. Discard remaining mix from the freezer during

“Cleaning Procedures”.

Regular Maintenance Checks

j 1. Replace scraper blades that are nicked or

damaged. Before installing the beater assembly, be certain that scraper blades are properly attached to the helix.

j 2. Check the rear shell bearing for signs of wear

(excessive mix leakage in rear drip pan) and be certain it is properly cleaned.

j 3. Using a screwdriver and cloth towel, keep the

rear shell bearing and the female hex drive socket clean and free of lubricant and mix deposits.

j 4. Dispose of o-rings and seals if they are worn,

torn, or fit too loosely, and replace with new ones.

j 5. Follow all lubricating procedures as outlined in

“Assembly”.

j 6. If your machine is air cooled, check the

condensers for accumulation of dirt and lint. Dirty condensers will reduce the efficiency and capacity of the machine. Condensers should be cleaned monthly with a soft brush. Never use screwdrivers or other metal probes to clean between the fins. Note: For machines equipped with an air filter, it will be necessary to vacuum clean the filters on a monthly schedule.

Caution: Always disconnect

electrical power prior to cleaning the condenser. Failure to follow this instruction

may result in electrocution.

j 7. If your machine is water cooled, check the

water lines for kinks or leaks. Kinks can occur when the machine is moved back and forth for cleaning or maintenance purposes. Deteriorated or cracked water lines should be replaced only by an authorized Taylor distributor.

080107

Model C712Important: Operator Checklist

Winter Storage

If the place of business is to be closed during the winter months, it is important to protect the freezer by following certain precautions, particularly if the building is subject to freezing conditions.

Disconnect the freezer from the main power source to prevent possible electrical damage.

On water cooled freezers, disconnect the water supply. Relieve pressure on the spring in the water valve. Use air pressure on the outlet side to blow out any water remaining in the condenser. This is extremely important. Failure to follow this procedure may cause severe and costly damage to the refrigeration system.

Your local Taylor Distributor can perform this winter storage service for you.

Wrap detachable parts of the freezer such as beater, blades, drive shaft, and freezer door, and place them in a protected dry place. Rubber trim parts and gaskets can be protected by wrapping them with moisture-proof paper. All parts should be thoroughly cleaned of dried mix or lubrication which attract mice and other vermin.

It is recommended that an authorized service technician perform winter storage draining, to insure all water has been removed. This will guard against freezing and rupturing of the components.

080226

Model C712 Important: Operator Checklist

Section 8 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

1. No product is being dispensed.

a. Low on mix. The MIX

OUT light is on.

b. The power switch is in the

OFF position.

c. Machine not in AUTO

mode.

d. Beater motor is out on

reset. The BEATER OVERLOAD message displayed.

e. The pump motor is not

running in the AUTO mode.

f. Freeze-up in mix inlet

hole.

g. The mix pump ball crank

is broken.

h. Feed tube or check ring

not properly installed.

a. Add mix to the mix

hopper. Return to AUTO mode.

b. Place the power switch to

ON and select AUTO.

c. Select AUTO and allow

machine to cycle off before drawing product.

d. Turn the machine off.

Press the reset button. Restart the machine in AUTO.

e. Push the pump reset

button. Check pump motor is operating when the draw valve is raised.

f. Call an authorized service

technician.

g. Call an authorized service

technician.

h. Make sure feed tube and

rubber check ring are properly installed.

---

27, 30

i. Butterfat buildup in the

pump.

2. The product is too soft. a. Draw rate is set too fast. a. Adjust draw rate of 5 to 7

i. Carefully remove the mix

pump, clean and reinstall.

1/2 oz. (142 g. to 213 g.) of product by weight in 10 seconds.

Model C712Important: Operator Checklist

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

3. The product is too thick. a. Freezing cylinder not

primed correctly.

b. Air/mix pump incorrectly

assembled.

c. The viscosity control is set

too cold.

d. Freeze-up in mix inlet

hole.

4. The mix in the hopper is too warm.

a. Hopper cover is not in

position.

b. The hopper temperature is

out of adjustment.

5. The mix in the hopper is too cold.

6. Mix Low and Mix Out probes are not

a. The hopper temperature is

out of adjustment.

a. Milkstone build-up in the

hopper.

functioning.

7. Product is collecting on top of the freezer door.

a. The top o-ring on draw

valve is improperly lubricated or worn.

a. Drain the freezing cylinder

and reprime the machine.

b. Follow assembly

procedures carefully.

c. Call an authorized service

technician.

d. Call an authorized service

technician.

a. Clean and sanitize hopper

cover and place in position.

b. Call an authorized service

technician.

a. Call an authorized service

technician.

a. Clean hoppers thoroughly.

a. Lubricate properly or

replace the o-ring.

---

8. Excessive mix leakage from the bottom of door spout.

9. Excessive mix leakage into the long drip pan.

a. Bottom o-ring on draw

valve is improperly

a. Lubricate properly or

replace the o-ring.

lubricated or worn.

a. The seal on drive shaft is

improperly lubricated or

a. Lubricate properly or

replace the seal.

worn.

b. The seal is installed

b. Install correctly. inside-out on the drive shaft.

c. Inadequate lubrication of

c. Lubricate properly. the drive shaft.

d. The drive shaft and beater

assembly work forward.

d. Call an authorized service

technician.

e. Worn rear shell bearing. e. Call an authorized service

technician.

f. Gear box out of alignment. f. Call an authorized service

technician.

---

Model C712 Important: Operator Checklist

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

10. The drive shaft is stuck in the drive coupling.

11. The freezing cylinder walls are scored.

12. The product makes a popping sound when drawn.

a. Mix and lubricant collected

in drive coupling.

b. Rounded corners of drive

shaft, drive coupling, or

a. Brush clean the rear shell

bearing area regularly.

b. Call an authorized service

technician.

both.

c. Gear box is out of

alignment.

a. Missing or worn front

bearing and beater shoes.

b. Broken freezer door baffle

c. Call an authorized service

technician.

a. Install or replace the front

bearing and beater shoes.

b. Replace freezer door.

rod. c. Broken beater pins. c. Replace beater assembly. d. Beater assembly is bent. d. Replace beater assembly. e. Gear box is out of

alignment.

e. Call an authorized service

technician.

a. Draw rate is set too fast. a. Adjust draw rate of 5 to 7

1/2 oz. (142 g. to 213 g.) of product by weight in 10 seconds.

---

22, 23

22 22

---

13. No control panel functions with power switch ON.

b. Pump assembled

incorrectly.

b. Assemble and lubricate

according to instructions in this manual.

c. Freezing cylinder not

primed correctly.

c. Drain the freezing cylinder

and reprime the machine.

a. Machine is unplugged. a. Plug into wall receptacle. b. Circuit breaker OFF or

blown fuse.

b. Turn the breaker ON or

replace the fuse.

---

Model C712Important: Operator Checklist

Section 9 Parts Replacement Schedule

PART DESCRIPTION EVERY 3 MONTHS EVERY 6 MONTHS ANNUALLY

Scraper Blade X Drive Shaft Seal X Freezer Door Gasket X Front Bearing X Front Beater Shoes X Draw Valve O-Ring X Mix Feed Tube O-Ring X Pump O-Ring X Prime Plug O-Ring X

Pump Valve Gasket X Mix Feed Tube Check Ring X Pump Drive Shaft O-Ring X White Bristle Brush, 3” x 7” Inspect & Replace

if Necessary

White Bristle Brush, 3” x 1/2” Inspect & Replace

if Necessary

Black Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

Double-Ended Brush Inspect & Replace

if Necessary

Brush Set (3) Inspect & Replace

if Necessary

Minimum

Model C712 Parts Replacement Schedule

Section 10 Limited Warranty on Equipment

TAYLOR COMPANY LIMITED WARRANTY ON FREEZERS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited warranty on new Taylor-branded freezer equipment available from Taylor to the market generally (the “Product”) to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured part, at Taylor’s option, to replace the failed defective part at no charge for the part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty for a Product failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed below and on the reverse (if any) of this document.

Product Soft Serve Frozen Yogurt Shakes Smoothies Frozen Beverage Batch Desserts

1. If the date of original installation of the Product cannot be verified, then the limited warranty period begins ninety (90) days from the date of Product manufacture (as indicated by the Product serial number). Proof of purchase may be required at time of service.

2. This limited warranty is valid only if the Product is installed and all required service work on the Product is performed by an authorized Taylor distributor or service agency, and only if genuine, new Taylor parts are used.

3. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in the Taylor Operator’s Manual.

Insulated shell assembly Five (5) years Refrigeration compressor

(except service valve) Beater motors Two (2) years Beater drive gear Two (2) years Printed circuit boards and

Softech controls beginning with serial number H8024200

Parts not otherwise listed in this table or excluded below

LIMITED WARRANTY CONDITIONS

Part Limited Warranty Period

Five (5) years

Two (2) years

One (1) year

4. Defective parts must be returned to the authorized Taylor distributor or service agency for credit.

5. The use of any refrigerant other than that specified on the Product’s data label will void this limited warranty.

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of defective parts, replacement parts, or new Products.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning of condensers.

131121

cover:

Model C712Limited Warranty on Equipment

3. Replacement of wear items designated as Class “000” parts in the Taylor Operator’s Manual.

4. External hoses, electrical power supplies, and machine grounding.

5. Parts not supplied or designated by Taylor, or damages resulting from their use.

6. Return trips or waiting time required because a service technician is prevented from beginning warranty service work promptly upon arrival.

7. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing, unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning supplies.

8. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty, accident or condition beyond the reasonable control of Taylor; operation above or below the electrical or water supply specification of the Product; or components repaired or altered in any way so as, in the judgment of the Manufacturer, to adversely affect performance, or normal wear or deterioration.

9. Any Product purchased over the Internet.

10. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the inadequacy or interruption of electrical service.

11. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

12. Damages resulting from the use of any refrigerant other than that specified on the Product’s data label will void this limited warranty.

13. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

14. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction.

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER'S SOLE REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE COMPONENTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL OR INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS, PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, U.S.A.

Model C712 Limited Warranty on Equipment

Section 11 Limited Warranty on Parts

TAYLOR COMPANY LIMITED WARRANTY ON TAYLOR GENUINE PARTS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited warranty on new Taylor genuine replacement components and parts available from Taylor to the market generally (the “Parts”) to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured Part, at Taylor’s option, to replace the failed defective Part at no charge for the Part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty for a Part failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed below and on the reverse (if any) of this document.

Part's Warranty Class Code or Part

Class 103 Parts¹ Three (3) months Class 212 Parts² Twelve (12) months Class 512 Parts Twelve (12) months Class 000 Parts No warranty Taylor Part #072454 (Motor-24VDC *C832/C842*) Four (4) years

LIMITED WARRANTY CONDITIONS

1. If the date of original installation of the Part cannot be otherwise verified, proof of purchase may be required at time of service.

2. This limited warranty is valid only if the Part is installed and all required service work in connection with the Part is performed by an authorized Taylor distributor or service agency.

3. The limited warranty applies only to Parts remaining in use by their original owner at their original installation location in the unit of original installation.

4. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in the Taylor Operator’s Manual.

5. Defective Parts must be returned to the authorized Taylor distributor or service agency for credit.

6. This warranty is not intended to shorten the length of any warranty coverage provided pursuant to a separate Taylor Limited Warranty on freezer or grill equipment.

Limited Warranty Period

7. The use of any refrigerant other than that specified for the unit in which the Part is installed will void this limited warranty.

1, 2

Except that Taylor Part #032129SER2 (Compressor-Air-230V SERV) and Taylor Part #075506SER1 (Compressor-Air-115V 60HZ) shall have a limited warranty period of twelve (12) months when used in Taylor freezer equipment and a limited warranty period of two (2) years when used in Taylor grill equipment.

131121

Model C712Limited Warranty on Parts

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of defective Parts, replacement Parts, or new Parts.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning of condensers or carbon and grease buildup.

3. Required service, whether cleaning or general repairs, to return the cooking surface assemblies, including the upper platen and lower plate, to an operational condition to achieve proper cooking or allow proper assembly of release sheets and clips as a result of grease build-up on the cooking surfaces, including but not limited to the platen and plate, sides of the shroud or top of the shroud.

4. Replacement of cooking surfaces, including the upper platen and lower plate, due to pitting or corrosion (or in the case of the upper platen, due to loss of plating) as a result of damage due to the impact of spatulas or other small wares used during the cooking process or as a result of the use of cleaners, cleaning materials or cleaning processes not approved for use by Taylor.

5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any release sheets and clips for the Product’s upper platen assembly.

6. External hoses, electrical power supplies, and machine grounding.

7. Parts not supplied or designated by Taylor, or damages resulting from their use.

8. Return trips or waiting time required because a service technician is prevented from beginning warranty service work promptly upon arrival.

cover:

9. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing, unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning supplies.

10. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty, accident or condition beyond the reasonable control of Taylor; operation above or below the gas, electrical or water supply specification of the unit in which a part is installed; or Parts or the units in which they are installed repaired or altered in any way so as, in the judgment of Taylor, to adversely affect performance, or normal wear or deterioration.

11. Any Part purchased over the Internet.

12. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the inadequacy or interruption of electrical service.

13. Electricity, gas or other fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

14. Damages resulting from the use of any refrigerant other than that specified for the unit in which the Part is installed will void this limited warranty.

15. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

16. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction.

Model C712 Limited Warranty on Parts

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER'S SOLE REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL OR INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS, PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, U.S.A.

Model C712Limited Warranty on Parts

MAIN WINDING

FIG. 1

BLK

WINDING PROTECTOR (INTERNAL)

COMPRESSOR WIRING (MODEL TL3G W/HST)

BLK

INTERFACE BOARD POWER TRANSFORMER

HOPPER GROUND

BLK

POWER SWITCH DPDT

BLU

GRN/YEL

BLU/WHT

START RELAY (047702-27)

OFF

BLK/WHT

OFF

RED

WHT/RED

INTERNAL OVERLOAD WHITE(120 VOLTS)

TERMINAL BLOCK

WHT/ORN

ORN

WHT

BLK BLK

T SERVE

BLK

BEATER MOTOR

WHT

MIX REF. SYSTEM

SEE FIG. 1

BRN WHT FAN

TERMINAL BLOCK

GRN/YEL

BLK

GRN/YEL

STARTER

10 11

START CAP

LINE

START CAPACITOR

BLK

WHTWHT

WHT

BLK

WHT

BLK

WHT

COMP

BLK

EQUIPMENT

WHT

BLACK(230 VOLTS)

WHITE

BLACK

RELAY

BROWN

GROUND

BLACK

BLUE

BLEED RESISTOR

SCHEMATIC WIRING DIAGRAM - CSR

EXTERNAL

GROUND

L2L1

BLK

GRN/YEL

WHT

COM

BLU/WHT

24 VAC

WHT

BLU/WHT

BLK

WHT/ORN

WHITE

BEATER

MOTOR INTERLOCK N.O. SWITCH

CABLE

WHT

BLK

WHT

RUN CAPACITOR

052396-1

BLK/BLU

208

BLUE

BLK

BEATER

INTERLOCK

RELAY

BLACK

BLK/BLU

BLU

1 5

4 8

BLU

COMPRESSOR TERMINAL

START CAPACITOR (047703)

START WINDING

RED (+5v) BLK (GRD)

CLR (+5v)

SV CABLE

GRN/YEL

BLK

LINEL1

BLK/BLU

EMI FILTER

LOAD

L1 L2

240V

NOT

BLK

CONNECTED

ORN

WHT

RED

16V

RED

BLU

RED

RED BLU

GRN/YEL

SV CABLE

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

C0M

DRAW

SWITCH

GRN (GRD)

J16

J15

J12

UNIVERSAL CONTROL PCB A.

J17

BLK CLR

SV CABLE

ORN/WHT

YEL

COM

DRAW

SWITCH

BLK/WHT

RED

GRN/YEL

SV CABLE

PANEL

- 8 LEDS

USER

- LCD SCREEN

INTERFACE

- 9 KEYS

BOARD

- BEEPER

RIBBON CABLE

CABLE

RIBBON CABLE

BLK

RED

WHT

GRN

J13

GRD

1 2

J11J10

RIBBON CABLE RED BLU

SV CABLE

ORN/WHT

RED/BLK

PRP

MIX OUT

PROBE

PRP

MIX

YEL

BLK

LOW

PROBE

1 3

BARREL

HOPPER

--THERMISTOR PROBES-BLK

BLK

BLK/WHT

JACK

OVERLOAD

BLK

BLK/BLU

+5V

RIBBON CABLE

RED BLU

RED

BLU

123456789

J14

J10

12345678

J11

SELF-SERVICE

YEL

BLK

ENABLE

DISABLE

PERSONALITY PCB A.

(OPTIONAL)

BLK

COMPRESSOR HIGH PRESSURE LIMIT SWITCH

BLK

BLK BLK

BEATER MOTOR

SWITCH

BRN

BLK BLK

BRN

COVER

RUN

RELAY

CAP.

LINE

START CAP.

ABOVE ELECTRICAL DIAGRAM SHOWS WIRING NECESSARY TO HOOK UP A COMPRESSOR USING A START AND RUN CAPACITOR (CSR) WITH A RELAY.

WHT

OPTIONAL REAR

MIX LEVEL LIGHTS

1 3

8 10

OUT

CABLE

RIBBON

GRN

BLK

GND

CLR

J12

INTFC PCB A.

WITH SOFT SERVE

234567

BLKBLK

GRY/WHT

J13

SOFT SERVE COMPRESSOR

SEE FIG. 2

BLK

BRN

COMPRESSOR CONTACTOR

COIL

BLK

+5V

23456

BRN

RED

J20

2 1

J19

123

J18

WHT/ORN

ORN/WHT

T2 COMPRESSOR CONTACTOR

WATER COOLED

CABLE

BLK BLK

2 1

WHT

BLK

BARREL LIQUID

SOLENOID

BEATER MOTOR

L2L1

CONDENSER FAN

BLK

FUSE

STARTER

15A

WHT/RED

OVERLOAD

BLK

SWITCH

MIX PUMP MOTOR

START RELAY

BLK

LEFT SYRUP HEATER

BLK

BLU ORN

RED

BLK

SEE FIG. 4

PUR

23 4

WHT

CABLE

OPTIONAL

WHT

1 3 5 7 9

YEL

2 4 6 8 10

WHT

AIR COOLED

BLK

FIG. 2

BEATER MOTOR STARTER COIL

SEE FIG. 3 SOF

BEATER MOT

BLK

CONDENSER FAN MOTOR

WHT

(DANFOSS TL3G COMPR.)

BRN

START RELAY

BLK

A.O. SMITH BEATER MOTOR WIRING STEPS:

1) REMOVE BROWN JUMPER FROM BETWEEN TERMINAL #1 TO TERMINAL #5

2) MOVE BLUE INTERNAL (FROM MOTOR MAIN WINDING) FROM TERMINAL #5 TO TERMINAL #1. NOTE: FOR CCWLE - BLUE INTERNAL ON #1, YELLOW INTERNAL ON #6

BLUE INTERNAL ORANGE INTERNAL

RED INTERNAL

YELLOW INTERNAL BLACK INTERNAL

LEESON BEATER MOTOR WIRING STEPS:

1) DISCONNECT WIRE T7 FROM TERMINAL 3

2) SPLICE BLUE WIRE AS SHOWN

T8 T1

T4 T5

GE/RBC/MARATHON BEATER MOTOR WIRING

NOTE: FOR CCWLE - BLUE INTERNAL ON #1,YELLOW INTERNAL ON #2

J12 OR PURPLE INTERNAL

T1 OR BLUE INTERNAL

T8 OR RED INTERNAL

J9 OR BLACK INTERNAL

T4 OR YELLOW INTERNAL

BLU

WHT

BLU

BLK

FIG. 3

THERMOSTA 190 140

BLK

F OPEN F CLOSE

FIG .4

WHT

SYRUP HEATER

BLACK

BLUE

CP CONTACTS ARE NOT AVAILABLE

BLACK

BLUE

CP CONTACTS ARE NOT AVAILABLE

BLACK

WHT

LEFT SIDE CONTROL

RIGHT SIDE CONTROL

BEATER MOTOR

CONTACTOR

BLUE

CP T3

USE T3 AND L3 WHEN

BEATER MOTOR

CONTACTOR

USE T3 AND L3 WHEN

BEATER MOTOR

CONTACTOR

BLACK

BLUE

CP T3

USE T3 AND L3 WHEN CP CONTACTS ARE NOT AVAILABLE BLACK

O.T.

WHT

CP L3

BLU/WHT

GRN/YEL

BLK

* IF THE UNIT HAS THE INTEGRAL SYRUP OPTION-405, THEN THIS

JUMPER SHOULD BE INSTALLED.

PERSONALITY

SOFT SERVE

BOARD

GROUND FRAME SECURELY

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

BLU/WHT

RED BLU

GRN/YEL

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

RED

C0M

DRAW

SWITCH

PERSONALITY

SOFT SERVE

BOARD

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

GRN/YEL

COM

BLK

MIX OUT

DRAW

PROBE

SWITCH

BLU/WHT

PANEL

JACK

W2 YES

W4 NO

RESERVED (DO NOT USE)

JUMPER INSTALLED-ENABLES 59

TEMPERATURE CHECK.

RESERVED (DO NOT USE)

F HOPPER

RED BLU

GRA/BLK

PRP/WHT

MIX LOW

PROBE

RIGHT INTERFACE

BOARD

FUNCTION

INSTALLED

INITIALLY

JUMPER

SV CABLE

RED/BLK

YEL

BLK

YEL

BLK

2 4

HOPPER

BARREL

--THERMISTOR PROBES--

BLU/WHT

BLK

BEATER MOTOR OVERLOAD SWITCH

PERSONALITY

SOFT SERVE

BOARD

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

ABILITY TO ACTIVATE THE TOUCH PANEL.

RED BLU

BLU

BLK

BLK COMPRESSOR

HIGH PRESSURE LIMIT SWITCH

BLK BLK

J10 PINS 7 & 8

RED

1 23456789

10 J10

1 2 3 45678

PERSONALITY PCB A.

BLK

A B

J14

J11

J12

INTFC PCB A.

WITH SOFT SERVE

123456

3 15

BLKBLK

BLK

SEE FIG. 2

J13

COMPRESSOR CONTACTOR

GRY/WHT

SOFT SERVE COMPRESSOR

SV CABLE

CABLE

RIBBON

BLK GND +5V

CLR

J20

2 1

J19

RED/BLK

1234

BLK BLK

J18

BLK

123456

FUSE 15A

BLK

RIGHT SYRUP HEATER

WHT/ORN

BLK

ORN/WHT

OVERLOAD

SWITCH

BLU

RED

ORN PUR MIX PUMP

COIL

MOTOR

WHT

START RELAY

WHT

BARREL LIQUID

SOLENOID

BLK

BEATER MOTOR

STARTER

L2L1 T1

COMPRESSOR

CONTACTOR

W3 NO*

W4 NO

BOARD

JUMPER INSTALLED-ACTIVATES SYRUP HEATERS.

RESERVED (DO NOT USE)

JUMPER INSTALLED-FORCE BRUSH CLEAN STATUS.

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

RESERVED (DO NOT USE)

JUMPER INSTALLED W/SWITCH-SELF SERVE

APPLICATION ONLY. LOCKS OUT TOUCH

PANEL. NEW SWITCH ACTS AS THE ON/OFF

RESERVED (DO NOT USE)

INITIALLY

BLK

CABLE

OPTIONAL

SEE FIG. 4

BLK M

ORN

RED

BEATER

YEL

MOTOR

STARTER

COIL

WHT

SEE FIG. 3

SOFT SERVE BEATER MOTOR BLK

BLK

DBGEN

RTCK

JP7

LEFT INTERFACE

JUMPER INSTALLED DISABLES RESET.

RESERVED (DO NOT USE)

FUNCTION

INSTALLED

JUMPER

BLK

WHTWHT

WHT

WHT/ORN

BLK

BLK BLK

WHT

GRN/YEL

BLK

BEATER MOTOR

STARTER

JP3

JP4

JP5

JP6

DISPLAYED ON SCREEN/MANUAL HEAT CYCLE

START BY SELECTING HEAT SYMBOL/STANDBY

KEYS FUNCTIONAL.

RESERVED (DO NOT USE)

BLU

BLK

WHT

BEATER

INTERLOCK

RELAY

5 4

WHT/ORN

BLU

BLK

JP2 PINS 1 AND 2

SCREEN/HEAT SYMBOL KEYS ONLY ACTIVE

WHEN A LOCKOUT CONDITION HAS OCCURRED/

STANDBY KEYS DISABLED.

INTERNATIONAL CONFIGURATION-NO JUMPER

INSTALLED. HOPPER TEMPERATURES

JP1

PINS 1 AND 2

PINS 3 AND 4

A PERIOD OF TIME. LOCKOUT OCCURS WHEN

BARREL OR HOPPER IS ABOVE 45

NO JUMPER INSTALLED-NO LOCKOUT DURING

AUTO/STANDBY IF BARREL OR HOPPER IS TOO

WARM FOR A PERIOD OF TIME.

RESERVED (DO NOT USE)

FOR MORE THAN ONE HOUR OR ABOVE 41

DOMESTIC CONFIGURATION-JUMPER INSTALLED.

HOPPER TEMPERATURE NOT DISPLAYED ON

C) FOR MORE THAN FOUR HOURS.

F (7 C)

YES

BOARD

UVC4

JUMPER SETTINGS

BLK

JUMPER INSTALLED- BARREL AND HOPPER

TEMPERATURES ARE CHECKED DURING

AUTO/STANDBY. UNIT IS LOCKED OUT IF

EITHER BARREL OR HOPPER IS TOO WARM FOR

FUNCTION

INSTALLED

INITIALLY

JUMPER

NOTE:

1. STATIC ELECTRICITY MAY CAUSE

DAMAGE TO SOLID STATE COMPONENTS.

ELIMINATE STATIC ELECTRICITY BY

TOUCHING GROUNDED UNIT BEFORE

HANDLING SOLID STATE COMPONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE

CONNECTED TO PIN 1 AT EACH END.

059898-27

12/9/13

C712

BLK

INTERFACE BOARD

POWER TRANSFORMER

GRN/YEL

HOPPER GROUND

BLK

POWER

SWITCH

3PDT

BLU/WHT

BLU

EXTERNAL

GROUND

L2L1

TERMINAL BLOCK

BLK

WHT/ORN

SERVE

BLK

BEATER MOTOR

BRN WHT

FAN

GRN/YEL

BLK

STARTER

WHT

START CAP

WHT

BLK

GRN/YEL

1113

BLK

GRN/YEL

BLK/BLU

WHTWHT

WHT

BLU/WHT

BLK

WHT

BLU/WHT

BLK

WHTWHT

WHT

WHITE

WHT

BLK

CABLE

BLK

WHT

COMP

BLK

L2L1

BLK

WHT

BLU/WHT

INTERLOCK N.O. SWITCH

BEATER MOTOR

COM

WHT/ORN

BLK/BLU

208

BLU

24 VAC

BLUE

BLK

WHT

BLK

BLU

BEATER

INTERLOCK

RELAY

BLACK

BLU

MAIN WINDING

5 4

BLU

BLK

FIGURE 1

START RELAY (047702-27)

START CAPACITOR (047703)

WHT

COMPRESSOR WIRING (MODEL TL3G W/HST)

THERMOSTA

F OPEN

190 140

F CLOSE

FIG. 2

BLK

WHT

SYRUP HEATER

WINDING PROTECTOR (INTERNAL)

WHT

LEFT SIDE CONTROL

RIGHT SIDE CONTROL

START WINDING

O.T.

WHT

RED

BLU

RED/BLK

J11J10

J13

RIBBON CABLE

PRP

USER

INTERFACE

BOARD

RIBBON CABLE

CABLE

RIBBON CABLE

BLK

RED

WHT

GRN

1 2

ORN/WHT

MIX

YEL

BLK

LOW

PROBE

1 3

--THERMISTOR PROBES--

BLK

- 8 LEDS

- LCD SCREEN

- 9 KEYS

- BEEPER

GRD

+5V

RIBBON CABLE

RED BLU

SV CABLE

RED

BLU

SELF-SERVICE

YEL

BLK

ENABLE

DISABLE

(OPTIONAL)

HOPPERBARREL

BLK

BLK/WHT

BLK

COMPRESSOR

HIGH PRESSURE

LIMIT SWITCH

BLK

BLK BLK

BEATER

MOTOR

OVERLOAD

SWITCH

BRN

BLK BLK

BLK

BRN

123456789

J10

12345678

BLK

A B

J14

J11

J12

BLK

J13

INTFC PCB A.

WITH SOFT SERVE

PERSONALITY PCB A.

123 456 7

3 1

BLKBLK

COMPRESSOR CONTACTOR

GRY/WHT

SOFT SERVE COMPRESSOR

OPTIONAL REAR

MIX LEVEL LIGHTS

OUT

CABLE

RIBBON

GRN

BLK

GND

CLR

+5V

J20

123 456L17

BRN

RED

COIL

BLK

COMPRESSOR CONTACTOR

BLK

J19 J5

ORN/WHT

WHT/ORN

CABLE

2 1

123 4

J18

2 1

BLK

BARREL LIQUID

L2 L3 I4

WHT/RED

BLK BLK BLK

FUSE 15A

BLK

OVERLOAD SWITCH

MIX

PUMP

MOTOR

START RELAY

SOLENOID

BEATER MOTOR

STARTER

WATER COOLED

CONDENSER FAN MOTOR

BLK

OPTIONAL

LEFT SYRUP HEATER

SEE FIG. 2

BLK

BLU ORN PUR

RED

23 4

BLK

CABLE

YEL

WHT

BLK

AIR COOLED CONDENSER

BLOWER MOTOR

BLK

ORN

BEATER MOTOR STARTER

COIL

WHT

SOFT

BEATER MOTOR

BLK

WHT

(DANFOSS TL3G COMPR.)

(ALSO SEE FIG.2)

BRN START RELAY

BLK BLK

MIX REF. SYSTEM

TERMINAL BLOCK

RED (+5v) BLK (GRD)

CLR (+5v)

SV CABLE

GRN/YEL

BLK

BLK/BLU

LINEL1

EMI FILTER

LOAD

L1 L2

240V

NOT

BLK

WHT

CONNECTED

WHT

ORN

RED

16V

BLU

RED

BLU

RED

GRN/YEL

RED

OFF

WHT/RED

BLK/WHT

OFF

GRN/YEL

RED BLU

GRN/YEL

SV CABLE

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

C0M

DRAW

SWITCH

GRN (GRD)

J16

J15

J12

UNIVERSAL CONTROL PCB A.

J17

BLK CLR

GRN/YEL

SV CABLE

ORN/WHT

COM

YEL

MIX

DRAW

OUT

PROBE

SWITCH

SV CABLE

BLK/WHT

PANEL

RED

JACK

BLU/WHT

GRN/YEL

BLK

* IF THE UNIT HAS THE INTEGRAL SYRUP OPTION-405, THEN THIS

JUMPER SHOULD BE INSTALLED.

PERSONALITY

BOARD

GROUND FRAME SECURELY

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

BLU/WHT

RED BLU

GRN/YEL

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

C0M

DRAW

SWITCH

PERSONALITY

SOFT SERVE

BOARD

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

COM

DRAW

SWITCH

RED

RESERVED (DO NOT USE)

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

RED BLU

GRN/YEL

GRA/BLK

PRP/WHT

BLK

MIX OUT

PROBE

PRP/WHT

BLU/WHT

PANEL

JACK

RIGHT INTERFACE

BOARD

JUMPER INSTALLED-ENABLES 59

RESERVED (DO NOT USE)

TEMPERATURE CHECK.

SV CABLE

MIX LOW

PROBE

BOARD

RED

BLU

RED/BLK

YEL

BLK

YEL

BLK

HOPPER

BARREL

--THERMISTOR PROBES--

BLK

BLU/WHT

BLK

COMPRESSOR HIGH PRESSURE LIMIT SWITCH

BLK

BLK BLK BEATER MOTOR

OVERLOAD

SWITCH

J10 PINS 7 & 8

PERSONALITY

SOFT SERVE

BOARD

APPLICATION ONLY. LOCKS OUT TOUCH

PANEL. NEW SWITCH ACTS AS THE ON/OFF

ABILITY TO ACTIVATE THE TOUCH PANEL.

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

CABLE

RIBBON

RED

A B

123456789

J14

J10

12345678

J12

J11

WITH SOFT SERVE

PERSONALITY PCB A.

J8 3

BLK

JUMPER INSTALLED W/SWITCH-SELF SERVE

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

SV CABLE

BLK

GND +5V

J13

INTFC PCB A.

123456

123456L17

BLKBLK

COMPRESSOR CONTACTOR

COIL

GRY/WHT

BLK

SOFT SERVE

COMPRESSOR

RESERVED (DO NOT USE)

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

CABLE

CLR

J20

2 1

J19

RED/BLK

234

BLK BLK

J18

0 1

BLK

FUSE 15A

OPTIONAL

BLK

RIGHT SYRUP HEATER

SEE FIG. 2

WHT/ORN

BLK

ORN/WHT

OVERLOAD SWITCH

BLK

BLU

RED

PUR

ORN

MIX PUMP

RED

MOTOR

WHT

START RELAY

WHT

BARREL LIQUID

SOLENOID

BEATER MOTOR

STARTER

BLK

L2L1 T1

T3 L3

COMPRESSOR CONTACTOR

LEFT INTERFACE

BOARD

RESERVED (DO NOT USE)

JUMPER INSTALLED-ACTIVATES SYRUP HEATERS.

JUMPER INSTALLED-FORCE BRUSH CLEAN STATUS.

BEATER

MOTOR

YEL

STARTER

COIL

BLK

DBGEN

RESERVED (DO NOT USE)

BLK

WHT/ORN

ORN

BLK

WHT

BLK BLK

SOFT SERVE

GRN/YEL

BEATER MOTOR

BLK

BEATER MOTOR

STARTER

RTCK

JP7

JP6

JP5

JP4

RESERVED (DO NOT USE)

JUMPER INSTALLED DISABLES RESET.

RESERVED (DO NOT USE)

WHTWHT

WHT

BLK

JP3

WHT/ORN

JP2 PINS 1 AND 2

BLK

WHT

BEATER

INTERLOCK

RELAY

BLK

PINS 3 AND 4

DOMESTIC CONFIGURATION-JUMPER INSTALLED.

HOPPER TEMPERATURE NOT DISPLAYED ON

SCREEN/HEAT SYMBOL KEYS ONLY ACTIVE

WHEN A LOCKOUT CONDITION HAS OCCURRED/

STANDBY KEYS DISABLED.

INTERNATIONAL CONFIGURATION-NO JUMPER

INSTALLED. HOPPER TEMPERATURES

DISPLAYED ON SCREEN/MANUAL HEAT CYCLE

START BY SELECTING HEAT SYMBOL/STANDBY

KEYS FUNCTIONAL.

RESERVED (DO NOT USE)

AUTO/STANDBY IF BARREL OR HOPPER IS TOO

WARM FOR A PERIOD OF TIME.

RESERVED (DO NOT USE)

BLU

1 5

4 8

BLU

BLK

JP1

PINS 1 AND 2

BOARD

UVC4

JUMPER INSTALLED- BARREL AND HOPPER

TEMPERATURES ARE CHECKED DURING

AUTO/STANDBY. UNIT IS LOCKED OUT IF

EITHER BARREL OR HOPPER IS TOO WARM FOR

A PERIOD OF TIME. LOCKOUT OCCURS WHEN

BARREL OR HOPPER IS ABOVE 45

NO JUMPER INSTALLED-NO LOCKOUT DURING

FOR MORE THAN ONE HOUR OR ABOVE 41

C) FOR MORE THAN FOUR HOURS.

JUMPER SETTINGS

BLK

NOTE:

1. STATIC ELECTRICITY MAY CAUSE

DAMAGE TO SOLID STATE COMPONENTS.

ELIMINATE STATIC ELECTRICITY BY

TOUCHING GROUNDED UNIT BEFORE

HANDLING SOLID STATE COMPONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE

CONNECTED TO PIN 1 AT EACH END.

FUNCTION

F HOPPER

INSTALLED

INITIALLY

JUMPER

YES

INSTALLED

INITIALLY

JUMPER

NO*

YES

FUNCTION

F (7 C)

INSTALLED

INITIALLY

YES

JUMPER

C712

059898-33

12/9/13

MAIN WINDING

FIG. 1

BLK

WINDING PROTECTOR (INTERNAL)

COMPRESSOR WIRING (MODEL TL3G W/HST)

BLK

INTERFACE BOARD

POWER TRANSFORMER

HOPPER GROUND

BLK

POWER

SWITCH

3PDT

BLU

GRN/YEL

BLU/WHT

START RELAY (047702-27)

OFF

INTERNAL OVERLOAD

WHITE(120 VOLTS)

TERMINAL BLOCK

BLK

BLK/RED

WHT/ORN

WHT

BLK BLK

BLK

SEE FIG. 1

BRN

FAN

START CAP

TERMINAL BLOCK

BRN

GRN/YEL

BLK

GRN/YEL

BEATER MOTOR

WHT

BLK

STARTER

WHT

1113

BLACK(230 VOLTS)

LINE

BLACK

EQUIPMENT

GROUND

START CAPACITOR

SCHEMATIC WIRING DIAGRAM - CSR

BRN

BLU

BLK

WHTWHT

WHT

BLK

WHT

BLK BLK

WHT

GRN/YEL

WHT

GRN/YEL

BLK

WHT

GRN/YEL

1410

COMP

BLK

NL1

BRN

BLU

GRN/YEL

EXTERNAL

GROUND

WHITE

RELAY

BROWN

BLACK

BLUE

RUN CAPACITOR

BLEED RESISTOR

052396-1

EQUIPOTENTIAL

GROUND

GRN/YEL

ELECTRICAL

ENCLOSURE

BLK/RED

WHT

240

COM

WHT

BLU/WHT

24 VAC

GRN/YEL

BLU/WHT

WHITE

GRN/YEL

CABLE

ELECTRICAL ENCLOSURE

WHT/ORN

BEATER

MOTOR INTERLOCK N.O. SWITCH

BLU

BLK

WHT

BEATER

INTERLOCK

RELAY

5 4

BLU

BLACK

BLK

BLU

COMPRESSOR

TERMINAL

START CAPACITOR (047703)

START WINDING

J11

RED BLU

RED/BLK

INTERFACE J2 J3

CABLE

J13

RIBBON CABLE

PRP

MIX LOW

PROBE

--THERMISTOR PROBES--

- 8 LEDS

USER

- LCD SCREEN

- 9 KEYS

BOARD

- BEEPER

RIBBON CABLE

BLK

RED

WHT

GRN

GRD

+5V

SV CABLE

ORN/WHT

YEL

BLK

YEL

BLK

BARREL

HOPPER

BLK

BLK/WHT

BEATER

MOTOR OVERLOAD SWITCH

BLK

RED

RIBBON CABLE

RED BLU

RED

BLU

123456789

J14

J10

12345678

J11

SELF-SERVICE ENABLE

ENABLE

DISABLE

(OPTIONAL)

BLK

BLK COMPRESSOR

HIGH PRESSURE

LIMIT SWITCH

BLK

BLK BLK

BRN

BLK BLK

BRN

RED (+5v) BLK (GRD)

CLR (+5v)

BLK/RED

BLK

EMI FILTER L1

CONNECTED

BLK

BLU

GRN/YEL

RED

WHT/RED

BLK/WHT

GRN/YEL

LINEL1 LOAD

240V

NOT

WHT

16V

BLU

GRN/YEL

L2 L2

RED

WHT

ORN

SV CABLE

RED BLU

GRN/YEL

SV CABLE

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

C0M

DRAW

SWITCH

GRN (GRD)

J16

J15

J12

UNIVERSAL CONTROL PCB A.

J17

BLK CLR

J10

GRN/YEL

SV CABLE

ORN/WHT

COM

YEL

MIX OUT

DRAW

PROBE

SWITCH

SV CABLE

BLK/WHT

PANEL

JACK

RED

COVER

RUN

RELAY

CAP.

LINE

START CAP.

ABOVE ELECTRICAL DIAGRAM SHOWS WIRING NECESSARY TO HOOK UP A COMPRESSOR USING A STAR CAPACITOR (CSR) WITH A RELAY.

OPTIONAL REAR MIX LEVEL LIGHTS

8 10

OUT

CABLE

RIBBON

CABLE

GND

GRN

BLK

+5V

CLR

CABLE

J20

2 1

J19

WHT/RED

J13

123 4

J12

BLK BLK

INTFC PCB A.

WITH SOFT SERVE

J18

PERSONALITY PCB A.

WHT

BLK

12345 6L17

123 4567

FUSE

15A

BLK

OPTIONAL

BLK

LEFT SYRUP HEATER

SEE FIG. 4

WHT/ORN

BLKBLK

BRN

ORN/WHT

BLK

BRN

OVERLOAD

SWITCH

BLK

BLU

RED

ORN PUR

COIL

BLK

COMPRESSOR

CONTACTOR

GRN/YEL

BARREL LIQUID

SOLENOID

BEATER MOTOR

L2L1 T1

BLK

STARTER

MIX

PUMP

RED

MOTOR

YEL

START

RELAY

WHT

GRN/YEL

CONDENSER BLOWER MOTOR

AIR COOLED

BLK

GRY/WHT

SEE FIG. 2

WATER COOLED

CONDENSER FAN

COMPRESSOR

CONTACTOR

SOFT SERVE

COMPRESSOR

BLK

T AND RUN

2 4 6 8 10

GRN/YEL

BEATER MOTOR

STARTER

COIL

WHT

BLK

GRN/YEL

RED

(DANFOSS TL3G COMPR.)

BRN

FIG. 2

ORN

GRN/YEL

SEE FIG. 3 SOFT SERVE BEATER MOTOR

WHT

MIX REF. SYSTEM

START RELAY

BLK

A.O. SMITH BEATER MOTOR WIRING STEPS:

1) REMOVE BROWN JUMPER FROM BETWEEN TERMINAL #1 TO TERMINAL #5

2) MOVE BLUE INTERNAL (FROM MOTOR MAIN WINDING) FROM TERMINAL #5 TO TERMINAL #1. NOTE: FOR CCWLE - BLUE INTERNAL ON #1, YELLOW INTERNAL ON #6

BLUE INTERNAL ORANGE INTERNAL

RED INTERNAL

YELLOW INTERNAL BLACK INTERNAL

LEESON BEATER MOTOR WIRING STEPS:

1) DISCONNECT WIRE T7 FROM TERMINAL 3

2) SPLICE BLUE WIRE AS SHOWN

T8 T1

T4 T5

GE/RBC/MARATHON BEATER MOTOR WIRING

NOTE: FOR CCWLE - BLUE INTERNAL ON #1,YELLOW INTERNAL ON #2

J12 OR PURPLE INTERNAL

T1 OR BLUE INTERNAL

T8 OR RED INTERNAL

J9 OR BLACK INTERNAL

T4 OR YELLOW INTERNAL

THERMOSTA 190 140

WHT

BLU

BLK

F OPEN F CLOSE

FIG. 3

WHT

SYRUP HEATER

FIG .4

BLK

BLACK

BLUE

CP CONTACTS ARE NOT AVAILABLE

BLACK

BLUE

CP CONTACTS ARE NOT AVAILABLE

BLACK

WHT

LEFT SIDE CONTROL

RIGHT SIDE CONTROL

BEATER MOTOR

CONTACTOR

BLUE

CP T3 L3

USE T3 AND L3 WHEN

BEATER MOTOR

CONTACTOR

T3 L3

USE T3 AND L3 WHEN

BEATER MOTOR

CONTACTOR

BLACK

BLUE

CP T3 L3

USE T3 AND L3 WHEN CP

CONTACTS ARE NOT AVAILABLE

BLACK

O.T.

WHT

BLU/WHT

GRN/YEL

BLK

* IF THE UNIT HAS THE INTEGRAL SYRUP OPTION-405, THEN THIS

JUMPER SHOULD BE INSTALLED.

PERSONALITY

SOFT SERVE

BOARD

GROUND FRAME SECURELY

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

BLU/WHT

RED

BLU

GRN/YEL

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

RED

C0M

DRAW

SWITCH

PERSONALITY

SOFT SERVE

BOARD

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

GRN/YEL

COM

BLK

MIX

DRAW

OUT

SWITCH

PROBE

BLU/WHT

PANEL

JACK

RESERVED (DO NOT USE)

JUMPER INSTALLED-ENABLES 59

RESERVED (DO NOT USE)

TEMPERATURE CHECK.

RESERVED (DO NOT USE)

F HOPPER

YES

RED BLU

GRA/BLK

PRP/WHT

MIX LOW PROBE

RIGHT INTERFACE

BOARD

FUNCTION

INSTALLED

INITIALLY

JUMPER

SV CABLE

RED/BLK

YEL

BLK

YEL

BLK

2 4

HOPPER

BARREL

--THERMISTOR PROBES--

BLU/WHT

BLK

BEATER

MOTOR

OVERLOAD

SWITCH

PERSONALITY

SOFT SERVE

BOARD

ABILITY TO ACTIVATE THE TOUCH PANEL.

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

RED BLU

BLU

BLK

COMPRESSOR

HIGH PRESSURE

LIMIT SWITCH

BLK

J10 PINS 7 & 8

RED

123456789

J10

12345678

PERSONALITY PCB A.

BLK

A B

J14

J11

J12

INTFC PCB A.

WITH SOFT SERVE

123 456 7

3 1

BLKBLK

BLK

GRY/WHT

SEE FIG. 2

J13

COMPRESSOR CONTACTOR COIL

SOFT SERVE

COMPRESSOR

SV CABLE

CABLE

RIBBON

BLK

GND +5V

CLR

J20

2 1

J19

RED/BLK

123

BLK BLK

J18

0 1

BLK

123 456L17

FUSE 15A

BLK

RIGHT SYRUP HEATER

WHT/ORN

BLK

ORN/WHT

OVERLOAD

SWITCH

BLU

RED

ORN PUR

MIX PUMP MOTOR

WHT

START

RELAY

WHT

BARREL LIQUID

SOLENOID

BLK

BEATER MOTOR

STARTER

L2L1 T1

COMPRESSOR CONTACTOR

BOARD

RESERVED (DO NOT USE)

JUMPER INSTALLED-ACTIVATES SYRUP HEATERS.

RESERVED (DO NOT USE)

JUMPER INSTALLED-FORCE BRUSH CLEAN STATUS.

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

JUMPER INSTALLED W/SWITCH-SELF SERVE

APPLICATION ONLY. LOCKS OUT TOUCH

PANEL. NEW SWITCH ACTS AS THE ON/OFF

RESERVED (DO NOT USE)

INITIALLY

NO*

BLK

CABLE

OPTIONAL

SEE FIG. 4

GRN/YEL

BLK

ORN

BEATER

RED

MOTOR

YEL

STARTER

COIL

WHT

GRN/YEL

SOFT SERVE

BLK

BEATER MOTOR

BLK

DBGEN

RTCK

JP7

LEFT INTERFACE

JUMPER INSTALLED DISABLES RESET.

RESERVED (DO NOT USE)

FUNCTION

INSTALLED

JUMPER

BLU

BRN

BLKBLK

BLK

WHTWHT

WHT

GRN/YEL

WHT/ORN

BLK

BLK BLK

WHT

SEE FIG. 3

BLK

GRN/YEL

BEATER MOTOR

STARTER

GRN/YEL

JP3

JP4

JP5

JP6

DISPLAYED ON SCREEN/MANUAL HEAT CYCLE

START BY SELECTING HEAT SYMBOL/STANDBY

KEYS FUNCTIONAL.

RESERVED (DO NOT USE)

BLU

BLK

WHT

BEATER

INTERLOCK

RELAY

WHT/ORN

BLU

BLK

JP2 PINS 1 AND 2

SCREEN/HEAT SYMBOL KEYS ONLY ACTIVE

WHEN A LOCKOUT CONDITION HAS OCCURRED/

STANDBY KEYS DISABLED.

INTERNATIONAL CONFIGURATION-NO JUMPER

INSTALLED. HOPPER TEMPERATURES

JP1

PINS 1 AND 2

PINS 3 AND 4

BARREL OR HOPPER IS ABOVE 45

FOR MORE THAN ONE HOUR OR ABOVE 41

NO JUMPER INSTALLED-NO LOCKOUT DURING

AUTO/STANDBY IF BARREL OR HOPPER IS TOO

WARM FOR A PERIOD OF TIME.

RESERVED (DO NOT USE)

DOMESTIC CONFIGURATION-JUMPER INSTALLED.

HOPPER TEMPERATURE NOT DISPLAYED ON

C) FOR MORE THAN FOUR HOURS.

F (7 C)

YES

BOARD

UVC4

JUMPER SETTINGS

BLK

JUMPER INSTALLED- BARREL AND HOPPER

TEMPERATURES ARE CHECKED DURING

AUTO/STANDBY. UNIT IS LOCKED OUT IF

EITHER BARREL OR HOPPER IS TOO WARM FOR

A PERIOD OF TIME. LOCKOUT OCCURS WHEN

FUNCTION

INSTALLED

INITIALLY

JUMPER

NOTE:

1. STATIC ELECTRICITY MAY CAUSE

DAMAGE TO SOLID STATE COMPONENTS.

ELIMINATE STATIC ELECTRICITY BY

TOUCHING GROUNDED UNIT BEFORE

HANDLING SOLID STATE COMPONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE

CONNECTED TO PIN 1 AT EACH END.

059898-40

12/9/13

C712

EQUIPOTENTIAL

EXTERNAL

GROUND

TERMINAL BLOCK

BRN

J11J10

RED BLU

RED/BLK

INTERFACE

BOARD

CABLE

J13

1 2

RIBBON CABLE

PRP

MIX LOW PROBE

--THERMISTOR PROBES--

USER

GRN

BARREL

RED

WHT

RIBBON CABLE

BLK

YEL

BLK

GRD

HOPPER

RED

ORN/WHT

BLK

BLK/WHT

SV CABLE

BEATER MOTOR OVERLOAD SWITCH

- 8 LEDS

- LCD SCREEN

- 9 KEYS

- BEEPER

+5V

YEL

BLK

RIBBON CABLE

SELF-SERVICE ENABLE

DISABLE

(OPTIONAL)

BLK

RED

BLU

ENABLE

BLK

COMPRESSOR

HIGH PRESSURE

LIMIT SWITCH

BLK BLK

BRN

BLK

BRN

1 3 5 7 9

CABLE

RIBBON

RED

BLU

123456789

GND

GRN CLR

+5V

J14

CABLE

J20

2 1

J19

J12

INTFC PCB A.

WITH SOFT SERVE

34567

3 1

BLKBLK

GRY/WHT

J13

BRN

COMPRESSOR CONTACTOR COIL

BLK

SOFT SERVE

COMPRESSOR

BLK

WHT/RED

1234

BLK BLK

J18

2 1 WHT

BLK

345

FUSE

15A

BLK

WHT/ORN

BRN

ORN/WHT

OVERLOAD

SWITCH

RED

BARREL LIQUID

SOLENOID

BEATER MOTOR

STARTER

L2L1 T1

T3 L3

COMPRESSOR CONTACTOR

GRN/YEL

BLK

J10

12345678

J11

BLK

WATER COOLED CONDENSER FAN

PERSONALITY PCB A. J8

BLK

RED (+5v)

SV CABLE

BLK (GRD)

CLR (+5v)

BLK

INTERFACE BOARD POWER TRANSFORMER

HOPPER GROUND

BLK POWER SWITCH 3PDT

BLU

BLK

BLU

BLK

GRN/YEL

BLU/WHT

WHT

LINE

BLK/RED

EMI FILTER

LOAD

L1 L2

240V

NOT

CONNECTED

WHT

ORN

BLK

RED

16V

RED

BLU

RED

GRN/YEL

RED

OFF

WHT/RED

BLK/WHT

OFF

GRN/YEL

RED BLU

GRN/YEL

SV CABLE

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

C0M

DRAW

SWITCH

GRN/YEL

BLK

GRN (GRD)

J16

J15

J12

UNIVERSAL CONTROL PCB A.

J17

BLK CLR

GRN/YEL

SV CABLE

ORN/WHT

YEL

COM

MIX

DRAW

OUT

SWITCH

PROBE

SV CABLE

BLK/WHT

PANEL

JACK

RED

OPTIONAL REAR

MIX LEVEL LIGHTS

2 4 6

8 10

OUT

BLK

LEFT SYRUP HEATER

BLK

BLU

ORN PUR MIX PUMP

MOTOR

START RELAY

BLK BLK

GRN/YEL

BLK

BLK M

RED 3

2 4

CONDENSER BLOWER MOTOR

BRN

CABLE

SEE FIG. 2

WHT

YEL

BLK

1 3 5 7 9

2 4 6 8 10

OPTIONAL

BLK

GRN/YEL

BEATER MOTOR STARTER COIL

WHT

RED

BLK

BEATER MOTOR LINE MUST

PASS TWICE THRU THE

SENSOR CORE

GRN/YEL

WHT/ORN

ORN

WHT

BLK BLK WHT

GRN/YEL GRN/YEL SOFT SERVE

BEATER MOTOR

BLK

BEATER MOTOR

STARTER

GRN/YEL

WHT

BRN WHT

FAN

START RELAY

START CAP

MIX REF. SYSTEM

(DANFOSS TL3G COMPR.)

(ALSO SEE FIG.1)

BRN

BLK/RED

GRN/YEL

BLK

GRN/YEL

WHT

1113

TERMINAL BLOCK

BRN

GRN/YEL

BLK

BLU

BLK

ELECTRICAL ENCLOSURE

WHT

BLK/RED

WHT

BLK

COM

240

BLU/WHT

WHT

GRN/YEL

BLU/WHT

BLK

WHT

BLK

WHT

WHITE

BLK

WHT

GRN/YEL

BLK

BLK BLK

BLK

GRN/YEL

1410

COMP

CABLE

BLK

BLU

BLK

GRN/YEL

ELECTRICAL ENCLOSURE

GRN/YEL

BLU/WHT

WHT/ORN

BEATER

MOTOR INTERLOCK N.O. SWITCH

BLU

24 VAC

BLUE

BLU

BLK

WHT

BEATER

INTERLOCK

RELAY

5 4

BLACK

BLK

BLU

MAIN WINDING

BLU

BLK

FIGURE 1

START RELAY (047702-27)

START CAPACITOR (047703)

WHT

COMPRESSOR WIRING (MODEL TL3G W/HST)

THERMOSTA

F OPEN

190

F CLOSE

140

FIG .2

BLK

WINDING PROTECTOR (INTERNAL)

WHT

SYRUP HEATER

O.T.

WHT

LEFT SIDE CONTROL

RIGHT SIDE CONTROL

START WINDING

WHT

BLU/WHT

GRN/YEL

BLK

* IF THE UNIT HAS THE INTEGRAL SYRUP OPTION-405, THEN THIS

JUMPER SHOULD BE INSTALLED.

PERSONALITY

BOARD

GROUND FRAME SECURELY

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

BLU/WHT

RED BLU

GRN/YEL

COM

BLK

DRAW

SWITCH

BLU/WHT

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

BLK

C0M

DRAW

SWITCH

PERSONALITY

SOFT SERVE

BOARD

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

SOFT SERVE

PANEL

JACK

RED

JUMPER INSTALLED-ENABLES 59

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

TEMPERATURE CHECK.

RESERVED (DO NOT USE)

SV CABLE

RED BLU

GRN/YEL

GRA/BLK

PRP/WHT

MIX OUT

PROBE

MIX

PRP/WHT

LOW PROBE

BARREL

--THERMISTOR PROBES--

RIGHT INTERFACE

PERSONALITY

SOFT SERVE

BOARD

0-12 AMP BEATER MOTOR AMPERAGE RANGE YES

RESERVED (DO NOT USE)

RED BLU

RED

BLU

123456789

RED/BLK

J14

J10

12345678

J11

YEL

BLU/WHT

BEATER MOTOR

OVERLOAD

SWITCH

BOARD

BLK

J12

YEL

INTFC PCB A.

BLK

WITH SOFT SERVE

PERSONALITY PCB A.

HOPPER

PERSONALITY

0-6 AMP BEATER MOTOR AMPERAGE RANGE NO

123456

3 1

BLK

BLKBLK

BLK

COMPRESSOR HIGH PRESSURE LIMIT SWITCH

BLK

BLK BLK

GRY/WHT

BLK

SOFT SERVE COMPRESSOR

J10 PINS 7 & 8

SOFT SERVE

JUMPER INSTALLED W/SWITCH-SELF SERVE

APPLICATION ONLY. LOCKS OUT TOUCH

PANEL. NEW SWITCH ACTS AS THE ON/OFF

ABILITY TO ACTIVATE THE TOUCH PANEL.

JUMPER INSTALLED-REDUCED MIX LOW SENSITIVITY.

JUMPER INSTALLED-REDUCED MIX OUT SENSITIVITY.

BEATER MOTOR LINE MUST

PASS TWICE THRU THE

SENSOR CORE.

CABLE

RIBBON

SV CABLE

BLK

GND

BLK

+5V

CABLE

CLR

J20

2 1

J19

RED/BLK

J13

1234

BLK BLK

J18

0 1

WHT

BLK

123456

FUSE 15A

OPTIONAL

BLK

RIGHT SYRUP HEATER

SEE FIG. 2

WHT/ORN

BLK

ORN/WHT

OVERLOAD

SWITCH

BLK

BLU

RED

PURPLE

ORN

MIX

COMPRESSOR

PUMP

CONTACTOR COIL

COMPRESSOR

CONTACTOR

RESERVED (DO NOT USE)

RED

MOTOR

WHT

BARREL LIQUID

BEATER MOTOR

STARTER

JUMPER INSTALLED-ACTIVATES SYRUP HEATERS.

BEATER

YEL

MOTOR

START

STARTER

COIL

RELAY

WHT

SOFT SERVE BEATER MOTOR

BLK

DBGEN

RTCK

LEFT INTERFACE

BOARD

RESERVED (DO NOT USE)

GRN/YEL

JP7

JUMPER INSTALLED DISABLES RESET.

SOLENOID

JUMPER INSTALLED-FORCE BRUSH CLEAN STATUS.

BLK

WHT

GRN/YEL

WHT/ORN

GRN/YEL

ORN

BLK

WHT

BLK BLK

WHT

GRN/YEL

BLK

BEATER MOTOR

STARTER

BLK

GRN/YEL

JP3

JP4

JP5

JP6

RESERVED (DO NOT USE)

BLU

WHT

BLK

BLU

BLK

WHT

BEATER

INTERLOCK

RELAY

WHT/ORN

BLK

GRN/YEL

BLK

JP2 PINS 1 AND 2

PINS 3 AND 4

NO JUMPER INSTALLED-NO LOCKOUT DURING

AUTO/STANDBY IF BARREL OR HOPPER IS TOO

WARM FOR A PERIOD OF TIME.

RESERVED (DO NOT USE)

DOMESTIC CONFIGURATION-JUMPER INSTALLED.

HOPPER TEMPERATURE NOT DISPLAYED ON

SCREEN/HEAT SYMBOL KEYS ONLY ACTIVE

WHEN A LOCKOUT CONDITION HAS OCCURRED/

STANDBY KEYS DISABLED.

INTERNATIONAL CONFIGURATION-NO JUMPER

INSTALLED. HOPPER TEMPERATURES

DISPLAYED ON SCREEN/MANUAL HEAT CYCLE

START BY SELECTING HEAT SYMBOL/STANDBY

KEYS FUNCTIONAL.

1 5

4 8

BLU

BLK

JP1

PINS 1 AND 2

BOARD

UVC4

FOR MORE THAN ONE HOUR OR ABOVE 41

JUMPER INSTALLED- BARREL AND HOPPER

TEMPERATURES ARE CHECKED DURING

AUTO/STANDBY. UNIT IS LOCKED OUT IF

EITHER BARREL OR HOPPER IS TOO WARM FOR

A PERIOD OF TIME. LOCKOUT OCCURS WHEN

BARREL OR HOPPER IS ABOVE 45

C) FOR MORE THAN FOUR HOURS.

JUMPER SETTINGS

BLK

TOUCHING GROUNDED UNIT BEFORE

HANDLING SOLID STATE COMPONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE

CONNECTED TO PIN 1 AT EACH END.

NOTE:

1. STATIC ELECTRICITY MAY CAUSE

DAMAGE TO SOLID STATE COMPONENTS.

ELIMINATE STATIC ELECTRICITY BY

FUNCTION

F HOPPER

INSTALLED

INITIALLY

JUMPER

YES

INSTALLED

INITIALLY

JUMPER

NO*

FUNCTION

F (7 C)

INSTALLED

INITIALLY

YES

JUMPER

C712

059898-58

12/9/13

Taylor C712 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
