System Sensor BEAM200, BEAM200S User Manual

INSTALLATION AND MAINTENANCE INSTRUCTIONS

BEAM200, BEAM200S

Single-ended Reflected Type

Projected Beam Smoke Detector

3825 Ohio Avenue, St. Charles, Illinois 60174 1.800.SENSOR2; Fax: [phone] www.systemsensor.com

Specifications
GENERAL
Range:	16 to 230 Feet (5 to 70m); 230 to 328 Feet (70 to 100m) using optional accessory BEAMLRK
Sensitivity:	25% to 50% Total Obscuration in 6 levels
	Level 1 = 25%
	Level 2 = 30%
	Level 3 = 40%
	Level 4 = 50%
	Level 5 = 30% to 50% (Acclimate)
	Level 6 = 40% to 50% (Acclimate)
Spacing:	30 to 60 Feet (9.1 to 18.3m)
Response Time:	ALARM - 20 seconds typical; TROUBLE - 30 seconds typical
Trouble Conditions:	Beam Blockage (96% or More Obscuration)
	Improper Initial Alignment
	Self-compensation limit reached (service needed)
	In Alignment mode
Test/Reset Features:	Integral Sensitivity Test Filter (BEAM200S only, requires additional external power supply)
	Sensitivity Filter (Incremental scale on reflector)
	Local Alarm Test Switch
	Local Alarm Reset Switch
	Remote Test and Reset Switch Capability
Indicators:	ALARM - Remote Output, Local LED (red)
	TROUBLE - Remote Output, Local LED (yellow), Blink Pattern Indicates Trouble Diagnostics
	NORMAL OPERATION - Local LED (flashing green with communication)
	ALIGNMENT AIDS - Optical Gunsight (coarse adjustment), 00 to 99 Digital Display (fine adjustment)
	SENSITIVITY - Digital Display Readout in Percent Obscuration
Style 7 Operation:	On-board isolators provide style 7 operation,(may be disabled via shunts on circuit board)
ENVIRONMENTAL
Temperature:	–22°F to 131°F (–30°C to 55°C) NOTE: for applications below 32°F (0°C) see Special Applications section of this manual.
Humidity:	10% to 93% RH Non-condensing
MECHANICAL
Shipping Weight:	Complete unit: 3.9 lbs. (1.77 kg)
Shipping Size:	15˝ × 10.5˝ × 6.5˝ (381mm × 267mm × 165mm)
Mounting:	Wall only without optional accessories
Wiring:	Plug-in Terminal Blocks (12 to 22AWG)
Adjustment Angle:	±10° Horizontal and Vertical
Paintable Trim Ring:	May be painted using enamel or acrylic type paints
ELECTRICAL
Voltage:	15 to 32 VDC
Standby Current:	Avg. Standby -	2mA Max. (1 communication every 5 sec., LED flashing, SLC @ 24 V)
	Max. Alarm (LED on) -	8.5mA Max.
	Max. Trouble (LED on) -	4.5mA Max.
	Max. Alignment -	20mA Max.
External Supply (BEAM200S only): VOLTAGE - 15 to 32 VDC
	CURRENT - 0.5A Max.
Remote Output (alarm):	VOLTAGE - 15 to 32 VDC, NOTE: Output voltage same as device input voltage.
	CURRENT - 15mA maximum, 6mA minimum; NOTE: Output current is limited by 2.2Kohm resistor
Before Installing			compensated for by a microcontroller that continuously monitors the signal
Please thoroughly read this manual and applicable sections of System Sensor’s			strength and periodically updates the alarm and trouble thresholds. When the
Projected Beam Detector Application Guide. Copies of this manual are avail-			self-compensation circuit reaches its limit, the detector generates a trouble
able from System Sensor.			signal, indicating the need for service.
General Description			Three LEDs on the detector indicate the current status: a red LED for alarm, a
System Sensor Model BEAM200/BEAM200S is a long range projected beam			yellow LED for trouble, and a blinking green LED for standby operation. Note:
smoke detector designed to provide open area protection. It is to be used with			The panel controls the status of the red and green LEDs. The local reset but-
UL-listed compatible control panels only. The detector consists of a transmit-			ton is accessible by removing the outer paintable trim ring. The yellow LED
ter/receiver unit and a reflector. When the obscuration reaches alarm thresh-			will blink in specific patterns to provide a diagnostic aid when diagnosing the
olds (chosen at the transmitter/receiver unit), the detector generates an alarm			cause of a trouble signal. It will also blink the amount of drift compensation
signal. Complete blockage of the beam causes a trouble signal. Slow changes			that has been used at the conclusion of the test. Trouble signals automati-
in obscuration due to a build up of dirt or dust on the lens of the detector are			cally reset upon removing the cause of trouble. Red and yellow LEDs can be
D400-74-00		1	I56-2289-005R

005R-2289-I56

remotely connected to the remote Alarm and Trouble outputs. These outputs mimic the functions of the detector’s red and yellow LEDs. In addition to these indicators, there is a dual digital display that reads 00 to 99. This display is used to indicate the signal strength of the beam in alignment mode and to indicate the sensitivity setting of the detector in percent obscuration when setting the sensitivity of the detector. No additional equipment is needed for alignment of the beam.

Special Applications

Due to the inherent capabilities of projected type beam detectors they are often installed in locations where spot-type detection is impractical. Projected type beam smoke detectors are ideally suited for environmental conditions that might include high ceilings, dusty and dirty environments, or environments that experience temperature extremes. Often these conditions present special problems for the installation of spot-type detectors and even greater problems for their proper maintenance. Due to the inherent flexibility of mounting locations and large coverage area of projected type beam detectors often the conditions above can be addressed or minimized.

Some examples of applications for beam detectors might include freezers, aircraft hangars, cold storage warehouses, shipping warehouses, enclosed parking facilities, sporting arenas and stadiums, concert halls, barns, or stables. Some of these environments might be considered to hostile for spot-type smoke detectors. If the environment is considered to be hostile then the colder alarm threshold settings should be used.

Before installing the transmitter/receiver unit or reflector in these types of applications special consideration should be given to Ensure proper operation of the beam detector. The beam detector should not be installed in environments where there is no temperature control and condensation or icing is likely. Condensation or icing of the reflector surface or the outer surface of the transmitter/receiver unit will obscure the light beam resulting in a false alarm. If elevated humidity levels and rapidly changing temperatures can be expected then condensation will likely form and the application should not be considered acceptable for the beam detector. The beam detector should not be installed in locations where the transmitter/receiver unit, the reflector, or the optical pathway between them may be exposed to outdoor conditions such as rain, snow, sleet, or fog. These conditions will impair the proper operation of the detector and must be avoided.

Approved Accessories

The following accessories can be purchased separately for use with this beam detector.

BEAMLRK

The BEAMLRK allows System Sensor reflected beam detectors to be installed at separations between 230 and 328 feet (70 to 100 meters). At these distances, four 8˝×8˝ reflectors must be used to provide enough reflected infrared light. This kit includes 3 additional reflectors with new test scale legends. The reflector included with the transmitter/receiver unit is the fourth reflector to be used. This kit is not compatible with the multi-mount kit (BEAMMMK).

BEAMMMK

The BEAMMMK allows System Sensor reflected beam detectors and reflectors to be mounted to either a vertical wall or the ceiling. The kit allows for additional alignment range in cases where the detector and reflector cannot be mounted within 10° of each other. The kit includes the hardware necessary to mount either a single transmitter/receiver unit or a single reflector. (To mount the transmitter/receiver the surface mount kit, BEAMSMK, must also be used). If the transmitter/receiver and the reflector require additional alignment range two kits are required. The kit is not compatible with the longrange reflector kit (BEAMLRK).

BEAMSMK

The BEAMSMK allows System Sensor reflected beam detectors to be mounted when surface wiring is used. This kit must be used when mounting the transmitter/receiver unit with the multi-mount kit (BEAMMMK).

6500-MMK

The 6500-MMK provides a heavy-duty multi-mount bracket for installations prone to building movement or vibration. It offers similar tilt and swivel flexibility found on the BEAMMMK. (To mount the transmitter/receiver to the 6500-MMK, the surface mount kit, 6500-SMK, must be used).

6500-SMK

The 6500-SMK allows the transmitter/receiver to be mounted to the 6500MMK heavy duty multi-mount kit

BEAMHK

The BEAMHK allows the transmitter/receiver unit to operate in environments prone to the formation of condensation. Condensation forming on the beam detector unit may result in trouble or false alarm conditions. BEAMHK will lessen the likelihood of condensation by maintaining the unit at a temperature that is slightly higher than the surrounding air. Please refer to the BEAMHK installation manual for operation instructions.

BEAMHKR

The BEAMHKR allows the reflector to operate in environments prone to the formation of condensation. Condensation forming on the reflector may result in trouble or false alarm conditions. BEAMHKR will lessen the likelihood of condensation by maintaining the reflector at a temperature that is slightly higher than surrounding air. The kit requires a 24V power supply. When used with the long-range reflector kit (BEAMLRK), it is necessary to purchase and install four BEAMHKR kits. Please refer to the BEAMHKR installation manual for operation instructions.

RTS451/KEY or RTS151/KEY

The remote test accessory, allows for the beam detector to be tested remotely. The test accessory provides test and reset functions and green and red LED’s that mimic the LED’s on the detector.

Parts List
Description	Quantity
Transmitter/Receiver Unit. . . . . . . . . . . . . . . . . . . 1
Paintable Trim Ring. . . . . . . . . . . . . . . . . . . . . 1
Reflector. . . . . . . . .	. . . . . . . . . . . . . . . . 1
Plug-in Terminal Blocks. . . . . . . . . . . . . . . . . . . . 3
Isolator Shunts . . . . . . . . . . . . . . . . . . . . . . . 2
Instruction Manual . . . . . . . . . . . . . . . . . . . . . 1
Orange Sticky Paper. . . . . . . . . . . . . . . . . . . . . 1
Parts Diagram (not to scale)
TERMINAL BLOCK	PAINTABLE TRIM RING

ISOLATOR

SHUNT

C0306-01

Detector Placement

This section of the manual discusses the placement of projected beam detectors. Though this information is based upon industry expertise, it is intended to be used only as a technical guide. Always comply with the requirements of applicable codes and standards such as, NFPA 72, National Fire Alarm Code, as well as directives of the Authority Having Jurisdiction (AHJ). For general information on the placement of detectors, read System Sensor’s Projected Beam Detector Application Guide.

Projected beam detectors are usually located with their beams parallel to the ceiling. However, they can be mounted vertically or at any angle to protect the area involved. Since beam detectors sense the smoke buildup over a distance, they are ideal for locations with high ceilings. They can also be mounted on a wall or ceiling below the level of a spot type detector, reducing the effects of air stratification. Some typical locations would include large areas with high ceilings such as atriums, warehouses, and factories.

NOTE: Projected beam smoke detectors should always be mounted to stable mounting surfaces. See the MOUNTING LOCATION section for details.

D400-74-00

2

I56-2289-005R

Some fire codes specify spacing on a given center-to-center distance between detectors under ideal conditions. This spacing is based on rooms with smooth ceilings and no physical obstructions between the contents being protected and the detectors. Moreover, they are also based on a maximum ceiling height, and on the assumption that the value and the combustible nature of the contents of the room being protected do not warrant greater protection or closer spacing.

In a room with a smooth ceiling, detectors should be spaced horizontally between 30 and 60 feet (9.1 to 18.3m). One-half that spacing between the beam and the sidewall may be used as a guide. See Figure 1. The beam detector can be mounted with the transmitter/receiver on one wall and the reflector on the opposite wall, or both suspended from the ceiling, or any wall/ceiling combination. In the case of the ceiling mount, the distance from the end walls should not exceed one-quarter of the selected spacing (7.5 ft. [2.3m] maximum if the spacing is 30 ft. [9.1m]). See Figure 2.

Figure 1. Spacing for smooth ceiling (side view):

1/2 S S

12 IN. MIN.

(0.3M)

30’ (9.1M) MAX

TO FIRST

DETECTORS

10’ (3.0M)

MIN. WALL TYPICAL

Figure 3. Sloped ceiling (shed type):

	(0.	3 FT	.
		9M)MAX.		S

S

REFLECTOR

Tx/Rx

Figure 4. Sloped ceiling (peaked type):

MOUNT SPOT DETECTOR ANYWHERE IN THIS AREA

REFLECTOR

Tx/Rx

1	/2	S
		MAX.

C0256-00

C0254-02

Figure 2. Spacing for smooth ceiling (top view):

	1/2 S MAXIMUM
Tx/Rx	REFLECTOR

1/4 S

MAX.

S

Tx/Rx		REFLECTOR

16 FT. (5M) MINIMUM

328 FT. (100M) MAXIMUM

C0255-00

In the case of peaked or sloped ceilings, codes may specify spacing of detectors by using horizontal spacing from the peak of the roof or ceiling. Figures 3 and 4 show the spacing for both the shed type and peaked type sloped ceilings.

On smooth ceilings, beam smoke detectors should generally be mounted a minimum of 12 inches (0.3m) from the ceiling or beneath structural obstructions such as joists, ducts, etc. See Figure 1. In many cases, however, the location and sensitivity of the detectors shall be the result of an engineering evaluation that includes the following: ceiling heights above 30 feet (9.1 m) - refer to the “Single-Ended Reflected Beam Smoke Detector” application guide A05-0095 for more information regarding the effects of stratification, structural features, size and shape of the room and bays, occupancy and uses of the area, ceiling height, ceiling shape, surface and obstructions, ventilation, ambient environment, burning characteristics of the combustible materials present, and the configuration of the contents in the area to be protected.

D400-74-00

1	/2

S

	S	)
	3 FT.
	(0.9M
	MAX.

S

)

3 FT. (0.9M MAX.

1	/2

S

C0257-02

Mounting Locations

Beam detectors require a stable mounting surface for proper operation. A surface that moves, shifts, vibrates, or warps over time will cause false alarm or trouble conditions. Initial selection of a proper mounting surface will eliminate false alarms and nuisance trouble signals.

Mount the detector on a stable mounting surface, such as brick, concrete, a sturdy load-bearing wall, support column, structural beam, or other surface that is not expected to experience vibration or movement over time. DO NOT MOUNT the beam detector on corrugated metal walls, sheet metal walls, external building sheathing, external siding, suspended ceilings, steel web trusses, rafters, nonstructural beam, joists, or other such surfaces.

In cases where only one stable mounting surface as defined above can be used, the transmitter/receiver unit should be mounted to the stable surface and the reflector should be mounted to the less stable surface. The reflector has a much greater tolerance for the unstable mounting locations defined above.

Mounting Instructions

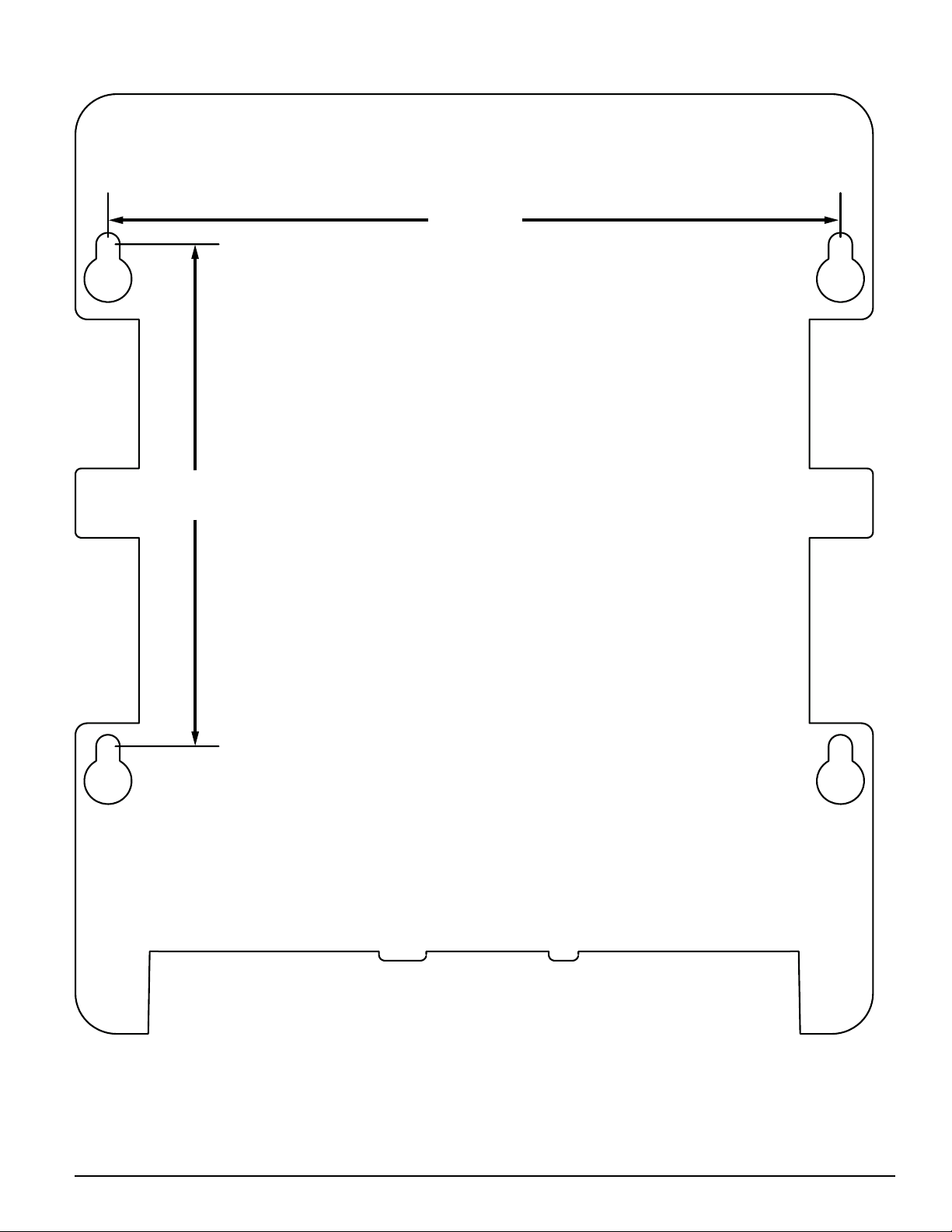

The transmitter/receiver unit may be mounted over a recessed junction box. The cavity behind the detector is then used for routing of the wiring from the junction box to the terminal blocks on the detector. The transmitter/receiver unit should be mounted to the wall such that unit covers the recessed junction box in the wall completely. If the junction box is not recessed then you may use the surface mount kit (BEAMSMK). See the BEAMSMK installation instructions for surface mounting instructions. The transmitter/receiver unit can be mounted to the wall using the supplied drilling template (see Appendix II). The detector base has 4 primary mounting keyholes, one in each corner of

3	I56-2289-005R

the base. All four hole locations should be used to provide a secure mounting. The outer housing of the beam detector is held to the base using four screws. In order to mount the detector you must remove the outer housing first.

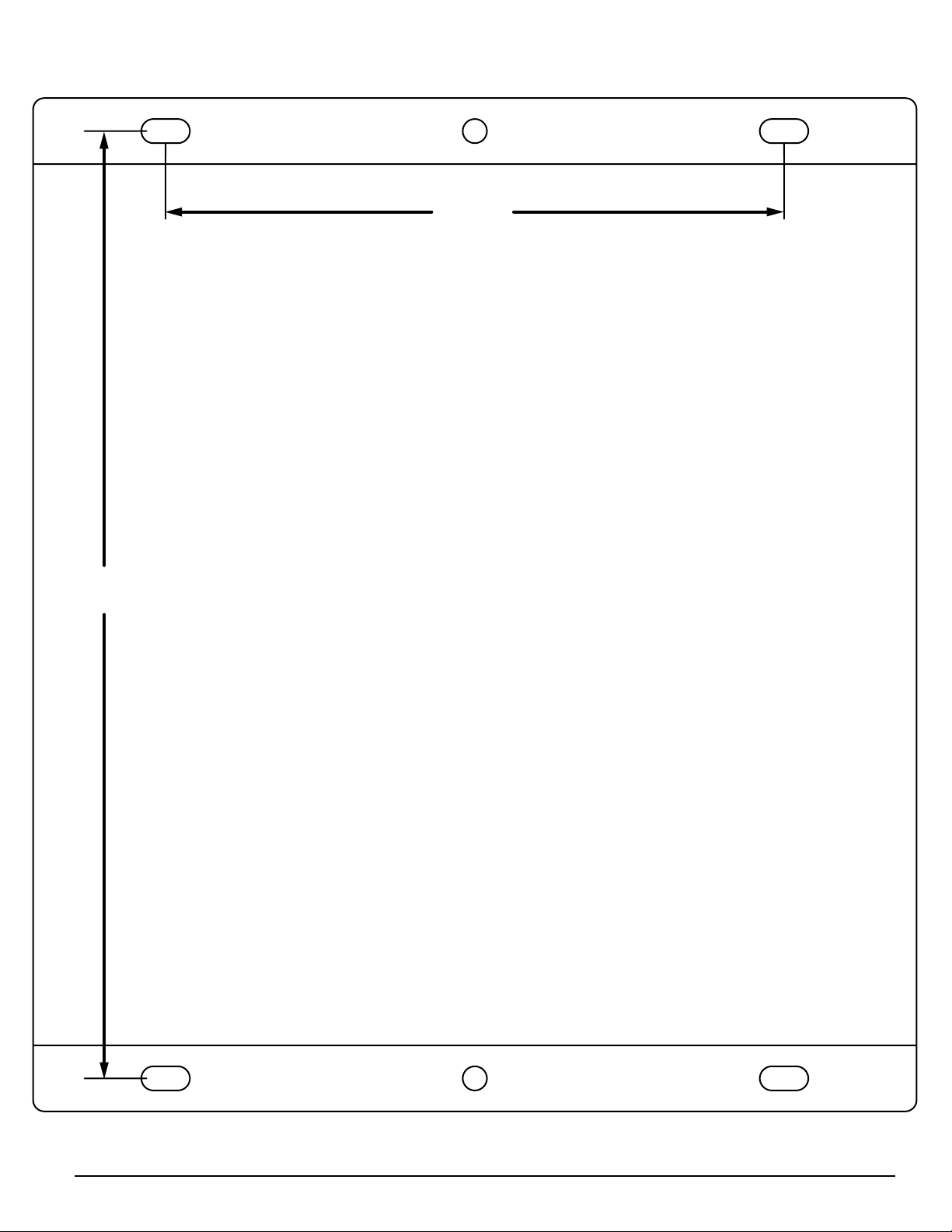

The reflector can be mounted to the wall using the supplied drilling template (see Appendix III). The reflector has 4 mounting holes, one in each corner. All four hole locations should be used to provide a secure mounting. The reflector must be mounted such that it is within 10° in both the X and Y planes of the transmitter/receiver unit. See Figure 5a. The reflector must also be mounted such that plane of the reflector is perpendicular to the optical line of sight to the transmitter/receiver unit. The maximum tolerance for nonperpendicular mounting locations is 10°. See Figure 5b. If the reflector cannot be mounted within 10° of the transmitter/receiver unit then the multi-mount kit (BEAMMMK) or the heavy-duty multi-mount kit (6500-MMK) may be used to provide greater angular adjustment of the transmitter/receiver unit. If the perpendicular plane of the reflector cannot be mounted within 10° of the optical line of sight then the multi-mount kit can be used for the reflector. See BEAMMMK or 6500-MMK instructions.

To aid in locating the reflector in the alignment mirror at long distances a bright orange sticky backed piece of paper is provided. Remove the protective backing from the orange sticker. Temporarily affix the orange paper next to the reflector using the sticky backing of the paper. The location of the sticky paper is not critical. It may be placed anywhere near the reflector as long as it not covering the reflective surface of the reflector. This sticky paper should be removed once the installation is completed.

Figure 5a. Reflector Mounting Guidelines:

	WA	LL
		10

	10	OR
		REFLECT

ACCEPTABLE MOUNTING

LOCATIONS FOR REFLECTOR

C0258-00

Figure 5b. Reflector Mounting Guidelines:

10 MAXIMUM

OPTICAL LINE OF SIGHT

REFLECTOR

C0259-00

Mounting Considerations for Single Ended Beam Detectors

There must be a permanent clear line of vision between the detector and the reflector. Reflective objects must not be near the line of vision between the detector and reflector. Reflective objects too near to the line of sight can reflect the light beam from the transmitter to the receiver. If this occurs, the detector will not be able to distinguish these reflections from those of the reflector and the protected space will be compromised. Reflective objects should be a minimum of 15 inches (38.1cm) from the line of sight between the detector and reflector. In cases where reflective objects cannot be avoided, the complete reflector blockage test can be used to determine if the installation is acceptable. See Testing and Maintenance Section of this manual.

Light sources of extreme intensity such as sunlight and halogen lamps, if directed at the receiver, can cause a dramatic signal change resulting in fault and alarm signals. To prevent this problem direct sunlight into the transmitter/ receiver unit should be avoided. There should be a minimum of 10° between the pathway of the light source and detector and the line of sight between detector and reflector.

Operation of the detector through panes of glass should be avoided. Since single ended beam detectors operate on a reflection principle, a pane of glass perpendicular to the line of sight between the detector and the reflector can reflect the light beam from the transmitter to the receiver. If this occurs, the detector will not be able to distinguish these reflections from those of the reflector and the protected space will be compromised.

Panes of glass will also absorb some of the light as it passes through it. This absorption of light will reduce the acceptable installed distance between the detector and the reflector.

In cases where operation through panes of glass cannot be avoided some specific installation practices can help to minimize the effects of the glass. These practices include: avoid penetration of multiple panes of glass, position the glass so that it is not perpendicular to the line of sight between the detector and the reflector, (A minimum of 10° off perpendicular should be considered), and make certain that the glass is smooth, clear and mounted securely. The complete reflector blockage test can be used to determine if the installation is acceptable. See Testing and Maintenance Section of this manual.

Where high ceilings (in excess of 30 feet or 9.1 meters) are present additional beam smoke detectors mounted at multiple heights may be required to detect smoke at lower levels. See the Detector Placement section in this installation manual.

Wiring Installation Guidelines

Always install all wiring in compliance with the National Electrical Code, and/ or the applicable local codes, and any special requirements of the local authority having jurisdiction. Proper wire gauges and suitable means for strain relief should be used. The conductors used to connect beam smoke detectors to control panels and accessory devices should be color-coded to reduce the likelihood of wiring errors. Improper connections can prevent a system from responding properly in the event of a fire.

Installation wire used for the beam detector shall be no smaller than 22 AWG (1.0 mm2). For best system performance, all wiring should be twisted pair and installed in separate grounded conduit. Do NOT mix fire system wiring in the same conduit as any other electrical wiring. Shielded cable may be used to provide additional protection against electrical interference.

When installing the beam smoke detector in applications where the head unit will be mounted to either a wall or the ceiling using the multi-mount kits (BEAMMMK or 6500-MMK) flexible conduit will be used. The surface mount kits (BEAMSMK or 6500-SMK) and multi-mount kits (BEAMMMK or 6500MMK) must be installed with the cable before wiring the unit, according to the instructions supplied with the kit.

When the detector has been mounted over a recessed junction box, all wiring should be routed out of the box and behind the detector to the bottom of the detector where the terminal blocks are located. When installing the wiring in the junction box be sure to leave enough wire in the box to connect to the terminal blocks. (Approximately 9" (23cm) of wire outside of the junction box will be required for proper installation). All wiring to the detector is done via pluggable terminal blocks. In order to properly make electrical connections strip approximately 1/4" (6mm) of insulation from the end of the wire, sliding the bare end of the wire under the clamping plate screw.

Figure 6 shows all the wiring connections to the transmitter/receiver unit. Figure 7 shows the proper wiring diagram for either class A or class B operation. Figure 8 shows the connections that are necessary when using one of the optional remote test stations. Figure 9 shows the remote output for alarm indication.

WARNING: Disable the zone or system before applying power to the beam detector to prevent unwanted alarms. When applying power to the beam detector before the alignment procedure has been completed the detector may enter alarm or fault.

D400-74-00

4

I56-2289-005R

Figure 6. Wiring Connections at Detector:

T3	T2	T1
		)		)
USED NOT OUT TROUBLE REMOTE )–( OPTION TEST (+) OPTION TEST	NPUT I RESET INPU EST )–( AUX OUT ALARM REMOTE	–( SLC (+) SLC	(+) SLC	–( SLC

C0260-01

Figure 7. Wiring Diagram:

ONLY USED FOR	T3 T2	T1
BEAM200S. SEE

ELECTRICAL

RATINGS.

LISTED	+	–	+ – + –
REMOTE
POWER
SOURCE	+			–
	–			+
	FROM		COMMUNICATION LINE	TO NEXT
	PANEL OR		32 VDC MAX.	DEVICE
	PREVIOUS		TWISTED PAIR IS
	DEVICE		RECOMMENDED.
				C0261-00

Figure 8. Wiring Diagram (RTS451 or RTS151):

PIN 1

PIN 2

PIN 4

PIN 3

PIN 5

RTS451/KEY or RTS151/KEY

			DETECTOR
T1-1 SLC IN +				SLC OUT +	T1-3
T1-2 SLC IN –				SLC OUT –	T1-4
T2-1			REMOTE ALARM OUT
T2-2
			AUX (–)
T2-4			RESET INPUT
T2-3			TEST INPUT
	T3-3		REMOTE TROUBLE OUTPUT
	OPTIONAL YELLOW LED

C0328-03

Figure 9. Wiring Diagram (RTS451 or RTS151):

BEAM200/S

SLC (+)

ALARM

SIGNAL T2-1 CIRCUIT

(NOTE 1)

RED

SLC (–)	T2-2

NOTE 1: SEE ELECTRICAL RATINGS SECTION OF

THIS MANUAL FOR CIRCUIT OUTPUT RATINGS.

C0320-00

Installation / Alignment

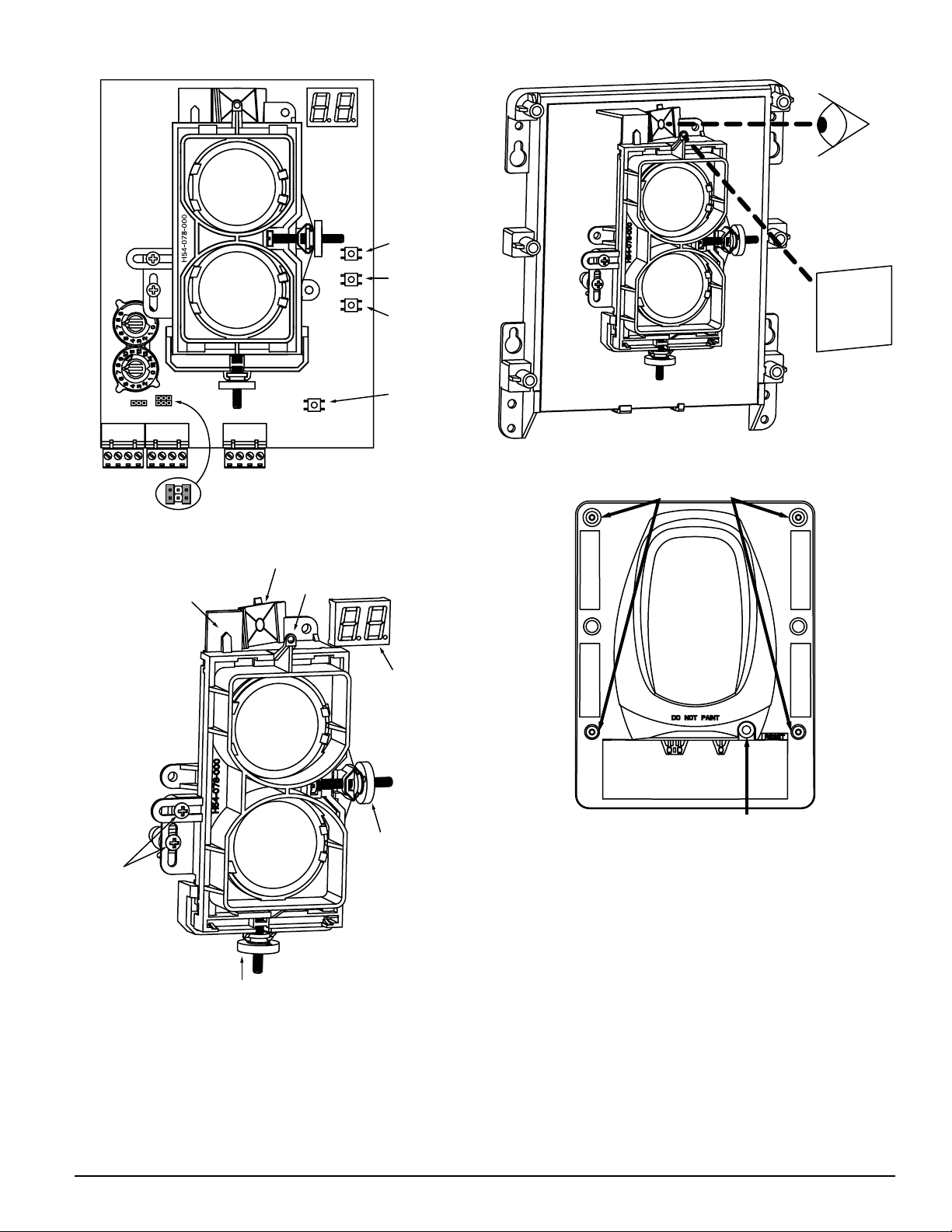

Reference Figures 10 through 14 for installation, alignment, and maintenance.

The alignment of the BEAM200/BEAM200S is divided into four steps: coarse alignment, fine adjustment, final gain adjustment, and final verification. It is necessary for all four steps to be executed properly to ensure proper alignment of the product. If the detector and reflector are mounted per Mounting Locations and Mounting Instructions sections of this manual and the alignment procedures are executed properly, false alarms and nuisance trouble signals will be minimized.

Pre-Alignment Checklist

•Ensure that both the detector and reflector are mounted securely to stable surfaces.

•Ensure that all wiring is correct.

•Ensure that terminal blocks are fully seated into their receptacles on the detector.

•Complete any wiring dressing to minimize movement to the detector once the alignment procedure is completed.

•Ensure that the appropriate number of reflectors are used for the installed distance. Distances between 230 & 328 Feet (70 - 100m) require additional reflectors (4 total). The BEAMLRK accessory should be used in these cases.

•Ensure that the line of sight between the detector and reflector is clear and that reflective objects are not too near. See Mounting Instructions for more details.

•Ensure that both the detector and reflector are mounted within their operational parameters for off axis angles. See Mounting Instructions for more details.

•Disable the zone or system to prevent unwanted alarms before applying power.

•Ensure power to the detector is “ON”.

•Ensure that the appropriate address is set on the code wheels.

You are now ready to begin the alignment procedure.

D400-74-00

5

I56-2289-005R
