Multi Channel AV Receiver

Operating Instructions

4-454-443-41(1)

STR-DN1040

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

Excessive sound pressure from earphones and headphones can cause hearing loss.

This symbol is intended to alert the user to the presence of the Hot Surface that may be hot if it is touched during the normal operation.

This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 meters.

For customers in Europe

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers: The following information is only applicable to equipment sold in countries applying EU Directives.

This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union le gislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service of guarantee documents.

Hereby, Sony Corp., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For details, please access the following URL: http://www.compliance.sony.de/

For customers in Australia

This equipment should be installed and operated with at l east 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

About This Manual

• The instructions in this manual are for model STR-DN1040. The model nu mber is located at the lower right corner of the front panel. The illustrations used in this manual are of the Europe model and they may be different from your model. Any differences in operation are marked in the manual as “Europe model only”.

• The instructions in this manual describe the operation of the receiver with the supplied remote control. You can also use the buttons or knobs on the receiver if they have the same or similar names as those on the remote control.

On copyrights

This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System. * Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, Surround EX, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license under U.S.

Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

This receiver incorporates High-Definition Multimedia Interface (HDMI The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

AirPlay, iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not specified.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

) technology.

DLNA™, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

“Sony Entertainment Network” logo and “Sony Entertainment Network” are trademarks of Sony Corporation.

Wake-on-LAN is a trademark of International Business Machines Corporation in the United States.

Windows and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a lice nse from Microsoft or an authorized Microsoft subsidiary.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

“x.v.Color (x.v.Colour)” and “x.v.Color (x.v.Colour)” logo are trademarks of Sony Corporation.

“BRAVIA” is a trademark of Sony Corporation.

“PlayStation” is a registered trademark of Sony Computer Entertainment Inc.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

MICROVAULT is a trademark of Sony Corporation.

VAIO and VAIO Media are registered trademarks of Sony Corporation.

PARTY STREAMING and PARTY STREAMING logo are trademarks of Sony Corporation.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

InstaPrevue™ is a trademark or registered trademark of Silicon Image, Inc. in the United States and other countries.

FLAC Decoder

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain

the above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must

reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org

Foundation nor the names of its contributors may be used to endorse or pr omote products derived from this software without specific prior written permission.

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

Table of Contents

About This Manual ........................3

Supplied accessories ......................8

Description and location of

parts .........................................9

Getting started .............................20

Connections

1: Installing the speakers .............23

2: Connecting the speakers ..........25

3: Connecting the TV ..................27

4: Connecting other

equipment ..............................28

5: Connecting the antennas

(aerials) .................................33

6: Connecting to the network ......34

Preparing the Receiver

Connecting the AC power cord

(mains lead) ...........................36

Turning on the receiver ...............36

Setting up the receiver using the

Easy Setup .............................36

Configuring the network settings

of the receiver .......................38

Guide to Graphical User Interface

(GUI) operation .....................42

Basic Operations

Enjoying images/sound from the

connected equipment ............44

Playing an iPod/iPhone ...............46

Playing a USB device ..................48

Tuner Operations

Listening to FM/AM radio ..........51

Presetting FM/AM radio stations

(Preset Memory) ...................52

Receiving RDS broadcasts ..........53

Enjoying Sound Effects

Selecting the sound field ............. 53

Adjusting the equalizer ............... 57

Using the Sound Optimizer

function ................................. 57

Selecting the calibration type ...... 57

Using the Pure Direct function ... 58 Resetting sound fields to the

default settings ...................... 58

Using Network Features

About the network functions of

the receiver ........................... 59

Setting up the server ................... 59

Enjoying audio content stored on

the server .............................. 65

Enjoying Sony Entertainment

Network (SEN) ..................... 68

Using the PARTY STREAMING

function ................................. 70

Streaming music from iTunes

with AirPlay ......................... 72

Updating the software ................. 73

Searching for an item using a

keyword ................................ 75

“BRAVIA” Sync Features

What is “BRAVIA” Sync? ......... 76

Preparing for the “BRAVIA”

Sync ...................................... 77

One-Touch Play .......................... 77

System Audio Control ................ 77

System Power-Off ...................... 78

Scene Select ................................ 78

Home Theatre Control ................ 79

Remote Easy Control .................. 79

Controlling the MHL device ....... 79

Switching the monitors that

output the HDMI video

signals ................................... 80

Other Operations

Switching between digital and

analog audio (INPUT

MODE) ................................. 80

Using other video/audio input

jacks (Input Assign) .............. 81

Using a bi-amplifier

connection ............................. 82

Using multi-zone features ........... 83

Reverting back to the factory

default settings ...................... 85

Adjusting Settings

Using the Settings menu ............. 85

Easy Setup .................................. 88

Speaker Settings menu ................ 88

Audio Settings menu ................... 92

HDMI Settings menu .................. 94

Input Settings menu .................... 95

Network Settings menu ............... 96

System Settings menu ................. 97

Operating without using the

GUI ....................................... 97

Using the Remote Control

Programming the remote

control ................................. 103

Resetting the remote control ..... 107

Additional Information

Precautions ................................ 108

Troubleshooting ........................ 109

Specifications ............................ 120

Index ......................................... 123

Supplied accessories

• Operating Instructions (Australia model

only) (this manual)

• Quick Setup Guide (1)

• Reference Guide (1) (Europe model only)

• Remote control (RM-AAP103) (1)

• R6 (size AA) batteries (2)

• FM wire antenna (aerial) (1)

• AM loop antenna (aerial) (1)

• Optimizer microphone (ECM-AC2) (1)

Inserting batteries into the remote control

Insert two R6 (size-AA) batteries (supplied) in the remote control. Observe the correct polarity when installing batteries.

Notes

• Do not leave the remote control in an extremely hot or humid place.

• Do not use a new battery with old ones.

• D o not mix manganese batteries and other kinds of batteries.

• Do not expose the remote control sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.

• If you do not intend to use the remote control for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

• When you replace or remove the batteries, the programmed codes may be cleared. If this happens, reprogram the remote control (page 103).

• When the receiver no longer responds to the remote control, replace all the batteries with new ones.

Description and location of parts

Front panel

A ?/1 (on/standby) (page 36, 58, 85)

The indicator above the button lights up as follows: Green: The receiver is turned on. Amber: The receiver is in standby mode, and – Either “Control for HDMI”

(page 94) or “Network Standby” (page 96) is set to “On”.

– “Pass Through” is set to “On”* or

“Auto” (page 94).

– The receiver in zone 2 is turned on

(page 84). Lights off when the receiver is in standby mode and “Control for HDMI”, “Pass Through”, and “Network Standby” are set to “Off”.

* For Australia model only.

Note

If the indicator flashes slowly, the software update is in progress (page 73).

B SPEAKERS (page 38)

C TUNING MODE, TUNING +/–

Press TUNING MODE to operate a tuner (FM/AM). Press TUNING +/– to scan a station.

D A.F.D./2CH, MOVIE, MUSIC (page

44, 53, 58)

E Display panel (page 11) F SOUND OPTIMIZER (page 57) G INPUT MODE (page 80) H DIMMER

Adjusts the brightness of the display panel in 3 levels.

I DISPLAY (page 102) J Remote control sensor

Receives signals from remote control.

K PURE DIRECT (page 58)

The indicator above the button lights up when Pure Direct function is activated.

L MASTER VOLUME (page 44, 92) M INPUT SELECTOR (page 38, 44, 81) N HDMI/MHL (VIDEO 2 IN) jack

(page 31)

O (USB) port (page 33) P AUTO CAL MIC jack Q PHONES jack

Connects to headphones.

Indicators on the display panel

A Input indicator

Lights up to indicate the current input.

HDMI

The receiver recognizes the equipment connected via an HDMI IN jack.

ARC

TV input is selected and the Audio Return Channel (ARC) signals are detected.

COAX

Digital signal is input through the COAXIAL jack (page 80).

OPT

Digital signal is input through the OPTICAL jack (page 80).

B PARTY

Lights up when PARTY STREAMING function is activated (page 70).

C S.OPTIMIZER

Lights up when Sound Optimizer function is activated (page 57).

D D.C.A.C.

Lights up when the measurement results of the Auto Calibration function are applied.

E Dolby Digital Surround indicator*

Lights up the respective indicator when the receiver is decoding the corresponding Dolby Digital format signals.

TrueHD

Dolby Digital Dolby TrueHD

F DTS(-HD) indicator*

Lights up the respective indicator when the receiver is decoding the corresponding DTS format signals.

DTS DTS-HD

G Speaker system indicator

(page 37)

H Tuning indicator

DTS DTS-HD

Lights up when the receiver tunes to a stereo broadcast.

MEM

Lights up when memory function , such as Preset Memory (page 52), etc., is activated.

I HDMI OUT A + B (page 80) J SLEEP

Lights up when the Sleep Timer is activated (page 15).

K EQ

Lights up when the equalizer is activated.

L D.L.L.

Lights up when the Digital Legato Linear (D.L.L.) function is activated (page 92).

M D.R.C.

Lights up when dynamic range compression is activated (page 94).

N NEO:6

Lights up when DTS Neo:6 Cinema/

Music decoding is activated (page 55,

55).

O Dolby Pro Logic indicator

Lights up the respective indicator

when the receiver performs Dolby Pro

Logic processing. This matrix

surround decoding technology can

enhance input signals.

PL PLII PLIIx PLIIz

Note

These indicators may not light up depending

on the speaker pattern setting.

P ZONE 2

Dolby Pro Logic Dolby Pro Logic II Dolby Pro Logic IIx Dolby Pro Logic IIz

Lights up while operation in zone 2 is

being enabled.

Q A.P.M.

Lights up when the A.P .M. (Automatic

Phase Matching) function is activated.

You can only set the A.P.M. function

in the DCAC (Digital Cinema Auto

Calibration) function (page 90).

R UPDATE

Lights up when a new software is

available (page 73).

S Wireless LAN signal strength

indicator

Lights up to show the strength of the

wireless LAN signal (page 40, 41).

No signal.

The signal strength is weak.

The signal strength is moderate.

The signal strength is strong.

T Wired LAN indicator

U USB

Lights up when iPod/iPhone or USB device is detected.

* When playing a Dolby Digital or DTS format

disc, make sure that you have completed the digital connections and that “INPUT MODE” is not set to “ANALOG” (page 80) or “2ch Analog Direct” is not selected.

Lights up when LAN cable is

connected.

Rear panel

A DIGITAL INPUT/OUTPUT section

HDMI IN/OUT* jacks (page 27, 30)

OPTICAL IN jacks (page 27,

32)

COAXIAL IN jack (page 32)

B TUNER section

FM ANTENNA jack (page 33)

AM ANTENNA terminals (page 33)

C Controls jacks for Sony equipment

and other external equipment

IR REMOTE IN/OUT jacks (page 83)

D NETWORK section

LAN port** (page 35)

Wireless LAN antenna (page 35)

E SPEAKERS section (page 25)

F AUDIO INPUT/OUTPUT section

White (L)

Red (R)

Black

AUDIO IN jacks (page 32)

SUBWOOFER OUT jacks (page 25)

ZONE 2 OUT jacks (page 83)

G VIDEO INPUT/OUTPUT section

(page 27, 32)

Yellow

VIDEO IN/OUT* jacks

H COMPONENT VIDEO INPUT/

OUTPUT section (page 27, 32)

Green (Y)

Blue (P

Red (PR)

* You must connect the HDMI OUT or

MONITOR OUT jack to your TV to watch the selected input image (page 27).

** You can also use this port for maintenance and

service (page 96).

Y, PB, PR IN/OUT*

jacks

Remote control

Use the supplied remote control to operate this receiver and other equipment. The remote control is pre-programmed to operate Sony audio/video equipment. You can also program the remote control to operate non-Sony equipment. For details, see “Programming the remote control” (page 103).

RM-AAP103

A ?/1 (on/standby)

Turns the receiver on or sets it to the standby mode. If you press ZONE (

T) to switch the

remote control to zone 2 mode, you can turn the power for zone 2 on or off using ?/1 (page 84).

Saving the power in standby mode

When “Control for HDMI”, “Pass Through” and “Network Standby” are set to “Off”, and the receiver in zone 2 is turned off.

B AV ?/1

(on/standby)

Turns on or off the audio/video equipment that the remote control is programmed to operate. To turn the TV on or off, press TV ( and then press AV ?/1.

Note

The function of the AV ?/1 changes automatically each time you press the input buttons (E).

C SLEEP

Press AMP (4), then press SLEEP to set the receiver to turn off automatically at specified time. Each time you press SLEEP, the display changes cyclically as follows:

0:30:00 t 1:00:00 t 1:30:00 t 2:00:00 t OFF

Tips

• To check the remaining time before the

receiver turns off, press SLEEP. The

remaining time appears on the display

panel.

• The Sleep Timer will be canceled when

you perform the following.

–Press SLEEP again.

– Update the software of the receiver.

–Press ?/1.

TV INPUT

Press TV (U), then press TV INPUT to select the input signal (TV input or video input).

D AMP

Activates the receiver operation for main zone (page 102).

E Input buttons2)

Selects the equipment you want to use. When you press any of the input buttons, the receiver turns on. The input buttons are pre-assigned to automatically control Sony equipment when you select them. You can also program the remote control to control non-Sony equipment following the steps in “Programming the remote control” on page 103.

F HDMI OUTPUT (page 80) G Numeric/text buttons

Press to – preset/tune to the preset stations

(page 52).

– select track numbers. Press 0/10 to

select track number 10. – select channel numbers. – select the letters (ABC, DEF, etc.). – select @ for the punctuation marks

(!, ?, etc.) or other symbols (#, %,

etc.) when you enter characters for

network features. Press TV ( buttons to select the TV channels.

ENT (ENTER)

Enters the value after selecting a channel, disc, or track using numeric buttons.

CHARACTER

Selects the character type for network features. Each time you press CHARACTER, the character type changes in sequence as follows: “abc” (lowercase letters) t “ABC” (uppercase letters) t “123” (numbers)

CLR (CLEAR)

Press to – erase a letter for network features. – clear a mistake when you press the

incorrect numeric/text button.

-/--

Selects channel entry mode, either one or two digit.

1)2)

U), then press the numeric

Press TV (U), then press -/-- to select the TV channel entry mode.

>10

Selects track numbers over 10.

INPUT MODE (page 80)

H AMP MENU

Displays the menu to operate the receiver (page 97).

Press V/v/B/b to select the menu

V/v/B/b

items, then press to enter/confirm the selection.

J OPTIONS

Displays and selects items from the options menus. Press TV ( display the TV function options.

K HOME

U), then press OPTIONS to

Displays the menu of the audio/video equipment that is currently being controlled by the remote control. For example, press AMP (

4), then

press HOME to display the home menu (page 43). Press the input buttons (

E), then press

HOME to display the menu of the equipment that you want to control.

L ./>1), m/M1), N

Skip, backward/forward, play, pause, stop operation.

PRESET +/–

Selects preset stations or channels.

TUNING +/–

Scans a station.

D.TUNING

Enters direct tuning mode.

PARTY START/CLOSE

Starts or closes a PARTY (page 71).

PARTY JOIN/LEAVE

Joins or leaves a PARTY (page 71).

(Guide)

Press TV (U), then press (Guide) to display the on-screen program guide.

1)2)

, X1),

REPEAT

Plays a track or a folder repeatedly.

SHUFFLE

Plays a track or a folder in random

order.

M PROG +/–

1)2)

Press TV (U), then press PROG +/–

to scan for the preset TV channels.

SOUND FIELD +/–

Selects a sound field (page 53).

N ALPHABET SEARCH

Searches for an item using a keyword

(page 75).

ALPHABET PREVIOUS

Searches for previous item.

ALPHABET NEXT

Searches for next item.

PREVIEW (HDMI)

Selects the “Preview for HDMI”

function.

Turns on a live picture-in-picture

preview of HDMI inputs connected to

this receiver.

Press V/v repeatedly to select each

HDMI input preview, then press to

enter/confirm the selection.

(This feature is powered by Silicon

Image InstaPrevue

Note

The “Preview for HDMI” function is

available for HDMI BD, DVD, GAME, and

VIDEO 2 input.

Tips

• This function does not work in the following cases: – The equipment is not connected to the

HDMI input jack.

– The equipment connected to the

supported HDMI input jack is not turned

on. – The current input is not HDMI input. – When “Fast View” is set to “Off”. – When an unsupported HDMI video

format (480i, 576i, 4K, some 3D video

signal, some video camera signal or

VGA signal) is input.

technology)

• The picture-in-picture preview will be blacked out when 4K or some 3D video signal is input.

TOP MENU

Opens or closes the BD-ROM’s or DVD’s Top Menu.

POP UP/MENU

Opens or closes the BD-ROM’s Popup Menu, or the DVD’s menu.

O iPhone CTRL

Enters iPod/iPhone control mode when using iPod/iPhone.

MEMORY

Stores a station during tuner operation.

P (Muting)

Turns off the sound temporarily. Press the button again to restore the sound. Press TV (

U), then press to

activate the TV’s muting function.

Q (Volume) +/–1)

Adjusts the volume level of all speakers at the same time. Press TV ( adjust the TV volume level.

R RETURN O

U), then press +/– to

Returns to the previous menu or exits the menu while the menu or on-screen guide is displayed on the TV screen. Press TV (

U), then press RETURN

O to return to the previous menu of Sony TV.

S DISPLAY

Views information on the display panel. Press TV (

U), then press DISPLAY to

display information of TV.

T ZONE (page 84) U TV

Changes the remote control button function to activate the buttons printed in yellow.

V RM SET UP

Programs the remote control (page 103).

W PURE DIRECT (page 58)

See the table on page 18 and 19 for information on the buttons that you can use to control each equipment.

The VIDEO 2, 5, N/D.TUNING and PROG +/SOUND FIELD + buttons have tactile dots. Use the tactile dots as reference when operating the receiver.

Notes

• The above explanation is intended to serve as examples.

• Depending on the model of your connected equipment, some functions explained in this section may not work with the supplied remote control.

To control other Sony equipment

Name TV VCR DVD

B AV ?/1 G Numeric buttons

ENT (ENTER)

CLR (CLEAR)

-/--

>10

I V/v/B/b, J OPTIONS K HOME L ./>

PRESET +/–

m/M N, X, x

(Guide)

REPEAT

SHUFFLE

M PROG +/– N TOP MENU, POP UP/

P (Muting) Q (Volume) +/– R RETURN O S DISPLAY

DVD player only.

LD player only.

Video CD player only.

zzzzzzz zzzzzzz zzzzzzz

zzzzzz zzzzz zzzzzz zzzzzzz

zzzzzzz zzzzzzz zz

z z z zzzzz zzzzzzz

player,

DVD/VCR

combo

zz z

Blu-ray

player

HDD

Disc

Recorder

zzz

PSX Video CD

player,

LD player

Name Digital

B AV ?/1 G Numeric buttons

ENT (ENTER)

CLR (CLEAR)

-/--

>10

I V/v/B/b, J OPTIONS K HOME L ./>

PRESET +/–

m/M N, X, x

(Guide)

REPEAT

SHUFFLE

M PROG +/– N TOP MENU, POP UP/

P (Muting) Q (Volume) +/– R RETURN O S DISPLAY

Deck B only.

CATV

terminal

zzz zz zzzzzz zzzzzz

zzz zz zzz zz

zzzz zzzz zz

zzz zzzzd)zz

Digital

DSS

satellite/

terrestrial

receiver

Tape

DAT deck CD

deck

A/B

player,

MD deck

Getting started

You can enjoy your audio/video equipment connected to the receiver by following the simple steps below. Before connecting cords, be sure to disconnect the AC power cord (mains lead).

Installing and connecting the speakers (page 23, 25)

Connecting the T V and other equipment (page 27, 28)

The image quality depends on the connecting jack. See the illustration below. Select the connection according to the jacks on your equipment. We recommend that you connect your equipment via HDMI connection if they have HDMI jacks.

Digital

High quality image

Preparing the receiver

See “Connecting the AC power cord (mains lead)” (page 36) and “Turning on the receiver” (page 36).

Setting the receiver

See “Setting up the receiver using the Easy Setup” (page 36).

Analog

Setting the audio output settings on the connected equipment

To output multi channel digital audio, check the digital audio output setting on the connected equipment. For a Sony Blu-ray Disc player, check that “Audio (HDMI)”, “BD Audio MIX Setting”, “Dolby Digital/DTS”, “Dolby Digital”, and “DTS” are set to “Auto”, “Off”, “Bitstream”, “Dolby Digital”, and “DTS” respectively (as of August 1, 2012). For a PlayStation 3, after having connected the receiver with an HDMI cable, select the “Audio Output Settings” in “Sound Settings”, and select “HDMI” and “Automatic” (with system software version 4.21). For details, refer to the operating instructions supplied with the connected equipment.

Function for conversion of video signals

The receiver is equipped with a function for converting video signals. Video signals and component video signals can be output as HDMI video signals. As the default setting, video signals input from the connected equipment are output as shown in the table with solid arrows.

INPUT jack OUTPUT jack

HDMI IN

HDMI OUT

COMPONENT VIDEO IN

VIDEO IN

: Same type of signal as that of the input signal is output.

: Video signals are upconverted and output (up to 4K).

Notes on converting video signals

• When video signals from a VCR, etc., are upconverted on this receiver and then viewed on your TV, depending on the status of the video signal output, the image on the TV screen may appear distorted horizontally or no image can be seen.

• If you are using an image improvement circuitry with your VCR, it may impact the video signal conversion. It is recommended to turn off this function on your VCR.

• Converted HDMI image output does not support “x.v.Color (x.v.Colour)”, Deep Color (Deep Colour), and 3D.

• HDMI video signals cannot be converted to component video signals and video signals.

• 1080p component video signals cannot be upconverted.

COMPONENT VIDEO MONITOR OUT

MONITOR OUT

Digital audio formats supported by the receiver

Digital audio formats that this receiver can decode depend on digital audio output jacks of the equipment connected. This receiver supports the following audio formats.

Audio format [Display]

Dolby Digital [DOLBY D]

Dolby Digital EX [DOLBY D EX]

Dolby Digital Plus

[DOLBY D +]

Dolby TrueHD

[DOLBY HD]

DTS [DTS]

DTS-ES [DTS-ES]

DTS 96/24 [DTS 96/24]

DTS-HD High Resolution Audio

Maximum number

of channels

5.1 aa

6.1 aa

7.1 × a

5.1 aa

6.1 aa

5.1 aa

7.1 × a

[DTS-HD HR]

DTS-HD Master Audio

a)b)

7.1 × a

[DTS-HD MA]

DSD [DSD]

Multi Channel Linear PCM

[PCM]

Audio signals are output in another format if the playback equipment does not correspond to the format. For details, refer to the operating instructions of the playback equipment.

Signals with a sampling frequency of more than 96 kHz are played back at 96 kHz or 88.2 kHz.

These formats are supported by MHL when you connect a MHL-compatible source device to the HDMI/MHL (VIDEO 2 IN) jack.

5.1 × a

7.1 × a

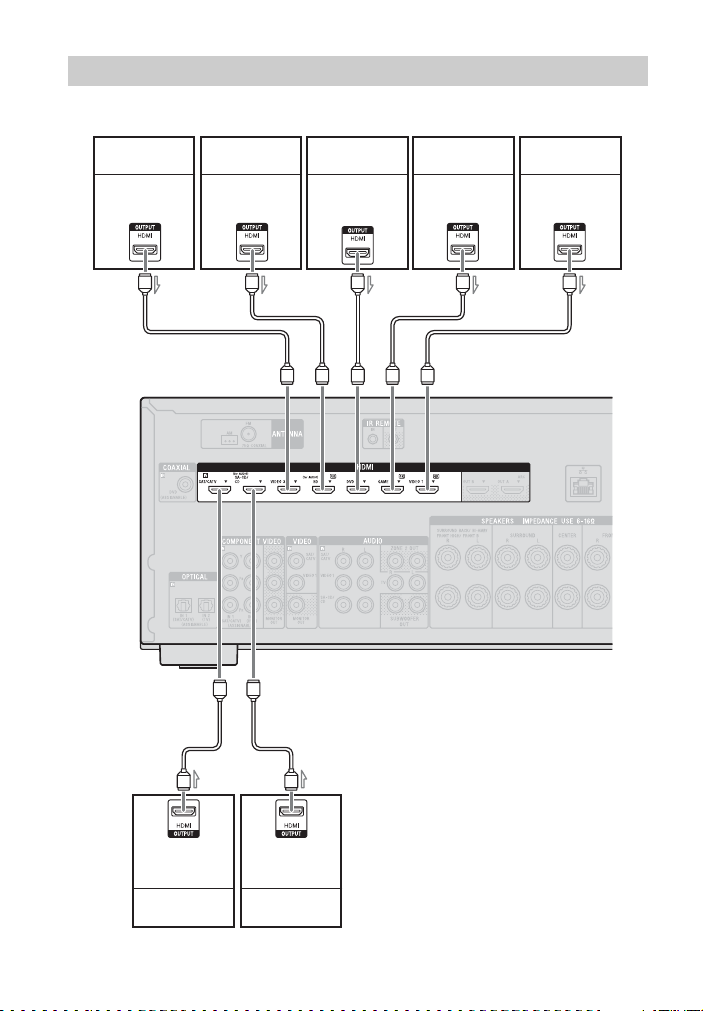

Connection between the playback

equipment and the receiver

COAXIAL/OPTICAL HDMI

Connections

1: Installing the speakers

Connections

This receiver allows you to use up to a 7.2 channel system (7 speakers and 2 subwoofers).

Example of speaker system configuration

A Front speaker (Left) B Front speaker (Right) C Center speaker D Surround speaker (Left) E Surround speaker (Right) F Surround back speaker (Left)* G Surround back speaker (Right)* H Front high speaker (Left)* I Front high speaker (Right)* J Subwoofer

* You cannot use the surround back speakers and

the front high speakers simultaneously.

5.1 channel speaker system

To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a subwoofer.

7.1 channel speaker system using surround back speakers

You can enjoy high fidelity reproduction of DVD or Blu-ray Disc software recorded sound in 6.1 channel or 7.1 channel format.

• 6.1 channel speaker placement Place the surround back speaker behind the listening position.

• 7.1 channel speaker placement Place the surround back speakers as shown in the illustration below. The angle A should be the same.

7.1 channel speaker system using front high speakers

You can enjoy vertical sound effects by connecting additional two front high speakers. Place the front high speakers – at an angle between 25° to 35°.

– at an angle of 20° ± 5° in height.

20˚ ± 5˚

Tip

Since the subwoofer does not emit highly directional signals, you can place it wherever you want.

2: Connecting the speakers

Before connecting cords, be sure to disconnect the AC power cord (mains lead).

Surround speaker

Right Left

Center speaker

Connections

Subwoofer *

A Monaural audio cord (not supplied) B Speaker cord (not supplied)

Right

Surround back/

Bi-amplifier/Front high/

Front B speaker

Left

Right Left

Front A speaker

* When you connect a subwoofer with an auto

standby function, turn off the function when watching movies. If the auto standby function is set to on, it turns to standby mode automatically based on the level of the input signal to the subwoofer, and the sound may not be output.

** Notes on the SPEAKERS SURROUND

BACK/BI-AMP/FRONT HIGH/FRONT B terminals connection. – If you connect only one surround back

speaker, connect it to L of this terminals.

– If you have an additional front speaker

system, connect them to this terminals. Set the assignment for the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals to “Front B Speakers” by using the “Speaker Connection” in the Speaker Settings menu (page 90). You can select the front speaker system you want by using the SPEAKERS button on the receiver (page 37).

– You can connect the front speakers to this

terminals using bi-amplifier connection (page 26). Set the assignment for the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals to “BiAmplifier Connection” by using the “Speaker Connection” in the Speaker Settings menu (page 90).

Note

After you have installed and connected your speaker, be sure to select the speaker pattern you want using the “Speaker Connection” in the Speaker Settings menu (page 90).

Bi-amplifier connection

If you are not using surround back speakers and front high speakers, you can connect the front speakers to the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals using a biamplifier connection.

Front speaker

(Right)

Connect the jacks on the Lo (or Hi) side of the front speakers to the SPEAKERS FRONT A terminals, and connect the jacks on the Hi (or Lo) side of the front speakers to the SPEAKERS SURROUND BACK/ BI-AMP/FRONT HIGH/FRONT B terminals. Make sure that metal fittings of Hi/Lo attached to the speakers have been removed from the speakers to avoid receiver malfunction. After you have made the bi-amplifier connection, set the assignment for the SPEAKERS SURROUND BACK/BIAMP/FRONT HIGH/FRONT B terminals

“Bi-Amplifier Connection” by using the

“Speaker Connection” in the Speaker

Settings menu (page 90).

Front speaker

(Left)

3: Connecting the TV

You can watch the selected input image when you connect the HDMI OUT or MONITOR OUT jack to a TV. You can operate this receiver using a GUI (Graphical User Interface). GUI is only for HDMI OUT A and HDMI OUT B. Before connecting cords, be sure to disconnect the AC power cord (mains lead).

Audio signalsVideo signals

oror

Audio/Video

signals

Connections

BC** D** E*

A Component video cord (not supplied) B Video cord (not supplied) C Audio cord (not supplied) D Optical digital cord (not supplied) E HDMI cable (not supplied)

Sony recommends that you use an HDMI-authorized cable or Sony HDMI cable.

Recommended connection Alternative connection

To enjoy the TV broadcast in multi channel surround sound from the receiver

* If your TV is compatible with the Audio Return

Channel (ARC) function, connect E. Be sure to set the “Control for HDMI” to “On” in HDMI Settings menu (page 77). If you want to select an audio signal using other than an HDMI cable (e.g., via an optical digital cord or an audio cord), switch the audio input mode using INPUT MODE (page 80).

**If your TV is not compatible with the ARC

function, connect C or D.

Be sure to turn off the TV’s volume or activate the TV’s muting function.

Notes

• Connect a TV monitor or a projector to the HDMI OUT or MONITOR OUT jack on the receiver.

• Depending on the status of the connection between the TV and the antenna (aerial), the image on the TV screen may be distor ted. If this is the case, place the antenna (aerial) farther away from the receiver.

• When connecting o ptical digital cords, insert the plugs straight until they click into place.

• Do not bend or tie optical digital cords.

Tips

• All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.

• The receiver has a video conversion function. For details, see “Function for conversion of video signals” (page 21).

• When you connect the audio output jack of the TV to the TV IN jacks of the receiver to output the TV sound from the speakers connected to the receiver, set the sound output jack of the TV to “Fixed” if it can be switched between either “Fixed” or “Variable”.

To listen to the sound from the TV

If your TV does not support System Audio Control function, set the “Audio Out” to “TV+AMP” in the HDMI Settings menu (page 94).

4: Connecting other equipment

Using HDMI connection

High-Definition Multimedia Interface (HDMI) is an interface which transmits video and audio signals in digital format. By connecting Sony “BRAVIA” Synccompatible equipment using HDMI cables, operations can be simplified. See ““BRAVIA” Sync Features” (page 76).

HDMI features

• A digital audio signals transmitted by HDMI can be output from the speakers connected to the receiver. This signal supports Dolby Digital, DTS, DSD, and Linear PCM. For details, see “Digital audio formats supported by the receiver” (page 22).

• The receiver can receive Multi Channel Linear PCM (up to 8 channels) with a sampling frequency of 192 kHz or less with an HDMI connection.

• Analog video signals input to the receiver’s VIDEO jack or COMPONENT VIDEO jacks can be output as HDMI signals (page 21). Audio signals are not output from an HDMI OUT jacks while the image is being converted.

• This receiver supports High Bitrate Audio (DTS-HD Master Audio, Dolby TrueHD), Deep Color (Deep Colour), “x.v.Color (x.v.Colour)”, and 4K or 3D transmission.

• To enjoy 3D images, connect 3Dcompatible TV and video equipment (Blu-ray Disc player, Blu-ray Disc recorder, PlayStation 3, etc.) to the receiver using High Speed HDMI cables, put on 3D glasses, and then play back a 3D-compatible content.

• To enjoy 4K (HDMI BD, GAME and VIDEO 1 input) images, connect 4Kcompatible TV and video equipment (Blu-ray Disc player, etc) to the receiver using High Speed HDMI cables, and then play back a 4K-compatible content.

• You can view HDMI BD, DVD, GAME, and VIDEO 2 input on picture-in-picture preview.

Notes on HDMI connections

• Depending on the TV or the video equipment, 4K or 3D images may not be displayed. Check the HDMI video formats supported by the receiver (page 121).

• Refer to the operating instructions of each connected equipment for details.

When connecting cords

• Before connecting cords, be sure to disconnect the AC power cord (mains lead).

• It is not necessary to connect all the cords. Connect according to the availability of jacks on the connected equipment.

• Use a High Speed HDMI cable. If you use a Standard HDMI cable, 1080p, Deep Color (Deep Colour), 4K or 3D images may not be displayed properly.

• We do not recommend using an HDMIDVI conversion cable. When you connect an HDMI-DVI conversion cable to a DVI-D equipment, the sound and/or the image may be lost. Connect a separate audio cords or digital connecting cords, then reassign the input jacks when the sound is not output correctly. For details, see “Using other video/audio input jacks (Input Assign)” (page 81).

• When connecting optical digital cords, insert the plugs straight until they click into place.

• Do not bend or tie optical digital cords.

Tip

All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.

If you want to connect several digital equipment, but cannot find an unused input

See “Using other video/audio input jacks (Input Assign)” (page 81).

Converting video signals

This receiver is equipped with a function for converting video signals. For details, see “Function for conversion of video signals” (page 21).

Connections

Connecting equipment with HDMI jacks

If your equipment does not have an HDMI jack, see page 32.

Video game DVD recorder PlayStation 3 VCR

Audio/video

signals

Blu-ray Disc

player

Audio/video

signals

Audio/video

signals

Audio/video

signals

Audio/video

signals

AAAAA

Audio/video

signals

Satellite tuner, cable TV tuner

Audio/video

signals

Super Audio CD

player, CD player

A HDMI cable (not supplied)

Sony recommends that you use an HDMI-authorized cable or Sony HDMI cable.

Notes

• This HDMI connection is an example.

You can connect each HDMI equipment to any HDMI inputs, including HDMI input on the front panel.

• SA-CD/CD and BD inputs have better sound

quality. When you need a higher sound quality, connect your equipment to these jacks and select them as input.

• Be sure to change the default setting of the input

button on the remote control so that you can use the button to control the connected equipment. For details, see “Programming the remote control” (page 103).

• You can rename the input so that it can be

displayed on the receiver’s display panel. For details, see “Name” in Input Settings menu (page 95).

Using MHL connection

What is MHL?

MHL (Mobile High-Definition Link) is an HD video and digital audio interface for connecting mobile phones and portable devices to HDTVs and other home entertainment products. MHL can support 1080p HD video and digital audio signals and supply power to the mobile device simultaneously. It also enables the remote of TV or other home entertainment products to control the mobile phone and access its contents (page 79).

Connecting a MHL- (Mobile High-Definition Link) compatible mobile device for audio/video contents

This receiver incorporates MHL 2 technology.

A MHL cable (not supplied)

Use MHL2-compliant cable. Sony recommends that you use Sony MHL cable.

B MHL Direct Attach Device (not supplied)

Notes

• The MHL-compatible mobile device is charged when connected to the HDMI/MHL (VIDEO 2 IN) jack of the receiver while the receiver is turned on.

• You can rename the VIDEO 2 input so that it can be displayed on the receiver’s display panel. For details, see “Name” in Input Settings menu (page 95).

Connections

Connecting equipment with jacks other than HDMI jacks

Satellite tuner, cable TV tuner

Audio signals

Video signals Video signalsAudio signals

VCR, Camcorder, Video game

ABC D B D

EA C

Audio signals Video signals

DVD recorder

Audio signals

Super Audio CD

player, CD player

A Optical digital cord (not supplied) B Audio cord (not supplied) C Component video cord (not supplied) D Video cord (not supplied) E Coaxial digital cord (not supplied)

Recommended connection Alternative connection

* When you connect equipment with an

OPTICAL jack, reassign the input jacks. For details, see “Using other video/audio input jacks (Input Assign)” (page 81).

Connecting an iPod, iPhone, USB device

iPod, iPhone,

USB device

A USB cable (not supplied)

5: Connecting the antennas (aerials)

Before connecting the antennas (aerials), be sure to disconnect the AC power cord (mains lead).

AM loop antenna (aerial) (supplied)

Notes

• To prevent noise pickup, keep the AM loop antenna (aerial) away from the receiver and other equipment.

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

FM wire antenna (aerial) (supplied)

Connections

6: Connecting to the network

If you have an Internet connection, you can connect this receiver to the Internet as well. You can connect through a wireless or a wired LAN connection.

System requirements

The following system environment is required to use the network function of the receiver.

A Broadband line connection

A Broadband line connection to the Internet is required in order to listen to Sony Entertainment Network (SEN) and to update the software of the receiver.

Modem

This is the device that is connected to the broadband line to communicate with the Internet. Some of these devices are integrated with the router.

Router

• Use a router compatible with 100 Mbps or greater transmission speeds to enjoy content on your home network.

• We recommend that you use a router equipped with the built-in DHCP (Dynamic Host Configuration Protocol) server. This function automatically assigns IP addresses on the LAN.

• U se a wireless LAN router/access point if you want to use a wireless LAN connection.

LAN cable (CAT5) (For a wired LAN connection only)

• We recommend that you use this type of cable for a wired LAN. Some flat-type LAN cables are easily affected by noise. We recommend that you use normal-type cables.

• If the receiver is used in an environment in which there is power supply noise from electric products or in a noisy network environment, use a shielded-type LAN cable.

Server

A server is a device which delivers content (music, photos, and videos) to a DLNA device on a home network. A device that can be used as a server (a computer, etc.) must be connected to your wireless or wired LAN home network*.

* For details on servers which are compatible

with this receiver, see page 59.

Configuration example

The following illustration is a configuration example of a home network with the receiver and a server. We recommend that you connect the server to the router with a wired connection.

Connections

Internet Modem

Router

(not supplied)

A For a wired LAN connection only. B For a wireless LAN connection only.

Be sure to use a wireless LAN router/access point.

Note

An audio playback on a server may occasionally be interrupted when you use a wireless connection.

LAN cable

LAN cable (not supplied)

Server

Preparing the Receiver

Connecting the AC power cord (mains lead)

Connect the AC po wer cord (mains lead) to a wall outlet.

AC power cord (mains lead)

To the wall outlet

Press ?/1 to turn on the receiver.

You can also turn on the receiver using ?/1 button on the remote control. When you turn off the receiver, press “STANDBY” flashes on the display panel. Do not disconnect the AC power cord (mains lead) while “STANDBY” is flashing. This may cause a malfunction.

?/1 again.

Setting up the receiver using the Easy Setup

You can set the basic settings of the receiver easily by operating the receiver in accordance with the instructions on the TV screen. Switch the input of the TV to the input which the receiver is connected. When you turn on the receiver for the first time or after the receiver is initialized, the Easy Setup screen appears on the TV screen. Proceed to set up the receiver in accordance with the instructions on the Easy Setup screen. You can set up the following functions using the Easy Setup. – Speaker Settings – Network Settings

Turning on the receiver

Notes on Speaker Settings (Auto Calibration)

This receiver is equipped with DCAC (Digital Cinema Auto Calibration) function which allows you to perform automatic calibration as follows:

• Check the connection between each speaker and the receiver.

• Adjust the speaker level.

• Measure the distance of each speaker from your seating position.

• Measure the speaker size.

• Measure the frequency characteristics

(EQ).

• Measure the frequency characteristics

1)2)

(Phase).

The measurement result is not utilized when “2ch Analog Direct” is selected. The measurement result is not utilized when Dolby TrueHD or DTS-HD signals with a sampling frequency of more than 48 kHz are being received.

The DCAC is designed to achieve proper sound balance for your room. However, you can adjust the speaker levels manually according to your preference. For details, see “Test Tone” (page 92).

Before you perform Auto Calibration

Before you perform Auto Calibration, check the following items.

• Set up and connect the speakers (pag e 23,

25).

• Connect only the supplied optimizer microphone to the AUTO CAL MIC jack. Do not connect any other microphones to this jack.

• Set the assignment for the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals to “BiAmplifier Connection” by using the “Speaker Connection” in the Speaker Settings menu if you use bi-amplifier connection (page 90).

• Set the assignment for the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals to “Front B Speakers” by using the “Speaker Connection” in the Speaker Settings menu if you use speakers front B connection (page 90).

• Make sure the speaker output is not set to “SPK OFF” (page 37).

• Make sure that you are not using PARTY STREAMING function (page 70).

• Disconnect the headphones.

• Remove any obstacles in the path between the optimizer microphone and the speakers to avoid measurement errors.

• Get accurate measurement by making sure the environment is free from noise and quiet.

Notes

• The speakers emit very loud sound during the

calibration and the volume cannot be adjusted. Provide consideration to your neighborhood and to the children in presence.

• If the muting function has been activated before

you perform Auto Calibration, the muting function will shut off automatically.

• The correct measurements may not be able to

take or Auto Calibration cannot be performed when special speakers, such as dipole speakers are used.

Confirm active subwoofer setup

• When a subwoofer is connected, turn on the subwoofer and turn up the volume prior to activating the subwoofer. Turn the LEVEL to just before the mid-point.

• If you connect a subwoofer with a crossover frequency function, set the value to maximum.

• If you connect a subwoofer with an auto standby function, set it to off (deactivated).

Note

Depending on the characteristics of the subwoofer you are using, the setup distance value may be different from the actual position.

To select the front speakers

You can select the front speakers you want to drive. Be sure to use the buttons on the receiver to perform this operation.

Preparing the Receiver

SPEAKERS

Press SPEAKERS repeatedly to select the front speaker system you want to drive.

You can confirm the selected speakers terminals by checking the indicators on the display panel.

Indicators Selected speakers

SP A The speakers connected to the

SPEAKERS FRONT A terminals.

SP B* The speakers connected to the

SP A+B* The speakers connected to

* To select “SP B” or “SP A+B”, set the

assignment for the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals to “Front B Speakers” by using the “Speaker Connection” in the Speaker Settings menu (page 90).

Note

This setting is not available when headphon es are connected.

SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/ FRONT B terminals.

both the SPEAKERS FRONT A and SPEAKERS SURROUND BACK/ BI-AMP/FRONT HIGH/ FRONT B terminals (parallel connection).

“SPK OFF” appears on the display panel. No audio signals are output from any speaker terminals.

To cancel Auto Calibration

The Auto Calibration function will be canceled when you perform the following during the measurement process: – Press ?/1. – Press the input buttons on the remote

control or turn the INPUT SELECTOR on the receiver.

– Press . – Press SPEAKERS on the receiver. – Change the volume level. – Connect the headphones.

To set up the receiver manually

See “Adjusting Settings” (page 85).

Configuring the network settings of the receiver

The network settings for the receiver must be set correctly to use the Home Network, SEN, AirPlay, and PARTY STREAMING functions.

Using a wireless LAN connection

There are several connecting methods you can use to set up a wireless network: searching for an access point, using a WPS connecting method (either the push-button method or the PIN code method), or manual setting.

Notes

• Make sure not to use the wireless LAN function

where medical equipment (such as a pacemaker) is used or where the use of wireless communication is prohibited.

• Before connecting to your home network, you

need to prepare a wireless LAN router/access point. For details, refer to the operating instructions of the device.

• Depending on your home network environment, the wireless LAN router/access point may have been set up such that it cannot be connected using WPS, even though it is compatible with WPS. For details on whether your wireless LAN router/access point is compatible or not compatible with WPS, and on the setup of a WPS connection, refer to the operating instructions of your wireless LAN router/access point.

• You may encounter setup difficulties if the receiver and the wireless LAN router/access point are located too far from each other. If you do, move the devices closer to each other.

Searching for an access point and setting up a wireless network (Access Point Scan method)

You can set up a wireless network by searching for an access point. To set up the network using this connection method, you will be required to select or enter the following information. Check the following information in advance, and record it in the space provided below.

The network name (SSID identifies your network will be needed in step 7.)

If your wireless home network is secured by encryption, the security key (WEP key, WPA/ WPA2 key) for your network (This will be needed in step 8.)

* SSID (Service Set Identifier) is a name that

identifies a particular access point.

** This information should be available from a

label on your wireless LAN router/access point, from the operating instructions, from the person who set up your wireless network, or from the information provided by your Internet service provider.

) that

. (This

AMP

Preparing the Receiver

DISPLAY

V/v/B/b,

HOME

1 Press AMP, then press HOME.

The home menu is displayed on the TV screen.

2 Press B/b repeatedly to select

“Settings”, then press .

The Settings menu list appears on the TV screen.

3 Press V/v/B/b repeatedly to select

“Network”, then press .

4 Press V/v repeatedly to select

“Internet Setting”, then press .

5 Press V/v repeatedly to select

“Wireless”, then press .

6 Press V/v repeatedly to select

“Access Point Scan”, then press

The receiver starts searching for access points, and displays a list of up to 30 available network name (SSID).

7 Press V/v repeatedly to select the

network name (SSID) you want, then press .

The security setting display appears on the TV screen.

8 Enter the security key (WEP key,

WPA/WPA2 key) using the onscreen keyboard. Press V/v/B/b and to select the character one by one. Then, select “Enter” and press to confirm the security key.

“How to acquire the IP Address” appears on the TV screen.

9 Press V/v repeatedly to select

“Auto”, then press .

When using a fixed IP address

Select “Manual”, then press . The IP address input display appears on the TV screen. Enter the value for “IP Address” using the on-screen keyboard. Press V/v/B/ b and to select the character one by one. Then, select “Enter” and p ress to confirm the value. Enter the value for “Subnet Mask”, “Default Gateway”, “Primary DNS” and “Secondary DNS”. Then, select “Next” and press .

10Press V/v repeatedly to select

“Ok”, then press .

“Connecting to the network. Please wait.” appears on the TV screen. “Network Settings are now complete and the receiver has been successfully connected to the network.” appears after the network settings are completed and “ ” lights up on the display panel. To return to the Network Settings menu, press . (Depending on the network environment, the network settings may take some time.)

11Perform the server settings.

To listen to audio content stored on the server, you need to set up your server (page 59).

Note

If your network has not been secured by encryption (using the security key), the security setting display does not appear in step 8.

Tip

When checking the network settings, see “Information” (page 96).

If you cannot find the network name (SSID) you want (manual setup method)

You can input the network name (SSID) you want manually if it does not appear on the list.

1 Select “Manual Registration” in step

6 in “Searching for an access point and setting up a wireless network (Access Point Scan method)” (page 39).

2 Press V/v repeatedly to select

“Direct Input”, then press .

3 Enter the network name (SSID)

using the on-screen keyboard. Press V/v/B/b and to select a character one by one. Then, select “Enter” and press .

The name you entered is registered.

4 Press V/v repeatedly to select the

security setting you want, then press

5 Follow steps 8 to 11 in “Searching for

an access point and setting up a wireless network (Access Point Scan method)” (page 39).

Setting up a wireless network using an access point compliant with WPS

You can easily set up a wireless network using an access point compliant with WPS. The WPS setting can be made using either the push-button configuration method or the PIN (Personal Identification Number) code method.

What is WPS (Wi-Fi Protected Setup)?

WPS is a standard created by the Wi-Fi Alliance allowing you to setup a wireless network easily and securely.

Setting up a wireless network using the WPS push button configuration method

You can easily set up a WPS wireless connection with one push of the designated button.

1 Select “WPS Push” in step 6 in

“Searching for an access point and setting up a wireless network (Access Point Scan method)” (page 39).

2 Follow the on-screen instructions,

and press the WPS button on the access point.

Message: “Push the WPS button on the access point within 2 minutes.”

WPS button on the wireless LAN router/access point

“Network Settings are now complete and the receiver has been successfully connected to the network.” appears after the network settings are complete and “ ” lights up on the display panel. To return to the Network Settings menu, press . (Depending on the network environment, the network settings may take some time.)

3 Perform the server settings.

To listen to audio content stored on the server, you need to set up your server (page 59).

Tip

When checking the network settings, see “Information” (page 96).

Setting up a wireless network using the WPS PIN code method

If the access point supports the WPS PIN (Personal Identification Number) code connection, you can set up a WPS wireless connection by entering the receiver’s PIN code into the wireless LAN router/access point.

1 Select “Manual Registration” in step

6 in “Searching for an access point and setting up a wireless network (Access Point Scan method)” (page 39).

2 Press V/v repeatedly to select “WPS

PIN”, then press .

The available SSID (access point) list appears.

Note

SSID that does not support WPS PIN will appear dimmed and cannot be selected.

3 Press V/v repeatedly to select the

network name (SSID) you want, then press .

The PIN code (8 digits) of the receiver appears on the TV screen. Leave the PIN code displayed until the connection is complete. (A different PIN code is displayed each time you perform this operation.)

4 Input the receiver’s PIN code into the

wireless LAN router/access point.

The receiver starts the network settings. “Network Settings are now complete and the receiver has been successfully connected to the network.” appears after the network settings are complete and

“” lights up on the display panel. To

return to the Network Settings menu, press . (Depending on the network environment, the network settings may take some time.)

Preparing the Receiver

5 Perform the server settings.

To listen to audio content stored on the server, you need to set up your server (page 59).

Tips

• When checking the network settings, see “Information” (page 96).

• For details on entering the PIN code into the wireless LAN router/access point, refer to the operating instructions of the wireless LAN router/access point.

Using a wired LAN connection

1 Select “Wired” in step 5 in

“Searching for an access point and setting up a wireless network (Access Point Scan method)” (page 39).

“How to acquire the IP Address” appears on the TV screen.

2 Press V/v repeatedly to select

“Auto”, then press .

When using a fixed IP address

Select “Manual”, then press . The IP address input display appears on the TV screen. Enter the value for “IP Address” using the on-screen keyboard. Press V/v/B/ b and to select the character one by one. Then, select “Enter” and press to confirm the value. Enter the value for “Subnet Mask”, “Default Gateway”, “Primary DNS” and “Secondary DNS”. Then, select “Next” and press .

3 Press V/v repeatedly to select

“Ok”, then press .

“Connecting to the network. Please wait.” appears on the TV screen.

“Network Settings are now complete and the receiver has been successfully connected to the network.” appears after the network settings are completed. To return to the Network Settings menu, press . (Depending on the network environment, the network settings may take some time.)

4 Perform the server settings.

To listen to audio content stored on the server, you need to set up your server (page 59).

Tip

When checking the network settings, see “Information” (page 96).

Guide to Graphical User Interface (GUI) operation

You can display the menu of the receiver on the TV screen and select the function you want to use on the TV screen by pressing V/v/B/b and on the remote control. When you start operating the receiver, make sure to press AMP on the remote control first. Otherwise, operations that follow may not be aimed at the receiver.

Tip

The AMP button on the remote control lights up when you press HOME.

AMP

V/v/B/b,

RETURN

OPTIONS

HOME

Using the menu

1 Switch the input of the TV to the

input which the receiver is connected.

2 Press AMP, then press HOME.

The home menu is displayed on the TV screen. Depending on the TV, the home menu may take some time to appear on the TV screen.

3 Press B/b repeatedly to select a

menu you want, then press to enter the menu.

The menu item list appears on the TV screen. Example: When you select “Watch”.

4 Press V/v/B/b repeatedly to select

the menu item you want to adjust, then press to enter the menu item.

Tip

When “OPTIONS” appears in the lower right portion of the screen, you can display the function list by pressing OPTIONS and selecting a related function.

To return to the previous screen

Press RETURN O.

To exit the menu

Press HOME to display the home menu, then press HOME again.

Overview of the home menus

Menu Description

Wat ch Selects the video source to

Listen Selects the music from the

Sound Effects Enables you to enjoy sound

Settings Adjusts the settings of the

be input to the receiver (page 44).

SA-CD/CD, USB device, Home Network, or SEN (page 44). You can also enjoy FM/AM radio of the built-in tuner (page 51).

development provided by various Sony proprietary technologies or functions (page 53).

receiver (page 85).

Preparing the Receiver

Basic Operations

Enjoying images/sound from the connected equipment

Depending on the TV, the home menu may take some time to appear on the TV screen.

?/1

AMP

Input buttons

V/v/B/b,

OPTIONS HOME

SOUND

2 +/–

FIELD +/–

1 Switch the input of the TV to the

input which the receiver is connected.

2 Press AMP, then press HOME.

The home menu is displayed on the TV screen.

3 Select “Watch” or “Listen”, then

press .

The menu item list appears on the TV screen.

4 Select the equipment you want,

then press .

5 Turn on the equipment and start

playback.

6 Press 2 +/– to adjust the volume.

You can also use MASTER VOLUME on the receiver.

7 Press SOUND FIELD +/– to enjoy

the surround sound.

You can also use A.F.D./2CH, MOVIE or MUSIC on the receiver. For details, see page 53.

Tips

• You can turn INPUT SELECTOR on the receiver or press input buttons on the remote control to select the equipment you want.

• You can adjust the volume differently using the MASTER VOLUME knob on the receiver or

2 +/– button on the remote control.

the To turn the volume up or down quickly – Turn the knob quickly. – Press and hold the button. To make fine adjustment – Turn the knob slowly. – Press the button and release it immediately.

To activate the muting function

Press . The muting function will be canceled when you do the following.

• Press again.

• Change the volume.

• Turn off the receiver.

• Perform Auto Calibration.

To avoid damaging your speakers

Before you turn off the receiver, be sure to turn down the volume level.

Basic Operations

Playing an iPod/iPhone

You can enjoy music contents from the iPod/iPhone by connecting it to the (USB) port on the receiver. For details on connecting the iPod/iPhone, see page 33.

Compatible iPod/iPhone models

You can use the following iPod/iPhone models on this receiver. Update your iPod/iPhone with the latest software before using it.

iPhone 4

iPod touch

4th generation

iPod nano

5th generation

(video camera)

Notes

• Sony cannot accept responsibility in the event that data recorded to iPod/iPhone is lost or damaged when using an iPod/iPhone connected to this receiver.

• This product has been designed specifically to work with iPod/iPhone and has been certified to meet Apple performance standards.

iPod touch

3rd generation

4th generation

(video)

iPhone 3GS iPhone 3GiPhone 4S

iPod touch

2nd generation

iPod nano

3rd generation

(video)

iPod nano

6th generation

iPod classiciPod nano

Selecting the iPod/ iPhone control mode

You can select the iPod/iPhone control mode using the iPhone CTRL on the remote control. You can also control all operations by viewing the information on the display panel when TV screen is turned off.

To operate the iPod/iPhone using the remote control

USB

V/v/B/b,

iPhone

CTRL

1 Select “Listen” from the home

menu, then press .

2 Select “USB”, then press .

When the iPod or iPhone is connected, “iPod/iPhone” appears on the TV screen.

3 Follow the on-screen instructions

to select the iPod/iPhone control mode.

./>

m/M

iPhone

CTRL

Press USB before you use the following buttons.

Press Operation

N Starts play. X, x Pauses play. m/M Fast reverses or forwards. ./> Goes to the previous/next

REPEAT Enters repeat mode.

SHUFFLE Enters shuffle mode.

iPhone CTRL Selects the iPod/iPhone

track.

control mode.

SHUFFLE REPEAT

Notes on iPod/iPhone

• The iPod/iPhone is charged when connected to the receiver while the receiver is turned on.

• You cannot transfer songs onto the iPod/ iPhone from this receiver.

Basic Operations

• Do not remove the iPod/iPhone during operation. To avoid data corruption or damage to the iPod/iPhone, turn the receiver off when connecting or removing the iPod/iPhone.

iPod/iPhone message list

Message and explanation

Reading

The receiver is recognizing and reading information of the iPod or iPhone.

Not supported

An unsupported iPod or iPhone is connected.

No device is connected

No iPod or iPhone is connected.

No Track

No track was found.

Headphone is not supported

No sound is output from the headphones when iPod or iPhone is connected.

Playing a USB device

You can enjoy music from the USB device by connecting it to the (USB) port on the receiver. For details on connecting a USB device, see “Connecting an iPod, iPhone, USB device” (page 33). The music file formats that can be played back by this receiver are as follows:

File format Extensions

MP3 (MPEG-1 Audio Layer III)

AAC* “.m4a”, “.3gp”,

WMA9 Standard* “.wma”

WAV “ . w a v ”

FLAC “.flac”

* The receiver does not play files encoded with

DRM.

“.mp3”

“.mp4”

Compatible USB devices

You can use the following Sony USB devices on this receiver.

Verified Sony USB device

Product name Model name

Walkman

MICROVAULT USM1GL / 4GL / 8GL /

Digital Voice Recorder

NWZ-A864

NWZ-B152F / B162F / B172

NWZ-E053 / E354 / E363 / E373 / E453 / E463 / E575

NWZ-F805 / F806N

NWZ-S755 / S764 / S774 / S774BT

NWZ-W262 / W272

NWZ-Z1040 / Z1070

NWD-W253

32GL

USM16GLX / 32GLX / 64GLX

USM4GN / 8GN / 32GN

USM4GM / 16GM

USM8GQ / 32GQ / 64GQ

USM16GR / 32GR

USM4GS / 8GJ / 8GT / 16GS / 16GU / 64GP / 512J

ICD-SX713 / SX1000 / PX232 / PX333F / FX8 / TX50 / UX513F / UX523F / UX532 / UX533F

ICZ-R50 / R51

Notes

• The receiver is unable to read data in NTFS

format.

• The receiver is unable to read data other than

that saved in the first partition of a hard disk drive.

• Operation of models not listed here is not

guaranteed.

• Operation may not always be ensured even

when using these USB devices.

• Some of these USB devices may not be

available for purchase in certain areas.

• When formatting the above models, be sure to

format using the model itself or the dedicated formatting software for that model.

• When connecting a USB device to the receiver,

be sure to connect after the display “Creating Library” or “Creating Database” on the USB device has disappeared.

Operating the USB device

V/v/B/b,

1 Select “Listen” from the home

menu, then press .

2 Select “USB”, then press .

When the USB device is connected, “USB” appears on the TV screen. You can operate the USB device using the remote control of the receiver.

3 Select the content you want from

the content list, then press .

The selected content starts playback and the information of music contents appears on the TV screen.

To operate the USB device using the remote control

USB

./>

SHUFFLE REPEAT

Press USB before you use the following buttons.

Press Operation

N Starts play. X Pauses play. x Stops play. ./> Goes to the previous/next

REPEAT Enters repeat mode.

SHUFFLE Enters shuffle mode.

file.

Notes on the USB device

• Do not remove the USB device during operation. To avoid data corruption or damage to the USB device, turn the receiver off when connecting or removing the USB device.

• When USB cable connection is necessary, connect the USB cable supplied with the USB device to be connected. Refer to the operating instructions supplied with the USB device to be connected for details on the operation method.

Basic Operations

• Do not connect the receiver and the USB device through a USB hub.

• When the USB device is connected, “Reading” appears.

• It may take about 10 seconds before “Reading” appears depending on the type of USB device connected.

• When the USB device is connected, the receiver reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish reading the USB device.

• The receiver can recognize up to – 256 folders (including “ROOT” folder). – 256 audio files for each folder. – 8 folder levels (tree structure of files,

including “ROOT” folder). The maximum number of audio files and folders may vary depending on the file and folder structure. Do not save other types of files or unnecessary folders on a USB device.

• Compatibility with all encoding/writing softwares, recording devices, and recording media cannot be guaranteed. Incompatible USB device may produce noise or interrupted audio or may not play at all.

• Some time may be needed to start playback when: – the folder structure is complex. – the memory capacity is excessive.

• This receiver does not necessarily support all the functions provided in a connected USB device.

• The playback order for the receiver may differ from the playback order of the connected USB device.

• Folders that have no audio files are skipped.

• When playing a very long track, some operations may cause playback delay.

USB message list

Message and explanation

Reading

The receiver is recognizing and reading information of the USB device.

Device error

The memory of the USB device could not be recognized (page 48).

Not supported

An unsupported USB device is connected, an unknown device is connected, or the USB device is connected through a USB hub (page 48).

No device is connected

No USB device is connected or the connected USB device is not recognized.

Cannot get info

The number of audio files/folders/folder levels reaches the limit for the number that the receiver can recognize (page 50).

Cannot play

The receiver cannot play audio files due to an unsupported file format or playback restrictions.

Not in Use

An operation that is currently prohibited is being performed.

No Track

No track was found.

Tuner Operations

1 Band indication (page 51) 2 Frequency indication (page 51) 3 Preset station list (page 52)

Listening to FM/AM radio

You can listen to FM and AM broadcasts through the built-in tuner. Before operation, be sure you have connected the FM and AM antennas (aerials) to the receiver (page 33).

Numeric buttons

V/v/B/b,

OPTIONS

D.TUNING

1 Select “Listen” from the home

menu, then press .

2 Select “FM/AM”, then press .

FM/AM screen

You can select and operate each item on the screen by pressing V/v/B/b and

Toggling between FM and AM radio

1 Select “Listen” from the home

menu, then press .

2 Select “FM/AM”, then press .

The FM/AM screen appears.

3 Select the band indication. 4 Press V/v repeatedly to select

“FM” or “AM”, then press .

Tuning to a station automatically (Auto Tuning)

1 Select the frequency indication on

the FM/AM screen.

2 Press V/v.

Press V to scan from lower to higher frequency stations, press v to scan from higher to lower stations. The receiver stops scanning whenever a station is received.

In case of poor FM stereo reception

1 Tune in the station you want to listen

to using Auto Tuning, Direct Tuning, or select the preset station you want (page 51).

2 Press OPTIONS.

The options menu appears.

Note

You can set FM mode in the options menu when the frequency indication is selected.

3 Select “STEREO/MONO”, then

press .

4 Select “MONO”, then press .

Tuner Operations

Tuning to a station directly (Direct Tuning)

You can enter the frequency of a station directly by using the numeric buttons.

1 Press D.TUNING. 2 Press the numeric buttons to enter

the frequency, then press .

Example 1: FM 102.50 MHz Select 1 b 0 b 2 b 5 b 0 Example 2: AM 1,350 kHz Select 1 b 3 b 5 b 0

Tip

Adjust the direction of the AM loop antenna (aerial) for optimum reception upon tuning to an AM station.

If you cannot tune to a station

“– – – .– – MHz” or “– – – – kHz” appears and then the screen returns to the current frequency. Make sure you have entered the right frequency. If not, repeat step 2. If you still cannot tune to a station, the frequency may not be in use in your area.

Presetting FM/AM radio stations

(Preset Memory)

You can store up to 30 FM and 30 AM stations as your favorite stations.

V/v/B/b,

RETURN

OPTIONS

1 Tune to the station that you want to

preset using Auto Tuning (page 51) or Direct Tuning (page 52).

2 Press OPTIONS.

The options menu appears.

Note

You can preset memory in the options menu when the frequency indication is selected.

3 Select “Set Preset”, then press . 4 Select a preset number, then press

The station is stored as the selected preset number.

5 Repeat steps 1 to 4 to store

another station.

You can store station as follows:

• AM band: AM 1 to AM 30

• FM band: FM 1 to FM 30

Tuning to preset stations

1 Select “Listen” from the home

menu, then press .

2 Select “FM/AM”, then press . 3 Select the preset number from the

list, then press .

Preset numbers from 1 to 30 are available.

To name preset stations (Name Input)

1 Select the preset number on which

you want to name.

2 Press OPTIONS.

The options menu appears.

3 Select “Name Input”, then press .

The on-screen keyboard appears on the TV screen.

4 Press V/v/B/b and to select a

character one by one to enter the name.

5 Select “Enter”, then press .

The name you entered is registered.

Note

Some letters that can be displayed on the TV screen cannot be displayed on the display panel.

To cancel naming input

Press RETURN O.

Receiving RDS broadcasts

This receiver allows you to use Radio Data System (RDS), which enables radio stations to send additional information along with the regular programming signal. This receiver offers convenient RDS features, such as Program Service name display. RDS is available only for FM stations.*

* Not all FM stations provide RDS service, nor

do they provide the same type of services. If you are not familiar with the RDS services in your area, check with your local radio stations for details.

Simply select a station on the FM band.

When you tune to a station that provides RDS services, the Program Service name* appears on the TV screen and the display panel.

* If an RDS broadcast is not received, a Program

Service name will not appear.

Notes

• RDS may not work properly if the station you tuned to is not transmitting the RDS signal or if the signal strength is weak.

• Some letters that can be displayed on the TV screen cannot be displayed on the display panel.

Tip

While a Program Service name is displayed, you can check the frequency by pressing DISPLAY repeatedly (page 102).

Enjoying Sound Effects

Selecting the sound field

1 Select “Sound Effect” from the

home menu, then press .

2 Select “Sound Field” then press

3 Select the sound field you want.

Tips

• You can press SOUND FIELD +/– on the remote control repeatedly to select the sound field you want.

• You can also use A.F.D./2CH, MOVIE or MUSIC on the receiver.

Auto Format Direct (A.F.D.)/2 channel sound mode

• Auto Format Direct (A.F.D.) mode:

This mode allows you to listen to higher fidelity sound and select the decoding mode for listening to a 2 channel stereo or monaural sound as multi channel sound.

• 2 channel sound mode: You can switch

the output sound to 2 channel sound regardless of the recording formats of the software you are using, the playback equipment connected, or the sound field settings of the receiver.

x A.F.D. Auto (A.F.D. AUTO)

Presets the sound as it was recorded/ encoded without adding any surround effects. However, for USA and Canada models, this receiver will generate a low frequency signal for output to the subwoofer when there is no LFE signals.

Enjoying Sound Effects

x Multi Stereo (MULTI ST.)

Outputs 2 channel left/right or monaural signals from all speakers. However, sound may not be output from certain speakers depending on the speaker settings.

x 2ch Stereo (2CH ST.)

The receiver outputs the sound from the front left/right speakers only. There is no sound from the subwoofer. Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channels.

x 2ch Analog Direct

(A. DIRECT)

You can switch the audio of the selected input to 2 channel analog input. This function enables you to enjoy high quality analog sources. When using this function, only the volume and front speaker level can be adjusted.

Note

You cannot select “2ch Analog Direct” while using the BD, DVD, GAME, VIDEO 2, VIDEO 3, USB, Home Network, SEN, and AirPlay function.

Movie mode

You can take advantage of surround sound simply by selecting one of the receiver’s pre-programmed sound fields. They bring the exciting and powerful sound of movie theaters into your home.

x HD-D.C.S.

HD Digital Cinema Sound (HD-D.C.S.) is Sony’s new innovative home theater technology using the latest acoustic and digital signal processing technologies. It is based on precise response measurement data of a mastering studio.

With this mode, you are able to enjoy Bluray and DVD movies at home with not only the high quality of sound, but also the best sound ambience, just as the movie’s sound engineer intended in the mastering process.

Dynamic: This setting is suitable for an

• environment which is reverberant but lacks a spacious feeling (where sound absorption is not sufficient). It emphasizes the reflection of sound and reproduces the sound of a large, classical movie theater. Thus, the spacious feeling of a dubbing theater is emphasized and a unique acoustic field is created.

Theater: This setting is suitable for a

• general living room. It reproduces the reverberation of sound just like in a movie theater (dubbing th eater). It is most appropriate for watching content recorded on a Blu-ray Disc when you want the atmosphere of a movie theater.

Studio: This setting is suitable for a

• living room with the appropriate sound equipment. It reproduces the reverberation of sound provided when a theatrical sound source is remixed for a Blu-ray Disc to a volume level suitable for home use. The level of reflection and reverberation of sound is kept to the minimum. However, dialogues and surround effects are reproduced vividly.

x PLII Movie

Performs Dolby Pro Logic II Movie mode decoding. This setting is ideal for movies encoded in Dolby Surround. In addition, this mode can reproduce sound in 5.1 channel for watching v ideos of overdubbed or old movies.

x PLIIx Movie

Performs Dolby Pro Logic IIx Movie mode decoding. This setting expands Dolby Pro Logic II Movie or Dolby Digital 5.1 to discrete 7.1 movie channels.

x PLIIz Movie (PLIIz)

Performs Dolby Pro Logic IIz mode decoding. This setting can expand a source sound from a 5.1 channel to a 7.1 channel to which a vertical equipment is applied, and gives a dimension of presence and depth.

x Stadium (STADIUM)

Reproduces the feeling of a large open-air stadium.

x Sports (SPORTS)

Reproduces the feeling of sports broadcasting.

x Neo:6 Cinema (Neo:6 CIN)

Performs DTS Neo:6 Cinema mode decoding. A source recorded in 2 channel format is decoded into 7 channels.

Music mode

You can take advantage of surround sound simply by selecting one of the receiver’s pre-programmed sound fields. They bring the exciting and powerful sound of concert halls into your home.

x Berlin Philharmonic Hall

(BERLIN)

Reproduces the sound characteristics of the Berlin Philharmonic Hall.

x Concertgebouw Amsterdam

(CONCERTGEB)

Reproduces the sound characteristics produced by reflectivity of a concert hall in Amsterdam, Netherlands, which features a large sound stage.

x Musikverein Vienna

(MUSIKVEREI)

Reproduces the sound characteristics of a concert hall in Vienna, Austria, which features a resonant and unique reverberative sound.

x Portable Audio (PORTABLE)

Reproduces a clear enhanced sound image from your portable audio device. This mode is ideal for MP3 and other compressed music.

x PLII Music

Performs Dolby Pro Logic II Music mode decoding. This setting is ideal for normal stereo sources such as CDs.

x PLIIx Music

Performs Dolby Pro Logic IIx Music mode decoding. This setting is ideal for normal stereo sources such as CDs.

x PLIIz Music (PLIIz)

x Neo:6 Music (Neo:6 MUS)

Performs DTS Neo:6 Music mode decoding. A source recorded in 2 channel format is decoded into 7 channels. This setting is ideal for normal stereo sources such as CDs.

Enjoying Sound Effects

x Jazz Club (JAZZ)

Reproduces the acoustics of a jazz club.

x Live Concert (CONCERT)

Reproduces the acoustics of a 300-seat live house.

When headphones are connected

You can only select this sound field if the headphones are connected to the receiver.

x Headphone (2ch) (HP 2CH)

This mode is selected automatically if you use headphones (except “2ch Analog Direct”). Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channels except LFE signals.

x Headphone (Direct) (HP

DIRECT)

This mode is selected automatically if you use headphones when “2ch Analog Direct” is selected. Outputs the analog signals without processing by the equalizer, sound field, etc.

If you connect a subwoofer

This receiver will generate a low frequen cy signal for output to the subwoofer when there is no LFE signal, which is a low-pass sound effect output from a subwoofer to a 2 channel signal. However, the low frequency signal is not generated for “Neo:6 Cinema” or “Neo:6 Music” when all speakers are set to “Large”. In order to take full advantage of the Dolby Digital bass redirection circuitry, we recommend setting the subwoofer’s cut off frequency as high as possible.

Notes on sound fields

• Depending on the speaker pattern settings, some sound fields may not be available.

• You cannot select “PLIIx Movie”, “PLIIx Music”, “PLIIz Movie”, and “PLIIz Music” at the same time.

– “PLIIx Movie” and “PLIIx Music” are

available only when the speaker pattern is set to a setting with surround back speaker(s).

– “PLIIz Movie” and “PLIIz Music” are

available only when the speaker pattern is set to a setting with front high speakers.

• The sound fields for music and movie do not work in the following cases. – DTS-HD Master Audio, DTS-HD High

Resolution Audio or Dolby TrueHD with sampling frequency of more than 48 kHz are being received.

– “2ch Analog Direct” is selected.

• “PLII Movie”, “PLII Music”, “PLIIx Movie”, “PLIIx Music”, “PLIIz Movie”, “PLIIz Music”, “Neo:6 Cinema” and “Neo:6 Music” do not work when the speaker pattern is set to 2/0 or 2/0.1.

• When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “Large” in the Speaker Settings menu. However, the sound will be output from the subwoofer if – the digital input signal contains LFE

signals.

– the front or surround speakers are set to

“Small”.

– “Multi Stereo”, “PLII Movie”, “PLII

Music”, “PLIIx Movie”, “PLIIx Music”, “PLIIz Movie”, “PLIIz Music”, “HD-D.C.S.” or “Portable Audio” is selected.

Adjusting the equalizer

You can use the following parameters to adjust the tonal quality (bass/treble level) of front, center, surround/surround back and front high speakers.

Bass Treble

Level

(dB)

Frequency (Hz)

1 Select “Sound Effects” from the

home menu, then press .

2 Select “Equalizer”, then press . 3 Select “Front”, “Center”,

“SUR/SB”, or “Front High”, then press .

4 Select “Bass” or “Treble”, then

adjust the gain.

Notes

• This function does not work when “2ch Analog Direct” is being used.

• Frequencies for Bass and Treble are fixed.

• Depending on the audio format, the receiver may play back signals at a lower sampling frequency than the original sampling frequency of the input signals.

Using the Sound Optimizer function

The Sound Optimizer lets you enjoy clear and dynamic sound at low volume levels. It automatically calibrates the sound which cannot be heard well when you turn down the volume level. After Auto Calibration is performed, the sound level is optimized to suit your environment.

1 Select “Sound Effects” from the

home menu, then press .

2 Select “Sound Optimizer”, then

press .

3 Select “Normal” or “Low”, then

press .

The Sound Optimizer function is activated. To adjust for the reference level of a movie, select “Normal”. To adjust for a CD or other software whose average sound pressure level is processed highly, select “Low”.

Notes

• This function does not work in the following cases. – “2ch Analog Direct” is being used. – Headphones are connected.

• The receiver may play back signals at a lower sampling frequency than the actual sampling frequency of the input signals, depending on the audio format.

Enjoying Sound Effects

Selecting the calibration type

You can select the calibration type you want after performing th e Auto Calibration. For details, see “Auto Calibration Type” (page 90).

Using the Pure Direct function

Resetting sound fields to the default settings

The Pure Direct mode lets you enjoy higher fidelity sound. When Pure Direct is on, the display panel lights off to suppress noise that affects sound quality. You can use the Pure Direct function with all inputs.

1 Select “Sound Effects” from the

home menu, then press .

2 Select “Pure Direct”, then press

3 Select “On”, then press .

Note

When Pure Direct function is selected, “Equalizer”, “Sound Optimizer”, “Advanced Auto Volume” and “Dynamic Range Compressor” do not work.

Tip

You can also use PURE DIRECT button on the remote control or receiver to turn on or off the Pure Direct function.

To cancel Pure Direct

The Pure Direct function will be canceled when you perform the following: – Select “Off” in step 3 in “Using the Pure

Direct function” (page 58). – Press PURE DIRECT again. – Change the sound field. – Change the scene setting on the TV

(Scene Select). – Change the setting of “Equalizer”,

“Sound Optimizer”, “Advanced Auto

Volume” or “Dynamic Range

Compressor”.

Be sure to use the buttons on the receiver to perform this operation.

?/1 MUSIC

1 Press ?/1 to turn off the receiver. 2 While holding down MUSIC, press

?/1.

“S.F. CLEAR” appears on the display panel and all sound fields are reset to their default setting.

Using Network Features

About the network functions of the receiver

• You can enjoy audio content which has been stored on a DLNA-compliant device (DLNA CERTIFIED™ Products) that has an authorized DLNA logo displayed on the device (page 65).

• You can use the receiver as a device equivalent to a UPnP media renderer on your home network.

• With an Internet connection, you can listen to music services (page 68) and update the software of the receiver (page 73).

• You can listen to the same music at the same time in different rooms through the PARTY STREAMING function.

• You can register TV SideView devices to control the receiver.

• You can play back audio content on iOS devices or an iTunes Library with AirPlay.

About DLNA

DLNA (Digital Living Network Alliance) is a standard organization made up of manufacturers of various products, such as servers (computers, etc.), AV equipment, and mobile computing devices which exchange content (music, photos, and videos). DLNA decides upon standards and publishes an authorized logo to be displayed on devices which support DLNA standards.

Setting up the server

To listen to audio content stored on your server with this receiver, you need to set up the server in advance. The following server devices are compatible with this receiver.

• Sony VAIO Media plus 1.3, 1.4, 2.0, and

2.1

• Sony HDD Network Audio System NAS-S500HDE*, NAS-S55HDE*

• Sony Network AV receiver STR-DA6400ES*, TA-DA5600ES*

• Microsoft Windows Media Player 12 installed on Windows 8 and Windows 7 (page 60, 62)

• Microsoft Windows Media Player 11 installed on Windows Vista/W indows XP (page 63)

* Not available in some countries or regions.

If the server has a function that limits access from other devices, you must change the setting on the server to allow the receiver to access it. This section explains how to set up Windows Media Player when using it as a server. For details on the settings of other server devices, refer to the operating instructions or help of the respective devices or applications.

Notes

• The items displayed on the computer may be

different from the ones shown below, depend ing on the version of the operating system or the computer environment. For details, refer to Help for your operating system.

• It may take a little more time when playing

music using a “Play To” feature in Windows depending on the situation.

Using Network Features

When using Windows 8

This section explains how to set up manufacturer-installed Windows Media Player 12 for Windows 8. For details on how to operate Windows Media Player 12, refer to Help for Windows Media Player 12.

1 Go to Control Panel.

Select [All Apps] under [Start]. Select [Control Panel].

Tip

If the Windows 8 display does not appear like above, proceed with the steps below.

Select [Control Panel] under [Settings].

2 Select [View network status and

tasks] under [Network and Internet].

The [Network and Sharing Center] window appears.

Tip

If the item you want does not appear on the display, try to change the display type of the Control Panel.

3 Select [Change advanced sharing

settings].

4 Select [Choose media streaming

options...] under [Media streaming] from [All Networks].

5 If [Media streaming is not turned

on] appears on the [Media streaming options] window, select [Turn on media streaming].

6 Select [Allow All].

The [Allow All Media Devices] window opens. If all the devices in the local network are set to [Allowed], select [OK] and close the window.

7 Select [Allow all computers and

media devices].

8 Select [Next] and [Finish] to close

the window.

9 Refresh the server list.

When the settings are completed, refresh the server list of the receiver and select this server from the server list. For details on selecting a server, see “To refresh the server list” (page 64).

Using Network Features

When using Windows 7

This section explains how to set up manufacturer-installed Windows Media Player 12 for Windows 7. For details on how to operate Windows Media Player 12, refer to Help for Windows Media Player 12.

1 Go to [Start] – [Control Panel].

2 Select [View network status and

tasks] under [Network and Internet].

The [Network and Sharing Center] window appears.

Tip

If the item you want does not appear on the display, try to change the display type of the Control Panel.

3 Select [Public network] under

[View your active networks]. If the display shows other than [Public Network], go to step 6.

The [Set Network Location] window appears.

4 Select [Home network] or [Work

network] according to the environment in which the receiver is used.

5 Follow the instructions that appear

on the display according to the environment in which the receiver is used.

When the settings are completed, confirm that the ite m under [View your active networks] is changed to [Home network] or [Work network] in the [Network and Sharing Center] window.

6 Select [Change advanced sharing

settings].

7 Select [Choose media streaming

options…] from [Media streaming].

8 If [Media streaming is not turned

on] appears on the [Media streaming options] window, select [Turn on media streaming].

9 Select [Allow all].

The [Allow All Media Devices] window opens. If all the devices in the local network are set to [Allowed], select [OK] and close the window.

10Select [Allow all computers and

media devices].

11Select [OK] to close the window. 12Refresh the server list.

After you finish setting up Windows Media Player 12, refresh the server list of the receiver and select this server from the server list. For details on selecting a server, see “To refresh the server list” (page 64).

1 Go to [Start] – [All Programs].

2 Select [Windows Media Player].

Windows Media Player 11 starts up.

3 Select [Media Sharing…] from the

[Library] menu.

If you are using Windows XP, go to step 9.

4 When is displayed, select

[Networking…].

Using Network Features

When using Windows Vista/XP

This section explains how to set up Windows Media Player 11 installed on Windows Vista/XP For details on how to operate Windows Media Player 11, refer to Help for Windows Media Player 11.

* Windows Media Player 11 is not manufacturer-

installed on Windows XP. Access the Microsoft website, download the installer, and then install Windows Media Player 11 on your computer.

The [Network and Sharing Center] window appears.

5 Select [Customize].

The [Set Network Location] window appears.

6 Check [Private] and select [Next].

7 Confirm that [Location type] is

changed to [Private], and select [Close].

8 Confirm that [(Private network)] is

displayed on the [Network and Sharing Center] window, and close the window.

9 If [Share my media] in the [Media

Sharing] window that is displayed in step 3 is not checked, check [Share my media], then select [OK].

A list of connectable devices is displayed.

10Select [Settings…] that appears

beside [Share my media to:].

11Check [Allow new devices and

computers automatically] and select [OK].

Note

Uncheck this item after you confirm that the receiver can be connected to the server and play audio content stored on the server.

12Refresh the server list.

After you finish setting up Windows Media Player 11, refresh the server list of the receiver and select this server from the server list. For details on selecting a server, see “To refresh the server list” (page 64).

To refresh the server list

When you add a new server to the home network, or when you cannot find the server you want on the list, refresh the server list.

1 While the server list is displayed,

press OPTIONS.

2 Select “Refresh”, then press .

The refreshed server list appears.

Tip

The receiver keeps a history of the last five connected servers and these servers appear at the top of the server list. Up to 20 servers can be displayed in a server list.

To delete a server from the server list

While the server list is displayed,

select the server you want to delete, then press OPTIONS.

The options menu appears.

2 Select “Delete”, then press .

The confirmation display appears on the TV screen.

3 Select “OK”, then press .

“Complete!” appears, and the selected server is deleted.

Note

Even if you delete the server from the server list, the server will appear in the list again if the receiver finds it on the network (such as when you refresh the server list).

Enjoying audio content stored on the server

You can play back audio content stored on the server using t he receiver in MP3, Linear PCM, WMA, FLAC and AAC* formats. Audio content with DRM (Digital Rights Management) copyright protection cannot be played on this receiver.

* The receiver can play AAC files with the

extension of “.m4a”, “.mp4” or “.3gp” only.

Server

This receiver

HOME

NETWORK

V/v/B/b,

RETURN

./>

ALPHABET

OPTIONS

SHUFFLE REPEAT

1 Press HOME NETWORK.

The server list appears on the TV screen. If the last selected item (playlist, album, folder, etc.) appears on the TV screen, press RETURN O repeatedly until the server list appears. When “No server is available” appears, or when the server on the list is not available, press OPTIONS. Select “Refresh”, then press . The refreshed server list appears.

Tip

You can also select “Home Network” from “Listen” in home menu.

2 Select the DLNA server icon, then

press .

The content list appears on the TV screen.

Note

If the server device supports the Wake-onLAN standard, the receiver turns the server on automatically. If the server does not support the Wake-on-LAN standard, turn on the server in advance. For details on settings or operations of Wake-on-LAN of your server, refer to the operating instructions or help of your server.

3 Select the item (playlist, album,

folder, etc.) you want, then press

If another item appears, repeat this step to narrow down the choices until the item you want appears. The items that are displayed depend on the connected server.

4 Select the track you want, then

press .

Playback starts. Make sure that sound is being output from the speakers of the receiver.

Notes

• Tracks that the receiver cannot play appear on

the TV screen as well. You cannot sort a list of playable tracks.

Using Network Features

• Play is not resumed from the last selected item if you unplug the AC power cord (mains lead) from the wall outlet.

• The receiver may take time to display items when browsing a folder that contains a large amount of audio content. In this case, use the Keyword Search (page 75).

Tips

• If you select a folder (such as an artist folder, genre folder, etc.), then press the N button, the receiver plays all items in the selected folder.

• The receiver resumes from the last selected item when the function is changed to Home Network function, until the receiver is turned off. When “Network Standby” is set to “On”, play resumes from the last selected item, even if you turned off the receiver.

To set Access Settings

You can set access restrictions or permission for the devices on the device list.

1 Press HOME NETWORK.

Tip

You can also select “Home Network” from “Listen” in home menu.

2 Press OPTIONS. 3 Select “Access Settings”, then

press .

To set the auto access permission

Select “Auto Access” in “Access

Settings”, then press .

2 Select “Allow” or “Not Allow”, then

press .

• Allow: All the device on the home

network are permitted to access this receiver. This receiver can start a PARTY as host device and join a PARTY as a guest device if requested.

• Not Allow: The receiver restricts a

new device that is accessing the receiver. When connecting a new device to the home network, add the device to the device list, and set access permission (page 66).

Note

Up to 20 devices can be added to the device list. If 20 devices have already been registered, “Device Full” appears, and a new device cannot be added to the list. In this case, delete unnecessary devices from the list (page 67).

To add devices to the device list

Select “Control Device” in “Access

Settings”, then press .

The registered device list appears on the TV screen.

2 Select “Add Device”, then press . 3 Select the device you want, then

press .

The selected device is added to the device list. For details on setting the access, see “To set access permission for the devices” (page 66).

To set access permission for the devices

You can set access permission for a device on the device list. Only devices set to “Allow” are recognized on the home network.

1 Select “Control Device” in “Access

Settings”, then press .

The registered device list appears on the TV screen.

2 Select the device you want, then

press .

3 Select “Access”, then press . 4 Select “Allow” or “Not Allow”, then

press .

To delete a device from the list

Select “Delete” in step 3 in “To set access permission for the devices” (page 66), then press . Select “OK” on the confirmation display, then press .

Using the TV SideView

TV SideView is a free mobile application for the remote device (smartphone, etc). By using the TV SideView with this receiver, you can easily enjoy the receiver by the operation on your remote device.

To register the TV SideView Device

Press HOME NETWORK.

Tip

You can also select “Home Network” from “Listen” in home menu.

2 Press OPTIONS. 3 Select “TV SideView Device

Registration”, then press .

4 Select “Start Registration”, then

press .

The receiver starts to detect TV SideView device that is ready for registration. “Connecting” appears on the TV screen. Press “Registration” on the TV SideView device. However, the receiver will exit the registration if no device detected in 30 seconds.

5 Select “Finish”, then press .

To cancel the registration

Select “Cancel” in step 4, then press .

Note

Up to 5 TV SideView devices can be added to the device list. If 5 devices have already been registered, “Device Full” appears, and a new device cannot be added to the list. In this case, delete unnecessary devices from the list (page 67).

To view the registered TV SideView Device

Select “Registered TV SideView Devices” in step 3, then press .

To delete registered TV SideView devices from the device list

Select “Registered TV SideView

Devices” in step 3, then press .

2 Select the device you want to delete,

then press .

3 Select “Delete”, then press . 4 Select “OK”, then press .

The selected device is deleted from the device list.

To check the copyright protection

This receiver cannot play back files in WMA format with DRM copyright protection. If a WMA file cannot be played back on this receiver, check the property of that file on your computer to see whether the file is DRM-copyrighted. Open the folder or volume where the WMA file is stored and right-click the file to display the [Properties] window. If there is a [License] tab, the file is DRMcopyrighted and cannot be played back on this receiver.

To operate Home Network function using the remote control

To Do the following

Pause playback* Press X during

Stop playback Press x.

Go to beginning of the current track, previous/next track

playback. Press N to resume playback.

Press ./> repeatedly.

Using Network Features

To Do the following

Reselect the item you want to play

Search the item you want using a keyword

Change the server While playback is

Select Repeat Play Press REPEAT

Select Shuffle Play Press SHUFFLE

* Depending on the server or track, pause

playback may not work when the Home Network function is selected.

Press RETURN O repeatedly until the directory you want appears. Or press OPTIONS, select “Server List”, then select the item you want. To return to the playback display, press OPTIONS and select “Now Playing”.

While selecting the contents in the server, press ALPHABET SEARCH, and then enter a keyword (page 75).

stopped, press OPTIONS. Select “Server List”, then press

. Select the server

you want, then press .

repeatedly until “Repeat All” or “Repeat 1” appears on the TV screen.

repeatedly until “Shuffle On” appears on the TV screen.

Enjoying Sony Entertainment Network (SEN)

You can listen to music services offered on the Internet with this receiver (SEN function). To use this function, the receiver must be connected to the network and the network must be connected to the Internet. For details, see “6: Connecting to the network” (page 34). Visit the website below for more information on the SEN:

http:// www.sonyentertainmentnetwork.com

SEN

This receiver

Note

Before using music services, you may have to register your receiver depending on the service provider. For details on registration, visit the customer support site of the service provider.

SEN

DISPLAY

RETURN

MEMORY

Numeric buttons

V/v/B/b,

OPTIONS

ALPHABET SEARCH

The following steps explain how to select “vTuner” as an example of music services offered on the Internet.

1 Press SEN.

The service provider list app ears on the TV screen. If the receiver automatically displays the last selected service or station, press RETURN O repeatedly until the service provider list appears.

Tip

You can also select “SEN” from “Listen” in home menu.

2 Select “vTuner”, then press . 3 Select the folder or station you

want, then press .

• Press V/v repeatedly to select the item.

•Press to go to the next directory, or to listen to the station.

• Press RETURN O to go to the previous directory.

Note

If “No service is available” appears and you cannot obtain a service provider list, press OPTIONS and select “Refresh”.

Tip

The receiver displays the last selected service or station when the function is changed to SEN function, until the receiver is turned off. When “Network Standby” is set to “On”, the last selected service or station is displayed even if you turned off the receiver.

To operate SEN function using the remote control

To Do the following

Change the station or service

Use various functions while the receiver is selecting or playing a station or service

Select the service options

Search the item you want using a keyword

View the available information

Press RETURN O to return to the service provider list, then select the service again. To return to the playback display again, press OPTIONS and select “Now Playing”.

Press OPTIONS. The item displayed may vary according to the selected item or directory.

While selecting or playing the contents in the se rvice, press OPTIONS. Select “Service Options”, then press . The contents of the service options vary depending on the selected services.

While selecting the contents in the server, press ALPHABET SEARCH, and then enter a keyword (page 75).

Press DISPLAY repeatedly to view the artist name, album name, etc.

Using Network Features

Presetting stations

You can store up to 20 stations as your favorite stations.

1 Select the station you want to

preset.

2 During reception, press MEMORY.

The preset memory list appears.

3 Select a preset number, then press

4 Repeat steps 1 to 3 to store

another station.

To listen to the preset station

1 Press SEN.

The service provider list appears on the TV screen. If the receiver automatically displays the last selected station, press RETURN O repeatedly until the service provider list appears.

Tip

You can also select “SEN” from “Listen” in home menu.

2 Select “Preset”, then press .

“Preset” appears at the top of the service provider list.

3 Select the preset station you want,

then press .

Note

There may be some stations that cannot be preset, depending on the service providers. If you try to preset such a station, “Not available” appears on the display.

Enjoying a variety of music services

You can enjoy listening to the content of a variety of music services offered on the Internet. Visit the website below for more information on music services, how to enjoy services, and the registration code of the receiver.

http://munlimited.com/home

Checking the registration code

You may be required to enter the registration code of the receiver when you enjoy a new music service.

1 Press SEN.

The service provider list appears on the TV screen. If the receiver automatically displays the last selected service or station, press RETURN O repeatedly until the service provider list appears.

Tip

You can also select “SEN” from “Listen” in home menu.

2 Select “Registration Code”, then

press .

The registration code of the receiver appears.

Using the PARTY STREAMING function

Audio contents curren tly being played back on this receiver can be also played back on all devices corresponding to the PARTY STREAMING function on your home network at the same time. If you encounter an interruption when using a wireless connection, connect your receiver to the router with a wired connection (page 35).

While PARTY streaming, a device called a “PARTY host” starts a PARTY and streams music, and a device called a “PARTY guest” joins a PARTY and receives music from the “PARTY host”. Before using the PARTY STREAMING function, make sure that “PARTY STREAMING” is set to “On” (page 96).

PARTY host

PARTY

START/

PARTY guest

PARTY JOIN/ LEAVE

You can enjoy the PARTY STREAMING function with other devices* that have this PARTY STREAMING logo shown below.

* Available PARTY STREAMING-compliant

devices may differ depending on the countries or regions. For details on available devices, contact your nearest Sony dealers.

1 Make sure the PARTY guest

devices are turned on and ready to join a PARTY.

2 Play the sound source you want.

Audio content of all the sound sources on this receiver can be streamed.

Notes

• Only audio contents on this receiver can be streamed. During PARTY host, video signals are not output to the TV, and audio signals will downmix to 2 channel. In this case, you can only select “2ch Stereo” as sound field.

• When you start a PARTY as PARTY host, you may face a time gap between the audio output and visual display in the following cases. – The Audio Return Channel (ARC)

function is used.

– The video output of the equipment is

connected to the TV and the audio output is connected to the digital or analog audio input jacks on the receiver.

• Sources with copyright protection may not be streamed.

3 Press PARTY START.

“START PARTY” appears on the display panel. The receiver starts PARTY streaming as a PARTY host.

To close a PARTY

Press PARTY CLOSE. “CLOSE PARTY” appears on the display panel.

Joining a PARTY

Using Network Features

Starting a PARTY

You can start a PARTY so that other devices that support the PARTY STREAMING function can play the same music even though they are in different rooms.

The receiver can join a PARTY that has been started by another device so that you can enjoy the same audio content being played in a different room.

While the PARTY host device is having a PARTY, press PARTY JOIN.

“JOIN PARTY” appears, and the receiver joins the PARTY as a PARTY guest.

To leave a PARTY

Press PARTY LEAVE. “LEAVE PARTY” appears, and the receiver leaves a PARTY.

Notes

• You cannot join a PARTY in the following cases: – you have a PARTY on this receiver. – you have already joined another PARTY.

• If you press PARTY JOIN when no PARTY is started, but a device complying with PARTY STREAMING function is playing, the device will be the PARTY host, and the receiver will join the PARTY as a PARTY guest.

• The PARTY guest device function automatically switches to HOME NETWORK when the device joins a PARTY. Even if the PARTY guest device leaves the PARTY, the function remains as HOME NETWORK.

Tip

If “Network Standby” is set to “On”, the receiver turns on and joins the PARTY automatically when the PARTY host device starts the PARTY.

Streaming music from iTunes with AirPlay

Using a wireless network, you can play back audio content on iOS devices such as an iPhone, iPod touch, iPad or an iTunes Library on your PC with this receiver.

Compatible iPod/iPhone/ iPad models

iPhone 4S, iPhone 4, iPhone 3GS, iPod touch (2nd, 3rd or 4th generation), iPad, iPad2, iPad 3rd generation with iOS 4.2 or later, and Mac or PC with iTunes 10.1 or later.

Notes

• Refer to “Compatible iPod/iPhone/iPad models” on this page for details on the supported versions of iOS or iTunes.

• Update iOS or iTunes to the latest version before using with the receiver.

• Refer to the operating instructions of your device for details on operating iOS devices, iTunes or AirPlay.

• You cannot use this receiver as a PARTY host while using the AirPlay function.

1 Tap/click on the icon at bottom

right of the iOS device screen or iTunes window. [iOS device]

iPhone/iPod touch/iPad

[iTunes]

2 Select “STR-DN1040” on the

AirPlay menu of iTunes or your iOS device. [iOS device]

[iTunes]

When you use iTunes, set an iOS device to accept control from this receiver and the remote control when you want to use this receiver and the remote control to operate an iOS device.

Tips

• The most recent control command to the receiver is given priority. The receiver starts playing back audio content of another device when it accepts control from that AirPlayequipped device, even if this receiver is being used for AirPlay with the original device.

• The very loud sound may output from this receiver when you set the volume too loud using iOS devices or iTunes.

• For details on the use of iTunes, refer to the Help of iTunes.

• The volume level of iOS devices or iTunes may not be able to be linked with the volume level of this receiver.

Updating the software

3 Start playing back audio content

on an iOS device or on iTunes.

AirPlay is selected as a function of the receiver automatically.

Tips

• “******” is the last 6 digits of MAC Address of the receiver.

• If the playback does not start, perform the process again from step 1.

To confirm/edit the device name

See “Device Name” (page 96) for instructions on how to rename the device.

To control AirPlay playback

You can use the 2 +/–, N, X, x, .,

>, SHUFFLE and REPEAT buttons.

Operation from the receiver and the remote control is active only when the receiver is selected as the device for output.

By downloading the latest version of the software, you can take advantage of the newest functions. The receiver accesses the Sony server to update the software. If a new update is available, follow the onscreen instructions to update the software. “UPDATE” appears on the display panel when you are connected to the Internet and using the Home Network or SEN function. Make sure that other equipment connected to the receiver is stopped before updating the software. For details on software update available, refer to the customer support site (page 120).

Notes

• Make sure not to turn off the receiver, disconnect the network cable or perform any operation on the receiver while the updating operation is in progress.

• If you try to update the software when the Sleep Timer is on, the Sleep Timer will turn off automatically.

Using Network Features

1 Select “Settings” from the home

menu, then press .

The Settings menu list appears on the TV screen.

2 Select “System”, then press . 3 Select “Network Update”, then

press .

4 Select “Start”, then press .

The receiver starts checking the available software update. Once you start the update, you cannot restore the previous software version. The receiver completes the software download when “Download 100%” appears on the TV screen. Then, the receiver starts to update the software. The GUI and display panel are turned off automatically and the ?/1 (on/ standby) indicator on the front panel flashes slowly. It may take about 40 minutes to several hours at the longest for the update to complete. The time required for the update varies depending on the update conditions, such as the speed of the Internet connection, etc. When the update is completed, “COMPLETE” appears on the display panel and the receiver will restart automatically.

Note

When the ?/1 (on/standby) indicator on the front panel flashes slowly, do not disconnect the AC power cord (mains lead).

To cancel the procedure

Select “Cancel” in step 4.

To go back to the previous screen

Press RETURN O before the receiver starts the software update. You cannot go back to the previous screen when the update starts.

Network features message list

Network settings

Message and explanation

Invalid xxx*

The entered values are incorrect or invalid.

* xxx represent a SSID, IP Address, Security

Key, Subnet Mask, Default Gateway, Primary DNS, and Secondary DNS. xxx may be different depending on the network setup.

Home Network

Message and explanation

Cannot connect

The receiver cannot be connected to the selected server.

Cannot get info

The receiver cannot retrieve information on the server or contents.

Cannot JOIN

The receiver has failed to join a PARTY.

Cannot play

The receiver cannot play audio files due to an unsupported file format or playback restrictions.

Cannot START

The receiver has failed to start a PARTY.

Data Error

You tried to play an unplayable file.

Device Full!

You cannot register any more devices to the device list.

Initialize

The receiver is performing a factory default setting to Network function.

No server is available

There is no server on the network that the receiver can connect to. Try refreshing the server list (page 64).

No Track

There is no playable file in the selected folder on the server.

Message and explanation

Not Found

There is no item on the server that matches a keyword.

Not in Use

An operation that is currently prohibited is being performed.

SEN

Message and explanation

Cannot connect

The receiver cannot be connected to the selected server.

Cannot get info

The receiver cannot obtain content from the server.

Cannot play

• You tried to play an unplayable file.

• The receiver cannot play a service or station due to an unsupported file format or playback restrictions.

Software update is required

The service is not available in the current version of the receiver software. Visit the website below for more information on the software update:

http://munlimited.com/home

No Preset

There is no station stored on the receiver for the selected preset number.

No service is available

There is no service provider.

No Stations Available

There is no station in the selected service.

Not available

• The selected service is not available.

• An operation that is currently unavailable is being performed.

Not in Use

An operation that is currently prohibited is being performed.

Searching for an item using a keyword

When a list is displayed on the TV screen (such as artist list, a track list, etc.), you can enter a keyword to search for an item you want. Searching by keywords is available only when the Home Network or SEN function is selected.

Numeric/ text buttons

V/v/B/b,

ALPHABE

ALPHABET

1 Press ALPHABET SEARCH while

an item list (artist list, track list, etc.) is displayed on the TV screen.

The keyword input display appears on the TV screen.

2 Press the numeric/text buttons to

enter a keyword.

A keyword can be up to 15 characters.

NEXT ALPHABE PREVIOUS

Using Network Features

Note

Enter a keyword that will match the le tters or a word at the beginning of the name or title of the item you want to search for. When the receiver searches for an item, “The” at the beginning of a name and the following space will be ignored.

3 Press .

An item that matches the keyword appears. If the item appears is not the one you are searching for, press ALPHABET PREVIOUS/ ALPHABET NEXT to display the previous/next item.

4 Repeat steps 1 to 3 until you find

the item you want, then press .

5 Select the track you want, then

press .

Playback starts.

“BRAVIA” Sync Features

What is “BRAVIA” Sync?

The “BRAVIA” Sync function allows communication between Sony products such as TV, Blu-ray Disc player, DVD player, AV amplifier, etc. that supports the Control for HDMI function. By connecting Sony equipment that is compatible with the “BRAVIA” Sync with an HDMI cable (not supplied), operation is simplified as follows:

• One-Touch Play (page 77)

• System Audio Control (page 77)

• System Power-Off (page 78)

• Scene Select (page 78)

• Home Theatre Control (page 79)

• Remote Easy Control (page 79)

Control for HDMI is a mutual control function standard used by HDMI CEC (Consumer Electronics Control) for HDMI (High-Definition Multimedia Interface).

We recommend that you connect the receiver to products featuring “BRAVIA” Sync.

Notes

• You may use “One Touch Play”, “System Audio Control”, and “System Power-Off” function with non-Sony equipment. However, compatibility with all non-Sony equipment is not guaranteed.

• “Scene Select” and “Home Theatre Control” features are Sony proprietary functions. They cannot operate with non-Sony equipment.

• Equipment not compatible with “BRAVIA” Sync cannot activate these features.

• The Control for HDMI function does not work on an equipment connected to the HDMI OUT B jack of the receiver.

• Some of the operations may be supported when you connect a MHL device (page 79).

Preparing for the “BRAVIA” Sync

Set the Control for HDMI function of the receiver and the connected equipment to on individually.

V/v/b,

HOME

1 Select “Settings” from the home

menu, then press .

The Settings menu list appears on the TV screen.

2 Select “HDMI”, then press . 3 Select “Control for HDMI”, then press

4 Select “On”, then press .

The Control for HDMI function of the receiver is set to on.

5 Press HOME to exit the GUI menu. 6 Select the HDMI input of the receiver

and TV to match the HDMI input of the connected equipment, so that the image from the connected equipment is displayed.

7 Set the Control for HDMI function of

the connected equipment to on.

For details on setting the TV and connected equipment, refer to the operating instructions of the respective equipment.

8 Repeat steps 6 and 7 for other

equipment that you want to use the Control for HDMI function.

Note

When you unplug the HDMI cable or change the connection, perform the steps above.

One-Touch Play

When you start playback the equipment connected to the receiver via an HDMI connection, the receiver and TV operation are simplified as follow:

Receiver and TV

Turns on (if in standby mode)

Switches to appropriate HDMI input

If you set “Pass Through” to “On”* or “Auto” (page 94), then set the receiver to standby mode, sound and image can be output only from the TV.

* For Australia model only.

Notes

• Be sure that the System Audio Control function is set to on using TV menu.

• When you play back from the connected equipment, the TV will momentarily loose the image and sound.

• Depending on the settings, the receiver may not turns on when “Pass Through” is set to “On” or “Auto”.

Tip

You can also select a connected equipment, such as Blu-ray Disc player, DVD player from the TV menu. The receiver and TV will automatically switch to the appropriate HDMI input.

System Audio Control

You can enjoy the TV sound from the speakers connected to the receiver by a simple operation. You can operate System Audio Control function using the TV menu. For details, refer to the operating instructions of the TV.

“BRAVIA” Sync Features

TV Receiver

Sets System Audio Control to on

• Turns on (if in standby mode)

• Switches to appropriate HDMI input

You can also use the receiver’s remote control to turn off the TV.

AV ?/1

Minimizes TV volume

Outputs TV sound

You can also use th e System Audio Control function as follows.

• If you turn on the receiver while the TV is turned on, the System Audio Control function will automatically activate to output TV sound through the speakers connected to the receiver. However, if you turn off the receiver, the sound will output from the TV speakers.

• When you enjoy the TV sound from the speakers connected to the receiver, you can adjust the volume or turn off the sound temporarily by using the TV’s remote control.

Notes

• If System Audio Control does not function

according to your TV setting, refer to the operating instructions of the TV.

• When “Control for HDMI” is set to “On”, the

“Audio Out” settings in the HDMI Settings menu will set automatically based on the System Audio Control settings (page 94).

• If the TV is turned on before turning on the

receiver, the TV will momentarily loose the sound output.

System Power-Off

When you turn the TV off, using the power button on the TV’s remote control, the receiver and the connected equipment turn off automatically.

Press TV, then press AV ?/1.

The TV, receiver and the connected equipment are turned off.

Notes

• Set the TV power supply interlock function to on before using the System Power-Off function. For details, refer to the operating instructions of the TV.

• Depending on the condition of the connected equipment, it may not be turned off. For details, refer to the operating instructions of the connected equipment.

• If you use the System Power-Off function with a non-Sony TV, program the remote control according to the maker of the TV.

Scene Select

The optimum picture quality and sound field are selected automatically according to the scene selected on your TV. For details on the operation, refer to the operating instructions of the TV.

Note

The sound field may not switch depending on the TV.

Correspondence table

Scene setting on the TV Sound field

Cinema HD-D.C.S.

Sports Sports

Music Live Concert

Animation A.F.D. Auto

Scene setting on the TV Sound field

Photo A.F.D. Auto

Game A.F.D. Auto

Graphics A.F.D. Auto

Home Theatre Control

If a “Home Theatre Control”-compatible TV is connected to the receiver, an icon for Internet based applications appears on the connected TV. You can switch an input of the receiver or switch sound fields by using your TV’s remote control. You can also adjust the level of the center speaker or the subwoofer, or adjust the settings of “Sound Optimizer” (page 57), “Dual Mono” (page 93), or “A/V Sync” (page 93).

Note

To use the Home Theatre Control function, your TV must be able to access a broadband service. For details, refer to the operating instructions of your TV.

Controlling the MHL device

By connecting MHL device with a MHL cable (not supplied), operation is simplified as follows:

• One-Touch Play (page 79)

• Remote Easy Control (page 79)

Notes

• This function allows communication with Sony “BRAVIA” Sync-compatible TV using an HDMI cable (not supplied).

• This function may not work depending on the connected MHL device.

• This function can only work when – The receiver is turned on. – The “Control for HDMI” is set to “On”. – The MHL device is connected via a MHL

cable (not supplied) to the HDMI/MHL (VIDEO 2 IN) jack (page 31).

One-Touch Play

The receiver switches to the appropriate input when you connect, playback, etc. from your MHL device.

Remote Easy Control

You can use the TV remote control to operate the menu of the receiver. For details, re fer to the operating in structions of the TV.

Select the receiver (AV AMP) recognized by the TV.

Notes

• The receiver is recognized as “Tuner (AV AMP)” by the TV.

• Your TV must be compatible with the link menu.

• Depending on the type of TV, some of the operations may not be available.

Remote Easy Control

RETURN

./>

AMP

V/v/B/b,

OPTIONS HOME

x m/M

“BRAVIA” Sync Features

You can use V/v/B/b, , RETURN O, OPTIONS, HOME*, N, X,

m/M buttons on the remote

control to control your MHL device.

* Hold down HOME to display the home menu of

the MHL device.

Note

Be sure to press AMP before you use the buttons to control your MHL device.

x, ./

Switching the monitors that output the HDMI video signals

When you have two monitors connected to the HDMI OUT A and HDMI OUT B jacks, you can switch the output for these two monitors using the HDMI OUTPUT button on the remote control.

HDMI OUTPUT

1 Turn on the receiver and the two

monitors.

2 Press HDMI OUTPUT.

Each time you press the button, the output will be switched as follows: HDMI A t HDMI B t HDMI A+B t HDMI OFF t HDMI A…

Notes

• If the compatible video format differs between the monitors connected to the HDMI OUT A jack and the HDMI OUT B jack of the receiver, “HDMI A + B” may not work.

• Depending on the playback equipment you connect, “HDMI A + B” may not work.

Other Operations

Switching between digital and analog audio

(INPUT MODE)

When you connect equipment to both digital and analog audio input jacks on the receiver, you can fix the audio input mode to either of them, or switch from one to the other, depending on the type of material you intend to watch.

1 Press the input buttons to select

the input.

You can also turn INPUT SELECTOR on the receiver.

2 Press INPUT MODE repeatedly to

select the audio input mode.

You can also use INPUT MODE on the receiver. The selected audio input mode appears on the display panel.

• AUTO: Gives priority to digital

audio signals. If there are more than one digital connection, HDMI audio signals have priority. If there are no digital audio signals, analog audio signals are selected. When TV input is selected, priority is given to the Audio Return Channel (ARC) signals. If your TV is not compatible with the ARC function, the digital optical audio signals are selected. If the Control fo r HDMI functions of both the receiver and the TV are not activated, the ARC does not work.

• COAX: Specifies the digital audio

signals input to the COAXIAL jack.

• OPT: Specifies the digital audio

signals input to the OPTICAL jack.

• ANALOG: Specifies the analog

audio signals input to the AUDIO IN (L/R) jacks.

Notes

• Based on the input, “------” appears on the display panel, and other modes cannot be selected.

• When “2ch Analog Direct” is being used, audio input is set to “ANALOG”. You cannot select other modes.

Using other video/audio input jacks

(Input Assign)

You can reassign video and/or audio signals to another input jacks. After you have reassigned the input jacks, you can use the input button (or INPUT SELECTOR on the receiver) to select the equipment you connected.

Component video and digital audio input assign

You can reassign the COMPONENT VIDEO and DIGITAL input jacks to other input if the default settings of the jacks do not correspond to your connected equipment.

Example: When you connect the DVD player to the OPTICAL IN 1 (SAT/CATV) and COMPONENT VIDEO IN 1 (SAT/CATV) jacks. – Assign the OPTICAL IN 1 (SAT/CATV)

jack to “DVD”.

– Assign the COMPONENT VIDEO IN 1

(SAT/CATV) jacks to “DVD”.

1 Select “Settings” from the home

menu, then press .

The Settings menu list appears on the TV screen.

2 Select “Input”, then press . 3 Select the input name you want to

assign, then press .

4 Press B/b repeatedly to select

“COMPONENT” or “OPT/COAX”.

5 Press V/v repeatedly to select the

jack you want to assign, then press

Other Operations

Input name BD DVD GAME SAT/

Assignable video input jacks

Assignable audio input jacks

* Default setting

Notes

• When you assign the digital audio input, the “INPUT MODE” setting may change automatically.

• One reassignment is allowed for each input.

IN2 aa* a aaaaa IN1 aaa a* aaaa None a* aa* aa* a* a* a* OPT 2 aaa aaaaa OPT 1 aaa a* aaaa COAX aa* a aaaaa None a* aa* aa* a* a* a*

VIDEO 1VIDEO 2VIDEO 3SA-CD/

CATV

To exit the menu

Using a bi-amplifier connection

1 Select “Settings” from the home

menu, then press .

The Settings menu list appears on the TV screen.

2 Select “Speaker”, then press .

Press HOME.

Notes

• Select “Bi-Amplifier Connection” before you perform Auto Calibration.

• When you select “Bi-Amplifier Connection”, the speaker level and distance settings of the surround back speakers and front high speakers become invalid, and those of the front speakers are used.

3 Select “Speaker Connection”, then

press .

4 Select the appropriate speaker

pattern so that there are no surround back speakers and front high speakers, then press .

5 Select “Bi-Amplifier Connection”,

then press .

The same signals output from the SPEAKERS FRONT A terminals can be output from the SPEAKERS SURROUND BACK/BI-AMP/ FRONT HIGH/FRONT B terminals.

6 Press to save the selection.

To operate the receiver

Using multi-zone features

You can enjoy sounds from the equipment connected to the receiver in a zone other than the main zone. For example, you can watch the DVD in the main zone and listen to the CD in zone 2. When using an IR repeater (not supplied), you can operat e both equipment in the main zone and Sony receiver in zone 2 from zone

from zone 2

You can operate the receiver without pointing the remote control towards the receiver if you connect an IR repeater (not supplied) to the IR REMOTE jack. Use an IR repeater when you install the receiver in a place where signals from the remote control cannot reach.

Making a zone 2 connection

Outputs sound from speakers in zone 2 using the receiver and another amplifier.

Main zone Zone 2

STR-DN1040

ZONE 2 OUT

A Audio equipment B IR repeater (not supplied) C Speakers D Sony Amplifier/Receiver

IR REMOTE

RM-AAP103

Other Operations

Operating the receiver from zone 2

The following operations are described for connecting an IR repeater and operating the receiver in zone 2. When an IR repeater is not connected, use this receiver in the main zone.

?/1

ZONE

Input

buttons

AV ?/1

SOURCE

1 Turn on the main receiver (this

receiver).

2 Turn on the receiver in zone 2. 3 Press ZONE.

The remote control switches to zone 2.

4 Press ?/1.

The zone function is activated.

5 Press the input buttons to select

the source you want.

6 Adjust to a suitable volume using

the receiver in zone 2.

Available zone 2 operations

INPUT ZONE 2

BD –

DVD –

GAME –

SAT/CATV

VIDEO 1

VIDEO 2 –

a a

INPUT ZONE 2

VIDEO 3 –

TV – SA-CD/CD a

USB –

HOME NETWORK –

SEN – SOURCE a

For zone 2, only analog audio signals are output.

Only when SOURCE is selected, the signals of the current input in main zone are output.

You can select either “FM” or “AM” from the main zone and zone 2. Priority is given to the choice which has most recently been selected, even if a different choice has already been selected in one of the zones.

a a

To exit the zone 2 operation

Press ZONE, then press ?/1.

Tips

• Even when this receiver is in standby mode (press ?/1 on the remote control to turned off this receiver), the receiver in zone 2 remains turned on.

• When the receiver is in standby mode, the ?/1 (on/standby) indicator on the front panel lights up in amber if the receiver in zone 2 is turned on.

• AirPlay function is available in main zone only.

Reverting back to the factory default settings

You can clear all memorized settings and revert the receiver back to the factory default settings by performing the following procedure. This procedure can also be used to initialize the receiver before you use it for the first time. Be sure to use the buttons on the receiver to perform this operation.

?/1

1 Press ?/1 to turn off the receiver. 2 Hold down ?/1 for 5 seconds.

The “CLEARING” appears on the display panel for a while, then changes to “CLEARED!”. Changes or adjustments made to the settings are now reset to the defaults.

Note

It takes about a few minutes for the memory to be cleared completely. Do not turn the receiver off until “CLEARED!” appears on the display.

Adjusting Settings

Using the Settings menu

You can adjust various settings for speakers, surround effects, etc. using the Settings menu.

AMP

V/v/B/b,

RETURN

1 Press AMP, then press HOME.

The home menu is displayed on the TV screen.

HOME

Adjusting Settings

2 Select “Settings”, then press

to enter the menu mode.

The Settings menu list appears on the TV screen.

3 Select the menu item you want,

then press .

Example: When you select “Speaker”.

4 Select the parameter you want,

then press .

To return to the previous screen

Press RETURN O.

To exit the menu

Press HOME to display the home menu, then press HOME again.

Settings menu list

Settings Easy Setup

(page 88)

Speaker (page 88)

Audio (page 92)

HDMI (page 94)

Auto Calibration Auto Phase Matching Auto Calibration Type

Speaker Connection Level/Distance/Size Crossover Frequency Test Tone Center Speaker Lift Up Distance Unit

Digital Legato Linear Sound Optimizer Equalizer Sound Field A/V Sync Advanced Auto Volume Dual Mono Dynamic Range Compressor

4K Scaling Control for HDMI Pass Through Audio Out Subwoofer Level Fast View

Full Flat Engineer Front Reference Off

Input (page 95)

Remote Icon Name Watch/Listen HDMI COMPONENT OPT/COAX COMPOSITE AUDIO

Adjusting Settings

Network (page 96)

Internet Setting Information PARTY STREAMING Device Name External Control Network Standby

System (page 97)

Language Auto Standby Software Update Notification Software Version Network Update

Note

Menu parameters displayed on the TV screen vary, depending on the current settings or the status of the selected icon.

The measurement process will take

Easy Setup

Re-runs the Easy Setup to make the basic settings. Follow the on-screen instructions (page 42).

Speaker Settings menu

You can adjust each speaker manually. You can also adjust the speaker levels after the Auto Calibration is completed.

Note

The speaker settings are only for the current seating position.

x Auto Calibration

Lets you perform the automatic calibration from your seating position automatically.

1 Follow the instructions on the TV

screen, then press to select “Start”.

approximately 30 seconds with a test tone. When the measurement ends, a beep sounds and the screen switches.

Note

If an error code or warning message appears on the screen, see “Message list after Auto Calibration measurement” (page 89).

2 Select the item you want, then press

• Save: Save the measurement results

and exits the setting process.

• Retry: Performs the Auto Calibration

again.

• Discard: Exits the setting process

without saving the measurement results.

3 Save the measurement result.

Select “Save” in step 2.

Note

If you reposition your speaker, we recommend that you perform Auto Calibration again to enjoy the surround sound.

The measurement starts in five seconds.

Tips

• You can change the unit of distance in “Distance Unit” in the Speaker Settings menu (page 92).

• The size of a speaker (“Large”/“Small”) is determined by the low frequency characteristics. The measurement results may vary, depending on the position of the optimizer microphone and speakers, and the shape of the room. It is recommended that you apply the measurement results. However, you can change those settings in the Speaker Settings menu. Save the measurement results first, then try to change the settings.

To check the Auto Calibration results

To check error code or warning message obtained in “Auto Calibration” (page 89), proceed with the following steps.

When an error code appears

Check the error and perform Auto Calibration again.

1 Select “Retry”, then press . 2 Repeat steps 1 to 3 in “Auto

Calibration” (page 88).

When warning message appears

Check the warning message and select “Ok”.

Message list after Auto Calibration measurement

Display and explanation

Code 30

Headphones are connected to the PHONES jack on the receiver. Remove the headphones and perform the Auto Calibration again.

Code 31

The SPEAKERS is set to off. Set to other speaker settings and perform the Auto Calibration again.

Display and explanation

Code 32 Code 33

Speakers were not detected or not connected properly.

• None of the front speakers are connected or only one front speaker is connected.

• Either the surround left or surround right speaker is not connected.

• Surround back speakers or front high speakers are connected even though surround speakers are not connected. Connect the surround speaker(s) to the SPEAKERS SURROUND terminals.

• The surround back speaker is connected only to the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B R terminals. When you connect only one surround back speaker, connect it to the SPEAKERS SURROUND BACK/ BI-AMP/FRONT HIGH/FRONT B L terminals.

• Either the front high left or front high right speaker is not connected.

The optimizer microphone is not connected. Make sure that the optimizer microphone is connected properly and perform the Auto Calibration again. If the optimizer microphone is connected properly but the error code still appears, the optimizer microphone cable may be damaged.

Warning 4 0

The measurement process has completed with high noise level detection. You may be able to achieve better results if you try in a quiet environment again.

Warning 4 1 Warning 4 2

The input from the microphone is too big.

• The distance between the speaker and the microphone may be too close. Set them apart and perform the measurement again.

Warning 4 3

The distance and position of a subwoofer cannot be detected. This may be caused by noise. Try to perform the measurement in a quiet environment.

Adjusting Settings

Tip

Depending on the position of the subwoofer, the measurement results may vary. However, there will be no problems even if you continue to use the receiver with that value.

x Auto Phase Matching (A.P.M.)

Lets you set the A.P.M. function in the DCAC function (page 36). It calibrates the phase characteristics of the speakers and ensures a well-coordinated surround space.

• Auto : Switches the A.P.M. function on or

off automatically.

• Off: Does not activate the A.P.M.

function.

Notes

• This function does not work in the following cases. – “2ch Analog Direct” is being used. – Headphones are connected. – Auto Calibration has not been performed.

• The receiver may play back signals at a lower sampling frequency than the actual sampling frequency of the input signals, depending on the audio format.

x Auto Calibration Type

Lets you select the calibration type after you have performed the Auto Calibration and saved the settings.

• Full Flat: Makes the measurement of

frequency from each speaker flat.

• Engineer: Sets to “the Sony listening

room standard” frequency characteristics.

• Front Reference: Adjusts the

characteristics of all the speakers to match the characteristics of the front speaker.

• Off: Sets the Auto Calibration equalizer

level to off.

x Speaker Connection

Lets you select the speaker pattern and set the assignment for the SPEAKERS SURROUND BACK/BI-AMP/FRONT HIGH/FRONT B terminals.

1 Select the speaker pattern you want,

then press .

2 Set the assignment for the

SPEAKERS SURROUND BACK/ BI-AMP/FRONT HIGH/FRONT B terminals.

• Bi-Amplifier Connection

• Front B Speakers

• Not Assigned

Note

You can only set the assignment for the SPEAKERS SURROUND BACK/BI-AMP/ FRONT HIGH/FRONT B terminals if the speaker pattern is set to a setting without surround back and front high speakers.

x Level/Distance/Size

You can adjust the level, distance, and size of the selected speaker.

To adjust the speaker level

You can adjust each speaker’s level (front left/right, front high left/right, center, surround left/right, surround back left/ right, subwoofer).

1 Select the speaker on the screen for

which you want to adjust the level, then press .

2 Select “Level”, then press V/v to

adjust the level.

You can adjust the level from –10.0 dB to +10.0 dB in 0.5 dB intervals.

Note

When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “Large” in the Speaker Settings menu. However, the soun d will be output from the subwoofer if – the digital input signal contains LFE signals. – the front or surround speakers are set to

“Small”.

– “Multi Stereo”, “PLII Movie”, “PLII Music”,

“PLIIx Movie”, “PLIIx Music”, “PLIIz Movie”, “PLIIz Music”, “HD-D.C.S.” or “Portable Audio” is selected.

To adjust the distance from the seating position to each speaker

You can adjust the distance from the seating position to each speaker (front left/ right, front high left/right, center, surround left/right, surround back left/right, subwoofer).

1 Select the speaker on the screen for

which you want to adjust the distance from the seating position, then press .

2 Select “Distance”, then press V/v to

adjust the distance.

You can adjust the distance from 1 m 0 cm to 10 m 0 cm (3 feet 3 inches to 32 feet 9 inches) in 1 cm (1 inch) intervals.

Notes

• Depending on the speaker pattern setting, some parameters may not be available.

• This function does not work when “2ch Analog Direct” is being used.

To adjust the size of each speaker

You can adjust each speaker’s (front left/ right, front high left/right, center, surround left/right, surround back left/right) size.

1 Select the speaker on the screen for

which you want to adjust the size, then press .

2 Select “Size”, then press V/v to

adjust the size.

• Large: If you connect large speakers

that will effectively reproduce bass frequencies, select “Large”. Normally, select “Large”.

• Small: If the sound is distorted, or you

feel a lack of surround effects when using multi channel surround sound, select “Small” to activate the bass redirection circuitry and output the bass frequencies of each channel from the subwoofer or other “Large” speakers.

Note

This function does not work when “2ch Analog Direct” is being used.

Tips

• The “Large” and “Small” settings for each speaker determine whether the internal sound processor will cut the bass signal from that channel. When the bass is cut from a channel, the bass redirection circuitry sends the corresponding bass frequencies to the subwoofer or other “Large” speakers. However, since bass sound has a certain amount of directionality, it is best not to cut it, if possible. Therefore, even when using small speakers, you can set them to “Large” if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to “Small”. If the overall sound level is lower than you prefer, set all speakers to “Large”. If there is not enough bass, you can use the equalizer to boost the bass levels.

• The surround back speakers will be set to the same setting as that of the surround speakers.

• When the front speakers are set to “Small”, the center, surround, and surround back/front high speakers are also automatically set to “Small”.

• If you do not use the subwoofer, the front speakers are automatically set to “Large”.

• When headpones are connected, Size and Distance cannot be set.

x Crossover Frequency

Lets you set the bass crossover frequency of speakers that the speaker size has been set to “Small” in the Speaker Settings menu. Measured speaker crossover frequency is set for each speaker after the Auto Calibration.

1 Select the speaker on the screen for

which you want to adjust the crossover frequency.

2 Press V/v to set the crossover

frequency.

Notes

• When headphones are connected, this function does not work.

Adjusting Settings

• The surround back speakers will be set to the same setting as that of the surround speakers.

x Test Tone

Lets you select the test tone type on the “Test Tone” screen.

Tips

• To adjust the level of all speakers at the same time, press VOLUME on the receiver.

• The adjusted value is shown on the TV screen during adjustment.

2 +/–. You can also use MASTER

To output test tone from each speaker

You can output test tone from the speakers in sequence.

1 Select “Test Tone”, then press . 2 Adjust the parameter, then press .

•Off

• Auto: The test tone is output from each

speaker in sequence.

• L, C, R, SR, SL, SB

*, SBL, SBR,

FHL, FHR, SW: You can select which speakers will output the test tone.

* “SB” appears when only one surround

back speaker is connected.

3 Adjust the speaker level, then press

x Center Speaker Lift Up

By using the front high speakers, you can lift up the sounds of the center speaker to an appropriate height on the screen, allowing you to enjoy natural representation without discomfort.

• 1 – 10

•Off

Note

This function does not work in the following cases. – Headphones are connected. – There is no center speaker. – There are no front high speakers. – The “2ch Stereo”, “2ch Analog Direct”, and

“Multi Stereo” sound field are being used.

– The sound field for music is being used.

x Distance Unit

Lets you select the unit of measurement for setting distances.

• feet: The distance is displayed in feet.

• meter: The distance is displayed in

meters.

Audio Settings menu

You can adjust settings for the audio to suit your preference.

x Digital Legato Linear (D.L.L.)

The D.L.L. function is Sony proprietary technology that allows low quality digital audio signals and ana log audio signals to be played back with high quality sound.

• Au to 1: This function is available for

lossy compression audio formats and analog audio signals.

• Au to 2: This function is available for

Linear PCM signals, as well as lossy compression audio formats and analog audio signals.

•Off

Notes

• This function may not work, depending on the content via a USB device, or a home network.

• This function works when “2ch Stereo”, “A.F.D. Auto”, “Multi Stereo” or “Headphone (2ch)” is selected. However, this function does not work in the following cases. – “FM TUNER” or “AM TUNER” input is

selected.

– Linear PCM signals with a sampling

frequency of other than 44.1 kHz are being received.

– Dolby Digital Plus, Dolby Digital EX, Dolby

TrueHD, DTS 96/24, DTS-HD Master Audio, or DTS-HD High Resolution Audio signals are being received.

– During network function, signals with a

sampling frequency of other than 44.1 kHz is being received.

x Sound Optimizer

Lets you set the sound optimizer function. For details, see “Using the Sound Optimizer function” (page 57).

•Normal

•Low

•Off

x Equalizer

Lets you adjust the bass and treble level for each speaker. For details, see “Adjusting the equalizer” (page 57).

x Sound Field

Lets you select a sound effect applied to input signals. For details, see “Enjoying Sound Effects” (page 53).

x A/V Sync (Synchronizes

audio with video output)

Lets you delay the output of audio to minimize the time gap between audio output and visual display. This function is useful when you use a large LCD or plasma monitor or a projector.

• HDMI Auto: The time gap between

audio output and visual display for the monitor connected via an HDMI connection will be adjusted automatically based on the information for the TV. This feature is available only when the monitor supports the A/V Sync function.

• 0ms – 300ms: You can adjust the delay

from 0 ms to 300 ms in 10 ms intervals.

Notes

• This function does not work when “2ch Analog Direct” is being used.

• The delay time may vary depending on audio format, sound field, speaker pattern and speaker distance settings.

x Advanced Auto Volume

This receiver can adjust the volume automatically depending on the input signal or content from the connected equipment. This function is useful, for example, when the sound of a commercial is louder than the TV programs.

•On

•Off

Notes

• Be sure to reduce the volume level before you turn on/off this function.

• As this function is available only when Dolby Digital, DTS or Linear PCM signals are input, the sound may suddenly increase when you switch to other formats.

• This function does not work in the following cases. – Linear PCM signals with a sampling

frequency of more than 48 kHz are being received.

– Dolby Digital Plus, Dolby TrueHD, DTS 96/

24, DTS-HD Master Audio, or DTS-HD High Resolution Audio signals are being received.

– “2ch Analog Direct” is being used.

x Dual Mono (Digital broadcast

language selection)

Lets you select the language you want when you listen to the dual audio of a digital broadcast when available. This feature only functions for Dolby Digital sources.

• Main: Sound of the main language will

be output.

• Sub: Sound of the sub language will be

output.

• Main/Sub: Sound of the main language

will be output through the front left speaker and sound of the sub language will be output through the front right speaker simultaneously.

Adjusting Settings

x Dynamic Range Compressor

Lets you compress the dynamic range of the soundtrack. This may be useful when you want to watch movies at low volumes late at night. Dynamic range compression is possible with Dolby Digital sources only.

• Auto : The dynamic range is compressed

automatically.

• On: The dynamic range is compressed as

intended by the recording engineer.

• Off: The dynamic range is not

compressed.

HDMI Settings menu

You can adjust the required settings for equipment connected to the HDMI jacks.

x 4K Scaling

Lets you up-convert the video signals to 4K and output through the HDMI OUT jacks of the receiver.

• Auto : Enable video scaling control to 4K

HDMI output automatically if you connect a 4K-compatible TV.

• Off: Does not activate this function.

Note

This function works only when video signals from VIDEO IN, COMPONENT VIDEO IN, and HDMI IN jacks are being received. The HDMI video input signals must be 1080p/24 kHz.

x Control for HDMI

Lets you turn the Control for HDMI function on or off. For details, see “Preparing for the “BRAVIA” Sync” (page 77).

•On

•Off

Notes

• When you set “Control for HDMI” to “On”, “Audio Out” may be changed automatically.

• When the receiver is in standby mode, the ?/1 (on/standby) indicator on the front panel lights up in amber if “Control for HDMI” is set to “On”.

x Pass Through

Lets you output the HDMI signals to the TV even when the receiver is in standby mode.

• Au to : When the TV is turned on while

the receiver is in the standby mode, the receiver outputs HDMI signals from the receiver’s HDMI OUT jack. Sony recommends this setting if you use a “BRAVIA” Sync-compatible Sony TV. This setting saves power in the standby mode when compared with the “On” setting.

• On*: When the receiver is in the standby

mode, the receiver continuously outputs HDMI signals from the receiver’s HDMI OUT jack.

• Off: The receiver does not output HDMI

signals when in standby mode. Turn on the receiver to enjoy the connected equipment’s source on the TV. This setting saves power in the standby mode when compared with the “On” setting.

* For Australia model only.

Notes

• When the receiver is in standby mode, the ?/1

(on/standby) indicator on the front panel lights up in amber if “Pass Through” is set to “On” or “Auto”.

• When “Auto” is selected, it may take a little more time for the image and sound to be output to the TV than when “On” is selected.

x Audio Out

Lets you set the HDMI audio signals output from the playback equipment connected to the receiver via an HDMI connection.

• AMP: The HDMI audio signals from the

playback equipment are only output to the speakers connected to the receiver. Multi channel sound can be played back as it is.

Note

Audio signals are not output from the TV’s speaker when “Audio Out” is set to “AMP”.

• TV + AMP: The sound is output from

TV’s speaker and the speakers connected to the receiver.

Notes

• The sound quality of the playback equipment depends on the TV’s sound quality, such as the number of channels, and the sampling frequency, etc. If the TV has stereo speakers, the sound output from the receiver is also in stereo as that of the TV, even if you play back multi channel source.

• When you connect the receiver to a video equipment (projector, etc.), sound may not be output from the receiver. In this case, select “AMP”.

x Subwoofer Level

Lets you set the level of the subwoofer to 0dB or +10dB when PCM signals are input via an HDMI connection. You can set the level for each input to which an HDMI input jack is assigned independently.

• Au to : Automatically sets the level to

0 dB or +10 dB, depending on the audio stream.

•+10dB

•0dB

x Fast View

Lets you set the operation of Fast View. HDMI BD, DVD, GAME, VIDEO 1, and VIDEO 2 input support the Fast View function.

• Au to : You can select HDMI input faster

than the normal selection.

• Off: Fast View and Preview for HDMI

functions are not available.

Input Settings menu

You can adjust the settings for the connections of the receiver and other equipment.

x Remote

Lets you select the input.

• BD, DVD, GAME, SAT/CATV,

VIDEO 1, VIDEO 2, VIDEO 3, TV, SA-CD/CD

x Icon

Lets you set the icon displayed on the Watch/Listen menu.

x Name

Lets you set the name displayed on the Watch/Listen menu. You can enter a name of up to 8 characters for inputs and display it. It is more recognizable having the equipment named on the display than the jacks.

1 Select “Input” from the Settings

menu, then press .

2 Select the input you want to name,

then press .

3 Select “Name”, then press .

The on-screen keyboard appears on the TV screen.

4 Press V/v/B/b and to select a

character one by one to enter the name.

5 Select “Enter”, then press .

The name you entered is registered.

Note

Some letters that can be displayed on the TV screen cannot be displayed on the display panel.

x Watch/Listen

Lets you set whether an input is displayed on the Watch menu or the Listen menu.

• W: Displays an input to the Watch menu.

• L: Displays an input to the Listen menu.

• W/L: Displays an input to bot h the Watch

and Listen menus.

x HDMI x COMPONENT

Lets you set the video input jack(s) assigned to each input. For details, see “Using other video/ audio input jacks (Input Assign)” (page 81).

•IN2

•IN1

• None

Adjusting Settings

x OPT/COAX

Lets you set the audio input jack(s) assigned to each input. For details, see “Using other video/audio input jacks (Input Assign)” (page 81).

•OPT 2

•OPT 1

•COAX

• None

x COMPOSITE x AUDIO

Network Settings menu

You can adjust the settings for the network. The Network Settings menu is available only when the Home Network or SEN function is selected.

x Internet Setting

Lets you make the network settings. For details, see “Configuring the network settings of the receiver” (page 38).

• Wired

• Wireless

x Information

Lets you check the network information. You can check the settings* for “Connection Type”, “Connection Status”, “IP Address Setting”, “IP Address”, “Subnet Mask”, “Default Gateway”, “DNS Settings”, “Primary DNS”, “Secondary DNS”, and “MAC Address”.

* The setting items durin g setup differ depending

on the network environment and connection type.

x PARTY STREAMING

Lets you set the receiver to use the PARTY STREAMING function.

• On: The receiver can be detected by other

devices on the home network. The receiver can start or close a PARTY, and can join or leave a PARTY.

• Off: The receiver can be detected by

other devices on the home network. However, the receiver cannot start or close a PARTY, and cannot join or leave a PARTY.

x Device Name

Lets you assign a device name to the receiver up to 30 characters to be easily recognizable by other devices on the home network.

1 Select “Device Name”, then press

The on-screen keyboard appears on the TV screen.

2 Press V/v/B/b and to select a

character one by one to enter the name.

3 Select “Enter”, then press .

The name you entered is registered.

Tip

The default device name is “STR-DN1040 ******”. “******” is the last 6 digits of MAC Address of the receiver.

x External Control

Lets you turn the control mode for maintenance and service on or off.

•On

•Off

x Network Standby

While the “Network Standby” mode is set to “On”, the receiver can always be connected and controlled over the network.

• On: The network function works even

when the rec eiver is in standby mode, and resume operations when controlled over the network.

• Off: The n etwork function turns off when

the receiver is in standby mode. The receiver takes more time to resumes operation when powered on again.

Note

When the receiver is in standby mode, the ?/1 (on/standby) indicator on the front panel lights up in amber if “Network Standby” is set to “On”.

System Settings menu

You can adjust the settings of the receiver.

x Language

Lets you select the language for the messages on the screen.

•English

• Español

•Français

• Deutsch

x Auto Standby

Lets you set the receiver switch to standby mode automatically when you do not operate the receiver or when there is no signals input to the receiver.

• On: Switches to standby mode after

approximately 20 minutes.

• Off: Does not switch to standby mode.

Notes

• This function does not work in the following cases. – “FM TUNER”, “AM TUNER”, “HOME

NETWORK” or “SEN” input is selected.

– AirPlay or PARTY STREAMING function is

being used.

– The software of the receiver is being updated.

• If you use the Auto standby mode and the Sleep Timer at the same time, the Sleep Timer has priority.

x Software Update Notification

Lets you set whether or not to inform you of newer software version information on the TV screen.

•On

•Off

Note

New software version information does not appear in the following cases. – The latest version is already being used. – The receiver cannot obtain data via a network.

x Software Version

Lets you check the software version of the receiver.

x Network Update

Lets you update the software of the receiver to the latest version. For details, see “Updating the software” (page 73).

Operating without using the GUI

You can operate this receiver using the display panel even if the TV is not connected to the receiver.

DISPLAY AMP MENU

V/v/B/b,

RETURN

Using the menu on the display panel

1 Press AMP MENU.

The menu is displayed on the display panel of the receiver.

2 Press V/v repeatedly to select the

menu you want, then press .

3 Press V/v repeatedly to select the

parameter you want to adjust, then press .

4 Press V/v repeatedly to select the

setting you want, then press .

To return to the previous display

Press B or RETURN O.

To exit the menu

Press AMP MENU.

Adjusting Settings

Note

Some parameters and settings may appear dimmed on the display panel. This means that they are either unavailable or fixed and unchangeable.

Overview of the menus

The following options are available in each menu. For details on navigating through menus, see page 97.

Menu [Display]

Auto Calibration settings [<AUTO CAL>]

Level settings [<LEVEL>]

Parameters [Display]

Auto Calibration start [A.CAL START]

Auto Calibration type

[CAL TYPE]

Auto Phase Matching

[A.P.M.]

Test tone [TEST TONE]

Front left speaker level

[FL LEVEL]

Front right speaker level

[FR LEVEL]

Center speaker level

[CNT LEVEL]

Surround left speaker level

[SL LEVEL]

Surround right speaker level

[SR LEVEL]

Surround back speaker level

[SB LEVEL]

Surround back left speaker level [SBL LEVEL]

Surround back right speaker level [SBR LEVEL]

Front high left speaker level

[LH LEVEL]

Front high right speaker level

[RH LEVEL]

Subwoofer level

[SW LEVEL]

Settings

FULL FLAT, ENGINEER, FRONT REF, OFF

A.P.M. AUTO, A.P.M. OFF

OFF, AUTO xxx

, FIX xxx

FL –10.0 dB to FL +10.0 dB (0.5 dB interval)

FR –10.0 dB to FR +10.0 dB (0.5 dB interval)

CNT –10.0 dB to CNT +10.0 dB (0.5 dB interval)

SL –10.0 dB to SL +10.0 dB (0.5 dB interval)

SR –10.0 dB to SR +10.0 dB (0.5 dB interval)

SB –10.0 dB to SB +10.0 dB (0.5 dB interval)

SBL –10.0 dB to SBL +10.0 dB (0.5 dB interval)

SBR –10.0 dB to SBR +10.0 dB (0.5 dB interval)

LH –10.0 dB to LH +10.0 dB (0.5 dB interval)

RH –10.0 dB to RH +10.0 dB (0.5 dB interval)

SW –10.0 dB to SW +10.0 dB (0.5 dB interval)

Menu [Display]

Speaker settings [<SPEAKER>]

Parameters [Display]

Speaker pattern [SP PATTERN]

Center speaker lift up

[CNT LIFT]

Front speakers size

[FRT SIZE]

Center speaker size

[CNT SIZE]

Surround speakers size

[SUR SIZE]

Front high speakers size

[FH SIZE]

Surround back speaker assign [SB ASSIGN]

Front left speaker distance

[FL DIST.]

Front right speaker distance

[FR DIST.]

Center speaker distance

[CNT DIST.]

Surround left speaker distance [SL DIST.]

Surround right speaker distance [SR DIST.]

Surround back speaker distance [SB DIST.]

Surround back left speaker

distance [SBL DIST.]

Surround back right speaker

distance [SBR DIST.]

Front high left speaker distance [LH DIST.]

Settings

5/2.1 to 2/0 (20 patterns)

LIFT 1 to LIFT 10, LIFT OFF

LARGE, SMALL

SPK B, BI-AMP, OFF

FL 1.00 m to FL 10.00 m (FL 3’3” to FL 32’9”) (0.01 m (1 inch) interval)

FR 1.00 m to FR 10.00 m (FR 3’3” to FR 32’9”) (0.01 m (1 inch) interval)

CNT 1.00 m to CNT 10.00 m (CNT 3’3” to CNT 32’9”) (0.01 m (1 inch) interval)

SL 1.00 m to SL 10.00 m (SL 3’3” to SL 32’9”) (0.01 m (1 inch) interval)

SR 1.00 m to SR 10.00 m (SR 3’3” to SR 32’9”) (0.01 m (1 inch) interval)

SB 1.00 m to SB 10.00 m (SB 3’3” to SB 32’9”) (0.01 m (1 inch) interval)

SBL 1.00 m to SBL 10.00 m (SBL 3’3” to SBL 32’9”) (0.01 m (1 inch) interval)

SBR 1.00 m to SBR 10.00 m (SBR 3’3” to SBR 32’9”) (0.01 m (1 inch) interval)

LH 1.00 m to LH 10.00 m (LH 3’3” to LH 32’9”) (0.01 m (1 inch) interval)

Adjusting Settings

Menu [Display]

Input settings [<INPUT>]

Surround settings [<SURROUND>]

EQ settings [<EQ>]

Parameters [Display]

Front high right speaker distance [RH DIST.]

Subwoofer distance

[SW DIST.]

Distance unit [DIST. UNIT]

Front speakers crossover frequency

[FRT CROSS]

Center speaker crossover frequency

[CNT CROSS]

Surround speakers crossover frequency

[SUR CROSS]

Front high speakers crossover frequency

[FH CROSS]

Input mode [INPUT MODE]

Naming inputs [NAME IN]

Digital audio input assignment [A. ASSIGN]

Component video input assignment [V. ASSIGN]

Effect level

[HD-D.C.S. TYP]

Front speakers bass level [FRT BASS]

Front speakers treble level [FRT TREBLE]

Center speaker bass level [CNT BASS]

Center speaker treble level [CNT TREBLE]

Surround speakers bass level [SUR BASS]

Surround speakers treble level [SUR TREBLE]

Settings

RH 1.00 m to RH 10.00 m (RH 3’3” to RH 32’9”) (0.01 m (1 inch) interval)

SW 1.00 m to SW 10.00 m (SW 3’3” to SW 32’9”) (0.01 m (1 inch) interval)

FEET, METER

CROSS 40 Hz to CROSS 200 Hz (10 Hz interval)

AUTO, OPT, COAX, ANALOG

For details, see “Name” in Input Settings menu (page 95).

OPT 1, OPT 2, COAX, NONE

COMP 1, COMP 2, NONE

DYNAMIC, THEATER, STUDIO

FRT B. –10 dB to FRT B. +10 dB (1 dB step)

FRT T. –10 dB to FRT T. +10 dB (1 dB step)

CNT B. –10 dB to CNT B. +10 dB (1 dB step)

CNT T. –10 dB to CNT T. +10 dB (1 dB step)

SUR B. –10 dB to SUR B. +10 dB (1 dB step)

SUR T. –10 dB to SUR T. +10 dB (1 dB step)

100

Sony STR-DN1040 Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Manual

Supplied accessories

Description and location of parts

Getting started

Connections

1: Installing the speakers

2: Connecting the speakers

3: Connecting the TV

4: Connecting other equipment

5: Connecting the antennas (aerials)

6: Connecting to the network

Preparing the Receiver

Connecting the AC power cord (mains lead)

Setting up the receiver using the Easy Setup

Turning on the receiver

Configuring the network settings of the receiver

Guide to Graphical User Interface (GUI) operation

Basic Operations

Enjoying images/sound from the connected equipment

Playing an iPod/iPhone

Playing a USB device

Tuner Operations

Listening to FM/AM radio

Receiving RDS broadcasts

Enjoying Sound Effects

Selecting the sound field

Adjusting the equalizer

Using the Sound Optimizer function

Selecting the calibration type

Using the Pure Direct function

Resetting sound fields to the default settings

Using Network Features

About the network functions of the receiver

Setting up the server

Enjoying audio content stored on the server

Enjoying Sony Entertainment Network (SEN)

Using the PARTY STREAMING function

Streaming music from iTunes with AirPlay

Updating the software

Searching for an item using a keyword

“BRAVIA” Sync Features

What is “BRAVIA” Sync?

Preparing for the “BRAVIA” Sync

One-Touch Play

System Audio Control

System Power-Off

Scene Select

Home Theatre Control

Controlling the MHL device

Remote Easy Control

Switching the monitors that output the HDMI video signals

Other Operations

Using a bi-amplifier connection

Using multi-zone features

Reverting back to the factory default settings

Adjusting Settings

Using the Settings menu

Easy Setup

Speaker Settings menu

Audio Settings menu

HDMI Settings menu

Input Settings menu

Network Settings menu

System Settings menu

Operating without using the GUI
