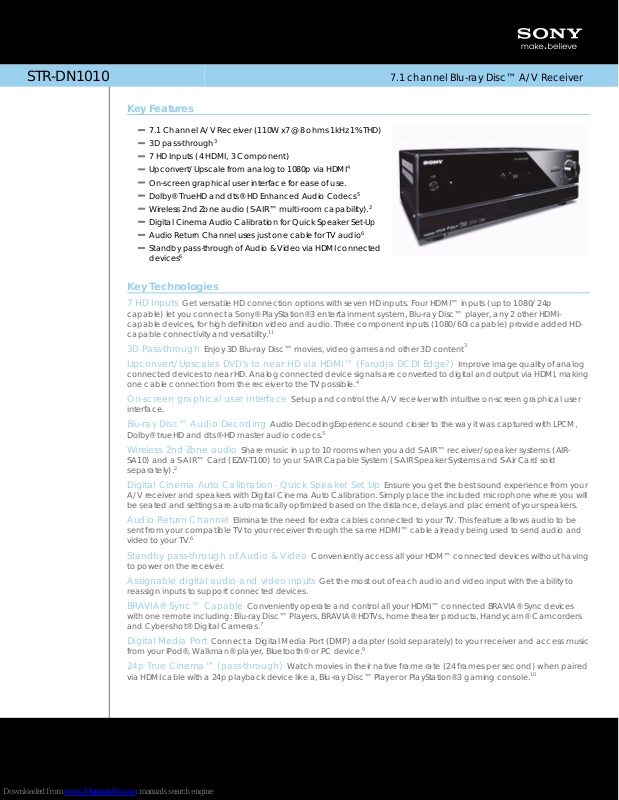

Sony STR-DN1010 Marketing Specifications
STR-DN1010
7.1 channel Blu-ray Disc
™
A/V Receiver
Key Features
7.1 Channel A/V Receiver (110W x7 @ 8 ohms 1kHz 1% THD)
3D pass-through
3
7 HD Inputs (4 HDMI, 3 Component)
Upconvert/Upscale from analog to 1080p via HDMI
4
On-screen graphical user interface for ease of use.
Dolby® TrueHD and dts® HD Enhanced Audio Codecs
5
Wireless 2nd Zone audio (S-AIR™ multi-room capability).
2
Digital Cinema Audio Calibration for Quick Speaker Set-Up
Audio Return Channel uses just one cable for TV audio
6
Standby pass-through of Audio & Video via HDMI connected
devices
6
Key Technologies
7 HD Inputs Get versatile HD connection options with seven HD inputs. Four HDMI™ inputs (up to 1080/24p
capable) let you connect a Sony® PlayStation®3 entertainment system, Blu-ray Disc™ player, any 2 other HDMI
-
capable devices, for high definition video and audio. Three component inputs (1080/60i capable) provide added HD
-
capable connectivity and versatility.
11
3D Pass-through Enjoy 3D Blu
-
ray Disc™ movies, video games and other 3D content
3
Upconvert/Upscales DVD's to near HD via HDMI™ (Farudja DCDI Edge?) Improve image quality of analog
connected devices to near HD. Analog connected device signals are converted to digital and output via HDMI, making
one cable connection from the receiver to the TV possible.
4
On-screen graphical user interface Set
-
up and control the A/V receiver with intuitive on-screen graphical user
interface.
Blu-ray Disc™ Audio Decoding Audio DecodingExperience sound closer to the way it was captured with LPCM,
Dolby® trueHD and dts®-
HD master audio codecs.
5
Wireless 2nd Zone audio Share music in up to 10 rooms when you add S
-
AIR™ receiver/speaker systems (AIR
-
SA10) and a S-AIR™
Card (EZW-T100) to your S-AIR Capable System (S-AIR Speaker Systems and S-Air Card sold
separately).
2
Digital Cinema Auto Calibration - Quick Speaker Set Up Ensure you get the best sound experience from your
A/V receiver and speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will
be seated and settings are automatically optimized based on the distance, delays and placement of your speakers.
Audio Return Channel Eliminate the need for extra cables connected to your TV. This feature allows audio to be
sent from your compatible TV to your receiver through the same HDMI™
cable already being used to send audio and
video to your TV.
6
Standby pass-through of Audio & Video Conveniently access all your HDM™ connected devices without having
to power on the receiver.
Assignable digital audio and video inputs Get the most out of each audio and video input with the ability to
reassign inputs to support connected devices.
BRAVIA® Sync™
Capable
Conveniently operate and control all your HDMI™ connected BRAVIA
®
Sync devices
with one remote including: Blu-ray Disc™ Players, BRAVIA® HDTVs, home theater products, Handycam® Camcorders
and Cyber-shot® Digital Cameras.
7
Digital Media Port Connect a Digital Media Port (DMP) adapter (sold separately) to your receiver and access music
from your iPod®,
Walkman® player, Bluetooth® or PC device.
9
24p True Cinema™ (
pass-through) Watch movies in their native frame rate (24 frames per second) when paired
via HDMI cable with a 24p playback device like a, Blu-ray Disc™ Player or PlayStation®3 gaming console.
10
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 05/10/2010
STR-DN1010
7.1 channel Blu-ray Disc
™
A/V Receiver
Please visit the Dealer Source for current
information at www.sony.com/dealersource
Features
General
Power Consumption: 250W
Power Stand By: 0.9W
Auto Standby: Yes
Display: 10 digit dot matrix
Panel: BD Matching Design
Pin Jack: Nickel
Power Requirement: 120V 60Hz
Remote Commander:
PP; RM-AAP051
Sleep Timer: Yes
GUI:
Yes (Simple)
GUI Blending
(Composite/Component/HDMI): Yes(-/
-
/
Yes)
GUI Language: English
Multi Channel Decoding Blue LED: Yes
iPod Browsing with System:
VIDEO/MUSIC
Video
A/V SYNC:
Yes(Variable)
A/V Sync Sampling Frequency: 96kHz
A/V Sync Time (msec): 300msec
Assignable Component Video IN: Yes
Assignable HDMI Video IN: Yes
BRAVIA® SYNC
™ (
CEC Control):
Yes
HDMI Pass Through: Yes
Theater Mode Selector: Yes
Audio Return Channel: Yes
HDMI Active Inteligence: Yes
HDMI™ Video Output Capability: 1080p;
1080/24p; Deep Color; x.v.Color (xvYCC)
Video Upscaler & Converter (Analog to
Component/HDMI): No/Yes(1080p)
3D: Yes
Convenience
Auto Tuning: Yes
Amplifier
(8Ohms 1kHz) THD RMS: 1%
(8Ohms 20-20kHz) THD: 0.09%
8Ohms 1kHz RMS: 110W+110W
8Ohms 20-20kHz: 100W + 100W
Headphone Out: Yes(Gold)
Night Mode: Yes
Number of Amp channels: 7ch
Portable Audio Enhancer: Yes
Sound Field Program (2ch): 2
Sound Field Program (A.F.D.): 2
Sound Field Program (Headphone): 2
Sound Field Program (Movie): 8
Sound Field Program (Music): 10
Speaker Selector: A/B/ A+B
Speaker Terminal: Screw (Ni)
4 Ohm/8 Ohm Switching: No(8 Ohm only)
Analog Direct: Yes
Cinema Studio EX. A/B/C mode: Yes
DSP: Titanium(DA788)
Equalizer(F/C/Sur/Sur B) Bass,Mid,Treble:
B,T/-/-/
-
Sound Field Link (w Lock): Yes(-)
Sub Woofer X' Over:
17 points (40-200Hz)
Type:
Analog
Bi-AMP:
YES
DCAC
Band: 6
DCAC:
SILVER
Mic:
MONO
Specifications
S-Air Feature
Multi Room (In case of Multi Source)
Transfer Down Mixed 2ch Signal: Yes
S-
AIR Ready Transmittor: Yes
Wireless Surround - Source for Headphone:
Yes
Wireless Surround - Surround Back
Lch/Rch:
Yes
Wireless Surround - Surround Lch/Rch: Yes
Inputs and Outputs
A/V In/Out (S-Video I/O): Including Front
AV: 4/1(0/0)
Analog Audio In (Inc TV CEC)/Out (excl.
tuner)/TV(CEC): 2/1/Yes
Coaxial: 1/0
Component Video In/Out (Pass through):
3/1
DMPORT: 1
Digital Input Assign: Yes
Front Input: AV(Gold)
HDMI In/Out: (Front input): 4/1
Monitor Out (S-Video Out): 1(0)
Opt. In/Out/TV(CEC): incl Front input & TV
(CEC):
3/0/Yes
Pre Out: SW x1
SPDIF UPDATE: Yes
Tuner
Auto Tuning: Yes
Direct Tuning: Yes(RM)
Preset Channel: TTL90 (30/-/30/30)
Sirius Ready: Yes
Station Name: Yes
Decoding Format(S)
96k/24Bit PCM: Yes
DTS 96/24: Yes
DTS HD/DolbyTruHD/Dolby Digital+:
Yes/Yes/Yes
DTS NEO:6: Yes
DTS-ES (MATRIX6.1/DISCRETE6.1): Yes
(Yes/Yes)
Dolby Digital EX: Yes
Dolby Digital/DTS: Yes/Yes
Dolby Dual Mono:
Yes
Dolby Prologic:
Yes
Dolby Prologic II:
Yes
Dolby Prologic IIx:
Yes
LPCM (2CH/5.1CH/7.1CH) thru HDMI:
Yes/Yes/Yes
Dolby Prologic IIz:
Yes
Supplied Accessories
RM-AAP051 Remote Control
2 AA Batteries
Users Manual
Warranty Card
Color:
Black
UPC Code:
027242779945
1. Requires connection via high-speed HDMI
™
cable (sold separately) to
HDTV
with equivalent display capabilities. 3D viewing requires 3D
content, 3D-ready HDTV and high speed HDMI
™
cable. Other 3D
accessories (including 3D glasses and emitter) may also be required
for 3D viewing. Upscaled/upconverted image and sound quality will
vary depending on source.
2. Transmits up to 164 feet. Signal and sound quality may vary. S-AIR™
receiver/speaker systems and a S-AIR™
Card required and sold
separately.
3. Requires connection via high-speed HDMI
™
cable (sold separately) to
HDTV with equivalent display capabilities. 3D viewing requires 3D
content, 3D-ready HDTV and high speed HDMI
™
cable. Other 3D
accessories (including 3D glasses and emitter) may also be required
for 3D viewing.
4. Requires connection via high-speed HDMI
™
cable (sold separately) to
HDTV with equivalent display capabilities. Upscaled/upconverted
image and sound quality will vary depending on source.
5. Dolby®
True-HD and dts®-
HD Master Audio decoding require HDMI
™
cable and capable source device (both sold separately).
6. Requires sources connected with HDMI
™
cables (sold separately) and
compatible HDTV. Sound quality will vary depending on source.
7. Works with other BRAVIA® Sync or Theatre Sync™
labeled home
audio/video products when connected via HDMI
™
interface.
8. Sirius subscription and antenna required and sold separately.
9. iPod® support is limited to the following players with the optional dock:
iPod® touch, iPod® classic, iPod® Nano 1st, 2nd & 3rd generation,
iPod
® 4th& 5th generation &iPod® Mini. The TDM-IP50 dock will
support iPhone® as well.
10. 24p playback capable device required, sold separately
11. HDMI cable required and sold separately.
