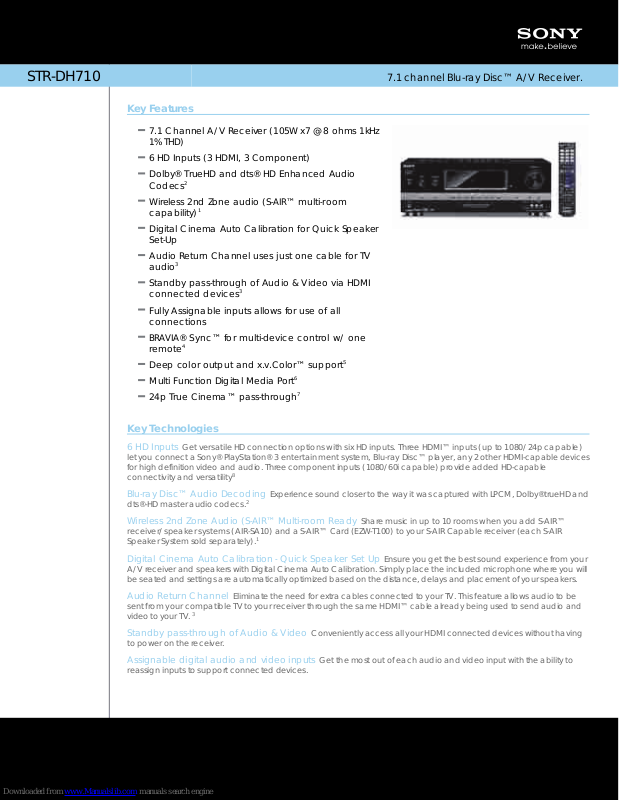

Sony STR-DH710 Marketing Specification Sheet

STR-DH710

7.1 channel Blu-ray Disc

™

A/V Receiver.

Key Features

7.1 Channel A/V Receiver (105W x7 @ 8 ohms 1kHz
1% THD)

6 HD Inputs (3 HDMI, 3 Component)

Dolby® TrueHD and dts® HD Enhanced Audio
Codecs

2

Wireless 2nd Zone audio (S-AIR

™ multi-room

capability)

1

Digital Cinema Auto Calibration for Quick Speaker
Set-Up

Audio Return Channel uses just one cable for TV
audio

3

Standby pass-through of Audio & Video via HDMI
connected devices

3

Fully Assignable inputs allows for use of all
connections

BRAVIA® Sync™ for multi-device control w/ one
remote

4

Deep color output and x.v.Color™ support

5

Multi Function Digital Media Port

6

24p True Cinema™

pass-through

7

Key Technologies

6 HD Inputs Get versatile HD connection options with six HD inputs. Three HDMI™ inputs (up to 1080/24p capable)

let you connect a Sony® PlayStation® 3 entertainment system, Blu-ray Disc™ player, any 2 other HDMI-capable devices
for high definition video and audio. Three component inputs (1080/60i capable) provide added HD-capable
connectivity and versatility

8

Blu-ray Disc™ Audio Decoding Experience sound closer to the way it was captured with LPCM, Dolby

®

trueHD and

dts®-

HD master audio codecs.

2

Wireless 2nd Zone Audio (S-AIR

™ Multi-room Ready Share music in up to 10 rooms when you add S

-

AIR™

receiver/speaker systems (AIR-SA10) and a S-AIR™

Card (EZW-T100) to your S-AIR Capable receiver (each S-AIR

Speaker System sold separately).

1

Digital Cinema Auto Calibration - Quick Speaker Set Up Ensure you get the best sound experience from your

A/V receiver and speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will
be seated and settings are automatically optimized based on the distance, delays and placement of your speakers.

Audio Return Channel Eliminate the need for extra cables connected to your TV. This feature allows audio to be

sent from your compatible TV to your receiver through the same HDMI™

cable already being used to send audio and

video to your TV.

3

Standby pass-through of Audio & Video Conveniently access all your HDMI connected devices without having

to power on the receiver.

Assignable digital audio and video inputs Get the most out of each audio and video input with the ability to

reassign inputs to support connected devices.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 05/13/2010

STR-DH710

7.1 channel Blu-ray Disc

™

A/V Receiver.

Please visit the Dealer Source for current

information at www.sony.com/dealersource

Features

General

Power Consumption: 240W
Power Stand By: 0.3W
Auto Standby: Yes
Display: 8 Seg. FL
Panel:

Mold, Black

Pin Jack: Nickel
Power Requirement: 120V 60Hz
Remote Commander: U-RM; RM-AAU073
Sleep Timer: Yes

Video

A/V SYNC:

Yes(Variable)

A/V Sync Sampling Frequency: 96kHz
A/V Sync Time (msec): 300msec
Assignable Component Video IN: Yes
Assignable HDMI Video IN: Yes
BRAVIA® SYNC

™ (

CEC Control):

Yes

HDMI Pass Through: Yes
Theater Mode Selector: Yes
Audio Return Channel: Yes
HDMI™ Video Output Capability: 1080p;

1080/24p; Deep Color; x.v.Color (xvYCC)

Convenience

Auto Tuning: Yes

Amplifier

(8Ohms 1kHz) THD RMS: 1%
(8Ohms 20-20kHz) THD: 0.09%
8Ohms 1kHz RMS: 105W + 105W
8Ohms 20-20kHz: 95W + 95W
Headphone Out: Yes(Gold)
Night Mode: Yes
Number of Amp channels: 7ch
Portable Audio Enhancer: Yes
Sound Field Program (2ch): 2
Sound Field Program (A.F.D.): 2
Sound Field Program (Headphone): 2
Sound Field Program (Movie): 8
Sound Field Program (Music): 10
Speaker Selector: A/B/A+B
Speaker Terminal: Front(Screw)/Others

(Push)

4 Ohm/8 Ohm Switching: No(8 Ohm only)
Analog Direct: Yes
Cinema Studio EX. A/B/C mode: Yes
DSP: Titanium(DA788)
Equalizer(F/C/Sur/Sur B) Bass,Mid,Treble:

B,T/-/-/

-

Sound Field Link (w Lock): Yes(-)
Sub Woofer X' Over:

17 points (40-200Hz)

Type:

Analog

Bi-AMP:

YES

DCAC

Band: 6

DCAC:

Silver

Mic:

MONO

Specifications

S-Air Feature

Multi Room (In case of Multi Source)

Transfer Down Mixed 2ch Signal: Yes

S-

AIR Ready Transmittor: Yes

Wireless Surround - Source for Headphone:

Yes

Wireless Surround - Surround Back

Lch/Rch:

Yes

Wireless Surround - Surround Lch/Rch: Yes

Inputs and Outputs

A/V In/Out (S-Video I/O): Including Front

AV: 4/1(0/0)

Analog Audio In (Inc TV CEC)/Out (excl.

tuner)/TV(CEC): 2/1/Yes
Coaxial: 1/0
Component Video In/Out (Pass through):

3/1

DMPORT: 1
Digital Input Assign: Yes
Front Input: AV(Gold)
HDMI In/Out: (Front input): 3/1
Monitor Out (S-Video Out): 1(0)
Opt. In/Out/TV(CEC): incl Front input & TV

(CEC):

2/0/Yes

Pre Out: SW x1
SPDIF UPDATE: Yes

Tuner

Auto Tuning: Yes
Direct Tuning: Yes(RM)
Preset Channel: TTL60 (-/-/

30/30)

Station Name: Yes

Decoding Format(S)

96k/24Bit PCM: Yes
DTS 96/24: Yes
DTS HD/DolbyTruHD/Dolby Digital+:

Yes/Yes/Yes

DTS NEO:6: Yes
DTS-ES (MATRIX6.1/DISCRETE6.1): Yes

(Yes/Yes)

Dolby Digital EX: Yes
Dolby Digital/DTS: Yes/Yes
Dolby Dual Mono:

Yes

Dolby Prologic:

Yes

Dolby Prologic II:

Yes

Dolby Prologic IIx:

Yes

LPCM (2CH/5.1CH/7.1CH) thru HDMI:

Yes/Yes/Yes

Dolby Prologic IIz:

Yes

Color:

Black

UPC Code:

027242779976

1. Transmits up to 164 feet. Signal and sound quality may vary.

2. Dolby®

True-HD and dts®-

HD Master Audio decoding require HDMI

™

cable and capable source device (both sold separately).

3. Requires sources connected with HDMI

™

cables (sold separately) and

compatible HDTV. Sound quality will vary depending on source.

4. Works with other BRAVIA® Sync or Theatre Sync™

labeled home

audio/video products when connected via HDMI

™

interface.

5. Deep Color and x.v. Color

™

technology are supported only when

source product, HDMI

™

cable, media and HDTV all support this

feature.

6. iPod® support is limited to the following players with the supplied dock:
iPod® touch, iPod® classic, iPod® Nano 1st, 2nd & 3rd generation,
iPod

® 4th& 5th generation & iPod®

Mini. The optional TDM-IP50 dock

will support iPhone® as well.

7. 24p playback capable device required, sold separately

8. HDMI cable required and sold separately.
