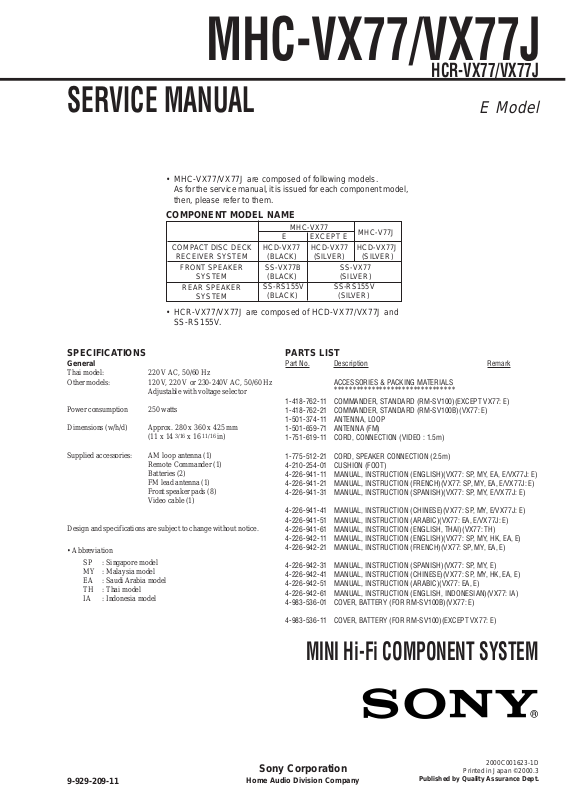

Sony MHC-VX77, MHC-VX77J Service Manual

MHC-VX77/VX77J

HCR-VX77/VX77J

SERVICE MANUAL

• MHC-VX77/VX77J are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.

COMPONENT MODEL NAME

MHC-VX77

E EXCEPT E

COMPACT DISC DECK

RECEIVER SYSTEM

FRONT SPEAKER

SYSTEM

REAR SPEAKER

SYSTEM

• HCR-VX77/VX77J are composed of HCD-VX77/VX77J and SS-RS155V.

SPECIFICATIONS

General

Thai model: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230-240V AC, 50/60 Hz

Power consumption 250 watts

Dimensions (w/h/d) Approx. 280 x 360 x 425 mm

Adjustable with voltage selector

3/16

(11 x 14

x 16

11/16

in)

HCD-VX77 HCD-VX77 HCD-VX77J

(BLACK) (SILVER) (SILVER) SS-VX77B SS-VX77

(BLACK) (SILVER) SS-RS155V SS-RS155V

(BLACK) (SILVER)

PARTS LIST

Part No. Description Remark

1-418-762-11 COMMANDER, STANDARD (RM-SV100)(EXCEPT VX77: E) 1-418-762-21 COMMANDER, STANDARD (RM-SV100B)(VX77: E) 1-501-374-11 ANTENNA, LOOP 1-501-659-71 ANTENNA (FM) 1-751-619-11 CORD, CONNECTION (VIDEO : 1.5m)

MHC-V77J

ACCESSORIES & PACKING MATERIALS

********************************

E Model

Supplied accessories: AM loop antenna (1)

Remote Commander (1) Batteries (2) FM lead antenna (1) Front speaker pads (8) Video cable (1)

Design and specifications are subject to change without notice.

• Abbreviation SP : Singapore model

MY : Malaysia model EA : Saudi Arabia model TH : Thai model IA : Indonesia model

1-775-512-21 CORD, SPEAKER CONNECTION (2.5m) 4-210-254-01 CUSHION (FOOT) 4-226-941-11 MANUAL, INSTRUCTION (ENGLISH)(VX77: SP, MY, EA, E/VX77J: E) 4-226-941-21 MANUAL, INSTRUCTION (FRENCH)(VX77: SP, MY, EA, E/VX77J: E) 4-226-941-31 MANUAL, INSTRUCTION (SPANISH)(VX77: SP, MY, E/VX77J: E)

4-226-941-41 MANUAL, INSTRUCTION (CHINESE)(VX77: SP, MY, E/VX77J: E) 4-226-941-51 MANUAL, INSTRUCTION (ARABIC)(VX77: EA, E/VX77J: E) 4-226-941-61 MANUAL, INSTRUCTION (ENGLISH, THAI)(VX77: TH) 4-226-942-11 MANUAL, INSTRUCTION (ENGLISH)(VX77: SP, MY, HK, EA, E) 4-226-942-21 MANUAL, INSTRUCTION (FRENCH)(VX77: SP, MY, EA, E)

4-226-942-31 MANUAL, INSTRUCTION (SPANISH)(VX77: SP, MY, E) 4-226-942-41 MANUAL, INSTRUCTION (CHINESE)(VX77: SP, MY, HK, EA, E) 4-226-942-51 MANUAL, INSTRUCTION (ARABIC)(VX77: EA, E) 4-226-942-61 MANUAL, INSTRUCTION (ENGLISH, INDONESIAN)(VX77: IA) 4-983-536-01 COVER, BATTERY (FOR RM-SV100B)(VX77: E)

4-983-536-11 COVER, BATTERY (FOR RM-SV100)(EXCEPT VX77: E)

MINI Hi-Fi COMPONENT SYSTEM

9-929-209-11

Sony Corporation

Home Audio Division Company

2000C001623-1D

Published by Quality Assurance Dept.
