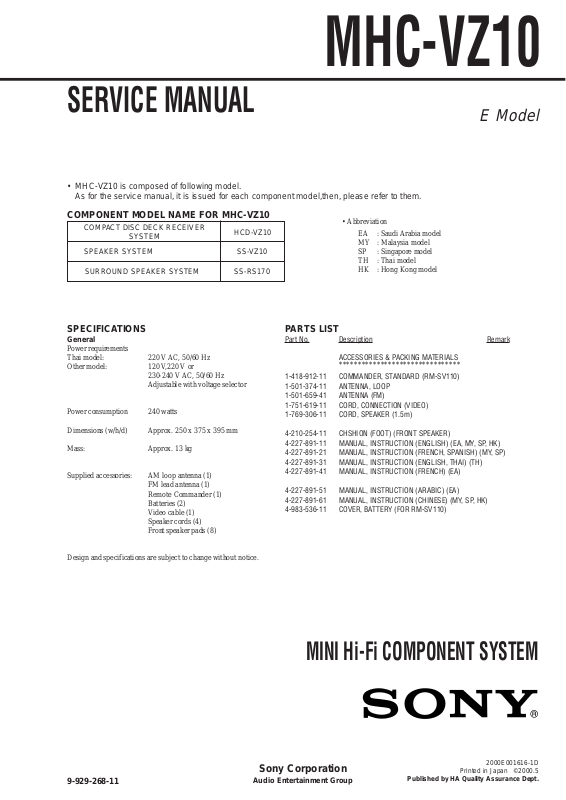

MHC-VZ10
SERVICE MANUAL
E Model
•MHC-VZ10 is composed of following model.
As for the service manual, it is issued for each component model,then, please refer to them.
COMPONENT MODEL NAME FOR MHC-VZ10
|
|
• Abbreviation |
||
COMPACT DISC DECK RECEIVER |
HCD-VZ10 |
|||
EA |
: Saudi Arabia model |
|||
SYSTEM |
||||
|
MY |
: Malaysia model |
||
|
|
|||
SPEAKER SYSTEM |
SS-VZ10 |
|||
SP |
: Singapore model |
|||
|
|
TH |
: Thai model |
|
|
|
|||
SURROUND SPEAKER SYSTEM |
SS-RS170 |
HK |
: Hong Kong model |
|
|
|
|
|
|
SPECIFICATIONS
General |
|
Power requirements |
|
Thai model: |
220 V AC, 50/60 Hz |
Other model: |
120 V,220 V or |
|
230-240 V AC, 50/60 Hz |
|
Adjustable with voltage selector |
Power consumption |
240 watts |
Dimensions (w/h/d) |
Approx. 250 x 375 x 395 mm |
Mass: |
Approx. 13 kg |
Supplied accessories: |
AM loop antenna (1) |
|
FM lead antenna (1) |
|
Remote Commander (1) |
|
Batteries (2) |
|
Video cable (1) |
|
Speaker cords (4) |
|
Front speaker pads (8) |
PARTS LIST
Part No. |
Description |
Remark |
|
ACCESSORIES & PACKING MATERIALS |
|
|
******************************** |
|
1-418-912-11 |
COMMANDER, STANDARD (RM-SV110) |
|
1-501-374-11 |
ANTENNA, LOOP |
|
1-501-659-41 |
ANTENNA (FM) |
|
1-751-619-11 |
CORD, CONNECTION (VIDEO) |
|
1-769-306-11 |
CORD, SPEAKER (1.5m) |
|
4-210-254-11 CHSHION (FOOT) (FRONT SPEAKER)
4-227-891-11 |
MANUAL, INSTRUCTION (ENGLISH) (EA, MY, SP, HK) |
4-227-891-21 |
MANUAL, INSTRUCTION (FRENCH, SPANISH) (MY, SP) |
4-227-891-31 |
MANUAL, INSTRUCTION (ENGLISH, THAI) (TH) |
4-227-891-41 |
MANUAL, INSTRUCTION (FRENCH) (EA) |
4-227-891-51 MANUAL, INSTRUCTION (ARABIC) (EA) 4-227-891-61 MANUAL, INSTRUCTION (CHINESE) (MY, SP, HK) 4-983-536-11 COVER, BATTERY (FOR RM-SV110)
Design and specifications are subject to change without notice.
MINI Hi-Fi COMPONENT SYSTEM
|
Sony Corporation |
2000E001616-1D |
|
Printed in Japan ©2000.5 |
|
9-929-268-11 |
Audio Entertainment Group |
Published by HA Quality Assurance Dept. |
