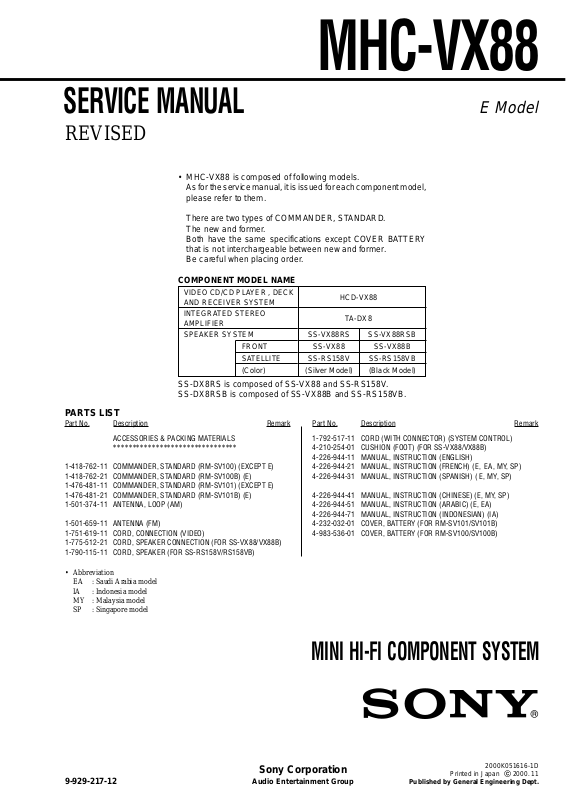

MHC-VX88
SERVICE MANUAL
REVISED
E Model
•MHC-VX88 is composed of following models.
As for the service manual, it is issued for each component model, please refer to them.
There are two types of COMMANDER, STANDARD. The new and former.
Both have the same specifications except COVER BATTERY that is not interchargeable between new and former.
Be careful when placing order.
COMPONENT MODEL NAME
VIDEO CD/CD PLAYER , DECK |
HCD-VX88 |
|||
AND RECEIVER SYSTEM |
||||
|
|
|||
|
|
|
|
|
INTEGRATED STEREO |
TA-DX8 |
|||
AMPLIFIER |
||||
|
|
|||
SPEAKER SYSTEM |
SS-VX88RS |
SS-VX88RSB |
||
|
|
|
|
|
|
FRONT |
SS-VX88 |
SS-VX88B |
|
|
SATELLITE |
SS-RS158V |
SS-RS158VB |
|
|
|
|
|
|
|
(Color) |
(Silver Model) |
(Black Model) |
|
SS-DX8RS is composed of SS-VX88 and SS-RS158V.
SS-DX8RSB is composed of SS-VX88B and SS-RS158VB.
PARTS LIST
Part No. |
|
Description |
Remark |
Part No. |
Description |
Remark |
|
|
ACCESSORIES & PACKING MATERIALS |
|
1-792-517-11 |
CORD (WITH CONNECTOR) (SYSTEM CONTROL) |
|
|
|
******************************** |
|
4-210-254-01 |
CUSHION (FOOT) (FOR SS-VX88/VX88B) |
|
|
|
|
|
4-226-944-11 |
MANUAL, INSTRUCTION (ENGLISH) |
|
1-418-762-11 COMMANDER, STANDARD (RM-SV100) (EXCEPT E) |
4-226-944-21 |
MANUAL, INSTRUCTION (FRENCH) (E, EA, MY, SP) |
||||
1-418-762-21 COMMANDER, STANDARD (RM-SV100B) (E) |
|
4-226-944-31 |
MANUAL, INSTRUCTION (SPANISH) ( E, MY, SP) |
|
||
1-476-481-11 COMMANDER, STANDARD (RM-SV101) (EXCEPT E) |
|
|
|
|||
1-476-481-21 COMMANDER, STANDARD (RM-SV101B) (E) |
|
4-226-944-41 |
MANUAL, INSTRUCTION (CHINESE) (E, MY, SP) |
|
||
1-501-374-11 |
ANTENNA, LOOP (AM) |
|
4-226-944-51 |
MANUAL, INSTRUCTION (ARABIC) (E, EA) |
|
|
|
|
|
|
4-226-944-71 MANUAL, INSTRUCTION (INDONESIAN) (IA) |
|
|
1-501-659-11 |
ANTENNA (FM) |
|
4-232-032-01 |
COVER, BATTERY (FOR RM-SV101/SV101B) |
|
|
1-751-619-11 |
CORD, CONNECTION (VIDEO) |
|
4-983-536-01 |
COVER, BATTERY (FOR RM-SV100/SV100B) |
|
|
1-775-512-21 CORD, SPEAKER CONNECTION (FOR SS-VX88/VX88B) |
|
|
|
|||
1-790-115-11 |
CORD, SPEAKER (FOR SS-RS158V/RS158VB) |
|
|
|
|
|
• Abbreviation |
|
|
|
|
||
EA |
: Saudi Arabia model |
|
|
|
|
|
IA |
: Indonesia model |
|
|
|
|
|
MY |
: Malaysia model |
|
|
|
|
|
SP |
: Singapore model |
|
|
|
|
|
MINI HI-FI COMPONENT SYSTEM
|
Sony Corporation |
2000K051616-1D |
|
|
Printed in Japan C 2000. 11 |
||
9-929-217-12 |
Audio Entertainment Group |
||
Published by General Engineering Dept. |
