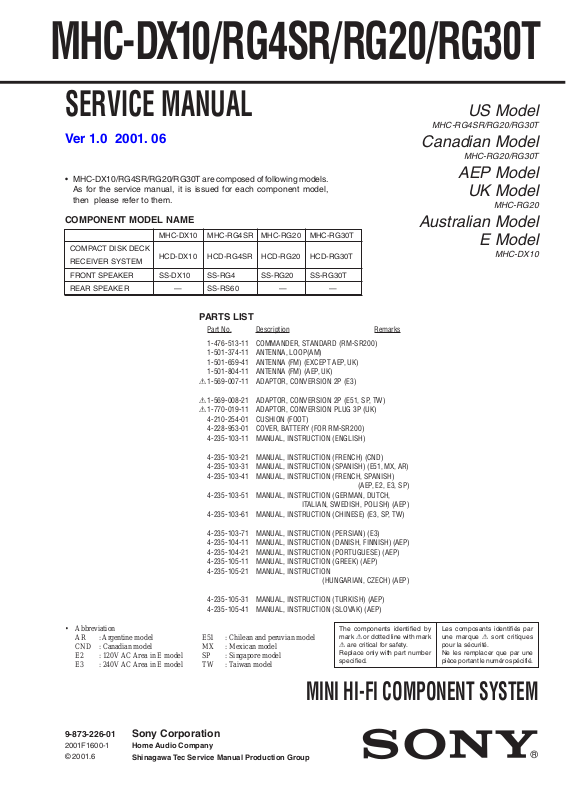

MHC-DX10/RG4SR/RG20/RG30T

SERVICE MANUAL

Ver 1.0 2001. 06

• MHC-DX10/RG4SR/RG20/RG30T are composed of following models. As for the service manual, it is issued for each component model, then please refer to them.

COMPONENT MODEL NAME

MHC-DX10 MHC-RG4SR MHC-RG20 MHC-RG30T

COMPACT DISK DECK

RECEIVER SYSTEM

FRONT SPEAKER SS-DX10 SS-RG4 SS-RG20 SS-RG30T

REAR SPEAKER — SS-RS60 — —

HCD-DX10 HCD-RG4SR HCD-RG20 HCD-RG30T

PARTS LIST

Part No. Description Remarks

1-476-513-11 COMMANDER, STANDARD (RM-SR200) 1-501-374-11 ANTENNA, LOOP(AM) 1-501-659-41 ANTENNA (FM) (EXCEPT AEP, UK) 1-501-804-11 ANTENNA (FM) (AEP, UK)

0 1-569-007-11 ADAPTOR, CONVERSION 2P (E3)

US Model

MHC-RG4SR/RG20/RG30T

Canadian Model

MHC-RG20/RG30T

AEP Model

UK Model

MHC-RG20

Australian Model

E Model

MHC-DX10

• Abbreviation

AR : Argentine model CND : Canadian model E2 : 120V AC Area in E model E3 : 240V AC Area in E model

0 1-569-008-21 ADAPTOR, CONVERSION 2P (E51, SP, TW) 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)

4-210-254-01 CUSHION (FOOT) 4-228-953-01 COVER, BATTERY (FOR RM-SR200) 4-235-103-11 MANUAL, INSTRUCTION (ENGLISH)

4-235-103-21 MANUAL, INSTRUCTION (FRENCH) (CND) 4-235-103-31 MANUAL, INSTRUCTION (SPANISH) (E51, MX, AR) 4-235-103-41 MANUAL, INSTRUCTION (FRENCH, SPANISH)

4-235-103-51 MANUAL, INSTRUCTION (GERMAN, DUTCH,

ITALIAN, SWEDISH, POLISH) (AEP)

4-235-103-61 MANUAL, INSTRUCTION (CHINESE) (E3, SP, TW)

4-235-103-71 MANUAL, INSTRUCTION (PERSIAN) (E3) 4-235-104-11 MANUAL, INSTRUCTION (DANISH, FINNISH) (AEP) 4-235-104-21 MANUAL, INSTRUCTION (PORTUGUESE) (AEP) 4-235-105-11 MANUAL, INSTRUCTION (GREEK) (AEP) 4-235-105-21 MANUAL, INSTRUCTION

(HUNGARIAN, CZECH) (AEP)

4-235-105-31 MANUAL, INSTRUCTION (TURKISH) (AEP) 4-235-105-41 MANUAL, INSTRUCTION (SLOVAK) (AEP)

E51 : Chilean and peruvian model MX : Mexican model SP : Singapore model TW : Taiwan model

(AEP, E2, E3, SP)

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

9-873-226-01

2001F1600-1

MINI HI-FI COMPONENT SYSTEM

Sony Corporation

Home Audio Company

Shinagawa Tec Service Manual Production Group

MHC-DX10/RG4SR/RG20/RG30T

REVISION HISTORY

Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2001.06 New
