Mini Hi-Fi Component System

Operating Instructions

MHC-771

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Note on CATV system installer:

This reminder is provided to call CATV system installer’s attention to Article 820–40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION

The use of optical instruments with this product will increase eye hazard.

NOTICE FOR THE CUSTOMERS IN THE U. S. A.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner’s Record

The model and serial numbers are located on the rear panel. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. MHC-771 Serial No. ____________________________

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

NOTICE FOR THE CUSTOMERS IN CANADA

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

Welcome!

Thank you for purchasing the Sony Mini Hi-Fi Component System. This series is packed with fun features. Here are just a few:

•DBFB (Dynamic Bass Feedback) system that boosts low frequency range audio provide deep, powerful bass sound

•A preset feature that lets you store and recall up to 30 of your favorite radio stations

•An amplifier that lets you adjust the audio quality to fit a variety of music types and environments

•A timer that lets you set the CD player, tape player or radio to turn on and off whenever you want

•A dual tape deck that lets you record from the radio, CD player or from the other tape deck and relay play from both decks

•A CD player that lets you play up to three CDs in a row and seamlessly advance (or reverse) through all the tracks on all the discs on the CD tray

•A music clip feature that lets you create groups of favorite tracks from your CDs

•A remote that lets you control your system from your seat

•A loop play feature that lets you play a CD with sound effect like sampler play

•The MHC-771 consists of following things: — Main unit: HCD-H771 — Speaker system: SS-H771

— Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for

help.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Table of Contents

Chapter 1: Setting Up

Connecting the Stereo 4 Inserting the Batteries 6 Setting the Clock 6

Chapter 2: the CD Player

Playing CDs (normal play) 7 Playing Tracks in Random Order (shuffle play) 8 Playing Tracks in the Desired Order (program play) 9 Playing Tracks Repeatedly (repeat play) 9 Grouping Tracks (music clip) 10 Playing Tracks: Repeating a Specified Portion (loop play) 10

Chapter 3: the Radio

Listening to the Radio 12 Presetting Radio Stations 13 Playing Preset Radio Stations 13

Chapter 4: the Tape Player

Playing a Tape 14 Recording a CD 15 Recording a CD: Selecting Tape Length Automatically (tape select edit) 15 Recording a CD: Specifying Tape Length (time edit) 16 Recording a CD: Specifying Track Order (program edit) 17 Recording From the Radio 17 Recording From Another Tape (dubbing) 18

Chapter 5: Sound Adjustment

Adjusting the Sound 19 Selecting the Audio Emphasis 19 Adjusting the Audio Emphasis 20 Making a Personal Audio Emphasis File (personal file) 21

Chapter 6: Additional Features

Falling Asleep to Music 22 Waking Up to Music 22 Timer-Recording Radio Programs 23 Microphone Mixing 24 Karaoke: Singing Along 24 Connecting Optional Equipment 25

For Your Information

Precautions 27 Troubleshooting Guide 27 Maintenance 28 Specifications 29 Index to Parts and Controls 30

Index 31

FM 75Ω

Chapter 1:

Setting Up

Connecting the Stereo

Use the illustrations below to connect your stereo. If you want to connect any optional components to the stereo, see “Connecting Optional Equipment” in Chapter 6.

STEP 2

Connecting the

Antennas

FM lead antenna* (supplied)

FM 75Ω

Connecting the Stereo

Inserting the Batteries

Setting the Clock

STEP 1

Connecting the Speakers

To connect the speakers

Connect the right speaker to the SPEAKER R connectors and the left speaker to the SPEAKER L connectors with the red cords to ‘ and the black cords to ’.

‘

’

‘

’

AM loop antenna (supplied)

* Note: Extend it horizontally

AM loop antenna connection

Connect the supplied loop antenna to the AM and the y terminals.

To improve the FM reception

Connect an external FM antenna to the FM 75Ω and y terminals, using a 75-ohm coaxial cable.

Important

Ground the external antenna from y terminal against lightning with the screw clamp. To prevent a gas explosion, do not connect the ground wire to a gas pipe.

Chapter 1: Setting Up

75-ohm coaxial cable (not supplied)

Ground wire (not supplied)

Screw clamp

AM loop antenna (supplied)

FM lead antenna (supplied)

to a wall outlet

STEP 3

Right speaker

Left speaker

STEP 2

STEP 1

!Do this connection last!

To improve the AM reception

After you connect the AM antenna, connect a 6- to 15-meter (20- to 50-feet) insulated wire to the AM terminal. Connect the y terminal to earth.

Important

Ground the external antenna against lightning from the y terminal. To prevent a gas explosion, do not connect the ground wire to a gas pipe.

Insulated wire (not supplied)

FM 75Ω

Screw clamp

STEP 3

Connecting the

Power

Connect the AC power cord to a wall outlet after you have made all the above connections.

Demo mode

The demo mode appears in the display when you connect the AC power cord to a wall outlet. To deactivate the demo mode, press DISPLAY/DEMO with the system power turned off.

Ground wire (not supplied)

to a wall outlet

Chapter 1: Setting Up

Inserting the Batteries

Install two R6 (size AA) batteries in the supplied remote for remote control.

1Open the lid.

Setting the Clock

The built-in clock shows the time in the display even if the power is off. You need to set the clock to utilize the timer-activated features of your stereo system. Use the buttons on the unit to do this operation.

DISPLAY/DEMO

4,6

6 Press ENTER/NEXT.

The clock starts running and the upper dot flashes. Use the time signal to set the clock accurately. The upper dot flashes for the first half of a minute (0 to 29 seconds), and the lower dot flashes for the last half of a minute (30 to 59 seconds).

flashing

To check the time

Press DISPLAY/DEMO a few times. The current time is displayed for eight seconds.

2Insert two R6 (size AA) batteries.

Match the + and – indications to the diagram in the battery compartment.

]

}

]

3Close the lid.

Battery life

You can expect the remote to operate for about six months (using Sony SUM-3 (NS) batteries) before the batteries run down. When the batteries no longer operate the remote, replace all the batteries with new ones.

To avoid battery leakage

If you are not going to use the remote for a long time, remove the batteries to avoid damage caused by corrosion from battery leakage.

3,5

1Press TIMER. 2Press CLOCK SET.

The “AM” and hour indication begin flashing.

flashing

3Set the current hour by turning the JOG

dial until the correct hour appears.

flashing

4Press ENTER/NEXT.

The minutes indication begins flashing.

To correct the clock setting

Repeat steps 1 through 6.

Chapter 1: Setting Up

flashing

5Set the current minute by turning the

JOG dial until the correct minute appears.

flashing

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR

OFF

ALL

CLIP

1DISC

12345 678

VOLUME

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR

OFF

ALL

CLIP

1DISC

12345 678

VOLUME

Chapter 2:

the CD Player

Playing CDs (normal play)

Playing Tracks in Random

Order (shuffle play)

Playing Tracks in the

Desired Order (program play)

Playing Tracks Repeatedly

(repeat play)

Grouping Tracks

(music clip)

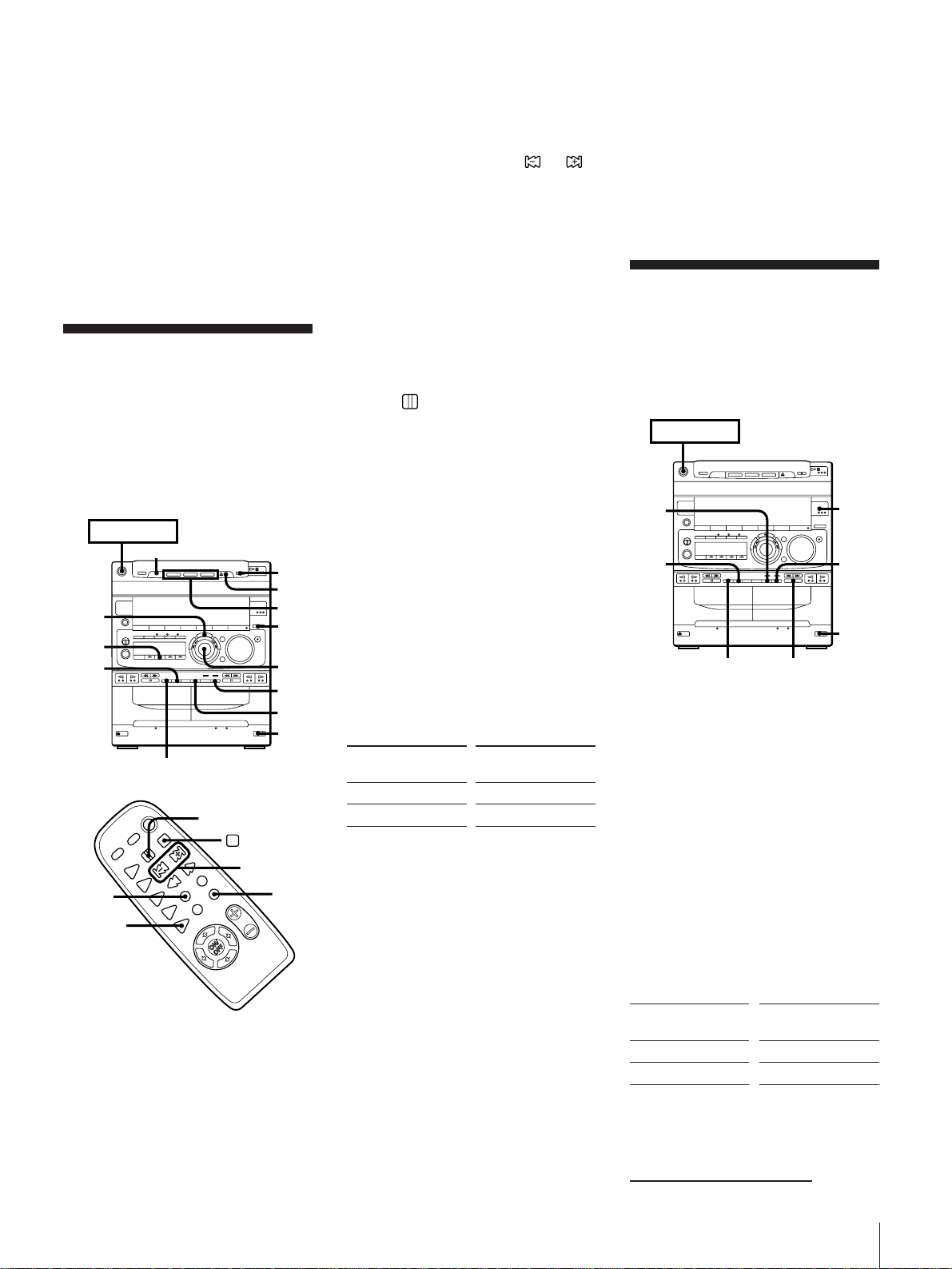

Playing CDs (normal play)

You can play all the tracks on up to three discs consecutively in their original order (normal play). You can play 12 cm and 8 cm CDs. If the CD is supplied with an adaptor, remove it before playing the CD. Before you play the CD, decrease the sound level by turning the VOLUME control counterclockwise, to prevent damage to the speakers. Use the buttons both on the unit and the remote to do this operation.

POWERnON

ﬂ

1,3

2 Press DISC SKIP EX-CHANGE to insert

a third disc, if necessary. The disc tray rotates so that you can place another CD.

3 Press § OPEN/CLOSE again to close

the disc tray.

4 Press 1/ALL DISCS to choose “1 DISC”

or “ALL DISCS”.

Choose

1 DISC

ALL DISCS

To play

Only the CD you have selected.

All CDs consecutively in order of disc number. Empty disc trays are skipped.

5 Press one of the DISC 1 – 3 buttons to

select the disc tray. Play starts from the CD loaded on the tray whose button is lit green.

Music calendar

Playing Tracks: Repeating a

Specified Portion (loop play)

JOG dial

1 Press § OPEN/CLOSE and place up to

two CDs (with the label side facing up) on the disc tray.

Stop play Pause Resume play

Go forward to another track

Go back to a previous track

Select a particular CD directly

Remove the CD Exchange other

CDs while playing

Playing timeTrack number

Press

π ( *1) ﬂ ( *1) ﬂ (CD *1 or

*1)

During play or pause, rotate the JOG dial clockwise. Release when you reach the track you desire.* Or use AMS* the remote.

During play or pause, rotate the JOG dial counterclockwise. Release when you reach the track you

desire.* Or use AMS* the remote.

Corresponding DISC 1 – 3 button*4 or press DISC SKIP EX-CHANGE repeatedly in stop mode

§ OPEN/CLOSE DISC SKIP

EX-CHANGE

continue to next page ➔

Chapter 2: the CD Player

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR

OFF

CLIP

SHUFFLE

12345 678

VOLUME

➔ continued

*1Remote *2You can use the JOG dial to search

quickly through tracks on different discs

(seamless feature). *3Automatic Music Sensor *4If no disc is loaded at that number, the

tray will emerge.

DISC SKIP EX-CHANGE functions differently depending on a different situation.

To select a particular CD, press DISC SKIP EX-CHANGE while you stop playing a CD. To remove or exchange CDs while playing or pause playing a CD, press DISC SKIP EX-CHANGE.

To find a point in a track

You can find a particular point in a track while the track is playing or while it’s in pause mode. Use the buttons on the remote to operate this feature.

Go forward quickly in a track

Go backwards quickly in a track

Search quickly without listening

To check the remaining time during playback

Press DISPLAY/DEMO repeatedly. Each time you press the button, the display changes as follows:

mPlaying time on the current track

Remaining time on the current track

Remaining time on the current CD*1 or “PLAY” display*

Clock display (for eight seconds)

Effect (or P FILE) name or “EFFECT ON (OFF)”

*11 DISC mode *2ALL DISCS mode

To check the total playing time and the total number of tracks

Press DISPLAY/DEMO in stop mode. When you press DISPLAY/DEMO again, the display shows the clock display for eight seconds and returns to the previous indication.

Press

on the remote and release it at the desired point.

, then press or

on the remote. Press CD or again at the desired point.

Notes

•You cannot check the total playing time during program play.

•The disc number, total playing time and number of tracks also appear in the display when you press § OPEN/CLOSE to close the disc tray.

•“--.--” appears in the display when the total playing time is 100 minutes or more.

One Touch Play feature

Press ﬂ on the CD player (or CD on the remote) when the power is off. When a CD is in the player, you will be able to start listening to the CD without pressing any other buttons.

The Music Calendar Display

This display lights according to the number of tracks on the CD. As each track is played, the corresponding number disappears. Tracks numbered in excess of 20 are not displayed.

What the green and orange DISC 1-3 button indicators indicate

Indicators are provided on the DISC buttons for each of the respective disc trays (DISC 1–3).

•A green indicator shows that the tray is selected (either during playback or standby, or when the tray is open) no matter if there is a CD inside or not.

•An orange indicator shows that there is a CD on the tray but the tray is not selected.

•When the indicator is off, there is no CD on the tray and the tray is not selected.

Automatic Source Selection

If the CD player has been in the normal play mode, you can select the CD player just by pressing ﬂ or the DISC 1 – 3 buttons. If the CD player has been in the program play or the shuffle play mode, only ﬂ can be used for this function.

If there is no CD in the player

“CD NO DISC” appears in the display. Press ﬂ (or CD on the remote) while the indication is on, then the disc tray will open automatically.

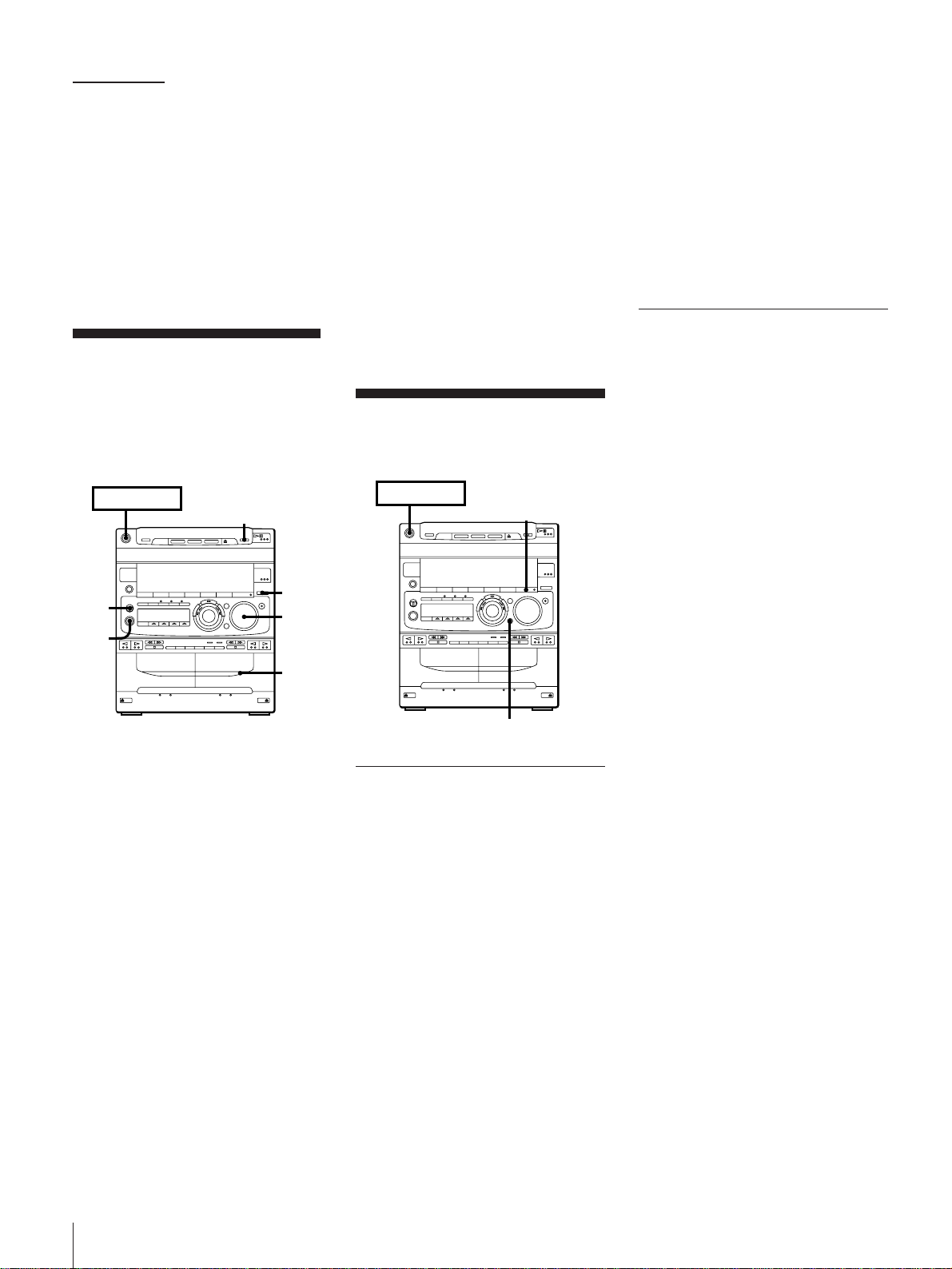

Playing Tracks in Random Order (shuffle play)

You can play all the tracks on one CD or all CDs in random order. Use the buttons on the unit to do this operation.

POWERnON

DISC 1-3

5 2 1

3 4

1 Press FUNCTION repeatedly until “CD”

appears in the display.

2 Press § OPEN/CLOSE and place the

CDs on the disc tray. Then, press

§ OPEN/CLOSE again to close the disc tray.

3 Press 1/ALL to choose “1 DISC” or

“ALL DISCS”.

4 Press PLAY MODE repeatedly until

“SHUFFLE” appears in the display.

5 Press ﬂ.

“ J ” appears and then all the tracks play in random order.

To stop shuffle play

Press π on the CD player.

To cancel shuffle play

Press PLAY MODE repeatedly until “SHUFFLE” disappears from the display. The tracks continue playing in their original order.

To select a desired CD

Press DISC 1 – 3 during shuffle play.

To skip an undesired track

Turn the JOG dial clockwise (or press on the remote).

Chapter 2: the CD Player

Playing Tracks in the Desired Order (program play)

You can make a program of up to 32 tracks from all the CDs in the order you want them to be played.

POWERnON

2 1

5 Turn the JOG dial to choose a track.

The track number and the total playing time appear.

Track number

DISC PROGRAM

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR

VOLUME

OFF

Total playing time

6 Press ENTER/NEXT.

The chosen track number lights up inthe music calendar. If the track number and the total playing time disappear before you press ENTER/NEXT, go back to step 5.

7 Repeat steps 5 and 6 to program

additional tracks from the same CD. Repeat steps 4 to 6 to program additional tracks from another CD.

Playing Tracks Repeatedly (repeat play)

The repeat play function repeats a single CD or all CDs in normal play, shuffle play and program play. Use the buttons on the unit to do this operation.

POWERnON

CHECK

CLEAR

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Press § OPEN/CLOSE and place the

CDs on the disc tray. Then, press

§ OPEN/CLOSE again to close the disc tray.

3Press PLAY MODE repeatedly until

“PROGRAM” and “DISC” appear in the display.

12563 250 500 1k 2k 4k 8k 16k(Hz)

DISC PROGRAM

CLIP

DOLBY NR

VOLUME

OFF

4Press DISC 1 – 3 to choose a CD.

8 Press ﬂ.

All the tracks play in the order you choose.

Check the program

Program a pause Stop play Cancel program

play

Erase a track from the end

Erase a specific track

Erase the entire program

*1After the last track appeared “CHECK

END” appears in the display.

*2“P” appears and the total playing time is

reset to 0.00.

*3The program is erased.

To change the order of programmed tracks

To change the order, erase the entire program and create a new one.

Press

CHECK on the remote repeatedly*

on the remote*

π ( on the remote) PLAY MODE*

repeatedly until “PROGRAM” or “SHUFFLE” disappears

CLEAR on the remote in stop mode

CHECK on the remote repeatedly so that the number of the track lights up, and press CLEAR on the remote

π ( on the remote) once in stop mode or twice while playing

1/ALL DISCS

Repeating all the tracks 1 Press REPEAT a few times until

“REPEAT” appears in the display.

12345 678

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

REPEAT1

2 Press ﬂ.

Repeat all the tracks on the current CD

Press

1/ALL DISCS repeatedly until “1 DISC” appears in the display.

Repeat all the tracks on all CDs

1/ALL DISCS repeatedly until “ALL DISCS” appears in the display.

Repeat only one track (in normal play only)

REPEAT repeatedly until “REPEAT 1” appears in the display while playing the track you want to repeat.

To cancel repeat play

Press REPEAT so that “REPEAT” or “REPEAT 1” disappears from the display.

DOLBY NR

VOLUME

OFF

Notes

•The program you made remains in the CD player even after it has been played back. Press ﬂ to play the same program again.

•If “--.--” appears instead of the total playing time during programming, this means: – you have programmed a track number

which exceeds 20, or

– the total playing time has exceeded 100

minutes.

Chapter 2: the CD Player

Grouping Tracks (music clip)

The music clip function is an easy way to produce up to three groups of tracks from your CDs. For example, you could store tracks for the morning in CLIP A, tracks to play for your friends in CLIP B, and tracks for relaxing in CLIP C. Once you store one or more tracks in a music clip(s), the player recalls those tracks whenever you play the respective disc.

Storing Tracks in a Clip

POWERnON

Playing tracks in a clip (CLIP PLAY)

CLIP indicator(s) light in the display to let you know when clips are stored for a disc.

POWERnON

1 2

1Press CLIP PLAY.

Erasing one track 1 Press CLIP PLAY. 2 Press CLIP button (A, B or C) for the clip

containing the track you want to erase.

3 Use the JOG dial to select the track you

want to erase.

4 Press CLIP ERASE.

“ERASE A - C” and “TRACK” appear alternately in the display.

5 Press CLIP button (A, B or C) you

pressed on step 2. “ERASE CLIP” appears in the display.

Erasing all the tracks in a CLIP A (B or C) 1 In stop mode, press CLIP ERASE.

“ERASE A - C” and “ALL A-C” appear alternately in the display.

2 Press CLIP button (A, B or C) to specify

the clip you want to erase. “PUSH A (B or C)” appears in the display.

3 Press CLIP button you pressed on step 2

again. “ERASE ALL” appears in the display and CLIP indicator disappears.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Play the track you want to store, or (in

stop mode) use the JOG dial to select the track you want.

3Press CLIP button (A, B or C).

“CLIP FILE” appears and the selected CLIP indicator (A, B or C) appears in the display. Normal playback continues.

12345 678

12563 250 500 1k 2k 4k 8k 16k(Hz)

ALL

DISC

ACLIP

DOLBY NR

VOLUME

OFF

4Repeat steps 2 and 3 to store other tracks

into the same or a different clip.

If the memory becomes full

You can store tracks from up to ten different CDs (one or more tracks per CD) to each clip data. The clip data for the oldest clip is erased to make room for a new clip.

2Press CLIP button (A, B or C).

“CLIP PLAY” appears in the display and the selected CLIP indicator lights. The player starts playing tracks from the selected clip.

12563 250 500 1k 2k 4k 8k 16k(Hz)

ALL

DISCS

ACLIP

To cancel clip play

Press π on the CD player.

Notes

•In 1 DISC mode, the tracks stored for the

selected disc are played back once, then clip play is released.

•In ALL DISCS mode, all the tracks stored

for the currently loaded discs are played back once, then clip play is released.

•You cannot start CLIP play if

“PROGRAM” is displayed.

Erasing Tracks from a Clip

POWERnON

JOG dial

CLIP A-C

DOLBY NR

VOLUME

OFF

Playing Tracks: Repeating a Specified Portion (loop play)

You can use the loop function to record from a CD to a tape with the sampler play. Use the buttons both on the unit and remote to do this operation.

EXAMPLE

Original song:

“Hey, come on everybody!”

When you use the loop function:

“Hey, come come come come come on everybody!”

POWERnON

DISC SKIP EX-CHANGE

3,5

2 1

Note

•Only tracks numbered 1 – 20 can be stored in music clips so you cannot store tracks numbered 21 or more.

•In stop mode, you cannot store tracks if “SHUFFLE” or “PROGRAM” is displayed.

Chapter 2: the CD Player

CLIP ERASE

CLIP PLAY

Press FUNCTION repeatedly until “CD” appears in the display.

2Press § OPEN/CLOSE and place a CD.

Then, press § OPEN/CLOSE again to close the disc tray. If the button for the disc tray containing the CD you want to record on is not lit green, press DISC SKIP EX-CHANGE repeatedly so that it lights green.

3Press LOOP repeatedly to select

NORMAL or RHYTHM (as for NORMAL and RHYTHM, see “What is the difference between NORMAL and RHYTHM?” for details). NORMAL or RHYTHM has five modes respectively, depending on the interval you want. The display changes as follows:

NORMAL1.....NORMAL5

RHYTHM5.....RHYTHM1

The interval (about 0.25 to 1.00 second) is longer as the number is bigger.

4Press ﬂ. 5 Press and hold down LOOP when a

portion you want to repeat is played and release when until you want to stop repeating it.

What is the difference between NORMAL and RHYTHM?

There is a difference between NORMAL and RHYTHM in restarting point of normal play when the loop effect ends. Select NORMAL or RHYTHM while Stop playing or pause playing.

NORMAL:

Normal CD play resumes from the same point as you have started the loop play when you release LOOP button.

RHYTHM:

The portion over-ridden by the loop effect will be skipped and then normal play resumes.

Chapter 2: the CD Player

Chapter 3:

the Radio

Listening to the Radio

When you want to play a radio program, you can have the tuner automatically scan the radio frequencies and tune in the stations with clear signals. This feature saves you time in searching for stations with clear signals. However, stations with weak signals may be skipped by automatic tuning. Manually tune in the ones skipped by automatic tuning.

When the desired station is not tuned in

Automatic tuning may skip stations with a weak signals. Tune in the station manually. 1 Press TUNING MODE repeatedly until

“MANUAL” appears in the display.

2 Keep turning the JOG dial until the

desired station is tuned in.

To improve AM broadcast reception

Reorient the supplied AM loop antenna for AM.

Presetting Radio Stations

Playing Preset Radio

Stations

POWERnON

ENTER/NEXT

3,4

MONO

STEREO

1 Press TUNER/BAND repeatedly until

the band you want appears in the display. As you press TUNER/BAND, the band changes as follows:

FM AM

TUNER

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR

VOLUME

OFF

MANUAL

MHz

2 Press TUNING MODE repeatedly until

“AUTO” appears in the display.

3 Turn the JOG dial clockwise to scan a

higher frequency station. To tune in a lower frequency station, turn the JOG dial counterclockwise. The tuner starts scanning radio frequencies, and stops automatically when it finds a clear station. “TUNED” appears in the display. “STEREO” also appears if the tuned FM station is broadcasting in stereo.

TUNER

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR TUNED

VOLUME

OFF

STEREO

AUTO

MHz

To change the AM tuning interval

The AM tuning interval is preset to 10 kHz in the factory. If you need to change the interval, do as follows:

1 Turn on the power. 2 Change the band to AM. 3 Turn off the power. 4 Turn the power back on while pressing

ENTER/NEXT. After changing the AM tuning interval, reset the preset radio stations. To reset the interval to the factory setting, follow the same procedure.

When an FM program is not clear to receive

Press MONO so that “MONO” appears in the display. There will be no stereo effect, but the reception will improve. Press STEREO again to restore the stereo effect.

One Touch Play feature

Press TUNER/BAND when the power is off. You can listen to the last received station without pressing any other buttons.

Automatic Source Selection

If you press TUNER/BAND while you are listening to other sound source, the tuner is selected and the last received station plays automatically.

Chapter 3: the Radio

4 If you do not want to listen to the station

selected, turn the JOG dial again to restart the scan.

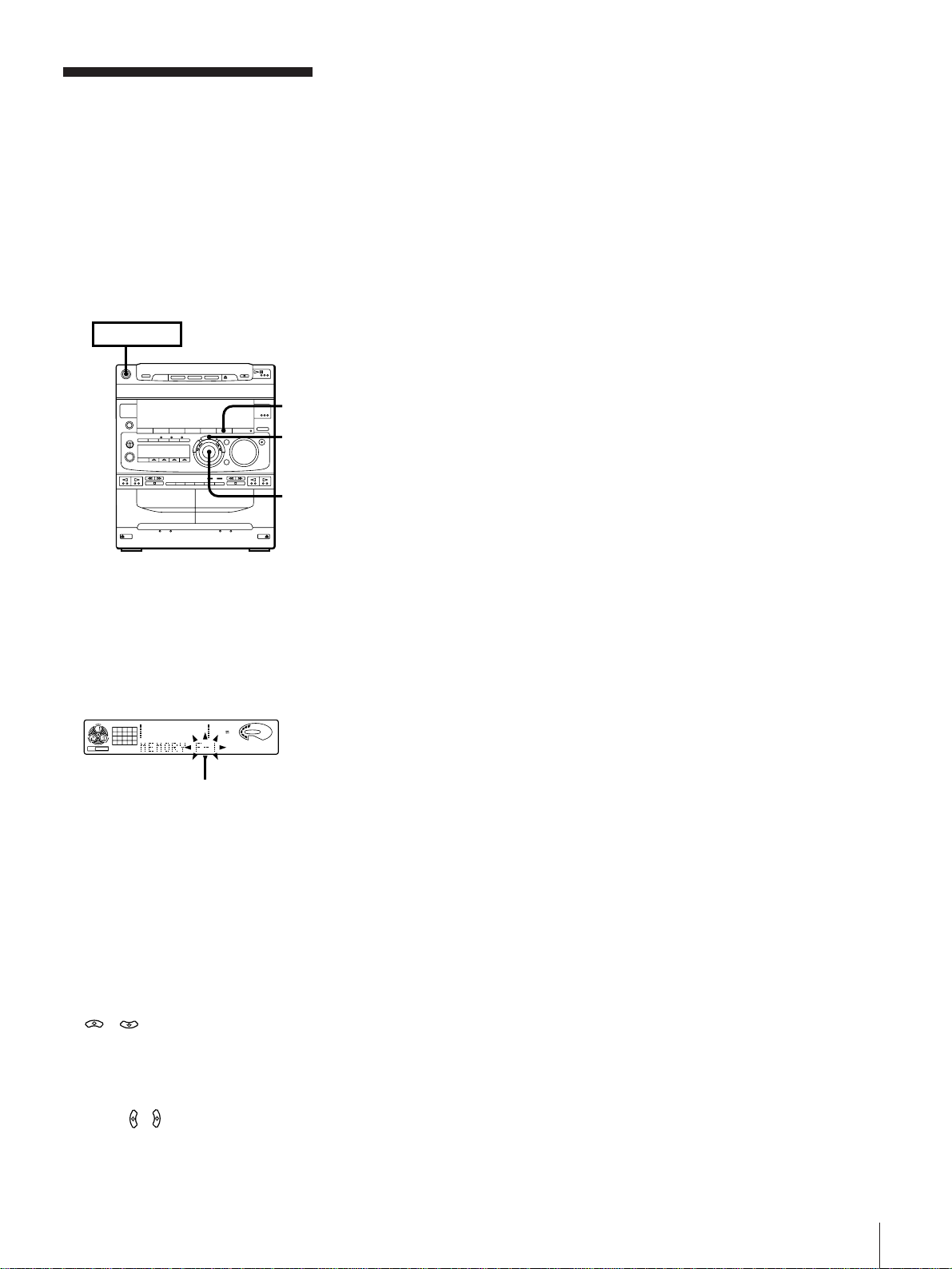

Presetting Radio Stations

Playing Preset Radio Stations

You can store radio frequencies in the tuner’s memory to tune in your favorite stations quickly. You can preset up to 20 FM stations and 10 AM stations. Use the buttons on the unit for presetting stations.

POWERnON

1 Tune in a station you want to store in

the preset memory.

2 Press TUNER MEMORY.

“MEMORY” and the preset channel number appear in the display.

TUNER

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

VOLUME

TUNED

STEREO

AUTO

Once you have preset the stations, use the JOG dial to quickly tune in your favorite stations.

POWERnON

1 Press TUNER/BAND repeatedly to

select the band you want.

FM AM

TUNER

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

DOLBY NR

VOLUME

OFF

MHz

2 Press TUNING MODE so that

“PRESET” appears in the display.

TUNER

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

VOLUME

MHz

PRESET

Preset channel number

3 Turn the JOG dial to select a preset

channel number.

4 Press ENTER/NEXT.

The station is stored at the preset channel number you have decided on.

5 Repeat steps 1 to 4 for each station you

want to store.

To erase a stored station

Store a new station at a previously used preset channel number. It will erase the old station and replace it with the new station.

If you have trouble storing a station or if you made a mistake

Make sure “MEMORY” is lit in the display. If not, press TUNER MEMORY again so that “MEMORY” appears (for about eight seconds) in the display, and then proceed with steps 3 and 4.

3 Turn the JOG dial (or press or

on the remote) to tune in a preset station. The station frequency appears and the station begins broadcasting.

Chapter 3: the Radio

Chapter 4:

the Tape Player

Playing a Tape

You can use TYPE I (normal), TYPE II (CrO2) and TYPE IV (metal) tapes. When you insert a tape, the deck detects the tape type automatically.

PAUSE

POWERnON

º/‚ º/‚

∏

* Remote

To control with the remote 1 Press DECK A or DECK B to

play the front side and press DECK

A or DECK B again to play the

reverse.

2 Press the desired operation button.

To play both decks in succession (relay play)

Relay play always follows the following sequence. When the reverse side of the tape in deck B finishes playing, the following sequence continues four more times.

Recording a CD

Recording a CD: Selecting

Tape Length Automatically (tape select edit)

Recording a CD: Specifying

Tape Length (time edit)

Recording a CD: Specifying

Track Order (program edit)

Recording From the Radio

Recording From Another

Tape (dubbing)

DIRECTIONDOLBY NR

1Press § EJECT to open tape

compartment. Insert a recorded tape in deck A or B with the tape side down and the side you want to play facing forward. Push to close the compartment. The tape will start playing from the front side.

2Press · (to play the front side) or ª

(to play the reverse side). The tape starts playing.

To play

One side of the tape Both sides* Both decks in

succession* *1The deck stops automatically after

*2See “To play both decks in succession

Stop play Pause

Resume play after pause

Fast forward

Rewind

Remove the cassette

repeating the sequence five times.

(relay play)”.

Press DIRECTION to select

A ß

RELAY

Press

π ( *) ∏ ( *) (deck B only)

PAUSE ∏ ( *) (deck B only)

PAUSE , ª or · (DECK A or DECK B *)

‚ ( *) for front side º ( *) for reverse side

º ( *) for front side ‚ ( *) for reverse side

§ EJECT

Deck A Deck A (Front side) (Reverse side)

Deck B Deck B (Reverse side) (Front side)

1 Press § EJECT and insert recorded

tapes in both decks. 2 Press DIRECTION repeatedly until

“RELAY” appears in the display. 3 Press ª or · on either deck.

To stop relay play, press π.

To cancel relay play

Press DIRECTION repeatedly until “A” or “ß” appears in the display.

When listening to a tape recorded with the Dolby* B-type noise reduction system

Press DOLBY NR button so that “DOLBY NR B” appears in the display. The setting affects both decks. Dolby noise reduction system reduces tape hiss noise in low-level high-frequency signals.

* Dolby noise reduction manufactured

under license from Dolby Laboratories

Licensing Corporation.

“DOLBY” and the double-D symbol a

are trademarks of Dolby Laboratories

Licensing Corporation.

One Touch Play feature

Press · or ª when the power is off. You can listen to the tape without pressing any other buttons when a tape is in the deck. When a tape is not in the deck, the system will just turn on.

Automatic Source Selection

If you press · or ª (or DECK A or DECK B on the remote) while you are listening to other sound source, the tape deck is selected and the play starts automatically.

Chapter 4: the Tape Player

Recording a CD

You can record from a CD to a tape. Use TYPE I (normal) or TYPE II (CrO2) tapes. Do not use TYPE IV (metal) tapes for recording. To listen to other sources while recording, you must stop recording.

Recording a CD Automatically

By using CD SYNCHRO, you can record from a CD to a tape quickly. Use the buttons on the unit to do this operation.

POWERnON

DISC SKIP EX-CHANGE

2 3 5

4 1

DOLBY NR

SURROUND

1Press § EJECT and insert a blank tape

into deck B with the side you want to record on facing forward. Recording will start from the front side of the tape, unless you have changed the playing direction before recording. Make sure the tabs on the cassette have not been removed.

2Press § OPEN/CLOSE and place a CD.

Then, press § OPEN/CLOSE again to close the disc tray. If the indicator for the disc tray containing the CD you want to record is not lit green, press DISC SKIP EX-CHANGE repeatedly so that it lights green.

3Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the front side.

Press DIRECTION to select

A ß or RELAY

4 Press CD SYNCHRO.

Deck B stands by for recording.

5 Press ∏ PAUSE to release recording

pause. Recording starts. After about 10 seconds, the CD starts playing.

To stop recording

Press π on deck or the CD player.

To add the surround effect

Press SURROUND so that “SUR ” appears. You can record the sound with surround effect. The equalizer you adjusted will not be recorded.

To activate DOLBY NR

When you want to reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR B” appears in the display after step 3.

Recording a CD Manually

You can record a CD as you like, for instance, record just the songs you want or record from the middle of the tape.

POWERnON

DISC SKIP EX-CHANGE

2 3

5 6

1 Press § EJECT and insert a blank tape

2 Press § OPEN/CLOSE and place a CD.

Then, press § OPEN/CLOSE again to close the disc tray. If the button for the disc tray containing the CD you want to record is not lit green, press DISC SKIP EX-CHANGE repeatedly so that it lights green.

4Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the front side.

Press DIRECTION to select

A ß or RELAY

5When you want to reduce the hiss noise

in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR B” appears in the display.

6Press ® REC.

Deck B stands by for recording.

7Press ∏ PAUSE to release recording

pause. Recording starts.

8Press ﬂ on the CD player.

The CD starts playing.

Stop recording Pause recording Stop CD play Pause CD play

Press

π on deck ∏ PAUSE π on the CD player ﬂ on the CD player

Recording a CD: Selecting Tape Length Automatically (tape select edit)

You can have the stereo system select and indicate the most suitable tape length for recording each disc automatically. You cannot use Tape Select Edit for discs which contain 21 tracks or more.

POWERnON

DISC SKIP EX-CHANGE

1 7

3 Press FUNCTION to select the CD

player.

continue to next page ➔

Chapter 4: the Tape Player

➔ continued

Press FUNCTION repeatedly until “CD” appears in the display.

2 Press § OPEN/CLOSE and place a CD.

3 Press EDIT.

“TAPE SELECT” appears and the player divides the selections automatically. Then the display changes as follows:

12345 678

12563

ALL

DISCS

CLIP

DOLBY NR

VOLUME

OFF

Tape length required

12345 678

12563 250 500 1k 2k 4k 8k 16k(Hz)

ALL

DISCS

CLIP

DOLBY NR

VOLUME

OFF

4 Insert a blank tape of the indicated

length (or longer) into deck B.

5 Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the front side.

Press DIRECTION to select

A ß or RELAY

6 Press CD SYNCHRO.

Deck B stands by for recording.

7 Press ∏ PAUSE to release recording

pause. Recording starts. After about 10 seconds, the CD starts playing.

Recording a CD: Specifying Tape Length (time edit)

You can have the stereo system create programs based on the tape length. The CD player makes programs that will fit the tape length. For example, if you use a 40-minute tape to record a 46-minute CD, the CD player will automatically choose tracks that will fit within the 40-minutes, filling as much of the tape as possible. The player will not program those tracks beyond track

number 20. Use the buttons on both the unit and the remote to do this operation.

POWERnON

PLAY MODE

DISC SKIP EX-CHANGE

3,5, 6

4 1

9 10

DOLBY NR

CHECK

3,5, 6

1 Press FUNCTION repeatedly until “CD”

appears in the display.

2 Press § OPEN/CLOSE and place a CD.

3 Press EDIT twice.

“TIME EDIT” appears in the display. Then “SELECT” and “TIME” appear alternately in the display.

4 Turn the JOG dial (or press or

on the remote) to designate the tape length. Choose the indication for tapes of a corresponding minute length. Choose “HALF” if you want the CD player to play just half the total playing time of the CD without changing the order of the track. As you turn the JOG dial or press the

or on the remote, the indication

changes as follows:

(23:00) (27:00)

(30:00)(37:00)(45:00)

12345 678910

12563 250 500 1k 2k 4k 8k 16k(Hz)

DISC PROGRAM

CLIP

DOLBY NR

VOLUME

OFF

Note

You cannot select “HALF” when you

want to record CD which has more than

20 tracks.

5 Press EDIT.

The CD player determines the tracks to

be recorded on side A automatically.

Tracks to be recorded on side A

12345 6

12563 250 500 1k 2k 4k 8k 16k(Hz)

DISC PROGRAM

CLIP

DOLBY NR

VOLUME

OFF

Total playing time on side A

6 When you want to record on both sides,

press EDIT again.

The CD player determines the tracks to

be recorded on side B.

When you want to record only on side

A, press π on the CD player to stop the

indication from flashing.

7 Press § EJECT and insert a blank tape

into deck B with the side you want to

record on facing forward.

Recording will start from the front side

of the tape, unless you have changed the

playing direction before recording.

Make sure the tabs on the cassette have

not been removed.

8 Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the

front side.

Press DIRECTION to select

A ß or RELAY

9 Press CD SYNCHRO.

Deck B stands by for recording.

10 Press ∏ PAUSE to release recording

pause.

Recording starts.

After about 10 seconds, the CD starts

playing.

To stop recording

Press π on deck or the CD player.

To check the order

Press CHECK on the remote repeatedly. Each time you press CHECK, the number of the programmed tracks appear in the display.

To cancel time edit

Press π on the CD player and then press PLAY MODE.

Chapter 4: the Tape Player

To select the desired tracks

POWERnON

DOLBY NR

beforehand

You can place priority on some tracks to be recorded by selecting them before programming (only up to 20 tracks). See “Playing Tracks in the Desired Order (program play)”.

To activate DOLBY NR

When you want to reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR B” appears in the display after step 8.

Recording a CD: Specifying Track Order (program edit)

You can adjust the total recording time to the tape length while making a program. Use the buttons on both the unit and the remote to do this operation.

POWERnON

DISC SKIP EX-CHANGE

4 1

5 13 12

DOLBY NR

8,13

3 Press PLAY MODE repeatedly until

“PROGRAM” appears in the display.

4 Press DISC 1 – 3 to choose a CD. 5 Turn the JOG dial (or press or

on the remote) to choose a track.

6 Press ENTER/NEXT.

The chosen track number lights up in the music calendar and is memorized. If the track number disappears before you press ENTER/NEXT, go back to step 5.

7 Repeat steps 5 and 6 from the same CD

and 4 to 6 from another CD to program the remaining tracks you want to record on side A in the order you want them to be recorded.

8 Press on the remote to pause

recording at the end of side A. “P” appears in the display. The total playing time “0.00” is displayed.

9 Repeat steps 5 and 6 from the same CD

and 4 to 6 from another CD to program the remaining tracks you want to record on side B in the order you want them to be recorded.

10 Press § EJECT and insert a blank

tape into deck B with the side you want to record on facing forward. Recording will start from the front side of the tape, unless you have changed the playing direction before recording. Make sure the tabs on the cassette have not been removed.

11 Select dual or single-sided recording.

To record

One side of the tape Both sides*

Press DIRECTION to select

A ß or RELAY

To cancel program edit

Press PLAY MODE repeatedly until “PROGRAM” disappears from the display.

To activate DOLBY NR

When you want to reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR B” appears in the display after step 11.

Recording From the Radio

You can record from the tuner onto a tape. Use TYPE I (normal) or TYPE II (CrO2) tape.

1Press § EJECT and insert a blank tape

CHECK

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Press § OPEN/CLOSE and place a CD.

* Recording always stops at the end of the

reverse side. Be sure to start from the front side.

12 Press CD SYNCHRO.

Deck B stands by for recording.

13 Press ∏ PAUSE to release recording

pause. Recording starts. After about 10 seconds, the CD starts playing.

To stop recording

Press π on deck or the CD player.

To check the order

Press CHECK on the remote repeatedly. Each time you press CHECK, the number of the programmed tracks appear in the display.

2Press TUNER/BAND several times until

the desired radio band appears.

3Tune in the radio station you want to

record. (See “Listening to the Radio”, or “Playing Preset Radio Stations” for details.)

4Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the front side.

continue to next page ➔

Chapter 4: the Tape Player

Press DIRECTION to select

A ß or RELAY

➔ continued

5 Press ® REC.

Deck B stands by for recording.

6 Press ∏ PAUSE to release recording

pause. Recording starts.

To stop recording

Press π on deck.

Press § EJECT and insert a recorded

tape in deck A with the side you want to play facing forward. Also, insert a blank tape in deck B with the side you want to record on facing forward. Recording and playback will start from the front side of the tape, unless you have changed the playing direction before recording. Make sure the tabs on the cassette have not been removed.

POWERnON

To reduce noise during AM recording

If a whistling noise is heard while recording, reorient the AM loop antenna for optimum reception.

To activate DOLBY NR

When you want to reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR B” appears in the display after step 4.

Recording From Another Tape (dubbing)

Dubbing Another Tape Automatically

You can record the whole tape onto another automatically by using high speed dubbing. Use the buttons on the unit to do this operation and TYPE I (normal) or TYPE II (CrO2) tape for dubbing.

2Choose how you want the tape to record

and press DIRECTION.

Indication

RELAY

Operation

Dubbing stops at the end of one side.

When the tape in one deck comes to the end of the front side, it reverses immediately regardless of the tape position in the other deck.

When the tape in one deck reaches its end of the front side, it stops until the other tape come to its end, and then both tapes reverse together.

3Press HIGH SPEED DUBBING.

Deck B stands by for recording.

4Press ∏ PAUSE.

The tape starts dubbing at high speed. When the tape has started dubbing from the reverse side in RELAY and ß mode, dubbing will stop at the end of the reverse side.

To stop dubbing

Press π on deck B.

π π

DOLBY NR

1 Press § EJECT and insert a recorded

tape in deck A with the side you want to

play facing forward.

Also, insert a blank tape in deck B with

the side you want to record on facing

forward.

Recording and playback will start from

the front side of the tape, unless you

have changed the playing direction

before recording.

Make sure the tabs on the cassette have

not been removed.

2 Press FUNCTION repeatedly until

“TAPE” appears in the display.

3 Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the

front side.

Press DIRECTION to select

A ß or RELAY

POWERnON

Chapter 4: the Tape Player

You do not have to press DOLBY NR at high speed dubbing

The tape in deck B is automatically recorded in the same state as the tape in deck A.

4 Press ® REC.

Deck B stands by for recording.

5 Press ∏ PAUSE to release recording

pause.

Recording starts.

6 Press · or ª on deck A to start

Dubbing Another Tape Manually

When you want to dub only part of the

tape, dub manually at normal speed. Use TYPE I (normal) or TYPE II (CrO2) tape for recording.

playback.

To stop recording

Press π on deck A and B.

Notes

•When dubbing tapes originally recorded

with Dolby NR B, the dubbed tape is automatically recorded with Dolby NR B.

•When you want to record a tape recorded

without Dolby NR B onto another tape using Dolby NR B, press DOLBY NR so that “DOLBY NR B” appears in the display before recording.

Chapter 5:

Sound Adjustment

Adjusting the Sound

To fully enjoy the sound coming from your stereo system, make the following audio adjustments. See the following sections for additional sound adjustments.

To listen through the headphones

Connect the headphones to PHONES jack. No sound will come from the speakers.

Adjusting the Sound

Selecting the Audio

Emphasis

Adjusting the Audio

Emphasis

Making a Personal Audio

Emphasis File (personal file)

POWERnON

PHONES GROOVE

To adjust the volume

Turn VOLUME on the unit or press VOL (+/–) on the remote.

To reinforce bass

Press DBFB* repeatedly until “DBFB ” or “DBFB ” appears in the display. “DBFB ” is more effective than “ DBFB ”.

display off n DBFB n DBFB

* DBFB = Dynamic Bass Feedback

If you use the DBFB System with the graphic equalizer

If the bass is too strong, the music will sound distorted. Adjust the bass slowly while listening to music so that you can monitor the effect of the adjustment.

VOLUME

DBFB

Selecting The Audio Emphasis

Your stereo system is provided with 15 different preset effects (music menu) created from different graphic equalizer and surround effect settings. With the press of a single button, you can choose between a variety of effects according to musical genre or use. The personal file function (see page 21) lets you store your own effects.

POWERnON

EFFECT ON/OFF

DISPLAY/DEMO

1Press one of the MENU buttons (or

MUSIC MENU / on the remote) repeatedly to select MENU. See the chart “Music menu options” on the following page. The last effect chosen from that menu appears in the display.

To get a powerful sound (GROOVE)

Press GROOVE. The volume switches to power mode, DBFB is automatically set to full strength, the equalizer curve changes and the “GROOVE” button lights up. Press GROOVE again to return to the previous volume.

Notes

•Cancelling GROOVE does not cancel the DBFB level or equalizer curve. To cancel the DBFB level, press DBFB repeatedly until “DBFB ” or “DBFB ” disappears from the display. Adjust the equalization to obtain the effect you desire.

•The sound may be distorted with DBFB or GROOVE activated when connecting an optional super woofer (Sony SA-W10, etc.) to the unit. In this case, set DBFB off and adjust the sound of a super woofer.

2Use the JOG dial (or press MUSIC

MENU / on the remote repeatedly) to select the preset you desire. The preset name appears in the display.

3Press ENTER/NEXT.

To cancel the effect

Press EFFECT ON/OFF (or MUSIC MENU ON/OFF on the remote) so that “EFFECT OFF” appears in the display.

continue to next page ➔

Chapter 5: Sound Adjustment

POWERnON

SURROUND

➔ continued

Music menu options

“SUR ” appears if you select an effect with surround effects.

MENU button

MENU 1

MENU 2

MENU 3

To change the equalizer display

Each time you keep pressing DISPLAY/ DEMO for a few seconds, the equalizer display changes to show one of the four displays below.

Spectrum analyzer 1

Effect

ROCK POPS JAZZ CLASSIC DANCE

SALSA REGGAE BALLADE OLDIES SOUL

MORNING DAY EVENING NIGHT RELAX

For

standard music sources

listening situations

Adjusting the Audio Emphasis

You can adjust the audio emphasis using the following two functions:

•Graphic Equalizer

•Surround Effect

Adjusting the Sound (graphic equalizer)

You can adjust the sound by raising or lowering the levels of specific frequency ranges. Before operation, first select the audio emphasis you want for your basic sound.

POWERnON

EFFECT ON/OFF

Activating the Sound Field (surround effect)

You can use the surround effect without connecting surround speakers. Before operation, first select the audio emphasis you want for your basic sound.

To turn on the surround effect

Press SURROUND. “SUR ” appears in the display.

To turn off the surround effect

Press SURROUND. “SUR ” disappears from the display.

12563 250 500 1k 2k 4k 8k 16k(Hz)

Spectrum analyzer 2

12563 250 500 1k 2k 4k 8k 16k(Hz)

Spectrum analyzer 3

12563 250 500 1k 2k 4k 8k 16k(Hz)

Graphic equalizer curve

12563 250 500 1k 2k 4k 8k 16k(Hz)

1Press FREQUENCY + or – to select a

frequency band.

12563 250 500 1k 2k 4k 8k 16k(Hz)

1DISC

CLIP

DOLBY NR

VOLUME

OFF

MHz

2Turn the JOG dial to adjust level.

12563 250 500 1k 2k 4k 8k 16k(Hz)

1DISC

CLIP

DOLBY NR

VOLUME

OFF

MHz

3Repeat steps 1 and 2. 4Press ENTER/NEXT when finished.

The equalizer disappears from the display but you can hear the effect of the adjustments.

Note

If you choose another menu audio emphasis (other than “EFFECT OFF”) the adjusted sound effect is lost. To retain the adjusted sound effect for future use, store it in a personal file. (See “Making a Personal Audio Emphasis File (personal file)”.)

Chapter 5: Sound Adjustment

Making a Personal Audio Emphasis File (personal file)

You can create a personal file of audio patterns (surround effect and graphic equalizer) and store them in the memory of the unit. Later call up an audio pattern to play a favorite tape, CD, or radio program. Create up to five audio files. Before operation, first select the audio emphasis you want for your basic sound.

POWERnON

2 4

1Obtain the sound effect you want by

using the graphic equalizer and surround effect.

2Press and hold down P FILE for more

than a second. The personal file number appears in the display.

12345 678

12563 250 500 1k 2k 4k

1DISC

CLIP

File number

DOLBY NR

VOLUME

OFF

3Use the JOG dial to select the file

number (P FILE) where you want to store the sound effect.

4Press ENTER/NEXT.

The adjusted sound effects are stored under the selected file number. The settings previously stored at this memory location are erased and replaced by the new settings.

To call up the personal file 1 Press P FILE (or MUSIC MENU

/ on the remote) repeatedly until personal file appears in the display. The last selected personal file appears in the display.

2 Use the JOG dial (or press MUSIC

MENU / on the remote) to select the personal file you desire.

3 Press ENTER/NEXT.

Chapter 5: Sound Adjustment

Chapter 6:

Additional Features

Falling Asleep to Music

Waking up to Music

Timer-Recording Radio

Programs

Microphone Mixing

Karaoke: Singing Along

Connecting Optional

Equipment

Falling Asleep to Music

You can set the stereo system to turn off automatically so you can go to sleep to music (sleep timer). You can set the sleep timer even if you have already set the wake-up timer or timer-recording. Before setting the sleep timer, make sure the clock has been set correctly.

POWERnON

1Play your favorite sound source (a

tape, the tuner or a CD).

To change the remaining time while the sleep timer is on

Press SLEEP on the remote several times until the desired length of time indication appears.

Note

While the sleep timer is activated, the daily and recording timer functions do not work.

Waking Up to Music

You can wake up to music at the preset time. You only need to set the timer once. Before setting the timer, made sure the clock has been set correctly. The preset timer activates at the same time every day. To wake up to the sound of the radio, be sure to preset the station you want to listen to beforehand. (See “Presetting Radio Stations”.)

POWERnON

,10

tSELECT

2 Press TIMER. 3 Press SLEEP while the source is playing

to choose how long you want the music to play. “SLEEP” and minutes indication appear in the display. As you press SLEEP, the indication decreases by ten minutes from 90 to 10.

The power will turn off after 90 to 10 minutes depending on the length of time you chose.

When you choose AUTO

The power turns off when the current CD or tape (one side) finishes playback (for up to 100 minutes). The power turns off even if you pause the tape or stop playing CD or tape.

To cancel the sleep timer

Press SLEEP on the remote repeatedly until “OFF” appears in the display.

1 Prepare the sound source.

To wake up to the radio

Tune in the preset station you want.

To wake up to a CD

Insert a CD. If you want to play it from a desired track, do the necessary procedures for programmed CD play. (see “Playing Tracks in the Desired Order (program play)”.)

To wake up to a tape

Insert the tape with the side you want to play facing forwards you. If you insert the tapes in both decks, you will hear the sound from deck A.

5,6, 7,9

5,6, 7,8

Chapter 6: Additional Features

To check the remaining time before the sleep timer turns off the system

Press SLEEP on the remote once. The remaining time is displayed in minutes for several seconds.

2 Turn VOLUME to adjust the volume.

The music will start playing with the adjusted volume when the preset time comes.

3 Press TIMER. 4 Press t SET.

12563 250 500 1k 2k 4k 8k 16k(Hz)

TIMER

CLIP

12345 678

REC

VOLUME

12563 250 500 1k 2k 4k 8k 16k(Hz)

TIMER

CLIP

12345 678

REC

VOLUME

Use the JOG dial to select either DAILY 1 or 2 and press ENTER/NEXT. “ON” appears and the hour digits flash in the display.

TIMER

12345 678

CLIP

12563 500 1k 2k 4k 8k 16k(Hz)

DAILY1

VOLUME

flashing

6Use the JOG dial to set the hour you

want the system to turn on and press ENTER/NEXT. Set the minutes in the same way. “OFF” appears and the hour digits flash in the display.

TIMER

12345 678

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

DAILY1

VOLUME

flashing

TIMER

12345 678

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

DAILY1

VOLUME

flashing

7Use the JOG dial to set the hour you

want the system to turn off and press ENTER/NEXT. Set the minutes in the same way.

8Use the JOG dial to select a sound

source. The display changes as follows:

TUNER CD

TAPE

TIMER

12345 678

CLIP

12563 250 500 1k 2k 4k 8k 16k(Hz)

DAILY1

VOLUME

9Press ENTER/NEXT.

The preset items appear in the display sequentially.

10 Press POWER to turn off the system.

The power will go on at the preset time and the music will play with the volume you have adjusted. At the turn-off time, the power will go off again.

To change the preset timer settings

Start over from step 1.

To check the preset timer settings 1 Press TIMER. 2 Press t SELECT and use the JOG dial to

choose the mode you want to check.

3 Press ENTER/NEXT.

The preset items appear in the display sequentially, then the original display returns.

To change the timer

Select the timer display you desire in step 2 of “To check the preset timer settings”.

To cancel the timer 1 Press TIMER. 2 Press t SELECT and use the JOG dial to

choose “TIMER OFF.”

3 Press ENTER/NEXT.

The next time you want to use the timer, select the timer display you used in step 2 (DAILY1 or DAILY 2) and press ENTER/NEXT.

Notes

•You cannot set the timer if the timer ON and OFF times are the same.

•You cannot activate wake-up timer and timer-recording at the same time.

Timer-Recording Radio Programs

You can set the timer to record from the radio at a certain time. This timer works only once for each setting. Make sure the clock has been set correctly.

POWERnON

,10

tSELECT

6,7, 8,9

5 2

6,7, 8

1 Press § EJECT and insert a blank tape in

deck B with the side you want to record on facing forward.

2 Select dual or single-sided recording.

To record

One side of the tape Both sides*

* Recording always stops at the end of the

reverse side. Be sure to start from the front side.

Press DIRECTION to select

A ß or RELAY

3 Tune in a station you want to record. 4 Press TIMER. 5 Press t SET.

6Use the JOG dial to select REC and press

ENTER/NEXT. “ON” appears and the hour digits flash in the display.

TIMER

12345 678

CLIP

12563 500 1k 2k 4k 8k 16k(Hz)

REC

VOLUME

flashing

7Use the JOG dial to set the hour you

want the system to turn on and press ENTER/NEXT. Set the minutes in the same way. “OFF” appears and the hour digits flash in the display.

flashing

8Use the JOG dial to set the hour you

want the system to turn off and press ENTER/NEXT. Set the minutes in the same way.

9Press ENTER/NEXT.

The preset items appear in the display sequentially.

10 Press POWER to turn off the system.

The power comes 15 seconds before the preset time on and the volume level is automatically set to the minimum.

To check the preset times settings 1 Press TIMER. 2 Press t SELECT and use the JOG dial to

select “REC”.

3 Press ENTER/NEXT.

The preset items appear in the display sequentially, then the original display returns.

To change the preset timer settings

Start over from step 1.

To cancel the timer 1 Press TIMER. 2 Press t SELECT and use the JOG dial to

choose “TIMER OFF.”

3 Press ENTER/NEXT.

The timer indicators disappear from the display.

continue to next page ➔

Chapter 6: Additional Features

➔ continued

If the power is on at the preset time

The sound source will automatically change to the tuner, but tuner recording will not start.

Notes

•You cannot set the timer if the timer ON and OFF times are the same.

•You cannot activate timer-recording and wake-up timer at the same time.

Microphone Mixing

You can “mix” sounds by playing one of the components and singing or speaking into a microphone (not supplied). The mixed sounds can then be recorded on a tape.

POWERnON

To record from the microphone only 1 Press FUNCTION repeatedly until “CD”

appears in the display. If a CD is being played, press π on the CD player to stop playing.

2 Start recording. 3 Sing or speak into the microphone.

When you finish mixing

Turn the MIC LEVEL control to MIN and disconnect the microphone.

Note

When howling occurs, decrease sound level, keep a microphone away from the speakers or turn it in the other direction.

Karaoke: Singing Along

POWERnON

EFFECT ON/OFF

Notes on vocal reduction

The singer’s voice may not be reduced completely for the following reasons:

•Monaural recorded source (Instruments may also be reduced.)

•Only a few instruments are playing in the stereo recorded source

•A duet is being played

•The source has strong echoes or chorus

•The singer’s voice on the source deviates from the center

•The voice on the source is singing in high soprano or tenor

To Sing Along with Multiplex CDs or Tapes

You can sing along using the microphone while playing a multiplex CD or tape.

Press KARAOKE PON/MPX repeatedly until “h MPX R” or “h MPX L” appears in the display (choose right (R) or left (L) according to the encoding on your MPX software). Then, you can hear your voice through the microphone and the instruments.

1,6

1 Turn MIC LEVEL to MIN to turn down

the microphone control level.

2 Connect a microphone at the MIX MIC

jack.

3 Press FUNCTION several times to select

a sound source and play it.

4 Adjust VOLUME.

If you hear acoustic feedback, move the microphone away from the speakers or change the direction of the microphone.

5 Sing or speak into the microphone. 6 Adjust MIC LEVEL. 7 If you want to record mixed sound,

insert a tape in deck B and start recording.

To hear both channels (the instruments and the recorded singer’s voice)

Press KARAOKE PON/MPX repeatedly so that “h PON”, “h MPX R” or “h MPX L” disappears from the display.

If you press EFFECT ON/OFF or recall a sound effect with the MENU buttons

The karaoke mode is cancelled.

KARAOKE PON/MPX

To Reduce the Vocals (Karaoke pon)

You can minimize the singer’s voice, “vocal reduction,” so you can sing along with any stereo CD or tape. When you want to record the sound of the CD or tape and your voice, operate steps below.

To reduce the vocals

Press KARAOKE PON/MPX so that “h PON” appears in the display. To cancel vocal reduction, press KARAOKE PON/MPX repeatedly so that “h PON”, “h MPX R” or “h MPX L” disappears from the display.

If you press EFFECT ON/OFF or recall a sound effect with the MENU buttons

The karaoke mode is cancelled.

Chapter 6: Additional Features

Connecting Optional Equipment

For greater enjoyment of your stereo system, you can connect other components to the stereo. You can connect:

•an MD recorder

•a VCR

•a turntable

•surround speakers

•a super woofer

Connecting an MD Recorder

You can record from the sound sources of the stereo into the MD recorder in analog sound. You can also listen to the sound from the MD recorder by pressing FUNCTION repeatedly to select 100 CD.

rear panel

an MD recorder

Connecting a VCR

You can connect a VCR and hear the sound through the connected speakers.

rear panel

Connect

LINE OUT jacks of the VCR

Press FUNCTION repeatedly to select VIDEO.

Note

If you cannot select “VIDEO” even when you have pressed FUNCTION, press POWER while pressing FUNCTION when the power is turned off. “100 CD” will be switched to “VIDEO”. To return to “100 CD”, do the same procedures.

to LINE OUT of a VCR

With

100 CD/VIDEO IN jacks

Connecting a Turntable

You can connect a turntable to 100CD/ VIDEO IN jacks. Before you connect, check which type of turntable you have.

rear panel

a turntable

Is the turntable supplied with a phono equalizer?

Yes

Press FUNCTION to select VIDEO.

Note

Connect with

100 CD/VIDEO IN jacks

100 CD/VIDEO IN jacks using a MM cartridge equalizer and connecting cable (not supplied)

Connect

LINE IN jack of the MD recorder

LINE OUT jack of the MD recorder

With

100 CD/VIDEO OUT jacks

100 CD/VIDEO IN jacks

continue to next page ➔

Chapter 6: Additional Features

➔ continued

Connecting Surround Speakers

You can connect surround speakers to SURROUND SPEAKER connectors. Connect the right rear speaker to the SURROUND SPEAKER R connectors and the left rear speaker to the SURROUND SPEAKER L connectors.

rear panel

surround speakers

Connecting a Super Woofer

You can connect a super woofer to SUPER WOOFER jack.

rear panel

a super woofer

Chapter 6: Additional Features

For Your Information

Precautions

Troubleshooting Guide

Maintenance

Specifications

Index to Parts and

Controls

Index

On safety

•The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

•Unplug the system from the AC power outlet if it is not to be used for an extended period of time. To disconnect the AC power cord, pull it out by the plug. Never pull the cord itself.

•Should any solid object or liquid fall into the component, unplug the stereo system and have the component checked by qualified personnel before operating it any further.

•AC power cord must be changed only at the qualified service shop.

On installation

•

Place the stereo system in a location with adequate ventilation to prevent heat buildup in the stereo system. Do not place the unit in an inclined

•

position.

•

Do not place the unit in locations where it is:

- Extremely hot or cold

- Dusty or dirty

- Very humid

- Vibrating

- Subject to direct sunlight

On condensation in the CD player component

If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the CD player. Should this occur, the CD player will not operate. Remove the CD and leave the system turned on for about an hour until the moisture evaporates.

To save a tape permanently

To prevent a tape from being accidentally recorded over, break off the cassette tab from side A or B as illustrated. If you later want to reuse the tape for recording, cover the broken tab with adhesive tape.

Side A

Troubleshooting Guide

If you run into any problem using this stereo system, use the following check list. And first check the following points:

•The power cord is connected firmly.

•The speakers are connected correctly and firmly.

Should any problem persist after you have made the checks below, consult your nearest Sony dealer.

Tuner

“TUNED” flashes in the display.

➔ Adjust the antenna.

“STEREO” flashes in the display.

➔ Adjust the antenna.

Severe hum or noise.

➔ Adjust the antenna. ➔ The signal strength is too weak.

Connect the external antenna.

➔Connect the ground wire.

A stereo FM program cannot be received in stereo.

➔Press STEREO so that “STEREO”

appears.

Tape Player

The tape does not record.

➔No tape in the cassette holder. ➔The tab has been removed from the

cassette.

➔The tape has reeled to the end.

The tape does not record nor playback or there is a decrease in sound level.

➔The heads are dirty. Clean them.* ➔Magnetic deposits have built-up on

the record/playback heads.*

Precautions

If you have any questions or problems concerning your stereo system, please consult your nearest Sony dealer.

Tab of side B

When you are using a TYPE II (CrO2) or TYPE IV (metal) cassette, be careful not to cover the detector slots which allow the tape player to automatically detect the type of tape.

Tab of side A

TYPE II

Detector slots

There is excessive wow or flutter, or the sound drops out.

➔The capstans or pinch rollers are

contaminated.*

The tape does not erase completely.

➔Magnetic deposits have built-up on

the record/playback heads.*

Noise increases or the high frequencies are erased.

➔Magnetic deposits have built-up on

the record/playback heads.*

* See “Maintenance.”

continue to next page ➔

For Your Information

➔ continued

CD Player

The disc tray does not close.

➔The CD is not placed correctly.

The CD will not play.

➔The CD is dirty. ➔The CD is inserted label side down. ➔The player is in pause mode. ➔Moisture condensation has built

up. Leave the system turned on for about an hour until the moisture evaporates.

“CD NO DISC” is displayed.

➔There is no CD in the player.

Play does not start from the first track.

➔The player is in program or shuffle

mode. Press PLAY MODE so that “PROGRAM” or “SHUFFLE” goes out.

General

The sound from an optional super woofer (Sony SA-W10, etc.) is distorted.

➔Set DBFB off ➔Adjust the sound of a super woofer.

Demo mode appears in the display after deactivating the demo mode.

➔When a power interruption occurs

for longer than half a day, set music clips, timer settings and tuner presetting again.

The remote does not function.

➔The batteries have run down.

Replace both batteries.

➔There is an obstacle between the

remote and the system. Remove the obstacle.

Restoring the Factory Settings

Hold down DISPLAY/DEMO, TUNER/BAND and MENU 3 at the same time.

Maintenance

To clean the tape heads and tape path

Contaminated tape heads cause poor recording or sound drop-out in playback. We recommend cleaning after every 10 hours of operation.

Open the tape compartment and wipe the heads, the pinch rollers and the capstans with a cleaning swab slightly moistened with cleaning fluid or alcohol. Wipe the parts shown below:

Deck A Cleaning

swab

Deck B Cleaning

swab

Playback head

Erase head

Capstan

Pinch roller

Capstan

There is no sound.

➔Rotate VOLUME clockwise. ➔The headphones are connected.

Disconnect them.

Sound comes from one channel or unbalanced left and right volume.

➔Check the speaker connections of

the inoperative channel.

The left and right sound are reversed.

➔Check the speaker connection and

speaker placement.

Bass is lacking or the location of the musical instruments is apparently imprecise.

➔Check the speaker connection for

proper phasing.

There is severe hum or noise.

➔A TV or VCR is too close to the

stereo system. Move the stereo system away from the TV or VCR.

“12:00 AM” flashes in the display.

➔A power interruption occurred. Set

the clock again.

Pinch roller

Record/playback head

Insert a tape when the areas cleaned are completely dry.

To demagnetize the tape heads

After 20 to 30 hours of use, enough residual magnetism will have built up on the heads to begin to cause loss of high frequencies and hiss. At this time, demagnetize the heads and all metal parts in the tape path with a commercially available tape head demagnetizer. Refer to the instructions of the demagnetizer.

To clean the cabinet

Use a soft cloth slightly moistened with mild detergent solution.

To clean the CD

When a CD is dirty, clean it with a cleaning cloth. Wipe the CD from the center out.

Notes on CD

•Do not use solvents such as benzene,

thinner, commercially available cleaners, or antistatic spray intended for vinyl LPs.

•If there is a scratch, dirt or fingerprints on

the CD, it may cause a tracking error.

For Your Information

Specifications

For the U.S. model AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6 ohm loads, both channels driven, from 40 – 20,000 Hz; rated 50 watts per channel minimum RMS power, with no more than

0.9 % total harmonic distortion from 250 milliwatts to rated output.

CD player section

System Compact disc and digital

audio system

Laser Semiconductor laser

(λ=780 nm) Emission duration: continuous

Laser output Max. 44.6 µW*

* This output is the value

measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.

Frequency response

2 Hz – 20 kHz (±0.5 dB) Wavelength 780 – 790 nm Signal-to-noise ratio

More than 90 dB Dynamic range More than 90 dB

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 – 108.0 MHz

(100 kHz step) Antenna FM lead antenna Antenna terminals

75 ohm unbalanced Intermediate frequency

10.7 MHz

AM tuner section

Tuning range 531 – 1,710 kHz (with the

tuning interval set at 9 kHz)

530 – 1,710 kHz

(with the tuning interval set

at 10 kHz) Antenna AM loop antenna,

External antenna terminals Intermediate frequency

450 kHz

Amplifier section

Continuous RMS power output

U.S. model: 50 W + 50 W (6 ohms at 40 – 20,000Hz,

0.8 % THD) Canadian model: 50 W + 50 W (8 ohms at 1 kHz, 5% THD)

Inputs

100 CD/VIDEO IN (phono jacks):

voltage 450 mV, impedance 47 kilohms

MIX MIC (phone jacks):

sensitivity 1 mV, impedance 10 kilohms

Outputs

100 CD/VIDEO OUT (phono jacks):

voltage 250 mV impedance 1 kilohms

PHONES (stereo phone jack):

accepts headphones of 8 ohms or more.

SPEAKER:

accepts impedance of 6 to 16 ohms.

SURROUND SPEAKER:

accepts impedance of 16 ohms.

SUPER WOOFER:

Voltage 1 V, impedance 1 kilo ohms.

Tape player section

Recording system

4-track 2-channel stereo

Frequency response

(DOLBY NR OFF) 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassette 40 – 14,000 Hz (±3 dB), using Sony TYPE II cassette

Wow and flutter

±0.15% W.Peak (IEC)

0.1% W.RMS (NAB) ±0.2% W.Peak (DIN)

Speaker

SS-H771

Speaker system 3-way speaker system Speaker units

Woofer: 15 cm, cone type Tweeter: 5 cm, cone type Super Tweeter:

2 cm, dome type Eucloser type Bass reflex Rated impedance

6 ohms Dimensions Approx. 205 × 325 ×

275 mm

(8 1/8 × 12 7/8 × 10 7/8 in)

(w/h/d) Mass Approx. 4 kg (8 lb 13 oz)

net per speaker

Supplied accessories

AM loop antenna (1) Remote RM-SD50 (1) Sony SUM-3 (NS) batteries (2) FM lead antenna (1) Speaker cords (2)

General Power requirements

120 V AC, 60 Hz

Power consumption

U.S. model: 110 W Canadian model: 150 W

Dimensions Approx. 280 x 325 x

360 mm (11 1/8 x 12 7/8 x 14 1/4 in) (w/h/d) incl. projecting parts and controls

Mass Approx. 8.2 kg

(18 lb 1 oz)

Optional accessory

Surround speaker SS-SR10P

Speaker system Full range Speaker units 10 cm dia., cone type Enclosure type Closed Rated impedance

16 ohms

Dimensions Approx. 125 x 160 x 110 mm

(5 x 63/8 x 43/8 in) (w/h/d/)

Mass Approx. 700 g (1 lb 8 oz) per

speaker

Design and specifications are subject to change without notice.

For Your Information

12563 250 500 1k 2k 4k 8k 16k(Hz)

CD TUNER

ALL

ABCCLIP

1DISC S PROGRAM

SHUFFLE REPEAT1

12345 678910

1514131211 2019181716

KHz MHz

765

1423

250 500 1k 2k 4k 8k 16k(Hz)

RELAY DOLBY NR

B OFF

TIMER

DBFB SUR

PONLR

MPX

DAILY12 REC SLEEP

TUNED

STEREOMONO

STEP

AUTO

KHz

MANUAL

SYNC

REC

MHz

PRESET

2 1 3

VOLUME

!¢ !§ !¶!∞!

!¡8!™90

Index to Parts and Controls

Refer to the pages indicated in parentheses for details on how to use the controls. Controls with an asterisk have indicators on themselves.

Front Panel

1 2 3 4 5 6 7 8 9 0 !` !“ !£ !¢

! !⁄ !ƒ !¥ !» @… @` @“ @£ @¢ @ @⁄ @ƒ @¥ @» #…

@¢ ENTER/NEXT button (9) @∞ GROOVE button* (19) @§ DBFB button (19) @¶ VOLUME control* (19) @• KARAOKE PON/MPX button (24) @ª JOG dial (7) #º FREQUENCY +/– buttons (20) #¡ HIGH SPEED DUBBING button (18) #™ DIRECTION button (14) #£ DOLBY NR button (14) #¢ º/‚ (rewind/fast forward) button

(14)

#∞ ª/· reverse side play/front side

play button* (14)

#§ π (stop) button (14) #¶ Deck A (14) #• § EJECT button (14) #ª CD SYNCHRO button (15) $º ® REC button* (15) $¡ ∏ PAUSE button* (15) $™ Deck B (14)

MULTI FUNCTION CONTROL Buttons

The buttons you can operate the CD player, tuner and the timer light up.

CD player

Rear Panel

3 4

1 100 CD/VIDEO IN/OUT jacks (25) 2 SPEAKER L/R connectors (4) 3 SURROUND SPEAKER L/R connectors

(4)

4 SUPER WOOFER jack (26) 5 ANTENNA terminals (4)

Display Window

#¡ #™ #£

#¢ #∞ #§

#¶

#•

1 DISC SKIP EX-CHANGE button (7) 2 LOOP button (10) 3 POWER switch (7) 4 Disc tray (7) 5 TIMER button (22) 6 SURROUND button (20) 7 PHONES jack (19) 8 DISPLAY/DEMO button (5) 9 CLIP ERASE button (10) !º CLIP PLAY button (10) !¡ MIC LEVEL knob (24) !™ MIX MIC jack (24) !£ MULTI FUNCTION CONTROL buttons

(30)

!¢ CLIP A – C buttons (10) !∞ DISC 1 – 3 buttons (7) !§ § OPEN/CLOSE button (7) !¶ π (stop) button (7) !• ﬂ (play/pause) button* (7) !ª MENU 1 – 3 buttons (19) @º P FILE button (21) @¡ EFFECT ON/OFF button* (19) @™ TUNER/BAND button* (12) @£ FUNCTION button (8, 24)

For Your Information

#ª $º

1/ALL DISCSC D PLAY MODE REPEAT EDIT

$¡ #¢

#∞ #§

$™

#•

Tuner

TUNER

Timer

TUNING

CLOCK SETTIMER tSET tSELECT SLEEP

MODE

TUNER

MEMORY

STEREO MONO

1 Disc tray indicator 2 Music calendar (7) 3 CD/TUNER indicator (7, 12) 4 Graphic Equalizer indicator (20) 5 CLIP indicators (10) 6 CD playback indicators (8, 9) 7 Multi display 8 Tuning indicator (12) 9 DOLBY NR indicator (14) !º Direction mode indicators (14) !¡ Timer indicators (22, 23) !™ VOLUME indicators !£ Tuner indicators (12, 13) !¢ SYNC REC indicator !∞ SUR indicator (20) !§ DBFB indicator (19) !¶ Karaoke PON/MPX indicators (24)

Remote

3 4

6 7 8

1 SLEEP button (22) 2 LOOP button (10) 3 CD button (7) 4 TUNER/BAND button (12) 5 DECK A /DECK B button (14) 6 FUNCTION button (8, 24) 7 MUSIC MENU / buttons (19) 8 MUSIC MENU ON/OFF button (19) 9 MUSIC MENU / buttons (19) !º POWER switch (7) !¡ (pause) button (7) !™ (stop) button (7) !£ / AMS* button (7) !¢ / (rewind/fast forward)

button (8)

!∞ EDIT button (16) !§ CHECK button (9) !¶ DISC SKIP button !• CLEAR button (9) !ª VOL (+/–) button (19)

* AMS=Automatic Music Sensor

!º

!¡ !™ !£

!¢ !∞

!§ !¶ !• !ª

Index

Adjusting

the audio emphasis 19 the sound 19

the volume 19 AMS 7 Antennas 4 Batteries 6 CD player 7 CD synchro recording 15 CLIP play 10 Clock setting 6 Connecting

optional equipment 25

the antennnas 4

the power 5

the speakers 4

the stereo 4 Dolby NR (noise reduction) 14 Dubbing

another tape automatically 18

another tape manually 18 Graphic equalizer 20 Karaoke 24 Maintenance 28 Microphone mixing 24 Multiplex 24 Music calendar 7, 8 Normal play 7 One touch play 8, 12, 14 Parts identification 30 Playing

a tape 14

CDs (clip play) 10

CDs (normal play) 7

preset radio stations 13

tracks in random order

(shuffle play) 8

tracks in the desired order

(program play) 9 tracks repeatedly (repeat play) 9 tracks: repeating aspecified portion

(loop play) 10

Precautions 27 Program play 9 Radio stations

presetting 13 tuning in 12

Recording

a CD (loop play) 11 a CD (program edit) 17 a CD (time edit) 16 a CD automatically 15 a CD manually 15 a radio 17 another tape (dubbing) 18 timer recording 23

Relay play 14 Repeat play 9 Restoring the factory settings 28 Saving a recording 27 Shuffle play 8 Sound adjusting 19 Speakers 4 Specifications 29 Supplied accessories 29 Tape player 14

Timer

falling asleep to music 22 timer recording 23

waking up to music 22 Troubleshooting guide 27 Tuner 12

For Your Information

Sony MHC-771REV Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
