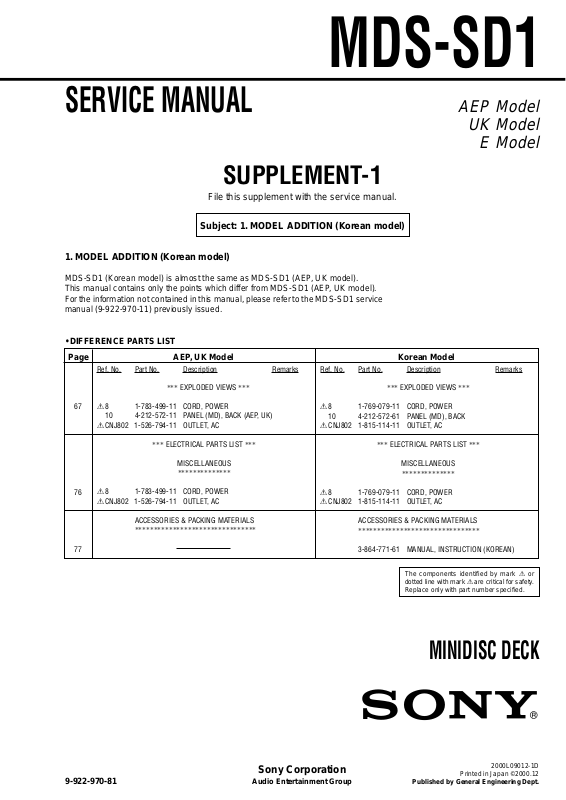

Sony MDS-SD1 Service Manual
MDS-SD1
SERVICE MANUAL
SUPPLEMENT-1
File this supplement with the service manual.
Subject: 1. MODEL ADDITION (Korean model)
1. MODEL ADDITION (Korean model)
MDS-SD1 (Korean model) is almost the same as MDS-SD1 (AEP, UK model).
This manual contains only the points which differ from MDS-SD1 (AEP, UK model).
For the information not contained in this manual, please ref er to the MDS-SD1 service
manual (9-922-970-11) previously issued.
• DIFFERENCE PARTS LIST
Page
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
AEP, UK Model
AEP Model
UK Model
E Model
Korean Model
*** EXPLODED VIEWS ***
67
0 8 1-783-499-11 CORD, POWER
10 4-212-572-11 PANEL (MD), BACK (AEP, UK)
0 CNJ802 1-526-794-11 OUTLET, AC
*** ELECTRICAL PARTS LIST ***
0 8 1-783-499-11 CORD, POWER
76
0 CNJ802 1-526-794-11 OUTLET, AC
ACCESSORIES & PACKING MATERIALS
********************************
77
MISCELLANEOUS
**************
*** EXPLODED VIEWS ***
0 8 1-769-079-11 CORD, POWER
10 4-212-572-61 PANEL (MD), BACK
0 CNJ802 1-815-114-11 OUTLET, AC
*** ELECTRICAL PARTS LIST ***
MISCELLANEOUS
**************
0 8 1-769-079-11 CORD, POWER
0 CNJ802 1-815-114-11 OUTLET, AC
ACCESSORIES & PACKING MATERIALS
********************************
3-864-771-61 MANUAL, INSTRUCTION (KOREAN)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety .
Replace only with part number specified.
MINIDISC DECK
9-922-970-81
Sony Corporation
Audio Entertainment Group
Published by General Engineering Dept.
Printed in Japan ©2000.12
