CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/

TRV36E/TRV46E

RMT-708

SERVICE MANUAL

Ver 1.0 1999.01

Photo : CCD-TR713E

B MECHANISM

SPECIFICATIONS

Photo : CCD-TRV46E

AEP Model

UK Model

Russian Model

East European Model

North European Model

CCD-TR415E/TR425E/TR515E/TR713E

CCD-TRV26E/TRV27E/TRV36E/TRV46E

E Model

CCD-TRV16E/TRV27EP/TRV46E

CCD-TR315E/TR516E

Hong Kong Model

CCD-TR315E/TR516E

CCD-TRV16E/TRV46E

Australian Model

CCD-TR315E/TR516E

CCD-TRV16E/TRV46E

Chinese Model

CCD-TR315E/TR516E

CCD-TRV16E/TRV46E

Tourist Model

CCD-TR315E/TRV46E

PAL

For MECHANISM ADJUSTMENTS, refer to the “8mm Video MECHANICAL ADJUSTMENT MANUAL VII” (9-973-801-11).

Video camera recorder

System

Video recording system

2 Rotary heads Helical scanning FM system

Audio recording system

Rotary heads, FM system

Video signal

PAL color, CCIR standards

Usable cassette

8mm video format cassette CCD-TR315E/TR415E/TR425E CCD-TRV16E/TRV26E/TRV27E/ TRV27EP : standard 8

CCD-TR515E/TR516E/TR713E CCD-TRV36E/TRV46E : Hi8

Recording / Playback time (using 90 min. cassette)

SP mode: 1 hour and 30 minutes LP mode: 3 hours

Fastforward/rewind time (using 90 min. cassette)

Approx. 5 min.

Image device

1/4 inch CCD (Charge Coupled Device) CCD-TR315E/TR415E/TR425E/ TR515E/TR516E CCD-TRV16E/TRV26E/TRV27E/ TRV27EP/TRV36E : Approx. 320,000 pixels (Effective : approx 290,000 pixels)

CCD-TR713E CCD-TRV46E : Approx. 380,000 pixels (Effective : approx 230,000 pixels)

Viewfinder

Electronic viewfinder CCD-TR315E/TR415E/TR425E/ TR515E/TR713E/TRV series : Monochrome CCD-TR516E : Color

Lens

Combined power zoom lens Filter diameter 1 7/16 in. (37 mm) CCD-TR415E : AEP*,UK CCD-TRV26E : AEP*,UK : 18 x (Optical), 36 x (Digital)

CCD-TR425E : AEP*,UK

TR515E : AEP*,UK TR713E : AEP*,UK

CCD-TRV27E : AEP*,UK

TRV36E : AEP*,UK TRV46E : AEP*,UK

: 18 x (Optical), 72 x (Digital) CCD-TR315E

CCD-TRV16E : 18 x (Optical), 180 x (Digital)

CCD-TR415E : AEP*,EE,NE.RU CCD-TRV26E : AEP*,EE,NE.RU : 18 x (Optical), 220 x (Digital)

CCD-TR425E : AEP*,EE,NE,RU

TR515E : AEP*,EE,NE,RU TR516E TR713E : AEP*,EE,NE,RU

CCD-TRV27E : AEP*,EE,NE,RU

TRV27EP TRV36E : AEP*,EE,NE,RU TRV46E : AEP*,E,EE,NE,RU,HK,

: 18 x (Optical), 330 x (Digital) * There are two kinds of magnification of

Digital Zoom only AEP model. Please make sure the magnification of your Handycam with reference to page 3.

AUS,CN,JE

VIDEO CAMERA RECORDER

CCD-TRV16E/TRV26E/TRV27E/TRV27EP

VIDEO CAMERA RECORDER

Focal distance

3/16 - 8 in. (4.1 - 37.8 mm) When converted to a 35 mm still camera CCD-TR315E/TR415E/TR425E/ TR515E/TR516E CCD-TRV16E/TRV26E/TRV27E/ TRV27EP/TRV36E : 1 9/16 - 28 in. (39.4 - 709 mm) CCD-TR713E CCD-TRV46E : 1 7/8 - 33 1/2 in. (47.2 - 850 mm)

— Continued on next page —

CCD-TR315E/TR415E/TR425E

CCD-TR515E/TR516E/TR713E

CCD-TRV36E/TRV46E

MICROFILM

Color temperature

Auto Minimum illumination*

0.4 lux at F 1.4 0 lux (in NightShot mode)**

Illumination range

0.4 lux to 100,000 lux

Recommended illumination

More than 100 lux * Minimum illumination expresses the

light level a camcorder requires to produce a picture. Visible minimum low light expresses the light level to produce a visible signal.

**Object invisible for the dark can be

shot with infrared lighting.

LCD screen (TRV series only)


2.5 inches measured diagonally 2 x 1 1/2 in.(50.3 x 37.4 mm)

On-screen display

TN LCD/TFT active matrix method

Total dot number

61,380 (279 x 220)

Input and output connectors

Video output

Phono jack, 1 Vp-p, 75 ohms, unbalanced

Audio output

Monaural, Phone jack, 327 mV (at output impedance 47 kilohms) impedance less than 2.2 kilohms

RFU DC OUT

Special minijack, DC 5V

Earphone jack (TRV series only)

Monaural minijack (ø 3.5 mm)

LANC control jack

Stereo mini-minijack (ø 2.5 mm)

MIC jack

Mini jack, 0.388mV low impedance with

2.5 to 3.0 V DC, output impedance 6.8 kilohms (ø 3.5 mm) : Monaural type

Speaker (TRV series only)

Dynamic speaker

General

Power requirements

7.2 V (battery pack)

8.4 V (AC power adaptor)

Average power consumption (when using the battery pack)

During camera recording CCD-TR516E : 2.4 W CCD-TR315E/TR415E/TR425E/ TR515E : 2.5 W CCD-TR713E : 2.6 W During camera recording using LCD CCD-TRV16E/TRV26E/TRV27E/ TRV27EP/TRV36E : 3.1 W CCD-TRV46E : 3.2 W Viewfinder CCD-TRV16E/TRV26E/TRV27E/ TRV27EP/TRV36E : 2.5 W CCD-TRV46E : 2.6 W

Operating temperature

32°FC to 104°F (C0°C to 40°C)

Storage temperature

-4°FC to 140°F (-20°C to +60°C)

Dimensions (Approx.)

4 1/4 x 4 1/4 x 7 5/8 in. 107 x 107 x 193 mm)(w/h/d)

Mass (Approx.)

CCD-TR516E : 1 lb 11 oz (780 g) CCD-TR315E : 1 lb 11 oz (790 g) CCD-TR415E/TR425E/TR515E : 1 lb 12 oz (810 g) CCD-TR713E : 1 lb 12 oz (820 g) CCD-TRV16E/TRV27EP : 1 lb 14 oz (870 g) CCD-TRV46E ; E,HK,AUS,CN,JE : 1 lb 15 oz (880 g) CCD-TRV26E/TRV27E/TRV36E : 1 lb 15 oz (890 g) CCD-TRV46E ;AEP,UK,EE,NE,RU : 1 lb 15 oz (900 g) excluding the battery pack, lithium battery, cassette and shoulder strap 2 lb 3 oz (1 kg) (TRV series) CCD-TR516E : 2 lb 1 oz (920g) CCD-TR315E : 2 lb 1 oz (930g) CCD-TR415E/TR425E/TR515E : 2 lb 1 oz (950g) CCD-TR713E : 2 lb 1 oz (960g) including the battery pack NP-F330, lithium battery CR2025, cassette and shoulder strap

Microphone

Monaural type

Supplied accessories

See page 4.

AC power adaptor

Power requirements

100 -240 V AC, 50/60 Hz

Power consumption

23 W

Output voltage

DC OUT: 8.4 V, 1.5 A in operating mode

Operating temperature

32°F to 104°F(0°C to 40°C)

Storage temperature

-4°F to +140°F(-20°C to +60°C)

Dimensions (Approx.)

5 x 1 9/16 x 2 1/2 in. (125 x 39 x 62 mm)(w/h/d) excluding projecting parts

Mass (Approx.)

9.8 oz (280 g) excluding power cord

Design and specifications are subject to change without notice.

• Abbreviation East European model is abbreviated as EE. North European model is abbreviated as NE. Russian model is abbreviated as RU. Hong Kong model is abbreviated as HK. Australian model is abbreviated as AUS. Chinese model is abbreviated as CN. Tourist model is abbreviated as JE.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY .

5. Check the B+ voltage to see it is at the values specified.

6. Flexible Circuit board Repairing

• Keep the temperature of the soldering iron around 270°C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

– 2 –

DIGITAL ZOOM

Table for difference of function

Model

Destination

View finder Remote commander (RMT-708) Hi8 Standard 8 Lens (Digital ZOOM) Video light Steady shot Laser Link LCD panel

CCDTR315E

E,HK,AUS, CN,JE B/W

G G ¬

180x

G G G G

CCDTR415E

AEP,UK

B/W

G G ¬

36x/220x

G G G G

CCDTR415E

EE,NE,RU

B/W

G G ¬

220x

G G G G

CCDTR425E

AEP,UK

B/W

¬ G ¬

72x/330x

G G G G

CCDTR425E

EE,NE,RU

B/W

¬ G ¬

330x

G G G G

CCDTR515E

AEP,UK

B/W

¬ ¬ G

72x/330x

¬ G G G

CCDTR515E

EE,NE,RU

B/W

¬ ¬ G

330x

¬ G G G

CCDTR516E

E,HK,AUS, CN Color

¬ ¬ G

330x

¬ G G G

CCDTR713E

AEP,UK

B/W

¬ ¬ G

72x/330x

¬ ¬ ¬ G

CCDTR713E

EE,NE,RU

B/W

¬ ¬ G

330x

¬ ¬ ¬ G

Remark

Note : Refer to lower figure.

¬ : with SE-80/81board SE451,452,IC451 ¬ : with VC-215 board IC751

2.5 inch : TRV series only

Model

Destination

View finder Remote commander (RMT-708) Hi8

– 3 –

Standard 8 Lens (Digital ZOOM) Video light Steady shot Laser Link LCD panel

CCDTRV16E

E,HK,AUS, CN B/W

G G ¬

180x

G G G

2.5 inch

CCDTRV26E

AEP,UK

B/W

G G ¬

36x/220x

G G G

2.5 inch

CCDTRV26E

EE,NE,RU

B/W

G G ¬

220x

G G G

2.5 inch

CCDTRV27E

AEP,UK

B/W

¬ G ¬

72x/330x

G G G

2.5 inch

About the magnification display of

CCDTRV27E

EE,NE,RU

B/W

¬ G ¬

330x

G G G

2.5 inch

CCDTRV27EP

B/W

¬ G ¬

330x

G G G

2.5 inch

section

There are two kinds of magnification of Digital zoom only for the AEP model. Please make sure the magnification of your Handycam with reference to the right figure.

CCDTRV36E

AEP,UK

B/W

¬ ¬ G

72x/330x

¬ G G

2.5 inch

CCDTRV36E

EE,NE,RU

B/W

¬ ¬ G

330x

¬ G G

2.5 inch

CCDTRV46E

AEP,UK

B/W

¬ ¬ G

72x/330x

¬ ¬ ¬

2.5 inch

CCDTRV46E

E,EE,NE,RU HK,AUS,CN,JE B/W

¬ ¬ G

330x

¬ ¬ ¬

2.5 inch

Remark

Note : Refer to lower figure.

¬ : with SE-80/81board SE451,452,IC451 ¬ : with VC-215board IC751

2.5 inch : TRV series only

Supplied accessories

1 RMT-708 Wireless Remote Commander (1)

CCD-TR425E/TR515E/TR516E/TR713E CCD-TRV27E/TRV27EP/TRV36E/TRV46E

2 AC-L10A/L10B/L10C AC power adaptor

3 NP-F330 Battery pack (1)

4 CR2025 Lithium Battery (1)

The lithium battery is already installed in your camcorder.

7 Shoulder strap (1)

8 21 pin adaptor (1)

CCD-TR415E/TR425E/TR515E/TR713E CCD-TRV26E/TRV27E/TRV36E

TRV46E:AEP,UK,EE,NE,RU

9 2 pin conversion adaptor (1)

CCD-TR315E:E,HK/TR516E:E,HK CCD-TRV16E:E,HK/TRV27EP/TRV46E:E,HK

5 Size AA (R6) battery for Remote Commander

(2)

CCD-TR425E/TR515E/TR516E/TR713E CCD-TRV27E/TRV27EP/TRV36E/TRV46E

6 A / V connecting cable (1)

0 2 pin conversion adaptor (1)

CCD-TR315E:JE CCD-TRV46E:JE

• Abbreviation East European model is abbreviated as EE. North European model is abbreviated as NE. Russian model is abbreviated as RU. Hong Kong model is abbreviated as HK. Tourist model is abbreviated as JE.

– 4 –

SERVICE NOTE

1. POWER SUPPLY DURING REPAIRS

In this unit, about 10 seconds after power is supplied (8.4V) to the battery terminal using the service power cord (J-6082-223-A), the power is shut off so that the unit cannot operate. This following three methods are available to prevent this. Take note of which to use during repairs.

Method 1.

Connect the servicing remote commander RM-95 (J-6082-053-B) to the LANC jack, and set the remote commander switch to the “ADJ” side.

Method 2.

Press the battery switch of the battery terminal using adhesive tape, etc.

Method 3.

Use the DC IN terminal. (Use the AC power adaptor.)

Battery terminal

Battery switch

‘

DC IN terminal

2. TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)

1 Refer to 2-1. to remove the front panel block. 2 Refer to 2-4. to remove the cabinet (R) assembly. 3 Refer to 2-6. to remove the battery panel block. 4 Refer to 2-7. to remove the cabinet (L) block. 5 Add +5V from the DC POWER SUPPLY and unload with a

pressing the cassette lid.

6

Pull the timing belt in the direction of arrow A with a pinsette while pressing the cassette lid (take care not to damage) to adjust the bending of a tape.

Pinsette

Timing belt

Battery SIG terminal

Press the cassette lid not to rise the cassette compartment

[DC power supply]

Battery terminal

(+5V)

’

7

Let go your hold the cassette lid and rise the cassette compartment to take out a cassette.

Timing belt

– 5 –

Loading motor

Adjust the bending of a tape

–

SELF-DIAGNOSIS FUNCTION

1. Self-diagnosis Function

When problems occur while the unit is operating, the self-diagnosis function starts working, and displays on the viewfinder or Display window what to do. This function consists of two display; selfdiagnosis display and service mode display . Details of the self-diagnosis functions are provided in the Instruction manual.

Viewfinder

C : 3 1 : 1 1

Blinks at 3.2 Hz

Repairede by :

C : Corrected by customer H : Corrected by dealer E : Corrected by service engineer

3 1 1 1

Block

Indicates the appropriate step to be taken E. g. 31 ... Reload the tape. 32 ... Turn on power again.

Display window

C : 3 1 : 1 1

Detailed Code

2. Self-diagnosis display

When problems occur while the unit is operating, the counter of the viewfinder or Display window shows a 4-digit display consisting of an alphabet and numbers, which blinks at 3.2 Hz. This 5-character display indicates the “repaired by:”, “block” in which the problem occurred, and “detailed code” of the problem.

Refer to page7 Self-diagnosis Code table

3. Service Mode Display

The service mode display shows up to six self-diagnosis codes shown in the past.

Display window

3-1. Display Method

While pressing the “STOP” key, set the switch from OFF to “VTR or PLAYER”, and continue pressing the “STOP” key for 5 seconds continuously. The service mode will be displayed, and the counter will show the backup No. and the 5-character self-diagnosis codes.

Viewfinder

[3] C : 3 1 : 1 1

Lights up

[3]

Backup No.

Order of previous errors

3-2. Switching of Backup No.

By rotating the control dial, past self-diagnosis codes will be shown in order. The backup No. in the [] indicates the order in which the problem occurred. (If the number of problems which occurred is less than 6, only the number of problems which occurred will be shown.) [1] : Occurred first time [4] : Occurred fourth time [2] : Occurred second time [5] : Occurred fifth time [3] : Occurred third time [6] : Occurred the last time

C : 3 1 : 1 1

Self-diagnosis codes

Display window

3 C : 3 1 : 1 1

Control dial

3-3. End of Display

Turning OFF the power supply will end the service mode display.

Note: The self-diagnosis display data will be backed up by the coin-type lithium battery. When this coin-type lithium battery is

disconnected, the self-diagnosis data will be lost by initialization.

– 6 –

4. Self-diagnosis Code Table

Self-diagnosis Code

Block

Function

Repaired by:

Detailed

Code

00 00 00

11 20

21 22 23 30 31 40 41 42 43 44

Condensation. Video head is dirty. Non-standard battery is used. LOAD direction. Loading does not complete within specified time UNLOAD direction. Loading does not complete within specified time T reel side tape slacking when unloading. S reel side tape slacking when unloading. T reel fault S reel fault FG fault when starting capstan FG fault during normal capstan operations FG fault when starting drum PG fault when starting drum FG fault during normal drum operations PG fault during normal drum operations Phase fault during normal drum operations

LOAD direction loading motor time-out UNLOAD direction loading motor time-

out T reel side tape slacking when unloading.

S reel side tape slacking when unloading.

T reel fault

S reel fault

FG fault when starting capstan

FG fault during normal capstan operations

FG fault when starting drum

PG fault when starting drum

FG fault during normal drum operations

PG fault during normal drum operations

Phase fault during normal drum operations

Difficult to adjust focus (Cannot initialize focus.)

Zoom operations fault (Cannot initialize zoom lens.)

Handshake correction function does not work well.(With pitch angular velocity sensor output stopped) Handshake correction function does not work well.(With yaw angular v elocity sensor output stopped)

Symptom/State Correction

Remove the cassette, and insert it again after one hour. Clean with the optional cleaning cassette. Use the InfoLITHIUM battery.

Load the tape again, and perform operations from the beginning.

Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning.

Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Load the tape again, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Remove the battery or power cable, connect, and perform operations from the beginning. Inspect the lens block focus reset sensor (Pin !ª of CN551 of VC-215 board) when focusing is performed when the focus dial is rotated in the focus manual mode and the focus motor drive circuit (IC552 of VC-215 board) when the focusing is not performed. Note : Use the remote commander RM-95 only for the model without

the focus dial. Inspect the lens block zoom reset sensor (Pin @¡ of CN551 of VC-215 board) when zooming is performed when the zoom lens is operated and the zoom motor drive circuit (IC552 of VC215 boar d) when zooming is not performed.

Inspect yaw angular velocity sensor (SE451 of SE-80/81 board) peripheral circuits.

Inspect pitch angular velocity sensor (SE452 of SE-80/81 board) peripheral circuits.

– 7 –

SERVICE NOTE

1. Power Supply During Repairs ................................................ 5

2. To Take out a Cassette when not Eject (Force Eject).............. 5

Self-Diagnosis Function

1. Self-diagnosis Function ...........................................................6

2. Self-diagnosis Display............................................................. 6

3. Service Mode Display ............................................................. 6

3-1. Display Method ................................................................ 6

3-2. Switching of Backup No. ................................................. 6

3-3. End of Display ................................................................. 6

4. Self-diagnosis Code Table ....................................................... 7

1. GENERAL

This section is extacked from instruction manual of CCD-TRV16E/TRV27E/TRV46E.

Using this Manual .....................................................................1-1

Checking Supplied Accessories.................................................1-1

Installing and Charging the Battery Pack ..................................1-1

Inserting a Cassette....................................................................1-3

Camera Recording .....................................................................1-3

Hints for Better Shooting ..........................................................1-5

Checking the Recorded Picture .................................................1-5

Playing Back a Tape ..................................................................1-6

Searching for the End of the Picture..........................................1-7

Using Alternative Power Sources .............................................. 1-7

Changing the Mode Settings .....................................................1-7

Shooting with Backlighting .......................................................1-9

Using the FADER Function....................................................... 1-9

Shooting in the Dark (NightShot) ...........................................1-10

Using the Wide Mode Function...............................................1-10

Using the PROGRAM AE Function ........................................1-11

Focusing Manually ..................................................................1-11

Enjoying Picture Effect ...........................................................1-12

Adjusting the Exposure ...........................................................1-12

Superimposing a Title..............................................................1-13

Making your own Titles........................................................... 1-13

Recording with the Date/Time ................................................1-14

Optimizing the Recording Condition ......................................1-14

Using the Built-in Light ..........................................................1-14

Releasing the STEADYSHOT Function ................................. 1-15

Watching on a TV Screen ........................................................1-15

Editing onto Another Tape.......................................................1-16

Changing the Lithium Battery in the Camcoder......................1-16

Resetting the Date and Time ...................................................1-16

Simple Setting of Clock by Time Difference .......................... 1-17

Usable Cassettes and Playback Modes....................................1-17

Tips for Using the Battery Pack ..............................................1-17

Maintenance Information and Precautions ..............................1-18

Using your Camcorder Abroad................................................1-20

Trouble Check .........................................................................1-20

Self-Diagnosis Display ............................................................1-22

Identifying the Parts ................................................................1-22

Warning Indicators ..................................................................1-25

2. DISASSEMBLY

2-1. Removal of Front Panel Block and Video Light Block....2-1

2-2. Removal of LB-54, VF-119 and

VF-120 Boards (Color View Finder Models) .................. 2-2

2-3. Removal of VF-99 Board and

CRT Assembly (B/W View Finder Models)..................... 2-2

2-4. Removal of Cabinet (R) Block......................................... 2-3

2-5. Removal of Cassette Lid Assembly .................................2-3

2-6. Remo v al of Battery Panel Block ..........................................2-3

2-7. Removal of Cabinet (L) Block .........................................2-4

2-8. Removal of Control Switch Block (FK-8500) .................2-4

2-9. Removal of Zoom Lens Block and VL-20/21 Board.......2-4

2-10. Removal of VC-215, SE-80/81, DD-117 and

PJ-90/91 Boards ...............................................................2-5

2-11. Removal of View Finder Block ........................................ 2-5

2-12. Removal of TR Cover, CF-60 Board and

Display Panel (TR series) ................................................2-6

2-13. Removal of IR Cover, CF-61 Board

and LCD Panel (TRV series)............................................2-6

2-14. Service Position ............................................................... 2-7

2-15. Circuit Boards Location ...................................................2-8

2-16. Flexible Boards and Flat Cables Location .......................2-8

3. BLOCK DIAGRAMS

3-1. Overall Block Diagram ....................................................3-1

3-2. Camera/Video 1 Block Diagram ......................................3-5

3-3. VTR/Camera Control Block Diagram ............................. 3-9

3-4. Servo Block Diagram .....................................................3-12

3-5. Mode Control Block Diagram........................................3-15

3-6. Audio Block Diagram....................................................3-19

3-7. LCD Bloc k Diagram (TRV series) .....................................3-23

3-8. Color EVF Block Diagram (Color EVF model)............3-26

3-9. B/W EVF Block Diagram (B/W EVF model) ...............3-29

3-10. Power Block Diagram ....................................................3-33

– 8 –

4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

4-1. Frame Schematic Diagram (1) ...........................................4-1

• Frame Schematic Diagram (2) ........................................4-4

4-2. Printed Wiring Boards and Schematic Diagrams...............4-7

• CD-210/211 (CCD Imager) Board ..................................4-8

• VC-215 (Camera, Y/C Processor, IN/OUT, REC/PB Head Amp, Servo/System Control, Servo,

Audio, IR Transmitter, Mode Control) Board ...............4-10

• VC-215 (Camera 1) Board ............................................4-17

• VC-215 (Camera 2) Board ............................................4-19

• VC-215 (Y/C Processor) Board ....................................4-23

• VC-215 (IN/OUT) Board ..............................................4-27

• VC-215 (REC/PB Head Amp) Board............................4-31

• VC-215 (Servo/System Control) Board ........................ 4-35

• VC-215 (Servo) Board ..................................................4-38

• VC-215 (Audio) Board ..................................................4-41

• VL-20/21 (Video Light) Board (Video Light model)....4-45

• VC-215 (IR Transmitter) Board ....................................4-46

• VC-215 (Mode Control) Board .....................................4-49

• SE-80/81 (Steady Shot) Board (TR713E & TRV series).4-52

• PJ-90/91 (AV OUT) Board ............................................4-55

• MA-345/346 (Mic, Laser Link) Board ..........................4-59

• CF-60 (Control (TR series)) Board ............................... 4-65

• CF-61 (Control (TRV series)) Board.............................4-72

• Control Switch Block (FK-8500/SS-8500) ...................4-79

• PD-107 (RGB Decorder, LCD Drive,

Back Light, LCD (TRV series)) Board..........................4-81

• PD-107 (RGB Decorder (TRV series)) Board............... 4-83

• PD-107 (LCD Drive (TRV series)) Board.....................4-86

• PD-107 (Back Light (TRV series)) Board.....................4-89

• PD-107 (LCD (TRV series)) Board...............................4-90

• VF-99 (B/W EVF (B/W EVF Model)) Board ...............4-92

• VF-119 (COLOR EVF (COLOR EVF Model)) Board ......4-95

• VF-120 (COLOR EVF (COLOR EVF Model)) Board ....4-100

• LB-54 (Back Light (Color EVF model)) Board .......... 4-102

• DD-117 (Power) Board ...............................................4-109

5. ADJUSTMENTS

5-1. Camera Section Adjustments ............................................5-1

1-1. Preparations before Adjustment (Camera Section) ..........5-1

1-1-1. List of Service Tools .................................................5-1

1-1-2. Adjusting Items when Repacing Main Parts .............5-2

1-1-3. Preparations...............................................................5-3

1-1-4. Precautions ................................................................ 5-6

1. Setting the Switch .....................................................5-6

2. Adjusting Procedure ..................................................5-6

3. Subject .......................................................................5-6

1-1-5. Adjusting Remote Commander.................................5-7

1. Using the Adjusting Remote Commander ................5-7

2. Precautions Upon Using the Adjusting

Remote Commander .................................................5-7

1-1-6. Data Processing .........................................................5-8

1-2. Initialization of D, E, F Page Data....................................5-9

1. Initializing the D, E, F Page Data .............................5-9

2. Modification of D, E, F Page Data...........................5-9

3. D Page Table ...........................................................5-10

4. F Page Table ............................................................5-11

5. E Page Table............................................................5-13

1-3. Camera System Adjustments .......................................... 5-15

1. G-CAM Flip Adjustment ........................................5-15

2. Hall Adjustment ......................................................5-16

3. Flange Back Adjustment .........................................5-17

3-1. Flange Back Adjustment (1) ...................................5-17

3-2. Flange Back Adjustment (2) ...................................5-17

4. Flange Back Check .................................................5-18

5. Picture Frame Setting ..............................................5-18

6. Color Reproduction Adjustment ............................. 5-19

7. IRIS IN/OUT Adjustment .......................................5-20

8. MAX GAIN Adjustment .........................................5-20

9. Auto White Balance Standard Data Input ...............5-21

10. Auto White Balance Adjustment.............................5-21

11. White Balance Check ..............................................5-22

12. Angular Velocity Sensor Sensitivity Check

(CCD-TR713E/TRV46E)........................................5-23

1-4. Color Electronic Viewfinder System Adjustments

(CCD-TR516E) ..............................................................5-24

1. EVF Initial Data Input.............................................5-24

2. VCO Adjustment (VF-119 board)...........................5-25

3. Bright Adjustment (VF-119 board).........................5-25

4. Contrast Adjustment (VF-119 board) .....................5-26

5. Backlight Consumption Current Adjustment

(VF-120 board) .......................................................5-26

6. White Balance Adjustment (VF-119 board) ........... 5-26

1-5. Monochrome Electronic Viewfinder

System Adjustments (B/W EVF model).........................5-27

1-5-1. Horizontal Slant Check ...........................................5-27

1-5-2. Centering Adjustment .............................................5-27

1-5-3. Focus Adjustment....................................................5-27

1-5-4. Aberration Adjustment ............................................5-28

1-5-5. Horizontal Amplitude Adjustment (VF-99 board) .. 5-28

1-5-6. Vertical Amplitude Adjustment (VF-99 board) .......5-29

1-5-7. Brightness Adjustments (VF-99 board) ..................5-29

1-5-8. Horizontal Amplitude, V ertical Amplitude,

Focus Check ............................................................5-29

1-6. LCD System Adjustment (TRV series)...........................5-30

1. LCD Initial Data Input ............................................ 5-30

2. VCO Adjustment (PD-107 board)...........................5-31

3. D Range Adjustment (PD-107 board) .....................5-31

4. Bright Adjustment (PD-107 board).........................5-32

5. Contrast Adjustment (PD-107 board) .....................5-32

6. V-COM Level Adjustment (PD-107 board) ............5-33

7. Color Adjustment (PD-107 board) ..........................5-33

8. V-COM Adjustment (PD-107 board) ......................5-34

9. White Balance Adjustment (PD-107 board) ........... 5-34

– 9 –

5-2. Mechanical Section Adjustment .....................................5-35

2-1. Operating without a Cassette..........................................5-35

2-2. Tape Path Adjustment ..................................................... 5-35

1. Preparations for Adjustments ..................................5-35

5-3. Video Section Adjustment .............................................. 5-36

3-1. Preparations before Adjustment......................................5-36

3-1-1. Equipments to be Used ...........................................5-36

3-1-2. Precautions on Adjusting ........................................5-37

3-1-3. Adjusting Connectors..............................................5-37

3-1-4. Connecting the Equipments ....................................5-38

3-1-5. Alignment Tape.......................................................5-38

3-1-6. Input/Output Level and Impedance......................... 5-40

3-1-7. Recording Mode (Standard 8/Hi8) Switching

(Hi8 model) ............................................................. 5-40

3-1-8. Service Mode ..........................................................5-40

1. Test Mode Setting ................................................... 5-40

2. Emergency Memory Address..................................5-41

2-1. EMG CODE (Emergency Code)............................. 5-41

2-2. MSW Codes ............................................................5-42

3. Bit Value Discrimination .........................................5-43

4. Switch Check (1) .....................................................5-43

5. Switch Check (2) .....................................................5-44

6. Headphone Jack Check ........................................... 5-44

7. Input/Output Selection Check .................................5-44

8. LED, LCD (Display Window) Check .....................5-45

9. Record of Use Check ..............................................5-45

3-2. System Control System Adjustment ............................... 5-46

1. Initialization of D, E, F Page Data ..........................5-46

2. Battery End Adjustment (VC-215 board) ...............5-46

3-3. Servo System Adjustments .............................................5-47

1. CAP FG Offset Adjustment (VC-215 board).......... 5-47

2. RF Switching Position Adjustment (VC-215 boar d) .....5-47

3-4. Video System Adjustments ..............................................5-48

1. 28 MHz Origin Oscillation Adjustment

(VC-215 board) ....................................................... 5-48

2. AFC f0 Adjustment (VC-215 board) ......................5-48

3. Filter f0 Adjustment (VC-215 board)...................... 5-49

4. Y OUT Level Adjustment (VC-215 board).............5-49

5. C OUT Level Adjustment (VC-215 board).............5-50

6. RP Filter f0 Adjustment (VC-215 board)................5-50

7. Hi8 REC Y Current Adjustment (VC-215 board) (CCD-TR515E/TR516E/TR713E

CCD-TRV36E/TRV46E) ........................................5-51

8. Standerd8 REC Y Current Adjustment (VC-215 board) (CCD-TR315E/TR415E/TR425E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP)........5-52

9. Hi8 REC L Level Adjustment (VC-215 board) (CCD-TR515E/TR516E/TR713E

CCD-TRV36E/TRV46E) ........................................5-53

10. Standard8 REC L Level Adjustment (VC-215 board) (CCD-TR315E/TR415E/TR425E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP)........5-54

11. REC C Current Adjustment (VC-215 board) ..........5-55

3-5. IR Transmitter Adjustments

(CCD-TR713E/TR V46E)........................................5-56

1. IR Video Carrier Frequency Adjustment

(VC-215 board) ....................................................... 5-56

2. IR Video Deviation Adjustment (VC-215 board)....5-56

3. IR Audio Deviation Adjustment (VC-215 board) ...5-57

3-6. Audio System Adjustment ...............................................5-58

1. 1.5 MHz Deviation Adjustment (VC-215 board)....5-58

2. BPF Adjustment (VC-215 board) ...........................5-58

3-7. Arrangement Diagram for Adjustment Parts ...................5-60

6. REPAIR PARTS LIST

6-1. Exploded Views .................................................................6-1

6-1-1. Remote Commander and Cassette Lid Assembly....6-1

6-1-2. Cabinet (L) and Battery Panel Assembly .................6-2

6-1-3. Front Panel Block Assembly....................................6-3

6-1-4. Cabinet (R) Block Assembly (TR series) ................6-4

6-1-5. Cabinet (R) Block Assembly (TRV series) .............. 6-5

6-1-6. Main Boards Block Assembly .................................6-6

6-1-7. Clolor EVF Block Assembly (CCD-TR516E) ..........6-7

6-1-8. B/W EVF Block Assembly

(CCD-TR315E/TR415E/TR425E/TR515E/TR713E

S and TRV series) ....................................................6-8

6-1-9. LCD Block Assembly (TRV series).........................6-9

6-1-10. Zoom Lens Block Assembly ..................................6-10

6-1-11. Cassette Compartment Assembly .......................... 6-11

6-1-12. LS Chassis Assembly .............................................6-12

6-1-13. Mechanism Chassis Assembly...............................6-13

6-2. Electrical Parts List ..........................................................6-14

– 10 –

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

SECTION 1

GENERAL

This section is extracted from instruction manual of CCD-TRV16E/TRV27E/TRV46E.

1-1

1-2

1-3

1-4

1-5

1-6

1-7

1-8

1-9

1-10

1-11

1-12

1-13

1-14

1-15

1-16

1-17

1-18

1-19

1-20

1-21

1-22

1-23

1-24

1-25E2-1

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

SECTION 2

DISASSEMBLY

The equipment can be removed using the following procedure.

VIDEO CAMERA RECORDER

2-1. FRONT PANEL BLOCK

VIDEO LIGHT BLOCK (Video light models only)

2-4. CABINET (R) BLOCK

2-5. CASSETTE LID ASSEMBLY

2-6. BATTERY PANEL BLOCK

2-7. CABINET (L) BLOCK

2-9. ZOOM LENS BLOCK

VL-21/22 BOARD

2-11. VC-215 & SE-80/81 BOARDS

2-2. LB-54/VF-119 & 120 BOARDS

(Color view finder models only)

2-3. CRT/VF-99 BOARD

(B/W view finder models only)

2-12. VIEW FINDER BLOCK

2-8. CONTROL SWITCH BLOCK

(FK-8500)

NOTE : Follow the disassembly procedure in the numerical order given.

2-5. CASSETTE LID ASSEMBLY

2-13. CONTROL SWITCH BLOCK (MF-8500)

TR COVER (TR series) CF-60 BOARD (TR series) LCD BLOCK (TR series)

2-14. IR COVER (TRV series)

CF-61 BOARD (TRV series) LCD PANEL (TRV series)

2-10. DD-117 & PJ-90/91 BOARDS

2-1. REMOVAL OF FRONT PANEL BLOCK AND VIDEO LIGHT BLOCK

—Video light models—

CCD-TR515E/TR516E/TR713E CCD-TRV36E/TRV46E

Two screws (M2 x 4)

Claw

Two screws (M2 x 4)

Screw (M2 x 4)

Screw (M 2x 4)

FP-56 flexible board CN303, 18P

Cabinet (LT)

Front panel block

Video light block

Two claws

—No video light models—

CCD-TR315E/TR415E/TR425E CCD-TRV16E/TRV26E/TRV27E/TRV27EP

Two screws (M2x4)

Two screws (M2 x 4)

Claw

Cabinet (N)

Screw (M2x4)

Front panel bloc

Screw (M2x4)

FP-56 flexible board CN303, 18P

2-2. REMOVAL OF LB-54, VF-119 AND VF-120 BOARDS

(Color view finder model CCD-TR516E)

Tilt-up the EVF block to the direction of arrow

Remove the EVF rear cabinet assembly to the direction of arrow

!£

Two screws (M2 x 3)

VF-119 board

VF-119

!™

LCD cushion (1)

!¡

LCX024AK-5 CN5402, 16P

Four claws

Three claws

FP-57 flexible board CN5401,20P

LB-54

LB-54 board

Flexible retainer sheet

!º

Back light cushion Turn the cushion (Sponge rubber)

face to the LB-54 board side for

()

installation.

FP-57 flexible board CN5301,8P

VF-120

VF light interception sheet

2-3. REMOVAL OF VF-99 AND CRT ASSEMBLY

(B/W view finder model CCD-TR315E/TR415E/TR425E/TR515E/TR713E and TRV series)

Tilt-up the EVF block to the direction of arrow

Remove the EVF rear cabinet assembly to the direction of arrow

Three screws (M2 x 3)

CRT assembly

VF electrostatic sheet

CRT holder assembly

VF-99

VF-120 board

2-2

8

VF-99 boar

5

Flexible flat cable(FCC-235) CN5803,4P

2-4. REMOVAL OF CABINET (R) BLOCK

)

Two screws (M2 x 4)

Harness (PD-108)

Two screws (M2 x 4)

Flat cable (FFC-257) CN911, 45P

Cabinet (R) block

Three screws (M2 x 4)

IR knob

Battery panel block

Connector CN801, 7P

Two screws (M2 x 4)

Note : Be sure to that the pin of the Lens assembly is put into the

hole of the IR knob when attaching.

Flat cable (FFC-257 CN911, 45P

Two screws (M2 x 4)

Three screws (M2 x 4)

(TRV series) (TR series)

Cabinet (R) block

IR knob

Two screws (M2 x 4)

2-5. REMOVAL OF CASSETTE LID ASSEMBLY 2-6. REMOVAL OF BATTERY PANEL BLOCK

Two screws (M2x4)

Cassette lid assembly

2-3

2-7. REMOVAL OF CABINET (L) BLOCK 2-8. REMOVAL OF CONTROL SWITCH BLOCK

Function Key Switch (FK-8500)

Cabinet (L) block

Screwdriver(

1

Remove the Function key switch in the direction of arrow with pushing

)

the claw.

Flexible connector CN935, 10P

Flexible connector CN934,12P

Screw (M2 x 3)

2-9. REMOVAL OF ZOOM LENS BLOCK AND VL-21/22 BOARD

—Video light models—

CCD-TR515E/TR516E/TR713E CCD-TRV36E/TRV46E

—No video light models—

CCD-TR315E/TR415E/TR425E CCD-TRV16E/TRV26E/TRV27E/TRV27EP

Screw (M2 x 3)

Two claws

No video light models

FP-623 flexible board CN501, 16P

Lens flexible board CN551, 23P

CN909

Two screws (M2 x 3)

Shoe bracket

Screw (M2 x 3)

Zoom lens block

RP shield assembly

Screw (M2 x 3)

CCD-TR415E/TR425E/TR515E/TR713E CCD-TRV26E/TRV27E/TRV36E/

TRV46E:AEP,UK,EE,NE,RU

Screw (M2 x 3)

!£

!™

VL-21/22 board

!¡

Screw (M2 x 3)

Video light models

FP-58 flexible board (VC side)CN909, 4P (VL side)CN151, 4P

2-4

2-10. REMOVAL OF VC-215, SE-80/81, DD-117 AND PJ-90/91 BOARDS

FP-220 flexible board

!¡

Flexible board

CN905, 10P from drum motor

!™

FP-248 flexible board

CN905, 12P

Flexible board

CN001, 16P from video head

CN901, 8P from loading motor

!¡

Two screws (M2 x 3)

!¢

FP-56 flexible board CN916, 18P

!§

Screw (M2x3)

!∞

FP-621 flexible board CN902, 12P

FP-620 flexible board

(VC side) CN904, 10P (SE side) CN650, 10P

Four screws (M2x3)

!•

VC-215 board

!£

FP-221 flexible board

CN908, 15P

CN931, 70P

DD-117 board

Three screws (M2 x 3)

2-11. REMOVAL OF VIEW FINDER BLOCK

—Color view finder—

CCD-TR516E

VF flexible retainer sheet

Tapping screw

DD-117 board

VC-215

board

SE-80/81

SE-80/81 board

CCD-TR713E & TRV series

FP-621 flexible boar

PJ-90/91 board

Two screws (M2 x 4)

CN101, 12P

—B/W view finder—

CCD-TR315E/TR415E/TR425E/TR515E/TR713E and TR V series

VF flexible retainer sheet

Tapping screw

FP-57 flexible board CN007, 20P

VF base assembly

Three tapping screws

Tilt-up the EVF block to the direction of arrow.

Flat cable (FFC-235) CN008, 4P

2-5

Tapping screw

VF base assembly

Three tapping screws

Tilt-up the EVF block to the direction of arrow.

2-12. REMOVAL OF TR COVER, CF-60 BOARD AND DISPLAY PANEL ...(TR series)

!∞



FP-57 flexible board...(Color EVF type only) CN007, 20P Flat cable (FFC-235)...(B/W EVF type only) CN008, 4P

Two tapping screws



Flat cable (FFC-257) CN001, 50P

Two tapping screw

Flexible connector CN002, 8P

Two tapping screws

!¢

LCD holder

Liquid crystal display panel

!™

!¡

Two tapping screws

Hole

Three tapping screws

Control switch block (MF-8500)

CF-60 board

CF-60

!£

CN009

Two tapping screws

Phase adjustment

S024

S015

!¶

Claw

TR cover assembly

Link plate spring

!§

IR kno

2-13. REMOVAL OF IR COVER, CF-61 BOARD AND LCD PANEL...(TRV series)

!¶

LCD panel

Hole

!¡

Three tapping screws

!§

Four tapping screws



Flat cable (FFC-257) CN001, 45P

CF-61 board

Four tapping screws

Flexible connector CN002, 8P

Two tapping screws

Phase adjustment

S024



Flat cable (FFC-235) CN008, 4P

!™

Two tapping screws

CN008

CF-61

Harness

Harness (PD-108)

Three tapping screws

Control switch block (MF-8500)

Claw

!£

IR cover assembly

!∞

Link plate spring

!¢

IR kno

2-6

CPC-7 jig (J-6082-382-A) VC-215 board : CN910, 16P

VC-215 board

Screw (M2x3)

Cabinet (R) block

PJ-90 board

Front panel block

Cabinet (L) block

DD-117 board

Battry panel block

Control switch block (FK-8500)

Extension cord 70P (J-6082-439-A) DD-117 board : CN931 — VC-215 board : CN915

2-14. SERVICE POSITION

Preparation : Refer to previous section “DISASSEMBLY”, and con-

nect as shown in the figure after each parts has been removed.

—TR series—

—TRV series—

Extension cord 70P (J-6082-439-A) DD-117 board : CN931 — VC-215 board : CN915

Control switch block (FK-8500)

Battry panel block

DD-117 board

Cabinet (L) block

CPC-7 jig (J-6082-382-A) VC-215 board : CN910, 16P

VC-215 board

Screw (M2 x 3)

Cabinet (R) block

LCD panel bloc

PJ-91 board

Front panel block

2-7

2-15. CIRCUIT BOARDS LOCATION

Color EVF models only

LB-54...

VF-119... (Color EVF)

DD-117 (Power)

Color EVF models only

(Back light)

VF-120... (Color EVF)

CF-60... (Control)

Color EVF models only

TR series only

TR515E/TR516E/TR713E

VL-21... VL-22...

TRV36E/TRV46E

(Video light)

PJ-90... PJ-91... (AV Out)

TR series TRV series

VF-99...

B/W EVF models only

(B/W EVF)

CD-210... CD-211... (CCD imager)

TR series only TRV series only

PD-107...

TRV series only

RGB decoder, LCD, LCD drive, Back light

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

MA-345... MA-346... (Mic, Laser link)

TR series TRV series

CF-61...

TRV series only

(Control)

2-16. FLEXIBLE BOARDS AND FLAT CABLES LOCATION

FP-57...

Color EVF models only

Stand-by, Start/Stop

(SS-8500)

Back light...

Color EVF models only

Zoom lens

FP-623

FP-58...

Video light models only

FP-355

Flat cable (FFC-235)...

FP-356

SE-80... SE-81... (Steady shot)

B/W EVF models only

TR713E only TRV series only

FP-680

Flat cable (FFC-257)

FP-621

FP-56

FP-249

FP-248

FP-221

Function key

(FK-8500)

Capstan motor

2-8

Video head

Drum motor

FP-220

FP-642...

FP-620...

TRV series onl

Manual focus

(MF-8500)

TR713E &TRV series only

SECTION 3

BLOCK DIAGRAMS

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

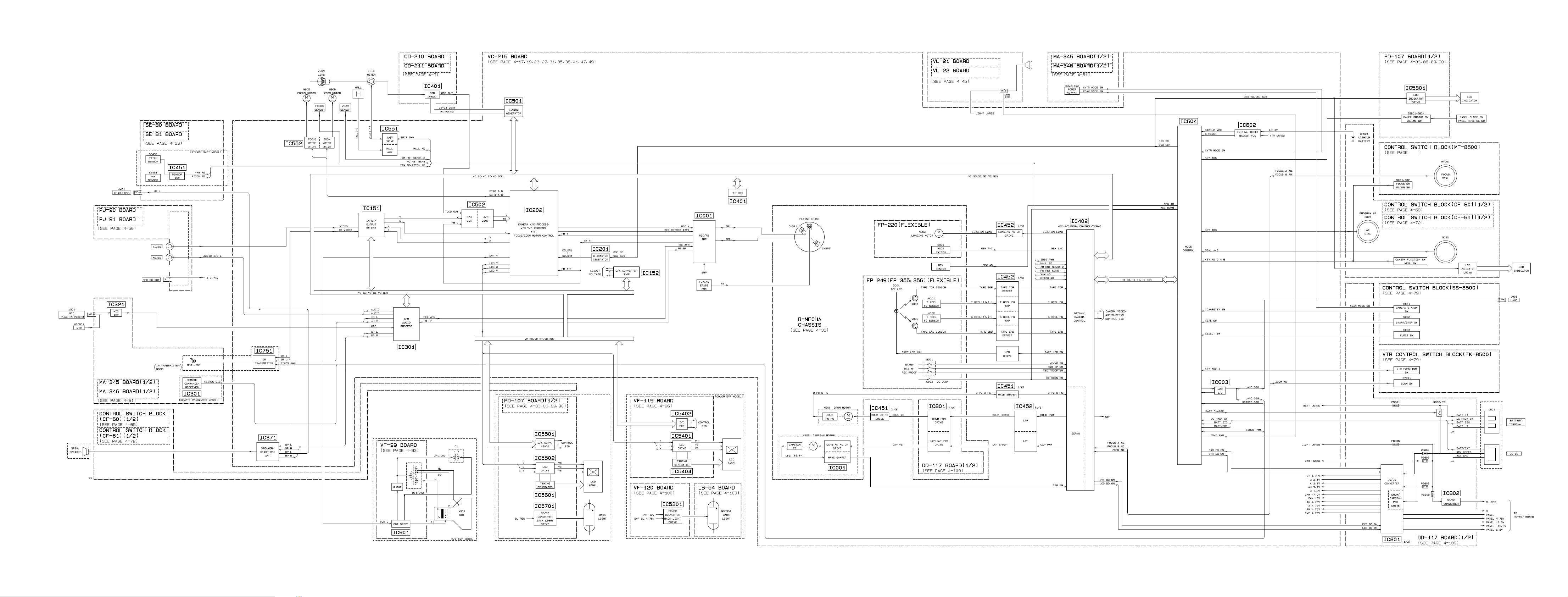

3-1. OVERALL BLOCK DIAGRAM

( TR SERIES )

( TRV SERIES )

( TR713E )

( TRV SERIES )

( TR SERIES )

( TRV SERIES )

(VIDEO LIGHT MODEL)

(CCD-TR515E/TR516E/TR713E)

(CCD-TRV36E/TRV46E)

VIDEO LIGHT

( TR SERIES )

( TRV SERIES )

4-69

( TR SERIES )

( TRV SERIES )

( TR SERIES )

SELECT

( TRV SERIES )

( TR SERIES )

( TRV SERIES )

( TR SERIES )

( TRV SERIES )

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/TRV16E/TRV26E/TRV27E/

COLOR EVF MODEL : CCD-TR516E REMORT COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/TRV27E/TRV27EP/TRV36E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TRV46E/TR713E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV27EP/TRV36E/TRV46E

TRV46E

I/O L I/O R

T901/T902

( TRV SERIES )

3.1V

3-1 3-2

3-3

3-4

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

3-2. CAMERA/VIDEO 1 BLOCK DIAGRAM

( TR SERIES )

( TRV SERIES )

1.3Vp-p

IC401

CAMERA REC

IC502

CAMERA REC

0.3Vp-p

CAMERA REC

0.4Vp-p

IC202

1.3Vp-p

CAMERA REC

IC202

0.5Vp-p

CAMERA REC

IC001

0.3Vp-p

5 21

TRIG : IC001

CAMERA REC

IC001

44 48

3Vp-p

3.1

7Vp-p

IC401

3 4

IC401

1 2

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/TRV16E/TRV26E/TRV27E/

COLOR EVF MODEL : CCD-TR516E

TRV27EP/TRV36E/TRV46E

( TR SERIES )

( TRV SERIES )

CAMERA REC

IC202

0.4Vp-p

IC001

0.4Vp-p

3.2Vp-p

0.14usec

IC502

—

3.1

2 10

0.4Vp-p

IC502

7Vp-p

CAMERA REC

14.18 MHz

IC501

11 12,

2.3Vp-p

3.1

CAMERA REC

28.375 MHz

IC501

2.3Vp-p

CAMERA REC

3Vp-p

IC501

IC001

0.4Vp-p

IC001

CAMERA REC

4.12 MHz

Q001

7Vp-p

CAMERA REC

IC001

2.9Vp-p

CAMERA REC

3Vp-p

IC501

IC151 62

1.6Vp-p

IC151

0.46Vp-p

CAMERA REC

IC202

CAMERA REC

4.43 MHz

IC202

0.84Vp-p

3.1Vp-p

CAMERA REC

IC202

CAMERA REC

3Vp-p

IC201

0.34Vp-p

CAMERA REC

IC202

0.9Vp-p

CAMERA REC

IC201

3Vp-p

( TRV SERIES )

3-5

( TR SERIES )

( TRV SERIES )

IC151 29

0.32Vp-p

IC151

2.1Vp-p

CAMERA REC

0.18Vp-p

IC202

CAMERA REC

IC202

0.18Vp-p

CAMERA REC

IC202

3Vp-p

CAMERA REC

7.16 MHz

IC201

3.2Vp-p

3.1

3Vp-p

IC202

3-6 3-7

3-8

3-3. VTR/CAMERA CONTROL BLOCK DIAGRAM

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

( TR713E only )

( TRV SERIES )

3.1V

1.7Vp-p

20 MHz

IC402 1

3.1V

13usec

IC402

3.1V

IC402

3Vp-p

3.1V

3.1V TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E COLOR EVF MODEL : CCD-TR516E STEADY SHOT MODEL : CCD-TR713E/TRV46E

3Vp-p

IC402

( TR SERIES )

3.1V

3-9

3-10

( TRV SERIES )

3.1V

3-11

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

3-4. SERVO BLOCK DIAGRAM

2.8msec

IC402

3Vp-p

116

13usec

IC402

506 kHz

IC801

0.76Vp-p

3.1V

1.2Vp-p

5.6msec

IC451

1 2 29,,

3.1V

IC402

3Vp-p

117

D 3.1V

1.2msec

IC402

3Vp-p

115

3Vp-p

13usec

IC402

507 kHz

IC801

0.76Vp-p

3-12

3-13 3-14

3-5. MODE CONTROL BLOCK DIAGRAM

( TR SERIES )

( TRV SERIES )

SELECT

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

( TRV SERIES )

( TR SERIES )

( TRV SERIES ) ( TRV SERIES )

( TR SERIES )

( TRV SERIES )

( TR SERIES )

( TRV SERIES )

20 MHz

IC604 41

32 kHz IC604 52

1.5Vp-p

2.6Vp-p

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/TRV27E/TRV27EP/TRV36E/TRV46E VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E

3.1V

3-15 3-16

( VIDEO LIGHT MODEL )

3-17

( VIDEO LIGHT MODEL )

( CCD-TR515E/TR516E/TR713E )

( CCD-TRV36E/TRV46E )

VIDEO

LIGHT

3-18

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

3-6. AUDIO BLOCK DIAGRAM

CAMERA REC

IC301

IC751

0.09usec

IC751

0.7Vp-p

0.34Vp-p

3.1V

0.5Vp-p

IC751

0.4Vp-p

IC301

IC751

0.5Vp-p

0.25Vp-p

4.43 MHz

IC751 7

0.36Vp-p

( TR716 only )

2usec

0.09usec

CAMERA REC

4.43 MHz

IC301 32

0.26Vp-p

CAMERA REC

IC301

( TR713E )

3.1V

2.9Vp-p

( TRV SERIES )

( TRV SERIES )( TR SERIES )

( TR SERIES )

( TRV SERIES )

( TR SERIES )

( TRV SERIES )

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/TRV27E/TRV27EP/TRV36E/TRV46E

3-19

3-20 3-21

3-22

3-9. B/W EVF BLOCK DIAGRAM

B/W EVF MODEL

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

( TR SERIES )

( TRV SERIES )

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/TRV16E/

TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

IC901

T901(TYPE3) T902(TYPE2)

IC901

2.2Vp-p

1Vp-p

3-29 3-30

3-31

3-32

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

3-10. POWER BLOCK DIAGRAM

( VIDEO LIGHT MODEL )

( CCD-TR515E/TR516E/TR713E )

( CCD-TRV36E/TRV46E )

VIDEO

3.1V

( TR SERIES )

( TRV SERIES )

3.1V

( TR SERIES )

( TRV SERIES )

3.1V

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/TRV16E/TRV26E/TRV27E/

COLOR EVF MODEL : CCD-TR516E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TRV46E/TR713E LASER LINK MODEL : CCD-TR713E/TRV46E

3.1V

TRV27EP/TRV36E/TRV46E

4. 75VMT

3.1V

( TR SERIES ) ( TRV SERIES )

3.1V

( TRV SERIES )

( TR SERIES )

( TRV SERIES )

( TR713E )

( TRV SERIES )

3-33

3-34

3-35

3-36 E

PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

4-1. FRAME SCHEMATIC DIAGRAM (1)

SECTION 4

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TR V46E

(TRV SERIES)

(TR SERIES)

(TRV SERIES)

(TR SERIES)

COLOR EVF MODEL

W/B EVF MODEL

(TRV SERIES)

(TR SERIES)

(TR SERIES) (TRV SERIES)

(TR SERIES)

(TRV SERIES)

(TR713E)

( TR713E & TRV SERIES )

( VIDEO LIGHT MODEL )

( TR515E/TR516E/TR713E )

( TRV36E/TRV46E )

(TR SERIES) (TRV SERIES)

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

4-1

4-2

4-3

FRAME

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

FRAME SCHEMATIC DIAGRAM (2)

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

(TRV SERIES)

FRAME

4-4

4-5 4-6

4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

IC401 ICX207AK-43 IC401 ICX243AK-43

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TR V46E

CD-210/211 (CCD IMAGER) PRINTED WIRING BOARD

– Ref No. CD-210 BOARD: 4,000 series, CD-211 BOARD: 9,000 series –

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

• For printed wiring boards.

• b : Pattern from the side which enable seeing. (The other layer's patterns are not indicated.)

• Circled numbers refer to waveforms.

• Through hole is omitted.

• There are few cases that the part printed on diagram isn’t

mounted in this model.

• Chip parts.

Transistor Diode

C Q

132

5 46

5 64

312

534

3213

• Measuring conditions voltage value and waveform.

• The object is color bar chart of pattern box.

• Voltages and dc between ground and measurement points. Readings are taken with a digital multimeter (DC 10MΩ).

• Voltages variations may be noted due to normal production tolerances.

1.Connection

Pattern box

• For schematic diagrams.

• All capacitors are in µF unless otherwise noted. pF: µµF. 50 V or less are not indicated e xcept for electrolytics and tantalums.

• Chip resistor are 1/16W unless otherwise noted. kΩ : 1000Ω, MΩ : 1000kΩ.

• Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, because it is damaged by the heat.

• Some chip part will be indicated as follows. Example C541 L452

22U 10UH

TA A 2520

Kinds of capacitor

(

Temperature chracteristics

External dimensions (mm)

• Constants of resistors, capasitors, ICs and etc with XX indicate tha they are not used. In such cases, the unused circuits may be indicated.

• Parts with differ according to the model/destination. Refer to the mount table for each function.

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

• Signal name XEDIT n EDIT PB/XREC n PB/REC

• 2 : non flammable resistor.

• 1 : fusible resistor.

• H : panel designation.

• A :B+ Line

• B :B– Line

• J : IN/OUT direction of (+, –) B LINE.

• C :adjustment for repair.

• Circled numbers refer to w aveforms.

The components identified by mark !or dotted line with mark ! are critical for safety. Replace only with part number specified.

When indicating parts by reference number, please include the board name.

Refer to page 3 as for “Table for difference of functions” of models and classification.

2.Adjust the distance so that the output waveform of Fig. a and the Fig. b can be obtain.

Lens reference plane surface lmaging surface of CCD imager (IC401 on CD-210/211 board)

Yellow

Cyan

Green

A=B

Fig. a (Video output terminal output waveform)

Electron beam scanned frame

Cyan

White

Green

Yellow

Magenta

Fig. b (Picture on monitor TV)

1.5m

White

Red

Magenta

Red

Blue

CRT picture frame

CD-210/211 BOARD (SIDE B)

CD-210/ CD-211 BOARD

C401 A-3 C403 B-3 C405 A-3 C406 A-3 C407 B-3 CN401 B-4

IC401 A-1 L401 B-1 Q402 B-3 R401 A-3

R404 B-3 R405 A-3 R406 B-4

1234

• For Printed Wiring Boards.

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip transistor

C Q

TRV series only

CF-61... (Control)

CD-210/211 BOARD (SIDE A)

1-672-4581-672-464-

VF-99...

B/W EVF models only

(B/W EVF)

CD-210...

TR series only

CD-211...

TRV series only

(CCD imager)

PD-107...

TRV series only

RGB decoder, LCD, LCD drive, Back light

SE-80...

TR713E only

SE-81...

TRV series only

(Steady shot)

11 11 21

TR SERIES:CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E LASER LINK MODEL:CCD-TR713E/TRV46E

CD-210/211 BOARD CAMERA REC

IC401

1 2

IC401

3 4

IC401

7Vp-p

1.3Vp-p

( TR SERIES )

( TRV SERIES )

IC401(CCD IMAGER) ICX207AK-43 TR315E/TR415E/TR425E/TR515E/TR516E/TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E ICX243AK-43 TR713E/TRV46E

Note on the CCD imager replacement

• The CCD imager is not mounted for the already mounted CD-210/211 board supplied as the repair parts. When replacing the CD-210/211 board, remove the CCD imager from the old board and install on the new board.

• Perform all adjustments of the camera block when the CCD imager has been replaced.

• Handle the CCD imager with attention such as MOS IC as it may be broken by static electricity in the structure. Also, prevent the receiving light section from dust attached and strong light.

4-7

4-8

4-9

CCD IMAGER

CD-210/211

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

VC-215 BOARD (SIDE B)

123456789

1-672-456-

11 21

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 BOARD (SIDE B)

C002 A-5 C003 A-5 C008 A-4 C011 B-5 C012 B-5 C013 B-6 C014 B-6 C015 B-5 C016 B-5 C017 B-5 C019 B-5 C020 B-6 C022 B-5 C025 B-6 C038 B-6 C040 B-6 C042 B-5 C043 B-5 C048 B-6 C050 C-6 C051 B-5 C054 B-5 C056 B-5 C058 B-6 C060 C-5 C066 B-6 C067 C-6 C068 C-6 C069 C-5 C070 C-6 C072 C-6 C074 C-6 C076 C-5 C080 C-5 C083 C-5 C086 C-4 C087 C-4 C090 C-6 C152 D-8 C157 E-8 C158 E-8 C159 C-8 C174 D-8 C175 D-8 C176 D-8 C182 D-8 C183 D-8 C190 D-8 C191 C-7 C192 C-7 C202 D-3 C203 D-3 C205 E-4 C206 D-4 C207 D-3 C208 D-3 C209 D-6 C210 D-6 C211 E-3 C212 D-3 C213 D-5 C217 D-4 C218 D-4

• For Printed Wiring Boards.

• This board is four-layer print board. However, the patterns of

layers 2 to 3 have not been included in the diagram.

C227 D-5 C229 E-5 C232 D-3 C233 D-5 C234 D-5 C235 D-3 C236 D-3 C239 E-4 C241 E-3 C243 F-3 C244 F-3 C246 D-4 C247 D-4 C249 E-4 C252 F-3 C301 B-9 C302 C-9 C348 F-7 C371 E-8 C372 E-7 C378 F-7 C380 E-7 C381 E-7 C382 F-8 C383 E-8 C384 E-8 C385 E-8 C386 F-8 C387 F-8 C388 E-8 C402 C-1 C451 A-3 C452 A-3 C453 A-3 C454 A-3 C455 A-3 C456 A-4 C457 A-3 C458 A-4 C459 A-4 C460 A-4 C461 A-3 C462 A-4 C463 A-3 C464 B-3 C465 B-4 C466 B-3 C467 B-3 C468 B-3 C469 B-4 C470 B-4 C471 B-4 C473 A-1 C474 A-2 C475 A-2 C476 A-2 C477 A-2 C478 A-2 C479 A-2 C479 A-2 C480 A-2 C481 A-1 C483 A-2

C484 A-2 C485 A-1 C504 E-6 C505 E-6 C506 E-7 C507 E-6 C508 F-5 C509 E-6 C510 E-6 C514 E-5 C515 E-5 C553 G-6 C554 G-7 C556 G-7 C557 G-5 C558 G-5 C559 F-7 C563 F-6 C564 F-6 C566 G-7 C569 G-6 C572 F-6 C607 E-2 C610 F-2 C611 F-2 C613 E-1 C625 E-2 C626 E-2 C627 F-2 C630 F-3 C634 F-3 C636 F-2 C704 F-7 C714 F-8 C715 F-8 C751 B-7 C752 A-7 C753 A-7 C754 A-7 C755 A-7 C756 A-7 C758 A-8 C759 B-7 C760 B-7 C761 B-8 C762 B-8 C763 B-8 C764 B-8 C765 A-8 C766 A-8 C767 B-8 C768 B-8 C769 A-8 C770 A-8 C771 B-8 C772 A-8 C773 B-8 C774 A-8 C775 A-8 C776 B-9 C777 A-9 C778 B-9 C781 B-8

CN904 A-9 CN910 D-1

D001 C-4 D201 D-3 D202 D-3 D371 E-8 D502 F-5 D604 F-2 D608 F-1 D609 F-2 D610 E-2 D611 E-2 D612 E-2

FB204 F-3 FB205 F-3 FB503 E-5 FB504 E-5

IC152 C-8 IC201 E-4 IC204 F-4 IC371 E-7 IC401 C-2 IC451 A-4 IC452 A-2 IC501 E-6 IC552 G-6 IC602 E-2 IC603 F-1 IC751 B-8

L002 B-4 L003 B-4 L007 C-6 L008 C-6 L010 C-6 L011 C-6 L015 C-5 L019 B-6 L152 D-8 L204 D-4 L205 D-6 L206 D-3 L552 F-7 L602 E-3 L701 F-7 L702 F-7 L704 F-8 L751 B-8 L752 B-8 L753 B-8

Q003 A-5 Q004 A-6 Q005 A-5 Q006 A-5 Q007 A-6 Q008 B-6 Q009 B-6 Q010 B-5 Q011 B-5

Q012 B-5 Q016 B-5 Q017 B-6 Q018 C-5 Q019 C-6 Q021 B-6 Q023 C-6 Q025 C-6 Q026 C-6 Q030 C-5 Q031 C-5 Q032 C-7 Q038 C-5 Q039 C-5 Q041 B-5 Q042 C-4 Q151 D-8 Q204 D-5 Q205 E-5 Q208 D-6 Q217 D-4 Q303 C-9 Q306 B-9 Q307 C-9 Q451 B-3 Q454 A-1 Q455 A-1 Q551 G-7 Q607 F-2 Q619 E-3 Q705 F-7 Q901 D-2

R001 A-6 R002 A-6 R008 A-4 R009 A-5 R010 B-6 R011 B-5 R012 B-5 R013 B-6 R014 B-4 R015 B-5 R016 B-6 R017 B-6 R018 B-5 R019 B-5 R020 B-4 R021 B-5 R022 C-5 R023 B-6 R025 B-6 R029 B-5 R031 B-5 R040 B-5 R041 B-5 R042 B-5 R047 B-5 R048 B-5 R049 B-6 R050 B-6 R051 B-6 R056 B-6

R058 B-6 R066 B-6 R067 C-6 R068 C-6 R069 C-6 R070 C-6 R076 C-6 R077 C-6 R078 C-6 R079 C-6 R080 C-6 R083 C-5 R084 C-5 R087 C-5 R088 C-5 R089 C-5 R090 C-5 R094 C-5 R095 D-7 R105 C-6 R106 C-6 R109 B-4 R110 B-4 R112 C-7 R152 D-8 R154 D-8 R157 D-8 R179 D-8 R180 D-8 R183 E-8 R184 E-7 R185 D-7 R186 D-7 R188 D-8 R189 C-7 R190 C-8 R202 D-3 R203 D-4 R204 D-3 R205 D-3 R206 D-4 R208 D-3 R210 D-3 R211 D-3 R212 D-5 R214 E-5 R215 D-5 R216 D-5 R217 E-4 R223 D-3 R224 D-3 R226 D-4 R240 D-4 R244 D-3 R245 D-4 R246 D-3 R247 D-3 R248 E-3 R249 E-3 R250 F-3 R254 D-2 R255 E-5 R257 D-4

R260 D-3 R261 E-4 R262 D-4 R263 E-6 R264 E-4 R265 E-4 R266 E-4 R267 D-4 R304 B-9 R305 C-9 R306 B-9 R307 C-9 R312 C-9 R324 B-9 R326 C-9 R327 C-9 R371 E-8 R372 E-8 R373 D-9 R374 E-8 R376 E-8 R377 E-8 R378 E-8 R379 E-7 R382 E-8 R383 E-8 R384 E-7 R385 F-8 R386 F-8 R388 E-8 R389 E-8 R403 C-2 R404 C-3 R415 B-2 R416 B-2 R417 B-2 R418 B-2 R426 C-2 R427 B-2 R428 B-2 R429 B-2 R430 B-2 R432 C-2 R433 C-2 R434 C-2 R435 B-2 R442 B-2 R443 C-2 R452 A-3 R453 A-3 R454 A-3 R455 A-3 R456 A-3 R457 A-3 R459 A-3 R460 A-3 R461 A-3 R462 A-3 R463 A-3 R467 A-2 R468 A-2 R469 A-2 R470 A-2

R471 A-2 R472 A-2 R473 A-1 R475 A-1 R477 A-2 R479 A-2 R480 A-2 R481 A-2 R482 A-2 R483 A-1 R484 A-1 R485 A-1 R486 B-1 R487 A-1 R504 E-6 R508 E-5 R510 E-5 R511 E-5 R512 F-5 R527 E-5 R530 F-7 R535 E-5 R536 E-5 R537 E-6 R552 G-6 R555 G-7 R563 G-5 R564 G-6 R566 G-5 R567 G-6 R570 F-5 R579 G-6 R582 G-6 R584 G-7 R603 F-2 R604 F-2 R608 F-2 R612 E-1 R618 F-1 R619 F-1 R620 F-1 R621 F-1 R622 F-2 R624 F-1 R625 F-2 R627 F-2 R628 F-2 R629 F-1 R630 F-2 R631 G-2 R632 G-1 R633 E-2 R634 E-2 R635 E-2 R636 E-2 R637 G-2 R638 G-2 R639 G-2 R640 F-2 R641 F-3 R642 G-2 R643 F-2 R644 G-2

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 (CAMERA, Y/C PROCESSOR, IN/OUT, REC/PB HEAD AMP, SERVO/SYSTEM CONTROL, SERVO, AUDIO, IR TRANSMITTER, MODE CONTROL) PRINTED WIRING BOARD

– Ref No. VC-215 BOARD: 1,000 series –

R645 E-2 R646 F-2 R647 F-2 R648 F-2 R649 F-2 R651 F-2 R652 F-3 R653 F-3 R654 F-3 R655 F-2 R662 E-3 R663 F-3 R664 F-2 R665 F-3 R678 F-3 R686 E-2 R687 E-2 R689 F-3 R691 F-2 R692 F-1 R704 G-8 R705 G-7 R716 G-8 R717 F-8 R718 F-7 R719 F-8 R723 F-7 R752 A-7 R753 A-7 R754 B-7 R755 B-7 R756 B-7 R757 A-7 R758 A-7 R759 A-7 R760 B-8 R761 A-8 R762 A-8 R763 A-8 R764 B-8 R765 B-8 R766 A-8 R767 B-8 R768 A-8 R770 A-8 R771 A-8 R772 A-8 R773 B-8 R774 B-9 R775 A-8 R922 D-1 R923 C-1 R924 D-1 R925 D-1 R926 D-1 R927 D-2 R933 D-2

TH401 C-4 X151 D-7

X401 C-3 X501 F-5

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip transistor Chip diode

C Q

VF-119... (Color EVF)

DD-117 (Power)

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

5 46

132

Color EVF models only

21321321

Color EVF models only

LB-54... (Back light)

Color EVF models only

VF-120... (Color EVF)

CF-60...

TR series only

(Control)

VL-21... VL-22... (Video light)

MA-345... MA-346... (Mic, Laser link)

TR515E/TR516E/TR713 TRV36E/TRV46E

PJ-90...

TR series

PJ-91...

TRV series

(AV Out)

TR series TRV series

4-10

4-11

CAMERA, Y/C PROCESSOR, IN/OUT, REC/PB HEAD AMP, SERVO/SYSTEM CONTROL, SERVO, AUDIO, IR TRANSMITTER, MODE CONTROL

VC-215 (SIDE B)

4-12

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 BOARD (SIDE A)

10 11 12 13 14 15 16 17 18

VC-215 BOARD (SIDE A)

C001 A-13 C004 A-14 C005 B-14 C006 B-14 C007 A-13 C010 B-13 C018 B-14 C021 A-14 C023 A-13 C024 A-13 C026 B-13 C027 B-13 C028 B-12 C029 B-13 C030 B-14 C031 B-13 C032 B-13 C033 B-14 C034 B-14 C035 C-14 C036 B-13 C037 B-14 C039 B-14 C041 B-14 C044 B-13 C045 B-14 C046 C-14 C047 B-14 C049 C-14 C052 C-13 C053 C-14 C055 C-13 C057 C-13 C059 C-12 C061 C-13 C062 C-14 C065 C-14 C071 C-15 C073 C-13 C078 C-14 C079 C-13 C081 C-14 C082 C-14 C084 D-14 C085 C-14 C088 C-14 C089 C-13 C156 E-12 C160 D-12 C161 E-12 C162 E-11 C163 E-11 C164 D-11 C166 D-12 C168 D-11 C169 D-12 C170 D-11 C171 D-12 C172 D-12 C173 D-12 C177 D-12 C178 D-12 C179 D-12 C180 D-12 C181 C-11 C184 D-11 C185 C-12 C186 E-11 C187 C-11 C188 C-12 C189 C-12 C201 E-16 C219 D-15 C224 D-15 C225 D-15 C226 E-16 C230 D-15 C237 D-16 C245 D-15 C248 E-16 C250 D-15 C275 C-13 C304 B-12 C306 B-10 C307 A-10 C308 B-10 C309 B-10 C310 B-10 C312 A-10 C313 B-10 C314 A-11 C315 B-10 C316 B-10 C317 A-11 C319 B-11 C320 A-10 C321 A-10 C322 C-11 C323 A-11 C324 A-11 C325 C-11 C326 C-11 C327 A-11 C328 C-11 C329 A-11 C330 C-11 C331 C-11 C332 A-11 C333 A-11 C334 C-12 C335 A-11

1-672-456-

11 21

4-144-13

CAMERA, Y/C PROCESSOR, IN/OUT, REC/PB HEAD AMP, SERVO/SYSTEM CONTROL, SERVO, AUDIO, IR TRANSMITTER, MODE CONTROL

VC-215 (SIDE A)

C336 C-11 C337 A-11 C338 C-12 C339 A-11 C340 C-12 C341 A-11 C342 B-12 C343 C-11 C344 B-12 C345 A-12 C346 B-12 C347 B-12 C349 B-12 C404 C-16 C405 B-16 C406 B-16 C410 C-17 C411 B-17 C412 B-17 C414 C-17 C415 C-17 C416 C-17 C417 C-16 C418 A-16 C419 B-17 C420 C-17 C472 A-17 C486 A-12 C487 A-18 C488 A-18 C490 B-18 C501 F-13 C502 E-13 C503 E-13 C511 E-13 C512 D-13 C513 E-13 C516 E-13 C517 E-13 C519 E-13 C520 E-13 C521 E-13 C522 D-13 C523 D-13 C524 D-13 C525 D-13 C526 D-13 C527 D-13 C528 D-14 C529 D-14 C530 D-14 C531 D-13 C532 D-13 C533 D-13 C534 E-13 C535 E-13 C551 G-12 C552 G-13 C555 G-15 C560 F-14 C561 G-14 C562 G-14 C565 F-15 C567 G-14 C568 G-13 C570 G-14 C571 G-14 C605 G-16 C612 E-16 C615 E-16 C616 E-17 C617 E-17 C618 E-17 C619 E-17 C620 E-17 C621 E-17 C622 E-17 C623 E-17 C624 E-16 C628 F-16 C629 G-16 C637 F-16 C702 F-11 C703 F-11 C705 F-12 C706 F-12 C707 F-12 C708 F-12 C709 F-11 C710 E-12 C711 E-12 C712 E-12 C713 E-12 C716 F-12 C717 F-12 C849 A-15 C918 B-11

CN001 A-13 CN501 F-13 CN551 G-12 CN901 A-11 CN902 D-10 CN903 B-10 CN905 A-15 CN906 A-16 CN908 A-17 CN909 G-11 CN911 D-16 CN915 C-18

D002 C-13 D501 F-13 D551 G-13 D610 E-17 FB001 A-13 FB002 A-13 FB003 A-13 FB004 A-14 FB201 E-16 FB401 B-17 FB502 E-13 FB701 F-12

IC001 B-13 IC151 D-11 IC202 E-15 IC301 B-11 IC402 B-16 IC502 E-13 IC551 G-15 IC604 F-17 IC701 E-11

L001 B-13 L004 B-12 L006 C-15 L009 C-12 L012 C-13 L013 C-14 L016 D-14 L018 C-14 L502 D-12

Q001 A-14 Q002 B-14 Q003 C-14 Q020 C-12 Q022 C-14 Q024 C-13 Q027 C-13 Q028 C-13 Q029 C-13 Q036 D-14 Q040 C-14 Q043 C-13 Q044 C-13 Q153 D-11 Q154 D-11 Q156 D-10 Q213 C-15 Q214 C-15 Q215 C-15 Q216 C-15 Q301 C-10 Q302 B-10 Q305 A-10 Q308 C-10 Q309 C-10 Q310 A-11 Q371 A-10 Q372 A-10 Q456 A-18 Q501 D-13 Q552 G-15 Q553 G-15 Q608 G-16 Q609 G-16 Q610 G-16 Q611 G-15 Q701 G-11 Q702 G-12 Q703 F-12 Q704 F-11 Q902 E-16

R003 B-14 R004 A-14 R005 B-14 R006 B-14 R007 B-14 R026 B-13 R027 B-13 R032 B-13 R033 B-14 R034 B-13 R035 B-14 R037 B-14 R038 B-14 R039 B-14 R043 C-13 R045 B-14 R046 C-14 R052 C-14 R055 C-14 R057 C-14 R059 C-13 R060 C-13 R061 C-12 R062 B-12 R063 C-14 R064 C-14 R065 C-14 R072 C-13 R073 C-13 R074 C-12 R075 C-13 R081 D-13 R082 D-13 R085 C-13 R092 C-14

R093 C-13 R096 C-14 R098 D-14 R099 C-14 R101 C-14 R102 C-14 R107 C-14 R113 C-14 R161 D-11 R162 C-11 R165 D-10 R166 D-10 R167 D-10 R170 D-10 R175 D-12 R176 D-12 R177 D-10 R178 D-10 R187 C-12 R207 D-14 R209 D-14 R213 D-14 R218 D-15 R219 D-15 R220 D-15 R221 D-14 R222 C-15 R225 C-15 R227 D-14 R228 D-14 R229 D-14 R230 D-15 R231 D-15 R232 C-15 R233 D-15 R234 D-15 R235 D-15 R235 D-15 R236 D-14 R237 D-14 R238 D-15 R239 D-15 R241 D-14 R242 D-16 R243 E-16 R251 E-16 R252 E-16 R253 F-16 R256 F-14 R258 D-15 R259 D-15 R302 C-10 R303 B-10 R308 B-11 R309 G-15 R310 B-11 R311 B-10 R313 A-10 R314 B-10 R315 A-10 R316 A-10 R317 A-11 R318 C-12 R318 B-12 R319 A-11 R321 A-10 R322 A-12 R323 B-12 R325 B-12 R331 B-12 R343 A-12 R350 A-12 R402 B-16 R405 A-16 R406 A-16 R407 A-16 R409 A-17 R410 A-17 R411 C-16 R412 C-17 R413 C-17 R414 C-17 R420 B-17 R421 B-17 R424 B-17 R425 A-17 R431 C-17 R440 B-17 R441 C-17 R464 A-16 R465 A-16 R466 A-16 R474 A-17 R476 A-17 R485 A-15 R488 A-18 R490 A-18 R501 F-13 R502 F-13 R503 F-13 R506 E-13 R507 E-13 R509 E-13 R513 D-13 R514 D-12 R515 E-13 R521 D-13 R522 D-13 R523 D-13 R524 D-13 R525 D-13

R529 E-12 R531 F-12 R532 E-12 R533 E-12 R534 F-12 R551 G-12 R553 G-13 R554 G-12 R556 G-13 R557 G-12 R558 F-15 R559 G-15 R560 G-15 R561 G-15 R562 G-15 R565 F-15 R568 G-13 R569 F-14 R571 F-15 R572 B-17 R573 G-15 R575 G-13 R576 G-13 R577 G-13 R583 G-12 R605 G-16 R606 G-16 R610 G-16 R611 G-16 R613 G-16 R614 G-16 R650 F-16 R666 E-17 R667 E-17 R668 E-17 R669 E-17 R670 E-17 R671 E-17 R672 E-17 R673 E-16 R675 F-16 R676 F-16 R677 F-16 R679 G-17 R680 G-17 R681 F-17 R682 F-17 R683 F-17 R684 F-17 R685 F-17 R693 F-18 R695 G-16 R696 G-16 R697 G-17 R701 F-11 R702 F-11 R703 F-11 R705 G-11 R706 F-11 R707 G-12 R708 F-12 R709 F-12 R710 F-12 R711 F-11 R712 E-12 R713 E-12 R714 E-12 R715 E-12 R720 E-12 R721 E-12 R722 E-12 R724 E-11 R725 F-11 R726 F-11 R916 E-16 R917 C-17 R918 C-17 R919 C-17 R920 C-17 R921 E-16 R928 E-17 R929 E-17 R930 E-16 R931 E-16

X601 G-17 X602 F-15

4-15

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

X501

28.375MHz

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 BOARD (1/10)

CAMERA REC

28.375 MHz

IC501

CAMERA REC

IC501

14.18 MHz

11 12

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

2.3Vp-p

CAMERA REC

IC501

CAMERA REC

IC501

CAMERA REC

IC501

CAMERA REC

IC501

CAMERA REC

7Vp-p

3Vp-p

(TRV SERIES) (TR SERIES)

4-16

0.14usec

IC502

CAMERA REC

IC502

—

2 10

3.2Vp-p

1.3Vp-p

0.4Vp-p

CAMERA (1)

VC-215 (1/10)

TR SERIES:CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 model:CCD-TR515E/TR516E/TR713E/TRV36E/TR46E STANDARD 8 MODEL:CCD-TR315E/TR415E/TR415E/TR515E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL:CCD-TR315E/TR415E/TR425E/TR515E/TR713ETRV16E/TRV26E/TRV27E/

COLOR EVF MODEL:CCD-TR516E REMOTE COMMANDER MODEL:CCD-TR425E/TR515E/TR516E/TR713E/TRV36E/TRV46E VIDEO LIGHT MODEL:TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL:CCD-TR713E/TRV46E IR TRANSMITTER MODEL:CCD-TR713E/TRV46E LASER LINK MODEL:CCD-TR713E/TRV46E

TRV27EP/TRV36E/TRV46E

4-17

4-18

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TR V16E/TRV26E/TRV27E/TRV27EP/TRV36E/TR V46E

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

4-19 4-20

MPC17A134VMEL

CAMERA (2)

VC-215 (2/10)

4-21

4-22

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

• For schematic diagrams.

VC-215 BOARD (3/10)

CAMERA REC

IC202

CAMERA REC

IC202

CAMERA REC

IC202

0.34Vp-p

0.84Vp-p

0.5Vp-p

CAMERA REC

IC202

CAMERA REC

4.43 MHz

IC202

CAMERA REC

IC202

3Vp-p

3.1Vp-p

3Vp-p

• Refer to page 4–11 for Printed Wiring Board.

R218,R220,R225,R232,Q213,Q214 (CCD-TR516E/TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E)

L205

(Hi8 MODEL)

22uH

(STANDARD MODEL)

33uH C209

(Hi8 MODEL)

10pF

(STANDARD MODEL)

33pF

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

CAMERA REC

IC202

CAMERA REC

IC202

CAMERA REC

IC202

CAMERA REC

IC202

0.4Vp-p

0.18Vp-p

0.9Vp-p

CAMERA REC

IC202

CAMERA REC

IC202

CAMERA REC

7.16 MHz

IC201

CAMERA REC

3Vp-p

3.2Vp-p

(Hi8 MODEL)

IC202

CAMERA REC

IC202

Y/C PROCESSOR

VC-215 (3/10)

0.4Vp-p

3Vp-p

IC201

CAMERA REC

IC201

3Vp-p

R219,Q215 (CCD-TR315E/TR415E/TR425E/TR515E/TR713E/TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E) R222,Q216 (CCD-TR516E)

4-23

4-24 4-25

4-26

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TR V16E/TRV26E/TRV27E/TRV27EP/TRV36E/TR V46E

VC-215 BOARD (4/10) CAMERA REC

0.46Vp-p

IC151

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

(TR SERIES) (TRV SERIES)

IC151

IC151 29 (

2.1Vp-p

IC151 62 (1.6

0.32Vp-p

Vp-p

) )

4-27 4-28

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

4-29

IN/OUT

VC-215 (4/10)

4-30

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 BOARD (5/10)

CAMERA REC

IC001

CAMERA REC

IC001

5 21

TRIG : IC001

0.3Vp-p

0.4Vp-p

CAMERA REC

4.12 MHz

Q001

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

7Vp-p

(STANDARD 8 MODEL)

(Hi8 MODEL)

C080

(Hi8 MODEL)

10pF

(STANDARD 8 MODEL)

22pF

R105

(Hi8 MODEL)

680

(STANDARD 8 MODEL)

270

(Hi8 MODEL)

C089

(Hi8 MODEL)

47pF

(STANDARD 8 MODEL)

22pF

C075

(Hi8 MODEL)

330pF

(STANDARD 8 MODEL)

470pF

IC001

CAMERA REC

IC001

CAMERA REC

IC001

CAMERA REC

IC001

CAMERA REC

IC001

44 48

0.4Vp-p

2.9Vp-p

3Vp-p

0.18Vp-p

3Vp-p

R003

(Hi8 MODEL)

(STANDARD 8 MODEL)

Hi8 MODEL

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

R064

(Hi8 MODEL)

3.9k

(STANDARD 8 MODEL)

R057

(Hi8 MODEL)

680

(STANDARD 8 MODEL)

0 C088

(Hi8 MODEL)

220pF

(STANDARD 8 MODEL)

68pF R063

(Hi8 MODEL)

470

(STANDARD 8 MODEL)

560

(Hi8 MODEL)

REC/PB HEAD AMP

VC-215 (5/10)

4-31

4-32 4-33

4-34

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 BOARD (6/10) CAMERA REC

1.7Vp-p

20 MHz

IC402

3Vp-p

4-35

46 44

4-36

MARKED:MOUNT TABLE

Mode1

Ref.No. R917

R918 R919 R920

TYPE A MODEL:CCD-TRV16E/TRV26E/TRV27E/TRV27EP TYPE B MODEL:CCD-TR713E TYPE C MODEL:CCD-TRV36E TYPE D MODEL:CCD-TRV46E TYPE E MODEL:CCD-TR315E/TR415E/TR425E TYPE F MODEL:CCD-TR515E TYPE G MODEL:CCD-TR516E

47k 100k 47k 100k

TYPEB

TYPE A TYPE C TYPE D TYPE E TYPE F TYPE G

22k 100k 56k 68k

47k 100k 56k 68k

22k 100k 47k 100k

R921

E_3.15V

TRV27EP/TRV36E/TRV46E

10k

100k

47k

22k

10k 100k 100k 10k

4-37

IC402

13usec

IC402

1.2msec

IC402

2.8msec

IC402

3Vp-p

13usec

3Vp-p

13usec

3Vp-p

115

3Vp-p

116

3Vp-p

117

SERVO/SYSTEM CONTROL

VC-215 (6/10)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

5.6k

0.022

IC452

TA8482FN-EL

VC-215 BOARD (7/10) CAMERA REC

5.6msec

IC451

1 2 29

1.2Vp-p

SERVO

VC-215 (7/10)

4-38

TRV27EP/TRV36E/TRV46E

4-39 4-40

IC451

2.8msec

IC451

3Vp-p

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TR V16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VC-215 BOARD (8/10)

CAMERA REC

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TR V16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

(TR SERIES) (TRV SERIES)

(TR 713E) (TRV SERIES)

(TR 713E,TRV SERIES)

TRV27EP/TRV36E/TRV46E COLOR EVF MODEL:CCD-TR516E REMOTE COMMANDER MODEL:CCD-TR425E/TR515E/TR516E/TR713E/TRV36E/TRV46E VIDEO LIGHT MODEL:TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL:CCD-TR713E/TRV46E IR TRANSMITTER MODEL:CCD-TR713E/TRV46E LASER LINK MODEL:CCD-TR713E/TRV46E

IC301

CAMERA REC

IC301

CAMERA REC

4.43 MHz

IC301

2.9Vp-p

0.4Vp-p

0.36Vp-p

0.26Vp-p

(TR SERIES)

(TRV SERIES)

R313(CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E/TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E)

4-41 4-42

4-43

AUDIO

VC-215 (8/10)

4-44

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VL-21/22 (VIDEO LIGHT (VIDEO LIGHT MODEL)) PRINTED WIRING BOARD

– Ref No. VL-21 BOARD: 2,000 series, VL-22 BOARD: 3,000 series –

VL-21/22 BOARD (SIDE B) VL-21/22 BOARD (SIDE A)

VL-21/22 BOARD C151 A-4

C152 A-1 C153 A-1

CN151 A-1 D151 A-2

D152 A-4 D153 A-4

L151 A-4 Q151 A-4

Q152 A-2

CN151

12345

• For Printed Wiring Boards.

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip transistor

C Q

1-672-4611-672-467-

11 11 21

VC-215 BOARD (9/10) PB

4.43 MHz

IC751

2usec

IC751

0.09usec

IC751

0.09usec

IC751

0.25Vp-p

0.5Vp-p

0.34Vp-p

0.7Vp-p

0.5Vp-p

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

TR SERIES:CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

IR TRANSMITTER, VIDEO LIGHT

VC-215 (9/10) VL-21/22

(TR SERIES)

(TRV SERIES)

4-45

(VIDEO LIGHT MODEL)

VL901

VIDEO LIGHT

Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

LB-54...

VF-119...

Color EVF models only

(Color EVF)

DD-117 (Power)

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

(Back light)

VF-120... (Color EVF)

Color EVF models only

CF-60...

TR series only

(Control)

VL-21... VL-22... (Video light)

MA-345... MA-346... (Mic, Laser link)

TR515E/TR516E/TR713 TRV36E/TRV46E

PJ-90...

TR series

PJ-91...

TRV series

(AV Out)

TR series TRV series

4-46

4-47

R775 (EXCEPT STEADY SHOT MODEL)

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

4-48

• For schematic diagrams.

• Refer to page 4–11 for Printed Wiring Board.

(TR SERIES)

(TRV SERIES)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E Hi8 MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STANDARD 8 MODEL : CCD-TR315E/TR415E/TR425E/TRV16E/TRV26E/TRV27E/TRV27EP B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

COLOR EVF MODEL : CCD-TR516E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

VIDEO LIGHT MODEL : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E STEADY SHOT MODEL : CCD-TR713E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV27E/TRV27EP/TRV36E/TRV46E

(VIDEO LIGHT MODEL)

TO VL-21/22 BOARD CN151

(SEE PAGE 4–45)

VC-215 BOARD (10/10)

20 MHz

IC604

32 kHz

IC604

1.5Vp-p

2.6Vp-p

(TRV SERIES)

(TR SERIES)

6362

4-49 4-50

4-51

MODE CONTROL

VC-215 (10/10)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

D451

O1ZB8.2(TPL3)

(TR 713E)

TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E STEADY SHOT MODEL:CCD-TR713E/TRV46E

(TRV SERIES)

CN451(TRV SERIES)

TRV46E

C467 C468 L453

0.001u

0.001u 100uH

XX XX

0uH

A-7073-803-A (AEP,UK,EE,NE,RU) SE81(VMM CE)MOUNT

A-7073-810-A (E,HK,AUS,CN) SE81(VMM)MOUNT

MARKED:MOUNT TABLE(IMMUNITY H-PHONE)

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

SE-80/81 (STEADY SHOT (STEADY SHOT MODEL)) PRINTED WIRING BOARD

– Ref No. SE-80 BOARD: 4,000 series, SE-81 BOARD: 9,000 series –

SE-80/81 BOARD (SIDE B) SE-80/81 BOARD (SIDE A)

SE-80 SE-81BOARD

C451 C-7 C452 D-3 C453 B-7 C454 E-6 C455 C-3 C456 C-3 C457 C-2 C458 C-3 C459 C-7 C460 E-6 C461 C-6 C462 C-6 C463 C-3 C464 C-6 C465 C-3 C466 C-6 C467 A-2 C468 A-6 C469 A-2 C470 A-6 C471 B-3

CN451 A-3 D451 A-6

D452 A-6 IC451 C-6 J451 A-8 L451 B-3

L452 B-2 L453 A-3 L454 A-2

R451 C-6 R452 D-3 R453 D-3 R454 C-6 R455 D-7 R456 C-3 R457 C-3 R458 C-6 R459 C-6 R460 C-3 R461 C-6 R462 B-3 R463 B-3

SE451 B-3 SE452 E-3

12345678

STEADY SHOT

SE-80/81

4-52

1-672-4591-672-465-

• For Printed Wiring Boards.

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip diode

VF-99...

11 11 21

CF-61... (Control)

TRV series only

(B/W EVF)

B/W EVF models only

CD-210...

TR series only

CD-211...

TRV series only

(CCD imager)

PD-107... RGB decoder, LCD, LCD drive, Back light

SE-80... SE-81... (Steady shot)

TRV series only

TR713E only TRV series only

4-53 4-54

PJ-90/91 (AV OUT) PRINTED WIRING BOARD

C104

0.001u B

C103

0.001u B

100uH

(TR SERIES)

TR SERIES:CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

(TRV SERIES)

– Ref No. PJ-90 BOARD: 4,000 series, PJ-91 BOARD: 9,000 series –

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

PJ-90/91 BOARD (SIDE B)

PJ-90/91 BOARD (SIDE A)

S VIDEO

PJ-90/91 BOARD C101 D-4

C102 D-3 C103 C-3 C104 C-3 C105 D-1 C106 D-2 C107 C-1 C108 D-1 C109 D-5 C110 C-5 C111 C-1

CN101 D-2 D101 D-1

D102 C-3 D103 C-3 D104 C-5 D105 C-5 D106 D-5

J101 B-3 L101 D-3

L102 C-3 L103 D-2 L104 C-2

Q101 D-5 Q102 D-4

R101 C-4 R102 D-4 R103 C-4 R104 D-4 R105 D-4 R106 C-5 R107 D-5 R108 C-5 R109 C-3 R110 C-2

• For Printed Wiring Boards.

123456

AUDIO RFU DC OUT VIDEOLR

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip diode

LB-54...

VF-119...

Color EVF models only

(Color EVF)

DD-117 (Power)

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

(Back light)

VF-120... (Color EVF)

Color EVF models only

CF-60...

TR series only

(Control)

VL-21... VL-22... (Video light)

MA-345... MA-346... (Mic, Laser link)

TR515E/TR516E/TR713 TRV36E/TRV46E

PJ-90... PJ-91... (AV Out)

TR series TRV series

1-672-4601-672-466-

11 11 21

4-55 4-56

4-57

AV OUT

PJ-90/91

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

LIGHT

ON/OFF

MIC

(PLUG IN

POWER)

CAMERA

VTR

POWER

MA-345/346 BOARD (SIDE B) MA-345/346 BOARD (SIDE A)

1234567

1-672-468-

11 21

1-672-462-

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

MA-345, 346 (MIC, LASER LINK) PRINTED WIRING BOARD

– Ref No. MA-345 BOARD: 9,000 series, MA-346 BOARD: 9,000 series –

4-58 4-59

• For Printed Wiring Boards.

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip transistor

MIC, LASER LINK

MA-345/346

LB-54...

VF-119...

Color EVF models only

(Color EVF)

DD-117 (Power)

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

(Back light)

Color EVF models only

VF-120... (Color EVF)

CF-60...

TR series only

(Control)

MA-345... MA-346... (Mic, Laser link)

TR515E/TR516E/TR713

VL-21... VL-22...

TRV36E/TRV46E

(Video light)

PJ-90... PJ-91... (AV Out)

TR series TRV series

MA-345/346 BOARD C801 E-3

C301 B-2 C302 B-2 C303 A-1 C304 A-1 C305 A-2 C306 A-1 C318 B-7 C331 C-6 C332 C-4 C333 B-5 C334 B-5 C335 B-6 C336 D-5 C337 B-6 C338 B-2 C339 C-3 C340 C-3 C341 B-5 C342 B-6 C343 C-3 C344 D-3 C345 C-3 C346 D-3 C347 B-7 C349 B-7 C350 B-6 C351 D-5 C352 C-3 C353 C-5

C354 D-3 C355 B-6 C356 C-3 C357 D-5 C358 D-5 C359 D-5 C360 D-6 C361 D-3 C362 D-3 C363 C-3 C364 D-3 C365 C-3 C366 C-3 C367 D-2 C368 C-5 C369 B-6 C370 C-6 C371 C-6

CN301 B-2 CN302 B-3 CN303 B-1

D301 A-6 D302 A-6 D303 B-5 D305 B-7 D307 D-6 D308 B-1 D309 A-6

4-60

D331 B-5 D332 C-4 D333 B-5

F301 B-2 IC301 A-7

IC331 D-3 IC332 B-6

J301 B-4 L301 B-1 Q301 A-5

Q302 A-1 Q303 A-2 Q304 A-3 Q305 A-1 Q331 B-2 Q332 B-5

R301 A-5 R302 B-1 R303 A-1 R304 A-2 R305 A-2 R306 B-1 R307 B-1 R308 D-5

R309 D-5 R310 A-3 R311 A-1 R312 A-5 R313 B-5 R314 A-1 R315 A-1 R316 B-5 R331 C-5 R332 C-5 R333 C-4 R334 B-5 R335 B-3 R336 C-3 R337 C-5 R338 C-5 R339 C-4 R340 C-3 R341 B-5 R342 B-2 R343 C-4 R344 B-6 R345 B-6 R346 D-5 R347 D-5 R348 D-5 R349 D-5 R350 D-5 R351 C-5 R352 D-5

R353 C-5 R354 D-5 R355 D-3 R356 C-3 R357 D-3 R358 D-3 R359 C-3 R360 D-3 R361 C-2 R362 C-5 R363 D-5 R364 C-3 R365 D-6 R366 D-6 R367 B-5 R368 C-6 R369 B-6

S301 D-4 S302 D-2 S303 C-1

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

(TR SERIES )

(TRV SERIES)

TR SERIES : CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E REMOTE COMMANDER MODEL : CCD-TR425E/TR515E/TR516E/TR713E/

TRV27E/TRV27EP/TRV36E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E LASER LINK MODEL : CCD-TR713E/TRV46E

R309, S301 (VIDEO LIGHT MODEL) : CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E

1.3

0.1

1.3

3.1

2.3

1.1

0.6

1.7

1.1

1.3

0.6

2.3

4-61 4-62

4-63

MIC, LASER LINK

MA-345/346

4-64

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

CF-60 (CONTROL (TR Series)) PRINTED WIRING BOARD

– Ref No. CF-60 BOARD: 4,000 series –

CF-61 BOARD BH001 B-9 C001 B-6

C002 A-6 CN001 C-4

CN002 A-5 CN005 C-7 CN006 B-7 CN007 C-5 CN009 B-6 CN010 A-3

D004 A-13 D005 B-7 D006 A-7 D007 A-14 D008 A-6 D009 B-1 D010 C-3 D012 A-4

Q002 C-1 R001 B-1

R002 B-6 R005 A-13 R007 C-1 R013 A-13 R022 B-13 R023 B-14 R029 C-2 R031 B-4 R032 C-11 R036 C-2 R038 B-4 R039 C-2 R041 A-4 R051 C-5 R052 C-5 R053 A-4 R054 A-12

S006 A-13 S010 B-14 S015 A-15 S022 C-11

CF-60 BOARD (SIDE B) CF-60 BOARD (SIDE A)

BACK LIGHT

TITLE PICTURE EFECT

EXPOSUE

DATE

TIME

REC MODE

NOR PUSH 5SEC

COUNTER RESET

AE-DIAL

(LITHIUM BATTERY HOLDER)

SELECT-DIAL

1-672-463-

• For Printed Wiring Boards.

There are few cases that the part isn't mounted in this model is printed on this diagram.

12345678910

Color EVF models only

LB-54...

VF-119... (Color EVF)

DD-117 (Power)

Color EVF models only

(Back light)

VF-120... (Color EVF)

Color EVF models only

CF-60...

TR series only

(Control)

TR515E/TR516E/TR713

VL-21... VL-22...

TRV36E/TRV46E

(Video light)

11 12 13 14 15 16 17 18

• Chip transistor Chip diode

PJ-90...

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

MA-345... MA-346... (Mic, Laser link)

PJ-91... (AV Out)

TR series TRV series

CONTROL

CF-60 (TR Series)

4-65

4-66 4-67

4-68

(TR SERIES)

Q001(CCD- TR315E/TR415E/TR425E/TR515E/TR713E)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TR V46E

1.4

TR SERIES:CCD- TR315E/TR415E/TR425E/TR515E/TR516E/TR713E) IR TRANSMITTER MODEL:CCD-TR713E/TRV46E

1.6

1.9

3 3 3

2.9

1.4

0.1

2.9

1.4

4-69

BZ002(TR315E/TR516E)

4-70

CN008(CCD- TR315E/TR415E/TR425E/TR515E/TR713E) CN007(CCD- TR516E)

4-71

CONTROL

CF-60 (TR Series)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E IR TRANSMITTER MODEL : CCD-TR713E/TRV46E

(TRV SERIES)

CONTROL

CF-61 (TRV Series)

4-72

4-744-73

CF-61 (CONTROL) (TRV Series) PRINTED WIRING BOARD

– Ref No. CF-61 BOARD: 9,000 series –

CF-61 BOARD (SIDE B) CF-61 BOARD (SIDE A)

(LITHIUM BATTERY HOLDER)

DATE

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

CF-61 BOARD

TIME

TITLEDISPLAY

COUNTER

RESET

REC MODE

5SEC PUSH NOR

END


EFECT

SELECT-DIAL

BACK LIGHT

PROGRAM

EXPOSUE

BH001 B-9 C001 B-6

C002 A-6 CN001 C-4

CN002 A-5 CN005 C-7 CN006 B-7 CN007 C-5 CN009 B-6 CN010 A-3

D004 A-13 D005 B-7 D006 A-7 D007 A-14 D008 A-6 D009 B-1 D010 C-3 D012 A-4

Q002 C-1 R001 B-1

R002 B-6 R005 A-13 R007 C-1 R013 A-13 R022 B-13 R023 B-14 R029 C-2 R031 B-4 R032 C-11 R036 C-2 R038 B-4 R039 C-2 R041 A-4 R051 C-5 R052 C-5 R053 A-4 R054 A-12

S006 A-13 S010 B-14 S015 A-15 S022 C-11

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

• For Printed Wiring Boards.

1-672-469-

12345678910

11 12 13 14 15

11 21

There are few cases that the part isn't mounted in this model is printed on this diagram.

• Chip transistor Chip diode

VF-99...

B/W EVF models only

CF-61... (Control)

TRV series only

(B/W EVF)

CD-210...

TR series only

CD-211...

TRV series only

(CCD imager)

PD-107... RGB decoder, LCD, LCD drive, Back light

TRV series only

TR713E only

SE-80... SE-81...

TRV series only

(Steady shot)

4-75 4-76

4-77

CONTROL

CF-61 (TRV Series)

4-78

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

IR TRANSMITTER MODEL : CCD-TR713E/TRV46E

PD-107 BOARD C5501 B-10

C5502 B-10 C5503 C-2 C5504 A-10 C5505 A-10 C5506 B-2 C5507 A-3 C5508 B-2 C5509 C-3 C5511 C-2 C5512 C-2 C5513 C-1 C5514 C-2 C5515 C-2 C5516 C-2 C5517 C-1 C5518 C-3 C5519 B-2 C5520 C-3 C5601 A-2 C5602 A-2 C5603 B-10 C5604 C-9 C5605 B-9 C5607 B-9 C5608 C-9 C5609 B-10 C5610 C-9 C5612 C-10 C5616 B-9 C5618 D-9 C5619 D-2 C5620 D-10 C5621 C-2 C5622 C-11 C5623 C-2 C5624 B-3 C5625 B-2 C5633 C-9 C5701 C-8 C5702 C-8 C5703 C-3 C5704 C-4 C5705 C-6 C5706 C-4 C5801 A-4

CN5501 D-9 CN5601 D-10 CN5701 D-6 CN5801 A-8 CN5802 A-7 CN5803 A-8 CN5804 A-10 CN5805 A-6

D5601 B-10 D5603 B-10 D5604 C-10 D5605 C-9 D5701 A-5 D5702 A-5 D5703 D-5 D5704 D-4

FB5502 A-2 FB5503 A-2 FB5504 A-2 FB5603 A-9

IC5501 B-10 IC5502 C-2 IC5601 C-9 IC5602 C-8 IC5701 C-4 IC5801 A-4

L5501 A-3 L5601 A-2 L5605 C-9 L5701 C-7

Q5501 C-2 Q5601 B-9 Q5602 B-9 Q5605 C-8 Q5606 C-9 Q5607 C-9 Q5608 C-8 Q5701 C-3 Q5702 D-4

R5501 B-2 R5502 B-2 R5503 B-2 R5504 B-2 R5505 B-2 R5506 B-2 R5507 B-2 R5508 B-1 R5509 B-1 R5510 B-3 R5511 B-3 R5512 B-1 R5513 B-2 R5516 B-2 R5517 B-1 R5518 B-1 R5519 C-3 R5520 C-3 R5521 B-2 R5522 B-2 R5526 C-1 R5527 B-1 R5528 C-3 R5531 C-2 R5532 C-3 R5537 D-8 R5541 D-2 R5542 D-3 R5544 C-2 R5545 B-3 R5602 C-2 R5603 D-8 R5604 D-3 R5605 C-1 R5606 C-10 R5607 A-2 R5608 B-9

R5608 C-10 R5610 B-10 R5612 B-9 R5613 B-9 R5615 B-9 R5616 B-10 R5617 B-10 R5619 B-10 R5620 B-9 R5621 C-9 R5622 B-8 R5623 B-8 R5624 B-9 R5625 C-10 R5626 C-9 R5627 C-10 R5628 C-10 R5629 B-8 R5630 C-9 R5631 B-9 R5632 B-10 R5637 C-10 R5640 C-9 R5641 C-3 R5643 C-9 R5644 C-9 R5646 C-10 R5647 D-2 R5648 D-10 R5651 D-2 R5652 D-2 R5653 D-9 R5654 D-9 R5657 D-9 R5658 D-9 R5659 D-10 R5660 D-10 R5661 D-10 R5663 C-9 R5664 D-10 R5665 D-10 R5666 D-1 R5667 D-1 R5668 D-1 R5669 D-1 R5670 D-1 R5671 D-9 R5672 D-9 R5673 D-1 R5674 D-1 R5676 D-1 R5678 D-9 R5679 D-2 R5680 D-2 R5681 D-2 R5682 D-1 R5683 D-2 R5684 D-2 R5685 D-3 R5686 D-3 R5688 C-9 R5692 C-9 R5693 C-9 R5694 C-9

R5695 C-9 R5696 D-10 R5697 C-11 R5698 D-9 R5701 A-5 R5702 A-5 R5703 C-4 R5704 D-4 R5705 D-4 R5706 C-4 R5707 C-4 R5708 D-4 R5709 C-4 R5710 D-4 R5801 C-1 R5802 C-1 R5803 A-1 R5804 A-1 R5805 A-7 R5806 A-1 R5807 B-7 R5809 B-7 R5810 B-9 R5811 A-4 R5812 A-4

S5801 D-1 S5802 C-1 S5803 B-1 S5804 A-1

T5701 B-7

PD-107 (RGB DECODER, LCD DRIVE, BACK LIGHT, LCD (TRV Series)) PRINTED WIRING BOARD

– Ref No. PD-107 BOARD: 10,000 series –

PD-107 BOARD (SIDE B) PD-107 BOARD (SIDE A)

LCD

BRIGHT

(+)

LCD

BRIGHT

(–)

VOLUME

(+)

VOLUME

(–)

1-672-470-

4-79

CONTROL SWITCH BLOCK, RGB DECODER, LCD DRIVE, BACK LIGHT, LCD

FK-8500, SS-8500

PD-107 (TRV Series)

CF-61... (Control)

12345678910

VF-99...

B/W EVF models only

(B/W EVF)

CD-210...

TR series only

CD-211...

TRV series only

(CCD imager)

PD-107...

TRV series only

RGB decoder, LCD, LCD drive, Back light

TRV series only

SE-80...

TR713E only

SE-81...

TRV series only

(Steady shot)

4-80 4-81

• For Printed Wiring Boards.

• This board is four-layer print board. However, the patterns of

layers 2 to 3 have not been included in the diagram. There are few cases that the part isn't mounted in this model is

printed on this diagram.

• Chip transistor

C Q

4-82

(TRV SERIES)

TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

PD-107 BOARD (1/4) CAMERA REC

IC5502

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TR V46E

0.44Vp-p

0.2Vp-p

0.7Vp-p

IC5502

3Vp-p

IC5502

3.6Vp-p

IC5502

3.6Vp-p

IC5502

4-83

4-84

IC5502

3.6Vp-p

4-85

RGB DECODER

PD-107 (1/4) (TRV Series)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

VSH VDD VR VB VG VSS MODE1 MCLK HCNT CLR OE SRTL SRTR VBC VCOM MODE2 RESET GSRT GPCK SRES VREFL VGL VREFH VGH

CM7017L3-T4

(TRV SERIES)

TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

PD-107 BOARD (2/4) CAMERA REC

IC5601

• For schematic diagrams.

• Refer to page 4–79 for Printed Wiring Board.

3Vp-p

IC5601

3Vp-p

3.4Vp-p

3.2Vp-p

3Vp-p

LCD DRIVE

PD-107 (2/4) (TRV Sereis)

4-86

4-87 4-88

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

(TRV SERIES)

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

• For schematic diagrams.

• Refer to page 4–79 for Printed Wiring Board.

• For schematic diagrams.

• Refer to page 4–79 for Printed Wiring Board.

(TRV SERIES)

3KV

TRV SERIES : CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

PD-107 BOARD (4/4) CAMERA REC

4-89

4-90

4-91

2.9Vp-p

24.17 kHz

IC5801

BACK LIGHT, LCD

PD-107 (3/4, 4/4) (TRV Sereis)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

MARKED : MOUNT TABLE

C910 R906 R921

T901 T902

2200p

1.5k 18 XX

4700p

220

6.8 XX

TYPE 2

TYPE 3

(TR SERIES)

(TRV SERIES)

(TYPE 3)

(TYPE 2)

B/W EVF MODEL : CCD-TR315E/TR415E/TR425E/TR515E/TR713E/

TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VF-99 (B/W EVF (B/W EVF MODEL)) PRINTED WIRING

BOARD

– Ref No. VF-99 BOARD: 10,000 series –

VF-99 BOARD (SIDE B) VF-99 BOARD (SIDE A)

VF-99 BOARD (TYPE 2/TYPE 3)

C901 D-1 C902 C-1 C903 C-3 C904 C-3 C905 D-1 C906 D-3 C907 D-3 C908 C-2 C909 B-3 C910 B-1 C911 B-1 C912 B-1 C913 D-3 C914 A-1 C915 A-2 C916 B-2

CN901 D-2 CN902 C-3

D901 D-3 D903 A-2

IC901 D-3 L901 C-3

L902 C-2 L903 A-3

Q901 C-1 Q902 C-1 Q903 C-2 Q904 C-2

R901 C-1 R902 C-1 R903 D-3 R904 C-1 R905 C-1 R906 C-1 R907 C-3 R908 C-3 R909 C-3 R910 C-3 R911 D-1 R912 D-3 R913 C-3 R914 C-3 R916 D-3 R917 D-3 R918 C-2

R919 B-2 R920 C-2 R921 A-2 R922 A-3 R923 A-1 R924 B-2 R925 B-2 R926 A-2 R927 C-3 R928 C-3 R929 D-3 R930 B-3 R931 B-3 R932 B-3

RV903 A-3 RV904 A-3

T901 B-3 T902 B-3

TH901 C-3 W901 B-3

• For Printed Wiring Boards.

• This board is four-layer print board. However, the patterns of

layers 2 to 3 have not been included in the diagram. There are few cases that the part isn't mounted in this model is

printed on this diagram.

• Chip transistor

C Q

12 3

1-670-163-

CF-61... (Control)

TRV series only

There are three types by combining RV904 and the fly-back transformer.

Position to attach flyback transformer label Top (T902) Side (T901)

TYPE TYPE 2

TYPE 3

Fly-back transformer (T901, T902)

Side

Top

RV904

Label position

VF-99...

B/W EVF models only

(B/W EVF)

CD-210...

TR series only

CD-211...

TRV series only

(CCD imager)

PD-107... RGB decoder, LCD, LCD drive, Back light

TRV series only

TR713E only

SE-80... SE-81...

TRV series only

(Steady shot)

VF-99 BOARD CAMERA REC

IC901

RV904 type

Chip type

1Vp-p

2.2Vp-p

B/W EVF

VF-99 (B/W EVF MODEL)

4-92

4-93 4-94

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VF-119 (COLOR EVF (COLOR EVF MODEL)) PRINTED WIRING BOARD

– Ref No. VF-119 BOARD: 10,000 series –

VF-119 BOARD (SIDE B) VF-119 BOARD (SIDE A)

VF-119 BOARD CAMERA REC

IC5401

3Vp-p

COLOR EVF MODEL:CCD-TR516E

7.2Vp-p

7.5Vp-p

7.6Vp-p

1234

• For Printed Wiring Boards.

• This board is four-layer print board. However, the patterns of

layers 2 to 3 have not been included in the diagram. There are few cases that the part isn't mounted in this model is

printed on this diagram.

• Chip transistor

C Q

Color EVF models only

LB-54...

VF-119...

Color EVF models only

(Color EVF)

DD-117 (Power)

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

(Back light)

VF-120... (Color EVF)

Color EVF models only

CF-60...

TR series only

(Control)

MA-345... MA-346... (Mic, Laser link)

TR515E/TR516E/TR713

VL-21... VL-22...

TRV36E/TRV46E

(Video light)

PJ-90... PJ-91... (AV Out)

TR series TRV series

4-95

VF-119 BOARD C5401 C-2

C5402 B-2 C5403 A-3 C5404 B-3 C5405 B-3 C5406 B-3 C5407 C-3 C5408 C-3 C5409 B-4 C5410 C-4 C5411 C-4 C5413 C-3 C5414 C-2 C5415 C-3 C5416 B-4 C5417 B-1 C5418 B-2 C5419 B-1 C5420 B-1 C5421 B-1 C5422 A-2 C5423 A-2 C5424 A-1 C5427 A-4 C5428 A-1 C5429 A-1 C5430 C-3 C5431 C-1 C5432 B-3 C5433 B-2 C5434 B-2 C5435 C-1 C5436 C-1

CN5401 B-1 CN5402 A-4

D5401 B-1 D5402 B-3

FB5405 B-4 IC5401 B-3

IC5402 C-4 IC5404 A-1

L5401 C-2 L5402 C-3 L5403 A-2 L5404 B-1

Q5401 C-1

1-668-942-

R5401 C-2 R5402 C-1 R5403 C-1 R5405 C-2 R5406 A-2 R5407 A-2 R5408 C-1 R5409 C-2 R5410 C-1 R5411 A-2 R5412 B-2 R5413 C-2 R5414 C-2 R5415 B-2 R5416 C-1 R5417 B-3 R5420 C-1 R5421 C-1 R5422 C-1 R5423 A-3 R5424 C-1 R5425 C-1 R5426 C-1 R5427 C-2 R5428 C-2 R5429 C-1 R5431 B-2 R5432 B-2 R5433 C-2 R5434 C-2 R5435 B-2 R5437 B-2 R5439 B-2 R5440 C-2 R5441 C-2 R5444 B-1 R5445 B-1 R5446 B-1 R5447 B-1 R5448 B-1 R5449 B-2 R5452 B-2 R5454 A-1 R5456 A-4 R5457 A-4 R5458 A-4 R5460 A-1 R5471 B-4 R5472 C-2 R5473 A-2 R5476 A-4 R5477 A-4

IC5404

7.852 kHz

IC5404

1.84 MHz

IC5404

10.97 MHz

IC5404

20 21

23 24

3Vp-p

3.4Vp-p

2.7Vp-p

3Vp-p

4-96

4-97

( 10.97MHz )

4-98

COLOR EVF

VF-119 (COLOR EVF MODEL)

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TR V16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VF-120 BOARD CAMERA REC

IC5301

2.4Vp-p

12Vp-p

COLOR EVF MODEL:CCD-TR516E

4-99 4-100

COLOR EVF, BACK LIGHT

VF-120 (COLOR EVF MODEL), LB-54

4-101 4-102

VF-120 (COLOR EVF), LB-54 (BACK LIGHT) (COLOR EVF MODEL) PRINTED WIRING BOARDS

– Ref No. VF-120 BOARD: 10,000 series, LB-54 BOARD: 10,000 series –

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

VF-120 BOARD (SIDE B) VF-120 BOARD (SIDE A)

1234

1-668-943-

LB-54 BOARD (SIDE B) LB-54 BOARD (SIDE A)

1234

1-668-944-

• For Printed Wiring Boards.

• This board is four-layer print board. However, the patterns of

layers 2 to 3 have not been included in the diagram. There are few cases that the part isn't mounted in this model is

printed on this diagram.

• Chip diode • Chip transistor

VF-119... (Color EVF)

DD-117 (Power)

5 46 D

132

Color EVF models only

LB-54...

Color EVF models only

(Back light)

VF-120... (Color EVF)

CF-60... (Control)

C Q

Color EVF models only

TR series only

TR515E/TR516E/TR713

VL-21... VL-22...

TRV36E/TRV46E

(Video light)

PJ-90... PJ-91... (AV Out)

TR series TRV series

VF-120 BOARD C5301 B-3

C5302 A-4 C5303 A-3 C5304 A-3 C5305 A-4 C5306 B-3 C5307 B-3 C5308 B-3 C5309 A-3 C5310 B-4 C5311 A-4 C5312 A-3 C5313 B-3 C5314 A-4 C5315 A-4

CN5301 B-4 CN5302 A-1

D5301 A-3 D5302 A-4

IC5301 A-4 L5301 A-4 Q5301 B-3

Q5302 A-2 Q5303 A-2 Q5304 A-4 Q5305 B-4

R5301 A-4 R5302 A-2 R5303 A-1 R5304 A-3 R5305 A-4 R5306 A-3 R5307 A-3 R5308 A-3 R5309 A-3 R5310 A-3 R5311 A-3 R5312 B-3 R5313 B-3 R5314 B-3 R5315 A-3 R5316 A-3 R5317 B-3 R5318 B-4 R5319 A-4 R5320 A-2 R5321 A-3 R5322 A-3 R5323 A-4 R5324 A-4 R5325 B-4

LB-54 BOARD C5351 A-3

C5352 A-3 C5353 A-3 C5354 B-3 C5355 B-3 C5356 A-3

CN5351 A-4 D5351 A-1 L5351 A-3

L5352 A-3 ND5351 B-1 Q5351 B-3 R5351 A-3 T5351 B-4

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

TR series

MA-345... MA-346...

TRV series

(Mic, Laser link)

4-103

4-104

COLOR EVF, BACK LIGHT

VF-120 (COLOR EVF MODEL), LB-54

4-105

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E

DD-117 BOARD (SIDE B) DD-117 BOARD (SIDE A)

123456789

1-672-457-

11 21

CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

DD-117 (POWER) PRINTED WIRING BOARD

– Ref No. DD-117 BOARD: 2,000 series –

LB-54...

Color EVF models only

(Back light)

VF-120... (Color EVF)

Color EVF models only

CF-60...

TR series only

(Control)

TR515E/TR516E/TR713

VL-21... VL-22...

TRV36E/TRV46E

(Video light)

PJ-90... PJ-91... (AV Out)

TR series TRV series

VF-119... (Color EVF)

DD-117 (Power)

Color EVF models only

POWER

VC-215 Camera, Y/C processor, IN/OUT, REC.PB head amp, Servo/System control, Servo, Audio, IR transmitter, Mode control

4-106

TR series

MA-345... MA-346...

TRV series

(Mic, Laser link)

DD-117 BOARD C801 E-3

C802 E-3 C803 D-3 C804 E-3 C805 E-2 C806 E-2 C807 D-2 C808 E-3 C809 D-2 C810 D-3 C811 D-2 C812 D-3 C813 D-2 C814 E-8 C815 C-3 C816 E-8 C817 E-8 C818 F-3 C819 C-3 C820 C-3 C821 C-2 C822 E-8 C823 C-3 C824 C-2 C825 B-2 C826 D-8 C827 E-2 C828 E-1 C829 E-1 C830 D-2 C831 E-2 C832 B-3 C833 B-2 C834 C-3 C836 B-2 C837 C-2 C838 C-3 C840 D-8 C841 B-3 C842 A-5 C843 B-3 C844 A-3 C846 B-3 C847 B-7 C848 B-7 C849 A-2 C850 A-3 C851 B-4 C852 B-7 C853 B-7 C854 B-3 C855 A-3 C856 E-3 C857 A-2 C860 A-6 C861 A-7 C862 A-2 C863 B-5 C864 B-6 C865 A-5 C866 A-5 C867 A-6 C868 A-6 C869 A-5 C870 E-2 C871 B-2 C872 F-3 C873 A-2 C874 A-7 C875 A-2 C876 D-6 C877 D-6 C878 B-2 CN801 C-5 CN931 C-4 CN933 A-4 CN934 D-9 CN935 G-7 CN936 F-6

D806 B-2 D809 B-7 D810 B-2 D812 B-2 D813 C-4 D814 F-4 D815 F-3 D816 E-3 D817 C-4 D818 D-1 D819 E-2 D820 B-7 D821 B-7 D822 F-3 D932 G-2 D933 F-3 D934 G-3 D935 F-3 D936 G-2 D938 E-9

FB931 D-9 FB932 E-8 FB933 D-9

IC802 D-3 IC802 E-2

L801 D-7 L802 D-7 L803 D-7 L804 E-9 L805 B-7 L806 C-8 L807 C-6 L808 B-8 L809 C-7 L810 B-4 L811 B-3 L812 B-3 L813 B-3 L814 A-2 L815 A-3 L816 B-3 L817 A-3 L818 A-2 L819 A-3 L820 D-8 L821 A-6 L822 A-2

LF801 D-6 PS801 F-3

PS802 F-2 PS803 F-2 PS804 F-2 PS805 F-2 PS806 F-3 PS807 F-3

Q801 F-3 Q803 E-3 Q804 F-3 Q805 F-3 Q806 C-2 Q807 C-3 Q808 C-3 Q809 B-2 Q810 C-2 Q812 C-3 Q813 C-2 Q814 C-2 Q815 C-2 Q817 C-2 Q819 D-8 Q820 E-2 Q823 B-2 Q824 E-2 Q826 A-7 Q827 A-2 Q828 B-6 Q829 A-6 Q830 B-6 Q831 A-7 Q832 B-5 Q833 A-2 Q834 B-6 Q835 A-8 Q836 A-8 Q837 A-7 Q838 A-8 Q839 A-8 Q840 A-8 Q841 A-7 Q842 A-6 Q843 A-6 Q844 A-8 Q845 A-8 Q846 A-7 Q847 A-6 Q848 A-8 Q849 A-7 Q850 A-8 Q851 E-3 Q852 B-2 Q853 B-2 Q854 B-2 Q855 B-2 Q856 A-6 Q932 G-3 Q933 G-3 Q934 G-3

R801 E-2 R802 E-3 R803 E-3 R804 D-3 R805 D-2 R806 E-2 R807 E-3 R808 D-3 R809 E-3 R810 D-2 R811 D-2 R812 D-2 R813 F-3 R814 D-3 R815 D-3 R816 D-3 R817 D-3 R818 D-2 R819 D-2 R820 D-3 R821 D-2

DD-117

R822 E-3 R824 D-2 R825 D-3 R826 D-3 R827 E-3 R828 E-3 R829 C-2 R829 D-2 R830 D-2 R831 F-3 R832 D-3 R833 D-2 R834 D-2 R835 D-3 R836 D-3 R837 D-2 R838 D-3 R840 C-3 R841 C-3 R842 E-2 R843 C-2 R844 D-6 R845 D-2 R846 D-6 R847 E-2 R849 E-2 R850 E-1 R852 D-2 R853 D-1 R854 D-2 R859 E-3 R864 E-3 R865 B-2 R866 B-2 R867 E-2 R868 A-1 R870 A-7 R871 A-7 R876 B-6 R877 A-7 R878 A-2 R879 B-6 R880 B-6 R881 B-6 R882 B-6 R883 B-8 R884 B-8 R885 A-7 R887 B-8 R888 B-8 R889 A-7 R890 A-7 R891 A-8 R892 A-8 R893 A-8 R894 A-7 R895 A-6 R896 A-8 R897 A-8 R898 A-6 R899 A-7 R900 A-6 R901 A-6 R902 A-6 R903 A-7 R904 A-8 R905 A-7 R906 A-8 R907 A-8 R908 B-2 R910 B-2 R911 B-2 R912 B-2 R913 F-4 R914 D-2 R915 E-1 R916 A-7 R917 A-7 R918 A-1 R919 A-7 R920 A-7 R921 D-7 R922 D-7 R923 D-7 R924 B-6 R925 A-8 R926 C-4 R932 G-3 R933 F-6 R934 F-6 R935 F-6 R936 F-6 R937 F-6 R938 F-6 R939 F-6 R940 F-3 R941 G-3 R942 E-8 R943 G-3 R944 B-5 R945 B-5

T801 B-6

4-107 4-108

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

PS806 (CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E)

(TRV SERIES)

7.7

Q826(CCD-TR516E/TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E) Q831,R870,R871(CCD-TR516E/TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E) R867(CCD-TR515E/TR516E/TR713E/TRV36E/TRV46E) C867,Q841,Q846,R885,R889,R894,R898,R899(CCD-TR516E)

R877(CCD-TR315E/TR415E/TR425E/TR515E/TR713E)

(TRV SERIES)

(CCD-TR516E)

(CCD-TR713E/TRV46E)

DD-117 BOARD CAMERA REC

507 kHz

IC801

506 kHz

IC801

0.76Vp-p

7.9

83.1

7.8

(TRV SERIES)

1.9

(CCD-TR516E)

(TR SERIES)

(TRV SERIES)

(CCD-TR516E)

RN1104F(TPL3)

(TRV SERIES)

D3.1V

01ZA8.2(TPL3)

(TRV SERIES)

TR SERIES:CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E TRV SERIES:CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E

4-109 4-110

(TRV SERIES)

4-111

4-112E

POWER

DD-117

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E CCD-TRV16E/TRV26E/TRV27E/TR V27EP/TRV36E/TRV46E

ADJUSTMENTS

5-1. CAMERA SECTION ADJUSTMENTS

1-1. PREPARATIONS BEFORE ADJUSTMENT

(CAMERA SECTION)

1-1-1. List of Service Tools

• Oscilloscope

• Adjusting driver

Ref. No.

J-1

J-2

J-3 J-4 J-5

J-6 J-7 J-8

J-9 J-10 J-11 J-12

J-13 J-14

Filter for color temperature correction (C14) ND filter 1.0 ND filter 0.3 Pattern box PTB-450 Color bar chart for pattern box Adjusting remote commander (RM-95-remodeled partly) (Note 1) Siemens star Multi CPC jig CPC-7 jig Power code (Note 2) AFM DEV jig Clear chart Extension cable (16P, 0.5 mm)

IR receiver jig Extension cable (70P, 0.8 mm)

• Color monitor

• Regulated power supply

Name

SECTION 5

• Vectorscope

• Digital voltmeter

Parts Code

J-6080-058-A

J-6080-808-A J-6080-818-A J-6082-200-A J-6020-250-A

J-6082-053-B

J-6080-875-A J-6082-311-A J-6082-382-A J-6082-223-A J-6082-312-A J-6080-621-A J-6082-357-A

J-6082-383-A J-6082-439-A

Refer to page 3 as Table for distinction functions of models and classification

Usage

Auto white balance adjustment/check White balance adjustment/check White balance check White balance check

For checking the flange back For adjusting LCD block For adjusting the video section and color viewfinder adjustment For connecting the battery terminal and DC power supply For adjusting the deviation

For extension between the CD-210/211 board (CN401) and VC-215 board (CN501) For adjusting the IR transmitter For extension between the DD-117 board (CN931) and VC-215 board (CN915)

Note 1: If the micro processor IC in the adjusting remote

commander is not the new micro processor (UPD7503GC56-12), the pages cannot be switched. In this case, replace with the new micro processor (8-759-148-35).

J-1 J-2

J-7J-6 J-8 J-9 J-10

J-11 J-12

J-3

J-13

Note 2: Connect the adjusting remote commander to the LANC

jack, and set the HOLD switch to the “ ADJ” side, or press the battery switch of the battery terminal using adhesive tape, etc.

J-4 J-5

J-14

Fig. 5-1-1.

5-1

1-1-2. Adjusting items when replacing main parts

When replacing main parts, adjust the items indicated by r in the following table.

Replacing parts

Adjustment

Section

Initialization of D, E, F page data Camera G-CAM flip adj. Camera HALL adj. Camera Flange back adj. Camera Color reproduction adj. Camera IRIS IN/OUT adj. Camera MAX GAIN adj. Camera Auto white balance standard data input Camera Auto white balance adj. Camera Angular velocity sensor sensitivity check EVF (color) EVF initial data input EVF (color) VCO adj. EVF (color) Bright adj. EVF (color) Contrast adj. EVF (color) Backlight consumption current adj. EVF (color) White balance adj. EVF (B/W) Centering adj. EVF (B/W) Focus adj. EVF (B/W) Aberration adj. EVF (B/W) Horizontal amplitude adj. EVF (B/W) Vertical amplitude adj. EVF (B/W) Brightness adj. LCD LCD initial data input LCD VCO adj. LCD D range adj. LCD Bright adj. LCD Contrast adj. LCD V-COM adj. LCD Color adj. LCD V-COM adj. LCD White balance adj. System Control Battery end adj. Servo CAP FG offset adj. Servo RF switching position adj. Video 28MHz origin oscillation adj. Video AFC f0 adj. Video Filter f0 adj. Video Y OUT level adj. Video C OUT level adj. Video RP filter f0 adj. Video REC Y current adj. (Hi8/Standard 8) Video REC L current adj. (Hi8/Standard 8) Video REC C current adj. IR IR video carrier frequency adj. IR IR video deviation adj. IR IR audio deviation adj. Audio 1.5MHz deviation adj. Audio BPF f0 adj. Mechanism Tape path adj.

Adjusting item

Lens device

CD-210/211 board IC1401 (CCD imager)

SE-80/81 board SE451 (Pitch sensor)

SE-80/81 board SE452 (Yaw sensor)

VC-215 board IC202 (Y C process)

VC-215 board IC151 (Y, C IN/OUT)

VC-215 board IC001 (REC/PB AMP)

VC-215 board IC751 (IR transmitter)

VC-215 board IC301 (AFM process)

VC-215 board IC501 (Timing generator)

VC-215 board IC502 (S/H, AGC)

VC-215 board IC401 (EEPROM)

Mechanism deck M901 (Drum assembly)

Mechanism deck M902 (Capstan motor)

VF-99 board IC901 (CRT driver)

VF-99 board T901/T902 (FBT)

EVF block V901 (Picture tube)

PD-107 board IC5502 (LCD driver)

PD-107 board IC5601 (Timing generator)

LCD block ND901 (Fluorescent tube)

LCD block LCD901 (LCD panel)

r rr r rr rr r

rrr

rr r r

rrr rrr rrr

rr r

rr rr

rr rr r rr r

r rr rr rr rr rr rr rrr rrrr rr r rr rr

rr rr r rr r

rr rr r rr r rr r

rr rr rr

rr rr

5-2

VF-119 board IC5404 (LCD timing genrator)

VF-119 board IC5401 (LCD driver)

LB-54 board T5351 (INVERTER TRANS)

1-1-3. Preparations

Note 1: For details of how remove the cabinet and boards, refer to

“2. DISASSEMBLY”.

Note 2: When performing only the adjustments, the lens block and

boards need not be disassembled.

1) Connect the equipment for adjustments according to Fig. 5-1-3,

2) By setting the “Forced Camera Power ON mode”, the camera power can be turned ON even if the front panel b lock (MA-345/ 346 board, power switch, microphone unit) has been removed. When removing the front panel block disconnect the following connector.

1. VC-215 board CN903 (18P 0.5mm)

3) The video light model need not be assembled. If removing it. disconnect the following connector.

1. VC-215 board CN909 (4P 0.8mm)

Pattern box

1.5m

Note 3: As removing the cabinet (R) (removing the VC-215 board

CN911) means removing the lithium 3V power supply (CF-60/61 board) , data such as date, time, user-set menus will be lost. After completing adjustments, reset these data. If the cabinet (R) has been removed, the self-diagnosis data, data on history of use (total drum rotation time etc. ) will be lost. Before removing, note down the self-diagnosis data and data on the history use. (Refer to the “Service Mode” of “VIDEO SECTION ADJUSTMENT” for the data on the history use.)

Note 4: Setting the “Forced Camera Power ON” Mode

1)Select page: 0, address: 01, and set data: 01.

2)Select page: D, address: 10, set data: 01, and press the PAUSE button of the adjusting remote commander. The above procedure will enable the camera power to be turned on with the front panel block removed. After completing adjustments, be sure to exit the “Forced Camera Power ON Mode”.

Note 5: Exiting the “Forced Camera Power ON” Mode

1)Select page: 0, address: 01, and set data: 01.

2)Select page: D, address: 10, set data: 00, and press the PAUSE button of the adjusting remote commander.

3)Select page: 0, address: 01, and set data: 00.

Front of lens

Fig. 5-1-2.

5-3

TR SERIES

Color monitor Vector scope

Lens block

VIDEO terminal

VL-21 board CN151

CN909

CN902

CN916

CN901

CN551

CN501

VC-215 board

CN001

Terminated at 75

CD-210 board CN401

Extension cable(16P) (J-6082-357-A)

CN911

CN910

CN915

CN905

CN906

CN908

Ω

Regulaterd power supply (8.4

Battery

0.1 Vdc)

terminal

(Note 1)

Adjusting remote commande

LANC terminal

CN935

CN801

CN931

Battery switch

CN934

DD-117 board

MA-345 board CN303

CF-60 board CN001

Extension cable(70P) (J-6082-439-A)

Note 1: Connect the adjusting remote commander to the LANC

Fig. 5-1-3.

Must be connected when performing the VIDEO system or color EVF system

CPC-7 jig

adjustments.

(J-6082-382-A)

jack, and set the HOLD switch to the “ ADJ” side, or press the battery switch of the battery terminal using adhesive tape, etc. or use the AC power adaptor.

5-4

TRV SERIES

Color monitor Vector scope

Lens block

VIDEO terminal

VL-22 board CN151

CN909

CN902

CN916

CN901

CN551

CN501

VC-215 board

CN001

Terminated at 75

CD-211 board CN401

Extension cable(16P) (J-6082-357-A)

CN911

CN910

CN915

CN905

CN906

CN908

Ω

Regulaterd power supply

0.1 Vdc)

Battery

(8.4

terminal (Note 2)

Adjusting remote commande

LANC jack

CN935

CN801

CN931

Battery switch

CN934

DD-117 board

CN933

MA-346 board CN303

CF-61 board CN001

CN5701

CN5805

CN5501

PD-107 board

CN5802

Extension cable(70P) (J-6082-439-A)

CN5601

CN5803

CN5804

Fig. 5-1-4.

Must be connected when performing the VIDEO system.

CPC-7 jig (J-6082-382-A)

Must be connected when performing the LCD system adjustments.

Multi CPC jig (J-6082-311-A)

Note 2 :Connect the adjusting remote commander to the LANC

jack, and set the HOLD switch to the “ADJ” side, or press the battery switch of the battery terminal using adhesive tape, etc. or use the AC power adaptor.

5-5

1-1-4. Precaution

1. Setting the Switch

Unless otherwise specified, set the switches as follows and perform adjustments without loading cassette.

1. POWER switch (MA-345/346 board)....................CAMERA

2. NIGHT SHOT switch (Lens Block)................................ OFF

3. DEMO MODE (Menu display)....................................... OFF

4. DIGITAL ZOOM (Menu display) ................................... OFF

5. STEADY SHOT (Menu display) .................................... OFF

(TR713E/TRV46E)

6. DISPLAY (Menu display) ................................. V-OUT/LCD

2. Adjusting Procedure

Adjust in the given order.

7. FOCUS switch (MF-8500).................................... MANUAL

8. PROGRAM AE (CF-60/61 board) ..................................Auto

9. BACK LIGHT (CF-60/61 board) .................................... OFF

10. PICTURE EFECT (CF-60/61 board).............................. OFF

11. 16 : 9 WIDE (Menu display)........................................... OFF

Color bar chart standard picture trame

Yellow

Cyan

White

Magenta

Green

Fig. a. (Video output terminal output wavefom)

A=B

Red

Blue

Enlargement

Adjust the camera zoom and direction to obtain the output wavefom shown in Fig. a and the TV monitor display shown in Fig. b.

3. Subject

1) Color bar chart (Standard picture frame) Adjust the picture frame as shown in Fig. 5-1-5. if adjustments are performed using the color bar chart. (Standard picture frame)

2) White pattern (Standard picture frame) Remove the color bar chart from the pattern box, and insert a clear chart in its place. (Do not perform zoom operations during this time.)

3) Chart for flange back adjustment Combine a white A0 size (1189 mm x 841 mm) paper to a black one, and make the chart shown in Fig. 5-1-6.

0.1 msec

Difference in level

Fig. 5-1-5.

Cyan

Green

Yellow

Fig. b. (TV monitor picture)

Black

White

Magenta

1189 mm

Red

White

Blue

Electronic beam scanning frame

CRT picture fram

841 mm

Fig. 5-1-6.

Note : Use the non-reflecting and non-glazing vellum paper

whose size is more than A0, and make the boundary between white and black to be smoothly flat.

5-6

1-1-5. Adjusting Remote Commander

The adjusting remote commander is used for changing the calculation coefficient in signal processing, EVR data, etc. The adjusting remote commander performs bi-directional communication with the unit using the remote commander signal line (LANC). The resultant data of this bi-directional communication is written in the nonvolatile memory.

1. Using the adjusting remote commander

1) Connect the adjusting remote commander to the LANC terminal.

2) Adjust the HOLD switch of the adjusting remote commander to “HOLD” (SERVICE position).

If it has been properly connected, the LCD on the adjusting remote commander will display as shown in Fig. 5-1-7.

Page Data

Address

Fig. 5-1-7.

• Changing the address The address increases when the FF ()) button is pressed, and decreases when the REW (0) button is pressed. There are altogether 256 addresses, from 00 to FF.

• Changing the data (Data setting) The data increases when the PLAY (() button is pressed, and decreases when the STOP (p) button is pressed. There are altogether 256 data, from 00 to FF.

• Writing the adjustment data The PAUSE button must be pressed to write the adjustment data (D, E, F page) in the nonvolatile memory. (The new adjustment data will not be recorded in the nonv olatile memory if this step is not performed.)

4) Select page: 0, address: 01, and set the data to 01, and enables Page D and E, F to be adjusted.

5) After completing all adjustments, set data: 00 to page: 0, address: 01 and turn off the main power supply (8.4V) once.

2. Precautions upon using the adjusting remote

commander

Mishandling of the adjusting remote commander may erase the correct adjustment data at times. T o prev ent this, it is recommended that all adjustment data be noted down before beginning adjustments and new adjustment data after each adjustment.

3) Operate the adjusting remote commander as follows.

• Changing the page The page increases when the EDIT SEARCH+ button is pressed, and decreases when the EDIT SEARCH– button is pressed. There are altogether 16 pages, from 0 to F.

Hexadecimal notation LCD Display Decimal notation conversion value

0123456789ABCDEF

0 123456789A b c d E F

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Table 5-1-1.

5-7

1-1-6. Data Processing

The calculation of the DDS display and the adjusting remote commander display data (hexadecimal notation) are required for obtaining the adjustment data of some adjustment items. In this case, after converting the hexadecimal notation to decimal notation,

calculate and convert the result to he xadecimal notation, and use it as the adjustment data. Table 5-1-2. indicates the hexadecimal notation-the decimal notation calculation table.

Hexadecimal notation-Decimal notation

The lower digits of the

hexadecimal notation The upper digits of the hexadecimal notation

A (

B (

C (

b) c)

D (d)

E (

F (F)

0123 45678 9ABCDEF

0123456789101112131415 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111

112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255

A)(b)(c)(d)(E)(F)

(

Note: ( ) indicate the adjusting remote commander display.

(Example) In the case that the DDS display and the adjusting remote commander display are BD (bd).

As the upper digit of the hexadecimal notation is B (b), and the lower digit is D (d), the intersection “189" of the 1 and 2 in the above table is the decimal notation to be calculated.

Table 5-1-2.

5-8

1-2. INITIALIZATION OF D, E, F PAGE DATA

1. Initializing the D,E,F Page Data Note 1: If “Initializing the D, E, F P age Data” is performed,

all data of the D page, E page and F page will be initialized. (It is impossible to initialize a single page.)

Note 2: If the D,E,F page data has been initialized, “Modification

of D, E, F Page Data” and all adjustments need to be performed again.

Adjusting page D Adjusting Address 00 to 6F Adjusting page F Adjusting Address 00 to FF Adjusting page E Adjusting Address 00 to FF

Initializing Method:

1) Select page: 0, address: 01, and set data: 01.

2) Select page: 2, address: 00, and set data: 51.

3) Select page: 2, address: 01, set data: 51 and press the PAUSE button of the adjusting remote commander.

4) Select page: 2, address: 02, and check that the data is 01.

5) Select page: 3, address: 00, and set data: 29.

6) Select page: 3, address: 01, set data: 29, and press the PAUSE button of the adjusting remote commander.

7) Select page: 0, address: 01, and set data: 00.

8) Perform “Modification of D,E,F Page Data”.

2. Modification of D, E, F Page Data

If the D, E, F page data has been initialized, change the data of the “Fixed data-2” address shown in the following tables by manual input. Modifying Method:

1) Before changing the data, select page: 0, address: 01, and set data: 01.

2) New data for changing are not shown in the tables because they are different in destination. When changing the data, copy the data built in the same model.

Note : If copy the data built in the different model, the camcorder

may not operate.

3) When changing the data, press the PA USE button of the adjusting remote commander each time when setting new data to write the data in the non-volatile memory.

4) Check that the data of adjustment addresses is the initial value. If not, change the data to the inital value.

5) After compleating “Modification of D, E, F Paga Data” select page: 0, address: 01, and set data: 00. Also perform all adjustments.

5-9

3. D Page Table Note1 :

Fixed data-1 : Initialized data.

(Refer to “1. Initializing the D,E,F Page Data”.)

Fixed data-2 : Modified data.

(Refer to “2. Modification of D, E, F Page Data”).

Address Initial Remark

Value

00 to 0F 10 00 Fixed data-1 11 00 12 00 13 Fixed data-2 14 (Modified data, copy the data 15 built in the same model.) 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 00 Fixed data-1 2B 00 2C 00 2D 00 2E 12 2F 50 30 88 Battery end adj. 31 8D 32 A8 33 BD 34 C8 35 05 Fixed data-1 36 02 37 01 38 05 39 Fixed data-2 3A (Modified data, copy the data 3B built in the same model.) 3C 3D 07 Fixed data-1 3E Fixed data-2 3F (Modified data, copy the data 40 built in the same model.) 41 42 04 Fixed data-1 43 Fixed data-2 44 06 Fixed data-1 45 77 46 Fixed data-2 47 8F Fixed data-1 48 06 49 05 4A 03

Address Initial Remark

Value

4B 01 Fixed data-1 4C 00 4D 00 4E 00 4F 00 50 0E 51 2A 52 47 53 69 54 91 55 BF 56 EB 57 FF 58 E2 59 B2 5A 7F 5B 4D 5C 11 5D 00 5E 00 5F 00 60 2D 61 10 62 1E 63 19 64 00 65 00 66 00 67 00 68 00 69 00 6A 00 6B 00 6C 00 6D 00 6E 00 6F 00

5-10

4. F Page table Note 1:

Fixed data-1 : Initialized data.

( Refer to “1. Initializing the D,E,F Page Data”.)

Fixed data-2 : Modified data.

(Refer to “2. Modification of D, E, F Page Data”).

Note 2 :There are three models classified by VTR formats as shown

below, and the initial value of adjustment is different according to the model.

Hi8 model :CCD-TR515E/TR516E/TR713E

CCD-TRV36E/TRV46E

Standard8 model : CCD-TR315E/TR415E/TR425E

CCD-TR V16E/TRV26E/TRV27E/TRV27EP

Address Initial Remark

Value

00 to 0F 10 00 Emergency memory address 11 00 12 00 13 00 14 00 15 00 16 00 17 00 18 00 19 00 1A 00 1B 00 1C Fixed data-2 1D 1E 1F 20 21 50 G-CAM flip adj. 22 Fixed data-2 23 24 Fixed data-1 25 26 Fixed data-2 27 Fixed data-1 28 29 2A 2B Fixed data-2 2C A0 28MHz origin osc. adj. 2D Fixed data-2 2E Fixed data-1 2F 80 Hall adj. 30 80 31 18 Max gain adj. 32 Fixed data-2 33 Fixed data-1 34 1B Color reproduction adj. 35 Fixed data-1 36 42 Color reproduction adj. 37 Fixed data-1 38 39 3A 89 Auto white balance adj. 3B 59 3C 38 IRIS IN/OUT adj. 3D 41 3E 25 Flange back adj. 3F 00 40 19 41 00 42 35

Address Initial Remark

Value

43 78 Angular velocity sensor sensitivity check. 44 6C Address 43, 44 are fixed data-2 address.

(CCD-TR713E/TRV46E) 45 Fixed data-1 46 8D 1.5MHz deviation adj. 47 7A BPF f0 adj. 48 Fixed data-1 49 6B Y OUT level adj. 4A 40 AFC f0 adj. 4B 9A C OUT level adj. 4C Fixed data-1 4D 7B Filter f0 adj. 4E 60 RP filter f0 adj. 4F Fixed data-1 50 51 52 53 40 REC Y current adj. 54 40 Addresses 57 to5A are fixed 55 40 data-2 addresses. 56 40 57 A1/80 Note 2 : Hi8 model/ Standard8 model 58 95/80 59 A1/80 5A 95/80 5B 50 REC L level adj. 5C 50 Addresses 63 to 64 are fixed 5D 50 data-2 addresses. 5E 50 5F 66 60 66 61 66 62 66 63 7A/80 Note 2 : Hi8 model/ Standard8 model 64 7A/80 65 80 REC C current adj. 66 41 IR video deviation Adj. 67 33 IR audio deviation Adj. 68 C7 IR video carrier freq. Adj. 69 80 CAP FG offset adj. 6A Fixed data-2 6B Fixed data-1 6C 6D 6E 6F 70 3B AWB standard data input adj. 71 FF 72 56 73 7D 74 Fixed data-1 75 76 1B Flange back adj. 77 54 78 25 79 80 7A 10 7B FF 7C 0A Switching position adj. 7D 00 7E Fixed data-1 7F 80 Fixed data-2 81 82 Fixed data-1 83

(

)

5-11

Address Initial Remark

Value

84 Fixed data-2 85 Fixed data-1:

CCD-TR315E/TR415E/TR425E/TR515E/TR516E CCD-TR V16E/TRV26E/TRV27E/TRV27EP/TRV36E Fixed data-2:

CCD-TR713E, CCD-TRV46E 86 Fixed data-2 87 Fixed data-1 88 89 8A 8B 8C Fixed data-2 8D Fixed data-1 8E Fixed data-2 8F Fixed data-1 90 91 92 93 94 Fixed data-2 95 Fixed data-1 96 97 98 99 9A 9B 9C Fixed data-2 9D Fixed data-1 9E 9F A0 A1 A2 Fixed data-2 A3 A4 A5 Fixed data-1 A6 Fixed data-2 A7 A8 A9 AA Fixed data-1 AB AC AD AE AF B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE Fixed data-2 BF

Address Initial Remark

Value

C0 Fixed data-1 C1 C2 C3 C4 C5 C6 C7 C8 C9 Fixed data-2 CA Fixed data-1 CB CC CD CE CF D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 Fixed data-2 DA Fixed data-1 DB Fixed data-2 DC DD Fixed data-1 DE DF E0 E1 E2 E3 Fixed data-2 E4 E5 Fixed data-1 E6 Fixed data-2 E7 Fixed data-1 E8 E9 EA EB Fixed data-2 EC ED Fixed data-1 EE EF F0 F1 F2 Fixed data-2 F3 Fixed data-1 F4 F5 FF Color reproduction adj. F6 F4 F7 Fixed data-1 F8 F9 FA FB FC FD FE FF

5-12

5. E Page Table Note 1:

Fixed data-1 :Initialized data.

( Refer to “1. Initializing the D,E,F Page Data”.)

Fixed data-2 :Modified data.

(Refer to “2. Modification of D, E, F Page Data”).

Note 2: See “1-4. COLOR ELECTRONIC VIEWFINDER SYS-

TEM ADJUSTMENT”.

Note 3: See “1-5. LCD SYSTEM ADJUSTMENT”. Note 4: TR series: CCD-TR315E/TR415E/TR425E/TR515E/

TR516E/TR713E

TR V series: CCD-TRV16E/TRV26E/TRV27E/TRV27EP/

TRV36E/TRV46E

Address Initial Remark

Value

00 Fixed data-1 01 02 03 04 05 06 07 08 09 0A Fixed data-2 0B 0C Fixed data-1 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 Fixed data-2 21 Fixed data-1 22 23 24 25 26 27 28 29 2A 2B Fixed data-2 2C 2D 2E 2F Fixed data-1 30 31

Address Initial Remark

Value

32 Fixed data-1 33 34 35 36 37 38 39 3A 3B Fixed data-2 3C Fixed data-1 3D 3E 3F 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F Fixed data-2 50 Fixed data-1 51 52 53 54 Fixed data-2 55 Fixed data-1 56 57 58 59 Fixed data-2 5A Fixed data-1 5B 5C Fixed data-2 5D Fixed data-1 5E 5F 60 Fixed data-2 61 62 63 64 65 66 67 68 Fixed data-1 69 6A 6B Fixed data-2 6C 6D Fixed data-1 6E Fixed data-2 6F 70

5-13

Address Initial Remark

Value

71 72 Fixed data-1 73 Fixed data-2 74 Fixed data-1 75 Fixed data-2 76 to 99 Fixed data-1 9A Fixed data-2 9B Fixed data-1 9C Fixed data-2 9D Fixed data-1 9E 9F A0 Fixed data-2 A1 A2 A3 Fixed data-1 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA Fixed data-2 BB Fixed data-1 BC Fixed data-2 BD BE BF TR series : Fixed data-1 C0 TRV series : Fixed data-2 C1 C2 Note 2 VCO adj. (Color EVF) C3 Note 2 Bright adj. (Color EVF) C4 Note 2 Contrast adj. (Color EVF) C5 Note 2 White balance adj. (Color EVF) C6 Note 2 White balance adj. (Color EVF) C7 Fixed data-1 C8 Fixed data-2 : C9 CCD-TR516E (COLOR EVF MODEL) CA CB CC Note 2 CD Fixed data-1 CE CF Note 3 Bright adj. (LCD) D0 Note 3 Color adj. (LCD) D1 Note 3 White balance adj. (LCD) D2 Note 3 White balance adj. (LCD)

TR series:Fixed data-1/TRV series:Fixed data-2

Backlight consumption current adj. (Color EVF)

Address Initial Remark

D3 Note 3 Contrast adj. (LCD) D4 Note 3 D range adj. (LCD) D5 Note 3 V-COM level adj. (LCD) D6 Note 3 VCO adj. (LCD) D7 Note 3 V-COM adj. (LCD) D8 Fixed data-1 D9 DA DB DC Fixed data-1 DD DE DF E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA Fixed data-2 EB EC Fixed data-1 ED EE EF Fixed data-2 F0 Fixed data-1 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC to FF

Value

TR series:Fixed data-1/TRV series:Fixed data-2

5-14

1-3. CAMERA SYSTEM ADJUSTMENTS

Before perform the camera system adjustments, Check that the specified value of “28MHz Origin Oscillation Adjustment”, “Y OUT level Adjustment” and “C OUT level Adjustment” of “VIDEO SYSTEM ADJUSTMENT” are satisfied.

1. G-CAM flip Adjustment

Set the color reproduction conditions to optimum.

Subject Color bar chart standard picture frame Measurement Point Display data of page 1 of the adjusting

remote commander (Note 1)

Measuring Instrument

Adjustment Page F Adjustment Address 21

Note 1. Displayed data of page 1 of the adjusting remote com-

mander.

1 : XX : XX

n S2 n S1

Adjusting method:

1) Select page: 0, address: 01, and set data: 01.

2) Select page: 0, address: 03, and set data: 16.

3) Select page 1 of the adjusting remote commander, and compare the higher 2 digits (S1) and lower 2 digits (S2) of the 4-digits display data. When S1<S2 Perform steps 4) onwards. When S1 S2 Perform steps “Processing after Completing Adjustments”.

4) Select page: F, address: 21, set data: when the read data is 50, change to D0, and the read data is D0, change to 50, (initial value is 52) and press the P AUSE button of the adjusting remote commander.

Processing after Completing Adjustments

1) Select page: 0, address: 03, and set data: 00.

2) Select page: 0, address: 01, and set data: 00.

5-15

2. HALL Adjustment

For detecting the position of the lens iris, adjust the hall AMP gain and offset.

Subject Not required Measurement Point DDS display data of LCD or TV monitor

(Note 3)

Measuring Instrument

Adjustment Page F Adjustment Address 2F, 30 Specified Value 7E to 82 during IRIS OPEN (Note 1)

13 to 17 during IRIS CLOSE (Note 2)

Note 1: Select page: 2, address: 01, set data: 01, and press the

PAUSE button of the adjusting remote commander.

Note 2: Select page: 2, address: 01, set data: 03, and press the

PAUSE button of the adjusting remote commander.

Note 3: DDS display data of LCD or TV monitor.

00 00XX

n Object data

Adjusting method:

1) Select page: 0, address: 01, and set data: 01.

2) Select page: 0, address: 03, and set data: 03.

3) Select page: D, address: 11, set data: 02, and press the PAUSE button of the adjusting remote commander.

4) Select page: 2, address: 01, set data: 03, and press the PAUSE button.

5) Select page: F, address: 30, set data: 80, and press the PAUSE button.

6) Select page: F, address: 2F, set data: 40, and press the PAUSE button.

7) Read the DDS display data (the bottom two digits of the display data at the bottom right of the LCD display or the TV monitor), and this data is named K2.

8) Select page: F, address: 2F, set data: 30, and press the PAUSE button.

9) Read the DDS display data, and this data is named K1.

10) Select page: 2, address: 01, set data: 01, and press the PAUSE button.

11)Read the DDS display data, and this data is named W1.

12) Select page: F, address: 2F, set data: 40, and press the PAUSE button.

13)Read the DDS display data, and this data is named W2.

14) Convert W1, W2, K1, K2, to decimal notation, and obtain W1' , W2' , K1' , K2'. (Refer to Table 5-1-2. “Hexadecimal notation decimal notation conversion table”.)

15) Calculate X1' using the following equations (decimal notation calculation). A ’= W2'+ K1'– W1'– K2' Equation 1 B’= W1' – K1' Equation 2 X1'=[1696+(48 x A’)–(16 x B’)] / A’ Equation 3

16)Convert X1' to hexadecimal notation, and obtain X1. (Round off to one decimal place)

17) Select page: F, address: 2F, set data: X1, and press the PAUSE button.

18)Select page: 2, address: 01, and set data: 01, and press the PA USE button.

19)Select page: F , address: 30, change the data and adjust the DDS display data to “80”.

20)Press the PAUSE button of the adjusting remote commander.

21)Select page: 2, address: 01, and set data: 03, and press the PA USE button.

22)Read the DDS display data, and this data is named K0. If K0 lies within the “13” to “17” range, perform “Processing after completing adjustments”. If it is lies outside the range, perform the following adjustments.

23)Convert K0 to decimal notation, and obtain K0'.

24) Calculate X2' using the following equations (decimal notation calculation).

C’= 128 – B’– K0' Equation 4 X2'=[(106 – B’) x ( X1' – 48)+(48 x C’)] / C’

Equation 5

( X1' and B’ are values obtained from equations 2) and 3) )

25)Convert X2' to hexadecimal notation, and obtain X2.

(Round off to one decimal place)

26) Select page: F, address: 2F, set data: X2, and press the PAUSE button.

27) Select page: 2, address: 01, set data: 03, and press the PAUSE button.

28)Select page: F , address: 30, change the data and adjust the DDS display data to “15”.

29)Press the PAUSE button of the adjusting remote commander.

30) Select page: 2, address: 01, set data: 01, and press the PAUSE button.

31)Check the DDS display data lies within the “7E” to “82” range.

Processing after Completing Adjustments

1) Select page: D, address: 11, and set data: 00, and press the P AUSE button.

2) Select page: 0, address: 01, and set data: 00.

3) Select page: 2, address: 01, and set data: 00, and press the P AUSE button.

4) Select page: 0, address: 03, and set data: 00.

5-16

Sony CCD-TRV27EP, CCD-TR713E, CCD-TRV16E, CCD-TR516E, CCD-TR425E Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

SAFETY CHECK-OUT

SERVICE NOTE

SELF-DIAGNOSIS FUNCTION

TABLE OF CONTENTS

GENERAL

DISASSEMBLY

BLOCK DIAGRAMS

PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

ADJUSTMENTS
