Page 1

R-772(A) 2007.8.16 5:21 PM 페이지 1

Page 2

ENGLISH

1. Read Instructions - All the safety and operating instructions should be read before the product is operated.

2. Retain instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement, or near a swimming pool; and the like.

8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation - Slots and openings in the

cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources - This product should be operated only from the

type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization - This product may be equipped with a

polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings - This product is equipped with a three-wire grounding-type plug, a plug having a third(grounding) pin. This plug will only fit into a grounding-type power outlet. this is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

13. Power-Cord Protection - Power-supply cords should be routed so

that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Outdoor Antenna Grounding - If an outside antenna or cable

system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of

grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.

15. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

16. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service - Unplug this product form the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this

indicates a need for service.

21. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

24. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SAFETY INSTRUCTIONS

PORTABLE CART WARNING

R-772(A) 2007.8.16 5:21 PM 페이지 2

Page 3

ENGLISH

Introduction

: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Caution regarding installation

Note : For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure.

: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

WARNING

Do not block ventilation openings or stack other equipment on the top.

READ THIS BEFORE OPERATING YOUR UNIT

FOR YOUR SAFETY

Units shipped to the U.S.A and CANADA are designed for operation on 120 V AC only. Safety precaution with use of a polarized AC plug. However, some products may be supplied with a nonpolarized plug.

U.S.A

CANADA

120 V

•

Leave a space around the unit for sufficient ventilation.

•

Avoid installation in extremely hot or cold locations, or in an area that is exposed to direct sunlight or heating equipment.

•

Keep the unit free from moisture, water, and dust.

•

Do not let foreign objects in the unit.

•

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

•

No naked flame sources, such as lighted candles, should be placed on the unit.

•

Please be care the environmental aspects of battery disposal.

•

The unit shall not be exposed to dripping or splashing for use.

•

No objects filled with liquids, such as vases, shall be placed on the unit.

• Do not let insecticides, benzene, and thinner come in contact with the set

•

Never disassemble or modify the unit in any way.

Notes on the AC power cord and the wall outlet.

•

The unit is not disconnected from the AC power source(mains) as long as it is connected to the wall outlet, even if the unit has been turned off.

•

When disconnecting the power cord from the wall outlet, always pull the plug, not the power cord.

•

Disconnect the plug from the wall outlet when not using the unit for long periods of time.

•

The wall outlet shall be installed near the unit and shall be easily accessible.

CAUTION

: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

: Pour éviter chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’ au fond.

CAUTION ATTENTION

Note to CATV System Installer :

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

R-772(A) 2007.8.16 5:21 PM 페이지 3

Page 4

ENGLISH

CONTENTS

• SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

• Introduction

READ THIS BEFORE OPERATING YOUR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

• System Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

• Universal Remote Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

OPERATING COMPONENTS WITH REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . 19

REMOTE CONTROL OPERATION RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

LOADING BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

USING FUNCTIONS OF REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

• ROOM 2 Remote Controls

REMOTE CONTROL OPERATION RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

LOADING BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

• Operations

LISTENING TO A PROGRAM SOURCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

SURROUND SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ENJOYING SURROUND SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

LISTENING TO RADIO BROADCASTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

LISTENING TO XM SATELLITE RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

(XM Satellite Radio (only for North America))

OTHER FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

ROOM 2 SOURCE PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

DIGITAL AUDIO RECORDING WITH MD RECORDER . . . . . . . . . . . . . . . . . . . . . . . . . 46

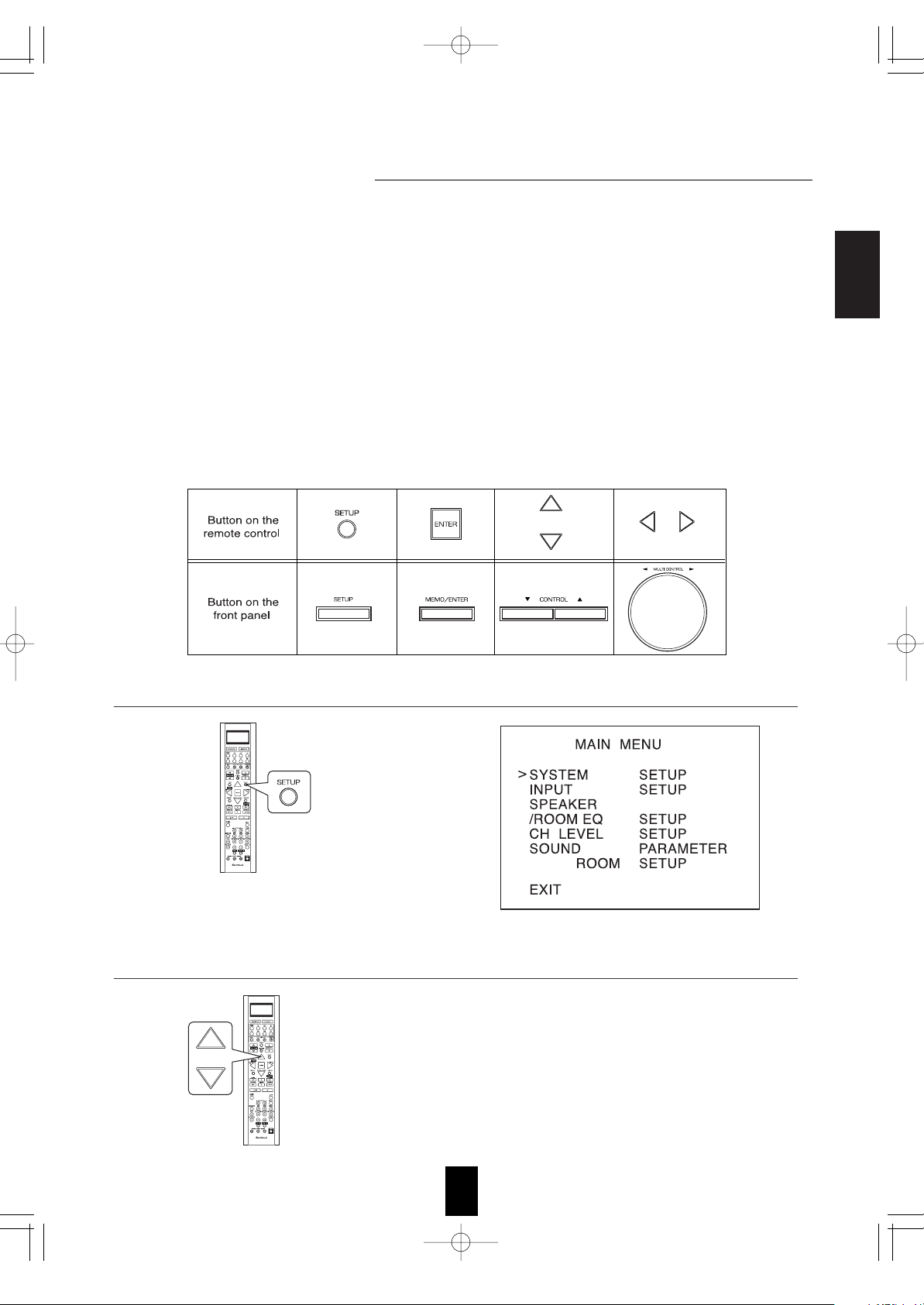

• OSD Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

SETTING THE SYSTEM SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

SETTING THE INPUT SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

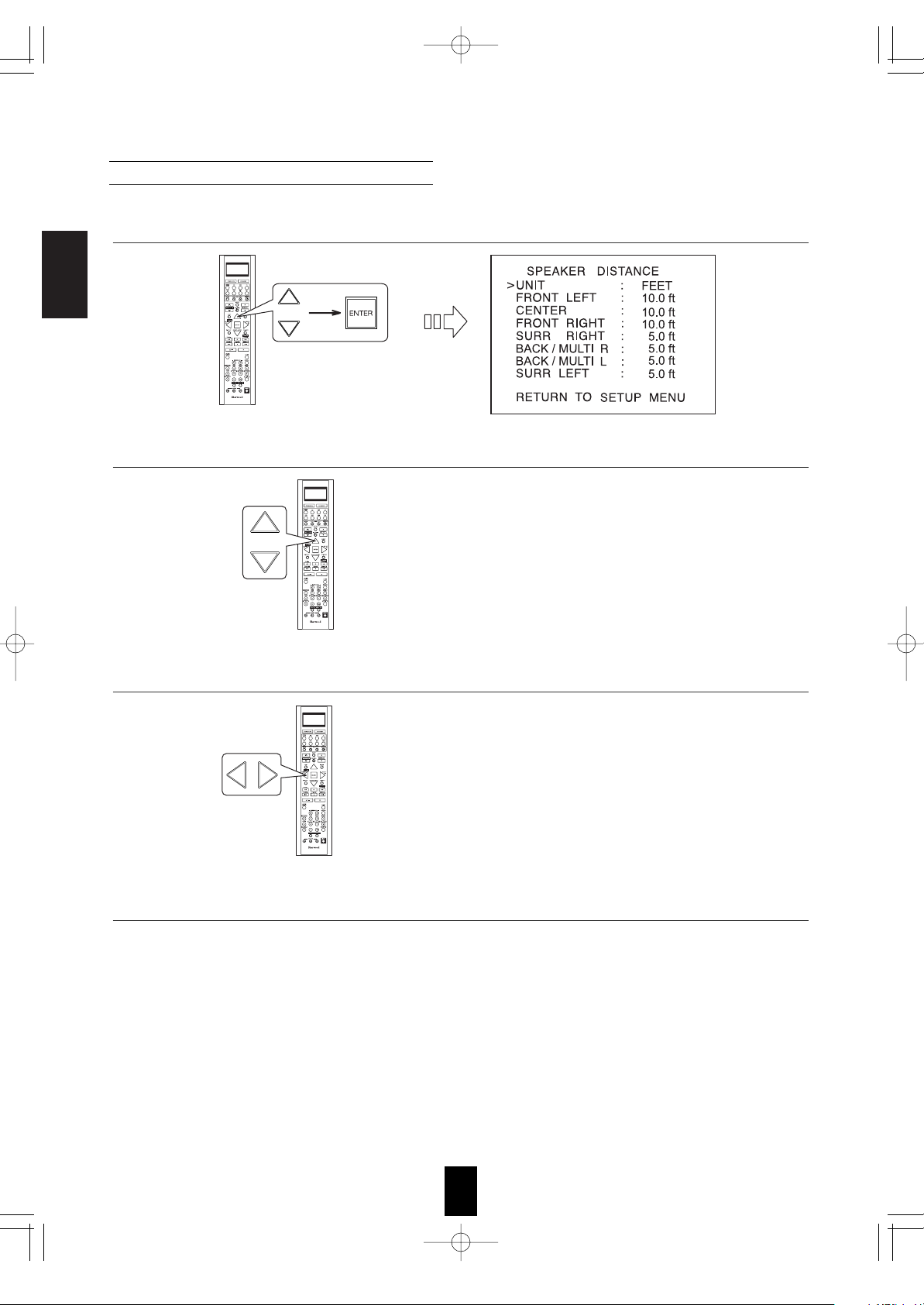

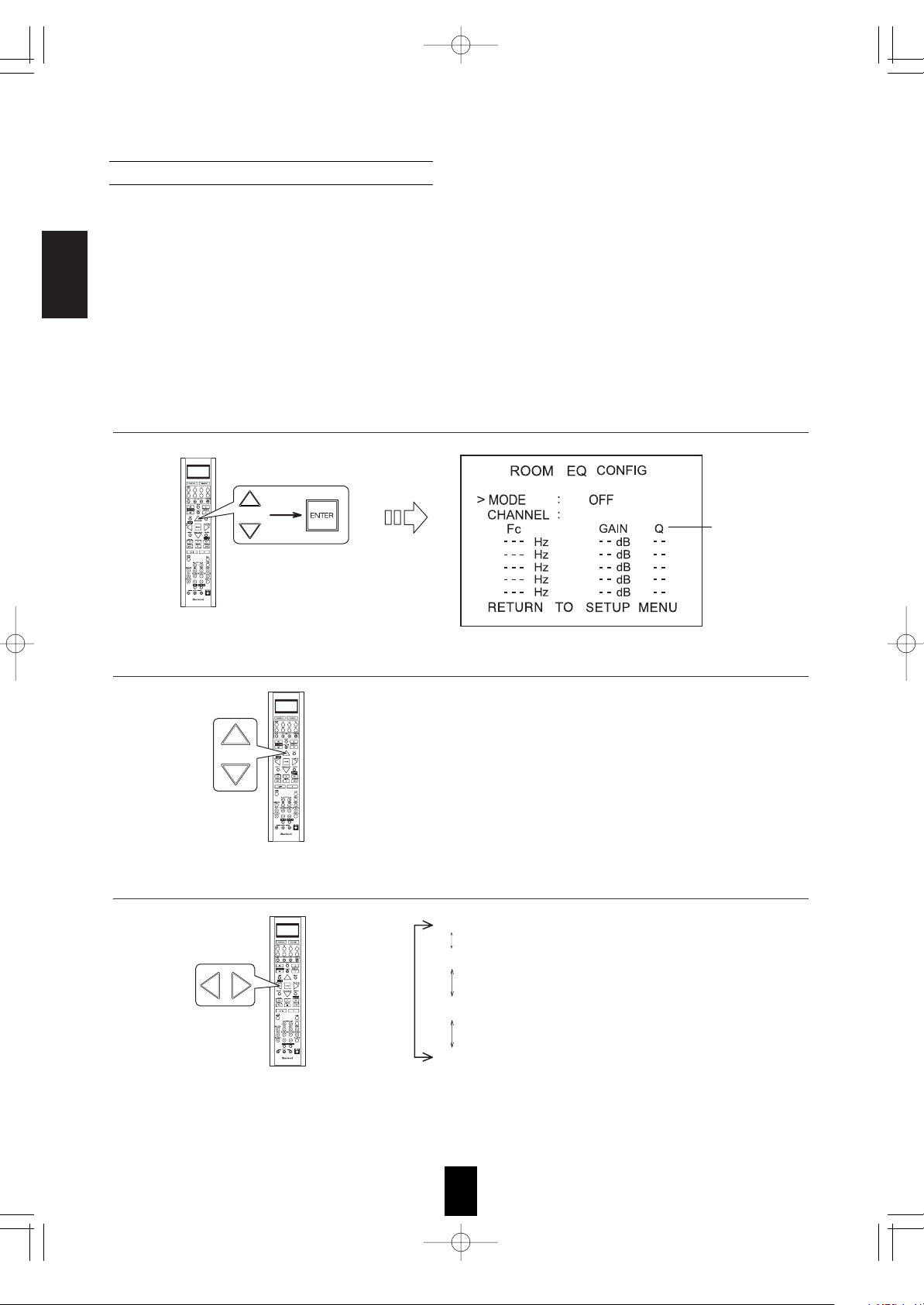

SETTING THE SPEAKER / ROOM EQ SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

SETTING THE CH LEVEL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

SETTING THE SOUND PARAMETER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

SETTING THE MULTI ROOM SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

• Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

• Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

• Setup Code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

R-772(A) 2007.8.16 5:21 PM 페이지 4

Page 5

ENGLISH

System Connections

• Pleas be certain that this unit is unplugged from the AC outlet before making any connections.

• Since different components often have different terminal names, carefully read the operating instructions of the component connected.

• Be sure to observe the color coding when connecting audio, video and speaker cords.

• Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the receiver.

• Change the position of the FM indoor antenna until you get the best reception of your favorite FM stations.

• Place the AM loop antenna as far as possible from the receiver, TV set, speaker cords and the AC input cord and set it to a direction for the best reception.

• If the reception is poor with the AM loop antenna, an AM outdoor antenna can be used in place of the AM loop antenna.

• A 75Ω outdoor FM antenna may be used to fur- ther improve the reception. Disconnect the indoor antenna before replacing it with the outdoor one.

1.CONNECTING ANTENNAS

R-772(A) 2007.8.16 5:21 PM 페이지 5

Page 6

• There are three types of video jacks (COMPONENT, SVIDEO, (composite) VIDEO) for analog video connections and the HDMI connectors for digital video and audio connections. Connect them to the corresponding video jacks according to their capability.

• For your reference, the excellence in picture quality is as follows : "HDMI” > "COMPONENT" > "S-VIDEO" > "(composite) VIDEO" .

• When making COMPONENT VIDEO connections, connect "Y" to "Y", "P

B/CB" to "CB"(or "B-Y", "PB") and "PR/CR" to

R"(or "R-Y", "PR").

• When recording video program sources through VIDEO 1 OUT jacks or viewing ROOM 2 source through ROOM 2 OUT jacks, you must use the same type of video jacks that you did connect to video playback components such as DVD player, cable TV tuner, etc.

• This unit is equipped with a function that up-converts composite video or S-Video signals to component video signals or down-converts S-Video signals to composite video signals and outputs them from the MONITOR OUTs. Because of this, you need not connect all the types of the MONITOR OUT jacks to the MONITOR TV.

• After connecting the video components, you should set the video mode correctly, referring to the following table on page 7. (For details, refer to "When selecting the VIDEO MODE" on page 54.)

ENGLISH

2.CONNECTING VIDEO COMPONENTS

• The jacks of VIDEO 1 may also be connected to a DVD recorder or other digital video recording component. For details, refer to the operating instructions of the component to be connected.

• The jacks of VIDEO 2/VIDEO 3 can also be connected to an additional video component such as a cable TV tuner or satellite system.

• Connect the jacks of VIDEO 3 to the video component in the same way.

R-772(A) 2007.8.16 5:21 PM 페이지 6

Page 7

ENGLISH

Continued

Relationship between the video input signal and the video output signal

*1: Component video signal can be output from the COMPONENT MONITOR OUT jacks only.

In this case, the OSD menu and the momentary OSD cannot be displayed. *2: The video signal set in the VIDEO MODE menu can be output from all the types of MONITOR OUT jacks. *3: The OSD menu and the momentary OSD cannot be displayed via (COMPOSITE) VIDEO MONITOR OUT jack. *

: If the OSD menu operation is performed, the picture is automatically turned off and only the OSD menu is displayed via COMPONENT

MONITOR OUT jacks.

Note :

• When outputting the component video signal from the COMPONENT MONITOR OUT jacks as it was input, the momentary

OSD cannot be displayed.

HDMI (High Definition Multimedia Interface) connection : (*1)

• You can connect the source component (DVD player, etc.) to the display component (TV, projector, etc.) through this receiver

with using a commercially available HDMI cord.

• The HDMI connection can carry uncompressed digital video signals and digital audio signals.

• The HDMI video stream signals (video signals) are theoretically compatible with DVI-D. When connecting to a TV monitor,

etc., equipped with DVI-D connector, it is possible to connect using a commercially available HDMI-DVI converter cord. Since the HDMI-to-DVI connection cannot carry any audio signals, you should make audio connections to play the audio signals on the component equipped with DVI-D connector. (For details, refer to the operating instructions of its.)

• If you connect the HDMI INs to your video components, it is easier to do so following the default settings.

• If your HDMI connection is different from the default setting, you should assign the HDMI INs you used with the "When

selecting the HDMI ASSIGN" procedure on page 54.

• The default settings are as follows :

HDMI 1 : VIDEO 1, HDMI 2 : VIDEO 2

Copyright protection system

• This unit supports HDCP (High-bandwidth Digital Contents Protection), technology to protect copyright of digital video signals

against illegal duplication. HDCP must also be supported on the components connected to this unit.

• This unit is HDMI Ver. 1.3 compatible.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing

LLC.

Notes :

• For stable signal transfer, we recommend using HDMI cords that are a maximum of 5 meters in length.

• Among the components that support HDMI, some components can control other components via the HDMI connector.

However, this unit cannot be controlled by another component via the HDMI connector.

• The audio signals from the HDMI connector (including the sampling frequency and bit length) may be limited by the

component that is connected.

• The video signals will not be output properly if a component incompatible with HDCP is connected.

• If the resolutions of the video signals which are output from the HDMI MONITOR OUT and your monitor TV are not matched,

the picture is not clear, natural or displayed. In this case, change the setting of the resolution on the source component (DVD player, etc.) to one which the monitor TV can handle. (For details, refer to the operating instructions of the source component.)

• When you want to enjoy only the picture on your TV, not the sound, you should set the HDMI AUDIO OUT to OFF not to

output the digital audio signal from the HDMI MONITOR OUT of this receiver. (For details, refer to "When selecting the HDMI AUDIO OUT" on page 50.)

Component video input default settings: (*2)

• If you connect the COMPONENT VIDEO INs to your video components, it is easier to do so following the default settings.

• If your component video connections are different from the default setting, you should assign the COMPONENT VIDEO INs

you used with the “When selecting the VIDEO ASSIGN” procedure on page 54.

• The default settings are as follows:

COMPONENT IN 1 : VIDEO 1, COMPONENT IN 2 : VIDEO 2.

Video input signals MONITOR OUTs

COMPONENT S-VIDEO (COMPOSITE) VIDEO COMPONENT S-VIDEO (COMPOSITE) VIDEO

  Auto Component S-Video Composite video*

 Component *

Component 

   S-Video*

S-Video S-Video S-Video

 Composite*

Composite video Composite video Composite video

  Auto Component S-Video S-Video   Auto Component Composite video Composite video   Auto Component*



  Auto S-Video S-Video Composite video*

  Auto S-Video S-Video S-Video   Auto Composite video Composite video Composite video

Video Mode

Setting



R-772(A) 2007.8.16 5:21 PM 페이지 7

Page 8

• For analog audio recording, the ROOM 2 OUT jacks can be connected to audio recording equipment such as a tape deck, an MD recorder, etc. as shown beside.

• Use these jacks to connect the corresponding outputs of a DVD player or external decorder, etc. that has 6, 7 or 8 channel analog audio outputs.

• In case of 6 or 7 channel outputs, do not connect both of the SURROUND BACK L and R inputs or the SURROUND BACK R input of this unit. (For details, refer to the operating instructions of the component to be connected.)

3.CONNECTING AUDIO COMPONENTS

4.CONNECTING EXTERNAL INS

• Connect the XM terminal to the XM Mini-Tuner system (sold separately).

• Position the XM Mini-Tuner system near a south-facing window to receive the best signal. When making connections, also refer to the operating instructions of the XM Mini-Tuner system.

• For the best reception, check the signal strength of the XM radio signal with using signal strength display mode, then adjust the position of the XM Mini-Tuner system until "GOOD" is displayed. (For details, refer to "Displaying XM information" on page 42.)

• To listen to XM Satellite Radio, refer to “XM Satellite Radio (only for North America)” on page 40.

CONNECTING XM (only for North America)

ENGLISH

R-772(A) 2007.8.16 5:21 PM 페이지 8

Page 9

• The OPTICAL and the COAXIAL DIGITAL OUTs

of the components that are connected to this unit can be connected to these DIGITAL INs.

• A digital input should be connected to the

components such as a CD player, DVD player, etc. capable of outputting DTS Digital Surround, Dolby Digital or PCM format digital signals, etc.

• If the component with OPTICAL IN jack is

connected to the OPTICAL OUT jack of this unit, you can record the high quality sound of CDs, etc. without degradation.

• For details, refer to the operating instructions of

the component connected.

• When making the COAXIAL DIGITAL connection,

be sure to use a 75 Ω COAXIAL cord, not a conventional AUDIO cord.

• All of the commercially available optical fiber cords

cannot be used for the equipment. If there is an optical fiber cord which cannot be connected to your equipment, consult your dealer or nearest service organization.

Notes:

• Be sure to make either a OPTICAL or a COAXIAL DIGITAL connection on each component. (You don’t need to

do both.)

• Depending on the digital audio signal format input into HDMI IN connector, some digital signals cannot be

output from the OPTICAL OUT jack.



Digital input default settings

• If you connect the DIGITAL INs to your components, it is easier to do so following the default settings.

• If your DIGITAL connections are different from default settings, you should assign the DIGITAL INs you used

with the “When selecting the AUDIO ASSIGN” procedure on page 54.

• The default settings are as follows :

OPTICAL IN 1 : VIDEO 1, OPTICAL IN 2 : VIDEO 2, COAXIAL IN 1 : CD, COAXIAL IN 2 : AUX.

• Connect a component to DC TRIGGER OUT jack

that allows DC 12V to turn on when a specific input source is selected.

• For details, refer to the operating instructions of

the components to be connected.

• To link DC TRIGGER OUT with a specific input

source, refer to "When selecting the DC TRIGGER" on page 55.

Notes:

• This output voltage (12V d.c., 100mA) is for (status) control only, it is not sufficient for drive capability.

• When making DC TRIGGER connection, you should use the stereo mini cord, not a mono mini cord.

• To emphasize the deep bass sounds, connect a

powered subwoofer.

8.CONNECTING SUBWOOFER PREOUT

6.CONNECTING DIGITAL INS AND OUT

7.CONNECTING DC TRIGGER OUT

ENGLISH

R-772(A) 2007.8.16 5:21 PM 페이지 9

Page 10

ENGLISH

• Be sure to connect speakers firmly and correctly according to the channel(left and right) and the polarity (+ and -). If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connection is incorrect, the sound will be unnatural and lack bass.

• For installing the speakers, refer to “Speaker placement” on page 11.

• After installing the speakers, first adjust the speaker settings according to your environment and speaker layout. (For details, refer to “SETTING THE SPEAKER/ROOM EQ SETUP” on page 57.)

Surround back speakers

• When using only one surround back speaker, you should connect it to SURROUND BACK/MULTI LEFT channel.

• Because this receiver cannot drive the surround back speakers and the ROOM 2 speakers simultaneously, you should assign their power amplifier correctly depending on how to use them. (For details, refer to “CONNECTING ROOM 2 OUTS” on page 12 and “When selecting the AMP ASSIGN” on page 49.)

Front Bi-Amp Connections.

• Some speakers are equipped with two sets of input terminals, for bi-amplification.

• If no other surround back speakers are used, you can connect the FRONT and the SURROUND BACK/MULTI channels to the bi-amp-capable speakers. (For details, refer to the operating instructions of your bi-amp-capable speakers.)

• To drive the bi-amp-capable speakers, you should assign the power amplifier to "BI-AMP".

Note :

• Before making bi-amp connections, remove the short-circuiting bars from the terminals of your speakers.

Caution :

• Be sure to use the speakers with the impedance of 6 ohms or above.

• Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or the speakers.

9.CONNECTING SPEAKERS

R-772(A) 2007.8.16 5:21 PM 페이지 10

Page 11

Ideal speaker placement varies depending on the size of your room and the wall coverings, etc. The typical example of speaker placement and recommendations are as follows :

Front left and right speakers and center

speaker

• Place the front speakers with their front surfaces as flush with TV or monitor screen as possible.

• Place the center speaker between the front left and right speakers and no further from the listening position than the front speakers.

• Place each speaker so that sound is aimed at the location of the listener’s ears when at the main listening position.

Surround left and right speakers

• Place the surround speakers approximately 1 meter (40 inches) above the ear level of a seated listener on the direct left and right of them or slightly behind.

Surround back left and right speakers

• Place the surround back speakers at the back facing the front at a narrower distance than front speakers.

• When using a single surround back speaker, place it at the rear center facing the front at a slightly higher position (0 to 20 cm ) than the surround speakers.

• We recommend installing the surround back speaker(s) at a slightly downward facing angle. This effectively prevents the surround back channel signals from reflecting off the TV or screen at the front center, resulting in interference and making the sense of movement from the front to the back less sharp.

Subwoofer

• The subwoofer reproduces powerful deep bass sounds.

Place a subwoofer anywhere in the front as desired.

Notes : When using a conventional TV, to avoid interference with the TV picture, use only magnetically shielded front

left and right and center speakers.

To obtain the best surround effects, the speakers except the subwoofer should be full range speakers.

ENGLISH

Speaker placement

1. TV or Screen

2. Front left speaker

3. Subwoofer

4. Center speaker

5. Front right speaker

6. Surround left speaker

7. Surround right speaker

8. Surround back left speaker

9. Surround back right speaker

10. Surround center speaker

11. Listening position

R-772(A) 2007.8.16 5:21 PM 페이지 11

Page 12

ENGLISH

• ROOM 2 playback feature allows you to play a different program source in another room as well as one source in the main room at the same time.

• For ROOM 2 playback, connect the ROOM 2 OUT jacks to the amplifier, TV, etc. installed in another room, or

connect the ROOM 2 speaker terminals to the speakers.

• When the ROOM 2 (AUDIO) OUT jacks are not connected to the ROOM 2 amplifier, you can connect these jacks to audio recording equipment such as a tape deck, an MD recorder, etc. for analog audio recording. (For details, refer to "CONNECTING AUDIO COMPONENTS" on page 8.)

Notes :

• To minimize hum or noise, use high quality connection cords.

• You cannot use the digital audio signal for ROOM 2 playback.

10.CONNECTING ROOM 2 OUTS

11. CONNECTING RF REMOTE ANTENNA

• Connect the supplied antenna to receive the RF (Radio Frequency) beams from the universal remote control.

• If the antenna is connected to this receiver, even though there are obstacles such as walls, furniture, etc. in the way, you can control this receiver with the universal remote control. Therefore, you can control this receiver from another room with the universal remote control without connecting the multi-room system kit. (For details, refer to "CONNECTING MULTI-ROOM SYSTEM KIT" on page

13.)

Note:

• If the walls are too thick or the distance exceeds the operation range, you cannot control this receiver with the universal remote control. In such a case, connect the multi-room system kit to this receiver and set the transmission signal mode to "IR"(Infrared). (For details, refer to "Changing the transmission signal" on page 28.)

R-772(A) 2007.8.16 5:21 PM 페이지 12

Page 13

• This receiver incorporates USB as well as RS-232C terminal that may be used in the future to update the operating software so that it will be able to support new digital audio formats, external control by using an external device and the like.

• Connect either USB or RS-232C terminal to your PC (you don't need to do both).

Notes:

• Programming for upgrades and external control requires specialized programming knowledge and for that reason we recommend that it only be done by qualified installers. For more information on future upgrades and external control, visit the Sherwood web site at www.sherwoodamerica.com or contact your dealer.

• Do not disconnect the connection cable while updating the operating software, etc. Should this happen, it may be result in malfunction or cause damage to the unit.

ENGLISH

13.CONNECTING PC FOR UPGRADES

• The multi-room system kit(sold separately ) is essential for operation from a remote location .

For information on the multi-room system kit, contact the Xantech corporation at 1-800-843-5465 or www.xantech.com.

• IR IN jack allows you to control this receiver from another room with the remote control unit.

• To control this receiver from another room with the remote control unit, connect the IR IN jack to the output of the connecting block.

• If this receiver is located inside a cabinet or other enclosure where the signals from the remote control unit cannot enter, then operation with the remote control unit will not be possible. In such a case, connect the IR IN jack to the output of the connecting block.

Notes:

• Remote operation may become unreliable if the IR receiver is exposed to strong light such as direct sunlight or

inverted fluorescent.

• When the transmission signal mode is set to "RF", the IR receiver cannot accept the RF beams from the universal remote control and remote operation will become unreliable.

12.CONNECTING MULTI-ROOM SYSTEM KIT

R-772(A) 2007.8.16 5:21 PM 페이지 13

Page 14

ENGLISH

• These outlets are switched on (power-on mode) and off (standby mode) according to power control as follows (Maximum total capacity is 120 W (1A)).

• Plug this cord into a wall AC outlet.

Standby mode - Switched AC outlet off Power - on mode - Switched AC outet on

14.SWITCHED AC OUTLETS

15.AC INPUT CORD

R-772(A) 2007.8.16 5:21 PM 페이지 14

Page 15

ENGLISH

Front Panel Controls

1. POWER switch

2. POWER ON/STANDBY button/indicator

3. VIDEO INPUT SELECTOR button

4. AUDIO INPUT SELECTOR button

5. EXTERNAL IN button

6. TUNER button

7. MASTER VOLUME CONTROL knob

8. HEADPHONE jack

9. SPEAKER button/indicator

10. SURROUND MODE button

11. STEREO button

12. SETUP button

13. CHANNEL LEVEL button

14. CONTROL UP/DOWN (/) buttons

15. ROOM 2 button

16. MEMORY/ENTER button

17. TUNING UP/DOWN(+/-) buttons

18. PRESET UP/DOWN(+/-) buttons

19. AUDIO ASSIGN button

20. MULTI CONTROL knob

21. REMOTE SENSOR

22. FLUORESCENT DISPLAY For details, see below.

23. SETUP MIC jack For details, see next page.

24. AUX IN jack For details, see next page.

25. VIDEO 4 IN jacks For details, see next page.

FLUORESCENT DISPLAY

1. Input, frequency, volume level, operating information, etc.

2. Surround mode indicators

3. AUTO indicator

4. DIGITAL INPUT indicator

5. DIRECT indicator

6. Preset number, sleep time display

7. MEMORY indicator

8. PRESET indicator

9. SLEEP indicator

10. ROOM 2 indicator

11. TUNED indicator

12. STEREO indicator

R-772(A) 2007.8.16 5:21 PM 페이지 15

Page 16

ENGLISH

• The AUX IN jack can be connected to an additional audio component such as an MP3 player, etc.



Note :

• When connecting this jack to an MP3 player, etc., you should use the stereo mini cord, not a mono mini cord.

VIDEO 4 IN JACKS

• The VIDEO 4 IN jacks may be also connected to an additional video component such as a camcorder, a video game player, etc.

• To use Auto Setup function, connect the supplied microphone to the SETUP MIC jack.(For details, refer to "When selecting the AUTO SETUP" on page 57.)

Notes:

• Because the microphone for Auto Setup is designed for use with this receiver, do not use a microphone other than the one supplied with this receiver.

• After you have completed the auto setup procedure, disconnect the microphone.



SETUP MIC JACK



AUX IN JACK

R-772(A) 2007.8.16 5:21 PM 페이지 16

Page 17

ENGLISH

Universal Remote Controls

This universal remote control can operate not only this receiver but also most popular brands of audio and video components such as CD players, tape decks, TVs, cable boxes, VCRs, DVD players, satellite receivers, etc.

• To operate 7 components other than this receiver , you should enter the setup code for each component. (For details, refer to “USING FUNCTIONS OF REMOTE CONTROL” on page 20.)

• The numbered buttons on the remote control have different functions in different device modes. For details, refer to "FUNCTION TABLE of the NUMBERED BUTTONS" on the next page.

About the transmission signal

This remote control can emit not only the infrared beams which the conventional remote control(inculding the ROOM 2 remote control) uses but also the RF(Radio Frequency) beams which are stronger than those. To operate this receiver and other components, this remote control should emit the infrared beams. To operate this receiver only from longer distance even if there are obstacles such as walls, furniture, etc. in the way, this remote control should emit the RF beams. Therefore, depending on how to use this remote control, you should set the tansmission signal mode to "IR"(default value) or "RF". (For details, refer to "Changing the transmission signal" on page 28.)

Notes :

• To receive the RF beams, you should connect the RF remote antenna to this receiver. (For details, refer to "CONNECTING RF REMOTE ANTENNA" on page 12.)

• If the transmission signal mode is set to "RF", this remote control cannot control other audio and video components.

R-772(A) 2007.8.16 5:21 PM 페이지 17

Page 18

ENGLISH

FUNCTION TABLE of the NUMBERED BUTTONS.

Notes :

• Some functions for each component may not be available or may work differently.

• Depending on other kinds of components that are available for each DEVICE button, some functions may not be available or may work differently, too.

• For details about functions, refer to the operating instructions of each component.

R-772(A) 2007.8.16 5:21 PM 페이지 18

Page 19

ENGLISH

LOADING B ATTERIES

OPERA TING COMPONENTS WITH REMO TE CONTROL

REMOTE CONTROL OPERATION RANGE

In case that this remote control emits the infrared beams

• Use the remote control within a range of about 7 meters (23 feet) and angles of up to 30 degrees aiming at the remote sensor.

In case that this remote control emits the RF beams

• Use the remote control within a disatance of about 10 meters (33 feet) toward this receiver.

Note :

• When you cannot operate any component, check if the transmission signal mode is set to "RF". (For details, refer to "Changing the transmission signal" on page 28.)



When the remote control does not operate, the old batteries should be replaced. In this case, load new batteries within several minutes after removing old batteries.

If the betteries are removed or have been exhausted for a longer period of time, memorized contents will be

cleared. Should this happen, you should memorize them again.

• Remove the batteries when they are not used for a long time.

• Do not use the rechargeable batteries (Ni-Cd type).

• Be sure to use alkaline batteries.

1. Enter the setup code for each component other

than this receiver. For detalis, refer to “Entering a setup code” on page 20.

2. Turn on the component you want to operate.

1. Remove the cover.

2. Load four alkaline batteries ("AAA" size, 1.5V)

matching the polarity.

3. Press the DEVICE button on the remote control

corresponding to the component you wish to operate.

4. Aim the remote control at the REMOTE

SENSOR of the component you wish to control and press the button corresponding to the operation you want.

R-772(A) 2007.8.16 5:21 PM 페이지 19

Page 20

USING FUNCTIONS OF REMOTE CONTROL

ENGLISH

Entering a setup code

• This remote control can control up to 8 different components.

• Before operating audio and video components other than this receiver with using this remote control, the setup code for each component should be entered.

• For system remote control operation, "000" was stored previously in the memory of the device button "CD" for Sherwood CD player, "DVD" for Sherwood DVD player, "AUX" for Sherwood tape deck and "TV" for Sherwood TV respectively as its factory setup code. So, you don’t need to enter its code for each Sherwood component except in such a case that its code does not work.

Note :

• If the transmission signal which this remote control emits is changed into "RF"(Radio Frequency), this remote contol cannot control other audio and video components. (For details, refer to "Changing the transmission signal" on page 28.)

• Then "LEARN" is displayed on the LCD screen for several seconds.

Notes :

• The AUDIO button is unavailable for the audio components other than this receiver.

• During setting operation, to exit from the setting mode, press any of the DEVICE buttons.

• Setup code entry is the easiest way to program this remote control for operating audio and video components.

1. Turn on the component you want to operate.

2. Find the setup codes according to the type and

the brand name of your component, referring to "Setup Code Table" on page 73.

3. Press and hold down both the ENTER button

and the desired one of the DEVICE buttons for more than 2 seconds.

4. While "LEARN" is displayed, press the CURSOR

UP()/DOWN() buttons to select the setup code mode ("CODE"), then press the ENTER button.

5. While "PRESET", etc. are displayed, enter a 3

digit code and press the ENTER button, aiming the remote sensor on the component.

• Each time the CURSOR UP()/DOWN() buttons are pressed, the mode changes as follows :

 LEARN  RF-IR  DELETE  MACRO   CODE  PUNCH 

• Then "PRESET" and 3 digit number are displayed.

• If "PRESET", etc. go off, start again from the above step 3.

Example: When entering "001".

• Then "OK" is displayed on the LCD screen.

• To be sure that the setup code is correct, press the POWER ON (or STANDBY) button.

• If the setup code is correct, your component will be turned off.

• When your component is not turned off, repeat the above steps 2 to 5, trying entering each code for your component until you find one that works.

• If "NG" is displayed, retry entering the correct setup code while "PRESET" and 3 digit number are displayed.

R-772(A) 2007.8.16 5:21 PM 페이지 20

Page 21

ENGLISH

• If any of buttons fails to operate as they should, start from the step 1 again to enter the correct setup code.

Note :

• Manufacturers may use different setup codes for the same product category. For that reason, it is important that you check to see if the code you have entered operates as many controls as possible. If only a few functions operate, check to see if another code will work with more buttons.

6. Operate the component using the corresponding

function buttons.

4. While "PRESET" is displayed, press the ENTER

button to store the setup code.

5. Operate the component using the corresponding

function buttons.

6. Repeat the above steps 1 to 5 for each of your

other components.

1. Turn on the component you want to operate.

2. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select the setup code mode ("CODE").

3. While "PRESET" is displayed, search a setup

code, aiming the remote control at the remote sensor on the component.

7. Repeat the above steps 1 to 6 for each of your

other components.

Searching a setup code

• Each time the CURSOR UP()/DOWN() buttons are pressed, the setup code is selected one by one.

• If the selected code is correct, your component will be turned off.

• When your component is not turned off, repeat this step until you find one that works.

• In addition to enter a setup code using "Setup Code Table" on page 73, it is also possible to search through all the codes that are stored in the library of this remote control.

• Then "OK" is displayed on the LCD screen.

• If any of buttons fails to operate as they should, start from the step 1 again to find the correct setup code.

R-772(A) 2007.8.16 5:21 PM 페이지 21

Page 22

ENGLISH

• If the command has been learned successfully,

"OK" is displayed and then "SEL" is flickering.

• If "ERROR" is displayed and then "SEL" is

flickering, it means that for some reason the command was not learned. In this case, repeat the above steps 4 and 5.

Notes :

• If an incorrect signal has been sent or, in some

cases, the command from other remote control simply cannot be learned.

• In some "ERROR" cases, the remote controls just

need to be moved closer together or farther apart.

Programing the commands from other remote controls (LEARNING mode)

• Then "SEL" is flickering.

• If "SEL" goes off, start again from the above step 2.

• If the setup codes are not available for your

component or you want to program a missing or special function into one button of a device, the learning function enables this remote control to learn the commands from other remote controls.

• Then "READY" is displayed. Note:

• You cannot program a function into some buttons such as DEVICE, MACRO and LIGHT buttons.

To exit from the setting mode, press any of the

DEVICE buttons.

• Then "LEARN" is displayed on the LCD screen for several seconds

Note :

• During setting operation, to exit from the setting mode, press any of the DIVICE buttons.

1. Place this remote control and other remote

control facing each other at a distance of 5 to 15 cm (2 to 6 inches ) apart.

2. Press and hold down the ENTER button and the

desired one of the DEVICE buttons for more than 2 seconds.

3. While "LEARN" is displayed, press the ENTER

button.

4. While "SEL" is flickering, on this remote control,

press the button corresponding to the function to be learned.

5. While "READY" is displayed, on the other

remote control, press the button of the function to be learned.

8. Operate the newly programmed buttons to make

sure the learning function was performed properly.

7. Repeat the above steps 1 to 6 to program the

commands from a different remote control.

6. While "SEL" is flickering, repeat the above steps

4 and 5 to program all the commands you want to the buttons on this remote control under the same device mode.

Example: If the function to be learned is playback,

press the PLAY() button.

R-772(A) 2007.8.16 5:21 PM 페이지 22

Page 23

ENGLISH

Erasing the programmed command from one button

• "OK" is displayed and then "SEL" is flickering.

• Then "BTTN" is displayed on the LCD screen for several seconds.

Example: When the button for the command to be

erased is PLAY button.

• Each time the CURSOR UP()/DOWN() buttons are pressed, "BTTN" or "LEARN"(all command deleting mode) is selected.

• Then "SEL" is flickering.

• If "SEL" goes off, start again from the above step 1.

1. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select the delecting mode ("DELETE").

1. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select the deleting mode ("DELETE").

2. While "BTTN" is displayed, press the CURSOR

UP()/DOWN() buttons to select the all command deleting mode ("LEARN"), then press the ENTER button.

3. While "SURE?" is displayed, press the ENTER

button.

4. To erase all the commands programmed under

other device mode, repeat the above steps 1 to

2. While "BTTN" is displayed, press the CURSOR

UP()/DOWN() buttons to select the one command deleting mode (BTTN), then press the ENTER button.

3. While "SEL" is flickering, press the button for the

command you want to erase.

4. While "SEL" is flickering, repeat the above step

3 to erase other commands.

Erasing all the commands programmed under a device mode

• Then all the commands programmed are erased.

• Then "BTTN" is displayed on the LCD screen for several seconds.

• Then "SURE?" is displayed .

• If "SURE?" goes off, start again from the above step 1

R-772(A) 2007.8.16 5:21 PM 페이지 23

Page 24

ENGLISH

Programming a macro function

Example: When playing a DVD on the DVD player

connected to VIDEO 2 jacks of this receiver.

. Press "AUDIO" button to control this receiver. . Press "POWER ON" button to turn this

receiver on.

. Press "VIDEO 2(7)" button to select the

desired input source.

. Press "DVD" button to control the DVD player. . Press "POWER ON" button to turn the DVD

player on.

. Press "PLAY ()" button to start playback.

• Each time the operation buttons are pressed, the programmed order is displayed.

• The macro function enables you to program a series of button operations(up to 15) on this remote control into a single button.

• You can store up to three separate macro command sequences into "M1", "M2" and "M3" buttons.

• Then "M1" is displayed on the LCD screen for several seconds.

• During macro setting operation, pressing any of the DEVICE buttons cannot exit from the macro mode.

• Each time the CURSOR UP()/DOWN()

buttons are pressed, "M1", "M2" or "M3" is selected.

• Then "SEL" is flickering.

• If "SEL" goes off, start again from the above

step 1.

1. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select the macro mode ("MACRO").

2. While "M1" is displayed, press the CURSOR

UP()/DOWN() buttons to select the MACRO button to be programmed into, then press the ENTER button.

3. While "SEL" is flickering, press the operation

buttons you want to program in order.

4. Press any of the MACRO buttons (M1~M3) to

complete the programming.

• Then "OK" is displayed.



To erase a macro program

• When erasing a macro program, perform the above steps 1, 2 and 4, but ignore the step 3.



To change a macro program

• When a new macro program is stored into a MACRO button with performing the above steps 1 to 4, the previous macro program is erased from the memory of the MACRO button.

R-772(A) 2007.8.16 5:21 PM 페이지 24

Page 25

ENGLISH

Operating a macro function

Notes:

• The codes programmed into a MACRO button will be transmitted at an interval of 0.5 seconds. However, some components may not be able to complete one operation in 0.5 seconds and may miss the next code. In this case, the macro function cannot control the corresponding components correctly.

• Be sure to use the remote control within the remote control operation range of the components.

• Depending on the operation status of the components, etc., the macro function cannot control the corresponding components correctly.

• Aim the remote control at the REMOTE SENSORs of the components to be controlled and press the MACRO button you want. Example : When pressing "M1" button.

1. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select a master device and the punch-through mode ("PUNCH").

2. While "VOL" is displayed, press the CURSOR

UP()/DOWN() buttons to select the desired punch-through mode, then press the ENTER button.

Programing a punch-through function

• The punch-through function allows the volume controls, channel controls or transport controls to link to a different device while a device is controlled with this remote control as a master device.

• For example, since this receiver will likely be used as the sound system while watching TV, you may want to use volume controls to operate this receiver although this remote control is set to control the TV.

• Each time the CURSOR UP()/DOWN() buttons are pressed, the mode changes as follows:

 VOL : The volume punch -through mode

allows the "VOLUME /" and "MUTE" buttons to operate a different device.

DELETE : All punch-through deleting mode.

PLAY : The transport punch-through mode

allows the "", "", "", "



", "",





", "" and "" buttons to

operate a different device.

 CH : The channel punch-through mode

allows the "CHANNEL

/" and "CH.

LEVEL" buttons to operate a different device.

• Then the device to which you can link the selected punch-through mode is displayed.

• Then "VOL" is displayed on the LCD screen for several seconds.



R-772(A) 2007.8.16 5:21 PM 페이지 25

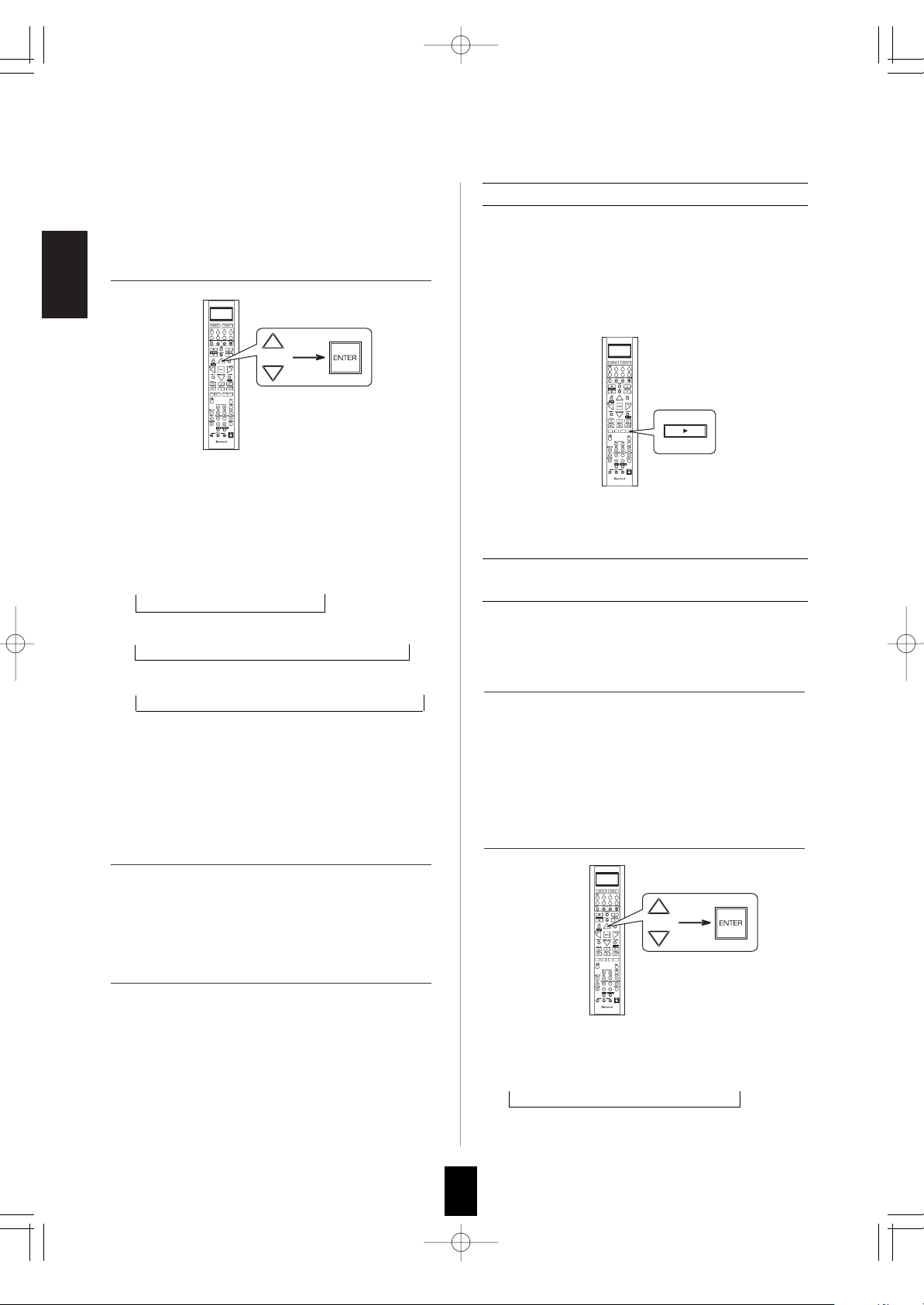

Page 26

ENGLISH

• Each time the CURSOR UP()/DOWN() buttons are pressed, depending on the selected punch-through mode, punch-through devices and the one punch-through deleting mode ("DELETE") are selected as follows :

• In case of the volume punch-through,

 AUDIO  DELETE  TV 

• In case of the transport punch-through,

 CD  DELETE  DVD  VCR  AUX 

• In case of the channel punch-through,

 TV  DELETE  SAT  CABLE  VCR 

• Then "OK" is displayed and the current punchthrough mode is displayed.

3. While the device is displayed, press the

CURSOR UP()/DOWN() buttons to select the desired punch-through device, then press the ENTER button.

1. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select a master device and the punch-through mode ("PUNCH").

2. While "VOL" is displayed, press the CURSOR

UP()/DOWN() buttons to select the punchthrough mode to be erased, then press the ENTER button.

4. While the punch-through mode is displayed,

repeat the above steps 2 and 3 to program other punch-through function under the same master device mode.

5. To program punch-through functions under

other master device mode, repeat the above steps 1 to 4.

Operating a punch-through function

• While this remote control is set to control a master device, aim the remote control at the REMOTE SENSOR of the punch-through device and press the desired button of the programmed punch-through controls.

Example: When pressing "PLAY ()" button.

• Then the punch-through device is displayed on the LCD screen.

Erasing the programmed puch-through function

• Then "VOL" is displayed on the LCD screen for several seconds.

• Each time the CURSOR UP()/DOWN() buttons are pressed, the mode changes as follows:

 VOL  DELETE  PLAY  CH 

• Then the device is displayed .

Continued

R-772(A) 2007.8.16 5:21 PM 페이지 26

Page 27

ENGLISH

3. While the device is displayed, press the

CURSOR UP()/DOWN() buttons to select the one punch-through deleting mode ("DELETE"), then press the ENTER button.

2. While "VOL" is displayed, press the CURSOR

UP()/DOWN() buttons to select the all punch-through deleting mode ("DELETE").

3. While "DELETE" is displayed, to erase all the

punch-through functions programmed under the master device mode, press ENTER button.

4. To erase all the punch-through functions

programmed under other master device mode, repeat the above steps 1 to 3.

4. While the punch-through mode is displayed,

repeat the above steps 2 and 3 to erase other punch-through function under the same master device mode.

5. To erase punch-through functions under other

master device mode, repeat the above steps 1 to 4.

• Each time the CURSOR UP()/DOWN() buttons are pressed, depending on the selected punch-through mode, the punchthrough devices and the deleting mode ("DELETE") are selected.

• Then "OK" is displayed and the current punchthrough mode is displayed .

• Then "OK" is displayed and "DELETE" is displayed.

• To exit from the deleting mode, press any of the DEVICE buttons.

• Each time the CURSOR UP()/DOWN() buttons are pressed, the mode changes as follows:

 VOL  DELETE  PLAY  CH 

• Then "DELETE" is displayed .

Continued

1. Perform the steps 3 and 4 in "Entering a setup

code" procedure on page 20 to select a master device and the punch-through mode ("PUNCH").

Erasing all the punch-through functions programmed under a master device mode

• Then "VOL" is displayed on the LCD screen for several seconds.

R-772(A) 2007.8.16 5:21 PM 페이지 27

Page 28

Changing the transmission signal

• This remote control can emit not only the infrared beams which the conventional remote control uses but also the RF(Radio Frequency) beams which are stronger than those.

• When you want to control this receiver from longer distance even if there are obstacles such as walls, furniture, etc. in the way, change the transmission signal into "RF"(Radio Frequency).

Notes:

• When the RF remote antenna is not connected, remote operation will become unreliable. (For details, refer to "CONNECTING RF REMOTE ANTENNA" on page 12.)

• If the transmission signal mode is set to "RF" (Radio Frequency), this remote control cannot control other audio and video components.

1. Press and hold down the ENTER button and

any of the DEVICE buttons for more than 2 seconds.

• Then "LEARN" is displayed on the LCD screen for several seconds.

Note:

• During setting operation, to exit from the setting mode, press any of the DEVICE buttons.

2. While "LEARN" is displayed, press the

CURSOR UP()/DOWN() buttons to select the transmission signal mode("RF-IR"), then press the ENTER button.

• Then "RF" (or "IR") is displayed.

• If "RF" (or "IR") goes off, start again from the above step 1.

3. While "RF" (or "IR") is displayed, press the

CURSOR UP()/DOWN() buttons to select the desired transmission signal, then press the ENTER button.

4. To pair up this remote control and the receiver,

press the CONTROL DOWN() button and the MEMORY/ENTER button simultaneously on the receiver.

5. While "RF REMOCON PAIRING MODE" is

displayed, press the ENTER button, aiming at the receiver.

• Each time the CURSOR UP()/DOWN() buttons are pressed, the mode changes as follows : "RF" : This remote control emits the RF(Radio

Frequency) beams which stronger than the infrared beams.

"IR" : This remote control emits the infrared

beams which the conventional remote control uses.

• Then "OK" is displayed.

• "RF REMOCON PAIRING MODE" is displayed for several seconds on the display of the receiver.

• If "RF REMOCON PAIRING MODE" goes off, press these buttons again.

• Then "PAIRING SUCCESS" is displayed.

ENGLISH

When "RF" is set to.

R-772(A) 2007.8.16 5:21 PM 페이지 28

Page 29

REMOTE CONTROL OPERATION RANGE

ROOM 2 Remote Controls

This remote control unit is an additional remote control unit for the ROOM 2 source playback only.

• You can use the ROOM 2 functions with this remote control unit more conveniently in another room than with the universal remote control unit.

• For details on ROOM 2 operation, refer to "ROOM 2 SOURCE PLAYBACK" on page 44.

LOADING BATTERY

• Remove the battery when it is not used for a long time.

• Aim the ROOM 2 remote control at the IR receiver installed in another room.(For details, refer to "CONNECTING MULTI-ROOM SYSTEM KIT" on page 13.)

• When you operate the ROOM 2 function in the main room, aim the ROOM 2 remote control at the remote sensor of this receiver.

1. Remove the cover. 2. Load the battery(CR2025) matching the polarity.

ENGLISH

R-772(A) 2007.8.16 5:21 PM 페이지 29

Page 30

ENGLISH

LISTENING TO A PROGRAM SOURCE

Operations

Before operation

• Enter the standby mode.

• The POWER ON/STANDBY button lights up amber. This means that the receiver is not disconnected from the AC mains and a small amount of current is retained to support the operation readiness.

• To switch the power off, push the POWER switch again. Then the power is cut off and the POWER ON/STANDBY button goes off.

• Then the SPEAKER indicator lights up and the sound can be heard from the speakers connected to the speaker terminals.

• When using the headphones for private listening, press the SPEAKER button again to switch the speakers off.

• Each time the "AUDIO" button on the front panel is pressed, the input source changes as follows:

 CD  AUX  TAPE

• Each time the "VIDEO" button on the front panel is pressed, the input source changes as follows:

 VIDEO 1VIDEO 2VIDEO 3 VIDEO 4

• Each time the "TUNER" button is pressed, the band changes as follows:

 FM STereo  FM MONO  AM  XM



When selecting the EXTERNAL IN as desired,

• Depending on the power amplifier setting for the surround back channels and the surround back speaker setting, "EXT. IN" is displayed and 8(/7/6) separate analog signals from the component connected to this input pass through the tone and volume circuits only and can be heard from your speakers.

• Select the desired input source to cancel the external in function.

• These analog signals can be heard only, not recorded.

Notes:

• Before operating this receiver with the supplied remote control, refer to "Universal Remote Controls" on page 17 for details about operation.

• Before operating this receiver, first set this unit as desired for optimum performance, doing the OSD menu setting procedures. (For details, refer to "OSD Menu Settings" on page 47.)

• Each time the POWER ON/STANDBY button on the front panel is pressed, the receiver is turned on to enter the operating mode (the POWER ON/ STANDBY button lights up blue) or off to enter the standby mode(the POWER ON/STANDBY button lights up amber).

• On the remote control, press the POWER ON button to enter the operating mode or press the STANDBY button to enter the standby mode.

• In the standby mode, if the INPUT SELECTOR button is pressed, the receiver is turned on automatically and the desired input is selected.

1. In the standby mode, turn the power on.

3. Select the desired input source.

2. Switch the speakers on.

R-772(A) 2007.8.16 5:21 PM 페이지 30

Page 31

ENGLISH

• When playing back the program sources with surround sound, refer to “ENJOYING SURROUND SOUND” on page 34.

• If the AUDIO MODE is set to the mode other than "DIGITAL" for the corresponding input source on the INPUT SETUP menu, you cannot hear the sound from the selected digital input. (For details, refer to "SETTING THE INPUT SETUP" on page 53.)

When CD, AUX, VIDEO 1~ 4 is selected as an input source

■Notes:

• When the selected digital input is not connected or assigned, "o1", "c1", etc (, meaning no digital signal input from it) or "d"(, meaning no audio assignment) flickers and no sound will be heard.

• The selected digital input is automatically assigned to the corresponding input source on the INPUT SETUP menu. (For details, refer to "SETTING THE INPUT SETUP" on page 53.)

• The sound from the component connected to the selected digital input can be heard regardless of the selected input source.

• Each time the MULTI CONTOL knob is rotated or the CURSOR LEFT(◀)/RIGHT(▶) buttons are

pressed, the corresponding input is selected as follows :

• Ensure that the SPEAKER button is set to off.

• Depending on the signal format which is being input, you can listen in Dolby Headphone mode, stereo mode, etc. (For details, refer to "Listening in Dolby Headphone mode" on page 35).

• When the EXTERNAL IN is selected as an input source, only front left and front right channel signals can be reproduced through the headphones.

■Note:

• Be careful not to set the volume too high when using headphones.

Muting the sound

Listening with headphones

• "MUTE" flickers.

• To resume the previous sound level, press it again.

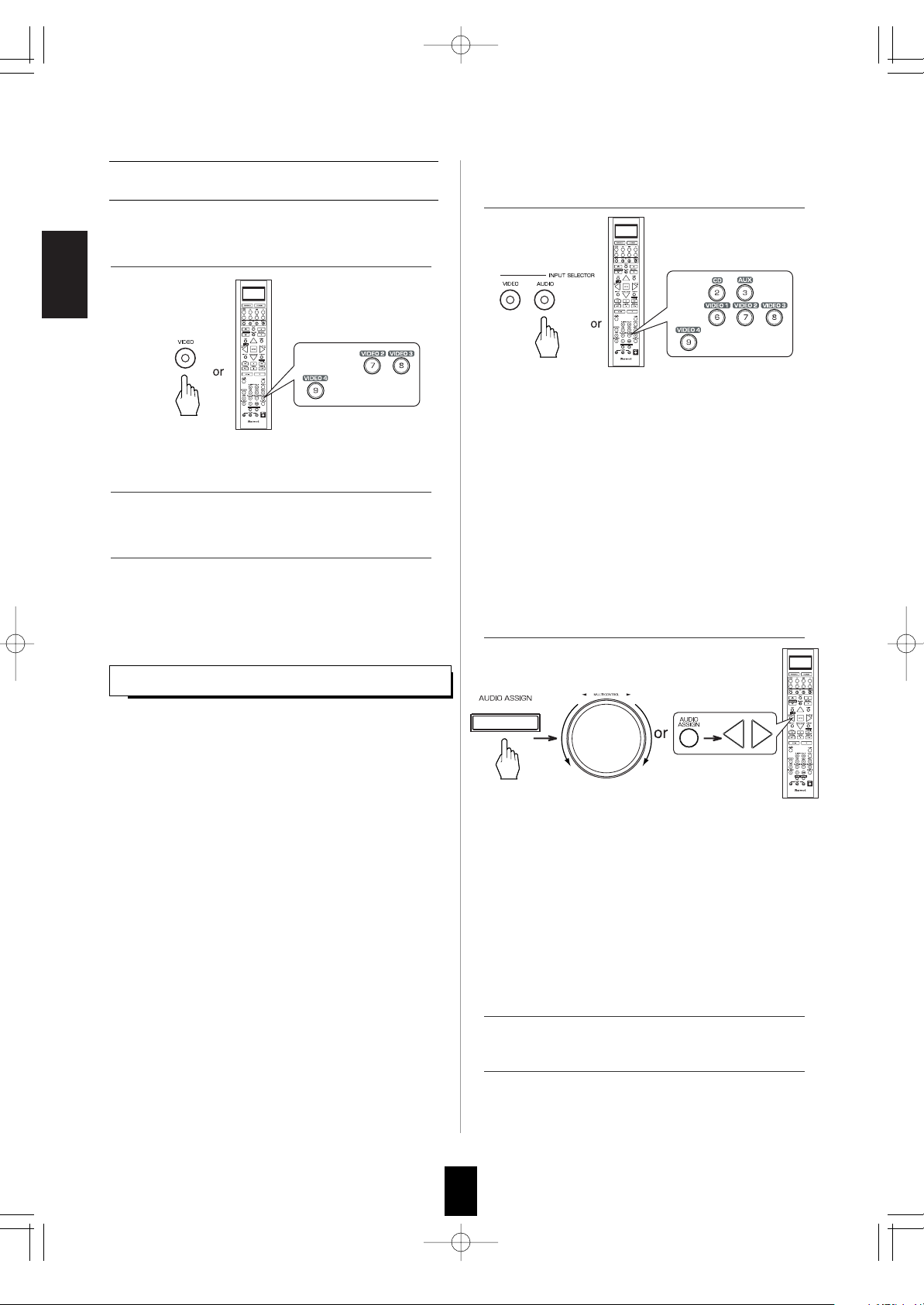

5. Select the desired of the digital inputs connected

while displaying "AUD ~ ".

4. Press the AUDIO ASSIGN button.

6. Operate the selected component for playback.

7. Adjust the (overall) volume.

• "AUD ~ " is displayed for several seconds.

• "AUD ~ " disappears, press the AUDIO ASSIGN button again.

R-772(A) 2007.8.20 10:2 AM 페이지 31

Page 32

ENGLISH

DTS Digital Surround

DTS Digital Surround(also called simply DTS) is a multi-channel digital signal format which can handle higher data rates. Discs bearing the “ ” include the recording of up to

5.1 channels of digital signals, which can be generally thought to provide better sound quality due to the lower audio compression required. It also provides wide dynamic range and separation, resulting in magnificent sound.

DTS - ES Extended Surround™

()

This is a new multi channel digital signal format which greatly improves the 360- degree surround impression and space expression thanks to further expanded surround signals, offering high compatibility with the conventional DTS format. In addition to the 5.1 channels, DTS-ES Extended Surround also offers the surround back (sometimes also referred to as “surround center”) channel for surround playback with a total of 6.1 channels. DTS-ES Extended Surround includes two signal formats with different surround signal recording methods as follows:

• DTS-ES™ Discrete 6.1

Because the signals for 6.1 channels (including the surround back channel) are fully independent, it is possible to achieve a sense that the acoustic image are moving about freely among the background sounds surrounding the listener from 360 degrees. Though maximum performance is achieved when sound tracks recorded with this system are played using a DTS -ES decoder, when played with a conventional DTS decoder, the surround back channel signals are automatically downmixed to the surround left and surround right channels so that none of the signal components are lost.

• DTS - ES™ Matrix 6.1

With this format, the additional surround back channel signals undergo matrix encoding and are input to the surround left and surround right channels beforehand. During playback, they are decoded to the surround left, surround right and surround back channels. Because the bit stream format is 100% compatible with conventional DTS signals, the effect of the DTS-ES Matrix 6.1 format can be achieved even with DTS 5.1- channel signal sources. Of course, it is possible to play DTS-ES Matrix 6.1 channel signal sources with a DTS 5.1 - channel decoder. When DTS-ES Discrete 6.1 or Matrix 6.1 sources are decoded with a DTS - ES decoder, the format is automatically detected upon decoding and the optimum surround mode is selected. However, some DTS - ES Matrix 6.1 sources may be detected as DTS sources. In this case, the DTS - ES Matrix mode should be selected manually to play these sources.

DTS Neo : 6™ surround

This mode applies conventional 2-channel signals such as digital PCM or analog stereo signals to the high precision digital matrix decoder used for DTS-ES Matrix 6.1 to achieve 6.1channel surround playback. DTS Neo : 6 surround includes two modes for selecting the optimum decoding for the signal source.

• DTS Neo : 6 Cinema

This mode is optimum for playing movies. Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2-channel sources as with

6.1-channel sources.

• DTS Neo : 6 Music

This mode is suited mainly for playing music. The front left and front right signals bypass the decoder and are played directly so there is no loss of sound quality, and the effect of the surround signals from the center, surround left, surround right and surround back channels adds a natural sense of expansion to the sound field.

DTS 96/24

Conventional surround formats used sampling frequencies of 48 or 44.1 kHz, so 20 kHz was about the maximum playback signal frequency. With DTS 96/24, the sampling frequency is increased to 96 or 88.2 kHz to achieve a wide frequency range of over 40 kHz. In addition, this format has a resolution of 24 bits, resulting in the same frequency band and dynamic range as 96kHz / 24 bit PCM signals. As with conventional DTS surround, DTS 96/24 is compatible with a maximum of 5.1 channels. DTS 96/24 is fully compatible with the conventional DTS surround format, so DTS 96/24 sources can be played using a conventional DTS

5.1 channel decoder. "DTS" and "DTS-ES I Neo:6" are registered trademarks of

DTS, Inc. "96/24" is a trademarks of DTS, Inc.

Dolby Digital

Dolby Digital is the multi- channel digital signal format developed by Dolby Laboratories. Discs bearing the

“ ” includes the recording of up to 5.1 channels of

digital signals, which can reproduce much better sound quality, spatial expansion and dynamic range characteristics than the previous Dolby Surround effect.

Dolby Digital EX

This mode creates the back (sometimes also referred to as “surround center”) signals from the surround left and right signals in Dolby Digital 5.1 channel source using a matrix decoder and provides 6.1 channel surround playback. For the best results, this mode should be selected during playback of sources(bearing the “ ”) recorded in Dolby Digital

EX. With this additional channel, you can experience more dynamic and realistic moving sound especially. When Dolby Digital EX sources are decoded with a Dolby Digital EX decoder, the format is automatically detected upon decoding and the Dolby Digital EX mode is selected. However, some Dolby Digital EX sources may be detected as Dolby Digital sources. In this case, the Dolby Digital EX mode should be selected manually to play these sources.

Surround modes

SURROUND SOUND

• This receiver incorporates a sophisticated Digital Signal Processor that allows you to create optimum sound quality and sound atmosphere in your personal Home Theater.

R-772(A) 2007.8.16 5:21 PM 페이지 32

Page 33

ENGLISH

Dolby Pro Logic IIx surround

Dolby Pro Logic IIx decodes all stereo (2 channel ) and 5.1 channel sources and extends to 7.1channel surround playback. It delivers the most natural, full range and immersing 7.1 channel listening experience. Dolby Pro Logic IIx surround includes three modes as follows :

• Dolby Pro Logic IIx Movie

When enjoying movies, this mode allows you to further enhance the cinematic quality by adding processing that emphasizes the sounds of the action special effects.

• Dolby Pro Logic IIx Music

When listening to music, this mode allows you to further enhance the sound quality by adding processing that emphasizes the musical effects.

• Dolby Pro Logic IIx Game

When playing games, this mode allows you to further enhance the dynamic surround effects by adding processing that emphasizes the surrounded and exciting sound.

Dolby Pro Logic II surround

This mode applies conventional 2-channel signals such as digital PCM or analog stereo signals as well as Dolby Surround signals, etc. to surround processing to offer improvements over conventional Dolby Pro Logic circuits. Dolby Pro Logic II surround includes Dolby Pro Logic II Movie, Dolby Pro Logic II Music and Dolby Pro Logic II Game like Dolby Pro Logic IIx surround.



Dolby Virtual Speaker

This mode creates a virtual surround sound field using as few as two front speakers, allowing you to experience listening from 5.1 channel speakers. This mode is effective not only for 5.1 channel sources but also for stereo(2 channel) sources. Dolby VIrtual Speaker includes two listening mode as follows:

• Dolby Virtual Speaker Reference

The width of the front sound image is defined by the actual distance between front speakers.

• Dolby Virtual Speaker Wide

The width of the front sound image seems to extend beyond the front speakers.

Dolby Headphone

The Dolby Headphone function simulates 5.1 channel surround sound , which allows you to enjoy 5.1 channel surround sound through 2 channel headphones, just like listening from 5.1 channel speakers. This mode is effective not only for 5.1 channel sources but also for stereo ( 2 channel ) sources.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

• The following modes apply conventional 2-channel signals such as digital PCM or analog stereo signals to high performance Digital Signal Processor to recreate sound fields artificially. Select one of the 7 provided surround modes according to the program source you want to play.

Theater

This mode provides the effect of being in a movie theater when watching a play.

Hall

This mode provides the ambience of a concert hall for classical music sources such as orchestral, chamber music or an instrumental solo.

Stadium

This mode provides the expansive sound field to achieve the true stadium effect when watching baseball or soccer games.

Room

This mode provides the sound field of a house with a low ceiling and hard walls for jazz music.

Panorama

This mode provides a dynamic and broad sound space to highten the overall impact of the sound track.

Classic

This mode provides the acoustic effects of a large concert hall for classical music.

Multi CH Stereo

This mode is designed for playing background music. The front, surround and surround back channels create a stereo image that encompasses the entire area.

• When using the EXTERNAL INs to play back the sound from the additional multi-channel decoder for surround sound, you can enjoy the corresponding surround sound, too.( For details, refer to the operating instructions of the component to be connected.)

For your reference, the sound from each channel can be reproduced according to the surround modes as follows:

(*): Depending on the subwoofer setting, the sound from the subwoofer channel may be reproduced.

• Depending on the speaker settings and the number of the encoded channels, etc., the sound from the corresponding channels cannot be reproduced.(For details, refer to "SETTING THE SPEAKER / ROOM EQ SETUP" on page 57.)

Modes Channels FRONT L/R CENTER SURROUND L/R SURROUND BACK L/R SUBWOOFER

DTS, DTS 96/24  





DTS ES DISCRETE/MATRIX     DTS NEO: 6 CINEMA/MUSIC   



(*)

DOLBY DIGITAL  





DOLBY DIGITAL EX     DOLBY PRO LOGIC IIx MOVIE/MUSIC/GAME     DOLBY PRO LOGIC II MOVIE/MUSIC/GAME  





DOLBY VIRTUAL SPEAKER  



(*)

MULTI PCM   





Other Surrounds   



(*)

STEREO 

  

(*)

EXTERNAL IN    

R-772(A) 2007.8.16 5:21 PM 페이지 33

Page 34

ENGLISH

ENJOYING SURROUND SOUND

• Each time this button is pressed, the mode changes as follows :

Auto surround mode : The optimum surround mode will be

automatically selected depending on the signal format being input.

Manual surround mode : You can select the desired of different

surround modes selectable for the signal being input with using the MULTI CONTROL knob or the SURROUND MODE UP/DOWN (  ) buttons.

• Depending on surround back speaker setting, some surround modes can be selected or not as follows: < >: Possible only when surround back speaker is not set to "NO". [ ] : Possible only when surround back speaker is set to "NO". ( ): Possible only when surround back speaker is set to " 2CH". * : Depending on the signal format being input, the Dolby Pro Logic IIx modes and the Dolby Virtual Speaker modes may not be selected.

Notes :

• Even when the auto surround mode is selected and the same type of digital signal format is being input, the

optimum surround mode may vary depending on whether the speaker type is set to "NO" or not.

• When the auto surround mode is selected, the surround modes other than the optimum surround mode

cannot be selected.

Notes:

• Before surround playback, first perform the speaker setup procedure, etc. on the OSD menu for optimum performance.

(For details, refer to "SETTING THE SPEAKER/ROOM EQ SETUP" on page 57.)

• When playing digital signals from the Dolby Digital program source or selecting the surround mode such as Dolby Pro Logic II

/Dolby Pro Logic IIx Music, Dolby Headphone, Dolby Virtual Speaker modes, you can adjust their parameters for optimum surround effect. (For details, refer to "SETTING THE SOUND PARAMETER" on page 66.)

• When the EXTERNAL IN is selected as an input source, the surround modes cannot be selected.

Depending on how to select a surround mode, select the auto surround mode or the manual surround mode.

("AUTO" lights up.)

("AUTO" goes off.)

When selecting the manual surround mode with pressing the SURROUND MODE button on the front panel.

Select the desired surround mode.

• Each time the MULTI CONTROL knob is rotated or the SURROUND MODE UP / DOWN ( >/< ) buttons are pressed, the surround mode changes depending on the input signal format as follows :

Signal format being input Dolby Digital EX 6.1 channel sources, Dolby Digital 5.1 channel sources Dolby Digital 2 channel sources

DTS ES Discrete/Matrix 6.1 channel sources DTS sources, DTS 96/24 sources PCM (multi-channel) sources*

96 kHz PCM (2 channel) sources PCM (2 channel) sources, Analog stereo sources

Selectable surround mode <DOLBY DIGITAL EX, DOLBY D + PLIIx MUSIC>, (DOLBY D + PLIIx MOVIE), DOLBY DIGITAL, DOLBY VS REF, DOLBY VS WIDE <DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC, DOLBY PLIIx GAME>, [DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII GAME], DOLBY VS REF, DOLBY VS WIDE <corresponding DTS ES mode, DTS + PLIIx MUSIC>, (DTS + PLIIx MOVIE), DTS, DOLBY VS REF, DOLBY VS WIDE correnponding DTS mode, DOLBY VS REF, DOLBY VS WIDE, <DTS + NEO:6, DTS + PLIIx MUSIC>, (DTS + PLIIx MOVIE) MULTI PCM, <DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC>, DOLBY VS REF, DOLBY VS WIDE <DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC, DOLBY PLIIx GAME>, [DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII GAME], DOLBY VS REF, DOLBY VS WIDE, NEO:6 CINEMA, NEO:6 MUSIC, THEATER, HALL, STADIUM, ROOM, PANORAMA, CLASSIC, MULTI CH STEREO

R-772(A) 2007.8.16 5:21 PM 페이지 34

Page 35

ENGLISH

Continued



To cancel the surround mode for stereo operation

• Depending on the signal format which is being input, either the stereo mode or the 2CH downmix mode is selected.

• To cancel either the stereo mode or the 2CH downmix mode, select the surround mode with using the MULTI CONTROL knob on the front panel or the SURROUND MODE UP/DOWN ( >/< ) buttons on the remote control.



2CH downmix mode

• This mode allows the multi-channel signals encoded in DTS or Dolby Digital format, etc. to be mixed down into 2 front channels and to be reproduced through only two front speakers or through headphones.

• When the SPEAKER button is set to off to listen with headphones, if the STEREO button is pressed while playing the multi-channel digital signals from DTS or Dolby Digital sources, etc., it will enter the 2CH downmix mode automatically.

• To cancel the 2CH downmix mode, select the Dolby Headphone mode with using the MULTI CONTROL knob on the front panel or the SURROUND MODE UP/DOWN ( >/< ) buttons on the remote control.

• The Dolby Headphone function simulates 5.1 channel surround sound, which allows you to enjoy 5.1 channel surround sound through 2 channel headphones, just like listening from 5.1 channel speakers.

Note :

• Only when the SPEAKER button is set to off, the Dolby Headphone mode can be selected.

• Switch the speakers off to listen with headphones.

Listening in Dolby Headphone mode

• The volume level of each channel can be adjusted easily with the test tone function.

Note : When the SPEAKER button is set to off,

the test tone function does not work.

Adjusting each channel level with test tone

• The test tone will be heard from the speaker of each channel for 2 seconds as follows:

Front Left Center Front Right Surround Right

Subwoofer Surround Left Surround Back Surr.Back Left Surr.Back Right

• When the speaker setting is "NO", the test tone of the

corresponding channel is not available.

• ( ) : Possible depending on whether the surround

back channel is set to "2 CH" or "1 CH".

• You can select the desired channel with pressing the CONTROL UP/DOWN () buttons or the CURSOR UP/DOWN () buttons.

1. Enter the test tone mode.

3. Cancel the test tone function.

2. At each channel, adjust the level as desired until

the sound level of each speaker is heard to be equally loud.

• Then "DOLBY HEADPHONE" (or "DOLBY H ~ ") is displayed and the Dolby Headphone mode is selected.

• To cancel the Dolby Headphone mode, press the SPEAKER button again.

R-772(A) 2007.8.16 5:21 PM 페이지 35

Page 36

ENGLISH

Adjusting the current channel level

• Each time these buttons are pressed, the corresponding channel is selected as follows:

( ): Possible depending on whether the surround back channel is

set to "2 CH" or "1 CH".

< >: Possible only when the digital signals from Dolby Digital or

DTS program sources that include LFE signal are input.

• Depending on the speaker settings("NO", etc.) and surround mode, etc., some channels cannot be selected.

• When the SPEAKER button is set to off, only the Front Left, Front Right (and LFE) channels can be selected.

• After adjusting each channel level with test tone, adjust the channel levels either according to the program sources or to suit your tastes.

• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s memory ("CAL"), not into preset memory("REF 1", "REF 2").

• The LFE level can be adjusted within the range of

-10~0 dB and other channel levels within the range of -15~+15 dB.

• In general, we recommend the LFE level to be adjusted to 0 dB.(However, the recommended LFE level for some early DTS software is -10 dB.) If the recommended levels seem too high, lower the setting as necessary.

• Then the memory mode ("CAL" or "REF 1") is displayed for several seconds.

• When the memory mode or channel level disappears, press this button again.

1. Press the CHANNEL LEVEL button.

3. Adjust the level of the selected channel as

desired.

4. Repeat the above steps  and 3 to adjust each

channel level.

2. Select the desired channel.

R-772(A) 2007.8.16 5:21 PM 페이지 36

Page 37

ENGLISH

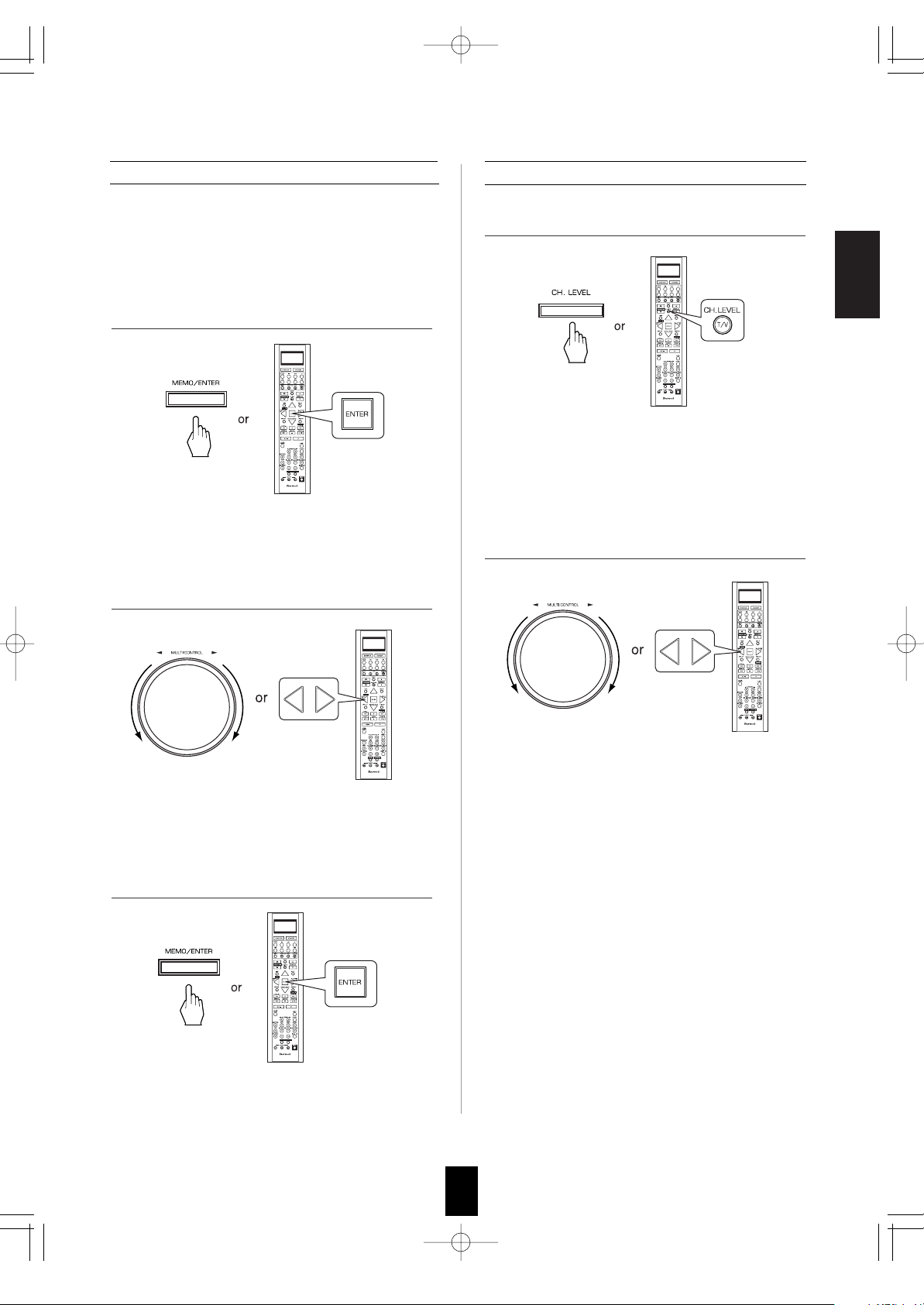

Memorizing the adjusted channel levels

• The "1" of "REF 1" indication flickers for several seconds.

• You can memorize the adjusted channel levels into preset memory("REF 1", "REF 2") and recall the memorized whenever you want.

• The adjusted channel levels have now been memorized into the selected memory.

Recalling the memorized channel levels

• "REF 1" (or "CAL") is displayed for several seconds.

• If the channel level mode display disappears, press this button again.

• Then the channel levels memorized into the selected preset memory are recalled.

• If the preset memory disappears, perform the above step 1 again.

1. After performing the steps 1 ~ 4 in "Adjusting the

current channel level" procedure on page 36, press the (MEMORY/) ENTER button.

2. Select the desired one of REF 1 and REF 2.

3. Confirm your selection.

1. Press the CHANNEL LEVEL button.

R-772(A) 2007.8.16 5:21 PM 페이지 37

Page 38

ENGLISH

LISTENING TO RADIO BROADCASTS

Auto tuning

• Each time this button is pressed, the band changes as follows :

→ FM STereo → FM MONO → AM → XM

("ST" lights up) ("ST" goes off)

• When FM stereo broadcasts are poor because of weak broadcast signals, select the FM mono mode to reduce the noise, then FM broadcasts are reproduced in monaural sound.

• To listen to XM Satellite Radio, select XM mode. (For details, refer to "XM Satellite Radio (only for North America)" on page 40.)

• Manual tuning is useful when you already know the frequency of the desired station.

• After selecting the desired band, press the

TUNING UP(+) / DOWN(-) buttons repeatedly until the right frequency has been reached.

Manual tuning

• Auto presetting function automatically searches for FM stations only and store them in the memory.

• While listening to FM or AM radio

broadcasts, press and hold down the MEMORY/ENTER button for more than 2 seconds.

• Then "AUTO MEM" flickers and

this receiver starts auto presetting.

• Up to 30 FM stations can be

stored.

�Notes:

• FM stations of weak strength cannot be

memorized.

• To memorize AM stations or weak stations,

preform "Manual presetting" procedure with using "Manual tuning" operation.

Auto presetting

• The tuner will now search until a station of sufficient strength has been found. The display shows the tuned frequency and "TUNED".

• If the station found is not the desired one, simply repeat this operation.

• Weak stations are skipped during auto tuning.

1. Select the desired band.

2. Press the TUNING UP(+)/DOWN(-) buttons for

more than 0.5 second.

R-772(A) 2007.8.20 10:2 AM 페이지 38

Page 39

ENGLISH

• The station has now been stored in the memory.

• A stored frequency is erased from the memory by storing another frequency in its place.

• If "MEM" goes off, start again from the above step 2.

MEMORY BACKUP FUNCTION

The following items, set before the receiver is turned off, are memorized.

• INPUT SELECTOR settings

• Surround mode settings

• Preset stations,etc.

Scanning preset stations in sequence

• The receiver will start scanning the stations in the preset sequence and each station is received for 5 seconds.

• At the desired station, press this button again to stop scanning.

Tuning to preset stationsManual presetting

• You can store up to 30 preferred stations in the memory.

• "MEM" is flickering for several seconds.

• After selecting the tuner as an input source, select the desired preset number.

1. Tune in the desired station with auto or manual

tuning.

3. Select the desired preset number (1~30) and

press the MEMORY/ENTER button.

4. Repeat the above steps 1 to 3 to memorize

other stations.

2. Press the MEMORY/ENTER button.

R-772(A) 2007.8.16 5:21 PM 페이지 39

Page 40

ENGLISH

1. Press the TUNER button repeatedly to select XM

mode.

2. Press the TUNING UP(+)/DOWN(-) buttons

repeatedly to select "XM 000".

3. To sign up, access the website at

"http://activate.xmradio.com" or call "1-800-9672346".

• Then "XM ~" is displayed.

• Then your XM Satellite Radio ID is displayed.

• You can find the XM Satellite Radio ID on the XM Mini-

Tuner itself and the XM Mini-Tuner package. too.

LISTENING TO XM SATELLITE RADIO

XM Satellite Radio (only for North America)

• Before using XM Satellite Radio, you must first sign up for an account. You will need a major credit card and your XM Satellite Radio ID, which you can get from this receiver as explained below.

• This receiver is the XM Ready® receiver. You can receive XM Satellite Radio® by connecting to the XM Mini-Tuner system (sold separately) and subscribing the XM service.

About XM Satellite Radio for U.S. & Canadian products

XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and entertainment. XM is broadcast in superior digital audio from coast to coast. From rock to reggae, from classical to hip hop, XM has something for every music fan. XM’s dedication to playing the richest selection of music is matched by its passion for live sporting events, talk radio, up-to-the-minute news, stand-up comedy, children’s programming, and much more. For U.S. customers, information about XM Satellite Radio is available online at www.xmradio.com. For Canadian customers, information about XM Canada is online at www.xmradio.ca.

XM Ready® legal for U.S. & Canadian products

Hardware and required monthly subscription sold separately. Other fees and taxes, including a one-time activation fee may apply. Subscription fee is consumer only. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (US residents) and 1-877GET-XMSR (Canadian residents). For a full listing of the XM commercial-free channels and advertising-supported channels, visit lineup.xmradio.com (US residents) or xmradio.ca (Canadian residents). Subscriptions subject to Customer Agreement available at xmradio.com (US residents) and xmradio.ca (Canadian residents). Only available in the 48 contiguous United States and Canada. ©2006 XM Satellite Radio Inc. All rights reserved. All other trademarks are the property of their respective owners.

XM Ready® subscriptions for U.S. Products & Canadian products

Once you have installed the XM Mini-Tuner Dock, inserted the XM Mini-Tuner, connected the XM Dock to your XM Ready® home audio system, and installed the antenna, you are ready to subscribe and begin receiving XM programming. There are three places to find your eight character XM Radio ID: on the XM Mini-Tuner, on the XM Mini-Tuner package, and on XM Channel 0. Record the Radio ID in the following eight squares for reference.

Note: The XM Radio ID does not use the letters “I”, “O”, “S” or “F”. Activate your XM Satellite Radio service in the U.S. online at http://activate.xmradio.com or call 1-800-XM-RADIO (1-800-967-2346). You will need a major credit card. XM will send a signal from the satellites to activate the full channel lineup. Activation normally takes 10 to 15 minutes, but during peak busy periods you may need to keep your XM Ready home audio system on for up to an hour. When you can access the full channel lineup on your XM Ready home audio system you are done. For more information or to subscribe in Canada, visit XM on the Web at www.xmradio.ca or call XM’s Listener Care at 1-877-GET-XMSR (1-877-438-9677).

Signing up for XM Satellite Radio

R-772(A) 2007.8.16 5:21 PM 페이지 40

Page 41

ENGLISH

Examples: For "3" :

For "

27" :

For

"124" :

• When "XM CH

" disappears, repeat again from

the above step 1.

1. In the XM mode, select the direct search mode.

2. While displaying "XM CH", select the

desired channel number with pressing the NUMERIC (0 ~ 9) buttons.

• Each time this button is pressed, the search mode changes as follows:

 XM CH

  Category name  OFF

(Direct search) (Category search)

Note:

• When using channel search or preset search, press this button to select the search off.

• Direct search is useful when you already know the channel number.

Direct search

1. In the XM mode, select the category search

mode.

2. While displaying a category name, select the

desired category, then press the ENTER button.

• Then a category name is displayed.

• Each time these buttons are pressed, one of different categories is selected.

• When a category name disappears, repeat again from the above step 1.

• Category search allows you to select the desired channel by the selected category.

Category search

• In the XM mode, press the TUNING UP (+)/DOWN (-) buttons repeatedly to select the desired channel.

Channel search

R-772(A) 2007.8.16 5:21 PM 페이지 41

Page 42

ENGLISH

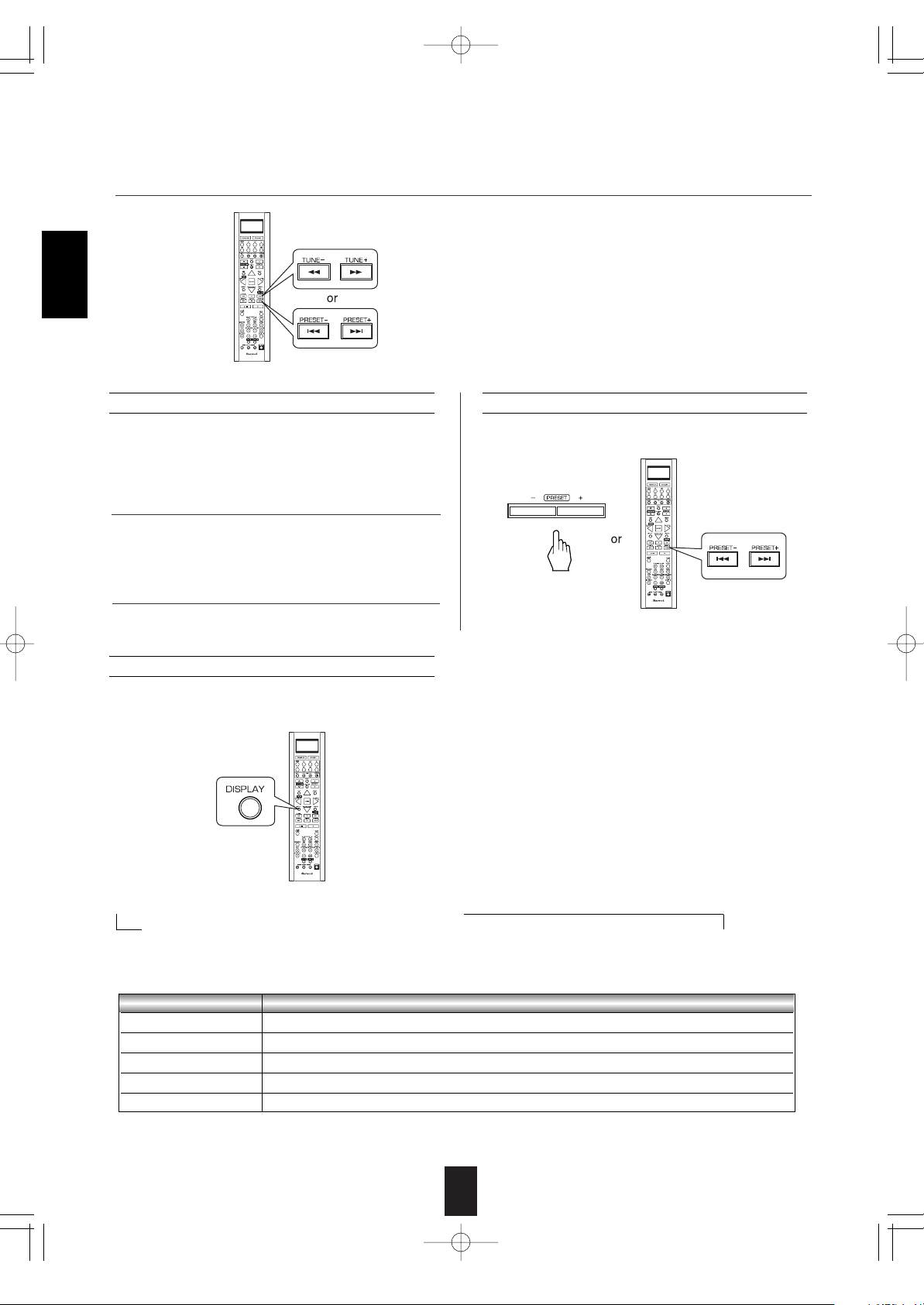

1. Select the desired channel with preforming

channel search, direct search or category search.

2. To memorize the channels, perform the steps 2 to

4 in "Manual presetting" procedure on page 39.

• You can store up to 30 preferred channels in the memory.

Presetting channels

• In the XM mode, select the desired preset channel.

Preset search

Note:

• If the information on artist name, song title or category is not available, it will not be displayed correctly.

Signal strength display mode

• If the reception is poor, you can check the signal strength of the XM radio signal and adjust the position of the XM antenna until "GOOD" is displayed.

• You can display XM information such as channel name, artist name, song title and signal strength.

Displaying XM information

• In the XM mode,

Error message and status

• If an operation takes longer than usual or an error occurs, one of the following messages may be displayed.

Message Status

ANTENNA The XM antenna is not connected correctly. Check the antenna. UPDATING The XM user encryption code is being updated. Please wait. NO SIGNL The signal is too weak. Check the antenna connection and reposition it for the best reception. LOADING This receiver is tuning or decoding audio or text data. Please wait. OFF AIR The selected XM channel is not currently broadcasting. Select another channel.

• Each time the DISPLAY button is pressed, the display mode changes as follows:

 Channel number/name  Artist name  Song title  Category

Volume  Surround mode  Input signal  Signal strength("GOOD", "MARGINAL", "WEAK", "NO SIGNL") 

Continued

3. While displaying the selected category, select the desired channel.

R-772(A) 2007.8.16 5:21 PM 페이지 42

Page 43

Operating the sleep timer

• The sleep timer allows the system to continue to operate for a specified period of time before automatically shutting off.

• To set the receiver to automatically turn off after the specified period of time.

• Each time this button is pressed, the sleep time changes as follows:

→ 10 → 20 → 30 → --- → 90 → OFF

Unit : minutes

• While operating the sleep timer, " " lights up.

Displaying the audio information

• You can check the audio information on the input source.

• During playback,

• Each time this button is pressed, the display mode changes as follows :

• When the EXTERNAL IN is selected as an input source, the surround mode is not displayed.

• When XM satellite radio function is available in your country, for details on the XM information, see "Displaying XM information" on page 42.

• Each time this button is pressed, the brightness of the fluorescent display changes as follows:

→ ON → dimmer → OFF

• In the display OFF mode, pressing any button will cancel the display OFF mode.

Adjusting the brightness of the fluorescent display

OTHER FUNCTIONS

ENGLISH

Input

signal

Surround

mode

Volume

Input

source

→→ → →

R-772(A) 2007.8.20 10:2 AM 페이지 43

Page 44

• ROOM 2 ~ is displayed for several seconds.

• Each time this button is pressed, the ROOM 2 mode changes as follows :

OFF : To turn off the ROOM 2 function. ("R2" goes off .)



ON : To turn it on. ("R2" lights up.)

Note :

• When the ROOM 2 mode is set to OFF, you cannot

adjust the ROOM 2 volume.

ROOM 2 SOURCE PLAYBACK

When using the buttons on the remote control unit.

• This function allows enjoying one source in the main room and playing another in a different room at the same time.

• When you connect the multi-room system kit to the IR IN jack of this receiver, you can control this receiver with not only the universal remote control unit but also the ROOM 2 remote control unit in a different room, too. (For details, refer to "CONNECTING MULTI-ROOM SYSTEM KIT" on page 13 and "ROOM 2 Remote Controls" on page 29.)

Notes:

• The analog signals from the EXTERNAL INs and the digital signals cannot be output to the different room, meaning no playback in a different room.

• You cannot play the ROOM 2 source in any surround mode.

When using the buttons on the front panel.

• Each time the INPUT button on the universal remote control unit is pressed, the ROOM 2 input can be selected among MAIN source, TUNER, CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4.

• ROOM 2 ~ is displayed for several seconds.

• When the ROOM 2 setting mode disappears, press the ROOM 2 button again.

• Each time these buttons are pressed, the mode changes as follows : ROOM 2 ~ : To turn on or

(ROOM 2 mode) off the ROOM 2

 function. IN ~ : To select the desired ROOM 2 source. (ROOM 2 input)



VOL ~ : To adjust the volume on the power (ROOM 2 volume) amplifier assigned to "BACK 

ROOM 2" or "ROOM 2".

Notes:

• When the EXTERNAL IN is selected as a main input, if the MAIN source is selected as a ROOM 2 input, no audio signal can be heard in the different room (ROOM 2).

• Even when this receiver enters the standby mode, in such a case that "R2" lights up still and the POWER ON/STANDBY button lights up blue as it does in the operating mode, meaning only the ROOM 2 circuitry operates, the ROOM 2 source can be played independently.

• When you do not use the ROOM 2 function, turn off the ROOM 2 function to save electricity.

• You can adjust the volume on the power amplifier assigned to "BACK  ROOM 2" or "ROOM 2" when the ROOM 2 speaker terminals are connected to the speakers in a different room. (For details, refer to "When selecting the AMP ASSIGN" on page 49.)

• The MUTE button on the ROOM 2 remote control unit can be available only when the ROOM 2 function is operating.

When selecting the ROOM 2 mode.

OFF : To turn off the ROOM 2

 function. ("R2" goes off.)

ON : To turn it on. ("R2" lights up.)

When selecting the ROOM 2 input.

• You can select the desired among MAIN source, TUNER, CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4 as a ROOM 2 source.

When selecting the ROOM 2 volume.

• You can adjust the volume on the power amplifier assigned to "BACK ROOM 2" or "ROOM 2" when the ROOM 2 speaker terminals are connected to the speakers in a different room. (For details, refer to "When selecting the AMP ASSIGN" on page 49.)

Note : When the ROOM 2 mode is set to OFF,

the ROOM 2 input and the ROOM 2 volume cannot be selected

1. Press the ROOM 2 button.

1. Press the ROOM 2 button to enter the ROOM 2 mode.

3. Set the selected mode as desired.

4. Start play on the component related to the ROOM 2

source.

2. Select the desired mode while displaying the ROOM 2

setting mode.

2. Select the desired input as a ROOM 2 source.

3. Adjust the ROOM 2 volume.

4. Start play on the component related to the ROOM 2

source.

ENGLISH

R-772(A) 2007.8.16 5:21 PM 페이지 44

Page 45

RECORDING

Recording with TAPE

• To record the analog signals onto the recording equipment, be sure to connect the ROOM2 OUT jacks to the recording equipment. (For details, refer to "CONNECTING AUDIO COMPONENTS" on page 8.)

• The analog signals from the EXTERNAL INs as well as the digital signals from the coaxial or optical digital input can be heard but cannot be recorded.

• When recording the analog signals from CD, AUX, VIDEO 1 ~ 4, be sure to select the "ANALOG" for the AUDIO MODE.

(For details, refer to "When selecting the AUDIO MODE" on page 54.)

• The volume and tone (bass, treble) settings have no effect on the recording signals.

1. Select the desired input as a recording source

except for TAPE.

2. Turn on the ROOM 2.

3. Select the MAIN as a ROOM 2 input.

4. Start recording on the TAPE.

5. Start play on the desired input.

ENGLISH

Dubbing the audio and video signals separately onto VIDEO 1

Example: When dubbing the VIDEO 2 video signal and

the CD audio signal separately onto VIDEO 1.

1. Select VIDEO 2 as a video recording source.

2. Select CD as an audio recording source.

3. Start recording on the VIDEO 1.

4. Start play on the VIDEO 2 and the CD

respectively.

• The audio signal from the CD and the video signal from the VIDEO 2 will be dubbed and you can enjoy them on the TV set and from the speakers.

Note : Be sure to observe the order of the above

steps 1 and .

R-772(A) 2007.8.16 5:21 PM 페이지 45

Page 46

ENGLISH

1. Select the desired of CD, AUX, VIDEO 1~4 as a

recording source.

2. For digital recording, select the digital input as

recording signal input.

3. Start recording on the component connected to

the OPTICAL DIGITAL OUT.

4. Start play on the desired input.

DIGIT AL AUDIO RECORDING WITH MD RECORDER

• Only when the OPTICAL DIGITAL OUT of this receiver is connected to the OPTICAL DIGITAL IN of the MD recorder or CD recorder, you can enjoy high-quality sound of digital recording without converting the original signals. Refer to "CONNECTING VIDEO COMPONENTS", "CONNECTING AUDIO COMPONENTS" and "CONNECTING DIGITAL INS and OUT" on pages 6~9 and the operating instructions of the MD recorder or CD recorder.

Notes:

• Depending on the digital audio signal format input into the HDMI IN connector, some digital signals cannot be output from the OPTICAL DIGITAL OUT jack.

• Digital recording is available for the digital audio program sources such as CDs, MDs, some DVDs, etc.

• In most DVDs and SACDs as well as some CDs, etc., digital recording may not be available depending on the signal format.

• There are some restrictions on recording digital signals. When making digital recordings, refer to the operating instructions of your digital recording equipment to know what restrictions are imposed.

Note :

• If the AUDIO MODE is set to the mode other than "DIGITAL" for the corresponding recording source on the INPUT SETUP menu, the digital audio signals from the selected digital input will not be output and there will be no recording. (For details, refer to "When CD, AUX, VIDEO 1~ 4 is selected as an input source" on page 31 and "When selecting the AUDIO MODE" on page 54.)

Dubbing from video components onto VIDEO 1

• The audio and video signals from the desired input will be dubbed onto the VIDEO 1 and you can enjoy them on the TV set and from the speakers.

1. Select the desired of VIDEO 2 ~ 4 as a recording

source except VIDEO 1.

2. Start recording on the VIDEO 1.

3. Start play on the desired input.

In case of recording the digital audio signal input

into a HDMI IN connector

• Select the desired recording source to which the HDMI IN is connected and assigned and then perform the steps 3 and 4 (, but ignore the step 2).

Note :

• If the AUDIO MODE is set to the mode other than "HDMI" for the corresponding recording source on the INPUT SETUP menu, the digital audio signals will not be output and there will be no recording. (For details, refer to "When selecting the AUDIO MODE" on page

54.)

R-772(A) 2007.8.16 5:21 PM 페이지 46

Page 47

ENGLISH

OSD Menu Settings

• The OSD (On-Screen Display) menu is a setting menu that is displayed on the monitor TV and allows you to perform the setup procedures easily. In most situations, you will only need to set this once during the installation and layout of your home theater, and it rarely needs to be changed later.

The OSD menu consists of 6 main menus ; system setup, input setup, speaker / room EQ setup, CH level setup, sound parameter and multi room setup. These menus are then divided up into various sub-menus.

Notes:

• The OSD menu and the momentary OSD cannot be displayed via the HDMI MONITOR OUT connector.

• Depending on the VIDEO MODE setting and the video connections between this receiver and the video component, the OSD menu and the momentary OSD cannot be displayed via (COMPOSITE) VIDEO MONITOR OUT jack, or the picture is automatically turned off and only the OSD menu can be displayed via COMPONENT MONITOR OUT jacks. (For details, refer to "Relationship between the video input signal and the video output signal" on page 7.)

Navigating through the OSD menu

• The explanations here assume you are using the buttons on the remote control when performing the OSD menu operation. However, you can use the buttons on the front panel as well.

The buttons on the front panel correspond to those on the remote control as shown below.

MULTI

• The main menu will be shown.

• To turn the menu screen off, press this button again.

1. Turn the menu screen on.

2. Select the desired menu using the CURSOR UP()/DOWN() buttons.

R-772(A) 2007.8.16 5:21 PM 페이지 47

Page 48

ENGLISH

• For the setting details, see page in 

• Adjust the setting(s) in each setting category to your preference.

• When the SETUP button is pressed on a sub-menu, the menu screen will be turned off.



When selecting the SYSTEM SETUP When selecting the INPUT SETUP



When selecting the SOUND PARAMETER When selecting the MULTI ROOM SETUP



When selecting the SPEAKER /ROOM EQ SETUP



When selecting the CH LEVEL SETUP

3. Confirm your selection.

R-772(A) 2007.8.16 5:21 PM 페이지 48

Page 49

ENGLISH

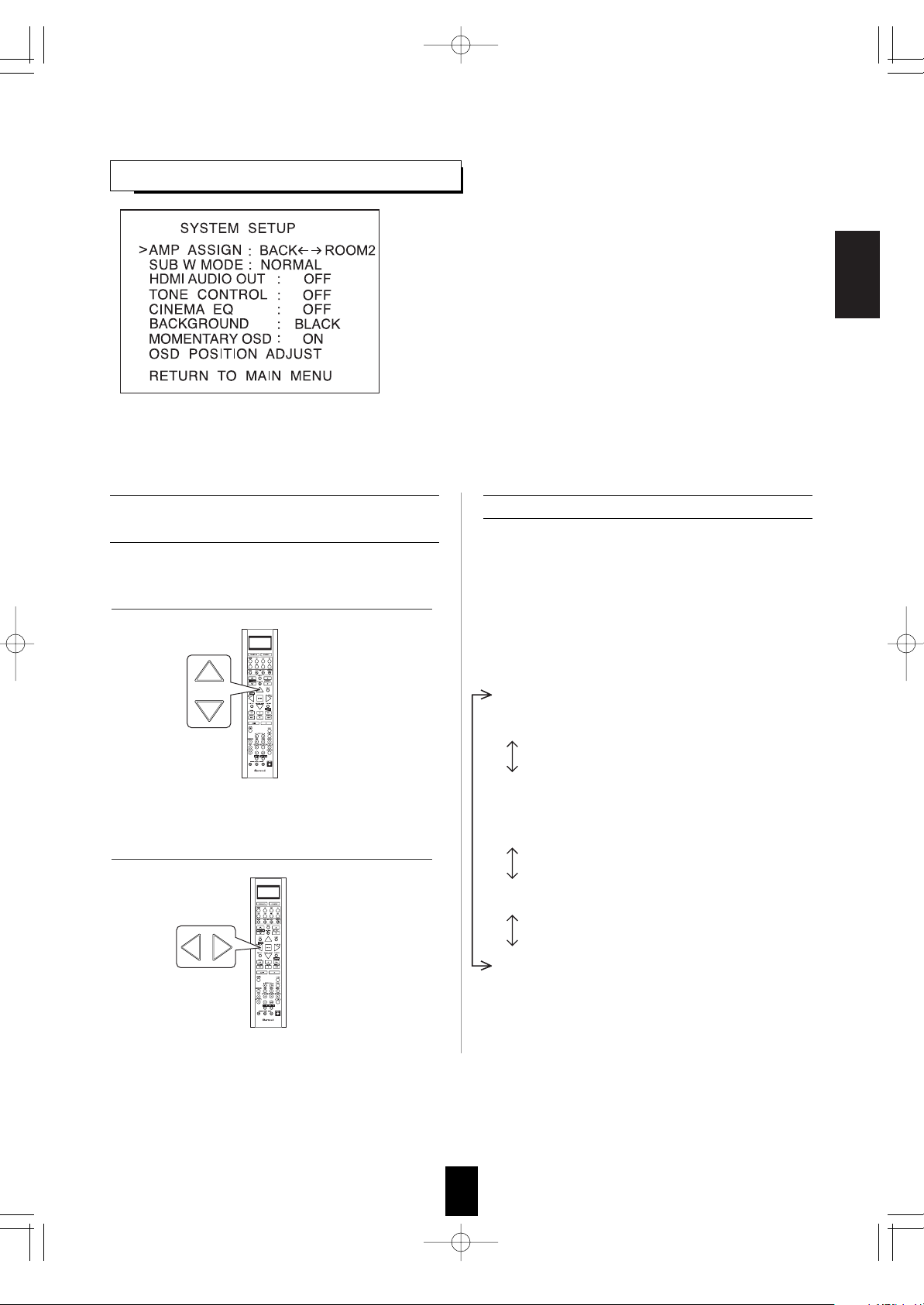

• AMP ASSIGN : To assign the surround back channels' power amplifier correctly depending on how to use the speakers.

• SUBWOOFER MODE : To select the desired subwoofer mode.

• HDMI AUDIO OUT : To output the digital audio signals from the

HDMI MONITOR OUT connector.

• TONE CONTROL : To adjust the tone (bass and treble) as

desired.

• CINEMA EQ : To select the desired cinema EQ mode.

• BACKGROUND : To select the desired background color of the

momentary OSD and the OSD menu.

• MOMENTARY OSD : To turn on or off the OSD that shows the

status corresponding to each operation momentarily.

• OSD POSITION ADJUST : To adjust the positon of the

momentary OSD and the OSD menu.

SETTING THE SYSTEM SETUP

When selecting the items other than OSD POSITION ADJUST

• The surround back channels' power amplifier can drive the surround back speakers, the ROOM 2 speakers or the front bi-amp capable speakers. Depending on how to use the speakers, you should assign the power amplifier correctly. (For details, refer to "CONNECTING SPEAKERS" on page 10 and "CONNECTING ROOM 2 OUTS" on page 12.)

BACK  ROOM 2 : When connecting this

receiver to the surround back speakers and the ROOM 2 speakers both, the power amplifier automatically drives the surround back speakers or the ROOM 2 speakers depending on whether the ROOM 2 function is turned off or on.

BI - AMP : To drive the front bi-amp capable

speakers when connecting the FRONT and the SURROUND BACK/MULTI channels to them.

SURR BACK : To drive the surround back

speakers when connecting the SURROUND BACK/MULTI channels to them.

ROOM 2 : To drive the ROOM 2 speakers when

connecting the ROOM 2 channels to them.

When selecting the AMP ASSIGN

1. Press the CURSOR UP()/DOWN() buttons

to select the desired item.

2. Press the CURSOR LEFT()/RIGHT()

buttons to set the selected item as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 49

Page 50

ENGLISH

When selecting the SUBWOOFER MODE

• "SW PLUS" mode is valid only when "FRONT" and "CENTER" are set to "FULL RANGE" and "SUBWOOFER" is set to "YES" on the SPEAKER/ROOM EQ SETUP menu. (For details, refer to "SETTING THE SPEAKER/ ROOM EQ SETUP" on page 57.)

NORMAL : When the low frequency signals of channels set to "FULL RANGE" are reproduced from those

channels only. In this mode, the low frequency signals that are reproduced from the subwoofer channel is only the low frequency signals of LFE (from the multi-channel sources that contains LFE (Low Frequency Effects) channel, also called the ".1" channel) and the channels set to the setting value other than "FULL RANGE".

SW PLUS : When the low frequency signals of channels set to "FULL RANGE" are reproduced

simultaneously from those channels and the subwoofer channel. In this mode, the low frequency range expands more uniformly through the room, but depending on the size and shape of the room, interference may result in a decrease of the actual volume of the low frequency range.

• The HDMI connection can carry uncompressed digital video signals and digital audio signals.

Depending on whether these digital audio signals are output from the HDMI MONITOR OUT of this receiver or not, you should set the HDMI AUDIO OUT correctly.

OFF : Not to output the digital audio signals from the HDMI MONITOR OUT of this receiver, meaning these

 signals are heard from the speakers connected to this receiver.

ON : To output the digital audio signals, meaning these signals are heard from the speakers of your TV.

Notes:

• When the HDMI AUDIO OUT is set to ON, no sound will be heard from the speakers connected to this receiver (except ROOM 2 speakers) even though any input source is selected.

• If your TV cannot support some digital audio formats, no sound may be heard from its speakers even when the HDMI AUDIO OUT is set to ON.

OFF : To listen to a program source without the tone effect. ("DIRECT" indicator lights up.)



ON : To adjust the tone for your taste. ("DIRECT" indicator goes off.)

When selecting the TONE CONTROL

When selecting the HDMI AUDIO OUT

When the TONE CONTROL is set to ON to adjust the tone (bass and treble) . Press the ENTER button to enter the tone adjustment mode.

Continued

R-772(A) 2007.8.16 5:21 PM 페이지 50

Page 51

ENGLISH

. Press the CURSOR LEFT()/RIGHT() buttons to adjust the selected tone as desired.

• The tone level can be adjusted within the range of -10 ~ +10 dB.

• In general, we recommend the bass and treble to be adjusted to 0 dB (flat level).

• Extreme settings at high volume may damage your speakers.

• To complete tone adjustment, repeat the above steps  and .

OFF : To turn off the cinema EQ function.



ON : To compensate for edgy or shrill movie sound tracks.

When selecting the CINEMA EQ

BLACK : To display the black as the color background of the momentary OSD and the OSD menu.



BLUE : To display the blue.

Note : Only when no video signals are input into this unit, the selected background color will be displayed.

When selecting the BACKGROUND

ON : To turn on the OSD function that shows the status corresponding to each operation on this unit

 momentarily.

OFF : To turn it off.

When selecting the MOMENTARY OSD

Note : When outputting the component video signal from the COMPONENT MONITOR OUT jacks as it was

input, the momentary OSD cannot be displayed.

Continued

. Press the CURSOR UP()/DOWN() buttons to select the desired tone mode.

R-772(A) 2007.8.16 5:21 PM 페이지 51

Page 52

ENGLISH

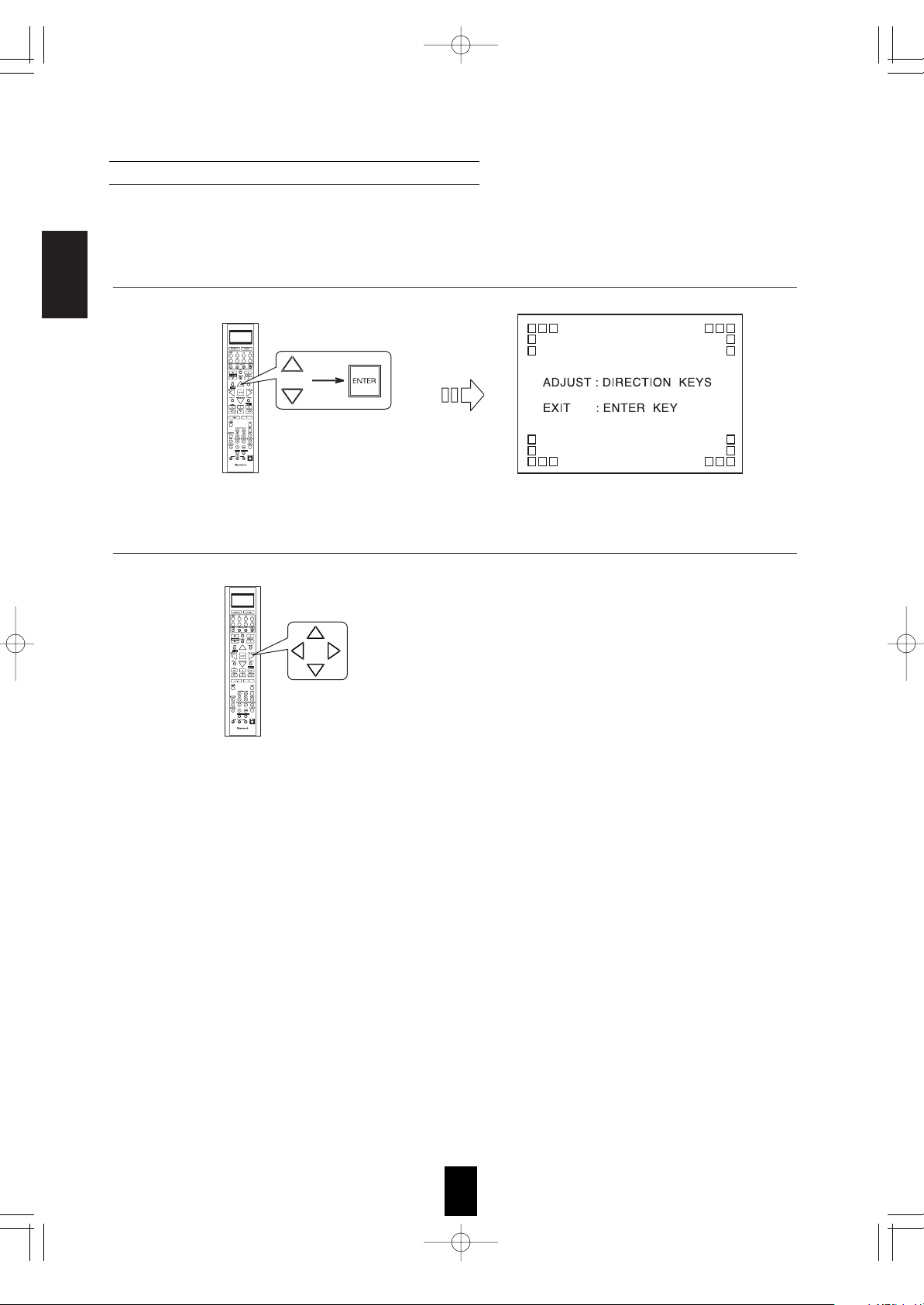

When selecting the OSD POSITION ADJUST

• You can adjust the position of the momentary OSD and the OSD menu that are displayed on the monitor TV.

1. Press the CURSOR UP()/DOWN() buttons to select the OSD POSITION ADJUST, then press the

ENTER button.

2. Press the CURSOR UP()/DOWN()/LEFT()/RIGHT() buttons to adjust the position of the momentary

OSD and the OSD menu as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 52

Page 53

ENGLISH

• This menu allows you to make the various settings depending on how to use the input sources connected to this receiver.

SETTING THE INPUT SETUP

When selecting the items other than NAME

Example: When selecting the VIDEO 1

Note :

• Depending on the input source, some items other than DC TRIGGER cannot be selected.

1. Press the CURSOR UP()/DOWN() buttons to select the desired input source, then press the ENTER

button.

2. Press the CURSOR UP()/DOWN() buttons to select the desired item.

3. Press the CURSOR LEFT()/RIGHT() buttons to set the selected item as desired.

When selecting the menu of page 2 or page 1.

• Press the CURSOR UP()/DOWN() buttons to select "GO TO NEXT ~ ", then press the ENTER button.

R-772(A) 2007.8.16 5:21 PM 페이지 53

Page 54

ENGLISH

When selecting the HDMI ASSIGN

When selecting the VIDEO ASSIGN

When selecting the AUDIO ASSIGN

• You should assign the connected HDMI INs to the desired of VIDEO 1 ~ VIDEO 4. (For details, refer to "CONNECTING VIDEO COMPONENTS" on pages 6 ~ 7.)

• You can select HDMI 1 or HDMI 2.

Note :

• In such a case that a HDMI IN is assigned to two input sources or more, when these input sources are selected, the uncompressed digital video signals (and digital audio signals when the HDMI AUDIO OUT is set to ON) input into the same HDMI IN can be output from the HDMI MONITOR OUT of this receiver.

• You should assign the connected COMPONENT VIDEO INs to the desired of VIDEO 1 ~ 4. (For details, refer to "CONNECTING VIDEO COMPONENTS" on pages 6 ~ 7.)

• You can select the desired of COMP 1 ~ 2.

Note :

• In such a case that a COMPONENT VIDEO IN is assigned to two input sources or more, when these input sources are

selected, the component video signals can be viewed from the same COMPONENT VIDEO IN.

• You should assign the connected DIGITAL INs to the desired of CD, AUX and VIDEO 1 ~ VIDEO 4. (For details, refer to "CONNECTING DIGITAL INS AND OUT" on page 9.)

• You can select the desired of OPT 1, OPT 2, COAX1 and COAX 2.

Note :

• In such a case that a DIGITAL IN is assigned to two input sources or more, when these input sources are selected, the digital audio signals can be heard from the same DIGITAL IN.

When selecting the AUDIO MODE

• You can select the desired audio input signal to be played.

Notes :

• Be sure to set the AUDIO MODE to the audio input which is connected and assigned to the selected input source.

• When the HDMI AUDIO OUT is set to ON, no sound will be heard from the speakers connected to this receiver (except ROOM 2 speakers).

• When the AUDIO MODE is set to HDMI, you should set the HDMI ASSIGN correctly. If not, "H1", "H2" (, meaning no digital audio signal input from it) or "Hd" (, meaning no HDMI assignment) flickers on the unit's display and no sound will be heard.

• When the AUDIO MODE is set to DIGITAL, you should set the AUDIO ASSIGN correctly. If not, "o1", "c1", etc.(, meaning no digital signal input from it) or "d" (, meaning no audio assignment) flickers on the unit's display and no sound will be heard.

AUTO : When there are multiple audio input signals, the audio input signals are detected and the audio input signal to be played

is selected automatically in the priority order of them : HDMI audio > DIGITAL audio > ANALOG audio

HDMI : The signal that is input into the HDMI IN is always played. DIGITAL : The signal that is input into the OPTICAL or the COAXIAL DIGITAL IN is always played. ANALOG : The signal that is input into the analog AUDIO INs is always played.

Continued

When selecting the VIDEO MODE

• You can select the video input signal to be output from the MONITOR OUTs.

AUTO : When there are multiple video input signals, the video input signals are detected and the video input signal to be output

from the MONITOR OUTs is selected automatically in the following order : component video, S-video, composite video.

COMPOSITE : The signal that is input into the (COMPOSITE) VIDEO jack is always played. The composite video input signal is

up-converted and output from the S-VIDEO and COMPONENT MONITOR OUT jacks.

S-VIDEO : The signal that is input into the S-VIDEO jack is always played. The S-Video input signal is converted and

output from the (COMPOSITE) VIDEO and COMPONENT MONITOR OUT jacks.

COMPONENT : The signals that are input into the COMPONENT jacks are always played.

Because video conversion is not performed, no video signals are output from the MONITOR OUT jacks when there are no video signals that are input into the COMPONENT jacks.

• For details, refer to "Relationship between the video input signal and the video output signal" on page 7.

Note :

• When selecting the VIDEO 4, S-VIDEO cannot be selected.

R-772(A) 2007.8.16 5:21 PM 페이지 54

Page 55

ENGLISH

• Depending on how to select a surround mode, you can select the auto surround mode or the manual surround mode. ON : The optimum surround mode will be automatically selected depending on the signal

(Auto surround mode) format being input.



OFF : You can select the disired of different surround modes selectable for the signal being

(Manual surround mode) input with using the MULTI CONTROL knob or the SURROUND MODE UP/DOWN

( >/< ) buttons. (For details, refer to "When selecting the manual surround mode with pressing the SURROUND MODE button on the front panel" on page 34.)

Notes :

• Even when the auto surround mode is selected and the same type of digital signal format is being input, the optimum surround mode may vary depending on whether the speaker type is set to "NO" or not.

• When the auto surround mode is selected, the surround modes other than the optimum surround mode cannot be selected.

When selecting the AUTO SURROUND

• The remastering processes the input signal digitally and converts its digital sampling frequency to twice the current frequency (88.2/96 kHz) for a more detailed sound reproduction. ON : To process the input signal digitally and to convert its sampling frequency to 88.2/96 kHz for a more

 detailed sound reproduction.

OFF : To turn off the remastering function.

Note :

• The remastering function have no effect on the input digital signal from the 88.2/96 kHz source or higher as well as the digital signal that is output from the OPTICAL DIGITAL OUT of this receiver.

• There may be a slight time delay between the video and audio signals in case that some video playback equipments may process the video signals later than the audio signals due to signal processing procedure, etc.. Should this happen, you can adjust the time delay of audio signals to synchronize the sound with the picture.

• The time delay can be adjusted within the range of 0 ~ 200 msec.

When selecting the AV SYNC

When selecting the AUDIO REMASTER

• To turn on the component connected to the DC TRIGGER OUT jack when this input source is selected, you should set the DC TRIGGER to ON for this input source. OFF : To turn off the DC trigger function.



ON: To turn it on.

• For details, refer to "CONNECTING DC TRIGGER OUT" on page 9.

When selecting the DC TRIGGER

Continued

R-772(A) 2007.8.16 5:21 PM 페이지 55

Page 56

ENGLISH

When selecting the NAME

• You can give names to the input sources other than tuner.

• Up to 7 characters can be entered for each name.

Example: When selecting the VIDEO 1

• The name is stored in the memory.

To resume its factory input source name.

• Make a blank on each digit and press the ENTER button.

• The first digit flickers.

• Then the selected digit will flicker.

• You can enter the desired among blank, A ~ Z, a ~ z, 0 ~ 9, (, ), , +, , , -, ., /.

1. Press the CURSOR UP()/DOWN() buttons

to select the desired input source, then press the ENTER button.

3. Press the CURSOR LEFT()/ RIGHT()

buttons to select the desired digit.

4. Press the CURSOR UP()/DOWN() buttons

to enter the desired character on the flickering digit.

5. Repeat the above steps 3 and 4 to enter the

desired characters on the rest of the digits.

6. Confirm your entry.

2. Press the CURSOR UP()/DOWN() buttons

to select the NAME, then press the ENTER button.

R-772(A) 2007.8.16 5:21 PM 페이지 56

Page 57

ENGLISH

SETTING THE SPEAKER / ROOM EQ SETUP

• After you have installed this receiver and connected all the components, you should adjust the speaker settings for the optimum sound acoustics according to your environment and speaker layout.

• Even when you change speakers, speaker positions, or the layout of your listening environment, you should adjust the speaker settings, too.

• When performing the AUTO SETUP procedure, you need not perform the SPEAKER CONFIGURATION, SPEAKER DISTANCE, SPEAKER CROSSOVER and CH LEVEL SETUP procedures.

• AUTO SETUP : To set the speaker setup and channel level setup automatically.

• SPEAKER CONFIGURATION : To adjust the speakers depending on

whether they are connected or not.

• SPEAKER DISTANCE: To select the distance between the listening

position and each speaker to set the delay

time automatically for optimum surround playback.

• SPEAKER CROSSOVER : To select the desired crossover

frequency.

• ROOM EQ SETUP : To adjust the room EQ as desired.

When selecting the AUTO SETUP

• Auto Setup lets you avoid troublesome listening-based speaker setup and achieve good surround sound. Auto Setup has the feature that provides the optimum listening environment at the listening position in your room, where there are often multiple listeners viewing programs together.

You should connect the supplied microphone to the SETUP MIC jack so that this receiver can analyze the information from a series of test tones emitted from speakers at the listening position and can adjust the configuration, distance, sound level, crossover frequency and frequency response of each speaker automatically.

• If you want to personalize your speaker setup and channel level setup by making the settings manually, perform the "When selecting the SPEAKER CONFIGURATION" on page 59, "When selecting the SPEAKER DISTANCE" on page 60, "When selecting the SPEAKER CROSSOVER" on page 61, "Adjusting each channel level with test tone" on page 35 and "Adjusting the current channel level" on page 36.

• After the auto setup has been completed, set the room EQ as desired. (For details, refer to "When selecting the ROOM EQ SETUP" on page 62.)

Preparations . Check that the speakers are securely connected

to this receiver.

• If your subwoofer has adjustable volume and crossover frequency, set the volume halfway and set the crossover frequency to the maximum or the low pass filter off.

. Connect the supplied microphone to the SETUP

MIC jack on the front panel.(For details, refer to "SETUP MIC JACK" on page 16.)

• If possible, use a tripod, etc. to attach the microphone at the same height as your ears would be when you are seated in your listening position.

• Ensure there are no obstacles between the speakers and the microphone.

Notes :

• Because the microphone for Auto Setup is designed for use with this receiver, to use the auto setup function, do not use a microphone other than the one supplied with this receiver.

• After you have completed the auto setup procedure, disconnect the microphone.

1. Place the microphone on a flat level surface at the listening position.

R-772(A) 2007.8.16 5:21 PM 페이지 57

Page 58

ENGLISH

• Loud test tones are output successively and then if a series of auto setup procedure has been completed, "COMPLETED" will be displayed.

• To stop the auto setup procedure while performing it, press the ENTER button.

In such a case that the auto setup procedure is stopped before "COMPLETED" is displayed, the results of each adjustment may not be memorized.

• If there may be a problem with speaker or microphone connection, error message will be displayed. In this case, turn off the

power, check the connection and then retry the auto setup procedure.

Notes :

• Before starting auto setup, be sure not to set the HDMI AUDIO OUT to ON.

• Because the test tones are loud, ensure there no infants or small children in the room.

• For best results, ensure the room is as quiet as possible during the auto setup procedure.

If there is too much ambient noise, the results may not be satisfactory.

When the auto setup has been completed.

Continued

2. Press the CURSOR UP()/DOWN() buttons to select the AUTO SETUP, then press the ENTER button.

3. Press the CURSOR UP()/DOWN() buttons to select the START, then press the ENTER button.

4. To memorize the results, press the CURSOR LEFT()/ RIGHT() buttons to select the APPLY, then press

the ENTER button.

• Then the results are memorized and the SPEAKER/ ROOM EQ SETUP menu is displayed.

• Each time the CURSOR LEFT()/ RIGHT() buttons are pressed, the APPLY or the CANCEL is selected.

• When the CANCEL is selected, the results are not memorized.

• Check the results on each setup menu(SPEKER CONFIGURATION menu on page 59, SPEAKER DISTANCE menu on page 60, SPEAKER CROSSOVER menu on page 61 and CH LEVEL SETUP menu for "CALIBRATE" mode on page 64).

• If the results are not satisfactory, you can retry the auto setup procedure or personalize your speaker setup and channel level setup by making the settings manually. (For details, refer to "When selecting the SPEAKER CONFIGURATION" on page 59, "When selecting the SPEAKER DISTANCE" on page 60, "When selecting the SPEAKER CROSSOVER" on page 61, "Adjusting each channel level with test tone" on page 35 and "Adjusting the current channel level" on page 36.)

R-772(A) 2007.8.16 5:21 PM 페이지 58

Page 59

ENGLISH

When selecting the SPEAKER CONFIGURATION

1. Press the CURSOR UP()/DOWN() buttons to select the SPEAKER CONFIGURATION, then press the

ENTER button.

2. Press the CURSOR UP()/DOWN() buttons to select the desired speaker.

YES/NO: Select the desired depending on whether the

speakers are connected or not.

2CH/1CH: Select the desired depending on the number of

speakers connected to SURROUND BACK/ MULTI channels.

Notes :

• When speakers are not set to "NO", you should set their distances from listening position and crossover frequencies according to their frequency characteristics. (For details, refer to "When selecting the SPEAKER DISTANCE" on page 60 and "When selecting the SPEAKER CROSSOVER" on page 61.)

• When the "SURROUND" is set to "NO", "BACK/MULTI" cannot be set to "2CH" or "1CH".

• When the surround back channels' power amplifier is assigned to "BI-AMP" or "ROOM 2", the "BACK/MULTI" cannot be selected. (For details, refer to "When selecting the AMP ASSIGN" on page 49.)

3. Press the CURSOR LEFT()/ RIGHT( buttons to set the selected speaker as desired.

4. Repeat the above steps 2 and 3 until the speakers are all set as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 59

Page 60

ENGLISH

When selecting the desired unit

• You can select either METERS or FEET.

• Once a unit is selected, the distances are automatically changed in the selected unit.

When setting the distance

• You can set the distance within the range of 0.1 ~ 9.0 meters in 0.1 meter intervals (or 0.5 ~ 30 feet in 0.5 feet intervals).

When selecting the SPEAKER DISTANCE

Note :

• You cannot select the subwoofer and the speakers set to "NO".



About the speaker distance

When enjoying multi-channel surround playback with Dolby Digital and DTS sources, etc., it is ideal that the center, surround and surround back speakers should be the same distance from the main listening position as the front speakers. By entering the distance between the listening position and each speaker, the delay times of center, surround and surround back speakers are automatically adjusted to create an ideal listening environment virtually as if the center, surround and surround back speakers were at their ideal locations respectively.

1. Press the CURSOR UP()/DOWN() buttons to select the SPEAKER DISTANCE, then press the ENTER

button.

2. Press the CURSOR UP()/DOWN() buttons to select the desired item.

3. Press the CURSOR LEFT()/RIGHT() buttons to set the selected item as desired.

4. Repeat the above steps  and 3 until the distances are all set as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 60

Page 61

ENGLISH

• You can adjust the crossover frequency within the range of 40 ~ 250 Hz.

• Select "FULL RANGE" when the selected speaker can fully reproduce the low frequencies below 40 Hz.

When selecting the SPEAKER CROSSOVER

Note :

• You cannot select the subwoofer and the speakers set to "NO".

• Set the crossover frequency according to the frequency characteristics of the speakers connected. (For details on the frequency characteristics, refer to the operating instructions of the speakers.)

• If the frequency range of your speaker is 100 Hz ~ 20 kHz, the crossover frequency should be set to 100 Hz

(or slightly higher).

• The low frequencies below the crossover frequency are to output from subwoofer or the speakers which are

set to "FULL RANGE" (when not using a subwoofer).

1. Press the CURSOR UP()/DOWN() buttons to select the SPEAKER CROSSOVER, then press the

ENTER button.

2. Press the CURSOR UP()/DOWN() buttons to select the desired speaker.

3. Press the CURSOR LEFT()/RIGHT() buttons to set the crossover frequency as desired.

4. Repeat the above steps  and 3 until the crossover frequencies are all set as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 61

Page 62

ENGLISH

When selecting the ROOM EQ SETUP

• The room EQ is a kind of room equalizer for your speakers. According to the acoustic characteristics of your

room measured by the auto setup, the room EQ automatically adjusts the frequency response of your speakers.

• If you use different brands or sizes of speakers for some channels or have a room with unique acoustic

characteristics, such as walls, furniture, and the dimensions or the shape of the room, we recommend using the room EQ.

Note :

• To use the room EQ, first you should finish measuring the acoustic characteristics of your room performing

the auto setup.

(For details, refer to "When selecting the AUTO SETUP" on page 57.)

OFF : When turning off the room EQ. FLAT : To adjust the frequency response of all speakers to

the flattest response. This mode is suitable for multi channel music surround sound sources.

FRONT : To adjust the frequency response of the surround

and the surround back speakers to match the characteristics of the front speakers.

USER : To adjust the tonal quality of the different speakers

(except the subwoofer) manually.

Note :

• Only when the auto setup has been performed, the FLAT and the FRONT modes can be selected.

1. Press the CURSOR UP()/DOWN() buttons to select the ROOM EQ SETUP, then press the ENTER

button.

2. Press the CURSOR UP()/DOWN() buttons to select the MODE.

3. Press the CURSOR LEFT()/RIGHT() buttons to select the desired room EQ mode.

Parameter mode

R-772(A) 2007.8.16 5:21 PM 페이지 62

Page 63

ENGLISH



When selecting the USER mode

• You can adjust the parametric EQ settings to optimize the frequency characteristics of this unit's parametric equalizer to match the acoustic characteristics of your room.

• The parametric equalizer uses a combination of the following three parameters to provide highly precise adjustment of the frequency characteristics.

 Frequency

• This unit has 5 equalizer bands for each channel. You can adjust the specified frequency bands each within the following frequency ranges :

20 Hz ~ 120 Hz, 130Hz ~ 500 Hz, 550 Hz ~ 1.9 kHz, 2 kHz ~ 7.5 kHz, 8 kHz ~ 20 kHz

 Gain

• This parameter is adjustable within the range of -24 ~ +24 dB in 1 dB intervals.

 Q factor

• The width of the specified frequency band is referred to as the Q factor. This parameter is adjustable within the range of 0 ~ 24 in 1 intervals.

Notes :

• When selecting the mode other than "USER" mode, you cannot select the EQ parameters for each channel.

• You cannot select the channel of the subwoofer and the speakers set to "NO".

. Press the CURSOR UP()/DOWN() buttons to select the CHANNEL, then press the CURSOR

LEFT()/RIGHT() buttons to select the desired channel.

. Press the CURSOR UP()/DOWN() buttons to select the parameter mode, then press the CURSOR

LEFT()/RIGHT() buttons to select the Fc (Frequency) mode.

. Press the CURSOR UP()/DOWN() buttons to select the desired frequency band, then press the

CURSOR LEFT()/RIGHT() buttons to select the desired frequency.

. Repeat the above step  until the desired frequency is selected for each frequency band. . Repeat the above steps  ~  to adjust the gain of each specified frequency band. . Repeat the above steps  ~  to adjust the Q factor of each specified frequency band. . Repeat the above steps  ~  until the EQ parameters of other channels are all adjusted as desired.

Continued

R-772(A) 2007.8.16 5:21 PM 페이지 63

Page 64

ENGLISH

SETTING THE CH LEVEL SETUP

Note :

• Depending on the speaker settings("NO", etc.), some channels cannot be selected.

• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s memory("CALIBRATE"), not into preset memory("REFERENCE 1", "REFERENCE 2").

• After adjusting each channel level with test tone, adjust the channel levels either according to the program sources or to suit your tastes.(For details, refer to "Adjusting each channel level with test tone" on page 35.)

• The LFE level can be adjusted within the range of

-10 ~ 0 dB and other channel levels within the range of -15 ~ +15 dB

Adjusting the current channel level

When adjusting the LFE LEVEL . Press the CURSOR UP()/DOWN()buttons to select the LFE LEVEL SETUP, then press the ENTER

button.

. Press the CURSOR UP()/DOWN() buttons to select the desired program source.

Memory mode

1. Press the CURSOR UP()/DOWN() buttons to select the desired channel.

3. Repeat the above steps 1 and  to adjust each channel level.

2. Press the CURSOR LEFT()/RIGHT() buttons to adjust the level of the selected channel or program

source's LFE as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 64

Page 65

ENGLISH

Memorizing the adjusted channel levels

• You can memorize the adjusted channel levels into preset memory("REFERENCE 1", "REFERENCE 2") and recall the memorized whenever you want.

• The "REFERENCE 1" indication flickers.

• Each time the CURSOR LEFT() or RIGHT() button is pressed, "REFERENCE 1" or "REFERENCE 2" is selected.

• The adjusted channel levels have now been memorized into the selected memory.

• "CALIBRATE" may be displayed instead of "REFERENCE 1" or "REFERENCE 2".

• Then the channel levels memorized into the selected preset memory are recalled.

Recalling the memorized channel levels

1. After performing the steps 1 ~ 3 in "Adjusting the current channel level" procedure on page 64, press the

CURSOR UP()/DOWN() buttons to select a channel (, not the MODE (memory mode) and the LFE LEVEL SETUP), then press the ENTER button.

2. Press the CURSOR LEFT()/RIGHT() buttons to select the desired preset memory, then press the

ENTER button.

2. Press the CURSOR LEFT()/RIGHT() buttons to select the desired one of REFERENCE 1 and

REFERENCE 2.

1. Press the CURSOR UP()/DOWN() buttons to select the MODE(memory mode).

R-772(A) 2007.8.16 5:21 PM 페이지 65

Page 66

ENGLISH

SETTING THE SOUND PARAMETER

When selecting the NIGHT MODE

• This function compresses the dynamic range of previously specified parts of the Dolby Digital sound track (with extremely high volume) to minimize the difference in volume between the specified and non-specified parts.

This makes it easy to hear all of the sound track when watching movies at night at low levels.

Notes:

• The night mode setting is valid only when the digital signals from the Dolby Digital program source are being input.

• In some Dolby Digital softwares, the night mode setting may not be valid.

• NIGHT MODE : To adjust the dynamic range compression that makes faint sound easier to hear at low volume levels.

• DOLBY PLII MUSIC : To adjust the various surround

parameters for optimum surround effect.

• DOLBY HEADPHONE : To select the desired listening mode for

Dolby Headphone mode.

• DOLBY VIRTUAL SPEAKER : To select the speaker layout to be

used actually for each Dolby Virtual Speaker mode.

0.0 (OFF)



0.1 Lower compression



0.2 : : :

0.9

 Higher compression

1.0 (MAX)

1. Press the CURSOR UP()/DOWN() buttons to select the NIGHT MODE, then press the ENTER button.

2. Press the CURSOR LEFT()/ RIGHT() buttons to adjust the dynamic range compression as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 66

Page 67

ENGLISH

When selecting the DOLBY PLII MUSIC

• You can adjust the various surround parameters for optimum surround effect.

Note:

• The parameter settings are valid only when listening in either Dolby Pro Logic II Music mode or the Dolby Pro Logic IIx Music mode.

When selecting the PANORAMA mode

This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging. Select "OFF" or "ON"(default value:OFF).

When selecting the CENTER WIDTH control

This adjusts the center image so it may be heard only from the center speaker, only from the left/right speakers as a phantom image, or from all three front speakers to varying degrees. The control can be set in 8 steps from 0 to 7 (default value : 3).

When selecting the DIMENSION control

This gradually adjusts the soundfield either towards the front or towards the rear. The control can be set in 7 steps from -3 to +3(default value : 0).

1. Press the CURSOR UP()/DOWN() buttons to select the DOLBY PLII MUSIC, then press the ENTER

button.

2. Press the CURSOR UP()/DOWN() buttons to select the desired parameter.

3. Press the CURSOR LEFT()/ RIGHT() buttons to adjust the selected parameter as desired.

4. Repeat the above steps  and 3 to adjust other parameters.

R-772(A) 2007.8.16 5:21 PM 페이지 67

Page 68

ENGLISH

When selecting the DOLBY HEADPHONE

• You can select the desired listening mode for Dolby Headphone mode.

Note:

• The listening mode setting is valid only when playing analog stereo, PCM 2 channel or Dolby Digital 2 channel source.

MOVIE : This provides the surround effect suitable for movie

sources.

MUSIC 1 : This provides the surround effect suitable for

music sources.

MUSIC 2 : This provides less surround effect compared to

MUSIC 1 mode.

1. Press the CURSOR UP()/DOWN() buttons to select the DOLBY HEADPHONE, then press the ENTER

button.

2. Press the CURSOR LEFT()/ RIGHT() buttons to select the desired listening mode.

R-772(A) 2007.8.16 5:21 PM 페이지 68

Page 69

ENGLISH

When selecting the Dolby Virtual Speaker Reference mode

2 SPK : When using 2 front speakers only.

3 SPK : When using 2 front and center speakers.

When selecting the Dolby Virtual Speaker Wide mode

2 SPK : When using 2 front speakers only. 3 SPK : When using 2 front and center speakers. 4 SPK : When using 2 front and 2 surround speakers. 5 SPK : When using 2 front, center and 2 surround speakers.

When selecting the DOLBY VIRTUAL SPEAKER

• You can select the speaker layout to be used actually for each Dolby Virtual Speaker mode.

Note:

• The speaker layout settings are valid only when listening in a Dolby Virtual Speaker mode.

Note:

• When the speakers are set to "NO", the corresponding speaker layouts cannot be selected.

1. Press the CURSOR UP()/DOWN() buttons to select the DOLBY VIRTUAL SPEAKER, then press the

ENTER button.

2. Press the CURSOR UP()/DOWN() buttons to select the desired Dolby Virtual Speaker mode.

3. Press the CURSOR LEFT()/RIGHT() buttons to select the desired speaker layout.

4. Repeat the above steps  and 3 to select the desired speaker layout for another Dolby Virtual Speaker

mode.

R-772(A) 2007.8.16 5:21 PM 페이지 69

Page 70

ENGLISH

OFF : To turn off the ROOM 2 function.



ON : To turn it on.

Notes:

• When the ROOM 2 is set to OFF, the INPUT and the VOLUME cannot be selected.

• When you do not use the ROOM 2 function, set the ROOM 2 to OFF to save electricity.

When selecting the ROOM 2

• The ROOM 2 function allows enjoying one source in the main room while playing another in a different room at the same time.

• You can adjust the volume on the power amplifier assigned to "BACK ROOM 2" or "ROOM 2" when the ROOM 2 speaker terminals are connected to the speakers in a different room.

Note:

• You can adjust the VOLUME only when the surround back channels' power amplifier is assigned to "BACK ROOM 2" or "ROOM 2". (For details, refer to "When selecting the AMP ASSIGN" on page 49.)

• ROOM 2 : To turn on or off the ROOM 2 function.

• INPUT : To select the desired ROOM 2 source.

• VOLUME : To adjust the volume on the power amplifier assigned to "BACK ROOM 2"

or "ROOM 2".

Notes:

• The analog signals from the EXTERNAL INs and the

digital signals cannot be output to the different room, meaning no playback in a different room.

• You cannot play the ROOM 2 source in any surround

mode.

Note:

• The VOLUME cannot be adjusted when the AMP ASSIGN

is assigned to "BI-AMP" or "SURR BACK".

(For details, refer to "When selecting the AMP ASSIGN" on

page 49.)

SETTING THE MULTI ROOM SETUP

When selecting the INPUT

• You can select the desired among MAIN source, TUNER, CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4 as a ROOM 2 source.

Note:

• When the EXTERNAL IN is selected as a main input, if the MAIN source is selected as a ROOM 2 input, no audio signal can be heard in the different room (ROOM 2).

When selecting the VOLUME

1. Press the CURSOR UP()/DOWN() buttons to select the desired item.

2. Press the CURSOR LEFT()/RIGHT() buttons to set the selected item as desired.

R-772(A) 2007.8.16 5:21 PM 페이지 70

Page 71

ENGLISH

Troubleshooting Guide

If a fault occurs, run through the table below before taking your receiver for repair. If the fault persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the situation, consult your dealer. Under no circumstances should you attempt to repair the receiver yourself. This could void the warranty.

PROBLEM POSSIBLE CAUSE REMEDY

No power

No sound

No sound from the surround speakers

No sound from the center speaker

No sound from the surround back speakers

No picture

No picture with an HDMI connection

Stations cannot be received

Preset stations cannot be received

Poor FM reception

Continuous or intermittent hissing noise during AM reception, especially at night.

Remote control unit does not operate.

OSD function is not available.

• The AC input cord is disconnected.

• Poor connection at AC wall outlet or the outlet is dead or off.

• The speaker wires are disconnected.

• The master volume is adjusted too low.

• The MUTE button is pressed to ON.

• Incorrect selection of input source.

• Incorrect connections between the components.

• The HDMI AUDIO OUT is set to ON.

• The settings related to audio are set incorrectly.

• Surround mode is switched off(stereo mode).

• Master volume and surround level are too low.

• Monaural source is used.

• Surround speaker setting is "NO".

• Dolby Virtual Speaker, stereo mode, etc is selected.

• Center speaker setting is "NO".

• Master volume and center level are too low.

• The input signal format or the current surround mode cannot support the 7.1(or 6.1) surround.

• The surround back channels' power amplifier is assigned to "BI-AMP" or "ROOM 2".

• Master volume and surround back level are too low.

• Surround back speaker setting is "NO".

• Video connections between this unit and the monitor TV are not made correctly.

• Incorrect selection of input source on the monitor TV.

• The settings related to video are set incorrectly.

• HDMI connection between this unit and the monitor TV are not made correctly.

• The monitor TV or other equipments do not support HDCP.

• No antenna is connected.

• The desired station frequency is not tuned in.

• Antenna is in wrong position.

• An incorrect station frequency has been memorized.

• The memorized stations are cleared.

• No antenna is connected.

• The antenna is not positioned for the best reception.

• Weak signals.

• Noise is caused by motors, fluorescent lamps or lightning, etc.

• Batteries are not loaded or exhausted.

• The remote sensor is obstructed.

• Video connections between this unit and the monitor TV are not made correctly.

• Connect cord securely.

• Check the outlet using a lamp or another appliance.

• Check the speaker connections.

• Adjust the master volume.

• Press the MUTE button to cancel the muting effect.

• Select the desired input source correctly.

• Make connections correctly.

• Set it to OFF. (For details, refer to "When selecting the HDMI AUDIO OUT" on page 50.)

• Set the settings correctly. (For details, refer to "SETTING THE INPUT SETUP" on page 53.)

• Select a surround mode.

• Adjust master volume and surround level.

• Select a stereo or surround source.

• Select the desired surround speaker setting.

• Select the desired surround mode.

• Select the desired center speaker setting.

• Adjust master volume and center level.

• Under the proper situations, perform the 7.1(or

6.1) surround playback.(For details, refer to "ENJOYING SURROUND SOUND" on page 34.)

• Assign the power amplifier to the surround back channels.(For details, refer to "When selecting the AMP ASSIGN"on page 49.)

• Adjust master volume and surround back level.

• Select the desired surround back speaker setting.

• Make proper video connections.

• Select the input source correctly.

• Set the settings correctly. (For details, refer to "SETTING THE INPUT SETUP" on page 53.)

• Make proper HDMI connection.

• This unit will not output video signal unless the connected equipments supports HDCP.

• Connect an antenna.

• Tune in the desired station frequency.

• Move antenna and retry tuning.

• Memorize the correct station frequency.

• Memorize the stations again.

• Connect an antenna.

• Change the position of the antenna.

• Install an outdoor FM antenna.

• Keep the receiver away from noise sources.

• Install an outdoor AM antenna.

• Replace the batteries.

• Remove the obstacle.

• Make proper video connections.

R-772(A) 2007.8.16 5:21 PM 페이지 71

Page 72

ENGLISH

Specifications

AMPLIFIER SECTION

• Power output, stereo mode, 6 Ω, THD 1.0 %, 40 Hz~20 kHz | 2100 W

• Total harmonic distortion, at -3 dB, 6 Ω, 1 kHz | 0.05%

• Intermodulation distortion 60 Hz : 7 kHz= 4 : 1 SMPTE, 6 Ω, 95 W | 0.05%

• Input sensitivity/impedance Line (CD, TAPE, VIDEO) | 300 mV/47kΩ

• Signal to noise ratio, IHF "A" weighted Line (CD, TAPE, VIDEO) | 100 dB

• Frequency response Line (CD, TAPE, VIDEO), 10 Hz ~ 100 kHz | +0, -3 dB

• Output level ROOM 2 OUT, 2.2 kΩ | 300 mV

• Bass/Treble control, 100 Hz/10 kHz | ±10 dB

• Surround mode, only channel driven Front power output, 6 Ω, 1 kHz, THD 1.0 % |

110W / 110 W

Center power output, 6 Ω, 1 kHz, THD 1.0 % |

110 W

Surround power output, 6 Ω, 1 kHz, THD 1.0 % |

110 W / 110W

Surround back (/MULTI) / ROOM 2 power output, 6 Ω, 1 kHz, THD 1.0 % |

110 W / 110W

DIGITAL AUDIO SECTION

• Sampling frequency | 32, 44.1, 48, 96 kHz

• Digital input level Coaxial, 75 Ω | 0.5 Vp-p Optical, 660 nm | -15 ~ -21 dBm

VIDEO SECTION

• Video format | NTSC

• Input sensitivity(=Output level), 75 Ω

Video (Composite(normal)) | 1 Vp-p

S-Video (luminance signal) | 1 Vp-p

(chrominance signal) | 0.286 Vp-p

Component video (R-Y signal) | 0.5 Vp-p

(B-Y signal) | 0.5 Vp-p (Y signal) | 1.0 Vp-p

• HDMI connector | 19 pin

FM TUNER SECTION

• Tuning frequency range | 87.5~108 MHz

• Usable sensitivity, THD 3%, S/N 30 dB | 12.8 dBf

• 50 dB quieting sensitivity, mono/stereo | 20.2 / 45.3 dBf

• Signal to noise ratio, 65 dBf, mono/stereo | 70 / 65 dB

• Total harmonic distortion, 65 dBf,1 kHz, mono/stereo | 0.5 / 0.8 %

• Frequency response, 30 Hz~15 kHz | ±3 dB

• Stereo separation, 1 kHz | 32 dB

• Capture ratio | 4.0 dB

• IF rejection ratio | 60 dB

AM TUNER SECTION

• Tuning frequency range | 520~1710 kHz

• Usable sensitivity | 500 µV/m

• Signal to noise ratio | 40 dB

• Selectivity | 25 dB

GENERAL

• Power supply | 120 V ~ 60 Hz

• Power consumption | 3.7 A

• Switched AC outlets | TOTAL 120 W (1 A) max.

• Dimensions (WHD, including protruding parts) | 440141370 mm(17-3/85-1/214-1/2 inches)

• Weight (Net) | 10.1 kg (22.3 Ibs)

Note: Design and specifications are subject to change without notice for improvements.

R-772(A) 2007.8.16 5:21 PM 페이지 72

Page 73

ENGLISH

Setup Code Table

AOC 005 003 Admiral 041 031 Aiko 014 Akai 005 Alaron 026 Ambassador 024 America Action 027 Ampro 043 Anam 027 047 048 049 Audiovox 030 027 014 034 Baysonic 027 Belcor 003 Bell & Howell 019 001 Bradford 027 Brockwood 003 Broksonic 028 031 CXC 027 Candle 005 011 Carnivale 005 Carver 010 Celebrity 050 Cineral 030 014 Citizen 012 005 011 006 014 Concerto 011 Contec 027 Craig 027 Crosley 010 Crown 027 006 Curtis Mathes 007 010 019 008 030 041

012 005 016 011 001 006

022 032 038 040 Daewoo 030 003 006 014 034 035 Daytron 003 Denon 016 Dumont 002 003 Dwin 044 036 Electroband 050 Emerson 019 028 031 027 029 025

003 026 006 024 034 035 Envision 005 Fisher 019 Fujitsu 026 Funai 027 026 023 Futuretech 027 GE 007 008 030 041 029 025

004 015 038 040 Gibralter 002 005 003

Goldstar 005 025 003 011 Gradiente 009 011 Grunpy 027 026 Hallmark 025 Harley Davidson 026 Harman/Kardon 010 Havard 027 Hitachi 016 011 018 Infinity 010 Inteq 002 JBL 010 JCB 050 JVC 009 046 KEC 027 KTV 027 005 006 Kenwood 005 003 LG 011 003 LXI 007 010 019 020 025 Logik 001 Luxman 011 MGA 017 005 025 003 MTC 012 005 003 011 Magnavox 010 005 026 Magestic 001 Marantz 010 005 Matsushita 042 Magatron 025 016 Memorex 019 042 031 017 025 011

001 Midland 007 002 008 006 015 Minutz 004 Mitsubishi 041 017 025 003 Motorola 041 Multitech 027 NAD 020 025 022 NEC 005 003 011 NTC 014 Nikko 005 025 014 Onwa 027 Optimus 019 042 022 Optonica 041 021 Orion 028 031 026 Panasonic 008 042 Penney 007 020 008 012 005 025

004 003 011 006 015 040 Pilco 010 031 005 016 003 Philips 010

R-772(A) 2007.8.16 5:21 PM 페이지 73

Page 74

ENGLISH

Admiral 027 021 Adventura 000 Aiko 025 Aiwa 005 000 Akai 026 America Action 025 America High 004 Asha 023 Audiovox 005 Beaumark 023 Bell & Howell 017 Brocksonic 021 Broksonic 020 018 021 001 CCE 015 025 Calix 005 Canon 004 Carver 081 Cineral 025 Citizen 005 025 Colt 015 Craig 005 012 023 015 024 Curtis Mathes 013 004 026 028 Cybernex 023 Daewoo 010 025 Denon 008 Dynatech 000 Electrohome 005 Electrophonic 005 Emerex 002 Emerson 005 020 000 018 009 021

001 025 Fisher 012 017 Fuji 004 003 Funai 000 GE 013 004 027 023 Garrard 000 Go Video 052 GoldStar 005 006 Gradiente 000 HI-Q 012 Harley Davidson 000 Harman/Kardon 016 006 Harwood 015

VCR

Pilot 005 003 006 Pioneer 022 Portland 003 006 014 Prism 008 Proscan 007 Proton 025 032 Pulsar 002 003 Quasar 008 042 021 RCA 007 008 041 003 013 015

037 038 039 040

Radio Shack 007 019 021 027 005 025

003 011 006

Realistic 019 021 027 005 025 003

011 006 Runco 002 005 033 SSS 027 003 Sampo 005 006 Samsung 012 005 025 003 011 045 Samsux 006 Sansei 030 Sansui 031 Sanyo 019 Scimitsu 003 Scotch 025 Scott 028 027 025 003 026 Sears 007 010 019 020 025 026

011 006 Semivox 027 Semp 020 Sharp 041 021 006 Sherwood 000 Shogun 003 Signature 001 Sony 050 Soundesign 027 025 026 Squareview 023 Starlite 027 Supreme 050 Sylvania 010 005 Symphonic 023 TMK 025 011 024 Tandy 041 Technics 008 042 Technoi Ace 026 Techwood 008 011 Teknika 010 027 017 012 003 026

011 001 006 014 Telefunken 011 Toshiba 019 020 012 Totevision 006 Vector Research 005 Victor 009 Vidikron 010

Vidtech 025 003 Wards 010 021 005 025 004 003

026 011 001

White Westinghouse

031 034 035 Yamaha 005 003 Zenith 002 031 001 014

R-772(A) 2007.8.16 5:21 PM 페이지 74

Page 75

ENGLISH

Headquarter 011 Hitachi 000 008 026 Hughes Net.Sys 008 JVC 014 026 Jensen 026 KEC 005 025 KLH 015 Kenwood 014 026 006 Kodak 004 005 LXI 005 Lloyd’s 000 Logik 015 MEI 004 MGA 023 009 MGN Technology 023 MTC 023 000 Magnasonic 025 Magnavox 004 007 016 000 019 Magnin 023 Marantz 004 016 Marta 005 Matsushita 004 028 029 Memorex 004 005 027 007 012 023

000 017 021 011 031 032 Minolta 008 Mitsubishi 027 014 009 Motorola 004 027 Multitech 000 015 NEC 017 014 026 006 Nikko 005 Noblex 023 Olympus 004 Opimus 005 027 017 028 029 030

031 032 Orion 020 021 001 Panasonic 004 028 022 029 031 Penny 004 005 023 008 006 Pentax 008 Philco 004 021 Philips 004 016 Pilot 005 Pioneer 014 Profitronic 023 Proscan 013 Protec 015 Pulsar 007 Quarter 011 Quartz 011 Quasar 004 028 029 031 RCA 013 004 027 023 008 019 Radio Shack 000 Radix 005 Randex 005

Realistic 004 005 027 012 000 017

011 Runco 007 STS 008 Samsung 023 010 033 Sanky 027 007 Sansui 000 014 021 026 024 Sanyo 012 023 017 011 Scott 020 010 018 009 Sears 004 005 012 000 008 017

011 Semp 010 Sharp 027 Shintom 015 Shogun 023 Singer 015 Sony 004 002 000 003 Syvania 004 016 000 009 Symphonic 000 TMK 023 Tatung 026 Teac 000 026 Technics 004 028 Teknika 004 005 000 Thomas 000 Toshiba 010 009 Totevision 005 023 Unitech 023 Vector 010 Vector Research 006 Video Concepts 010 Videosonic 023 Wards 013 004 027 012 016 023

000 008 015 019 White WestingHouse

021 025 XR-100 004 000 015 Yamaha 006 Zenith 007 000 021 003 Ameira High 004 (TV use 008) Brocksonic 001 Colt 015 Cutis Mathes 004 (TV use 008) Daewoo 025 Emerson 001 Funai 000 GE 004 (TV use 008) 013 (TV use 012)

027 (TV use 041) 023 Hitachi 004 (TV use 008) 000 HQ 000 Lloyds 000 MGA 023 Megavox 016 (TV use 010) 004 (TV use 008)

000

R-772(A) 2007.8.16 5:21 PM 페이지 75

Page 76

ENGLISH

Magnin 023 Memorex 005 028 (TV use 025) Mitsubishi 027 (TV use 041) Orion 001 Panasonic 004 (TV use 008) 028 (TV use 042) Penney 004 (TV use 008) 023

028 (TV use 042) Quasar 004 (TV use 008) 028 (TV use 042) RCA 013 (TV use 012) 004 (TV use 008)

027 (TV use 041) Sansui 000 Sanyo 023 Sear 000 005 Sharp 027 (TV use 041) Sony 002 (TV use 000) Symphonic 000 Zenith 000

Harman/Kardon 009 JVC 008 Kenwood 005 Megavox 011 Mitsubishi 016 Onkyo 011 Panasonic 013 Philips 011 006 Pioneer 003 014 026 Proscan 002 RCA 002 Samsung 017 Sherwood 001 012 000 018 019

020 021 022 023 025 Sony 004 Technics 013 Theta Digital 014 Toshiba 011 Yamaha 013 007 Zenith 011 010

ABC 002 003 009 030

007 006 008 Allegro 018 021 Archer 018 026 Bell&Howell 009 Century 018 Citizen 018 021 Comtronics 014 Contec 011 Easten 001 Emerson 026 Everquest 010 014 Focus 022 Garrard 018 Gemini 010 General Instrument

033 276 006 034 GoldStar 017 040 Goodmind 026 Hamlin 012 020 004 013 Hitachi 006 Hytex 007 Jasco 010 018 021 Jerrold 002 007 033 032 009 010

006 034 Movie Time 015 NSC 015 Oak 011 Optimus 031 Panasonic 016 031 Philips 018 Pioneer 017 025 Popular Mechanics 022 RCA 031 Radio Shack 010 021 026 028 Recoton 022 Regal 012 020 Regency 001 Rembrandt 006 Sherwood 000 SL Marx 014 Smasung 017 014 Scientific Atlanta 003 023 030 027 Signal 010 014 Signature 006 Sprucer 031 Starcom 002 010

DVD

CBL

R-772(A) 2007.8.16 5:21 PM 페이지 76

Page 77

ENGLISH

Stargate 010 014 026 Starquest 010 TV86 015 Teleview 014 Tocom 007 008 Tusa 010 Unika 018 United Artists 007 Universal 153 019 Viewstar 015 Zenith 024 Zentek 022

AlphaStar 008 Chaparral 001 Echostar 009 Expreevu 009 General Instrument

016 015 018 HTS 009 Hitachi 011 Hughes Net.Sys 007 JVC 009 Jerrold 016 015 Megavox 006 005 Memorex 006 Next Level 006 Panasonic 017 Philips 006 005 Primestar 016 015 RCA 003 002 012 Radio Shack 018 Realistic 014 Sherwood 000 Sony 004 Star Choice 018 Toshiba 010 Uniden 006 005 014 Zenith 013

Denon 007 Mitsubishi 007 NAD 007 Pioneer 007 Sony 017 018

SAT

AUX-LD

Aiwa 004 034 Carver 004 Harman/Kardon 016 004 JVC 022 024 Kenwood 008 Megavox 004 Marantz 004 Onkyo 012 025 Opimus 002 020 Panasonic 038 Pioneer 002 020 011 Sansui 004 Sony 021 014 026 Technics 038 Victor 024 Wards 002 Yamaha 010 009

AUX-TAPE

Aiwa 029 Carver 023 Curtis Mathes 027 Denon 037 Harman/Kardon 040 Linn 023 Megavox 023 Marantz 023 Panasonic 039 Philips 023 040 Pioneer 003 027 Sony 019 033 Technics 039 Wards 003 Yamaha 028

AUX-AMP

Sherwood 000 (for tape deck)

035 (for MD recorder)

AUX-TAPE/MD

R-772(A) 2007.8.16 5:21 PM 페이지 77

Page 78

GE 043 Lutron 044 One For All 042 Radio Shack 043 Security System 042 Universal X10 042 X10 042

Aiwa 045 059 029 Fisher 005 Harman/Kardon 046 JBL 046 JVC 047 Jerrold 031 RCA 006 Scientific Artlanta 032 Sony 045 Starcom 031

AUX-DBS

Archer 013 GC Electronics 013 Jebsee 013 Rabbit 036 Radio Shack 013

AUX-ACCESSARY

AUX-HOME AUTOMATION

Aiwa 010 030 Burmester 019 California Audio Lab

002

Carver 010 012 020 DKK 001 Denon 028 034 Emerson 035 Fisher 012 033 Garrard 019 018 Genexxa 004 035 Harman/Kardon 010 011 Hitachi 004 JVC 007

Kenwood 003 029 016 024 025 Krell 010 LXI 035 Linn 010 MCS 002 MTC 019 Megavox 010 035 Marantz 002 010 013 Mission 010 NSM 010 Nikko 033 Onkyo 008 026 Opimus 001 004 012 035 029

019 009 021 020 Panasonic 002 031 Parasound 019 Philips 010 023 Pioneer 004 035 021 017 Proton 010 QED 010 Quasar 002 RCA 012 035 006 036 Realistic 012 019 013 Rotel 010 019 SAE 010 Sansui 010 035 Sanyo 012 Scott 035 Sears 035 Sharp 029 013 037 Sherwood 013 027 038 039 040 041

000 Sony 001 014 022 Soundesign 009 Tascam 019 Teac 019 018 033 013 Technics 002 031 Victor 007 Wards 010 006 Yamaha 005 015 Yorx 032

ENGLISH

R-772(A) 2007.8.16 5:21 PM 페이지 78

Page 79

R-772(A) 2007.8.16 5:21 PM 페이지 1
