Samsung SYNCMASTER 750DFT User Manual

SyncMaster 750DFT

Color Monitor

Owner’s

Instructions

Safety Instructions

1	Before connecting the AC power
	cord to an outlet, make sure the
	voltage designation on your monitor
	corresponds to the local electrical
	supply.
2	Never insert anything metallic into
	the monitor openings. Doing so may
	create the danger of electric shock.
3	To avoid electric shock, never touch
	the inside of the monitor. Only a
	qualified technician should open the
	monitor’s case.
4	Never use your monitor if the power
	cord has been damaged. Do not
	allow anything to rest on the power
	cord, and keep the cord away from
	areas where people can trip over it.
5	Be sure to hold the plug, not the
	cord, when disconnecting the
	monitor from an electric socket.
6	Openings in the monitor cabinet are
	provided for ventilation. To prevent
	overheating, these openings should
	not be blocked or covered. Also,
	avoid using the monitor on a bed,
	sofa, rug, or other soft surface.
	Doing so may block the ventilation
	openings in the bottom of the
	cabinet. If you put the monitor in a
	bookcase or some other enclosed
	space, be sure to provide adequate
	ventilation.
7	Put your monitor in a location with
	low humidity and a minimum of dust.

8	Do not expose the monitor to rain or
	use it near water (in kitchens, near
	swimming pools, etc.). If the monitor
	accidentally gets wet, unplug it and
	contact an authorized dealer
	immediately. You can clean the
	monitor with a damp cloth when
	necessary, but be sure to unplug the
	monitor first.
9	Place the monitor on a solid surface
	and treat it carefully. The screen is

made of glass and can be damaged if dropped, hit or scratched.

10 Locate your monitor near an easily accessible AC outlet.

11 If your monitor does not operate normally – in particular, if there are any unusual sounds or smells coming from it – unplug it immediately and contact an authorized dealer or service center.

12 High temperatures can cause problems. Don’t use your monitor in direct sunlight, and keep it away from heaters, stoves, fireplaces, and other sources of heat.

13 Unplug the monitor when it is going to be left unused for an extended period of time.

14 Unplug your monitor from the AC outlet before any service.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Table of Contents

Your New Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Speaker Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Connecting Your Monitor & Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Control Viewing Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Multimedia Speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Direct Access Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 On Screen Display (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Monitor function control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Horizontal Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Vertical Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Horizontal Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Vertical Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Pincushion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Trapezoid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Parallelogram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Pinbalance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 V-Linearity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 H- Moiré . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 V- Moiré . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Video Input Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Color Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Halftone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Degauss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Display Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 OSD Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 PowerSaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inside back cover

English 1

Italiano Portuguese Deutsch Español Français English

Your New Monitor

Please make sure the following items are included with your monitor. If any items are missing, contact your dealer.

Manual
		Stereo input cable
		DC input cable
	Monitor	Left output cable
Warranty Card		Speaker Assembly

(Not available in all locations)

Driver Installation Diskette	Stand Feet	Power Cord
(Not available in all locations)

English 2

Your New Monitor

Speaker Assembly

1. Monitor side view	Speaker side view
	a
	b	c
2. Monitor	3. Monitor side view

1
	Prepare left and right speakers for each side of the monitor.
	(Note: Left and right speakers are not identical.)
2	Install the two retainers ( a, b ) at the two front-most holes on left and right side of the
	monitor and then put a third retainer ( c ) in the rear-most hole on left and right side of
	the monitor.
3	Verify proper speakers fit and then lock the speakers onto both sides of the monitor by
	pushing down on the rear lever.
4	When disassembling, lift the lever up and take the speakers off the monitor.

English 3

Italiano Portuguese Deutsch Español Français English

Your New Monitor

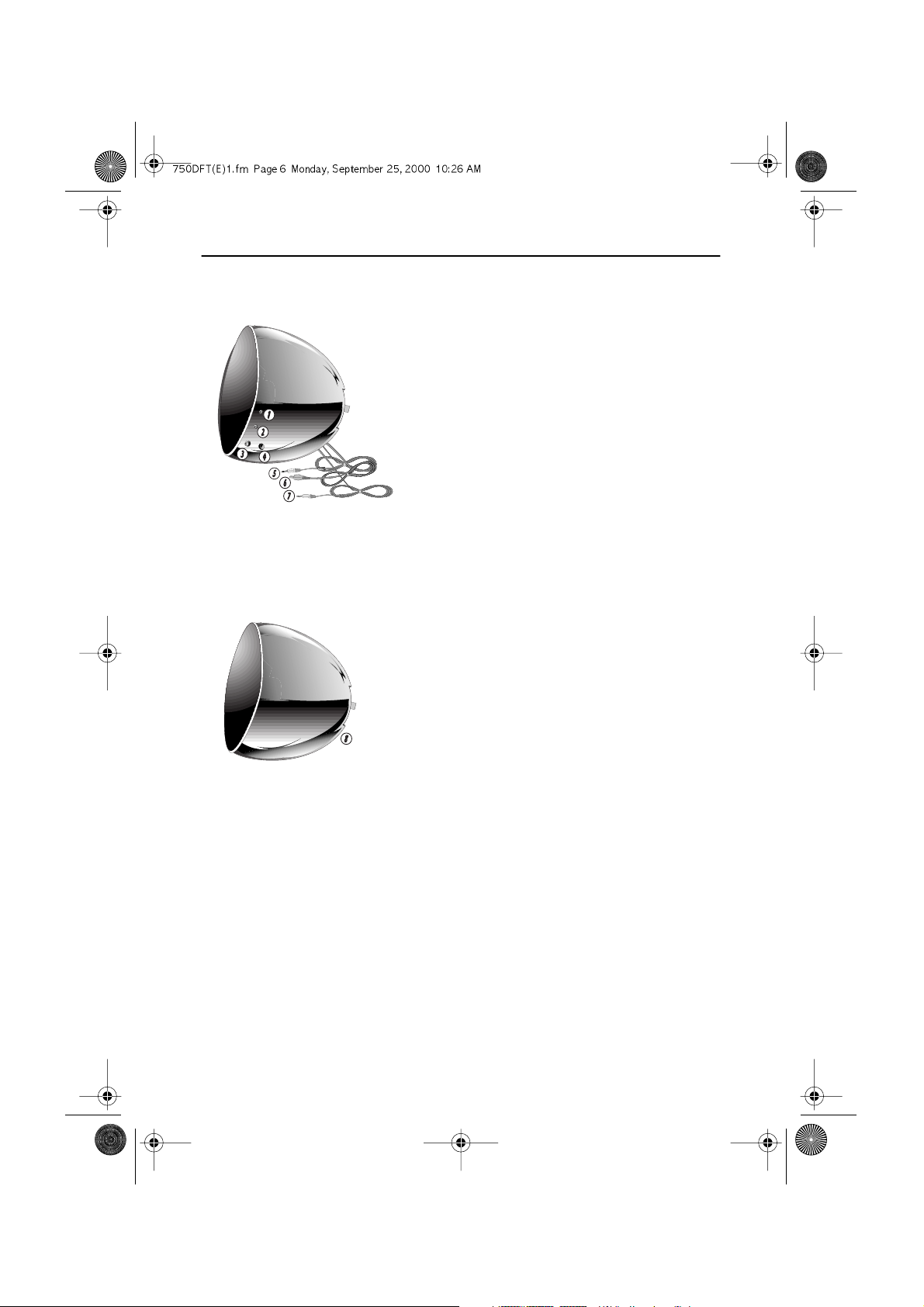

Connecting Your Monitor & Speakers

Caution : Turn the power off to the monitor, computer and speakers before connecting or disconnecting the speakers.

1	Signal cable
	Connect the end of the signal cable to
	your computer’s video port. If you are
	using a Macintosh computer, connect
	the cable to a Macintosh adapter, and
	set the pins on your adapter (adapter
	not included). A PC-compatible
	computer does not need an adapter.

2	Stereo input cable
	Connect this cable to your sound card
	or computer
3	DC input cable
	Connect this cable to DC output port
	on the back of your monitor.
4	Left output cable
	Connect this cable to L- input port on
	the back of the left side speaker.
5	L-input port
	Connect the left output cable from

right speaker here.

6	Power port
	Connect the power cord for your
	monitor to the power port on the back
	of the monitor.

7	DC output port
	Connect DC input cable here.
8	Power cords
	Plug the power cord for the monitor
	and the power cord for your computer
	into a nearby outlet.
9	Turn on your computer and monitor.
	If your monitor displays an image,

installation is complete.

10 Install the monitor driver

•Insert the provided diskette into the A drive.

•Double click the “install.exe” file.

English 4

Your New Monitor

Control Viewing Angle

Control the viewing angle to allow the user optimum viewing. (This monitor can tilt up and down from 4 to 11 degrees.)

Control

1	Turn the stand feet underneath the monitor to control viewing angle.
	Refer to the illustrations above.
2	Turn left to lower viewing angle and turn right to raise viewing angle.

English 5
