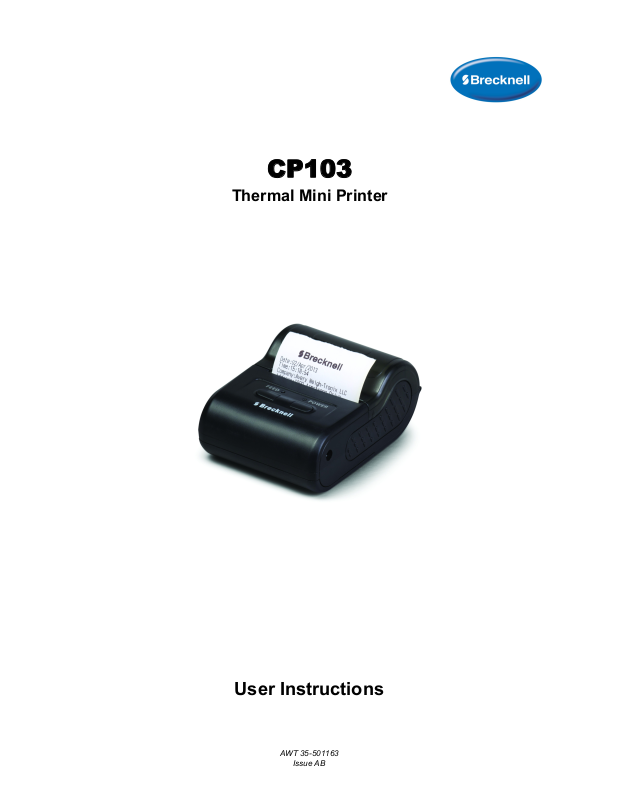

Page 1
CP103
Thermal Mini Printer
User Instructions
AWT 35-501163
Issue AB
Page 2
Brecknell is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is
Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2013 Illinois Tool Works. All rights reserved.
No part of this publication may be reproduced by making a facsimile copy, by the making of a copy in three dimensions of a two-dimensional
work and the making of a copy in two dimensions of a three-dimensional work, stored in any medium by electronic means, or transmitted in
any form or by any means, including electronic, mechanical, broadcasting, recording or otherwise without the prior written consent of the
copyright owner, under license, or as permitted by law.
This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the
specification, design, price or conditions of supply of any product or service at any time.
CP103 printer_u_en_501163.book
Page 3
Table of Contents
Chapter 1 General Information and Warnings ........................................................................................ 2
About this Manual ..............................................................................................................2
Special Messages ....................................................................................................... 2
Description ......................................................................................................................... 2
Package and Accessories .................................................................................................. 3
Warnings ............................................................................................................................ 3
Prepare the Printer for Use ................................................................................................ 3
Signal Light Status ............................................................................................................. 4
Power Light ................................................................................................................. 4
Feed Light ................................................................................................................... 4
Specifications ..................................................................................................................... 4
Paper Roll Specifications ................................................................................................... 5
Chapter 2 Communication ........................................................................................................................ 6
RS-232 Serial Interface ...................................................................................................... 6
CP103 Printer PS/2 Connector .......................................................................................... 6
Serial Cable Definition ....................................................................................................... 7
Chapter 3 Printer Self Test and Cleaning ................................................................................................ 8
Cleaning the Print Head ..................................................................................................... 8
Steps for Cleaning Print Head ..................................................................................... 8
Chapter 4 Programming ............................................................................................................................ 9
Communicate with the Printer .......................................................................................... 10
Select Printer Type .................................................................................................... 10
Select COM Port ....................................................................................................... 10
Check Printer Baud Rate ........................................................................................... 11
Select Baud Rate ...................................................................................................... 11
Make Changes to Printer Configuration ........................................................................... 12
Change Printer Baud Rate ........................................................................................ 12
Set the Printer Data Bits ............................................................................................ 13
Set the Printer Stop Bit .............................................................................................. 13
Set the Printer Parity ................................................................................................. 14
Restore Default Baud Rate ....................................................................................... 14
Time and Date ........................................................................................................... 15
Company Information ................................................................................................ 16
Underline Printing ...................................................................................................... 17
Inverse Font .............................................................................................................. 18
Line Feed .................................................................................................................. 18
Character Dot Choice ................................................................................................ 19
Font Choice ............................................................................................................... 19
Time and Date Display Mode .................................................................................... 20
Print Height and Width .............................................................................................. 20
Upside Down Printing ................................................................................................ 21
Printer Escape Command Code Definitions .............................................................. 21
Logo Download ......................................................................................................... 22
CP103 Thermal Printer User Instructions 1
Page 4
1 General Information and Warnings
RS-232 Interface
Feed Button
Power Input
Power Button
Power Indicator Light
Paper Cutter
Feed Light
Paper Dispenser
1.1 About this Manual
This manual is divided into chapters by the chapter number and the large text at the top
of a page. Subsections are labeled as shown by the 1 and 1.1 headings shown above.
The names of the chapter and the next subsection level appear at the top of alternating
pages of the manual to remind you of where you are in the manual. The manual name
and page numbers appear at the bottom of the pages.
1.1.1 Special Messages
Examples of special messages you will see in this manual are defined below. The
signal words have specific meanings to alert you to additional information or the relative
level of hazard.
NOTE: This is a Note symbol. Notes give additional and important information, hints
and tips that help you to use your product.
1.2 Description
The CP103 Printer is a portable thermal printer which uses a power supply adapter.
The communication interface is via RS-232 Serial. The CP103 printer can be used for
a variety of instruments or handheld data printing.
2 CP103 Thermal Printer User Instructions
Figure 1.1 Printer Description
Page 5
1.3 Package and Accessories
l Portable Thermal Printer
l RS-232 Serial Data Cable
l Thermal Paper Roll
l Driver disc (for RS-232/USB)
1.4 Warnings
l Read all operating instructions carefully before use.
l Avoid lengthy exposure to extreme heat or cold. Your printer works best
when operated at normal room temperature.
1.5 Prepare the Printer for Use
1. Install a roll of thermal paper in paper dispenser by lifting the dispenser cover
and placing the paper in with the thermal side facing outward. Refer to Figure
1.1 for paper dispenser location.
1a. To test which side is thermal, run a fingernail across the paper. A mark should
show on the paper. If no mark appears, try the other side of the paper.
2. With about 1/2 inch of paper sticking out, close the paper dispenser cover.
3. Connect RS-232 cable by plugging the PS/2 end of the cable to the printer.
Refer to Figure 1.1 for PS/2 connector location.
4. Connect AC power adapter to the printer by plugging the adapter connector
into the printer power supply plug. Refer to Figure 1.1 for power input location.
5. When ready, plug the other end of the AC adapter into a wall socket.
6. Plug the RS-232 serial cable in the host device.
7. Press the [POWER] button to turn on the printer.
CP103 Thermal Printer User Instructions 3
Page 6
1.6 Signal Light Status
1.6.1 Power Light
Power Light Light Color Printer Status Specification
Steady red light Red In the process of recharging battery
Red light blinks one time slowly every one second Red Battery power is low, recharge battery
Steady green light Green Battery voltage is good
Blinks between red and green light Red/Green Battery failure
Blinks 3 times between red and green light Red/Green Printing is finished or printer is in power on mode
No light None No power is detected
1.6.2 Feed Light
Feed light Light Color Printer status specification
Steady red light Red Feed paper or receiving data
Red light blinks quickly (2 times/sec) Red No paper
Red light blinks 3 times and then stops Red Printer parameter setting is finished and ok
Steady green light Green Printer status is ok but not connected bluetooth
Always alternating blink between red and green light Red/Green Printer dead, the buffer is full or temperature of
printhead is too high
1.7 Specifications
Item Specification
Dimension (W×D×H) 104×75×48mm
Weight 145g (without battery and paper roll)
Print Width 58mm
Print Speed 90mm/s (MAX)
Memory 10K byte buffer and 8M byte flash
Interface RS-232 baud rate 4800 - 115200bps
Resolution 8 dot/mm (203dpi)
Language Support Figure, English characters, bit-image, bar code, curve
Character Size ANK: 12*24(dot), 1.5*3.0 (W*L, mm);
Chinese Character: 24*24 (dot), 3.0*3.0 (W*L, mm)
Print Commands ESC/POS compatible command set
Other Features Paper auto-detection, power detection, thermal protection, with machine charging, automatic sleeping mode
Working Conditions Temperature: 0° - 50°, Humidity 20% - 85%
Storage Conditions Temperature: -20° - 70°, Humidity 5% - 95%
4 CP103 Thermal Printer User Instructions
Page 7
1.8 Paper Roll Specifications
Item Specification
Roll Width: 58mm
Roll Diameter: ≤ 43mm
Paper Thickness 0.06 - 0.08mm
Paper Type Thermal
CP103 Thermal Printer User Instructions 5
Page 8
2 Communication
The CP103 Mini Thermal Printer uses a RS-232 serial interface connection with the
host communication. If a serial port is unavailable on the host device, it is possible to
use a serial / USB converter.
2.1 RS-232 Serial Interface
RS-232 is developed according to the EIA standard asynchronous transmission serial
interface. The specifications are as following:
l Data transmission: serial interface
l Synchronization: asynchronous
l Signal Level: RS-232 level, logic 1:-5.4v, logic 0: +5.4v
l Hardware Flow Control: optional
l Baud rate: 1200 bps to 115200 bps (NOTE: At 1200 baud, continous
printing mode of data sending from Host is not supported)
l Data word length: 8 bits
l Stop bit: 1bit
l Parity: None
The printer self-testing page will show the current baud rate. The default baud rate is
115200bps. Refer to Chapter 3 for details on the Printer Self Test.
2.2 CP103 Printer PS/2 Connector
The following drawing illustrates the PS2 socket pinout located on the CP103 printer.
This connection is used for RS-232 communication with an indicator or computer and
requires the PS2 to RS-232 interface cable (serial cable).
Pin Description
1 TXD - data output
2 no connection
3GND
4 no connection (12V DC- IN is optional)
5 RXD - data input
6 no connection (12V DC- IN is optional)
6 CP103 Thermal Printer User Instructions
Page 9
2.3 Serial Cable Definition
5
1
96
43
2
87
Wire Colors PS2 Connector Pinout
Pin Description DB9 Pinout
male
white 1 TXD 2
blue 2 Null 8
black 3 GND 5
yellow 4 12 V Input 7
red 5 RXD 3
green 6 12 V Input 6
female
CP103 Thermal Printer User Instructions 7
Page 10
3 Printer Self Test and Cleaning
With the printer off, press and hold the [POWER] button until the printer begins to print
a self-testing page and then release the [POWER] button.
The page gives specific information regarding version of firmware, interface type, print
speed, default baud rate, etc.
3.1 Cleaning the Print Head
When the printer displays the following symptoms the print head should be cleaned:
l The printer does not print clearly and the thermal paper is good
l The page-test printing is not crisp and clear
l Paper feed is noisy
3.1.1 Steps for Cleaning Print Head
1. Turn off the power to the printer and open the paper dispenser cover. Remove
the thermal paper roll.
1a. If the printer was just printing then wait for the print head to cool down.
2. With a soft cotton cloth dipped in rubbing alcohol (make sure there is no
dripping), wipe the thermal printer head gently and remove any dust or debris.
3. Wait for the rubbing alcohol to evaporate completely and then place the
thermal paper roll back in the printer. Close the paper dispenser cover and
print a test page.
8 CP103 Thermal Printer User Instructions
Page 11
4 Programming
It is possible to make changes to the operation of the CP103 printer such as baud rate,
company name and address, time and date. A communication utility program is needed
and can be downloaded to a PC.
1. Connect the printer to the computer with the provided serial cable.
2. Open the PC communication utility program.
Figure 4.1 Communication Utility Program
Refer to the following sections to perform certain changes to the CP103 Thermal
Printer setup.
CP103 Thermal Printer User Instructions 9
Page 12
4.1 Communicate with the Printer
4.1.1 Select Printer Type
From the Set parameters tab under Select Printer Type, choose “Serial”.
4.1.2 Select COM Port
Select the PC communication port the printer is connected to.
Under Set Serial Port choose the correct COM port from the drop down choices.
10 CP103 Thermal Printer User Instructions
Page 13
4.1.3 Check Printer Baud Rate
Before selecting the baud rate in the communication utility, verify the baud rate of the
printer if it is not know. The baud rate of the printer and computer need to match.
1. Perform a printer self test by turning off the printer with the [POWER] button.
2. With the printer off, press and hold the [POWER] button until the printer begins
to print a self-testing page and then release the [POWER] button.
3. The “default baud rate” designates the current baud rate of the printer.
4.1.4 Select Baud Rate
Select the baud rate within the utility that matches the baud rate of the printer.
Under Set Serial Port choose the correct baud rate from the drop down choices and
press Open.
CP103 Thermal Printer User Instructions 11
Page 14
4.2 Make Changes to Printer Configuration
Strings of data can be entered to make certain changes to the printer.
Figure 4.2 Change Baud Rate Example
4.2.1 Change Printer Baud Rate
Change the baud rate of the printer to match the host device.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+CHANGE BAUD:n
Where n is the number associated with the desired baud rate.
nBaud Rate
0 9600 (default)
1 14400
2 19200
3 38400
4 57600
5 115200
6 4800
7 1200
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
12 CP103 Thermal Printer User Instructions
Page 15
4.2.2 Set the Printer Data Bits
Change the data bits of the printer to match the host device.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+UART LEN:n
Where n is the number associated with the desired data bits
Note: Dont change the paramter if possible. If set n=1, must set parity of COM.
4.2.3 Set the Printer Stop Bit
n Data Bits
0 8 bit (default)
19 bit
Change the stop bit of the printer to match the host device.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+UART STOP:n
Where n is the number associated with the desired stop bit
nStop Bit
0 1 (default)
11.5
22
CP103 Thermal Printer User Instructions 13
Page 16
4.2.4 Set the Printer Parity
Change the parity of the printer to match the host device.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+UART CRC:n
Where n is the number associated with the desired parity
NOTE: Only changed if the Data Bit has been changed to 9.
4.2.5 Restore Default Baud Rate
Set factory default baud rate.
nParity
0 none (default)
1even
2 odd
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
1f 40
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
14 CP103 Thermal Printer User Instructions
Page 17
4.2.6 Time and Date
Make changes to time and date settings
Check Current Time and Date
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
Time and Date Setting
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+TIME
bottom window if the command was sent.
string:
+TIME: year-month-day,hour-minute-second
For example:+TIME:2013-09-22,15:20:07
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
Set Time and Date Position on Page
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+PRINT TIME ADD:n
Where n is the number associated with the desired time and date location.
n Description
0 put date and time in page head (default)
1 put date and time in page end
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
CP103 Thermal Printer User Instructions 15
Page 18
4.2.7 Company Information
Enter company specific information.
Open or Close Auto-print Company Information
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+SELECT COMPANY:n
Where n is the number associated with the desired time and date location.
n Description
0 do not print company information (default)
1 print company information
2 only print address
3 only print telephone number
4 print company and address
5 print company and telephone number
6 print address and telephone number
7 print company, address and telephone number
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
Set Company Name
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+COMPANY:NAME
NAME is company name. Maximum is 12 bits
For example input: +COMPANY: Major Technology
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
16 CP103 Thermal Printer User Instructions
Page 19
Set Company Address
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+ADDRESS:address
address is company the address. Maximum is 12 bits
For example input: +ADDRESS: 222 Main Street
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
Set Company Telephone Number
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+TELEPHONE:NUM
NUM is telephone number. Maximum is 12 bits
For example input: +TELEPHONE:123-456-7890
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
4.2.8 Underline Printing
Enable or disable all characters printed with an underline.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
Where n is the number associated with enable or disable underline printing.
1f 2d n
n Description
00 disable underline printing (default)
01 enable all character in underline printing mode
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
CP103 Thermal Printer User Instructions 17
Page 20
4.2.9 Inverse Font
Enable or disable inverse font printing.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
Where n is the number associated with enable or disable inverse font printing.
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
4.2.10 Line Feed
string:
1f 49 n
n Description
00 disable inverse font printing (default)
01 enable inverse font printing
bottom window if the command was sent.
Enable or disable line feed after printing.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
1f 19 n
Where n is the number associated with enable or disable inverse font printing.
n Description
00 automatically feed 2 lines after printing (default)
01 no line feed after print
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
18 CP103 Thermal Printer User Instructions
Page 21
4.2.11 Character Dot Choice
Choose the number of columns printed.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
1f 44 n
Where n is the number associated with the dot size and number of columns..
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
n Description
00 12*24 dot, 32 columns (default)
01 8*16 dot, 48 columns
4.2.12 Font Choice
Choose between Arial and bold fonts.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
Where n is the number associated with the type of font used for printing.
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
string:
1f 46 n
n Description
00 Arial (default)
01 bold
bottom window if the command was sent.
CP103 Thermal Printer User Instructions 19
Page 22
4.2.13 Time and Date Display Mode
Format the time and date.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
1f 54 n m
Where n is the number associated with enable or disable time and date printing.
Where m is the format of the time and date.
n m Description
00 don’t print time and date after printing (default)
01 print time and date after printing
00 format: month/day/year
01 format: day/month/year
02 format: year/month/day
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
4.2.14 Print Height and Width
Choose between normal or double width print.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
1d 21 n
Where n is the number associated with the width of font used for printing.
3. Click on the box to the left of HEX.
n Description
00 normal (default)
01 double wide
10 double height
11 double height / width (default)
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
20 CP103 Thermal Printer User Instructions
Page 23
4.2.15 Upside Down Printing
Enable or disable upside down printing.
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
1b 7b n
Where n is the number associated with the orientation used for printing.
3. Click on the box to the left of HEX.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
n Description
00 upside down printing off (default)
01 upside down printing on
4.2.16 Printer Escape Command Code Definitions
Command Hex Print Formatted Data
<ESC> 0 1b 30 HH:MM 24 hour format
<ESC> 1 1b 31 HH:MM_?M 12 hour format with AM or PM
<ESC> 2 1b 32 MM/DD/YY month/day/year
<ESC> 3 1b 33 DD-MM-YY day-month-year/numeric month
<ESC> 4 1b 34 DD-MON-YY day-month-year with 3 letter abbreviation of the month
<ESC> 5 1b 35 DOW day of week abbreviation
CP103 Thermal Printer User Instructions 21
Page 24
4.2.17 Logo Download
A logo can be added to the printed ticket. Before downloading the logo, the file must
be sized to 300 DPI. The logo must be saved as a .bmp file.
1. Go to the Upgrade tab.
2. Under Download NV LOGO, click on the [Loading Logo file] button.
3. The Open file window will appear. Find the logo file to load and click the
[Open] button.
22 CP103 Thermal Printer User Instructions
Page 25
4. If the logo is the correct size a window will appear with three different logo
views. If the size is incorrect, an error will be displayed. Click the [OK] button
to continue or [Cancel] to escape.
5. The file path should be showing in the window. Click the [Download] button.
Auto Print Logo
1. Go to the Testing tab.
2. Under the CMD Testing window (the top window) enter the following command
string:
+SELECT LOGO:n
Where n is the number associated with the desired time and date location.
n Description
0 do not print logo (default)
1 print the first logo
2 print the second logo
3. Click on the box to the left of SendNewLine.
4. Click the [SEND] button. The typed in command string will be displayed in the
bottom window if the command was sent.
The CP103 printer also supports full ESC/POS commands which are not listed in this
manual. Refer to the
CP103 Thermal Printer User Instructions 23
Page 26
Page 27
Brecknell USA
1000 Armstrong Dr.
Fairmont MN 56031
Tel:507-238-8702
Fax:507-238-8271
Email: sales@brecknellscales.com
http://www.brecknellscales.com
Brecknell UK
Foundry Lane,
Smethwick, West Midlands,
England B66 2LP
Tel:+44 (0) 8452 46 6717
Fax:+44 (0) 8452 46 6718
Email:
sales@brecknellscales.co.uk
http://www.brecknellscales.com
Loading...
