Saeco V-spresso User Manual

OPERATING INSTRUCTIONS

Read these operating instructions carefully before using the machine

TYPE SUP021YTDR

FOR HOUSEHOLD USE ONLY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: 1 Read all instructions and information in this instruction book and any other

literature included in this carton referring to this product before operating or using this appliance.

2 Do not touch hot surfaces. Use handles or knobs. 3 To protect against fire, electric shock and personal injury do not immerse cord,

plugs or appliance in water or other liquid.

4 Close supervision is necessary when any appliance is used by or near children. 5 Unplug from outlet when not in use and before cleaning. Allow to cool before

putting on or taking off parts, and before cleaning the appliance.

6 Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions or has been damaged in any way. Return appliance to the nearest authorized service centre for examination, repair or adjustment.

7 The use of accessory attachments not recommended by the appliance manufacturer

may result in fire, electric shock or personal injury.

8 Do not use outdoors. 9 Do not let cord hang over edge of table or counter, or touch hot surfaces. 10 Do not place on or near a hot gas or electric burner, or in a heated oven. 11 Always turn appliance “OFF”, then plug cord into the wall outlet. To disconnect,

turn switch to “OFF”, then remove plug from wall outlet. 12 Do not use appliance for other than intended household use. 13 Use extreme caution when using hot steam.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service centre. Do not immerse base in water. To reduce the risk of fire or electric shock, do not disassemble the base. There are no user serviceable parts inside. Repair should be done by authorized service personnel only.

1 Check voltage to be sure that the voltage indicated on the nameplate corresponds

with your voltage.

2 Never use warm or hot water to fill the water tank. Use cold water only. 3 Keep your hands and the cord away from hot parts of the appliance during

operation.

4 Never clean with scouring powders or hard implements. Simply use a soft cloth

dampened with water.

5 For optimal taste of your coffee, use purified or bottled water. Periodic descaling is

still recommended every 2-3 months.

INSTRUCTIONS FOR THE POWER SUPPLY CORD

A A short power-supply cord is provided to reduce risks of getting tangled up or

tripping over a longer cord.

B Longer extension cords are available and may be used if care is exercised in their use. C If a long extension cord is used:

1 the marked electrical rating of the extension cord should be at least as great as

the electrical rating of the appliance.

2 if the appliance is of the grounded type, the extension cord should be a

grounding type

3 the cord does not hang from the table to avoid the risk of getting caught up in it.

GENERAL INFORMATION

This coffee machine is ideal for preparing espresso coffee either with coffee beans or pre-ground coffee and also features a device for dispensing steam and hot water. This elegantly styled machine is designed for household use only. It is not suitable for continuous professional-type use.

Warning. The manufacturer shall accept no liability for damage or injury caused by:

• improper use or use for other than the intended purposes;

• repairs carried out by anyone other than an authorized service center;

• tampering with the power cord;

• tampering with any machine component;

• use of spare parts and accessories other than those supplied by the manufacturer.

• mineral or scale build up and/or freezing damage.

The warranty will be voided in such cases.

TO FACILITATE INTERPRETATION

A warning triangle draws attention to the instructions that are important for user safety. Please carefully abide by these instructions to avoid serious injury!

This symbol is used to highlight information that is especially important for ensuring optimal use of the machine.

TECHNICAL SPECIFICATIONS

• Voltage rating See rating plate on appliance

• Power rating See rating plate on appliance

• Casing material

Metal

• Size (w x h x d)

10.3 x 14.2 x 17.2 inches - 260 x 360 x 436 mm

• Weight

26.5 pounds - 12 kg

• Cord length

47.2 inches - 1200 mm

• Control panel

Front (Digital)

• Water tank

67.5 oz - 2 lit. (Removable)

• Power supply See rating plate on appliance

• Coffee container capacity

(2/3 lb) - (300 g) of coffee beans

• Pump pressure

15 bars

• Boiler

Stainless Steel

• Safety devices

Boiler pressure safety valve

safety thermostat

ENGLISH

HOW TO USE THESE OPERATING INSTRUCTIONS

Keep these operating instructions in a safe place and make them available to anyone else who should use the coffee machine. For further information or an explanation of problems not completely or sufﬁciently addressed in these instructions, contact an authorized service center.

Subject to engineering and manufacturing changes as warranted by technological developments. Machine in conformity with European Directive 89/336/EEC (Italian Legislative Decree 476 of 04/12/92) concerning electromagnetic compatibility. The machine complies to American regulations (c UL us) FCC Part. 15 relative to electromagnetic compatibility.

SAFETY RULES

IN THE EVENT OF AN EMERGENCY

Immediately unplug the appliance.

THE APPLIANCE MAY ONLY BE USED

- Indoors.

- To prepare coffee, dispense hot water, froth milk or heat beverages using steam.

- For household use.

- By adults in full control of their physical and mental capacities.

NEVER USE THE APPLIANCE

for purposes other than those indicated above to avoid hazards. Never place any substances in the containers other than those speciﬁed in the instruction manual. When you ﬁll a container, make sure all nearby containers are closed. Fill the water tank only with fresh water: hot water and/or other liquids may damage the machine. Do not use carbonated water. The coffee grinder may be adjusted only while it is running. Do not introduce your ﬁngers or any material other than coffee beans into the coffee grinder. Before attempting to access the inside of the coffee grinder, switch OFF the machine and remove the plug from the outlet. Do not put coffee beans or instant coffee into the ground coffee container.

POWER SUPPLY

Connect the coffee machine to a suitable outlet. The voltage must match the voltage speciﬁed on the appliance rating plate.

INSTALLATION

- Choose a ﬂat, level supporting surface. Do not place on a hot surface!

- Maintain a distance of 4 in / 10 cm from walls and electric or gas burners.

- Do not keep at temperatures below 32° F / 0° C; freezing may damage the appliance.

- The power outlet must be accessible at all times.

- The power cord must not be damaged, secured with clamps, placed on very hot surfaces etc.

- Do not let the power cord hang loosely (Warning: danger of tripping or of causing the appliance to fall).

- Do not use the power cord to carry or pull the coffee machine.

HAZARDS

- The appliance must not be used by children or by individuals unacquainted with the operating instructions.

- The appliance is dangerous for children. If left unattended it must be switched off.

- Do not leave the materials used to pack the appliance within children’s reach.

- Do not direct a jet of hot steam and/or hot water toward yourself or others: danger of scalding.

- Do not introduce any objects through the openings in the appliance (Electrical hazard!).

- Do not touch the plug when your hands or feet are wet. Do not unplug the appliance by pulling on the power cord.

- Warning: contact with hot water, steam or and hot water/steam nozzle may cause burns.

FAULTS

- Do not use the appliance if it malfunctions or you suspect damage, e.g. after a fall.

- Repairs must be performed by an authorized service center.

- Do not use an appliance with a defective power cord. The cord may only be replaced by a service center (Electrical hazard!).

- Switch off the appliance before opening the service door. Danger of scalding!

CLEANING

- Before cleaning the appliance, unplug it and allow it to cool down.

- Avoid exposing the appliance to splashes of water. Do not immerse it in water.

- Do not dry machine components in a conventional or microwave oven.

SPARE PARTS

To guarantee safety, you should use only original spare parts and accessories.

DISPOSAL

- The packing materials can be recycled.

- Appliance: unplug the appliance and cut the power cord.

- Deliver the appliance and power cord to a service center or public waste disposal facility.

ENGLISH

Cup warming surface

Pre-ground

coffee lid

Control panel

Service door

Height-adjustable

coffee dispenser

Tray full indicator

Drip tray + grill

Coffee bean container lid

Coffee bean container

Water tank lid

Water tank

Steam knob

ON/OFF switch

Hot water/ steam wand

Grind adjustment knob

Doser adjustment knob

Pre-ground

coffee scoop

Cleaning brush Brew group key

Cartridge ﬁlter

applicator

Water hardness

test strip

“Aqua Prima” cartridge ﬁlter

Digital display

Brew group

Dregs drawer / waste box

Programming “MENU” selection button

“OK” in programming mode

Pre-ground coffee selection button

Large coffee button

“Page up” in programming mode

Hot water selection button

“ESC” in programming mode

Small coffee button

Coffee button

“Page down” in programming mode

INSTALLATION /

OT W

ATE

UP.

INS

NG U

CT P

Y FO

OT WA

MIN

G UP

PRIMING

The messages displayed by the machine during operation are shown on page 18.

Remove the drip tray from the box and put in place on

Fill the coffee bean container with coffee beans.

the machine.

Move the ON/OFF switch to “I” to turn on the machine.

The display will signal that the machine is warming

Press the hot water button.

up.

Important warning for using the “Aqua Prima Filter” can be found at page 18.

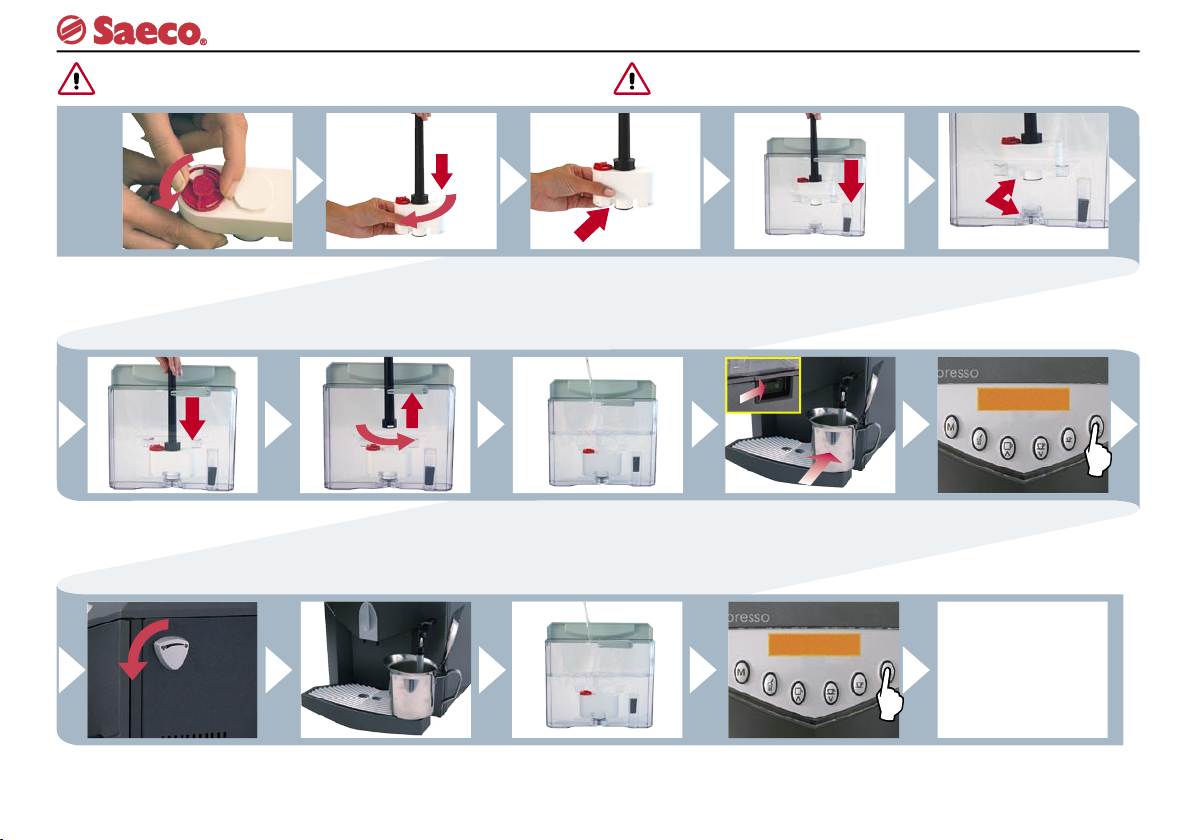

The “Aqua Prima” ﬁlter can be installed (see pg.11). Allow to soak for 30 minutes prior to ﬁrst use.

Fill the tank with fresh water.

Place a container under the steam wand.

See rating plate

Insert the plug into a suitable outlet.

Open the knob to prime the machine.

Note: Prime the machine during initial set up, if the machine has not been used for several days, after reﬁlling the water tank, or any time the display reads

“VENTILATE”

Wait until a steady stream of water ﬂows out from the wand.

Close the knob to stop the ﬂow of water. Remove the container.

Press the hot water button again to turn off the hot water feature. Wait for machine to reach coffee temperature.

The machine is ready for use.
